<< Previous
Next >>

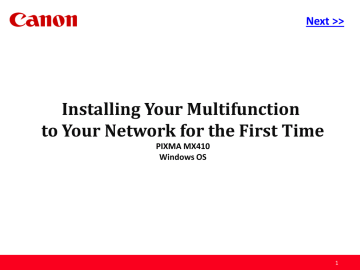

Installing Your Multifunction
to Your Network for the First Time
PIXMA MX410
Windows OS
1
<< Previous
Next >>
Installing Your Multifunction
to Your Network for the First Time
PIXMA MX410
Windows OS
Preparing to Connect My Multifunction to My Network
Network Requirements
Important Information You Need Before Adding Your Multifunction
Installing the Drivers & Application Software
Downloading & Installing the Drivers
Download the Driver
Installing the Driver
Downloading & Installing Application Software
3
3
4
5
13
13
22
2
Preparing to Connect My Multifunction
To My Network
<< Previous
Next >>
Network Requirements
Before connecting the machine to the network, make sure that configuration of the computer and access point or router is
complete, and that the computer is connected to the network.
Notes on Network Connection
•
The configuration, router functions, setup procedures and security settings of the network device vary depending on your
system environment. For details, refer to your device's instruction manual or contact its manufacturer.
•
The machine cannot be used over a wireless and wired connection at the same time.
Wireless Connection
Connect to your network environment over a wireless connection.
3
Preparing to Connect My Multifunction
To My Network
<< Previous
Next >>
An "Ad-hoc connection," which establishes a direct
connection to the computer over a wireless connection
without using an access point, is not supported.
Be sure to prepare an access point.
Important Information You Need Before Adding Your Multifunction
The following information is required to connect to your access point or router.
• Access Point Name/Network Name:
Also referred to as SSID. A name to identify the specific access point.
• Network Key:
Also referred to as encryption key, WEP key or WPA/WPA2 passphrase, Pre-Shared key.
A password required to set to prevent unauthorized access to communication.
Check your access point or router for the following information, and then write it down.
NOTE: For details on how to check the following information, refer to the manual of your access point or router, or contact its manufacturer.
4
Installing the Drivers and Software
<< Previous
Next >>
Installing the Driver
To use the machine by connecting it to a computer, software including the drivers needs to be copied (installed) to the computer's hard disk. The
installation process takes about 20 minutes. (The installation time varies depending on the computer environment or the number of applications
to be installed.) . We recommend using the Setup CD-ROM for installation. If you do not have the CD-ROM or want to use drivers downloaded
from our web site , Click here for instructions.
Step One
Step Two
Insert the Setup CD-ROM into your computer’s CDROM drive
On the opening screen select Easy Install
5
Installing the Drivers and Software
Step Three
On the next screen click Install
<<Previous
Next>>
Step Four
Select Use the printer with wireless LAN connection, then click Next.
6
Installing the Drivers and Software
<<Previous
Step Five
Step Six
Click Yes for the License Agreement
Click Yes or No for the License Agreement Adobe RGB
Next>>
7
Installing the Drivers and Software
<<Previous
Step Seven
Step Eight
Click Next if the Please Allow All Install Wizard Processes appears
Click Next on the Printer Detection screen
Next>>
8
Installing the Drivers and Software
<<Previous
Step Nine
Step Ten
Turn on the printer and click OK
Click Next on the Set Up New Printer Window
Next>>
9
Installing the Drivers and Software
<<Previous
Next>>
Step Eleven
Step Twelve
Connect the printer and computer using the network setup cable.
The window closes automatically when detection is completed
If the Detected Access Points List appears, select the access point (SSID)
You will be using, enter the network key and click Connect.
10
Installing the Drivers and Software
<<Previous
Step Twelve, continued
Step Thirteen
If the Confirm Connection Access Point screen appears, click Yes
Disconnect the network setup cable then click Next
Next>>
11
Installing the Drivers and Software
<<Previous
Step Fourteen
Click Complete or OK on the Setup Completion screen. Your device and software have now been set up. Please follow any remaining
On-screen instructions to finish and exit.
12
Downloading and Installing the Drivers
<< Previous
Next >>
Downloading the Driver
To use the machine by connecting it to a computer, software including the drivers needs to be copied (installed) to the computer's hard disk. The
installation process takes about 20 minutes. (The installation time varies depending on the computer environment or the number of applications
to be installed.) .
Step Two
Step One
Select your operating system in the Select OS dropdown
menu.
Go to the Drivers & Software for your model
13
Downloading and Installing the Drivers
<< Previous
Next >>
Step Three
In the Drivers section, click the link* (the “.exe” file) for the MP Driver.
*Name varies by model
* The file name turns red when the mouse pointer is on the file name.
14
Downloading and Installing the Drivers
<< Previous
Next >>
Step Four
On the next screen, read the information and instructions and click I Agree - Begin Download
Once the file has been downloaded, double-click it to begin the installation process
IMPORTANT:
• Quit all running applications before installation.
• Log on as the administrator (or a member of the Administrators group).
• Do not switch users during the installation process.
• Internet connection may be required during the installation. Connection fees apply.
• It may be necessary to restart your computer during the installation process. Follow the on-screen instructions. The
installation resumes once your computer has restarted.
If the firewall function of your security software is turned on, a warning message may appear that Canon software is attempting
to access the network. If such a warning message appears, set the security software to always allow access.
15
Downloading and Installing the Drivers
<< Previous
Next >>
Installing the Driver
NOTE: If a User Account Control screen appears, click Continue or Yes (depending on Windows version) to continue.
NOTE: If the same screen reappears in subsequent steps, click Continue or Yes.
Step One
Step Two
Click Next on the Welcome screen.
Select your place of residence and click Next.
16
Downloading and Installing the Drivers
<< Previous
Next >>
Step Three
Step Four
Click Yes for the License Agreement.
On the Connection method screen select Use the printer with
wireless LAN connection, then click Next.
If the Please Allow All Install Wizard Processes screen appears,
click Next.
Installation starts. Follow any on-screen instructions to install the
software.
17
Downloading and Installing the Drivers
<< Previous
Step Five
Step Six
Turn on the printer then click OK..
Click Next on the Set Up New Printer window.
Next >>
18
Downloading and Installing the Drivers
<< Previous
Next >>
Step Seven
Connect the printer and computer using the network setup
cable (USB cable). The USB port is located near the center on
the back of the machine.
19
Downloading and Installing the Drivers
<< Previous
Next >>
Step Eight
If the Detected Access Points List screen appears, select
the target access point name/network name (SSID),
enter the network key and click Connect.
If the Confirm Connection Access Point screen appears, make sure
that the target access point is displayed,then click Yes.
20
Downloading and Installing the Drivers
Step Nine
Remove the network setup cable (USB
cable), then click Next.
<< Previous
Next >>
Step Ten
Click Complete on the Setup Completion screen.
21
Downloading and Installing Application Software
<< Previous
Next >>
In order to take advantage of your machine’s scanning capabilities, you must have scanning software installed on your computer. MP
Navigator EX is a software application which makes it easy to import your scanned images into an application software directly, to
print them , attach to an E-mail or to save them to your computer. The latest version of this software can be downloaded from our web
site. The software can also be installed using the Setup CD-ROM. After inserting the CD, select Custom Install on the opening screen
, then select MP Navigator EX and any other software you want to install, then click Next. Follow the instructions that appear on your
computer screen.
Follow the instructions, below, if you want to obtain the software from our web site.
Step One
Step Two
Go to the Drivers & Software for your model
Select your operating system in the Select OS dropdown
menu.
22
Downloading and Installing Application Software
<< Previous
Next >>
Step Three
Select the MP Navigator EX download file in the Software section
Step Four
On the next screen, read the information and instructions and click I Agree - Begin Download
Once the file has been downloaded, double-click it to begin the installation process
IMPORTANT:
• Quit all running applications before installation.
• Log on as the administrator (or a member of the Administrators group).
• Do not switch users during the installation process.
• Internet connection may be required during the installation. Connection fees apply.
• It may be necessary to restart your computer during the installation process. Follow the on-screen instructions. The installation resumes
once your computer has restarted.
If the firewall function of your security software is turned on, a warning message may appear that Canon software is attempting to access
the network. If such a warning message appears, set the security software to always allow access.
23
Downloading and Installing Application Software
<<Previous
Step Five
Follow any instructions that appear on the screen
24
