Fuse Holders

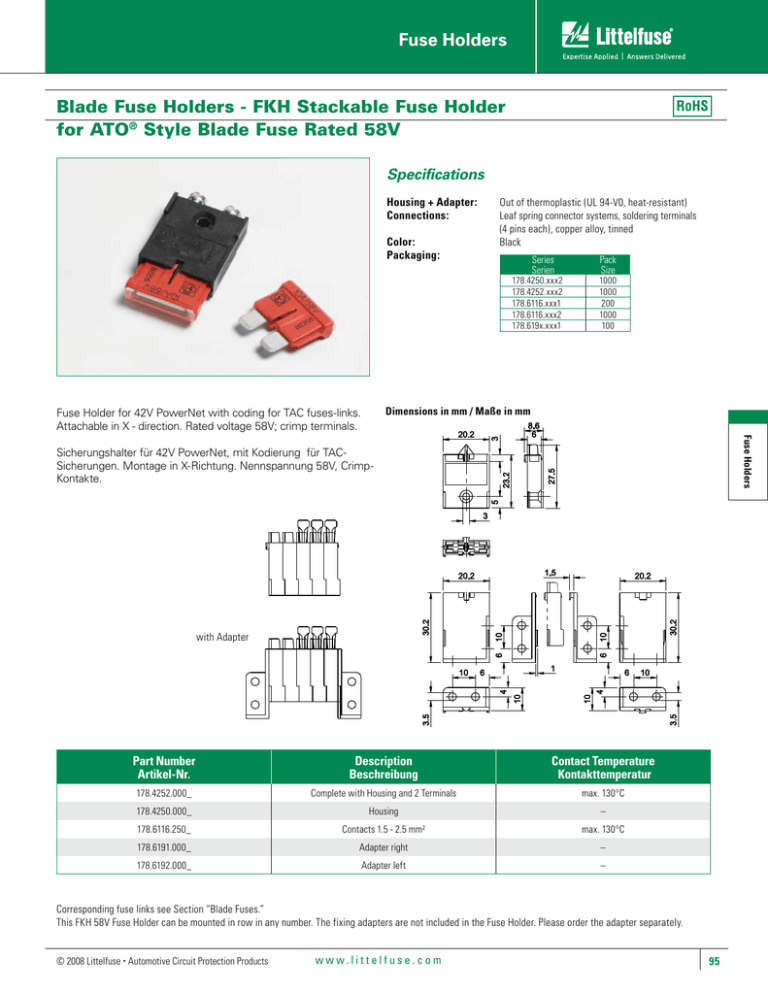

Blade Fuse Holders - FKH Stackable Fuse Holder
for ATO® Style Blade Fuse Rated 58V
Specifications
Housing + Adapter:
Connections:
Color:
Packaging:
Out of thermoplastic (UL 94-V0, heat-resistant)
Leaf spring connector systems, soldering terminals
(4 pins each), copper alloy, tinned
Black
Series
Serien
178.4250.xxx2
178.4252.xxx2
178.6116.xxx1
178.6116.xxx2
178.619x.xxx1
Pack
Size
1000
1000
200
1000
100
Dimensions in mm / Maße in mm
Fuse Holder for 42V PowerNet with coding for TAC fuses-links.
Attachable in X - direction. Rated voltage 58V; crimp terminals.
Fuse Holders
Sicherungshalter für 42V PowerNet, mit Kodierung für TACSicherungen. Montage in X-Richtung. Nennspannung 58V, CrimpKontakte.
with Adapter
Part Number
Artikel-Nr.
Description
Beschreibung
Contact Temperature
Kontakttemperatur
178.4252.000_
Complete with Housing and 2 Terminals
max. 130°C
178.4250.000_
Housing
–
178.6116.250_
Contacts 1.5 - 2.5 mm²
max. 130°C
178.6191.000_
Adapter right
–
178.6192.000_
Adapter left
–
Corresponding fuse links see Section “Blade Fuses.”
This FKH 58V Fuse Holder can be mounted in row in any number. The fixing adapters are not included in the Fuse Holder. Please order the adapter separately.
© 2008 Littelfuse • Automotive Circuit Protection Products
www.littelfuse.com
95
Fuse Holders
Blade Fuseholders - FKH Stackable Fuseholder
for ATO® Style Blade Fuse Rated 80V
Specifications
Housing + Adapter:
Connections:
Color:
Out of thermoplastic (UL 94-V0, heat-resistant)
Leaf spring connector systems, soldering
terminals, copper alloy, tinned
Black
Dimensions in mm / Maße in mm
Fuseholder for ATO / FKS size fuses-links. Attachable in
X - direction. Rated voltage 80V; crimp terminals.
Sicherungshalter für Sicherungen in ATO / FKS-Größe.
Montage in X-Richtung. Nennspannung 80V, Crimp-Kontakte.
Fuse Holders
with Adapter
Part Number
Artikel-Nr.
Description
Beschreibung
Contact Temperature
Kontakttemperatur
178.6152.000_
Complete
max. 130°C
178.6150.000_
Housing
–
178.6116.250_
Complete with 1.5 - 2.5 mm²
max. 130°C
178.6152.250_
With 200 mm wiring loop
–
178.6191.000_
Adapter right
–
178.6192.000_
Adapter left
–
Last figure of part number = packaging code, see Section “Packaging Index,” pg. 157.
Corresponding fuse links see Section “Blade Fuses.”
This FKH-Fuseholder can be mounted in row in any number. The fixing adapters are not included in the fuseholder. Please order the adapter seperately.
© 2006 Littelfuse • Automotive Circuit Protection Products
www.littelfuse.com
101
Fuse Holders-PCB
Blade Fuse Holders - FKH Fuse Holder with 90˚
connection for ATO® Style Blade Fuse Rated 80V
Specifications
Housing:
Connections:
Color:
Packaging:
Out of thermoplastic (UL 94-V0, heat-resistant)
Leaf spring connector systems, soldering contacts
(2 pins), copper alloy, tinned
Black
Series
Serien
Fuse Holders
PCB
178.7017.xxx1
Pack
Size
100
Fuse Holder for ATO® / FKS size fuses-links. 90° bended
solderable tin plated contacts. Rated voltage 80V.
Sicherungshalter für Sicherungen in ATO® / FKS-Größe. 90°gewinkelte, verzinnte Lötanschlüsse. Nennspannung 80V.
Dimensions in mm / Maße in mm
Part Number
Artikel-Nr.
Description
Beschreibung
Contact Temperature
Kontakttemperatur
178.7017.0001
Complete
max. 130°C
Corresponding fuse links see Section “Blade Fuses.”
98
www.littelfuse.com
© 2008 Littelfuse • Automotive Circuit Protection Products
