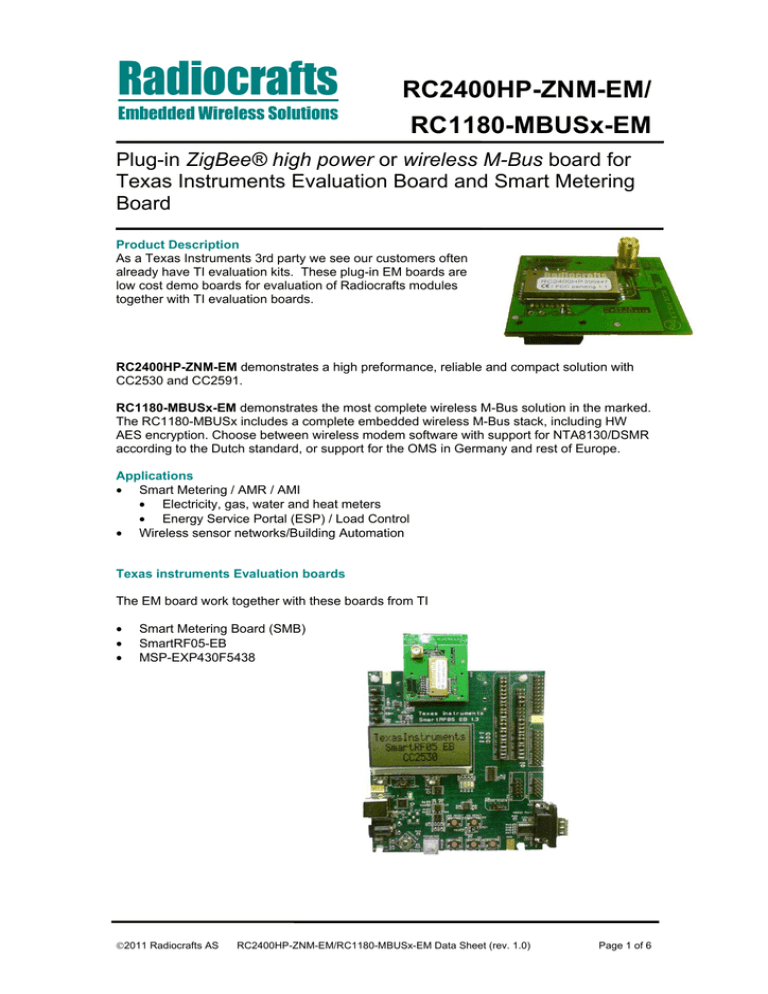

Radiocrafts RC2400HP-ZNM-EM/ RC1180-MBUSx-EM

Radiocrafts  RC2400HP-ZNM-EM/ RC1180-MBUSx-EM
Radiocrafts
RC2400HP-ZNM-EM/
Embedded Wireless Solutions
RC1180-MBUSx-EM
Plug-in ZigBee® high power or wireless M-Bus board for
Texas Instruments Evaluation Board and Smart Metering
Board
Product Description
As a Texas Instruments 3rd party we see our customers often
already have TI evaluation kits. These plug-in EM boards are
low cost demo boards for evaluation of Radiocrafts modules
together with TI evaluation boards.
RC2400HP-ZNM-EM demonstrates a high preformance, reliable and compact solution with
CC2530 and CC2591.
RC1180-MBUSx-EM demonstrates the most complete wireless M-Bus solution in the marked.
The RC1180-MBUSx includes a complete embedded wireless M-Bus stack, including HW
AES encryption. Choose between wireless modem software with support for NTA8130/DSMR
according to the Dutch standard, or support for the OMS in Germany and rest of Europe.
Applications
• Smart Metering / AMR / AMI
• Electricity, gas, water and heat meters
• Energy Service Portal (ESP) / Load Control
• Wireless sensor networks/Building Automation
Texas instruments Evaluation boards
The EM board work together with these boards from TI
•
•
•
Smart Metering Board (SMB)
SmartRF05-EB
MSP-EXP430F5438
©2011 Radiocrafts AS
RC2400HP-ZNM-EM/RC1180-MBUSx-EM Data Sheet (rev. 1.0)
Page 1 of 6
Radiocrafts
RC2400HP-ZNM-EM/
Embedded Wireless Solutions
RC1180-MBUSx-EM
Quick Product Introduction RC2400HP-ZNM-EM
The RC2400HP-EM includes a RC2400HP module with embedded ZNM firmware. The
RC2400HP is a very compact and reliable solution for high power ZigBee based on
CC2530+C2591.
The board is shipped with the ZigBee Network Module firmware, but it can also be used as an
HW platform for customers wanting to develop their own firmware inside CC2530.
For more details on RC2400HP and our ZNM functionality see
•
•
•
RC2400/RC2400HP Data sheet
RC2400/RC2400HP-ZNM User Manual for details on how to use the ZNM module
with preloaded ZigBee Pro stack and API through a serial interface.
RC2400/RC2400HP Firmware Development User Manual for using the module as
a hardware platform only
These documents are available at www.radiocrafts.com
Using the RC2400HP-ZNM-EM on the SmartRF05 EB, the ZNM UART port is available at the
RS232 connector on the board. This means our PC tool ZNM-CCT can be used with
RC2400HP-ZNM through this port.
Jumper to
activate
RS232 port
RS232 port
P2
P1
1
3
5
2
4
6
7
9
11
8
10
12
13
15
17
19
14
16
18
20
GND
RC2400HP pin 2
RC2400HP pin 4
RC2400HP pin 6
RC2400HP pin 5
RC2400HP pin 17
GND
VCC
RC2400HP pin 19
VCC
RC2400HP pin 20
RC2400HP pin 28
RC2400HP pin 27
RC2400HP pin 12
RC2400HP pin 26
RC2400HP pin 16
RC2400HP pin 25
RC2400HP pin 18
1
3
5
2
4
6
7
9
11
8
10
12
13
15
17
19
14
16
18 RC2400HP pin 3
20
GND
GND
GND
Figure 1 RC2400HP-ZNM-EM pin-out for RC2400HP
©2011 Radiocrafts AS
RC2400HP-ZNM-EM/RC1180-MBUSx-EM Data Sheet (rev. 1.0)
Page 2 of 6
Radiocrafts
Embedded Wireless Solutions
RC2400HP-ZNM-EM/
RC1180-MBUSx-EM
P2
P1
1
3
5
2
4
6
7
9
11
8
10
12
13
15
17
19
14
16
18
20
GND
UART CTS
UART RXD
UART TXD
GND
VCC
Programming
VCC
Programming
SPI SS
SP CLK
Reset
SPI MOSI
ZNM_CFG0
SPI MISO
ZNM_CFG1
1
3
5
2
4
6
7
9
11
8
10
12
13
15
17
19
14
16
18 UART RTS
20
GND
GND
GND
Figure 2 RC2400HP-ZNM-EM pin-out for RC2400HP-ZNM
P2
P1
1
3
5
2
4
6
7
9
11
8
10
12
13
15
17
19
14
16
18
20
GND
CC2530 P0 4
CC2530 P0 1
CC2530 P0 2
CC2530 P0_3
CC2530 P0_6
GND
VCC
CC2530 P2_1
VCC
CC2530 P2_2
CC2530 P1_4
CC2530 P1_5
CC2530 reset
CC2530 P1_6
CC2530 P1_2
CC2530 P1_7
CC2530 P2_0
1
3
5
2
4
6
7
9
11
8
10
12
13
15
17
19
14
16
18 CC2530 P0
20
GND
GND
GND
Figure 3 RC2400HP-EM pin-out for CC2530
©2011 Radiocrafts AS
RC2400HP-ZNM-EM/RC1180-MBUSx-EM Data Sheet (rev. 1.0)
Page 3 of 6
5
Radiocrafts
Embedded Wireless Solutions
RC2400HP-ZNM-EM/
RC1180-MBUSx-EM
Quick Product Introduction RC1180MBUSx-EM
The RC1180MBUSx-EM demonstrates the industry leading wireless M-Bus solution from
Radiocrafts. The RC1180MBUS module is a complete HW and SW solution with HW AES128
encryption and a patent pending message handler.
RC1180-MBUS comes with different firmware feature sets, based on one standard hardware
platform. The form factor, pin-out and interface are the same for all firmware versions. The
MBUS2 feature set is compliant with NTA 8130/DSMR for the Netherlands, and the RC1180MBUS3 feature set to support OMS and MUC compliance according to the German
standardisation work. Custom variation of the module is available on request.
For more details on RC1180MBUS see
- RC1180-MBUS Data sheet
- MBUS User Manual
These documents are available at www.radiocrafts.com
Using the RC1180-MBUSx-EM on the SmartRF05 EB, the UART port is available at the
RS232 connector on the board. This means our PC tools MBUS-CCT and MBUS-DEMO can
be used with RC1180-MBUSx through this port.
Jumper to
activate
RS232 port
RS232 port
P2
P1
GND
RC1180 PIN 2 UART CTS
RC1180 PIN 4 CONFIG
RC1180 PIN 6 UART RXD
RC1180 PIN 5 UART TXD
GND
1
3
5
2
4
6
7
9
11
8
10
12
13
15
17
19
14
16
18
20
VCC
RC1180 PIN 19
VCC
RC1180 PIN 20
Reset
1
3
5
2
4
6
7
9
11
8
10
12
13
15
17
19
14
16
18
20
GND
GND
GND
RC1180 PIN 3 UART RTS
Figure 4 RC1180-MBUSx-EM pin out for RC1180-MBUSx
©2011 Radiocrafts AS
RC2400HP-ZNM-EM/RC1180-MBUSx-EM Data Sheet (rev. 1.0)
Page 4 of 6
Radiocrafts
RC2400HP-ZNM-EM/
Embedded Wireless Solutions
RC1180-MBUSx-EM
Ordering Information
Ordering Part Number
RC2400HP-ZNM-EM
Description
EM with ZigBee-ready RF module, 256 kB Flash, High power,
long range
RC1180-MBUS2-EM
EM with wireless M-Bus module supporting DSMR/NTA 8130
RC1180-MBUS3-EM
EM with wireless M-Bus module supporting OMS
*For other variants please contact [email protected]
Document Revision History
Document Revision
0.9
1.0
Changes
preliminary release
First release
Errata Note
Release 1.0 has a PCB inverted F antenna for 2.4GHz that is not recommended to use.
Release 2.0 does not include inverted F antenna
Release 1.0 has an RF line between module and SMA connector that is too narrow (not 50
ohm). This inductive line leads to an extra 1 dB loss at 2.4 GHz and 0.5dB loss for 868 MHz.
Product Status and Definitions
Current
Data Sheet Identification
Status
Product Status
Advance Information
Planned or under
development
Preliminary
Engineering
Samples and First
Production
No Identification Noted
Full Production
Not recommended for new designs
Last time buy
available
Not in Production
Optionally accepting
order with Minimum
Order Quantity
X
Obsolete
©2011 Radiocrafts AS
Definition
This data sheet contains the design
specifications for product
development. Specifications may
change in any manner without notice.
This data sheet contains
preliminary data, and
supplementary data will be
published at a later date.
Radiocrafts reserves the right to
make changes at any time without
notice in order to improve design
and supply the best possible
product.
This data sheet contains final
specifications. Radiocrafts reserves
the right to make changes at any time
without notice in order to improve
design and supply the best possible
product.
Product close to end of lifetime
This data sheet contains
specifications on a product that has
been discontinued by Radiocrafts.
The data sheet is printed for
reference information only.
RC2400HP-ZNM-EM/RC1180-MBUSx-EM Data Sheet (rev. 1.0)
Page 5 of 6
Radiocrafts
Embedded Wireless Solutions
RC2400HP-ZNM-EM/
RC1180-MBUSx-EM
Disclaimer
Radiocrafts AS believes the information contained herein is correct and accurate at the time of this printing. However,
Radiocrafts AS reserves the right to make changes to this product without notice. Radiocrafts AS does not assume
any responsibility for the use of the described product; neither does it convey any license under its patent rights, or
the rights of others. The latest updates are available at the Radiocrafts website or by contacting Radiocrafts directly.
As far as possible, major changes of product specifications and functionality, will be stated in product specific Errata
Notes published at the Radiocrafts website. Customers are encouraged to check regularly for the most recent
updates on products and support tools.
Trademarks
RC232™ is a trademark of Radiocrafts AS. The RC232™ Embedded RF Protocol is used in a range of products from
Radiocrafts. The protocol handles host communication, data buffering, error check, addressing and broadcasting. It
supports point-to-point, point-to-multipoint and peer-to-peer network topologies.
All other trademarks, registered trademarks and product names are the sole property of their respective owners.
Life Support Policy
This Radiocrafts product is not designed for use in life support appliances, devices, or other systems where
malfunction can reasonably be expected to result in significant personal injury to the user, or as a critical component
in any life support device or system whose failure to perform can be reasonably expected to cause the failure of the
life support device or system, or to affect its safety or effectiveness. Radiocrafts AS customers using or selling these
products for use in such applications do so at their own risk and agree to fully indemnify Radiocrafts AS for any
damages resulting from any improper use or sale.
© 2011, Radiocrafts AS. All rights reserved.
Contact Information
Web site: www.radiocrafts.com
Email: [email protected]
Address:
Radiocrafts AS
Sandakerveien 64
NO-0484 OSLO
NORWAY
Tel:
+47 4000 5195
Fax:
+47 22 71 29 15
E-mail: [email protected]
[email protected]
©2011 Radiocrafts AS
RC2400HP-ZNM-EM/RC1180-MBUSx-EM Data Sheet (rev. 1.0)
Page 6 of 6
