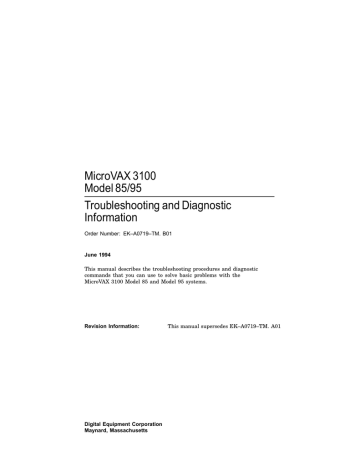

MicroVAX 3100
Model 85/95
Troubleshooting and Diagnostic
Information
Order Number: EK–A0719–TM. B01
June 1994
This manual describes the troubleshooting procedures and diagnostic
commands that you can use to solve basic problems with the
MicroVAX 3100 Model 85 and Model 95 systems.
Revision Information:
Digital Equipment Corporation
Maynard, Massachusetts
This manual supersedes EK–A0719–TM. A01
June 1994
Digital Equipment Corporation makes no representations that the use of its products in the
manner described in this publication will not infringe on existing or future patent rights, nor do
the descriptions contained in this publication imply the granting of licenses to make, use, or sell
equipment or software in accordance with the description.
Possession, use, or copying of the software described in this publication is authorized only pursuant
to a valid written license from Digital or an authorized sublicensor.
FCC NOTICE: This equipment has been tested and found to comply with the limits for a Class
A digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference when the equipment is operated in a commercial
environment. This equipment generates, uses, and can radiate radio frequency energy and, if not
installed and used in accordance with the instruction manual, may cause harmful interference to
radio communications.
Any changes or modifications made to this equipment may void the user’s authority to operate this
equipment.
Operation of this equipment in a residential area may cause interference in which case the user
at his own expense will be required to take whatever measures may be required to correct the
interference.
© Digital Equipment Corporation 1994. All Rights Reserved.
The postpaid Reader’s Comments form at the end of this document requests your critical evaluation
to assist in preparing future documentation.
The following are trademarks of Digital Equipment Corporation: Digital, MicroVAX, OpenVMS, RX,
ThinWire, VAX, VAX DOCUMENT, and the DIGITAL logo.
All other trademarks and registered trademarks are the property of their respective holders.
S2613
This document was prepared using VAX DOCUMENT Version 2.1.
Contents
Preface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
v
1 Troubleshooting and Diagnosing Problems
1.1
1.2
1.3
1.3.1
1.3.2
1.3.3
1.3.4
1.3.5
1.4
Troubleshooting . . . . . . . . . . . . . .
Using the Troubleshooting Table .
Diagnostic Tests and Commands .
Power-Up Tests . . . . . . . . . . .
Diagnostic Tests and Utilities
Power-Up Error Messages . . .
Configuration Display . . . . . .
Error Display . . . . . . . . . . . . .
Contacting Digital Services . . . . .
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
1–1
1–2
1–9
1–10
1–13
1–18
1–22
1–24
1–25
SYNC Test Failure . . . . . . . . . . . . .
Memory_Setup_CSRs Test Failure .
Memory_Count_Pages Test Failure
No_Memory_Present Test Failure .
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
1–18
1–19
1–20
1–21
Index
Examples
1–1
1–2
1–3
1–4
iii
Figures
1–1
1–2
Diagnostic Tests . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Status LED Display . . . . . . . . . . . . . . . . . . . . . . . . . . .
1–13
1–26
Basic Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . .
Option Card Tests . . . . . . . . . . . . . . . . . . . . . . . . . . . .
MicroVAX 4000-100A/105A Tests . . . . . . . . . . . . . . . . .
1–3
1–15
1–16
Tables
1–1
1–2
1–3
iv
Preface
This manual describes the troubleshooting procedures and diagnostic commands
that you can use to solve basic problems with the MicroVAX™ 3100 Model 85 and
Model 95 systems.
Audience
This manual is intended for people who have some experience with computers.
Structure of This Manual
This manual presents the information you need for solving basic problems with
the MicroVAX 3100 Model 85/95 system in one chapter. Use the sections in
the order presented, starting with Section 1.1, Troubleshooting, when solving
a problem with your system. You can follow up with diagnostic testing or by
contacting Digital services for support as described in Section 1.3 and Section 1.4.
Additional Information
See the MicroVAX 3100 Model 85/95 Operator Information manual for the list of
related documents.
v
Conventions
The following conventions are used in this manual:
Convention
Description
MONOSPACE type
Text displayed on the screen is shown in monospace type.
italic type
Italic type emphasizes important information and indicates the
complete titles of manuals.
Note
A note contains information that is of special importance to the
user.
Warning
A warning contains information to prevent personal injury.
vi
1
Troubleshooting and Diagnosing
Problems
This chapter describes the troubleshooting procedures and diagnostic commands
that you can use to solve basic problems with the MicroVAX 3100 Model 85 and
Model 95 systems. It contains information on the following:
•
Troubleshooting
•
Diagnostic tests and commands
•
Contacting Digital™ services
It also lists the information that you must give to your Digital services
representative and where to find this information.
1.1 Troubleshooting
If a problem occurs, you must first make sure that all the cables, loopback
connectors, and terminators are correctly connected and that the connectors are
not damaged, for example, the pins may be broken or short-circuited.
Follow these steps:
1. Shut down the operating system by following the procedures described in the
operating system documentation.
2. Turn off the console terminal and all the peripheral devices, such as printers
and modems.
3. Turn off all the expansion boxes.
4. Turn off the system unit.
5. Check that the following cables, if installed, are correctly connected at both
ends and that the connectors are not damaged:
•
Console terminal cable (linking the console terminal to the system unit)
•
Console terminal power cord
Troubleshooting and Diagnosing Problems 1–1
•
System unit power cord
•
Expansion box SCSI cables
•
Expansion box power cords
•
ThinWire™ Ethernet cable or standard Ethernet cable
6. Check that the following terminators, if installed, are correctly connected and
are not damaged:
•
SCSI terminators
•
ThinWire Ethernet terminator (T-connector and two terminators)
•
Standard Ethernet loopback connector
If you have correctly followed steps 1 to 5, the on/off switches on all the
components are set to the off (O) position, and you have solved any problems
caused by incorrectly connected cables or terminators.
7. Set the on/off switches on the following equipment to the on ( | ) position in
the following order:
a. Expansion boxes
b. Peripherals
c.
Console terminal
d. System unit
The system responds with the power-up test display. If it does not, see
Section 1.2.
1.2 Using the Troubleshooting Table
Table 1–1 suggests the corrective actions for certain system problems. If you have
a problem with the system, follow these steps:
1. Write down the symptoms of the problem.
2. Check the Symptom column in Table 1–1 for a match.
3. Check the causes of the symptom in the Possible Cause column. If the
column lists more than one possible cause, check the possible causes and
their suggested solutions in the order listed.
4. Follow the advice in the Suggested Solution column.
5. See Section 1.4 if the problem persists.
1–2 Troubleshooting and Diagnosing Problems
Table 1–1 Basic Troubleshooting
Symptom
Possible Cause
Suggested Solution
The power cord is not
connected. The power
cord may be faulty. The
power socket may not
be working. The system
breaker or wall outlet
may have blown.
Make sure that all the power cords
are connected correctly at both
ends. Try a known good power cord
or test the power socket with an
appliance that works.
The overload protection
circuitry of the power
supply may have shut
down because of an
abnormal condition on
the power line.
Turn the system off and then turn
it back on.
The power supply unit
(PSU) is faulty.
Contact your Digital services
representative.
The terminal cable is
not correctly connected.
Make sure that all the cables are
connected at both ends.
The terminal cable is
not connected to the
correct MMJ port.
Check the MMJ port to which the
terminal cable is connected. If this
port is not MMJ port 3, remove the
terminal cable and connect it to
MMJ port 3.
The power cord is not
connected. The power
cord may be faulty. The
wall outlet may not be
working.
Make sure that all the power cords
are connected correctly at both
ends. Try a known good power cord
or test the power socket with an
appliance that works.
The terminal fuse may
have blown.
Replace the blown terminal fuse.
See the terminal documentation.
The terminal settings
may be incorrect.
See the MicroVAX 3100 Model
85/95 Operator Information
manual for the list of correct
terminal settings. See the terminal
documentation for information on
how to set up the terminal.
System Problems
The system unit fan is
off or the power light is
off.
The power-up display
does not show after 20
seconds.
(continued on next page)
Troubleshooting and Diagnosing Problems 1–3
Table 1–1 (Cont.) Basic Troubleshooting
Symptom
Possible Cause
Suggested Solution
The port to which the
terminal connects may
be faulty.
Try connecting the terminal to
another system. If this solution
works, the port to which the
terminal was connected is faulty.
If the terminal still does not
operate, it is faulty. In either
case, contact your Digital services
representative.
The terminal cable may
be faulty.
Connect the terminal cable and
the terminal to another system.
If the connected terminal works,
the DZ circuitry or MMJ connector
is faulty. Otherwise, the cable
is faulty. Contact your Digital
services representative.
The power-up display
contains question marks.
A diagnostic error has
occurred.
See Section 1.4.
The power-up test
display contains
unexpected characters.
The terminal settings
are incorrect or the DZ
circuitry is faulty.
Make sure the terminal settings
are correct, then run the powerup test again. If the terminal is
set correctly, contact your Digital
services representative.
The system fails to boot
the operating system.
The system defaults are
incorrectly set.
Set the system defaults as
described in the OpenVMS
Factory Installed Software User
Information document, then try
to boot the system again. If
the system still fails to boot,
contact your Digital services
representative.
System Problems
(continued on next page)
1–4 Troubleshooting and Diagnosing Problems
Table 1–1 (Cont.) Basic Troubleshooting
Symptom
Possible Cause
Suggested Solution
RRD43 Compact Disc Drive Problems
The drive does not
accept the disc.
The eject button fails to
release the disc tray.
The disc is upside-down
in the tray or it is not
placed correctly in the
tray.
Remove the disc from the tray and
reinsert it properly.
A disc is already
present.
Remove the disc and replace it
with a new one.
The eject button is
disabled by software.
Reenable the eject button or
manually release the disc tray.
The system does not
have power.
Set the system unit on/off switch to
the on ( | ) position and press the
eject button again.
The RRD43 compact disc
drive is faulty.
If you want to release the disc
tray manually, see MicroVAX 3100
Model 85/95 Operator Information
for instructions. If the problem
persists, contact your Digital
services representative.
(continued on next page)
Troubleshooting and Diagnosing Problems 1–5
Table 1–1 (Cont.) Basic Troubleshooting
Symptom
Possible Cause
Suggested Solution
The TZ30 green LED
flashes rapidly.
The drive mechanism
is faulty or the tape
cartridge is damaged.
Press and release the unload
button to clear the fault. If the
LED continues to flash, do not try
to remove the tape cartridge or
use the tape drive. Contact your
Digital services representative.
The TZ30 does not
operate.
The drive does not
contain a tape cartridge.
Insert the tape cartridge and slide
the lever from the UNLOCK to the
LOCK position.
The operate lever does
not slide.
The tape cartridge is in
use.
Wait for the green LED to turn
on and try again. If the problem
persists, do not use the drive.
Contact your Digital services
representative.
The operate lever does
not lock.
The tape cartridge is not
inserted correctly.
Reinsert the tape cartridge. If
the problem persists, contact your
Digital services representative.
TZ30 Tape Drive Problems
The tape does not load.
Press and release the unload
button. Wait for the green LED
to turn on before sliding the lever
and removing the tape. If the
LED flashes, contact your Digital
services representative.
The system cannot write
to the tape.
The write-protect switch
is in the write-protect
position.
If the write-protect LED is on,
remove the tape, reset the switch
and try writing to the tape
again. If the problem persists,
contact your Digital services
representative.
The data read from
the tape cartridge is
corrupted.
The tape drive head may
be dirty.
See the MicroVAX 3100 Model 85
/95 Operator Information manual
for information on how to clean the
drive head.
The tape does not eject.
The tape is not rewound.
The operate lever is in
the lock position.
Follow the procedure for removing
a tape from the TZ30 described in
the MicroVAX 3100 Model 85/95
Operator Information manual.
(continued on next page)
1–6 Troubleshooting and Diagnosing Problems
Table 1–1 (Cont.) Basic Troubleshooting
Symptom
Possible Cause
Suggested Solution
TLZ06 and TLZ07 Cassette Tape Drive Problems
The system cannot write
to the cassette tape.
The write-protect switch
is in the write-protect
position.
If the write-protect LED is on,
remove the tape, reset the switch
and try writing to the tape
again. If the problem persists,
contact your Digital services
representative.
The cassette tape is not
loaded.
Load the cassette tape.
The write-protect LED
flashes.
The tape drive heads
are dirty or the tape is
worn.
Clean the drive heads (see the
MicroVAX 3100 Model 85/95
Operator Information manual). If
the problem persists, use a new
tape.
The data read from
the cassette tape is
corrupted.
The tape drive heads
may be dirty.
See the MicroVAX 3100 Model 85
/95 Operator Information manual
for information on how to clean the
drive heads.
TZK10/TZK11 Quarter Inch Cartridge (QIC) Tape Drive Problems
The data read from the
QIC tape is corrupted.
The drive head is dirty.
Clean the drive head. See the
MicroVAX 3100 Model 85/95
Operator Information manual.
The system cannot write
to the QIC tape.
The write-protect switch
is in the write-protect
position.
Remove the QIC tape, reset the
switch and try to write to the
QIC tape again. If the problem
persists, contact your Digital
services representative.
The system cannot read
from or write to the QIC
tape.
The QIC tape may be
faulty.
Remove the QIC tape. If the amber
LED turns off when you remove
the QIC tape, the tape is probably
faulty. Try a different QIC tape.
If the amber LED stays on or if
the problem persists, contact your
Digital services representative.
(continued on next page)
Troubleshooting and Diagnosing Problems 1–7
Table 1–1 (Cont.) Basic Troubleshooting
Symptom
Possible Cause
Suggested Solution
RX™26 Diskette Drive Problems
The system cannot read
from or write to the
diskette.
The diskette is not
formatted.
Format the diskette.
The diskette is not
correctly inserted.
Eject the diskette. Try to insert the
diskette again.
The diskette is faulty.
Try a different diskette.
The diskette drive is
faulty.
Contact your Digital services
representative.
The diskette density is
incorrect.
The RX26 accepts only highdensity (HD) or extra-density
(ED) diskettes.
The diskette drive head
may be dirty.
See the MicroVAX 3100 Model 85
/95 Operator Information manual
for information on how to clean the
diskette drive head.
The system can read
from but cannot write to
a diskette.
The write-protect switch
is in the write-protect
position.
Eject the diskette and reset the
switch. Try writing to the diskette
again.
The diskette does not
eject.
The diskette is
incorrectly positioned
in the drive.
Gently press the diskette with your
finger and reposition it. Press the
eject button again.
RZ-Series SCSI Disk Drive Problems
An installed drive does
not work.
The Configuration
display does not show a
SCSI device.
Two SCSI identifiers are
set to the same number.
Reset each SCSI ID to a unique
number.
Drive cables are not
properly connected.
Check the cable connections.
SCSI device is not
properly terminated.
Check for a SCSI 50-pin
terminator.
Two SCSI identifiers are
set to the same number.
Reset each SCSI ID to a unique
number.
1–8 Troubleshooting and Diagnosing Problems
1.3 Diagnostic Tests and Commands
There are a number of diagnostic tests and commands that can help you to isolate
a problem with the system unit. These tests and commands are as follows:
•
Power-up tests
•
Diagnostic tests and utilities1
•
Configuration display1
•
Error display1
The following sections describe these tests and commands.
1
You can use these tests and commands in privileged console mode only if the console
security feature is enabled and the password is set. See the MicroVAX 3100 Model 85/95
Customer Technical Information manual for information on the console security feature.
Troubleshooting and Diagnosing Problems 1–9
1.3.1 Power-Up Tests
The system runs the power-up tests each time you turn on the system. After
successful completion of tests, the system will either enter console mode or
proceed to automatic bootstrap, depending on the HALT action selected by the
user. If HALT action is Default, Halt, or Restart, then the system enters console
mode. If HALT action is Reboot or Restart_reboot, then the system proceeds to
boot. The following example shows a typical display for a system that passes all
tests and then enters console mode.
KA55-A or KA51-A V2.3, VMB 2.14
Performing normal system tests.
74..73..72..71..70..69..68..67..66..65..64..63..62..61..60..59..
58..57..56..55..54..53..52..51..50..49..48..47..46..45..44..43..
42..41..40..39..38..37..36..35..34..33..32..31..30..29..28..27..
26..25..24..23..22..21..20..19..18..17..16..15..14..13..12..11..
10..09..08..07..06..05..04..03..
Tests completed.
>>>
Central Processing Unit (CPU) Name, Firmware Version Number, and Virtual
Memory Boot (VMB) Version Number
Read-Only Memory (ROM) Based Diagnostics Countdown
Status Message
Console Prompt
1–10 Troubleshooting and Diagnosing Problems
The following example shows a typical display for a system that passes all tests
and then enters automatic bootstrap.
KA55-A or KA51-A V2.3, VMB 2.14
Performing normal system tests.
74..73..72..71..70..69..68..67..66..65..64..63..62..61..60..59..
58..57..56..55..54..53..52..51..50..49..48..47..46..45..44..43..
42..41..40..39..38..37..36..35..34..33..32..31..30..29..28..27..
26..25..24..23..22..21..20..19..18..17..16..15..14..13..12..11..
10..09..08..07..06..05..04..03..
Tests completed.
Loading system software.
(BOOT/R5:0 EZA0)
2..
-EZA0
1..0..
Note
The operating system messages start here, that is VMS . . .
If the power-up tests encounter an error, one of the following actions occurs:
For minor errors:
•
If HALT action is set to a boot condition (that is reboot or restart_reboot),
and if a minor error occurs, the system displays an abbreviated error
message and continues to boot as normal.
•
If HALT action is set to Default, Halt or Restart, then the system enters
console mode.
•
The only errors defined as minor are errors in memory that cause pages
to be marked bad in the memory bitmap. There must be enough good
memory left to allow an attempt to bootstrap.
For severe errors:
•
The system always enters console mode regardless of HALT action after it
attempts to complete all tests possible.
Troubleshooting and Diagnosing Problems 1–11
The following example shows a system with a memory error that only affected one
set of memory out of two sets. Because some memory is still usable, the system
proceeds to automatic bootstrap if the HALT action is set to a boot condition.
KA55-A or KA51-A V2.3, VMB 2.14
Performing normal system tests.
74..73..72..71..70..69..68..67..66..65..64..63..62..61..60..59..
58..57..56..55..54..53..52..51..50..49..48..47..46..45..44..43..
42..41..40..39..38..37..36..35..34..33..32..
? Test_Subtest_40_06 Loop_Subtest=00 Err_Type=FF
DE_Memory_count_pages.lis
31..30..29..28..27..26..25..24..23..22..21..20..19..18..17..16..
15..14..13..12..11..10..09..08..07..06..05..04..03..
16 MB RAM, SIMM Set (0A,0B,0C,0D) present
Memory Set 0: 04000000 to 04FFFFFF, 16MB, 0 good pages, 32768 bad pages
64 MB RAM, SIMM Set (1E,1F,1G,1H) present
Memory Set 1: 00000000 to 03FFFFFF, 64MB, 131072 good pages, 0 bad pages
Total of 80MB, 131072 good pages, 32768 bad pages, 136 reserved pages
Tests completed.
Loading system software.
(BOOT/R5:0 EZA0)
2..
-EZA0
1..0..
? Test_Subtest_40_06 Loop_Subtest=00 Err_Type=FF
DE_Memory_count_pages.lis
16 MB RAM, SIMM Set (0A,0B,0C,0D) present
Memory Set 0: 04000000 to 04FFFFFF, 16MB, 0 good pages, 32768 bad pages
64 MB RAM, SIMM Set (1E,1F,1G,1H) present
Memory Set 1: 00000000 to 03FFFFFF, 64MB, 131072 good pages, 0 bad pages
Total of 80MB, 131072 good pages, 32768 bad pages, 136 reserved pages
Operating system messages start here; that is VMS . . .
Abbreviated error message for memory error
Memory errors normally cause the results of a SHOW MEMORY display to occur
after the tests are completed and before continuing. SHOW MEMORY is the
most useful command to determine which memory SIMMs are bad when memory
errors occur.
1–12 Troubleshooting and Diagnosing Problems
1.3.2 Diagnostic Tests and Utilities
The diagnostic tests and utilities are similar to the power-up tests except that
the power-up tests enable you to test all the devices in the system, whereas the
diagnostic tests and utilities enable you to test single devices and the functions of
single devices.
Figure 1–1 shows a list of diagnostic tests obtained by entering the following
command:
>>> T 9E
Figure 1–1 Diagnostic Tests
Test
# Address Name
Parameters
___________________________________________________________________________
20052200 SCB
20055850 De_executive
30 2006A53C Memory_Init_Bitmap *** mark_Hard_SBEs ******
31 2006AB34 Memory_Setup_CSRs *********
32 2005D148 NMC_registers
**********
33 2005D324 NMC_powerup
**
34 2005E6D8 SSC_ROM
***
35 2005FB90 B_Cache_diag_mode bypass_test_mask *********
37 20061590 Cache_w_Memory
bypass_test_mask *********
40 2006B5E0 Memory_count_pages SIMM_set0 SIMM_set1 Soft_errs_allowed *****
41 20068CEC Board_Reset
*
42 20061880 Chk_for_Interrupts **********
46 200610C4 P_Cache_diag_mode bypass_test_mask *********
47 2006AD04 Memory_Refresh
start_a end incr cont_on_err time_seconds *****
48 2006B028 Memory_Addr_shorts start_add end_add * cont_on_err pat2 pat3 ****
4A 2006A23C Memory_ECC_SBEs
start_add end_add add_incr cont_on_err ******
4B 2006940C Memory_Byte_Errors start_add end_add add_incr cont_on_err ******
4C 20069BA0 Memory_ECC_Logic start_add end_add add_incr cont_on_err ******
4D 20068FE8 Memory_Address
start_add end_add add_incr cont_on_err ******
4E 20069188 Memory_Byte
start_add end_add add_incr cont_on_err ******
4F 2006B7F4 Memory_Data
start_add end_add add_incr cont_on_err ******
51 2005803C FPA
**********
52 20058530 SSC_Prog_timers
which_timer wait_time_us ***
53 20058818 SSC_TOY_Clock
repeat_test_250ms_ea Tolerance ***
54 20057C18 Virtual_Mode
********
55 20058E6C Interval_Timer
*****
56 2006507C SHAC_LPBCK
From_bus To_bus passes *******
58 20065D24 SHAC_RESET
dssi_bus port_number time_secs not_pres *
59 20062778 SGEC_LPBCK_ASSIST time_secs **
(continued on next page)
Troubleshooting and Diagnosing Problems 1–13
Figure 1–1 (Cont.) Diagnostic Tests
5C 20062D10 SHAC
SHAC_number *********
5F 200619B8 SGEC
loopback_type no_ram_tests ******
62 20058B1C console_QDSS
mark_not_present selftest_r0 selftest_r1 *****
63 20058CA4 QDSS_any
input_csr selftest_r0 selftest_r1 ******
80 2005D3C0 CQBIC_memory
bypass_test_mask *********
81 200596CC Qbus_MSCP
IP_csr ******
82 200598AC Qbus_DELQA
device_num_addr ****
83 2005A85C QZA_Intlpbck1
controller_number ********
84 2005BF1C QZA_Intlpbck2
controller_number *********
85 20059A9C QZA_memory
incr test_pattern controller_number *******
86 20059F44 QZA_DMA
Controller_number main_mem_buf ********
90 20058494 CQBIC_registers
*
91 20058410 CQBIC_powerup
**
99 2005DC4C Flush_Ena_Caches dis_flush_VIC dis_flush_BC dis_flush_PC
9A 20063FB0 INTERACTION
pass_count disable_device *******
9B 20068E48 Init_memory
**
9C 2006631C List_CPU_registers *
9D 2006C250 Utility
Flags *********
9E 2005903C List_diagnostics script_number *
9F 200681CC Create_A0_Script **********
C1 20057888 SSC_RAM_Data
*
C2 20057A78 SSC_RAM_Data_Addr *
C5 200589E8 SSC_registers
*
D0 20060C70 V_Cache_diag_mode bypass_test_mask *********
D2 2005DE90 O_Bit_diag_mode
bypass_test_mask *********
DA 2006139C PB_Flush_Cache
**********
DB 2005E850 Speed
print_speed *********
DC 2006C060 NO_Memory_present *
DD 2005F0DC B_Cache_Data_debug start_add end_add add_incr *******
DE 2005EC64 B_Cache_Tag_Debug start_add end_add add_incr *******
DF 2005E2A8 O_BIT_DEBUG
start_add end_add add_incr seg_incr ******
E0 2006D4D4 SCSI
environment reset_bus time_s *******
E1 2006D7CC SCSI_Utility
environment util_nbr target_ID lun ******
E2 2006DA2C SCSI_MAP
bypass_test addr_incr_data_tst ********
E4 2006DFC8 DZ
environment *********
E8 2006E1DC SYNC
environment *********
E9 2006E2B4 SYNC_Utility
environment *********
EC 2006E398 ASYNC
environment *********
F0 2006D638 SCSI_option
environment reset_bus time_s *******
F1 2006D900 SCSI_Opt_Utility environment util_nbr target_ID lun ******
F2 2006DA40 SCSI_MAP_Option
bypass_test addr_incr_data_tst ********
Scripts
# Description
(continued on next page)
1–14 Troubleshooting and Diagnosing Problems
Figure 1–1 (Cont.) Diagnostic Tests
A0
A1
A3
A4
A6
A7
A8
A9
B2
B5
BF
User defined scripts
Powerup tests, Functional Verify, continue on error, numeric countdown
Functional Verify, stop on error, test # announcements
Loop on A3 Functional Verify
Memory tests, mark only multiple bit errors
Memory tests
Memory acceptance tests, mark single and multi-bit errors, call A7
Memory tests, stop on error
Extended tests plus BF, then loop
Extended tests, then loop
DZ, SYNC, ASYNC with loopbacks
Load & start system exerciser
100 Customer mode, 2 passes
101 CSSE mode, 2 passes
102 CSSE mode, continous until ^C
103 Manuf mode, continous until ^C
104 Manuf TINA mode, continous until ^C
105 Manuf mode, 2 passes
106 CSSE mode, select tests, continous until ^C
107 Manuf mode, select tests, continous until ^C
Note
Tests 101 through 107 are reserved for use by Digital services.
The tests and utilities shown in Table 1–2 are for option cards, which may or may
not be present, depending upon the options you ordered.
Table 1–2 Option Card Tests
Test
Name
Usage
E8
SYNC
Synchronous COMM option card (DSW41/42)
E9
SYNC_Utility
Synchronous COMM option card (DSW41/42)
EC
ASYNC
Asynchronous option card (DHW41/42)
F0
SCSI_option
SCSI option card for 2nd SCSI bus B (KZDDA)
F1
SCSI_Opt_Utility
SCSI option card for 2nd SCSI bus B (KZDDA)
F2
SCSI_MAP_Option
SCSI option card for 2nd SCSI bus B (KZDDA)
Troubleshooting and Diagnosing Problems 1–15
Note
The following available tests (Table 1–3) are not used on the MicroVAX
3100 Model 85/95; they are used only on the MicroVAX 4000 Model 100A
/105A, and are listed here to avoid confusion when you see them in the
diagnostic test listing (Figure 1–1 ).
Table 1–3 MicroVAX 4000-100A/105A Tests
Test
No.
Name
Usage
56
SHAC_LPBCK
Not used on 3100, SHAC option only
58
SHAC_RESET
Not used on 3100, SHAC option only
5C
SHAC
Not used on 3100, SHAC option only
62
console_QDSS
Not used on 3100, QBUS systems only
63
QDSS_any
Not used on 3100, QBUS systems only
81
Qbus_MSCP
Not used on 3100, QBUS systems only
82
Qbus_DELQA
Not used on 3100, QBUS systems only
83
QZA_Intlpbck1
Not used on 3100, QBUS systems only
84
QZA_Intlpbck2
Not used on 3100, QBUS systems only
85
QZA_memory
Not used on 3100, QBUS systems only
86
QZA_DMA
Not used on 3100, QBUS systems only
To run the diagnostic tests, enter either TEST or T followed by the test number.
You can specify optional parameters for some tests, but you would not do so
normally. If you decide to specify optional parameters, then the following
conditions apply:
•
Each test uses up to 10 parameters, no more than 7 may be inputted on a
command line.
Most of these parameters are assigned values automatically by the system.
These parameters are indicated by an asterisk (*) in the parameters column
of Figure 1–1.
•
If a parameter can be assigned a value, the name of the parameter is shown
in the parameters column in Figure 1–1.
1–16 Troubleshooting and Diagnosing Problems
You can use test 9E with the test number as a parameter to show a list of
legal parameters and valid values for the test number. For example, enter T
9E 30 to show a list of legal parameters and valid values for test number 30
(Memory_Init_Bitmap).
•
There is a dependency between some tests.
•
Failures can occur if dependencies between tests are not followed.
•
Any parameter not entered is given a default value. Enter T 9E nn, where
nn is test number to show defaults. During power-up testing or execution of
any script of tests (A0 to BF), the values of parameters are determined by the
script, not defaults.
•
You may dump the contents of a script by entering T 9E nn, where nn is a
script to dump. Scripts are always in range of A0 to BF (or 0 for the power-up
script).
You must enter three zeros (0) as place holders for the three parameters that
occur before the user-specified parameter, mark_hard_SBEs. The last value (1)
is a parameter. You can then specify the mark_hard_SBEs parameter in the
Memory_Init_Bitmap test as follows:
>>> T 30 0 0 0 1
The resulting messages differ, depending on the function of the test or utility.
However, most failing tests cause the system to display error messages similar to
the following:
>>> T 5F 1
? Test_Subtest_5F_18 Loop_Subtest=0E Err_Type=FF DE_SGEC.lis
Vec=010C Prev_Errs=0000 P1=00000001 P2=00000000 P3=827DFF03 P4=00000000
P5=00000000 P6=00000000 P7=00000000 P8=00000001 P9=00000000 P10=00000000
r0=00000054 r1=000082E2 r2=00000001 r3=000082FA r4=00008230 r5=00000040
r6=000082E2 r7=20008000 r8=00008000 r9=20140758 r10=13000001 r11=2014044B
EPC=2005721A dser=0000 cesr=00000000 icsr=01 pcsts=F800 pcctl=FC13
cctl=00000007 bcetsts=03A0 bcedsts=0400 cefsts=00019200 nests=00
mmcdsr=00C6C600 mesr=00006000
>>>
Write down the error messages before you contact your Digital services
representative.
Troubleshooting and Diagnosing Problems 1–17
1.3.3 Power-Up Error Messages
The following are examples of some error messages at power-up.
Example 1–1 is a typical example of a failed test. In this case, test E8 failed
testing a SYNC (COMM) option.
Example 1–1 SYNC Test Failure
KA55-A or KA51-A V2.3, VMB 2.14
Performing normal system tests.
74..73..72..71..70..69..68..67..66..65..64..63..62..61..60..59..
58..57..56..55..54..53..52..51..50..49..48..47..46..45..44..43..
42..41..40..39..38..37..36..35..34..33..32..31..30..29..28..27..
26..25..24..23..22..21..20..19..18..17..16..15..14..13..12..11..
10..09..
? Test_Subtest_E8_03 Loop_Subtest=00 Err_Type=FF DE_SYNC.lis
Vec=0000 Prev_Errs=0001 P1=09000001 P2=00000000 P3=00000000 P4=00000000
P5=00000000 P6=00000000 P7=00000000 P8=00000000 P9=00000000 P10=00000000
Stat=0112 FRU=20 LED=00 Ext_Stat 00090014 00EE001D 00020002 0000EFCE 00000000
20040000 7FDEDFFF 00000000
dser=0000 cesr=00000000 intmsk=00 icsr=01 pcsts=F800 pcctl=FC13 cctl=00000021
bcetsts=0000 bcedsts=0000 cefsts=00019220 nests=00 mmcdsr=01111000
mesr=00006000
08..07..06..05..04..03..
Normal operation not possible.
>>>
1–18 Troubleshooting and Diagnosing Problems
Example 1–2 represents a case where an additional set of memory SIMMs was
added and one of the four SIMMs for the set was not the same type of SIMM
as the others. In this example SIMM 1H was either not installed or incorrectly
installed.
Example 1–2 Memory_Setup_CSRs Test Failure
KA55-A or KA51-A V2.3, VMB 2.14
Performing normal system tests.
74..73..72..71..70..69..68..67..66..65..64..63..62..61..60..59..
? Test_Subtest_31_05 Loop_Subtest=00 Err_Type=FF DE_Memory_Setup_CSRs.lis
Vec=0000 Prev_Errs=0000 P1=00000000 P2=01000000 P3=00000001 P4=00010000
P5=2101801C P6=00000007 P7=80000003 P8=0000CF4A P9=00000001 P10=2006B8D8
r0=00000002 r1=21018000 r2=00000008 r3=81000000 r4=00000001 r5=01000000
r6=2006EB77 r7=21018048 r8=00000000 r9=20140758 r10=00000000 r11=FFFFFFFF
dser=0000 cesr=00000000 intmsk=00 icsr=01 pcsts=FA00 pcadr=FFFFFFF8 pcctl=FC13
cctl=00000020 bcetsts=0360 bcedsts=0F00 cefsts=00019200 nests=00
mmcdsr=01FE6600 mesr=00000000
58..57..56..55..54..53..52..51..50..49..48..47..46..45..44..43..
42..41..40..39..38..37..36..35..34..33..32..31..30..29..28..27..
26..25..24..23..22..21..20..19..18..17..16..15..14..13..12..11..
10..09..08..07..06..05..04..03..
16 MB RAM, SIMM Set (0A,0B,0C,0D) present
Memory Set 0: 00000000 to 00FFFFFF, 16MB, 32768 good pages, 0 bad pages
Error: SIMM Set 1 (1E,1F,1G,1H)
SIMM_1E = 64MB
SIMM_1F = 64MB
SIMM_1G = 64MB
SIMM_1H = 00MB ??
Total of 16MB, 32768 good pages, 0 bad pages, 104 reserved pages
Normal operation not possible.
Indicates no memory SIMM installed here or SIMM not correctly installed.
Troubleshooting and Diagnosing Problems 1–19
Example 1–3 represents a case where one SIMM of a set was bad. In this
example, SIMM 1G was bad or incorrectly installed.
Example 1–3 Memory_Count_Pages Test Failure
KA55-A or KA51-A V2.3, VMB 2.14
Performing normal system tests.
74..73..72..71..70..69..68..67..66..65..64..63..62..61..60..59..
58..57..56..55..54..53..52..51..50..49..48..47..46..45..44..43..
42..41..40..39..38..37..36..35..34..33..32..
? Test_Subtest_40_06 Loop_Subtest=00 Err_Type=FF
DE_Memory_count_pages.lis
31..30..29..28..27..26..25..24..23..22..21..20..19..18..17..16..
15..14..13..12..11..10..09..08..07..06..05..04..03..
16 MB RAM, SIMM Set (0A,0B,0C,0D) present
Memory Set 0: 04000000 to 04FFFFFF, 16MB, 32768 good pages, 0 bad pages
Error: SIMM Set 1 (1E,1F,1G,1H)
SIMM_1E = 64MB
SIMM_1F = 64MB
SIMM_1G = 64MB ?? SIMM_1H = 64MB
Memory Set 1: 00000000 to 03FFFFFF, 64MB, 0 good pages, 131072 bad pages
Total of 80MB, 32768 good pages, 131072 bad pages, 136 reserved pages
Tests completed.
1–20 Troubleshooting and Diagnosing Problems
Example 1–4 represents a case where one SIMM of a set is missing or incorrectly
installed. In this case, only one set of SIMMs was installed. Since one was
missing, there is no usable memory for testing to run to completion. SIMM 1D is
missing here.
Example 1–4 No_Memory_Present Test Failure
KA55-A or KA51-A V2.3, VMB 2.14
Performing normal system tests.
74..73..72..71..70..69..68..67..66..65..64..63..62..61..60..
? Test_Subtest_DC_87 Loop_Subtest=00 Err_Type=FF DE_NO_Memory_present.lis
Vec=0000 Prev_Errs=0000 P1=EF42EF42 P2=00000000 P3=00000000 P4=00000000
P5=00000000 P6=7F337F7F P7=00000000 P8=0000EF42 P9=00000001 P10=2006B8D8
r0=00000002 r1=21018000 r2=00000008 r3=00000007 r4=03FFFFE0 r5=80000000
r6=FFFFFFFF r7=00000000 r8=00000000 r9=20140758 r10=FFFFFFFE r11=FFFFFFFF
dser=0000 cesr=00000000 intmsk=00 icsr=01 pcsts=FA00 pcadr=FFFFFFF8 pcctl=FC13
cctl=00000020 bcetsts=0360 bcedsts=0F00 cefsts=00019200 nests=00
mmcdsr=00666640 mesr=00000000
Error: SIMM Set 0 (0A,0B,0C,0D)
SIMM_0A = 16MB
SIMM_0B = 16MB
SIMM_0C = 16MB
SIMM_0D = 00MB ??
Total of 0MB, 0 good pages, 0 bad pages, 0 reserved pages
Normal operation not possible.
Troubleshooting and Diagnosing Problems 1–21
1.3.4 Configuration Display
The configuration display shows the system configuration and the error messages
that were detected while the most recent power-up tests, diagnostic tests, and
utilities were running. If you add expansion boxes to the system and do not run
the power-up tests or appropriate diagnostic test or utility, the configuration
display does not recognize the reconfiguration. Enter the following command to
see the configuration display:
>>> SHOW CONFIG
If the system does not detect any errors in the most recent power-up tests
or diagnostic utilities, it responds with a configuration display similar to the
following:
KA55-A or KA51-A V2.3, VMB 2.14
08-00-2B-33-CF-C9
80MB
TstNbr DevNam
------ -------0
CPU_BD
A8
MEM
E4
DZ
E0
SCSI
5F
F0
NI
SCSI_B
0
E8
QBUS
COMM
EC
ASYNC
Info
-------------------------OK
OK
OK
OK
3-RZ24L 6-Adapter 7-RRD43
OK
OK
0-RZ23L 6-Adapter
OK
OK
DSW41/42 2 CHANNEL V4.10-7b
OK
DHW41/2 V1.6
Test Utility Number Column
Device Mnemonic Column
Device Status Column
SCSI IDs and SCSI Device Names
The test numbers listed identify the normal test or script number to run to verify
the device listed. There are additional tests and utilities for some devices. Test 0
calls the power-up script.
1–22 Troubleshooting and Diagnosing Problems
Note
The lines for F0, E8 and EC display only if the applicable option is
present.
If the system detects errors in the most recent power-up tests and diagnostic
utilities, it responds with a configuration display similar to the following:
KA55-A or KA51-A V2.3, VMB 2.14
08-00-2B-2B-16-91
80MB
TstNbr DevNam
------ -------0
CPU_BD
A8
MEMORY
E4
DZ
E0
SCSI
5F
E8
NI
COMM
EC
ASYNC
Info
-------------------------OK
OK
?? 001 0048
OK
3-RZ24L 6-Adapter 7-RRD43
OK
OK
DSW41/42 2 CHANNEL V3.11-47
OK
DHW41/2 V1.6
>>>
Error Information—Write down this information before you contact your
Digital services representative.
Troubleshooting and Diagnosing Problems 1–23
1.3.5 Error Display
You can use the error display to display certain errors detected during the last
power-up test or diagnostic utility. To see the error display, enter the following
command:
>>> SHOW ERROR
The system responds with a display similar to the following:
?? 001
CPU_BD 0000
B_Cache Test_35 Subtest_33 Loop_sub_27 Error_type_FF
NVAX Test_54 Subtest_00 Loop_sub_01 Error_type_FF
?? 001
DZ 0030
010 0001 00000031 00000020 00000000 00000002 00000000 0000F1F0
Test_E4 Subtest_02 Loop_sub_00 Error_type_FF
?? 020
COMM 0112
005 0014 001E001E 0F0F0311 01010002 00000000 0008001E 80000002 00000000
Write down this information before you contact your Digital services
representative.
1–24 Troubleshooting and Diagnosing Problems
1.4 Contacting Digital Services
Warning
Only authorized service personnel should service the MicroVAX 3100
Model 85/95.
If you have followed the procedures in this chapter but the problem remains
unsolved, your Digital services representative can help you. Before you place
your call, follow these steps:
1. Write down a description of the problem, including the error messages and
the number of the tests or utilities that failed.
2. Look at the status LED display on the back of the system unit and write
down the numbers of the LEDs that are lit (see Figure 1–2).
3. List the steps you took to correct the problem as well and their results.
4. Write down the serial and model numbers of the system unit and any
connected peripheral devices. These numbers are usually printed on a label
on the back of the device.
Troubleshooting and Diagnosing Problems 1–25
Figure 1–2 Status LED Display
1
3
2
OPAO
1
MLO-012035
Status LED Display
1–26 Troubleshooting and Diagnosing Problems
Index
C
D
Cables
checking connections, 1–13
checking the console terminal cable,
1–1
checking the Ethernet cables, 1–2
checking the expansion box power
cords, 1–2
checking the expansion box SCSI
cables, 1–1
checking the system unit power cord,
1–1
checking the terminal power cord, 1–1
troubleshooting, 1–1
Configuration display
error information, 1–23
use of, 1–22
with errors, 1–23
without errors, 1–22
Connections
checking SCSI terminators, 1–2
checking standard Ethernet loopback
connector, 1–2
checking ThinWire Ethernet
terminator, 1–2
Console security feature, 1–9
Console terminal
checking cable, 1–1
checking power cord, 1–1
turning off, 1–1
turning on, 1–2
Device mnemonics, 1–22
Device status, 1–22
Diagnostic commands, 1–9 to 1–24
Diagnostic tests, 1–9 to 1–24
Diagnostic tests and utilities, 1–13
listing, 1–13
not applicable, 1–15
option cards, 1–15
optional parameters, 1–16
running, 1–16
typical error display, 1–17
Digital services
contacting, 1–25
E
Error display
use of, 1–24
Error information
in configuration display, 1–23
Ethernet
checking cable, 1–2
Expansion boxes
addition, 1–22
checking power cord, 1–2
checking SCSI cables, 1–1
turning off, 1–1
turning on, 1–2
Index–1
Privileged console mode, 1–9
F
Fan
troubleshooting, 1–3
Field Services
See Digital services
L
Loopbacks
checking, 1–1
checking connections, 1–2
standard Ethernet, 1–1
O
Operating system software
troubleshooting, 1–3
P
Peripherals
turning off, 1–1
turning on, 1–2
Power cord
troubleshooting, 1–3
Power-up
error messages, 1–18 to 1–21
Memory_Count_Pages test failure,
1–20
Memory_Setup_CSRs test failure,
1–19
No_Memory_Present test failure,
1–21
SYNC test failure, 1–18
Power-up display
troubleshooting, 1–3
Power-up tests, 1–22
Halt action variables, 1–10
minor errors, 1–11
severe errors, 1–11
successful display, 1–10, 1–11
unsuccessful display, 1–11, 1–12
use of, 1–10
Index–2
R
RRD43
compact disc drive, 1–5
eject button fault, 1–5
troubleshooting, 1–4
RRD43 compact disc drive
troubleshooting, 1–4
RX26
disk format error, 1–8
diskette drive, 1–7
diskette insertion error, 1–8
eject error, 1–8
head cleaning, 1–8
troubleshooting, 1–7
write-protect error, 1–8
RZ-series SCSI disk drive, 1–8
drive not functional, 1–8
not on configuration display, 1–8
troubleshooting, 1–8
S
SCSI device names, 1–22
SCSI IDs, 1–22
SCSI terminators, 1–2
Security password, 1–9
SHOW CONFIG command
use of, 1–22
SHOW ERROR command
use of, 1–24
Standard Ethernet, 1–2
Status LED display, 1–25
location, 1–26
System unit
checking power cord, 1–1
troubleshooting, 1–3
turning off, 1–1
turning on, 1–2
T
Terminal
troubleshooting, 1–3
Terminators
checking, 1–1
checking connections, 1–2, 1–13
SCSI, 1–2
ThinWire Ethernet, 1–1
Test utility numbers, 1–22
Tests
diagnostic, 1–22
ThinWire Ethernet, 1–2
TLZ06
troubleshooting, 1–6
TLZ07
troubleshooting, 1–6
Troubleshooting, 1–1 to 1–8
RRD43, 1–4
RX26, 1–7
RZ-series SCSI disk drive, 1–8
system unit, 1–3
table, 1–2
terminal, 1–3
TLZ06, 1–6
TLZ07, 1–6
TZ30, 1–5
TZK10, 1–7
TZK11, 1–7
TZ30
green LED, 1–6
head cleaning, 1–6
operate lever faults, 1–6
tape drive, 1–5
troubleshooting, 1–5
unload button, 1–6
write-protect error, 1–6
TZK10
amber LED, 1–7
head cleaning, 1–7
QIC tape drive, 1–7
troubleshooting, 1–7
write-protect error, 1–7
TZK11
QIC tape drive, 1–7
troubleshooting, 1–7
U
Utilities
diagnostic, 1–22
W
Write-protect switch
RX26, 1–8
TZ30, 1–6
TZK10, 1–7
Index–3
Reader’s Comments
MicroVAX 3100
Model 85/95
Troubleshooting and Diagnostic Information
EK–A0719–TM. B01
Your comments and suggestions help us improve the quality of our publications.
Thank you for your assistance.
I rate this manual’s:
Excellent
Good
Fair
Accuracy (product works as manual says)
Completeness (enough information)
Clarity (easy to understand)
Organization (structure of subject matter)
Figures (useful)
Examples (useful)
Index (ability to find topic)
Page layout (easy to find information)
I would like to see more/less
What I like best about this manual is
What I like least about this manual is
I found the following errors in this manual:
Page
Description
Additional comments or suggestions to improve this manual:
For software manuals, please indicate which version of the software you are using:
Name/Title
Dept.
Company
Date
Mailing Address
Phone
Poor
Do Not Tear – Fold Here and Tape
TM
BUSINESS REPLY MAIL
FIRST CLASS PERMIT NO. 33 MAYNARD MASS.
POSTAGE WILL BE PAID BY ADDRESSEE
DIGITAL EQUIPMENT CORPORATION
Information Design and Consulting
MRO1-2/J18 VW
200 FOREST STREET
MARLBORO, MA 01752-3011
Do Not Tear – Fold Here
No Postage
Necessary
If Mailed
in the
United States
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
