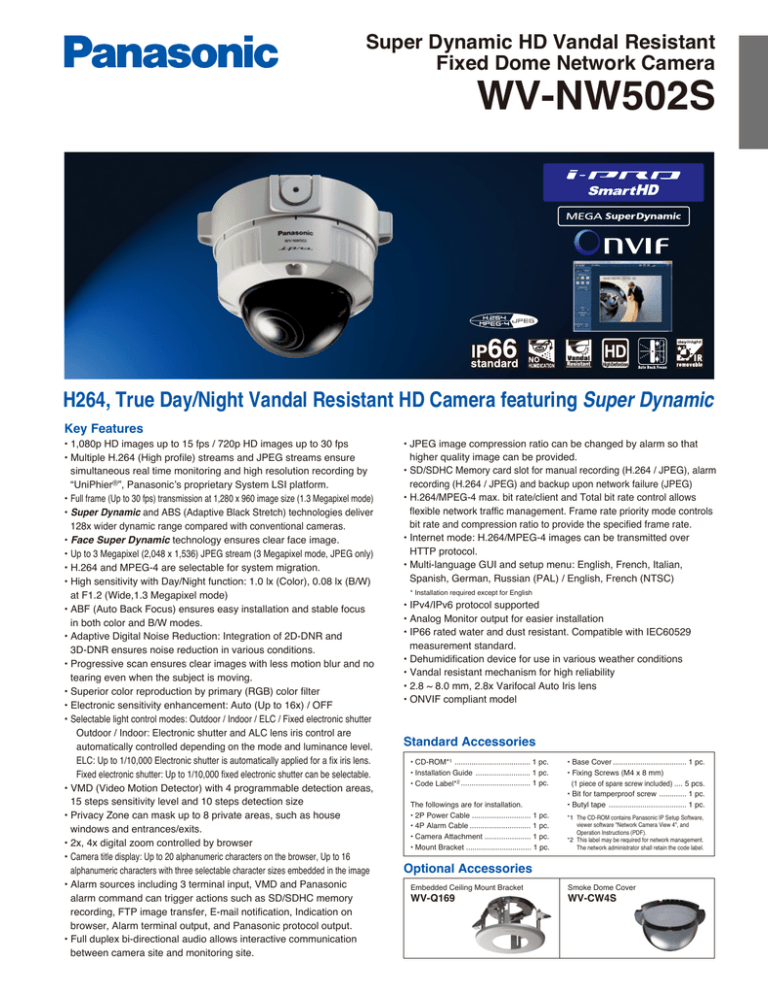

Super Dynamic HD Vandal Resistant
Fixed Dome Network Camera
WV-NW502S
H264, True Day/Night Vandal Resistant HD Camera featuring Super Dynamic
Key Features
• 1,080p HD images up to 15 fps / 720p HD images up to 30 fps
• Multiple H.264 (High profile) streams and JPEG streams ensure
simultaneous real time monitoring and high resolution recording by
“UniPhier®”, Panasonic’s proprietary System LSI platform.
• Full frame (Up to 30 fps) transmission at 1,280 x 960 image size (1.3 Megapixel mode)
• Super Dynamic and ABS (Adaptive Black Stretch) technologies deliver
128x wider dynamic range compared with conventional cameras.
• Face Super Dynamic technology ensures clear face image.
• Up to 3 Megapixel (2,048 x 1,536) JPEG stream (3 Megapixel mode, JPEG only)
• H.264 and MPEG-4 are selectable for system migration.
• High sensitivity with Day/Night function: 1.0 lx (Color), 0.08 lx (B/W)
at F1.2 (Wide,1.3 Megapixel mode)
• ABF (Auto Back Focus) ensures easy installation and stable focus
in both color and B/W modes.
• Adaptive Digital Noise Reduction: Integration of 2D-DNR and
3D-DNR ensures noise reduction in various conditions.
• Progressive scan ensures clear images with less motion blur and no
tearing even when the subject is moving.
• Superior color reproduction by primary (RGB) color filter
• Electronic sensitivity enhancement: Auto (Up to 16x) / OFF
• Selectable light control modes: Outdoor / Indoor / ELC / Fixed electronic shutter
Outdoor / Indoor: Electronic shutter and ALC lens iris control are
automatically controlled depending on the mode and luminance level.
ELC: Up to 1/10,000 Electronic shutter is automatically applied for a fix iris lens.
Fixed electronic shutter: Up to 1/10,000 fixed electronic shutter can be selectable.
• VMD (Video Motion Detector) with 4 programmable detection areas,
15 steps sensitivity level and 10 steps detection size
• Privacy Zone can mask up to 8 private areas, such as house
windows and entrances/exits.
• 2x, 4x digital zoom controlled by browser
• Camera title display: Up to 20 alphanumeric characters on the browser, Up to 16
alphanumeric characters with three selectable character sizes embedded in the image
• Alarm sources including 3 terminal input, VMD and Panasonic
alarm command can trigger actions such as SD/SDHC memory
recording, FTP image transfer, E-mail notification, Indication on
browser, Alarm terminal output, and Panasonic protocol output.
• Full duplex bi-directional audio allows interactive communication
between camera site and monitoring site.
• JPEG image compression ratio can be changed by alarm so that
higher quality image can be provided.
• SD/SDHC Memory card slot for manual recording (H.264 / JPEG), alarm
recording (H.264 / JPEG) and backup upon network failure (JPEG)
• H.264/MPEG-4 max. bit rate/client and Total bit rate control allows
flexible network traffic management. Frame rate priority mode controls
bit rate and compression ratio to provide the specified frame rate.
• Internet mode: H.264/MPEG-4 images can be transmitted over
HTTP protocol.
• Multi-language GUI and setup menu: English, French, Italian,
Spanish, German, Russian (PAL) / English, French (NTSC)
* Installation required except for English
• IPv4/IPv6 protocol supported
• Analog Monitor output for easier installation
• IP66 rated water and dust resistant. Compatible with IEC60529
measurement standard.
• Dehumidification device for use in various weather conditions
• Vandal resistant mechanism for high reliability
• 2.8 ~ 8.0 mm, 2.8x Varifocal Auto Iris lens
• ONVIF compliant model
Standard Accessories
• CD-ROM*1 .................................... 1 pc.
• Installation Guide .......................... 1 pc.
• Code Label*2 ................................. 1 pc.
The followings are for installation.
• 2P Power Cable ............................ 1 pc.
• 4P Alarm Cable ............................. 1 pc.
• Camera Attachment ...................... 1 pc.
• Mount Bracket ............................... 1 pc.
• Base Cover ................................... 1 pc.
• Fixing Screws (M4 x 8 mm)
(1 piece of spare screw included) .... 5 pcs.
• Bit for tamperproof screw ............. 1 pc.
• Butyl tape ..................................... 1 pc.
*1 The CD-ROM contains Panasonic IP Setup Software,
viewer software "Network Camera View 4", and
Operation Instructions (PDF).
*2 This label may be required for network management.
The network administrator shall retain the code label.
Optional Accessories
Embedded Ceiling Mount Bracket
WV-Q169
Smoke Dome Cover
WV-CW4S
Specifications
TV System
Camera
Image Sensor
Effective Pixels
Scanning Mode
Scanning Area
NTSC
Audio Compression
G.726 (ADPCM) 32 kbps / 16 kbps
Audio Mode
Authentication for Audio
Progressive scan
Total Bit Rate
4.86 mm (H) x 3.65 mm (V)
PAL
OFF / Mic (Line) input / Audio output / Interactive (Half duplex) / Interactive (Full duplex)
Level 1 only / Level 2 higher / All users
64 / 128 / 256 / 384 / 512 / 768 / 1,024 / 2,048 / 4,096 / 8,192 kbps / Unlimited
*1
3 Megapixel
Color: 2.0 lx, B/W: 0.16 lx at F1.2 (Shutter: 1/30 s, AGC: High),
FTP Client
AWC (2,000 ~ 10,000 K), ATW1 (2,700 ~ 6,000 K), ATW2 (2,000 ~ 6,000 K)
No. of Simultaneous Users Up to 14 users (Depends on network conditions)
and ELC (up to 3/100 s) ELC: (up to 1/10,000 s) (ELC: only at Super Dynamic: OFF)
(Option)
mode
Shutter Speed
Super Dynamic
Face Super Dynamic
Color: 0.06 lx, B/W: 0.005 lx at F1.2 (Shutter: 16/30 s, AGC: High, SD: OFF)
Color: 0.12 lx, B/W: 0.01 lx at F1.2 (Shutter: 16/30 s, AGC: High)
1/4,000, 1/10,000 (Only at Super Dynamic: OFF)
ON / OFF (1.3 Megapixel mode only)
Alarm
Alarm image transfer, Periodic image transfer, Active/Passive selectable (When the FTP
periodic transmission is failed, backup on an optional SDHC/SD memory card is available.)
1 GB, 2 GB, 4 GB*, 8 GB*, 16 GB* model * SDHC card
3 terminal inputs, VMD, Command alarm
Alarm Log
ON / OFF (Only at Super Dynamic: ON)
AGC
ON (LOW, MID, HIGH ) / OFF
Schedule
ON / OFF (Only at Super Dynamic: OFF)
Input /
With SDHC/SD memory card: 5,000 logs, Without SDHC/SD memory card: 1,000 logs
SDHC/SD memory recording, E-mail notification, Alarm terminal output,
Indication on browser, FTP image transfer, Panasonic protocol output
Alarm / VMD / Access permission
Monitor Output (for adjustment) 1.0 V [P-P] / 75 , NTSC composite, RCA Jack
Electronic Sensitivity UP
OFF / AUTO (Max. 2x (2/30 s), 4x (4/30 s), 6x (6/30 s), 10x (10/30 s), 16x (16/30 s))
Digital Noise Reduction
High / Low
(Cable)
Up to 8 zones, Gray / Mosaic
External I/O Terminals
Privacy Zone
Up Side Down
Auto Image Stabilizer
Camera Title (OSD)
Back Focus Adjustment
Lens Mount
4 areas, Sensitivity: 15 steps, Detection size: 10 steps
Audio Output (Cable)
ø3.5 mm stereo mini jack (monaural output) Line level
ON / OFF
(Cable)
General
ON / OFF
Digital Zoom
Camera Title
C-UL (CAN/CSA C22.2 No.60065),
DOC (ICES003 ClassA)
12 V DC: 630 mA, PoE (IEEE 802.3af): 7.6 W (Class 0 device)
Power Consumption
Ambient Operating
H: 35.0 (Tele) ~ 100 (Wide), V: 26.2 (Tele) ~ 73.4 (Wide)
–30 C ~ +50 C (–22 F ~ 122 F) *3,
Temperature/Humidity
90 % or less (without condensation)
Water and Dust Resistance IP66, IEC60529 measuring standard compatible
0.3 m ~
Impact Protection
Panning Range: 170 Tilting Range: 75 Azimuth Range: 100
Spot, Quad: Image from 16 cameras can be displayed in 4 different Quad
screens or 16 split screen (JPEG only). 20 characters camera title available.
1x, 2x, 4x controlled by browser GUI
Up to 20 alphanumeric characters
One Shot Capture
A still picture will be displayed on a newly opened window.
Reset
IEC 60068-2-75 test Eh, 50J
Dimensions
Brightness, AUX ON / OFF, Zoom (1x, 2x, 4x)
Time: 12H / 24H, Date: 5 formats on the browser, Summer time (Manual)
Audio
ALARM IN 3 / AUX OUT / EXPOSURE OUT
UL (UL60065), FCC (Part15 ClassA), CE (EN55022 ClassB, EN55024)
Power Source and
CS-mount
Clock Display
Alarm Control
ALARM IN 1 / DAY/NIGHT IN, ALARM IN 2 / ALARM OUT,
Up to 16 alphanumeric characters (3 selectable character sizes)
1 : 1.2 (Wide) ~ 1 : 1.8 (Tele)
Display Mode
microphone: Plug-in power type) Supply voltage: 2.5 V 0.5 V Input impedance: approx. 2 k
Safety/EMC Standard
ABF / MANUAL, ABF mode upon CL/BW switching: AUTO / PRESET / FIX
Maximum Aperture Ratio
Camera Control
1.0 V [P-P] / 75 , PAL composite, RCA Jack
MIC IN and Line IN are selectable. ø3.5 mm stereo mini jack (monaural input) (Applicable
2.8 mm ~ 8 mm, 2.8x varifocal
Focusing Range
Output
Microphone/Line Input
Mode: AUTO1 / AUTO2 / AUTO3 / ON / OFF, Level: High / Low, with external control
Vari Focal Length
Angular Field of View
H.264 recording: Manual REC / Alarm REC (Pre/Post)
JPEG recording: Manual REC / Alarm REC (Post) / Backup upon network failure
Compatible SD (SDHC) card: Panasonic 256 MB, 512 MB,
Alarm Source
Alarm Actions
Video Motion Detection
NTP, SNMP IPv6: TCP/IP, UDP/IP, HTTP, RTP, FTP, SMTP, DNS, NTP, SNMP
Fix shutter: 3/100, 2/100, 1/100, 1/250, 1/500, 1/1,000, 1/2,000,
52 dB typical (Super Dynamic: ON, Light Control mode: Indoor)
Black and White Mode
IPv4: TCP/IP, UDP/IP, HTTP, RTSP, RTP, RTP/RTCP, FTP, SMTP, DHCP, DNS, DDNS,
SDHC/SD Memory Card
Outdoor: Automatic integration of ALC and ELC Indoor: Automatic integration of ALC
Dynamic Range
Adaptive Black Stretch
GUI
1,296 (H) x 976 (V) x2
TV System
Network
Supported Protocol
Light Control Mode
Pan and Tilt
PAL
1.3 Megapixel Color: 1.0 lx, B/W: 0.08 lx at F1.2 (Shutter: 1/30 s, AGC: High, SD: OFF),
White Balance
Browser
1/3 type interline transfer CCD
Minimum
Illumination mode
Lens
NTSC
ø164 mm x 146 mm (H), 191.5 mm (W) (Base Cover)
(ø6-7/16" x 5-3/4" (H), 7-9/16" (W) (Base Cover))
Mass (approx.)
1.8 kg (4.0 lbs.) (with Mounting Bracket)
*1 With standard Clear Dome Cover *2 H.264 and MPEG-4 are alternative.
*3 When turning on the power at –10 C (14 F) or lower, warming up (at least 1 hour) is required before operation and setting.
Part Names and Functions
Mic (Line) Input: ON / OFF, Audio Output: ON / OFF
SD Memory Data Download Still or Motion Images recorded in the SD/SDHC memory card can be downloaded.
GUI/Setup Menu Language English, French
Network IF
Image Resolution *2
Windows®
8,
Microsoft®
Windows® 7,
Microsoft® Windows Vista®,Microsoft® Windows® XP SP3
Windows® Internet Explorer® 10.0 (32 bit), Windows® Internet Explorer® 9.0 (32 bit),
Windows® Internet Explorer® 8.0 (32 bit),Windows® Internet Explorer® 7.0 (32 bit)
Microsoft® Internet Explorer® 6.0 SP3
Enclosure
Inner Dome
Focus Adjustment Grip
Focus Lock Knob
Zoom Lock Knob
Tilt Adjusting Table
Network Cable
Alarm I/O Cable
Power Cable (12 V DC)
Audio Output Cable
Mic/Line Input Cable
Camera Attachment (accessory)
Mount Bracket (accessory)
10Base-T / 100Base-TX, RJ-45 connector
1.3 Megapixel mode (Aspect ratio [4:3]):
H.264: 1,280 x 960 / SVGA (800 x 600) / VGA (640 x 480) / QVGA (320 x 240), up to 30 fps
MPEG-4: VGA (640 x 480) / QVGA (320 x 240), up to 30 fps
JPEG: 1,280 x 960 / SVGA (800 x 600) / VGA (640 x 480) / QVGA (320 x 240), up to 30 fps
1.3 Megapixel mode (Aspect ratio [16:9]):
H.264: 1,280 x 720 / 640 x 360 / 320 x 180, up to 30 fps
JPEG: 1,280 x 720 / 640 x 360 / 320 x 180, up to 30 fps
3 Megapixel mode (Aspect ratio [4:3]):
H.264 :1,280 x 960 / VGA (640 x 480) / QVGA (320 x 240), up to 15 fps
MPEG-4: VGA (640 x 480) / QVGA (320 x 240), up to 15 fps
JPEG: 2,048 x 1,536 / 1,280 x 960 / VGA (640 x 480), up to 15 fps
3 Megapixel mode (Aspect ratio [16:9]):
H.264 / Transmission Priority Constant bitrate / Frame rate priority / Best effort /Advanced VBR
*2
Bit Rate/Client
Image Quality
JPEG
1 / 3 / 5 / 7.5 /10 / 15 / 20* / 30* fps 1 / 3 / 5 / 7.5 / 10 / 12 (PAL model only) / 15
* 1.3 Megapixel mode only
/ 20* / 30* fps * 1.3 Megapixel mode only
64 / 128 / 256 / 384 / 512 / 768 / 1,024 / 1,536 / 2,048 / 3,072 /
4,096 / 8,192* kbps / Unlimited * H.264 mode only
LOW / NORMAL / FINE
Refresh Interval
0.2 s / 0.33 s / 0.5 s / 1 s / 2 s / 3 s / 4 s / 5 s
Image Quality
10 steps
Transmission Type UNICAST / MULTICAST
Transmission Type PULL / PUSH
Trademarks and registered trademarks
– Microsoft, and Windows are registered trademarks of Microsoft Corporation in the U.S. and other countries.
– UniPhier is a registered trademark of Panasonic Corporation.
– "MEGA Super Dynamic" and "i-PRO SmartHD" logos are trademarks or registered trademarks of Panasonic Corporation.
– ONVIF and the ONVIF logo are trademarks of ONVIF Inc.
Important
– Safety Precaution: Carefully read the operating instructions and installation manual before using this product.
– Panasonic cannot be responsible for the performance of the network and/or other manufacturers' products used on the network.
138(5-7/16")
85(3-3/8")
46(1-13/16")
SR52.5
WV-NW502
MPEG-4 Frame Rate
Appearance
191.5(7-9/16")
1 41 52.5 52.5
(1-5/8") (2-1/16") (2-1/16")
146(5-3/4")
H.264: 1,920 x 1,080 / 640 x 360 / 320 x 240, up to 15 fps
JPEG: 1,920 x 1,080 / 640 x 360 / 320 x 240, up to 15 fps
Base Cover (accessory)
SDHC/SD Memory Card Slot
Tilting Lock Screw
Panning Lock Screw
Panning Table
Monitor Out Connector for
Adjustment
Link Indicator
Access Indicator
INITIAL SET Button
Auto Back Focus Button
SDHC/SD Memory Card
Error Indicator / ABF Indicator
130(5-1/8")
200(7-7/8")
ø164
(ø6-7/16")
85(3-3/8")
Network
Microsoft®
138(5-7/16")
Supported Browser
Russian (Installation required except for English)
Up to 100 (Internal), Up to 4,000 (SD/SDHC memory when the recording format is set to JPEG.) error logs
29(1-1/8")
Supported OS
English, French, Italian, Spanish, German,
83.5
(3-5/16")
System Log
(Installation required for French)
8-ø5
8-ø12
Mounting Surface
Unit: mm (inches)
• All TV pictures are simulated.
• Masses and dimensions are approximate.
• Specifications are subject to change without notice.
• These products may be subject to export control regulations.
• All product pictures are NTSC models.
DISTRIBUTED BY:
http://security.panasonic.com
http://www.facebook.com/PanasonicNetworkCamera
Printed in Japan (2A-046ML)
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
