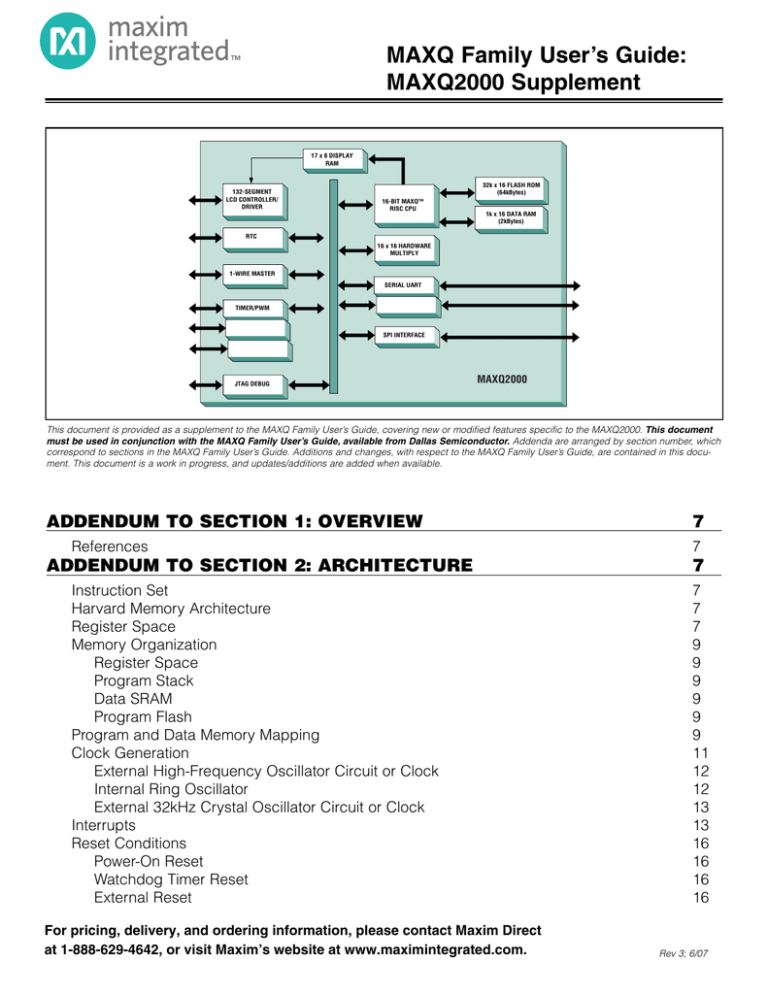

AN4819

AN4819
MAXQ Family User’s Guide:
MAXQ2000 Supplement
17 x 8 DISPLAY
RAM
132-SEGMENT
LCD CONTROLLER/
DRIVER
32k x 16 FLASH ROM
(64kBytes)
16-BIT MAXQ™
RISC CPU
1k x 16 DATA RAM
(2kBytes)
RTC
16 x 16 HARDWARE
MULTIPLY
1-WIRE MASTER
SERIAL UART
TIMER/PWM
SPI INTERFACE
JTAG DEBUG
MAXQ2000
This document is provided as a supplement to the MAXQ Family User’s Guide, covering new or modified features specific to the MAXQ2000. This document
must be used in conjunction with the MAXQ Family User’s Guide, available from Dallas Semiconductor. Addenda are arranged by section number, which
correspond to sections in the MAXQ Family User’s Guide. Additions and changes, with respect to the MAXQ Family User’s Guide, are contained in this document. This document is a work in progress, and updates/additions are added when available.
TABLE OF CONTENTS
ADDENDUM TO SECTION 1: OVERVIEW
References
ADDENDUM TO SECTION 2: ARCHITECTURE
Instruction Set
Functional Diagrams
Harvard Memory Architecture
Register Space
Memory Organization
Register Space
Program Stack
Data SRAM
Program Flash
Program and Data Memory Mapping
Clock Generation
External High-Frequency Oscillator Circuit or Clock
Internal Ring Oscillator
External 32kHz Crystal Oscillator Circuit or Clock
Interrupts
Reset Conditions
Pin Configurations
Power-On appear
Resetat end of data sheet.
Functional Diagrams continued at end of data sheet.
Watchdog Timer Reset
UCSP is a trademark of Maxim Integrated Products, Inc.
External Reset
For pricing, delivery, and ordering information, please contact Maxim Direct
at 1-888-629-4642, or visit Maxim’s website at www.maximintegrated.com.
7
7
7
7
7
7
9
9
9
9
9
9
11
12
12
13
13
16
16
16
16
Rev 3; 6/07
MAXQ Family User’s Guide:
MAXQ2000 Supplement
Power Management Features
Divide-by-256 Mode (PMM1)
32kHz Mode (PMM2)
Switchback Mode
Stop Mode
ADDENDUM TO SECTION 3: PROGRAMMING
ADDENDUM TO SECTION 4: SYSTEM REGISTER DESCRIPTIONS
ADDENDUM TO SECTION 5: PERIPHERAL REGISTER MODULES
ADDENDUM TO SECTION 6: GENERAL-PURPOSE I/O MODULE
(GPIO AND EXTERNAL INTERRUPTS)
ADDENDUM TO SECTION 7: TIMER/COUNTER 0 MODULE
ADDENDUM TO SECTION 8: TIMER/COUNTER 1 MODULE
ADDENDUM TO SECTION 9: TIMER/COUNTER 2 MODULE
Using the 32kHz Alternate Timer Clock Source
Timer 2 Example: Triggering a Periodic Interrupt
ADDENDUM TO SECTION 10: SERIAL I/O (UART) MODULE
Serial UART Example: Asynchronous 10-Bit Output at 115,200 Baud
ADDENDUM TO SECTION 11: SERIAL PERIPHERAL
INTERFACE (SPI) MODULE
SPI Example: Enabling Master Mode
ADDENDUM TO SECTION 12: HARDWARE MULTIPLIER MODULE
Multiplier Example: 16-Bit Unsigned Multiplication
ADDENDUM TO SECTION 13: 1-WIRE BUS MASTER
1-Wire Example: Reset and Presence Detect
ADDENDUM TO SECTION 14: REAL-TIME CLOCK MODULE
Real-Time Clock Example: Starting and Setting the Clock
ADDENDUM TO SECTION 15: TEST ACCESS PORT (TAP)
ADDENDUM TO SECTION 16: IN-CIRCUIT DEBUG MODE
Register Read and Write Commands
Data Memory Read Command
Data Memory Write Command
Program Stack Read Command
Read Register Map Command
Maxim Integrated
17
17
18
18
18
19
19
26
33
49
49
49
49
50
51
51
52
52
53
53
54
55
55
55
56
56
56
56
56
56
56
2
MAXQ Family User’s Guide:
MAXQ2000 Supplement
ADDENDUM TO SECTION 17: IN-SYSTEM PROGRAMMING (JTAG)
57
Bootloader Protocol
Family 0 Commands (Not Password Protected)
Family 1 Commands: Load Variable Length (Password Protected)
Family 2 Commands: Dump Variable Length (Password Protected)
Family 3 Commands: CRC Variable Length (Password Protected)
Family 4 Commands: Verify Variable Length (Password Protected)
Family 5 Commands: Load and Verify Variable Length (Password Protected)
Family 6 Commands: Erase Variable Length (Password Protected)
Family E Commands: Erase Fixed Length (Password Protected)
58
59
61
62
62
63
63
63
64
ADDENDUM TO SECTION 18: MAXQ FAMILY INSTRUCTION
SET SUMMARY
LCD CONTROLLER (SPECIFIC TO MAXQ2000)
64
66
LCD Controller Features
LCD Controller Operation Modes
LCD Drive Voltages
Selecting the LCD Mode
Segment Pin Configuration
LCD Internal Adjustable Contrast Resistor
LCD Frame Frequency
LCD Display Memory
Display Waveform Generation
LCD Controller Static Drive Example
LCD Controller 1/2 Duty Cycle Drive Example
LCD Controller 1/3 Duty Cycle Drive Example
LCD Controller 1/4 Duty Cycle Drive Example
LCD Controller Example: Initializing the LCD Controller
UTILITY ROM (SPECIFIC TO MAXQ2000)
In-Application Programming Features
Data Transfer Functions
ROM Example 1: Calling a Utility ROM Function Directly
ROM Example 2: Calling a Utility ROM Function Indirectly
REVISION HISTORY
Maxim Integrated
66
73
73
73
74
74
75
75
80
80
82
83
85
86
87
87
88
91
92
93
3
MAXQ Family User’s Guide:
MAXQ2000 Supplement
LIST OF FIGURES
Figure 1. MAXQ2000 System and Peripheral Register Map
8
Figure 2. Memory Map When Executing from Application Flash/ROM
10
Figure 3. Memory Map When Executing from Utility ROM
10
Figure 4. Memory Map When Executing from Data SRAM
11
Figure 5. MAXQ2000 Clock Sources
12
Figure 6. MAXQ2000 Power-On Reset
16
Figure 7. MAXQ2000 External Reset
17
Figure 8. LCD Controller Block Diagram
66
Figure 9. LCD Drive Voltage Generation
73
Figure 10. LCD Internal and External Display Contrast Adjustment
74
Figure 11. Sample 7-Segment LCD Display
80
Figure 12. Static Drive Example Display Connection
80
Figure 13. Static Drive Example Waveform Timing
81
Figure 14. 1/2 Duty Drive Example Display Connection
82
Figure 15. 1/2 Duty Drive Example Waveform Timing
83
Figure 16. 1/3 Drive Example Display Connection
83
Figure 17. 1/3 Duty Drive Example Waveform Timing
84
Figure 18. 1/4 Duty Drive Example Display Connection
85
Figure 19. 1/4 Duty Drive Example Waveform Timing
86
Maxim Integrated
4
MAXQ Family User’s Guide:
MAXQ2000 Supplement
LIST OF TABLES
Table 1. System Clock Generation and Control Registers
12
Table 2. MAXQ2000 Interrupt Sources and Control Bits
14
Table 3. System Power Management Registers
17
Table 4. System Register Map
19
Table 5. System Register Bit Functions
20
Table 6. System Register Reset Values
21
Table 7. Peripheral Register Map
26
Table 8. Peripheral Register Bit Functions
27
Table 9. Peripheral Register Bit Reset Values
30
Table 10. Port Pin Special Functions (68-Pin Package)
33
Table 11. Port Pin Special Functions (56-Pin Package)
35
Table 12. MAXQ2000 Port Pin Input/Output States
36
Table 13. Type 2 Timer/Counter Input and Output Pins
49
Table 14. Type 2 Timer/Counter Control Registers
49
Table 15. Serial UART Input and Output Pins
51
Table 16. Serial UART Control Registers
51
Table 17. SPI Input and Output Pins
52
Table 18. SPI Interface Control Registers
52
Table 19. Hardware Multiplier Control Registers
53
Table 20. 1-Wire Master Input and Output Pins
54
Table 21. 1-Wire Interface Control Registers
54
Table 22. 1-Wire Master Register Bit Functions
54
Table 23. 1-Wire Master Register Bit Reset Values
54
Table 24. Real-Time Clock Control Registers
55
Table 25. Output From DebugReadMap Command
57
Table 26. Bootloader Status Codes
58
Table 27. Bootloader Status Flags
60
Table 28. PCFn Bit Functions for 68-Pin Package
67
Table 29. PCFn Bit Functions for 56-Pin Package
67
Table 30. LCD Display Modes
73
Table 31. LCD Frame Frequencies (Hz)
75
Maxim Integrated
5
MAXQ Family User’s Guide:
MAXQ2000 Supplement
Table 32. LCD Display Memory Map (Static, 56-Pin Package)
76
Table 33. LCD Display Memory Map (1/2 Duty, 56-Pin Package)
76
Table 34. LCD Display Memory Map (1/3 Duty, 56-Pin Package)
77
Table 35. LCD Display Memory Map (1/4 Duty, 56-Pin Package)
77
Table 36. LCD Display Memory Map (Static, 68-Pin Package)
78
Table 37. LCD Display Memory Map (1/2 Duty, 68-Pin Package)
78
Table 38. LCD Display Memory Map (1/3 Duty, 68-Pin Package)
79
Table 39. LCD Display Memory Map (1/4 Duty, 68-Pin Package)
79
Table 40. Static Drive Example Common Signal Selection
81
Table 41. Static Drive Example Register Content
81
Table 42. 1/2 Duty Drive Example Common Signal Selection
82
Table 43. 1/2 Duty Drive Example Register Content
82
Table 44. 1/3 Duty Drive Example Common Signal Selection
84
Table 45. 1/3 Duty Drive Example Register Content
84
Table 46. 1/4 Duty Drive Example Common Signal Selection
85
Table 47. 1/4 Duty Drive Example Register Content
85
Table 48. Utility ROM User Functions (for Utility ROM Version 1.01)
87
Maxim Integrated
6
MAXQ Family User’s Guide:
MAXQ2000 Supplement
ADDENDUM TO SECTION 1: OVERVIEW
The MAXQ2000 is a low-power, high-performance 16-bit RISC microcontroller based on the MAXQ™ architecture. It includes support
for integrated, in-system-programmable flash memory and a wide range of peripherals including an LCD driver supporting up to x4
multiplexed displays. The MAXQ2000 is ideally suited for battery-powered, portable applications such as blood glucose monitoring,
medical instrumentation, environmental data logging, and industrial control.
References
Refer to the MAXQ Family User’s Guide (www.maxim-ic.com/user guides) for the following information.
• Description of the core architecture, instruction set, and memory mapping common to all MAXQ microcontrollers.
• Definitions and functions of the common system register set, including accumulators, data pointers, loop counters, and general-purpose registers.
• Descriptions of common clock generation, interrupt handling, and reset/power management modes.
• Descriptions and programming examples for common peripherals including Timer/Counter types 0/1/2, serial UART, SPI™ interface,
hardware multiplier, 1-Wire® bus master, and the real-time clock.
• Description of the Test Access Port (TAP) and in-circuit debug interface.
• Description of the in-system programming mode.
The online MAXQ2000 QuickView page contains information and data sheet links for all parts in the MAXQ2000 family.
For more information on other MAXQ microcontrollers, development hardware and software, frequently asked questions and software
examples, visit the MAXQ home page at www.maxim-ic.com/MAXQ.
For general questions and discussion of the MAXQ platform, visit our discussion board at http://discuss.dalsemi.com.
ADDENDUM TO SECTION 2: ARCHITECTURE
The MAXQ2000 shares the following common architectural features with other members of the MAXQ microcontroller family.
Instruction Set
The MAXQ2000 uses the standard 16-bit MAXQ instruction set as described in the MAXQ Family User’s Guide.
Harvard Memory Architecture
Program memory, data memory, and register space on the MAXQ2000 follow the Harvard architecture model. Each type of memory is
kept separate and is accessed by a separate bus, allowing different word lengths for different types of memory. Registers may be either
8 or 16 bits in width. Program memory is 16 bits in width to accommodate the standard MAXQ 16-bit instruction set. Data memory is
also 16 bits in width but can be accessed in 8-bit or 16-bit modes for maximum flexibility.
The MAXQ2000 includes a flexible memory management unit (MMU), which allows code to be executed from either the program
flash/ROM, the utility ROM, or the internal data SRAM. Any of these three memory spaces may also be accessed in data space at any
time, with the single restriction that whichever physical memory area is currently being used as program space cannot be read from
in data space.
Register Space
The MAXQ2000 contains the standard set of system registers as described in the MAXQ Family User’s Guide; differences are noted in
this guide where they exist. Peripheral register space (modules 0 through 4) on the MAXQ2000 contains registers that are used to
access the following peripherals:
• General-purpose 8-bit I/O ports (P0 through P7)
• External interrupts (up to 14)
• Three programmable Type 2 timer/counters
• Serial UART interfaces (2) and SPI
• Hardware Multiplier
• Real-Time Clock
MAXQ is a trademark of Maxim Integrated Products, Inc.
SPI is a trademark of Motorola, Inc.
1-Wire is a registered trademark of Dallas Semiconductor Corp.
Maxim Integrated
7
MAXQ Family User’s Guide:
MAXQ2000 Supplement
• 1-Wire Interface Master
• LCD Controller (up to 132 segments)
The lower 8 bits of all registers in modules 0 through 4 (as well as the AP module M8) are bit addressable.
REGISTER MODULE
M0
M1
M2
M3
M4
00h
PO0
PO4
M8
M9
MCNT
T2CNA0
T2CNA1
AP
A[0]
01h
PO1
02h
03h
M11
M12
M13
PO5
MA
T2H0
T2H1
APC
A[1]
SP
PO2
PO6
MB
T2RH0
T2RH1
A[2]
IV
PO3
PO7
MC2
T2CH0
T2CH1
A[3]
M14
M15
OFFS
DP0
IP
REGISTER INDEX
PFX
04h
MC1
05h
MC0
T2CNA2
PSF
A[4]
DPC
SPIB
T2H2
IC
A[5]
GR
IMR
A[6]
LC0
GRL
A[7]
LC1
BP
06h
EIF0
EIF1
SCON0
SCON1
T2RH2
07h
EIE0
EIE1
SBUF0
SBUF1
T2CH2
08h
PI0
PI4
SMD0
SMD1
T2CNB1
09h
PI1
PI5
PR0
PR1
0Ah
PI2
PI6
0Bh
PI3
PI7
MC1R
0Ch
EIES0
EIES1
MC0R
T2CNB0
T2CNB2
A[12]
0Dh
LCRA
T2V0
T2V2
A[13]
0Eh
LCFG
T2R0
T2R2
CKCN
A[14]
0Fh
LCD16
T2C0
T2C2
WDCN
A[15]
T2CFG0
T2CFG1
10h
PD0
PD4
LCD0
11h
PD1
PD5
LCD1
12h
PD2
PD6
LCD2
13h
PD3
PD7
LCD3
OWD
15h
SPICN
16h
LCD6
SPICF
17h
LCD7
SPICK
18h
LCD8
1Ah
RTSS
LCD10
1Bh
RTSH
LCD11
1Ch
RTSL
LCD12
1Dh
RSSA
LCD13
1Eh
RASH
LCD14
1Fh
RASL
LCD15
RESERVED
OR
OP CODE
PORT PINS
(GPIO)
REAL-TIME
CLOCK
A[9]
GRH
T2R1
A[10]
GRXL
A[11]
BP[offs]
IIR
OWA
LCD5
LCD9
T2V1
T2CFG2
14h
RCNT
GRS
T2C1
LCD4
19h
A[8]
SC
DP1
INTERRUPT
CONTROL
HARDWARE
MULTIPLIER
SERIAL
AND
SPI
LCD
CONTROLLER
TIMERS
ACC
ARRAY,
CONTROL
OTHER
FUNCTIONS
Figure 1. MAXQ2000 System and Peripheral Register Map
Maxim Integrated
8
MAXQ Family User’s Guide:
MAXQ2000 Supplement
Memory Organization
As with all MAXQ microcontrollers, the MAXQ2000 contains logically separate program and data memory spaces. All memory is internal, and physical memory segments (other than the stack and register memories) can be accessed as either program memory or as
data memory, but not both at once. The MAXQ2000 contains the following physical memory segments.
Register Space
As described in the MAXQ Family User’s Guide, register space on MAXQ microcontrollers consists of 16 register modules, each of
which can contain up to 32 registers. Of these possible 16 register modules, only 12 are used on the MAXQ2000—seven for system
registers and five for peripheral registers.
Program Stack
The MAXQ2000 provides a 16 x 16 hardware stack to support subroutine calls and system interrupts. This stack is used automatically by
CALL and RET instructions, and can also be accessed indirectly through the SP register as described in the MAXQ Family User’s Guide.
When using the in-circuit debugging features of the MAXQ2000, one word of the stack must be reserved to store the return location
when execution branches into the debugging routines in the utility ROM. If in-circuit debug will not be used, the entire stack is available for application use.
Data SRAM
The MAXQ2000 contains 1024 words (2kBytes) of on-chip data SRAM that can be mapped into either program or data space. The contents of this SRAM are indeterminate after power-on reset, but are maintained during Stop mode and across non-POR resets, as long
as the VDD supply stays within the acceptable range.
When using the in-circuit debugging features of the MAXQ2000, the top 19 bytes (bytes 0x7ED to 0x7FF) of the SRAM must be
reserved for saved state storage and working space for the debugging routines in the utility ROM. If in-circuit debug will not be used,
the entire SRAM is available for application use.
Program Flash
The MAXQ2000 contains 32k x 16 of flash memory, which normally serves as program memory. When executing from the data SRAM or
utility ROM, this memory is mapped to data space (as 32kWords or 64kBytes) and can be used for lookup tables and similar functions.
Flash memory mapped into data space can be read from directly, like any other type of data memory. However, writing to flash memory
must be done indirectly by calling the in-application functions provided by the utility ROM. See the Utility ROM section for more details.
Program and Data Memory Mapping
Figures 2, 3, and 4 show the mapping of physical memory segments into the program and data memory space. The mapping of memory segments into program space is always the same. The mapping of memory segments into data space varies depending on which
memory segment is currently being executed from.
In all cases, whichever memory segment is currently being executed from in program space cannot be accessed in data space.
Maxim Integrated
9
MAXQ Family User’s Guide:
MAXQ2000 Supplement
DATA SPACE
(BYTE MODE)
PROGRAM
SPACE
1k x 16
DATA SRAM
DATA SPACE
(WORD MODE)
A3FFh
A000h
8FFFh
87FFh
4k x 8
UTILITY ROM
2k x 16
UTILITY ROM
87FFh
2k x 16
UTILITY ROM
8000h
8000h
8000h
EXECUTING FROM
7FFFh
32k x 16
PROGRAM FLASH
OR MASKED ROM
0000h
2k x 8
DATA SRAM
07FFh
0000h
1k x 16
DATA SRAM
003FFh
0000h
Figure 2. Memory Map When Executing from Application Flash/ROM
DATA SPACE
(BYTE MODE)
PROGRAM
SPACE
DATA SPACE
(WORD MODE)
FFFFh
1k x 16
DATA SRAM
A3FFh
A000h
64k x 8
PROGRAM FLASH
OR MASKED ROM
FFFFh
32k x 16
PROGRAM FLASH
OR MASKED ROM
PAGE 0
(IF CDA0 = 0)
EXECUTING FROM
PAGES 0 AND 1
87FFh
PAGE 1
(IF CDA0 = 1)
2k x 16
UTILITY ROM
8000h
8000h
8000h
7FFFh
32k x 16
PROGRAM FLASH
OR MASKED ROM
0000h
2k x 8
DATA SRAM
07FFh
0000h
1k x 16
DATA SRAM
03FFh
0000h
Figure 3. Memory Map When Executing from Utility ROM
Maxim Integrated
10
MAXQ Family User’s Guide:
MAXQ2000 Supplement
DATA SPACE
(BYTE MODE)
EXECUTING FROM
PROGRAM
SPACE
1k x 16
DATA SRAM
DATA SPACE
(WORD MODE)
A3FFh
A000h
8FFFh
87FFh
4k x 8
UTILITY ROM
2k x 16
UTILITY ROM
8000h
7FFFh
32k x 16
PROGRAM FLASH
OR MASKED ROM
64k x 8
PROGRAM FLASH
OR MASKED ROM
2k x 16
UTILITY ROM
8000h
8000h
7FFFh
7FFFh
32k x 16
PROGRAM FLASH
OR MASKED ROM
PAGE 0
(IF CDA0 = 0)
0000h
PAGE 1
(IF CDA0 = 1)
87FFh
PAGES 0 AND 1
0000h
0000h
Figure 4. Memory Map When Executing from Data SRAM
Clock Generation
All functional modules in the MAXQ2000 are synchronized to a single system clock. This system clock can be generated from one of
five possible sources (Figure 5):
• Internal ring oscillator
• Internal high-frequency oscillator using external crystal or resonator circuit
• External high-frequency clock signal
• Internal 32kHz oscillator using external crystal or resonator circuit
• External 32kHz clock signal
The MAXQ2000 does not provide the option for an external RC relaxation oscillator circuit.
Table 1 shows the registers and bits used to control clock generation and selection. For more information, see the register descriptions
in this guide and the MAXQ Family User’s Guide.
Maxim Integrated
11
MAXQ Family User’s Guide:
MAXQ2000 Supplement
POWER-ON
RESET
RWT
RESET
STOP
RESET DOG
XDOG COUNT
RESET
WATCHDOG
TIMER
XDOG
STARTUP
TIMER
WATCHDOG RESET
WATCHDOG INTERRUPT
XDOG DONE
CLK INPUT
CRYSTAL KLL
HF
CRYSTAL
MAXQ2000
STOP
CLOCK
DIVIDER
RING
GLITCH-FREE
MUX
GLITCH-FREE
MUX
POWER-ON
RESET
ENABLE
CLOCK
GENERATION
SYSTEM CLOCK
WAKE-UP
ALARM
TIMERS
32kHz
CRYSTAL
DIV 1
DIV 2
DIV 4
DIV 8
32kHz
PMM
ENABLE
SWB
INTERRUPT/SERIAL PORT
RESET
SELECTOR
DEFAULT
RING SELECT
STOP
INPUT
CRYSTAL
MONITOR
RGSL
ENABLE
RGMD
POWER-ON RESET
XDOG DONE
Figure 5. MAXQ2000 Clock Sources
Table 1. System Clock Generation and Control Registers
REGISTER
ADDRESS
BIT
FUNCTION
CKCN
M8[0Eh]
[1:0] to CD[1:0]
CKCN
M8[0Eh]
2 (PMME)
If set to 0, selects normal clock divide mode (as determined by CD[1:0]). If set to 1, selects
either divide-by-256 mode (when CD[1:0]=00) or 32kHz mode (when CD[1:0]=11).
CKCN
M8[0Eh]
5 (RGMD)
Read-only. Indicates if ring oscillator (1) or external crystal/clock (0) is being used to provide
the system clock.
CKCN
M8[0Eh]
6 (RGSL)
Selects ring oscillator (1) or external crystal/clock (0) as the clock source.
RCNT
M0[19h]
14 (X32D)
Disables (1) or enables (0) the internal 32kHz oscillator. If the 32kHz oscillator is disabled,
the RTC can be driven externally by a 32kHz clock input signal.
Selects clock divide-by-1 (00), -2 (01), -4 (10), or -8 (11) mode.
External High-Frequency Oscillator Circuit or Clock
The high-frequency oscillator is the default source for system clock generation. This oscillator operates as described in the “Clock
Generation” section of Section 2: Architecture in the MAXQ Family User’s Guide. When using an external crystal or resonator circuit,
the circuit should be connected between the HFXIN and HFXOUT. When using an external clock signal to drive the high-frequency
clock, the external clock signal should be connected to the HFXIN pin, and the HFXOUT pin should be left unconnected.
Internal Ring Oscillator
The MAXQ2000 provides an internal ring oscillator that can be used as an alternate source for the system clock. This oscillator, which
requires no external components, typically runs at an 8MHz frequency. The exact frequency of the ring oscillator is not fixed and will
vary from part to part due to process variations, as well as over temperature and supply voltage for any given part.
Maxim Integrated
12
MAXQ Family User’s Guide:
MAXQ2000 Supplement
To select the ring oscillator as the system clock source, the RGSL bit (CKCN.6) must be set to 1. Setting this bit immediately switches
over the system clock source to the ring oscillator. The RGMD (CKCN.5) bit indicates the current system clock source. If the ring oscillator is currently providing the system clock, RGMD equals 1; otherwise, RGMD equals 0.
Because the RGSL bit is cleared by power-on reset only, if this bit is set before entering Stop mode, the ring oscillator will still be used
as the system clock source when Stop mode is exited. In this case, a 4-cycle warmup delay is required when exiting Stop mode before
execution resumes using the ring oscillator as the system clock source.
When the system clock source is switched back from the ring oscillator to the high-frequency oscillator by clearing RGSL to zero, the
ring oscillator will still be used as the system clock source until the warmup period has completed for the high-frequency oscillator. This
will be reflected by the value of the RGMD bit, which remains at 1 until the warmup for the high-frequency oscillator has completed
and the clock switches over, at which point RGMD switches to 0.
External 32kHz Crystal Oscillator Circuit or Clock
The MAXQ2000 provides a 32kHz clock for use by the real-time clock module. This clock can be generated either by the internal 32kHz
crystal oscillator (using an external crystal) or by an external source. The 32kHz clock is also usable as a system clock source, a clock
for the LCD controller, and as an alternate Timer 2 clock.
The 32kHz crystal amplifier is switched off by default on power-on reset. With this crystal amplifier disabled, the 32kHz clock must be
provided directly by an external source. To use the 32kHz crystal amplifier to generate the 32kHz clock, the amplifier must be turned
on by setting the X32D (RCNT.14) bit to 0 and a 32.768kHz, 6pF crystal should be connected between the 32KIN and 32KOUT pins.
To use the 32kHz clock as a source for the system clock, Power Management Mode 2 must be entered by setting PMME, CD1, and
CD0 to 1. See the Power Management Features section for more details.
Interrupts
In general, interrupt handling on the MAXQ2000 operates as described in the MAXQ Family User’s Guide. All interrupt sources have
the same priority, and all interrupts cause program execution to branch to the location specified by the Interrupt Vector (IV) register,
which defaults to 0000h.
Table 2 lists all possible interrupt sources for the MAXQ2000, along with their corresponding module interrupt enable bits, local interrupt enable bits, and interrupt flags.
• Each module interrupt enable bit, when cleared to 0, will block interrupts originating in that module from being acknowledged.
When the module interrupt enable bit is set to 1, interrupts from that module are acknowledged (unless the interrupts have been
disabled globally).
• Each local interrupt enable bit, when cleared to 0, will disable the corresponding interrupt. When the local interrupt enable bit is set
to 1, the interrupt will be triggered whenever the interrupt flag is set to 1 (either by software or hardware).
• All interrupt flag bits cause the corresponding interrupt to trigger when the bit is set to 1. These bits are typically set by hardware
and must be cleared by software (generally in the interrupt handler routine).
Note that for an interrupt to fire, the following five conditions must exist:
• Interrupts must be enabled globally by setting IGE (IC.0) to 1.
• The module interrupt enable bit for that interrupt source’s module must be set to 1.
• The local interrupt enable bit for that specific interrupt source must be set to 1.
• The interrupt flag for that interrupt source must be set to 1. Typically, this is done by hardware when the condition that requires interrupt service occurs.
• The Interrupt In Service (INS) bit must be cleared to 0. This bit is set automatically upon vectoring to the interrupt handler (IV) address
and cleared automatically upon exit (RETI/POPI), so the only reason to clear this bit manually (inside the interrupt handler routine) is
to allow nested interrupt handling.
Maxim Integrated
13
MAXQ Family User’s Guide:
MAXQ2000 Supplement
Table 2. MAXQ2000 Interrupt Sources and Control Bits
MODULE ENABLE BIT
LOCAL ENABLE BIT
INTERRUPT FLAG
Watchdog Interrupt
INTERRUPT
IMS (IMR.7)
EWDI (WDCN.6)
WDIF (WDCN.3)
External Interrupt 0
IM0 (IMR.0)
EX0 (EIE0.0)
IE0 (EIF0.0)
External Interrupt 1
IM0 (IMR.0)
EX1 (EIE0.1)
IE1 (EIF0.1)
External Interrupt 2
IM0 (IMR.0)
EX2 (EIE0.2)
IE2 (EIF0.2)
External Interrupt 3
IM0 (IMR.0)
EX3 (EIE0.3)
IE3 (EIF0.3)
External Interrupt 4
IM0 (IMR.0)
EX4 (EIE0.4)
IE4 (EIF0.4)
External Interrupt 5
IM0 (IMR.0)
EX5 (EIE0.5)
IE5 (EIF0.5)
External Interrupt 6
IM0 (IMR.0)
EX6 (EIE0.6)
IE6 (EIF0.6)
External Interrupt 7
IM0 (IMR.0)
EX7 (EIE0.7)
IE7 (EIF0.7)
External Interrupt 8
IM1 (IMR.1)
EX8 (EIE1.0)
IE8 (EIF1.0)
External Interrupt 9
IM1 (IMR.1)
EX9 (EIE1.1)
IE9 (EIF1.1)
External Interrupt 10*
IM1 (IMR.1)
EX10 (EIE1.2)
IE10 (EIF1.2)
External Interrupt 11*
IM1 (IMR.1)
EX11 (EIE1.3)
IE11 (EIF1.3)
External Interrupt 12
IM1 (IMR.1)
EX12 (EIE1.4)
IE12 (EIF1.4)
External Interrupt 13
IM1 (IMR.1)
EX13 (EIE1.5)
IE13 (EIF1.5)
External Interrupt 14
IM1 (IMR.1)
EX14 (EIE1.6)
IE14 (EIF1.6)
External Interrupt 15
IM1 (IMR.1)
EX15 (EIE1.7)
IE15 (EIF1.7)
RTC Time-of-Day Alarm
IM0 (IMR.0)
ADE (RCNT.1)
ALDF (RCNT.6)
RTC Subsecond Alarm
IM0 (IMR.0)
ASE (RCNT.2)
ALSF (RCNT.7)
Serial Port 0 Receive
IM2 (IMR.2)
ESI (SMD0.2)
RI (SCON0.0)
Serial Port 0 Transmit
IM2 (IMR.2)
ESI (SMD0.2)
TI (SCON0.1)
Serial Port 1 Receive
IM3 (IMR.3)
ESI (SMD1.2)
RI (SCON1.0)
Serial Port 1 Transmit
IM3 (IMR.3)
ESI (SMD1.2)
TI (SCON1.1)
SPI Mode Fault
IM3 (IMR.3)
ESPII (SPICF.7)
MODF (SPICN.3)
SPI Write Collision
IM3 (IMR.3)
ESPII (SPICF.7)
WCOL (SPICN.4)
SPI Receive Overrun
IM3 (IMR.3)
ESPII (SPICF.7)
ROVR (SPICN.5)
SPI Transfer Complete
IM3 (IMR.3)
ESPII (SPICF.7)
SPIC (SPICN.6)
Timer 0–Low Compare
IM3 (IMR.3)
ET2L (T2CNB0.7)
T2CL (T2CNB0.0)
Timer 0–Low Overflow
IM3 (IMR.3)
ET2L (T2CNB0.7)
TF2L (T2CNB0.2)
Timer 0–Capture/Compare
IM3 (IMR.3)
ET2 (T2CNA0.7)
TCC2 (T2CNB0.1)
Timer 0–Overflow
IM3 (IMR.3)
ET2 (T2CNA0.7)
TF2 (T2CNB0.3)
Timer 1–Low Compare
IM4 (IMR.4)
ET2L (T2CNB1.7)
T2CL (T2CNB1.0)
Timer 1–Low Overflow
IM4 (IMR.4)
ET2L (T2CNB1.7)
TF2L (T2CNB1.2)
Maxim Integrated
14
MAXQ Family User’s Guide:
MAXQ2000 Supplement
Table 2. MAXQ2000 Interrupt Sources and Control Bits (continued)
INTERRUPT
MODULE ENABLE BIT
LOCAL ENABLE BIT
INTERRUPT FLAG
Timer 1–Capture/Compare
IM4 (IMR.4)
ET2 (T2CNA1.7)
TCC2 (T2CNB1.1)
Timer 1–Overflow
IM4 (IMR.4)
ET2 (T2CNA1.7)
TF2 (T2CNB1.3)
Timer 2–Low Compare
IM4 (IMR.4)
ET2L (T2CNB2.7)
T2CL (T2CNB2.0)
Timer 2–Low Overflow
IM4 (IMR.4)
ET2L (T2CNB2.7)
TF2L (T2CNB2.2)
Timer 2–Capture/Compare
IM4 (IMR.4)
ET2 (T2CNA2.7)
TCC2 (T2CNB2.1)
Timer 2–Overflow
IM4 (IMR.4)
ET2 (T2CNA2.7)
TF2 (T2CNB2.3)
1-Wire Presence Detect*
IM3 (IMR.3);
EOWMI (OWD[5].7)
EPD (OWD[3].0)
PD (OWD[2].0)
1-Wire Transmit Buffer Empty*
IM3 (IMR.3);
EOWMI (OWD[5].7)
ETBE (OWD[3].2)
TBE (OWD[2].2)
1-Wire Transmit Shift Register Empty*
IM3 (IMR.3);
EOWMI (OWD[5].7)
ETMT (OWD[3].3)
TEMT (OWD[2].3)
1-Wire Receive Buffer Full*
IM3 (IMR.3);
EOWMI (OWD[5].7)
ERBF (OWD[3].4)
RBF (OWD[2].4)
1-Wire Receive Shift Register Full*
IM3 (IMR.3);
EOWMI (OWD[5].7)
ERSF (OWD[3].5)
RSRF (OWD[2].5)
1-Wire Short*
IM3 (IMR.3);
EOWMI (OWD[5].7)
EOWSH (OWD[3].6)
OW_SHORT (OWD[2].6)
1-Wire Low*
IM3 (IMR.3);
EOWMI (OWD[5].7)
EOWL (OWL[3].7)
OW_LOW (OWD[2].7)
* External Interrupts 10, external interrupt 11, and 1-Wire are only available on the 68-pin (RAX) version of the MAXQ2000.
Note 1: For 1-Wire Master interrupts to be received, both IM3 and EOWMI must be set to 1.
Note 2: The notation OWD[n] refers to accessing the OWD register with the OWA register set to n.
Maxim Integrated
15
MAXQ Family User’s Guide:
MAXQ2000 Supplement
Reset Conditions
There are three possible reset sources for the MAXQ2000. While in the reset state, the enabled system clock oscillator continues running, but no code execution occurs. Once the reset condition has been removed or has completed, code execution resumes at
address 8000h for all reset types.
Power-On Reset
When power is first applied to the MAXQ2000, or when the internal supply voltage VDD drops below the minimum allowed value, the
processor is held in a power-on reset state (Figure 6). For the MAXQ2000 to exit power-on reset, the following two conditions must apply:
• VDD is within the acceptable range for that power supply (see data sheet for values).
• The ring oscillator has completed 65,536 cycles (delay for power supply to stabilize).
Note that since the MAXQ2000 has no brownout reset function, the power-on reset is only guaranteed to occur if VDD drops all the way
to ground before rising again. Brownout events where VDD drops partially (but remains above ground) and then rises back into the
acceptable range are not guaranteed to trigger a power-on reset and can result in unpredictable device behavior.
If the VDDIO power supply drops to ground, a power-on reset is not triggered. However, this causes all port pins driven by VDDIO to
drop to ground. Additionally, the 32kHz oscillator only operates when VDDIO is within acceptable limits.
VDD(MIN)
T1
(T1 = STARTUP TIME FOR RING OSCILLATOR)
RING
OSCILLATOR
T2
INTERNAL
RESET
(T2 = 65,536 RING OSCILLATOR CYCLES, OR 8.192ms AT 8MHz)
Figure 6. MAXQ2000 Power-On Reset
Watchdog Timer Reset
The watchdog timer on the MAXQ2000 functions as described in the MAXQ Family User’s Guide. When running at 14MHz, the maximum watchdog time period before reset is approximately 150ms.
Since the RGSL bit is cleared to 0 on power-on reset only, it is possible to exit a watchdog reset with the clock source set to the highfrequency oscillator. In this case, execution resumes running from the ring oscillator, and the switchover to the high-frequency oscillator occurs automatically when the 65,536-cycle warmup delay for that oscillator has completed.
External Reset
External reset via RESET is a synchronous reset source. After the external reset low has been removed and sampled, execution
resumes (running from the ring oscillator) following a delay of four ring-oscillator cycles, as shown in Figure 7.
Since the RGSL bit is cleared to 0 on power-on reset only, it is possible to exit an external reset with the clock source set to the highfrequency oscillator. In this case, execution resumes running from the ring oscillator, and the switchover to the high-frequency oscillator occurs automatically when the 65,536-cycle warmup delay for that oscillator has completed.
Maxim Integrated
16
MAXQ Family User’s Guide:
MAXQ2000 Supplement
CLOCK
RESET
RESET
SAMPLING
INTERNAL
RESET
FIRST
INSTRUCTION
FETCH
Figure 7. MAXQ2000 External Reset
Power Management Features
The MAXQ2000 provides the following features to assist in power management.
• Divide-by-256 (PMM1) and 32kHz (PMM2) modes to reduce current consumption.
• Switchback mode to exit PMM modes automatically when rapid processing is required.
• Ultra-low-power Stop mode.
Table 3 shows the system registers and bits used to control power management features. For more information, refer to the register
descriptions in the MAXQ Family User’s Guide.
Table 3. System Power Management Registers
REGISTER
ADDRESS
BIT
FUNCTION
CKCN
M8[0Eh]
[1:0] to CD[1:0]
CKCN
M8[0Eh]
2 (PMME)
CKCN
M8[0Eh]
3 (SWB)
When set to 1, enables automatic switchback from PMM (divide-by-256 mode) to normal
clock divide mode under certain conditions.
CKCN
M8[0Eh]
4 (STOP)
When set to 1, causes the processor to enter Stop mode.
Selects clock divide-by-1 (00), -2 (01), -4 (10), or -8 (11) mode. When PMM mode is
enabled, selects divide-by-256 (00) or 32kHz (11) mode.
Selects PMM mode (when set to 1) or normal clock divide mode (when set to 0).
Divide-by-256 Mode (PMM1)
In this power management mode, all operations continue as normal but at a reduced clock rate (the high-frequency system clock divided by 256). This power management mode affects module clock rates as follows.
• Program execution occurs at the high-frequency clock rate divided by 256.
• The RTC module continues to operate using its originally selected clock, which is either the 32kHz clock or the high-frequency clock
divided by 128, as selected by the ACS bit (RCNT.13).
• The LCD module continues to operate using its originally selected clock, which is either the 32kHz clock or the high-frequency clock
divided by 128, as selected by the LCCS bit (LCRA.6).
• All other functional modules (timers, UARTs, SPI) operate at the high-frequency clock rate divided by 256.
Maxim Integrated
17
MAXQ Family User’s Guide:
MAXQ2000 Supplement
This power management mode is entered by setting the PMME bit (CKCN.2) to 1 while the CD1 and CD0 (CKCN[1:0]) bits are both
cleared to 0. When PMM1 mode is exited (either by clearing the PMME bit or as a result of a switchback trigger), system operation will
revert to the mode indicated by the values of the CD1 and CD0 bits, which in this case will be the standard divide-by-1 clock mode.
32kHz Mode (PMM2)
In this power management mode, all operations continue as normal using the 32kHz clock as the system clock source. This power
management mode affects module clock rates as follows.
• Program execution occurs at the 32kHz clock rate.
• The RTC module continues to operate using its originally selected clock, which is either the 32kHz clock or the high-frequency clock
divided by 128, as selected by the ACS bit (RCNT.13).
• The LCD module continues to operate using its originally selected clock, which is either the 32kHz clock or the high-frequency clock
divided by 128, as selected by the LCCS bit (LCRA.6).
• All other functional modules (timers, UARTs, SPI) operate at the 32kHz clock rate.
This power management mode is entered by setting the PMME bit (CKCN.2) to 1 while the CD1 and CD0 (CKCN[1:0]) bits are both
set to 1. When PMM2 mode is exited (either by clearing the PMME bit or as a result of a switchback trigger), system operation will revert
to the mode indicated by the values of the CD1 and CD0 bits, which in this case will be the divide-by-8 clock mode.
When PMM2 mode is entered, the high-frequency oscillator is automatically disabled unless Switchback has been enabled by setting
the SWB bit to 1. If Switchback is not being used, the LCD module and RTC module should both be set to use the 32kHz clock (not
HFClk / 128) before PMM2 mode is entered.
Switchback Mode
As described in the MAXQ Family User’s Guide, Switchback mode provides automatic exit from power management mode when a
higher clock rate is required to respond to I/O, such as UART activity, SPI activity, or an external interrupt.
Switchback mode is enabled when the SWB (CKCN.3) bit is set to 1 and the PMME (CKCN.2) bit is set to 1(the system is in either the
PMM1 or PMM2 modes). If Switchback is enabled, the PMME bit will be cleared (causing the system to exit power management mode)
when any of the following conditions occur.
• An external interrupt condition occurs on an INTx pin and the corresponding external interrupt is enabled.
• An active-low transition occurs on the RXD0 or RXD1 pin and the corresponding UART is enabled to receive data. If PMM2 mode is
exited in this manner, the first character read by the UART will be received incorrectly.
• The SBUF0 or SBUF1 register is written to transmit a byte and the corresponding UART is enabled to transmit data.
• The SPIB register is written to send an outgoing byte through the SPI interface and transmission is enabled.
• An active-low transition occurs on the SSEL pin when the SPI interface is configured for slave mode.
• A Time-of-Day alarm is generated by the RTC module.
• Active debug mode is entered either by a breakpoint match or direct issuance of the Debug command from background mode.
As described in the MAXQ Family User’s Guide, if any of these conditions are true (a Switchback source is active) and the SWB bit has
been set, the PMME bit cannot be set to enter power management mode.
Stop Mode
Stop mode disables all circuits within the MAXQ2000 except for the 32kHz crystal amplifier and any circuitry that is clocked directly
by the 32kHz clock. All other on-chip clocks, timers, serial ports, and other peripherals are stopped, and no code execution occurs.
Once in Stop mode, the MAXQ2000 is in a mostly static state, with power consumption determined largely by leakage currents.
Stop mode is invoked by setting the STOP bit to 1. The MAXQ2000 enters Stop mode immediately when the STOP bit is set. Entering
Stop mode does not affect the setting of the clock control bits; this allows the system to return to its original operating frequency following Stop mode removal.
The processor exits Stop mode if any of the following conditions occur.
• External reset (from the RST pin)
• Power-on reset
• External interrupt (interrupt must be enabled prior to entering Stop mode)
• RTC time-of-day alarm
Maxim Integrated
18
MAXQ Family User’s Guide:
MAXQ2000 Supplement
Note that exiting Stop mode through external reset or power-on reset causes the processor to undergo a normal reset cycle, as
opposed to resuming execution at the point at which it entered Stop mode. Exiting Stop mode by means of an external interrupt or
time-of-day alarm causes the processor to resume execution at the instruction following the one that set the STOP bit.
When Stop mode is exited, processor execution resumes as follows.
• If the ring oscillator is selected as the system clock source (RGSL = 1), execution resumes using the ring oscillator as the system
clock following a delay of four ring cycles.
• If the high-frequency oscillator is selected as the system clock source (RGSL = 0), execution resumes using the ring oscillator as the
system clock following a delay of four ring cycles. After the high-frequency oscillator has completed its warmup period, the system
clock source switches over to the high-frequency clock automatically.
• If the 32kHz oscillator is selected as the system clock source, execution resumes using the 32kHz oscillator as the system clock following a delay of four ring cycles. For this to work properly, the 32kHz crystal amplifier must be enabled and running prior to entering Stop mode, or an external 32kHz clock must be provided immediately upon Stop mode exit (if X32D is set to 1).
ADDENDUM TO SECTION 3: PROGRAMMING
Refer to Section 3: Programming in the MAXQ Family User’s Guide for examples of general program operations involving the MAXQ
core. The MAXQ2000 contains the MAXQ20 (16-bit accumulator version) of the MAXQ core.
ADDENDUM TO SECTION 4: SYSTEM REGISTER DESCRIPTIONS
Refer to Section 4: System Register Descriptions in the MAXQ Family User’s Guide for functional descriptions of the registers and bits
listed in Tables 4, 5, and 6.
Table 4. System Register Map
CYCLES TO
READ
CYCLES TO
WRITE
REGISTER
INDEX
1
1
1
1
1
AP (8h)
A (9h)
PFX (Bh)
IP (Ch)
SP (Dh)
DPC (Eh)
DP (Fh)
0xh
AP
A[0]
PFX
IP
1xh
APC
A[1]
SP
1
2xh
—
A[2]
IV
1
1
3xh
—
A[3]
Offs
DP[0]
1
1
4xh
PSF
A[4]
DPC
1
1
1
1
5xh
IC
A[5]
6xh
IMR
A[6]
LC[0]
GRL
1
1
7xh
—
A[7]
LC[1]
BP
1
2
8xh
SC
A[8]
GRS
1
2
9xh
—
A[9]
GRH
1
2
Axh
—
A[10]
GRXL
1
2
Bxh
IIR
A[11]
FP
1
2
Cxh
—
A[12]
1
2
Dxh
—
A[13]
1
2
Exh
CKCN
A[14]
1
2
Fxh
WDCN
A[15]
GR
DP[1]
Note: Register names that appear in italics indicate read-only registers. Register names that appear in bold indicate 16-bit registers. All other registers are 8
bits in width.
Maxim Integrated
19
MAXQ Family User’s Guide:
MAXQ2000 Supplement
Table 5. System Register Bit Functions
REG
BIT 15 BIT 14 BIT 13 BIT 12 BIT 11 BIT 10
BIT 9
BIT 8
BIT 7
BIT 6
BIT 5
BIT 4
BIT 3
BIT 2
BIT 1
BIT 0
AP
—
—
—
—
APC
CLR
IDS
—
—
—
MOD2
MOD1
MOD0
PSF
Z
S
—
GPF1
GPF0
OV
C
E
IC
—
—
CGDS
—
—
—
INS
IGE
IMR
IMS
—
—
IM4
IM3
IM2
IM1
IM0
SC
TAP
—
—
CDA0
—
ROD
PWL
—
IIR
IIS
—
—
II4
II3
II2
II1
II0
CKCN
—
RGSL
RGMD
STOP
SWB
PMME
CD1
CD0
EWDI
WD1
WD0
WDIF
WTRF
EWT
RWT
—
—
—
—
—
WBS2
WBS1
WBS0
GR.6
GR.5
GR.4
GR.3
GR.2
GR.1
GR.0
GR.15
GR.14
GR.13
GR.12
GR.11
GR.10
GR.9
GR.8
GR.15
GR.14
GR.13
GR.12
GR.11
GR.10
GR.9
GR.8
GR.7
GR.6
GR.5
GR.4
GR.3
GR.2
GR.1
GR.0
WDCN
POR
A[0..15]
A[n] (16 bits)
PFX
PFX (16 bits)
IP
IP (16 bits)
SP
—
—
—
—
—
—
—
—
—
IV
IV (16 bits)
LC[0]
LC[0] (16 bits)
LC[1]
LC[1] (16 bits)
Offs
DPC
—
—
—
—
—
—
—
—
SDPS1 SDPS0
GR (16 bits)
GRL
GR.7
BP
BP (16 bits)
GR.7
GR.6
GR.5
GR.4
GR.3
GR.2
GR.1
GR.0
GRH
GRXL
SP (4 bits)
Offs (8 bits)
—
GR
GRS
AP (4 bits)
GR.7
GR.7
GR.7
GR.7
GR.7
GR.7
GR.7
GR.7
FP
FP (16 bits)
DP[0]
DP[0] (16 bits)
DP[1]
DP[1] (16 bits)
Maxim Integrated
20
MAXQ Family User’s Guide:
MAXQ2000 Supplement
Table 6. System Register Reset Values
REG
BIT 15 BIT 14 BIT 13 BIT 12 BIT 11 BIT 10
BIT 9
BIT 8
BIT 7
BIT 6
BIT 5
BIT 4
BIT 3
BIT 2
BIT 1
BIT 0
AP
0
0
0
0
0
0
0
0
APC
0
0
0
0
0
0
0
0
PSF
1
0
0
0
0
0
0
0
IC
0
0
0
0
0
0
0
0
IMR
0
0
0
0
0
0
0
0
SC
0
0
0
0
0
0
s
0
IIR
0
0
0
0
0
0
0
0
CKCN
0
s
s
0
0
0
0
0
s
s
0
0
0
s
s
0
A[0..15]
WDCN
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
PFX
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
IP
1
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
SP
0
0
0
0
0
0
0
0
0
0
0
0
1
1
1
1
IV
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
LC[0]
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
LC[1]
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
DPC
0
0
0
0
0
0
0
0
0
0
0
1
1
1
0
0
GR
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
BP
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
GRS
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
Offs
GRL
GRH
GRXL
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
FP
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
DP[0]
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
DP[1]
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
Note: Bits marked as “s” have special behavior upon reset; see register descriptions for details.
Maxim Integrated
21
MAXQ Family User’s Guide:
MAXQ2000 Supplement
The following section details the functionality of any System Registers contained in the MAXQ2000 that operate differently from their
descriptions in the MAXQ Family User’s Guide.
Register Name:
Register Description:
Register Address:
Bit #
IMR
Interrupt Mask Register
AP[06h]
7
6
5
4
3
2
1
0
Name
IMS
—
—
IM4
IM3
IM2
IM1
IM0
Reset
0
0
0
0
0
0
0
0
r/w
r
r
r/w
r/w
r/w
r/w
r/w
Access
The first five bits in this register are interrupt mask bits for modules 0 through 4, one bit per module. The eighth bit, IMS, serves as a
mask for any system module interrupt sources. Setting a mask bit allows the enabled interrupt sources for the associated module or system (with IMS) to generate interrupt requests. Clearing the mask bit effectively disables all interrupt sources associated with that module or, in the case of IMS, all system interrupt sources. The IMR register is intended to facilitate user-definable interrupt prioritization.
Bit 0: (IMR.0) Module 0 Interrupt Mask (IM0)
Bit 1: (IMR.1) Module 1 Interrupt Mask (IM1)
Bit 2: (IMR.2) Module 2 Interrupt Mask (IM2)
Bit 3: (IMR.3) Module 3 Interrupt Mask (IM3)
Bit 4: (IMR.4) Module 4 Interrupt Mask (IM4)
Bits 5 and 6: (IMR.5 and IMR.6) Reserved
Bit 7: (IMR.7) System Module Interrupt Mask (IMS)
Register Name:
Register Description:
Register Address:
Bit #
SC
System Control Register
AP[08h]
7
6
5
4
3
2
Name
TAP
—
—
CDA0
—
Reset
1
0
0
0
0
POR
1
0
0
0
r/w
r
r
r/w
Access
1
0
—
PWL
—
0
not set
0
0
0
1
0
r
r
r/w
r
Bit 0: (SC.0) Reserved
Bit 1: (SC.1) Password Lock (PWL). This bit defaults to 1 on power-on reset only. When this bit is 1, it requires a 32-byte password
to be matched with the password in the program space before allowing access to the ROM Loader’s utilities for read/write of program
memory and debug functions. Clearing this bit to 0 disables the password protection to the ROM Loader.
Bits 2 and 3: (SC.2 and SC.3) Reserved
Bit 4: (SC.4) Code Data Access Bit 0 (CDA0). If this bit is set to 0, the lower half of physical program memory will be visible in data
space (when not executing from physical program memory) in byte mode. If this bit is set to 1, the upper half of physical program memory will be visible in data space in byte mode. When accessing data space in word mode, this bit has no effect.
Maxim Integrated
22
MAXQ Family User’s Guide:
MAXQ2000 Supplement
Bits 5 and 6: (SC.5 and SC.6) Reserved
Bit 7: (SC.7) Test Access (JTAG) Port Enable
0 = JTAG TAP functions are disabled and P4.0 through P4.3 can be used as general-purpose I/O pins.
1 = TAP special function pins P4.0 through P4.3 are enabled to act as JTAG inputs and outputs.
Register Name:
Register Description:
Register Address:
Bit #
IIR
Interrupt Identification Register
AP[0Bh]
7
6
5
4
3
2
1
0
Name
IIS
—
—
II4
II3
II2
II1
II0
Reset
0
0
0
0
0
0
0
0
Access
r
r
r
r
r
r
r
r
The first five bits in this register indicate interrupts pending in modules 0 through 4, one bit per module. The eighth bit, IIS, indicates a
pending system interrupt (from the watchdog timer or other system function). The interrupt pending flags will be set only for enabled
interrupt sources waiting for service. The interrupt pending flag will be cleared when the pending interrupt source(s) within that module are disabled when the interrupt flag(s) are cleared by software.
Bit 0: (IIR.0) Interrupt Pending Flag for Module 0 (II0)
Bit 1: (IIR.1) Interrupt Pending Flag for Module 1 (II1)
Bit 2: (IIR.2) Interrupt Pending Flag for Module 2 (II2)
Bit 3: (IIR.3) Interrupt Pending Flag for Module 3 (II3)
Bit 4: (IIR.4) Interrupt Pending Flag for Module 4 (II4)
Bits 5 and 6: (IIR.5 and IIR.6) Reserved
Bit 7: (IIR.7) Interrupt Pending Flag for System Modules
Register Name:
Register Description:
Register Address:
CKCN
System Clock Control Register
AP[0Eh]
Bit #
7
6
5
4
3
2
1
0
Name
—
RGSL
RGMD
STOP
SWB
PMME
CD1
CD0
Reset
0
0
s
0
0
0
0
0
r/w
r/w
r
r/w
r/w
r/w
special
special
Access
The CKCN register bit settings determine the system clock source and clock divider as described in the following table.
Maxim Integrated
23
MAXQ Family User’s Guide:
MAXQ2000 Supplement
MAXQ2000 System Clock Modes
RGMD
SWB
PMME
CD1
CD0
SYSTEM CLOCK
HIGH-FREQUENCY OSCILLATOR
SWITCHBACK
0
0
0
0
0
HFOsc / 1
Running
N/A
0
0
0
0
1
HFOsc / 2
Running
N/A
0
0
0
1
0
HFOsc / 4
Running
N/A
0
0
0
1
1
HFOsc / 8
Running
N/A
0
0
1
0
0
HFOsc / 256
Running
Not Active
0
1
1
0
0
HFOsc / 256
Running
Active
1
0
0
0
0
Ring / 1
Off or Warming Up
N/A
1
0
0
0
1
Ring / 2
Off or Warming Up
N/A
1
0
0
1
0
Ring / 4
Off or Warming Up
N/A
1
0
0
1
1
Ring / 8
Off or Warming Up
N/A
1
0
1
0
0
Ring / 256
Off or Warming Up
N/A
x
0
1
1
1
32kHz
Off
Not Active
x
1
1
1
1
32kHz
Running
Active
Bit 0: (CKCN.0) Clock Divide 0 (CD0); Bit 1: (CKCN.1) Clock Divide 1 (CD1); Bit 2: (CKCN.2) Power Management Mode Enable
(PMME). These three bits control the divide ratio or enable power management mode for the system clock as shown in the MAXQ2000
System Clock Modes table. CD0 and CD1 can always be read, and they can be written as long as PMME = 0.
Setting the PMME bit to 1 activates either the divide-by-256 power management mode or the 32kHz power management mode,
depending on the settings of CD1 and CD0. When PMME is set to 1, CD0 and CD1 cannot be changed; their values will determine the
clock divide ratio that is used when the processor exits power management mode. When the 32kHz power management mode is
active, the high-frequency oscillator amplifier is disabled unless Switchback is enabled.
Maxim Integrated
24
MAXQ Family User’s Guide:
MAXQ2000 Supplement
Bit 3: (CKCN.3) Switchback Enable (SWB). Setting this bit to 1 enables Switchback mode. If power management mode (either divide
by 256 or 32kHz) is active and Switchback is enabled, the PMME bit will be cleared to 0 when any of the following conditions occur.
• An external interrupt is generated based on an edge detect.
• Either serial port 0 or serial port 1 is enabled to receive data and detects a low condition on its data receive pin.
• Either serial port 0 or serial port 1 is enabled to transmit data has a byte written to its buffer register by software.
• The SPI module is enabled in slave mode and receives a slave select signal from the bus master.
• The SPI module is enabled to transmit data and has a byte written to its buffer register by software.
• A time-of-day interrupt occurs from the real-time clock.
• Debug mode is entered through command entry or a breakpoint match.
Triggering a Switchback condition only clears the PMME bit; the settings of CD0 and CD1 remain the same. This means that exiting
Switchback from divide-by-256 mode will revert to a divide by 1 mode, while exiting Switchback from 32kHz mode will revert to a divide
by 8 mode.
When either power management mode is active, the SWB bit may not be set to 1 as long as any of the above conditions are true.
Bit 4: (CKCN.4) Stop Mode Select (STOP). Setting this bit to 1 causes the processor to enter Stop Mode. This will not change the currently selected clock divide ratio.
Bit 5: (CKCN.5) Ring Oscillator Mode (RGMD). This read-only bit indicates the current oscillator source. If RGMD is set to 1, the internal ring oscillator is currently acting as the oscillator source for the system clock. (This can either be because RGSL = 1, or because
RGSL = 0, and the crystal warmup period has not yet completed.) If RGMD is cleared to 0, the external crystal oscillator is currently
acting as the oscillator source for the system clock (unless the PMM2 32kHz mode is active).
Bit 6: (CKCN.6) Ring Oscillator Select (RGSL). If this bit is set to 1, the ring oscillator will immediately begin sourcing the system
clock, and the high-frequency oscillator will be disabled (unless 32kHz mode and Switchback are enabled). Clearing this bit to 0
enables the high-frequency oscillator. Until the warmup period for the high-frequency oscillator has completed, the ring oscillator will
still provide the system clock source (indicated by RGMD = 1). Once the warmup period completes, the system clock source will automatically switch over to the high-frequency oscillator, and RGMD will go to 0.
Bit 7: (CKCN.7) Reserved
Maxim Integrated
25
MAXQ Family User’s Guide:
MAXQ2000 Supplement
ADDENDUM TO SECTION 5: PERIPHERAL REGISTER MODULES
Refer to the MAXQ Family User’s Guide.
Table 7. Peripheral Register Map
CYCLES TO
READ
CYCLES TO
WRITE
REGISTER
INDEX
M0
(0h)
M1
(1h)
M2
(2h)
M3
(3h)
M4
(4h)
M5
(5h)
1
1
00h
PO0
PO4
MCNT
T2CNA0
T2CNA1
—
1
1
01h
PO1
PO5
MA
T2H0
T2H1
—
1
1
02h
PO2
PO6
MB
T2RH0
T2RH1
—
1
1
03h
PO3
PO7
MC2
T2CH0
T2CH1
—
1
1
04h
—
—
MC1
—
T2CNA2
—
1
1
05h
—
—
MC0
SPIB
T2H2
—
1
1
06h
EIF0
EIF1
SCON0
SCON1
T2RH2
—
1
1
07h
EIE0
EIE1
SBUF0
SBUF1
T2CH2
—
1
2
08h
PI0
PI4
SMD0
SMD1
T2CNB1
—
1
2
09h
PI1
PI5
PR0
PR1
T2V1
—
1
2
0Ah
PI2
PI6
—
—
T2R1
—
1
2
0Bh
PI3
PI7
MC1R
—
T2C1
—
1
2
0Ch
EIES0
EIES1
MC0R
T2CNB0
T2CNB2
—
1
2
0Dh
—
—
LCRA
T2V0
T2V2
—
1
2
0Eh
—
—
LCFG
T2R0
T2R2
—
1
2
0Fh
—
—
LCD16
T2C0
T2C2
—
2
2
10h
PD0
PD4
LCD0
T2CFG0
T2CFG1
—
2
2
11h
PD1
PD5
LCD1
—
T2CFG2
—
2
2
12h
PD2
PD6
LCD2
—
—
2
2
13h
PD3
PD7
LCD3
OWA
—
2
2
14h
—
—
LCD4
OWD
—
2
2
15h
—
—
LCD5
SPICN
—
2
2
16h
—
—
LCD6
SPICF
—
2
2
17h
—
—
LCD7
SPICK
—
2
2
18h
—
—
LCD8
—
—
2
2
19h
RCNT
—
LCD9
—
—
2
2
1Ah
RTSS
—
LCD10
—
—
2
2
1Bh
RTSH
—
LCD11
ICDF
—
2
2
1Ch
RTSL
—
LCD12
—
—
2
2
1Dh
RSSA
—
LCD13
—
—
2
2
1Eh
RASH
SVS
LCD14
—
—
2
2
1Fh
RASL
WKO
LCD15
—
—
Note: Register names in italics indicate read-only registers. Register names in bold indicate 16-bit registers. All other registers are 8 bits in width.
Maxim Integrated
26
MAXQ Family User’s Guide:
MAXQ2000 Supplement
Table 8. Peripheral Register Bit Functions
REG
BIT 15
BIT 14 BIT 13 BIT 12 BIT 11 BIT 10
BIT 9
BIT 8
BIT 7
BIT 6
BIT 5
BIT 4
BIT 3
PO0
PO0 (8 bits)
PO1
PO1 (8 bits)
PO2
PO2 (8 bits)
PO3
PO3 (8 bits)
BIT 2
BIT 1
BIT 0
EIF0
IE7
IE6
IE5
IE4
IE3
IE2
IE1
IE0
EIE0
EX7
EX6
EX5
EX4
EX3
EX2
EX1
EX0
IT2
IT1
IT0
ASE
ADE
RTCE
PI0
PI0 (8 bits)
PI1
PI1 (8 bits)
PI2
PI2 (8 bits)
PI3
PI3 (8 bits)
EIES0
IT7
IT6
IT5
IT4
IT3
PD0
PD0 (8 bits)
PD1
PD1 (8 bits)
PD2
PD2 (8 bits)
PD3
RCNT
PD3 (8 bits)
WE
X32D
ACS
—
—
—
—
—
ALSF
ALDF
RDYE
RTSS
RTSH (16 bits)
RTSL
RTSL (16 bits)
RSSA
RSSA (8 bits)
RASH
PO4
BUSY
RTSS (8 bits)
RTSH
RASL
RDY
RASH (8 bits)
RASL (16 bits)
—
—
—
PO4 (5 bits)
PO5
PO5 (8 bits)
PO6
PO6 (8 bits)
PO7
—
—
—
—
—
—
EIF1
IE15
IE14
IE13
IE12
IE11
IE10
IE9
IE8
EIE1
EX15
EX14
EX13
EX12
EX11
EX10
EX9
EX8
PI4
—
—
—
PI5
PI4 (5 bits)
PI5 (8 bits)
PI6
PI6 (8 bits)
PI7
—
—
—
—
—
EIES1
IT15
IT14
IT13
IT12
IT11
PD4
—
—
—
PD5
Maxim Integrated
PO7 (2 bits)
—
IT10
PI7 (2 bits)
IT9
IT8
PD4 (5 bits)
PD5 (8 bits)
27
MAXQ Family User’s Guide:
MAXQ2000 Supplement
Table 8. Peripheral Register Bit Functions (continued)
REG
BIT15
BIT14
BIT13
BIT12
BIT11 BIT 10
BIT 9
BIT 8
BIT 7
BIT 6
BIT 5
BIT 4
BIT 3
BIT 2
BIT 1
BIT 0
PD6 (8 bits)
PD6
PD7
—
—
—
—
—
—
SVS
SV67
SV66
SV65
SV64
—
—
PD7 (2 bits)
SV71
SV70
WKO
—
—
—
—
—
WKL
WKE1
WKE0
MCNT
OF
—
—
SQU
OPCS
CLD
MMAC
SUS
SM0/FE
SM1
SM2
REN
TB8
RB8
TI
RI
—
—
—
—
—
ESI0
SMOD0
FEDE0
FRM0
LCCS
LRIG
LRA4
LRA3
LRA2
LRA1
LRA0
PCF3
PCF2
PCF1
PCF0
—
—
OPM
DPE
MA
MA (16 bits)
MB
MB (16 bits)
MC2
MC2 (16 bits)
MC1
MC1 (16 bits)
MC0
MC0 (16 bits)
SCON0
SBUF0
SBUF0 (8 bits)
SMD0
PR0
PR0 (16 bits)
MC1R
MC1R (16 bits)
MC0R
LCRA
MC0R (16 bits)
—
LCFG
—
—
DUTY1
DUTY0
FRM3
FRM2
FRM1
LCD0
LCD0 (8 bits)
LCD1
LCD1 (8 bits)
LCD2
LCD2 (8 bits)
LCD3
LCD3 (8 bits)
LCD4
LCD4 (8 bits)
LCD5
LCD5 (8 bits)
LCD6
LCD6 (8 bits)
LCD7
LCD7 (8 bits)
LCD8
LCD8 (8 bits)
LCD9
LCD9 (8 bits)
LCD10
LCD10 (8 bits)
LCD11
LCD11 (8 bits)
LCD12
LCD12 (8 bits)
LCD13
LCD13 (8 bits)
LCD14
LCD14 (8 bits)
LCD15
LCD15 (8 bits)
LCD16
LCD16 (8 bits)
T2CNA0
ET2
T2H0
T2V0.15
T2RH0
Maxim Integrated
T2OE0
T2POL0
TR2L
TR2
CPRL2
SS2
G2EN
T2V0.12
T2V0.11
T2V0.10
T2V0.9
T2V0.8
T2R0.13 T2R0.12
T2R0.11
T2R0.10
T2R0.9
T2R0.8
T2V0.14 T2V0.13
T2R0.15 T2R0.14
28
MAXQ Family User’s Guide:
MAXQ2000 Supplement
Table 8. Peripheral Register Bit Functions (continued)
REG
BIT15
BIT14
BIT13
BIT12
BIT11
BIT 10
BIT 9
BIT 8
T2CH0
BIT 7
BIT 6
BIT 5
BIT 4
BIT 3
BIT 2
BIT 1
BIT 0
T2C0.9
T2C0.8
RB8
TI
RI
T2C0.15 T2C0.14 T2C0.13 T2C0.12 T2C0.11 T2C0.10
SPIB
SPIB (16 bits)
SCON1
SM0/FE
SM1
SM2
—
—
—
—
—
ESI1
SMOD1
FEDE1
ET2L
T2OE1
T2POL1
TR2L
TF2
TF2L
TCC2
TC2L
T2V0.0
SBUF1
REN
TB8
SBUF1 (8 bits)
SMD1
PR1
PR1 (16 bits)
T2CNB0
T2V0
T2V0.15 T2V0.14
T2V0.13 T2V0.12 T2V0.11 T2V0.10
T2V0.9
T2V0.8
T2V0.7
T2V0.6
T2V0.5
T2V0.4
T2V0.3
T2V0.2
T2V0.1
T2R0
T2R0.15 T2R0.14 T2R0.13 T2R0.12 T2R0.11 T2R0.10
T2R0.9
T2R0.8
T2R0.7
T2R0.6
T2R0.5
T2R0.4
T2R0.3
T2R0.2
T2R0.1
T2R0.0
T2C0
T2C0.15 T2C0.14 T2C0.13 T2C0.12 T2C0.11 T2C0.10
T2C0.9
T2C0.8
T2C0.7
T2C0.6
T2C0.5
T2C0.4
T2C0.3
T2C0.2
T2C0.1
T2C0.0
T2CFG0
T2C1
DIV2
DIV1
DIV0
T2MD
CCF1
CCF0
C/T2
OWA
—
—
—
—
—
A2
A1
A0
SPICN
STBY
SPIC
ROVR
WCOL
MODF
MODFE
MSTM
SPIEN
SPICF
ESPI1
—
—
—
—
CHR
CKPHA
CKPOL
SPICK
CKR7
CKR6
CKR5
CKR4
CKR3
CKR2
CKR1
CKR0
ICDF
—
—
—
—
PSS1
PSS0
SPE
—
ET2
T2OE0
T2POL0
TR2L
TR2
CPRL2
OWD
OWD (8 bits)
T2CNA1
SS2
G2EN
T2H1
T2V1.15 T2V1.14 T2V1.13 T2V1.12 T2V1.11 T2V1.10
T2V1.9
T2V1.8
T2RH1
T2R1.15 T2R1.14 T2R1.13 T2R1.12 T2R1.11 T2R1.10
T2R1.9
T2R1.8
T2CH1
T2C1.15 T2C1.14 T2C1.13 T2C1.12 T2C1.11 T2C1.10
T2C1.9
T2C1.8
SS2
G2EN
T2V2.8
T2CNA2
ET2
T2OE0
T2POL0
TR2L
TR2
CPRL2
T2H2
T2V2.15 T2V2.14 T2V2.13 T2V2.12 T2V2.11 T2V2.10
T2V2.9
T2RH2
T2R2.15 T2R2.14 T2R2.13 T2R2.12 T2R2.11 T2R2.10
T2R2.9
T2R2.8
T2CH2
T2C2.15 T2C2.14 T2C2.13 T2C2.12 T2C2.11 T2C2.10
T2C2.9
T2C2.8
T2CNB1
ET2L
T2OE1
T2POL1
TR2L
TF2
TF2L
TCC2
TC2L
T2V1
T2V1.15 T2V1.14 T2V1.13 T2V1.12 T2V1.11 T2V1.10
T2V1.9
T2V1.8
T2V1.7
T2V1.6
T2V1.5
T2V1.4
T2V1.3
T2V1.2
T2V1.1
T2V1.0
T2R1
T2R1.15 T2R1.14 T2R1.13 T2R1.12 T2R1.11 T2R1.10
T2R1.9
T2R1.8
T2R1.7
T2R1.6
T2R1.5
T2R1.4
T2R1.3
T2R1.2
T2R1.1
T2R1.0
T2C1
T2C1.15 T2C1.14 T2C1.13 T2C1.12 T2C1.11 T2C1.10
T2C1.9
T2C1.8
T2C1.7
T2C1.6
T2C1.5
T2C1.4
T2C1.3
T2C1.2
T2C1.1
T2C1.0
TR2L
TF2
TF2L
TCC2
TC2L
T2V2.0
T2CNB2
ET2L
T2OE1 T2POL1
T2V2
T2V2.15 T2V2.14 T2V2.13 T2V2.12 T2V2.11 T2V2.10
T2V2.9
T2V2.8
T2V2.7
T2V2.6
T2V2.5
T2V2.4
T2V2.3
T2V2.2
T2V2.1
T2R2
T2R2.15 T2R2.14 T2R2.13 T2R2.12 T2R2.11 T2R2.10
T2R2.9
T2R2.8
T2R2.7
T2R2.6
T2R2.5
T2R2.4
T2R2.3
T2R2.2
T2R2.1
T2R2.0
T2C2
T2C2.15 T2C2.14 T2C2.13 T2C2.12 T2C2.11 T2C2.10
T2C2.9
T2C2.8
T2C2.7
T2C2.6
T2C2.5
T2C2.4
T2C2.3
T2C2.2
T2C2.1
T2C2.0
T2CFG1
T2C1
DIV2
DIV1
DIV0
T2MD
CCF1
CCF0
C/T2
T2CFG2
T2C1
DIV2
DIV1
DIV0
T2MD
CCF1
CCF0
C/T2
Maxim Integrated
29
MAXQ Family User’s Guide:
MAXQ2000 Supplement
Table 9. Peripheral Register Bit Reset Values
REG
BIT 15
BIT 14
BIT 13
BIT 12
BIT 11
BIT 10
BIT 9
BIT 8
BIT 7
BIT 6
BIT 5
BIT 4
BIT 3
BIT 2
BIT 1
BIT 0
PO0
1
1
1
1
1
1
1
1
PO1
1
1
1
1
1
1
1
1
PO2
1
1
1
1
1
1
1
1
PO3
1
1
1
1
1
1
1
1
EIF0
0
0
0
0
0
0
0
0
EIE0
0
0
0
0
0
0
0
0
PI0
s
s
s
s
s
s
s
s
PI1
s
s
s
s
s
s
s
s
PI2
s
s
s
s
s
s
s
s
PI3
s
s
s
s
s
s
s
s
EIES0
0
0
0
0
0
0
0
0
PD0
0
0
0
0
0
0
0
0
PD1
0
0
0
0
0
0
0
0
PD2
0
0
0
0
0
0
0
0
PD3
0
0
0
0
0
0
0
0
s
s
0
0
1
s
s
s
s
s
s
s
s
s
s
s
RCNT
0
s
s
0
0
0
0
0
RTSS
RTSH
s
s
s
s
s
s
s
s
s
s
s
s
s
s
s
s
RTSL
s
s
s
s
s
s
s
s
s
s
s
s
s
s
s
s
RSSA
0
0
0
0
0
0
0
0
RASH
0
0
0
0
0
0
0
0
RASL
0
0
0
0
0
0
0
0
PO4
0
0
0
0
0
0
0
0
0
0
0
1
1
1
1
1
PO5
1
1
1
1
1
1
1
1
PO6
1
1
1
1
1
1
1
1
PO7
0
0
0
0
0
0
1
1
EIF1
0
0
0
0
0
0
0
0
EIE1
0
0
0
0
0
0
0
0
PI4
0
0
0
s
s
s
s
s
PI5
s
s
s
s
s
s
s
s
PI6
s
s
s
s
s
s
s
s
PI7
0
0
0
0
0
0
s
s
EIES1
0
0
0
0
0
0
0
0
PD4
0
0
0
0
0
0
0
0
PD5
0
0
0
0
0
0
0
0
Maxim Integrated
30
MAXQ Family User’s Guide:
MAXQ2000 Supplement
Table 9. Peripheral Register Bit Reset Values (continued)
REG
BIT 15
BIT 14
BIT 13
BIT 12
BIT 11
BIT 10
BIT 9
BIT 8
BIT 7
BIT 6
BIT 5
BIT 4
BIT 3
BIT 2
BIT 1
BIT 0
PD6
0
0
0
0
0
0
0
0
PD7
0
0
0
0
0
0
0
0
SVS
0
0
0
0
0
0
0
0
WKO
0
0
0
0
0
0
0
0
MCNT
0
0
0
0
0
0
0
0
MA
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
MB
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
MC2
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
MC1
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
MC0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
SCON0
0
0
0
0
0
0
0
0
SBUF0
0
0
0
0
0
0
0
0
SMD0
0
0
0
0
0
0
0
0
PR0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
MC1R
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
MC0R
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
LCRA
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
LCFG
0
0
0
0
0
0
0
0
LCD0
0
0
0
0
0
0
0
0
LCD1
0
0
0
0
0
0
0
0
LCD2
0
0
0
0
0
0
0
0
LCD3
0
0
0
0
0
0
0
0
LCD4
0
0
0
0
0
0
0
0
LCD5
0
0
0
0
0
0
0
0
LCD6
0
0
0
0
0
0
0
0
LCD7
0
0
0
0
0
0
0
0
LCD8
0
0
0
0
0
0
0
0
LCD9
0
0
0
0
0
0
0
0
LCD10
0
0
0
0
0
0
0
0
LCD11
0
0
0
0
0
0
0
0
LCD12
0
0
0
0
0
0
0
0
LCD13
0
0
0
0
0
0
0
0
LCD14
0
0
0
0
0
0
0
0
LCD15
0
0
0
0
0
0
0
0
LCD16
0
0
0
0
0
0
0
0
T2CNA0
0
0
0
0
0
0
0
0
T2H0
0
0
0
0
0
0
0
0
Maxim Integrated
31
MAXQ Family User’s Guide:
MAXQ2000 Supplement
Table 9. Peripheral Register Bit Reset Values (continued)
BIT 7
BIT 6
BIT 5
BIT 4
BIT 3
BIT 2
BIT 1
BIT 0
T2RH0
REG
0
0
0
0
0
0
0
0
T2CH0
0
0
0
0
0
0
0
0
SPIB
BIT 15
0
BIT 14
0
BIT 13
0
BIT 12
0
BIT 11
0
BIT 10
0
BIT 9
0
BIT 8
0
0
0
0
0
0
0
0
SCON1
0
0
0
0
0
0
0
0
0
SBUF1
0
0
0
0
0
0
0
0
SMD1
0
0
0
0
0
0
0
0
PR1
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
T2CNB0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
T2V0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
T2R0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
T2C0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
T2CFG0
0
0
0
0
0
0
0
0
OWA
0
0
0
0
0
0
0
0
OWD
0
0
0
0
0
0
0
0
SPICN
0
0
0
0
0
0
0
0
SPICF
0
0
0
0
0
0
0
0
SPICK
0
0
0
0
0
0
0
0
ICDF
s
s
s
s
s
s
s
s
T2CNA1
0
0
0
0
0
0
0
0
T2H1
0
0
0
0
0
0
0
0
T2RH1
0
0
0
0
0
0
0
0
T2CH1
0
0
0
0
0
0
0
0
T2CNA2
0
0
0
0
0
0
0
0
T2H2
0
0
0
0
0
0
0
0
T2RH2
0
0
0
0
0
0
0
0
T2CH2
0
0
0
0
0
0
0
0
T2CNB1
0
0
0
0
0
0
0
0
T2V1
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
T2R1
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
T2C1
0
0
0
0
0
0
0
0
T2CNB2
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
T2V2
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
T2R2
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
T2C2
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
T2CFG1
0
0
0
0
0
0
0
0
T2CFG2
0
0
0
0
0
0
0
0
Note: Bits marked as “s” have special behavior upon reset. See the register descriptions for details.
Maxim Integrated
32
MAXQ Family User’s Guide:
MAXQ2000 Supplement
ADDENDUM TO SECTION 6: GENERAL-PURPOSE I/O MODULE
(GPIO AND EXTERNAL INTERRUPTS)
The MAXQ2000 provides 50 port pins (in the 68-pin package) or 38 port pins (in the 56-pin package) for general-purpose I/O, which
are grouped into logical ports P0 through P7. Each of these port pins has the following features.
• CMOS output drivers
• Schmitt trigger inputs
• Optional weak pullup to VDDIO when operating in input mode
Port pins P6.4, P6.5, P7.0, and P7.1 may be configured to operate at a voltage level given by VLCD instead of VDDIO by setting bits in
the SVS register.
Many of the port pins on the MAXQ2000 are also multiplexed with special functions as listed below. All of these special functions are
disabled by default with the exception of the JTAG interface pins, which are enabled by default following any reset.
Table 10. Port Pin Special Functions (68-Pin Package)
PORT PIN
TYPE
P0.0
Analog
LCD Segment SEG0
PCF0=1 and OPM=1
P0.1
Analog
LCD Segment SEG1
PCF0=1 and OPM=1
P0.2
Analog
LCD Segment SEG2
PCF0=1 and OPM=1
P0.3
Analog
LCD Segment SEG3
PCF0=1 and OPM=1
P0.4
Analog
P0.4
Input
P0.5
Analog
P0.5
Input
P0.6
Analog
P0.6
Input
P0.7
Analog
LCD Segment SEG7
PCF0=1 and OPM=1
P0.7
Input
External Interrupt 3
EX3=1
P1.0
Analog
LCD segment SEG8
PCF1=1 and OPM=1
P1.1
Analog
LCD segment SEG9
PCF1=1 and OPM=1
P1.2
Analog
LCD segment SEG10
PCF1=1 and OPM=1
P1.3
Analog
LCD Segment SEG11
PCF1=1 and OPM=1
P1.4
Analog
LCD Segment SEG12
PCF1=1 and OPM=1
P1.5
Analog
LCD Segment SEG13
PCF1=1 and OPM=1
P1.6
Analog
LCD Segment SEG14
PCF1=1 and OPM=1
P1.7
Analog
LCD Segment SEG15
PCF1=1 and OPM=1
P2.0
Analog
LCD Segment SEG16
PCF2=1 and OPM=1
P2.1
Analog
LCD Segment SEG17
PCF2=1 and OPM=1
P2.2
Analog
LCD Segment SEG18
PCF2=1 and OPM=1
P2.3
Analog
LCD Segment SEG19
PCF2=1 and OPM=1
P2.4
Analog
LCD Segment SEG20
PCF2=1 and OPM=1
P2.5
Analog
LCD Segment SEG21
PCF2=1 and OPM=1
P2.6
Analog
LCD Segment SEG22
PCF2=1 and OPM=1
P2.7
Analog
LCD Segment SEG23
PCF2=1 and OPM=1
P3.0
Analog
LCD Segment SEG24
PCF3=1 and OPM=1
Maxim Integrated
SPECIAL FUNCTION
ENABLED WHEN
LCD Segment SEG4
PCF0=1 and OPM=1
External Interrupt 0
EX0=1
LCD Segment SEG5
PCF0=1 and OPM=1
External Interrupt 1
EX1=1
LCD Segment SEG6
PCF0=1 and OPM=1
External Interrupt 2
EX2=1
33
MAXQ Family User’s Guide:
MAXQ2000 Supplement
Table 10. Port Pin Special Functions (continued)
PORT PIN
TYPE
SPECIAL FUNCTION
ENABLED WHEN
P3.1
Analog
LCD Segment SEG25
PCF3=1 and OPM=1
P3.2
Analog
LCD Segment SEG26
PCF3=1 and OPM=1
P3.3
Analog
LCD Segment SEG27
PCF3=1 and OPM=1
P3.4
Analog
LCD Segment SEG28
PCF3=1 and OPM=1
P3.4
Input
External Interrupt 4
EX4=1
P3.5
Analog
LCD Segment SEG29
PCF3=1 and OPM=1
P3.5
Input
External Interrupt 5
EX5=1
P3.6
Analog
LCD Segment SEG30
PCF3=1 and OPM=1
P3.6
Input
External Interrupt 6
EX6=1
P3.7
Analog
LCD Segment SEG31
PCF3=1 and OPM=1
P3.7
Input
External Interrupt 7
EX7=1
P4.0
Input
JTAG Interface—TAP Clock (TCK)
(SC.7) TAP=1
P4.0
Input
External Interrupt 8
EX8=1
P4.1
Input
JTAG Interface—TAP Data Input (TDI)
(SC.7) TAP=1
P4.1
Input
External Interrupt 9
EX9=1
P4.2
Input
JTAG Interface—TAP Mode Select (TMS)
(SC.7) TAP=1
P4.3
Input
JTAG Interface—TAP Data Output (TDO)
(SC.7) TAP=1
P5.2
Input
Serial UART 1 Receive
REN=1
P5.2
Input
External Interrupt 10
EX10=1
P5.3
Output
Serial UART 1 Transmit
SBUF1 written
P5.3
Input
External Interrupt 11
EX11=1
P5.4
Input/Output
SPI Slave Select (SSEL)
SPIEN=1
P5.5
Input/Output
SPI Master Out-Slave In (MOSI)
SPIEN=1
P5.6
Input/Output
SPI Slave Clock (SCLK)
SPIEN=1
P5.7
Input/Output
SPI Master In-Slave Out (MISO)
SPIEN=1
P6.0
Output
Timer 1 (Type 2) Secondary Output (T2PB)
T2OE = 10b or 11b
P6.0
Input
External Interrupt 12
EX12=1
P6.1
Input/Output
Timer 1 (Type 2) Input/Output (T2P)
T2OE = 01b or 11b, or G2EN = 1
P6.1
Input
External Interrupt 13
EX13=1
P6.2
Output
Timer 2 (Type 2) Secondary Output (T2PB)
T2OE = 10b or 11b
P6.2
Output
1-Wire Master Output
CLK_EN=1
P6.3
Input/Output
Timer 2 (Type 2) input/output (T2P)
T2OE = 01b or 11b, or G2EN = 1
P6.3
Input
1-Wire Master Input
CLK_EN=1
P6.4
Output
Timer 0 (Type 2) Secondary Output (T2PB)
T2OE = 10b or 11b
P6.4
Output
Wakeup Output 0
WKE0=1
P6.5
Input/Output
Timer 0 (Type 2) Input/Output (T2P)
T2OE = 01b or 11b, or G2EN = 1
P6.5
Output
Wakeup Output 1
WKE1=1
P7.0
Output
Serial UART 0 Transmit
SBUF0 written
P7.0
Input
External Interrupt 14
EX14=1
P7.1
Input
Serial UART 0 Receive
REN=1
P7.1
Input
External Interrupt 15
EX15=1
Maxim Integrated
34
MAXQ Family User’s Guide:
MAXQ2000 Supplement
Table 11. Port Pin Special Functions (56-Pin Package)
PORT PIN
TYPE
P0.0
Analog
LCD Segment SEG0
PCF0=1 and OPM=1
P0.1
Analog
LCD Segment SEG1
PCF0=1 and OPM=1
P0.2
Analog
LCD Segment SEG2
PCF0=1 and OPM=1
P0.3
Analog
LCD Segment SEG3
PCF0=1 and OPM=1
P0.4
Analog
LCD Segment SEG4
PCF0=1 and OPM=1
P0.4
Input
External Interrupt 0
EX0=1
P0.5
Analog
LCD Segment SEG5
PCF0=1 and OPM=1
External Interrupt 1
EX1=1
LCD Segment SEG6
PCF0=1 and OPM=1
External Interrupt 2
EX2=1
LCD Segment SEG7
PCF0=1 and OPM=1
P0.5
Input
P0.6
Analog
P0.6
Input
P0.7
Analog
SPECIAL FUNCTION
ENABLED WHEN
P0.7
Input
External Interrupt 3
EX3=1
P1.0
Analog
LCD Segment SEG8
PCF1=1 and OPM=1
P1.1
Analog
LCD Segment SEG9
PCF1=1 and OPM=1
P1.2
Analog
LCD Segment SEG10
PCF1=1 and OPM=1
P1.3
Analog
LCD Segment SEG11
PCF1=1 and OPM=1
P1.4
Analog
LCD Segment SEG12
PCF1=1 and OPM=1
P1.5
Analog
LCD Segment SEG13
PCF1=1 and OPM=1
P1.6
Analog
LCD Segment SEG14
PCF1=1 and OPM=1
P1.7
Analog
LCD Segment SEG15
PCF1=1 and OPM=1
P2.4
Analog
LCD Segment SEG16
PCF2=1 and OPM=1
P2.5
Analog
LCD Segment SEG17
PCF2=1 and OPM=1
P2.6
Analog
LCD Segment SEG18
PCF2=1 and OPM=1
P2.7
Analog
LCD Segment SEG19
PCF2=1 and OPM=1
P3.4
Analog
LCD Segment SEG20
PCF3=1 and OPM=1
P3.4
Input
External Interrupt 4
EX4=1
P3.5
Analog
P3.5
Input
P3.6
Analog
P3.6
Input
P3.7
Analog
P3.7
Input
Maxim Integrated
LCD segment SEG21
PCF3=1 and OPM=1
External Interrupt 5
EX5=1
LCD Segment SEG22
PCF3=1 and OPM=1
External Interrupt 6
EX6=1
LCD Segment SEG23
PCF3=1 and OPM=1
External Interrupt 7
EX7=1
35
MAXQ Family User’s Guide:
MAXQ2000 Supplement
Table 11. Port Pin Special Functions (56-Pin Package) (continued)
PORT PIN
TYPE
P4.0
Input
JTAG Interface—TAP Clock (TCK)
SPECIAL FUNCTION
(SC.7) TAP=1
ENABLED WHEN
P4.0
Input
External Interrupt 8
EX8=1
P4.1
Input
JTAG Interface—TAP Data Input (TDI)
(SC.7) TAP=1
P4.1
Input
External Interrupt 9
EX9=1
P4.2
Input
JTAG Interface—TAP Mode Select (TMS)
(SC.7) TAP=1
P4.3
Input
JTAG Interface—TAP Data Output (TDO)
(SC.7) TAP=1
P5.4
Input/Output
SPI Slave Select (SSEL)
SPIEN=1
P5.5
Input/Output
SPI Master Out-Slave In (MOSI)
SPIEN=1
P5.6
Input/Output
SPI Slave Clock (SCLK)
SPIEN=1
P5.7
Input/Output
SPI Master In-Slave Out (MISO)
SPIEN=1
P6.0
Output
Timer 1 (Type 2) Secondary Output (T2PB)
T2OE = 10b or 11b
P6.0
Input
External Interrupt 12
EX12=1
P6.1
Input/Output
Timer 1 (Type 2) Input/Output (T2P)
T2OE = 01b or 11b, or G2EN = 1
P6.1
Input
External Interrupt 13
EX13=1
P6.4
Output
Timer 0 (Type 2) Secondary Output (T2PB)
T2OE = 10b or 11b
P6.4
Output
Wakeup Output 0
WKE0=1
P6.5
Input/Output
Timer 0 (Type 2) Input/Output (T2P)
T2OE = 01b or 11b, or G2EN = 1
P6.5
Output
Wakeup Output 1
WKE1=1
P7.0
Output
Serial UART 0 Transmit
SBUF0 written
P7.0
Input
External Interrupt 14
EX14=1
P7.1
Input
Serial UART 0 Receive
REN=1
P7.1
Input
External Interrupt 15
EX15=1
The port pins on the MAXQ2000 operate the same as standard MAXQ port pins, with input/output states defined according to Table 12.
Table 12. MAXQ2000 Port Pin Input/Output States
PDx.y
POx.y
PORT PIN MODE
PORT PIN (Px.y) STATE
0
0
Input
Tri-state
0
1
Input
Weak pullup HIGH
1
0
Output
Strong drive LOW
1
1
Output
Strong drive HIGH
Maxim Integrated
36
MAXQ Family User’s Guide:
MAXQ2000 Supplement
The following peripheral registers control the general-purpose I/O and external interrupt features specific to the MAXQ2000.
Register Name:
Register Description:
Register Address:
Bit #
PO0
Port 0 Output Register
M0[00h]
7
6
5
4
3
2
1
0
Name
PO0.7
PO0.6
PO0.5
PO0.4
PO0.3
PO0.2
PO0.1
PO0.0
Reset
1
1
1
1
1
1
1
1
r/w
r/w
r/w
r/w
r/w
r/w
r/w
r/w
Access
Bits 0 to 7: (PO0.0 to PO0.7) Port 0 Output. This register stores the data that will be output on any of the pins of Port 0 that have been
defined as output pins. If the port pins are in input mode, this register controls the weak pullup for each pin. Changing the data direction of any pins for this port (through register PD0) will not affect the value in this register.
Register Name:
Register Description:
Register Address:
Bit #
PO1
Port 1 Output Register
M0[01h]
7
6
5
4
3
2
1
0
Name
PO1.7
PO1.6
PO1.5
PO1.4
PO1.3
PO1.2
PO1.1
PO1.0
Reset
1
1
1
1
1
1
1
1
r/w
r/w
r/w
r/w
r/w
r/w
r/w
r/w
Access
Bits 0 to 7: (PO1.0 to PO1.7) Port 1 Output. This register stores the data that will be output on any of the pins of Port 1 that have been
defined as output pins. If the port pins are in input mode, this register controls the weak pullup for each pin. Changing the data direction of any pins for this port (through register PD1) will not affect the value in this register.
Register Name:
Register Description:
Register Address:
Bit #
PO2
Port 2 Output Register
M0[02h]
7
6
5
4
3
2
1
0
Name
PO2.7
PO2.6
PO2.5
PO2.4
PO2.3
PO2.2
PO2.1
PO2.0
Reset
1
1
1
1
1
1
1
1
r/w
r/w
r/w
r/w
r/w
r/w
r/w
r/w
Access
Bits 0 to 7: (PO2.0 to PO2.7) Port 2 Output. This register stores the data that will be output on any of the pins of Port 2 that have been
defined as output pins. If the port pins are in input mode, this register controls the weak pullup for each pin. Changing the data direction of any pins for this port (through register PD2) will not affect the value in this register.
Maxim Integrated
37
MAXQ Family User’s Guide:
MAXQ2000 Supplement
Register Name:
Register Description:
Register Address:
Bit #
Name
PO3
Port 3 Output Register
M0[03h]
7
6
5
4
3
2
1
0
PO3.7
PO3.6
PO3.5
PO3.4
PO3.3
PO3.2
PO3.1
PO3.0
Reset
Access
1
1
1
1
1
1
1
1
r/w
r/w
r/w
r/w
r/w
r/w
r/w
r/w
Bits 0 to 7: (PO3.0 to PO3.7) Port 3 Output. This register stores the data that will be output on any of the pins of Port 3 that have been
defined as output pins. If the port pins are in input mode, this register controls the weak pullup for each pin. Changing the data direction of any pins for this port (through register PD3) will not affect the value in this register.
Register Name:
Register Description:
Register Address:
Bit #
EIF0
External Interrupt Flag 0 Register
M0[06h]
7
6
5
4
3
2
1
0
Name
IE7
IE6
IE5
IE4
IE3
IE2
IE1
IE0
Reset
0
0
0
0
0
0
0
0
r/w
r/w
r/w
r/w
r/w
r/w
r/w
r/w
Access
Each bit in this register is set when a negative or positive edge (depending on the ITn bit setting) is detected on the corresponding
interrupt pin. Once an external interrupt has been detected, the interrupt flag bit will remain set until cleared by software or a reset.
Setting any of these bits will cause the corresponding interrupt to trigger if it is enabled to do so.
Bit 0: (EIF0.0) External Interrupt 0 Edge Detect (IE0)
Bit 1: (EIF0.1) External Interrupt 1 Edge Detect (IE1)
Bit 2: (EIF0.2) External Interrupt 2 Edge Detect (IE2)
Bit 3: (EIF0.3) External Interrupt 3 Edge Detect (IE3)
Bit 4: (EIF0.4) External Interrupt 4 Edge Detect (IE4)
Bit 5: (EIF0.5) External Interrupt 5 Edge Detect (IE5)
Bit 6: (EIF0.6) External Interrupt 6 Edge Detect (IE6)
Bit 7: (EIF0.7) External Interrupt 7 Edge Detect (IE7)
Register Name:
Register Description:
Register Address:
Bit #
EIE0
External Interrupt Enable 0 Register
M0[07h]
7
6
5
4
3
2
1
0
Name
EX7
EX6
EX5
EX4
EX3
EX2
EX1
EX0
Reset
0
0
0
0
0
0
0
0
r/w
r/w
r/w
r/w
r/w
r/w
r/w
r/w
Access
Each bit in this register controls the enable for one external interrupt. If the bit is set to 1, the interrupt is enabled (if it is not otherwise
masked). If the bit is set to 0, its corresponding interrupt is disabled.
Maxim Integrated
38
MAXQ Family User’s Guide:
MAXQ2000 Supplement
Bit 0: (EIE0.0) External Interrupt 0 Enable (EX0)
Bit 1: (EIE0.1) External Interrupt 1 Enable (EX1)
Bit 2: (EIE0.2) External Interrupt 2 Enable (EX2)
Bit 3: (EIE0.3) External Interrupt 3 Enable (EX3)
Bit 4: (EIE0.4) External Interrupt 4 Enable (EX4)
Bit 5: (EIE0.5) External Interrupt 5 Enable (EX5)
Bit 6: (EIE0.6) External Interrupt 6 Enable (EX6)
Bit 7: (EIE0.7) External Interrupt 7 Enable (EX7)
Register Name:
Register Description:
Register Address:
Bit #
PI0
Port 0 Input Register
M0[08h]
7
6
5
4
3
2
1
0
Name
PI0.7
PI0.6
PI0.5
PI0.4
PI0.3
PI0.2
PI0.1
PI0.0
Reset
s
s
s
s
s
s
s
s
Access
r
r
r
r
r
r
r
r
Each of the read-only bits in this register reflects the logic state present at the corresponding port pin.
Register Name:
Register Description:
Register Address:
Bit #
PI1
Port 1 Input Register
M0[09h]
7
6
5
4
3
2
1
0
Name
PI1.7
PI1.6
PI1.5
PI1.4
PI1.3
PI1.2
PI1.1
PI1.0
Reset
s
s
s
s
s
s
s
s
Access
r
r
r
r
r
r
r
r
Each of the read-only bits in this register reflects the logic state present at the corresponding port pin.
Register Name:
Register Description:
Register Address:
Bit #
PI2
Port 2 Input Register
M0[0Ah]
7
6
5
4
3
2
1
0
Name
PI2.7
PI2.6
PI2.5
PI2.4
PI2.3
PI2.2
PI2.1
PI2.0
Reset
s
s
s
s
s
s
s
s
Access
r
r
r
r
r
r
r
r
Each of the read-only bits in this register reflects the logic state present at the corresponding port pin.
Maxim Integrated
39
MAXQ Family User’s Guide:
MAXQ2000 Supplement
Register Name:
Register Description:
Register Address:
Bit #
PI3
Port 3 Input Register
M0[0Bh]
7
6
5
4
3
2
1
0
Name
PI3.7
PI3.6
PI3.5
PI3.4
PI3.3
PI3.2
PI3.1
PI3.0
Reset
s
s
s
s
s
s
s
s
Access
r
r
r
r
r
r
r
r
Each of the read-only bits in this register reflects the logic state present at the corresponding port pin.
Register Name:
Register Description:
Register Address:
Bit #
EIES0
External Interrupt Edge Select 0 Register
M0[0Ch]
7
6
5
4
3
2
1
0
Name
IT7
IT6
IT5
IT4
IT3
IT2
IT1
IT0
Reset
0
0
0
0
0
0
0
0
r/w
r/w
r/w
r/w
r/w
r/w
r/w
r/w
Access
Each bit in this register controls the edge select mode for an external interrupt, as follows:
0 = The external interrupt will trigger on a rising (positive) edge.
1 = The external interrupt will trigger on a negative (falling) edge.
Bit 0: (EIES0.0) Edge Select for External Interrupt 0 (IT0)
Bit 1: (EIES0.1) Edge Select for External Interrupt 1 (IT1)
Bit 2: (EIES0.2) Edge Select for External Interrupt 2 (IT2)
Bit 3: (EIES0.3) Edge Select for External Interrupt 3 (IT3)
Bit 4: (EIES0.4) Edge Select for External Interrupt 4 (IT4)
Bit 5: (EIES0.5) Edge Select for External Interrupt 5 (IT5)
Bit 6: (EIES0.6) Edge Select for External Interrupt 6 (IT6)
Bit 7: (EIES0.7) Edge Select for External Interrupt 7 (IT7)
Register Name:
Register Description:
Register Address:
Bit #
PD0
Port 0 Direction Register
M0[10h]
7
6
5
4
3
2
1
0
Name
PD0.7
PD0.6
PD0.5
PD0.4
PD0.3
PD0.2
PD0.1
PD0.0
Reset
0
0
0
0
0
0
0
0
r/w
r/w
r/w
r/w
r/w
r/w
r/w
r/w
Access
Each of the bits in this register controls the input/output direction of a port pin (P0.0 to P0.7), as follows.
0 = The port pin is in input mode, either with a weak pullup (if PO = 1) or tri-stated (if PO = 0).
1 = The port pin is in output mode, with the output level to drive given by PO.
Maxim Integrated
40
MAXQ Family User’s Guide:
MAXQ2000 Supplement
Register Name:
Register Description:
Register Address:
Bit #
PD1
Port 1 Direction Register
M0[11h]
7
6
5
4
3
2
1
0
Name
PD1.7
PD1.6
PD1.5
PD1.4
PD1.3
PD1.2
PD1.1
PD1.0
Reset
0
0
0
0
0
0
0
0
r/w
r/w
r/w
r/w
r/w
r/w
r/w
r/w
Access
Each of the bits in this register controls the input/output direction of a port pin (P1.0 to P1.7), as follows.
0 = The port pin is in input mode, either with a weak pullup (if PO = 1) or tri-stated (if PO = 0).
1 = The port pin is in output mode, with the output level to drive given by PO.
Register Name:
Register Description:
Register Address:
Bit #
Name
Reset
Access
PD2
Port 2 Direction Register
M0[12h]
7
6
5
4
3
2
1
0
PD2.7
PD2.6
PD2.5
PD2.4
PD2.3
PD2.2
PD2.1
PD2.0
0
0
0
0
0
0
0
0
r/w
r/w
r/w
r/w
r/w
r/w
r/w
r/w
Each of the bits in this register controls the input/output direction of a port pin (P2.0 to P2.7), as follows.
0 = The port pin is in input mode, either with a weak pullup (if PO = 1) or tri-stated (if PO = 0).
1 = The port pin is in output mode, with the output level to drive given by PO.
Register Name:
Register Description:
Register Address:
Bit #
PD3
Port 3 Direction Register
M0[13h]
7
6
5
4
3
2
1
0
Name
PD3.7
PD3.6
PD3.5
PD3.4
PD3.3
PD3.2
PD3.1
PD3.0
Reset
0
0
0
0
0
0
0
0
r/w
r/w
r/w
r/w
r/w
r/w
r/w
r/w
Access
Each of the bits in this register controls the input/output direction of a port pin (P3.0 to P3.7), as follows.
0 = The port pin is in input mode, either with a weak pullup (if PO = 1) or tri-stated (if PO = 0).
1 = The port pin is in output mode, with the output level to drive given by PO.
Maxim Integrated
41
MAXQ Family User’s Guide:
MAXQ2000 Supplement
Register Name:
Register Description:
Register Address:
PO4
Port 4 Output Register
M1[00h]
Bit #
7
6
5
4
3
2
1
0
Name
—
—
—
PO2.4
PO2.3
PO2.2
PO2.1
PO2.0
Reset
0
0
0
1
1
1
1
1
Access
r
r
r
r/w
r/w
r/w
r/w
r/w
Bits 0 to 4: (PO4.0 to PO4.4) Port 4 Output. This register stores the data that will be output on any of the pins of Port 4 that have been
defined as output pins. If the port pins are in input mode, this register controls the weak pullup for each pin. Changing the data direction of any pins for this port (through register PD4) will not affect the value in this register.
Bits 5 to 7: (PO4.5 to PO4.7) Reserved
Register Name:
Register Description:
Register Address:
Bit #
Name
PO5
Port 5 Output Register
M1[01h]
7
6
5
4
3
2
1
0
PO5.7
PO5.6
PO5.5
PO5.4
PO5.3
PO5.2
PO5.1
PO5.0
Reset
Access
1
1
1
1
1
1
1
1
r/w
r/w
r/w
r/w
r/w
r/w
r/w
r/w
Bits 0 to 7: (PO5.0 to PO5.7) Port 5 Output. This register stores the data that will be output on any of the pins of Port 5 that have been
defined as output pins. If the port pins are in input mode, this register controls the weak pullup for each pin. Changing the data direction of any pins for this port (through register PD5) will not affect the value in this register.
Register Name:
Register Description:
Register Address:
Bit #
Name
PO6
Port 6 Output Register
M1[02h]
7
6
5
4
3
2
1
0
PO6.7
PO6.6
PO6.5
PO6.4
PO6.3
PO6.2
PO6.1
PO6.0
Reset
Access
1
1
1
1
1
1
1
1
r/w
r/w
r/w
r/w
r/w
r/w
r/w
r/w
Bits 0 to 7: (PO6.0 to PO6.7) Port 6 Output. This register stores the data that will be output on any of the pins of Port 6 that have been
defined as output pins. If the port pins are in input mode, this register controls the weak pullup for each pin. Changing the data direction of any pins for this port (through register PD6) will not affect the value in this register.
Maxim Integrated
42
MAXQ Family User’s Guide:
MAXQ2000 Supplement
Register Name:
Register Description:
Register Address:
PO7
Port 7 Output Register
M1[03h]
Bit #
7
6
5
4
3
2
1
0
Name
—
—
—
—
—
—
PO2.1
PO2.0
Reset
0
0
0
0
0
0
1
1
Access
r
r
r
r
r
r
r/w
r/w
Bits 0 and 1: (PO7.0 and PO7.1) Port Output for P7.0 and P7.1. This register stores the data that will be output on any of the pins of
Port 7 that have been defined as output pins. If the port pins are in input mode, this register controls the weak pullup for each pin.
Changing the data direction of any pins for this port (through register PD7) will not affect the value in this register.
Bits 2 to 7: (PO7.2 to PO7.7) Reserved
Register Name:
Register Description:
Register Address:
Bit #
EIF1
External Interrupt Flag 1 Register
M1[06h]
7
6
5
4
3
2
1
0
Name
IE15
IE14
IE13
IE12
IE11
IE10
IE9
IE8
Reset
0
0
0
0
0
0
0
0
r/w
r/w
r/w
r/w
r/w
r/w
r/w
r/w
Access
Each bit in this register is set when a negative or positive edge (depending on the ITn bit setting) is detected on the corresponding
interrupt pin. Once an external interrupt has been detected, the interrupt flag bit will remain set until cleared by software or a reset.
Setting any of these bits will cause the corresponding interrupt to trigger if it is enabled to do so.
Bit 0: (EIF1.0) External Interrupt 8 Edge Detect (IE8)
Bit 1: (EIF1.1) External Interrupt 9 Edge Detect (IE9)
Bit 2: (EIF1.2) External Interrupt 10 Edge Detect (IE10)
Bit 3: (EIF1.3) External Interrupt 11 Edge Detect (IE11)
Bit 4: (EIF1.4) External Interrupt 12 Edge Detect (IE12)
Bit 5: (EIF1.5) External Interrupt 13 Edge Detect (IE13)
Bit 6: (EIF1.6) External Interrupt 14 Edge Detect (IE14)
Bit 7: (EIF1.7) External Interrupt 15 Edge Detect (IE15)
Maxim Integrated
43
MAXQ Family User’s Guide:
MAXQ2000 Supplement
Register Name:
Register Description:
Register Address:
Bit #
EIE1
External Interrupt Enable 1 Register
M1[07h]
7
6
5
4
3
2
1
0
Name
EX15
EX14
EX13
EX12
EX11
EX10
EX9
EX8
Reset
0
0
0
0
0
0
0
0
r/w
r/w
r/w
r/w
r/w
r/w
r/w
r/w
Access
Each bit in this register controls the enable for one external interrupt. If the bit is set to 1, the interrupt is enabled (if it is not otherwise
masked). If the bit is set to 0, its corresponding interrupt is disabled.
Bit 0: (EIE1.0) External Interrupt 8 Enable (EX8)
Bit 1: (EIE1.1) External Interrupt 9 Enable (EX9)
Bit 2: (EIE1.2) External Interrupt 10 Enable (EX10)
Bit 3: (EIE1.3) External Interrupt 11 Enable (EX11)
Bit 4: (EIE1.4) External Interrupt 12 Enable (EX12)
Bit 5: (EIE1.5) External Interrupt 13 Enable (EX13)
Bit 6: (EIE1.6) External Interrupt 14 Enable (EX14)
Bit 7: (EIE1.7) External Interrupt 15 Enable (EX15)
Register Name:
Register Description:
Register Address:
PI4
Port 4 Input Register
M1[08h]
Bit #
7
6
5
4
3
2
1
0
Name
—
—
—
PI4.4
PI4.3
PI4.2
PI4.1
PI4.0
Reset
0
0
0
s
s
s
s
s
Access
r
r
r
r
r
r
r
r
Bits 0 to 4: (PI4.0 to PI4.4) Port Pin Input Bits for P4.0 to P4.4. Each of these read-only bits reflects the logic state present at the
corresponding port pin.
Bits 5 to 7. (PI4.5 to PI4.7) Reserved
Register Name:
Register Description:
Register Address:
Bit #
PI5
Port 5 Input Register
M1[09h]
7
6
5
4
3
2
1
0
Name
PI5.7
PI5.6
PI5.5
PI5.4
PI5.3
PI5.2
PI5.1
PI5.0
Reset
s
s
s
s
s
s
s
s
Access
r
r
r
r
r
r
r
r
Bits 0 to 7: (PI5.0 to PI5.7) Port Pin Input Bits for P5.0 to P5.7. Each of these read-only bits reflects the logic state present at the
corresponding port pin.
Maxim Integrated
44
MAXQ Family User’s Guide:
MAXQ2000 Supplement
Register Name:
Register Description:
Register Address:
Bit #
PI6
Port 6 Input Register
M1[0Ah]
7
6
5
4
3
2
1
0
Name
PI6.7
PI6.6
PI6.5
PI6.4
PI6.3
PI6.2
PI6.1
PI6.0
Reset
s
s
s
s
s
s
s
s
Access
r
r
r
r
r
r
r
r
Bits 0 to 7: (PI6.0 to PI6.7) Port Pin Input Bits for P6.0 to P6.7. Each of these read-only bits reflects the logic state present at the
corresponding port pin.
Register Name:
Register Description:
Register Address:
PI7
Port 7 Input Register
M1[0Bh]
Bit #
7
6
5
4
3
2
1
0
Name
—
—
—
—
—
—
PI7.1
PI7.0
Reset
0
0
0
0
0
0
s
s
Access
r
r
r
r
r
r
r
r
Bits 0 and 1: (PI7.0 and PI7.1) Port Pin Input Bits for P7.0 and P7.1. Each of these read-only bits reflects the logic state present at
the corresponding port pin.
Bits 2 to 7: (PI7.2 to PI7.7) Reserved
Register Name:
Register Description:
Register Address:
Bit #
Name
Reset
Access
EIES1
External Interrupt Edge Select 1 Register
M1[0Ch]
7
6
5
4
3
2
1
0
IT15
IT14
IT13
IT12
IT11
IT10
IT9
IT8
0
0
0
0
0
0
0
0
r/w
r/w
r/w
r/w
r/w
r/w
r/w
r/w
Each bit in this register controls the edge select mode for an external interrupt, as follows:
0 = The external interrupt will trigger on a rising (positive) edge.
1 = The external interrupt will trigger on a negative (falling) edge.
Bit 0: (EIES1.0) Edge Select for External Interrupt 8 (IT8)
Bit 1: (EIES1.1) Edge Select for External Interrupt 9 (IT9)
Bit 2: (EIES1.2) Edge Select for External Interrupt 10 (IT10)
Bit 3: (EIES1.3) Edge Select for External Interrupt 11 (IT11)
Bit 4: (EIES1.4) Edge Select for External Interrupt 12 (IT12)
Bit 5: (EIES1.5) Edge Select for External Interrupt 13 (IT13)
Bit 6: (EIES1.6) Edge Select for External Interrupt 14 (IT14)
Bit 7: (EIES1.7) Edge Select for External Interrupt 15 (IT15)
Maxim Integrated
45
MAXQ Family User’s Guide:
MAXQ2000 Supplement
Register Name:
Register Description:
Register Address:
PD4
Port 4 Direction Register
M1[10h]
Bit #
7
6
5
4
3
2
1
0
Name
—
—
—
PD4.4
PD4.3
PD4.2
PD4.1
PD4.0
Reset
0
0
0
0
0
0
0
0
Access
r
r
r
r/w
r/w
r/w
r/w
r/w
Bits 0 to 4: (PD4.0 to PD4.4) Port Direction Bits for P4.0 to P4.4. Each these bits controls the input/output direction of its corresponding port pin as follows.
0 = The port pin is in input mode, either with a weak pullup (if PO = 1) or tri-stated (if PO = 0).
1 = The port pin is in output mode, with the output level to drive given by PO.
Bits 5 to 7: (PD4.5 to PD4.7) Reserved
Register Name:
Register Description:
Register Address:
Bit #
Name
PD5
Port 5 Direction Register
M1[11h]
7
6
5
4
3
2
1
0
PD5.7
PD5.6
PD5.5
PD5.4
PD5.3
PD5.2
PD5.1
PD5.0
Reset
Access
0
0
0
0
0
0
0
0
r/w
r/w
r/w
r/w
r/w
r/w
r/w
r/w
Bits 0 to 7: (PD5.0 to PD5.7) Port Direction Bits for P5.0 to P5.7. Each these bits controls the input/output direction of its corresponding port pin as follows.
0 = The port pin is in input mode, either with a weak pullup (if PO = 1) or tri-stated (if PO = 0).
1 = The port pin is in output mode, with the output level to drive given by PO.
Register Name:
Register Description:
Register Address:
Bit #
Name
PD6
Port 6 Direction Register
M1[12h]
7
6
5
4
3
2
1
0
PD6.7
PD6.6
PD6.5
PD6.4
PD6.3
PD6.2
PD6.1
PD6.0
Reset
Access
0
0
0
0
0
0
0
0
r/w
r/w
r/w
r/w
r/w
r/w
r/w
r/w
Bits 0 to 7: (PD6.0 to PD6.7) Port Direction Bits for P6.0 to P6.7. Each these bits controls the input/output direction of its corresponding port pin as follows.
0 = The port pin is in input mode, either with a weak pullup (if PO = 1) or tri-stated (if PO = 0).
1 = The port pin is in output mode, with the output level to drive given by PO.
Maxim Integrated
46
MAXQ Family User’s Guide:
MAXQ2000 Supplement
Register Name:
Register Description:
Register Address:
PD7
Port 7 Direction Register
M1[13h]
Bit #
7
6
5
4
3
2
1
0
Name
—
—
—
—
—
—
PD7.1
PD7.0
Reset
0
0
0
0
0
0
0
0
Access
r
r
r
r/w
r/w
r/w
r/w
r/w
Bits 0 and 1: (PD7.0 and PD7.1) Port Direction Bits for P7.0 and P7.1. Each these bits controls the input/output direction of its corresponding port pin as follows.
0 = The port pin is in input mode, either with a weak pullup (if PO = 1) or tri-stated (if PO = 0).
1 = The port pin is in output mode, with the output level to drive given by PO.
Bits 2 to 7: (PD7.2 to PD7.7) Reserved
Register Name:
Register Description:
Register Address:
SVS
Supply Voltage Select Register
M1[10h]
Bit #
7
6
5
4
3
2
1
0
Name
—
—
SV65
SV64
—
—
SV71
SV70
Reset
0
0
0
0
0
0
0
0
Access
r
r
r/w
r/w
r
r
r/w
r/w
Each bit in this register controls the supply voltage used for a particular port pin’s input and output levels, as follows.
0 = The standard VDDIO supply rail will be used to drive this port pin.
1 = The LCD supply rail will be used to drive this port pin.
Bit 0: (SVS.0) Supply Voltage Select for P7.0 (SV70)
Bit 1: (SVS.1) Supply Voltage Select for P7.1 (SV71)
Bits 2, 3, 6, 7: Reserved
Bit 4: (SVS.4) Supply Voltage Select for P6.4 (SV64)
Bit 5: (SVS.5) Supply Voltage Select for P6.5 (SV65)
Maxim Integrated
47
MAXQ Family User’s Guide:
MAXQ2000 Supplement
Register Name:
Register Description:
Register Address:
WKO
Wakeup Output Register
M1[1Fh]
Bit #
7
6
5
4
3
2
1
0
Name
—
—
—
—
—
WKL
WKE1
WKE0
Reset
0
0
0
0
0
0
0
0
Access
r
r
r
r
r
r/w
r/w
r/w
Bit 0: (WKO.0) Wakeup Output 0 Enable (WKE0). When set to 1, this bit enables the output of a wakeup signal on port pin P6.4. The
active polarity of the output signal is determined by the WKL bit, on the output pulse duration is determined by the duration of the
source that triggers the wakeup event.
Bit 1: (WKO.1) Wakeup Output 1 Enable (WKE1). When set to 1, this bit enables the output of a wakeup signal on port pin P6.5. The
active polarity of the output signal is determined by the WKL bit, on the output pulse duration is determined by the duration of the
source that triggers the wakeup event.
Bit 2: (WKO.2) Wakeup Output Level (WKL). This bit determines the polarity of the wakeup signal, which may be output on P6.4 and
P6.5 as follows.
0 = Wakeup outputs are driven low when a wakeup source is active.
1 = Wakeup outputs are driven high when a wakeup source is active.
When no wakeup source is active, the enabled wakeup outputs will be driven to the opposite level (low if WKL = 1, high if WKL = 0).
Bits 3 to 7: (WKO.3 to WKO.7) Reserved
Port Pin Example 1: Driving Outputs on Port 0
move
move
PO0, #000h
PD0, #0FFh
; Set all outputs low
; Set all P0 pins to output mode
Port Pin Example 2: Receiving Inputs on Port 1
move
move
PO1, #0FFh
PD1, #000h
nop
move
Maxim Integrated
; Set weak pullups ON on all pins
; Set all P1 pins to input mode
; Wait for external source to drive P1 pins
Acc, PI1
; Get input values from P1 (will return FF if
; no other source drives the pins low)
48
MAXQ Family User’s Guide:
MAXQ2000 Supplement
ADDENDUM TO SECTION 7: TIMER/COUNTER 0 MODULE
The MAXQ2000 does not provide these peripherals. Refer to the MAXQ Family User’s Guide.
ADDENDUM TO SECTION 8: TIMER/COUNTER 1 MODULE
The MAXQ2000 does not provide these peripherals. Refer to the MAXQ Family User’s Guide.
ADDENDUM TO SECTION 9: TIMER/COUNTER 2 MODULE
The MAXQ2000 provides three Type 2 timer/counters (Timer 0, Timer 1, Timer 2), which operate as described in the MAXQ Family
User’s Guide. Table 13 shows the associated pins and Table 14 shows the associated registers for these timer/counters.
Using the 32kHz Alternate Timer Clock Source
The 32kHz clock can be used as an alternate Timer 2 clock source by setting the T2CI bit in that timer’s T2CFG register to 1. Note that
for this to work properly, either the 32kHz crystal oscillator must be enabled (by clearing the X32D/RCNT.14 bit to zero) with a 32kHz
external crystal connected between pins 32KIN and 32KOUT, or the 32kHz clock must be driven directly by an external 32kHz clock
source at 32KIN.
Additionally, because the Timer 2 alternate clock source is sampled by the system clock, for proper operation the system clock must
either be (a) running directly from the 32kHz clock source, or (b) running at a frequency greater than (32kHz x 4).
Table 13. Type 2 Timer/Counter Input and Output Pins
PIN NUMBER
TIMER/COUNTER FUNCTION
MULTIPLEXED WITH PORT PIN
68-PIN
56-PIN
Timer 0 Input/Output—T0 (T2P)
48
39
P6.5
Timer 0 Secondary Output—T0B (T2PB)
47
38
P6.4
Timer 1 Input/Output—T1 (T2P)
44
37
P6.1
Timer 1 Secondary Output—T1B (T2PB)
43
36
P6.0
Timer 2 Input/Output—T2 (T2P)
46
—
P6.2
Timer 2 Secondary Output—T2B (T2PB)
45
—
P6.1
Table 14. Type 2 Timer/Counter Control Registers
REGISTER
ADDRESS
T2CFG0
M3[10h]
Timer/Counter 0 (Type 2) Configuration Register. Controls counter/timer select, capture/compare function
select, 8-bit/16-bit mode select, and clock divide modes.
T2CNA0
M3[00h]
Timer/Counter 0 (Type 2) Control Register A. I/O settings, run enables, polarity modes.
T2CNB0
M3[0Ch]
Timer/Counter 0 (Type 2) Control Register B. Contains capture, compare, overflow flags.
T2V0
M3[0Dh]
Timer/Counter 0 (Type 2) Value Register
T2H0
M3[01h]
Timer/Counter 0 (Type 2) Value MSB Register. Provides access to high byte of T2V.
T2R0
M3[0Eh]
Timer/Counter 0 (Type 2) Reload Register
T2RH0
M3[02h]
Timer/Counter 0 (Type 2) Reload MSB Register. Provides access to high byte of T2R.
T2C0
M3[0Fh]
Timer/Counter 0 (Type 2) Capture/Compare Register
T2CH0
M3[03h]
Timer/Counter 0 (Type 2) Capture/Compare MSB Register. Access to high byte of T2C.
T2CFG1
M4[10h]
Timer/Counter 1 (Type 2) Configuration Register. Controls counter/timer select, capture/compare function
select, 8-bit/16-bit mode select, and clock divide modes.
T2CNA1
M4[00h]
Timer/Counter 1 (Type 2) Control Register A. I/O settings, run enables, polarity modes.
T2CNB1
M4[08h]
Timer/Counter 1 (Type 2) Control Register B. Contains capture, compare, overflow flags.
Maxim Integrated
FUNCTION
49
MAXQ Family User’s Guide:
MAXQ2000 Supplement
Table 14. Type 2 Timer/Counter Control Registers (continued)
REGISTER
ADDRESS
FUNCTION
T2V1
M4[09h]
Timer/Counter 1 (Type 2) Value Register
T2H1
M4[01h]
Timer/Counter 1 (Type 2) Value MSB Register. Provides access to high byte of T2V.
T2R1
M4[0Ah]
Timer/Counter 1 (Type 2) Reload Register
T2RH1
M4[02h]
Timer/Counter 1 (Type 2) Reload MSB Register. Provides access to high byte of T2R.
T2C1
M4[0Bh]
Timer/Counter 1 (Type 2) Capture/Compare Register
T2CH1
M4[03h]
Timer/Counter 1 (Type 2) Capture/Compare MSB Register. Access to high byte of T2C.
T2CFG2
M4[11h]
Timer/Counter 2 (Type 2) Configuration Register. Controls counter/timer select, capture/compare function
select, 8-bit/16-bit mode select, and clock divide modes.
T2CNA2
M4[04h]
Timer/Counter 2 (Type 2) Control Register A. I/O settings, run enables, polarity modes.
T2CNB2
M4[0Ch]
Timer/Counter 2 (Type 2) Control Register B. Contains capture, compare, overflow flags.
T2V2
M4[0Dh]
Timer/Counter 2 (Type 2) Value Register
T2H2
M4[05h]
Timer/Counter 2 (Type 2) Value MSB Register. Provides access to high byte of T2V.
T2R2
M4[0Eh]
Timer/Counter 2 (Type 2) Reload Register
T2RH2
M4[06h]
Timer/Counter 2 (Type 2) Reload MSB Register. Provides access to high byte of T2R.
T2C2
M4[0Fh]
Timer/Counter 2 (Type 2) Capture/Compare Register
T2CH2
M4[07h]
Timer/Counter 2 (Type 2) Capture/Compare MSB Register. Access to high byte of T2C.
Timer 2 Example: Triggering a Periodic Interrupt
move
move
PD0, #0FFh
PO0, #000h
; Set P0.0-P0.7 to output mode
; Drive low on all Port 0 pins
move
move
move
move
move
move
move
IV, #IntHandler
IMR.3, #1
T2CFG0, #070h
T2V0, #0CCCCh
T2CNA0.3, #1
T2CNA0.7, #1
IC, #1
;
;
;
;
;
;
;
Set address for interrupt handler
Enable interrupts for module 3
16-bit timer mode, system clock / 128
Period = (10000h-0CCCCh)*128 / Clock
Start timer 0
Enable timer 0 interrupts
Enable global interrupts
jump
$
;
;
;
;
;
Clear interrupt flags
Reset for the same period
Get current Port 0 output
Toggle all bits
Set new Port 0 output
IntHandler:
move
T2CNB0, #00h
move
T2V0, #0CCCCh
move
Acc, PO0
cpl
move
PO0, Acc
reti
Maxim Integrated
50
MAXQ Family User’s Guide:
MAXQ2000 Supplement
ADDENDUM TO SECTION 10: SERIAL I/O (UART) MODULE
The MAXQ2000 provides up to two serial UART modules (Serial 0 and 1 in the 68-pin package, Serial 0 in the 56-pin package), which
operate as described in the MAXQ Family User’s Guide. Table 15 shows the associated pins and Table 16 shows the associated registers for these UARTs.
Table 15. Serial UART Input and Output Pins
PIN NUMBER
SERIAL UART FUNCTION
MULTIPLEXED WITH PORT PIN
68-PIN
56-PIN
Serial Port 0 Receive—RXD0
53
44
P7.1
Serial Port 0 Transmit—TXD0
52
43
P7.0
Serial Port 1 Receive—RXD1
36
—
P5.2
Serial Port 1 Transmit—TXD1
37
—
P5.3
Table 16. Serial UART Control Registers
REGISTER
ADDRESS
FUNCTION
SCON0
M2[06h]
Serial Port 0 Control Register. Serial port mode, receive enable, 9th bit control, and interrupt flags.
SBUF0
M2[07h]
Serial Port 0 Data Buffer. Input and output data buffer.
SMD0
M2[08h]
Serial Port 0 Mode Register. Controls baud rate, interrupt enable, and framing error detection.
PR0
M2[09h]
Serial Port 0 Phase Register. Contains counter reload value for baud rate generation.
SCON1
M3[06h]
Serial Port 1 Control Register. Serial port mode, receive enable, 9th bit control, and interrupt flags.
SBUF1
M3[07h]
Serial Port 1 Data Buffer. Input and output data buffer.
SMD1
M3[08h]
Serial Port 1 Mode Register. Controls baud rate, interrupt enable, and framing error detection.
PR1
M3[09h]
Serial Port 1 Phase Register. Contains counter reload value for baud rate generation.
Serial UART Example: Asynchronous 10-Bit Output at 115,200 Baud
move
move
move
move
SCON0.6, #1
SCON0.4, #1
SMD0.1, #1
PR0, #45E8h
;
;
;
;
move
move
SCON0.0, #0
SCON0.1, #0
; Clear received character flag
; Clear transmit character flag
Acc, #'0'
LC[0], #10
; Start with '0' character
; Transmit from '0'-'9'
SBUF0, Acc
; Send character
C, SCON0.1
NC, Transmit
SCON0.1, #0
#1
LC[0], Loop2
Loop1
;
;
;
;
Loop1:
move
move
Loop2:
move
Transmit:
move
jump
move
add
djnz
jump
Maxim Integrated
Set to mode 1 (10-bit asynchronous)
Enable receiver
Baud rate = 16 x baud clock
PR0 = 2^21 * 115200 / 13.5MHz (crystal)
Check transmit flag
Wait for transmit to complete
Clear transmit flag
Increment character by 1
51
MAXQ Family User’s Guide:
MAXQ2000 Supplement
ADDENDUM TO SECTION 11: SERIAL PERIPHERAL INTERFACE (SPI)
The MAXQ2000 provides a Serial Peripheral Interface (SPI) module, which operates as described in the MAXQ Family User’s Guide.
Table 17 shows the associated pins and Table 18 shows the associated registers for this interface.
Table 17. SPI Input and Output Pins
PIN NUMBER
SPI INTERFACE FUNCTION
MULTIPLEXED WITH PORT PIN
68-PIN
56-PIN
Slave Select—SSEL
38
—
P5.4
Slave Clock—SCLK
40
—
P5.6
Master Out-Slave In—MOSI
39
—
P5.5
Master In-Slave Out—MISO
41
—
P5.7
Table 18. SPI Interface Control Registers
REGISTER
ADDRESS
FUNCTION
SPICN
M3[15h]
SPI Control Register. Enable, master/slave mode select, status, and interrupt flags.
SPICF
M3[16h]
SPI Configuration Register. Clock polarity/phase, character length, interrupt enable.
SPICK
M3[17h]
SPI Clock Register. Master baud rate = 0.5 x sysClock / (SPICK + 1)
SPIB
M3[05h]
SPI Data Buffer. Writes go to SPI write buffer; reads come from SPI read buffer.
SPI Example: Enabling Master Mode
move
move
move
Maxim Integrated
SPICN, #03h
SPICF, #00h
SPICK, #010h
; Enable SPI for master mode communication
; Rising clock, active edge sample, 8-bit character
; Divide by 16 clock
52
MAXQ Family User’s Guide:
MAXQ2000 Supplement
ADDENDUM TO SECTION 12: HARDWARE MULTIPLIER
The MAXQ2000 provides a hardware multiplier module that provides the following features (detailed in the MAXQ Family User’s Guide).
• Completes a 16-bit x 16-bit multiply-accumulate or multiply-subtract operation in a single cycle
• Includes 48-bit accumulator
• Supports seven different multiplication operations:
Unsigned 16-bit multiply
Unsigned 16-bit multiply and accumulate
Unsigned 16-bit multiply and subtract
Signed 16-bit multiply
Signed 16-bit multiply and negate
Signed 16-bit multiply and accumulate
Signed 16-bit multiply and subtract
The associated registers for this module are listed below.
Table 19. Hardware Multiplier Control Registers
REGISTER
ADDRESS
FUNCTION
MCNT
M2[00h]
Multiplier Control Register. Controls operation and mode selection for the multiplier.
MA
M2[01h]
Multiplier Operand A Register. Input register for multiplier operations.
MB
M2[02h]
Multiplier Operand B Register. Input register for multiplier operations.
MC2
M2[03h]
Multiplier Accumulate Register 2. Contains bits 32 to 47 of the accumulator.
MC1
M2[04h]
Multiplier Accumulate Register 1. Contains bits 16 to 31 of the accumulator.
MC0
M2[05h]
Multiplier Accumulate Register 0. Contains bits 0 to 15 of the accumulator.
MC1R
M2[0Bh]
Multiplier Read Register 1. Contains bits 16 to 31 of the last multiplier operation result.
MC0R
M2[0Ch]
Multiplier Read Register 2. Contains bits 0 to 15 of the last multiplier operation result.
Multiplier Example: 16-Bit Unsigned Multiplication
move
MCNT, #021h
; 0010 0001
; 0
; 0
;
1
;
0
;
0
;
00
;
1
–
OF
MCW
CLD
SQU
OPCS
MCNT
SUS
:
:
:
:
:
:
:
overflow flag (read only)
write result to MC registers
clears MA/MB/MCx to zero
square function disabled
start op after writing MA,MB
MC = MA * MB
unsigned operation
move
move
MA, #01234h
MB, #00055h
; load first operand
; load second operand, operation starts
move
move
move
A[2], MC2
A[1], MC1
A[0], MC0
; should be 0000h
; should be 0006h
; should be 0B44h
Maxim Integrated
53
MAXQ Family User’s Guide:
MAXQ2000 Supplement
ADDENDUM TO SECTION 13: 1-Wire BUS MASTER
The MAXQ2000 provides a 1-Wire Bus Master (68-pin package only) that operates as described in the MAXQ Family User’s Guide.
Tables 20 to 23 show the associated pins and registers for this interface.
Table 20. 1-Wire Master Input and Output Pins
PIN NUMBER
1-WIRE MASTER FUNCTION
MULTIPLEXED WITH PORT PIN
68-PIN
56-PIN
1-Wire Master Input—OW_IN
46
—
P6.3
1-Wire Master Output—OW_OUT
47
—
P6.4
Table 21. 1-Wire Interface Control Registers
REGISTER
ADDRESS
FUNCTION
OWA
M3[13h]
1-Wire Address Register. Selects the 1-Wire register that will be accessible through OWD.
OWD
M3[14h]
1-Wire Data Register. Reading and writing to this register reads and writes to the 1-Wire register, which has
been selected by OWA.
Table 22. 1-Wire Master Register Bit Functions
OWA[2:0]
REGISTER
R/W
BIT 7
BIT 6
BIT 5
—
—
—
BIT 4
BIT 3
BIT 2
BIT 1
BIT 0
—
OW_IN
FOW
SRA
1WR
000
OWCMD
R/W
001
OWBUF
R/W
010
OWIF
R
LOW
SHORT
RSRF
RBF
TEMT*
TBE*
PDR
PD
011
OWIE
R/W
EOWL
EOWSH
ERSF
ERBF
ETMT
ETBE
—
EPD
100
OWCLK
R/W
CLK_EN
—
—
DIV2
DIV1
DIV0
PRE1
PRE0
101
OWCTL
R/W
EOWMI
—
BIT_CTL
—
—
EN_FOW
PPM
LLM
110
reserved
111
reserved
Input/Output Buffer (8 Bits)
Table 23. 1-Wire Master Register Bit Reset Values
OWA[2:0]
REGISTER
R/W
BIT 7
BIT 6
BIT 5
BIT 4
BIT 3
BIT 2
BIT 1
BIT 0
000
OWCMD
R/W
0
0
0
0
special
0
0
0
001
OWBUF
R/W
0
0
0
0
0
0
0
0
010
OWIF
R
0
0
0
0
1
1
1
0
011
OWIE
R/W
0
0
0
0
0
0
0
0
100
OWCLK
R/W
0
0
0
0
0
0
0
0
101
OWCTL
R/W
0
0
0
0
0
0
0
0
110
reserved
111
reserved
*The behavior of these bits on the MAXQ2000 may differ from their described behavior in the MAXQ Family User's Guide for some device revisions. Refer to
the MAXQ2000 errata for more details (www.maxim-ic.com/errata).
Maxim Integrated
54
MAXQ Family User’s Guide:
MAXQ2000 Supplement
1-Wire Example: Reset and Presence Detect
OW_COMMAND
OW_BUFFER
OW_INTERRUPT
OW_INT_ENABLE
OW_CLOCK
OW_CONTROL
equ
equ
equ
equ
equ
equ
00h
01h
02h
03h
04h
05h
move
move
OWA, #OW_CLOCK
OWD, #10001001b
; Access 1-Wire Clock Control Register
; Divide ratio = 12, enable clock
move
move
OWA, #OW_CONTROL
OWD, #00h
; Access 1-Wire Control Register
; Clear register
Reset:
move
move
OWA, #OW_COMMAND
OWD, #01h
; Access 1-Wire Command Register
; Initiate 1-Wire reset cycle
move
djnz
LC[0], #60000
LC[0], $
; Delay
move
move
move
jump
OWA, #OW_INTERRUPT
Acc, OWD
C, Acc.0
NC, Reset
;
;
;
;
move
C, Acc.1
; Get presence detect result (0=found slave device)
Access 1-Wire Interrupt Flag Register
Get interrupt flags
Check PD flag (1=reset cycle completed)
Retry
ADDENDUM TO SECTION 14: REAL-TIME CLOCK
The MAXQ2000 provides a real-time clock that operates as described in the MAXQ Family User’s Guide. Table 24 shows the associated registers for this module.
Table 24. Real-Time Clock Control Registers
REGISTER
ADDRESS
FUNCTION
RCNT
M0[19h]
RTSS
M0[1Ah]
RTC Sub-Second Counter Register. Contains the 1/256 sub-second count.
RTSL
M0[1Ch]
RTC Second Counter Low Register. Contains the low-order byte of the 32-bit second count.
RTSH
M0[1Bh]
RTC Second Counter High Register. Contains the high-order byte of the 32-bit second count.
RSSA
M0[1Dh]
RTC Sub-second Alarm Register. Contains the sub-second alarm reload value.
RASL
M0[1Fh]
RTC Time-of-Day Alarm Low Register. Contains the low-order 16 bits of the time-of-day alarm value.
RASH
M0[1Eh]
RTC Time-of-Day Alarm High Register. Contains the high-order 8 bits of the time-of-day alarm value.
Real-Time Clock Control Register. Sets modes and alarm enables for the clock.
Real-Time Clock Example: Starting and Setting the Clock
move
move
RCNT, #00000h
RCNT, #08000h
; Turn on 32kHz crystal oscillator
; RTC write enable
move
move
move
RTSS, #00h
RTSL, #0000h
RTSH, #0000h
; Clear sub-second count
; Clear low-order seconds counter
; Clear high-order seconds counter
move
RCNT, #08001h
; Start clock
Maxim Integrated
55
MAXQ Family User’s Guide:
MAXQ2000 Supplement
ADDENDUM TO SECTION 15: TEST ACCESS PORT (TAP)
The JTAG TAP port on the MAXQ2000 is multiplexed with port pins P4.0, P4.1, P4.2, and P4.3. These pins default to their JTAG TAP
function on reset, which means that the part will always be ready for in-circuit debugging or in-circuit programming operations following any reset.
Once an application has been loaded and starts running, the JTAG TAP port can still be used for in-circuit debugging operations. If
in-circuit debugging functionality is not needed, the P4.0, P4.1, P4.2, and P4.3 port pins can be reclaimed for application use by setting the TAP (SC.7) bit to 0. This disables the JTAG TAP interface and allows the four pins to operate as normal port pins.
The maximum speed of the JTAG/TAP interface clock (TCK) is limited to the system clock frequency divided by 8.
ADDENDUM TO SECTION 16: IN-CIRCUIT DEBUG MODE
The MAXQ2000 provides an in-circuit debugging interface through a JTAG TAP port as described in the MAXQ Family User’s Guide.
This interface provides the following functions for use in debugging application software.
• Single-step (trace) execution
• Four program address breakpoints
• Two breakpoints configurable as data address or register address breakpoints
• Register read and write
• Program stack read
• Data memory read and write
• Optional password protection
The following sections provide specific notes on the operation of the MAXQ2000 in debugging mode.
Register Read and Write Commands
Any register location can be read or written using these commands, including reserved locations and those used for op code support.
No protection is provided by the debugging interface, and avoiding side effects is the responsibility of the host system communicating with the MAXQ2000.
Writing to the IP register alters the address that execution resumes at once the debugging engine exits.
In general, reading a register through the debug interface returns the value that was in that register before the debugging engine was
invoked. An exception to this rule is the SP register. Reading the SP register through the debug interface actually returns the value (SP + 1).
Data Memory Read Command
When invoking this command, ICDA should be set to the word address of the starting location to read from, and ICDD should be set
to the number of words. The input address must be based on the utility ROM memory map, as shown in Figure 3. Data memory words
returned by this command are output LSB first.
Data Memory Write Command
When invoking this command, ICDA should be set to the word address of the location to write to, and ICDD should be set to the data
word to write. The input address must be based on the utility ROM memory map, as shown in Figure 3.
Program Stack Read Command
When invoking this command, ICDA should be set to the address of the starting stack location (value of SP) to read from, and ICDD
should be set to the number of words. The address given in ICDA is the highest value that will be used, as words are popped off the
stack and returned in descending order. Stack words returned by this command are output LSB first.
Read Register Map Command
This command outputs all peripheral registers in the range M0[00h] to M4[11h], along with a fixed set of system registers. The following formatting rules apply to the returned data.
• System registers are output as 8-bit or 16-bit, least significant byte first.
• All peripheral registers are output as 16-bit, least significant byte first. The top byte of 8-bit registers is returned as 00h.
• Non-implemented peripheral registers in the range M0[00h] to M4[11h] are returned as 0000h.
• The value of SPIB is not read, and this register is returned as 0000h.
Maxim Integrated
56
MAXQ Family User’s Guide:
MAXQ2000 Supplement
The first byte output by this command is the value 146 (092h), which represents the number of peripheral registers output. Table 25
lists the remaining 356 bytes output by this command.
Table 25. Output From DebugReadMap Command
x0
x1
x2
PO0
0x
x3
x4
PO1
x5
x6
x7
PO2
PO3
1x
PI0
PI1
PI2
PI3
2x
PD0
PD1
PD2
PD3
RCNT
RTSS
RTSH
3x
00
00
PO4
PO5
PO6
PO7
5x
PI4
PI5
PI6
PI7
6x
PD4
PD5
PD6
PD7
00
00
00
00
8x
MCNT
MA
9x
SMD0
PR0
Ax
LCD0
LCD1
Bx
LCD8
LCD9
Cx
T2CNA0
T2H0
Dx
SMD1
PR1
Ex
T2CFG0
Fx
00
00
00
00
00
00
xB
00
00
00
00
00
00
00
00
00
00
00
00
00
RTSL
00
EIES1
xD
xE
EIF0
RSSA
00
00
xC
RASH
00
00
00
00
00
00
00
00
00
00
00
00
00
00
00
00
00
00
RASL
00
00
xF
EIE0
EIF1
EIE1
00
00
SVS
WKO
MC2
MC1
MC0
SCON0
SBUF0
MC1R
MC0R
LCRA
LCFG
LCD16
LCD2
LCD3
LCD4
LCD5
LCD6
LCD7
LCD10
LCD11
LCD12
LCD13
LCD14
LCD15
SCON1
SBUF1
00
00
T2RH0
00
00
00
00
00
00
00
00
T2H1
xA
00
00
00
MB
x9
00
EIES0
4x
7x
x8
T2CH0
00
00
00
00
00
T2CH1
00
00
T2V0
T2R0
T2C0
OWD
SPICN
SPICF
SPICK
OWA
T2RH1
00
T2CNB0
00
00
00
00
00
00
11x
T2CNB1
T2V1
12x
T2CFG1
T2CFG2
13x
A[1]
A[2]
A[3]
A[4]
A[5]
A[6]
A[7]
14x
A[9]
A[10]
A[11]
A[12]
A[13]
A[14]
A[15]
IP
15x
SP + 1
IV
LC[0]
LC[1]
Offs
DPC
GR
BP
16x
DP[0]
DP[1]
T2R1
T2C1
APC
T2H2
00
T2CNA1
AP
T2CNA2
00
10x
T2CNB2
PSF
IC
IMR
SC
T2V2
IIR
CKCN
T2RH2
T2CH2
T2R2
T2C2
WDCN
00
A[0]
A[8]
ADDENDUM TO SECTION 17: IN-SYSTEM PROGRAMMING (JTAG)
The MAXQ2000 provides two different interfaces for in-system programming (bootloader) operations.
• JTAG TAP interface
• Serial port 0 (UART) interface
To use either of these interfaces for in-system programming, the SPE and PSS[1:0] bits must be set through the JTAG TAP interface.
This is done while the device is held in reset, using the system-programming instruction as described in the MAXQ Family User’s Guide.
It is also possible for the MAXQ2000 to bootstrap itself into in-system programming mode by setting the proper bits in the In-Circuit
Debug Flag (ICDF) register and invoking a reset. The procedure for invoking in-system programming in this manner must be defined
by the application firmware.
Register Name:
Register Description:
Register Address:
ICDF
In-Circuit Debug Flag Register
M1[10h]
Bit #
7
6
5
4
3
2
1
0
Name
—
—
—
—
PSS1
PSS0
SPE
—
Reset
0
0
0
0
0
0
0
0
Access
r
r
r
r
r/w
r/w
r/w
r
Bit 0: (ICDF.0) Reserved
Maxim Integrated
57
MAXQ Family User’s Guide:
MAXQ2000 Supplement
Bit 1: (ICDF.1) System Program Enable (SPE). This bit controls the behavior of the MAXQ2000 following reset.
0 = The MAXQ2000 jumps to application code (in flash/ROM) at 0000h following a reset.
1 = The MAXQ2000 executes the in-system programming bootloader following a reset.
Bits 2 and 3: (ICDF.2 and ICDF.3) Programming Source Select (PSS0 and PSS1). When SPE = 1, these bits determine which interface is used for in-system programming operations.
Programming Source Select Values
PSS1
PSS0
PROGRAMMING SOURCE
0
0
JTAG Interface
0
1
Serial Port 0 (UART)
1
0
reserved
1
1
reserved
Bits 4 to 7: (ICDF.4 to ICDF.7) Reserved
Bootloader Protocol
Regardless of which interface is being used (JTAG or Serial Port 0), the protocol for communicating with the bootloader follows the
same binary format. The following notes apply for each interface.
• When using the JTAG interface, the clock rate (TCK) must be kept below 1/8 the system clock rate.
• When using the Serial Port 0 interface, the bootloader autobauds to the serial baud rate being used by the host.
All bootloader commands begin with a single command byte. The high four bits of this command byte define the command family (from 0
to 15), while the low four bits define the specific command within that family. All commands (except for those in Family 0) follow this format:
BYTE 1
BYTE 2
BYTE 3
BYTE 4
(LENGTH) BYTES/WORDS
Command
Length
Param 1
Param 2
Data
After each command has completed, the loader outputs a “prompt” byte to indicate that it has finished the operation. The prompt byte is the single chararacter “>”.
Bootloader commands that fail for any reason set the bootloader status byte to an error code value describing the reason for the failure. See Table 26. This status byte can be read by means of the Get Status command (04h).
Table 26. Bootloader Status Codes
STATUS VALUE
FUNCTION
00
No Error. The last command completed successfully.
01
Family Not Supported. An attempt was made to use a command from a family the bootloader does not support.
02
Invalid Command. An attempt was made to use a nonexistent command within a supported command family.
03
No Password Match. An attempt was made to use a password-protected command without first matching a valid password.
Or, the Match Password command was called with an incorrect password value.
04
Bad Parameter. The parameter (address or otherwise) passed to the command was out of range or otherwise invalid.
05
Verify Failed. The verification step failed on a Load/Verify or Verify command.
06
Unknown Register. An attempt was made to read from or write to a nonexistent register.
07
Word Mode Not Supported. An attempt was made to set word mode access, but the bootloader supports byte mode access
only.
08
Master Erase Failed. The bootloader was unable to perform master erase.
Maxim Integrated
58
MAXQ Family User’s Guide:
MAXQ2000 Supplement
All commands in Family 0 can be executed without first matching the password. All other commands (in Families 1x through Fx) are
password protected; the password must first be matched before these commands can be executed.
A special case exists when the program memory has not been initialized (following master erase). If the password (stored in word locations
0010h to 001Fh in program memory) is all 0000h words or all FFFFh words, the bootloader treats the password as having been matched.
This allows access to password-protected commands following master erase (when no password has been set in program memory).
When providing addresses for code or data read or write to bootloader commands, all addresses run from 0000h to (memory size–1).
Family 0 Commands (Not Password Protected)
Command 00h—No Operation
I/O
Byte 1
Input
00h
Output
Command 01h—Exit Loader
This command causes the bootloader command loop to exit, and execution jumps to the beginning of application code.
I/O
Byte 1
Input
01h
Output
Command 02h—Master Erase
This command clears (programs to FFFFh) all words in the program flash memory.
I/O
Byte 1
Input
02h
Output
Command 03h—Password Match
This command accepts a 32-byte password value, which is matched against the password in program memory (in byte mode) from
addresses 0020h to 003Fh. If the value matches, the password lock is cleared.
I/O
Byte 1
32 Bytes
Input
03h
Password value
Output
Command 04h—Get Status
The status code returned by this command is defined in Table 26. The flags byte contains the following bit status flags.
I/O
Byte 1
Input
04h
Output
Flags
Maxim Integrated
Byte 2
Status Code
59
MAXQ Family User’s Guide:
MAXQ2000 Supplement
Table 27. Bootloader Status Flags
FLAG BIT
FUNCTION
0
Password Lock
0 = The password is unlocked or had a default value; password-protected commands can be used.
1 = The password is locked. Password-protected commands cannot be used.
1
Word/Byte Mode
0 = The bootloader is currently in byte mode for memory reads/writes.
1 = The bootloader is currently in word mode for memory reads/writes.
2
Word/Byte Mode Supported
0 = The bootloader supports byte mode only.
1 = The bootloader supports word mode as well as byte mode.
3 to 8
Reserved
Command 05h—Get Supported Commands
The SupportL (LSB) and SupportH (MSB) bytes form a 16-bit value that indicates which command families this bootloader supports.
If bit 0 is set to 1, it indicates that Family 0 is supported. If bit 1 is set to 1, it indicates that Family 1 is supported, and so on.
The CodeLen and DataLen bytes return the fixed block lengths used by the Load/Dump/Verify Fixed Length commands for code and
data space, respectively.
I/O
Byte 1
Input
05h
Output
SupportL
Byte 2
Byte 3
Byte 4
SupportH
CodeLen
DataLen
Command 06h—Get Code Size
This command returns SizeH:SizeL, which represents the size of available code memory in words minus 1. If this command is unsupported, the return value will be 0000h meaning “unknown amount of memory.”
I/O
Byte 1
Input
06h
Output
SizeL
Byte 2
SizeH
Command 07h—Get Data Size
This command returns SizeH:SizeL, which represents the size of available data memory in words minus 1. If this command is unsupported, the return value will be 0000h meaning “unknown amount of memory.”
I/O
Byte 1
Input
07h
Output
SizeL
Byte 2
SizeH
Command 08h—Get Loader Version
I/O
Byte 1
Input
08h
Output
VersionL
Maxim Integrated
Byte 2
VersionH
60
MAXQ Family User’s Guide:
MAXQ2000 Supplement
Command 09h—Get Utility ROM Version
I/O
Byte 1
Input
09h
Output
VersionL
Byte 2
VersionH
Command 0Ah—Set Word/Byte Mode Access
The Mode byte should be 0 to set byte access mode or 1 to set word access mode. The current access mode is returned in the status flag byte by command 04h, as well as a flag to indicate whether word access mode is supported by this particular bootloader.
I/O
Byte 1
Byte 2
Input
0Ah
Mode
Output
Command 0Dh—Get ID Information
For the MAXQ2000, the information returned by this command is a zero-terminated ROM banner string.
I/O
Byte 1
Input
0Dh
(Variable)
Device dependent information
Output
Family 1 Commands: Load Variable Length (Password Protected)
Command 10h—Load Code Variable Length
This command programs (Length) bytes/words of data into the program flash starting at address (AddressH:AddressL), with the following restrictions.
• In byte mode, if the starting address is on an odd word boundary (such as 0001), the low bit will be changed to zero to make it an
even word address.
• In byte mode, if an odd number of bytes is input, the data will be padded out with a 00 to make it an even number.
I/O
Byte 1
Byte 2
Byte 3
Byte 4
(Length) Bytes/Words
Input
10h
Length
AddressL
AddressH
Data to load
Output
Command 11h—Load Data Variable Length
This command writes (Length) bytes/words of data into the data SRAM starting at address (AddressH:AddressL).
I/O
Byte 1
Byte 2
Byte 3
Byte 4
(Length) Bytes/Words
Input
11h
Length
AddressL
AddressH
Data to load
Output
Maxim Integrated
61
MAXQ Family User’s Guide:
MAXQ2000 Supplement
Family 2 Commands: Dump Variable Length (Password Protected)
Command 20h—Dump Code Variable Length
This command has a slightly different format depending on the length of the dump requested. It returns the contents of the application
flash/ROM—(LengthL) or (LengthH:LengthL) bytes/words starting at (AddressH:AddressL).
I/O
Byte 1
Byte 2
Byte 3
Byte 4
Byte 5
Input (to dump
< 256 bytes/words)
20h
1
AddressL
AddressH
LengthL
Input (to dump
256+ bytes/words)
20h
2
AddressL
AddressH
LengthL
Byte 6
LengthH
Command 21h—Dump Data Variable Length
This command has a slightly different format depending on the length of the dump requested. It returns the contents of the data
SRAM—(LengthL) or (LengthH:LengthL) bytes/words starting at (AddressH:AddressL).
I/O
Byte 1
Byte 2
Byte 3
Byte 4
Byte 5
Input (to dump
< 256 bytes/words)
21h
1
AddressL
AddressH
LengthL
Input (to dump
256+ bytes/words)
21h
2
AddressL
AddressH
LengthL
Byte 6
LengthH
Family 3 Commands: CRC Variable Length (Password Protected)
Command 30h—CRC Code Variable Length
This command has a slightly different format depending on the length of the CRC requested. It returns the CRC-16 value (CrcH:CrcL)
of the application flash/ROM—(LengthL) or (LengthH:LengthL) bytes/words starting at (AddressH:AddressL).
I/O
Byte 1
Byte 2
Byte 3
Byte 4
Byte 5
Input (to CRC
< 256 bytes/words)
30h
1
AddressL
AddressH
LengthL
Input (to CRC
256+ bytes/words)
30h
2
AddressL
AddressH
LengthL
Output
CrcH
CrcL
Byte 6
LengthH
Command 31h—CRC Data Variable Length
This command has a slightly different format depending on the length of the CRC requested. It returns the CRC-16 value (CrcH:CrcL)
of the data SRAM – (LengthL) or (LengthH:LengthL) bytes/words starting at (AddressH:AddressL).
I/O
Byte 1
Byte 2
Byte 3
Byte 4
Byte 5
Input (to CRC
< 256 bytes/words)
31h
1
AddressL
AddressH
LengthL
Input (to CRC
256+ bytes/words)
31h
2
AddressL
AddressH
LengthL
Output
CrcH
CrcL
Maxim Integrated
Byte 6
LengthH
62
MAXQ Family User’s Guide:
MAXQ2000 Supplement
Family 4 Commands: Verify Variable Length (Password Protected)
Command 40h—Verify Code Variable Length
This command operates in the same manner as the “Load Code Variable Length” command, except that instead of programming the
input data into code flash, it verifies that the input data matches the data already in code space. If the data does not match, the status code is set to reflect this failure.
I/O
Byte 1
Byte 2
Byte 3
Byte 4
(Length) Bytes/Words
Input
40h
Length
AddressL
AddressH
Data to verify
Output
Command 41h—Verify Data Variable Length
This command operates in the same manner as the “Load Data Variable Length” command, except that instead of writing the input
data into data SRAM, it verifies that the input data matches the data already in data space. If the data does not match, the status code
is set to reflect this failure.
I/O
Byte 1
Byte 2
Byte 3
Byte 4
(Length) Bytes/Words
Input
41h
Length
AddressL
AddressH
Data to verify
Output
Family 5 Commands: Load and Verify Variable Length (Password Protected)
Command 50h—Load and Verify Code Variable Length
This command combines the functionality of the “Load Code Variable Length” and “Verify Code Variable Length” commands.
I/O
Byte 1
Byte 2
Byte 3
Byte 4
(Length) Bytes/Words
Input
50h
Length
AddressL
AddressH
Data to load/verify
Output
Command 51h—Load and Verify Data Variable Length
This command combines the functionality of the “Load Data Variable Length” and “Verify Data Variable Length” commands.
I/O
Byte 1
Byte 2
Byte 3
Byte 4
(Length) Bytes/Words
Input
51h
Length
AddressL
AddressH
Data to load/verify
Output
Family 6 Commands: Erase Variable Length (Password Protected)
Command 60h—Erase Data Variable Length
This command has a slightly different format depending on the length of the erase requested. It clears (LengthL) or (LengthH:LengthL)
bytes/words in the data SRAM to zero starting at (AddressH:AddressL).
I/O
Byte 1
Byte 2
Byte 3
Byte 4
Byte 5
Input (to erase
< 256 bytes/words)
60h
1
AddressL
AddressH
LengthL
Input (to erase
256+ bytes/words)
60h
2
AddressL
AddressH
LengthL
Maxim Integrated
Byte 6
LengthH
63
MAXQ Family User’s Guide:
MAXQ2000 Supplement
Family E Commands: Erase Fixed Length (Password Protected)
Command E0h—Erase Code Fixed Length
This command erases (programs to FFFFh) all words in a 256-word block of the program flash memory. The address given should be
located in the 256-word block to be erased. For example, providing address 0000h (in byte mode) to this command will erase the first
256-word block, address 0200h will erase the second block, and so on.
This command also combines the functionality of the “Load Code Variable Length” and “Verify Code Variable Length” commands.
I/O
Byte 1
Byte 2
Byte 3
Byte 4
Input
E0h
0
AddressL
AddressH
Output
Command E1h—Erase Data Fixed Length
This command erases a single word/byte in data SRAM to zero at (AddressH:AddressL).
I/O
Byte 1
Byte 2
Byte 3
Byte 4
Input
E1h
0
AddressL
AddressH
Output
ADDENDUM TO SECTION 18: MAXQ FAMILY INSTRUCTION
SET SUMMARY
Refer to the MAXQ Family User’s Guide. The tables from the MAXQ Family User’s Guide are reproduced here.
BIT OPERATIONS
LOGICAL OPERATIONS
MNEMONIC
AND src
OR src
XOR src
CPL
NEG
SLA
SLA2
SLA4
RL
RLC
SRA
SRA2
SRA4
SR
RR
RRC
MOVE C, Acc.<b>
MOVE C, #0
MOVE C, #1
CPL C
MOVE Acc.<b>, C
AND Acc.<b>
OR Acc.<b>
XOR Acc.<b>
MOVE dst.<b>, #1
MOVE dst.<b>, #0
MOVE C, src.<b>
Maxim Integrated
DESCRIPTION
Acc ← Acc AND src
Acc ← Acc OR src
Acc ← Acc XOR src
Acc ← ~Acc
Acc ← ~Acc + 1
Shift Acc left arithmetically
Shift Acc left arithmetically twice
Shift Acc left arithmetically four times
Rotate Acc left (w/o C)
Rotate Acc left (through C)
Shift Acc right arithmetically
Shift Acc right arithmetically twice
Shift Acc right arithmetically four times
Shift Acc right (0 → msbit)
Rotate Acc right (w/o C)
Rotate Acc right (though C)
C ← Acc.<b>
C←0
C←1
C ← ~C
Acc.<b> ← C
C ← C AND Acc.<b>
C ← C OR Acc.<b>
C ← C XOR Acc.<b>
dst.<b> ← 1
dst.<b> ← 0
C ← src.<b>
16-BIT INSTRUCTION
WORD
f001 1010 ssss ssss
f010 1010 ssss ssss
f011 1010 ssss ssss
1000 1010 0001 1010
1000 1010 1001 1010
1000 1010 0010 1010
1000 1010 0011 1010
1000 1010 0110 1010
1000 1010 0100 1010
1000 1010 0101 1010
1000 1010 1111 1010
1000 1010 1110 1010
1000 1010 1011 1010
1000 1010 1010 1010
1000 1010 1100 1010
1000 1010 1101 1010
1110 1010 bbbb 1010
1101 1010 0000 1010
1101 1010 0001 1010
1101 1010 0010 1010
1111 1010 bbbb 1010
1001 1010 bbbb 1010
1010 1010 bbbb 1010
1011 1010 bbbb 1010
1ddd dddd 1bbb 0111
1ddd dddd 0bbb 0111
fbbb 0111 ssss ssss
STATUS BITS
AFFECTED
S, Z
S, Z
S, Z
S, Z
S, Z
C, S, Z
C, S, Z
C, S, Z
S
C, S, Z
C, Z
C, Z
C, Z
C, S, Z
S
C, S, Z
C
C
C
C
S, Z
C
C
C
C, S, E, Z
C, S, E, Z
C
AP
INC/DEC
Y
Y
Y
Y
Y
Y
Y
Y
Y
Y
Y
Y
Y
Y
Y
Y
NOTES
1
1
1
2
2
64
MAXQ Family User’s Guide:
MAXQ2000 Supplement
DATA
TRANSFER
BRANCHING
MATH
MNEMONIC
ADD src
ADDC src
SUB src
SUBB src
{L/S}JUMP src
{L/S}JUMP C, src
{L/S}JUMP NC, src
{L/S}JUMP Z, src
{L/S}JUMP NZ, src
{L/S}JUMP E, src
{L/S}JUMP NE, src
{L/S}JUMP S, src
{L/S}DJNZ LC[n], src
{L/S}CALL src
RET
RET C
RET NC
RET Z
RET NZ
RET S
RETI
RETI C
RETI NC
RETI Z
RETI NZ
RETI S
XCH (MAXQ20 only)
XCHN
MOVE dst, src
PUSH src
POP dst
POPI dst
CMP src
NOP
DESCRIPTION
Acc ← Acc + src
Acc ← Acc + (src + C)
Acc ← Acc – src
Acc ← Acc – (src + C)
IP ← IP + src or src
If C=1, IP ← (IP + src) or src
If C=0, IP ← (IP + src) or src
If Z=1, IP ← (IP + src) or src
If Z=0, IP ← (IP + src) or src
If E=1, IP ← (IP + src) or src
If E=0, IP ← (IP + src) or src
If S=1, IP ← (IP + src) or src
If --LC[n] <> 0, IP← (IP + src) or src
@++SP ← IP+1; IP ← (IP+src) or src
IP ← @SP-If C=1, IP ← @SP-If C=0, IP ← @SP-If Z=1, IP ← @SP-If Z=0, IP ← @SP-If S=1, IP ← @SP-IP ← @SP-- ; INS← 0
If C=1, IP ← @SP-- ; INS← 0
If C=0, IP ← @SP-- ; INS← 0
If Z=1, IP ← @SP-- ; INS← 0
If Z=0, IP ← @SP-- ; INS← 0
If S=1, IP ← @SP-- ; INS← 0
Swap Acc bytes
Swap nibbles in each Acc byte
dst ← src
@++SP ← src
dst ← @SP-dst ← @SP-- ; INS ← 0
E ← (Acc = src)
No operation
16-BIT INSTRUCTION
WORD
f100 1010 ssss ssss
f110 1010 ssss ssss
f101 1010 ssss ssss
f111 1010 ssss ssss
f000 1100 ssss ssss
f010 1100 ssss ssss
f110 1100 ssss ssss
f001 1100 ssss ssss
f101 1100 ssss ssss
0011 1100 ssss ssss
0111 1100 ssss ssss
f100 1100 ssss ssss
f10n 1101 ssss ssss
f011 1101 ssss ssss
1000 1100 0000 1101
1010 1100 0000 1101
1110 1100 0000 1101
1001 1100 0000 1101
1101 1100 0000 1101
1100 1100 0000 1101
1000 1100 1000 1101
1010 1100 1000 1101
1110 1100 1000 1101
1001 1100 1000 1101
1101 1100 1000 1101
1100 1100 1000 1101
1000 1010 1000 1010
1000 1010 0111 1010
fddd dddd ssss ssss
f000 1101 ssss ssss
1ddd dddd 0000 1101
1ddd dddd 1000 1101
f111 1000 ssss ssss
1101 1010 0011 1010
STATUS BITS
AFFECTED
C, S, Z, OV
C, S, Z, OV
C, S, Z, OV
C, S, Z, OV
AP
INC/DEC
Y
Y
Y
Y
S
S
C, S, Z, E
Y
Y
(Note 8)
C, S, Z, E
C, S, Z, E
E
NOTES
1
1
1
1
6
6
6
6
6
6
6
6
6
6,7
7, 8
7
7
7
Note 1: The active accumulator (Acc) is not allowed as the src in operations where it is the implicit destination.
Note 2: Only module 8 and modules 0-5 (when implemented for a given product) are supported by these single-cycle bit operations.
Potentially affects C or E if PSF register is the destination. Potentially affects S and/or Z if AP or APC is the destination.
Note 3: The terms Acc and A[AP] can be used interchangeably to denote the active accumulator.
Note 4: Any index represented by <b> or found inside [ ] brackets is considered variable, but required.
Note 5: The active accumulator (Acc) is not allowed as the dst if A[AP] is specified as the src.
Note 6: The '{L/S}' prefix is optional.
Note 7: Instructions that attempt to simultaneously push/pop the stack (e.g. PUSH @SP--, PUSH @SPI--, POP @++SP, POPI @++SP)
or modify SP in a conflicting manner (e.g., MOVE SP, @SP--) are invalid.
Note 8: Special cases: If ‘MOVE APC, Acc’ sets the APC.CLR bit, AP will be cleared, overriding any auto-inc/dec/modulo operation
specified for AP. If ‘MOVE AP, Acc’ causes an auto-inc/dec/modulo operation on AP, this overrides the specified data transfer
(i.e., Acc will not be transferred to AP).
Maxim Integrated
65
MAXQ Family User’s Guide:
MAXQ2000 Supplement
LCD CONTROLLER (SPECIFIC TO MAXQ2000)
The MAXQ2000 provides an on-board LCD controller module that can generate segment and common signals for an LCD based on
display memory content. Once the LCD controller settings and display memory have been initialized, the LCD segment and common
signals are generated automatically at the selected display frequency. No additional processor overhead is required while the LCD
controller is running.
LCD Controller Features
• Automatic LCD segment and common-drive signal generation
• Four types of display modes supported:
Static
1/2 duty multiplexed with 1/2 bias voltages
1/3 duty multiplexed with 1/3 bias voltages
1/4 duty multiplexed with 1/3 bias voltages
• 68-pin package: Up to 36 segment (SEG0 to SEG35) outputs and four common (COM0 to COM3) outputs
• 56-pin package: Up to 28 segment (SEG0 to SEG27) outputs and four common (COM0 to COM3) outputs
• Unused segment outputs can be used as general-purpose port pins
• 17 bytes (136 bits) of display memory
• Unused display memory can be used for general-purpose storage
• Flexible LCD clock source, selectable from 32kHz or HFClk / 128
• Adjustable frame frequency
• Internal voltage divider resistors eliminate requirement for external components
• Internal adjustable resistor allows contrast adjustment without external components
• Capability to use external resistors to adjust drive voltages and current capacity
SEG0
PCF
SEGMENT DRIVER
DPE
OPM
LCFG
SEG35
COM0
fLCD
FRAME
FREQUENCY
fFRAME
COM1
TIMING CONTROL
COMMON DRIVER
COM2
COM3
DISPLAY MEMORY
(REGISTER FILE)
WAVEFORM GENERATION
FRM
LCRA
DUTY
BIAS
VLCD
LRIG
VOLTAGE CONTROL
VLCD1
VLCD2
VADJ
Figure 8. LCD Controller Block Diagram
Maxim Integrated
66
MAXQ Family User’s Guide:
MAXQ2000 Supplement
The following peripheral registers are used to control the LCD controller.
Register Name:
Register Description:
Register Address:
Bit #
LCFG
LCD Configuration Register
M2[0Eh]
7
6
5
4
3
2
1
0
Name
PCF3
PCF2
PCF1
PCF0
—
—
OPM
DPE
Reset
0
0
0
0
0
0
0
0
r/w
r/w
r/w
r/w
r/w
r/w
r/w
r/w
Access
Bit 0: (LCFG.0) Display Enable (DPE). When the LCD controller is in normal operating mode, this bit controls whether the display register data is used to drive the LCD. This bit has no meaning when LCD operation is suspended (OPM = 0).
0 = Disables the LCD display. SEG and COM waveforms are driven to turn all segments OFF.
1 = Drive the LCD display normally.
Bit 1: (LCFG.1) Operation Mode (OPM). This bit determines whether the LCD controller is operating (driving SEG and COM lines) or
suspended (with its clock gated off).
0 = The LCD controller is suspended.
1 = The LCD controller is in normal operating mode.
Bits 2 and 3: (LCFG.2 and LCFG.3) Reserved
Bits 4 to 7: (LCFG.4 to LCFG.7) Segment Pin Configuration (PCF0 to PCF3). Each of these bits controls whether a group of pins
operates as port pin I/O or as LCD segment outputs. The specific pins controlled by each bit depend on the package type, as shown
in Table 28 and Table 29.
Table 28. PCFn Bit Functions for 68-Pin Package
BIT
PINS AFFECTED
FUNCTION WHEN PCFn = 0
FUNCTION WHEN PCFn = 1
PCF0
58 to 65
P0.0 to P0.7
SEG0 to SEG7
PCF1
66 to 68, 1 to 5
P1.0 to P1.7
SEG8 to SEG15
PCF2
6 to 13
P2.0 to P2.7
SEG16 to SEG23
PCF3
14 to 21
P3.0 to P3.7
SEG24 to SEG31
Table 29. PCFn Bit Functions for 56-Pin Package
BIT
PINS AFFECTED
FUNCTION WHEN PCFn = 0
FUNCTION WHEN PCFn = 1
PCF0
49 to 56
P0.0 to P0.7
SEG0 to SEG7
PCF1
1 to 8
P1.0 to P1.7
SEG8 to SEG15
PCF2
9 to 12
P2.4 to P2.7
SEG16 to SEG19
PCF3
13 to 16
P3.4 to P3.7
SEG20 to SEG27
Maxim Integrated
67
MAXQ Family User’s Guide:
MAXQ2000 Supplement
Register Name:
Register Description:
Register Address:
LCRA
LCD Adjust Register
M2[0Dh]
Bit #
15
14
13
12
11
10
9
8
Name
—
—
—
DUTY1
DUTY0
FRM3
FRM2
FRM1
Reset
0
0
0
0
0
0
0
0
Access
r
r
r
r/w
r/w
r/w
r/w
r/w
Bit #
7
6
5
4
3
2
1
0
Name
FRM0
LCCS
LRIG
LRA4
LRA3
LRA2
LRA1
LRA0
Reset
0
0
0
0
0
0
0
0
r/w
r/w
r/w
r/w
r/w
r/w
r/w
r/w
Access
This register can only be written to when the LCD controller is in suspended mode (OPM = 0).
Bits 0 to 4: (LCRA.0 to LCRA.4) LCD Register Adjust (LRA0 to LRA4). These bits control the resistance of the internal LCD resistor RADJ. The approximate resistance can be determined as follows.
if (LRA[4:0] = 0), RADJ = 200kΩ
if (LRA[4:0] > 0), RADJ = (LRA[4:0] - 1) x 6.45kΩ
Bit 5: (LCRA.5) LCD Resistor Internally Grounded (LRIG)
0 = RADJ is disconnected from ground internally.
1 = RADJ is connected to ground internally.
Bit 6: (LCRA.6) LCD Clock Select (LCCS). This bit selects the source clock (fLCD) used for LCD segment and common timing generation.
0 = fLCD = 32kHz clock
1 = fLCD = high-frequency oscillator / 128
Bits 7 to 10: (LCRA.7 to LCRA.10) LCD Frame Frequency (FRM0 to FRM3). These bits select the LCD frame frequency as follows.
for 1/3 bias mode: fFRAME = fLCD / [(FRM[3:0]) + 1) x 96]
for all other modes: fFRAME = fLCD / [(FRM[3:0]) + 1) x 64]
Bits 11 and 12: (LCRA.11 and LCRA.12) LCD Duty Cycle Select (DUTY0 and DUTY1). These bits select the LCD duty cycle and
corresponding bias generation mode as follows.
LCD Duty Cycle and Bias Mode Selection
DUTY1
DUTY0
DUTY CYCLE
BIAS MODE
0
0
Static
Static
0
1
1/2
1/2
1
0
1/3
1/3
1
1
1/4
1/3
Bits 13 to 15: (LCRA.13 to LCRA.15) Reserved
Maxim Integrated
68
MAXQ Family User’s Guide:
MAXQ2000 Supplement
The following registers (LCD0 to LCD15) contain display memory for the LCD controller.
Register Name:
Register Description:
Register Address:
Bit #
Reset
Access
7
LCD0
LCD Display Register 0
M2[10h]
6
5
4
3
2
1
0
0
0
0
0
0
0
0
0
r/w
r/w
r/w
r/w
r/w
r/w
r/w
r/w
Register Name:
Register Description:
Register Address:
LCD1
LCD Display Register 1
M2[11h]
Bit #
7
6
5
4
3
2
1
0
Reset
0
0
0
0
0
0
0
0
r/w
r/w
r/w
r/w
r/w
r/w
r/w
r/w
Access
Register Name:
Register Description:
Register Address:
LCD2
LCD Display Register 2
M2[12h]
Bit #
7
6
5
4
3
2
1
0
Reset
0
0
0
0
0
0
0
0
r/w
r/w
r/w
r/w
r/w
r/w
r/w
r/w
4
3
2
1
0
Access
Register Name:
Register Description:
Register Address:
Bit #
Reset
Access
Maxim Integrated
7
LCD3
LCD Display Register 3
M2[13h]
6
5
0
0
0
0
0
0
0
0
r/w
r/w
r/w
r/w
r/w
r/w
r/w
r/w
69
MAXQ Family User’s Guide:
MAXQ2000 Supplement
Register Name:
Register Description:
Register Address:
LCD4
LCD Display Register 4
M2[14h]
Bit #
7
6
5
4
3
2
1
0
Reset
0
0
0
0
0
0
0
0
r/w
r/w
r/w
r/w
r/w
r/w
r/w
r/w
Access
Register Name:
Register Description:
Register Address:
LCD5
LCD Display Register 5
M2[15h]
Bit #
7
6
5
4
3
2
1
0
Reset
0
0
0
0
0
0
0
0
r/w
r/w
r/w
r/w
r/w
r/w
r/w
r/w
Access
Register Name:
Register Description:
Register Address:
LCD6
LCD Display Register 6
M2[16h]
Bit #
7
6
5
4
3
2
1
0
Reset
0
0
0
0
0
0
0
0
r/w
r/w
r/w
r/w
r/w
r/w
r/w
r/w
4
3
2
1
0
Access
Register Name:
Register Description:
Register Address:
Bit #
Reset
Access
Maxim Integrated
7
LCD7
LCD Display Register 7
M2[17h]
6
5
0
0
0
0
0
0
0
0
r/w
r/w
r/w
r/w
r/w
r/w
r/w
r/w
70
MAXQ Family User’s Guide:
MAXQ2000 Supplement
Register Name:
Register Description:
Register Address:
Bit #
Reset
Access
7
Reset
Access
Reset
Access
5
4
3
2
1
0
0
0
0
0
0
0
0
0
r/w
r/w
r/w
r/w
r/w
r/w
r/w
4
3
2
1
0
7
LCD9
LCD Display Register 9
M2[19h]
6
5
0
0
0
0
0
0
0
0
r/w
r/w
r/w
r/w
r/w
r/w
r/w
r/w
4
3
2
1
0
Register Name:
Register Description:
Register Address:
Bit #
6
r/w
Register Name:
Register Description:
Register Address:
Bit #
LCD8
LCD Display Register 8
M2[18h]
7
LCD10
LCD Display Register 10
M2[1Ah]
6
5
0
0
0
0
0
0
0
0
r/w
r/w
r/w
r/w
r/w
r/w
r/w
r/w
Register Name:
Register Description:
Register Address:
LCD11
LCD Display Register 11
M2[1Bh]
Bit #
7
6
5
4
3
2
1
0
Reset
0
0
0
0
0
0
0
0
r/w
r/w
r/w
r/w
r/w
r/w
r/w
r/w
Access
Maxim Integrated
71
MAXQ Family User’s Guide:
MAXQ2000 Supplement
Register Name:
Register Description:
Register Address:
LCD12
LCD Display Register 12
M2[1Ch]
Bit #
7
6
5
4
3
2
1
0
Reset
0
0
0
0
0
0
0
0
r/w
r/w
r/w
r/w
r/w
r/w
r/w
r/w
Access
Register Name:
Register Description:
Register Address:
LCD13
LCD Display Register 13
M2[1Dh]
Bit #
7
6
5
4
3
2
1
0
Reset
0
0
0
0
0
0
0
0
r/w
r/w
r/w
r/w
r/w
r/w
r/w
r/w
Access
Register Name:
Register Description:
Register Address:
LCD14
LCD Display Register 14
M2[1Eh]
Bit #
7
6
5
4
3
2
1
0
Reset
0
0
0
0
0
0
0
0
r/w
r/w
r/w
r/w
r/w
r/w
r/w
r/w
Access
Register Name:
Register Description:
Register Address:
LCD15
LCD Display Register 15
M2[1Fh]
Bit #
7
6
5
4
3
2
1
0
Reset
0
0
0
0
0
0
0
0
r/w
r/w
r/w
r/w
r/w
r/w
r/w
r/w
Access
Register Name:
Register Description:
Register Address:
LCD16
LCD Display Register 16
M2[0Fh]
Bit #
7
6
5
4
3
2
1
0
Reset
0
0
0
0
0
0
0
0
r/w
r/w
r/w
r/w
r/w
r/w
r/w
r/w
Access
Maxim Integrated
72
MAXQ Family User’s Guide:
MAXQ2000 Supplement
LCD Controller Operation Modes
The LCD controller defaults to suspended mode (OPM = 0, DPE = x) on power-up. In this mode, the LCD controller is completely shut
down to conserve power. Any pins that are configured for LCD operation (as well as any dedicated LCD segment/common pins) are
driven by a weak pullup to VDDIO.
Setting the OPM bit to 1 places the LCD controller in normal operating mode. In this mode, the LCD segment and common drivers generate waveforms to display the contents of display register memory if the DPE bit is set to 1. If DPE is set to 0, the LCD controller generates waveforms to turn all segments OFF.
LCD Drive Voltages
The LCD controller provides internal voltage-divider resistors to generate the voltage bias levels needed for the LCD control. The top
voltage level, VLCD, must be provided by an external supply. As shown in Figure 9, no external connections (other than the power supply to VLCD) are needed for static and 1/3 bias modes. For 1/2 bias mode, VLCD1 and VLCD2 must be shunted together externally.
STATIC DISPLAY
1/2 BIAS
1/3 BIAS
VLCD
VLCD
R
VLCD
R
VLCD1
R
VLCD1
R
VLCD1
R
VLCD2
R
VLCD2
R
VLCD2
R
VADJ
R
VADJ
RADJ
VADJ
RADJ
LRIG
RADJ
LRIG
GNDIO
LRIG
GNDIO
GNDIO
Figure 9. LCD Drive Voltage Generation
Selecting the LCD Mode
The DUTY1 and DUTY0 bits select one of four possible display modes for the LCD controller as Table 30 shows. The display mode
required for a given application depends on the number of segments needed and the multiplexing and voltage bias requirements for
a given LCD display.
Table 30. LCD Display Modes
DUTY[1:0]
DUTY
CYCLE
BIAS
DISPLAY SEGMENT
DRIVE CAPACITY
COMMONS
00
Static
Static
36 (68-pin), 28 (56-pin)
COM0
—
—
VADJ + (1/2 x VLCD –
VADJ)
VLCD2 VOLTAGE*
VLCD1 VOLTAGE*
01
1/2
1/2
70 (68-pin), 54 (56-pin)
COM0, COM1
VADJ + (1/2 x VLCD –
VADJ)
10
1/3
1/3
102 (68-pin), 78 (56-pin)
COM0, COM1,
COM2
VADJ + (1/3 x VLCD –
VADJ)
VADJ + (2/3 x VLCD –
VADJ)
11
1/4
1/3
132 (68-pin), 100 (56-pin)
COM0, COM1,
COM2, COM3
VADJ + (1/3 x VLCD –
VADJ)
VADJ + (2/3 x VLCD –
VADJ)
* For 1/2 bias mode, this assumes an external shunt in place between VLCD1 and VLCD2.
Maxim Integrated
73
MAXQ Family User’s Guide:
MAXQ2000 Supplement
Segment Pin Configuration
The PCF[3:0] bits in the LCFG register switch four banks of pins between LCD segment-display mode and general-purpose port-pin
mode. These pins are grouped in banks of four or eight, depending on the package type. Since all of the PCF bits default to 0 on reset,
all pins that share LCD segment and port pin capability act as port pins by default. To enable these pins for LCD segment display, the
PCF bits must be set appropriately and the LCD controller must be in normal operational mode.
Some of the port pins controlled by the PCF bits have external interrupt capability. If the external interrupt function is enabled for any
of these port pins, this function overrides the PCF bit setting for that pin only. The pin remains a port pin (with an external interrupt
enabled) regardless of the function of the other pins in its bank. The other pins in the bank can still be used for LCD segment display.
LCD Internal Adjustable Contrast Resistor
For an LCD segment to be in the OFF state, the VRMS voltage between its COM and SEG signals must remain below the threshold voltage for that particular LCD display. As the VRMS voltage difference increases, the LCD segment remains OFF until the threshold voltage is reached, at which point it turns ON. As the VRMS difference continues to increase, the contrast of the LCD segment increases
too (the segment becomes darker).
To adjust the visible contrast level for all LCD segments, the internal adjustable resistor RADJ can be varied between 0kΩ and 200kΩ
by setting the bits LRA0 to LRA4 (LCRA.0 to LCRA.4). Changing this value causes the difference among VLCD, VLCD1, VLCD2, and
VADJ to increase or decrease evenly for all four drive voltages.
For the internal resistor RADJ to be used in this manner, the LRIG bit must be set to 1 to connect RADJ to ground internally. If an external adjustable resistor is used for the contrast adjustment function, LRIG should be set to 0, and the external resistor REXT should be
connected between VADJ and ground as shown in Figure 10.
STATIC DISPLAY
STATIC DISPLAY
VLCD
VLCD
R
R
VLCD1
VLCD1
R
R
VLCD2
VLCD2
R
R
VADJ
VADJ
RADJ
LRIG = 1
RADJ
REXT
LRIG = 0
GNDIO
GNDIO
Figure 10. LCD Internal and External Display Contrast Adjustment
Maxim Integrated
74
MAXQ Family User’s Guide:
MAXQ2000 Supplement
LCD Frame Frequency
The LCD controller clock frequency (fLCD) can be sourced from either the 32kHz clock or the high-frequency clock divided by 128 as
specified by the LCCS bit. If Stop mode is entered and the 32kHz clock is being used, LCD display operation continues (if OPM = 1).
If Stop mode is entered and the high-frequency clock divided by 128 is being used, the LCD controller is suspended automatically
until Stop mode is exited and the high-frequency clock completes its warmup period.
The bits FRM[3:0] control the generation of the LCD frame frequency from the selected LCD clock source (32kHz or HFClk / 128). The
selected frame frequency (fFRAME) is defined as follows.
fFRAME = fLCD / [((FRM[3:0]) + 1) x 96] for 1/3 duty
fFRAME = fLCD / [((FRM[3:0]) + 1) x 64] for static, 1/2, and 1/4 duty
The resulting frame frequency should be between 30Hz and 1000Hz. Example frequencies that can be generated from typical clock
frequencies are shown in Table 31.
Table 31. LCD Frame Frequencies (Hz)
FRM[3:0]
fLCD = 32,768Hz
fLCD = 7812.5Hz
(1MHz / 128)
fLCD = 38,400Hz
(4.9152MHz / 128)
fLCD = 62,500Hz
(8MHz / 128)
1, 1/2, 1/4
1/3
1, 1/2, 1/4
1/3
1, 1/2, 1/4
1/3
1, 1/2, 1/4
1/3
0
512
341
122
81
600
400
977
651
1
256
171
61
41
300
200
488
326
2
171
114
41
27
200
133
326
217
3
128
85
31
20
150
100
244
163
4
102
68
24
16
120
80
195
130
5
85
57
20
14
100
67
163
109
6
73
49
17
12
86
57
140
93
7
64
43
15
10
75
50
122
81
8
57
38
14
9
67
44
109
72
9
51
34
12
8
60
40
98
65
10
47
31
11
7
55
36
89
59
11
43
28
10
7
50
33
81
54
12
39
26
9
6
46
31
75
50
13
37
24
9
6
43
29
70
47
14
34
23
8
5
40
27
65
43
15
32
21
8
5
38
25
61
41
LCD Display Memory
The registers LCD0 to LCD16 provide 17 bytes of display memory. Depending on the duty cycle and package type, not all display
memory can be used by the LCD controller. Any display memory that is unused by the LCD controller can be used for application purposes if desired. Tables 32 to 39 show the display memory mapping for different duty cycle and package configurations.
Maxim Integrated
75
MAXQ Family User’s Guide:
MAXQ2000 Supplement
Table 32. LCD Display Memory Map (Static, 56-Pin Package)
REGISTER
BIT 7
COM0
BIT 6
COM0
BIT 5
COM0
BIT 4
COM0
BIT 3
COM0
BIT 2
COM0
BIT 1
COM0
BIT 0
COM0
LCD0
SEG7
SEG6
SEG5
SEG4
SEG3
SEG2
SEG1
SEG0
LCD1
SEG15
SEG14
SEG13
SEG12
SEG11
SEG10
SEG9
SEG8
LCD2
SEG19
SEG18
SEG17
SEG16
LCD3
SEG23
SEG22
SEG21
SEG20
LCD4
SEG27
SEG26
SEG25
SEG24
LCD5
LCD6
LCD7
LCD8
LCD9
LCD10
LCD11
LCD12
LCD13
LCD14
LCD15
LCD16
Table 33. LCD Display Memory Map (1/2 Duty, 56-Pin Package)
REGISTER
BIT 7
COM1
BIT 6
COM0
BIT 5
COM1
BIT 4
COM0
BIT 3
COM1
BIT 2
COM0
BIT 1
COM1
BIT 0
COM0
LCD0
SEG3
SEG3
SEG2
SEG2
SEG1
SEG1
SEG0
SEG0
LCD1
SEG7
SEG7
SEG6
SEG6
SEG5
SEG5
SEG4
SEG4
LCD2
SEG11
SEG11
SEG10
SEG10
SEG9
SEG9
SEG8
SEG8
LCD3
SEG15
SEG15
SEG14
SEG14
SEG13
SEG13
SEG12
SEG12
SEG19
SEG19
SEG18
SEG18
SEG17
SEG17
SEG16
SEG16
SEG23
SEG23
SEG22
SEG22
SEG21
SEG21
SEG20
SEG20
SEG26
SEG26
SEG25
SEG25
SEG24
SEG24
LCD4
LCD5
LCD6
LCD7
LCD8
LCD9
LCD10
LCD11
LCD12
LCD13
LCD14
LCD15
LCD16
Maxim Integrated
76
MAXQ Family User’s Guide:
MAXQ2000 Supplement
Table 34. LCD Display Memory Map (1/3 Duty, 56-Pin Package)
BIT 6
COM2
BIT 5
COM1
BIT 4
COM0
LCD0
SEG1
SEG1
LCD1
SEG3
SEG3
LCD2
SEG5
LCD3
SEG7
REGISTER
BIT 7
BIT 2
COM2
BIT 1
COM1
BIT 0
COM0
SEG1
SEG0
SEG0
SEG0
SEG3
SEG2
SEG2
SEG2
SEG5
SEG5
SEG4
SEG4
SEG4
SEG7
SEG7
SEG6
SEG6
SEG6
BIT 3
LCD4
SEG9
SEG9
SEG9
SEG8
SEG8
SEG8
LCD5
SEG11
SEG11
SEG11
SEG10
SEG10
SEG10
LCD6
SEG13
SEG13
SEG13
SEG12
SEG12
SEG12
LCD7
SEG15
SEG15
SEG15
SEG14
SEG14
SEG14
LCD10
SEG17
SEG17
SEG17
SEG16
SEG16
SEG16
LCD11
SEG19
SEG19
SEG19
SEG18
SEG18
SEG18
LCD14
SEG21
SEG21
SEG21
SEG20
SEG20
SEG20
LCD15
SEG23
SEG23
SEG23
SEG22
SEG22
SEG22
SEG24
SEG24
SEG24
LCD8
LCD9
LCD12
LCD13
LCD16
Table 35. LCD Display Memory Map (1/4 Duty, 56-Pin Package)
REGISTER
BIT 7
COM3
BIT 6
COM2
BIT 5
COM1
BIT 4
COM0
BIT 3
COM3
BIT 2
COM2
BIT 1
COM1
BIT 0
COM0
LCD0
SEG1
SEG1
SEG1
SEG1
SEG0
SEG0
SEG0
SEG0
LCD1
SEG3
SEG3
SEG3
SEG3
SEG2
SEG2
SEG2
SEG2
LCD2
SEG5
SEG5
SEG5
SEG5
SEG4
SEG4
SEG4
SEG4
LCD3
SEG7
SEG7
SEG7
SEG7
SEG6
SEG6
SEG6
SEG6
LCD4
SEG9
SEG9
SEG9
SEG9
SEG8
SEG8
SEG8
SEG8
LCD5
SEG11
SEG11
SEG11
SEG11
SEG10
SEG10
SEG10
SEG10
LCD6
SEG13
SEG13
SEG13
SEG13
SEG12
SEG12
SEG12
SEG12
LCD7
SEG15
SEG15
SEG15
SEG15
SEG14
SEG14
SEG14
SEG14
LCD10
SEG17
SEG17
SEG17
SEG17
SEG16
SEG16
SEG16
SEG16
LCD11
SEG19
SEG19
SEG19
SEG19
SEG18
SEG18
SEG18
SEG18
LCD14
SEG21
SEG21
SEG21
SEG21
SEG20
SEG20
SEG20
SEG20
LCD15
SEG23
SEG23
SEG23
SEG23
SEG22
SEG22
SEG22
SEG22
SEG24
SEG24
SEG24
SEG24
LCD8
LCD9
LCD12
LCD13
LCD16
Maxim Integrated
77
MAXQ Family User’s Guide:
MAXQ2000 Supplement
Table 36. LCD Display Memory Map (Static, 68-Pin Package)
REGISTER
BIT 7
COM0
BIT 6
COM0
BIT 5
COM0
BIT 4
COM0
BIT 3
COM0
BIT 2
COM0
BIT 1
COM0
BIT 0
COM0
LCD0
SEG7
SEG6
SEG5
SEG4
SEG3
SEG2
SEG1
SEG0
LCD1
SEG15
SEG14
SEG13
SEG12
SEG11
SEG10
SEG9
SEG8
LCD2
SEG23
SEG22
SEG21
SEG20
SEG19
SEG18
SEG17
SEG16
LCD3
SEG31
SEG30
SEG29
SEG28
SEG27
SEG26
SEG25
SEG24
LCD4
SEG35
SEG34
SEG33
SEG32
LCD5
LCD6
LCD7
LCD8
LCD9
LCD10
LCD11
LCD12
LCD13
LCD14
LCD15
LCD16
Table 37. LCD Display Memory Map (1/2 Duty, 68-Pin Package)
REGISTER
BIT 7
COM1
BIT 6
COM0
BIT 5
COM1
BIT 4
COM0
BIT 3
COM1
BIT 2
COM0
BIT 1
COM1
BIT 0
COM0
LCD0
SEG3
SEG3
SEG2
SEG2
SEG1
SEG1
SEG0
SEG0
LCD1
SEG7
SEG7
SEG6
SEG6
SEG5
SEG5
SEG4
SEG4
LCD2
SEG11
SEG11
SEG10
SEG10
SEG9
SEG9
SEG8
SEG8
LCD3
SEG15
SEG15
SEG14
SEG14
SEG13
SEG13
SEG12
SEG12
LCD4
SEG19
SEG19
SEG18
SEG18
SEG17
SEG17
SEG16
SEG16
LCD5
SEG23
SEG23
SEG22
SEG22
SEG21
SEG21
SEG20
SEG20
LCD6
SEG27
SEG27
SEG26
SEG26
SEG25
SEG25
SEG24
SEG24
LCD7
SEG31
SEG31
SEG30
SEG30
SEG29
SEG29
SEG28
SEG28
SEG34
SEG34
SEG33
SEG33
SEG32
SEG32
LCD8
LCD9
LCD10
LCD11
LCD12
LCD13
LCD14
LCD15
LCD16
Maxim Integrated
78
MAXQ Family User’s Guide:
MAXQ2000 Supplement
Table 38. LCD Display Memory Map (1/3 Duty, 68-Pin Package)
BIT 6
COM2
BIT 5
COM1
BIT 4
COM0
LCD0
SEG1
SEG1
LCD1
SEG3
LCD2
LCD3
BIT 2
COM2
BIT 1
COM1
BIT 0
COM0
SEG1
SEG0
SEG0
SEG0
SEG3
SEG3
SEG2
SEG2
SEG2
SEG5
SEG5
SEG5
SEG4
SEG4
SEG4
SEG7
SEG7
SEG7
SEG6
SEG6
SEG6
LCD4
SEG9
SEG9
SEG9
SEG8
SEG8
SEG8
LCD5
SEG11
SEG11
SEG11
SEG10
SEG10
SEG10
LCD6
SEG13
SEG13
SEG13
SEG12
SEG12
SEG12
LCD7
SEG15
SEG15
SEG15
SEG14
SEG14
SEG14
LCD8
SEG17
SEG17
SEG17
SEG16
SEG16
SEG16
REGISTER
BIT 7
BIT 3
LCD9
SEG19
SEG19
SEG19
SEG18
SEG18
SEG18
LCD10
SEG21
SEG21
SEG21
SEG20
SEG20
SEG20
LCD11
SEG23
SEG23
SEG23
SEG22
SEG22
SEG22
LCD12
SEG25
SEG25
SEG25
SEG24
SEG24
SEG24
LCD13
SEG27
SEG27
SEG27
SEG26
SEG26
SEG26
LCD14
SEG29
SEG29
SEG29
SEG28
SEG28
SEG28
LCD15
SEG31
SEG31
SEG31
SEG30
SEG30
SEG30
LCD16
SEG33
SEG33
SEG33
SEG32
SEG32
SEG32
Table 39. LCD Display Memory Map (1/4 Duty, 68-Pin Package)
REGISTER
BIT 7
COM3
BIT 6
COM2
BIT 5
COM1
BIT 4
COM0
BIT 3
COM3
BIT 2
COM2
BIT 1
COM1
BIT 0
COM0
LCD0
SEG1
SEG1
SEG1
SEG1
SEG0
SEG0
SEG0
SEG0
LCD1
SEG3
SEG3
SEG3
SEG3
SEG2
SEG2
SEG2
SEG2
LCD2
SEG5
SEG5
SEG5
SEG5
SEG4
SEG4
SEG4
SEG4
LCD3
SEG7
SEG7
SEG7
SEG7
SEG6
SEG6
SEG6
SEG6
LCD4
SEG9
SEG9
SEG9
SEG9
SEG8
SEG8
SEG8
SEG8
LCD5
SEG11
SEG11
SEG11
SEG11
SEG10
SEG10
SEG10
SEG10
LCD6
SEG13
SEG13
SEG13
SEG13
SEG12
SEG12
SEG12
SEG12
LCD7
SEG15
SEG15
SEG15
SEG15
SEG14
SEG14
SEG14
SEG14
LCD8
SEG17
SEG17
SEG17
SEG17
SEG16
SEG16
SEG16
SEG16
LCD9
SEG19
SEG19
SEG19
SEG19
SEG18
SEG18
SEG18
SEG18
LCD10
SEG21
SEG21
SEG21
SEG21
SEG20
SEG20
SEG20
SEG20
LCD11
SEG23
SEG23
SEG23
SEG23
SEG22
SEG22
SEG22
SEG22
LCD12
SEG25
SEG25
SEG25
SEG25
SEG24
SEG24
SEG24
SEG24
LCD13
SEG27
SEG27
SEG27
SEG27
SEG26
SEG26
SEG26
SEG26
LCD14
SEG29
SEG29
SEG29
SEG29
SEG28
SEG28
SEG28
SEG28
LCD15
SEG31
SEG31
SEG31
SEG31
SEG30
SEG30
SEG30
SEG30
SEG32
SEG32
SEG32
SEG32
LCD16
Maxim Integrated
79
MAXQ Family User’s Guide:
MAXQ2000 Supplement
Display Waveform Generation
Once the operational modes and display memory registers on the LCD controller have been properly initialized, the controller generates the segment and common drive waveforms needed to display the enabled segments on the attached LCD display.
In static mode, each segment pin is connected to a single LCD segment. There is only one common, or backplane, signal, which is
driven by COM0. All ON segments are driven for the entire frame period.
In x2-multiplexed mode, also known as 1/2 duty cycle mode, each segment pin can drive up to two LCD segments. There are two common backplane signals, driven by COM0 and COM1. Each ON segment is only driven for half of the frame period.
In x3-multiplexed mode, also known as 1/3 duty cycle mode, each segment pin can drive up to three LCD segments. There are three
common backplane signals, driven by COM0, COM1 and COM2. Each ON segment is only driven for 1/3 of the frame period.
In x4-multiplexed mode, also known as 1/4 duty cycle mode, each segment pin can drive up to four LCD segments. There are four
common backplane signals, driven by COM0, COM1, COM2 and COM3. Each ON segment is only driven for 1/4 of the frame period.
In each of the following examples, the LCD controller is driving a “2” to the display. This is a conventional seven-segment display, and
the “2” consists of ON segments a, b, d, e, g, and DP as shown in Figure 11. The voltage waveforms shown assume that VADJ equals
ground (RADJ is set to 0Ω). The portions of the memory maps used apply to either package type.
LCD Controller Static Drive Example
In this example, SEG0 through SEG7 are used to drive the LCD segments. The segments and common signals are connected as shown
in Figure 12.
a
a
SEG1
f
f
b
b
g
SEG0
SEG2
g
SEG7
e
c
e
c
SEG6
d
d
DP
Figure 11. Sample 7-Segment LCD Display
Maxim Integrated
SEG3
DP
SEG5
SEG4
COM0
Figure 12. Static Drive Example Display Connection
80
MAXQ Family User’s Guide:
MAXQ2000 Supplement
Table 40. Static Drive Example Common Signal Selection
COM0
SEG7
SEG6
SEG5
SEG4
SEG3
SEG2
SEG1
SEG0
ON
ON
ON
ON
off
ON
ON
off
COM1
COM2
COM3
According to the static memory map table, a value of 0F6h should be written to the LCD0 register as shown in Table 41.
Table 41. Static Drive Example Register Content
LCD0
BIT 7
COM0
BIT 6
COM0
BIT 5
COM0
BIT 4
COM0
BIT 3
COM0
BIT 2
COM0
BIT 1
COM0
BIT 0
COM0
1
1
1
1
0
1
1
0
LCD1
LCD2
LCD3
1 FRAME (fFRAME)
VLCD
COM0
GND
VLCD
SEG0
GND
VLCD
SEG1
GND
VLCD
COM0–SEG0
(OFF)
GND
VLCD
COM0–SEG1
(ON)
GND
- VLCD
Figure 13. Static Drive Example Waveform Timing
Maxim Integrated
81
MAXQ Family User’s Guide:
MAXQ2000 Supplement
LCD Controller 1/2 Duty Cycle Drive Example
In this example, SEG0 through SEG3 are used to drive the LCD segments. The segments and common signals are connected as shown
in Figure 14.
SEG0
SEG1
SEG2
SEG3
COM0
COM1
Figure 14. 1/2 Duty Drive Example Display Connection
Table 42. 1/2 Duty Drive Example Common Signal Selection
SEG7
SEG6
SEG5
SEG4
SEG3
SEG2
SEG1
SEG0
COM0
ON
ON
ON
off
COM1
ON
off
ON
ON
COM2
COM3
According to the 1/2 duty drive memory map table, a value of 0DEh should be written to the LCD0 register as shown in Table 43.
Table 43. 1/2 Duty Drive Example Register Content
LCD0
BIT 7
COM1
BIT 6
COM0
BIT 5
COM1
BIT 4
COM0
BIT 3
COM1
BIT 2
COM0
BIT 1
COM1
BIT 0
COM0
1
1
0
1
1
1
1
0
LCD1
LCD2
LCD3
Maxim Integrated
82
MAXQ Family User’s Guide:
MAXQ2000 Supplement
1 FRAME (fFRAME)
COM0
VLCD
VLCD1
GND
COM1
VLCD
VLCD1
GND
SEG0
VLCD
VLCD1
GND
SEG1
VLCD
VLCD1
GND
SEG2
VLCD
VLCD1
GND
SEG3
VLCD
VLCD1
GND
COM0–SEG0
(OFF)
VLCD
1/2 VLCD
GND
-1/2 VLCD
-VLCD
COM0–SEG1
(ON)
VLCD
1/2 VLCD
GND
-1/2 VLCD
-VLCD
Figure 15. 1/2 Duty Drive Example Waveform Timing
LCD Controller 1/3 Duty Cycle Drive Example
In this example, SEG0 through SEG2 are used to drive the LCD segments. The segments and common signals are connected as shown
in Figure 16.
COM2
COM1
SEG0
SEG1
SEG2
COM0
Figure 16. 1/3 Drive Example Display Connection
Maxim Integrated
83
MAXQ Family User’s Guide:
MAXQ2000 Supplement
Table 44. 1/3 Duty Drive Example Common Signal Selection
SEG7
SEG6
SEG5
SEG4
SEG3
SEG2
SEG1
SEG0
ON
ON
ON
COM1
off
ON
off
COM2
ON
ON
(don’t care)
COM0
COM3
According to the 1/3 duty drive memory map table, LCD0 should be set to 071h and LCD1 should be set to 05h as shown in Table 45.
Table 45. 1/3 Duty Drive Example Register Content
BIT 7
BIT 6
COM2
BIT 5
COM1
BIT 4
COM0
BIT 3
BIT 2
COM2
BIT 1
COM1
BIT 0
COM0
LCD0
0
1
1
1
0
0
0
1
LCD1
0
0
0
0
0
1
0
1
LCD2
LCD3
1 FRAME (fFRAME)
COM0
VLCD
VLCD1
VLCD2
GND
COM1
VLCD
VLCD1
VLCD2
GND
COM2
VLCD
VLCD1
VLCD2
GND
SEG0
VLCD
VLCD1
VLCD2
GND
SEG1
VLCD
VLCD1
VLCD2
GND
SEG2
VLCD
VLCD1
VLCD2
GND
COM1–SEG0
(OFF)
VLCD
2/3 VLCD
1/3 VLCD
GND
-1/3 VLCD
-2/3 VLCD
-VLCD
COM1–SEG1
(ON)
VLCD
2/3 VLCD
1/3 VLCD
GND
-1/3 VLCD
-2/3 VLCD
-VLCD
Figure 17. 1/3 Duty Drive Example Waveform Timing
Maxim Integrated
84
MAXQ Family User’s Guide:
MAXQ2000 Supplement
LCD Controller 1/4 Duty Cycle Drive Example
In this example, SEG0 and SEG1 are used to drive the LCD segments. The segments and common signals are connected as shown
in Figure 18.
COM3
COM2
COM1
SEG0
COM0
SEG1
Figure 18. 1/4 Duty Drive Example Display Connection
Table 46. 1/4 Duty Drive Example Common Signal Selection
SEG7
SEG6
SEG5
SEG4
SEG3
SEG2
SEG1
SEG0
COM0
ON
ON
COM1
off
ON
COM2
ON
ON
COM3
ON
off
According to the 1/4 duty drive memory map table, LCD0 should be set to 0D7h as shown in Table 47.
Table 47. 1/4 Duty Drive Example Register Content
LCD0
BIT 7
COM3
BIT 6
COM2
BIT 5
COM1
BIT 4
COM0
BIT 3
COM3
BIT 2
COM2
BIT 1
COM1
BIT 0
COM0
1
1
0
1
0
1
1
1
LCD1
LCD2
LCD3
Maxim Integrated
85
MAXQ Family User’s Guide:
MAXQ2000 Supplement
1 FRAME (fFRAME)
COM0
VLCD
VLCD1
VLCD2
GND
COM1
VLCD
VLCD1
VLCD2
GND
COM2
VLCD
VLCD1
VLCD2
GND
COM3
VLCD
VLCD1
VLCD2
GND
SEG0
VLCD
VLCD1
VLCD2
GND
SEG1
VLCD
VLCD1
VLCD2
GND
COM3–SEG0
(OFF)
VLCD
2/3 VLCD
1/3 VLCD
GND
-1/3 VLCD
-2/3 VLCD
-VLCD
COM3–SEG1
(ON)
VLCD
2/3 VLCD
1/3 VLCD
GND
-1/3 VLCD
-2/3 VLCD
-VLCD
Figure 19. 1/4 Duty Drive Example Waveform Timing
LCD Controller Example: Initializing the LCD Controller
move
LCRA, #03E0h
; LCRA.FRM
= 7
; LCRA.LCCS = 1
; LCRA.DUTY = 0
; LCRA.LRA
= 0
; LCRA.LRIGC = 1
Set up frame frequency.
Set clock source to HFClk / 128.
Set up static duty cycle.
Set R-adj to 0.
Ground Radj resistor internally.
move
LCFG, #0F3h
; LCFG.PCF = 0x0F
; LCFG.OPM = 1
; LCFG.DPE = 1
Set up all segments as outputs.
Set to normal operation mode.
Enable display.
Maxim Integrated
86
MAXQ Family User’s Guide:
MAXQ2000 Supplement
UTILITY ROM (SPECIFIC TO MAXQ2000)
The MAXQ2000 utility ROM includes routines that provide the following functions to application software.
• In-application programming routines for flash memory (program, erase, mass erase)
• Single word/byte copy and buffer copy routines for use with lookup tables
To provide backward compatibility among different versions of the utility ROM, a function address table is included that contains the
entry points for all user-callable functions. With this table, user code can determine the entry point for a given function as follows.
1) Read the location of the function address table from address 0800Dh in the Utility ROM.
2) The entry points for each function listed below are contained in the function address table, one word per function, in the order given
by their function numbers.
For example, the entry point for the flashEraseAll function can be determined by the following procedure.
1) functionTable = dataMemory[0800Dh]
2) flashWriteEntry = dataMemory[functionTable + 2]
Table 48. Utility ROM User Functions (for Utility ROM Version 1.01)
FUNCTION NUMBER
FUNCTION NAME
ENTRY POINT
0
flashWrite
08461h
Programs a single word of flash memory.
SUMMARY
1
flashErasePage
08467h
Erases (programs to FFFFh) a 256-word sector of flash memory.
2
flashEraseAll
08478h
Erases (programs to FFFFh) all flash memory.
3
moveDP0
08487h
Reads a byte/word at DP[0].
4
moveDP0inc
0848Ah
Reads a byte/word at DP[0], then increments DP[0].
5
moveDP0dec
0848Dh
Reads a byte/word at DP[0], then decrements DP[0].
6
moveDP1
08490h
Reads a byte/word at DP[1].
7
moveDP1inc
08493h
Reads a byte/word at DP[1], then increments DP[0].
8
moveDP1dec
08496h
Reads a byte/word at DP[1], then decrements DP[0].
9
moveFP
08499h
Reads a byte/word at BP[Offs].
10
moveFPinc
0849Ch
Reads a byte/word at BP[Offs], then increments Offs.
11
moveFPdec
0849Fh
Reads a byte/word at BP[Offs], then decrements Offs.
12
copyBuffer
084A2h
Copies LC[0] values from DP[0] to BP[Offs].
It is also possible to call utility ROM functions directly, using the entry points given in Table 48. Standard include files are provided for
this purpose with the MAXQ development tool set. This method calls functions more quickly, but the application may need to be recompiled in order to run properly with a different version of the utility ROM.
In-Application Programming Functions
Function:
Summary:
Inputs:
Outputs:
Destroys:
flashWrite
Programs a single word of flash memory.
A[0]:Word address in program flash memory to write to.
A[1]: Word value to write to flash memory.
Carry: Set on error and cleared on success.
PSF, LC[1]
Notes:
1) If the watchdog reset function is active, it should be disabled before calling this function.
2) If the flash location has already been programmed to a non-FFFF value, this function returns with an error (Carry set). To reprogram
a flash location, it must first be erased by calling flashErasePage or flashEraseAll.
Maxim Integrated
87
MAXQ Family User’s Guide:
MAXQ2000 Supplement
Function:
Summary:
Inputs:
Outputs:
Destroys:
flashErasePage
Erases (programs to 0FFFFh) a 256-word page of flash memory.
A[0]: Word address located in the page to be erased. (The page number is the high byte of A[0].)
Carry: Set on error and cleared on success.
PSF, LC[1], GR, AP, APC, A[0]
Notes:
1) If the watchdog reset function is active, it should be disabled before calling this function.
2) When calling this function from flash, care should be taken that the return address is not in the page that is being erased.
Function:
Summary:
Inputs:
Outputs:
Destroys:
flashEraseAll
Erases (programs to 0FFFFh) all locations in flash memory.
None
Carry: Set on error and cleared on success.
PSF, LC[0], LC[1], GR, A[0], AP, APC
Notes:
1) If the watchdog reset function is active, it should be disabled before calling this function.
2) This function can only be called by code running from the RAM. Attempting to call this function while running from the flash results
in an error.
Data Transfer Functions
Function:
Summary:
Inputs:
Outputs:
Destroys:
moveDP0
Reads the byte/word value pointed to by DP[0].
DP[0]: Address to read from
GR: Data byte/word read
None
Notes:
1) Before calling this function, DPC should be set appropriately to configure DP[0] for byte or word mode.
2) The address passed to this function should be based on the data memory mapping for the utility ROM, as shown in Figure 3. When a
byte mode address is used, CDA0 must be set appropriately to access either the upper or lower half of program flash/ROM memory.
3) This function automatically refreshes the data pointer before reading the byte/word value.
Function:
Summary:
Inputs:
Outputs:
Destroys:
moveDP0inc
Reads the byte/word value pointed to by DP[0], then increments DP[0].
DP[0] Address to read from
GR: Data byte/word read
DP[0] is incremented
None
Notes:
1) Before calling this function, DPC should be set appropriately to configure DP[0] for byte or word mode.
2) The address passed to this function should be based on the data memory mapping for the utility ROM, as shown in Figure 3. When a
byte mode address is used, CDA0 must be set appropriately to access either the upper or lower half of program flash/ROM memory.
3) This function automatically refreshes the data pointer before reading the byte/word value.
Maxim Integrated
88
MAXQ Family User’s Guide:
MAXQ2000 Supplement
Function:
Summary:
Inputs:
Outputs:
Destroys:
moveDP0dec
Reads the byte/word value pointed to by DP[0], then decrements DP[0].
DP[0]: Address to read from
GR: Data byte/word read
DP[0] is decremented
None
Notes:
1) Before calling this function, DPC should be set appropriately to configure DP[0] for byte or word mode.
2) The address passed to this function should be based on the data memory mapping for the utility ROM, as shown in Figure 3. When a
byte mode address is used, CDA0 must be set appropriately to access either the upper or lower half of program flash/ROM memory.
3) This function automatically refreshes the data pointer before reading the byte/word value.
Function:
Summary:
Inputs:
Outputs:
Destroys:
moveDP1
Reads the byte/word value pointed to by DP[1].
DP[1]: Address to read from
GR: Data byte/word read
None
Notes:
1) Before calling this function, DPC should be set appropriately to configure DP[1] for byte or word mode.
2) The address passed to this function should be based on the data memory mapping for the Utility ROM, as shown in Figure 3. When a
byte mode address is used, CDA0 must be set appropriately to access either the upper or lower half of program flash/ROM memory.
3) This function automatically refreshes the data pointer before reading the byte/word value.
Function:
Summary:
Inputs:
Outputs:
Destroys:
moveDP1inc
Reads the byte/word value pointed to by DP[1], then increments DP[1].
DP[1]: Address to read from
GR: Data byte/word read
DP[1] is incremented
None
Notes:
1) Before calling this function, DPC should be set appropriately to configure DP[1] for byte or word mode.
2) The address passed to this function should be based on the data memory mapping for the utility ROM, as shown in Figure 3. When a
byte mode address is used, CDA0 must be set appropriately to access either the upper or lower half of program flash/ROM memory.
3) This function automatically refreshes the data pointer before reading the byte/word value.
Function:
Summary:
Inputs:
Outputs:
Destroys:
moveDP1dec
Reads the byte/word value pointed to by DP[1], then decrements DP[1].
DP[1]: Address to read from
GR: Data byte/word read
DP[1] is decremented
None
Notes:
1) Before calling this function, DPC should be set appropriately to configure DP[1] for byte or word mode.
2) The address passed to this function should be based on the data memory mapping for the utility ROM, as shown in Figure 3. When a
byte mode address is used, CDA0 must be set appropriately to access either the upper or lower half of program flash/ROM memory.
3) This function automatically refreshes the data pointer before reading the byte/word value.
Maxim Integrated
89
MAXQ Family User’s Guide:
MAXQ2000 Supplement
Function:
Summary:
Inputs:
Outputs:
Destroys:
moveFP
Reads the byte/word value pointed to by BP[Offs].
BP[Offs]: Address to read from
GR: Data byte/word read
None
Notes:
1) Before calling this function, DPC should be set appropriately to configure BP[Offs] for byte or word mode.
2) The address passed to this function should be based on the data memory mapping for the utility ROM, as shown in Figure 3. When a
byte mode address is used, CDA0 must be set appropriately to access either the upper or lower half of program flash/ROM memory.
3) This function automatically refreshes the data pointer before reading the byte/word value.
Function:
Summary:
Inputs:
Outputs:
Destroys:
moveFPinc
Reads the byte/word value pointed to by BP[Offs] then increments Offs.
DP[1]: Address to read from
GR: Data byte/word read
Offs is incremented
None
Notes:
1) Before calling this function, DPC should be set appropriately to configure BP[Offs] for byte or word mode.
2) The address passed to this function should be based on the data memory mapping for the utility ROM, as shown in Figure 3. When a
byte mode address is used, CDA0 must be set appropriately to access either the upper or lower half of program flash/ROM memory.
3) This function automatically refreshes the data pointer before reading the byte/word value.
Function:
Summary:
Inputs:
Outputs:
Destroys:
moveFPdec
Reads the byte/word value pointed to by BP[Offs], then decrements Offs.
DP[1]: Address to read from
GR: Data byte/word read
Offs is decremented
None
Notes:
1) Before calling this function, DPC should be set appropriately to configure BP[Offs] for byte or word mode.
2) The address passed to this function should be based on the data memory mapping for the utility ROM, as shown in Figure 3. When a
byte mode address is used, CDA0 must be set appropriately to access either the upper or lower half of program flash/ROM memory.
3) This function automatically refreshes the data pointer before reading the byte/word value.
Function:
Summary:
Inputs:
Outputs:
Destroys:
copyBuffer
Copies LC[0] bytes/words from DP[0] to BP[Offs].
DP[0]: Address to copy from
BP[Offs]: Address to copy to
LC[0]: Number of bytes or words to copy
Offs is incremented by LC[0].
DP[0] is incremented by LC[0].
LC[0]
Notes:
1) Before calling this function, DPC should be set appropriately to configure DP[0] and BP[Offs] for byte or word mode. Both DP[0]
and BP[Offs] should be configured to the same mode (byte or word) for correct buffer copying.
2) The addresses passed to this function should be based on the data memory mapping for the utility ROM, as shown in Figure 3. When
a byte mode address is used, CDA0 must be set appropriately to access either the upper or lower half of program flash/ROM memory.
3) This function automatically refreshes the data pointers before reading the byte/word values.
Maxim Integrated
90
MAXQ Family User’s Guide:
MAXQ2000 Supplement
ROM Example 1: Calling A Utility ROM Function Directly
This example shows the direct addressing method for calling utility functions, using the function moveDP1inc to read a static string
from code space. Note the equate UROM_MOVEDP1INC.
UROM_MOVEDP1INC EQU 08493h
Text:
DB
“Hello World!”,0
; Define a string in code space.
;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;
;; Function:
PrintText
;; Description:
Prints the string stored at the “Text” label.
;; Returns:
N/A
;; Destroys:
ACC, DP[1], DP[0], and GR.
;; Notes:
This function assumes that DP[0] is set to word mode,
;;
DP[1] is in byte mode, and the device has 16-bit accumulators.
;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;
PrintText:
move DP[1], #Text
move ACC, DP[1]
sla
or
#08000h
move DP[1], ACC
PrintText_Loop:
call UROM_MOVEDP1INC
move ACC, GR
jump Z, PrintText_Done
call PrintChar
jump PrintText_Loop
;
;
;
;
;
Point to the string to display.
“Text” is a word address and we need a
byte address, so shift left 1 bit.
Code space is mapped to 8000h when running
from the ROM, so the address must be masked.
; Fetch the byte from code space.
; Reached the null terminator.
; Call a routine to output the char in ACC
; Process the next byte.
PrintText_Done:
ret
Maxim Integrated
91
MAXQ Family User’s Guide:
MAXQ2000 Supplement
ROM Example 2: Calling A Utility ROM Function Indirectly
The second example shows the indirect addressing method (lookup table) for calling utility functions. We use the same function
(UROM_MoveDP1Inc) to read our static string, but this time we must figure out the address we want dynamically. Note the inserted
code where we before had a direct call to the function. Also note that the function index of moveDP1inc is 7.
Text:
DB
“Hello World!”,0
; Define a string in code space.
;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;
;; Function:
PrintText
;; Description:
Prints the string stored at the “Text” label.
;; Returns:
N/A
;; Destroys:
ACC, DP[1], DP[0], and GR.
;; Notes:
This function assumes that DP[0] is set to word mode,
;;
DP[1] is in byte mode, and the device has 16-bit
;;
accumulators.
;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;
PrintText:
move DP[1], #Text
move ACC, DP[1]
sla
or
#08000h
move DP[1], ACC
;
;
;
;
;
Point to the string to display.
“Text” is a word address and we need a
byte address, so shift left 1 bit.
Code space is mapped to 8000h when running
from the ROM, so the address must be masked.
PrintText_Loop:
;
; Fetch the byte from code space.
;
move DP[0], #0800Dh
; This is where the address of the table is stored.
move ACC, @DP[0]
; Get the location of the function table.
add
#7
; Add the index to the moveDP1inc function.
move DP[0], ACC
; Point to where the address of moveDP1 is stored.
move ACC, @DP[0]
; Retrieve the address of the function.
call ACC
; Execute the function.
move
jump
call
jump
ACC, GR
Z, PrintText_Done
PrintChar
PrintText_Loop
; Reached the null terminator.
; Call a routine to output the char in ACC
; Process the next byte.
PrintText_Done:
ret
Maxim Integrated
92
MAXQ Family User’s Guide:
MAXQ2000 Supplement
REVISION HISTORY
Rev 0; 10/04: Original release.
Rev 1; 10/05: Family Commands section updated. Commands 11h, 20h, 21h, 30h, 31h, and 60h, input to dump, > 256, byte 3
changed from AddressH to AddressL.
Rev 2; 11/05: Added note on using the alternate 32kHz clock with Timer 2.
Updates and clarifications to POR, LCD, interrupt, utility ROM, and JTAG sections.
Added instruction set summary table from MAXQ Family User’s Guide to Section 18.
Rev 3;
6/07: Corrected P6.5 special function from Timer 2 (Type 2) to Timer 0 (Type 2) in Table 10 and Table 11 (pages 34 and 36).
Maxim cannot assume responsibility for use of any circuitry other than circuitry entirely embodied in a Maxim product. No circuit patent licenses are implied.
Maxim reserves the right to change the circuitry and specifications without notice at any time. The parametric values (min and max limits) shown in the Electrical
Characteristics table are guaranteed. Other parametric values quoted in this data sheet are provided for guidance.
Maxim Integrated 160 Rio Robles, San Jose, CA 95134 USA 1-408-601-1000
© Maxim Integrated
The Maxim logo and Maxim Integrated are trademarks of Maxim Integrated Products, Inc.
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
