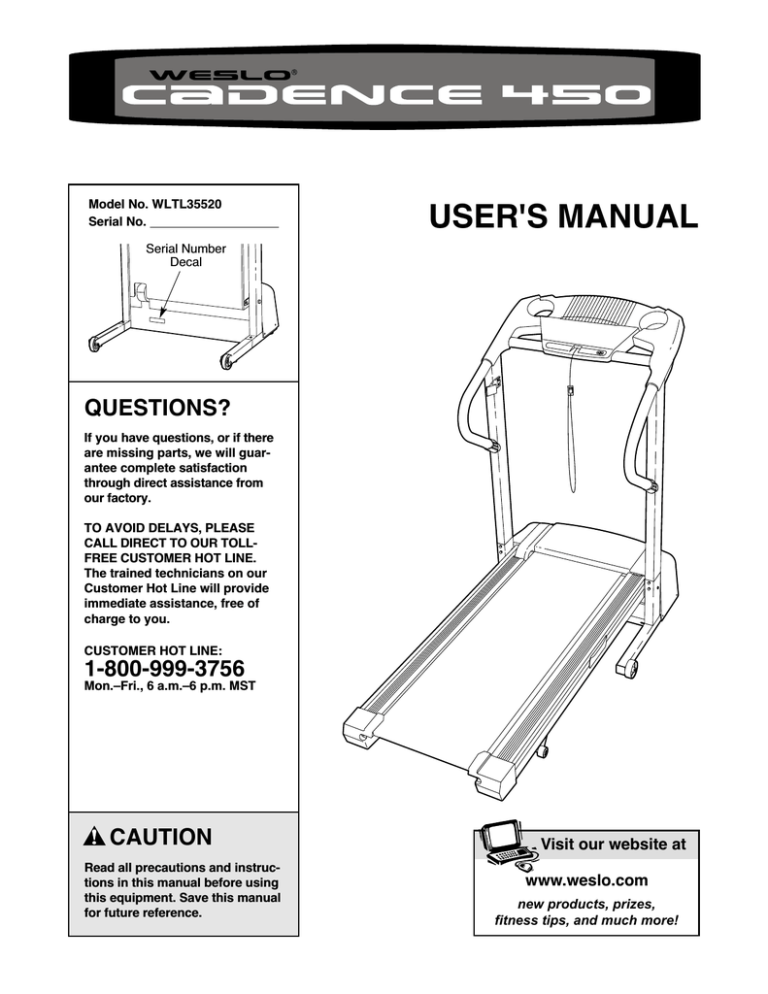

USER`S MANUAL

Model No. WLTL35520

Serial No.

Serial Number

Decal

QUESTIONS?

If you have questions, or if there are missing parts, we will guarantee complete satisfaction through direct assistance from our factory.

TO AVOID DELAYS, PLEASE

CALL DIRECT TO OUR TOLL-

FREE CUSTOMER HOT LINE.

The trained technicians on our

Customer Hot Line will provide immediate assistance, free of charge to you.

CUSTOMER HOT LINE:

1-800-999-3756

Mon.–Fri., 6 a.m.–6 p.m. MST

CAUTION

Read all precautions and instructions in this manual before using this equipment. Save this manual for future reference.

USER'S MANUAL

Visit our website at www.weslo.com

new products, prizes, fitness tips, and much more!

TABLE OF CONTENTS

IMPORTANT PRECAUTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2

BEFORE YOU BEGIN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4

ASSEMBLY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5

OPERATION AND ADJUSTMENT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8

HOW TO FOLD AND MOVE THE TREADMILL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12

TROUBLESHOOTING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13

CONDITIONING GUIDELINES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15

ORDERING REPLACEMENT PARTS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Back Cover

LIMITED WARRANTY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Back Cover

Note: An EXPLODED DRAWING and a PART LIST are attached in the center of this manual.

IMPORTANT PRECAUTIONS

WARNING:

To reduce the risk of burns, fire, electric shock, or injury to persons, read the following important precautions and information before operating the treadmill.

1. It is the responsibility of the owner to ensure that all users of this treadmill are adequately informed of all warnings and precautions.

2. Use the treadmill only as described.

3. Place the treadmill on a level surface, with at least eight feet of clearance behind it and two feet on each side. Do not place the treadmill on any surface that blocks air openings. To protect the floor or carpet from damage, place a mat under the treadmill.

9. Wear appropriate exercise clothes when using the treadmill. Do not wear loose clothes that could become caught in the treadmill.

Athletic support clothes are recommended for both men and women. Always wear athletic

shoes. Never use the treadmill with bare feet, wearing only stockings, or in sandals.

10. When connecting the power cord (see page 8), plug the power cord into a surge suppressor

(not included) and plug the surge suppressor into a grounded circuit capable of carrying 15 or more amps. No other appliance should be on the same circuit. Do not use an extension cord. 4. Keep the treadmill indoors, away from moisture and dust. Do not put the treadmill in a garage or covered patio, or near water.

5. Do not operate the treadmill where aerosol products are used or where oxygen is being administered.

11. Use only a single-outlet surge suppressor that meets all of the specifications described on page 8. To purchase a surge suppressor, see your local WESLO or call 1-800-806-3651 and order part number 146148.

6. Keep children under the age of 12 and pets away from the treadmill at all times.

7. The treadmill should be used only by persons weighing 250 pounds or less.

12. Failure to use a properly functioning surge suppressor could result in damage to the control system of the treadmill. If the control system is damaged, the walking belt may change speed or stop unexpectedly, which may result in a fall and serious injury.

8. Never allow more than one person on the treadmill at a time. 13. Keep the power cord and the surge suppressor away from heated surfaces.

2

14. Never move the walking belt while the power is turned off. Do not operate the treadmill if the power cord or plug is damaged, or if the treadmill is not working properly. (See BE-

FORE YOU BEGIN on page 4 if the treadmill is not working properly.)

15. Never start the treadmill while you are standing on the walking belt. Always hold the handrails while using the treadmill.

16. The treadmill is capable of high speeds.

Adjust the speed in small increments to avoid sudden jumps in speed.

17. Never leave the treadmill unattended while it is running. Always remove the key and unplug the power cord when the treadmill is not in use.

18. Do not attempt to raise, lower, or move the treadmill until it is properly assembled. (See

ASSEMBLY on page 5, and HOW TO FOLD

AND MOVE THE TREADMILL on page 12.)

You must be able to safely lift 45 pounds (20 kg) to raise, lower, or move the treadmill.

19. When folding or moving the treadmill, make sure that the storage latch is fully closed.

20. Inspect and properly tighten all parts of the treadmill regularly.

21. Never insert any object into any opening.

22.

DANGER:

Always unplug the power cord immediately after use, before cleaning the treadmill, and before performing the maintenance and adjustment procedures described in this manual. Never remove the motor hood unless instructed to do so by an authorized service representative. Servicing other than the procedures in this manual should be performed by an authorized service representative only.

23. This treadmill is intended for in-home use only. Do not use this treadmill in a commercial, rental, or institutional setting.

WARNING:

Before beginning this or any exercise program, consult your physician. This is especially important for persons over the age of 35 or persons with pre-existing health problems.

Read all instructions before using. WESLO assumes no responsibility for personal injury or property damage sustained by or through the use of this product.

SAVE THESE INSTRUCTIONS

The decals shown have been placed on your treadmill. If a decal is missing, or if it is not legible, please call our Customer Service

Department, toll-free, to order a free replacement decal (see ORDERING REPLACEMENT

PARTS on the back cover of this manual).

Apply the decal in the location shown. Note:

The decals are not shown at actual size.

3

BEFORE YOU BEGIN

Congratulations for selecting the new WESLO ® CA-

DENCE 450 treadmill. The CADENCE 450 treadmill combines advanced technology with innovative design to help you get the most from your exercise in the convenience and privacy of your home. And when you’re not exercising, the unique CADENCE 450 can be folded up, requiring less than half the floor space of other treadmills.

For your benefit, read this manual carefully before

using the treadmill. If you have additional questions, please call our Customer Service Department toll-free at 1-800-999-3756, Monday through Friday, 6 a.m. until

6 p.m. Mountain Time (excluding holidays). To help us assist you, please note the product model number and serial number before calling. The model number of the treadmill is WLTL35520. The serial number can be found on a decal attached to the treadmill (see the front cover of this manual for the location).

Before reading further, please review the drawing below and familiarize yourself with the parts that are labeled.

Water Bottle Holder

(Bottle not included)

Bookrack

Console

Storage Latch

Handrail

Key/Clip

Upright

RIGHT SIDE

Walking Belt

Foot Rail

Circuit Breaker

Power Cord

Cushioned Walking Platform for maximum exercise comfort

BACK

Rear Roller

Adjustment Bolts

Incline Leg

4

ASSEMBLY

Assembly requires two persons. Set the treadmill in a cleared area and remove all packing materials. Do not dispose of the packing materials until assembly is completed.

Note: The underside of the treadmill walking belt is coated with high-performance lubricant. During shipping, a small amount of lubricant may be transferred to the top of the walking belt or the shipping carton. This is a normal condition and does not affect treadmill performance. If there is lubricant on top of the walking belt, simply wipe off the lubricant with a soft cloth and a mild, non-abrasive cleaner.

Assembly requires the included small allen wrench and your own phillips screwdriver , rubber mallet , wire cutters , adjustable wrench , and needlenose pliers .

To identify small parts during assembly, use the PART IDENTIFICATION CHART in the center of this manual.

1. Make sure that the power cord is unplugged.

1

40

102

75

With the help of a second person, carefully tip the treadmill onto one side. Partially fold the Frame (75) so that the treadmill is more stable. Do not fully fold the

treadmill until it is completely assembled.

Attach four Base Pads (40) to the Base (11) with four

3/4” Tek Screws (102).

2. With the help of a second person, tip the treadmill down to the position shown.

Attach a Wheel (37) to each side of the Base (11) with a

Wheel Bolt (36) and a Wheel Nut (38) as shown.

Identify the Right Upright (62) and the Left Upright (76)

(there are two small holes in the side of the Left Upright).

While a second person holds the Right Upright near the

Wire Harness (21), insert the end of the Wire Harness into the lower end of the Right Upright and out of the upper end.

2

Holes

11

40

102

40

102

76

62

21

37

11

38

36

5

3. Insert a Plastic Shim (103) into each side of the post on the right side of the Base (11). Next, orient the Right

Upright (62) as shown, and insert it into the Base. Make

sure that the Wire Harness (21) does not fall into the

Right Upright. Be careful to avoid pinching the Wire

Harness. Note: If necessary, tap the Right Upright with a rubber mallet until it is fully seated in the Base. If the

Right Upright cannot be fully seated, remove the outer

Plastic Shim and then insert the Right Upright.

Attach the Right Upright (62) to the Base (11) with three

1” Bolts (8) and three Star Washers (9). Do not tighten

the Bolts yet.

Assemble the Left Upright (not shown) in the same way.

3

This hole must be on this side.

21

62

8

9

103

9

8

11

4. Identify the Right Handrail (47), which has a large hole in the left side. Feed the Wire Harness (21) into the hole in the bottom of the Right Handrail and out of the large hole in the left side. (Note: It may be helpful to use needlenose pliers to pull the Wire Harness out of the large hole.) Press a Handrail Cap (41) onto the lower end of the Right Handrail as shown.

Insert the rectangular bracket on the Right Handrail (47) into the top of the Right Upright (62) so the Handrail Cap

(41) is against the Right Upright. Attach the Right

Handrail and the Handrail Cap with three 1” Bolts (8) and two Washers (57) as shown. Do not tighten the Bolts

yet.

Attach the Left Handrail (not shown) as described above.

Note: There is not a wire harness on the left side.

4

5. Hold the Crossbar (34) between the Handrails (1, 47).

Attach the Crossbar with two Crossbar Screws (53). Do

not tighten the Crossbar Screws yet.

Attach the ring on the end of the ground wire to the small hole in the side of the Right Handrail (47) with a Silver

Ground Screw (104).

5

1

Large

Hole

Bracket

47

8

57

57

8

62

41

8

21

53

34

Ground

Wire

104

47

53

6

6. Place the Console Base (46) on the Right Handrail (47) and the Left Handrail (not shown). Attach the Console

Base with four 1 1/4” Screws (105) (only two Screws are shown). Do not tighten the Screws yet.

Insert the Wire Harness (21) through the two indicated plastic ties on the Console Base (46). Next, insert the

Wire Harness up through the indicated opening in the

Console Base. Make sure that the Console Cover (96) is securely attached to the Console Base.

Refer to the inset drawing. Look at the top of the Console

Base (46). Insert the Wire Harness (21) through the plastic tie on top of the Console Base.

6

105

46

Ties

47

21

21

96

46

Tie

7. Hold the Console (10) near the Console Base (46). Touch

the Right Upright (62) to discharge any static. Plug the widest connector on the Wire Harness (21) into the widest connector on the Console. If the connector does

not fit easily, rotate it and then connect it. Plug the other connector on the Wire Harness into the other connector on the Console. Insert the excess Wire Harness down through the opening in the Console Base. Refer to the inset drawing in step 6 above. Securely tighten the

plastic tie on top of the Console Base to prevent the

Wire Harness from slipping. Then, cut off the end of the plastic tie.

Set the Console (10) on the Console Base (46). Insert the excess Wire Harness (21) into the large hole in the side of the Right Handrail (47). Securely tighten the plastic

ties on the bottom of the Console Base to prevent the

Wire Harness from slipping. Then, cut off the ends of the plastic ties.

Attach the Console (10) to the Console Base (46) with two

1/2” Silver Screws (97) and four 3/4” Screws (13). Start all

six Screws before tightening them; do not overtighten the Screws.

7

8

Ties

47

13

62

21

10

97

13

46

8. Attach the Storage Latch (14) to the left Upright (76) with two 3/4” Screws (13). Be careful not to overtighten the

Screws.

Lift the treadmill frame (see HOW TO FOLD THE

TREADMILL FOR STORAGE on page 12), but do not latch it. Make sure that the frame is centered between the Handrails (1, 47 [not shown]). Firmly tighten all of

the bolts and screws used in assembly steps 3, 4, 5,

and 6. Then, lower the frame to the floor.

1

14

76

13

9. Make sure that all parts are properly tightened before you use the treadmill. Note: Extra hardware may be included. Keep the included allen wrenches in a secure place. The large allen wrench is used to adjust the walking belt (see page 14). To protect the floor or carpet, place a mat under the treadmill.

7

OPERATION AND ADJUSTMENT

THE PERFORMANT LUBE TM WALKING BELT

Your treadmill features a walking belt coated with

PERFORMANT LUBE TM , a high-performance lubricant.

IMPORTANT: Never apply silicone spray or other substances to the walking belt or the walking platform. Such substances will deteriorate the walking belt and cause excessive wear.

HOW TO PLUG IN THE POWER CORD

DANGER:

Improper connection of the equipment-grounding conductor can result in an increased risk of electric shock.

Check with a qualified electrician or serviceman if you are in doubt as to whether the product is properly grounded. Do not modify the plug provided with the product—if it will not fit the outlet, have a proper outlet installed by a qualified electrician.

an equipment-grounding conductor and a grounding plug. Plug the power cord into a surge suppressor,

and plug the surge suppressor into an appropriate outlet that is properly installed and grounded in accordance with all local codes and ordinances.

Important: The treadmill is not compatible with

GFCI-equipped outlets.

This product is for use on a nominal 120-volt circuit, and has a grounding plug that looks like the plug illustrated in drawing 1 below. A temporary adapter that looks like the adapter illustrated in drawing 2 may be used to connect the surge suppressor to a 2-pole receptacle as shown in drawing 2 if a properly grounded outlet is not available.

1

Grounded Outlet Box

Surge Suppressor

Grounding Pin

Your treadmill, like any other type of sophisticated electronic equipment, can be seriously damaged by sudden voltage changes in your home’s power.

Voltage surges, spikes, and noise interference can result from weather conditions or from other appliances being turned on or off. To decrease the possibility of

your treadmill being damaged, always use a surge suppressor with your treadmill (see drawing 1 at the right). To purchase a surge suppressor, see your local WESLO dealer or call toll-free 1-800-806-

3651 and order part number 146148.

2

Grounding Pin

Grounded Outlet

Grounding Plug

Grounded Outlet Box

Adapter

Surge Suppressor

Use only a single-outlet surge suppressor that is

UL 1449 listed as a transient voltage surge suppressor (TVSS). The surge suppressor must have a

UL suppressed voltage rating of 400 volts or less and a minimum surge dissipation of 450 joules.

The surge suppressor must be electrically rated for 120 volts AC and 15 amps. There must be a monitoring light on the surge suppressor to indicate whether it is functioning properly. Failure to use a properly functioning surge suppressor could result in damage to the control system of the treadmill. If the control system is damaged, the walking belt may change speed or stop unexpectedly, which may result in a fall and serious injury.

This product must be grounded. If it should malfunction or break down, grounding provides a path of least resistance for electric current to reduce the risk of electric shock. This product is equipped with a cord having

Lug

Metal Screw

The temporary adapter should be used only until a properly grounded outlet (drawing 1) can be installed by a qualified electrician.

The green-colored rigid ear, lug, or the like extending from the adapter must be connected to a permanent ground such as a properly grounded outlet box cover.

Whenever the adapter is used it must be held in place by a metal screw. Some 2-pole receptacle outlet box

covers are not grounded. Contact a qualified electrician to determine if the outlet box cover is grounded before using an adapter.

8

CONSOLE DIAGRAM

Note: If there is a thin sheet of plastic on the console, remove it.

Key Clip

CAUTION:

Before operating the console, read the following precautions.

• Do not stand on the walking belt when turning on the power.

• Always wear the clip (see the drawing above) while operating the treadmill.

• Adjust the speed in small increments to avoid sudden jumps in speed.

• To reduce the possibility of electric shock, keep the console dry. Avoid spilling liquids on the console and place only a sealed water bottle in the water bottle holder.

STEP-BY-STEP CONSOLE OPERATION

Before operating the console, make sure that the power cord is properly plugged in (see page 8).

Next, stand on the foot rails of the treadmill. Find the clip attached to the key (see the drawing above) and slide the clip onto the waistband of your clothes.

Insert the key fully into the console. After a moment, the displays will light. Test the clip by carefully tak-

ing a few steps backward until the key is pulled from the console. If the key is not pulled from the

console, adjust the position of the clip. Then, reinsert the key fully into the console.

Follow the steps below to operate the console.

1

Insert the key fully into the console.

A few seconds after the key is inserted, the displays will light.

2

Press the Start button or the Speed

start the walking belt.

button to

A moment after the button is pressed, the walking belt will begin to move. Hold the handrails and begin walking.

As you exercise, change the speed of the walking belt as desired by pressing the Speed buttons.

Each time a button is pressed, the speed setting will change by 0.1 mph; if a button is held down, the speed setting will change in increments of 0.5

mph. Note: The console can display speed and

distance in either miles or kilometers (see

SPEED/DISTANCE DISPLAY on page 11). For simplicity, all instructions in this section refer to miles.

9

To stop the walking belt, press the Stop button.

The Time display will begin to flash.

Note: During the first few minutes that the treadmill is used, inspect the alignment of the walking belt and align it if necessary (see page 14).

3

Change the incline of the treadmill as desired.

To change the incline of the treadmill, press either of the Incline buttons until the desired incline level is reached.

4

Follow your progress with the three displays.

Calories/Fat Calories/

Pulse display—This display shows the approximate numbers of

calories and fat calories you have burned (see

FAT BURNING on page 15). The display will change from one number to the other every few seconds. The FAT indicator will light when the number of fat calories is shown. The display will also show your heart rate when you use the pulse meter (see step 5).

Time display—This display shows the elapsed time. When the Stop button is pressed, the display will flash.

Speed/Distance dis-

play—This display shows the speed of the walking belt and the distance that you have walked or run. The display will change from one number to the other every few seconds. The DISTANCE indicator will light when the distance is shown.

Note: The console can display speed and distance in either miles or kilometers. To see which unit of measurement is selected, hold down the

Stop button, insert the key into the console, and continue to hold the Stop button for a moment. An

“E” for English miles or an “M” for metric kilometers will appear in the Calories/Fat Calories/Pulse display. Press the Speed

▲ button to change the unit of measurement. When the desired unit of measurement is selected, remove the key and then reinsert it.

To reset the displays, press the Stop button, remove the key, and then reinsert the key.

5

Measure your heart rate, if desired.

To measure your heart rate, stand on the foot rails and place your thumb on the pulse meter as shown. Do not

press too hard, or the circulation in your thumb will be restricted and your pulse

will not be detected. After a few seconds, the

PULSE indicator beside the Calories/Fat Calories/

Pulse display will light and then your heart rate will be shown. Hold your thumb on the pulse meter for about 15 seconds for the most accurate reading.

If the displayed heart rate appears to be too high or too low, or if your heart rate is not displayed, lift your thumb off the pulse meter for a few seconds.

Then, place your thumb on the pulse meter as described above. Make sure that you are applying the proper amount of pressure. Remember to stand still while measuring your heart rate.

6

When you are finished exercising, remove the key.

Step onto the foot rails, press the Stop button, and remove the key from the console. Keep the key in a secure place.

WARNING:

Removing the key does not cut off power to the incline system. To prevent movement of the treadmill and possible injury, unplug the power cord when the treadmill is not in use.

10

THE INFORMATION MODE

The console features an information mode that keeps track of the total number of hours that the treadmill has been operated and the total number of miles that the walking belt has moved. The information mode also allows you to switch the console from miles per hour to kilometers per hour.

To select the information mode, hold down the Stop button, insert the key into the console, and continue to hold the Stop button for a moment. When the information mode is selected, the following information will be shown:

An “E” for English miles or an

“M” for metric kilometers will appear in the Calories/Fat

Calories/Pulse display. Press the Speed

▲ button to change the unit of measurement.

The Time display will show the total number of hours that the treadmill has been used.

The Distance/Laps display will show the total number of miles

(or kilometers) that the walking belt has moved.

To exit the information mode, remove the key from the console.

HOW TO FOLD AND MOVE THE TREADMILL

HOW TO FOLD THE TREADMILL FOR STORAGE

Before folding the treadmill, unplug the power cord. CAUTION:

You must be able to safely lift 45 pounds (20 kg) in order to raise, lower, or move the treadmill.

1. Hold the treadmill with your hands in the locations shown at the right. To decrease the possibility of injury, bend your

legs and keep your back straight. As you raise the treadmill, make sure to lift with your legs rather than your

back. Raise the treadmill about halfway to the vertical position.

2. Move your right hand to the position shown and hold the treadmill firmly. Press out on the storage latch. Raise the treadmill until the storage latch closes over the catch. Make

sure that the storage latch is fully engaged over the catch.

To protect the floor or carpet from damage, place a mat under the treadmill. Keep the treadmill out of direct sunlight. Do not leave the treadmill in the storage position in temperatures above 85° Fahrenheit.

Storage

Latch

Catch

Engaged

HOW TO MOVE THE TREADMILL

Before moving the treadmill, convert the treadmill to the storage position as described above. Make sure that the storage latch

is fully engaged over the catch.

1. Hold the upper ends of the handrails. Place one foot on the base as shown.

2. Tilt the treadmill back until it rolls freely on the front wheels.

Carefully move the treadmill to the desired location. To re-

duce the risk of injury, use extreme caution while moving the treadmill. Do not move the treadmill over an uneven surface.

3. Place one foot on the base, and carefully lower the treadmill until it is resting in the storage position.

HOW TO LOWER THE TREADMILL FOR USE

Base

Front Wheels

1. Hold the upper end of the treadmill with your right hand as shown. Using your left thumb, press the storage latch and hold it. Pivot the treadmill until the frame and foot rail are past the storage latch.

2. Hold the treadmill firmly with both hands, and lower the treadmill to the floor. Do not drop the treadmill frame

to the floor. To decrease the possibility of injury, bend your legs and keep your back straight.

12

TROUBLESHOOTING

Most treadmill problems can be solved by following the steps below. Find the symptom that applies, and follow the steps listed. If further assistance is needed, please call our Customer Service Department tollfree at 1-800-999-3756, Monday through Friday, 6 a.m. until 6 p.m. Mountain Time (excluding holidays).

PROBLEM: The power does not turn on

SOLUTION: a. Make sure that the power cord is plugged into a surge suppressor, and that the surge suppressor is plugged into a properly grounded outlet (see page 8). Use only a single-outlet surge suppressor that meets all of the specifications described on page 8. Important: The treadmill is not compatible with GFCI-equipped outlets. b. After the power cord has been plugged in, make sure that the key is fully inserted into the console.

c. Check the circuit breaker located on the treadmill frame near the power cord. If the switch protrudes as shown, the circuit breaker has tripped. To reset the circuit breaker, wait for five minutes and then press the switch back in. c

Tripped Reset

PROBLEM: The power turns off during use

SOLUTION: a. Check the circuit breaker located on the treadmill frame near the power cord (see the drawing above). If the circuit breaker has tripped, wait for five minutes and then press the switch back in.

b. Make sure that the power cord is plugged in. If the power cord is plugged in, unplug it, wait for five minutes, and then plug it back in.

c. Remove the key from the console. Reinsert the key fully into the console.

d. If the treadmill still will not run, please call our Customer Service Department, toll-free.

PROBLEM: The displays of the console do not function properly

SOLUTION: a. Remove the key from the console and UNPLUG THE POWER CORD. Remove the screws from the hood, and carefully remove the hood.

Locate the Reed Switch (44) and the Magnet (45) on the left side of the Pulley (50). Turn the Pulley until the

Magnet is aligned with the Reed Switch. Make sure

that the gap between the Magnet and the Reed

Switch is about 1/8”. If necessary, loosen the Screw

(33) and move the Reed Switch slightly. Retighten the

Screw. Re-attach the hood, and run the treadmill for a few minutes to check for a correct speed reading.

Reattach the Resistance Knob. b

Top

44

33

View

1/8”

45

50

13

PROBLEM: The walking belt slows when walked on

SOLUTION: a. Use only a single-outlet surge suppressor that meets all of the specifications described on page 8.

b. If the walking belt is overtightened, treadmill performance may decrease and the walking belt may become damaged. Remove the key and UNPLUG THE

POWER CORD. Using the allen wrench, turn both rear roller adjustment bolts counterclockwise, 1/4 of a turn. When the walking belt is properly tightened, you should be able to lift each side of the walking belt 2 to

3 inches off the walking platform. Be careful to keep the walking belt centered. Plug in the power cord, insert the key and run the treadmill for a few minutes.

Repeat until the walking belt is properly tightened.

b

2”–3”

Rear Roller Adjustment Bolts c. If the walking belt still slows when walked on, please call our toll-free Customer Service

Department.

PROBLEM: The walking belt is off-center or slips when walked on

SOLUTION: a. If the walking belt is off-center, first remove the key and UNPLUG THE POWER CORD. If the walking

belt has shifted to the left, use the allen wrench to turn the left rear roller bolt clockwise 1/2 of a turn; if

the walking belt has shifted to the right, turn the bolt counterclockwise 1/2 of a turn. Be careful not to overtighten the walking belt. Plug in the power cord, insert the key and run the treadmill for a few minutes.

Repeat until the walking belt is centered. b. If the walking belt slips when walked on, first remove the key and UNPLUG THE POWER CORD. Using the allen wrench, turn both rear roller bolts clockwise,

1/4 of a turn. When the walking belt is correctly tightened, you should be able to lift each side of the walking belt 2 to 3 inches off the walking platform. Be careful to keep the walking belt centered. Plug in the power cord, insert the key and carefully walk on the treadmill for a few minutes. Repeat until the walking belt is properly tightened.

a b

14

CONDITIONING GUIDELINES

WARNING:

Before beginning this or any exercise program, consult your physician. This is especially important for individuals over the age of 35 or individuals with preexisting health problems.

The pulse sensor is not a medical device.

Various factors, including your movement, may affect the accuracy of heart rate readings.

The sensor is intended only as an exercise aid in determining heart rate trends in general.

ergy. Only after the first few minutes does your body begin to use stored fat calories for energy. If your goal is to burn fat, adjust the speed and incline of the treadmill until your heart rate is near the lowest number in your training zone.

For maximum fat burning, adjust the speed and incline of the treadmill until your heart rate is near the middle number in your training zone.

Aerobic Exercise

The following guidelines will help you to plan your exercise program. For more detailed exercise information, obtain a reputable book or consult your physician.

EXERCISE INTENSITY

If your goal is to strengthen your cardiovascular system, your exercise must be “aerobic.” Aerobic exercise is activity that requires large amounts of oxygen for prolonged periods of time. This increases the demand on the heart to pump blood to the muscles, and on the lungs to oxygenate the blood. For aerobic exercise, adjust the speed and incline of the treadmill until your heart rate is near the highest number in your training zone.

Whether your goal is to burn fat or to strengthen your cardiovascular system, the key to achieving the desired results is to exercise with the proper intensity.

The proper intensity level can be found by using your heart rate as a guide. The chart below shows recommended heart rates for fat burning and aerobic exercise.

WORKOUT GUIDELINES

Each workout should include the following three parts:

A Warm-up—Start each workout with 5 to 10 minutes of stretching and light exercise. A proper warm-up increases your body temperature, heart rate and circulation in preparation for exercise.

To find the proper heart rate for you, first find your age near the bottom of the chart (ages are rounded off to the nearest ten years). Next, find the three numbers above your age. The three numbers define your “training zone.” The lower two numbers are recommended heart rates for fat burning; the higher number is the recommended heart rate for aerobic exercise.

Training Zone Exercise—After warming up, increase the intensity of your exercise until your pulse is in your training zone for 20 to 60 minutes. (During the first few weeks of your exercise program, do not keep your pulse in your training zone for longer than 20 minutes.)

Breathe regularly and deeply as you exercise—never hold your breath.

A Cool-down—Finish each workout with 5 to 10 minutes of stretching to cool down. This will increase the flexibility of your muscles and will help prevent postexercise problems.

To measure your heart rate during exercise, use the pulse sensor. If your heart rate is too high or too low, adjust the speed and incline of the treadmill.

Fat Burning

EXERCISE FREQUENCY

To maintain or improve your condition, complete three workouts each week, with at least one day of rest between workouts. After a few months, you may complete up to five workouts each week if desired.

To burn fat effectively, you must exercise at a relatively low intensity level for a sustained period of time.

During the first few minutes of exercise, your body uses easily accessible carbohydrate calories for en-

The key to success is to make exercise a regular and enjoyable part of your everyday life.

15

ORDERING REPLACEMENT PARTS

To order replacement parts, call our Customer Service Department toll-free at 1-800-999-3756, Monday through

Friday, 6 a.m. until 6 p.m. Mountain Time (excluding holidays). When ordering parts, please be prepared to give the following information:

• The MODEL NUMBER of the product (WLTL35520)

• The NAME of the product (WESLO ® CADENCE 450 treadmill)

• The SERIAL NUMBER of the product (see the front cover of this manual)

• The KEY NUMBER and DESCRIPTION of the desired part(s) (see the PART LIST and the EXPLODED DRAW-

ING in the center of this manual)

WESLO is a registered trademark of ICON Health & Fitness, Inc.

LIMITED WARRANTY

ICON Health & Fitness, Inc. (ICON), warrants this product to be free from defects in workmanship and material, under normal use and service conditions, for a period of ninety (90) days from the date of purchase. This warranty extends only to the original purchaser. ICON's obligation under this warranty is limited to replacing or repairing, at ICON's option, the product through one of its authorized service centers.

All repairs for which warranty claims are made must be pre-authorized by ICON. This warranty does not extend to any product or damage to a product caused by or attributable to freight damage, abuse, misuse, improper or abnormal usage or repairs not provided by an ICON authorized service center; products used for commercial or rental purposes; or products used as store display models. No other warranty beyond that specifically set forth above is authorized by ICON.

ICON is not responsible or liable for indirect, special or consequential damages arising out of or in connection with the use or performance of the product or damages with respect to any economic loss, loss of property, loss of revenues or profits, loss of enjoyment or use, costs of removal or installation or other consequential damages of whatsoever nature. Some states do not allow the exclusion or limitation of incidental or consequential damages. Accordingly, the above limitation may not apply to you.

The warranty extended hereunder is in lieu of any and all other warranties and any implied warranties of merchantability or fitness for a particular purpose is limited in its scope and duration to the terms set forth herein. Some states do not allow limitations on how long an implied warranty lasts. Accordingly, the above limitation may not apply to you.

This warranty gives you specific legal rights. You may also have other rights which vary from state to state.

ICON HEALTH & FITNESS, INC., 1500 S. 1000 W., LOGAN, UT 84321-9813

Part No. 187320 R0902A Printed in USA © 2002 ICON Health & Fitness, Inc.

PART IDENTIFICATION CHART

Remove this chart and use it to identify small parts during assembly. Save this chart and the EXPLODED DRAWING/PART LIST for future reference.

Crossbar Screw

(53)–2

3/4” Screw (13)–6

3/4” Tek Screw

(102)–4

1 1/4” Screw (105)–4

1/2” Silver Screw (97)–2

Silver Ground

Screw (104)–1

1” Bolt (8)–12

Wheel Nut (38)–2

Wheel Bolt (36)–2

Washer (57)–4

Star Washer (9)–6

(May be an internal Star Washer)

PART LIST—Model No. WLTL35520

Key

No.

Qty.

Description

53

54

55

56

57

48

49

50

51

52

43 1

44 1

451

46

47

1

1

4

2

1

1

2

2

1

1

1

4

8

9

10

11

12

1

2

6

7

3 2

4 1

51

1

1

1

1

12

10

1

1

1

18

19

20*

21

22

13 13

14 1

151

16

17

7

3

1

1

1

1

4

Left Handrail

Key/Clip

Incline Leg Pivot Bolt

Cover

Left Foot Rail

Lift Motor

Rear Roller

1” Bolt

Star Washer

Console

Base

Motor Belt

3/4” Screw

Storage Latch

Thick Frame Spacer

8” Cable Tie

Motor Nut

Pulley/Flywheel/Fan

Motor

Motor/Pulley/Flywheel/Fan

Wire Harness

Belt Guide Screw

28

29

30

31

32

23 1

24 1

259

26

27

1

1

1

1

1

2

1

Motor Hood

Hood Shield

Screw

Controller

Motor Swivel Bolt

Motor Tension Nut

Motor Star Washer

Motor Tension Washer

Motor Tension Bolt

Incline Stop Bracket

38

39

40

41

42

33 7

34 1

3510

36

37

2

2

Belly Pan Screw

Crossbar

Cage Nut

Wheel Bolt

Wheel

2

1

4 Wheel Nut/Lift Nut

5Washer

4 Base Pad

Handrail Cap

Latch Catch

Reed Switch Clip

Reed Switch

Magnet

Console Base

Right Handrail

Platform Screw

Isolator

Front Roller/Pulley

Front Roller Adj. Bolt

Incline Wheel

Crossbar Screw

Power Cord

Power Cord Grommet

Circuit Breaker

Washer

Key

No.

Qty.

Description

80

81

82

83

84

851

86

87

1

2

88

89

1

1

1

2

1

2

1

90

91

92

93

94

952

96

97

1

2

98

99

1

1

1

4

1

1

1

58

59

60

61

62

63

64

652

66

67

4

1

68

69

1

1

1

2

1

2

1

3

1

70

71

72

73

74

751

76

77

1

2

78

79

1

4

9

1

1

2

1

100

101

102

103

104

1054

#

#

1

1

#

#

#

#

1

1

1

1

1

1

4

4

1

* Includes all parts shown in the box

# These parts are not illustrated

Frame Pivot Bolt

Latch Decal

Motor Belly Pan

Cable Tie Clamp

Right Upright

Releasable Tie

Choke

Belt Guide

Belly Pan Fastener

Walking Belt

Walking Platform

Belly Pan

Electronics Screw

Incline Wire Harness

Upright Grommet

Small Screw

5/32” Allen Wrench

Frame

Left Upright

Incline Wheel Bolt

Power Supply Plate

Incline Wheel Nut

Ground Wire

Hood Screw (Front)

Incline Leg

Rear Roller Adj. Bolt

Left Rear Endcap

Right Rear Endcap

Incline Motor Bolt

Belly Pan Screw

Power Supply

Motor Belt Shield

Bookrack

Plastic Stand-Off

Warning Decal

Right Foot Rail

Silver Screw

Plastic Tie

Console Cover

1/2” Silver Screw

Thin Frame Spacer

Hole Plug

Motor Controller Wire

Allen Wrench

3/4” Tek Screw

Shim

Silver Ground Screw

1 1/4” Screw

4” Red Wire, M/F

4” Blue Wire, 2F

8” Blue Wire, 2F

4” White Wire, M/F

8” White Wire, 2F

User’s Manual

R0902A

EXPLODED DRAWING—Model No. WLTL35520

R0902A

Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement

Table of contents
