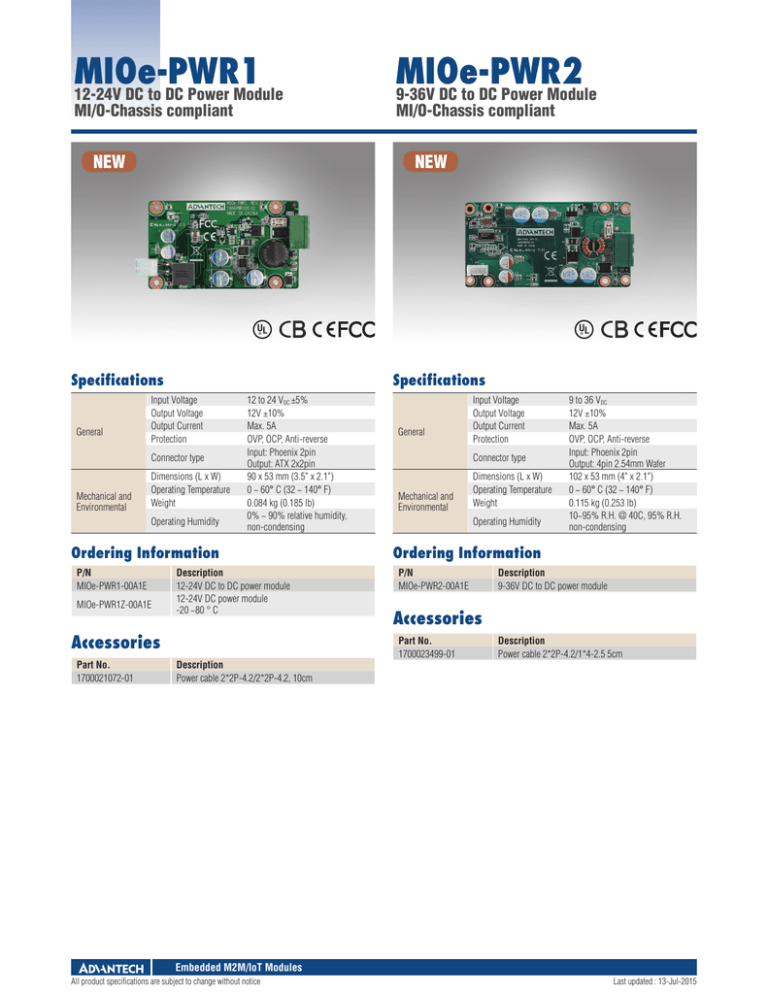

MIOe-PWR2 MIOe-PWR1 NEW 9-36V DC to DC Power Module

MIOe-PWR2 MIOe-PWR1 NEW 9-36V DC to DC Power Module
MIOe-PWR1
12-24V DC to DC Power Module
MI/O-Chassis compliant
NEW
MIOe-PWR2
9-36V DC to DC Power Module
MI/O-Chassis compliant
NEW
UL
UL
®
Specifications
General
Specifications
Input Voltage
Output Voltage
Output Current
Protection
Connector type
Mechanical and
Environmental
Dimensions (L x W)
Operating Temperature
Weight
Operating Humidity
12 to 24 VDC ±5%
12V ±10%
Max. 5A
OVP, OCP, Anti-reverse
Input: Phoenix 2pin
Output: ATX 2x2pin
90 x 53 mm (3.5" x 2.1")
0 ~ 60° C (32 ~ 140° F)
0.084 kg (0.185 lb)
0% ~ 90% relative humidity,
non-condensing
Ordering Information
P/N
MIOe-PWR1-00A1E
MIOe-PWR1Z-00A1E
Description
12-24V DC to DC power module
12-24V DC power module
-20 ~80 ° C
Accessories
Part No.
1700021072-01
®
Description
Power cable 2*2P-4.2/2*2P-4.2, 10cm
General
Input Voltage
Output Voltage
Output Current
Protection
Connector type
Mechanical and
Environmental
Dimensions (L x W)
Operating Temperature
Weight
Operating Humidity
9 to 36 VDC
12V ±10%
Max. 5A
OVP, OCP, Anti-reverse
Input: Phoenix 2pin
Output: 4pin 2.54mm Wafer
102 x 53 mm (4" x 2.1")
0 ~ 60° C (32 ~ 140° F)
0.115 kg (0.253 lb)
10~95% R.H. @ 40C, 95% R.H.
non-condensing
Ordering Information
P/N
MIOe-PWR2-00A1E
Description
9-36V DC to DC power module
Accessories
Part No.
1700023499-01
Description
Power cable 2*2P-4.2/1*4-2.5 5cm
Embedded M2M/IoT Modules
All product specifications are subject to change without notice
Last updated : 13-Jul-2015
