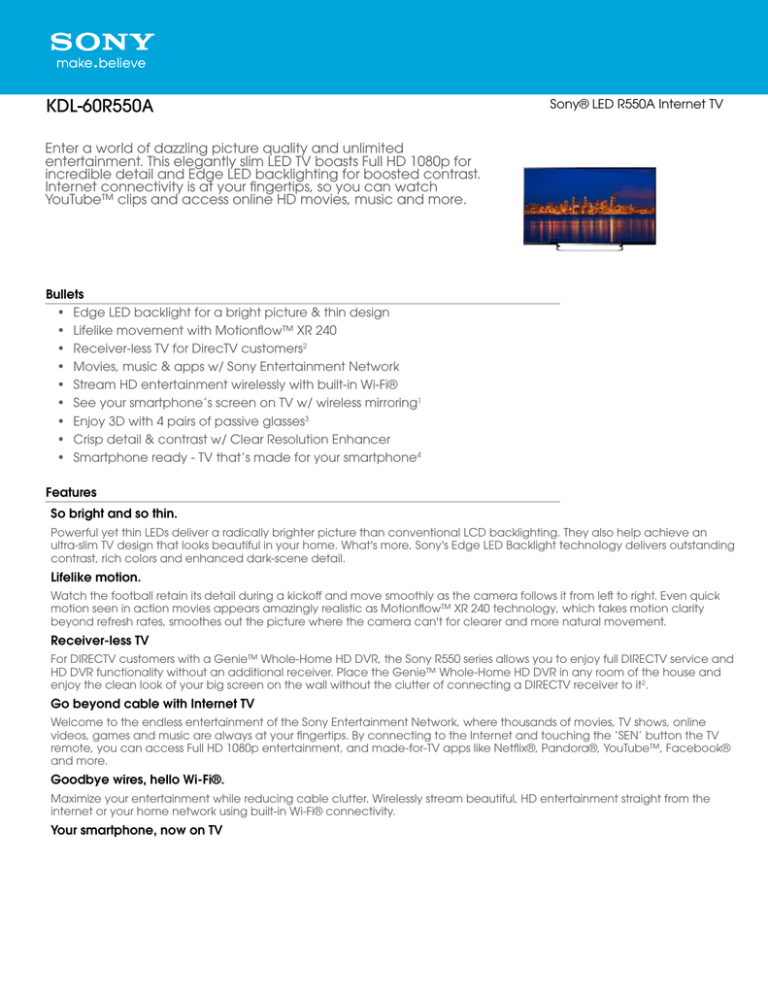

KDL-60R550A
Sony® LED R550A Internet TV
Enter a world of dazzling picture quality and unlimited
entertainment. This elegantly slim LED TV boasts Full HD 1080p for
incredible detail and Edge LED backlighting for boosted contrast.
Internet connectivity is at your fingertips, so you can watch
YouTube™ clips and access online HD movies, music and more.
Bullets
• Edge LED backlight for a bright picture & thin design
• Lifelike movement with Motionflow™ XR 240
• Receiver-less TV for DirecTV customers2
• Movies, music & apps w/ Sony Entertainment Network
• Stream HD entertainment wirelessly with built-in Wi-Fi®
• See your smartphone’s screen on TV w/ wireless mirroring1
• Enjoy 3D with 4 pairs of passive glasses3
• Crisp detail & contrast w/ Clear Resolution Enhancer
• Smartphone ready - TV that’s made for your smartphone4
Features
So bright and so thin.
Powerful yet thin LEDs deliver a radically brighter picture than conventional LCD backlighting. They also help achieve an
ultra-slim TV design that looks beautiful in your home. What's more, Sony's Edge LED Backlight technology delivers outstanding
contrast, rich colors and enhanced dark-scene detail.
Lifelike motion.
Watch the football retain its detail during a kickoff and move smoothly as the camera follows it from left to right. Even quick
motion seen in action movies appears amazingly realistic as Motionflow™ XR 240 technology, which takes motion clarity
beyond refresh rates, smoothes out the picture where the camera can't for clearer and more natural movement.
Receiver-less TV
For DIRECTV customers with a Genie™ Whole-Home HD DVR, the Sony R550 series allows you to enjoy full DIRECTV service and
HD DVR functionality without an additional receiver. Place the Genie™ Whole-Home HD DVR in any room of the house and
enjoy the clean look of your big screen on the wall without the clutter of connecting a DIRECTV receiver to it2.
Go beyond cable with Internet TV
Welcome to the endless entertainment of the Sony Entertainment Network, where thousands of movies, TV shows, online
videos, games and music are always at your fingertips. By connecting to the Internet and touching the ‘SEN’ button the TV
remote, you can access Full HD 1080p entertainment, and made-for-TV apps like Netflix®, Pandora®, YouTube™, Facebook®
and more.
Goodbye wires, hello Wi-Fi®.
Maximize your entertainment while reducing cable clutter. Wirelessly stream beautiful, HD entertainment straight from the
internet or your home network using built-in Wi-Fi® connectivity.
Your smartphone, now on TV
Movies, music and apps from your smartphone can now be viewed big on your TV. With two ways to connect Android
phones and tablets to the R550, Sony is helping you add value to the entertainment you already own.
1. Using a Mobile High Definition Link cable, you can connect your smartphone to the TV to literally “mirror” what’s seen on
the smartphone screen. Video, photos and apps are re-sized and scaled to fit the larger TV screen. You can then use the TV
remote to navigate the phone, while it’s charging from the TV4.
2. Using screen mirroring technology, you can connect phones that are Miracast™ enabled to the TV1.
Theater-like 3D
Using the same passive 3D technology used in movie theaters, feel the explosive excitement of theater-like 3D. Even the
sound profile is enhanced for 3D viewing to provide a more immersive experience3. Slip on the latest generation of light,
comfortable 3D glasses to enjoy your favorite 3D movies. Four pair of glasses included.
Clearly different.
Fine details and textures appear in whatever you’re watching, even in flat areas. Powered by Sony’s advanced noise
reduction algorithm, this technology boosts image clarity with heightened contrast and depth that you won’t find on most
televisions.
Against the grain.
Dazzle the whole family with ultra-crisp HD clarity and less grain. Digital Noise Reduction enhances detail in whatever you're
watching with meticulous processing. It even helps clean up video from USB and other PC sources so the picture looks pristine
and vivid.
Specifications
3D Features
3D
3D Format Support
Simulated 3D
Convenience Features
Passive
Auto Shut-off
Yes
HDMI: Frame Packing/
Side-By-Side/Over-Under
BRAVIA® Sync™
Yes
Channel Block (with
password)
Yes
Channel Jump
Yes
Channel Surf
Yes
Edit Channel Labels
Yes
Favorites (Simple UI)
Yes
Info Banner
Yes
Input Skip
Yes
Label Inputs
Yes
Multiple Language
Display
English/Spanish /French
USB/MHL: Side-By-Side/
Over-Under
Yes
Audio
Audio Power Output
10W + 10W
Speaker Configuration
Full Range (45x200mm)
x2
Speaker Position
Bottom
Audio Features
5.1 Channel Audio Out
Yes
5.1ch Through Out
(Handycam)
Yes
Alternate Audio
(Digital)
Yes
Audio Out
Variable/Fixed
Dolby®
MS10 (Dolby Digital Plus,
Dolby Pulse)
Invisible Speaker
Yes
Sound Booster
Yes
Sound Mode
Standard Music Cinema
Game Sports
SteadySound®
Automatic Volume
Control
Yes
Stereo System
MTS(AUTO SAP)
On/Off Timer
Yes
On-Screen Clock
Yes
On-Screen Display for
External Input
Yes
Parental Control
Yes
Photo Frame Mode
Yes
Picture Adjustments
Lock
Yes
Scene Select
Music Cinema Game
Graphics Sports
Show/Hide Channels
Yes
Sleep Timer
Yes
Twin Picture
PAP(Fixed),PIP
USB Play
Yes
USB Play (Contents)
MPEG1/ MPEG2TS/
MPEG2PS/ MPEG4Visual/
MPEG4AVC/ H.264/
WMV/ Xvid/ MP3/
LPCM/ AAC/ HE-AAC/
DolbyDigitalAC3/ DTS/
WMA/ Jpeg
USB Super Multi-Format
Play
Yes
Design Features
Stand Design
Steel Rod / Chrome
Plating
Display Features
Backlight Type
Edge LED
Dimming Type
Frame Dimming
Display Device
LCD
Display
Aspect Ratio
16:9
Display Resolution
Full HD
Dynamic Contrast
Ratio
over 1 million
Screen Size (cm)
152.5 cm
Screen Size (measured
diagonally)
60"(60")
Viewing Angle (Right/
Left)
176(88/88)
Viewing Angle (Up/
Down)
176(88/88)
Energy Saving & Efficiency
Backlight Off Mode
Yes
Dynamic Backlight
Control
Yes
Energy Star®
compliant
Ver6
Power Consumption
(On Mode) for Energy
Star
90.9W
Power Consumption
(Standby Mode) for
Energy Star
0.147W
Power Consumption
(in Operation) max.
182W
Power Consumption
(in Standby)
0.2W
Power Requirements
(frequency)
60Hz
Power Requirements
(voltage)
AC120V
Recycled & Recyclable Materials
Packaging Materials
General Features
Recycled Carton (more
than 40%)
Yes
Closed Captions (CC)
Yes
Demo Mode
Yes
Finish (Surface Color)
VESA® Hole Pitch
300x300 mm /11 7/8x11
7/8 inch
Black
VESA® Hole Spacing
Compatible
Yes
Hotel Mode Menu
Yes
Sensing Features
Start Up Sony Logo
Display
Yes
LightSensor™
Technology
Yes
Motionflow™
Technology
Motionflow XR 240
MPEG Noise Reduction
Yes
Picture Mode
Vivid Standard Custom
Cinema Graphics
SimulView™
Yes
Wide Mode
Full Normal Wide Zoom
Zoom Caption Normal/
Full1/Full2 for PC
AC Power Input
1 (Rear)
Analog Audio Input(s)
(Total)
1(Rear)
Audio Out
1(Rear)
Component Video (Y/
Pb/Pr) Input(s)
1 (Rear Hybrid w/
Component)
Composite Video
Input(s)
1 (Rear Hybrid w/
Component)
Digital Audio Output(s)
1(Rear)
Ethernet Connection(s)
1 (Rear)
HDMI™ Connection(s)
(Total)
4 (2Rear,2Side)
HDMI™ PC Input
Yes
MHL
Yes
RF Connection Input(s)
1 (Rear)
USB 2.0
2 (Side)
Network Features
BIVL (System)
Yes
DLNA Content
JPG/ MP3/ LPCM/ WMA/
MPEG1/ MPEG2PS/
MPEG2TS/ AVCHD/ MP4/
WMV
Internet_Browser
Yes (Opera)
Opera Apps (System)
Yes
Yes
Weights and Measurements
Dimensions (Approx.)
Yes
TV Only:54 1/4x32x3
1/4(1 13/16) inch
(1375x810x82(45) mm)
TV with Stand: 54
1/4x33 5/8x13 3/8 inch
(1375x851x339 mm)
Measurements (Approx.)
TV System
Inputs and Outputs
Package Carton (W x
H x D)
1590 x909 x 170 mm/
62 5/8 x 35 7/8 x 6 3/4
inches
TV only (W x H x D)
1375x810x82(45) mm/54
1/4x32x3 1/4(1 13/16)
inch
NTSC
TV with Stand (W x H
x D)
1375x851x339 mm/54
1/4x33 5/8x13 3/8 inch
Number of Tuners
(Terrestrial/Cable)
1(Digital/Analog)
Supplied Accessories
TV System (Analog)
M
TV System (Digital
Cable)
Clear QAM
TV System (Digital
Terrestrial)
ATSC
Channel Coverage
(Analog)
VHF: 2-13/UHF: 14-69/
CATV: 1-135
Channel Coverage
(Digital Cable)
CATV: 1-135
Channel Coverage
(Digital Terrestrial)
VHF: 2-13/UHF: 14-69
Color System
Video
Video Signal
1080/24p (HDMI
Video Features
24p True Cinema™
Technology
Yes
3D Comb Filter
Yes
4:3 Default
Yes
Advanced Contrast
Enhancer (ACE)
Yes
Auto Wide
Yes
Blinking Type
Frame Blinking
CineMotion®
Reverse 3:2 Pulldown
Technology
Yes
Sony Entertainment
Network
Yes
TV Tweet
Yes (Opera)
Wi-Fi Certified
Yes
Clear Resolution
Enhancer
Yes
Wi-Fi Direct
Yes
Digital Noise Reduction
Yes
Wireless LAN
Integrated
Intelligent Picture Plus
with Signal Booster
Yes
Power
Yes
Live Color™
Technology
Regulation and Standards Compliance
Audio Return Channel
Screen mirroring
LED Motion Mode
3D Glasses
TDG-500P x 4
AC Power Cord
US 2 Pin, Pig-tail
Batteries
R03(Type AAA) x 2
Operating Instructions
US
Quick Setup Guide /
Supplement CUE (GA)
Yes
Remote Control
RM-YD094
Screws
Yes
Table Top Stand
Separate (assembly
required)
Warranty Card
Yes
Optional Accessories
3D Glasses
TDG-500P/TDG-SV5P
Wallmount Bracket
SU-WL500
1. Requires smartphone with Wi-Fi® certified Miracast™ technology. Certain formats are not supported.
2. Requires compatible DIRECTV Genie™ Whole Home HD DVR and TV be connected to the same wireless home network.
3. Requires 3D content, 3D player, HDMI® cable (at least 10.2 Gbps) and 3D active glasses sold separately.
4. Requires Mobile High Definition Link-compatible smartphone to be connected to the TV with a Mobile High Definition Link cable, sold separately.
5. Requires active internet connection and devices connected to the same wireless home network.
