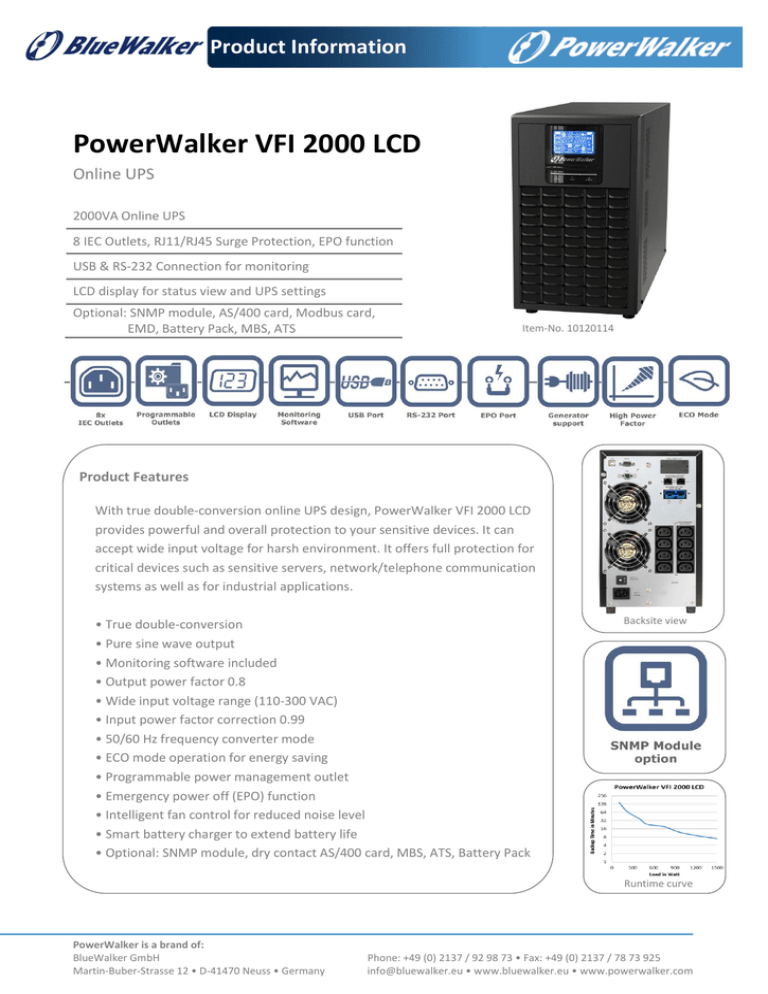

PowerWalker VFI 2000 LCD Product Information Online UPS
Product Information
PowerWalker VFI 2000 LCD
Online UPS
2000VA Online UPS
8 IEC Outlets, RJ11/RJ45 Surge Protection, EPO function
USB & RS-232 Connection for monitoring
LCD display for status view and UPS settings
Optional: SNMP module, AS/400 card, Modbus card,
EMD, Battery Pack, MBS, ATS
Item-No. 10120114
Product Features
With true double-conversion online UPS design, PowerWalker VFI 2000 LCD
provides powerful and overall protection to your sensitive devices. It can
accept wide input voltage for harsh environment. It offers full protection for
critical devices such as sensitive servers, network/telephone communication
systems as well as for industrial applications.
• True double-conversion
• Pure sine wave output
• Monitoring software included
• Output power factor 0.8
• Wide input voltage range (110-300 VAC)
• Input power factor correction 0.99
• 50/60 Hz frequency converter mode
• ECO mode operation for energy saving
• Programmable power management outlet
• Emergency power off (EPO) function
• Intelligent fan control for reduced noise level
• Smart battery charger to extend battery life
• Optional: SNMP module, dry contact AS/400 card, MBS, ATS, Battery Pack
Backsite view
Runtime curve
PowerWalker is a brand of:
BlueWalker GmbH
Martin-Buber-Strasse 12 • D-41470 Neuss • Germany
Phone: +49 (0) 2137 / 92 98 73 • Fax: +49 (0) 2137 / 78 73 925
info@bluewalker.eu • www.bluewalker.eu • www.powerwalker.com
Product Information
Technical Details
Product Features
Capacity
2000VA / 1600W
Input
Voltage Range
Low Line Transfer
Voltage Range
Low Line Comeback
Voltage Range
High Line Transfer
Voltage Range
High Line Comeback
160/110VAC ± 5% @ 100% load
Audio Indicators
Battery Mode
Beep every 4sec
Low Battery
Beep every second
Overload
Beep twice every second
Fault
Continuously sounding
175VAC ±5%
Connections
300VAC ± 5%
Communication
USB & RS-232 port
Outlets
8x IEC (4x programmable)
290VAC ± 5VAC
Surge Protection
RJ11/RJ45 (in/out)
Frequency Range
40Hz ~ 70Hz
Intelligent Slot
Yes
Phase
Single phase with ground
EPO
Yes
Power Factor
≧ 0.99 @ Nominal Voltage
(100% Load)
Software & System Requirements
Output
208/220/230/240 VAC
AC Voltage Regulation
(Batt. Mode)
Frequency Range
(Synchronized Range)
Frequency Range
(Batt. Mode)
Software
Operating System
±3%
Other
47 ~ 53Hz or
57 ~ 63Hz
50Hz ± 0.25Hz or
60Hz ± 0.3Hz
Product Details
Current Crest Ratio
3:1
Harmonic Distortion
≤ 4% THD (Linear Load)
≤ 7% THD (Non-linear Load)
Waveform (Batt. Mode)
Pure Sine Wave
Transfer Time
AC Mode to Batt. Mode
zero
Inverter to Bypass
4ms (Typical)
Efficiency
AC Mode
88 %
Battery Mode
83 %
Battery Mode
Warning @100%-110%
Bypass @>110%
Warning @100%-110%
30s @110%-130%
Shutdown @>130%
12V / 7Ah
Quantity
6x
Recharge Time
4h to 90%
LCD Display
LCD Indicators
UPS status, Load level, Battery level,
Input/Output voltage, AC mode,
battery mode, Bypass mode,
fault conditions
PowerWalker is a brand of:
BlueWalker GmbH
Martin-Buber-Strasse 12 • D-41470 Neuss • Germany
1x USB port or 1x RS-232 port
421mm x 190mm x 318mm
Colour
Black
Weight
26.0kg
Fan Control
Always on, automatic speed control
Noise Level
< 45dB at 1 meter
Model Code
VFI 2000 LCD
Environment
Temperature
0°C – 40°C
Humidity
20 - 90% (non-condensing)
Package Content
Package Content
PowerWalker VFI 2000 LCD,
Input power cord, 2x IEC cable,
USB cable, Software CD, manual
Optional Accessoires
See next page
Logistic Data
Giftbox Language
EN/DE/FR/ES/IT/PT/SE/FI/NO/TR
RU/UA/BY/PL/CZ/HR/HU/BG/KZ/CS
Manual Language
EN/DE/FR/ES/RU/IT/PT
Dimension/Giftbox
560 x 320 x 460 mm
Weight/Giftbox
28.5kg
Pieces/Carton
1
Pieces/Palette
16
Item Number
10120114
EAN
4260074974256
Warranty
24 Months (except battery)
Battery
Type
www.powerwalker.com/viewpower.html
Dimensions
Overload capacity
AC Mode
ViewPower
For details visit:
Phone: +49 (0) 2137 / 92 98 73 • Fax: +49 (0) 2137 / 78 73 925
info@bluewalker.eu • www.bluewalker.eu • www.powerwalker.com
Product Information
Use UPS configurator on www.powerwalker.com for
detailed backup time information.
Available accessories
SNMP manager
Datasheet: Link
Item No.: 10120505
EMD for SNMP Manager
Environmental Monitoring
Device Monitor Temperature
& Humidity
Datasheet: Link
Modbus Card
Datasheet: Link
Item No.: 10120565
AS/400 Card
Datasheet: Link
Item No.: 10120515
Item No.: 10120544
ATS (Automatic Transfer Switch)
Datasheet: Link
Item No.: 10120543
Battery Pack with inside 2x Battery Sets
(Each battery set contain 6x 12V/9Ah
batteries)
Datasheet: Link
Item No.: 10120575
Possible to connect more than 1 Battery
Pack
RS-232 cable
Item Nr.: 91010012
MBS (Maintenance Bypass
Switch)
Datasheet: Link
Item No.: 10120500
Battery Pack with 3A charger
(with inside 3x Battery Sets)
(Each Set contain 6x 12V/9Ah)
Datasheet: Link
Item No.: 10120585
Yuasa 12V/7Ah
battery
Datasheet: Link
Yuasa 12V/9Ah
battery
Datasheet: Link
CSB or Panasonic brand
can also be used
CSB or Panasonic brand
can also be used
Battery Pack with inside 1x Battery Sets
(Battery set contain 6x 12V/9Ah batteries)
Datasheet: Link
Item No.: 10120511
Possible to connect more than 1 Battery Pack
USB cable
Item Nr.: 91010011
Version: EN 26/02/2015
We reserve the right for technical changes and mistakes
PowerWalker is a brand of:
BlueWalker GmbH
Martin-Buber-Strasse 12 • D-41470 Neuss • Germany
Phone: +49 (0) 2137 / 92 98 73 • Fax: +49 (0) 2137 / 78 73 925
info@bluewalker.eu • www.bluewalker.eu • www.powerwalker.com
Product Information
Schuko Input -> IEC C13
Item Nr.: 91010017
UK Input -> IEC C13
Item Nr.: 91010029
Swiss Input -> IEC C13
IEC C13 -> IEC C14
Item Nr.: 91010013
Schuko Input -> IEC C19
Item Nr.: 91010018
UK Input -> IEC C19
Item Nr.: 91010030
Swiss Input -> IEC C19
IEC C19 -> IEC C20
Item Nr.: 91010028
IEC C14 -> Schuko
Converter
Item Nr.: 91015003
Schuko -> UK adaptor
Item Nr.: 91010031
IEC C13 -> IEC C20
Item Nr.: 91010041
IEC C14 -> IEC C19
Item Nr.: 91010040
PowerWalker is a brand of:
BlueWalker GmbH
Martin-Buber-Strasse 12 • D-41470 Neuss • Germany
Phone: +49 (0) 2137 / 92 98 73 • Fax: +49 (0) 2137 / 78 73 925
info@bluewalker.eu • www.bluewalker.eu • www.powerwalker.com
