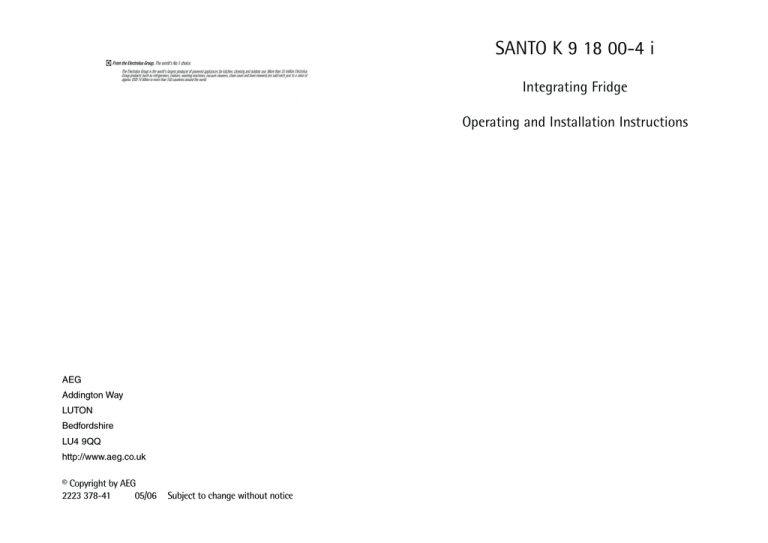

AEG | SANTO K 9 18 00-4 i | Operating instructions | AEG SANTO K 9 18 00-4 i Operating instructions

SANTO K 9 18 00-4 i
Integrating Fridge
Operating and Installation Instructions
AEG
Addington Way
LUTON
Bedfordshire
LU4 9QQ
http://www.aeg.co.uk
© Copyright by AEG
2223 378-41
05/06
Subject to change without notice
Dear customer,
Before placing your new refrigerator/freezer into operation please read these operating instructions carefully. They contain important information for
safe use, for installation and for care of the appliance.
Please keep these operating instructions for future reference. Pass them on
to possible new owners of the appliance.
These operating instructions are for use with several technically comparable
models with varying accessories. Please observe the notes which apply to
your model.
Notes which are important for your safety or for the proper functioning of
the appliance are stressed with a warning triangle and/or with signal words
(Warning!, Caution!, Attention!). Please observe the following carefully.
Supplementary information regarding operation and practical applications
of the appliance appear after this symbol.
Tips and notes concerning economical and environmentally sound use of
the appliance are marked with the flower.
The operating instructions contain instructions for the correction of possible malfunctions by the user in the section "What to do if ...". If these
instructions should not be sufficient, our customer service department is
always available to you.
Housing dimensions
Height
Depth
Width
1780 mm
550 mm
560 mm
Regulations, Standards, Guidelines
This appliance was designed for household use and was manufactured in
accordance with the appropriate standards. The necessary measures in
accordance with appliance safety legislation regulations (GSG), accident
prevention regulations for refrigeration appliances (VBG 20) and the regulations of the German Society of Electrical Engineers (VDE) were observed in
the manufacture of this appliance.
The refrigerant circuit has been checked for leaks.
This appliance is in accordance with the following EU guidelines:
– 73/23/EWG dated 19 February 1973 - low voltage guidelines.
– 89/336/EWG dated 3 May 1989
(including guideline change notice 92/31/EWG) - EMV guideline
To buy accessories, consumables and spare parts at our online shop please
visit: http://www.aeg-electrolux.co.uk
2
19
Contents
Positioning
This appliance should only be installed at a location where the ambient
temperature corresponds to the climate classification indicated on the rating plate, which is located at the left on the inside of the appliance.
The following table shows which ambient temperature is correct for each
climate classification:
SN +10°C to + 32°C
N
+16°C to + 32°C
ST +18°C to + 38°C
T
+18°C to + 43°C
For correct operation this appliance must be located in a dry atmosphere,
away from heat sources, e.g. cookers, radiators, boilers and direct sunlight.
You should also ensure that air can circulate freely around the back and the
top of the cabinet. There should be 100mm (4”) between the top of the cabinet and any overhanging kitchenfurniture. Alternatively allow 50mm (2”)
between the top of the cabinet and any overhanging kitchen furniture and
a gap of 25mm (1”) on either side of the appliance.
Do not obstruct the space underneath. The back of the cabinet may be
placed close to the wall but must not touch it. DO NOT install in places with
restricted ventilation.
Adjust the level of the appliance by screwing out the adjustable foot, or
feet, at the bottom of the cabinet using your fingers.
Your appliance needs air
50 mm
For safety reasons, minimum ventilation must be as shown Fig.
Attention: keep ventilation openings
clear of obstruction;
min.
200 cm
2
min.
200 cm2
D567
Safety . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4
Disposal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5
Appliance Packaging Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5
Disposal of old Appliances . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6
Remove transport safeguard . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6
Shelf holders . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6
Operating and indicator panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7
Starting up and temperature regulation . . . . . . . . . . . . . . . . . . . . . .8
Interior Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9
Storage shelves . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9
Variable Inner Door . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9
Fresh food refrigeration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10
Defrosting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10
Switching off the appliance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10
Cleaning and Care . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Energy Saving Tips . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12
What to do if . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12
Correcting Malfunctions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12
Changing the light bulb . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14
Service and Spare Parts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15
Customer Care Department . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15
Guarantee Conditions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16
Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .17
Positioning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .18
Your appliance needs air . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .18
Rehingeing the door . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .18
Housing dimension . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .19
Regulations, Standards, Guidelines . . . . . . . . . . . . . . . . . . . . . . . . .19
Reversing the door
The side the door opens can be changed from the right side (factory adjustment) to the left side, if the installation site requires.
Warning! When changing the side the door opens, the appliance must not
be connected to the mains. Remove plug from the mains beforehand.
18
3
Safety
The safety aspects of our refrigerators/freezers comply with accepted technical standards and the German Appliance Safety Law. Nevertheless, we
consider it our obligation to make you aware of the following safety information:
Installation
Electrical Connection
Any electrical work required to install this appliance should be carried
out by a qualified electrician or competent person.
WARNING – THIS APPLIANCE MUST BE EARTHED
The manufacturer declines any liability should these safety measures not
be observed.
Before switching on, make sure the electricity supply voltage is the same as
that indicated on the appliance rating plate. The rating plate is inside, on the
left.
The appliance is supplied with a 13 amp plug fitted. In the event of having
to change the fuse in the plug supplied, a 13 amp ASTA approved (BS 1362)
fuse must be used.
Important!
GREEN & YELLOW
Intended use
• The refrigerator is intended for use in the home. It is suitable for the cooling of food. If the appliance is used for purposes other than those intended or used incorrectly, no liability can be accepted by the manufacturer
for any damage that may be caused.
• Alterations or changes to the freezer are not permitted for reasons of
safety.
• If you use the refrigerator in a commercial application or for purposes
other than the cooling of foods, please observe all valid legal regulations
for your application.
13 AMP. FUSE
13 AMP
Prior to initial start–up
• Check the refrigerator for transport damage. Under no circumstance
should a damaged appliance be plugged in! In the event of damage, please
contact the vendor.
Refrigerant
The refrigerant isobutane (R600a) is contained within the refrigerant circuit
of the appliance, a natural gas with a high level of environmental compatibility, which is nevertheless flammable.
• During transportation and installation of the appliance, be certain that
none of the components of the refrigerant circuit become damaged.
• If the refrigerant circuit should become damaged:
– avoid open flames and sources of ignition;
– thoroughly ventilate the room in which the appliance is situated.
Safety of children
• Packaging (e.g. wraps, polystyrene) can be dangerous for children. There is
a risk of suffocation! Keep packaging material away from children!
• Please make old appliances unusable prior to disposal. Pull out the mains
plug, cut off the mains cable, break or remove spring or boltcatches, if fitted. By doing this you ensure that children cannot lock themselves in the
4
The wires in the mains lead are
coloured in accordance with the following code:
Green and Yellow Earth
Blue
Neutral
Brown
Live
As the colours of the wires in the
BROWN
mains lead of this appliance may not
BLUE
CORD CLAMP
correspond with the coloured markD207
ings identifying the terminals in your
plug, proceed as follows:
The wire coloured green and yellow must be connected to the terminal
marked with the letter “E” or by the earth symbol or coloured green and yellow.
The wire coloured blue must be connected to the terminal marked “N” or
coloured black.
The wire coloured brown must be connected to the terminal marked “L” or
coloured red.
Upon completion there must be no cut, or stray strands of wire present and
the cord clamp must be secure over the outer sheath.
Warning! A cut-off plug inserted into a 13 amp socket is a serious safety
(shock) hazard. Ensure that the cut-off plug is disposed of safely.
1.
2.
3.
4.
17
GUARANTEE CONDITIONS
Standard guarantee conditions
We, AEG, undertake that if within 12 months of the date of the purchase this AEG appliance or any part thereof is proved to be defective by reason only of faulty workmanship or
materials, we will, at our discretion repair or replace the same FREE OF CHARGE for labour,
materials or carriage on condition that:
· The appliance has been correctly installed and used only on the electricity or gas supply stated on the rating plate.
· The appliance has been used for normal domestic purposes only, and in accordance with
the manufacturer's operating and maintenance instructions.
· The appliance has not been serviced, maintained, repaired, taken apart or tampered with by
any person not authorised by us.
· All service work under this guarantee must be undertaken by a Service Force Centre. Any
appliance or defective part replaced shall become the Company's property.
· This guarantee is in addition to your statutory and other legal rights.
· Home visits are made between 8.30am and 5.30pm Monday to Friday. Visits may be available outside these hours in which case a premium will be charged.
Exclusions
This guarantee does not cover:
· Damage or calls resulting from transportation, improper use or neglect, the replacement of
any light bulbs or removable parts of glass or plastic.
· Costs incurred for calls to put right an appliance which is improperly installed or calls to
appliances outside the United Kingdom.
· Appliances found to be in use within a commercial environment, plus those which are
subject to rental agreements.
· Products of AEG manufacture which are not marketed by AEG.
European Guarantee
If you should move to another country within Europe then your guarantee moves with you
to your new home subject to the following qualifications:
· The guarantee starts from the date you first purchased your product.
· The guarantee is for the same period and to the same extent for labour and parts as exists
in the new country of use for this brand or range of products.
· This guarantee relates to you and cannot be transferred to another user.
· Your new home is within the European Community (EC) or European Free Trade Area.
· The product is installed and used in accordance with our instructions and is only used domestically, i.e. a normal household.
· The product is installed taking into account regulations in your new country.
Before you move please contact your nearest Customer Care centre, listed below, to give
them details of your new home. They will then ensure that the local Service Organisation is
aware of your move and able to look after you and your appliances.
France
Senlis
+33 (0)3 44 62 29 29
Germany
Nürnberg
+49 (0)800 234 7378
Italy
Pordenone
+39 (0)800 117511
Sweden
Stockholm
+46 (0)8 672 53 60
UK
Luton
+44 (0) 8705 350 350
16
fridge when playing (there is risk of suffocation!)or get themselves into
other dangerous situations.
• Often children cannot recognise the hazards present in household
appliances. It is therefore important that you ensure adequate supervision
and never let children play with the appliance!
Daily Operation
• Containers with flammable gases or liquids can leak at low temperatures.
There is a risk of an explosion! Do not store any containers with flammable materials such as, for example, spray cans, fire extinguisher refill cartridges etc in the refrigerator/freezer.
• Do not operate any electrical appliances in the refrigerator/freezer (e.g.
electric ice cream makers, mixers etc.).
• Before cleaning the appliance, always switch off the appliance and unplug
it, or pull the house fuse or switch off the circuit breaker.
• When unplugging always pull the plug from the mains socket, do not pull
on the cable.
In case of malfunction
• If the a malfunction occurs on the appliance, please look first in the "What
to do if ..." section of these instructions. If the information given there
does not help, please do not perform any further repairs yourself.
• Refrigerators/freezers may only be repaired by qualified service engineers.
Improper repairs can give rise to significant hazards. If your appliance
needs repairing, please contact your specialist dealer or our Customer Service.
Disposal
Appliance Packaging Information
All materials are environmentally sound! They can be dumped or burned at
an incinerating plant without danger!
About the materials: The plastics can be recycled and are identified as follows:
>PE< for polyethylene, e.g. the outer covering and the bags in the interior.
>PS< for polystyrene foam, e.g. the pads, which are all free of chlorofluorocarbon.
The carton parts are made from recycled paper and should be disposed of
at a waste-paper recycling collection location.
5
Disposal of old Appliances
For environmental reasons, refrigeration appliances must be disposed of
properly. This applies to your old appliance, and - at the end of its service
life - for your new appliance as well.
Warning! Before disposing of old appliances make them inoperable. Remove plug from mains, sever the power cable, remove or destroy any snap or
latch closures. This eliminates the danger that playing children lock themselves into the appliance (danger of suffocation!) or place themselves into
other life-endangering situations.
Disposal:
• The appliance may not be disposed of with domestic waste or bulky refuse.
• The refrigerant circuit, especially the heat exchanger at the back of the
appliance, may not be damaged.
• The symbol
on the product or on its packaging indicates that this
product may not be treated as household waste. Instead it shall be handed over to the applicable collection point for the recycling of electrical
and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information
about recycling of this product, please contact your local city office, your
household waste disposal service or the shop where you purchased the
product.
Remove transport safeguard
The appliance and the interior fittings are protected for transport.
• Pull off the adhesive tape on the left and right side of the door.
• Remove all adhesive tape and packing pieces from the interior of the
appliance.
Shelf holders
Your appliance is equipped with shelf
retainers that make it possible to
secure the shelves during transportation. To remove them proceed as
follows:
Move the shelf retainers in the
direction of the arrow, raise the
shelf from the rear and push it
forward until it is freed and
remove the retainers.
6
A
Service and Spare Parts
In the event of your appliance requiring service, or if you wish to purchase spare parts, please
contact your local Service Force Centre by telephoning:
0870 5 929929
Your telephone call will be automatically routed to the Service Force Centre covering your post
code area. For address of your local Service Force Centre and further information about Service
Force, please visit the website at www.serviceforce.co.uk.
Before calling out an engineer, please ensure you have read details under the heading “Something Not Working”. When you contact the Service Force Centre you will need to give following
details:
1. Your name, address and post code
2. Your telephone number
3. Clear and concise details of the fault
4. The model and serial number of the apliance. (found on the rating plate).
5. The purchase date
Please note that a valid purchase receipt or guarantee documentation is required for
in-guarantee service calls.
For Customer Services in the Republic of Ireland please contact us at the address
below:
AEG
Electrolux Group (Irl) Ltd
Long Mile Road
Dublin 12 - Republic of Ireland
Tel: +353 (0) 1 4090751
Email: service.eid@electrolux.ie
Customer Care Department
For general enquiries concerning your AEG appliance or for futher information on AEG
products, please contact our Customer Care Department by letter or telephone at the
address below or visit our website at www.aeg.co.uk.
Customer Care Department
Major Appliances
AEG Domestic Appliances
B
Addington Way
Luton
C
Bedfordshire
LU4 9 QQ
Tel: 08705 350 350*
* calls to this number may be recorded for training purposes
15
Changing the light bulb
1.
2.
3.
4.
5.
Warning! There is a risk of electric shocks! Before changing the light bulb,
switch off the appliance and unplug it, or pull the fuse or the circuit breaker.
Replace the lamp with one of the same power (the maximum power is
shown on the light diffuser)
Unplug the mains plug.
To change the light bulb press on the
rear hook and at the same time slide
the cover in the direction indicated
by the arrow.
Change the defective light bulb.
Refit the light bulb cover.
Put the refrigerator back into operation.
Operating and indicator panel
°C
°C
ON/OFF
A
A.
B
C
D
E
F
G
B
C
D
E
F
G
Mains pilot indicator (green)
Fridge button ON/OFF
Temperature setting button (for warmer temperatures)
Temperature display
Temperature setting button (for colder temperatures)
COOLMATIC function "on" indicator (yellow)
COOLTMATIC button
Temperature setting buttons
•
•
The temperature is adjusted using the “C“ (+) and “E“ (-) buttons. These buttons are connected to the temperature display.
The temperature display is switched over from the display of the ACTUAL
temperature (Temperature display is illuminated) to the display of the DESIRED temperature (Temperature display flashes) by pressing one of the two
buttons, “C“ (+) or “E“ (-).
Each time one of the two buttons is pressed again the DESIRED temperature is adjusted by 1 °C. The DESIRED temperature must be reached within 24
hours.
If neither button is pressed, the temperature display automatically switches
back after a short period (approx. 5 sec.) to the display of the ACTUAL temperature.
DESIRED temperature means:
The temperature that has been selected for inside the fridge. The DESIRED
temperature is indicated by flashing numbers.
ACTUAL temperature means:
The temperature display indicates the current temperature inside the fridge.
The ACTUAL temperature is indicated with illuminated numbers.
14
7
Temperature display
•
•
The temperature display can indicate several pieces of information.
During normal operation, the temperature currently present in the fridge
(ACTUAL temperature) is displayed.
When the temperature is being adjusted a flashing display indicates the
fridge temperature currently set (DESIRED temperature).
Malfunction
Temperature is not properly
adjusted.
3.
4.
5.
Plug the mains plug into the mains socket.
If the display is OFF press ON/OFF button. The green mains pilot indicator
illuminates. The appliances start.
Press either the “C“ (+) or “E“ (-) button. The temperature display switches
over and the DESIRED temperature currently set flashes on the temperature display.
Set the required temperature by pressing the “C“ (+) or “E“ (-) buttons (see
section "Temperature setting buttons"). The temperature display will immediately show the changed setting. Each time the button is pressed the temperature is adjusted by 1 °C.
From a food safety point of view +5 °C should be considered sufficiently
cold for storing food in the fridge.
Once the required temperature has been set, after a short period (approx. 5
sec.) the temperature display will change and again indicate the current
ACTUAL temperature inside the fridge. The display will change from flashing
to continuous illumination.
Information! When the setting is changed, the compressor does not start
immediately if automatic defrosting is currently taking place. As the storage temperature within the fridge is reached quickly you can store food
immediately after switching on.
COOLMATIC
1.
2.
8
The COOLMATIC function is suited for quick cooling of large quantities of
goods in the refrigerator.
The COOLMATIC function is switched on by pressing the COOLMATIC button. The yellow light illuminates.
The COOLMATIC function now provides for intensive cooling. The COOLMATIC function is ended automatically after a period of 6 hours.
The COOLMATIC function can be ended manually at any time by pressing
the COOLMATIC button again. The yellow light goes out.
Remedy
Please look in the "Initial Start
Up" section.
Door was open for an exten- Open the door only as long as
ded period.
necessary.
The food is too warm.
Starting Up - Setting the Temperature
1.
2.
Possible Cause
Interior lighting does not
work.
A large quantity of warm
food was placed in the
appliance within the last 24
hours.
Turn the temperature regulator to a colder setting temporarily.
The appliance is near a heat
source.
Please look in the "Installation
location" section.
Light bulb is defective.
Please look in the "Changing
the Light Bulb" section.
Carefully warm the leaking
sections of the door seal with
Door seal is not air tight (pos- a hair dryer (not hotter than
Heavy build up of frost, possisibly after changing over the approx. 50 °C). At the same
bly also on the door seal.
time shape the warmed door
hinges).
seal by hand such that it sits
correctly.
Appliance is not level.
Readjust the feet.
The appliance is touching the
Move the appliance slightly.
wall or other objects.
Unusual noises.
A component, e.g. a pipe, on
If necessary, carefully bend
the rear of the appliance is
the component out of the
touching another part of the
way.
appliance or the wall.
The compressor does not start
This is normal, no error has
immediately after changing
occurred.
the temperature setting.
The compressor starts after a
period of time.
Water on the floor or on stoWater drain hole is blocked.
rage shelves.
See the "Cleaning and Care"
section.
13
Holiday function
Energy Saving Tips
• Do not install the appliance near cookers, radiators or other sources of
warmth. High ambient temperatures cause longer, more frequent operation of the compressor.
• Ensure sufficient air circulation and exhaust at the appliance base and at
the back wall of the appliance. Never cover air vent openings.
• Do not place warm foods into the appliance. Allow warm foods to cool
first.
• Only leave door open as long as necessary.
• Do not set temperature any colder than necessary.
• Keep the heat emitting condenser, the metall grille on the rear wall of
your appliance, always clean.
What to do if ...
Correcting Malfunctions
A malfunction may be caused by only a minor fault that you can rectify
yourself using the following instructions. Do not perform any other work on
the appliance if the following information does not provide assistance in
your specific case.
Warning! Repairs to refrigerators/freezers may only be performed by
qualified service engineers. Improper repairs can give rise to significant
hazards for the user. If your appliance needs repairing, please contact your
specialist dealer or our Customer Service.
Malfunction
Possible Cause
Remedy
Appliance is not switched on Switch on the appliance.
Mains plug is not plugged in
Insert mains plug.
or is loose.
Appliance does not work.
Appliance cools too much.
12
Check fuse, replace if necesFuse has blown or is defective.
sary.
Socket is defective.
Mains malfunctions are to be
corrected by an electrician.
Temperature is set too cold.
Turn the temperature regulator to a warmer setting temporarily..
1.
2.
The holiday function sets the temperature at +15°C. This function allows
you to keep the refrigerator shut and empty during a long holiday period
(e.g. the summer holidays) without the formation of a bad smell.
To turn on the holiday function, press button (C).
Press several time button (C) until the letter “H” (Holiday) appears on the
temperature indicator. Now the refrigerator is in the “holiday” function in
the energy-saving mode.
The fridge compartment must be empty with holiday function on.
Interior Accessories
Storage Shelves
The glass shelf above the fruit and
vegetable compartment should
always remain in position, to ensure
fruit and vegetables stay fresh longer.
The remaining storage shelves can be
adjusted to various heights:
Pull the storage shelf forward until it
D338
can be tipped up or down and removed.
To insert at a different height use the same procedure in reverse.
Adjustment for tall goods:
Remove the front half of the two-part vario glass storage shelf and insert it
at a different level. Space is thus gained for storage of tall goods on the
underlying storage shelf.
Variable Inner Door
The door compartments can be pulled up and removed, and inserted at
other positions as needed.
9
Fresh food refrigeration
Cleaning and Care
To obtain the best performance:
• do not store warm food or evaporating liquide in the refrigeator
• do cover or wrap the food, particularly if it has a strong flavour.
• Position food so that air can circuiate freely round it.
Useful hints:
Meat (all types): wrap in polythene bags and place on the glass shelf above
the vegetable drawer(s). For safety, store in this way only one or two days
at the most.
Cooked foods, cold dishes, etc: these should be covered and may be placed
on any shelf.
Fruit and vegetables: these should be thoroughly cleaned and placed in the
special drawer(s) provided.
Butter and cheese: these should be placed in special airtight containers or
wapped in aluminium foil or polythene bags to exclude as much air as possible.
Milk bootles: these should have a cap and should be stored in the bottle
rack on the door.
Bananas, potatoes, onions and garlic, if not packed, must not be kept in
the refrigerator.
Defrosting
1.
Refrigerator
2.
Frost is automatically eliminated from the evaporator of the refrigerator
compartment every time the motor compressor stops, during normal use.
The defrost water drains out through a trough into a special container at
the back of the appliance, over the motor compressor, where it evaporates.
3.
4.
Switching off the appliance
1.
2.
3.
4.
10
To switch off, hold down the ON/OFF button for approx. 3 seconds. This will
result in a countdown from "3" to "1" taking place in the temperature
display. On reaching "1" the fridge will switch off. The temperature display
will go off.
If the appliance is not going to be used for an extended period:
Remove all refrigerated and deep-frozen packages as well as ice trays.
Switch off the appliance, holding down the ON/OFF button until the display
goes off (see above).
Remove the mains plug or switch off or turn out the circuit breaker or fuse.
Leave the door open to avoid the build up of odours.
5.
6.
For hygienic reasons the appliance interior, including interior accessories,
should be cleaned regularly.
Warning!
• The appliance should not be connected to the mains during cleaning.
Danger of electrical shock! Before cleaning switch the appliance off and
remove the plug from the mains, or switch off or turn out the circuit
breaker or fuse.
• Never clean the appliance with a steam cleaner. Moisture could accumulate in electrical components, danger of electrical shock! Hot vapours can
lead to the damage of plastic parts.
• The appliance must be dry before it is placed back into service.
Attention!
• Ethereal oils and organic solvents can attack plastic parts, e.g.
– lemon juice or the juice from orange peels;
– butyric acid;
– cleansers which contain acetic acid.
Do not allow such substances to come into contact with appliance parts.
• Do not use any abrasive cleansers.
Remove frozen food and the food from the refrigerator. Wrap frozen food
in several layers of newspaper. Store it in a cool place, well covered.
Switch the appliance off and remove the plug from the mains, or switch off
or turn out the circuit breaker or fuse.
Clean the appliance and the interior accessories with a cloth and lukewarm
water. Commercially available dish washing detergents may also be used.
After cleaning wipe with fresh water and rub dry.
Accumulation of dust at the condenser increases energy consumption.
For this reason carefully clean the
condenser at the back of the
appliance once a year with a soft
brush or a vacuum cleaner.
Check the water drain hole on the
rear wall of the fridge. Clear a
blocked drain hole with the aid of
the green peg in the pack of accessories included with the appliance.
After everything is dry place applianD037
ce back into service.
11
Fresh food refrigeration
Cleaning and Care
To obtain the best performance:
• do not store warm food or evaporating liquide in the refrigeator
• do cover or wrap the food, particularly if it has a strong flavour.
• Position food so that air can circuiate freely round it.
Useful hints:
Meat (all types): wrap in polythene bags and place on the glass shelf above
the vegetable drawer(s). For safety, store in this way only one or two days
at the most.
Cooked foods, cold dishes, etc: these should be covered and may be placed
on any shelf.
Fruit and vegetables: these should be thoroughly cleaned and placed in the
special drawer(s) provided.
Butter and cheese: these should be placed in special airtight containers or
wapped in aluminium foil or polythene bags to exclude as much air as possible.
Milk bootles: these should have a cap and should be stored in the bottle
rack on the door.
Bananas, potatoes, onions and garlic, if not packed, must not be kept in
the refrigerator.
Defrosting
1.
Refrigerator
2.
Frost is automatically eliminated from the evaporator of the refrigerator
compartment every time the motor compressor stops, during normal use.
The defrost water drains out through a trough into a special container at
the back of the appliance, over the motor compressor, where it evaporates.
3.
4.
Switching off the appliance
1.
2.
3.
4.
10
To switch off, hold down the ON/OFF button for approx. 3 seconds. This will
result in a countdown from "3" to "1" taking place in the temperature
display. On reaching "1" the fridge will switch off. The temperature display
will go off.
If the appliance is not going to be used for an extended period:
Remove all refrigerated and deep-frozen packages as well as ice trays.
Switch off the appliance, holding down the ON/OFF button until the display
goes off (see above).
Remove the mains plug or switch off or turn out the circuit breaker or fuse.
Leave the door open to avoid the build up of odours.
5.
6.
For hygienic reasons the appliance interior, including interior accessories,
should be cleaned regularly.
Warning!
• The appliance should not be connected to the mains during cleaning.
Danger of electrical shock! Before cleaning switch the appliance off and
remove the plug from the mains, or switch off or turn out the circuit
breaker or fuse.
• Never clean the appliance with a steam cleaner. Moisture could accumulate in electrical components, danger of electrical shock! Hot vapours can
lead to the damage of plastic parts.
• The appliance must be dry before it is placed back into service.
Attention!
• Ethereal oils and organic solvents can attack plastic parts, e.g.
– lemon juice or the juice from orange peels;
– butyric acid;
– cleansers which contain acetic acid.
Do not allow such substances to come into contact with appliance parts.
• Do not use any abrasive cleansers.
Remove frozen food and the food from the refrigerator. Wrap frozen food
in several layers of newspaper. Store it in a cool place, well covered.
Switch the appliance off and remove the plug from the mains, or switch off
or turn out the circuit breaker or fuse.
Clean the appliance and the interior accessories with a cloth and lukewarm
water. Commercially available dish washing detergents may also be used.
After cleaning wipe with fresh water and rub dry.
Accumulation of dust at the condenser increases energy consumption.
For this reason carefully clean the
condenser at the back of the
appliance once a year with a soft
brush or a vacuum cleaner.
Check the water drain hole on the
rear wall of the fridge. Clear a
blocked drain hole with the aid of
the green peg in the pack of accessories included with the appliance.
After everything is dry place applianD037
ce back into service.
11
Holiday function
Energy Saving Tips
• Do not install the appliance near cookers, radiators or other sources of
warmth. High ambient temperatures cause longer, more frequent operation of the compressor.
• Ensure sufficient air circulation and exhaust at the appliance base and at
the back wall of the appliance. Never cover air vent openings.
• Do not place warm foods into the appliance. Allow warm foods to cool
first.
• Only leave door open as long as necessary.
• Do not set temperature any colder than necessary.
• Keep the heat emitting condenser, the metall grille on the rear wall of
your appliance, always clean.
What to do if ...
Correcting Malfunctions
A malfunction may be caused by only a minor fault that you can rectify
yourself using the following instructions. Do not perform any other work on
the appliance if the following information does not provide assistance in
your specific case.
Warning! Repairs to refrigerators/freezers may only be performed by
qualified service engineers. Improper repairs can give rise to significant
hazards for the user. If your appliance needs repairing, please contact your
specialist dealer or our Customer Service.
Malfunction
Possible Cause
Remedy
Appliance is not switched on Switch on the appliance.
Mains plug is not plugged in
Insert mains plug.
or is loose.
Appliance does not work.
Appliance cools too much.
12
Check fuse, replace if necesFuse has blown or is defective.
sary.
Socket is defective.
Mains malfunctions are to be
corrected by an electrician.
Temperature is set too cold.
Turn the temperature regulator to a warmer setting temporarily..
1.
2.
The holiday function sets the temperature at +15°C. This function allows
you to keep the refrigerator shut and empty during a long holiday period
(e.g. the summer holidays) without the formation of a bad smell.
To turn on the holiday function, press button (C).
Press several time button (C) until the letter “H” (Holiday) appears on the
temperature indicator. Now the refrigerator is in the “holiday” function in
the energy-saving mode.
The fridge compartment must be empty with holiday function on.
Interior Accessories
Storage Shelves
The glass shelf above the fruit and
vegetable compartment should
always remain in position, to ensure
fruit and vegetables stay fresh longer.
The remaining storage shelves can be
adjusted to various heights:
Pull the storage shelf forward until it
D338
can be tipped up or down and removed.
To insert at a different height use the same procedure in reverse.
Adjustment for tall goods:
Remove the front half of the two-part vario glass storage shelf and insert it
at a different level. Space is thus gained for storage of tall goods on the
underlying storage shelf.
Variable Inner Door
The door compartments can be pulled up and removed, and inserted at
other positions as needed.
9
Temperature display
•
•
The temperature display can indicate several pieces of information.
During normal operation, the temperature currently present in the fridge
(ACTUAL temperature) is displayed.
When the temperature is being adjusted a flashing display indicates the
fridge temperature currently set (DESIRED temperature).
Malfunction
Temperature is not properly
adjusted.
3.
4.
5.
Plug the mains plug into the mains socket.
If the display is OFF press ON/OFF button. The green mains pilot indicator
illuminates. The appliances start.
Press either the “C“ (+) or “E“ (-) button. The temperature display switches
over and the DESIRED temperature currently set flashes on the temperature display.
Set the required temperature by pressing the “C“ (+) or “E“ (-) buttons (see
section "Temperature setting buttons"). The temperature display will immediately show the changed setting. Each time the button is pressed the temperature is adjusted by 1 °C.
From a food safety point of view +5 °C should be considered sufficiently
cold for storing food in the fridge.
Once the required temperature has been set, after a short period (approx. 5
sec.) the temperature display will change and again indicate the current
ACTUAL temperature inside the fridge. The display will change from flashing
to continuous illumination.
Information! When the setting is changed, the compressor does not start
immediately if automatic defrosting is currently taking place. As the storage temperature within the fridge is reached quickly you can store food
immediately after switching on.
COOLMATIC
1.
2.
8
The COOLMATIC function is suited for quick cooling of large quantities of
goods in the refrigerator.
The COOLMATIC function is switched on by pressing the COOLMATIC button. The yellow light illuminates.
The COOLMATIC function now provides for intensive cooling. The COOLMATIC function is ended automatically after a period of 6 hours.
The COOLMATIC function can be ended manually at any time by pressing
the COOLMATIC button again. The yellow light goes out.
Remedy
Please look in the "Initial Start
Up" section.
Door was open for an exten- Open the door only as long as
ded period.
necessary.
The food is too warm.
Starting Up - Setting the Temperature
1.
2.
Possible Cause
Interior lighting does not
work.
A large quantity of warm
food was placed in the
appliance within the last 24
hours.
Turn the temperature regulator to a colder setting temporarily.
The appliance is near a heat
source.
Please look in the "Installation
location" section.
Light bulb is defective.
Please look in the "Changing
the Light Bulb" section.
Carefully warm the leaking
sections of the door seal with
Door seal is not air tight (pos- a hair dryer (not hotter than
Heavy build up of frost, possisibly after changing over the approx. 50 °C). At the same
bly also on the door seal.
time shape the warmed door
hinges).
seal by hand such that it sits
correctly.
Appliance is not level.
Readjust the feet.
The appliance is touching the
Move the appliance slightly.
wall or other objects.
Unusual noises.
A component, e.g. a pipe, on
If necessary, carefully bend
the rear of the appliance is
the component out of the
touching another part of the
way.
appliance or the wall.
The compressor does not start
This is normal, no error has
immediately after changing
occurred.
the temperature setting.
The compressor starts after a
period of time.
Water on the floor or on stoWater drain hole is blocked.
rage shelves.
See the "Cleaning and Care"
section.
13
Changing the light bulb
1.
2.
3.
4.
5.
Warning! There is a risk of electric shocks! Before changing the light bulb,
switch off the appliance and unplug it, or pull the fuse or the circuit breaker.
Replace the lamp with one of the same power (the maximum power is
shown on the light diffuser)
Unplug the mains plug.
To change the light bulb press on the
rear hook and at the same time slide
the cover in the direction indicated
by the arrow.
Change the defective light bulb.
Refit the light bulb cover.
Put the refrigerator back into operation.
Operating and indicator panel
°C
°C
ON/OFF
A
A.
B
C
D
E
F
G
B
C
D
E
F
G
Mains pilot indicator (green)
Fridge button ON/OFF
Temperature setting button (for warmer temperatures)
Temperature display
Temperature setting button (for colder temperatures)
COOLMATIC function "on" indicator (yellow)
COOLTMATIC button
Temperature setting buttons
•
•
The temperature is adjusted using the “C“ (+) and “E“ (-) buttons. These buttons are connected to the temperature display.
The temperature display is switched over from the display of the ACTUAL
temperature (Temperature display is illuminated) to the display of the DESIRED temperature (Temperature display flashes) by pressing one of the two
buttons, “C“ (+) or “E“ (-).
Each time one of the two buttons is pressed again the DESIRED temperature is adjusted by 1 °C. The DESIRED temperature must be reached within 24
hours.
If neither button is pressed, the temperature display automatically switches
back after a short period (approx. 5 sec.) to the display of the ACTUAL temperature.
DESIRED temperature means:
The temperature that has been selected for inside the fridge. The DESIRED
temperature is indicated by flashing numbers.
ACTUAL temperature means:
The temperature display indicates the current temperature inside the fridge.
The ACTUAL temperature is indicated with illuminated numbers.
14
7
Disposal of old Appliances
For environmental reasons, refrigeration appliances must be disposed of
properly. This applies to your old appliance, and - at the end of its service
life - for your new appliance as well.
Warning! Before disposing of old appliances make them inoperable. Remove plug from mains, sever the power cable, remove or destroy any snap or
latch closures. This eliminates the danger that playing children lock themselves into the appliance (danger of suffocation!) or place themselves into
other life-endangering situations.
Disposal:
• The appliance may not be disposed of with domestic waste or bulky refuse.
• The refrigerant circuit, especially the heat exchanger at the back of the
appliance, may not be damaged.
• The symbol
on the product or on its packaging indicates that this
product may not be treated as household waste. Instead it shall be handed over to the applicable collection point for the recycling of electrical
and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information
about recycling of this product, please contact your local city office, your
household waste disposal service or the shop where you purchased the
product.
Remove transport safeguard
The appliance and the interior fittings are protected for transport.
• Pull off the adhesive tape on the left and right side of the door.
• Remove all adhesive tape and packing pieces from the interior of the
appliance.
Shelf holders
Your appliance is equipped with shelf
retainers that make it possible to
secure the shelves during transportation. To remove them proceed as
follows:
Move the shelf retainers in the
direction of the arrow, raise the
shelf from the rear and push it
forward until it is freed and
remove the retainers.
6
A
Service and Spare Parts
In the event of your appliance requiring service, or if you wish to purchase spare parts, please
contact your local Service Force Centre by telephoning:
0870 5 929929
Your telephone call will be automatically routed to the Service Force Centre covering your post
code area. For address of your local Service Force Centre and further information about Service
Force, please visit the website at www.serviceforce.co.uk.
Before calling out an engineer, please ensure you have read details under the heading “Something Not Working”. When you contact the Service Force Centre you will need to give following
details:
1. Your name, address and post code
2. Your telephone number
3. Clear and concise details of the fault
4. The model and serial number of the apliance. (found on the rating plate).
5. The purchase date
Please note that a valid purchase receipt or guarantee documentation is required for
in-guarantee service calls.
For Customer Services in the Republic of Ireland please contact us at the address
below:
AEG
Electrolux Group (Irl) Ltd
Long Mile Road
Dublin 12 - Republic of Ireland
Tel: +353 (0) 1 4090751
Email: service.eid@electrolux.ie
Customer Care Department
For general enquiries concerning your AEG appliance or for futher information on AEG
products, please contact our Customer Care Department by letter or telephone at the
address below or visit our website at www.aeg.co.uk.
Customer Care Department
Major Appliances
AEG Domestic Appliances
B
Addington Way
Luton
C
Bedfordshire
LU4 9 QQ
Tel: 08705 350 350*
* calls to this number may be recorded for training purposes
15
GUARANTEE CONDITIONS
Standard guarantee conditions
We, AEG, undertake that if within 12 months of the date of the purchase this AEG appliance or any part thereof is proved to be defective by reason only of faulty workmanship or
materials, we will, at our discretion repair or replace the same FREE OF CHARGE for labour,
materials or carriage on condition that:
· The appliance has been correctly installed and used only on the electricity or gas supply stated on the rating plate.
· The appliance has been used for normal domestic purposes only, and in accordance with
the manufacturer's operating and maintenance instructions.
· The appliance has not been serviced, maintained, repaired, taken apart or tampered with by
any person not authorised by us.
· All service work under this guarantee must be undertaken by a Service Force Centre. Any
appliance or defective part replaced shall become the Company's property.
· This guarantee is in addition to your statutory and other legal rights.
· Home visits are made between 8.30am and 5.30pm Monday to Friday. Visits may be available outside these hours in which case a premium will be charged.
Exclusions
This guarantee does not cover:
· Damage or calls resulting from transportation, improper use or neglect, the replacement of
any light bulbs or removable parts of glass or plastic.
· Costs incurred for calls to put right an appliance which is improperly installed or calls to
appliances outside the United Kingdom.
· Appliances found to be in use within a commercial environment, plus those which are
subject to rental agreements.
· Products of AEG manufacture which are not marketed by AEG.
European Guarantee
If you should move to another country within Europe then your guarantee moves with you
to your new home subject to the following qualifications:
· The guarantee starts from the date you first purchased your product.
· The guarantee is for the same period and to the same extent for labour and parts as exists
in the new country of use for this brand or range of products.
· This guarantee relates to you and cannot be transferred to another user.
· Your new home is within the European Community (EC) or European Free Trade Area.
· The product is installed and used in accordance with our instructions and is only used domestically, i.e. a normal household.
· The product is installed taking into account regulations in your new country.
Before you move please contact your nearest Customer Care centre, listed below, to give
them details of your new home. They will then ensure that the local Service Organisation is
aware of your move and able to look after you and your appliances.
France
Senlis
+33 (0)3 44 62 29 29
Germany
Nürnberg
+49 (0)800 234 7378
Italy
Pordenone
+39 (0)800 117511
Sweden
Stockholm
+46 (0)8 672 53 60
UK
Luton
+44 (0) 8705 350 350
16
fridge when playing (there is risk of suffocation!)or get themselves into
other dangerous situations.
• Often children cannot recognise the hazards present in household
appliances. It is therefore important that you ensure adequate supervision
and never let children play with the appliance!
Daily Operation
• Containers with flammable gases or liquids can leak at low temperatures.
There is a risk of an explosion! Do not store any containers with flammable materials such as, for example, spray cans, fire extinguisher refill cartridges etc in the refrigerator/freezer.
• Do not operate any electrical appliances in the refrigerator/freezer (e.g.
electric ice cream makers, mixers etc.).
• Before cleaning the appliance, always switch off the appliance and unplug
it, or pull the house fuse or switch off the circuit breaker.
• When unplugging always pull the plug from the mains socket, do not pull
on the cable.
In case of malfunction
• If the a malfunction occurs on the appliance, please look first in the "What
to do if ..." section of these instructions. If the information given there
does not help, please do not perform any further repairs yourself.
• Refrigerators/freezers may only be repaired by qualified service engineers.
Improper repairs can give rise to significant hazards. If your appliance
needs repairing, please contact your specialist dealer or our Customer Service.
Disposal
Appliance Packaging Information
All materials are environmentally sound! They can be dumped or burned at
an incinerating plant without danger!
About the materials: The plastics can be recycled and are identified as follows:
>PE< for polyethylene, e.g. the outer covering and the bags in the interior.
>PS< for polystyrene foam, e.g. the pads, which are all free of chlorofluorocarbon.
The carton parts are made from recycled paper and should be disposed of
at a waste-paper recycling collection location.
5
Safety
The safety aspects of our refrigerators/freezers comply with accepted technical standards and the German Appliance Safety Law. Nevertheless, we
consider it our obligation to make you aware of the following safety information:
Installation
Electrical Connection
Any electrical work required to install this appliance should be carried
out by a qualified electrician or competent person.
WARNING – THIS APPLIANCE MUST BE EARTHED
The manufacturer declines any liability should these safety measures not
be observed.
Before switching on, make sure the electricity supply voltage is the same as
that indicated on the appliance rating plate. The rating plate is inside, on the
left.
The appliance is supplied with a 13 amp plug fitted. In the event of having
to change the fuse in the plug supplied, a 13 amp ASTA approved (BS 1362)
fuse must be used.
Important!
GREEN & YELLOW
Intended use
• The refrigerator is intended for use in the home. It is suitable for the cooling of food. If the appliance is used for purposes other than those intended or used incorrectly, no liability can be accepted by the manufacturer
for any damage that may be caused.
• Alterations or changes to the freezer are not permitted for reasons of
safety.
• If you use the refrigerator in a commercial application or for purposes
other than the cooling of foods, please observe all valid legal regulations
for your application.
13 AMP. FUSE
13 AMP
Prior to initial start–up
• Check the refrigerator for transport damage. Under no circumstance
should a damaged appliance be plugged in! In the event of damage, please
contact the vendor.
Refrigerant
The refrigerant isobutane (R600a) is contained within the refrigerant circuit
of the appliance, a natural gas with a high level of environmental compatibility, which is nevertheless flammable.
• During transportation and installation of the appliance, be certain that
none of the components of the refrigerant circuit become damaged.
• If the refrigerant circuit should become damaged:
– avoid open flames and sources of ignition;
– thoroughly ventilate the room in which the appliance is situated.
Safety of children
• Packaging (e.g. wraps, polystyrene) can be dangerous for children. There is
a risk of suffocation! Keep packaging material away from children!
• Please make old appliances unusable prior to disposal. Pull out the mains
plug, cut off the mains cable, break or remove spring or boltcatches, if fitted. By doing this you ensure that children cannot lock themselves in the
4
The wires in the mains lead are
coloured in accordance with the following code:
Green and Yellow Earth
Blue
Neutral
Brown
Live
As the colours of the wires in the
BROWN
mains lead of this appliance may not
BLUE
CORD CLAMP
correspond with the coloured markD207
ings identifying the terminals in your
plug, proceed as follows:
The wire coloured green and yellow must be connected to the terminal
marked with the letter “E” or by the earth symbol or coloured green and yellow.
The wire coloured blue must be connected to the terminal marked “N” or
coloured black.
The wire coloured brown must be connected to the terminal marked “L” or
coloured red.
Upon completion there must be no cut, or stray strands of wire present and
the cord clamp must be secure over the outer sheath.
Warning! A cut-off plug inserted into a 13 amp socket is a serious safety
(shock) hazard. Ensure that the cut-off plug is disposed of safely.
1.
2.
3.
4.
17
Contents
Positioning
This appliance should only be installed at a location where the ambient
temperature corresponds to the climate classification indicated on the rating plate, which is located at the left on the inside of the appliance.
The following table shows which ambient temperature is correct for each
climate classification:
SN +10°C to + 32°C
N
+16°C to + 32°C
ST +18°C to + 38°C
T
+18°C to + 43°C
For correct operation this appliance must be located in a dry atmosphere,
away from heat sources, e.g. cookers, radiators, boilers and direct sunlight.
You should also ensure that air can circulate freely around the back and the
top of the cabinet. There should be 100mm (4”) between the top of the cabinet and any overhanging kitchenfurniture. Alternatively allow 50mm (2”)
between the top of the cabinet and any overhanging kitchen furniture and
a gap of 25mm (1”) on either side of the appliance.
Do not obstruct the space underneath. The back of the cabinet may be
placed close to the wall but must not touch it. DO NOT install in places with
restricted ventilation.
Adjust the level of the appliance by screwing out the adjustable foot, or
feet, at the bottom of the cabinet using your fingers.
Your appliance needs air
50 mm
For safety reasons, minimum ventilation must be as shown Fig.
Attention: keep ventilation openings
clear of obstruction;
min.
200 cm
2
min.
200 cm2
D567
Safety . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4
Disposal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5
Appliance Packaging Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5
Disposal of old Appliances . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6
Remove transport safeguard . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6
Shelf holders . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6
Operating and indicator panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7
Starting up and temperature regulation . . . . . . . . . . . . . . . . . . . . . .8
Interior Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9
Storage shelves . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9
Variable Inner Door . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9
Fresh food refrigeration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10
Defrosting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10
Switching off the appliance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10
Cleaning and Care . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Energy Saving Tips . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12
What to do if . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12
Correcting Malfunctions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12
Changing the light bulb . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14
Service and Spare Parts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15
Customer Care Department . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15
Guarantee Conditions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16
Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .17
Positioning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .18
Your appliance needs air . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .18
Rehingeing the door . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .18
Housing dimension . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .19
Regulations, Standards, Guidelines . . . . . . . . . . . . . . . . . . . . . . . . .19
Reversing the door
The side the door opens can be changed from the right side (factory adjustment) to the left side, if the installation site requires.
Warning! When changing the side the door opens, the appliance must not
be connected to the mains. Remove plug from the mains beforehand.
18
3
Dear customer,
Before placing your new refrigerator/freezer into operation please read these operating instructions carefully. They contain important information for
safe use, for installation and for care of the appliance.
Please keep these operating instructions for future reference. Pass them on
to possible new owners of the appliance.
These operating instructions are for use with several technically comparable
models with varying accessories. Please observe the notes which apply to
your model.
Notes which are important for your safety or for the proper functioning of
the appliance are stressed with a warning triangle and/or with signal words
(Warning!, Caution!, Attention!). Please observe the following carefully.
Supplementary information regarding operation and practical applications
of the appliance appear after this symbol.
Tips and notes concerning economical and environmentally sound use of
the appliance are marked with the flower.
The operating instructions contain instructions for the correction of possible malfunctions by the user in the section "What to do if ...". If these
instructions should not be sufficient, our customer service department is
always available to you.
Housing dimensions
Height
Depth
Width
1780 mm
550 mm
560 mm
Regulations, Standards, Guidelines
This appliance was designed for household use and was manufactured in
accordance with the appropriate standards. The necessary measures in
accordance with appliance safety legislation regulations (GSG), accident
prevention regulations for refrigeration appliances (VBG 20) and the regulations of the German Society of Electrical Engineers (VDE) were observed in
the manufacture of this appliance.
The refrigerant circuit has been checked for leaks.
This appliance is in accordance with the following EU guidelines:
– 73/23/EWG dated 19 February 1973 - low voltage guidelines.
– 89/336/EWG dated 3 May 1989
(including guideline change notice 92/31/EWG) - EMV guideline
To buy accessories, consumables and spare parts at our online shop please
visit: http://www.aeg-electrolux.co.uk
2
19
SANTO K 9 18 00-4 i
Integrating Fridge
Operating and Installation Instructions
AEG
Addington Way
LUTON
Bedfordshire
LU4 9QQ
http://www.aeg.co.uk
© Copyright by AEG
2223 378-41
05/06
Subject to change without notice
Download PDF

advertising
