FEATURES TYPICAL SPECIFICATIONS

FEATURES TYPICAL SPECIFICATIONS
Project/Location:
Contractor:
Date:

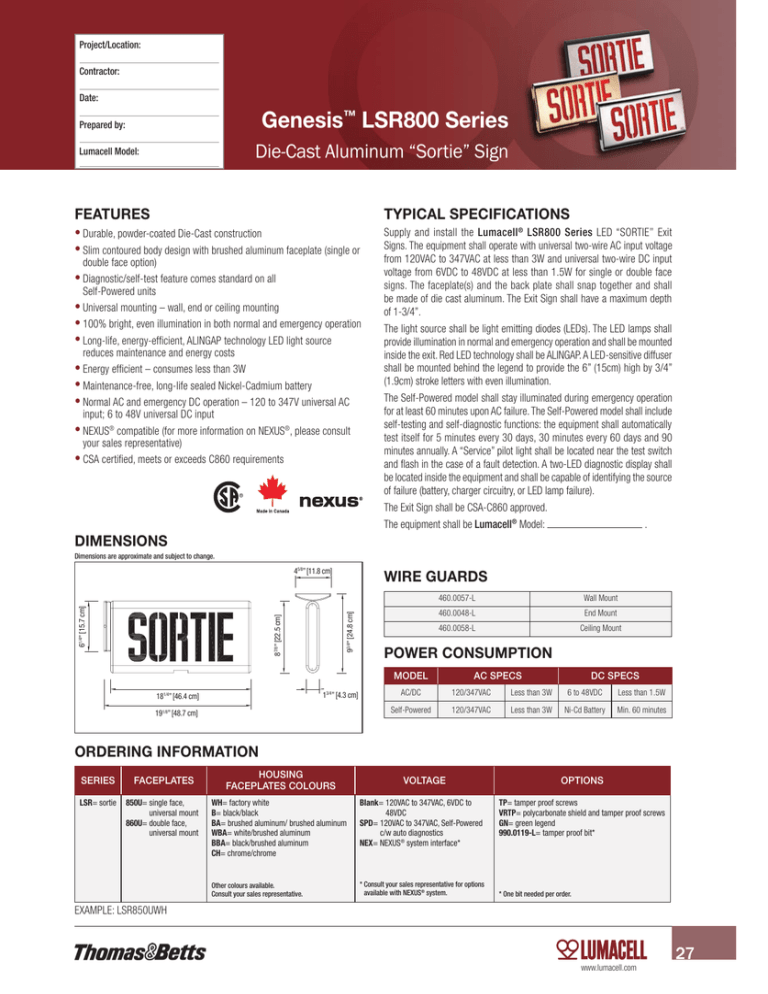

Genesis™ LSR800 Series
Prepared by:
Die-Cast Aluminum “Sortie” Sign
Lumacell Model:
FEATURES
TYPICAL SPECIFICATIONS
•Durable, powder-coated Die-Cast construction
•Slim contoured body design with brushed aluminum faceplate (single or
Supply and install the Lumacell ® LSR800 Series LED “SORTIE’’ Exit
Signs. The equipment shall operate with universal two-wire AC input voltage
from 120VAC to 347VAC at less than 3W and universal two-wire DC input
voltage from 6VDC to 48VDC at less than 1.5W for single or double face
signs. The faceplate(s) and the back plate shall snap together and shall
be made of die cast aluminum. The Exit Sign shall have a maximum depth
of 1-3/4’’.
The light source shall be light emitting diodes (LEDs). The LED lamps shall
provide illumination in normal and emergency operation and shall be mounted
inside the exit. Red LED technology shall be ALINGAP. A LED-sensitive diffuser
shall be mounted behind the legend to provide the 6” (15cm) high by 3/4”
(1.9cm) stroke letters with even illumination.
The Self-Powered model shall stay illuminated during emergency operation
for at least 60 minutes upon AC failure. The Self-Powered model shall include
self-testing and self-diagnostic functions: the equipment shall automatically
test itself for 5 minutes every 30 days, 30 minutes every 60 days and 90
minutes annually. A “Service” pilot light shall be located near the test switch
and flash in the case of a fault detection. A two-LED diagnostic display shall
be located inside the equipment and shall be capable of identifying the source
of failure (battery, charger circuitry, or LED lamp failure).
The Exit Sign shall be CSA-C860 approved.
.
The equipment shall be Lumacell® Model:
double face option)
•Diagnostic/self-test feature comes standard on all
Self-Powered units
•Universal mounting – wall, end or ceiling mounting
•100% bright, even illumination in both normal and emergency operation
•Long-life, energy-efficient, ALINGAP technology LED light source
reduces maintenance and energy costs
•Energy efficient – consumes less than 3W
•Maintenance-free, long-life sealed Nickel-Cadmium battery
•Normal AC and emergency DC operation – 120 to 347V universal AC
input; 6 to 48V universal DC input
•NEXUS® compatible (for more information on NEXUS®, please consult
your sales representative)
•CSA certified, meets or exceeds C860 requirements
DIMENSIONS
Dimensions are approximate and subject to change.
45/8” [11.8 cm]
WIRE GUARDS
93/4” [24.8 cm]
87/8” [22.5 cm]
61/4” [15.7 cm]
460.0057-L
End Mount
460.0058-L
Ceiling Mount
POWER CONSUMPTION
MODEL
1 ” [4.3 cm]
3/4
18 ” [46.4 cm]
1/4
191/8” [48.7 cm]
Wall Mount
460.0048-L
AC SPECS
DC SPECS
AC/DC
120/347VAC
Less than 3W
6 to 48VDC
Less than 1.5W
Self-Powered
120/347VAC
Less than 3W
Ni-Cd Battery
Min. 60 minutes
ORDERING INFORMATION
SERIES
FACEPLATES
LSR= sortie
850U= single face,
universal mount
860U= double face,
universal mount
HOUSING
FACEPLATES COLOURS
VOLTAGE
WH= factory white
B= black/black
BA= brushed aluminum/ brushed aluminum
WBA= white/brushed aluminum
BBA= black/brushed aluminum
CH= chrome/chrome
Blank= 120VAC to 347VAC, 6VDC to
48VDC
SPD= 120VAC to 347VAC, Self-Powered
c/w auto diagnostics
NEX= NEXUS® system interface*
Other colours available.
Consult your sales representative.
*Consult your sales representative for options
available with NEXUS® system.
OPTIONS
TP= tamper proof screws
VRTP= polycarbonate shield and tamper proof screws
GN= green legend
990.0119-L= tamper proof bit*
* One bit needed per order.
EXAMPLE: LSR850UWH
www.lumacell.com
27
