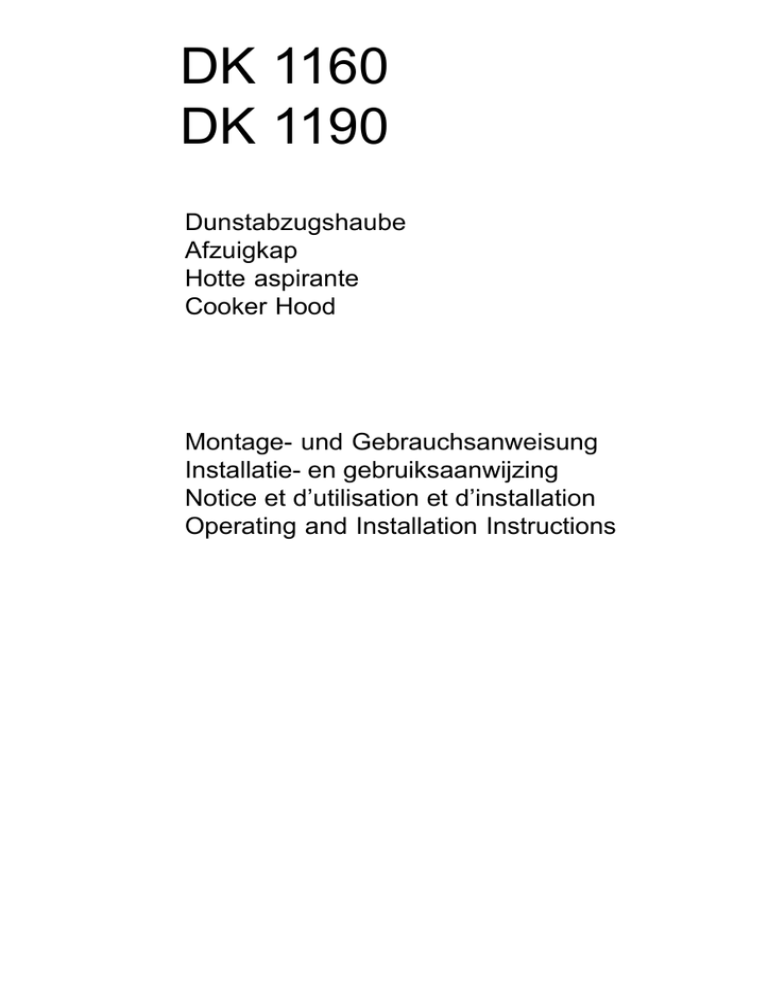

DK 1160
DK 1190
Dunstabzugshaube
Afzuigkap
Hotte aspirante
Cooker Hood
Montage- und Gebrauchsanweisung
Installatie- en gebruiksaanwijzing
Notice et d’utilisation et d’installation
Operating and Installation Instructions
Contents
64
Safety warnings
for user
for kitchen unit installer
64
64
64
Introduction
Extractor version
Filter Version
66
66
67
Hood Operation
68
Maintenance and care
Metal grease filter
Open the metal grease filter
Carbon filter
Changing the light bulb
70
70
70
71
72
Cleaning
73
Special accessories
73
Technical assistance service
73
Guarantee conditions
74
Technic Details
Mounting accessories included
76
76
Electrical connection
Safety warnings for the electrician
Wall unit mounting
77
77
78
Safety warnings
for user
•
•
•
•
•
•
•
•
Always cover lighted elements, to prevent excess heat from
damaging the appliance. In the case of oil, gas and coal fired
cookers it is essential to avoid open flames.
Also, when frying, keep the deep frying pan on the cooker top/
cooker under careful control.
The hot oil in the frying pan might ignite due to overheating.
The risk of self-ignition increases when the oil being used is dirty.
It is extremely important to note that overheating can cause a fire.
Never carry out any flambé cooking under the hood.
Always disconnect the unit from the power supply before
carrying out any work on the hood, including replacing the
light bulb (take the cartridge fuse out of the fuse holder or switch
off the automatic circuit breaker).
It is very important to clean the hood and replace the filter at
the recommended intervals. Failure to do so could cause
grease deposits to build up, causing a fire hazard.
for kitchen unit installer
•
•
•
•
•
When used as an extractor unit, the hood must be fitted with a
120mm diameter hose.
When installing the hood, make sure you respect the following
minimum distance from the top edge of the cooking hob/ring
surfaces:
electric cookers
600 mm
gas cookers
650 mm
coal and oil cookers
700 mm min.
The national decree on fuel-burning systems specifies a maximum
depression of 0.04 bar in such rooms.
The air outlet must not be connected to chimney flues or combustion gas ducts. The air outlet must under no circumstances be
connected to ventilation ducts for rooms in which fuel-burning
appliances are installed.
It is advisable to apply for authorization from the relevant controlling
authority when connecting the outlet to an unused chimney flue or
combustion gas duct.
The air outlet installation must comply with the regulations laid
down by the relevant authorities.
65
•
•
•
•
•
•
•
•
66
When the unit is used in its extractor version, a sufficiently large
ventilation hole must be provided, with dimensions that are
approximately the same as the outlet hole.
National and regional building regulations impose a number of
restrictions on using hoods and fuel-burning appliances connected
to a chimney, such as coal or oil room-heaters and gas fires, in the
same room.
Hoods can only be used safely with appliances connected to a
chimney if the room and/or flat (air/environment combination) is
ventilated from outside using a suitable ventilation hole approximately 500-600 cm2 large to avoid the possibility of a depression
being created during operation of the hood.
If you have any doubts, contact the relevant controlling authority or
building inspector’s office.
Since the rule for rooms with fuel burning appliances is “outlet hole
of the same size as the ventilation hole”, a hole of 500-600 cm2,
which is to say a larger hole, could reduce the performance of the
extractor hood.
If the hood is used in its filtering function, it will operate simply and
safely in the above conditions without the need for any of the
aforementioned measures.
When the hood is used in its extractor function, the following rules
must be followed to obtain optimal operation:
— short and straight outlet hose
— keep bends in outlet hose to a minimum
— never install the hoses with an acute angle, they must
always follow a gentle curve only
— keep the hose as large as possible (preferably the same
diameter as the outlet hole).
Failure to observe these basic rules will drastically reduce the
performance and increase the noise levels of the extractor hood.
Introduction
Extractor version
•
•
•
•
The hood is supplied as an extractor unit and can also be used with
a filtering function by fitting one activated carbon filter (special
accessory).
You will need original AEG carbon filter for this function (see
Special Accessories).
The air is discharged to the outside through a pipe, which must be
fitted to connection flange D. Fig. 1.
Fix the deflector with two screws Ø3,5x6,5. Fig. 2.
D
Fig. 1
67
Filter Version
•
•
•
The air is filtered through an activated charcoal filter and returned
to the kitchen through the top grill of the outlet pipe.
You will need an original AEG KF20 activated carbon filter for the
filtering function. (See Special Accessories).
Fix the deflector using 2 screws Ø 3,5x6.5 mm. Fig. 2.
Fig. 2
68
Hood Operation
•
•
•
The hood is fitted with one motor having several speed. Turn the
hood on a few minutes before you start cooking then you will get an
underpressure in the kitchen. It should be left on after cooking for
about 15 minutes or until all odours have disappeared. The control
switches are located on the unit’s front panel:
the light switch switches the hood lamp on and off;
the motor switch switches the cooking smoke and vapour extractor motor on and off, enabling you to select one of the three
different speeds.
O I
Light switch
ON/OFF
O 1 2 3
Motor power
adjustable to 3
positions
69
Maintenance and care
•
The hood must always be disconnected from the mains power
supply before beginning any maintenance work.
Metal grease filter
•
The purpose of the grease filters is to aspirate grease particles
which form during cooking and it must always be used, either in
the external evacuation or internal recycling function.
Attention: the metal grease filters must be removed and washed,
either by hand or in the dishwasher, every four weeks.
Open the metal grease filter
•
Push it towards the back of the unit and then pull it down and
out.Fig. 4.
Hand washing
Soak grease filters for about
one hour in hot water with a
grease-loosening cleaner,
then rinse off thoroughly with
hot water. Repeat the
process if necessary. Refit
the grease filters when it are
dry.
Fig. 4
Dishwasher machine
Place grease filters in dish washer. Select most powerful washing
programme and highest temperature, at least 65°C. Repeat the
process. Refit the grease filters when it are dry.
When washing the metal grease filter in the dishwasher a slight
discoloration of the filter can occur, this does not have any impact
on its performance.
•
70
Clean the inner housing using a hot detergent solution only (never
use caustic detergents, abrasive powders or brushes).
Carbon filter
•
•
•
•
•
•
•
•
The carbon filter should only be used if you want to use the hood in
its filtering function.
To do this you will need an original AEG activated carbon filter (see
special accessories).
This filter cannot be cleaned or reused.
As a general rule, the activated carbon filter should be
changed once every four months.
Mounting — Fig. 5
Fit one carbon filter on the left and one on the right so to cover the
plastic grids that protect the fan wheel, then turn clockwise the
central handle of the carbon filter.
To dismount proceed in reverse order.
Always specify the hood model code number and serial number
when ordering replacement filters. This information is shown on the
registration plate located on the inside of the unit.
The activated carbon filters can be ordered from the AEG technical
assistance service.
Fig. 5
71
Warning
•
•
Failure to observe the instructions on cleaning the unit and
changing the filters will cause a fire hazard. You are therefore
strongly recommended to follow these instructions.
The manufacturer declines all responsibility for any damage to the
motor or any fire damage linked to inappropriate maintenance or
failure to observe the above safety recommendations.
Changing the light bulb
•
•
•
•
•
Disconnect the cooker hood from the main supply.
Remove the lamp cover. Fig. 6.
Replace the old bulb with a new one of the same type.
Remount the lamp cover.
If the light does not come on, make sure the bulb has been
inserted in correctly before contacting the technical assistance
service.
Fig. 6
72
Cleaning
•
•
•
•
Warning: always disconnect the hood from the mains power supply
before cleaning it.
Never insert pointed objects in the motor’s protective grid.
Wash the outside surfaces using a delicate detergent solution.
Never use caustic detergents or abrasive brushes or powders.
Only ever clean the switch panel and filter grille using a damp cloth
and delicate detergents.
It is extremely important to clean the unit and change the filters at
the recommended intervals. Failure to do so will cause grease
deposits to build up that could constitute a fire hazard.
Special accessories
Carbon filter KF825
E-Nr. 942 118 627
Technical assistance service
You are welcome to telephone our technical assistance service (see list
of technical assistance centres) whenever you need information or in
the unlikely event of a fault.
When calling, please be ready to specify:
1. The model code number
2. The serial number (E-Nr.)
3. The manufacturing number (F-Nr.)
This information is shown on the registration plate inside the unit
behind the grease filter.
We reserve the right to change specifications and colours as a result of
our policy of continuing technological development.
73
Guarantee conditions
Guarantee Conditions
AEG offer the following guarantee to the first purchaser of this appliance.
1. The guarantee is valid for 12 months commencing when the appliance
is handed over to the first retail purchaser, which must be verified by
purchase invoice or similar documentation.The guarantee does not
cover commercial use.
2. The guarantee covers all parts or components which fail due to faulty
workmanship or faulty materials. The guarantee does not cover
appliances where defects or poor performance are due to misuse,
accidental damage, neglect, faulty installation, unauthorised
modification or attempted repair, commercial use or failure to observe
requirements and recommendations set out in the instruction
book.This guarantee does not cover such parts as light bulbs,
removable glass-ware or plastic.
3. Should guarantee repairs be necessary the purchaser must inform the
nearest customer service office (manufacturer`s service or authorised
agent). AEG reserves the right to stipulate the place of the repair
(i.e.the customer`s home, place of installation or AEG workshop).
4. The guarantee or free replacement includes both labour and materials.
5. Repairs carried out under guarantee do not extend the guarantee
period for the appliance. Parts removed during guarantee repairs
become the property of AEG.
6. The purchaser`s statutory rights are not affected by this guarantee.
European Guarantee
If you should move to another country within Europe then your guarantee
moves with you to your new home subject to the following qualifications:
- The guarantee starts from the date you first purchased your product.
- The guarantee is for the same period and to the same extent for labour
and parts as exist in the new country of use for this brand or range of
products.
- This guarantee relates to you an cannot be transferred to another user.
- Your new home is within the European Community (EC) or European
Free Trade Area.
- The product is installed and used in accordance with our instructions
and is only used domestically, i.e. a normal household.
- The product is installed taking into account regulations in your new
country.
74
Before you move please contact your nearest Customer Care Centre, listed
below, to give them details of your new home.They will then ensure that the
local Service Organisation is aware of your move and able to look after you
and your appliances.
France
Senlis
+33 (0) 44 62 29 29
Germany
Nürnberg
+49 (0) 911 323 2600
Italy
Pordenone
+39 (0) 1678 47053
Sweden
Stockholm
+46 (0) 8 738 7910
UK
Slough
+44 (0) 1753 219899
75
Technic Details
Models:
DK 1160
DK1190
Dimensions (in cm):
Height
Width
Depht
87,5-111,6
59,8
51,5
87,5-111,6
89,8
51,5
Maximum absorbed power:
250 W
250 W
Motor absorption:
Lighting:
170 W
2 x 40 W
170 W
2 x 40 W
Lenght of the cable:
135 cm
135 cm
Mounting accessories included
1 deflector
1 chimney support
2 grids
2 hooks
4 wood-screws 5 x 45 mm
4 wall plugs Ø 8 mm
2 metal screws 3,5 x 6,5
2 metal screws 3 x 9
76
Electrical connection
Safety warnings for the electrician
Before connecting the appliance to the power supply, check that the
voltage indicated on the rating plate corresponds to the mains power
supply available. Appliances fitted with a plug can be connected to any
standard power socket within easy access.
Should it be necessary to provide a fixed connection, the hood must only
be installed by an electrician authorised by the local electricity board.
When installing, an omnipolar disconnector with a distance of at least 3
mm between contacts must be provided.
This disconnector may be for example a switch, fuses (plug fuses must
be removed from the fuse box, fault current switches and remote switches
with a distance of over 3 mm between contacts.
The manufacture declines all responsibility for malfunctions resulting from
failure to comply with the above instructions.
If the power socket is applied directly above the hood this gives two
advantages:
1. the socket is not visible.
2. the appliance can be disconnected at need merely be removing the
plug.
Electrical connection
220-240 V – by means of fixed power cable with plug.
(Fixed connection of the appliance must only be carried out by an authorised electrician.)
77
Wall unit mounting - Fig. 7
•
•
•
•
•
•
•
•
•
78
Put the template onto the wall (1) and drill two Ø12mm holes (2).
Fit two hooks (3) on the drilled holes.
Hang the hood on the hooks and adjust the position of the hood
using the two screws on the bottom of the hooks (5).
Remove the metal filters (4) and mark two points (6). Remove the
hood and drill two Ø8mm holes on the marked points.
Fit two Ø8mm wall dowels (7), Hang again the hood and fix the
hood definitively with two screws 5X45 (8).
Fix the chimney support (10) with two screws 5 x 45 mm (9) and
two wall dowels (11) on the wall close to the ceiling.
For exhausting version: Fit the connection ring (S) on the top of
the hood with two screws Ø 3,5 x 6,5 mm (12S) then fit an
axhausting pipe long enough to reach the outside (13S).
For recycling version: Fix definitively the deflector (13K) on the
top of the hood with two screws Ø 3,5 x 6,5 mm (12K).
Prepare the electric connection (14) (see relative chapter).
Fit the chimney (15) and fix it on the chimney support with two
screws 3,0 x 9 mm (16).
The lower part of the chimney must be slided down and inserted on
the housing on the upper part of the hood (17).
Fit the two grids (18) on both sides of the chimney.
Ø 120 mm
Fig. 7
79
AEG Hausgeräte GmbH
Postfach 1036
D-90327 Nürnberg
http://www.aeg.hausgeraete.de
© Copyright by AEG
LI1USB Ed.03/02
Download PDF

advertising
