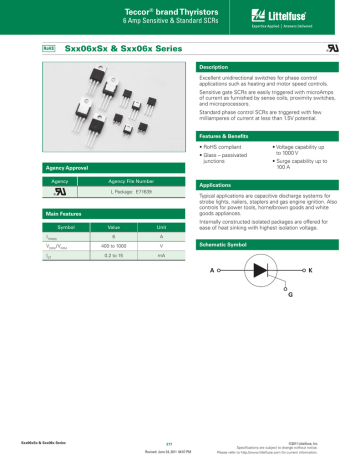

Teccor® brand Thyristors
6 Amp Sensitive & Standard SCRs
Sxx06xSx & Sxx06x Series
®
Description
Excellent unidirectional switches for phase control
applications such as heating and motor speed controls.
Sensitive gate SCRs are easily triggered with microAmps
of current as furnished by sense coils, proximity switches,
and microprocessors.
Standard phase control SCRs are triggered with few
milliamperes of current at less than 1.5V potential.
Features & Benefits
• RoHS compliant
• Glass – passivated
junctions
Agency Approval
Agency
Agency File Number
Typical applications are capacitive discharge systems for
strobe lights, nailers, staplers and gas engine ignition. Also
controls for power tools, home/brown goods and white
goods appliances.
Main Features
Symbol
IT(RMS)
VDRM /VRRM
IGT
• Surge capability up to
100 A
Applications
L Package: E71639
®
• Voltage capability up
to 1000 V
Value
Unit
6
A
400 to 1000
V
0.2 to 15
mA
Internally constructed isolated packages are offered for
ease of heat sinking with highest isolation voltage.
Schematic Symbol
A
K
G
Sxx06xSx & Sxx06x Series
217
Revised: June 24, 2011 04:57 PM
©2011 Littelfuse, Inc
Speciications are subject to change without notice.
Please refer to http://www.littelfuse.com for current information.
Teccor® brand Thyristors
6 Amp Sensitive & Standard SCRs
Absolute Maximum Ratings — Sensitive SCRs
Symbol
Parameter
IT(RMS)
IT(AV)
ITSM
Test Conditions
Sxx06LSy
TC = 80°C
RMS on-state current
Sxx06RSy
Sxx06DSy
Sxx06VSy
TC = 95°C
Sxx06LSy
TC = 80°C
Average on-state current
Sxx06RSy
Sxx06DSy
Sxx06VSy
TC = 95°C
Unit
6
A
3.8
A
single half cycle; f = 50Hz;
TJ (initial) = 25°C
83
single half cycle; f = 60Hz;
TJ (initial) = 25°C
100
I2t Value for fusing
tp = 8.3 ms
41
A2s
Peak non-repetitive surge current
I 2t
Value
A
di/dt
Critical rate of rise of on-state current
f = 60Hz; TJ = 110°C
100
A/μs
IGTM
Peak gate current
TJ = 110°C
1
A
PG(AV)
Average gate power dissipation
TJ = 110°C
0.1
W
Storage temperature range
-40 to 150
°C
Operating junction temperature range
-40 to 110
°C
Value
Unit
6
A
3.8
A
Tstg
TJ
Note: xx = voltage, y = sensitivity
Absolute Maximum Ratings — Standard SCRs
Symbol
IT(RMS)
IT(AV)
Parameter
RMS on-state current
Average on-state current
Sxx06L
TC = 100°C
Sxx06R
Sxx06D
Sxx06V
TC = 110°C
Sxx06L
TC = 100°C
Sxx06R
Sxx06D
Sxx06V
TC = 110°C
single half cycle; f = 50Hz;
TJ (initial) = 25°C
83
single half cycle; f = 60Hz;
TJ (initial) = 25°C
100
I2t value for fusing
tp = 8.3 ms
41
A 2s
di/dt
Critical rate-of-rise of on-state current
f = 60Hz; TJ =125°C
100
A/μs
IGTM
Peak gate current
TJ = 125°C
2
A
PG(AV)
Average gate power dissipation
TJ = 125°C
0.5
W
Storage temperature range
-40 to 150
°C
Operating junction temperature range
-40 to 125
°C
ITSM
I2t
Tstg
TJ
Peak non-repetitive surge current
A
Note: xx = voltage
Sxx06xSx & Sxx06x Series
218
Revised: June 24, 2011 04:57 PM
©2011 Littelfuse, Inc
Speciications are subject to change without notice.
Please refer to http://www.littelfuse.com for current information.
Teccor® brand Thyristors
6 Amp Sensitive & Standard SCRs
Electrical Characteristics (TJ = 25°C, unless otherwise specified) — Sensitive SCRs
Symbol
IGT
Value
Test Conditions
Sxx06xS2
Sxx06xS3
200
500
MAX.
VD = 6V RL = 100 Ω
Unit
μA
MAX.
0.8
V
dv/dt
VD = VDRM; RGK = 1kΩ; TJ = 110°C
TYP.
8
V/μs
VGD
VD = VDRM RL = 3.3 kΩ TJ = 110°C
MIN.
0.2
V
VGT
VGRM
IGR = 10μA
MIN.
IH
IT = 20mA (initial)
MAX.
6
6
8
V
tq
IT = 2A; tp= 50µs; dv/dt=5V/µs; di/dt=-30A/µs
MAX.
50
45
μs
tgt
IG = 2 x IGT PW = 15µs IT = 12A
TYP.
4
5
μs
mA
Note: xx = voltage, x = package
Electrical Characteristics (TJ = 25°C, unless otherwise specified) — Standard SCRs
Symbol
IGT
VGT
Test Conditions
MAX.
VD = 12V RL = 60 Ω
MAX.
VD = VDRM; gate open; TJ = 100°C
350
600V
300
1000V
VD = VDRM; gate open; TJ = 125°C
1.5
400V
800V
dv/dt
Value
Sxx06x
15
Unit
mA
V
250
MIN.
100
400V
250
600V
225
800V
V/μs
200
VGD
VD = VDRM RL = 3.3 kΩ TJ = 125°C
MIN.
0.2
V
IH
IT = 200mA (initial)
MAX.
30
mA
tq
IT = 2A; tp= 50µs; dv/dt=5V/µs; di/dt=-30A/µs
MAX.
35
μs
tgt
IG = 2 x IGT PW = 15µs IT = 12A
TYP.
2
μs
Note: xx = voltage, x = package
Sxx06xSx & Sxx06x Series
219
Revised: June 24, 2011 04:57 PM
©2011 Littelfuse, Inc
Speciications are subject to change without notice.
Please refer to http://www.littelfuse.com for current information.
Teccor® brand Thyristors
6 Amp Sensitive & Standard SCRs
Static Characteristics
Symbol
Test Conditions
IT = 12A; tp = 380 µs
VTM
Sxx06xyy
IDRM / IRRM
Unit
1.6
V
TJ = 25°C
400 – 600V
5
TJ = 110°C
400 – 600V
250
400 – 800V
10
TJ = 25°C
VDRM = VRRM
MAX.
Value
Sxx06x
TJ = 100°C
TJ = 125°C
MAX.
1000V
μA
20
400 – 800V
200
1000V
3000
400 – 800V
500
Note: xx = voltage, x = package, yy = sensitivity
Thermal Resistances
Symbol
Rθ(J-C)
Rθ(J-A)
Parameter
Value
Sxx06RSy
2.6
Sxx06LSy
4.3
Sxx06VSy
2.4
Sxx06DSy
1.8
Sxx06R
2.5
Sxx06L
4.0
Sxx06V
2.3
Sxx06D
1.7
Sxx06RSy
40
Sxx06LSy
65
Sxx06VSy
85
Sxx06R
40
Sxx06L
50
Sxx06V
70
Junction to case (AC)
Unit
°C/W
Junction to ambient
°C/W
Note: xx = voltage, y = sensitivity
Sxx06xSx & Sxx06x Series
220
Revised: June 24, 2011 04:57 PM
©2011 Littelfuse, Inc
Speciications are subject to change without notice.
Please refer to http://www.littelfuse.com for current information.
Teccor® brand Thyristors
6 Amp Sensitive & Standard SCRs
Figure 1: Normalized DC Gate Trigger Current
vs. Junction Temperature (Sensitive SCR)
Figure 2: Normalized DC Gate Trigger Current
vs. Junction Temperature (Standard SCR)
4.0
Ratio of IGT / IGT (TJ = 25ºC)
Ratio of IGT /IGT (TJ=25ºC)
4.0
3.0
2.0
3.0
2.0
1.0
1.0
0.0
-40
-15
35
10
85
60
110
125
110
125
0.0
-15
-4
10
85
60
35
110
Junction Temperature (TJ) - (ºC)
Junction Temperature (TJ) - (ºC)
Figure 3: Normalized DC Gate Trigger Voltage
vs. Junction Temperature
Figure 4: Normalized DC Holding Current
vs. Junction Temperature
2.0
Ratio of IH / IH (TJ = 25ºC)
Ratio of VGT / VGT (TJ = 25ºC)
2.0
1.5
1.0
0.5
1.5
1.0
0.5
0.0
-40
-15
60
35
10
110
85
125
0.0
-40
-15
Junction Temperature (TJ) - (ºC)
35
10
85
60
Junction Temperature (TJ) - (ºC)
Figure 5: On-State Current vs. On-State Voltage
(Typical)
Figure 6: Power Dissipation (Typical) vs. RMS On-State
Current
6
30
TJ= 25°C
5
Average On-State Power
Dissipation [PD(AV)] - (Watts)
Instantaneous On-State
Current (iT) -Amps
25
20
15
10
5
4
3
2
1
0
0.7
0.8
0.9
1.0
1.1
1.2
1.3
1.4
1.6
1.5
0
0
Instantaneous On-State Voltage (vT) - Volts
Sxx06xSx & Sxx06x Series
1
2
3
4
5
RMS On-State Current [IT(RMS)] - (Amps)
221
Revised: June 24, 2011 04:57 PM
©2011 Littelfuse, Inc
Speciications are subject to change without notice.
Please refer to http://www.littelfuse.com for current information.
6
Teccor® brand Thyristors
6 Amp Sensitive & Standard SCRs
Figure 7: Maximum Allowable Case Temperature
vs. RMS On-State Current
Figure 8: Maximum Allowable Case Temperature
vs. Average On-State Current
130
130
Sxx06R
Sxx06D
Sxx06V
120
115
Sxx06RSy
Sxx06DSy
110
Sxx06L
105
100
95
Sxx06LSy
90
CURRENT WAVEFORM: Sinsuoidal
LOAD: Resistive or Inductive
CONDUCTION ANGLE: 180°
FREE AIR RATING
85
Sxx06R
Sxx06D
Sxx06V
125
Maximum Allowable Case
Temperature (TC) - ºC
Maximum Allowable Case
Temperature (TC) - º C
125
120
Sxx06RSy
Sxx06DSy
Sxx06VSy
115
110
Sxx06L
105
100
95
90
CURRENT WAVEFORM: Sinsuoidal
LOAD: Resistive or Inductive
CONDUCTION ANGLE: 180°
FREE AIR RATING
85
80
80
0
1
2
3
4
5
6
7
0
1
RMS On-State Current [IT(RMS)] - Amps
2
3
4
Average On-State Current [IT(AVE)] - Amps
Figure 9: Maximum Allowable Ambient Temperature
vs. RMS On-State Current
Figure 10: Maximum Allowable Ambient Temperature
vs. Average On-State Current
120
120
100
Maximum Allowable Ambient
Temperature (TA) - ºC
CURRENT WAVEFORM: Sinusoidal
LOAD: Resistive or Inductive
CONDUCTION ANGLE: 180°
FREE AIR RATING
Sxx06R
Maximum Allowable
Temperature (TA) - ºC
Sx06LSy
Sxx06L
80
Sxx06LSy
Sxx06RSy
Sxx06V
60
40
Sxx06VSy
20
CURRENT WAVEFORM: Sinusoidal
LOAD: Resistive or Inductive
CONDUCTION ANGLE: 180°
FREE AIR RATING
Sxx06R
100
80
Sxx06L
60
Sxx06RSy
Sxx06LSy
Sxx06V
40
Sxx06VSy
20
0
0
0.0
0.5
1.0
1.5
2.0
0.0
2.5
0.5
RMS On-State Current [IT(RMS)] - Amps
1.0
1.5
Average On-State Current [IT(AVE)] - Amps
Note: xx = voltage, y = sensitivity
Figure 12: Peak Capacitor Discharge Current Derating
Figure 11: Peak Capacitor Discharge Current
1.2
1000
Normalized Peak Current
Peak Discharge
Current (ITM) - Amps
1.0
100
ITRM
0.8
0.6
0.4
Sensitive SCR
Standard SCR
0.2
tW
10
0.5
5.0
25.0
50.0
Pulse Current Duration (tw) - ms
Sxx06xSx & Sxx06x Series
0.0
0
25
50
75
100
125
Case Temperature (TC) - ºC
222
Revised: June 24, 2011 04:57 PM
©2011 Littelfuse, Inc
Speciications are subject to change without notice.
Please refer to http://www.littelfuse.com for current information.
150
Teccor® brand Thyristors
6 Amp Sensitive & Standard SCRs
Figure 13: Surge Peak On-State Current vs. Number of Cycles
SUPPLY FREQUENCY: 60 Hz Sinusoidal
LOAD: Resistive
RMS On-State Current: [IT(RMS)]: Maximum Rated
Value at Speciied Case Temperature
Peak Surge (Non-repetitive) On-State
Current (ITSM) – AMPS
100
Notes:
1. Gate control may be lost during and immediately
following surge current interval.
2. Overload may not be repeated until junction
temperature has returned to steady-state
rated value.
10
1
1
10
100
1000
Surge Current Duration -- Full Cycles
Soldering Parameters
Reflow Condition
Pb – Free assembly
tP
Pre Heat
- Temperature Min (Ts(min))
150°C
- Temperature Max (Ts(max))
200°C
- Time (min to max) (ts)
60 – 180 secs
Average ramp up rate (Liquidus Temp)
(TL) to peak
5°C/second max
TS(max) to TL - Ramp-up Rate
5°C/second max
Reflow
- Temperature (TL) (Liquidus)
217°C
- Temperature (tL)
60 – 150 seconds
+0/-5
Ramp-up
TL
tL
TS(max)
Ramp-do
Ramp-down
Preheat
TS(min)
tS
25
Peak Temperature (TP)
260
Time within 5°C of actual peak
Temperature (tp)
20 – 40 seconds
time to peak temperature
Time
°C
Ramp-down Rate
5°C/second max
Time 25°C to peak Temperature (TP)
8 minutes Max.
Do not exceed
280°C
Sxx06xSx & Sxx06x Series
Temperature
TP
223
Revised: June 24, 2011 04:57 PM
©2011 Littelfuse, Inc
Speciications are subject to change without notice.
Please refer to http://www.littelfuse.com for current information.
Teccor® brand Thyristors
6 Amp Sensitive & Standard SCRs
Physical Specifications
Environmental Specifications
Test
Terminal Finish
100% Matte Tin-plated
Body Material
UL recognized epoxy meeting lammability
classiication 94V-0
AC Blocking
Lead Material
Temperature Cycling
Copper Alloy
Temperature/
Humidity
Design Considerations
High Temp Storage
Careful selection of the correct device for the application’s
operating parameters and environment will go a long way
toward extending the operating life of the Thyristor. Good
design practice should limit the maximum continuous
current through the main terminals to 75% of the device
rating. Other ways to ensure long life for a power discrete
semiconductor are proper heat sinking and selection of
voltage ratings for worst case conditions. Overheating,
overvoltage (including dv/dt), and surge currents are
the main killers of semiconductors. Correct mounting,
soldering, and forming of the leads also help protect
against component damage.
Low-Temp Storage
Thermal Shock
Autoclave
Specifications and Conditions
MIL-STD-750, M-1040, Cond A Applied
Peak AC voltage @ 125°C for 1008 hours
MIL-STD-750, M-1051,
100 cycles; -40°C to +150°C; 15-min
dwell-time
EIA / JEDEC, JESD22-A101
1008 hours; 320V - DC: 85°C; 85%
rel humidity
MIL-STD-750, M-1031,
1008 hours; 150°C
1008 hours; -40°C
MIL-STD-750, M-1056
10 cycles; 0°C to 100°C; 5-min dwelltime at each temperature; 10 sec (max)
transfer time between temperature
EIA / JEDEC, JESD22-A102
168 hours (121°C at 2 ATMs) and
100% R/H
Resistance to
Solder Heat
MIL-STD-750 Method 2031
Solderability
ANSI/J-STD-002, category 3, Test A
Lead Bend
MIL-STD-750, M-2036 Cond E
Product Selector
Part Number
Voltage
400V
600V
800V
1000V
Gate Sensitivity
Type
Package
Sxx06RS2
X
X
0.2mA
Sensitive SCR
TO-220R
Sxx06LS2
X
X
0.2mA
Sensitive SCR
TO-220L
Sxx06VS2
X
X
0.2mA
Sensitive SCR
TO-251
Sxx06DS2
X
X
0.2mA
Sensitive SCR
TO-252
Sxx06RS3
X
X
0.5mA
Sensitive SCR
TO-220R
Sxx06LS3
X
X
0.5mA
Sensitive SCR
TO-220L
Sxx06VS3
X
X
0.5mA
Sensitive SCR
TO-251
Sxx06DS3
X
X
0.5mA
Sensitive SCR
TO-252
Sxx06R
X
X
X
X
15mA
Standard SCR
TO-220R
Sxx06L
X
X
X
X
15mA
Standard SCR
TO-220L
Sxx06V
X
X
X
X
15mA
Standard SCR
TO-251
Sxx06D
X
X
X
X
15mA
Standard SCR
TO-252
Note: xx = voltage
Sxx06xSx & Sxx06x Series
224
Revised: June 24, 2011 04:57 PM
©2011 Littelfuse, Inc
Speciications are subject to change without notice.
Please refer to http://www.littelfuse.com for current information.
Teccor® brand Thyristors
6 Amp Sensitive & Standard SCRs
Dimensions — TO-251AA (V/I-Package) — V/I-PAK Through Hole
TC MEASURING POINT
AREA: 0.040 IN2
Dimension
E
Anode
H
D
5.28
.208
J
A
5.34
.210
B
R
P
Q
S
K
C
Cathode
L
F
Anode
GATE
G
I
Inches
Millimeters
Min
Typ
Max
Min
Typ
Max
A
0.040
0.044
0.050
1.02
1.11
1.27
B
0.235
0.242
0.245
5.97
6.15
6.22
C
0.350
0.361
0.375
8.89
9.18
9.53
D
0.205
0.208
0.213
5.21
5.29
5.41
E
0.255
0.262
0.265
6.48
6.66
6.73
F
0.027
0.031
0.033
0.69
0.80
0.84
G
0.087
0.090
0.093
2.21
2.28
2.36
H
0.085
0.092
0.095
2.16
2.34
2.41
I
0.176
0.180
0.184
4.47
4.57
4.67
J
0.018
0.020
0.023
0.46
0.51
0.58
K
0.038
0.040
0.044
0.97
1.01
1.12
L
0.018
0.020
0.023
0.46
0.52
0.58
P
0.042
0.047
0.052
1.06
1.20
1.32
Q
0.034
0.039
0.044
0.86
1.00
1.11
R
0.034
0.039
0.044
0.86
1.00
1.11
S
0.074
0.079
0.084
1.86
2.00
2.11
Max
Min
Dimensions — TO-252AA (D-Package) — D-PAK Surface Mount
Anode
E
D
6.71
.264
5.28
.208
TC MEASURING POINT
Dimension
A
6.71
.264
5.34
.210
B
1.60
.063
P
Q
C
1.80
.071
GATE
F
Cathode
Anode
AREA : 0.040 IN2
3
.118
G
4.60
.181
I
O
L
K
J
H
M
N
Sxx06xSx & Sxx06x Series
225
Revised: June 24, 2011 04:57 PM
Inches
Min
Typ
Millimeters
Typ
Max
A
0.040
0.043
0.050
1.02
1.09
1.27
B
0.235
0.243
0.245
5.97
6.16
6.22
C
0.106
0.108
0.113
2.69
2.74
2.87
D
0.205
0.208
0.213
5.21
5.29
5.41
E
0.255
0.262
0.265
6.48
6.65
6.73
F
0.027
0.031
0.033
0.69
0.80
0.84
G
0.087
0.090
0.093
2.21
2.28
2.36
H
0.085
0.092
0.095
2.16
2.33
2.41
I
0.176
0.179
0.184
4.47
4.55
4.67
J
0.018
0.020
0.023
0.46
0.51
0.58
K
0.038
0.040
0.044
0.97
1.02
1.12
L
0.018
0.020
0.023
0.46
0.51
0.58
M
0.000
0.000
0.004
0.00
0.00
0.10
N
0.021
0.026
0.027
0.53
0.67
0.69
O
0°
0°
5°
0°
0°
5°
P
0.042
0.047
0.052
1.06
1.20
1.32
Q
0.034
0.039
0.044
0.86
1.00
1.11
©2011 Littelfuse, Inc
Speciications are subject to change without notice.
Please refer to http://www.littelfuse.com for current information.
Teccor® brand Thyristors
6 Amp Sensitive & Standard SCRs
Dimensions — TO-220AB (R-Package) — Non-Isolated Mounting Tab Common with Center Lead
AREA (REF.) 0.17 IN2
TC MEASURING POINT
O
A
E
Dimension
8.13
.320
P
ANODE
B
C
13.36
.526
D
7.01
.276
NOTCH IN
GATE LEAD
TO ID.
NON-ISOLATED
TAB
F
R
G
L
H
CATHODE
ANODE GATE
K
N
Note: Maximum torque to
be applied to mounting tab
is 8 in-lbs. (0.904 Nm).
M
J
Inches
Millimeters
Min
Max
Min
Max
A
0.380
0.420
9.65
10.67
B
0.105
0.115
2.67
2.92
C
0.230
0.250
5.84
6.35
D
0.590
0.620
14.99
15.75
E
0.142
0.147
3.61
3.73
F
0.110
0.130
2.79
3.30
G
0.540
0.575
13.72
14.61
H
0.025
0.035
0.64
0.89
J
0.195
0.205
4.95
5.21
K
0.095
0.105
2.41
2.67
L
0.060
0.075
1.52
1.91
M
0.085
0.095
2.16
2.41
N
0.018
0.024
0.46
0.61
O
0.178
0.188
4.52
4.78
P
0.045
0.060
1.14
1.52
R
0.038
0.048
0.97
1.22
Min
Max
Min
Max
Dimensions — TO-220AB (L-Package) — Isolated Mounting Tab
AREA (REF.) 0.17 IN2
TC MEASURING POINT
O
A
E
P
Dimension
8.13
.320
B
C
13.36
.526
D
7.01
.276
F
R
G
L
H
CATHODE
ANODE GATE
K
J
Sxx06xSx & Sxx06x Series
N
M
Note: Maximum torque to
be applied to mounting tab
is 8 in-lbs. (0.904 Nm).
226
Revised: June 24, 2011 04:57 PM
Inches
Millimeters
A
0.380
0.420
9.65
10.67
B
0.105
0.115
2.67
2.92
C
0.230
0.250
5.84
6.35
D
0.590
0.620
14.99
15.75
E
0.142
0.147
3.61
3.73
F
0.110
0.130
2.79
3.30
G
0.540
0.575
13.72
14.61
H
0.025
0.035
0.64
0.89
J
0.195
0.205
4.95
5.21
K
0.095
0.105
2.41
2.67
L
0.060
0.075
1.52
1.91
M
0.085
0.095
2.16
2.41
N
0.018
0.024
0.46
0.61
O
0.178
0.188
4.52
4.78
P
0.045
0.060
1.14
1.52
R
0.038
0.048
0.97
1.22
©2011 Littelfuse, Inc
Speciications are subject to change without notice.
Please refer to http://www.littelfuse.com for current information.
Teccor® brand Thyristors
6 Amp Sensitive & Standard SCRs
Packing Options
Part Number
Marking
Weight
Packing Mode
Base Quantity
Sxx06L/Ryy
Sxx06L/Ryy
2.2 g
Bulk
500
Sxx06L/RyyTP
Sxx06L/Ryy
2.2 g
Tube
500 (50 per tube)
Sxx06DyyTP
Sxx06Dyy
0.3 g
Tube
750 (75 per tube)
Sxx06DyyRP
Sxx06Dyy
0.3 g
Embossed Carrier
2500
Sxx06VyyTP
Sxx06Vyy
0.4 g
Tube
750 (75 per tube)
Sxx06L/R
Sxx06L/R
2.2 g
Bulk
500
Sxx06L/RTP
Sxx06L/R
2.2 g
Tube
500 (50 per tube)
Sxx06DTP
Sxx06D
0.3 g
Tube
750 (75 per tube)
Sxx06DRP
Sxx06D
0.3 g
Embossed Carrier
2500
Sxx06VTP
Sxx06V
0.4 g
Tube
750 (75 per tube)
Note: xx = Voltage; yy = Sensitivity
TO-252 Embossed Carrier Reel Pack (RP) Specs
Part Marking System
Meets all EIA-481-2 Standards
0.157
(4.0)
Gate
0.059
DIA
(1.5)
TO-251AA – (V Package)
TO-252AA – (D Package)
Cathode
* Cover tape
0.315
(8.0)
XXXXXX
DC
XX
XXXXXX
DC
XX
XXXXXX
DC
*
XX
0.524
(13.3)
®
0.63
(16.0)
XXXXXX
®
S6006DS2
YM
YMLDD
S6006RS2
Anode
S6006LS2
MY
®
0.512 (13.0)
Arbor Hole
Diameter
12.99
(330.0)
Dimensions
are in inches
(and millimeters).
Part Numbering System
0.64
(16.3)
S 60 06 L S2 56
Direction of Feed
DEVICE TYPE
S: SCR
VOLTAGE RATING
40: 400V
60: 600V
80: 800V
K0: 1000V
CURRENT RATING
06: 6A
LEAD FORM DIMENSIONS
xx: Lead Form Option
SENSITIVITY & TYPE
Sensitive SCR:
S2: 200µA
S3: 500µA
Standard SCR:
(blank): 15mA
PACKAGE TYPE
L: TO-220 Isolated
R: TO-220 Non-Isolated
V: TO-251 (V/I-Pak)
D: TO-252 (D-Pak)
Sxx06xSx & Sxx06x Series
227
Revised: June 24, 2011 04:57 PM
©2011 Littelfuse, Inc
Speciications are subject to change without notice.
Please refer to http://www.littelfuse.com for current information.
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
