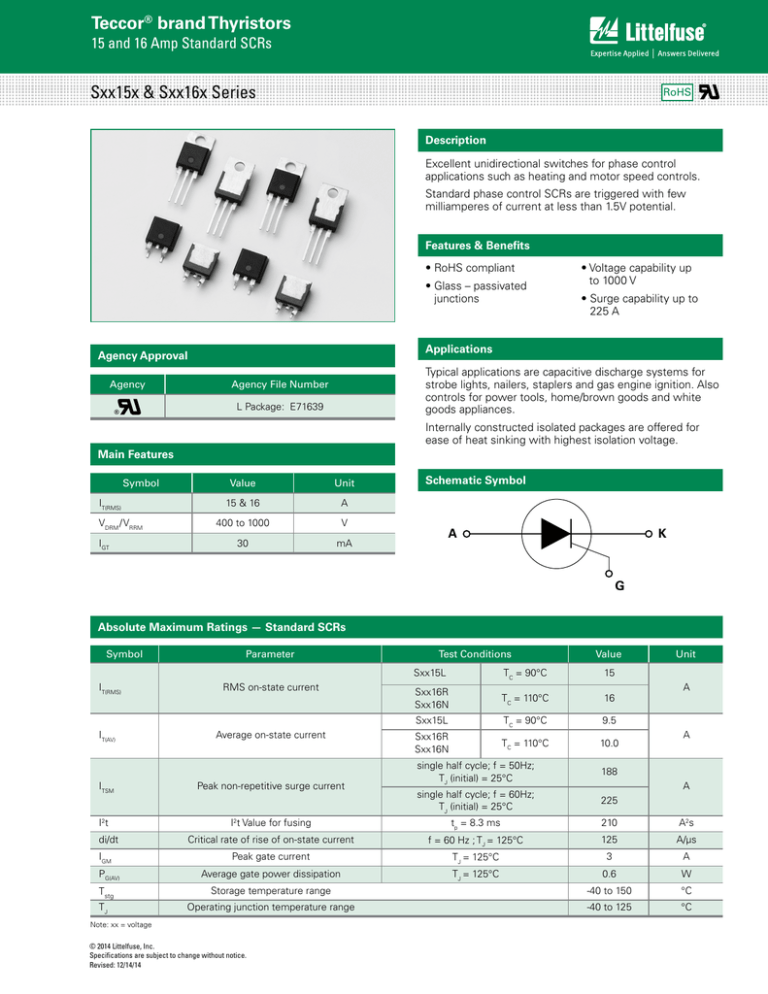

Teccor® brand Thyristors
15 and 16 Amp Standard SCRs
Sxx15x & Sxx16x Series
RoHS ®
Description
Excellent unidirectional switches for phase control
applications such as heating and motor speed controls.
Standard phase control SCRs are triggered with few
milliamperes of current at less than 1.5V potential.
Features & Benefits
• RoHS compliant
• Glass – passivated
junctions
Typical applications are capacitive discharge systems for
strobe lights, nailers, staplers and gas engine ignition. Also
controls for power tools, home/brown goods and white
goods appliances.
Agency File Number
L Package: E71639
®
• Surge capability up to
225 A
Applications
Agency Approval
Agency
• Voltage capability up
to 1000 V
Internally constructed isolated packages are offered for
ease of heat sinking with highest isolation voltage.
Main Features
Symbol
IT(RMS)
VDRM /VRRM
IGT
Value
Unit
15 & 16
A
400 to 1000
V
30
mA
Schematic Symbol
A
K
G
Absolute Maximum Ratings — Standard SCRs
Symbol
Parameter
Test Conditions
Value
Sxx15L
TC = 90°C
15
IT(RMS)
RMS on-state current
Sxx16R
Sxx16N
TC = 110°C
16
Sxx15L
Average on-state current
TC = 90°C
9.5
IT(AV)
Sxx16R
Sxx16N
TC = 110°C
10.0
single half cycle; f = 50Hz;
TJ (initial) = 25°C
188
single half cycle; f = 60Hz;
TJ (initial) = 25°C
225
Unit
A
A
ITSM
Peak non-repetitive surge current
I 2t
I2t Value for fusing
tp = 8.3 ms
210
A2s
Critical rate of rise of on-state current
f = 60 Hz ; TJ = 125°C
125
A/μs
Peak gate current
TJ = 125°C
3
A
Average gate power dissipation
TJ = 125°C
0.6
W
Storage temperature range
-40 to 150
°C
Operating junction temperature range
-40 to 125
°C
di/dt
IGM
PG(AV)
Tstg
TJ
Note: xx = voltage
© 2014 Littelfuse, Inc.
Specifications are subject to change without notice.
Revised: 12/14/14
A
Teccor® brand Thyristors
15 and 16 Amp Standard SCRs
Electrical Characteristics (TJ = 25°C, unless otherwise specified)
Value
Symbol
IGT
Test Conditions
Unit
Sxx15x
Sxx16x
VD = 12V; RL = 60 Ω
VGT
MAX.
30
MIN.
1
MAX.
VD = VDRM; gate open; TJ = 100°C
VD = VDRM; gate open; TJ = 125°C
1.5
400V
450
600V
425
800V
400
1000V
dv/dt
mA
MIN.
V
200
400V
350
600V
325
800V
300
V/μs
VGD
VD = VDRM RL = 3.3 kΩ TJ = 110°C
MIN.
0.2
V
IH
IT = 200mA (initial)
MAX.
40
mA
tq
IT=2A; tp=50µs; dv/dt=5V/µs; di/dt=-30A/µs
MAX.
35
μs
tgt
IG = 2 x IGT PW = 15µs IT = 12A
TYP.
2
μs
Note: xx = voltage, x = package
(1) IT=2A; tp=50µs; dv/dt=5V/µs; di/dt=-30A/µs
Static Characteristics
Symbol
Test Conditions
15A Device IT = 30A; tp = 380 µs
VTM
TJ = 25°C
IDRM / IRRM
MAX.
16A Device IT = 32A; tp = 380 µs
VDRM = VRRM
TJ = 100°C
TJ = 125°C
Value
Unit
1.6
V
400 - 600V
10
800 - 1000V
20
400 - 600V
500
MAX.
800V
1000
1000V
3000
400 - 600V
1000
800V
2000
μA
Thermal Resistances
Symbol
Parameter
Rθ(J-C)
Junction to case (AC)
Rθ(J-A)
Junction to ambient
Value
Sxx16R/ Sxx16N
1.1
Sxx15L
2.5
Sxx16R
40
Sxx15L
50
Unit
°C/W
°C/W
Note: xx = voltage
© 2014 Littelfuse, Inc.
Specifications are subject to change without notice.
Revised: 12/14/14
Teccor® brand Thyristors
15 and 16 Amp Standard SCRs
Figure 1: Normalized DC Gate Trigger Current
vs. Junction Temperature
Figure 2: Normalized DC Gate Trigger Voltage
vs. Junction Temperature
2.0
Ratio of VGT / VGT (TJ = 25ºC)
Ratio of IGT / IGT (TJ = 25°C)
2.0
1.5
1.0
0.5
1.5
1.0
0.5
0.0
0.0
-40
-15
10
35
60
85
110
-40
125
-15
10
Junction Temperature (TJ) -- (ºC)
Figure 3: Normalized DC Holding Current
vs. Junction Temperature
Instantaneous On-state Current (iT) – Amps
Ratio of IH / IH (TJ = 25°C)
60
85
110
125
Figure 4: O
n-State Current vs. On-State
Voltage (Typical)
2.0
1.5
1.0
0.5
60
50
40
30
20
10
0
0.0
-40
-15
10
35
60
85
110
0.7
125
0.8
0.9
Figure 5: Power Dissipation (Typical)
vs. RMS On-State Current
1.0
1.1
1.2
1.3
1.4
1.5
1.6
Instantaneous On-state Voltage (vT) – Volts
Junction Temperature (TJ) -- (°C)
Figure 6: M
aximum Allowable Case Temperature
vs. RMS On-State Current
14
130
125
12
Maximum Allowable Case
Temperature (TC ) - °C
Average On-State Power Dissipation
[PD(AV)] - (Watts)
35
Junction Temperature (TJ) -- (°C)
10
8
6
4
2
Sxx16R
Sxx16N
120
115
110
105
Sxx15L
100
95
90
CURRENT WAVEFORM: Sinusoidal
LOAD: Resistive or Inductive
CONDUCTION ANGLE: 180°
85
80
0
0
2
4
6
8
10
12
RMS On-State Current [I T(RMS) ] - (Amps)
© 2014 Littelfuse, Inc.
Specifications are subject to change without notice.
Revised: 12/14/14
14
16
0
2
4
6
8
10
12
14
RMS On-State Current [IT(RMS)] - Amps
16
18
Teccor® brand Thyristors
15 and 16 Amp Standard SCRs
Figure 7: Maximum Allowable Case Temperature
vs. Average On-State Current
Figure 8: Maximum Allowable Ambient Temperature
vs. RMS On-State Current
1.2
130
Sxx16R
Sxx16N
120
1.0
Normalized Peak Current
Maximum Allowable Case
Temperature (TC)- °C
125
115
110
105
Sxx15L
100
95
90
0.6
0.4
0.2
CURRENT WAVEFORM: Sinusoidal
LOAD: Resistive or Inductive
CONDUCTION ANGLE: 180°
85
0.8
0.0
80
0
1
2
3
4
5
6
7
8
Average On-State Current [IT(AVE) ] - Amps
9
10
0
11
25
50
75
100
125
150
Case Temperature (TC ) - °C
Figure 9: Maximum Allowable Ambient Temperature vs. Average On-State Current
120
CURRENT WAVEFORM: Sinusoidal
LOAD: Resistive or Inductive
CONDUCTION ANGLE: 180°
FREE AIR RATING
Maximum Allowable Ambient
Temperature (TA) - °C
100
Sxx16R
Sxx16N
80
60
Sxx15L
40
20
0
0.0
0.5
1.0
Average On-State Current [IT(AVE)] - Amps
1.5
Note: xx = voltage
Figure 10: Peak Capacitor Discharge Current
Figure 11: Peak Capacitor Discharge Current Derating
1.2
1.0
Normalized Peak Current
Peak Discharge Current (ITM) - Amps
1000
100
ITRM
0.8
0.6
0.4
0.2
tW
0.0
10
0.5
1.0
10.0
Pulse Current Duration (tw) - ms
50.0
0
25
50
75
100
125
150
Case Temperature (TC ) - °C
© 2014 Littelfuse, Inc.
Specifications are subject to change without notice.
Revised: 12/14/14
Teccor® brand Thyristors
15 and 16 Amp Standard SCRs
Figure 12: Surge Peak On-State Current vs. Number of Cycles
Peak Surge (Non-repetitive)
On-state Current (I TSM) – Amps
1000
SUPPLY FREQUENCY: 60 Hz Sinusoidal
LOAD: Resistive
RMS On-State Current: [IT(RMS)]: Maximum Rated
Value at Specified Case Temperature
Notes:
1. G
ate control may be lost during and immediately
following surge current interval.
2. Overload may not be repeated until junction
temperature has returned to steady-state
rated value.
Sxx16R
Sxx16N
100
Sxx15L
10
1
10
100
1000
Surge Current Duration -- Full Cycles
Soldering Parameters
Pb – Free assembly
Pre Heat
- Temperature Min (Ts(min))
150°C
- Temperature Max (Ts(max))
200°C
- Time (min to max) (ts)
60 – 180 secs
Average ramp up rate (Liquidus Temp)
(TL) to peak
5°C/second max
TS(max) to TL - Ramp-up Rate
5°C/second max
Reflow
- Temperature (TL) (Liquidus)
217°C
- Temperature (tL)
60 – 150 seconds
Peak Temperature (TP)
260
Time within 5°C of actual peak
Temperature (tp)
20 – 40 seconds
Ramp-down Rate
5°C/second max
Time 25°C to peak Temperature (TP)
8 minutes Max.
Do not exceed
280°C
+0/-5
°C
Additional Information
Datasheet
Resources
© 2014 Littelfuse, Inc.
Specifications are subject to change without notice.
Revised: 12/14/14
Samples
tP
TP
Temperature
Reflow Condition
Ramp-up
TL
tL
TS(max)
Preheat
TS(min)
25
Ramp-do
Ramp-down
tS
time to peak temperature
Time
Teccor® brand Thyristors
15 and 16 Amp Standard SCRs
Physical Specifications
Environmental Specifications
Test
Terminal Finish
100% Matte Tin-plated
Body Material
UL recognized epoxy meeting flammability
classification 94V-0
Lead Material
Copper Alloy
Specifications and Conditions
AC Blocking
Temperature Cycling
Temperature/
Humidity
Design Considerations
High Temp Storage
Careful selection of the correct device for the application’s
operating parameters and environment will go a long way
toward extending the operating life of the Thyristor. Good
design practice should limit the maximum continuous
current through the main terminals to 75% of the device
rating. Other ways to ensure long life for a power discrete
semiconductor are proper heat sinking and selection of
voltage ratings for worst case conditions. Overheating,
overvoltage (including dv/dt), and surge currents are
the main killers of semiconductors. Correct mounting,
soldering, and forming of the leads also help protect
against component damage.
Low-Temp Storage
MIL-STD-750, M-1040, Cond A Applied
Peak AC voltage @ 125°C for 1008 hours
MIL-STD-750, M-1051,
100 cycles; -40°C to +150°C; 15-min
dwell-time
EIA / JEDEC, JESD22-A101
1008 hours; 320V - DC: 85°C; 85%
rel humidity
MIL-STD-750, M-1031,
1008 hours; 150°C
1008 hours; -40°C
MIL-STD-750, M-1056
10 cycles; 0°C to 100°C; 5-min dwelltime at each temperature; 10 sec (max)
transfer time between temperature
EIA / JEDEC, JESD22-A102
168 hours (121°C at 2 ATMs) and
100% R/H
Thermal Shock
Autoclave
Resistance to
Solder Heat
MIL-STD-750 Method 2031
Solderability
ANSI/J-STD-002, category 3, Test A
Lead Bend
MIL-STD-750, M-2036 Cond E
Dimensions — TO-220AB (R-Package) — Non-Isolated Mounting Tab Common with Center Lead
TC MEASURING POINT
AREA (REF.) 0.17 IN2
O
A
E
Dimension
8.13
.320
P
ANODE
B
C
13.36
.526
D
7.01
.276
NOTCH IN
GATE LEAD
TO ID.
NON-ISOLATED
TAB
F
R
G
L
H
CATHODE
ANODE GATE
K
J
N
M
Note: Maximum torque to
be applied to mounting tab
is 8 in-lbs. (0.904 Nm).
Inches
Millimeters
Min
Max
Min
Max
A
0.380
0.420
9.65
10.67
B
0.105
0.115
2.67
2.92
C
0.230
0.250
5.84
6.35
D
0.590
0.620
14.99
15.75
E
0.142
0.147
3.61
3.73
F
0.110
0.130
2.79
3.30
G
0.540
0.575
13.72
14.61
H
0.025
0.035
0.64
0.89
J
0.195
0.205
4.95
5.21
K
0.095
0.105
2.41
2.67
L
0.060
0.075
1.52
1.91
M
0.085
0.095
2.16
2.41
N
0.018
0.024
0.46
0.61
O
0.178
0.188
4.52
4.78
P
0.045
0.060
1.14
1.52
R
0.038
0.048
0.97
1.22
© 2014 Littelfuse, Inc.
Specifications are subject to change without notice.
Revised: 12/14/14
Teccor® brand Thyristors
15 and 16 Amp Standard SCRs
Dimensions — TO-220AB (L-Package) — Isolated Mounting Tab
TC MEASURING POINT
O
A
E
AREA (REF.) 0.17 IN2
Dimension
8.13
.320
P
B
C
13.36
.526
D
7.01
.276
F
R
G
L
H
CATHODE
ANODE GATE
N
K
Note: Maximum torque to
be applied to mounting tab
is 8 in-lbs. (0.904 Nm).
M
J
Inches
Millimeters
Min
Max
Min
Max
A
0.380
0.420
9.65
10.67
B
0.105
0.115
2.67
2.92
C
0.230
0.250
5.84
6.35
D
0.590
0.620
14.99
15.75
E
0.142
0.147
3.61
3.73
F
0.110
0.130
2.79
3.30
G
0.540
0.575
13.72
14.61
H
0.025
0.035
0.64
0.89
J
0.195
0.205
4.95
5.21
K
0.095
0.105
2.41
2.67
L
0.060
0.075
1.52
1.91
M
0.085
0.095
2.16
2.41
N
0.018
0.024
0.46
0.61
O
0.178
0.188
4.52
4.78
P
0.045
0.060
1.14
1.52
R
0.038
0.048
0.97
1.22
Dimensions — TO- 263AB (N-package) — D2-Pak Surface Mount
TC MEASURING POINT
B
AREA: 0.11 in 2
C
V
Dimension
E
ANODE
8.41
.331
7.01
.276
A
S
W
U
K
GATE
CATHODE
G
J
H
D
F
11.68
.460
2.16
.085
7.01
.276
7.01
.276
16.89
.665
8.89
.350
1.40
.055
3.81
.150
2.03
.080
6.60
.260
© 2014 Littelfuse, Inc.
Specifications are subject to change without notice.
Revised: 12/14/14
8.13
.320
A
B
C
D
E
F
G
H
J
K
S
V
U
W
Inches
Millimeters
Min
Max
Min
Max
0.360
0.380
0.178
0.025
0.045
0.060
0.095
0.092
0.018
0.090
0.590
0.035
0.002
0.040
0.370
0.420
0.188
0.035
0.060
0.075
0.105
0.102
0.024
0.110
0.625
0.045
0.010
0.070
9.14
9.65
4.52
0.64
1.14
1.52
2.41
2.34
0.46
2.29
14.99
0.89
0.05
1.02
9.40
10.67
4.78
0.89
1.52
1.91
2.67
2.59
0.61
2.79
15.88
1.14
0.25
1.78
Teccor® brand Thyristors
15 and 16 Amp Standard SCRs
Product Selector
Voltage
Part Number
Gate Sensitivity
Type
X
30mA
Standard SCR
TO-220L
X
30mA
Standard SCR
TO-220R
X
30mA
Standard SCR
TO-263
400V
600V
800V
1000V
Sxx15L
X
X
X
Sxx16R
X
X
X
Sxx16N
X
X
X
Package
Note: xx = Voltage
Packing Options
Marking
Weight
Packing Mode
Base Quantity
Sxx15L
Part Number
Sxx15L
2.2 g
Bulk
500
Sxx15LTP
Sxx15L
2.2 g
Tube
500 (50 per tube)
Sxx16R
Sxx16R
2.2 g
Bulk
500
Sxx16RTP
Sxx16R
2.2 g
Tube
500 (50 per tube)
Sxx16NTP
Sxx16N
1.6 g
Tube
500 (50 per tube)
Sxx16NRP
Sxx16N
1.6 g
Embossed Carrier
500
Note: xx = Voltage
TO-263 Embossed Carrier Reel Pack (RP) Specs
TO-220 AB - (L and R Package)
TO-263 AB - (N Package)
Meets all EIA-481-2 Standards
0.63
(16.0)
0.945 0.827
(24.0) (21.0)
0.157
(4.0)
Part Marking System
0.059
(1.5)
DIA Gate
Cathode
Sxx16R
*
YM
®
* Cover tape
Anode
0.512 (13.0)
Arbor Hole
Diameter
12.99
(330.0)
Date Code Marking
Y:Year Code
M: Month Code
XXX: Lot Trace Code
Dimensions
are in inches
(and millimeters).
Part Numbering System
1.01
(25.7)
S 60 16 R
Direction of Feed
DEVICE TYPE
S: SCR
VOLTAGE RATING
40: 400V
60: 600V
80: 800V
K0: 1000V
CURRENT RATING
15: 15A
16: 16A
56
LEAD FORM DIMENSIONS
xx: Lead Form Option
SENSITIVITY & TYPE
(blank): 30mA
PACKAGE TYPE
L: TO-220 Isolated
R: TO-220 Non-Isolated
N: TO-263 (D2-Pak)
© 2014 Littelfuse, Inc.
Specifications are subject to change without notice.
Revised: 12/14/14
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
