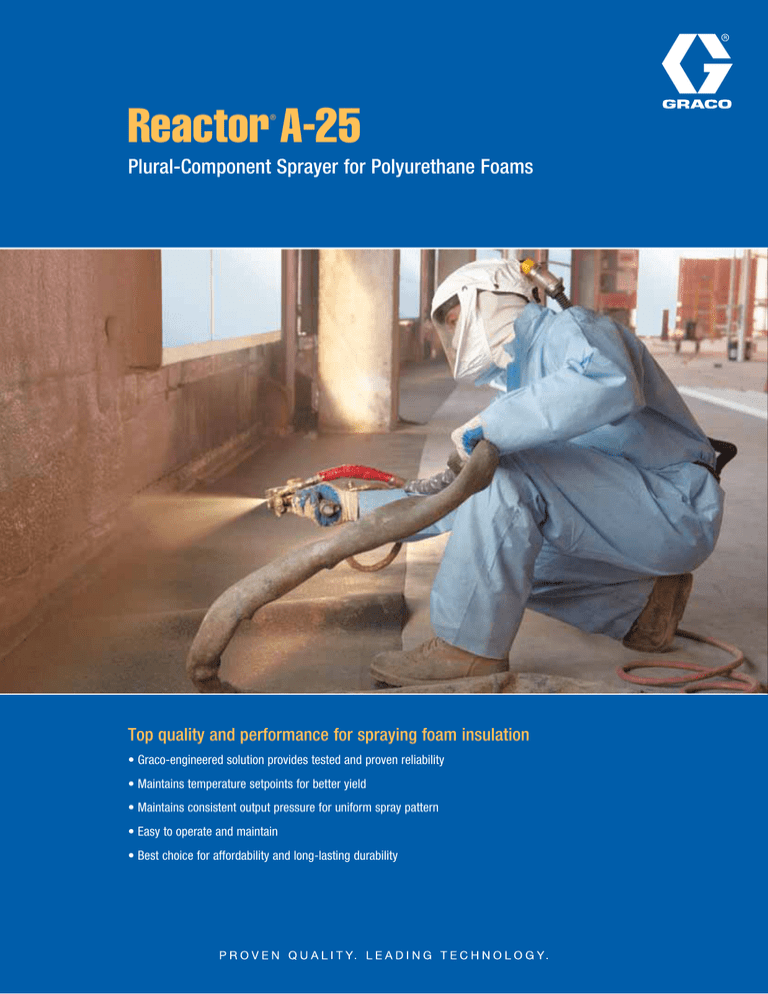

Reactor A-25
®
Plural-Component Sprayer for Polyurethane Foams
Top quality and performance for spraying foam insulation
• Graco-engineered solution provides tested and proven reliability
• Maintains temperature setpoints for better yield
• Maintains consistent output pressure for uniform spray pattern
• Easy to operate and maintain
• Best choice for affordability and long-lasting durability
Superior performance with
long-lasting durability
Consistent Temperature Control
HOSE OUTLET TEMPERATURES
140°
130°
Setpoint
A-25
120°
110°
COMPETITION
100°
90°
80°
70°
60°
1
2
3
4
5
6
7
8
9
10
.5 GPM
1 GPM
1.5 GPM
2 GPM
(1.9 LPM)
(3.8 LPM)
(5.5 LPM)
(7.6 LPM)
The Reactor A-25 maintains steady temperature
setpoints, even when you’re spraying at maximum
flow rates, resulting in better quality foam.
Temperatures of competitive model fluctuated
as flow rates increased.
Ordering information
262614
Reactor A-25, includes DataTrak
and wheels
Packages include a proportioner, spray hose, whip hose
and spray gun.
AP2614
P22614
CS2614
Reactor A-25 (262614) package
with Fusion AP Gun (246101)
Reactor A-25 (262614) package
with P2 Gun (GCP2R1)
Reactor A-25 (262614) package
with Fusion CS Gun (CS01RD)
Technical Specifications
Max output . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25 lb/min (11.4 kg/min)
Max fluid working pressure . . . . . . . . . . . . . . . . . . . . . . . . . . . 2000 psi (138 bar, 14 MPa)
Max air supply pressure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 125 psi (9 bar, 0.9 MPa)
Air consumption with 02 tip @ 1500 psi (103 bar, 10.3 MPa) stall pressure . . . . . . . 28 scfm (0.8 m3/min)
System air consumption with 2:1 feed pumps @ 100 psi . . . 34 scfm (.96 m3/min) at flow rate listed above
Max heater fluid temperature . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 190°F (88°C)
Max hose fluid temperature . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 180°F (82°C)
Heater wattage . . . . . . . . . . . . . . . . . . . 6,000 watts (with the ability to easily reduce to 3,000 watts)
Max heated hose length* . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 210 ft (64 m) of 3/8 ID
Power requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40A at 230V, 1-ph
32A at 230V, 3-ph
18.5A at 380V, 3-ph
Weight . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 250 lb (117.6 kg)
Dimensions (with wheels) . . . . . . . . . . . 43.5 H x 29 W x 30 D in (110 H x 74 W x 76 D cm)
Dimensions (without wheels) . . . . . . 43.5 H x 21.5 W x 24.5 D in (110 H x 55 W x 62 D cm)
Operation manual . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3A1569
*210 ft (64 m) of heated hose will produce the maximum allowable heat capacity. 310 ft (94 m) of heated hose may be
used, but will have 25% less heat capacity.
DataTrak Control
™
• Resettable counter tracks material usage
Three Heat Zones
• Three independent heat zones –
ISO, resin and hose heat
• Provide accurate heat control for reliable
spraying to handle different
chemical viscosities
• Digital temperature controls
®
Recirculation Manifold
• A quick, easy way to balance
system pressures
NXT Air Motor
®
• Low air consumption for increased efficiency
• Muffler provides low operating noise levels
• Air valve provides smooth and
rapid changeover
Hybrid Heater
Contact us today!
For more information, call
1-877-844-7226 or visit us
online at www.graco.com.
© 2011 Graco Inc. 348581 Rev. A 09/11 All other brand names or marks are used
for identification purposes and are trademarks of their respective owners. All written
and visual data contained in this document are based on the latest product information
available at the time of publication. Graco reserves the right to make changes at any
time without notice.
• Provides better temperature control
Quick Knockdown
Lower Pumps
• For easy disassembly and maintenance
ISO Pump Lube System
• Prevents isocyanate crystallization
on the pump seal and shaft
