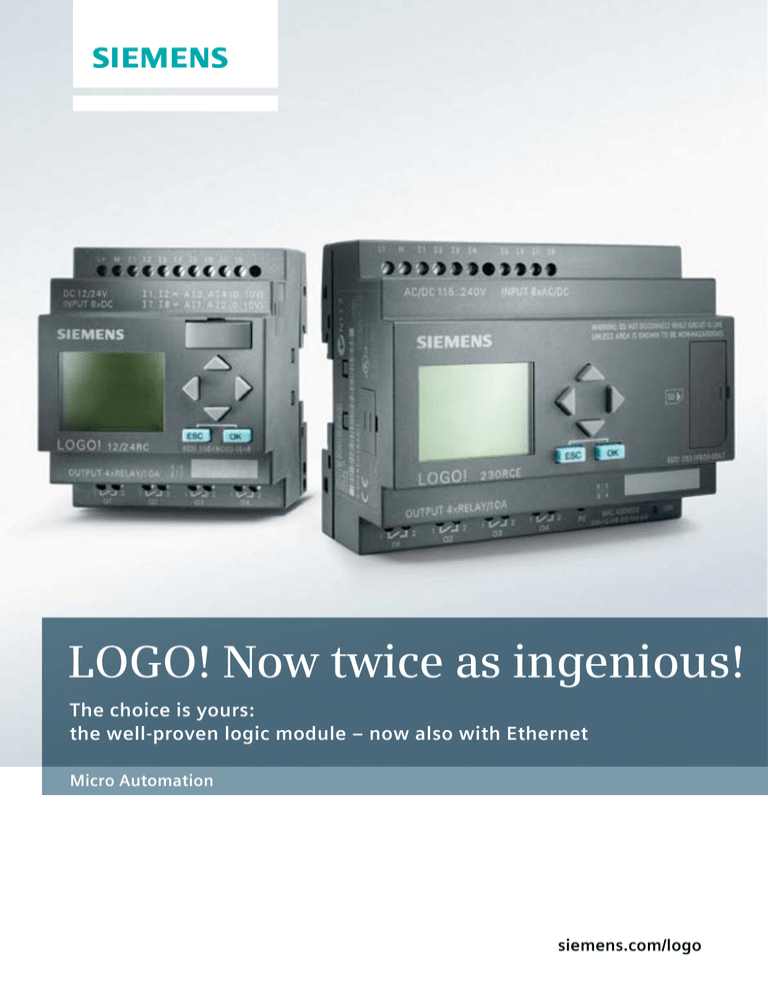

LOGO! Now twice as ingenious! The choice is yours: siemens.com/logo
LOGO! Now twice as ingenious! The choice is yours: the well-proven logic module – now also with Ethernet Micro Automation siemens.com/logo In infrastructure ... Heating / ventilation / air-conditioning ■■Energy management ■■Heating ■■Cooling systems ■■Ventilation systems ■■Air-conditioning systems Building management systems ■■Light control (outdoor and indoor lighting) ■■Door/gate control ■■Roller blind and awning control ■■Irrigation and sprinkler systems Monitoring equipment ■■Access controls ■■Monitoring of drive controls ■■Alarm systems ■■Limit value checks ■■Traffic light controllers ■■Luggage inspection Profitable switching and controlling In automation, all of the potential means of savings Intelligent technology with a vision must be consistently used – from planning and com- LOGO! is ideally suited for implementing simple automation tasks in industry and building management systems. The intelligent logic module is characterized by maximum user-friendliness and it leaves little to be desired in terms of functionality, thanks in no small part to the high memory capacity and efficient use of memory. With the use of expansion modules, LOGO! can control even the most complex plants without any problems. missioning to operation. What is needed are systems that allow the constantly increasing requirements to be quickly and economically fulfilled: Intelligent solutions that stand out due to maximum flexibility, reliability, and user-friendliness. The best example of innovative technology that completely fulfills these high requirements is LOGO! – the world‘s leading logic module for switching and controlling. 2 Maximum flexibility due to consistent modularity A wide range of modules make it possible to individually expand LOGO! to 24 digital inputs, 16 digital outputs, 8 analog inputs, and two analog outputs. Communication modules for AS-Interface and KNX are also available. With the analog output module, for example, you can solve simple control tasks. This is supported by the special functions of PI controller, ramp function, and analog multiplexing. ... and industry Transport equipment ■■Conveyor belts ■■Lifting platforms ■■Lifts ■■Silo systems ■■Automatic feeders Special solutions ■■Solar plants ■■Use on ships ■■Use in extreme ambient conditions ■■Display panels and traffic signboards Machine controls ■■Motors, pump and valve controls ■■Air compressors ■■Extraction and filtering installations ■■Sewage plants ■■Sawing and planing machines ■■Etching and cleaning equipment Tried and tested millions of times – in numerous applications New applications made possible by new 0BA7 basic units In combination with the LOGO! software Soft Comfort, the handling of our logic module is child’s play: Creating programs, project simulating and documentation are quite easy using drag & drop – for maximum userfriendliness. In addition, a display with the capability of directly changing process parameters in the message text always ensures professional handling and satisfied users. All of this is the reason why LOGO! has proven itself over the past 15 years in millions of machine and building applications around the world. The performance of LOGO! can be expanded in terms of the number of I/Os and program capacity by means of simple networking. It is not always necessary to switch to more complex PLC configurations for simple networking requirements. Instead, you can remain in the familiar, simple configuration world of our logic module and continue networking easily and cost-effectively. Even in a single family home, there are so many possible applications that the number of I/Os is exceeded by a single LOGO!. The simple networking via Ethernet is useful here. The new communication options via Ethernet now allow small LOGO! networks to be set up – as well as communication with higher-level systems. Whether in infrastructure or industry – a quick and cost-effective solution 3 Easy expansion by means of a text display or expansion modules for a reliable solution LOGO! – simple, brilliant, reliable LOGO! 0BA6 basic units, together with the expansion modules and the external text display, provide a broad and proven basis for reliable solutions in mechanical engineering and building management LOGO! in assemblies with the function modules systems. Practice-oriented function blocks are easily connected via the software using the cursor and their interaction can be immediately tested. The simplest connection 4 Outstanding performance and overview Highlights of LOGO! With LOGO! four of the eight digital inputs that are available on the hardware can be used as analog inputs and four as high-speed counter inputs up to a frequency of 5 kHz. With a program memory for 200 function blocks, the 12/24 V DC devices provide sufficient capacity for many stand-alone applications. Up to 50 four-line message texts with a maximum of 32 characters per line ensure user-friendliness in practice and clearly display all of the relevant machine parameters. Well-conceived options such as ticker text, bar graph or status parameter also contribute to the user-friendliness. Function blocks for arithmetic and pulse width modulation open up further usage options. Last but not least: the Teleservice option, which often does away with costly on-site service calls and really pays off if you sell your systems cross-regionally. ■■Can be modularly expanded up to 50 I/Os Additional text display LOGO! allows an additional text display, which is perfectly tailored to the needs of a logic module, to be connected. It is directly connected to the LOGO! without a communication module. The configuration is done using the same function block as for the internal display. You decide whether message texts are displayed on the internal or external display – or on both. ■■230 V units can be expanded with analog modules ■■All three phases can be combined in a configuration ■■Extremely simple software ■■Display of up to 50 messages, either by LC display on the module, external TD, or both together ■■Supports 12 or 16 standard characters per line, depending on the selected character set; you can double the number of characters with the ticker function ■■Users can toggle between 2 languages ■■Display of up to 4 bar charts and up to 4 I/O status parameters per message ■■Controllable backlight of both displays can also be used in continuous operation ■■Password protection for STOP mode on TD 5 LOGO! – and now also with Ethernet LOGO! 0BA7 impressively proves that we are con stantly further developing our pioneering logic module. The two new basic devices supplement the existing 0BA6 basic devices, which have already been tried and tested worldwide. 6 Proven devices have been consistently further developed The developmental leap forward can even be seen on the outside of our new LOGO! 0BA7 basic devices: They are wider by two modular widths and the previous interface has been replaced by an Ethernet interface on the underside of the device. In addition, there is a slot for SD cards on the right front of the device. In spite of these exterior changes, the new devices are compatible with all existing I/O modules. Even programs from the previous LOGO! generations can be used in the new devices. The highlight of the 0BA7 basic devices is without a doubt the standard Ethernet interface. It is used as a programming interface and for communicating with other LOGO! 0BA7 basic devices or SIMATIC automation components such as SIMATIC S7 CPUs, HMI Panels, and PCs. Up to nine LOGO! devices can be networked via the Ethernet interface. Standard Ethernet interface for communication with further LOGO! basic units or other automation components New communication options The networking is mainly used for direct communication between several LOGO! devices. The advantages that result from this: ■■Increasing the number of I/Os in a configuration. One logic module executes the program and the others only serve as an I/O expansion – without processing their own program. This means that a multi-cell layout in the control cabinet is now also possible. ■■Expansion of the program memory. All logic modules process their own program and only exchange some of the data among each other. Function extensions –– Program memory extended to 400 function blocks –– Astronomical clock –– Min./Max. –– Average value –– Analog filter –– Stopwatch –– Macro and library function –– Data logging 7 LOGO! Software – simply professional LOGO! Soft Comfort – stands for sensationally easy A decisive argument for LOGO! and quick configuration. This allows the creation LOGO! Soft Comfort is appealing in every respect. The user-friendliness of our software is unequaled on the market. The preferential configuration in the function block diagram is more manageable than in the contact diagram, especially for programs with many special functions. LOGO! Soft Comfort, however, allows programming in both display formats and the execution of online tests – as the only software in the logic module class. Since it can be executed on three operating system platforms, you will benefit from maximum flexibility when choosing a computer and a high-end device is not absolutely essential. of ladder and function block diagrams by selecting the respective functions and their connection via drag & drop. In addition, the entire switching program can be simulated and tested offline on the PC. Also possible: an online test in both program displays during operation. Last but not least, LOGO! Soft Comfort provides professional documentation with all of the necessary project information such as switching programs, comments, and parameter settings. 8 The standard simulation function makes program development easy. You can immediately simulate, optimize and then group individual program sections for total functionality. The outstanding functionality of our software is rounded out by professional tools for creating the user documentation. A context-sensitive help function brings additional advantages: It puts an end to the tiresome business of paging through manuals and reduces the weight of your luggage when making service calls. Last but not least, an integrated tutorial and numerous examples facilitate your entry into modern automation technology. 1 Create 2 Simulate 3 1 Online test 4 Document 4 2 3 LOGO! NEW ■■Astronomical clock ■■Min./Max. ■■Average value ■■Analog filter ■■Stopwatch More functions ... ... and important innovations With the current version of LOGO! Soft Comfort, you can, of course, easily configure all of the new LOGO! hardware and firmware functions. The following five function blocks have been added: Creating macro blocks with library function Recurring parts of programs can be saved separately as complete blocks and used in other programs. You can build up your own block library from regularly used partial applications and quickly and easily integrate them into new projects. This speeds up testing and programming. ■■Astronomical clock ■■Min./Max. ■■Average value ■■Analog filter ■■Stopwatch Sensationally easy and quick programming thanks to 43 function blocks and operating via drag & drop Data logging Data from the production process can be saved in the internal memory of the LOGO! or on a standard SD card in order to either read it with a PC or evaluate it from the SD card at the workstation. Networking A real highlight of the LOGO! 0BA7 generation are the different communication modes: ■■Communication between LOGO! and LOGO! – the second LOGO! functions as an I/O expansion without its own program. ■■Communication between LOGO! and LOGO! – the second LOGO! executes its own program and exchanges some data with the other one. ■■Communication between LOGO! and SIMATIC S7 CPUs or Panels, which provide S7 communication via Ethernet. 9 LOGO! – the proven basic units ... LOGO! impresses customers due to the wide variety of possible applications and it allows the easy implementation of comprehensive applications – last but not least due to the possibility of selecting from among 38 integrated functions and linking them to up to 200 blocks. When operating and monitoring, the 4-line backlit display with a maximum of 32 characters per line ensures a high degree of user-friendliness. The message text allows the display of text, setpoints and actual values, bar graphs and status parameters. Of course, parameters can be adjusted in the message text. Flexibility is always assured due to the diverse expansion options. 10 ... and the new ones with Ethernet You have grown with LOGO! and you want to always be able to solve more tasks with a greater demand on industrial communication? Then, the new LOGO! 0BA7 devices are the ideal solution for you. With the new basic devices, you can easily expand old programs by adding functions. Also possible: the supplementing of additional I/Os or the integration of a user-friendly operator guidance via touch panels. Previously developed LOGO! programs can be used as a basis and the easy configuration continues. LOGO! simply ingenious – and now … 11 LOGO! functions LOGO! pays off With the eight basic functions and 30 special functions, simple switching programs can be created quickly – either directly on the device or via PC. You can find a large selection of example applications under www.siemens.com/logo The eight basic functions Up to 50% cost savings ■■Replaces many conventional switching devices ■■Requires less space in the control cabinet ■■Fewer accessories ■■Less storage space ■■Saves on servicing costs because it is free of wear AND (and) series connection NO contact NAND (and not) parallel connection NC contact Up to 70% time savings ■■Simply snap it onto a standard mounting rail ■■Low wiring overhead ■■Simple programming using LOGO! Soft Comfort ■■Use ready-to-use sample programs at no cost or create and test them on the PC and quickly transfer them free of errors ■■Automatic daylight-saving adjustment ■■Documentation AND with edge evaluation (pos. edge) NAND (and not) with edge evaluation (neg. edge) OR (or) parallel connection NO contact Up to 70% space savings ■■4/6 modular widths suffice as a replacement for many relays, time switches, and contactor relays ■■8 basic and 30/35 special functions replace many conventional switching devices NOR (or not) series connection NC contact Universally applicable ■■Vibration-proof ■■High electromagnetic compatibility (EMC) ■■Fully industrial-grade ■■For all climatic conditions ■■Radio suppression class B ■■All of the required certifications for worldwide use ■■Marine approval XOR (exclusive or) 2-way changeover NOT (not) inverter* The special functions ON delay 12 OFF delay ON/OFF delay Latching ON delay *Binary inputs of function blocks can be negated directly Interval relay/ Pulse output Interval relay, edge-triggered Pulse generator LOGO! basic units 0BA6 LOGO! text display LOGO! basic units 0BA7 LOGO! basic unit 0BA6 ■■38/43 ready-to-use functions integrated – no additional devices such as operating hours counter required ■■Linking of 200/400 functions possible ■■8 digital inputs (incl. 4 AI with 12/24 V DC) and 4 digital outputs on board ■■Flexibly expandable up to 24 DI, 16 DO, 8 AI, and 2 AO ■■Display of message texts, actual and setpoint values and direct modification of the values on the display (not on Pure variants) ■■Integrated data retentivity – ensures backup of the current values in the event of a power failure ■■Software LOGO! Soft Comfort V 7 for the userfriendly creation of switching programs on the PC for all LOGO! generations, which can run on various operating systems Random Staircase lighting timer 13 Convenience switch Week time switch Year time switch Up/down counter Operating hours counter Threshold switch Digital expansion modules LOGO! basic unit 0BA7 ■■Standard Ethernet interface as programming interface and for communication with other LOGO! basic devices 0BA7 or SIMATIC automation components such as SIMATIC S7 CPUs, HMI Panels and PCs ■■A maximum of 9 LOGO!s can be networked ■■Data logging ■■Standard SD cards as the storage medium ■■Program and connectioncompatible with LOGO! 0BA6 LOGO! simply twice as ingenious Analog comparator Analog threshold switch Analog amplifier Analog monitoring Analog difference threshold switch Latching relay Current impulse relay Software switch 14 Analog expansion modules Communication modules NEW for 0BA7 Astronomical clock Average value LOGO! modules LOGO! text display For operator prompting and servicing for the display of message texts, input and output statuses, and for setting process parameters (usable as of basic device 0BA6, supports the range of functions of the 0BA6 basic devices) ■■ Display of up to 50 messages ■■ Users can toggle between 2 languages ■■ Display of up to 4 bar charts and up to 4 I/O status parameters per message ■■ Supports max. 32 Standard characters per line ■■ Controllable backlight ■■ Password protection for RUN/STOP mode on TD Digital expansion modules* ■■ Expansion of the digital inputs and outputs: DM8 230R / DM16 230R DM8 24 / DM16 24 DM8 12 / 24R DM8 24R DM16 24R Analog expansion modules* ■■ Expansion of the analog inputs: AM2 for 0–10 V or 0/4 ... 20 mA signals AM2 RTD for Pt100 or Pt1000 with automatic sensor detection AM2 AQ for 0–10 V or 0/4 ... 20 mA signals Analog filter Communication modules* ■■ CM AS-Interface slave –– 4 DI/4 DO as interface to the AS-Interface master ■■ CM EIB / KNX –– max. 16 DI, 12 DO, 8 AI and 8 AO as interface to the KNX –– The date and time can be synchronized via KNX –– All of the digital and analog input and output signals are available as communication objects on the KNX –– Dimming and shutter/blind actuators on the KNX can be controlled in a systemconformant way Stopwatch Min./Max. *All expansion modules are available for 0BA6 and 0BA7. Shift register PI controller Ramp function Analog multiplexer Message text expanded Arithmetic function Pulse width modulation 15 LOGO! 0BA7– more options in detail With an Ethernet interface and SD card slot, LOGO! Communication like never before 0BA7 opens up completely new perspectives – not only Devices with an “E” in their names can communicate with each other via Ethernet. This can happen in various ways: in terms of communication capabilities. The standard SD cards can be used – e.g. to copy programs or save data/projects with comments. In addition, the program memory has been expanded to 400 function blocks and, in place of the optional battery, the internal buffering of the real-time clock has been extended to 20 days. 16 ■■Master/slave connections between LOGO! and LOGO! In this case, only one of a maximum of 9 basic devices processes a user program. The others only serve to expand the I/O capacity. They provide the input information of the digital and analog inputs to the first LOGO! and execute the switching commands on the other side for the digital outputs of their hardware, or they forward the analog output values to the I/O. This does away with the limitation on the number of channels of the previous basic devices. Of course, the basic devices that are being used as slaves can be equipped with the proven expansion modules up to the maximum process image. ■■Master/master connections between LOGO! and LOGO! In this mode, up to 9 basic devices can also be connected to each other. However, each LOGO! processes its own program and shares only the generally needed information with the others. In this way, small, networked systems with easy program structures can be created. Each unit can continue to solve its subtask without the others, if necessary. In both cases, up to 9 basic devices and a PC/PG for programming can be interconnected. The theoretical degree of expansion of a LOGO! configuration is thus 88 DI, 80 DQ, 40 AI, and 18 AQ. ■■Communication with SIMATIC S7 The new LOGO! basic modules can be coupled to higherlevel automation structures (e.g. SIMATIC S7 CPUs or HMI Panels with Ethernet interface), because they can work with the standard S7 protocol. This allows, for example, the use of SIMATIC Touch Panels for operating a machine controlled by LOGO!. Of course, you can also combine these communication options as needed. Twice the program memory and five new function blocks The five new function blocks pay off in practice. Thus, for example, minimum and maximum temperature values can be determined over the course of a day or mean values can be formed over a defined period of time. The duration of any process can be measured using a stopwatch. In addition, there is an astronomical clock, which can be used for such things as controlling outside lighting or feeding times in animal husbandry, and an analog filter, which helps to smooth the influence of interference pulses on the signal profile. Last but not least, the number of usable shift registers has been increased to four. Thus, shift registers with up to 32 bits are now possible. Completely new perspectives for communication, data handling and storage 17 Increased engineering efficiency: reusable sections of a program More complex applications can be programmed using LOGO! Soft Comfort V7 even easier than before: Macros can now be used and libraries can be created for recurring program sequences (e.g. for roller blind controllers). Corresponding program sections can then be selected and reused at any time. When opening a program that contains macros from the library, you are notified if the macro has been changed since its last use. Macros are also helpful when creating step sequence controls. New usage options thanks to data logging Thanks to data logging, you can now save specific pro duction or process data in a data area in the LOGO! – either by using the internal memory or by using a standard SD card up to 8 GB. This is advantageous if LOGO! is used for controlling temperatures or monitoring levels, for example. Corresponding characteristics can be easily documented and evaluated. In the program, the user can define the time intervals in which or the event by which the temperature data or levels are to be recorded. 18 Simply more – many more options in every respect New advantages, old strengths The status of the inputs and outputs are transferred to the PC via the Ethernet interface and are documented there in an Excel table, for example. However, the new software also facilitates programming for users of the previous LOGO!: Function blocks can be exchanged without having to create new connections. The simplified handling includes additional capabilities for aligning the blocks and the additional linking of comments. Of course, the new generation of devices are also characterized by the proven strengths of LOGO!: from the flexible, modular design and easy creation of programs, project simulation and documentation by means of drag & drop to the built-in display with HMI functionality. The new basic devices are fully compatible with the old ones, apart from the increased width of the devices (108 mm instead of 72 mm), which is due to the implemented innovations. They have the built-in display, cursor keys, and the familiar signal ports. Therefore, with their expanded functionality, they can completely replace the old 0BA6 basic devices. In addition, all of the old expansion modules can be used on the new basic devices without restrictions. The only thing that must be noted is that an Ethernet cable is required in order to directly transfer an existing program from one PC to one of the new basic devices. 19 LOGO! modular – the technical details Basic units LOGO! 12/24RC1), LOGO! 12/24RCo2) LOGO! 24C, LOGO! 24Co LOGO! 24RC1), LOGO! 24RCo2) Inputs 8 8 8 of which can be used in analog mode 4 (0 to 10 V) 4 (0 to 10 V) – Input/supply voltage 12/24 V DC 24 V DC 24 V AC/DC Permissible range with signal “0” with signal “1” Input current 10.8 V ... 28.8 V DC max. 5 V DC min. 8.5 V DC 1.5 mA (Ι3 ... Ι6), 0.1 mA (Ι 1, Ι 2, Ι 7, Ι 8) 20.4 V ... 28.8 V DC max. 5 V DC min. 12 V DC 2 mA (Ι3 ... Ι6), 0.1 mA (Ι 1, Ι 2, Ι 7, Ι 8) 20.4 ... 28.8 V DC 20.4 ... 26.4 V AC max. 5 V AC/DC min. 12 V AC/DC, 2.5 mA Outputs 4 relays 4 transistors 4 relays Continuous current 10 A with resistive load; 3 A with inductive load 0.3 A 10 A with resistive load; 3 A with inductive load Short-circuit protection External fuse required Electronic (approx. 1 A) External fuse required Switching frequency 2 Hz with resistive load; 0.5 Hz with inductive load 10 Hz 2 Hz with resistive load; 0.5 Hz with inductive load Cycle time < 0.1 ms/function < 0.1 ms/function < 0.1 ms/function Integrated time switches/ power reserve Yes / typ. 80 h (2 years with battery module) Yes / typ. 80 h (2 years with battery module) Yes / typ. 80 h (2 years with battery module) Connection cables 2 x 1.5 mm2 or 1 x 2.5 mm2 Ambient temperature 0 to + 55 ºC Storage temperature – 40 ºC to + 70 ºC Emitted interference In accordance with EN 55011 (limit class B) Degree of protection IP20 Certification In accordance with VDE 0631, IEC 1131, FM Class 1, Div 2, cULus, C-Tick, marine approvals Mounting On 35 mm standard mounting rail, 4 MW, or wall-mounting Dimensions 72 (4 MW) x 90 x 55 mm (W x H x D) Programming cable LOGO! PC cable, (RS232 or USB) LOGO! PC cable, (RS232 or USB) LOGO! PC cable, (RS232 or USB) Optional backup battery Yes Yes Yes LOGO! <=> LOGO! communication (Ethernet) No No No LOGO! <=> network (Ethernet) No No No Maximum program memory 200 blocks 200 blocks 200 blocks External memory module LOGO! memory card LOGO! memory card LOGO! memory card Data logging No No No Online status chart No No No Macro function No No No Digital modules LOGO! DM8 12/24R LOGO! DM8 24 DM16 24 Inputs 4 4/8 Input/supply voltage 12/24 V DC 24 V DC Permitted range 10.8 ... 28.8 V DC 20.4 ... 28.8 V DC with signal “0” with signal “1” max. 5 V DC min. 8.5 V DC max. 5 V DC min. 12 V DC Input current 1.5 mA 2 mA Outputs 4 relays 4/8 transistors Continuous current Ith (per terminal) 5 A with resistive load; 3 A with inductive load 0.3 A Short-circuit protection External fuse required Electronic (approx. 1 A) Switching frequency 2 Hz with resistive load; 0.5 Hz with inductive load 10 Hz Power loss 0.3 ... 1.7 W at 12 V DC 0.4 ... 1.8 W at 24 V DC 0.8 ... 1.1 W* 0.8 ... 1.7 W** Dimensions (W x H x D) 36 (2 MW) x 90 x 53 mm 36 (2 MW) x 90 x 53 mm 72 (4 MW) x 90 x 53 mm LOGO! 230RC1), LOGO! 230RCo2) LOGO! 12/24 RCE LOGO! 230 RCE 8 8 8 – 4 (0 to 10 V) – 115/240 V AC/DC 12/24 V DC 115/240 V AC/DC 85 ... 265 V AC 100 ... 253 V DC max. 40 V AC/30 V DC min. 79 V AC/79 V DC, 0.08 mA 10.8 V ... 28.8 V DC max. 5 V DC min. 8.5 V DC 1.5 mA (I3 ... I6) 0.1 mA (I 1, I 2, I 7, I 8) 85 ... 265 V AC 100 ... 253 V DC max. 40 V AC/30 V DC min. 79 V AC/79 V DC, 0.08 mA 4 relays 4 relays 4 relays 10 A with resistive load; 3 A with inductive load 10 A with resistive load; 3 A with inductive load 10 A with resistive load; 3 A with inductive load External fuse required External fuse required External fuse required 2 Hz with resistive load; 0.5 Hz with inductive load 2 Hz with resistive load; 0.5 Hz with inductive load 2 Hz with resistive load; 0.5 Hz with inductive load < 0.1 ms/function < 0.1 ms/function < 0.1 ms/function Yes / typ. 80 h (2 years with battery module) Yes / typ. 480 h; no battery Yes / typ. 480 h; no battery On 35 mm standard mounting rail, 6 MW, or wall-mounting 108 (6 MW) x 90 x 55 mm (W x H x D) 108 (6 MW) x 90 x 55 mm (W x H x D) LOGO! PC cable, (RS232 or USB) Ethernet Ethernet Yes No No No Yes, max. 8 LOGO!s + 1PC/PG Yes, max. 8 LOGO!s + 1PC/PG No Yes, max. 8 TN (LOGO!, SIMATIC CPU, 1x SIMATIC HMI, PC) Yes, max. 8 TN (LOGO!, SIMATIC CPU, 1x SIMATIC HMI, PC) 200 blocks 400 blocks 400 blocks LOGO! memory card SIMATIC memory card or standard SD card max. 8 GB SIMATIC memory card or standard SD card max. 8 GB No Internal memory/SD card Internal memory/SD card No Yes, with saving on the PC Yes, with saving on the PC No Yes Yes LOGO! DM8 24R DM16 24R LOGO! DM8 230R DM16 230R 4/8 4/8 24 V AC/DC* 24 V DC** 115/240 V AC/DC 20.4 ... 28.8 V DC, 20.4 ... 26.4 V AC* 85 ... 265 V AC, 100 ... 253 V DC max. 5 V AC/DC min. 12 V AC/DC* max. 40 V AC min. 79 V AC 2.5 mA*, 2.0 mA** 0.08 mA 4/8 relays 4/8 relays 5 A with resistive load; 3 A with inductive load 5 A with resistive load; 3 A with inductive load External fuse required External fuse required 2 Hz with resistive load; 0.5 Hz with inductive load 2 Hz with resistive load; 0.5 Hz with inductive load 0.4 ... 1.8 W at 24 V DC* 0.9 ... 2.7 W at 24 V AC* 0.7 ... 2.5 W at 24 V DC** 1.1 ... 3.5 W (115 V AC) ... 4.5** 2.4 ... 4.8 W (240 V AC) ... 5.5** 0.5 ... 1.8 W (115 V DC) ... 2.9** 1.2 ... 2.4 W (240 V DC) ... 4.8** 36 (2 MW) x 90 x 53 mm 72 (4 MW) x 90 x 53 mm 36 (2 MW) x 90 x 53 mm 72 (4 MW) x 90 x 53 mm R: Relay outputs, C: Clock/time switch, o: without display E: Ethernet interface * for DM8 module, ** for DM16 module 1) A s SIPLUS component also for extended temperature range – 25 ... +70 °C and corrosive atmosphere/ condensation (www.siemens.com/siplus) 2) A s SIPLUS component also for extended temperature range – 40 ... +70 °C and corrosive atmosphere/ condensation (www.siemens.com/siplus) 21 LOGO! modular – the technical data Analog modules LOGO! AM22) LOGO! AM2 RTD LOGO! AM2 AQ2) Supply voltage 12/24 V DC 12/24 V DC 24 V DC Permitted range 10.8 ... 28.8 V DC 10.8 ... 28.8 V DC 20.4 ... 28.8 V DC Analog inputs/outputs 2/0 2/0 x PT100 or PT1000 2-wire or 3-wire Automatic sensor detection 0/2 Measuring range 2) –50 ºC ... +200 ºC – Input range/output range 0 ... 10 V or 0/4 ... 20 mA – 0 ... 10 V or 0/4 ... 20 mA Resolution 10 bit standardized to 0 – 1000 0.25 °C 10 bit standardized to 0 – 1000 Cable length (shielded and twisted) 10 m 10 m 10 m Encoder supply none 1.1 mA – Power loss at 12 V DC at 24 V DC 0.3 ... 0.6 W 0.6 ... 1.2 W 0.3 ... 0.6 W 0.6 ... 1.2 W – 0.6 ... 1.2 W Dimensions (W x H x D) 36 (2 MW) x 90 x 53 mm 36 (2 MW) x 90 x 53 mm 36 (2 MW) x 90 x 53 mm As SIPLUS component also for extended temperature range – 40 ... + 70 °C and corrosive atmosphere/condensation (www.siemens.com/siplus) LOGO! TD Text Display Supply voltage 12 V DC, 24 V AC/DC Permitted range 10.2 ... 28.8 V DC or 20.4 to 26.4 V AC (47 ... 63 Hz) Input 6 standard keys, 4 function keys (tactile-touch keys) Display 61 x 33 mm, white, controllable backlight, adjustable contrast Lines/characters 4 lines, 12/16 characters per line (depends on character set) Length of connecting cable 2.5 m (extendable to 10 m with “universal“ 9-wire standard serial cable) Power consumption at 24 V DC typ. 65 mA (12 V DC), typ. 40 mA (24 V DC), typ. 90 mA (24 V AC) Cutout dimensions (W x H x D) 119.5 x 78.5 x 1.5 – 4.0 mm for panel mounting (128.3 x 86 x 38.7 mm total) Communication modules (CM) EIB / KNX CM AS-Interface (slave) Supply voltage 12/24 V DC 24 V DC Permitted range 20.4 ... 28.8 V DC 20.4 ... 26.4 V AC 19.2 ... 28.8 V DC Digital inputs* 16 (can also be configured as Monoflop) 4 Analog inputs* 8 – Analog outputs* 2 (max. 8) – Digital outputs* 12 4 Dimensions (W x H x D) 2 MW 36 x 90 x 53 mm 2 MW 36 x 90 x 53 mm * Mapping to LOGO! inputs/outputs 22 LOGO! ordering data LOGO! versions Order No. LOGO! 12/24 RCE 6ED1 052-1MD00-0BA7 LOGO! 230 RCE 6ED1 052-1FB00-0BA7 LOGO! 24 C 6ED1 052-1CC01-0BA6 LOGO! 24 Co 6ED1 052-2CC01-0BA6 LOGO! 12/24RC 6ED1 052-1MD00-0BA6 LOGO! 12/24RCo 6ED1 052-2MD00-0BA6 LOGO! 24RC (AC/DC) 6ED1 052-1HB00-0BA6 LOGO! 24RCo (AC/DC) 6ED1 052-2HB00-0BA6 LOGO! 230RC 6ED1 052-1FB00-0BA6 LOGO! 230RCo 6ED1 052-2FB00-0BA6 LOGO! TD 6ED1 055-4MH00-0BA0 Expansion modules Order No. LOGO! DM8 24 6ED1 055-1CB00-0BA0 LOGO! DM8 12/24R 6ED1 055-1MB00-0BA1 LOGO! DM8 24R (AC/DC) 6ED1 055-1HB00-0BA0 LOGO! DM8 230R 6ED1 055-1FB00-0BA1 LOGO! DM16 24 6ED1 055-1CB10-0BA0 LOGO! DM16 24R 6ED1 055-1NB10-0BA0 LOGO! DM16 230R 6ED1 055-1FB10-0BA0 LOGO! AM2 6ED1 055-1MA00-0BA0 LOGO! AM2 RTD 6ED1 055-1MD00-0BA1 LOGO! AM2 AQ 6ED1 055-1MM00-0BA1 Communication modules Order No. LOGO! AS-i 3RK1 400-0CE10-0AA2 LOGO! EIB / KNX 6BK1 700-0BA00-0AA2 Optional accessories Order No. LOGO! Manual German 6ED1 050-1AA00-0AE8 LOGO! Manual English 6ED1 050-1AA00-0BE8 LOGO! Memory Card 6ED1 056-1DA00-0BA0 LOGO! Battery Card 6ED1 056-6XA00-0BA0 LOGO! Combo Memory & Battery Card 6ED1 056-7DA00-0BA0 LOGO! Soft Comfort V 7.0 6ED1 058-0BA02-0YA1 LOGO! Soft Comfort V 7.0 Upgrade 6ED1 058-0CA02-0YE1 LOGO! PC cable 6ED1 057-1AA00-0BA0 LOGO! USB PC cable 6ED1 057-1AA01-0BA0 LOGO! modem cable 6ED1 057-1CA00-0BA0 R: Relay outputs, C: Clock/time switch, o: without display The products listed here may be subject to the current European/German and/ or US export regulations. LOGO! accessories LOGO! PC cables/USB PC cables (only 0BA6) For the simple transfer of LOGO! switching programs to and from PCs LOGO! Switch • For simple networking directly in the distribution board • Provides 4 RJ45 ports, of which one is at the front More information: www.siemens.com/logo-csm LOGO! Manual For intro to LOGO! • Detailed information on operation • Description of all integrated functions • Many practical application examples • Available in 6 languages LOGO! Power Reliable power supply for LOGO! – for converting the line voltage of 100/240 V AC to the respective operating voltage • Suitable for all LOGO! 12 V DC and 24 V DC • Versions for different output currents More information: www.siemens.com/sitop LOGO! Contact Hum-free switching module • For switching resistive loads up to 20 A • For the direct switching of motors up to 4 kW • For powerful loads in noise-sensitive areas More information: www.siemens.com/lowvoltage LOGO! Prom (only 0BA6) For replication of program modules • For copying of modules • For writing to modules via LOGO! Soft Comfort More information: www.siemens.com/siplus Front panel mounting frame For installation in the control cabinet door • Front IP65 (IP30 without glass) • 4 MW or 8 MW (optional with keys) More information: www.siemens.com/siplus LOGO! Upmitter For use with critical power supplies Produces stable 24 V DC at the output with 8 to 59 V DC at the input More information: www.siemens.com/siplus 23 Further information on LOGO! can be found on the Internet – under www.siemens.com/logo • Comprehensive product information • Free demonstration software • Software upgrades • Ready-to-use applications • News • Customer magazine GO! • And much more Of course, you can also purchase software, hardware or promotion packages for LOGO! online. In addition, on request you also find personal support under “Service and Support.” We have compiled further example applications and configuration tools for you under www.siemens.com/microset. SIPLUS LOGO! in the Internet www.siemens.com/siplus You can find hardened LOGO! modules there with • extended temperature range • protection against corrosive atmosphere/ condensation Siemens AG Industry Sector Industry Automation P.O. Box 48 48 90026 NUREMBERG GERMANY Subject to change without prior notice 02/12 Order No. E20001-A1120-P271-X-7600 Dispo 06307 WÜ/32480 MI.AS.LO.XXXX.52.2.02 021210. Printed in Germany © Siemens AG 2012 The information provided in this brochure contains merely general descriptions or characteristics of performance which in actual case of use do not always apply as described or which may change as a result of further development of the products. An obligation to provide the respective characteristics shall only exist if expressly agreed in the terms of contract. All product designations may be trademarks or product names of Siemens AG or supplier companies whose use by third parties for their own purposes could violate the rights of the o wners.
