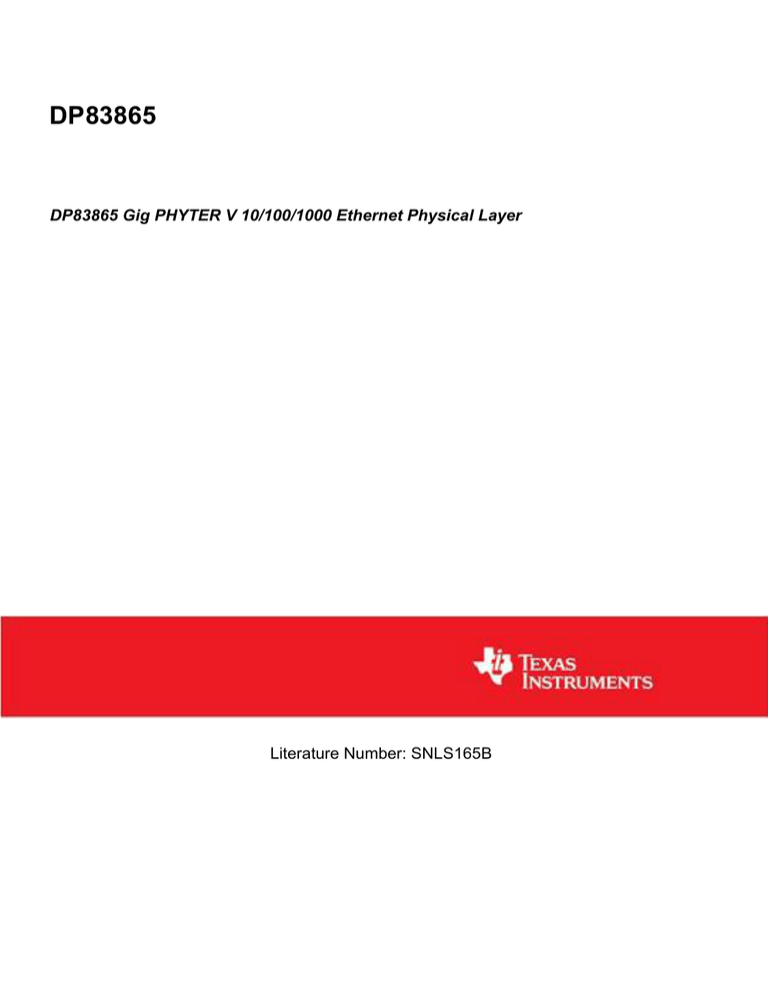

DP83865
DP83865 Gig PHYTER V 10/100/1000 Ethernet Physical Layer
Literature Number: SNLS165B
DP83865 Gig PHYTER® V
10/100/1000 Ethernet Physical Layer
General Description
The DP83865 is a fully featured Physical Layer transceiver
with integrated PMD sublayers to support 10BASE-T,
100BASE-TX and 1000BASE-T Ethernet protocols.
The DP83865 is an ultra low power version of the DP83861
and DP83891. It uses advanced 0.18 um, 1.8 V CMOS
technology, fabricated at National Semiconductor’s South
Portland, Maine facility.
The DP83865 is designed for easy implementation of
10/100/1000 Mb/s Ethernet LANs. It interfaces directly to
Twisted Pair media via an external transformer. This device
interfaces directly to the MAC layer through the IEEE
802.3u Standard Media Independent Interface (MII), the
IEEE 802.3z Gigabit Media Independent Interface (GMII),
or Reduced GMII (RGMII).
The DP83865 is a fourth generation Gigabit PHY with field
proven architecture and performance. Its robust performance ensures drop-in replacement of existing
10/100 Mbps equipment with ten to one hundred times the
performance using the existing networking infrastructure.
■ Integrated PMD sublayer featuring adaptive equalization
and baseline wander compensation according to ANSI
X3.T12
■ 3.3 V or 2.5 V MAC interfaces:
■ IEEE 802.3u MII
■ IEEE 802.3z GMII
■ RGMII version 1.3
■ User programmable GMII pin ordering
■ IEEE 802.3u Auto-Negotiation and Parallel Detection
■ Fully Auto-Negotiates between 1000 Mb/s, 100 Mb/s,
and 10 Mb/s full duplex and half duplex devices
■ Speed Fallback mode to achieve quality link
■ Cable length estimator
■ LED support for activity, full / half duplex, link1000,
Applications
link100 and link10, user programmable (manual on/off),
or reduced LED mode
The DP83865 fits applications in:
■ 10/100/1000 Mb/s capable node cards
■ Supports 25 MHz operation with crystal or oscillator.
■ Switches with 10/100/1000 Mb/s capable ports
■ Requires only two power supplies, 1.8 V (core and
analog) and 2.5 V (analog and I/O). 3.3V is supported
as an alternative supply for I/O voltage
■ High speed uplink ports (backbone)
Features
■ User programable interrupt
■ Ultra low power consumption typically 1.1 watt
■ Supports Auto-MDIX at 10, 100 and 1000 Mb/s
■ Fully compliant with IEEE 802.3 10BASE-T, 100BASE-
TX and 1000BASE-T specifications
■ Supports JTAG (IEEE1149.1)
■ 128-pin PQFP package (14mm x 20mm)
SYSTEM DIAGRAM
DP83865
10/100/1000 Mb/s
ETHERNET MAC
10/100/1000 Mb/s
ETHERNET PHYSICAL LAYER
25 MHz
crystal or oscillator
10BASE-T
100BASE-TX
1000BASE-T
RJ-45
DP83820
MAGNETICS
MII
GMII
RGMII
STATUS
LEDs
PHYTER® is a registered trademark of National Semiconductor Corporation
© 2004 National Semiconductor Corporation
www.national.com
DP83865 Gig PHYTER® V 10/100/1000 Ethernet Physical Layer
October 2004
COMBINED MII / GMII / RGMII INTERFACE
GTX_CLK
TX_ER
TX_EN
TXD[7:0]
TX_CLK
RX_CLK
COL
CRS
RX_ER
RX_DV
RXD[7:0]
MGMT INTERFACE
MDIO
MDC
Interrupt
DP83865
Block Diagram
µC MGMT
& PHY CNTRL
MUX/DMUX
MII
10BASE-T
Block
100BASE-TX
Block
MII
MII
100BASE-TX
PCS
10BASE-T
PLS
100BASE-TX
PMA
10BASE-T
PMA
100BASE-TX
PMD
GMII
1000BASE-T
Block
GMII
1000BASE-T
PCS
Echo cancellation
Crosstalk cancellation
ADC
Decode/Descramble
Equalization
Timing
Skew compensation
BLW
1000BASE-T
PMA
Manchester
10 Mb/s
PAM-5
17 Level PR Shaped
125 Msymbols/s
MLT-3
100 Mb/s
DAC/ADC
SUBSYSTEM
TIMING
DRIVERS/
RECEIVERS
DAC/ADC
TIMING BLOCK
MAGNETICS
4-pair CAT-5 Cable
www.national.com
2
Table of Contents
1.0
2.0
3.0
4.0
5.0
Pin Description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
1.1
MAC Interfaces (MII, GMII, and RGMII) . . . . . . . 5
1.2
Management Interface
. . . . . . . . . . . . . . . . . . . .7
1.3
Media Dependent Interface
. . . . . . . . . . . . . . . .7
1.4
JTAG Interface . . . . . . . . . . . . . . . . . . . . . . . . . . 7
1.5
Clock Interface
. . . . . . . . . . . . . . . . . . . . . . . . . .8
1.6
Device Configuration and LED Interface . . . . . . . . 8
1.7
Reset
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
1.8
Power and Ground Pins . . . . . . . . . . . . . . . . . . . . 11
1.9
Special Connect Pins . . . . . . . . . . . . . . . . . . . . 11
1.10 Pin Assignments in the Pin Number Order . . . . 12
Register Block . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
2.1
Register Definitions . . . . . . . . . . . . . . . . . . . . . . . 18
2.2
Register Map
. . . . . . . . . . . . . . . . . . . . . . . . . . 19
2.3
Register Description . . . . . . . . . . . . . . . . . . . . . . 21
Configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40
3.1
Accessing Expanded Memory Space . . . . . . . . . 40
3.2
Manual Configuration . . . . . . . . . . . . . . . . . . . . . . 40
3.3
Auto-Negotiation . . . . . . . . . . . . . . . . . . . . . . . . . 41
3.4
Auto-Negotiation Register Set . . . . . . . . . . . . . . . 44
3.5
Auto-MDIX resolution . . . . . . . . . . . . . . . . . . . . . . 44
3.6
Polarity Correction . . . . . . . . . . . . . . . . . . . . . . . . 45
3.7
PHY Address, Strapping Options and LEDs . . . . 45
3.8
Reduced LED Mode . . . . . . . . . . . . . . . . . . . . . . 45
3.9
Modulate LED on Error . . . . . . . . . . . . . . . . . . . . 45
3.10 MAC Interface . . . . . . . . . . . . . . . . . . . . . . . . . . . 45
3.11 Clock to MAC Enable . . . . . . . . . . . . . . . . . . . . . . 46
3.12 MII/GMII/RGMII Isolate Mode . . . . . . . . . . . . . . . 46
3.13 Loopback Mode . . . . . . . . . . . . . . . . . . . . . . . . . . 46
3.14 IEEE 802.3ab Test Modes . . . . . . . . . . . . . . . . . . 46
3.15 Interrupt . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47
3.16 Low Power Mode / WOL . . . . . . . . . . . . . . . . . . . 47
3.17 Power Down Mode . . . . . . . . . . . . . . . . . . . . . . . 47
3.18 BIST Configuration . . . . . . . . . . . . . . . . . . . . . . . 47
3.19 Cable Length Indicator . . . . . . . . . . . . . . . . . . . . . 48
3.20 10BASE-T Half Duplex Loopback . . . . . . . . . . . . 48
3.21 I/O Voltage Selection . . . . . . . . . . . . . . . . . . . . . . 48
3.22 Non-compliant inter-operability mode . . . . . . . . . 48
Functional Description . . . . . . . . . . . . . . . . . . . . . . . . . 49
4.1
1000BASE-T PCS Transmitter . . . . . . . . . . . . . . 49
4.2
1000BASE-T PMA Transmitter . . . . . . . . . . . . . . 50
4.3
1000BASE-T PMA Receiver . . . . . . . . . . . . . . . . 50
4.4
1000BASE-T PCS Receiver . . . . . . . . . . . . . . . . 51
4.5
Gigabit MII (GMII) . . . . . . . . . . . . . . . . . . . . . . . . 52
4.6
Reduced GMII (RGMII) . . . . . . . . . . . . . . . . . . . . 53
4.7
10BASE-T and 100BASE-TX Transmitter . . . . . . 54
4.8
10BASE-T and 100BASE-TX Receiver . . . . . . . . 57
4.9
Media Independent Interface (MII) . . . . . . . . . . . . 60
Design Guide . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 63
5.1
Hardware Reset . . . . . . . . . . . . . . . . . . . . . . . . . . 63
5.2
Clocks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 63
5.3
Power Supply Decoupling . . . . . . . . . . . . . . . . . . 64
5.4
Sensitive Supply Pins . . . . . . . . . . . . . . . . . . . . . 64
5.5
PCB Layer Stacking . . . . . . . . . . . . . . . . . . . . . . . 64
5.6
Layout Notes on MAC Interface . . . . . . . . . . . . . . 66
5.7
Twisted Pair Interface . . . . . . . . . . . . . . . . . . . . . 66
5.8
RJ-45 Connections . . . . . . . . . . . . . . . . . . . . . . . 67
5.9
LED/Strapping Option . . . . . . . . . . . . . . . . . . . . . 67
5.10 Unused Pins and Reserved Pins . . . . . . . . . . . . . 67
5.11 I/O Voltage Considerations . . . . . . . . . . . . . . . . . 68
5.12 Power-up Recommendations . . . . . . . . . . . . . . . 68
5.13 Component Selection . . . . . . . . . . . . . . . . . . . . . 68
6.0
7.0
8.0
3
Electrical Specifications . . . . . . . . . . . . . . . . . . . . . . . 71
6.1
DC Electrical Specification . . . . . . . . . . . . . . . . . 71
6.2
Reset Timing . . . . . . . . . . . . . . . . . . . . . . . . . . . 73
6.3
Clock Timing . . . . . . . . . . . . . . . . . . . . . . . . . . . 74
6.4
1000 Mb/s Timing . . . . . . . . . . . . . . . . . . . . . . . . 74
6.5
RGMII Timing . . . . . . . . . . . . . . . . . . . . . . . . . . . 76
6.6
100 Mb/s Timing . . . . . . . . . . . . . . . . . . . . . . . . . 77
6.7
10 Mb/s Timing . . . . . . . . . . . . . . . . . . . . . . . . . . 78
6.8
Loopback Timing . . . . . . . . . . . . . . . . . . . . . . . . 79
6.9
Serial Management Interface Timing . . . . . . . . . 80
6.10 Power Consumption . . . . . . . . . . . . . . . . . . . . . . 81
Frequently Asked Questions . . . . . . . . . . . . . . . . . . . 82
7.1
Do I need to access any MDIO register to start up
the PHY? . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 82
7.2
I am trying to access the registers through MDIO
and I got invalid data. What should I do? . . . . . 82
7.3
Why can the PHY establish a valid link but can
not transmit or receive data? . . . . . . . . . . . . . . . 82
7.4
What is the difference between TX_CLK,
TX_TCLK, and GTX_CLK? . . . . . . . . . . . . . . . . 82
7.5
What happens to the TX_CLK during 1000 Mbps
operation? Similarly what happens to RXD[4:7]
during 10/100 Mbps operation? . . . . . . . . . . . . . 82
7.6
What happens to the TX_CLK and RX_CLK
during Auto-Negotiation and during idles? . . . . . 82
7.7
Why doesn’t the Gig PHYTER V complete AutoNegotiation if the link partner is a forced
1000 Mbps PHY? . . . . . . . . . . . . . . . . . . . . . . . . 82
7.8
What determines Master/Slave mode when AutoNegotiation is disabled in 1000Base-T mode? . . 82
7.9
How long does Auto-Negotiation take? . . . . . . . 83
7.10 How do I measure FLP’s? . . . . . . . . . . . . . . . . . 83
7.11 I have forced 10 Mbps or 100 Mbps operation but
the associated speed LED doesn’t come on. . . . 83
7.12 I know I have good link, but register 0x01, bit 2
“Link Status” doesn’t contain value ‘1’ indicating
good link. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 83
7.13 Your reference design shows pull-up or pull-down
resistors attached to certain pins, which conflict
with the pull-up or pull-down information specified
in the datasheet? . . . . . . . . . . . . . . . . . . . . . . . . 83
7.14 How is the maximum package case temperature
calculated? . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 83
7.15 The DP83865 will establish Link in 100 Mbps
mode with a Broadcom part, but it will not
establish link in 1000 Mbps mode. When this
happens the DP83865’s Link LED will blink on
and off. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 83
7.16 How do I quickly determine the quality of the
link over the cable ? . . . . . . . . . . . . . . . . . . . . . . 83
7.17 What is the power up sequence for DP83865? . 83
7.18 What are some other applicable documents? . . 84
Physical Dimensions . . . . . . . . . . . . . . . . . . . . . . . . . 86
www.national.com
DP83865
PQFP Pin Layout
VSS
MDID_N
MDID_P
VSS
VSS
1V8_AVDD1
VSS
MDIC_N
MDIC_P
VSS
VSS
1V8_AVDD1
VSS
MDIB_N
MDIB_P
VSS
VSS
1V8_AVDD1
VSS
MDIA_N
MDIA_P
VSS
VSS
1V8_AVDD1
VSS
1V8_AVDD1
128
127
126
125
124
123
122
121
120
119
118
117
116
115
114
113
112
111
110
109
108
107
106
105
104
103
NON_IEEE_STRAP
1
102
BG_REF
RESERVED
2
101
2V5_AVDD1
INTERRUPT
3
100
1V8_AVDD3
IO_VDD
4
99
VSS
VSS
5
98
1V8_AVDD2
TX_TCLK / MAN_MDIX_STRAP
6
97
VSS
ACTIVITY_LED / SPEED0_STRAP
7
96
2V5_AVDD2
LINK10_LED / RLED/SPEED1_STRAP
8
95
PHYADDR4_STRAP
LINK100_LED / DUPLEX_STRAP
9
94
MULTI_EN_STRAP / TX_TRIGGER
LINK1000_LED / AN_EN_STRAP
10
93
VSS
CORE_VDD
11
92
CORE_VDD
VSS
12
91
VSS
DUPLEX_LED / PHYADDR0_STRAP
13
90
IO_VDD
PHYADDR1_STRAP
14
89
MDIX_EN_STRAP
IO_VDD
15
88
MAC_CLK_EN_STRAP
VSS
16
87
CLK_OUT
PHYADDR2_STRAP
17
86
CLK_IN
PHYADDR3_STRAP
18
85
CLK_TO_MAC
CORE_VDD
19
84
RESERVED
VSS
20
83
IO_VDD
IO_VDD
21
82
VSS
VSS
22
81
MDC
RESERVED
23
80
MDIO
TCK
24
79
GTX_CLK/TCK
CORE_VDD
25
78
VSS
VSS
26
77
IO_VDD
TMS
27
76
TXD0/TX0
TDO
28
75
TXD1/TX1
IO_VDD
29
74
VSS
VSS
30
73
CORE_VDD
TDI
31
72
TXD2/TX2
TRST
32
71
TXD3/TX3
RESET
33
70
VSS
VDD_SEL_STRAP
34
69
IO_VDD
CORE_VDD
35
68
TXD4
VSS
36
67
TXD5
IO_VDD
37
66
TXD6
VSS
38
65
TXD7
DP83865DVH
Gig PHYTER V
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
COL/CLK_MAC_FREQ
CRS/RGMII_SEL0
RX_ER/RXDV_ER
IO_VDD
VSS
RX_DV/RCK
RXD7
RXD6
RXD5
CORE_VDD
VSS
RXD4
RXD3/RX3
RXD2/RX2
IO_VDD
VSS
RXD1/RX1
RXD0/RX0
RX_CLK
IO_VDD
VSS
TX_CLK/RGMII_SEL1
TX_ER
TX_EN/TXEN_ER
CORE_VDD
VSS
Figure 1. DP83865 Pinout
Order Part Number: DP83865DVH
www.national.com
4
DP83865
1.0 Pin Description
The DP83865 pins are classified into the following interface
categories (each is described in the sections that follow):
—
—
—
—
—
—
—
—
—
MAC Interfaces
Management Interface
Media Dependent Interface
JTAG Interface
Clock Interface
Device Configuration and LED Interface
Reset
Power and Ground Pins
Special Connect Pins
Type: I
Inputs
Type: O
Output
Type: O_Z
Tristate Output
Type: I/O_Z
Tristate Input_Output
Type: S
Strapping Pin
Type: PU
Internal Pull-up
Type: PD
Internal Pull-down
1.1 MAC Interfaces (MII, GMII, and RGMII)
Signal Name
Type
CRS/RGMII_SEL0
O_Z,
S, PD
PQFP
Pin #
40
Description
CARRIER SENSE or RGMII SELECT: CRS is asserted high to indicate the
presence of a carrier due to receive or transmit activity in Half Duplex mode.
For 10BASE-T and 100BASE-TX Full Duplex operation CRS is asserted when
a received packet is detected. This signal is not defined for 1000BASE-T Full
Duplex mode.
In RGMII mode, the CRS is not used. This pin can be used as a RGMII strapping selection pin.
RGMII_SEL1 RGMII_SEL0
COL/CLK_MAC_FREQ O_Z,
S, PD
39
MAC Interface
0
0
= GMII
0
1
= GMII
1
0
= RGMII - HP
1
1
= RGMII - 3COM
COLLISION DETECT: Asserted high to indicate detection of a collision condition (assertion of CRS due to simultaneous transmit and receive activity) in
Half Duplex modes. This signal is not synchronous to either MII clock
(GTX_CLK, TX_CLK or RX_CLK). This signal is not defined and stays low for
Full Duplex modes.
CLOCK TO MAC FREQUENCY Select:
1 = CLOCK TO MAC output is 125 MHz
0 = CLOCK TO MAC output is 25 MHz
TX_CLK/RGMII_SEL1
O_Z,
S, PD
60
TRANSMIT CLOCK or RGMII SELECT: TX_CLK is a continuous clock signal
generated from reference CLK_IN and driven by the PHY during 10 Mbps or
100 Mbps MII mode. TX_CLK clocks the data or error out of the MAC layer and
into the PHY.
The TX_CLK clock frequency is 2.5 MHz in 10BASE-T and 25 MHz in
100BASE-TX mode.
Note: “TX_CLK” should not be confused with the “TX_TCLK” signal.
In RGMII mode, the TX_CLK is not used. This pin can be used as a RGMII
strapping selection pin. This pin should be pulled high for RGMII interface.
5
www.national.com
DP83865
1.0 Pin Description (Continued)
Signal Name
TXD0/TX0
Type
PQFP
Pin #
I
76
TXD1/TX1
75
TXD2/TX2
72
TXD3/TX3
71
TXD4
68
TXD5
67
TXD6
66
TXD7
65
TX_EN/TXEN_ER
I
62
Description
TRANSMIT DATA: These signals carry 4B data nibbles (TXD[3:0]) during 10
Mbps and 100 Mbps MII mode, 4-bit data (TX[3:0]) in RGMII mode, and 8-bit
data (TXD[7:0]) in 1000 Mbps GMII mode. They are synchronous to the transmit clocks (TX_CLK, TCK, GTX_CLK).
Transmit data is input to PHY. In MII or GMII mode, the transmit data is enabled by TX_EN. In RGMII mode, the transmit data is enabled by TXEN_ER.
TRANSMIT ENABLE or TRANSMIT ENABLE/ERROR: In MII or GMII mode,
it is an active high input sourced from MAC layer to indicate transmission data
is available on the TXD.
In RGMII mode, it combines the transmit enable and the transmit error signals
of GMII mode using both clock edges.
GTX_CLK/TCK
I
79
GMII and RGMII TRANSMIT CLOCK: This continuous clock signal is sourced
from the MAC layer to the PHY. Nominal frequency is 125 MHz.
TX_ER
I
61
TRANSMIT ERROR: It is an active high input used in MII mode and GMII
mode forcing the PHY to transmit invalid symbols. The TX_ER signal is synchronous to the transmit clocks (TX_CLK or GTX_CLK).
In MII 4B nibble mode, assertion of Transmit Error by the controller causes the
PHY to issue invalid symbols followed by Halt (H) symbols until deassertion occurs.
In GMII mode, assertion causes the PHY to emit one or more code-groups that
are invalid data or delimiter in the transmitted frame.
This signal is not used in the RGMII mode.
RX_CLK
O_Z
57
RECEIVE CLOCK: Provides the recovered receive clocks for different modes
of operation:
2.5 MHz in 10 Mbps mode.
25 MHz in 100 Mbps mode.
125 MHz in 1000 Mps GMII mode.
This pin is not used in the RGMII mode.
RXD0/RX0
O_Z
56
RXD1/RX1
55
RXD2/RX2
52
RXD3/RX3
51
RXD4
50
RXD5
47
RXD6
46
RXD7
45
RX_ER/RXDV_ER
O_Z
41
RECEIVE DATA: These signals carry 4-bit data nibbles (RXD[3:0]) during 10
Mbps and 100 Mbps MII mode and 8-bit data bytes (RXD[7:0]) in 1000 Mbps
GMII mode. RXD is synchronous to the receive clock (RX_CLK). Receive data
is souirced from the PHY to the MAC layer.
Receive data RX[3:0] is used in RGMII mode. The data is synchronous to the
RGMII receive clock (RCK). The receive data available (RXDV_EN) indicates
valid received data to the MAC layer.
RECEIVE ERROR or RECEIVE DATA AVAILABLE/ERROR: In 10 Mbps,
100 Mbps and 1000 Mbps mode this active high output indicates that the PHY
has detected a Receive Error. The RX_ER signal is synchronous with the receive clock (RX_CLK).
In RGMII mode, the receive data available and receive error is combined
(RXDV_ER) using both rising and falling edges of the receive clock (RCK).
RX_DV/RCK
O_Z
44
RECEIVE DATA VALID or RECEIVE CLOCK: In MII and GMII modes, it is asserted high to indicate that valid data is present on the corresponding RXD[3:0]
in MII mode and RXD[7:0] in GMII mode.
In RGMII mode, this pin is the recovered receive clock (125MHz).
www.national.com
6
DP83865
1.0 Pin Description (Continued)
1.2 Management Interface
Type
PQFP
Pin #
MDC
I
81
MANAGEMENT DATA CLOCK: Synchronous clock to the MDIO serial management input/output data. This clock may be asynchronous to the MAC transmit and receive clocks. The maximum clock rate is 2.5 MHz and no minimum.
MDIO
I/O
80
MANAGEMENT DATA I/O: Bi-directional management instruction/data signal
that may be sourced by the management station or the PHY. This pin requires
a 2kΩ pullup resistor.
O_Z,
PU
3
MANAGEMENT INTERRUPT: It is an active-low open drain output indicating
to the MAC layer or to a managment interface that an interrupt has requested.
The interrupt status can be read through the Interrupt Status Register. (See
section “3.15 Interrupt” on page 47.)
Signal Name
INTERRUPT
Description
If used this pin requires a 2kΩ pullup resistor. This pin is to be left floating if it
is not used.
1.3 Media Dependent Interface
Signal Name
MDIA_P
Type
I/O
PQFP
PIn #
Description
108
Media Dependent Interface: Differential receive and transmit signals.
MDIA_N
109
MDIB_P
114
MDIB_N
115
The TP Interface connects the DP83865 to the CAT-5 cable through a single
common magnetics transformer. These differential inputs and outputs are configurable to 10BASE-T, 100BASE-TX or 1000BASE-T signalling:
MDIC_P
120
MDIC_N
121
MDID_P
126
MDID_N
127
The DP83865 will automatically configure the driver outputs for the proper signal type as a result of either forced configuration or Auto-Negotiation. The automatic MDI / MDIX configuration allows for transmit and receive channel
configuration and polarity configuration between channels A and B, and C and
D.
NOTE: During 10/100 Mbps operation only MDIA_P, MDIA_N, MDIB_P and
MDIB_N are active. MDIA_P and MDIA_N are transmitting only and MDIB_P
and MDIB_N are receiving only. (See section “3.5 Auto-MDIX resolution” on
page 44)
1.4 JTAG Interface
Type
PQFP
PIn #
TRST
I, PD
32
TEST RESET: IEEE 1149.1 Test Reset pin, active low reset provides for asynchronous reset of the Tap Controller. This reset has no effect on the device
registers.
TDI
I, PU
31
TEST DATA INPUT: IEEE 1149.1 Test Data Input pin, test data is scanned
into the device via TDI.
Signal Name
Description
This pin should be pulled down through a 2kΩ resistor if not used.
This pin should be left floating if not used.
TDO
O
28
TEST DATA OUTPUT: IEEE 1149.1 Test Data Output pin, the most recent
test results are scanned out of the device via TDO.
This pin should be left floating if not used.
TMS
I, PU
27
TEST MODE SELECT: IEEE 1149.1 Test Mode Select pin, the TMS pin sequences the Tap Controller (16-state FSM) to select the desired test instruction.
This pin should be left floating if not used.
7
www.national.com
DP83865
1.0 Pin Description (Continued)
Signal Name
TCK
Type
PQFP
PIn #
I
24
Description
TEST CLOCK: IEEE 1149.1 Test Clock input, primary clock source for all test
logic input and output controlled by the testing entity.
This pin should be left floating if not used.
1.5 Clock Interface
Type
PQFP
Pin #
CLK_IN
I
86
CLOCK INPUT: 25 MHz oscillator or crystal input (50 ppm).
CLK_OUT
O
87
CLOCK OUTPUT: Second terminal for 25 MHz crystal. Must be left floating if
a clock oscillator is used.
CLK_TO_MAC
O
85
CLOCK TO MAC OUTPUT: This clock output can be used to drive the clock
input of a MAC or switch device. This output is available after power-up and is
active during all modes except during hardware or software reset. Note that the
clock frequency is selectable through CLK_MAC_FREQ between 25 MHz and
125 MHz.
Signal Name
Description
To disable this clock output the MAC_CLK_EN_STRAP pin has to be tied low.
1.6 Device Configuration and LED Interface
(See section “3.7 PHY Address, Strapping Options and LEDs” on page 45 and section “5.9 LED/Strapping Option” on
page 67.)
Signal Name
NON_IEEE_STRAP
Type
I/O,
S, PD
PQFP
Pin #
1
Description
NON IEEE COMPLIANT MODE ENABLE: This mode allows interoperability
with certain non IEEE compliant 1000BASE-T transceivers.
‘1’ enables IEEE compliant operation and non-compliant operation
‘0’ enables IEEE compliant operation but inhibits non-compliant operation
Note: The status of this bit is reflected in bit 10 of register 0x10. This pin also
sets the default for and can be overwritten by bit 9 of register 0x12.
MAN_MDIX_STRAP /
TX_TCLK
I/O,
S, PD
6
MANUAL MDIX SETTING: This pin sets the default for manual MDI/MDIX
configuration.
‘1’ PHY is manually set to cross-over mode (MDIX)
‘0’ PHY is manually set to straight mode (MDI)
Note: The status of this bit is reflected in bit 8 of register 0x10. This pin also
sets the default for and can be overwritten by bit 14 of register 0x12.
TX_TCLK: TX_TCLK is enabled by setting bit 7 of register 0x12. It is used to
measure jitter in Test Modes 2 and 3 as described in IEEE 802.3ab specification. TX_TCLK should not be confused with the TX_CLK signal. See Table 12
on page 29 regarding Test Mode setting. This pin should be left floating if not
used.
www.national.com
8
DP83865
1.0 Pin Description (Continued)
Signal Name
ACTIVITY_LED /
SPEED0_STRAP
Type
I/O,
S, PD
PQFP
Pin #
7
Description
SPEED SELECT STRAP: These strap option pins have 2 different functions
depending on whether Auto-Negotiation is enabled or not.
Auto-Neg disabled:
Speed[1]
Speed[0]
1
1
Speed Enabled
= Reserved
1
0
= 1000BASE-T
0
1
= 100BASE-TX
0
0
= 10BASE-T
Auto-Neg enabled (Advertised capability):
Speed[1]
Speed[0]
1
1
Speed Enabled
= 1000BASE-T, 10BASE-T
1
0
= 1000BASE-T
0
1
= 1000BASE-T, 100BASE-TX
0
0
= 1000BASE-T, 100BASE-TX, 10BASE-T
Note: The status of this bit is reflected in register 0x10.12.
ACTIVITY LED: The LED output indicates the occurrence of either idle error
or packet transfer.
LINK10_LED /RLED/
SPEED1_STRAP
I/O,
S, PD
8
SPEED SELECT STRAP: The strap option pins have 2 different functions depending on whether Auto-Neg is enabled or not. See SPEED0_STRAP for details.
Note: The status of this bit is reflected in register 0x10.13.
10M GOOD LINK LED: In the standard 5-LED display mode, this LED output
indicates that the PHY has established a good link at 10 Mbps.
RLED MODE: There are two reduced LED modes, the 3-in-1 and 4-in-1
modes. Each RLED mode is enabled in register 0x13.5 and 0x1A.0.
– 3-in-1: 10, 100, and 1000 Mbps good links are combined into one LED.
– 4-in-1: 3-in-1 and activity are combined.
Note: LED steady on indicates good link and flashing indicates Tx/Rx activities.
LINK100_LED /
DUPLEX_STRAP
I/O,
S, PU
9
DUPLEX MODE: This pin sets the default value for the duplex mode. ‘1’ enables Full Duplex by default, ‘0’ enables Half Duplex only.
Note: The status of this bit is reflected in bit 14 of register 0x10.
100M SPEED AND GOOD LINK LED: The LED output indicates that the PHY
has established a good link at 100 Mbps.
In 100BASE-T mode, the link is established as a result of an input receive amplitude compliant with TP-PMD specifications which will result in internal generation of Signal Detect. LINK100_LED will assert after the internal Signal
Detect has remained asserted for a minimum of 500 µs. LINK100_LED will deassert immediately following the de-assertion of the internal Signal Detect.
LINK1000_LED /
AN_EN_STRAP
I/O,
S, PU
10
AUTO-NEGOTIATION ENABLE: Input to initialize Auto-Negotiation Enable
bit (register 0 bit-12).
‘1’ enables Auto-Neg and ‘0’ disables Auto-Neg.
Note: The status of this bit is reflected in bit 15 of register 0x10. This pin also
sets the default for and can be overwritten by bit 12 of register 0x00.
1000M SPEED AND GOOD LINK LED: The LED output indicates that the
PHY has established a good link at 1000 Mbps.
In 1000BASE-T mode, the link is established as a result of training, Auto-Negotiation completed, valid 1000BASE-T link established and reliable reception
of signals transmitted from a remote PHY is received.
9
www.national.com
DP83865
1.0 Pin Description (Continued)
Signal Name
Type
PQFP
Pin #
Description
DUPLEX_LED /
PHYADDR0_STRAP
I/O,
S, PU
13
PHYADDR1_STRAP
PD
14
PHYADDR2_STRAP
PD
17
PHYADDR3_STRAP
PD
18
PD
95
DUPLEX STATUS: The LED is lit when the PHY is in Full Duplex operation
after the link is established.
I/O,
S, PD
94
MULTIPLE NODE ENABLE: This pin determines if the PHY advertises Master
(multiple nodes) or Slave (single node) priority during 1000BASE-T Auto-Negotiation.
PHYADDR4_STRAP
MULTI_EN_STRAP /
TX_TRIGGER
PHY ADDRESS [4:0]: The DP83865 provides five PHY address-sensing pins
for multiple PHY applications. The setting on these five pins provides the base
address of the PHY.
The five PHYAD[4:0] bits are registered as inputs at reset with PHYADDR4 being the MSB of the 5-bit PHY address.
Note: The status of these bit is reflected in bits 4:0 of register 0x12.
‘1’ Selects multiple node priority (switch or hub)
‘0’ Selects single node priority (NIC)
Note: The status of this bit is reflected in bit 5 of register 0x10.
TX_TRIGGER: This output can be enabled during the IEEE 1000BASE-T testmodes. This signal is not required by IEEE to perform the tests, but will help to
take measurements. TX_TRIGGER is only available in test modes 1 and 4 and
provides a trigger to allow for viewing test waveforms on an oscilloscope.
MDIX_EN_STRAP
I/O,
S, PU
89
AUTO MDIX ENABLE: This pin controls the automatic pair swap (Auto-MDIX)
of the MDI/MDIX interface.
‘1’ enables pair swap mode
‘0’ disables the Auto-MDIX and defaults the part into the mode preset by the
MAN_MDIX_STRAP pin.
Note: The status of this bit is reflected in bit 6 of register 0x10. This pin also
sets the default for and can be overwritten by bit 15 of register 0x12.
MAC_CLK_EN_STRAP
/ TX_SYN_CLK
I, S,
PU
88
CLOCK TO MAC ENABLE:
‘1’ CLK_TO_MAC clock output enabled
‘0’ CLK_TO_MAC disabled
Note: This status of this pin is reflected in bit 7 of register 0x10.
TX_SYN_CLK: This output can be enabled during the IEEE 1000BASE-T testmodes. This signal is not required by IEEE to perform the tests, but will help to
take measurements. TX_SYN_CLK is only available in test modes 1 and 4.
TX_SYN_CLK = TX_TCLK / 4 in test mode 1
TX_SYN_CLK = TX_TCLK / 6 in test mode 4
VDD_SEL_STRAP
I/O, S
34
IO_VDD SELECT: This pin selects between 2.5V or 3.3V for I/O VDD .
‘1’ selects 3.3V mode
‘0’ selects 2.5V mode
This pin must either be connected directly to ground or directly to a supply voltage (2.5V to 3.3V).
1.7 Reset
Signal Name
RESET
www.national.com
Type
PQFP
Pin #
I
33
Description
RESET: The active low RESET input allows for hard-reset, soft-reset, and TRISTATE output reset combinations. The RESET input must be low for a minimum of 150 µs.
10
DP83865
1.0 Pin Description (Continued)
1.8 Power and Ground Pins
(See section “5.3 Power Supply Decoupling” on page 64.)
Signal Name
PQFP Pin #
Description
IO_VDD
4, 15, 21, 29, 37, 42, 53, 58, 69,
77, 83, 90
2.5V or 3.3V I/O Supply for “MAC Interfaces”, “Management
Interface”, “JTAG Interface”, “Clock Interface”, “Device Configuration and LED Interface” and “Reset”.
CORE_VDD
11, 19, 25, 35, 48, 63, 73, 92
1.8V Digital Core Supply
2V5_AVDD1
101
2.5V Analog Supply
2V5_AVDD2
96
2.5V Analog Supply
1V8_AVDD1
103, 105, 111, 117, 123
1.8V Analog Supply
1V8_AVDD2
98
1.8V Analog Supply - See section “5.4 Sensitive Supply
Pins” on page 64 for low pass filter recommendation.
1V8_AVDD3
100
1.8V Analog Supply - See section “5.4 Sensitive Supply
Pins” on page 64 for low pass filter recommendation.
VSS
5, 12, 16, 20, 22, 26, 30, 36, 38, Ground
43, 49, 54, 59, 64, 70, 74, 78, 82,
91, 93, 97, 99, 104, 106, 107,
110, 112, 113, 116, 118, 119,
122, 124, 125, 128
1.9 Special Connect Pins
Signal Name
BG_REF
RESERVED
TYPE
PQFP
Pin #
I
102
Description
Internal Reference Bias: See section “5.4 Sensitive Supply Pins” on page 64
for information on how to terminate this pin.
2, 23, These pins are reserved and must be left floating.
84
11
www.national.com
DP83865
1.0 Pin Description (Continued)
1.10 Pin Assignments in the Pin Number Order
Table 1.
Pin #
Data Sheet Pin Name
Type
Connection / Comment
Strap
Non IEEE Compliant Mode Enable: Use a 2kΩ
pull-up resistor to enable. Leave open to disable.
1
NON_IEEE_STRAP
2
RESERVED
3
INTERRUPT
Output
INTERRUPT: Connect to MAC or management
IC. This is a tri-state pin and requires an external
2kΩ pull-up resistor if the pin is used.
4
IO_VDD
Power
I/O VDD: (Digital) Connect to 2.5V or 3.3V. The
VDD_SEL pin must be tied accordingly.
5
VSS
Ground Ground: Connect to common ground plane.
6
TX_TCLK
Output
Transmit Test Clock: See section “1.9 Special
Connect Pins” on page 11.
7
ACTIVITY_LED / SPEED0_STRAP
Strap /
Output
Activity LED / SPEED0 Select: See section
“5.9 LED/Strapping Option” on page 67 on how
to connect this pin for speed selection and
ACTIVITY_LED function.
8
LINK10_LED / RLED/SPEED1_STRAP
Strap /
Output
10M Link LED / RLED / SPEED1: See section
“5.9 LED/Strapping Option” on page 67 on how
to connect this pin for speed selection and
LINK10_LED function.
9
LINK100_LED / DUPLEX_STRAP
Strap /
Output
100M Link LED / Duplex Select: See section
“5.9 LED/Strapping Option” on page 67 on how
to connect this pin for Duplex selection and
100_LED function.
10
LINK1000_LED / AN_EN_STRAP
Strap /
Output
1000M Link LED / Auto-Neg. Select: See section “5.9 LED/Strapping Option” on page 67 on
how to connect this pin for Auto-negotiation configuration and 1000_LED function.
Core VDD: (Digital) Connect to 1.8V.
Reserved Reserved: Leave floating.
11
CORE_VDD
Power
12
VSS
Ground Ground: Connect to common ground plane.
13
DUPLEX_LED / PHYADDR0_STRAP
Strap /
Output
Duplex LED / PHY Address 0: See section
“5.9 LED/Strapping Option” on page 67 on how
to connect this pin for PHY address configuration and DUPLEX_LED function.
14
PHYADDR1_STRAP
Strap
PHY Address 1: See section
“5.9 LED/Strapping Option” on page 67 on how
to connect this pin.
15
IO_VDD
Power
I/O VDD: (Digital) Connect to 2.5V or 3.3V. The
VDD_SEL pin must be tied accordingly.
16
VSS
Ground Ground: Connect to common ground plane.
17
PHYADDR2_STRAP
Strap
PHY Address 2: See section
“5.9 LED/Strapping Option” on page 67 on how
to connect this pin
18
PHYADDR3_STRAP
Strap
PHY Address 3: See section
“5.9 LED/Strapping Option” on page 67 on how
to connect this pin
19
CORE_VDD
Power
Core VDD: (Digital) Connect to 1.8V.
20
VSS
Gound
Ground: Connect to common ground plane.
21
IO_VDD
Power
I/O VDD: (Digital) Connect to 2.5V or 3.3V. The
VDD_SEL pin must be tied accordingly.
22
VSS
Ground Ground: Connect to common ground plane.
www.national.com
12
DP83865
1.0 Pin Description (Continued)
Table 1.
Pin #
Data Sheet Pin Name
Type
Connection / Comment
23
RESERVED
Reserved Reserved: Leave floating.
24
TCK
25
CORE_VDD
Power
Ground Ground: Connect to common ground plane.
Input
JTAG Test Clock: This pin should be left floating if not used.
Core VDD: (Digital) Connect to 1.8V.
26
VSS
27
TMS
Input
JTAG Test Mode Select: This pin should be left
floating if not used.
28
TDO
Output
JTAG Test Data Output: This pin should be left
floating if not used.
29
IO_VDD
Power
I/O VDD: (Digital) Connect to 2.5V or 3.3V. The
VDD_SEL pin must be tied accordingly.
30
VSS
Ground Ground: Connect to common ground plane.
31
TDI
Input
JTAG Test Data Input: This pin should be left
floating if not used.
32
TRST
Input
JTAG Test Reset: This pin should be pulled
down through a 2kΩ resistor if not used.
33
RESET
Input
Reset: Connect to board reset signal.
34
VDD_SEL_STRAP
Strap
I/O VDD Select: Pull high to select 3.3V or low
to select 2.5V. The pin must be connected directly to power or ground (no pull-up/down resistor!).
35
CORE_VDD
Power
Core VDD: (Digital) Connect to 1.8V.
36
VSS
Ground Ground: Connect to common ground plane.
37
IO_VDD
Power
I/O VDD: (Digital) Connect to 2.5V or 3.3V. The
VDD_SEL pin must be tied accordingly.
38
VSS
Ground Ground: Connect to common ground plane.
39
COL
Output
Collision: Connect to MAC chip through a single
50 Ω impedance trace. This output is capable of
driving 35 pF load and is not intended to drive
connectors, cables, backplanes or multiple traces. This applies if the part is in 100 Mbps mode
or 1000 Mbps mode.
40
CRS/RGMII_SEL0
Output
Carrier Sense: Connect to MAC chip through a
single 50Ω impedance trace. This output is capable of driving 35 pf load and is not intended to
drive connectors, cables, backplanes or multiple
traces. This applies if the part is in 100 Mbps
mode or 1000 Mbps mode.
41
RX_ER/RXDV_ER
Output
Receive Error: Connect to MAC chip through a
single 50 Ω impedance trace. This output is capable of driving 35 pf load and is not intended to
drive connectors, cables, backplanes or multiple
traces. This applies if the part is in 100 Mbps
mode or 1000 Mbps mode.
42
IO_VDD
Power
I/O VDD: (Digital) Connect to 2.5V or 3.3V. The
VDD_SEL pin must be tied accordingly.
43
VSS
Ground Ground: Connect to common ground plane.
44
RX_DV/RCK
Output
13
Receive Data Valid: Connect to MAC chip
through a single 50 Ω impedance trace. This output is capable of driving 35 pf load and is not intended to drive connectors, cables, backplanes
or multiple traces. This applies if the part is in
100 Mbps mode or 1000 Mbps mode.
www.national.com
DP83865
1.0 Pin Description (Continued)
Table 1.
Pin #
Data Sheet Pin Name
Type
Connection / Comment
45
RXD7
Output
Receive Data 7: Connect to MAC chip through
a single 50 Ω impedance trace. This output is capable of driving 35 pf load and is not intended to
drive connectors, cables, backplanes or multiple
traces. This applies if the part is in 100 Mbps
mode or 1000 Mbps mode.
46
RXD6
Output
Receive Data 6: Connect to MAC chip through
a single 50 Ω impedance trace. This output is capable of driving 35 pf load and is not intended to
drive connectors, cables, backplanes or multiple
traces. This applies if the part is in 100 Mbps
mode or 1000 Mbps mode.
47
RXD5
Output
Receive Data 5: Connect to MAC chip through
a single 50 Ω impedance trace. This output is capable of driving 35 pf load and is not intended to
drive connectors, cables, backplanes or multiple
traces. This applies if the part is in 100 Mbps
mode or 1000 Mbps mode.
Core VDD: (Digital) Connect to 1.8V.
48
CORE_VDD
Power
49
VSS
Ground Ground: Connect to common ground plane.
50
RXD4
Output
Receive Data 4: Connect to MAC chip through
a single 50 Ω impedance trace. This output is capable of driving 35 pf load and is not intended to
drive connectors, cables, backplanes or multiple
traces. This applies if the part is in 100 Mbps
mode or 1000 Mbps mode.
51
RXD3/RX3
Output
Receive Data 3: Connect to MAC chip through
a single 50 Ω impedance trace. This output is capable of driving 35 pf load and is not intended to
drive connectors, cables, backplanes or multiple
traces. This applies if the part is in 100 Mbps
mode or 1000 Mbps mode.
52
RXD2/RX2
Output
Receive Data 2: Connect to MAC chip through
a single 50 Ω impedance trace. This output is capable of driving 35 pf load and is not intended to
drive connectors, cables, backplanes or multiple
traces. This applies if the part is in 100 Mbps
mode or 1000 Mbps mode.
53
IO_VDD
Power
I/O VDD: (Digital) Connect to 2.5V or 3.3V. The
VDD_SEL pin must be tied accordingly.
54
VSS
Ground Ground: Connect to common ground plane.
55
RXD1/RX1
Output
Receive Data 1: Connect to MAC chip through
a single 50 Ω impedance trace. This output is capable of driving 35 pf load and is not intended to
drive connectors, cables, backplanes or multiple
traces. This applies if the part is in 100 Mbps
mode or 1000 Mbps mode.
56
RXD0/RX0
Output
Receive Data 0: Connect to MAC chip through
a single 50 Ω impedance trace. This output is capable of driving 35 pf load and is not intended to
drive connectors, cables, backplanes or multiple
traces. This applies if the part is in 100 Mbps
mode or 1000 Mbps mode.
www.national.com
14
DP83865
1.0 Pin Description (Continued)
Table 1.
Pin #
Data Sheet Pin Name
Type
Connection / Comment
57
RX_CLK
Output
Receive Clock/ Receive Byte Clock 1: Connect to MAC chip through a single 50 Ω impedance trace. This output is capable of driving 35
pf load and is not intended to drive connectors,
cables, backplanes or multiple traces. This applies if the part is in 100 Mbps mode or 1000
Mbps mode.
58
IO_VDD
Power
I/O VDD: (Digital) Connect to 2.5V or 3.3V. The
VDD_SEL pin must be tied accordingly.
59
VSS
Ground Ground: Connect to common ground plane.
60
TX_CLK/RGMII_SEL1
Output
Transmit Clock: Connect to MAC chip through
a single 50 Ω impedance trace. This input has a
typical input capacitance of 6 pF.
61
TX_ER
Input
Transmit Error: Connect to MAC chip through a
single 50 Ω impedance trace. This input has a
typical input capacitance of 6 pF.
62
TX_EN/TXEN_ER
Input
Transmit Enable: Connect to MAC chip through
a single 50 Ω impedance trace. This input has a
typical input capacitance of 6 pF.
63
CORE_VDD
Power
Ground Ground: Connect to common ground plane.
Core VDD: (Digital) Connect to 1.8V.
64
VSS
65
TXD7
Input
Transmit Data 7: Connect to MAC chip through
a single 50 Ω impedance trace. This input has a
typical input capacitance of 6 pF.
66
TXD6
Input
Transmit Data 6: Connect to MAC chip through
a single 50 Ω impedance trace. This input has a
typical input capacitance of 6 pF
67
TXD5
Input
Transmit Data 5: Connect to MAC chip through
a single 50 Ω impedance trace. This input has a
typical input capacitance of 6 pF
68
TXD4
Input
Transmit Data 4: Connect to MAC chip through
a single 50 Ω impedance trace. This input has a
typical input capacitance of 6 pF
69
IO_VDD
Power
I/O VDD: (Digital) Connect to 2.5V or 3.3V. The
VDD_SEL pin must be tied accordingly.
Ground Ground: Connect to common ground plane.
70
VSS
71
TXD3/TX3
Input
Transmit Data 3: Connect to MAC chip through
a single 50 Ω impedance trace. This input has a
typical input capacitance of 6 pF
72
TXD2/TX2
Input
Transmit Data 2: Connect to MAC chip through
a single 50 Ω impedance trace. This input has a
typical input capacitance of 6 pF
73
CORE_VDD
Power
Ground Ground: Connect to common ground plane.
Core VDD: (Digital) Connect to 1.8V.
74
VSS
75
TXD1/TX1
Input
Transmit Data 1: Connect to MAC chip through
a single 50 Ω impedance trace. This input has a
typical input capacitance of 6 pF
76
TXD0/TX0
Input
Transmit Data 0: Connect to MAC chip through
a single 50 Ω impedance trace. This input has a
typical input capacitance of 6 pF
77
IO_VDD
Power
I/O VDD: (Digital) Connect to 2.5V or 3.3V. The
VDD_SEL pin must be tied accordingly.
78
VSS
Ground Ground: Connect to common ground plane.
15
www.national.com
DP83865
1.0 Pin Description (Continued)
Table 1.
Pin #
Data Sheet Pin Name
Type
Connection / Comment
Input
GMII Transmit Clock: Connect to MAC chip
through a single 50 Ω impedance trace. This input has a typical input capacitance of 6 pF
79
GTX_CLK/TCK
80
MDIO
Input /
Output
Management Data I/O: This pin requires a 2kΩ
parallel termination resistor (pull-up to VDD).
81
MDC
Input
Management Data Clock: Connect to MAC or
controller using a 50 Ω impedance trace.
82
VSS
Ground Ground: Connect to common ground plane.
83
IO_VDD
Power
84
RESERVED
85
CLK_TO_MAC
86
I/O VDD: (Digital) Connect to 2.5V or 3.3V. The
VDD_SEL pin must be tied accordingly.
Reserved Reserved: Leave floating.
Output
Clock to MAC: Connect to the reference clock
input of a GMAC. Use pin
MAC_CLK_EN_STRAP to disable this function.
CLK_IN
Input
Clock Input: Connect to external 25MHz reference clock source. If a crystal is used connect to
first terminal of crystal.
87
CLK_OUT
Input
Clock Output: Connect to the second terminal
of a crystal. Leave floating if an external clock
source is used.
88
MAC_CLK_EN_STRAP
Strap
Clock to MAC Enable: Use a 2kΩ pull-down resistor to disable. Leave open to enable.
89
MDIX_EN_STRAP
Strap
Automatic MDIX Enable: Use a 2kΩ pull-down
resistor to disable. Leave open to enable.
90
IO_VDD
Power
I/O VDD: (Digital) Connect to 2.5V or 3.3V. The
VDD_SEL pin must be tied accordingly.
91
VSS
Ground Ground: Connect to common ground plane.
92
CORE_VDD
Power
93
VSS
Ground Ground: Connect to common ground plane.
94
MULTI_EN_STRAP
Strap
Multiple Node Enable: Use a 2kΩ pull-up resistor to enable. Leave open to disable.
95
PHYADDR4_STRAP
Strap
PHY Address 4: See section
“5.9 LED/Strapping Option” on page 67 on how
to connect this pin.
96
AFE_VDD
Power
AFE VDD: (Analog) Connect to 2.5V.
97
VSS
Ground Ground: Connect to common ground plane.
98
PGM_VDD
Power
99
VSS
Ground Ground: Connect to common ground plane.
100
1V8_AVDD3
Power
Analog Supply: Connect to 1.8V through a low
pass filter. See section “5.4 Sensitive Supply
Pins” on page 64 for details.
101
BG_VDD
Power
BG VDD: (Analog) Connect to 2.5V.
102
BG_REF
Input
103
RX_VDD
Power
104
VSS
Ground Ground: Connect to common ground plane.
105
RX_VDD
Power
106
VSS
Ground Ground: Connect to common ground plane.
www.national.com
16
Core VDD: (Digital) Connect to 1.8V.
PGM VDD: Connect to 1.8V through a low pass
filter. See section “5.4 Sensitive Supply Pins” on
page 64 for details.
BG Reference: See section “5.4 Sensitive Supply Pins” on page 64 on how to connect this pin.
Receive VDD: (Analog) Connect to 1.8V.
Receive VDD: (Analog) Connect to 1.8V.
DP83865
1.0 Pin Description (Continued)
Table 1.
Pin #
Data Sheet Pin Name
Type
Connection / Comment
107
VSS
Ground Ground: Connect to common ground plane.
108
MDIA_P
Input /
Output
MDI Channel A Positive: Connect to TD+ of
channel A of the magnetics.
109
MDIA_N
Input /
Output
MDI Channel A Negative: Connect to TD- of
channel A of the magnetics.
110
VSS
Ground Ground: Connect to common ground plane.
111
RX_VDD
Power
112
VSS
Ground Ground: Connect to common ground plane.
113
VSS
Ground Ground: Connect to common ground plane.
114
MDIB_P
Input /
Output
MDI Channel B Positive: Connect to TD+ of
channel B of the magnetics.
115
MDIB_N
Input /
Output
MDI Channel B Negative: Connect to TD- of
channel B of the magnetics.
116
VSS
Ground Ground: Connect to common ground plane.
117
RX_VDD
Power
118
VSS
Ground Ground: Connect to common ground plane.
119
VSS
Ground Ground: Connect to common ground plane.
120
MDIC_P
Input /
Output
MDI Channel C Positive: Connect to TD+ of
channel C of the magnetics.
121
MDIC_N
Input /
Output
MDI Channel C Negative: Connect to TD- of
channel C of the magnetics.
122
VSS
Ground Ground: Connect to common ground plane.
123
RX_VDD
Power
124
VSS
Ground Ground: Connect to common ground plane.
125
VSS
Ground Ground: Connect to common ground plane.
126
MDID_P
Input /
Output
MDI Channel D Positive: Connect to TD+ of
channel D of the magnetics.
127
MDID_N
Input /
Output
MDI Channel D Negative: Connect to TD- of
channel D of the magnetics.
128
VSS
Ground Ground: Connect to common ground plane.
17
Receive VDD: (Analog) Connect to 1.8 Volt.
Receive VDD: (Analog) Connect to 1.8V.
Receive VDD: (Analog) Connect to 1.8V.
www.national.com
DP83865
2.0 Register Block
2.1 Register Definitions
Register maps and address definitions are given in the following table:
Table 2. Register Block - DP83865 Register Map
Offset
Access
Tag
0
RW
BMCR
Basic Mode Control Register
1
RO
BMSR
Basic Mode Status Register
0x02
2
RO
PHYIDR1
PHY Identifier Register #1
0x03
3
RO
PHYIDR2
PHY Identifier Register #2
Hex
Decimal
0x00
0x01
Description
0x04
4
RW
ANAR
0x05
5
RW
ANLPAR
Auto-Negotiation Advertisement Register
0x06
6
RW
ANER
0x07
7
RW
ANNPTR
Auto-Negotiation Next Page TX
Auto-Negotiation Next Page RX
Auto-Negotiation Link Partner Ability Register
Auto-Negotiation Expansion Register
0x08
8
RW
ANNPRR
0x09
9
RW
1KTCR
1000BASE-T Control Register
0x0A
10
RO
1KSTSR
1000BASE-T Status Register
0x0B-0x0E
11-14
RO
Reserved
Reserved
0x0F
15
RO
1KSCR
0x10
16
RO
STRAP_REG
0x11
17
RO
LINK_AN
0x12
18
RW
AUX_CTRL
Auxiliary Control Register
0x13
19
RW
LED_CTRL
LED Control Register
0x14
20
RO
INT_STATUS
Interrupt Status Register
0x15
21
RW
INT_MASK
Interrupt Mask Register
0x16
22
RO
EXP_MEM_CTL
1000BASE-T Extended Status Register
Strap Options Register
Link and Auto-Negotiation Status Register
Expanded Memory Access Control
0x17
23
RW
INT_CLEAR
Interrupt Clear Register
0x18
24
RW
BIST_CNT
BIST Counter Register
0x19
25
RW
BIST_CFG1
BIST Configuration Register #1
0x1A
26
RW
BIST_CFG2
BIST Configuration Register #2
0x1B-0x1C
27-28
RO
Reserved
0x1D
29
RW
EXP_MEM_DATA
Expanded Memory Data
0x1E
30
RW
EXP_MEM_ADDR
Expanded Memory Address
0x1F
31
RW
PHY_SUP
www.national.com
Reserved
18
PHY Support Register
19
0
ACK2
0
ACK2
0
Reserved
0
Reserved
0
Reserved
1
OUI[22]
0
OUI[6]
10BASE-T
Full-Duplex
1
Register 0x0F (15’d)
1000BASE-T Extended
Status Register (1KSCR)
Register 0x0E (14’d)
Reserved
Register 0x0D (13’d)
Reserved
Register 0x0C (12’d)
Reserved
Register 0x0B (11’d)
Reserved
1000BASE-X
Half-Duplex
0
0
1000BASE-X
Full-Duplex
0
0
0
Reserved
Reserved
0
0
Reserved
0
Reserved
Reserved
0
0
Reserved
Reserved
Reserved
1000BASE-T
Full-Duplex
1
0
Reserved
0
Reserved
0
Reserved
0
Reserved
0
1000BASE-T
Half-Duplex
1
0
Reserved
0
Reserved
0
Reserved
0
Reserved
Remote Receiver Status
0
0
0
Message Page
1
Message Page
0
Reserved
0
Remote Fault
0
Remote Fault
0
OUI[21]
1
OUI[5]
100BASE-X
Half-Duplex
1
12
Auto-Neg
Enable
Strap[1]
Master/Slave
Master/Slave- Local Receiver
Register 0x0A (10’d)
Manual Config. Config. Resol.
Status
1000BASE-T Status Register
Fault
0
0
(1KSTSR)
0, LH, SC
0
13
Speed [0]
Selection
Strap[0]
Master/Slave
Config. Enable
0
Test Mode[1]
0
0
Test Mode[2]
ACK
0
ACK
Next Page
1
Next Page
0
0
0
Reserved
0
Reserved
ACK
Next Page
0
0
1
Reserved
0
Next Page
OUI[20]
0
0
OUI[19]
OUI[4]
100BASE-X
Full-Duplex
1
OUI[3]
0
100BASE-T4
0
0, SC
14
Loopback
15
PHY Reset
Test Mode[0]
Register 0x09
1000BASE-T Control
Register (1KTCR)
Register 0x08
Auto-Neg NP RX Register
(ANNPRR)
Register 0x07
Auto-Neg NP TX Register
(ANNPTR)
Register 0x06
Auto-Neg Expansion Register
(ANER)
Register 0x05
Auto-Neg Link Partner
Ability Register (ANLPAR)
Register 0x04
Auto-Neg Advertisement
Register (ANAR)
Register 0x03
PHY Identifier Register #2
(PHYIDR2)
Register 0x02
PHY Identifier Register #1
(PHYIDR1)
Register 0x01
Basic Mode Status Register
(BMSR)
Register 0x00
Basic Mode Control Register
(BMCR)
Register Name
2.2 Register Map
11
10
Reserved
0
Bit Name
Read/Writable
Default Value
0
Key:
0
Reserved
0
Reserved
0
Reserved
0
Reserved
LP
1000BASE-T
Half-Duplex
0
STRAP[0]
Repeater DTE
0
NP_M[10]
0
NP_M[10]
0
Reserved
0
PAUSE
0
PAUSE
1
OUI[24]
0
OUI[8]
100BASE-T2
Full-Duplex
0
0
Isolate
Reserved
0
Reserved
0
Reserved
0
Reserved
0
Reserved
LP
1000BASE-T
Full-Duplex
0
Master/Slave
Config. Value
0
0
TOG_RX
0
TOG_TX
0
Reserved
0
ASY_PAUSE
0
ASY_PAUSE
1
OUI[23]
0
OUI[7]
10BASE-T
Half-Duplex
1
0
Power Down
9
8
0
OUI[10]
1000BASE-T
Ext’d Status
1
Strap[1]
Duplex Mode
7
0
OUI[11]
0
Reserved
0
Collision Test
6
0
OUI[12]
Preamble
Suppression
1
Speed[1]
Selection
Strap[1]
5
0
OUI[13]
Auto-Neg
Complete
0
0
Reserved
4
0
OUI[14]
0, LH
Remote Fault
0
Reserved
0
0
Reserved
0
Reserved
0
Reserved
0
Reserved
0
Bit Name
Read Only
Value
0
Reserved
0
Reserved
0
Reserved
0
Reserved
0
Reserved
0
0
Reserved
Reserved
1000BASE-T
Half-Duplex
STRAP[1]
0
NP_M[8]
0
NP_M[8]
0
Reserved
100BASE-TX
Full-Duplex
0
100BASE-TX
Full-Duplex
STRAP[1]
Reserved
1000BASE-T
Full-Duplex
STRAP[1]
0
NP_M[9]
0
NP_M[9]
0
Reserved
0
100BASE-T4
0
100BASE-T4
0
0
Reserved
0
Reserved
0
Reserved
0
Reserved
0
Reserved
Idle Error
Count[7]
0
0
Reserved
0
NP_M[7]
0
NP_M[7]
0
Reserved
100BASE-TX
Half-Duplex
0
100BASE-TX
Half-Duplex
STRAP[1]
0
Reserved
0
Reserved
0
Reserved
0
Reserved
0
Reserved
0
Reserved
Idle Error
Count[6]
0
0
Reserved
0
NP_M[6]
0
NP_M[6]
0
Reserved
10BASE-T
Full-Duplex
0
10BASE-T
Full-Duplex
STRAP[1]
1
0
Reserved
0
Reserved
0
Reserved
0
Reserved
0
Reserved
Idle Error
Count[5]
0
0
Reservd
0
NP_M[5]
0
NP_M[5]
0
Reserved
10BASE-T
Half-Duplex
0
10BASE-T
Half-Duplex
STRAP[1]
1
0
Reserved
0
Reserved
0
Reserved
0
Reserved
0
Reserved
Idle Error
Count[4]
0
0
Reserved
0
NP_M[4]
0
NP_M[4]
0, LH
PDF
0
PSB[4]
0
PSB[4]
1
VMDR_MDL[5] VMDR_MDL[4] VMDR_MDL[3] VMDR_MDL[2] VMDR_MDL[1] VMDR_MDL[0]
0
OUI[9]
100BASE-T2
Half-Duplex
0
Restart
Auto-Neg
0, SC
3
0
Reserved
0
Reserved
0
Reserved
0
Reserved
0
Reserved
Idle Error
Count[3]
0
0
Reserved
0
NP_M[3]
0
NP_M[3]
0
LP_NP Able
0
PSB[3]
0
PSB[3]
1
MDL_REV[3]
0
OUI[15]
Auto-Neg
Ability
1
0
Reserved
2
0
Reserved
0
Reserved
0
Reserved
0
Reserved
0
Reserved
Idle Error
Count[2]
0
0
Reserved
0
NP_M[2]
0
NP_M[2]
1
NP_Able
0
PSB[2]
0
PSB[2]
0
MDL_REV[2]
0
OUI[16]
0, LL
Link Status
0
Reserved
1
0
Reserved
0
Reserved
0
Reserved
0
Reserved
0
Reserved
Idle Error
Count[1]
0
0
Reserved
0
NP_M[1]
0
NP_M[1]
0, LH
Page _RX
0
PSB[1]
0
PSB[1]
1
MDL_REV[1]
0
OUI[17]
Jabber
Detect
0, LH
0
Reserved
0
0
Reserved
0
Reserved
0
Reserved
0
Reserved
0
Reserved
Idle Error
Count[0]
0
0
Reserved
0
NP_M[0]
0
NP_M[0]
0
LP_AN Able
0
PSB[0]
1
PSB[0]
0
MDL_REV[0]
0
OUI[18]
1
Extended
Capability
0
Reserved
DP83865
2.0 Register Block (Continued)
www.national.com
www.national.com
TP_POL[2]
0
0
20
0, SC
0, SC
0
0, SC
Clear Int.
0, SC
Clear Int.
0
Reserved
0
Mask Int.
Polarity
Change Int.
0
100BASE-TX
Link LED[1]
0
Reserved
(RGMII Inband
Sig. Enable)
0
Reserved
(Power Down
Status)
0
10
0, SC
Clear Int.
0
Reserved
0
Mask Int.
PDF Detection
Fault Int.
0
100BASE-TX
Link LED[0]
0
Reserved
(RGMII Inband
Sig. Enable)
0
0
MDIX Status
STRAP[0]
NC Mode
0
Exp Mem Data
14
0
0
Exp Mem Data
15
0
Reserved
Reserved
0
0
Exp Mem Data
13
0
0
Reserved
0
Reserved
Transmit BIST
Packet
Count[2]
0
Transmit BIST
Packet Length
0
0
Exp Mem Data
12
0
0
Reserved
0
Reserved
Transmit BIST
Packet
Count[1]
0
Transmit BIST
IFG
0
0
Exp Mem Data
11
0
0
Reserved
0
Reserved
Transmit BIST
Packet
Count[0]
0
Transmit BIST
Enable
0
0
Exp Mem Data
10
0
0
Reserved
0
Exp Mem Data
9
0
0
Reserved
0
Reserved
0
Exp Mem Data
8
0
0
Reserved
0
Reserved
0
Reserved
0
0
Counter Bit[8]
0, SC
Clear Int.
Reserved
(Broadcast Enable)
0
0
Exp Mem Data
7
0
0
Reserved
0
Reserved
0
Reserved
Transmit BIST
Packet[7]
0
0
Counter Bit[7]
0, SC
Clear Int.
0
Broadcast En.
0
Mask Int.
0
Mask Int.
No Link Int.
0
Duplex LED[1]
TX_TCLK
Enable
0
Reserved
(Shallow Loopback Status
0
0
0
0
7
MAC Clock
Enable
STRAP[1]
No HCD Int.
1000BASE-T
Link LED[0]
0
RGMII_inband
Status Enable
0
Reserved
(Power-On Init
In Progress)
0
Reserved
Reserved
Reserved
8
Reserved
(REF_SEL)
STRAP[0]
Reserved
0
Counter Bit[9]
0, SC
Clear Int.
0
Reserved
0
Mask Int.
Master/Slave
Fail Int.
0
1000BASE-T
Link LED[1]
0
NC Mode
Enable
STRAP[0]
0
FIFO Error
Reserved
Transmit BIST
Packet Type
0
9
Reserved
(REF_SEL)
STRAP[0]
6
Exp Mem Data
6
0
0
Reserved
0
Reserved
0
Reserved
Transmit BIST
Packet[6]
0
0
Counter Bit[6]
0, SC
Clear Int.
0
Reserved
0
Mask Int.
Jabber Change
Int.
0
0
Duplex LED[0]
TX_TRIG
/SYNC Enable
0
(Deep) Loopback
Status
0
Auto MDIX
Enable
STRAP[1]
5
Exp Mem Data
5
0
0
Reserved
0
Reserved
0
Reserved
Transmit BIST
Packet[5]
0
0
Counter Bit[5]
0, SC
Clear Int.
0
Reserved
0
Mask Int.
Next Page
Received Int.
0
10M LED
RLED enable
0
Shallow Loopback Enable
0
NC Mode
Status
0
STRAP[0]
Multi Enable
4
Exp Mem Data
4
0
0
Reserved
0
Reserved
0
Reserved
Transmit BIST
Packet[4]
0
0
Counter Bit[4]
0, SC
Clear Int.
0
Reserved
0
Mask Int.
Auto-Neg.
Complete Int.
0
Modulate LED
on CRC Error
0
0
X_Mac Enable
Speed
Status[1]
0
STRAP[0]
PHYADDR[4]
3
Exp Mem Data
3
0
0
Reserved
0
Reserved
0
Reserved
Transmit BIST
Packet[3]
0
0
Counter Bit[3]
0, SC
Clear Int.
0
Reserved
0
Mask Int.
Remote Fault
Change Int.
0
Modulate LED
on Idle Error
0
0
Reserved
Speed
Status[0]
0
STRAP[0]
PHYADDR[3]
2
Exp Mem Data
2
0
0
Reserved
0
Reserved
0
Reserved
Transmit BIST
Packet[2]
0
0
Counter Bit[2]
0
Reserved
0
Reserved
0
Reserved
0
Reserved
AN Fallback
on Gigabit Link
0
0
Reserved
0
Link Status
STRAP[0]
PHYADDR[2]
1
Exp Mem Data
1
0
0
Reserved
0
Reserved
0
Reserved
Transmit BIST
Packet[1]
0
0
Counter Bit[1]
0
Reserved
0
XMode[1]
0
Reserved
0
Reserved
AN Fallback
on CRC Error
0
0
Reserved
0
Duplex Status
STRAP[0]
PHYADDR[1]
0
Exp Mem Data
0
0
0
Reserved
0
Reserved
10M LED
ACT/LNK-LNK
0
Transmit BIST
Packet[0]
0
0
Counter Bit[0]
0
Reserved
0
XMode[0]
0
Reserved
0
Reserved
AN Fallback
on Idle Error
0
0
Jabber Disable
0
Master/Slave
Config. Status
STRAP[1]
PHYADDR[0]
Register 0x1F (31’d)
PHY Support Register
(PHY_SUP)
Reserved
0
Reserved
0
0
Reserved
Reserved
BrdCst_AD[4]
0
Reserved
BrdCst_AD[2]
0
Bit Name
Read/Writable
Default Value
Reserved
BrdCst_AD[3]
0
Key:
Reserved
BrdCst_AD[1]
0
Bit Name
Read Only
Value
Reserved
BrdCst_AD[0]
0
0
Reserved
Reserved
0
Reserved
0
Reserved
PHY
ADDRESS[4]
0
PHY
ADDRESS[3]
0
PHY
ADDRESS[2]
0
PHY
ADDRESS[1]
0
PHY
ADDRESS[0]
1
Exp Mem Addr Exp Mem Addr Exp Mem Addr Exp Mem Addr Exp Mem Addr Exp Mem Addr Exp Mem Addr Exp Mem Addr Exp Mem Addr Exp Mem Addr Exp Mem Addr Exp Mem Addr Exp Mem Addr Exp Mem Addr Exp Mem Addr Exp Mem Addr
Register 0x1E (30’d)
15
14
13
12
11
10
9
8
7
6
5
4
3
2
1
0
Exp Memory Address Pointer
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
(EXP_MEM_ADD)
Register 0x1D (29’d)
Exp Memory Data
(EXP_MEM_DATA)
Register 0x1C (28’d)
Reserved
Reserved
Register 0x1A (26’d)
BIST Configuration Register
#2 (BIST_CFG2)
0
BIST Counter
Select
0
Receive BIST
Enable
0
Register 0x19 (25’d)
BIST Configuration Register
#1 (BIST_CFG1)
Reserved
0
BIST Counter
Clear
0
0
Register 0x1B (27’d)
Reserved
0, SC
Clear Int.
Reserved
0
Mask Int.
MDIX Change
Int.
0
11
Reserved
(REF_SEL)
STRAP[0]
Counter Bit[15] Counter Bit[14] Counter Bit[13] Counter Bit[12] Counter Bit[11] Counter Bit[10]
0
Clear Int.
0, SC
Clear Int.
0
0
Mask Int.
Duplex
Change Int.
0
Reserved
BIST Counter
Type
0
Register 0x18 (24’d)
BIST Counter Register
(BIST_CNT)
Register 0x17 (23’d)
Interrupt Clear Register
(INT_CLEAR)
STRAP[0]
10BASE-T
Link LED[0]
0
STRAP[0]
10BASE-T
Link LED[1]
0
RGMII_EN[0]
0
RGMII_EN[1]
0
TP_POL[0]
STRAP[0]
TP_POL[1]
STRAP[0]
12
Speed[0]
13
Speed[1]
Reserved
0
0
Register 0x15 (21’d)
Interrupt Mask Register
(INT_MASK)
Global Reset
Mask Int.
Mask Int.
Register 0x16 (22’d)
Exp Memory Access Control
(EXP_MEM_CTL)
Link Change
Int.
0
0
0
Register 0x13 (19’d)
LED Control Register
(LED_CTRL)
Speed Change
Int.
0
Act. LED[0]
Act. LED[1]
Register 0x14 (20’d)
Interrupt Status Register
(INT_STATUS)
Manual MDIX
Mode
STRAP[0]
Auto MDIX
Enable
STRAP[1]
STRAP[1]
TP_POL[3]
14
Full Duplex
Enable
STRAP[1]
15
AN Enable
Register 0x12 (18’d)
Auxiliary Control Register
(AUX_CTRL)
Register 0x11 (17’d)
Link and Auto-Negotiation
Status Register (LINK_AN)
Register 0x10 (16’d)
Strap Option Register
(STRAP_REG)
Register Name
DP83865
2.0 Register Block (Continued)
DP83865
2.0 Register Block (Continued)
2.3 Register Description
In the register description under the ‘Default’ heading, the following definitions hold true:
—
—
—
—
—
—
—
RW
RO
LH
LL
SC
P
STRAP[x]
=
=
=
=
=
=
=
Read Write access
Read Only access
Latched High until read, based upon the occurrence of the corresponding event
Latched Low until read, based upon the occurrence of the corresponding event
Register sets on event occurrence (or is manually set) and Self-Clears when event ends
Register bit is Permanently set to a default value
Default value read from Strapped value at device pin at Reset, where x may take the values:
[0] internal pull-down
[1] internal pull-up
Table 3. Basic Mode Control Register (BMCR) address 0x00
Bit
Bit Name
Default
15
Reset
0, RW, SC
Description
Reset:
1 = Initiate software Reset / Reset in Process.
0 = Normal operation.
This bit sets the status and control registers of the PHY to their
default states. This bit, which is self-clearing, returns a value of
one until the reset process is complete (approximately 1.2 ms for
reset duration). Reset is finished once the Auto-Negotiation process has begun or the device has entered it’s forced mode.
14
Loopback
0, RW
Loopback:
1 = Loopback enabled.
0 = Normal operation.
The loopback function enables MII/GMII transmit data to be routed to the MII/GMII receive data path. The data loops around at
the DAC/ADC Subsystem (see block diagram page 2), bypassing
the Drivers/Receivers block. This exercises most of the PHY’s internal logic.
13
Speed[0]
STRAP[0], RW Speed Select:
When Auto-Negotiation is disabled, bits 6 and 13 select device
speed selection per table below:
Speed[1]
Speed[0]
Speed Enabled
1
1
= Reserved
1
0
= 1000 Mbps
0
1
= 100 Mbps
0
0
= 10 Mbps
(The default value of this bit is = to the strap value of pin 7 during
reset/power-on IF Auto-Negotiation is disabled.)
12
AN_EN
STRAP[1], RW Auto-Negotiation Enable:
1 = Auto-Negotiation Enabled - bits 6, 8 and 13 of this register are
ignored when this bit is set.
0 = Auto-Negotiation Disabled - bits 6, 8 and 13 determine the link
speed and mode.
(The default value of this bit is = to the strap value of pin 10 during
reset/power-on.)
21
www.national.com
DP83865
2.0 Register Block (Continued)
Table 3. Basic Mode Control Register (BMCR) address 0x00
Bit
Bit Name
Default
11
Power_Down
0, RW
Description
Power Down:
1 = Power down (only Management Interface and logic active.)
0 = Normal operation.
Note: This mode is internally the same as isolate mode (bit 10).
10
Isolate
0, RW
Isolate:
1 = Isolates the Port from the MII/GMII with the exception of the
serial management. When this bit is asserted, the DP83865 does
not respond to TXD[7:0], TX_EN, and TX_ER inputs, and it presents a high impedance on TX_CLK, RX_CLK, RX_DV, RX_ER,
RXD[7:0], COL and CRS outputs.
0 = Normal operation.
9
Restart_AN
0, RW, SC
Restart Auto-Negotiation:
1 = Restart Auto-Negotiation. Re-initiates the Auto-Negotiation
process. If Auto-Negotiation is disabled (bit 12 = 0), this bit is ignored. This bit is self-clearing and will return a value of 1 until
Auto-Negotiation is initiated, whereupon it will self-clear. Operation of the Auto-Negotiation process is not affected by the management entity clearing this bit.
0 = Normal operation.
8
Duplex
STRAP[1], RW Duplex Mode:
1 = Full Duplex operation. Duplex selection is allowed only when
Auto-Negotiation is disabled (AN_EN = 0).
0 = Half Duplex operation.
(The default value of this bit is = to the strap value of pin 9 during
reset/power-on IF Auto-Negotiation is disabled.)
7
Collision Test
0, RW
Collision Test:
1 = Collision test enabled.
0 = Normal operation.
When set, this bit will cause the COL signal to be asserted in response to the assertion of TX_EN withinTBD-bit times. The COL
signal will be de-asserted within 4-bit times in response to the deassertion of TX_EN.
6
Speed[1]
STRAP[0], RW Speed Select: See description for bit 13.
(The default value of this bit is = to the strap value of pin 8 during
reset/power-on IF Auto-Negotiation is disabled.)
5:0
Reserved
0, RO
Reserved by IEEE: Write ignored, read as 0.
Table 4. Basic Mode Status Register (BMSR) address 0x01
15
100BASE-T4
0, P
100BASE-T4 Capable:
0 = Device not able to perform 100BASE-T4 mode.
DP83865 does not support 100BASE-T4 mode and bit should always be read back as “0”.
14
13
www.national.com
100BASE-X
Full Duplex
1, P
100BASE-X
Half Duplex
1, P
100BASE-X Full Duplex Capable:
1 = Device able to perform 100BASE-X in Full Duplex mode.
100BASE-X Half Duplex Capable:
1 = Device able to perform 100BASE-X in Half Duplex mode.
22
DP83865
2.0 Register Block (Continued)
Table 4. Basic Mode Status Register (BMSR) address 0x01
12
10BASE-T
Full Duplex
1, P
11
10BASE-T
Half Duplex
1, P
100BASE-T2
Full Duplex
0, P
10
10BASE-T Full Duplex Capable:
1 = Device able to perform 10BASE-T in Full Duplex mode.
10BASE-T Half Duplex Capable:
1 = Device able to perform 10BASE-T in Half Duplex mode.
100BASE-T2 Full Duplex Capable:
0 = Device unable to perform 100BASE-T2 Full Duplex mode.
DP83865 does not support 100BASE-T2 mode and bit should always be read back as “0”.
9
100BASE-T2
Half Duplex
0, P
100BASE-T2 Half Duplex Capable:
0 = Device unable to perform 100BASE-T2 Half Duplex mode.
DP83865 does not support 100BASE-T2 mode and bit should always be read back as “0”.
8
1000BASE-T
Extended Status
1, P
7
Reserved
0, RO
6
Preamble
Suppression
1, P
Auto-Negotiation
Complete
0, RO
5
1000BASE-T Extended Status Register:
1 = Device supports Extended Status Register 0x0F.
Reserved by IEEE: Write ignored, read as 0.
Preamble suppression Capable:
1 = Device able to perform management transaction with preamble suppressed, 32-bits of preamble needed only once after reset, invalid opcode or invalid turnaround.
Auto-Negotiation Complete:
1 = Auto-Negotiation process complete, and contents of registers
5, 6, 7, & 8 are valid.
0 = Auto-Negotiation process not complete.
4
Remote Fault
0, RO, LH
Remote Fault:
1 = Remote Fault condition detected (cleared on read or by reset). Fault criteria: Far End Fault Indication or notification from
Link Partner of Remote Fault.
0 = No remote fault condition detected.
3
2
Auto-Negotiation
Ability
1, P
Link Status
0, RO, LL
Auto Configuration Ability:
1 = Device is able to perform Auto-Negotiation.
Link Lost Since Last Read Status:
1 = Link was good since last read of this register. (10/100/1000
Mbps operation).
0 = Link was lost since last read of this register.
The occurrence of a link failure condition will causes the Link Status bit to clear. Once cleared, this bit may only be set by establishing a good link condition and a read via the management
interface.
This bit doesn’t indicate the link status, but rather if the link was
lost since last read. For actual link status, either this register
should be read twice, or register 0x11 bit 2 should be read.
1
Jabber Detect
0, RO, LH
Jabber Detect: Set to 1 if 10BASE-T Jabber detected locally.
1 = Jabber condition detected.
0 = No Jabber.
0
Extended Capability
1, P
Extended Capability:
1 = Extended register capable.
23
www.national.com
DP83865
2.0 Register Block (Continued)
Table 5. PHY Identifier Register #1 (PHYIDR1) address 0x02
Bit
Bit Name
15:0
OUI[3:18]
Default
Description
16’b<0010_0000 OUI Bits 3:18:
_0000_0000>, P Bits 3 to 18 of the OUI (0x080017h) are stored in bits 15 to 0 of
this register. The most significant two bits of the OUI are ignored
(the IEEE standard refers to these as bits 1 and 2).
The PHY Identifier Registers #1 and #2 together form a unique identifier for the DP83865. The Identifier consists of a concatenation of the Organizationally Unique Identifier (OUI), the vendor’s model number and the model revision number. A
PHY may return a value of zero in each of the 32 bits of the PHY Identifier if desired. The PHY Identifier is intended to support network management. National’s IEEE assigned OUI is 0x080017h.
Table 6. PHY Identifier Register #2 (PHYIDR2) address 0x03
Bit
Bit Name
15:10
OUI[19:24]
Default
Description
6’b<01_0111>, P OUI Bits 19:24:
Bits 19 to 24 of the OUI (0x080017h) are mapped to bits 15 to 10
of this register respectively.
9:4
VNDR_MDL[5:0]
3:0
MDL_REV[3:0]
6’b <00_0111>, Vendor Model Number:
P
The six bits of vendor model number are mapped to bits 9 to 4
(most significant bit to bit 9).
4’b <1010>, P
Model Revision Number:
Four bits of the vendor model revision number are mapped to bits
3 to 0 (most significant bit to bit 3). This field will be incremented
for all major device changes.
Table 7. Auto-Negotiation Advertisement Register (ANAR) address 0x04
Bit
Bit Name
Default
15
NP
0, RW
Description
Next Page Indication:
1 = Next Page Transfer desired.
0 = Next Page Transfer not desired.
14
Reserved
0, RO
Reserved by IEEE: Writes ignored, Read as 0.
13
RF
0, RW
Remote Fault:
1 = Advertises that this device has detected a Remote Fault.
0 = No Remote Fault detected.
12
Reserved
0, RO
Reserved for Future IEEE use: Write as 0, Read as 0.
11
ASY_PAUSE
0, RW
Asymmetrical PAUSE:
1 = MAC/Controller supports Asymmetrical Pause direction.
0 = MAC/Controller does not support Asymmetrical Pause direction.
10
PAUSE
0, RW
PAUSE:
1 = MAC/Controller supports Pause frames.
0 = MAC/Controller does not support Pause frames.
9
100BASE-T4
0, RO
100BASE-T4 Support:
1 = 100BASE-T4 supported.
0 = No support for 100BASE-T4.
DP83865 does not support 100BASE-T4 mode and this bit
should always be read back as “0”.
www.national.com
24
DP83865
2.0 Register Block (Continued)
Table 7. Auto-Negotiation Advertisement Register (ANAR) address 0x04
Bit
Bit Name
8
100BASE-TX
Full Duplex
Default
Description
STRAP[1], RW 100BASE-TX Full Duplex Support:
1 = 100BASE-TX Full Duplex is supported by the local device.
0 = 100BASE-TX Full Duplex not supported.
The default value of this bit is determined by the combination of
the Duplex Enable and Speed[1:0] strap pins during reset/poweron IF Auto-Negotiation is enabled.
The advertised speed is determined by the Speed[1:0]:
Speed[1]
Speed[0]
Speeds Enabled
0
0
= 1000B-T, 100B-TX, 10B-T
0
1
= 1000B-T, 100B-TX
1
0
= 1000B-T
1
1
= 1000B-T, 10B-T
The advertised duplex mode is determined by Duplex Mode:
0 = Half Duplex
1 = Full Duplex
7
100BASE-TX
(Half Duplex)
STRAP[1], RW 100BASE-TX (Half Duplex) Support:
1 = 100BASE-TX (Half Duplex) is supported by the local device.
0 = 100BASE-TX (Half Duplex) not supported.
(The default value of this bit is determined by the combination of
the Duplex Enable and Speed[1:0] strap pins during reset/poweron IF Auto-Negotiation is enabled. See bit 8 for details.)
6
10BASE-T
Full Duplex
STRAP[1], RW 10BASE-T Full Duplex Support:
1 = 10BASE-T Full Duplex is supported.
0 = 10BASE-T Full Duplex is not supported.
(The default value of this bit is determined by the combination of
the Duplex Enable and Speed[1:0] strap pins during reset/poweron IF Auto-Negotiation is enabled. See bit 8 for details.)
5
10BASE-T
(Half Duplex)
STRAP[1], RW 10BASE-T (Half Duplex) Support:
1 = 10BASE-T (Half Duplex) is supported by the local device.
0 = 10BASE-T (Half Duplex) is not supported.
(The default value of this bit is determined by the combination of
the Duplex Enable and Speed[1:0] strap pins during reset/poweron IF Auto-Negotiation is enabled. See bit 8 for details.)
4:0
PSB[4:0]
5’b<0_0001>, P Protocol Selection Bits:
These bits contain the binary encoded protocol selector supported by this port. <00001> indicates that this device supports IEEE
802.3.
This register contains the advertised abilities of this device as they will be transmitted to its link partner during Auto-Negotiation.
25
www.national.com
DP83865
2.0 Register Block (Continued)
Table 8. Auto-Negotiation Link Partner Ability Register (ANLPAR) address 0x05
Bit
Bit Name
Default
15
NP
0, RO
Description
Next Page Indication:
0 = Link Partner does not desire Next Page Transfer.
1 = Link Partner desires Next Page Transfer.
14
ACK
0, RO
Acknowledge:
1 = Link Partner acknowledges reception of the ability data word.
0 = Not acknowledged.
The Device’s Auto-Negotiation state machine will automatically
control this bit based on the incoming FLP bursts. Software
should not attempt to write to this bit.
13
RF
0, RO
Remote Fault:
1 = Remote Fault indicated by Link Partner.
0 = No Remote Fault indicated by Link Partner.
12
Reserved
0, RO
Reserved for Future IEEE use: Write as 0, read as 0.
11
ASY_PAUSE
0, RO
Asymmetrical PAUSE:
1 = Link Partner supports Asymmetrical Pause direction.
0 = Link Partner does not support Asymmetrical Pause direction.
10
PAUSE
0, RO
PAUSE:
1 = Link Partner supports Pause frames.
0 = Link Partner does not support Pause frames.
9
100BASE-T4
0, RO
100BASE-T4 Support:
1 = 100BASE-T4 is supported by the Link Partner.
0 = 100BASE-T4 not supported by the Link Partner.
8
100BASE-TX
Full Duplex
0, RO
100BASE-TX
(Half Duplex)
0, RO
100BASE-TX Full Duplex Support:
1 = 100BASE-TX Full Duplex is supported by the Link Partner.
0 = 100BASE-TX Full Duplex not supported by the Link Partner.
7
100BASE-TX (Half Duplex) Support:
1 = 100BASE-TX (Half Duplex) is supported by the Link Partner.
0 = 100BASE-TX (Half Duplex) not supported by the Link Partner.
6
10BASE-T
Full Duplex
0, RO
10BASE-T Full Duplex Support:
1 = 10BASE-T Full Duplex is supported by the Link Partner.
0 = 10BASE-T Full Duplex not supported by the Link Partner.
5
10BASE-T
(Half Duplex)
0, RO
10BASE-T (Half Duplex) Support:
1 = 10BASE-T (Half Duplex) is supported by the Link Partner.
0 = 10BASE-T (Half Duplex) not supported by the Link Partner.
4:0
PSB[4:0]
5’b<0_0000>,
RO
Protocol Selection Bits:
Link Partners’s binary encoded protocol selector.
This register contains the advertised abilities of the Link Partner as received during Auto-Negotiation
www.national.com
26
DP83865
2.0 Register Block (Continued)
Table 9. Auto-Negotiate Expansion Register (ANER) address 0x06
Bit
Bit Name
Default
15:5
Reserved
0, RO
4
PDF
0, RO, LH
Description
Reserved by IEEE: Writes ignored, Read as 0.
Parallel Detection Fault:
1 = A fault has been detected via the Parallel Detection function.
0 = A fault has not been detected via the Parallel Detection function.
3
LP_NP Able
0, RO
Link Partner Next Page Able:
1 = Link Partner does support Next Page.
0 = Link Partner supports Next Page negotiation.
2
NP Able
1, RO
Next Page Able:
1 = Indicates local device is able to send additional “Next Pages”.
1
PAGE_RX
0, RO, LH
Link Code Word Page Received:
1 =Link Code Word has been received, cleared on read of this
register.
0 = Link Code Word has not been received.
0
LP_AN Able
0, RO
Link Partner Auto-Negotiation Able:
1 = Indicates that the Link Partner supports Auto-Negotiation.
0 = Indicates that the Link Partner does not support Auto-Negotiation.
This register contains additional Local Device and Link Partner status information.
Table 10. Auto-Negotiation Next Page Transmit Register (ANNPTR) address 0x07
Bit
Bit Name
Default
15
NP
1, RW
Description
Next Page Indication:
1 = Another Next Page desired.
0 = No other Next Page Transfer desired.
14
ACK
0, RO
Acknowledge:
1 = Acknowledge of 3 consecutive FLPs.
0 = No Link Code Word received.
13
MP
1, RW
Message Page:
1 = Message Page.
0 = Unformatted Page.
12
ACK2
0, RW
Acknowledge2:
1 = Will comply with message.
0 = Cannot comply with message.
Acknowledge2 is used by the next page function to indicate that
Local Device has the ability to comply with the message received.
27
www.national.com
DP83865
2.0 Register Block (Continued)
Table 10. Auto-Negotiation Next Page Transmit Register (ANNPTR) address 0x07
Bit
Bit Name
Default
11
TOG_TX
0, RO
Description
Toggle:
1 = Value of toggle bit in previously transmitted Link Code Word
was logic 0.
0 = Value of toggle bit in previously transmitted Link Code Word
was logic 1.
Toggle is used by the Arbitration function within Auto-Negotiation
to ensure synchronization with the Link Partner during Next Page
exchange. This bit shall always take the opposite value of the
Toggle bit in the previously exchanged Link Code Word.
10:0
CODE[10:0]
11’b<000_0000_ This field represents the code field of the next page transmission.
1000>, RW
If the MP bit is set (bit 13 of this register), then the code shall be
interpreted as a "Message Page”, as defined in annex 28C of
IEEE 802.3u. Otherwise, the code shall be interpreted as an "Unformatted Page”, and the interpretation is application specific.
The default value of the CODE represents a Null Page as defined
in Annex 28C of IEEE 802.3u.
This register contains the next page information sent by this device to its Link Partner during Auto-Negotiation.
Table 11. Auto-Negotiation Next Page Receive Register (ANNPRR) address 0x08
Bit
Bit Name
Default
15
NP
0, RO
Description
Next Page Indication:
1 = Another Next Page desired.
0 = No other Next Page Transfer desired.
14
ACK
0, RO
Acknowledge:
1 = Link Partner acknowledges reception of the next page.
0 = Not acknowledged.
13
MP
0, RO
Message Page:
1 = Message Page.
0 = Unformatted Page.
12
ACK2
0, RO
Acknowledge2:
1 = Link Partner will comply with message.
0 = Cannot comply with message.
Acknowledge2 is used by the next page function to indicate that
the Link Partner has the ability to comply with the message received.
www.national.com
28
DP83865
2.0 Register Block (Continued)
Table 11. Auto-Negotiation Next Page Receive Register (ANNPRR) address 0x08
Bit
Bit Name
Default
11
TOG_RX
0, RO
Description
Toggle:
1 = Value of toggle bit in previously transmitted Link Code Word
was logic 0.
0 = Value of toggle bit in previously transmitted Link Code Word
was logic 1.
Toggle is used by the Arbitration function within Auto-Negotiation
to ensure synchronization with the Link Partner during Next Page
exchange. This bit shall always take the opposite value of the
Toggle bit in the previously exchanged Link Code Word.
10:0
CODE[10:0]
11’b<000_0
This field represents the code field of the next page transmission.
000_0000>, RO If the MP bit is set (bit 13 of this register), then the code shall be
interpreted as a "Message Page”, as defined in annex 28C of
IEEE 802.3u. Otherwise, the code shall be interpreted as an "Unformatted Page”, and the interpretation is application specific.
The default value of the CODE represents a Reserved for future
use as defined in Annex 28C of IEEE 802.3u.
This register contains the next page information sent by its Link Partner during Auto-Negotiation.
Table 12. 1000BASE-T Control Register (1KTCR) address 0x09
Bit
Bit Name
Default
15:13
Test Mode
0, RW
Description
Test Mode Select:
bit 15
bit 14
bit 13
1
0
0
= Test Mode 4
Test Mode Selected
0
1
1
= Test mode 3
0
1
0
= Test Mode 2
0
0
1
= Test Mode 1
0
0
0
= Normal Operation
See IEEE 802.3ab section 40.6.1.1.2 “Test modes” for more information. Output for TX_TCLK when in Test Mode is on pin 6.
12
Master / Slave
Manual Config.
Enable
0, RW
Enable Manual Master / Slave Configuration:
1 = Enable Manual Master/Slave Configuration control.
0 = Disable Manual Master/Slave Configuration control.
Using the manual configuration feature may prevent the PHY
from establishing link in 1000Base-T mode if a conflict with the
link partner’s setting exists.
11
Master / Slave
Config. Value
0, RW
Manual Master / Slave Configuration Value:
1 = Set PHY as MASTER when register 09h bit 12 = 1.
0 = Set PHY as SLAVE when register 09h bit 12 = 1.
Using the manual configuration feature may prevent the PHY
from establishing link in 1000Base-T mode if a conflict with the
link partner’s setting exists.
10
Repeater / DTE
STRAP[0], RW Advertise Device Type: Multi or single port
1 = Repeater or Switch.
0 = DTE.
(The default value of this bit is = to the strap value of pin 94 during
reset/power-on IF Auto-Negotiation is enabled.)
29
www.national.com
DP83865
2.0 Register Block (Continued)
Table 12. 1000BASE-T Control Register (1KTCR) address 0x09
Bit
Bit Name
9
1000BASE-T
Full Duplex
Default
Description
STRAP[1], RW Advertise 1000BASE-T Full Duplex Capable:
1 = Advertise DTE as 1000BASE-T Full Duplex Capable.
0 = Advertise DTE as not 1000BASE-T Full Duplex Capable.
(The default value of this bit is determined by the combination of
the Duplex Enable and Speed[1:0] strap pins during reset/poweron IF Auto-Negotiation is enabled. See register 0x04 bit 8 for details.)
8
1000BASE-T
Half Duplex
STRAP[1], RW Advertise 1000BASE-T Half Duplex Capable:
1 = Advertise DTE as 1000BASE-T Half Duplex Capable.
0 = Advertise DTE as not 1000BASE-T Half Duplex Capable.
(The default value of this bit is determined by the combination of
the Duplex Enable and Speed[1:0] strap pins during reset/poweron IF Auto-Negotiation is enabled. See register 0x04 bit 8 for details.)
7:0
Reserved
0, RW
Reserved by IEEE: Writes ignored, Read as 0.
Table 13. 1000BASE-T Status Register (1KSTSR) address 0x0A (10’d)
Bit
Bit Name
Default
15
Master / Slave
Manual Config. Fault
0, RO, LH, SC
Description
MASTER / SLAVE manual configuration fault detected:
1 = MASTER/SLAVE manual configuration fault detected.
0 = No MASTER/SLAVE manual configuration fault detected.
14
Master / Slave
Config. Resolution
0, RO
MASTER / SLAVE Configuration Results:
1 = Configuration resolved to MASTER.
0 = Configuration resolved to SLAVE.
13
Local Receiver
Status
0, RO
Local Receiver Status:
1 = OK.
0 = Not OK.
12
Remote Receiver
Status
0, RO
LP 1000BASE-T
Full Duplex
0, RO
Remote Receiver Status:
1 = OK.
0 = Not OK.
11
Link Partner 1000BASE-T Full Duplex:
1 = Link Partner capable of 1000BASE-T Full Duplex.
0 = Link Partner not capable of 1000BASE-T Full Duplex.
10
LP 1000BASE-T
Half Duplex
0, RO
Link Partner 1000BASE-T Half Duplex:
1 = Link Partner capable of 1000BASE-T Half Duplex.
0 = Link Partner not capable of 1000BASE-T Half Duplex.
9:8
Reserved
0, RO
7:0
IDLE ErrorCount[7:0]
0, RO, SC
Reserved by IEEE: Write ignored, read as 0.
IDLE Error Count
This register provides status for 1000BASE-T link.
Note: Registers 0x0B - 0x0E are Reserved by IEEE.
www.national.com
30
DP83865
2.0 Register Block (Continued)
Table 14. 1000BASE-T Extended Status Register (1KSCR) address 0x0F (15’d)
Bit
Bit Name
Default
15
1000BASE-X
Full Duplex
0, P
Description
1000BASE-X Full Duplex Support:
1 = 1000BASE-X is supported by the local device.
0 = 1000BASE-X is not supported.
DP83865 does not support 1000BASE-X and bit should always
be read back as “0”.
14
1000BASE-X
Half Duplex
0, P
1000BASE-X Half Duplex Support:
1 = 1000BASE-X is supported by the local device.
0 =1000BASE-X is not supported.
DP83865 does not support 1000BASE-X and bit should always
be read back as “0”.
13
1000BASE-T
Full Duplex
1, P
1000BASE-T Full Duplex Support:
1 = 1000BASE-T is supported by the local device.
0 =1000BASE-T is not supported.
12
1000BASE-T
Half Duplex
1, P
Reserved
0, RO
1000BASE-T Half Duplex Support:
1 = 1000BASE-T is supported by the local device.
0 =1000BASE-T is not supported.
11:0
Reserved by IEEE: Write ignored, read as 0.
Table 15. Strap Option Register (STRAP_REG) address 0x10 (16’d)
Bit
Bit Name
15
AN Enable
14
Duplex Mode
13:12
Speed[1:0]
11
Reserved
10
NC Mode Enable
9
Reserved
Default
Description
STRAP[1], RO Auto-Negotiation Enable: Pin 10. Default value for bit 12 of register 0x00.
STRAP[1], RO Duplex Mode: Pin 9. Default value for bit 8 of register 0x00.
STRAP[00], RO Speed Select: Pins 8 and 7. Default value for bits 6 and 13 of register 0x00.
0, RO
Write as 0, ignore on read.
STRAP[0], RO Non-Compliant Mode: Pin 1. Default value for bit 9 of register
0x12.
0, RO
Write as 0, ignore on read.
0, RO
Write as 0, ignore on read.
8
Reserved
7
MAC Clock Enable
6
MDIX Enable
STRAP[1], RO Auto MDIX Enable: Pin 89. Default value for bit 15 of register
0x12.
5
Multi Enable
STRAP[0], RO Multi Port Enable: Pin 94. Default value for bit 10 of register
0x09.
4:0
PHYADDR[4:0]
STRAP[1], RO MAC Clock Output Enable: Pin 88.
STRAP[0_0001], PHY Address: Pins 95, 18, 17,14, 13. Default for bits 4:0 of regRO
ister 0x1F.
This register summarizes all the strap options. These can only be changed through restrapping and resetting the PHY.
31
www.national.com
DP83865
2.0 Register Block (Continued)
Table 16. Link and Auto-Negotiation Status Register (LINK_AN) address 0x11 (17’d)
Bit
Bit Name
Default
Description
15:12
TP Polarity[3:0]
0, RO
Twisted Pair Polarity Status: Indicates a polaritiy reversal on
pairs A to D ([15:12]). The PHY automatically detects this condition and adjusts for it.
1 = polarity reversed
0 = normal operation
11
Reserved
0, RO
(Power Down Status)
10
MDIX Status
Write as 0, ignore on read.
This bit is set to indicate that the PHY is in power down mode.
0, RO
MDIX Status: Indicates whether the PHY’s MDI is in straight or
cross-over mode.
1 = Cross-over mode
0 = Straight mode
9
FIFO Error
0, RO
Transmit FIFO Error: Indicates whether a FIFO overflow or underrun has occured. This bit is cleared every time link is lost.
1 = FIFO error occured
0 = normal operation
8
Reserved
0, RO
Write as 0, ignore on read.
7
Shallow Loopback
Status
0, RO
Shallow Loopback Status: (As set by bit 5, register 0x12)
Deep Loopback
Status
0, RO
Non-Compliant
Mode Status
0, RO
6
5
4:3
2
Speed[1:0] Status
Link Status
1 = The PHY operates in shallow loopback mode
0 = Normal operation
Deep Loopack Status: (As set by bit 14, register 0x00)
1 = The PHY operates in deep loopback mode
0 = Normal operation
Non-compliant Mode Status:
‘1’ detects only in non-compliant mode
‘0’ detects in both IEEE compliant and non-compliant mode
STRAP[00], RO Speed Resolved: These two bits indicate the speed of operation
as determined by Auto-negotiation or as set by manual configuration.
0, RO
Speed[1]
Speed[0]
Speed of operation
1
0
= 1000 Mbps
0
1
= 100 Mbps
0
0
= 10 Mbps
1
1
= reserved
Link status:
1 = indicates that a good link is established
0 = indicates no link.
1
Duplex Status
0, RO
Duplex status:
1 = indicates that the current mode of operation is full duplex
0 = indicates that the current mode of operation is half duplex
0
Master / Slave
Config. Status
0, RO
Master / Slave Configuration Status:
1 = PHY is currently in Master mode
0 = PHY is currently in Slave mode
www.national.com
32
DP83865
2.0 Register Block (Continued)
Table 17. Auxiliary Control Register (AUX_CTRL) address 0x12 (18’d)
Bit
Bit Name
15
Auto-MDIX Enable
Default
Description
STRAP[1], RW Automatic MDIX: Indicates (sets) whether the PHY’s capability
to automatically detect swapped cable pairs is used.
1 = Automatic MDIX mode, bit 14 is ignored
0 = Manual MDIX mode
Note: This bit is ignored and the setting of bit 14 applies if AutoNegotiation is disabled (AN_EN = 0). Bit 10 of register 0x11
should always be checked for the actual status of MDI/MDIX operation.
14
Manual MDIX Value
STRAP[0], RW Manual MDIX Value: If Manual MDIX mode is selected (AutoMDIX selection is disabled, bit 15 = 0) this bit sets the MDIX
mode of operation. If the PHY is in Auto-MDIX mode this bit has
no effect.
1 = cross-over mode (channels A and B are swapped)
0 = straight mode
Note: Bit 10 of register 0x11 should always be checked for the actual status of MDI/MDIX operation.
13:12
RGMII_EN[1:0]
STRAP[0]
RGMII ENABLE: These two bits enables RGMII mode or
MII/GMII mode.
RGMII_EN[1:0]
11 = RGMII - 3COM mode
10 = RGMII - HP mode
01 = GMII mode
00 = GMII mode
11:10
9
Reserved
0, RO
Write as 0, ignore on read.
Non-Compliant Mode STRAP[0], RW Non-Compliant Mode Enable: This bit enables the PHY to work
in non-IEEE compliant mode. This allows interoperabilty with certain non-IEEE compliant 1000BASE-T tranceivers.
1 = enables IEEE compliant operation and non-compliant operation
0 = enables IEEE compliant operation but inhibits non-compliant
operation
8
RGMII InBand
Status Enable
0, RW
RGMII InBand Status Enable:
1 = RGMII InBand Status enabled.
0 = RGMII InBand Status disabled.
When InBand Status is enabled, PHY places link status, speed,
and duplex mode information on RXD[3:0] between the data
frames. The InBand Status may ease the MAC layer design.
Note that this bit has no impact if bit 13 = 0.
7
TX_TCLK Enable
0, RW
TX_TCLK Enable: This bit enables the TX_TCLK (pin 6) output
during the IEEE 1000BASE-T test modes.
1 = TX_TCLK ouput enabled during IEEE test modes
0 = No TX_TCLK output (default)
6
TX_Trigger_Syn
Enable
0, RW
TX_TRIGGER and TX_SYNC Enable: This bit enables the
TX_SYNC_CLK (pin 88) and TX_TRIGGER (pin 94) output during the IEEE 1000BASE-T modes. These signals are not required
by IEEE to perform the tests, but will help to take measurements.
0 = No signal output
1 = Signal are output during IEEE test modes
Note: TX_SYN_CLK and TX_TRIGGER are only available in test
mode 1 and 4
TX_SYN_CLK = TX_TCLK / 4 in test mode 1
TX_SYN_CLK = TX_TCLK / 6 in test mode 4
33
www.national.com
DP83865
2.0 Register Block (Continued)
Table 17. Auxiliary Control Register (AUX_CTRL) address 0x12 (18’d)
Bit
Bit Name
Default
Description
5
Shallow Deep Loopback
Enable
0, RW
Shallow Deep Loopack Enable: (Loopback status bit 7, register
0x11)
This bit places PHY in the MAC side loopback mode. Any packet
entering into TX side appears on the RX pins immediately. This
operation bypasses all internal logic and packet does not appear
on the MDI interface.
1 = The PHY operates in shallow deep loopback mode
0 = Normal operation
4
X_Mac
0, RW
Reverse GMII Data Bit Order:
Setting this bit will reverse the pins of the TXD and RXD on the
GMII interface, respectively.
1 = TXD[7:0]=>TXD[0:7], RXD[7:0]=>RXD[0:7]
0 = Normal operation
3:1
Reserved
0, RO
Write as 0, ignore on read.
0
Jabber Disable
0, RW
Jabber Disable: (Only in 10BASE-T mode) If this bit is set the
PHY ignores all jabber conditions.
1 = disable jabber function
0 = normal operation
Table 18. LED Control Register (LED_CTRL) address 0x13 (19’d)
Bit
Bit Name
Default
15:14
Activity LED
0, RW
Description
Activity LED: This LED is active when the PHY is transmitting
data, receiving data, or detecting idle error.
The following modes are available for the ACT LED:
00 = Register controlled 0x13.3:0
01 = Forced off
10 = Blink mode (blink rate approx. 750 ms)
11 = Forced on
Note: Only in normal mode (00) LEDs reflect the actual status of
the PHY. All other modes force the driver to a permanent on, off
or blinking state.
13:12
Link10 LED
0, RW
10BASE-T Link LED: This LED is active when the PHY is linked
in 10BASE-T mode.
The following modes are available for LEDs:
00 = Normal (default)
01 = Forced off
10 = Blink mode (blink rate approx. 750 ms)
11 = Forced on
Note: Only in normal mode (00) LEDs reflect the actual status of
the PHY. All other modes force the driver to a permanent on, off
or blinking state.
11:10
Link100 LED
0, RW
100BASE-TX Link LED: This LED is active when the PHY is
linked in 100BASE-TX mode. See Activity LED for other settings.
9:8
Link1000 LED
0, RW
1000BASE-T Link LED: This LED is active when the PHY is
linked in 1000BASE-T mode. See Activity LED for other settings.
7:6
Duplex LED
0, RW
Duplex LED: This LED is active when the PHY has established
a link in Full Duplex mode. See Activity LED for other settings.
www.national.com
34
DP83865
2.0 Register Block (Continued)
Table 18. LED Control Register (LED_CTRL) address 0x13 (19’d)
Bit
Bit Name
Default
Description
5
reduced LED enable
0, RW
Reduced LED Mode Enable: This bit enables the reduced LED
(RLED) mode that is different from the normal five-LED mode. In
the RLED Mode, 10M Link LED is changed to link LED or Link
and activity combined LED.
When reg 0x13.5 is enabled:
Reg 0x1A.0 = 1 - 10M Link LED displays 10/100/1000 Link
Reg 0x1A.0 = 0 - 10M LED displays 10/100/1000 Link and ACT
Note: In Link mode, the LED is steady on. In Link/ACT mode,
LED is steady on when link is achieved, and LED blinks when
there is link and activity.
4
led_on_crc
0, RW
3
led_on_ie
0, RW
2
an_fallback_an
0, RW
1
an_fallback_crc
0, RW
0
an_fallback_ie
0, RW
Table 19. Interrupt Status Register (INT_STATUS) address 0x14 (20’d)
Bit
Bit Name
Default
Description
15
spd_cng_int
0, RO
Speed Change: Asserted when the speed of a link changes.
14
lnk_cng_int
0, RO
Link Change: Asserted when a link is established or broken.
13
dplx_cng_int
0, RO
Duplex Change: Asserted when the duplex mode of a link
changes.
12
mdix_cng_int
0, RO
MDIX Change: Asserted when the MDIX status changes, i.e. a
pair swap occured.
11
pol_cng_int
0, RO
Polarity Change: Asserted when the polarity of any channel
changes.
10
prl_det_flt_int
0, RO
Parallel Detection Fault: Asserted when a parallel detectin fault
has been detected.
9
mas_sla_err_int
0, RO
Master / Slave Error: Asserted when the Master / Slave configuration in 1000BASE-T mode could not be resolved.
8
no_hcd_int
0, RO
No HCD: Asserted when Auto-Negotiation could not determine a
Highest Common Denominator.
7
no_lnk_int
0, RO
No Link after Auto-Negotiation: Asserted when Auto-Negotiation has been completed successfully and no link could be established.
6
jabber_cng_int
0, RO
Jabber Change: Asserted in 10BASE-T mode when a Jabber
condition has occured or has been cleared.
5
nxt_pg_rcvd_int
0, RO
Next Page Received: Asserted when a Next Page has been received.
4
an_cmpl_int
0, RO
Auto-negotiation complete: Asserted when Auto-Negotiation
has been completed.
3
rem_flt_cng_int
0, RO
Remote Fault Change: Asserted when the remote fault status
changes.
2:0
Reserved
0, RO
Write as 0, ignore on read.
35
www.national.com
DP83865
2.0 Register Block (Continued)
Table 20. Interrupt Mask Register (INT_MASK) address 0x15 (21’d)
Bit
Bit Name
Default
Description
15
spd_cng_int_msk
0, RW
Setting this bit activates the spd_cng_int interrupt. The interrupt
is masked if the bit is cleared.
14
lnk_cng_int_msk
0, RW
Setting this bit activates the lnk_cng_int interrupt. The interrupt is
masked if the bit is cleared.
13
dplx_cng_int_msk
0, RW
Setting this bit activates the dplx_cng_int interrupt. The interrupt
is masked if the bit is cleared.
12
mdix_cng_int_msk
0, RW
Setting this bit activates the mdix_cng_int interrupt. The interrupt
is masked if the bit is cleared.
11
pol_cng_int_msk
0, RW
Setting this bit activates the pol_cng_int interrupt. The interrupt is
masked if the bit is cleared.
10
prl_det_flt_int_msk
0, RW
Setting this bit activates the prl_det_flt_int interrupt. The interrupt
is masked if the bit is cleared.
9
mas_sla_err_int_msk
0, RW
Setting this bit activates the mas_sla_err_int interrupt. The interrupt is masked if the bit is cleared.
8
no_hcd_int_msk
0, RW
Setting this bit activates the no_hcd_int interrupt. The interrupt is
masked if the bit is cleared.
7
no_lnk_int_msk
0, RW
Setting this bit activates the no_lnk_int interrupt. The interrupt is
masked if the bit is cleared.
6
jabber_cng_int_msk
0, RW
Setting this bit activates the jabber_cng_int interrupt. The interrupt is masked if the bit is cleared.
5
nxt_pg_rcvd_int_msk
0, RW
Setting this bit activates the nxt_pg_rcvd_int interrupt. The interrupt is masked if the bit is cleared.
4
an_cmpl_int_msk
0, RW
Setting this bit activates the an_cmpl_int interrupt. The interrupt
is masked if the bit is cleared.
3
rem_flt_cng_int_msk
0, RW
Setting this bit activates the rem_flt_cng_int interrupt. The interrupt is masked if the bit is cleared.
2:0
Reserved
0, RO
Write as 0, ignore on read.
Table 21. Expanded Memory Access Control (Exp_mem_ctl) address 0x16 (22’d)
Bit
Bit Name
Default
15
Global Reset
0, RW, SC
Description
Global Reset:
This bit resets the entire chip.
14:8
Reserved
0, RO
Write as 0, ignore on read.
7
Broadcast Enable
0, RW
Broadcast Enable:
1 = Respond to broadcast write at MDIO address 0
0 = Respond to MDIO address set in register 0x1F.4:0
6:2
Reserved
0, RO
1:0
Address Control
[11], RW
Write as 0, ignore on read.
Address Control:
00 = 8-bit expanded memory read/write (auto-incr disabled)
01 = 8-bit expanded memory read/write (auto-incr enabled)
10 = 16-bit expanded memory read/write (auto-incr enabled)
11 = 8-bit expanded memory write-only (auto-incr disabled)
www.national.com
36
DP83865
2.0 Register Block (Continued)
Table 22. Interrupt Clear Register (INT_CLEAR) address 0x17 (23’d)
Bit
Bit Name
Default
Description
15
spd_cng_int_clr
0, RW, SC
Setting this bit clears the spd_cng_int interrupt.
14
lnk_cng_int_clr
0, RW, SC
Setting this bit clears the lnk_cng_int interrupt.
13
dplx_cng_int_clr
0, RW, SC
Setting this bit clears the dplx_cng_int interrupt.
12
mdix_cng_int_clr
0, RW, SC
Setting this bit clears the mdix_cng_int interrupt.
11
pol_cng_int_clr
0, RW, SC
Setting this bit clears the pol_cng_int interrupt.
10
prl_det_flt_int_clr
0, RW, SC
Setting this bit clears the prl_det_flt_int interrupt.
9
mas_sla_err_int_clr
0, RW, SC
Setting this bit clears the mas_sla_err_int interrupt.
8
no_hcd_int_clr
0, RW, SC
Setting this bit clears the no_hcd_int interrupt.
7
no_lnk_int_clr
0, RW, SC
Setting this bit clears the no_lnk_int interrupt.
6
jabber_cng_int_clr
0, RW, SC
Setting this bit clears the jabber_cng_int interrupt.
5
nxt_pg_rcvd_int_clr
0, RW, SC
Setting this bit clears the nxt_pg_rcvd_int interrupt.
4
an_cmpl_int_clr
0, RW, SC
Setting this bit clears the an_cmpl_int interrupt.
3
rem_flt_cng_int_clr
0, RW, SC
Setting this bit clears the rem_flt_cng_int interrupt.
2:0
Reserved
0, RO
Write as 0, ignore on read.
Table 23. BIST Counter Register (BIST_CNT) address 0x18 (24’d)
Bit
Bit Name
Default
Description
15:0
BIST Counter
0, RO
BIST Counter: This register counts receive packets or receive
errors according to bit 15 in register BIST_CFG1. It shows either
the upper or lower 16 bit of a 32 bit value which can be selected
through bit 14 in register BIST_CFG2.
Table 24. BIST Configuration Register 1 (BIST_CFG1) address 0x19 (25’d)
Bit
Bit Name
Default
15
bist_cnt_type
0, RW
Description
Set BIST Counter Type:
1 = BIST_CNT counts receive CRC errors
0 = BIST_CNT counts receive packets
14
bist_cnt_clr
0, RW, SC
13
tx_bist_pak_len
0, RW
BIST Counter Clear: Setting this bit clears the BIST_CNT register to 0.
Transmit BIST Packet Length:
1 = 1514 bytes
0 = 60 bytes
12
tx_bist_ifg
0, RW
Transmit BIST Interframe Gap: This bit sets the IFG for transmit
BIST packets.
1 = 9.6 us
0 = 0.096us
11
tx_bist_en
0, RW, SC
Transmit BIST Enable: This bit starts the transmit BIST. The
number of selected packets or a continous data stream is sent out
when set. This bit self-clears after the packets have been sent.
1 = Transmit BIST enabled
0 = Transmit BIST disabled
37
www.national.com
DP83865
2.0 Register Block (Continued)
Table 24. BIST Configuration Register 1 (BIST_CFG1) address 0x19 (25’d)
Bit
Bit Name
Default
10
tx_bist_pak_type
0, RW
Description
Transmit BIST Packet Type:
1 = PSR9
0 = User defined packet
9:8
Reserved
0, RO
Write as 0, ignore on read.
7:0
tx_bist_pak
0, RW
User Defined Packet Content: This field sets the packet content
for the transmit BIST packets if the user defined packet type in bit
10 is selected.
Table 25. BIST Configuration Register 2 (BIST_CFG2) address 0x1A (26’d)
Bit
Bit Name
Default
Description
15
rx_bist_en
0, RW
Receive BIST Enable: This bit enables the receive BIST
counter. The BIST counter operation does not interfere with normal PHY operation.
0 = BIST counter disabled
1 = BIST counter enabled
14
bist_cnt_sel
0, RW
BIST Counter Select: This bit selects whether the upper or lower
16 bit of the 32 bit counter value are shown in the BIST_CNT register.
0 = displays lower 16 bit
1 = displays upper 16 bit
13:11
tx_bist_pak_cnt
0, RW
Transmit BIST Packet Count: Sets the number of transmit packets
000 = continuous transmit
001 = 1 packet
010 = 10 packets
011 = 100 packets
100 = 1,000 packets
101 = 10,000 packets
110 = 100,000 packets
111 = 10,000,000 packets
10:1
Reserved
0, RO
Write as 0, ignore on read.
0
Link/Link-ACT sel
0, RW
Link/Link-ACT Select: This bit has no impact when Reg 0x13.5
= 0.
1 = LINK only
0 = Combined Link/ACT
Note:
Registers 0x1B and 0x1C are reserved.
Table 26. Expanded Memory Data Register (Exp_mem_data) address 0x1D (29’d)
Bit
Bit Name
Default
Description
15:0
Expanded Memory
Data
0, RW
Expanded Memory Data: Data to be written to or read from expanded memory. Note that in 8-bit mode, the data resides at the
LSB octet of this register.
Table 27. Expanded Memory Address Register (Exp_mem_addr) address 0x1E (30’d)
Bit
Bit Name
Default
Description
15:0
Expanded Memory
Address
0, RW
Expanded Memory Address: Pointer to the address in expanded memory. The pointer is 16-bit wide.
www.national.com
38
DP83865
2.0 Register Block (Continued)
Table 28. PHY Support Register #2 (PHY_SUP) address 0x1F (31’d)
Bit
Bit Name
Default
15:5
Reserved
0, RO
4:0
PHY Address
Description
Write as 0, ignore on read.
STRAP[0_0001], PHY Address: Defines the port on which the PHY will accept SeRW
rial Management accesses.
39
www.national.com
DP83865
3.0 Configuration
This section includes information on the various configuration options available with the DP83865. The configuration
options include:
There are three registers used for accessing the expanded
memory. The Expanded Memory Access Control resiger
(0x16) sets up the memory access mode, for example, 8bit or 16-bit data addess, enable or disable automatic
address increment after each access, and read/write or
write-only opeation. The Expanded Memory Address
pointer register (0x1E) pionts the location of the expanded
memory to be accessed. The Expanded Memory Data
(0x1D) register contains the data read from or write to the
expanded memory.
— Accessing expanded memory space
— Manual configuration
– Speed / Duplex selection
– Forced Master / Slave
— Auto-Negotiation
– Speed / Duplex selection
– Gigabit speed fallback
– Gigabit retry forced link
– Master / Slave resolution
– Next Page support
– Parallel Detection
– Pause and Asymmetrical Pause resolution
– Restart Auto-Negotiation
– Auto-Negotiation complete time
— Auto-Negotiation register set
— Auto-MDIX configuration
— Automatic polarity correction
— PHY address and LEDs
— Reduced LED mode
— Modulate LED on error
— MII / GMII / RGMII MAC interfaces
— Clock to MAC output
— MII / GMII /RGMII isolate mode
— Loopback mode
— IEEE 802.3ab test modes
— Interrupt
— Power down modes
— Low power mode
— BIST usage
— Cable length indicator
— 10BASE-T HDX loopback disable
— I/O Voltage Selection
— Non-compliant interoperability mode
The DP83865 supports six different Ethernet protocols:
10BASE-T Full Duplex and Half Duplex, 100BASE-TX
Full Duplex and Half Duplex, 1000BASE-T Full Duplex and
Half Duplex. There are three ways to select the speed and
duplex modes, i.e. manual configuration with external
strapping options or through management register write
and Auto-Negotiation.
Note that the order of the writes to these registers is important. While register 0x1E points to the internal expanded
address and register 0x1D contains the data to be written
to or read from the expanded memory, the contents of register 0x1E automatically increments after each read or
write to data register 0x1D when auto-increment is
selected. Therefore, if data write need to be confirmed,
address register 0X1E should be reloaded with the original
address before reading from data register 0X1D (when
auto-increment is selected).
The expanded memory space data is 8-bit wide. In the 8-bit
read/write mode, the LSB 8 bits of the data register
0x1D.7:0 is mapped to the expanded memory.
The following is an example of step-by-step precedure
enabling the Speed Fallback mode:
— 1) Power down the DP83865 by setting register 0x00.11
= 1. This is to ensure that the memory access does not
interfere with the normal operation.
— 2) Write to register 0x16 the value 0x0000. This allows
access to expanded memory for 8-bit read/write.
— 3) Write to register 0x1E the value 0x1C0.
— 4) Write to register 0x1D the value 0x0008.
— 5) Take the out of power down mode by resetting register
0x00.11.
3.2 Manual Configuration
For manual configuration of the speed and the duplex
modes (also referred to as forced mode) , the Auto-Negotiation function has to be disabled. This can be done in two
ways. Strapping Auto-Negotiation Enable (AN_EN) pin low
disables the Auto-Negotiation. Auto-Negotiation can also
be disabled by writing a “0” to bit 12 of the BMCR 0x00 to
override the strapping option.
It should be noted that manual 1000BASE-T mode is not
supported by IEEE. The DP83865, when in manual
1000BASE-T mode, only communicates with another
National PHY. The manual 1000BASE-T mode is designed
for test purposes only.
3.2.1 Speed/Duplex Selection
3.1 Accessing Expanded Memory Space
In Manual mode, the strapping value of the SPEED[1:0]
pins is used to determine the speed, and the strap value of
the DUPLEX pin is used to determine duplex mode.
The 32 IEEE base page registers limits the number of functions and features to be accessed. The advanced proprietary features are implemented in the register located in
the expanded memory space. The following are features
and functions require access to expanded memory space:
—
—
—
—
For all of the modes above, the DUPLEX strap value “1”
selects Full Duplex (FD), while “0” selects Half Duplex
(HD). The strap values are latched on during power-on
reset and can be overwritten by access to the BMCR register 0x00 bits 13,12, 8 and 6.
Gigabit Speed Fallback
Gigabit Retry Forced Link
Cable length indicator
10BASE-T HDX loopback
www.national.com
40
DP83865
3.0 Configuration (Continued)
.
Table 29. Speed/Duplex Selection, AN_EN = 0
DUPLEX SPEED[1] SPEED[0]
Manual Mode
0
0
0
10BASE-T HD
0
0
1
100BASE-TX HD
0
1
0
1000BASE-T HD
(Between National
PHYs only)
0
1
1
Reserved
1
0
0
10BASE-T FD
1
0
1
100BASE-TX FD
1
1
0
1000BASE-T FD
(Between National
PHYs only)
1
1
1
Table 31. Master/Slave Resolution, AN_EN = 0
Reserved
3.2.2 Master/Slave
Slave mode
Master mode
Link Partner
Outcome
Manual
Master
Manual
Master
Unresolved
No Link
Unresolved
No Link
Manual
Master
Manual
Slave
Master
Slave
Manual
Master
Multi-node
(Auto-neg)
Master
Slave
Manual
Master
Single-node
(Auto-neg)
Master
Slave
Manual
Slave
Manual
Master
Slave
Master
Manual
Slave
Manual
Slave
Unresolved
No Link
Unresolved
No Link
Manual
Slave
Multi-node
(Auto-neg)
Slave
Master
Manual
Slave
Single-node
(Auto-neg)
Slave
Master
3.3.1 Speed/Duplex Selection - Priority Resolution
The Auto-Negotiation function provides a mechanism for
exchanging configuration information between the two
ends of a link segment. This mechanism is implemented by
exchanging Fast Link Pulses (FLP). FLP are burst pulses
that provide the signalling used to communicate the abilities between two devices at each end of a link segment.
For further details regarding Auto-Negotiation, refer to
Clause 28 of the IEEE 802.3u specification. The DP83865
supports six different Ethernet protocols: 10BASE-T Full
Duplex, 10BASE-T Half Duplex, 100BASE-TX Full Duplex,
100BASE-TX Half Duplex, 1000BASE-T Full Duplex, and
1000BASE-T Half Duplex. The process of Auto-Negotiation
ensures that the highest performance protocol is selected
(i.e., priority resolution) based on the advertised abilities of
the Link Partner and the local device. (Table 33)
Manual Mode
1
DP83865
Outcome
— Next Page
— Parallel Detection for 10/100 Mbps
— Restart Auto-Negotiation through software
Table 30. 1000BASE-T Master/Slave Sel., AN_EN = 0
0
Link Partner
Advertise
The DP83865 also supports features such as:
In 1000BASE-T the two link partner devices have to be
configured, one as Master and the other as Slave. The
Master device by definition uses a local clock to transmit
data on the wire; the Slave device uses the clock recovered of the incoming data from the link partner for transmitting its data. The Master and Slave assignments can be
manually set by using strapping options or register writes.
When the AN_EN pin is strapped low, strapping MULTI_EN
pin low selects Slave and high selects Master mode. Register 9 bits 12:11 allows software to overwrite the strapping
Master/Slave setting (Table 30). Note that if both the link
partner and the local device are manually given the same
Master/Slave assignment, an error will occur as indicated
in 1KSTSR 0x0A bit 15.
MULTI_EN
DP83865
Advertise
.
Depending on what the link partner is configured to, the
manual Master/Slave mode can be resolved to eight possible outcomes. Only two National PHYs will be able to link
to each other in manual configuration mode. (Table 32)
Table 32. Master/Slave Resolution, AN_EN = 0
3.3 Auto-Negotiation
All 1000BASE-T PHYs are required to support Auto-Negotiation. (The 10/100 Mbps Ethernet PHYs had an option to
support Auto-Negotiation, as well as parallel detecting
when a link partner did not support Auto-Neg.) The AutoNegotiation function in 1000BASE-T has three primary purposes:
— Auto-Negotiation of Speed & Duplex Selection
— Auto-Negotiation of Master/Slave Resolution
— Auto-Negotiation of Pause/Asymetrical Pause Resolution
41
DP83865
Advertise
Link Partner
Advertise
DP83865
Outcome
Link Partner
Outcome
Manual
Master
Manual
Master
Unresolved
No Link
Unresolved
No Link
Manual
Master
Manual
Slave
Master
Slave
Manual
Master
Multi-node
(Auto-neg)
Master
Slave
Manual
Master
Single-node
(Auto-neg)
Master
Slave
Manual
Slave
Manual
Master
Slave
Master
Manual
Slave
Manual
Slave
Unresolved
No Link
Unresolved
No Link
Manual
Slave
Multi-node
(Auto-neg)
Slave
Master
Manual
Slave
Single-node
(Auto-neg)
Slave
Master
www.national.com
DP83865
3.0 Configuration (Continued)
The default for AN Speed Fallback is that after five tries to
achieve a stable link, the link speed will drop down to the
next lower advertised speed. The default CRC and IE
Speed Fallback is that after five link drops due to increase
error rate, the link speed drops down to the next lower
advertised speed. If during the link retry stage that the link
partner drops the link or the CAT5 cable is unplugged, the
retry counter will reload the retry count with the default
value of five.
Table 33. Speed/Duplex Selection, AN_EN = 1
DUP
Speed[1] Speed[0]
Comments
0
0
0
1000/100/10 HDX
0
0
1
1000/100 HDX
0
1
0
1000 HDX
0
1
1
1000/10 HDX
1
0
0
1000/100/10 FDX + HDX
1
0
1
1000/100 FDX + HDX
1
1
0
1000 FDX + HDX
1
1
1
1000/10 FDX + HDX
Note that the Speed Fallback works only from gigabit mode
to 100 Mbps or 10 Mbps.
3.3.3 Gigabit Retry Forced Link
Under the situations that the cable media may not be
appropriate for the gigabit transmission, it may take excessive number of retries to achieve a stable link. If achieving
a stable link is the highest priority, the Retry Forced Link
Mode can be enabled. Retry Forced Link Mode allows
auto-negotiation to force link at the highest common link
speed after five retries.
The Auto-Negotiation priority resolution are as follows:
1.
2.
3.
4.
5.
6.
1000BASE-T Full Duplex (Highest Priority)
1000BASE-T Half Duplex
100BASE-TX Full Duplex
100BASE-TX Half Duplex
10BASE-T Full Duplex
10BASE-T Half Duplex (Lowest Priority)
There are two criteria established to initiate the gigabit
Retry Forced Link.
1. CRC error rate
2. Idle error rate
There are three basic control register bits used to configure
the Speed Fallback and Retry Forced Link. Expanded register 0x1C0.3 = 0 enables the Retry Forced Link mode (i.e.,
teh default mode upon power up). LED Control Register
0x13.1:0 selects the criteria for the Speed Fallback. Since
Retry Forced Link does not work when AN fails to achieve
stable link, LED Control Register 0x13.2 should be 0.
3.3.2 Gigabit Speed Fallback
When gigabit mode is advertised, the default auto-negotiation mode attempts to establish link at the highest common
denominator advertised. However, there are situations that
the cable media may not be appropriate for the gigabit
speed communication. If achieving a quality link is the
highest priority, the Speed Fallback Mode can be enabled.
The Speed Fallback Mode allows auto-negotiation to link at
the next lower speed advertised (100Mbps or 10Mbps) if
the gigabit mode fails.
Table 35. LED Control Reg 0x13, Reg 0x1C0.3 = 0
Bit 2, AN Bit 1, CRC
There are three criteria established to initiate the gigabit
Speed Fallback.
1. Auto-negotiation failing to achieve a stable gigabit link
2. CRC error rate
3. Idle error rate
There are four basic control register bits used to configure
the Speed Fallback. Expanded register 0x1C0.3 = 1
enables the Speed Fallback mode. LED Control Register
0x13.2:0 selects the criteria for the Speed Fallback.
Comments
0
0
0
No Speed Fallback (SF)
0
0
1
SF on idle error
0
1
0
SF on CRC error
0
1
1
SF on idle and CRC
1
0
0
SF on failing AN
1
0
1
SF on AN and IE
1
1
0
SF on AN and CRC
1
1
1
SF on AN, CRC, and IE
www.national.com
Comments
0
0
0
No Retry Forced Link
(RFL)
0
0
1
RFL on idle error
0
1
0
RFL on CRC error
0
1
1
RFL on idle and CRC
The default CRC and IE Retry Forced Link is that after five
link drops due to increase error rate, the link will be forced
at the highest advertised speed. If during the link retry
stage that the link partner drops the link or the CAT5 cable
is unplugged, the retry counter will reload the retry count
with the default value of five. Note that the retry may take
forever to achieve a forced link when link partner drops the
link or CAT5 cable is unplugged.
Table 34. LED Control Reg 0x13, Reg 0x1C0.3 = 1
Bit 2, AN Bit 1, CRC Bit 0, IE
Bit 0, IE
3.3.4 Master/Slave Resolution
If 1000BASE-T mode is selected during the priority resolution, the second goal of Auto-Negotiation is to resolve Master/Slave configuration. The Master mode priority is given
to the device that supports multiport nodes, such as
switches and repeaters. Single node devices such as DTE
or NIC card takes lower Master mode priority.
MULTI_EN is a strapping option for advertising the Multinode functionality. (Table 36) In the case when both PHYs
advertise the same option, the Master/Slave resolution is
42
resolved by a random number generation. See IEEE
802.3ab Clause 40.5.1.2 for more details.
ANNPTR 0x07 allows for the configuration and transmission of the Next Page. Refer to clause 28 of the IEEE
802.3u standard for detailed information regarding the
Auto-Negotiation Next Page function.
Table 36. 1000BASE-T Single/Multi-Node, AN_EN = 1
MULTI_EN
3.3.7 Parallel Detection
Forced Mode
0
Single node, Slave priority mode
1
Multi-node, Master priority mode
The DP83865 supports the Parallel Detection function as
defined in the IEEE 802.3u specification. Parallel Detection
requires the 10/100 Mbps receivers to monitor the receive
signal and report link status to the Auto-Negotiation function. Auto-Negotiation uses this information to configure
the correct technology in the event that the Link Partner
does not support Auto-Negotiation, yet is transmitting link
signals that the 10BASE-T or 100BASE-X PMA recognize
as valid link signals.
Depending on what link the partner is configured to, the
Auto-Negotiation of Master/Slave mode can be resolved to
eight possible outcomes. (Table 37)
Mult-node
Single-node
Master
Slave
Single-node
Manual
Master
Slave
Master
If the DP83865 completes Auto-Negotiation as a result of
Parallel Detection, without Next Page operation, bits 5 and
7 of ANLPAR 0x05 will be set to reflect the mode of operation present in the Link Partner. Note that bits 4:0 of the
ANLPAR will also be set to 00001 based on a successful
parallel detection to indicate a valid 802.3 selector field.
Software may determine that the negotiation is completed
via Parallel Detection by reading ‘0’ in bit 0 of ANER 0x06
after the Auto-Negotiation Complete bit (bit 5, BMSR 0x01)
is set. If the PHY is configured for parallel detect mode and
any condition other than a good link occurs, the parallel
detect fault bit will set (bit 4, ANER 0x06).
Single-node
Manual
Slave
Master
Slave
3.3.8 Restart Auto-Negotiation
Single-node
Multi-node
Slave
Master
Single-node
Single-node
M/S resolved
by random seed
M/S resolved
by random seed
Table 37. Master/Slave Resolution, AN_EN = 1
DP83865
Advertise
Link Partner
Advertise
DP83865
Outcome
Link Partner
Outcome
Mult-node
Manual
Master
Slave
Master
Mult-node
Manual
Slave
Master
Slave
Mult-node
Multi-node
M/S resolved
by random seed
M/S resolved
by random seed
If a link is established by successful Auto-Negotiation and
then lost, the Auto-Negotiation process will resume to
determine the configuration for the link. This function
ensures that a link can be re-established if the cable
becomes disconnected and re-connected. After AutoNegotiation is completed, it may be restarted at any time by
writing ‘1’ to bit 9 of the BMCR 0x00.
3.3.5 Pause and Asymmetrical Pause Resolution
When Full Duplex operation is selected during priority resolution, the Auto-Negotiation also determines the Flow Control capabilities of the two link partners. Flow control was
originally introduced to force a busy station’s Link Partner
to stop transmitting data in Full Duplex operation. Unlike
Half Duplex mode of operation where a link partner could
be forced to back off by simply generating collisions, the
Full Duplex operation needed a mechanism to slow down
transmission from a link partner in the event that the receiving station’s buffers are becoming full. A new MAC control
layer was added to handle the generation and reception of
Pause Frames. Each MAC Controller has to advertise
whether it is capable of processing Pause Frames. In addition, the MAC Controller advertises if Pause frames can be
handled in both directions, i.e. receive and transmit. If the
MAC Controller only generates Pause frames but does not
respond to Pause frames generated by a link partner, it is
called Asymmetrical Pause.
A restart Auto-Negotiation request from any entity, such as
a management agent, will cause DP83865 to halt data
transmission or link pulse activity until the break_link_timer
expires (~1500 ms). Consequently, the Link Partner will go
into link fail mode and the resume Auto-Negotiation. The
DP83865 will resume Auto-Negotiation after the
break_link_timer has expired by transmitting FLP (Fast
Link Pulse) bursts.
3.3.9 Enabling Auto-Negotiation via Software
If the DP83865 is initialized upon power-up with AutoNegotiation disabled (forced technology) and the user may
desire to restart Auto-Negotiation, this could be accomplished by software access. Bit 12 of BMCR 0x00 should
be cleared and then set for Auto-Negotiation operation to
take place.
The advertisement of Pause and Asymmetrical Pause
capabilities is enabled by writing ‘1’ to bits 10 and 11 of
ANAR 0x04. The link partner’s Pause capabilities is stored
ANLPAR 0x05 bits 10 and 11. The MAC Controller has to
read from ANLPAR to determine which Pause mode to
operate. The PHY layer is not involved in Pause resolution
other than simply advertising and reporting of Pause capabilities.
3.3.10 Auto-Negotiation Complete Time
Parallel detection and Auto-Negotiation take approximately
2-3 seconds to complete. In addition, Auto-Negotiation with
next page exchange takes approximately 2-3 seconds to
complete, depending on the number of next pages
exchanged.
Refer to Clause 28 of the IEEE 802.3u standard for a full
description of the individual timers related to Auto-Negotiation.
3.3.6 Next Page Support
The DP83865 supports the Auto-Negotiation Next Page
protocol as required by IEEE 802.3u clause 28.2.4.1.7. The
43
www.national.com
DP83865
3.0 Configuration (Continued)
DP83865
3.0 Configuration (Continued)
3.4 Auto-Negotiation Register Set
During the next page exchange operation, the station manager can not wait till the end of Auto-Negotiation to read
the ANLPAR because the register is used to store both the
base and next pages. The next page content overwrites the
base page content. The station manager needs to closely
monitor the negotiation status and to perform the following
tasks.
The strapping option settings of Auto-Negotiation, speed,
and duplex capabilities that initialized during power-up or at
reset can be altered any time by writing to the BMCR 0x00,
ANAR 0x04 or, to 1KTCR 0x09.
When Auto-Negotiation is enabled, the DP83865 transmits
the abilities programmed in the ANAR 0x04, and 1KTCR
0x09 via FLP Bursts. The following combinations of
10 Mbps,100 Mbps, 1000 Mbps, Half Duplex, and Full
Duplex modes may be selected.
— ANER 0x06 bit 1 is ‘1’ indicates a page is received. Station manage reads the base page information from
ANLPAR0x05 and stores the content in the memory.
— After reading the base page information, software needs
to write to ANNPTR 0x07 to load the next page information to be sent.
— The operation can be implemented as polled or interrupt
driven. If another page is received by polling bit 1 in the
ANER 0x06 or by interrupt, the station manager reads bit
15 of the ANLPAR indicating the partner has more next
pages to send. If the partner has more pages to send,
ANNPTR needs to be written to load another next page.
The ANER 0x06 indicates additional Auto-Negotiation status. The ANER provides status on:
Table 38. Advertised Modes during Auto-Negotiation,
AN_EN = 1
SPEED1
SPEED0
DUPLEX
Adertised Modes
1000BASE-T HD, 10BASE-T HD
1
1
0
1
0
0
1000BASE-T HD
0
1
0
1000BASE-T HD, 100BASE-TX HD
0
0
0
1000BASE-T HD, 100BASE-TX HD,
10BASE-T HD
1
1
1
1000BASE-T FD, 10BASE-T FD
1
0
1
1000BASE-T FD
0
1
1
1000BASE-T FD, 100BASE-TX FD
0
0
1
1000BASE-T FD, 100BASE-TX FD,
10BASE-T FD
— A Parallel Detect Fault has occurred (bit 4, ANER 0x06).
— The Link Partner supports the Next Page function (bit 3,
ANER 0x06).
— The DP83865 supports the Next Page function (bit 2,
ANER 0x06).
— The current page being exchanged by Auto-Negotiation
has been received (bit1, ANER 0x06).
— The Link Partner supports Auto-Negotiation (bit 0, ANER
0x06).
The ANNPTR 0x07 contains the next page code word to be
transmitted. See also Section “2.3 Register Description”
for details.
The Auto-Negotiation protocol compares the contents of
the ANLPAR (received from link partner) and ANAR registers (for 10/100 Mbps operation) and the contents of
1000BASE-T status and control registers, and uses the
results to automatically configure to the highest performance protocol (i.e., the highest common denominator)
between the local and the link partner. The results of AutoNegotiation may be accessed in registers BMCR 0x00
(Duplex Status and Speed Status), and BMSR 0x01 (AutoNeg Complete, Remote Fault, Link).
3.5 Auto-MDIX resolution
The GigPHYTER V can determine if a “straight” or “crossover” cable is used to connect to the link partner. It can
automatically re-assign channel A and B to establish link
with the link partner, (and channel C and D in 1000BASE-T
mode). Auto-MDIX resolution precedes the actual AutoNegotiation process that involves exchange of FLPs to
advertise capabilities. Automatic MDI/MDIX is described in
IEEE 802.3ab Clause 40, section 40.8.2. It is not a required
implementation for 10BASE-T and 100BASE-TX.
The BMCR 0x00 provides control for enabling, disabling,
and restarting the Auto-Negotiation process.
The BMSR 0x01 indicates the set of available abilities for
technology types, Auto-Negotiation ability, and extended
register capability. These bits are permanently set to indicate the full functionality of the DP83865. The BMSR also
provides status on:
— Auto-Negotiation is completed on bit 5
— The Link Partner is advertising that a remote fault has
occurred on bit 4
— A valid link has been established on bit 2
The ANAR 0x04 stores the capabilities advertised during
Auto-Negotiation. All available capabilities are transmitted
by default. However, the advertised capability can be suppressed by writing to the ANAR. This is a commonly used
by a management agent to change (i.e., to force) the communication technology.
Table 39. PMA signal to MDI and MDIX pin-out
The ANLPAR 0x05 is used to store the received base link
code word as well as all next page code words during the
negotiation that is transmitted from the link partner.
If Next Page is NOT being used, then the ANLPAR will
store the base link code word (link partner's abilities) and
retain this information from the time the page is received,
indicated by a ‘1’ in bit 1 of the ANER 0x06, through the
end of the negotiation and beyond.
www.national.com
44
Contact
MDI
MDIX
1
MDI_A+
MDI_B+
2
MDI_A-
MDI_B-
3
MDI_B+
MDI_A+
4
MDI_C+
MDI_D+
5
MDI_C-
MDI_D-
6
MDI_B-
MDI_A-
7
MDI_D+
MDI_C+
8
MDI_D-
MDI_C-
To enable Auto-MDIX, strapping option pin MDIX_EN
should be pulled up or left floating. Auto-MDIX can be disabled by strapping MDIX_EN pin low. When Auto-MDIX is
disabled, the PMA is forced to either MDI (“straight”) or
MDIX (“crossed”) - according to the setting of the
MAN_MDIX strapping option pin (high for MDIX and low for
MDI).
and it is implemented on DP83865DVH. Note that the
reduced LED mode is in addition to the existing five-LED
mode.
There are two reduced LED modes, the 3-in-1 mode and
the 4-in-1 mode. The 3-in-1 mode combines 10/100/100
Mbps links status in one LED, the standard LINK10_LED.
In the 3-in-1 mode, the rest of the four LED’s would still
function in the standard mode. This would allow user to use
one LED to indicate three-speed links, and other LED’s to
indicate 1000M link, TX/RX activity, or duplex.
The two strapping options for the MDI/MDIX configuration
can be overwritten by writing to bits 14 and 15 of register
AUX_CTRL (0x12). Bit 15 disables the Auto-MDIX feature
and bit 14 can change the straight/crossed and MDI/MDIX
setting.
Similar to 3-in-1 mode, the 4-in-1 mode combines an additional activity into the three-speed link modes. This mode
would further reduce the number of LED’s and still keep the
same number of display types.
Auto-MDIX is independent of Auto-Negotiation. Auto-MDIX
works in both AN mode and manual forced speed mode.
The Auto-MDIX in forced speed mode is added to
DP83865DVH revision and up.
To enable the RLED mode, LED Control Register 0x13.5 =
1, and register 0x1A.0 selects 3-in-1 or 4-in-1 mode.
3.6 Polarity Correction
Table 40. Reduced LED Mode
The GigPHYTER V will automatically detect and correct for
polarity reversal in wiring between the +/- wires for each
pair of the 4 ports.
RLED Ena
3/4-in-1 Sel
LINK10_LED
0
0
10M link
The current status of the polarity reversals is displayed in
bit 15:12 of register LINK_AN (0x11).
0
1
10M link
1
0
10/100/1000 link and ACT
3.7 PHY Address, Strapping Options and LEDs
1
1
10/100/1000 link
The PHY address can be set through external strapping
resistors. If all PHY address pins are left floating, the PHY
address is defaulted to 01h by internal pull up/down resistors.
3.9 Modulate LED on Error
The DP83865DVH uses ACT LED to display activity under
normal operation. The ACT LED is steady on when there is
Tx or Rx activity. The ACT can also display gigabit idle
error and CRC event. To differentiate ACT LED from normal Tx/Rx activity, the rate of the blink is faster when error
occurs. To enable the idle error modulation, LED Control
Register 0x13.3 = 1 and to enable CRC error modulation,
0x13.4 = 1.
The PHY address of DP83865 port can be configured to
any of the 31 possible PHY addresses (except 00h which
puts the PHY in isolation mode at power-up). However, if
more than one DP83865 is used on a board and if MDIO is
bused in a system, each of the DP83865’s address must
be different.
Table 41. LED Control Reg 0x13
PHY address strapping pin “0” is shared with the Duplex
LED pin.
Strap option pins can be left floating which will result in the
default for the particular pin to be set. External pull-up or
pull-down resistors (2kΩ recommended) can be used to
change the pre-set value.
The state of the strapping option pin inputs is latched (into
Strap_reg 0x10) at system power-on or reset. For further
details relating to the latch-in timing requirements of the
strapping option pins, as well as the other hardware configuration pins, refer to section “6.2 Reset Timing” on
page 73.
Bit 4
Bit 3
Activity LED
0
0
Normal ACT
0
1
ACT/Idle error
1
0
ACT/CRC error
1
1
ACT/Idle error/CRC error
3.10 MAC Interface
The DP83865 MAC interface can be configured to one of
the following different modes:
Some strap option pins are shared with LED output pins.
Since the strapping resistor could be a pull-up or a pulldown, an adaptive mechansim has been implemented to
simplify the required external circuit. In case the LED/strapping pin is strapped high, the LED drive level is active low.
In case the LED/strapping pin is strapped low, the LED
drive level is active high. See section “5.9 LED/Strapping
Option” on page 67 for details of the recommende external
components.
— MII Mode: Supports 10/100 Mbps MACs.
— GMII Mode: Supports 802.3z compliant 1000 Mbps
MACs.
— RGMII Mode: Supports RGMII version 1.3.
Only one mode is used at a time.
The interface is capable of driving 35 pF under worst conditions. Note that these outputs are not designed to drive
multiple loads, connectors, backplanes, or cables. See
section “5.6 Layout Notes on MAC Interface” on page 66
for design and layout details.
3.8 Reduced LED Mode
The DP83865DVH has a standard five-LED set. In some
applications, it is desirable to use fewer LED’s. The
“reduced LED mode” (RLED) is created to accommodate
the need for combining the LED functions into fewer LED’s
45
www.national.com
DP83865
3.0 Configuration (Continued)
DP83865
3.0 Configuration (Continued)
3.10.1 MII/GMII Interface
Note that upon power up, the clock output is available after
GPHY goes through its internal reset and initialization process. The clock output can be interrupted when GPHY is
going through software reset.
The link speed is determined by Auto-Negotiation, by
strapping options, or by register writes. Based on the
speed linked, an appropriate MAC interface is enabled.
3.12 MII/GMII/RGMII Isolate Mode
The DP83865 can be placed into MII/GMII/RGMII Isolate
mode by writing to bit 10 of the BMCR 0x00.
Table 42. Auto-Negotiation Disabled
SPEED[1:0]
Link Strapped
Controller I/F
00
10BASE-T
MII
01
100BASE-TX
MII
10
1000BASE-T
GMII/RGMII
11
reserved
---
3.12.1 10/100 Mbps Isolate Mode
In Isolation Mode, the DP83865 does not respond to
packet data present at TXD[3:0], TX_EN, and TX_ER
inputs and presents a high impedance on the TX_CLK,
RX_CLK, RX_DV, RX_ER, RXD[3:0], COL, and CRS outputs. The DP83865 will continue to respond to all management transactions through MDIO.
Table 43. Auto-Negotiation Enabled
While in Isolate mode, all medium access operations are
disabled.
Link Negotiated
Controller I/F
10BASE-T
MII
3.12.2 1000 Mbps Isolate Mode
100BASE-TX
MII
1000BASE-T
GMII/RGMII
During 1000 Mbps operation, the isolate mode will TRISTATE the GMII outputs of the GigPHYTER V. The PHY
also enters into the power down mode. All medium access
operations are halted. The only way to communicate to the
PHY is through MDIO management port.
3.10.2 RGMII Interface
The Reduced Gigabit Media Independent Interface
(RGMII) is a proposed standard by HP and 3Com. RGMII
is an alternative data interface to GMII and MII. RGMII
reduces the MAC interface pin count to 12.
3.13 Loopback Mode
The DP83865 includes a Loopback Test mode for easy
board diagnostics. The Loopback mode is selected through
bit 14 (Loopback) of BMCR 0x00. Writing 1 to this bit
enables MII/GMII transmit data to be routed to the MII/GMII
receive outputs. While in Loopback mode the data will not
be transmitted onto the media. This is true for 10Mbps, 100
Mbps, as well 1000 Mbps data.
The RGMII can be enabled either through strapping option
or MDIO register write. The strapping pins are shared with
CRS/RGMII_SEL0 and TX_CLK/RGMII_SEL1 since CRS
and TX_CLK signals are not used in the RGMII mode.
Table 44. RGMII Strapping for HP mode
Signal
Pin
Strap
CRS/RGMII_SEL0
40
0
TX_CLK/RGMII_SEL1
60
1
In 10BASE-T, 100BASE-TX, 1000BASE-T Loopback mode
the data is routed through the PCS and PMA layers into the
PMD sublayer before it is looped back. Therefore, in addition to serving as a board diagnostic, this mode serves as
quick functional verification of the device.
3.14 IEEE 802.3ab Test Modes
Table 45. RGMII Strapping for 3COM mode
Signal
Pin
IEEE 802.3ab specification for 1000BASE-T requires that
the PHY layer be able to generate certain well defined test
patterns on TX outputs. Clause 40 section 40.6.1.1.2 “Test
Modes” describes these tests in detail. There are four test
modes as well as the normal operation mode. These
modes can be selected by writing to the 1KTCR 0x09 as
shown.
Strap
CRS/RGMII_SEL0
40
1
TX_CLK/RGMII_SEL1
60
1
To enable RGMII through software, Register AUX_CTL
0x12.13:12 should be “10” or “11” binary. Note that
enabling the RGMII interface disables GMII and MII interfaces.
Table 46. IEEE Test Mode Select
3.11 Clock to MAC Enable
The DP83865 has a clock output (pin 85) that can be used
as a reference clock for other devices such as MAC or
switch silicon. The Clock to MAC output can be enabled
through strapping pins.
The Clock to MAC Enable Strap (pin 88) enables the clock
output. The output frequency can be selected between 25
MHz or 125 MHz. The frequency selection strapping pin is
combined with COL (pin 39), CLK_MAC_FRQ.
www.national.com
46
bit 15
bit 14
bit 13
Test Mode Selected
1
0
0
= Test Mode 4
0
1
1
= Test Mode 3
0
1
0
= Test Mode 2
0
0
1
= Test Mode 1
0
0
0
= Normal Operation
See IEEE 802.3ab section 40.6.1.1.2 “Test modes” for
more information on the nature of the test modes.
BIST. The receive BIST contains a receive error counter
and receive packet counter and the transmit BIST is used
to generate Ethernet packets.
The DP83865 provides a test clock synchronous to the
IEEE test patterns. The test patterns are output on the MDI
pins of the device and the test clock is output on the
TX_TCLK pin. There are also two support signals available
which are intended to improve the viewability of the test
patterns on an oscilloscope. TX_TRIGGER marks the start
of the test pattern and TX_SYNC_CLK provides and additional clock. Refer to section “1.6 Device Configuration and
LED Interface” on page 8 for pin numbers.
The BIST can be used to verify operations of all three
speed modes. The speed mode can be established
through auto-negotiation or manual forced mode. The BIST
may also be used in combination with the loopback mode
to verify both the transmit and receive operations of the
physical layer device.
Receive BIST
BIST_CNT displays the upper or lower 16-bit of an internal
32-bit counter. Bit 14 of BIST_CFG2 (bist_cnt_sel) selects
which 16-bit portion is shown while bit 15 of BIST_CFG1
(bist_cnt_type) selects whether the receive packet counter
or the receive error counter is active. The active counter
can be cleared by writing a ‘1’ to bit 14 of BIST_CFG1. The
receive BIST counter is disabled by default and can be
enabled through bit 15 of BIST_CFG2.
TX_TCLK, TX_TRIGGER and TX_SYN_CLK must be
enabled through bits 6 and 7 of register AUX_CTRL (0x12)
before they can be used.
3.15 Interrupt
The DP83865 can be configured to generate an interrupt
on pin 3 when changes of internal status occur. The interrupt allows a MAC to act upon the status in the PHY without polling the PHY registers. The interrupt source can be
selected through the interrrupt register set. This register set
consists of:
The receive BIST can be enabled during normal operation
in order to monitor the incoming data stream. The BIST
operation will not affect the PHY’s performance or behavior.
— Interrupt Status Register (INT_STATUS 0x14)
— Interrupt Mask Register (INT_MASK 0x15)
— Interrupt Clear Register (INT_CLEAR 0x17)
Upon reset, the interrupt is disabled and the interrupt registers are cleared. Any interrupt source can be enabled in the
INT_MASK register.
Transmit BIST
The transmit BIST allows the generation of packets with
pseudo-random (PSR9) or user defined content (bit 10 of
BIST_CFG1), different packet lengths (bit 13 of
BIST_CFG1) and variable interframe gap (bit 12 of
BIST_CFG1). Bits 7:0 of BIST_CFG1 contain the content
of the packet as defined by the user if that option has been
chosen.
The interrupt pin is active low. When the interrupt signal is
asserted it will remain asserted until the corresponding status bit is cleared.
The number of packets to be sent are specified through bits
13:11 of BIST_CFG2. Setting the enable bit in bit 11 of
BIST_CFG1 starts the transmittal. After the last packet was
sent this bit is automatically cleared. In case the ‘continuous transmit’ has been selected the enable bit must be
cleared in order to stop the stream of packets.
The interrupt pin is tri-stated when the interrupt is not
enabled or no interrupt has occured.
The status bits are the sources of the interrupt. These bits
are mapped in INT_STATUS. When the interrupt status bit
is “1”, the interrupt signal is asserted if the corresponding
INT_MASK bit is enabled. An interrupt status bit can be
cleared by writing a “1” to the corresponding bit in
INT_CLEAR. The clear bit returns to “0” automatically after
the interrupt status bit is cleared.
Table 47. BIST Configuration 1 Reg (0x19)
Bit
Function
15
Set active counter:
‘1’ = Receive error counter
‘0’ = Receive packet counter
3.16 Low Power Mode / WOL
The GigPHYTER V supports the Wake on LAN (WOL) feature of a higher layer device. In order to achive the least
possible power consumption the DP83865 must be put in
10BASE-T mode (Half or Full Duplex). In this mode the
device uses a maximum of 146mW of power.
14
‘1’ = Clear counter
13
Packet length:
‘1’ = 1514 bytes
‘0’ = 60 bytes
3.17 Power Down Mode
12
Interframe gap:
‘1’ = 9.6 µs
‘0’ = 0.096 µs
Register BMCR (0x00) bit 11 puts the GigPHYTER V in
Power Down mode. Writing a ‘1’ to this location causes the
DP83865 to deactivate everything but the management
(MDC / MDIO) interface. During this mode the device consumes the least possible power.
11
‘1’ = Enable transmit BIST
10
Packet type:
‘1’ = PSR9
‘0’ = User defined
3.18 BIST Configuration
The BIST (Built-In Self Test) provides a test interface that
allows to evaluate receive performance and to generate
valid transmit packets. Registers 0x18 (BIST_CNT), 0x19
(BIST_CFG1) and 0x1A (BIST_CFG2) contain the controls
to two distinct BIST functions: Receive BIST and transmit
7:0
47
User defined packet content.
www.national.com
DP83865
3.0 Configuration (Continued)
DP83865
3.0 Configuration (Continued)
3.20 10BASE-T Half Duplex Loopback
During transmit BIST operation the transmit path
(TXD[7:0]) of the GMII / MII is disabled. All generated packets will be sent out to the MDI path unless the loopback
mode is enabled. In that case the generated packets will be
presented at the receive path (RXD[7:0]) of the GMII / MII.
By default, the 10BASE-T half duplex transmitted packets
are looped back to the receive side. This is a legacy implementation. However, in the latest MAC or switch design,
the 10 Mbps loopback is desired to be turned off. The 10
Mbps HDX loopback can be disabled in the expanded
memory register 0x1C0.1.
Table 48. BIST Configuration 2 Reg (0x1A)
Bit
Function
15
‘1’ = Enable counter
14
Counter selection:
Bit 1
‘1’ = upper 16-bit
‘0’ = lower 16-bit
0
10BASE-T HDX loopback enabled
1
10BASE-T HDX loopback disabled
13:11
Table 50. 10M FDX Loopback Disable, Reg 0x1C0
Number of packets to transmit:
3.21 I/O Voltage Selection
‘000’ = continuous transmit
‘001’ = 1 packet
‘010’ = 10 packets
‘011’ = 100 packets
‘100’ = 1,000 packets
‘101’ = 10,000 packets
‘110’ = 100,000 packets
‘111’ = 10,000,000 packets
There are two options for the I/O voltage available. All
IO_VDD pins must be connected to the same power supply. It can either be 2.5V or 3.3V. The VDD_SEL pin must
be connected to ground in order to select 2.5V or to the
3.3V power supply to select 3.3 V. This pin must be connected directly to the respective power supply and must
not use a pull-up/-down resistor.
Pin which are effected by IO_VDD, i.e. will be driven at a
different voltage level, are all pin on the GMII/MII interface,
management interface, JTAG interface, clock interface,
device configuration and reset pins.
If BIST is operating the 1000BASE-T mode, active
GTX_CLK is required for the operation.
3.19 Cable Length Indicator
3.22 Non-compliant inter-operability mode
The maximum CAT5 cable length specified in IEEE 802.3
is 100 meters. When cable length extended beyond the
IEEE specified range, bit error rate (BER) will increase due
to the degredation of signal-to-noise ratio. The DP83865
has enough margin built-in to work at extended cable
reach.
In this mode the DP83865 allows with other vendor’s first
generation 1000 Mbps PHYs. National’s DP83865 is compliant to IEEE 802.3ab and optionally inter-operable with
non-compliant PHYs.
To enter non-compliant inter-operability mode the user can
use a 2kΩ resistor on NON_IEEE_STRAP (pin 1) or write
‘1’ to bit 9 of register 0x12.
When a 100BASE-TX or 1000BASE-T link is established,
the cable length is determined from adaptation parameters.
In 100BASE-TX mode, one cable length measurement is
available since there is one receive channel. In 1000BASET mode, four cable length measurements are available
since there are four receive channels. Each measurement
is stored in an 8-bit register in the expanded memory
space. User may choose to take the average of four measurement to achieve more accurate result. The number
stored in the cable length registers are in meters, and the
typical accuracy is ±5 meters.
The non-compliant mode is functional in auto-negotiation
configuration. It is not applicable in manual speed configuration.
Table 49. Cable Length Indicator Registers
Regiters
Addr
Description
Length_A
0x019F
Length, 100/1000 Mbps
Length_B
0x01A2
Length, 1000 Mbps
Length_C
0x01A5
Length, 1000 Mbps
Length_D
0x01A8
Length, 1000 Mbps
The error rate may be used in conjuction with the cable
length measurement to determine if the link is within IEEE
specifications. If the measurement shows that the cable
length exceeds 130 meters, either the cable is too long or
the cable quality is not meeting the CAT5 standard.
www.national.com
10BASE-T HDX Loopback Mode
48
The DP83865 is a full featured 10/100/1000 Ethernet Physical layer (PHY) chip. It consists of a digital 10/100/1000
Mb/s core with a common TP interface. It also has a combined versitle MAC interface that is capable of interfacing
with MII and GMII controller interfaces. In this section, the
following topics are covered:
—
—
—
—
—
—
—
—
—
4.1.2 Data and Symbol Sign Scrambler Word Generator
The word generator uses the Scrn[32:0] to generate further
scrambled values. The following signals are generated:
Sxn[3:0], Syn[3:0], and Sgn[3:0].
The 4-bit Sxn[3:0] and Syn[3:0] values are then sent to the
scrambler bit generator. The 4-bit Sgn[3:0] sign values are
provided to the sign scrambler nibble generator.
1000BASE-T PCS Transmitter
1000BASE-T PMA Transmitter
1000BASE-T PMA Receiver
1000BASE-T PCS Receiver
Gigabit MII (GMII)
Reduced GMII (RGMII)
10BASE-T and 100BASE-TX Transmitter
10BASE-T and 100BASE-TX Receiver
Media Dependent Interface (MII)
4.1.3 Scrambler Bit Generator
This sub block uses the Sxn and Syn signals along with the
tx_mode and tx_enable signals to generate the Scn[7:0],
that is further scrambled based on the condition of the
tx_mode and tx_enable signal. The tx_mode signal indicates sending idles (SEND_I), sending zeros (SEND_Z) or
sending idles/data (SEND_N). The tx_mode signal is generated by the micro controller function. The tx_enable signal is either asserted to indicate data transmission is
occurring or deasserted when there is no data transmission. The PCS Data Transmission Enable state machine
generates the tx_enable signal.
The 1000BASE-T transceiver includes PCS (Physical Coding Sublayer) Transmitter, PMA (Physical Medium Attachment) Transmitter, PMA Receiver and PCS Receiver. The
1000BASE-T functional block diagram is shown in section
“ Block Diagram” on page 2.
The 8-bit Scn[7:0] signals are then passed onto the data
scrambler functional block.
4.1.4 Data Scrambler
4.1 1000BASE-T PCS Transmitter
The Data Scrambler generates scrambled data by accepting the TxDn[7:0] data from the GMII and scrambling it
based on various inputs.
The PCS transmitter comprises several functional blocks
that convert the 8-bit TXDn data from the GMII to PAM-5
symbols passed onto the PMA function. The block diagram
of the PCS transmitter data path in Figure 2 provides an
overview of each of the architecture within the PCS transmitter.
The data scrambler generates the 8-bit Sdn[7:0] value,
which scrambles the TxDn data based primarily on the Scn
values and the accompanying control signals.
All 8-bits of Sdn[7:0] are passed onto the bit-to-quinary
symbol mapping block, while 2-bits, Sdn[7:6], are fed into
the convolutional encoder.
The PCS transmitter consists of eight sub blocks:
— LFSR (Linear Feedback Shift Register)
— Data scrambler and symbol sign scrambler word generator
— Scrambler bit generator
— Data scrambler
— Convolutional encoder
— Bit-to-symbol quinary symbol mapping
— Sign scrambler nibble generator
— Symbol sign scrambler
The requirements for the PCS transmit functionality are
also defined in the IEEE 802.3ab specification section
40.3.1.3 “PCS Transmit function”.
4.1.5 Convolutional Encoder
The encoder uses Sdn[7:6] bits and tx_enable to generate
an additional data bit, which is called Sdn[8].
The one clock delayed versions csn-1[1:0] are passed to
the data scrambler block. This Sdn[8] bit is then passed to
the bit-to-symbol quinary symbol mapping function.
4.1.6 Bit-to-Symbol Quinary Symbol Mapping
This block implements the IEEE 802.3ab specification
Tables 40-1 and 40-2 Bit-to-Symbol Mapping for even and
odd subsets. It takes the 9-bit Sdn[8:0] data and converts it
to the appropriate quinary symbols as defined by the
tables.
4.1.1 Linear Feedback Shift Register (LFSR)
The side-stream scrambler function uses a LFSR implementing one of two equations based on the mode of operation, i.e., a master or a slave. For master operation, the
equation is
The output of this block generates the TAn, TBn, TCn, and
TDn symbols that passed onto the symbol sign scrambler.
gM(x) = 1 + x13 + x33
4.1.7 Sign Scrambler Nibble Generator
For slave operation, the equation is
Sign Scrambler Nibble Generator performs some further
scrambling of the sign values Sgn[3:0] that are generated
by the data and symbol sign scrambler word generator.
The sign scrambling is dependent on the tx_enable signal.
gS(x) = 1 + x20 + x33
The 33-bit data output, Scrn[32:0], of this block is then fed
to the data scrambler and symbol sign scrambler word generator.
The SnAn, SnBn, SnCn, and SnDn outputs are then passed
onto the symbol sign scrambler function.
49
www.national.com
DP83865
4.0 Functional Description
DP83865
4.0 Functional Description (Continued)
Sign
Scrambled
PAM-5
Symbols
to PMA
TAn
Data Scrambler
and Symbol
LSFR
gM = 1 + x13 + x33
gS = 1 + x
20
+x
Scrn[32:0]
33
Sign Scrambler
Syn[3:0]
Scrambler
Bit
Generator
Data
Scrambler and
Convolutional
Encoder
Sdn[8:0]
Bit-to
Quinary Symbol
Mapping
Word Generator
g(x) = x ⊕ x
3
Input Data
Byte from GMII
Scn[7:0]
Sx n[3:0]
8
Sgn[3:0]
Sign
Scrambler
Nibble
Generator
TBn
TCn
An
TDn
Sn An
S nB n
Symbol
Bn
Sign
Scrambler
Cn
Dn
S nC n
S nD n
TxDn[7:0]
Figure 2. PCS TX Functional Block Diagram
4.1.8 Symbol Sign Scrambler
4.3 1000BASE-T PMA Receiver
Symbol Sign Scrambler scrambles the sign of the TAn,
TBn, TCn, and TDn input values from the bit-to-symbol quinary symbol mapping function by either inverting or not
inverting the signs. This is done as follows:
Cn = TCn x SnCn
The PMA Receiver (the “Receiver”) consists of several sub
functional blocks that process the four digitized voltage
waveforms representing the received quartet of quinary
PAM-5 symbols. The DSP processing implemented in the
receiver extracts a best estimate of the quartet of quinary
symbols originated by the link partner and delivers them to
the PCS Receiver block for further processing. There are
four separate Receivers, one for each twisted pair.
Dn = TDn x SnDn
The main processing sub blocks include:
The output of this block, namely An, Bn, Cn, and Dn, are the
sign scrambled PAM-5 symbols. They are then passed
onto the PMA for further processing.
—
—
—
—
—
An = TAn x SnAn
Bn = TBn x SnBn
4.2 1000BASE-T PMA Transmitter
The PMA transmit block shown in Figure 3 contains the following blocks:
4.3.1 Adaptive Equalizer
— Partial Response Encoder
— DAC and Line Driver
The Adaptive Equalizer compensates for the frequency
attenuation characteristics which results from the signal
distortion of the CAT-5 cable. The cable has higher attenuates at the higher frequencies and this attenuation must be
equalized. The Adaptive Equalizer is a digital filter with tap
coefficients continually adapted to minimize the Mean
Square Error (MSE) value of the slicer's error signal output.
Continuous adaptation of the equalizer coefficients means
that the optimum set of coefficients will always be achieved
for maximum specified length or lower quality of cable.
4.2.1 Partial Response Encoder
Partial Response (PR) coding (or shaping) is used on the
PAM-5 coded signals to spectrally shape the transmitted
PAM-5 signal in order to reduce emissions in the critical
frequency band ranging from 30 MHz to 60 MHz. The PR
Z-transform implemented is
0.75 + 0.25 Z
–1
4.3.2 Echo and Crosstalk Cancellers
The PR coding on the PAM-5 signal results in 17-level PAM5 or PAM-17 signal that is used to drive a common
10/100/1000 DAC and line driver. (Without the PR coding
each signal can have 5 levels given by ± 1, ± 0.5 and 0 V. If
all combinations of the 5 levels are used for the present and
previous outputs, then there are 17 unique output levels
when PR coding is used.)
The Echo and Crosstalk Cancellers cancel the echo and
crosstalk produced while transmitting and receiving simultaneously. Echo is produced when the transmitted signal
interferes with the received signal on the same wire pair.
Crosstalk is caused by the transmitted signal appearing on
each of the other three wire pairs interfering with the
receive signal on the fourth wire pair. An Echo and
Crosstalk Canceller is needed for each of the wire pairs.
Figure 3 shows the PMA Transmitter and the embedded
PR encoder block with its inputs and outputs. Figure 4
shows the effect on the spectrum of PAM-5 after PR shaping.
4.3.3 Automatic Gain Control (AGC)
The Automatic Gain Control acts upon the output of the
Echo and Crosstalk Cancellers to adjust the receiver gain.
Different AGC methods are available within the chip and
the optimum gain is selected based on the operational
state the chip (master, slave, start-up, etc.).
4.2.2 DAC and Line Driver
The PAM-17 information from the PR encoder is supplied
to a common 10/100/1000 DAC and line driver that converts digitally encoded data to differential analog voltages.
www.national.com
Adaptive Equalizer
Echo and Crosstalk Cancellers
Automatic Gain Control (AGC)
Baseline Wander (BLW) Correction
Slicer
50
DP83865
4.0 Functional Description (Continued)
PARTIAL RESPONSE PULSE SHAPE CODING
5-LEVEL PAM-5 TO 17-LEVEL PAM
SIGN
SCRAMBLER
PAM-5
3-bits/sample
Z -1
0.75
0.25
17-LEVEL
PAM-5
5-bits/sample
TABLE
LOOKUP
DAC
CONTROL
20-bits/sample
MUX
0.75∗X(k) + 0.25∗X(k-1)
10
100
1000
DAC
Manchester/
MLT-3/PAM-17
ANALOG
2-bit MLT-3
Manchester coding
PMA Transmitter Block
Figure 3. PMA Transmitter Block
PAM-5 w ith PR (.7 5+.2 5T)
Transmit Spectra
PAM-5
1.200
Re lativ e Amp litud e
1.000
0.800
0.600
0.400
0.200
0.000
-0.200
-0.400
10.00
critica l reg io n -- (30 MH z -- 6 0MH z)
100.00
F re q ue n cy (M Hz)
Figure 4. Effect on Spectrum of PR-shaped PAM-5 coding
4.3.4 Baseline Wander (BLW) Correction
actual voltage input and the ideal voltage level representing the symbol value. The error output is fed back to the
BLW, AGC, Crosstalk Canceller and Echo Canceller sub
blocks to be used in their respective algorithms.
Baseline wander is the slow variation of the DC level of the
incoming signal due to the non-ideal electrical characteristics of the magnetics and the inherent DC component of
the transmitted waveform. The BLW correction circuit utilizes the slicer error signal to estimate and correct for BLW.
4.4 1000BASE-T PCS Receiver
The PCS Receiver consists of several sub functional
blocks that convert the incoming quartet of quinary symbols (PAM-5) data from the PMA Receiver A, B, C, and D to
8-bit receive data (RXD[7:0]), data valid (RX_DV), and
receive error (RX_ER) signals on the GMII. The block diagram of the 1000BASE-T Functional Block in section
“ Block Diagram” on page 2 provides an overview of the
4.3.5 Slicer
The Slicer selects the PAM-5 symbol value (+2,+1,0,-1,-2)
closest to the voltage input value after the signal has been
corrected for line Inter Symbol Interference (ISI), attenuation, echo, crosstalk and BLW.
The slicer produces an error output and symbol value decision output. The error output is the difference between the
51
www.national.com
DP83865
4.0 Functional Description (Continued)
4.4.5 Receive State Machine
1000BASE-T transceiver and shows the functionality of the
PCS receiver.
The state machine operation is defined in IEEE 802.3ab
section 40.3.1.4. In summary, it provides the necessary
receive control signals of RX_DV and RX_ER to the GMII.
In specific conditions defined in the IEEE 802.3ab specification, it generates RXD[7:0] data.
The major sub functional blocks of the PCS Receiver
include:
— Delay Skew Compensation
— Delay Skew Control
— Forward Error Correction (FEC)
— Descrambler Subsystem
— Receive State Machine
— ADC/DAC/Timing Subsystem
The requirements for the PCS receive functionality are
defined in the IEEE 802.3ab specification in section
40.3.1.4 “PCS Receive function”.
4.4.6 ADC/DAC/Timing Subsystem
The 1000BASE-T receive section consists of 4 channels,
each receiving IEEE 802.3ab compliant PAM-5 coded data
including Partial Response (PR) shaping at 125 MBaud
over a maximum of a 100 m of CAT-5 cable. The 4 pairs of
receive input pins are AC coupled through the magnetics to
the CAT-5 cable. Each receive pin pair is differentially terminated into an external 100W resistor to match the cable
impedance. Each receive channel consists of a high precision Analog to Digital data converter (ADC) which quantizes the incoming data into a digital word at the rate of 125
Mb/s. The ADC is sampled with a clock of 125 MHz which
has been recovered from the incoming data stream.
4.4.1 Delay Skew Compensation
This is a mechanism used to align the received data from
the four PMA receivers and to determine the correct spacial ordering of the four incoming twisted pairs, i.e., which
twisted pair carries An, which one carries Bn, etc. The deskewed and ordered symbols are then presented to the
Forward Error Correction (FEC) Decoder. The differential
time or time delay skew is due to the differences in length
of each of the four pairs of twisted wire in the CAT-5 cable,
manufacturing variation of the insulation of the wire pairs,
and in some cases, differences in insulation materials used
in the wire pairs. Correct symbol order to the FEC is
required, since the receiver does not have prior knowledge
of the order of the incoming twisted pairs within the CAT-5
cable.
The 1000BASE-T transmit section consists of 4 channels,
each transmitting IEEE 802.3ab compliant 17-level PAM-5
data at 125 M symbols/second. The 4 pairs of transmit output pins are AC coupled through the magnetics to the CAT5 cable. Each transmit pin pair is differentially terminated
into an external 100W resistor to match the cable impedance. Each transmit channel consists of a Digital to Analog
data converter (DAC) and line driver capable of producing
17 discrete levels corresponding to the PR shaping of a
PAM-5 coded data stream. Each DAC is clocked with the
internal 125 MHz clock in the MASTER mode, and the
recovered receive clock in the SLAVE mode operation.
4.4.2 Delay Skew Control
The DP83865 incorporates a sophisticated Clock Generation Module (CGM) which supports 10/100/1000 modes of
operation with an external 25 MHz clock reference (±50
ppm). The Clock Generation module internally generates
multiple phases of clocks at various frequencies to support
high precision and low jitter Clock Recovery Modules
(CRM) for robust data recovery, and to support accurate
low jitter transmission of data symbols in the MASTER and
SLAVE mode operations.
This sub block controls the delay skew compensation function by providing the necessary controls to allow for compensation in two dimensions. The two dimensions are
referring to time and position. The time factor is the delay
skew between the four incoming data streams from the
PMA RX A, B, C, and D. This delay skew originates back at
the input to the ADC/DAC/TIMING subsystem. Since the
receiver initially does not know the ordering of the twisted
pairs, correct ordering must be determined automatically
by the receiver during start-up. Delay skew compensation
and twisted pair ordering is part of the training function performed during start-up mode of operation.
4.5 Gigabit MII (GMII)
The Gigabit Media Independent Interface (GMII) is
intended for use between Ethernet PHYs and Station Management (STA) entities and is selected by either hardware
or software configuration. The purpose of GMII is to make
various physical media transparent to the MAC layer.
4.4.3 Forward Error Correction (FEC) Decoder
The FEC Decoder decodes the quartet of quinary (PAM-5)
symbols and generates the corresponding Sdn binary
words. The FEC decoder uses a standard 8 state Trellis
code operation. Initially, Sdn[3:0] may not have the proper
bit ordering, however, correct ordering is established by the
reordering algorithm at start-up.
The GMII Interface accepts either GMII or MII data, control
and status signals and routes them either to the
1000BASE-T, 100BASE-TX, or 10BASE-T modules,
respectively.
4.4.4 Descrambler Subsystem
The descrambler block performs the reverse scrambling
function that was implemented in the transmit section. This
sub block works in conjunction with the delay skew control.
It provides the receiver generated Sdn[3:0] bits for comparison in the delay skew control function.
www.national.com
52
DP83865
4.0 Functional Description (Continued)
The mapping of the MAC interface is illustrated below in
Table 51.
RGMII
Table 51. GMII/RGMII/MII Mapping
GMII
RGMII
MII
RXD[3:0]
RX[3:0]
RXD[3:0]
TX_CLK
TD0
TD1
TD2
RXD[4:7]
RX_DV
RCK
RX_ER
RXDV_ER
RX_CLK
TXD[3:0]
TD3
TXEN_ER
RX_DV
RX_ER
TX_CLK
TX[3:0]
TXD[3:0]
RD0
TXEN_ER
TX_EN
RD1
RD2
RD3
RXDV_ER
TXD[4:7]
TX_EN
TX_ER
GTX_CLK
TX_ER
Figure 5. RGMII Signals
TCK
COL
CRS
BLOCK
RX_CLK
RX_CLK
RGMII_SEL1
GPHY
FUNCTIONAL
RGMII_SEL0
COL
4.6.1 1000 Mbps Mode Operation
CRS
All RGMII signals are positive logic. The 8-bit data is multiplexed by taking advantage of both clock edges. The lower
4 bits are latched on the positive clock edge and the upper
4 bits are latched on trailing clock edge. The control signals
are multiplexed into a single clock cycle using the same
technique.
The GMII interface has the following characteristics:
— Supports 10/100/1000 Mb/s operation
— Data and delimiters are synchronous to clock references
— Provides independent 8-bit wide transmit and receive
data paths
— Provides a simple management interface
— Uses signal levels that are compatible with common
CMOS digital ASIC processes and some bipolar processes
— Provides for Full Duplex operation
The GMII interface is defined in the IEEE 802.3z document
Clause 35. In each direction of data transfer, there are Data
(an eight-bit bundle), Delimiter, Error, and Clock signals.
GMII signals are defined such that an implementation may
multiplex most GMII signals with the similar PCS service
interface defined in IEEE 802.3u Clause 22.
To reduce power consumption of RGMII interface,
TXEN_ER and RXDV_ER are encoded in a manner that
minimize transitions during normal network operation. This
is done by following encoding method. Note that the value
of GMII_TX_ER and GMII_TX_EN are valid at the rising
edge of the clock. In RGMII mode, GMII_TX_ER is
resented on TXEN_ER at the falling edge of the TCK clock.
RXDV_ER coding is implemented the same fashion.
TXEN_ER <= GMII_TX_ER (XOR) GMII_TX_EN
RXDV_ER <= GMII_RX_ER (XOR) GMII_RX_DV
When receiving a valid frame with no error, “RXDV_ER =
True” is generated as a logic high on the rising edge of
RCK and “RXDV_ER = False” is generated as a logic high
at the falling edge of RCK. When no frame is being
received, “RXDV_ER = False” is generated as a logic low
on the rising edge of RCK and “RXDV_ER = False” is generated as a logic low on the falling edge of RCK.
Two media status signals are provided. One indicates the
presence of carrier (CRS), and the other indicates the
occurrence of a collision (COL). The GMII uses the MII
management interface composed of two signals (MDC,
MDIO) which provide access to management parameters
and services as specified in IEEE 802.3u Clause 22.
When receiving a valid frame with error, “RXDV_ER =
True” is generated as logic high on the rising edge of
RX_CLK and “RXERR = True” is generated as a logic low
on the falling edge of RCK.
The MII signal names have been retained and the functions
of most signals are the same, but additional valid combinations of signals have been defined for 1000 Mb/s operation.
TXEN_ER is treated in a similar manner. During normal
frame transmission, the signal stays at a logic high for both
edges of TCK and during the period between frames where
no error is indicated, the signal stays low for both edges.
4.6 Reduced GMII (RGMII)
The Reduced Gigabit Media Independent Interface
(RGMII) is designed to reduce the number of pins required
to interconnect the MAC and PHY (Figure 5). To accomplish this goal, the data paths and all associated control
signals are reduced and are multiplexed. Both rising and
trailing edges of the clock are used. For Gigabit operation
the clock is 125 MHz, and for 10 and 100 Mbps operation
the clock frequencies are 2.5 MHz and 25 MHz, respectively. Please refer to the RGMII Specification version 1.3
for detailed descriptions.
4.6.2 1000 Mbps Mode Timing
At the time of the publication of RGMII standard version
1.3, there are two different implmentations of RGMII, HP
and 3COM. The difference is in setup and hold timing.
The DP83865 implemented the HP timing. The following is
an explanation of the RGMII interface of the DP83865.
53
www.national.com
DP83865
4.0 Functional Description (Continued)
1000 Mbps Mode Transmit Path Timing
serial data stream for 100BASE-TX operation. Since the
10BASE-T and 100BASE-TX transmitters are integrated
with the 1000BASE-T, the differential output pins, TD+ /are routed to channel A of the AC coupling magnetics.
In the transmit path, the TX signals are the output of the
MAC and input of the PHY. The MAC output has a data to
clock skew of -500 ps to +500 ps in both HP and 3COM
mode. The PHY input, on the receiver side, requires data
to clock input skew between 1.0 ns to 2.6 ns. To meet the
minimum data skew of 1.0 ns at the PHY input while the
MAC output skew is at -500 ps (i.e., the worst case), the
clock signal (RGMII_TCK) needs to be delayed by minumum of 1.5 ns. To meet the maximum data skew of 2.6 ns
at the PHY input while MAC output skew is at +500 ps, the
maximum clock delay (RGMII_TCK) needs to be within 2.1
ns.
The block diagram in Figure 6 provides an overview of
each functional block within the 10BASE-T and 100BASETX transmit section. The Transmitter section consists of the
following functional blocks:
10BASE-T:
— NRZ to Manchester Encoder
— Link Pulse Generator
— Transmit Driver
— Jabber Detect
100BASE-TX:
The 3COM mode clock delay is implemented internal in the
DP83865DVH. The HP or 3COM mode can be selected at
register 0x12.13:12.
— Code-group Encoder and Injection block
— Parallel-to-Serial block
— Scrambler block
— NRZ to NRZI encoder block
— Binary to MLT-3 converter / DAC / Line Driver
In 10BASE-T mode the transmitter meets the IEEE 802.3
specification Clause 14.
1000 Mbps Mode Receive Path Timing
In the data receive path, the RX signals are the output of
the PHY and input of the MAC. The PHY output has a data
to clock skew of -500 ps to +500 ps (i.e., the HP mode).
If the MAC input, on the receiver side, is operating in
3COM mode that requires minimum of 1.0 ns setup time,
the clock signal (RGMII_RX_CLK) needs to be delayed
with minimum of 1.5 ns if the PHY output has a data to
clock skew of -500 ps. The 3COM mode requires the MAC
input has a minimum hold time of 0.8 ns. Meeting the
3COM minimum input hold time, the maximum clock signal
delay while PHY output skew is at +500 ps would be 2.3
ns.
The DP83865 implements the 100BASE-X transmit state
machine diagram as specified in the IEEE 802.3u Standard, Clause 24.
4.7.1 10BASE-T Manchester Encoder
The encoder begins operation when the Transmit Enable
input (TXE) goes high. The encoder converts the clock and
NRZ data to Manchester data for the transceiver. For the
duration of TXE remaining high, the Transmit Data (TXD) is
encoded for the transmit differential driver. TXD must be
valid on the rising edge of Transmit Clock (TXC). Transmission ends when TXE goes low. The last transition is always
positive; it occurs at the center of the bit cell if the last bit is
a one, or at the end of the bit cell if the last bit is a zero.
The 3COM mode clock delay is implemented internal in the
DP83865DVH. The HP or 3COM mode can be selected at
register 0x12.13:12.
4.6.3 10/100 Mbps Mode
When RGMII interface is working in the 100 Mbps mode,
the Ethernet Media Independent Interface (MII) is implemented by reducing the clock rate to 25 MHz. For 10 Mbps
operation, the clock is further reduced to 2.5 MHz. In the
RGMII 10/100 mode, the transmit clock RGMII_TX_CLK is
generated by the MAC and the receive clock
RGMII_RX_CLK is generated by the PHY. During the
packet receiving operation, the RGMII_RX_CLK may be
stretched on either the positive or negative pulse to accommodate the transition from the free running clock to a datasynchronous clock domain. When the speed of the PHY
changes, a similar stretching of the positive or negative
pulses is allowed. No glitch is allowed on the clock signals
during clock speed transitions.
4.7.2 Link Pulse Generator
The link generator is a timer circuit that generates a normal
link pulse (NLP) as defined by the 10 Base-T specification
in 10BASE-T mode. The pulse which is 100ns wide is
transmitted on the transmit output, every 16ms, in the
absence of transmit data. The pulse is used to check the
integrity of the connection to the remote MAU.
4.7.3 Transmit Driver
The 10 Mb/s transmit driver in the DP83865 shares the
100/1000 Mb/s common driver.
4.7.4 Jabber Detect
This interface will operate at 10 and 100 Mbps speeds the
same way it does at 1000 Mbps mode with the exception
that the data may be duplicated on the falling edge of the
appropriate clock.
The Jabber Detect function disables the transmitter if it
attempts to transmit a much longer than legal sized packet.
The jabber timer monitors the transmitter and disables the
transmission if the transmitter is active for greater than 2030ms. The transmitter is then disabled for the entire time
that the ENDEC module's internal transmit is asserted. The
transmitter signal has to be deasserted for approximately
400-600ms (the unjab time) before the Jabber re-enables
the transmit outputs.
The MAC will hold RGMII_TX_CLK low until it has ensured
that it is operating at the same speed as the PHY.
4.7 10BASE-T and 100BASE-TX Transmitter
Jabber status can be read from BMSR 0x01.1. For 100
Mb/s and 1000 Mb/s operations, Jabber Detect function is
not incorporated so that BMSR 0x01.1 always returns “0”.
The 10BASE-T and 100BASE-TX transmitter consists of
several functional blocks which convert synchronous 4-bit
nibble data, as provided by the MII, to a 10 Mb/s MLT signal for 10BASE-T operation or scrambled MLT-3 125 Mb/s
www.national.com
54
DP83865
4.0 Functional Description (Continued)
TX_CLK
100BASE-T
10BASE-T
TXD[3:0] / TX_ER
TXD[3:0] / TX_ER
4B/5B ENCODER
AND
INJECTION LOGIC
NRZ TO
MANCHESTER
DECODER
DIVIDER
FROM PGM
LINK PULSE
GENERATOR
PARALLEL
TO SERIAL
SCRAMBLER
NRZ-TO-NRZI
100BASE-X
LOOPBACK
BINARY-TO-MLT
10, 100, 1000
MUX/DAC/DRIVER
MDI +/−
Figure 6. 10BASE-T/100BASE-TX Transmit Block Diagram
4.7.5 100BASE-T Code-group Encoding and Injection
4.7.6 Parallel-to-Serial Converter
The code-group encoder converts 4-bit (4B) nibble data
generated by the MAC into 5-bit (5B) code-groups for
transmission. This conversion is required to allow control
data to be combined with packet data code-groups. Refer
to Table 52 for 4B to 5B code-group mapping details.
The 5-bit (5B) code-groups are then converted to a serial
data stream at 125 MHz.
4.7.7 Scrambler
The scrambler is required to control the radiated emissions
at the media connector and on the twisted pair cable (for
100BASE-TX applications). By scrambling the data, the
total energy launched onto the cable is randomly distributed over a wide frequency range. Without the scrambler,
energy levels at the PMD and on the cable could peak
beyond FCC limitations such as frequencies related to
repeating 5B sequences (e.g., continuous transmission of
IDLEs).
The code-group encoder substitutes the first 8-bits of the
MAC preamble with a /J/K/ code-group pair (11000 10001)
upon transmission. The code-group encoder continues to
replace subsequent 4B preamble and data nibbles with
corresponding 5B code-groups. At the end of the transmit
packet, upon the deassertion of Transmit Enable signal
from the MAC, the code-group encoder injects the /T/R/
code-group pair (01101 00111) indicating the end of frame.
After the /T/R/ code-group pair, the code-group encoder
continuously injects IDLEs into the transmit data stream
until the next transmit packet is detected (reassertion of
Transmit Enable).
The scrambler is configured as a closed loop linear feedback shift register (LFSR) with an 11-bit polynomial. The
output of the closed loop LFSR is X-ORed with the serial
NRZ data from the serializer block. The result is a scrambled data stream with sufficient randomization to decrease
radiated emissions at certain frequencies by as much as 20
55
www.national.com
DP83865
4.0 Functional Description (Continued)
dB. The DP83865 uses the PHYADDR[4:0] value to set a
unique seed value for the scramblers. The resulting energy
generated by each channel is out of phase with respect to
each channel, thus reducing the overall electro-magnetic
radiation.
Table 52. 4B5B Code-Group Encoding/Decoding
Name
4.7.8 NRZ to NRZI Encoder
PCS
5B
Codegroup
MII 4B Nibble Code
DATA CODES
After the transmit data stream has been serialized and
scrambled, the data is NRZI encoded to comply with the
TP-PMD standard for 100BASE-TX transmission over Category-5 unshielded twisted pair cable. There is no ability to
bypass this block within the DP83865.
0
11110
0000
1
01001
0001
2
10100
0010
3
10101
0011
4
01010
0100
5
01011
0101
6
01110
0110
7
01111
0111
8
10010
1000
9
10011
1001
A
10110
1010
B
10111
1011
C
11010
1100
D
11011
1101
E
11100
1110
F
11101
1111
IDLE AND CONTROL CODES
H
00100 HALT code-group - Error code
I
11111 Inter-Packet IDLE - 0000 (Note 1)
J
11000 First Start of Packet - 0101 (Note 1)
K
10001 Second Start of Packet - 0101 (Note 1)
T
01101 First End of Packet - 0000 (Note 1)
R
00111 Second End of Packet - 0000 (Note 1)
INVALID CODES
V
00000 0110 or 0101 (Note 2)
V
00001 0110 or 0101 (Note 2)
V
00010 0110 or 0101 (Note 2)
V
00011 0110 or 0101 (Note 2)
V
00101 0110 or 0101 (Note 2)
V
00110 0110 or 0101 (Note 2)
V
01000 0110 or 0101 (Note 2)
V
01100 0110 or 0101 (Note 2)
V
10000 0110 or 0101 (Note 2)
V
11001 0110 or 0101 (Note 2)
Note 1: Control code-groups I, J, K, T and R in data fields will be
mapped as invalid codes, together with RX_ER asserted.
Note 2: Normally, invalid codes (V) are mapped to 6h on RXD[3:0] with
RX_ER asserted.
www.national.com
56
4.7.9 MLT-3 Converter / DAC / Line Driver
phased logic one events. These two binary streams are
then passed to a 10/100/1000 DAC and line driver which
converts the pulses to suitable analog line voltages. Refer
to Figure 8.
The Binary to MLT-3 conversion is accomplished by converting the serial NRZI data stream output from the NRZI
encoder into two binary data streams with alternately
NRZI_in
MLT-3_plus
MLT-3_minus
differential MLT-3
10, 100, 1000
PAM-17_in
20
MLT-3+
NRZI_in
MLT-3
MLT-3-
MUX
DAC
Converter
Line
Manchester/
Driver
MLT-3/PAM-17
Manchester
Figure 7. NRZI to MLT-3 conversion
The 100BASE-TX MLT-3 signal sourced by the MDI+/- line
driver output pins is slew rate controlled. This should be
considered when selecting AC coupling magnetics to
ensure TP-PMD Standard compliant transition times (3 ns
< tr < 5 ns).
— Manchester Decoder
— Link Detect
The 100BASE-T Receive section consists of the following
functional blocks:
— ADC Block
— Signal Detect
— BLW/EQ/AAC Correction
— Clock Recovery Module
— MLT-3 to NRZ Decoder
— Descrambler
— Serial to Parallel
— 5B/4B Decoder
— Code Group Alignment
— Link Integrity Monitor
Other topics discussed are:
The 100BASE-TX transmit TP-PMD function within the
DP83865 outputs only MLT-3 encoded data. Binary data
outputs is not available from the MDI+/- in the 100 Mb/s
mode.
4.7.10 TX_ER
Assertion of the TX_ER input while the TX_EN is also
asserted will cause the DP83865 to substitute HALT codegroups for the 5B data present at TXD[3:0]. However, the
Start-of-Stream Delimiter (SSD) /J/K/ and End-of-Stream
Delimiter (ESD) /T/R/ will not be substituted with HALT
code-groups. As a result, the assertion of TX_ER while
TX_EN is asserted will result in a frame properly encapsulated with the /J/K/ and /T/R/ delimiters which contains
HALT code-groups in place of the data code-groups.
— Bad SSD Detection
— Carrier Sense
— Collision Detect
4.8 10BASE-T and 100BASE-TX Receiver
4.8.1 10BASE-T Receiver
The 10BASE-T receiver converts Manchester codeing to 4bit nibble data to the MII. The 100BASE-TX receiver consists of several sub functional blocks which convert the
scrambled MLT-3 125 Mb/s serial data stream to synchronous 4-bit nibble data that is provided to the MII. The
10/100 Mb/s TP-PMD is integrated with the 1000 Mb/s.
The 10/100 differential input data MDI+/- is routed from
channel B of the isolation magnetics.
The receiver includes differential buffer, offset and gain
compensation. The receiver provides the signal conditioning to the Clock and Data Recovery block.
4.8.2 Clock and Data Recovery
The Clock and Data Recovery block separates the
Manchester encoded data stream into internal clock signals and data. Once the input exceeds the squelch requirements, Carrier Sense (CRS) is asserted off the first edge
presented to the Manchester decoder.
See Figure 8 for a block diagram of the 10BASE-T AND
100BASE-TX receive function. It provides an overview of
each functional block within the 10/100 receive section.
4.8.3 Manchester Decoder
The 10BASE-T Receive section consists of the following
functional blocks:
Once the Manchester decoder locks onto the incoming
data stream, it converts Manchester data to NRZ data. The
decoder detects the end of a frame when no more mid-bit
transitions are detected. Within one and a half bit times
— Receiver
— Clock and Data Recovery
57
www.national.com
DP83865
4.0 Functional Description (Continued)
DP83865
4.0 Functional Description (Continued)
10BASE-T
RXD[3:0] /
RX_ER
RX_CLK
RXD[3:0] /
RX_ER
100BASE-TX
5B/4B DECODER
LOGIC
4-BIT NIBBLE
DEMUX
DIVIDER
SERIAL
TO
PARALLEL
MANCHESTER
TO NRZ
DECODER
DESCRAMB
LER
MLT-3
TO
NRZ
CLOCK &
DATA
RECOVERY
LINK DETECT
CLOCK
RECOVERY
AAC
BLW
EQ
CORRECTN
SIGNAL DETECT
LINK
DETECT
SIGNAL
DETECT
ADC
RECEIVER
100BASE-TX
10BASE-T
MDI +/−
Figure 8. 10BASE-T/100BASE-T Receive Block Diagram
after the last bit, carrier sense is de-asserted. Receive
clock stays active for at least five more bit times after CRS
goes low, to guarantee the receive timings of the controller.
to Digital Converter (ADC) to allow for Digital Signal Processing (DSP) to take place on the received signal.
The aligned NRZ data is then parallized and aligned to 4bit nibbles that is presented to the MII.
4.8.6 BLW / EQ / AAC Correction
The digital data from the ADC block flows into the DSP
Block (BLW/EQ/AAC Correction) for processing. The DSP
block applies proprietary processing algorithms to the
received signal and are all part of an integrated DSP
receiver. The primary DSP functions applied are:
4.8.4 Link Detector
In 10 BASE-T mode, the link detection circuit checks for
valid NLP pulses transmitted by the remote link partner. If
valid link pulses are not received the link detector will disable the twisted pair transmitter, receiver and collision
detection functions.
— BLW is defined as the change in the average DC content, over time, of an AC coupled digital transmission
over a given transmission medium. (i.e. copper wire).
BLW results from the interaction between the low frequency components of a transmitted bit stream and the
frequency response of the AC coupling component(s)
within the transmission system. If the low frequency content of the digital bit stream goes below the low frequency pole of the AC coupling transformer then the droop
characteristics of the transformer will dominate resulting
4.8.5 100 BASE-TX ADC Block
The DP83865 requires no external attenuation circuitry at
its receive inputs, MDI+/-. It accepts TP-PMD compliant
waveforms directly from a 1:1 transformer. The analog
MLT-3 signal (with noise and system impairments) is
received and converted to the digital domain via an Analog
www.national.com
58
DP83865
4.0 Functional Description (Continued)
Figure 9. 100BASE-TX BLW Event
in potentially serious BLW. The digital oscilloscope plot
provided in Figure 9 illustrates the severity of the BLW
event that can theoretically be generated during
100BASE-TX packet transmission. This event consists
of approximately 800 mV of DC offset for a period of 120
ms. Left uncompensated, events such as this can cause
packet loss.
— In high-speed twisted pair signalling, the frequency content of the transmitted signal can vary greatly during normal operation based primarily on the randomness of the
scrambled data stream and is thus susceptible to frequency dependent attenuation (see Figure 10). This
variation in signal attenuation caused by frequency variations must be compensated to ensure the integrity of
the transmission. In order to ensure quality transmission
when using MLT-3 encoding, the compensation must be
able to adapt to various cable lengths and cable types
depending on the installed environment. The usage of
long cable length requires significant compensation
which will over-compensate for shorter and less attenuating lengths. Conversely, the usage of short or intermediate cable length requiring less compensation will cause
serious under-compensation for longer length cables.
Therefore, the compensation or equalization must be
adaptive to ensure proper level of the received signal independent of the cable length.
— Automatic Attenuation Control (AAC) allows the DSP
block to fit the resultant output signal to match the limit
characteristic of its internal decision block to ensure error
free sampling.
35
150m
Attenuation (dB)
30
130m
25
100m
20
15
50m
10
5
0
0
20
40
60
80
0m
100 120
Frequency (MHz)
Figure 10. EIA/TIA Attenuation vs. Frequency for 0, 50,
100, 130 & 150 meters of CAT 5 cable
100BASE-TX Standard for both voltage thresholds and timing parameters.
4.8.7 Signal Detect
Note that the reception of fast link pulses per IEEE 802.3u
Auto-Negotiation by the 100BASE-X receiver will not cause
the DP83865 to assert signal detect.
In 100BASE-TX mode, the link is established by detecting
the scrambled idles from the link partner.
In 100BASE-T mode, the signal detect function of the
DP83865 meets the specifications mandated by the ANSI
FDDI TP-PMD Standard as well as the IEEE 802.3
4.8.8 Clock Recovery Module
The Clock Recovery Module generates a phase corrected
clocks for the 100BASE-T receiver.
59
www.national.com
DP83865
4.0 Functional Description (Continued)
The CRM is implemented using an advanced digital Phase
Locked Loop (PLL) architecture that replaces sensitive
analog circuitry. Using digital PLL circuitry allows the
DP83865 to be manufactured and specified to tighter tolerances.
version ceases upon the detection of the /T/R/ code-group
pair denoting the End of Stream Delimiter (ESD) or with the
reception of a minimum of two IDLE code-groups.
4.8.13 100BASE-X Link Integrity Monitor
The 100BASE-X Link monitor ensures that a valid and stable link is established before enabling both the Transmit
and Receive PCS layer. Signal Detect must be valid for at
least 500 ms to allow the link monitor to enter the “Link Up”
state, and enable transmit and receive functions.
4.8.9 MLT-3 to NRZ Decoder
The DP83865 decodes the MLT-3 information from the
DSP block to binary NRZI form and finally to NRZ data.
4.8.10 Descrambler
4.8.14 Bad SSD Detection
A serial descrambler is used to de-scramble the received
NRZ data. The descrambler has to generate an identical
data scrambling sequence (N) in order to recover the original unscrambled data (UD) from the scrambled data (SD)
as represented in the equations:
A Bad Start of Stream Delimiter (Bad SSD) is any transition
from consecutive idle code-groups to non-idle code-groups
which is not prefixed by the code-group pair /J/K/.
If this condition is detected, the DP83865 will assert
RX_ER and present RXD[3:0] = 1110 to the MII for the
cycles that correspond to received 5B code-groups until at
least two IDLE code groups are detected.
SD = ( UD ⊕ N )
UD = ( SD ⊕ N )
Synchronization of the descrambler to the original scrambling sequence (N) is achieved based on the knowledge
that the incoming scrambled data stream consists of
scrambled IDLE data. After the descrambler has recognized 12 consecutive IDLE code-groups, where an
unscrambled IDLE code-group in 5B NRZ is equal to five
consecutive ones (11111), it will synchronize to the receive
data stream and generate unscrambled data in the form of
unaligned 5B code-groups.
Once at least two IDLE code groups are detected, RX_ER
and CRS become de-asserted.
4.8.15 Carrier Sense
Carrier Sense (CRS) may be asserted due to receive activity once valid data is detected via the Smart squelch function.
For 10/100 Mb/s Half Duplex operation, CRS is asserted
during either packet transmission or reception.
In order to maintain synchronization, the descrambler must
continuously monitor the validity of the unscrambled data
that it generates. To ensure this, a line state monitor and a
hold timer are used to constantly monitor the synchronization status. Upon synchronization of the descrambler the
hold timer starts a 722 ms countdown. Upon detection of
sufficient IDLE code-groups (16 idle symbols) within the
722 ms period, the hold timer will reset and begin a new
countdown. This monitoring operation will continue indefinitely given a properly operating network connection with
good signal integrity. If the line state monitor does not recognize sufficient unscrambled IDLE code-groups within the
722 ms period, the entire descrambler will be forced out of
the current state of synchronization and reset in order to reacquire synchronization.
For 10/100 Mb/s Full Duplex operation, CRS is asserted
only due to receive activity.
CRS is deasserted following an end of packet.
4.8.16 Collision Detect and Heartbeat
A collision is detected on the twisted pair cable when the
receive and transmit channels are active simultaneously
while in Half Duplex mode.
Also after each transmission, the 10 Mb/s block will generate a Heartbeat signal by applying a 1 us pulse on the COL
lines which go into the MAC. This signal is called the Signal
Quality Error (SQE) and it’s function as defined by IEEE
802.3 is to assure the continued functionality of the collision circuitry.
4.8.11 Serial to Parallel Converter
The 100BASE-X receiver includes a Serial to Parallel converter this operation also provides code-group alignment,
and operates on unaligned serial data from the descrambler (or, if the descrambler is bypassed, directly from the
MLT-3 to NRZ decoder) and converts it into 5B code-group
data (5 bits). Code-group alignment occurs after the /J/K/
code-group pair is detected. Once the /J/K/ code-group
pair (11000 10001) is detected, subsequent data is aligned
on a fixed boundary.
4.9 Media Independent Interface (MII)
The DP83865 incorporates the Media Independent Interface (MII) as specified in Clause 22 of the IEEE 802.3u
standard. This interface may be used to connect PHY
devices to a MAC in 10/100 Mb/s mode. This section
describes both the serial MII management interface as well
as the nibble wide MII data interface.
The serial management interface of the MII allows for the
configuration and control of multiple PHY devices, gathering of status, error information, and the determination of the
type and capabilities of the attached PHY(s).
4.8.12 5B/4B Decoder
The code-group decoder functions as a look up table that
translates incoming 5B code-groups into 4B nibbles. The
code-group decoder first detects the /J/K/ code-group pair
preceded by IDLE code-groups and replaces the /J/K/ with
MAC preamble. Specifically, the /J/K/ 10-bit code-group
pair is replaced by the nibble pair (0101 0101). All subsequent 5B code-groups are converted to the corresponding
4B nibbles for the duration of the entire packet. This con-
www.national.com
The nibble wide MII data interface consists of a receive bus
and a transmit bus each with control signals to facilitate
data transfer between the PHY and the upper layer (MAC).
This section covers the follwing subjects:
— Serial Management Register Access
— Serial Management Access Protocol
60
—
—
—
—
—
Serial Management Preample Suppression
PHY Address Sensing
MII Data Interface
MII Isolate Mode
Status LED’s
order to initialize the MDIO interface, the station management entity sends a sequence of 32 contiguous logic ones
on MDIO to provide the DP83865 with a sequence that can
be used to establish synchronization. This preamble may
be generated either by driving MDIO high for 32 consecutive MDC clock cycles, or by simply allowing the MDIO pullup resistor to pull the MDIO pin high during which time 32
MDC clock cycles are provided. In addition 32 MDC clock
cycles should be used to re-synchronize the device if an
invalid start, op code, or turnaround bit is detected.
4.9.1 Serial Management Register Access
The serial management MII specification defines a set of
thirty-two 16-bit status and control registers that are accessible through the management interface pins MDC and
MDIO for 10/100/1000 Mb/s operation. The DP83865
implements all the required MII registers as well as several
optional registers. These registers are fully described in
section “2.3 Register Description”. Note that by default, the
PHY base address is 01H that is the Port 1 address. If multiple PHY’s are used, MDC and MDIO for each DP83865
may be connected together to simplify the interface. The
base address for each single PHY should be different.
The DP83865 operation is pending until it receives the preamble sequence before responding to any other transaction. Once the DP83865 serial management port has been
initialized no further preamble sequencing is required until
after power-on, reset, invalid Start, invalid Opcode, or
invalid turnaround bit occurrs.
The Start code is indicated by a <01> pattern. This assures
the MDIO line transitions from the default idle line state.
Turnaround is defined as an idle bit time inserted between
the register address field and the data field. To avoid contention during a read transaction, no device shall actively
drive the MDIO signal during the first bit of Turnaround.
The addressed DP83865 drives the MDIO with a zero for
the second bit of turnaround and follows this with the
required data. Figure 11 shows the timing relationship
between MDC and the MDIO as driven/received by the Station (STA) and the DP83865 (PHY) for a typical register
read access.
4.9.2 Serial Management Access Protocol
The serial control interface consists of two pins, Management Data Clock (MDC) and Management Data Input/Output (MDIO). MDC has a maximum clock rate of 2.5 MHz
and no minimum rate. The MDIO line is bi-directional and is
capable of addressing up to thirty-two PHY addresses. The
MDIO frame format is shown below in Table 53.
The MDIO pin requires a pull-up resistor (2 kΩ). During
IDLE and Turnaround, the MDIO signal is pulled high. In
Table 53. Typical MDIO Frame Format
MII Management
Serial Protocol
<idle><start><op code><device addr><reg addr><turnaround><data><idle>
Read Operation
<idle><01><10><AAAAA><RRRRR><Z0><xxxx xxxx xxxx xxxx><idle>
Write Operation
<idle><01><01><AAAAA><RRRRR><10><xxxx xxxx xxxx xxxx><idle>
MDC
MDIO
Z
Z
(STA)
Z
MDIO
Z
(PHY)
Z
Idle
0 1 1 0 0 1 1 0 0 0 0 0 0 0
Start
Opcode
(Read)
PHY Address
(PHYAD = 0Ch)
Register Address
(00h = BMCR)
Z
0 0 0 1 1 0 0 0 1 0 0 0 0 0 0 0 0
TA
Register Data
Z
Idle
Figure 11. Typical MDC/MDIO Read Operation
For write transactions, the station management entity
writes data to a PHY address thus eliminating the requirement for MDIO Turnaround. The Turnaround time is filled
by the management entity by asserting <10>. Figure 12
shows the timing relationship for a typical MII register write
access.
MAC or other management controller) determines that all
PHY’s in the system support Preamble Suppression by
returning a one in this bit, then the station management
entity need not generate preamble for each management
transaction. A minimum of one idle bit between management transactions is required as specified in IEEE 802.3u.
After power-up, the DP83865 requires one idle bit prior to
any management access.
4.9.3 Serial Management Preamble Suppression
The DP83865 supports a Preamble Suppression mode as
indicated by a one in bit 6 of the Basic Mode Status Register (BMSR 0x01). If the station management entity (i.e.,
61
www.national.com
DP83865
4.0 Functional Description (Continued)
DP83865
4.0 Functional Description (Continued)
MDC
MDIO
Z
Z
(STA)
Z
Idle
0 1 0 1 0 1 1 0 0 0 0 0 0 0 1 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0
Start
Opcode
(Write)
PHY Address
(PHYAD = 0Ch)
Register Address
(00h = BMCR)
TA
Register Data
Z
Idle
Figure 12. Typical MDC/MDIO Write Operation
4.9.4 PHY Address Sensing
4.9.7 Status Information
The DP83865 provides five PHY address pins to set the
PHY address. The information is latched into the
STRAP_REG 0x10.4:0 at device power-up or reset. The
DP83865 supports PHY Address strapping values
1(<00001>) through 31(<11111>). Note that PHY address 0
by default is the broadcast write address and should not be
used as the PHY address.
There are five LED driver pins associated with each port
indicating status information. Status information include
combined link and speed, duplex, and activity.
LINK10_LED: 10 BASE-T link is established by detecting
Normal Link Pulses separated by 16 ms or by packet data
received.
LINK100_LED: 100BASE-TX link is established when the
PHY receives an signal with amplitude compliant with TPPMD specifications. This results in an internal generation
of Signal Detect.
4.9.5 MII Data Interface
Clause 22 of the IEEE 802.3u specification defines the
Media Independent Interface. This interface includes a
dedicated receive bus and a dedicated transmit bus. These
two data buses, along with various control and indicate signals, allow for the simultaneous exchange of data between
the DP83865 and the upper layer agent (MAC).
LINK1000_LED: 1000BASE-T link is established when
Auto-Negotiation has been completed and reliable reception of signals has been received from a remote PHY.
Link asserts after the internal Signal Detect remains
asserted for a minimum of 500 ms. Link will de-assert
immediately following the de-assertion of the internal Signal Detect.
The receive interface consists of a nibble wide data bus
RXD[3:0], a receive error signal RX_ER, a receive data
valid flag RX_DV, and a receive clock RX_CLK for synchronous transfer of the data. The receive clock operates
at 25 MHz to support 100 Mb/s and 2.5 MHz for 10 Mb/s
operation.
ACTIVITY_LED: Activity status indicates the PHY is receiving data, transmitting data or detecting idle error.
DUPLEX_LED: Duplex indicates that the Gig PHYTER is in
Full-Duplex mode of operation when LED is lit.
The transmit interface consists of a nibble wide data bus
TXD[3:0], a transmit error flag TX_ER, a transmit enable
control signal TX_EN, and a transmit clock TX_CLK operates at 25 MHz for 100 Mb/s and 2.5 MHz for 10 Mb/s.
Additionally, the MII includes the carrier sense signal CRS,
as well as a collision detect signal COL. The CRS signal
asserts to indicate the reception of data from the network
or as a function of transmit data in Half Duplex mode. The
COL signal asserts as an indication of a collision which can
occur during Half Duplex operation when both a transmit
and receive operation occur simultaneously.
4.9.6 MII Isolate Mode
The DP83865 can be forced to electrically isolate its data
paths from the MII or GMII by setting the BMCR 0x00.10 to
“1”. Clearing BMCR 0x00.10 returns PHY back to normal
operation.
In Isolate Mode, the DP83865 does not respond to packet
data present at TXD, TX_EN, and TX_ER inputs and presents a high impedance on the TX_CLK, RX_CLK, RX_DV,
RX_ER, RXD, COL, and CRS outputs. The DP83865 will
continue to respond to all serial management transactions
over the MDIO/MDC lines.
The IEEE 802.3u neither requires nor assumes any specific behavior at the MDI while in Isolate mode. For
DP83685, all MDI operations are halted.
www.national.com
62
5.1 Hardware Reset
The design guide in conjunction with the Reference Design
Schematics/BOM is intended to provide information to
assist in the design and layout of the DP83865 Gigabit
Ethernet Transceiver. The design guide covers the following topics:
Hardware Reset
Clocks
Power Supply Decoupling
Sensitive Supply Pins
PCB Layer Stacking
Layout Notes on MAC Interface
Twisted Pair Interface
RJ-45 Connections
Unused Pins / Reserved Pins
LED/Strapping Configuration
I/O Voltage Considerations
Power-up Recommendations
Compoment Selection
C2
25MHz
C1
RT
5.2 Clocks
The CLOCK_IN pin is the 25 MHz clock input to the
DP83865 used by the internal PLL. This input should come
from a 25 MHz clock oscillator or a crystal. (Check
Section 5.13.1 for component requirements.) When using
a crystal, CLOCK_OUT must be connected to the second
terminal of the crystal. For usage with a oscillator the
CLOCK_OUT pin should be left floating.
The output of the clock signal requires termination consideration. The termination requirement depends on the trace
length of the clock signal. No series or load termination is
required for short traces less than 3 inches. For longer
traces termination resistors are recommended.
VDD = 3.3 V
CLOCK_OUT
(Optional)
—
—
—
—
—
—
—
—
—
—
—
—
—
The active low RESET pin 33 should be held low for a minimum of 150 µs to allow hardware reset. For timing details
see Section 6.2. There is no on-chip internal power-on
reset and the DP83865 requires an external reset signal
applied to the RESET pin.
DP83865
VDD
GND
CLOCK_OUT
DP83865
EN
25MHz
Zo
CLOCK_IN
CLOCK_IN
RT
(Optional)
Crystal option circuit
Oscillator option circuit
Figure 13. Clock Input Circuit
mended by some crystal vendors. Refer to the vendor’s
crystal datasheet for details.
There are a number of ways to terminate clock traces when
an oscillator is used. The commonly used types are series
and parallel termination. Series termination consumes less
power and it is the recommended termination. The value of
the series termination resistor is chosen to match the trace
characteristics impedance. For example, if the clock
source has an output impedance of 20Ω and the clock
trace has the characteristic impedance Zo = 50Ω then Rs =
50 - 20 = 30Ω. The series source termination Rs should be
placed close to the output of the oscillator.
Adequate and proper decoupling is important to the clock
oscillator performance. A multilayer ceramic chip capacitor
should be placed as close to the oscillator’s VDD pin as
possible to supply the additional current during the transient switching.
EMI is another consideration when designing the clock circuitry. The EMI field strength is proportional to the current
flow, frequency, and loop area. By applying series termination, the current flow is less than parallel termination and
the edge speed is slower, making it desirable for EMI considerations. The loop area is defined as the trace length
times the distance to the ground plane, i.e., the current
return path. Keeping the clock trace as short as possible
reduces the loop area that reduces EMI.
The parallel termination consumes more power than series
termination, and yields faster rise and fall times. The value
of the termination is equal to the trace characteristic impedance, RT = Zo. The parallel termination RT should be
placed close to the CLOCK_IN pin to eliminate reflections.
In cases there are multiple PHY deivces reside on the
same board, it may be cost effective to use one oscillator
with a high speed PLL clock distribution driver. Connecting
multiple clock inputs in a daisy chained style should be
avoided, especially when series termination is applied.
It is best to place the oscillator towards the center of the
PCB rather than at the edge. The radiated magnetic field
tends to be stronger when traces are running along the
PCB edge. If the trace has to run along the edge of the
board, make sure the trace to board edge distance is larger
than the trace to ground plane distance. This makes the
field around the trace more easily coupled to the ground
than radiating off the edge. If the clock trace is placed on
the surface layer, placing a parallel ground trace on each
side of the clock trace localizes the EMI and also prevent
crosstalk to adjacent traces. Burying the clock trace in
No termination is necessary if a crystal is used. The crystal
should be placed as close as possible to the CLOCK pins.
The capacitors C1 and C2 are used to adjust the load
capacitance on these pins. (Figure 13.) The total load
capacitance (C1, C2 and crystal) must be within a certain
range for the DP83865 to function properly (see Table 55
for crystal requirements). The parallel resistor RT is recom-
63
www.national.com
DP83865
5.0 Design Guide
DP83865
5.0 Design Guide (Continued)
between the ground and VDD plane also minimizes EMI
radiation.
introduce inductive coupling leading to ground bounce.
Connect power and ground pins directly to the planes.
Any through-hole clock oscillator component should be
mounted as flat and as close to the PCB as possible.
Excessive leads should be trimmed. Provide a ground pad
equal or larger than the oscillator foot print on the component side of the PCB. Tie this ground pad to the ground
plane through multiple vias. This minimizes the distance to
the ground plane and provide better coupling of the electromagnetic fields to the board.
The power supply decouping recommendations may be
perceived conservative. However, for the early prototyping, please follow the guide lines and recommendations to
assure first time success. To lower the manufacturing cost,
the component count may be reduced by the designer after
careful evaluation and extensive tests on EMI and bit-errorrate (BER) performance.
5.4 Sensitive Supply Pins
5.3 Power Supply Decoupling
The Analog 1V8_AVDD2 and 1V8_AVDD3 supply are susceptible to noise and requires special filtering to attenuate
high frequencies. A low pass filter for each of the supply pin
is suggested (Figure 15).
The capacitance between power and ground planes can
provide appreciable power supply decoupling for high edge
rate circuits. This "plane capacitor" has very low ESR and
ESL so that the plane capacitance remains effective at the
frequencies so high that chip capacitors become ineffective. It is strongly recommended that the PC board have
one solid ground plane and at least one split power plane
with 2.5V and 1.8V copper islands. Ideally the PCB should
have solid planes for each of the supply voltages. The
interplane capacitance between the supply and ground
planes may be maximized by reducing the plane spacing.
In addition, filling unused board areas on signal planes with
copper and connecting them to the proper power plane will
also increase the interplane capacitance.
A 1% 9.76 kΩ resistor is needed to connect to the BG_REF
pin. The connections to this resistor needs to be kept as
short as possible (Figure 15).
Avoid placing noisy digital signal traces near these sensitive pins. It is recommended that the above mentioned
components should be placed before other components.
The 1.8V supplies both the digital core and the analog.
The analog power supply is sensitive to noise. To optimize
the analog performance, it is best to locate the voltage regulator close to the analog supply pins. Avoid placing the
digital core supply and GMAC in the analog return path.
An example of voltage regulator placement is shown in
Figure 16.
The 2.5V and the 1.8V supply pins are paired with their corresponding ground pins. Every other paired supply pins
need to be decoupled with Surface Mount Technology
(SMT) capacitors. It’s recommended that SMT capacitance alternates between 0.01 µF and 0.1 µF so that the
resonance frequencies of the capacitors are "dispersed".
The decoupling capacitors should be placed as close to the
supply pin as possible. For optimal results, connect the
decoupling capacitors directly to the supply pins where the
capacitors are placed 0.010 inch to the power pins. For
lowest ESL and best manufacturability, place the plane
connecting via within 0.010 inch to the SMT capacitor pads
(Figure 14).
Ferrite beads could be used to isolate noisy VCC pins and
preventing noise from coupling into sensitive VCC pins.
This bead in conjunction with the bypass capacitors at the
VCC pins form a low pass filter that prevents the high frequency noise from coupling into the quiet VCC. However,
the use of ferrite beads may yield mixed results when the
inductance resonates with the capacitance. To decrease
the likelihood of resonance, a resistor in parallel with the
ferrite bead may be used. The noise characteristics vary
from design to design. Ferrite beads may not be effective
in all cases. The decision is left to the board designer
based on the evaluation of a specific case.
Decoupling capacitor pad
5.5 PCB Layer Stacking
Via to plane
To route traces for the DP83865 PQFP package, a minimum of four PCB layers is necessary. To meet performance requirements, a six layer board design is
recommended. The following is the layer stacking recommendations for four and six-layer boards.
< 10 mil
Four-layer board (typical application: NIC card):
Via
1.
2.
3.
4.
< 10 mil
Figure 14. Place via close to pad.
Bulk capacitance supplies current and maintains the voltage level at frequencies above the rate that the power supply can respond to and below frequencies chip capacitors
are effective. To supply lower speed transient current, a
tantalum 10 µF capacitor for each power plane and each
port should also be placed near the DP83865.
Six-layer board:
1.
2.
3.
4.
5.
6.
Lowering the power supply plane and ground plane impedance will also reduce the power supply noise. 1 oz. copper
is recommended for the power and ground planes. Avoid
routing power or ground traces to the supply pins that could
www.national.com
Top layer - signal
GND
3.3 Volt power plane
Bottom layer - signal, planes for 1.8 Volt and 2.5 Volt
Top layer - signal
2.5 Volt power plane
GND
1.8 Volt power plane
Power plane for IO_VDD and/or 3.3 Volt
Bottom layer - signal
Note that signal traces crossing a plane split should be
avoided (Figure 17). Signal crossing a plane split may
cause unpredictable return path currents and would likely
64
DP83865
5.0 Design Guide (Continued)
VDD = 1.8 V
DP83865
VDD = 1.8 V
CORE_VDD
18 Ω
1V8_AVDD2
Low pass filter for
1V8_AVDD2 only
0.01 µF
0.1 µF
0.01 µF
22 µF
GND
GND
1V8_AVDD1
VDD = 2.5 V
0.01 µF
IO_VDD
GND
0.1 µF
0.01 µF
Typical supply bypassing
(Near pins of the device)
VDD = 2.5 V
GND
2V5_AVDD2
2V5_AVDD1
0.01 µF
9.76 kΩ
0.01 µF
BG_REF GND
1%
GND
VDD = 1.8 V
10 Ω
1V8_AVDD3
Low pass filter for
1V8_AVDD3 only
22 µF
GND
Figure 15. Power Supply Filtering
PHY
1.8
Digital section
2.5
Analog section
DP83865 and GMAC PCI NIC Card
MAC
Figure 16. 1.8V voltage regualtor placement.
to result in signal quality failure as well as creating EMI
problems.
65
www.national.com
DP83865
5.0 Design Guide (Continued)
Termination Requirement
The purpose of the series termination is to reduce reflections and to improve the signal quality. The board designer
should evaluate the reflection and signal integrity to determine the need for the termination in each design. As a general rule, if the trace length is less than 1/6 of the
equivalent length of the rise and fall times, the series termination is not needed. The following is an example of calculating the signal trace length.
Do NOT cross plane split
GND or power plane
The rise and fall times of GMII are in the order of 500 ps for
RX_CLK, and GTX_CLK. Propagation Delay = 170 ps/inch
on a FR4 board. Equivalent length of rise time = (1/6) Rise
time (ps) / Delay (ps/inch) = (1/6) *(500/ 170) = 0.5 inch.
Thus, series termination is not needed for traces less than
0.5 inch long.
Figure 17. Signal crossing a plane split
5.6 Layout Notes on MAC Interface
Trace Impedance
The value of the series termination depends on the driver
output impedance and the characteristic impedance of the
PCB trace. Termination value Rs = characteristic impedance Zo - driver output impedance Ro.
All the signal traces of MII and GMII should be impedance
controlled. The trace impedance reference to ground is 50
Ohms. Uncontrolled impedance runs and stubs should be
kept to minimum.
5.7 Twisted Pair Interface
5.6.1 MII, GMII, and RGMII Interfaces
The Twisted Pair Interface consists of four differential
media dependent I/O pairs (MDI_A, MDI_B, MDI_C, and
MDI_D). Each signal is terminated with a 49.9 Ω resistor.
Figure 18 shows a typical connection for channel A. The
circuitry of channels A, B, C, and D are identical. The MDI
signals are directly connect to 1:1 magnetics. To optimize
the performance, National specifies the key parameters for
the magnetics. Please refer to Section 5.13.2.
MII and GMII are single ended signals. The output of these
signals are capable of driving 35 pF under worst conditions. However, these outputs are not designed to drive
multiple loads, connectors, backplanes, or cables.
The following is a layout guide line for the MDI section.
50-Ohm controlled impedance with respect to chassis GND
50-Ohm controlled impedance with respect to VDD or GND
DP83865
PULSE H-5007
RJ-45
A+
1
MX4+
TD4+
A-
2
MX4-
TD4-
B+
BC+
CD+
D-
3
6
4
5
7
8
75 Ω
MDI_A+
MDI_AVDDA = 2.5 V
VDDA = 2.5 V
49.9 Ω
MCT4
TCT4
49.9 Ω
0.01 uF
0.01 uF
75 Ω
MCT1
1000 pF
3 kV
Circuit Ground
Chassis Ground
Figure 18. Twisted Pair/Magnetics interface (Channel A)
— Place the 49.9 Ω 1% termination resistors as close as
possible to the PHY. Place a 0.01 µF decoupling capacitor for each channel between 2.5V plane and ground
close to the termination resistor. Place a 0.01 µF decoupling capacitor for each port at the transformer center
tab.
— All the MDI interface traces should have a charateristic
impedance of 50 Ohms to the GND or 2.5V plane. This
is a strict requirement to minimize return loss.
www.national.com
— Each MDI pair should be placed as close as possible in
parallel to minimmize EMI and crosstalk. Each member
of a pair should be matched in length to prevent mismatch in delay that would cause common mode noise.
— Ideally there should be no crossover or via on the signal
paths.
66
5.8 RJ-45 Connections
— The EMI can be further reduced by placing the traces in
the inner layers and making the outer layers chassis
ground.
— Generally, it is a good practice not to overlap the circuit
ground plane with the chassis ground that creates coupling. Instead, make chassis ground an isolated island
and make a void between the chassis and circuit ground.
Place two or three 1206 pads across the chassis and circuit ground void. This will help when experimentally
choosing the appropriate components to pass EMI emission test.
The magnetics isolates local circuitry from other equipment
that Ethernet connects to. The IEEE isolation test places
stress on the isolated side to test the dielectic strength of
the isolation. The center tap of the isolated winding has a
"Bob Smith" termination through a 75 Ω resistor and 1000
pF cap to chassis ground. The termination capacitor
should have voltage tolerance of 3 kV (Figure 18).
To pass EMI compliance tests, there are a few helpful recommendations to follow.
— The RJ-45 is recommended to have metal shielding that
connects to chassis ground to reduce EMI emission.
— The isolated side should have the chassis ground "island" placed. The MDI pairs are placed above a continuous chassis ground plane.
— The MDI pairs are suggested to be routed close together
in parallel to reduce EMI emission and common mode
noise (Figure 19).
5.9 LED/Strapping Option
When the LED outputs are used to drive LEDs directly, the
active state of each output driver depends on the logic level
sampled by the corresponding strapping input upon powerup or reset. For example, if a given LED/strapping pin is
resistively pulled low then the corresponding output is configured as an active high LED driver. Conversely, if a given
LED/strapping pin is resistively pulled high then the corresponding output is configured as an active low LED driver.
Figure 20 is an example of a LED/strapping configuration.
Care must be taken when the multi-function LED/strapping
pins are desired to be programmable. Depending on the
strap low or high state, two sets of jumpers could be used
(Figure 20). The left side jumper position is connected for
the high strap option, and the right side position is connected for the low strap option.
Did not maintain parallelism
Avoid stubs
TP
Differential signal pair
TP
The value of all external pull-up and pull-down resistor
should be 2 kΩ in order to make absolutely certain that the
correct voltage level is applied to the pin.
GND or power plane
Figure 19. Differential signal pair
LED_pin
LED_pin
VDDIO = 2.5 V
Header for
jumpers
To LED_pin
Hi
Lo
324 Ω
2KΩ
324 Ω
2KΩ
324 Ω
2KΩ
VDDIO = 2.5 V
Programmable
strap high or low
Strap Low
Strap High
LED active high
LED active low
Hi
Lo
Figure 20. LED/strapping option examples.
This method has the advantage of minimizing component
count and board space. However, it is safer to pull the
unused input pins high or low through a current limiting
resistor. This resistor will prevent excessive current drawn
at the input pin in case there is a defect in the input structure shorting either VCC or GND to the input. Another
advantage of the protection resistor is to reduce the possibility of latch-up. To reduce component count and to save
5.10 Unused Pins and Reserved Pins
Unused CMOS input pins should not be left floating. Floating inputs could have intermediate voltages halfway
between VCC and ground and, as a consequence, turning
on both the NMOS and the PMOS transistors resulting in
high DC current. Floating inputs could also cause oscillations. Therefore unused inputs should be tied high or low.
In theory CMOS inputs can be directly tied to VCC or GND.
67
www.national.com
DP83865
5.0 Design Guide (Continued)
DP83865
5.0 Design Guide (Continued)
board space, the adjacent unused input pins can be
grouped and tied together with a single resistor.
typically 95% of its nominal voltage varies from design to
design.
The number of unused pins and which pins become
unused pins highly depend on the individual application the
DP83865 is used in. Refer to Section 1.0 for each individual pin that is not used.
There is no specific requirement for power-up sequence for
the DP83865. However, if it is desirable to control the
power up order, it is theoretically advised to power up
CORE_VDD supply first. If there is no such ability all supplies can be powered up at the same time. There is no
known sequence to date that can cause DP83865 in a
latch-up or lock up condition.
Reserved pins must be left floating.
5.11 I/O Voltage Considerations
In any event, the RESET signal should be held low until
after all power supplies have reached their nominal voltages. See Section 6.2 for additional requirements.
The VDD_SEL_STRAP pin selects which I/O voltage
(IO_VDD) is used in an application. The choice is between
2.5V and 3.3V. If the designer was to choose 2.5V an additional 3.3V supply could be saved. However, the deciscion
should not be soley based on saving components but
rather on the environment the DP83865 operates in.
5.13 Component Selection
5.13.1 Oscillator
IO_VDD supplies the pins for “MAC Interfaces”, “Management Interface”, “JTAG Interface”, “Device Configuration
and LED Interface” and “Reset”. All input pins are either
2.5V or 3.3V compatible. All output pins will have a high
level equal to IO_VDD. The designer must make sure that
all connected devices are compatible with the logic ‘1’ state
of the DP83865 (that is either 2.5V or 3.3V).
The requirements of 25 Mhz oscillators and crystals are
listed in Table 54 and Table 55. Some recommended manufacuturers are listed in Table 56.
In the cases where multiple clock sources with the same
frequency are needed, it is recommended to use a clock
distribution circuit in conjuction with a single freqeuncy
generator. These devices may be obtained from vendors
such as Texas Instrument, Pericom, and Integrated Device
Technology.
If 2.5V IOVDD is selected, do not over drive the GPHY
input with 3.3V logic. The over driving may cause excessive EMI noise and reduce GPHY performance. Over driving may also cause higher power consumption.
Note that the jitter specification was derived from maximum
capacitance load, worst case supply voltage, and wide
temperature range. The actual allowable jitter number may
be significantly higer when driving the DP83865 clock input
under normal operating conditions. Please consult the
respective vendors for specifics.
5.12 Power-up Recommendations
During power-up, the power supply voltages are not available immediately but ramp up relatively slow compared to
the clock period of the system clock (CLOCK_IN). How
quickly a supply voltage reaches the “power good” level of
Table 54. 25 MHz Oscillator Requirements
Parameter
Min
Typ
Max
Units
Condition
Frequency
-
25
-
MHz
-
Frequency Tolerance
-
-
± 50
ppm
0 °C to 70 °C
Frequency Stability
-
-
± 50
ppm
1 year aging
Rise/Fall Time
-
-
6
ns
20 - 80 %
Jitter (short term)
-
-
25
ps
Cycle-to-cycle, driving 10 pF load
Jitter (long term)
-
-
200
ps
Accumulative over 10 µs
Symmetry
40
-
60
%
-
Logic 0
-
-
10
%
IO_VDD = 2.5 or 3.3V nominal
Logic 1
90
-
-
%
IO_VDD = 2.5 or 3.3V nominal
Table 55. 25 MHz Crystal Requirements
Parameter
Min
Typ
Max
Units
Condition
Frequency
-
25
-
MHz
-
Frequency Tolerance
-
-
± 50
ppm
0 °C to 70 °C
Frequency Stability
-
-
± 50
ppm
1 year aging
Load Capacitance
15
-
40
pF
Total load capacitance including C1
and C2 (see Section 5.2 for dimensioning)
www.national.com
68
DP83865
5.0 Design Guide (Continued)
Table 56. Recommended Crystal Oscillators
Manufacturer
Description
Part Number
Vite Technology
www.viteonline.com
25 MHz 7.5 x 5 mm Oscillator
VCC1-B2B-25M000
Raltron
www.raltron.com
25 MHz 7.5 x 5 mm Oscillator
C04305L-25.000MHz
Pericom
www.saronix.com
25MHz Oscillator
NCH089B3-25.0000
Abracon
www.abracon.com
25MHz Oscillator
ACSHL-25.0000-E-C-C4
Pletronics
www.pletronics.com
25MHz Oscillator
SQ2245V-25.0M-30
Note: Contact Oscillator manufactures for latest information on part numbers and product specifications. All Oscillators
should be thoroughly tested and validated before using them in production.
69
www.national.com
DP83865
5.0 Design Guide (Continued)
5.13.2 Magnetics
It is important to select the compoment that meets the
requirements. Per IEEE 802.3ab Clause 40.8, the component requirements are listed in Table 57. In addition, the
transformer winding should have the configuration shown
in Figure 21. The recommended magnetics has an isolation transformer followed by a common mode choke to
reduce EMI. There is an additional auto-transformer which
is center tapped. To save board space and reduce component count, RJ-45 with integrated magnetics may be used.
TCT
MCT
TD+
MX+
TD-
MX-
The following are magnetics meeting the requirements
(Table 57).
Figure 21. Transformer configuration (1 ch)
Table 57. Magnetics Requirements
Parameter
Min
Typ
Max
Units
Condition
Turn Ratio
-
1:1
-
-
± 1%
Insertion Loss
Return Loss
-
-
-1.1
dB
0.1 - 1 MHz
-
-
-0.5
dB
1 - 60 MHz
-
-
-1.0
dB
60 - 100 MHz
-
-
-1.2
dB
100 - 125 MHz
-18
-
-
dB
1 - 30 MHz
-14.4
-
-
dB
30 - 40 MHz
-13.1
-
-
dB
40 - 50 MHz
-12
-
-
dB
50 - 80 MHz
-10
-
-
dB
80 - 100 MHz
-43
-
-
dB
1 - 30 MHz
-37
-
-
dB
30 - 60 MHz
-33
-
-
dB
60 - 100 MHz
-45
-
-
dB
1 - 30 MHz
-40
-
-
dB
30 - 60 MHz
-35
-
-
dB
60 - 100 MHz
1,500
-
-
Vrms
HPOT
Rise Time
-
1.6
1.8
ns
10 - 90 %
Primary Inductance
350
-
-
uH
-
Differential to Common
Rejection Ration
Crosstalk
Isolation
Table 58. Recommended Magnetics
Manufacturer
Description
Part Number
Bel Fuse, Inc.
10/100/1000 Mbps Isolation Transformer
S558-5999-P3
www.belfuse.com
10/100/1000 Mbps Isolation Transformer
S558-5999-T3
10/100/1000 Mbps2X1 Integrated Magnetics
0843-2B1T-33
Delta
www.delta.tw
10/100/1000 Mbps Isolation Transformer
LF9203
Halo
www.haloelectronics.com
10/100/1000 Mbps Isolation Transformer
TG1G-S002NZ
Midcom
www.haloelectronics.com
10/100/1000 Mbps Isolation Transformer
000-7093-37R
Pulse Engineering, Inc.
10/100/1000 Mbps Isolation Transformer
H5007
www.pulseeng.com
10/100/1000 Mbps Isolation Transformer
H5008
Note: Contact Magnetics manufactures for latest part numbers and product specifications. All Magnetics should be thoroughly tested and validated before using them in production.
www.national.com
70
DP83856
6.0 Electrical Specifications
Absolute Maximum Ratings
Recommended Operating Condition
Min
Typ Max Units
Supply Voltage IO_VDD
-0.4V to 4.2 V
Supply Voltage CORE_VDD,
1V8_AVDD1, 1V8_AVDD2
-0.4V to 2.4V
Supply Voltage IO_VDD
3.135 3.3 3.465
V
V
Supply Voltage 2V5_AVDD1,
2V5_AVDD2
-0.4V to 3.6V
Supply Voltage IO_VDD
2.375 2.5 2.625
Analog Voltages 2V5_AVDD1,
2V5_AVDD2
Supply Voltage CORE_VDD
Analog Voltages 1V8_AVDD1,
1V8_AVDD2
1.89
V
0
70
°C
-50
+50
ppm
100
ps
60
%
Input Voltage (DCIN)
-0.5V to IO_VDD + 0.5V
Output Voltage (DCOUT)
-0.5V to IO_VDD + 0.5V
Storage Temperature
-65°C to 150°C
ESD Protection
1.71
Ambient Temperature (TA)
6000V
CLK_IN Input Freq. Stability
(over temperature)
Note: Absolute maximum ratings are those values beyond
which the safety of the device cannot be guaranteed. They
are not meant to imply that the device should be operated
at these limits.
1.8
CLK_IN Input Jitter pk-pk
CLK_IN Input Duty Cycle
40
Center Frequency (fc)
25
MHz
Thermal Characteristics
Max
Units
Maximum Case Temperature @ 1.0 W
110
°C
Theta Junction to Case (Tjc) @ 1.0 W
17
°C / W
Theta Junction to Ambient (Tja) degrees Celsius/Watt - No Airflow @ 1.0 W
47
°C / W
6.1 DC Electrical Specification
Symbol
Pin Types
Parameter
Conditions
Min
VIH R/GMII
inputs
I
I/O
I/O_Z
Input High Voltage IO_VDD of
3.3V or 2.5 V
1.7
VIL R/GMII
inputs
I
I/O
I/O_Z
Input Low Voltage IO_VDD of
3.3V or 2.5 V
GND
IIH R/GMII
I
I/O
I/O_Z
IIL R/GMII
Typ
Max
Units
V
0.9
V
Input High Current VIN = IO_VDD
10
µA
I
I/O
I/O_Z
Input Low Current VIN = GND
10
µA
VOH R/GMII
outputs
O,
I/O
I/O_Z
Output High
Voltage
IOH = -1.0 mA
2.1
3.6
V
VOL R/GMII
outputs
O,
I/O
I/O_Z
Output Low
Voltage
IOL = 1.0 mA
GND
0.5
V
IOZ1 R/GMII
I/O _Z
TRI-STATE
Leakage
VOUT = IO_VDD
10
µA
IOZ2 R/GMII
I/O_Z
TRI-STATE
Leakage
VOUT = GND
-10
µA
VIH
non-R/GMII
I
I/O
I/O_Z
Input High
Voltage
IO_VDD
V
2.0
71
www.national.com
DP83856
6.0 Electrical Specifications (Continued)
Symbol
Pin Types
VIL
non-R/GMII
I
I/O
I/O_Z
Input Low
Voltage
VOH
non-R/GMII
O,
I/O
I/O_Z
Output High
Voltage
VOL
non-R/GMII
O,
I/O
I/O_Z
Output Low
Voltage
R strap
Strap
PU/PD internal
resistor value.
CIN1
COUT1
R0 R/GMII
VOD-10
VOD-100
VOD-1000
I
O, I/O
I/O_Z
O, I/O_Z
(MDI)
(MDI)
(MDI)
Parameter
Conditions
IO_VDD = 2.5V
IO_VDD = 3.3V
Typ
Max
Units
GND
0.8
V
(IO_VDD 0.5)
IO_VDD
V
GND
0.4
V
IOH = -4.0 mA for
both
IOL = 4.0 mA
20 - 70
kΩ
CMOS Input
Capacitance
8
pF
CMOS Output
Capacitance
8
pF
Output impedance VOUT = IO_VDD / 2
35
Ohm
10 M Transmit
VDIFF
100 M Transmit
VDIFF
2.2
2.5
2.8
V peak
differential
Note 1
0.950
1.0
1.050
V peak
differential
1000 M Transmit
VDIFF
0.67
0.745
0.82
V peak
differential
Note 1: Guaranteed by design.
www.national.com
Min
72
DP83856
6.0 Electrical Specifications (Continued)
6.2 Reset Timing
VDD 1.8V (core, analog),
2.5V (I/O, analog),
3.3V (I/O if applicable)
T1
CLK_IN
T2
RESET
32 clocks
T3
MDC
T4
Latch-In of Hardware
Configuration Pins
T5
CLK_TO_MAC
Parameter
T1
Description
Notes
Min
Typ
Max
Units
Reference clock settle time
The reference clock must be stable after the last power supply voltage has
settled and before RESET is deasserted. (Note 1)
0
µs
150
µs
Pins VDD_SEL and CLK_MAC_EN
are latched in during this time.
T2
Hardware RESET Pulse
Width
Power supply voltages and the reference clock (CLK_IN) have to be stable.
T3
Post RESET Stabilization
MDIO is pulled high for 32-bit serial
time prior to MDC preamble management initialization.
for register accesses
20
ms
T4
External pull configuration
Hardware Configuration Pins are delatch-in time from the deas- scribed in the Pin Description section.
sertion of RESET
Reset includes external hardware and
internal software through registers.
(Note 2)
20
ms
T5
CLK_TO_MAC Output Sta- If enabled, the CLK_TO_MAC output,
bilization Time
being independent of RESET, powerdown mode and isolation mode, is
available after power-up.
CLK_TO_MAC is a buffered output
CLK_IN. (Note 1)
0 + T1
µs
Note 1: Guaranteed by design. Not tested.
Note 2: It is recommended to use external pull-up and/or pull-down resistors for each of the hardware configuration pins that provide fast RC time constants in order to latch-in the proper value prior to the pin transitioning to an output driver. Unless otherwise noted in the Pin Description section all
external pull-up or pull-down resistors are recommended to be 2kΩ.
73
www.national.com
DP83856
6.0 Electrical Specifications (Continued)
6.3 Clock Timing
T7
T7
CLK_IN
T6
T8
Parameter
Description
T6
CLK_IN Duty Cycle
T7
CLK_IN tR/tF
T8
CLK_IN frequency
(25 MHz +/-50 ppm)
Notes
Min
Typ
Max
Units
60
%
40
10% to 90%
1.0 to 2.5
ns
24.99875 25.000000 25.001250
MHz
6.4 1000 Mb/s Timing
6.4.1 GMII Transmit Interface Timing
T9
T13
GTX_CLK
T12
T10
T10
TXD[7:0], TX_EN,
TX_ER
T11
T14
MDI
Parameter
Begin of Frame
Description
Notes
Min
Typ
Units
60
%
1
ns
T9
GTX_CLK Duty Cycle
T10
GTX_CLK tR/tF
Note 1,4,5
T11
Setup from valid TXD, TX_EN and TXER to ↑ GTX_CLK
Note 2,4
2.0
ns
T12
Hold from ↑ GTX_CLK to invalid TXD, TX_EN and TXER
Note 3,4
0.0
ns
T13
GTX_CLK Stability
Note 5
T14
GMII to MDI latency
Note 1:
Note 2:
Note 3:
Note 4:
Note 5:
40
Max
-100
+100
152
tr and tf are measured from VIL_AC(MAX) = 0.7V to VIH_AC(MIN) = 1.9V.
tsetup is measured from data level of 1.9V to clock level of 0.7V for data = ‘1’; and data level = 0.7V to.clock level 0.7V for data = ‘0’.
thold is measured from clock level of 1.9V to data level of 1.9V for data = ‘1’; and clock level = 1.9V to.data level 0.7V for data = ‘0’.
GMII Receiver input template measured with “GMII point-to-point test circuit”, see Test Conditions Section
Guaranteed by design. Not tested.
www.national.com
74
ppm
ns
DP83856
6.0 Electrical Specifications (Continued)
6.4.2 GMII Receive Timing
T16
T17
T17
RX_CLK
T15
RXD[7:0]
RX_DV
RX_ER
Valid Data
T18
MDI
Begin of Frame
Parameter
Description
T15
↑ RX_CLK to RXD, RX_DV and RX_ER delay
T16
RX_CLK Duty Cycle
T17
RX_CLK tR/tF
T18
Note 1:
Note 2:
Note 3:
Note 4:
Note 5:
Notes
Min
Typ Max
Note 2, 3, 4
0.5
5.5
40
60
%
1
ns
Note 1, 4, 5
MDI to GMII latency
384
Units
ns
ns
tr and tf are measured from VIL_AC(MAX) = 0.7V to VIH_AC(MIN) = 1.9V.
tdelay max is measured from clock level of 0.7V to data level of 1.9V for data = ‘1’; and clock level = 0.7V to.data level 0.7V for data = ‘0’.
tdelay min is measured from clock level of 1.9V to data level of 1.9V for data = ‘1’; and clock level = 1.9V to.data level 0.7V for data = ‘0’.
GMII Receiver input template measured with “GMII point-to-point test circuit”, see Test Conditions Section.
Guaranteed by design. Not tested.
75
www.national.com
DP83856
6.0 Electrical Specifications (Continued)
6.5 RGMII Timing
6.5.1 Transmit and Receive Multiplexing and Timing
TX [3:0]
TXD[3:0]
TXD[7:4]
TXEN_ER
TX_EN
TX_ER
TXD[3:0]
TX_EN
TXD[7:4]
TX_ER
TCK
TskewT
Tcyc
RCK
RX [3:0]
RXDV_ER
RXD[3:0] RXD[7:4]
RX_DV
RX_ER
RXD[3:0] RXD[7:4]
RX_DV
RX_ER
TholdR
TskewR TsetupR
Parameter
Tcyc
Description
Notes
Min
Typ
Max
Units
TskewT
TX to Clock skew (at receiver, PHY), HP mode
Note 1
1.0
2.0
ns
TskewT
TX to Clock skew (at receiver, PHY), 3COM mode
Note 4
-900
900
ps
TskewR
RX to Clock skew (at transmitter, PHY), HP mode
Note 4
-500
500
ps
TsetupR
RX to Clock setup (at transmitter, PHY), 3COM mode
Note 4
1.4
ns
TholdR
RX to Clock hold (at transmitter, PHY), 3COM mode
Note 4
1.2
ns
Tcyc
Clock Period
Note 2, 4
7.2
8
8.8
ns
TDuty_G
Duty Cycle for gigabit
Note 3
45
50
55
%
TDuty_T
Duty Cycle for 10/100 BASE-T
Note 3
40
50
60
%
Tr/Tf
Rise/Fall Time (20 -80%)
Note 4
1.0
ns
Note 1: The PC board design requires clocks to be routed such that an additional trace delay of greater than 1.5 ns is added to the associated clock signal.
Note 2: For 10 Mbps and 100 Mbps, Tcyc will scale to 400ns +-40ns and 40ns +-4ns.
Note 3: Duty cycle may be stretched or shrunk during speed changes or while transitioning to a received packet’s clock domain as long as minimum duty
cycle is not violated and stretching occurs for no more that three Tcyc of the lowest speed transitioned between.
Note 4: Guaranteed by design. Not tested.
www.national.com
76
DP83856
6.0 Electrical Specifications (Continued)
6.6 100 Mb/s Timing
6.6.1 100 Mb/s MII Transmit Timing
T21
T20
TX_CLK
TXD[3:0], TX_EN,
TX_ER
T19
T22
MDI
Begin of Frame
Parameter
Description
Notes
Min
Typ
Max
Units
T19
TXD[3:0], TX_EN and TX_ER Setup to ↑ TX_CLK
10
ns
T20
TXD[3:0], TX_EN and TX_ER Hold from ↑ TX_CLK
-1
ns
T21
TX_CLK Duty Cycle
40
T22
MII to MDI latency
60
136
%
ns
6.6.2 100 Mb/s MII Receive Timing
T23
RX_CLK
T24
RXD[3:0]
RX_DV
RX_ER
Valid Data
T25
MDI
Begin of Frame
Parameter
T23
Description
Notes
Min
RX_CLK Duty Cycle
35
T24
↑ RX_CLK to RXD[3:0], RX_DV, RX_ER Delay
10
T25
MDI to MII latency
Typ Max
65
30
288
77
Units
%
ns
ns
www.national.com
DP83856
6.0 Electrical Specifications (Continued)
6.7 10 Mb/s Timing
6.7.1 10 Mb/s MII Transmit Timing
T28
T27
TX_CLK
TXD[3:0], TX_EN,
TX_ER
T26
T29
MDI
Begin of Frame
Parameter
Description
Notes
T26
TXD[3:0], TX_EN and TX_ER Setup to ↑ TX_CLK
T27
Min
Typ
Max
Units
100
ns
TXD[3:0], TX_EN and TX_ER Hold from ↑ TX_CLK
0
ns
T28
TX_CLK Duty Cycle
40
T29
MII to MDI latency
60
125
%
ns
6.7.2 10 Mb/s MII Receive Timing
T31
RX_CLK
T30
RXD[3:0]
RX_DV
RX_ER
Valid Data
T32
MDI
Begin of Frame
Parameter
T30
Description
Notes
↑ RX_CLK to RXD[3:0], RX_DV, RX_ER
Min
Typ
Max
Units
100
300
ns
35
65
%
Delay
T31
RX_CLK Duty Cycle
T32
MDI to MII latency
www.national.com
1125
78
ns
DP83856
6.0 Electrical Specifications (Continued)
6.8 Loopback Timing
GTX_CLK
TX_CLK
TX_EN
TXD[7:0]
TXD[3:0]
Valid Data
CRS
T33
RX_CLK
RX_DV
RXD[7:0]
RXD[3:0]
Parameter
T33
Valid Data
Description
TX_EN to RX_DV Loopback
Notes
Min
Typ
10 Mb/s
2220
100 Mb/s
380
1000 Mb/s
536
Max
Units
ns
Note: During loopback (all modes) both the TD± outputs remain inactive by default.
79
www.national.com
DP83856
6.0 Electrical Specifications (Continued)
6.9 Serial Management Interface Timing
MDC
T34
T35
MDIO (output)
MDC
T36
MDIO (input)
Parameter
T37
Valid Data
Description
Notes
Min
Typ
Max
Units
2.5
MHz
300
ns
T34
MDC Frequency
T35
MDC to MDIO (Output) Delay Time
T36
MDIO (Input) to MDC Setup Time
10
ns
T37
MDIO (Input) to MDC Hold Time
10
ns
www.national.com
0
80
DP83856
6.0 Electrical Specifications (Continued)
6.10 Power Consumption
Symbol
I1V8_1000
Pin Types
Parameter
Conditions
1V8_AVDD, 1V8
Core_VDD current
Core_VDD = 1.8V,
1V8_AVDD = 1.8V,
2V5_AVDD current
2V5_AVDD = 2.5V,
I2V5_IO_1000
IO_VDD current
I3V3_IO_1000
IO_VDD current
I2V5_1000
Min
Typ
Max
Units
0.43
A
0.19
A
IO_VDD = 2.5V,
1000 Mbps FDX
0.01
A
IO_VDD = 3.3V,
0.01
A
0.07
A
0.06
A
1000 Mbps FDX
1000 Mbps FDX
1000 Mbps FDX
I1V8_100
I2V5_100
1V8_AVDD, 1V8
Core_VDD current
Core_VDD = 1.8V,
1V8_AVDD = 1.8V,
2V5_AVDD,
IO_VDD current
IO_VDD = 2.5V,
2V5_AVDD = 2.5V,
100 Mbps FDX
100 Mbps FDX
I2V5_IO_100
IO_VDD current
IO_VDD = 2.5V,
100 Mbps FDX
0.01
A
I3V3_IO_100
IO_VDD current
IO_VDD = 3.3V,
0.01
A
100 Mbps FDX
81
www.national.com
DP83856
7.0 Frequently Asked Questions
7.1 Do I need to access any MDIO register to start
up the PHY?
the internal 125 MHz clock generated from the CLOCK_IN
clock to transmit data on the wire. The Slave PHY uses the
clock recovered from the link partner’s transmission as the
transmit clock for all four pairs.
A: The answer is no. The PHY is a self contained device.
The initial settings of the PHY are configured by the strapping option at the pins. The PHY will start normal operation
based on the strapping options upon power up or reset.
TX_TCLK: The TX_TCLK is an output of the PHY and can
be enabled to come out on pin 6 (during Test Mode 2 and 3
it is automatically enabled). This is a requirement from the
IEEE 802.3ab specification, Clause 40.6.1.2.5.
7.2 I am trying to access the registers through
MDIO and I got invalid data. What should I do?
This is used for 1000 Mbps transmit activity. It has only one
function:
A: There are a number of items that you need to check.
— It is used in “Test Modes 2 & 3” to measure jitter in the
data transmitted on the wire.
Either the reference clock or the clock recovered from
received data is used for transmitting data; depending on
whether the PHY is in MASTER or SLAVE mode.
TX_TCLK represents the actual clock being used to transmit data.
— Make sure the MDC frequency is not greater than 2.5
MHz.
— Check if the MDIO data line has a 2K pull up resistor and
the line is idling high.
— Verify the data timing against the datasheet.
— Be sure the turn around time (TA) is at least 1 bit long.
7.5 What happens to the TX_CLK during 1000
Mbps operation? Similarly what happens to
RXD[4:7] during 10/100 Mbps operation?
7.3 Why can the PHY establish a valid link but can
not transmit or receive data?
A: TX_CLK is not used during the 1000 Mbps operation,
and the RXD[4:7] lines are not used for the 10/100 operation. These signals are outputs of the Gig PHYTER V. To
simplify the MII/GMII interface, these signals are driven
actively to a zero volt level. This eliminates the need for
pull-down resistors.
A: PHY is a self contained device. The PHY can establish
link by itself without any MAC and management involvement. Here are some suggestions to isolate the problem.
— Use MDIO management access to configure the BIST
registers to transmit packet. If link partner can receive
data, the problem may lie in the MAC interface.
— Check the MAC transmit timing against the PHY
datasheet.
— Verify the receive timing of the MAC device to see if it
matches the PHY datasheet.
— If the PHY receives the data correctly, the activity LED
should turn on.
— Start the debugging at the slower 10 Mbps or 100 Mbps
speed.
— Enable the loopback at register 0x00.14. Verify that you
can receive the data that you transmit.
7.6 What happens to the TX_CLK and RX_CLK
during Auto-Negotiation and during idles?
A: During Auto-Negotiation the Gig PHYTER V drives a 25
MHz clock on the TX_CLK and RX_CLK lines. After a valid
link is established and during idle time, these lines are
driven at 2.5 MHz in 10 Mbps, and at 25 MHz in 100 Mbps
mode. In 1000 Mbps mode only RX_CLK is driven at 125
MHz.
7.7 Why doesn’t the Gig PHYTER V complete
Auto-Negotiation if the link partner is a forced
1000 Mbps PHY?
7.4 What is the difference between TX_CLK,
TX_TCLK, and GTX_CLK?
A: IEEE specifications define “parallel detection” for 10/100
Mbps operation only. Parallel detection is the name given
to the Auto-Negotiation process where one of the link partners is Auto-Negotiating while the other is in forced 10 or
100 Mbps mode. In this case, it is expected that the AutoNegotiating PHY establishes half-duplex link at the forced
speed of the link partner.
A: All the 3 clocks above are related to transmitting data.
However, their functions are different:
TX_CLK: The TX_CLK is an output of the PHY and is part
of the MII interface as described in IEEE 802.3u specification, Clause 28.
However, for 1000 Mbps operation this parallel detection
mechanism is not defined. Instead, any 1000BASE-T PHY
can establish 1000 Mbps operation with a link partner in the
following two cases:
This is used for 10/100 Mbps transmit activity. It has two
separate functions:
— It is used to synchronize the data sent by the MAC and
to latch this data into the PHY.
— It is used to clock transmit data on the twisted pair.
GTX_CLK: The GTX_CLK is an output of the MAC and is
part of the GMII interface as described in IEEE 802.3z
specification, Clause 35.
— When both PHYs are Auto-Negotiating,
— When both PHYs are forced 1000 Mbps. Note that one
of the PHYs is manually configured as MASTER and the
other is manually configured as SLAVE.
This is used for 1000 Mbps transmit activity. It has only one
function:
7.8 What determines Master/Slave mode when
Auto-Negotiation is disabled in 1000Base-T
mode?
— It is used to synchronize the data sent by the MAC and
to latch this data into the PHY.
The GTX_CLK is NOT used to transmit data on the twisted
pair wire. For 1000 Mbps operation, the Master PHY uses
www.national.com
A: Disabling 1000 Base-T Auto-Negotiation forces the PHY
to operate in Master or Slave mode. The selection is
through MULTI_EN pin. Since there is no way of knowing
82
DP83856
7.0 Frequently Asked Questions (Continued)
in advance what mode the link partner is operating, there
could be conflict if both PHY are operating in Master or
both in Slave mode. It is recommended that under normal
operation, AN_EN is enabled.
TC = TJ - Pd(Οc)
Where:
TJ = Junction temperature of the die in oC
TC = Case temperature of the package in oC
Pd = Power dissipated in the die in Watts
Oc = 17oC/watt
7.9 How long does Auto-Negotiation take?
A: Two PHY’s typically complete Auto-Negotiation and
establish 1000 Mbps operation in less than 5 seconds.
1000BASE-T Auto-Negotiation process takes longer than
the 10/100 Mbps. The gigabit negotiation does Next Page
exchanges and extensive line adaptation.
For reliability purposes the maximum junction should be
kept below 120 oC. If the Ambient temperature is 70 oC
and the power dissipation is 1.2 watts then the Maximum
Case Temperature should be maintained at:
TC max = 120oC - 1.1 watts * (17oC/watt)
TC max = 101oC
7.10 How do I measure FLP’s?
A: In order measure FLP’s Auto MDIX function must be
disabled. When in Auto MDIX mode the DP83865 outputs
link pulses every 150 µs. Note that MDIX pulse should not
be confused with the FLP pulses which occur every 125 µs
+/- 14 µs. To disable Auto MDIX, AUX_CTL 0x12.15 = 0.
7.15 The DP83865 will establish Link in 100 Mbps
mode with a Broadcom part, but it will not establish link in 1000 Mbps mode. When this happens
the DP83865’s Link LED will blink on and off.
Once Auto MDIX is disabled register bit 0x12.14 specifies
MDIX mode. ‘1’ for MDIX cross over mode and ‘0’ for
straight mode. In crossover mode, the FLP appears on
pins 3-6 of RJ-45 and in straight mode, the FLP appears on
pins 1-2.
A: We have received a number of questions regarding
inter-operability of National’s DP83865 with Broadcom’s
BCM5400 1000/100 Mbps PHY. National’s DP83865 is
compliant to IEEE 802.3ab and it is also inter-operable with
the BCM5400 as well as other Gigabit Physical Layer products. However, there are certain situations that might
require extra attention when inter-operating with the
BCM5400.
7.11 I have forced 10 Mbps or 100 Mbps operation
but the associated speed LED doesn’t come on.
A: Speed LEDs are actually an AND function of the speed
and link status. Regardless of whether the speed is forced
or Auto-Negotiated, there has to be good link for the speed
LEDs to turn on.
There are two types of BCM5400’s, those with silicon revisions earlier than C5 and those with silicon revisions of C5
and older. There is a fundamental problem with earlier silicon revisions of the BCM 5400, whereby the part was
designed with faulty start-up conditions (wrong polynomials
were used) which prevented the Broadcom BCM5400 from
ever linking to an IEEE 802.3ab compliant part.
7.12 I know I have good link, but register 0x01, bit
2 “Link Status” doesn’t contain value ‘1’ indicating good link.
This problem was observed in early inter-operability testing
at National Semiconductor. A solution was put together that
allows the DP83865 to inter-operate with any IEEE
802.3ab compliant Gigabit PHY as well as with earlier revisions of the BCM5400 that are non compliant. To enter into
this mode of operation you can either pull pin 1
(NON_IEEE_STRAP) high through a 2kΩ resistor or write
‘1’ to bit 9 of register 0x12.
A: This bit is defined by IEEE 802.3u Clause 22. It indicates if the link was lost since the last time this register was
read. Its name (given by IEEE) is perhaps misleading. A
more accurate name would have been the “Link lost” bit. If
the actual present link status is desired, then either this
register should be read twice, or register 0x11 bit 2 should
be read. Register 0x11 shows the actual status of link,
speed, and duplex regardless of what was advertised or
what has happened in the interim.
7.16 How do I quickly determine the quality of the
link over the cable ?
7.13 Your reference design shows pull-up or pulldown resistors attached to certain pins, which
conflict with the pull-up or pull-down information
specified in the datasheet?
A: Idle error indicates either that the cable length is beyond
the specified limit or the cable plant does not meet the EIA
568 Category V requirements. The Activity LED indicates
the occurrence of idle error or packet transfer. You monitor
the quality of the link by viewing the Activity LED during
idle.
A: The pull-up or pull-down information specified in the pin
description section of the datasheet, indicate if there is an
internal pull-up or pull-down resistor at the IO buffer used
for that specific pin. These resistors are between 25 - 80
kΩ. They will determine the default strap value when the
pin is floating. If the default value is desired to be changed,
an external 2 kΩ pull-up or pull-down resistor can be used.
7.17 What is the power up sequence for
DP83865?
A: The DP83865 has two types of power supplies, core
and I/O. Although there has not been revealing of power
up sequence error such as latch up or dead lock, it is recommended that core power takes precedence over the I/O
power when powering up. 1.8V should be up before 2.5V
and 3.3V. When powering down, I/O takes precedence
over core. 2.5V and 3.3V should be turned off before 1.8V.
7.14 How is the maximum package case temperature calculated?
A: The maximum die temperature is calculated using the
following equations:
TJ = TA + Pd(ΟJA)
TJ = TC + Pd(Οc)
83
www.national.com
DP83856
7.0 Frequently Asked Questions (Continued)
7.18 What are some other applicable documents?
A: For updated collateral material, please go to “solutions.national.com” website.
— DP83865 Reference Design (Demo board, Schematics,
BOM, Gerber files.)
— Application Note 1263 “DP83865 Gig PHYTER V
10/100/1000 Ethernet Physical Layer Design Guide”
— Application Note 1337 “Design Migration from DP83861
to DP83865”
— Application Note 1301 “Dual Foot Print Layout Notes for
DP83865 Gig PHYTER V and DP83847 DS PHYTER II”
— Application Note 1329 “DP83865 and DP83864 Gigabit
Physical Layer Device Trouble Shooting Guide”
— IEEE 802.3z “MAC Parameters, Physical Layer, Repeater and Management Parameters for 1000 Mbps Operation.”
— IEEE 802.3ab “Physical layer specification for 1000
Mbps operation on four pairs of category 5 or better balanced twisted pair cable (1000BASE-T)“.
— IEEE 802.3 and 802.3u (For 10/100 Mbps operation.)
www.national.com
84
DP83865
NOTES
www.national.com
85
P83865 Gig PHYTER V 10/100/1000 Ethernet Physical Layer
8.0 Physical Dimensions inches (millimeters) unless otherwise noted
128 Lead Plastic Flat Pack
LIFE SUPPORT POLICY
NATIONAL’S PRODUCTS ARE NOT AUTHORIZED FOR USE AS CRITICAL COMPONENTS IN LIFE SUPPORT
DEVICES OR SYSTEMS WITHOUT THE EXPRESS WRITTEN APPROVAL OF THE PRESIDENT AND GENERAL
COUNSEL OF NATIONAL SEMICONDUCTOR CORPORATION. As used herein:
1. Life support devices or systems are devices or systems which,
(a) are intended for surgical implant into the body, or (b) support
or sustain life, and whose failure to perform, when properly used
in accordance with instructions for use provided in the labeling,
can be reasonably expected to result in a significant injury to the
user.
2. A critical component is any component of a life support device
or system whose failure to perform can be reasonably expected
to cause the failure of the life support device or system, or to affect its safety or effectiveness.
BANNED SUBSTANCE COMPLIANCE
National Semiconductor certifies that the products and packing materials meet the provisions of the Customer Products Stewardship
Specification (CSP-9-111C2) and the Banned Substances and Materials of Interest Specification (CSP-9-111S2) and contain no “Banned
Substances” as defined in CSP-9-111S2.
National Semiconductor
Corporation
Tel: 1-800-272-9959
Fax: 1-800-737-7018
Email: [email protected]
National Semiconductor
Europe
Fax:
+49 (0) 180-530 85 86
Email: [email protected]
Deutsch Tel:
+49 (0) 69 9508 6208
English Tel:
+44 (0) 870 24 0 2171
Francais Tel:
+33 (0) 1 41 91 8790
National Semiconductor
Asia Pacific
Customer Response Group
Tel: 65-254-4466
Fax: 65-250-4466
Email: [email protected]
National Semiconductor
Japan Ltd.
Tel: 81-3-5639-7560
Fax: 81-3-5639-7507
www.national.com
National does not assume any responsibility for use of any circuitry described, no circuit patent licenses are implied and National reserves the right at any time without notice to change said circuitry and specifications.
IMPORTANT NOTICE
Texas Instruments Incorporated and its subsidiaries (TI) reserve the right to make corrections, modifications, enhancements, improvements,
and other changes to its products and services at any time and to discontinue any product or service without notice. Customers should
obtain the latest relevant information before placing orders and should verify that such information is current and complete. All products are
sold subject to TI’s terms and conditions of sale supplied at the time of order acknowledgment.
TI warrants performance of its hardware products to the specifications applicable at the time of sale in accordance with TI’s standard
warranty. Testing and other quality control techniques are used to the extent TI deems necessary to support this warranty. Except where
mandated by government requirements, testing of all parameters of each product is not necessarily performed.
TI assumes no liability for applications assistance or customer product design. Customers are responsible for their products and
applications using TI components. To minimize the risks associated with customer products and applications, customers should provide
adequate design and operating safeguards.
TI does not warrant or represent that any license, either express or implied, is granted under any TI patent right, copyright, mask work right,
or other TI intellectual property right relating to any combination, machine, or process in which TI products or services are used. Information
published by TI regarding third-party products or services does not constitute a license from TI to use such products or services or a
warranty or endorsement thereof. Use of such information may require a license from a third party under the patents or other intellectual
property of the third party, or a license from TI under the patents or other intellectual property of TI.
Reproduction of TI information in TI data books or data sheets is permissible only if reproduction is without alteration and is accompanied
by all associated warranties, conditions, limitations, and notices. Reproduction of this information with alteration is an unfair and deceptive
business practice. TI is not responsible or liable for such altered documentation. Information of third parties may be subject to additional
restrictions.
Resale of TI products or services with statements different from or beyond the parameters stated by TI for that product or service voids all
express and any implied warranties for the associated TI product or service and is an unfair and deceptive business practice. TI is not
responsible or liable for any such statements.
TI products are not authorized for use in safety-critical applications (such as life support) where a failure of the TI product would reasonably
be expected to cause severe personal injury or death, unless officers of the parties have executed an agreement specifically governing
such use. Buyers represent that they have all necessary expertise in the safety and regulatory ramifications of their applications, and
acknowledge and agree that they are solely responsible for all legal, regulatory and safety-related requirements concerning their products
and any use of TI products in such safety-critical applications, notwithstanding any applications-related information or support that may be
provided by TI. Further, Buyers must fully indemnify TI and its representatives against any damages arising out of the use of TI products in
such safety-critical applications.
TI products are neither designed nor intended for use in military/aerospace applications or environments unless the TI products are
specifically designated by TI as military-grade or "enhanced plastic." Only products designated by TI as military-grade meet military
specifications. Buyers acknowledge and agree that any such use of TI products which TI has not designated as military-grade is solely at
the Buyer's risk, and that they are solely responsible for compliance with all legal and regulatory requirements in connection with such use.
TI products are neither designed nor intended for use in automotive applications or environments unless the specific TI products are
designated by TI as compliant with ISO/TS 16949 requirements. Buyers acknowledge and agree that, if they use any non-designated
products in automotive applications, TI will not be responsible for any failure to meet such requirements.
Following are URLs where you can obtain information on other Texas Instruments products and application solutions:
Products
Applications
Audio
www.ti.com/audio
Communications and Telecom www.ti.com/communications
Amplifiers
amplifier.ti.com
Computers and Peripherals
www.ti.com/computers
Data Converters
dataconverter.ti.com
Consumer Electronics
www.ti.com/consumer-apps
DLP® Products
www.dlp.com
Energy and Lighting
www.ti.com/energy
DSP
dsp.ti.com
Industrial
www.ti.com/industrial
Clocks and Timers
www.ti.com/clocks
Medical
www.ti.com/medical
Interface
interface.ti.com
Security
www.ti.com/security
Logic
logic.ti.com
Space, Avionics and Defense
www.ti.com/space-avionics-defense
Power Mgmt
power.ti.com
Transportation and Automotive www.ti.com/automotive
Microcontrollers
microcontroller.ti.com
Video and Imaging
RFID
www.ti-rfid.com
OMAP Mobile Processors
www.ti.com/omap
Wireless Connectivity
www.ti.com/wirelessconnectivity
TI E2E Community Home Page
www.ti.com/video
e2e.ti.com
Mailing Address: Texas Instruments, Post Office Box 655303, Dallas, Texas 75265
Copyright © 2011, Texas Instruments Incorporated
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
