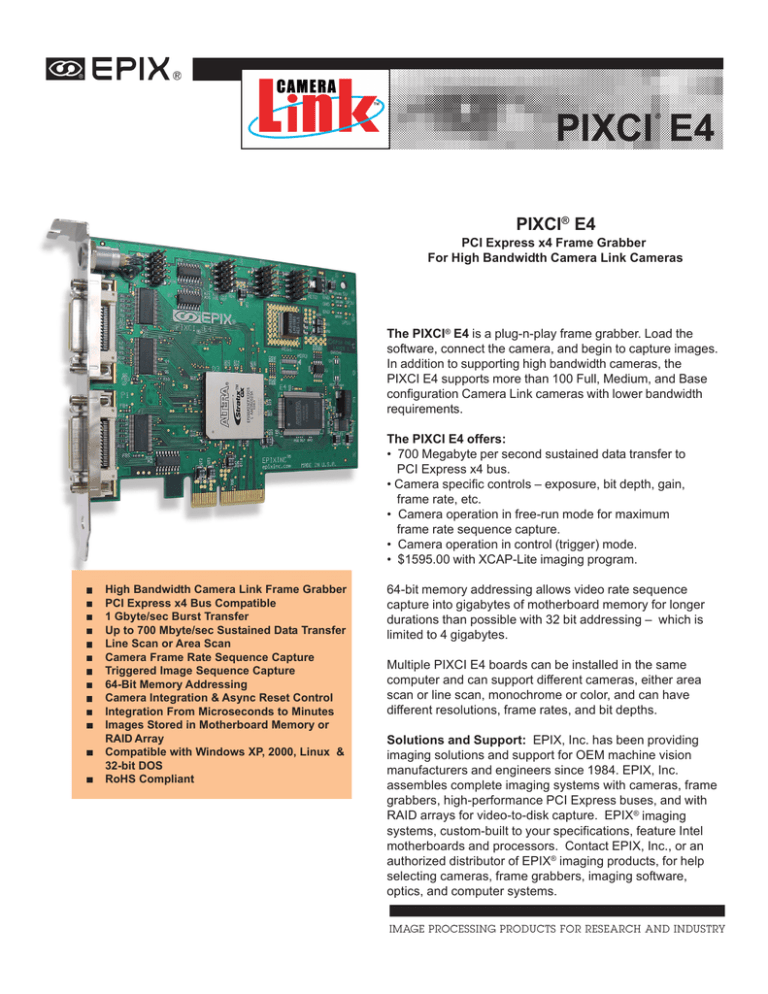

Data Sheet PIXCI E4
®
PIXCI E4
PIXCI® E4
PCI Express x4 Frame Grabber
For High Bandwidth Camera Link Cameras
The PIXCI® E4 is a plug-n-play frame grabber. Load the
software, connect the camera, and begin to capture images.
In addition to supporting high bandwidth cameras, the
PIXCI E4 supports more than 100 Full, Medium, and Base
configuration Camera Link cameras with lower bandwidth
requirements.
The PIXCI E4 offers:
• 700 Megabyte per second sustained data transfer to
PCI Express x4 bus.
• Camera specific controls – exposure, bit depth, gain,
frame rate, etc.
• Camera operation in free-run mode for maximum
frame rate sequence capture.
• Camera operation in control (trigger) mode.
• $1595.00 with XCAP-Lite imaging program.
High Bandwidth Camera Link Frame Grabber
PCI Express x4 Bus Compatible
1 Gbyte/sec Burst Transfer
Up to 700 Mbyte/sec Sustained Data Transfer
Line Scan or Area Scan
Camera Frame Rate Sequence Capture
Triggered Image Sequence Capture
64-Bit Memory Addressing
Camera Integration & Async Reset Control
Integration From Microseconds to Minutes
Images Stored in Motherboard Memory or
RAID Array
Compatible with Windows XP, 2000, Linux &
32-bit DOS
RoHS Compliant
64-bit memory addressing allows video rate sequence
capture into gigabytes of motherboard memory for longer
durations than possible with 32 bit addressing – which is
limited to 4 gigabytes.
Multiple PIXCI E4 boards can be installed in the same
computer and can support different cameras, either area
scan or line scan, monochrome or color, and can have
different resolutions, frame rates, and bit depths.
Solutions and Support: EPIX, Inc. has been providing
imaging solutions and support for OEM machine vision
manufacturers and engineers since 1984. EPIX, Inc.
assembles complete imaging systems with cameras, frame
grabbers, high-performance PCI Express buses, and with
RAID arrays for video-to-disk capture. EPIX® imaging
systems, custom-built to your specifications, feature Intel
motherboards and processors. Contact EPIX, Inc., or an
authorized distributor of EPIX® imaging products, for help
selecting cameras, frame grabbers, imaging software,
optics, and computer systems.
®
PIXCI E4
High Bandwidth Camera Link
For the x4 PCI Express Bus
SPECIFICATIONS
SUPPORTED HIGH BANDWIDTH CAMERAS
Frame
Rate
Bit Depth /
Pixels
Notes
1280
x
1024
500 fps
8-Bit CMOS
12 µ2
1.25 Mpixel
Global Shutter.
Windowing for
faster frame rate.
NAC
HotShot 512 CL
Monochrome or Color
512
x
512
2300 fps
8-Bit CMOS
16 µ2
0.25 Mpixel
ISO 1650 (Mono).
Freeze-Frame
Global Shutter.
NAC
HotShot 1280 CL
Monochrome or Color
1280
x
1024
500 fps
8-Bit CMOS
12 µ2
1.25 Mpixel
ISO 400 (Mono).
Freeze-Frame
Global Shutter.
31.85 fps
12-Bit CCD
7.4 µ2
1.92 Mpixel
Simultaneous
30.12 fps
12-Bit CCD
7.4 µ2
2.074 Mpixel
with display
up to
camera
Camera
Resolution
Basler
A504k
Monochrome or Color
PIXCI E4
1600
Princeton Instruments
Megaplus II ES2020 or ES2001 x
1200
Monochrome or Color
Princeton Instruments
Megaplus II ES2093
Monochrome or Color
1920
x
1080
Princeton Instruments
Megaplus II ES4020
Monochrome or Color
2048
x
2048
15.05 fps
12-Bit CCD
7.4 µ2
4.19 Mpixel
Princeton Instruments
Megaplus II ES11000
Monochrome or Color
4008
x
2672
4.63 fps
12-Bit CCD
9.0 µ2
10.71 Mpixel
6.2 fps
12-Bit CCD
9.0 µ2
1.57 Mpixel
12-Bit CCD
6.8 µ2
3.3 Mpixel
1536
Princeton Instruments
Megaplus II ES1602 or S1603 x
1024
Monochrome
Princeton Instruments
Megaplus II ES3200
Monochrome
2184
x
1472
2.9 fps
Princeton Instruments
Megaplus II EC11000
Monochrome or Color
4008
x
2672
12-Bit CCD
4.63 fps 9.0 µ2 10.71 Mpixel
Peltier Cooled
Virtually ALL
Full, Medium, & Base
Camera Link Cameras
Supports
Camera’s
Maximum
Resolution
Supports
Camera’s
Maximum
Frame Rate
Any
capture
from
4
heads
at full
resolution,
bit depth,
and
frame rate.
Optimzed for camera link
cameras listed in
PIXCI Selection Guide.
700 MB/sec Max Data Rate
The chart lists high-performance cameras that showcase the PIXCI E4 board’s
capability to transfer massive amounts of image data – which translates into the
ability to capture high resolutions at comparatively fast frame rates. The PIXCI E4 is
primarily designed to support high performance cameras, but it also works with
virtually ALL camera link cameras with a bandwidth requirement of 700 MB/second
or less.
Please visit the PIXCI Selection Guide on the EPIX web site (www.epixinc.com) for a
comprehensive listing of supported cameras.
Contact EPIX, Inc., or your authorized EPIX, Inc. distributor, if your camera isn’t
already listed.
Specifications subject to change without notice. EPIX and PIXCI are registered trademarks of EPIX, Inc. XCAP, XCLIB, and
XCLIBIPL are trademarks of EPIX, Inc. Other brand, product, and company names are registered trademarks of their respective
owners. EPIX ® imaging products are made in the USA. © 2008 EPIX, Inc. All Rights Reserved. 13 June 2008
http://www.epixinc.com/products/pixci_e4.htm
SIGNAL INPUT & OUTPUT:
EIA RS-644 (LVDS) Drivers &
Receivers support pixel clock
frequencies up to 85 MHz.
PERFORMANCE:
Supports the camera’s maximum:
Horizontal Resolution
Vertical Resolution
Frame Rate
Bit Depth
CONNECTIONS:
Two 26-pin 3M MDR Camera Link
connectors for Full, Medium, and Base.
6-pin connector for Trigger,
Frame Enable, and Strobe.
Camera Link cables available.
DATA TRANSFERS:
Supports cameras with data output
rates up to 700 MBytes/second.
64-bit memory addressing
BUS REQUIREMENTS:
x4 PCI Express Bus slot
Operates in x16, x8, or x4
PCI Express Bus slot.
DIMENSIONS:
13.6 cm long by 10.5 cm high
(5.34” long x 4.13” high)
CERTIFICATIONS:
CE Compliant
ROHS Compliant
EPIX SOFTWARE Support
http://www.epixinc.com/products/index.htm
Supported by XCAP-Lite (no charge with
board purchase), XCAP-Ltd, XCAP-Std,
XCLIB, and XCLIBIPL.
Compatible with WIN XP (32 & 64 bit), 2000,
Linux (32 & 64 bit) and 32-bit DOS.
Also TWAIN and Image-Pro compatible.
http://www.epixinc.com
e-mail:
[email protected]
