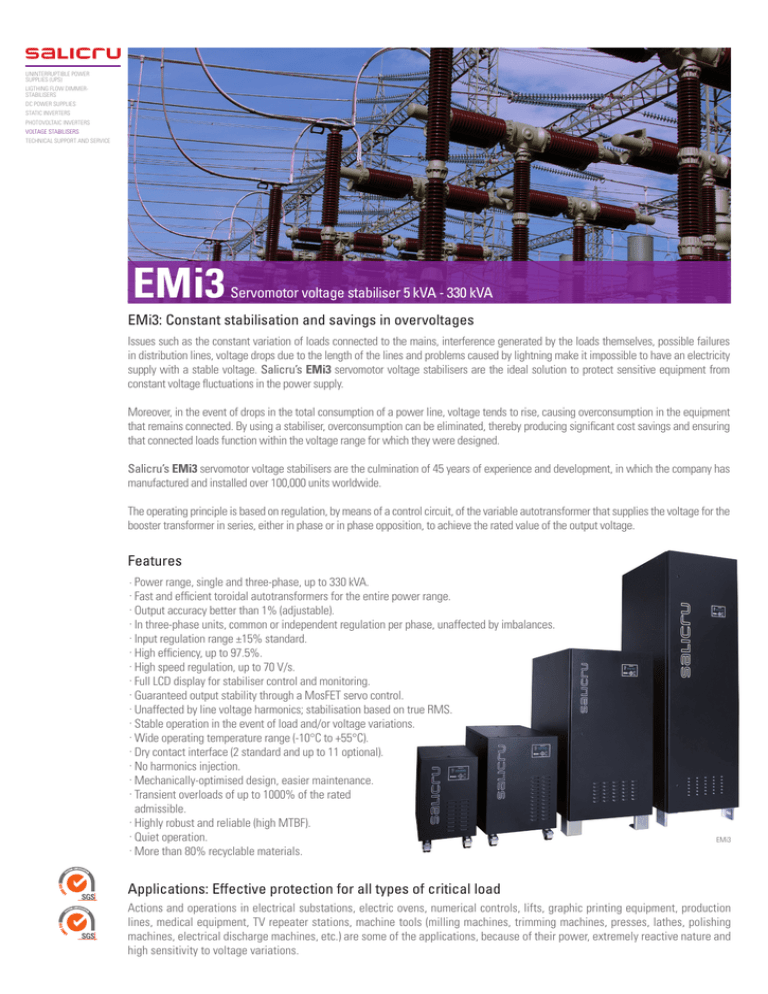

EMi3
Servomotor voltage stabiliser 5 kVA - 330 kVA
EMi3: Constant stabilisation and savings in overvoltages
Issues such as the constant variation of loads connected to the mains, interference generated by the loads themselves, possible failures
in distribution lines, voltage drops due to the length of the lines and problems caused by lightning make it impossible to have an electricity
supply with a stable voltage. Salicru’s EMi3 servomotor voltage stabilisers are the ideal solution to protect sensitive equipment from
constant voltage fluctuations in the power supply.
Moreover, in the event of drops in the total consumption of a power line, voltage tends to rise, causing overconsumption in the equipment
that remains connected. By using a stabiliser, overconsumption can be eliminated, thereby producing significant cost savings and ensuring
that connected loads function within the voltage range for which they were designed.
Salicru’s EMi3 servomotor voltage stabilisers are the culmination of 45 years of experience and development, in which the company has
manufactured and installed over 100,000 units worldwide.
The operating principle is based on regulation, by means of a control circuit, of the variable autotransformer that supplies the voltage for the
booster transformer in series, either in phase or in phase opposition, to achieve the rated value of the output voltage.
Features
· Power range, single and three-phase, up to 330 kVA.
. Fast and efficient toroidal autotransformers for the entire power range.
. Output accuracy better than 1% (adjustable).
. In three-phase units, common or independent regulation per phase, unaffected by imbalances.
. Input regulation range ±15% standard.
. High efficiency, up to 97.5%.
. High speed regulation, up to 70 V/s.
. Full LCD display for stabiliser control and monitoring.
. Guaranteed output stability through a MosFET servo control.
. Unaffected by line voltage harmonics; stabilisation based on true RMS.
. Stable operation in the event of load and/or voltage variations.
. Wide operating temperature range (-10°C to +55°C).
. Dry contact interface (2 standard and up to 11 optional).
. No harmonics injection.
. Mechanically-optimised design, easier maintenance.
. Transient overloads of up to 1000% of the rated
admissible.
. Highly robust and reliable (high MTBF).
. Quiet operation.
. More than 80% recyclable materials.
EMi3
Applications: Effective protection for all types of critical load
Actions and operations in electrical substations, electric ovens, numerical controls, lifts, graphic printing equipment, production
lines, medical equipment, TV repeater stations, machine tools (milling machines, trimming machines, presses, lathes, polishing
machines, electrical discharge machines, etc.) are some of the applications, because of their power, extremely reactive nature and
high sensitivity to voltage variations.
REF. JM841A01 CODE 401AB000654 ED. OCTOBER 2013 VOLTAGE STABILISERS
EMi3
Description
Servomotor voltage stabiliser 5 kVA - 330 kVA
1
2
3
TECHNICAL SPECIFICATIONS
MODEL
INPUT
5
EMi3
Voltage
Single-phase 220 / 230 / 240 V
Three-phase 3x380 / 3x400 / 3x415 V (3Ph + N)
Range
±15 (1)
48 ÷ 63 Hz
Frequency
6
OUTPUT
Voltage
Single-phase 220 / 230 / 240 V
Three-phase 3x380 / 3x400 / 3x415 V (3Ph + N)
± 1% (adjustable between 1% ÷ 5%)
Accuracy
7
± 5%
Output voltage setting
48 ÷ 63 Hz
Frequency
Up to 70 V/s
Regulation speed
Between 96.5% and 97.5%
Performance
Injection of voltage harmonic distortion
8
1.
2.
3.
4.
5.
6.
7.
8.
Display LCD
Variable autotransformer
Control PCB
Input protection
Input and output terminals
Surge protection
Motor supply transformer
Booster transformer
<0.2%
Adjustable
Voltage disconnection value (2)
Up to 200% for 20 s
Admissible overload
0 ÷ 100%
Possible load variation
Power factor influence
INDICATORS
COMMUNICATION
GENERAL
Front panel
Independent
LCD display (2x16 characters) + 4 status LEDs
Standard
RS-232 (3)
Standard
One
-10° C ÷ +55° C
2 Dry contacts
Free slot (3)
Operating temperature
Storage temperature
-20° C ÷ +85° C
Ventilation
Natural convection (4)
Level of acoustic noise at 1 metre
<45 dB(A) (5)
Relative humidity
Options
· Output current, power and overload
measurement.
. Maximum and minimum output voltage
protection.
. Manual bypass.
. Overload contactor.
. Communications and relay module.
. Other regulation ranges.
. Galvanic isolation transformer.
Extended communications
STANDARDS
Up to 95%, non-condensing
Maximum operating altitude
2,400 m.a.s.l.
Mean time between failures (MTBF)
Mean time to repair (MTTR)
60,000 hours
30 minutes
Safety
IEC-62103
Electromagnetic compatibility (EMC)
EN-61000-6-4; EN-61000-6-2
Quality and environmental management
ISO 9001 and ISO 14001
(1) Other ranges available on request
(2) With optional voltage maximum-minimum
(4) Forced from 20 kVA for single phase and 55 kVA for three-phase
(3) Mutually exclusive ports
(5) <65 dB(A) for models with forced ventilation
RANGE
MODEL
EMi3 M 5-2
EMi3 M 7.5-2
EMi3 M 10-2
EMi3 M 15-2
EMi3 M 20-2
EMI3 M 25-2
EMi3 M 30-2
POWER
DIMENSION
WEIGHT
5
7.5
10
15
20
25
30
540 x 328 x 500
540 x 328 x 500
540 x 328 x 500
839 x 450 x 620
839 x 450 x 620
839 x 450 x 620
839 x 450 x 620
45
59
60
115
119
196
209
(kVA / kW)
(D x W x H mm)
(Kg)
Nomenclature, dimensions and weights for models: Input 230 V 50 Hz / Output 230 V 50 Hz and input range +/-15%.
1. Slot for SICRES remote management or RS-232
interface.
2. RS-485 serial ports. MODBUS
communications protocol.
3. Programmable dry contact interface (x5).
4. Digital input.
Services
· Numerous maintenance and remote
maintenance options (SICRES).
@salicru_SA
www.linkedin.com/company/salicru
MODEL
EMi3 T 15-4
EMi3 T 20-4
EMi3 T 35-4
EMi3 T 55-4
EMi3 T 70-4
EMi3 T 90-4
EMi3 T 110-4
EMi3 T 140-4F
EMi3 T 175-4F
EMi3 T 220-4F
EMi3 T 275-4F
EMi3 T 330-4F
POWER
DIMENSION
WEIGHT
15
20
35
55
70
90
110
140
175
220
275
330
839 x 450 x 620
839 x 450 x 620
839 x 450 x 620
640 x 605 x 2110
640 x 605 x 2110
840 x 605 x 2110
840 x 605 x 2110
840 x 1605 x 2110
840 x 1605 x 2110
840 x 1605 x 2110
840 x 1605 x 2110
840 x 1605 x 2110
126
169
224
374
495
533
577
857
1159
1227
1298
1450
(kVA / kW)
(D x W x H mm)
(Kg)
Nomenclature, dimensions and weights for models:
- From 15 kVA to 110 kVA: Input 3x400 V 50 Hz / Output 3x400 V 50 Hz, input range +/-15% and common regulation. (Independent regulation per
phase available on request).
- From 140 kVA to 330 kVA: Input 3x400 V 50 Hz / Output 3x400 V 50 Hz, input range +/-15% and independent regulation per phase.
(*) Spain only (**) Rest of the world
902 48 24 00* +34 93 848 24 00** WWW.SALICRU.COM
AVDA. DE LA SERRA 100 · 08460 PALAUTORDERA (SPAIN) · FAX +34 93 848 11 51 · [email protected]
Information subject to change without notice.
