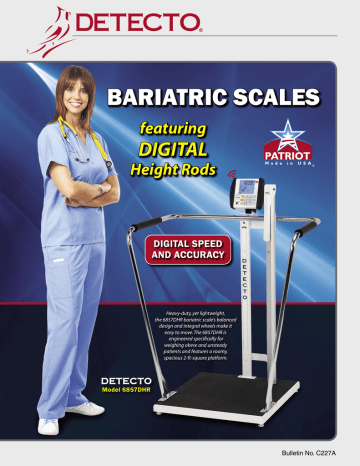

6857 6854DHR Bariatric Scale Bulletin

6857 6854DHR Bariatric Scale Bulletin
BARIATRIC SCALES
featuring
DIGITAL
Height Rods
PATRIOT
DIGITAL SPEED
AND ACCURACY
Heavy-duty, yet lightweight,
the 6857DHR bariatric scale’s balanced
design and integral wheels make it
easy to move. The 6857DHR is
engineered specifically for
weighing obese and unsteady
patients and features a roomy,
spacious 2-ft-square platform.
DETECTO
Model 6857DHR
Bulletin No. C227A
DETECTO DIGITAL BARIATRIC SCALES
-- WITH DIGITAL HEIGHT RODS -Optional
DIGITAL WEIGHT • HEIGHT • BMI
The 6857DHR and 6854DHR USA-made
bariatric scales are designed for optimum
performance and display weight, height,
and BMI simultaneously (shown below) by
simply raising the digital height rod while
a patient is being weighed on the scale.
There are no keys to push, no operational
sequences to memorize, it’s fully automatic. These bariatric scales are EMR-ready
with USB, serial, and optional Wi-Fi. The
ability to print or save weight data with
these scales is a real time-saving device
for clinics, doctor’s offices, long-term care
facilities, and other medical institutions.
VERSATILE CONNECTIVITY
Detecto's state-of-the-art MedVue® digital
weight indicator includes DB9 serial, USB,
and optional wired or Wi-Fi Ethernet output
for data transfer to a printer or PC-based
EMR (electronic medical record) software.
With the time/date feature, the scale can
send the weight, time, date, BMI (Body Mass
Index), and height directly to a printer or a
PC for record keeping. The 350-degree swivel
mounting bracket allows it to be positioned
wherever it's easiest for viewing.
► Digital measurement speed and accuracy
► Stainless steel handrails for assurance
► Integral wheels for quick and easy transport
► Height rod measures up to 6'7" / 200 cm
DETECTO DIGITAL BARIATRIC SCALE SPECIFICATIONS
6857DHR
6854DHR
1,000 lb x 0.2 lb /
450 kg x 0.1 kg
600 lb x 0.2 lb /
270 kg x 0.1 kg
24" x 24" / 61 cm x 61 cm
18" x 14" / 46 cm x 36 cm
85 lb / 39 kg
74 lb / 34 kg
43" / 110 cm 79" / 200 cm
same
POWER:
6 AA size alkaline
batteries (not included) or
optional AC adapter
same
DISPLAY:
Liquid Crystal, 0.875"/22
mm high weight readouts
same
Serial, USB,
and optional Wi-Fi
same
CAPACITIES:
PLATFORM SIZE:
SHIPPING
WEIGHT:
DIGITAL
HEIGHT ROD
MEASUREMENTS:
DETECTO
Model 6857DHR
CONNECTIVITY:
DETECTO
Model 6854DHR
Detecto Scale reserves the right to improve, enhance, or modify features and specifications without prior notice.
DETECTO
Sold By:
®
A Division of Cardinal Scale Manufacturing Co.
203 E. Daugherty, Webb City, MO 64870 USA
Ph: 417-673-4631 or 1-800-641-2008 Fax: 417-673-5001
www.Detecto.com
© Copyright 2013 Cardinal Scale Mfg. Co.
• Printed in USA • CAR/00/0613/C227A
