QuickSpecs HP ProBook 6455b Notebook PC HP ProBook 6555b Notebook PC Overview

QuickSpecs HP ProBook 6455b Notebook PC HP ProBook 6555b Notebook PC Overview
HP ProBook 6455b Notebook PC
HP ProBook 6555b Notebook PC
QuickSpecs
Overview

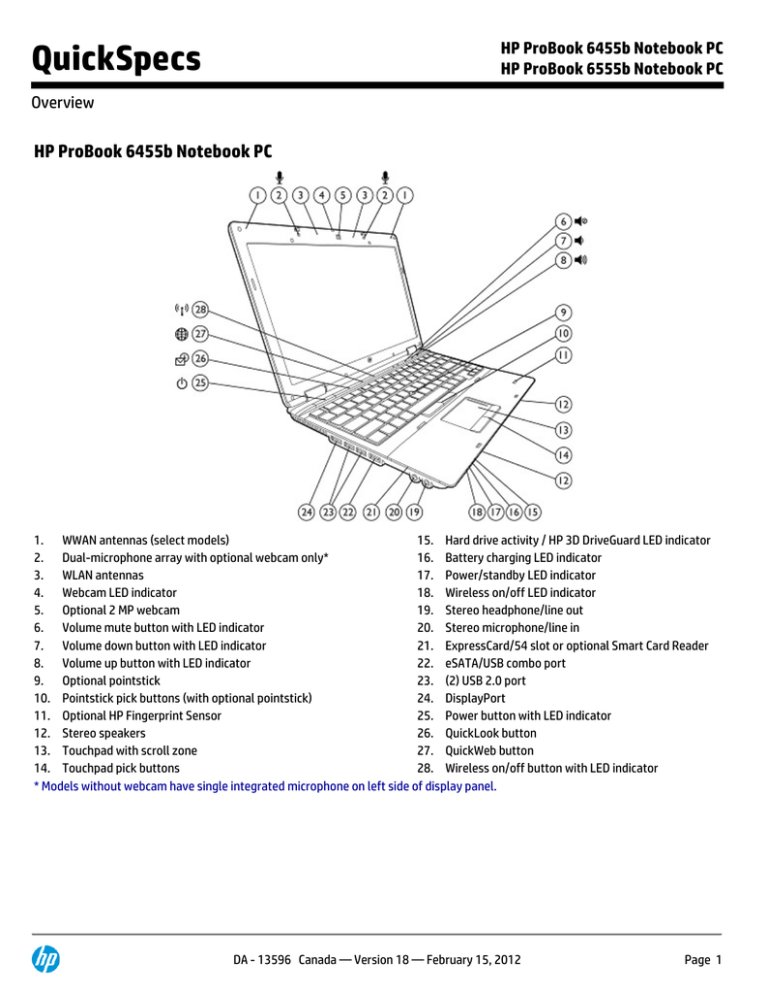

HP ProBook 6455b Notebook PC
1. WWAN antennas (select models)
15. Hard drive activity / HP 3D DriveGuard LED indicator
2. Dual-microphone array with optional webcam only*
16. Battery charging LED indicator
3. WLAN antennas
17. Power/standby LED indicator
4. Webcam LED indicator
18. Wireless on/off LED indicator
5. Optional 2 MP webcam
19. Stereo headphone/line out
6. Volume mute button with LED indicator
20. Stereo microphone/line in
7. Volume down button with LED indicator
21. ExpressCard/54 slot or optional Smart Card Reader
8. Volume up button with LED indicator
22. eSATA/USB combo port
9. Optional pointstick
23. (2) USB 2.0 port
10. Pointstick pick buttons (with optional pointstick)
24. DisplayPort
11. Optional HP Fingerprint Sensor
25. Power button with LED indicator
12. Stereo speakers
26. QuickLook button
13. Touchpad with scroll zone
27. QuickWeb button
14. Touchpad pick buttons
28. Wireless on/off button with LED indicator
* Models without webcam have single integrated microphone on left side of display panel.
DA - 13596 Canada — Version 18 — February 15, 2012
Page 1
HP ProBook 6455b Notebook PC
HP ProBook 6555b Notebook PC
QuickSpecs
Overview
1.
2.
3.
4.
5.
Upgrade Bay (optical drive or second hard drive)
(1) USB 2.0 port
Media Card Reader
1394a port
RJ-11/modem port
6.
7.
8.
9.
Lock slot
RJ-45/Ethernet port
VGA/external monitor connector
Power connector
1.
2.
3.
4.
5.
Battery bay
SIM slot for WWAN (select models) – inside battery bay
Battery release latch
Docking connector
Secondary battery connector
6.
7.
8.
9.
10.
Vents
Hard drive bay
Memory module compartment
WLAN/WWAN module compartment (select models)
Bluetooth module compartment
DA - 13596 Canada — Version 18 — February 15, 2012
Page 2
HP ProBook 6455b Notebook PC
HP ProBook 6555b Notebook PC
QuickSpecs
Overview
HP ProBook 6555b Notebook PC
1. WWAN antennas (select models)
16. Touchpad pick buttons
2. Dual-microphone array with optional webcam only*
17. Hard drive activity / HP 3D DriveGuard LED indicator
3. WLAN antennas
18. Battery charging LED indicator
4. Webcam LED indicator
19. Power/standby LED indicator
5. Optional 2 MP webcam
20. Wireless on/off LED indicator
6. Volume mute button with LED indicator
21. Stereo headphone/line out
7. Volume down button with LED indicator
22. Stereo microphone/line in
8. Volume up button with LED indicator
23. ExpressCard/54 slot or optional Smart Card Reader
9. Calculator button
24. eSATA/USB combo port
10. Separate numeric keypad
25. (2) USB 2.0 port
11. Optional pointstick
26. DisplayPort
12. Pointstick pick buttons (with optional pointstick)
27. Power button with LED indicator
13. Optional HP Fingerprint Sensor
28. QuickLook button
14. Stereo speakers
29. QuickWeb button
15. Touchpad with scroll zone
30. Wireless on/off button with LED indicator
* Models without webcam have single integrated microphone on left side of display panel.
DA - 13596 Canada — Version 18 — February 15, 2012
Page 3
HP ProBook 6455b Notebook PC
HP ProBook 6555b Notebook PC
QuickSpecs
Overview
1.
2.
3.
4.
5.
Upgrade Bay (optical drive or second hard drive)
(1) USB 2.0 port
Media Card Reader
1394a port
Serial port
6.
7.
8.
9.
10.
Lock slot
RJ-11/modem port
RJ-45/Ethernet port
VGA/external monitor connector
Power connector
1.
2.
3.
4.
5.
Battery bay
SIM slot for WWAN (select models) – inside battery bay
Battery release latch
Docking connector
Secondary battery connector
6.
7.
8.
9.
10.
Vents
Hard drive bay
Memory module compartment
WLAN/WWAN module compartment (select models)
Bluetooth module compartment
DA - 13596 Canada — Version 18 — February 15, 2012
Page 4
QuickSpecs
HP ProBook 6455b Notebook PC
HP ProBook 6555b Notebook PC
Overview
At A Glance
Genuine Windows 7 versions and Genuine Windows Vista versions available through downgrade rights from Windows 7, or
FreeDOS
New AMD architecture
ATI Mobility Radeon™ 4250 HD Graphics
AMD Phenom™ II Quad-Core, Triple-Core, or Dual-Core Mobile Processor, AMD Turion™ II Dual-Core Mobile Processor, or
AMD Athlon™ II Dual-Core Processor
Widescreen LED-backlit HD or HD+ display
HP ProBook 6455b: 14.0-inch diagonal
HP ProBook 6555b: 15.6-inch diagonal
Starting at 5.0 lb/2.26 kg (6455b) or 5.5 lb/2.51 kg (6555b)
Flexible wireless connectivity options:
Integrated HP un2420 EV-DO/HSPA Mobile Broadband Module provides worldwide Gobi mobile Internet technology with
GPS
Integrated Broadcom 802.11 a/b/g/n or b/g/n wireless LAN module
Bluetooth® v2.1+EDR
Touchpad with scroll zone; optional pointstick
Full-sized spill-resistant keyboard with drains; full separate numeric keypad on the HP ProBook 6555b
Touch-sensitive controls for HP QuickLook 3, HP QuickWeb, wireless on/off, mute, volume down, volume up; calculator button
on HP ProBook 6555b
Choice of 9-cell (93 WHr) or 6-cell (55 WHr and 47 WHr) primary battery, or HP Long Life 6-cell (51 WHr) battery
HP Long Life 3-cell (47 WHr) Battery available as after-market option
Optional external batteries: HP Ultra-Capacity Battery, HP Extended Life Battery
Optional integrated 2 MP Webcam with dual-microphone array
Choice of 7200 rpm user-removable hard drive up to 320 GB with HP 3D DriveGuard protection,
or 128 GB Solid State Drive
Upgrade Bay for optical drive or optional second hard drive
Media Card Reader
New eSATA/USB 2.0 combo port
Reliability with HP 3D DriveGuard, magnesium alloy support structure, HP DuraFinish, and spill-resistant keyboard with drains
Security features including HP ProtectTools with Central Management, Computrace LoJack Pro ready, HP SpareKey, HP Disk
Sanitizer, TPM 1.2;* optional Smart Card Reader (replaces ExpressCard slot), optional HP Fingerprint Sensor, and optional HP
Privacy Filter
HP Power Assistant allows you to conserve power, stretch battery run-time, accurately monitor your reported power need, and
report workforce power consumption.
HP QuickLook 3 for instant access to e-mail, calendar, and contacts; HP QuickWeb for fast access to the web
HP DayStarter displays your calendar and battery charge while Windows starts up
HP Support Assistant helps maintain your PC performance and resolve problems with automated updates and tune-ups,
onboard diagnostics, and guided assistance.
Options include HP Advanced Docking Station, HP Docking Station, HP USB 2.0 Docking Station, and HP Essential USB 2.0 Port
Replicator
BFR/PVC-free**, ENERGY STAR qualified and EPEAT Gold registered in the U.S. EPEAT status varies by country- please see
epeat.net.
* TPM module disabled where not permitted by law (for example, Russia and China).
** This notebook is brominated flame retardant and polyvinyl chloride-free (BFR/PVC-free) on notebooks that are non-WWAN; meeting
the evolving definition of 'BFR/PVC-free' as set forth in the "iNEMI Position Statement on the 'Definition of Low-Halogen' Electronics
(BFR/CFR/PVC-Free)'". Plastic parts contain < 1000 ppm (0.1%) of bromine [if the Br source is from BFRs] and < 1000 ppm (0.1%) of
chlorine [if the Cl source is from CFRs or PVC or PVC copolymers]. Power supply and power cords are not BFR/PVC-free. Service parts
DA - 13596 Canada — Version 18 — February 15, 2012
Page 5
HP ProBook 6455b Notebook PC
HP ProBook 6555b Notebook PC
QuickSpecs
Overview
after purchase may not be BFR/PVC-free.
DA - 13596 Canada — Version 18 — February 15, 2012
Page 6
HP ProBook 6455b Notebook PC
HP ProBook 6555b Notebook PC
QuickSpecs
Standard Features (availability may vary by country)
Processors
AMD Phenom II Quad-Core Mobile Processor N970 (2.2 GHz, 35W, 2 MB L2 cache)
AMD Phenom II Quad-Core Mobile Processor N950 (2.1 GHz, 35W, 2 MB L2 cache)
AMD Phenom II Quad-Core Mobile Processor N930 (2.0 GHz, 35W, 2 MB L2 cache)
AMD Phenom II Triple-Core Mobile Processor N870 (2.3 GHz, 35W, 1.5 MB L2 cache)
AMD Phenom II Triple-Core Mobile Processor N850 (2.2 GHz, 35W, 1.5 MB L2 cache)
AMD Phenom II Triple-Core Mobile Processor N830 (2.1 GHz, 35W, 1.5 MB L2 cache)
AMD Phenom II Dual-Core Mobile Processor N660 (3.0 GHz, 35W, 2 MB L2 cache)
AMD Phenom II Dual-Core Mobile Processor N640 (2.9 GHz, 35W, 2 MB L2 cache)
AMD Phenom II Dual-Core Mobile Processor N620 (2.8 GHz, 35W, 2 MB L2 cache)
AMD Turion II Dual-Core Mobile Processor N530 (2.5 GHz, 35W, 2 MB L2 cache)
AMD Turion II Dual-Core Mobile Processor P520 (2.3 GHz, 25W, 2 MB L2 cache)
AMD Athlon II Dual-Core Processor for Notebook PCs P360 (2.3 GHz, 25W, 1 MB L2 cache)
AMD Athlon II Dual-Core Processor for Notebook PCs P340 (2.2 GHz, 25W, 1 MB L2 cache)
AMD Athlon II Dual-Core Processor for Notebook PCs P320 (2.1 GHz, 25W, 1 MB L2 cache)
NOTE: Processor speed denotes maximum performance mode; processors will run at lower speeds in
battery optimization mode.
Operating System
Preinstalled
Supported
Certified
Genuine Windows 7 Professional Edition 32*
Genuine Windows 7 Professional Edition 64*
FreeDOS
Genuine Windows 7 Enterprise 32*
Genuine Windows 7 Enterprise 64*
Genuine Windows 7 Ultimate 32*
Genuine Windows 7 Ultimate 64*
Genuine Windows Vista Enterprise 32**
Genuine Windows Vista Enterprise 64**
SuSE Linux Enterprise Desktop 11
* System may require upgraded and/or separately purchased hardware and/or a DVD drive to install the
Windows 7 software and take full advantage of Windows 7 functionality. See
http://www.microsoft.com/windows/windows-7/ for details.
** Certain Windows Vista product features require advanced or additional hardware. See:
http://www.microsoft.com/windowsvista/getready/hardwarereqs.mspx and
http://www.microsoft.com/windowsvista/getready/capable.mspx for details. Windows Vista Upgrade
Advisor can help you determine which features of Windows Vista will run on your computer. To download
the tool, visit: http://www.windowsvista.com/upgradeadvisor.
Chipset
AMD M880G Chipset
Graphics
ATI Mobility Radeon HD 4250
Microsoft DirectX 10.1 capable
DA - 13596 Canada — Version 18 — February 15, 2012
Page 7
HP ProBook 6455b Notebook PC
HP ProBook 6555b Notebook PC
QuickSpecs
Standard Features (availability may vary by country)
Display
Internal
HP ProBook 6455b:
14.0-inch diagonal LED-backlit HD anti-glare (1366 x 768 resolution))
HP ProBook 6555b:
15.6-inch diagonal LED-backlit HD anti-glare (1366 x 768 resolution)
15.6-inch diagonal LED-backlit HD+ WVA anti-glare (1600 x 900 resolution)
HP Privacy Filter support
Up to 32-bit per pixel color depth
DisplayPort supports resolutions up to 2560 x 1600, 30-bit color depth at 60
Hz, and full HD (1920 x 1080) monitors, 24-bit color depth at 120 Hz
VGA port supports resolutions up to 2048 x 1536 at 75 Hz, and lower
resolutions at up to 100 Hz
DVI-D (single link) video signal available through DVI port in optional HP
Docking Station (sold separately)
supports resolutions up to 1600 x 1200 at both full and reduced
blanking, and 1920 x 1200 at reduced blanking
NOTE: Resolutions are dependent upon monitor capability, and resolution and
color depth settings.
External
Memory
Standard
DDR3 PC3-10600 SDRAM (1333 MHz)*
Two SODIMM slots supporting dual-channel memory
1024 MB, 2048 MB and 4096 MB SODIMMs
Upgradeable to 8192 MB with 4096 MB SODIMMs in slots 1 and 2
Maximum
Dual-channel
Maximized dual-channel performance requires SODIMMs of the same size and
speed in both memory slots.
* Memory speed is processor dependent.
NOTE: Due to the non-industry standard nature of some third-party memory modules, we recommend HP
branded memory to ensure compatibility. If you mix memory speeds, the system will perform at the lower
memory speed. Full availability of 4 GB or more of memory requires a Windows 64-bit operating system or
Linux. With Windows 32-bit operating systems, the amount of usable memory is dependent upon your
configuration, so that above 3 GB all memory may not be available due to system resource requirements.
Communications
Integrated Marvell Gigabit Ethernet PCI Controller (10/100/1000 NIC)*
56K V.92 modem**
* The term "10/100/1000" or "Gigabit" Ethernet indicates compliance with IEEE standard 802.3ab for
Gigabit Ethernet, and does not connote actual operating speed of 1 Gb/s. For high-speed transmission,
connection to a Gigabit Ethernet server and network infrastructure is required.
** Designed for downloads from 56K modem compliant sources. Maximum achievable download
transmission rates currently do not reach 56 KB/s, and will vary with line conditions. Modem availability is
subject to country regulatory approval.
DA - 13596 Canada — Version 18 — February 15, 2012
Page 8
HP ProBook 6455b Notebook PC
HP ProBook 6555b Notebook PC
QuickSpecs
Standard Features (availability may vary by country)
Wireless Devices
Keyboard
Support for a broad range of secure, integrated wireless LAN and wireless WAN options featuring support
for the latest industry standards. Broadband Wireless (WWAN) requires a Windows operating system and
is available in select countries as a standard, factory configurable feature only. Integrated Bluetooth is
also available (factory configurable only) and can be combined with any of the supported wireless LAN and
wireless WAN options.
HP un2420 EV-DO/HSPA Integrated mobile broadband module with Gobi global mobile Internet
Mobile Broadband Module technology that provides connectivity to both CDMA (EVDO) and UMTS (HSPA)
networks. It also provides GPS functionality for various mapping applications
and security applications such as Computrace LoJack Pro Premium for HP
ProtectTools.
NOTE: Separately purchased mobile network operator service is required.
Two 850/900/1575/1800/1900/2100 MHz antennas integrated in the top of
the display panel support current and future WWAN technologies.
All 802.11 integrated
Wi-Fi Certified*
Cisco Compatible Extensions support
wireless LAN options
Wired Equivalent Privacy (WEP) support up to 128-bit keys
Wi-Fi Protected Access (WPA) and WPA2 support
802.1x authentication support, including EAP-TLS, EAP-TTLS, PEAP-GTC,
PEAP-MSCHAPv2, and LEAP
Advanced Encryption Standard (AES) support
Dual antennas integrated in the display enclosure
Broadcom 4322AGN
Integrated support for 802.11 a, b, g, and n
Up to 300 mbps data rate
802.11a/b/g/n
WiFi Adapter
Broadcom 4313GN
802.11b/g/n
WiFi Adapter
Integrated support for 802.11 b, g, and n
Up to 72 mbps data rate
HP Integrated Module
with Bluetooth 2.1+EDR
Wireless Technology
Bluetooth Specification v2.1+EDR compliant
Works with a wide range of Bluetooth devices
The HP spill-resistant keyboard is designed using a thin layer of Mylar film under the keyboard and a drain
system that funnels fluid through a hole in the bottom of the notebook. This minimizes the risk of damage
to sensitive components underneath. The 101/102-key compatible keyboard features a full-pitch key
layout with desktop keyboard features, such as the isolated inverted-T cursor control keys, editing keys,
both left and right control and alt keys, 12 function keys, and 19.05 x 19.05 mm key pitch (center-tocenter spacing). U.S. and International key layouts are available. Other features include hotkeys for instant
access to power conservation and brightness. The HP ProBook 6555b Includes a separate numeric keypad.
Touch-sensitive controls Touch-sensitive controls provide easy access to the following features: HP QuickLook 3, HP QuickWeb,
wireless on/off, volume mute, volume up, volume down. The HP ProBook 6555b also features a calculator
button
DA - 13596 Canada — Version 18 — February 15, 2012
Page 9
HP ProBook 6455b Notebook PC
HP ProBook 6555b Notebook PC
QuickSpecs
Standard Features (availability may vary by country)
Pointing device
Touchpad with scroll zone, two pick buttons
Optional pointstick with two additional pointstick buttons
Expansion card slots
ExpressCard/54 slot
Supports ExpressCard/54 and ExpressCard/34
or
Optional Integrated
Compatible with ISO 7816 compliant Smart Cards
PC/SC interface support
Smart Card Reader
(replaces ExpressCard/54
slot)
Media Card Reader
Supports SD (Secure Digital), HC-SD (High Capacity Secure Digital), MultiMedia
Card, HS-MultiMedia Card (MultiMedia Card Plus), Sony Memory Stick, Sony
Memory Stick Pro, Memory Stick Duo*, Picture card
Additionally, the following cards are supported via passive adapters (sold
separately): Mini-Secure Digital (Mini-SD), Transflash (Micro-SD), Reduced size
Multimedia card (RS-MultiMedia Card), Reduced size Dual voltage Multimedia
card, MultiMedia Card Mobile Cards, MultiMedia Card Micro Cards, Memory
Stick Duo (MS Duo)*, Memory Stick Duo Pro (MS Duo Pro)*, Memory Stick M2
Micro
* Memory Stick Duo Adapters are required and sold separately. Inserting a Memory Stick Duo Card directly
into your notebook could damage the memory card and/or notebook.
Internal Storage
Hard drives
160/250/320 GB 7200 rpm SMART SATA II
320 GB 7200 rpm SMART SATA II Self Encrypting Drive
NOTE: These hard drives are customer removable and will withstand multiple insertion/removal cycles. Up
to 10 GB is reserved for the system recovery software.
HP 3D DriveGuard
The hard drive is mounted directly to the notebook frame, reducing the
transmission of shock to the hard drive. Uses three-axis digital motion
(Windows only)
detection with intelligent sensitivity to help protect the hard drive during
normal use from shock and vibration. The digital accelerometer temporarily
halts all data transfer and parks the hard drive when abrupt motion is
detected.
Solid State Drive
128 GB
Upgrade Bay
Fixed 12.7 mm SATA
optical drive
DVD+/-RW SuperMulti DL LightScribe Drive
DVD-ROM Drive
Weight saver
DA - 13596 Canada — Version 18 — February 15, 2012
Page 10
HP ProBook 6455b Notebook PC
HP ProBook 6555b Notebook PC
QuickSpecs
Standard Features (availability may vary by country)
Interfaces
Audio/Visual
ExpressCard/54 slot
One (or optional Smart Card Reader)
External monitor
Two – (1) DisplayPort, (1) VGA
1394a
One
Stereo microphone in
One
Stereo headphone/line
out
One
Power connector
One
RJ-11/modem
One
RJ-45/Ethernet
One
USB 2.0
Three
eSATA/USB 2.0 combo
One
Serial port
One (HP ProBook 6555b only)
Docking connector
One
Secondary battery
connector
One
HD audio (HP Premier Sound)
Integrated stereo speakers
Integrated microphone (dual-microphone array when equipped with optional 2 MP webcam)
Touch-sensitive controls for volume up, volume down, and mute
Stereo headphone/line out
Stereo microphone/line in
Optional 2 MP webcam
Supports videoconferencing and still image capture
Large image sensor for excellent colour matching and good low light sensitivity
Up to 30 frames/sec
Fixed focus lens
Video capture at VGA, 1.3 Mpixel, and 2 Mpixel resolutions
16-bit true colour (camera sensors output YCrCb format among others)
DA - 13596 Canada — Version 18 — February 15, 2012
Page 11
HP ProBook 6455b Notebook PC
HP ProBook 6555b Notebook PC
QuickSpecs
Standard Features (availability may vary by country)
Software
Preinstalled software
with Windows operating
system
Additional software
available from the web
HP Recovery Manager (available with Windows 7 or Vista only)
HP Support Assistant (available with Windows 7 or Vista only)
HP ProtectTools Security Manager
HP ProtectTools for Central Management
HP Quick Launch Buttons Software
HP QuickLook 3
HP QuickWeb
HP Power Assistant
HP Connection Manager 3.1
HP Wireless Assistant
HP DayStarter
Microsoft Office 2010 preloaded (purchase of a Product
Key required to activate a full Office 2010 suite)*
McAfee Total Protection*
PDF Complete Special Edition**
Intervideo WinDVD – DVD Player (select models)
Roxio Creator Business (select models)
HP Webcam Software (select models)
Skype
WinZip 14.5 trial
HP SoftPaq Download Manager
* Microsoft Office 2010 Preloaded includes reduced functionality versions of Word and Excel. Purchase of
Product Key required to activate full Office 2010 suite available at participating resellers/retailers and
http://www.office.com.
** 60 day trial period for McAfee Total Protection for Small Business software. Internet access required to
receive updates. First update included. Subscription required for updates thereafter.
*** 60 day trial; purchase license afterwards for full functionality
HP Recovery Manager
Models shipped with Windows 7 or Windows Vista include HP Recovery Manager. HP Recovery Manager
enables fast recovery of the factory preinstalled image if the system becomes corrupted or if important
system files are accidentally deleted. Up to 10 GB of the hard drive is reserved for the system recovery
software.
DA - 13596 Canada — Version 18 — February 15, 2012
Page 12
HP ProBook 6455b Notebook PC
HP ProBook 6555b Notebook PC
QuickSpecs
Standard Features (availability may vary by country)
Security
Standard Features
HP ProtectTools Security Manager
Enhanced Pre-Boot Security
HP SpareKey
One-Step Logon
Setup Password
TPM 1.2 Embedded Security Chip*
TPM Enhanced DriveLock*
HP Disk Sanitizer
Lock slot
Support for Computrace** LoJack Pro for HP ProtectTools
Optional Features
Smart Card Reader
Compatible with ISO 7816 compliant Smart Cards
(replaces ExpressCard/54 PC/SC interface support
slot)
HP Fingerprint Sensor
Enhanced sensor scans the fingerprint to uniquely
identify and authenticate a person.
HP Privacy Filter
Narrows viewing area so that screen data is
visible only to persons directly in front of the
monitor.
Computrace** LoJack Pro Subscription based security solution providing the
ability to track, initiate physical recovery, conduct
Premium for HP
asset management, and perform remote data
ProtectTools with GPS
delete by utilizing GPS technology. GPS
Tracking
functionality requires HP un2420 EV-DO/HSPA
Mobile Broadband Module.
* TPM module disabled where use is restricted by law; for example, Russia and China.
** The Computrace agent is shipped turned off, and must be activated by customers when they purchase a
subscription with terms ranging from one to five years.
For more information on HP security solutions refer to: http://www.hp.com/go/security.
HP ProtectTools Security HP ProtectTools Security Manager is the security platform for business notebooks and desktops. The HP
ProtectTools Security Manager is an extensible client security console that delivers enhanced security
Manager with Central
capabilities through add-on software modules. The following modules are available on the hard drive (also
Management
downloadable from the web) and can be configured in Software Setup:
Credential Manager for HP ProtectTools
Device Access Manager for HP ProtectTools
Drive Encryption for HP ProtectTools
File Sanitizer for HP ProtectTools
Privacy Manager for HP ProtectTools (Chat & Sign)
Embedded Security for HP ProtectTools
Computrace LoJack Pro for HP ProtectTools
HP ProtectTools is now centrally manageable with the capability to manage notebooks from a single
point. Security is management ready out of the box, in partnership with Digital Persona. New features
address requirements that customers expect from a centrally managed security solution such as user
provisioning, credential reset, and credential revocation.
HP ProtectTools provides two separate management solutions, targeted at the enterprise and the SMB:
DA - 13596 Canada — Version 18 — February 15, 2012
Page 13
HP ProBook 6455b Notebook PC
HP ProBook 6555b Notebook PC
QuickSpecs
Standard Features (availability may vary by country)
Digital Persona Pro AD: Designed for the enterprise customer. Integrates with Active Directory and
gives IT Managers the ability to provision users, create login policies based on passwords,
biometrics or smartcards. Management features also include remote credential recovery in case the
user forgets the password, loses the smartcard or cannot use the fingerprint reader for any reason.
In addition, advanced auditing capabilities are also built in. Digital Persona Pro AD is available now.
Digital Persona Pro Workgroup: Designed for the small business customer. Provides features
similar to the Active Directory version, but for workgroups. Workgroup activation is built into HP
ProtectTools, and activation of up to 5 seats is completely free.
Power Supply
External 90-watt Smart AC adapter, 6-foot (1.8 meter) power cord included.
Total length including external AC adapter is 12 feet (3.66 meter).
HP Fast Charge*
*HP Fast Charge recharges your battery up to 90% within 90 minutes when the system is off. HP Fast
Charge does not apply to the 9-cell primary battery, the 12-cell Ultra-Capacity batteries, or the HP Long
Life Battery.
Battery
Primary battery
Optional HP Long Life
Battery*
HP 9-cell (93 WHr) Li-Ion battery
HP 6-cell (55 WHr) Li-Ion battery
HP Long Life 6-cell (51 WHr) battery*
3-cell (47 WHr) Li-Ion battery
Optional HP Extended Life 8-cell (52 WHr) Li-Ion battery
Battery
Optional HP UltraCapacity Battery
12-cell (95 WHr) Li-Ion battery
* The 3-year limited warranty on the HP Long Life Battery is only available on platforms with a 3-year
system warranty. The HP Long Life Battery will carry a limited 1-year warranty on platforms with a 1-year
system warranty.
Battery Life
HP 9-cell (93 WHr) Primary
HP 6-cell (55 WHr) Primary
HP ProBook 6455b
Primary battery
Up to 9 hours
Primary battery and
Up to 14 hours and 30 minutes
optional HP Extended Life
Battery
Primary battery and
Up to 18 hours
optional HP Ultra-Capacity
Battery
HP ProBook 6555b
Up to 5 hours and 30 minutes
Up to 11 hours
Primary battery
Up to 8 hours
Primary battery and
Up to 11 hours 30 minutes
optional HP Extended Life
Battery
Up to 4 hours 30 minutes
Up to 9 hours
DA - 13596 Canada — Version 18 — February 15, 2012
Up to 15 hours
Page 14
HP ProBook 6455b Notebook PC
HP ProBook 6555b Notebook PC
QuickSpecs
Standard Features (availability may vary by country)
System Standby Time
Primary battery and
Up to 15 hours 45 minutes
optional HP Ultra-Capacity
Battery
Up to 1 week
Power Conservation
ATI PowerPlay technology
Hibernation
Standby
ACPI compliance
Docking and Stands
HP 90W Docking Station
HP 120W Advanced Docking Station
HP USB 2.0 Docking Station
HP Essential USB 2.0 Port Replicator
HP Dual Hinge Notebook Stand
HP Display & Notebook Stand
HP Adjustable Display Stand
HP Adjustable Dual Display Stand
Up to 13 hours 30 minutes
NOTE: Some HP Docking stations may not support every feature of some HP Notebook models. Please
refer to the individual docking station documentation for specific information about supported features.
Service and Support
HP Services offers limited 3-year, 1-year and 90-day warranty options depending on country. On-site
service and warranty upgrades are also available. HP Care Pack Services extend service contracts beyond
the standard warranties. To choose the right level of service for your HP product, use the HP Care Pack
Services Lookup Tool at: http://www.hp.com/go/lookuptool. Additional HP Care Pack Services information
by product is available at: http://www.hp.com/hps/carepack.
NOTE: Certain restrictions and exclusions apply. Consult the HP Customer Support Centre for details.
http://h20000.www2.hp.com/bizsupport/TechSupport/ProductRoot.jsp.
DA - 13596 Canada — Version 18 — February 15, 2012
Page 15
HP ProBook 6455b Notebook PC
HP ProBook 6555b Notebook PC
QuickSpecs
Options (availability may vary by country)
NOTE: Options/capabilities listed in the QuickSpecs represent those capabilities available through Base Units or Build to Order
configurations. The various product features and capabilities will vary in terms of configurable vs. aftermarket options (AMOs). There
may be options and capabilities available through CTO that are not available as AMOs.
Memory
HP 1 GB (DDR3 1333 MHz) SODIMM
AT911AA
HP 2 GB (DDR3 1333 MHz) SODIMM
AT912AA
HP 4 GB (DDR3 1333 MHz) SODIMM
AT913AA
Storage
HP Upgrade Bay SATA DVD+/-RW SuperMulti DL LightScribe Drive
HP 250 GB Pocket Media Drive
HP External USB Drive CD/DVD R/RW
HP Primary SATA 320 GB 7200 rpm Hard Drive
AK869AA
FE477AA
FS943AA
AS282AA
Expansion Solutions
HP 90W Docking Station
HP 120W Advanced Docking Station
HP USB 2.0 Docking Station
HP Essential USB 2.0 Port Replicator
HP Dual Hinge Notebook Stand
HP Display & Notebook Stand
HP Adjustable Display Stand
HP Adjustable Dual Display Stand
VB041AA
NZ222AA
FQ834AA
AQ731AA
AW661AA
AW662AA
AW663AA
AW664AA
Power
HP Smart 65W Travel AC Adapter
HP 90W Smart AC Adapter
HP 90W Smart Combo Adapter
HP Long Life 3-Cell Battery
HP 6-Cell Li-Ion Primary Battery
HP 9-Cell Li-Ion Primary Battery
HP Extended Life Battery
HP Ultra-Capacity Battery
AU155AA
ED495AA
AJ652AA
AU213AA
KU531AA
AT908AA
AJ359AA
AT486AA
DA - 13596 Canada — Version 18 — February 15, 2012
Page 16
HP ProBook 6455b Notebook PC
HP ProBook 6555b Notebook PC
QuickSpecs
Options (availability may vary by country)
Carrying Cases
HP Basic Carrying Case
HP Value Nylon Case
HP Universal Nylon Case
HP Professional Slim Top Load Case
HP Executive Leather Case
HP Deluxe Nylon Backpack
HP Deluxe Roller Case
HP Basic Backpack
HP Merlot Slipcase
HP Basic Messenger Carrying Case
AJ078AA
RR314AA
RR315AA
AY530AA
RR316AA
RR317AA
GD405AA
AM863AA
AU095AA
AP355AA
HP Professional Series Carrying Case
HP Professional Series Backpack
HP Professional Series Messenger
HP Professional Series Designer Tote
HP Professional Series Slip Case
HP Elite Series Designer Tote
HP Elite Series Quick Case
AT886AA
AT887AA
AT888AA
AT889AA
AT890AA
AT891AA
AT892AA
Security
HP Notebook Combination Lock
HP Docking Station Cable Lock
HP 14.0-inch Display Privacy Filter
HP 15.6-inch Display Privacy Filter
HP ExpressCard Smart Card Reader
AY475AA
AU656AA
AU100AA
AU103AA
AJ451AA
Input/Output Devices
HP PS/2 Keyboard & Mouse Bundle
HP USB Keyboard & Mouse Bundle
HP USB Optical Travel Mouse
HP USB/PS2 Optical 2-Button Scroll Mouse
HP Wireless Mouse
HP BT Headset
HP Mobile Audio Speakers
HP Mobile Productivity Bundle
HP Bluetooth ExpressCard Mouse
HP Migration Cable for Windows 7
HP Premium Autofocus Webcam
Premium Digital Headset
RC464AA
RC465AA
RH304AA
DC369A
AR085AA
AR084AA
FS944AA
AQ792AA
GK872AA
AY493AA
KQ245AA
KJ270AA
DA - 13596 Canada — Version 18 — February 15, 2012
Page 17
HP ProBook 6455b Notebook PC
HP ProBook 6555b Notebook PC
QuickSpecs
Options (availability may vary by country)
Miscellaneous
DisplayPort To DVI-D Adapter
Promo USB Graphics Adapter
External USB Modem
Belkin USB to Serial Adapter
Notebook Multi-Purpose Cleaning Kit
DA - 13596 Canada — Version 18 — February 15, 2012
FH973AA
NL571AT
GS023AA
EM449AA
BL528AA
Page 18
HP ProBook 6455b Notebook PC
HP ProBook 6555b Notebook PC
QuickSpecs
Memory
DDR3 PC3-10600 SDRAM (1333 MHz)*
Two SODIMM slots supporting dual-channel memory
SODIMM sizes supported: 1024 MB, 2048 MB and 4096 MB
Standard Memory
Optional Memory
Upgrades
Up to
2048 MB
3072 MB
4096 MB
4096 MB
8192 MB
1024 MB (1024 MB x 1)
2048 MB (1024 MB x 2)
2048 MB (2048 MB x 1)
3072 MB (2048 MB + 1024 MB)
4096 MB (2048 MB x 2)
4096 MB (4096 MB x 1)
Support for up to 8192 MB of memory with the installation of optional DDR3 SDRAM memory kits. Both
memory slots are user-accessible. Please refer to the Hardware and Software Guide for installation
procedures. Maximized dual-channel performance requires SODIMMs of the same size and speed in both
memory slots.
Slot 1
Slot 2
1024 MB
1024 MB
2048 MB
1024 MB
2048 MB
2048 MB
4096 MB
Empty
4096 MB
4096 MB
* Memory speed is processor dependent.
NOTE: This chart does not represent all possible memory configurations. Due to the non-industry standard
nature of some third-party memory modules, we strongly recommend using only HP- branded memory
modules to ensure compatibility. If you mix memory speeds, the system will perform at the lower memory
speed. Full availability of 4 GB or more of memory requires a Windows 64-bit operating system or Linux.
With Windows 32-bit operating systems, the amount of usable memory is dependent upon your
configuration, so that above 3 GB all memory may not be available due to system resource requirements.
Memory Upgrades
HP 1 GB (DDR3 1333 MHz) SODIMM
HP 2 GB (DDR3 1333 MHz) SODIMM
HP 4 GB (DDR3 1333 MHz) SODIMM
DA - 13596 Canada — Version 18 — February 15, 2012
AT911AA
AT912AA
AT913AA
Page 19
HP ProBook 6455b Notebook PC
HP ProBook 6555b Notebook PC
QuickSpecs
Storage
Upgrade Bay Drive Support
Quantity Supported
Drive Bay
One
One
One
Upgrade Bay
Upgrade Bay
Upgrade Bay
Quantity Supported
Drive Bay
320 GB 7200 rpm SMART SATA II Hard Drive
320 GB 7200 rpm SMART SATA II Self
Encrypting Hard Drive
250 GB 7200 rpm SMART SATA II Hard Drive
160 GB 7200 rpm SMART SATA II Hard Drive
Solid State Drive
One
One
Dedicated hard drive bay
Dedicated hard drive bay
One
One
Dedicated hard drive bay
Dedicated hard drive bay
128 GB Solid State Drive
One
Dedicated hard drive bay
DVD+/-RW SuperMulti DL LightScribe Drive
DVD-ROM Drive
Weight Saver
Internal Storage Device
Hard Drives
DA - 13596 Canada — Version 18 — February 15, 2012
Page 20
HP ProBook 6455b Notebook PC
HP ProBook 6555b Notebook PC
QuickSpecs
Technical Specifications
System Unit
Dimensions (HxWxD)
Weight
HP ProBook 6455b:
1.33 in (at front) x 13.35 in x 9.3 in
33.8 mm (at front) x 339 mm x 236.2 mm
HP ProBook 6555b:
1.37 in (at front) x 14.62 in x 9.76 in
34.8 mm (at front) x 371.4 mm x 248.0 mm
HP ProBook 6455b:
Starting at 5.0 lb (2.26 kg) with weight saver (no optical drive)
Starting at 5.31 lb (2.39 kg) with DVD-ROM drive
HP ProBook 6555b:
Starting at 5.5 lb (2.51 kg) with weight saver (no optical drive)
Starting at 5.81 lb (2.64 kg) with DVD-ROM drive
NOTE: Height varies depending upon where on the notebook the measurement is made. Weight varies by
configuration and components. Weight includes 6-cell battery and hard drive.
Stand-Alone Power
Nominal Operating Voltage 18.5 V
Requirements (AC Power) Average Operating Power 19.49 W
Max Operating Power
< 90 W
Temperature
Operating
32° to 95° F (0° to 35° C) (not writing optical)
41° to 95° F (5° to 35° C) (writing optical)
Non-operating
-4° to 140° F (-20° to 60° C)
Relative Humidity
Operating
10% to 90%, non-condensing
Non-operating
5% to 95%, 101.6° F (38.7° C) maximum wet bulb
temperature
Shock
Operating
125 G, 2 ms, half-sine
Non-operating
200 G, 2 ms, half-sine
Random Vibration
Operating
0.75 grms
Non-operating
1.50 grms
Altitude
Operating
–50 to 10,000 ft (–15.24 to 3,048 m)
(unpressurized)
Non-operating
–50 to 40,000 ft (–15.24 to 12,192 m)
Industry Standard
UL
Yes
Certifications
CSA
Yes
FCC Compliance
Yes
ENERGY STAR®
Select models*
EPEAT
Registered Gold in United States**
ICES
Yes
GS
Yes
Australia / NZ A-Tick
Yes
Compliance
CCC
Yes
Japan VCCI Compliance
Yes
KCC
Yes
DA - 13596 Canada — Version 18 — February 15, 2012
Page 21
HP ProBook 6455b Notebook PC
HP ProBook 6555b Notebook PC
QuickSpecs
Technical Specifications
BSMI
Yes
CE Marking Compliance
Yes
BNCI or BELUS
Yes
CIT
Yes
GOST
Yes
Saudi Arabian Compliance Yes
(ICCP)
SABS
Yes
UKRSERTCOMPUTER
Yes
* Configurations of the HP ProBook 6455b and HP ProBook 6555b that are ENERGY STAR qualified are
identified as HP ProBook 6455b ENERGY STAR and HP ProBook 6555b ENERGY STAR on HP websites and
on www.energystar.gov.
** EPEAT Registered Gold in U.S. EPEAT registration varies by country. See www.epeat.net for registration
status by country.
NOTE: For accessibility information on HP products, please visit: http://www.hp.com/accessibility.
HP 90W Smart AC Adapter Dimensions
5.00 x 1.97 x 1.1 in (12.7 x 5.0 x 2.9 cm)
Weight
0.82 lb (370 g)
Input
100 to 240 VAC
Input Efficiency
Input frequency range
Input AC current
Output
Connector
Environmental Design
EMI and Safety
Certifications
83% min at 115 VAC
47 to 63 Hz
1.5 A at 90 VAC, 0.75 A at 180 VAC PFC Version
2.4 A at 90 VAC, 1.2 A at 180 VAC NON PFC Version
Output power
90W
DC output
19.0V
Hold-up time
5 msec at 115 VAC input
Output current limit
<11A, Over voltage protection- 29V max
automatic shutdown
3 pin/grounded, mates with interchangeable cords
Operating temperature
32° to 104° F (0° to 40° C)
Non-operating (storage) –4° to 149° F (–20° to 65° C)
temperature
Altitude
0 to 10,000 ft (0 to 3,048 m)
Humidity
20% to 80%
Storage Humidity
10% to 90%
CE Mark – full compliance with LVD and EMC directives; Worldwide safety
standards – IEC60950, EN60950, UL60950, Class1, SELV; Agency approvals –
C-UL-US, NORDICS, DENAN, EN55022 Class B, FCC Class B, CISPR22 Class B,
CCC, NOM-1 NYCE; MTBF– over 200,000 hours at 25°C ambient condition.
DA - 13596 Canada — Version 18 — February 15, 2012
Page 22
HP ProBook 6455b Notebook PC
HP ProBook 6555b Notebook PC
QuickSpecs
Technical Specifications
NOTE: Unless otherwise noted, temperature limits listed in the following component specifications relate to the internal temperatures
of these components and not to the environment in which the PC is operating.
Optional HP UltraCapacity Battery
Dimensions (H x W x L)
1.3 x 6.0 x 10.6 in (3.33 x 15.25 x 26.88 cm)
Weight
1.77 lb (0.803 kg)
Cells/Type
12-cell Lithium-Ion
Energy
Watt-hour Capacity
Temperature
Operating (Charging)
Operating (Discharging)
Non-operating
Smart Adapter
System ON
Battery Re-Charge Time
Fuel Gauge
Optional HP Extended Life Dimensions (H x W x L)
Battery
Weight
95 WHr
32° to 113° F (0° to 45° C)
14° to 140° F (–10° to 60° C)
–4° to 140° F (–20° to 60° C)
3 to 4 hours
4 to 5 hours (depending on system power
consumption)
When pressed, LEDs light indicating level of charge remaining on battery
1.0 x 3.9 x 8.7 in (2.5 x 10.0 x 22.0 cm)
1.00 lb (0.455 kg)
Cells/Type
8-cell Lithium-Ion
Energy
Watt-hour Capacity
52 WHr
Temperature
Operating (Charging)
Operating (Discharging)
Non-operating
System in OFF mode or
Standby
System ON
32° to 113° F (0° to 45° C)
14° to 140° F (–10° to 60° C)
–4° to 140° F (–20° to 60° C)
3 hours
Battery Re-Charge Time
Fuel Gauge
3 to 5 hours (depending on system power
consumption)
HP Fast Charge Technology Charges the battery up to 90% within 90 minutes
when system is OFF
When pressed, LEDs light indicating level of charge remaining on battery
DA - 13596 Canada — Version 18 — February 15, 2012
Page 23
HP ProBook 6455b Notebook PC
HP ProBook 6555b Notebook PC
QuickSpecs
Technical Specifications
Optional HP Long Life 3cell 47 WHr Lithium-Ion
Battery
Dimensions (H x W x L)
0.8 x 2.1 x 8.0 in (2.0 x 5.3 x 20.4 cm)
Weight
0.71 lb (0.32 kg)
Cells/Type
3-cell Lithium-Ion
Energy
Watt-hour Capacity
47 WHr
Temperature
Operating (Charging)
Operating (Discharging)
Non-operating
System in OFF mode or
Standby
System ON
32° to 113° F (0° to 45° C)
14° to 140° F (–10° to 60° C)
–4° to 140° F (–20° to 60° C)
2.5 hours
Battery Re-Charge Time
3 to 5 hours (depending on system power
consumption)
HP Fast Charge Technology Charges the battery up to 90% within 90 minutes
when system is OFF
9-Cell (93 WHr) LithiumIon battery
Dimensions (H x W x L)
0.8 x 2.9 x 8.3 in (2.0 x 7.3 x 21.0 cm)
Weight
1.07 lb (0.488 kg)
Cells/Type
9-cell Lithium-Ion
Energy
Watt-hour Capacity
93 WHr
Temperature
Operating (Charging)
Operating (Discharging)
Non-operating
System in OFF mode or
Standby
System ON
32° to 113° F (0° to 45° C)
14° to 140° F (–10° to 60° C)
–4° to 140° F (–20° to 60° C)
3 to 4 hours
Battery Re-Charge Time
6-Cell (55 WHr) Lithiumon battery
4 to 6 hours (depending on system power
consumption)
Dimensions (H x W x L)
0.8 x 2.1 x 8.0 in (2.0 x 5.3 x 20.4 cm)
Weight
0.71 lb (0.32 kg)
Cells/Type
6-cell Lithium-Ion
Energy
Watt-hour Capacity
55 WHr
Temperature
Operating (Charging)
Operating (Discharging)
Non-operating
System in OFF mode or
Standby
System ON
32° to 113° F (0° to 45° C)
14° to 140° F (–10° to 60° C)
–4° to 140° F (–20° to 60° C)
2.5 hours
Battery Re-Charge Time
3 to 5 hours (depending on system power
consumption)
HP Fast Charge Technology Charges the battery up to 90% within 90 minutes
when system is OFF
DA - 13596 Canada — Version 18 — February 15, 2012
Page 24
HP ProBook 6455b Notebook PC
HP ProBook 6555b Notebook PC
QuickSpecs
Technical Specifications
HP Long Life 6-cell 51 WHr Dimensions (H x W x L)
Lithium-Ion Primary
Weight
battery
Cells/Type
0.8 x 2.1 x 8.0 in (2.0 x 5.3 x 20.3 cm)
0.73 lb (0.331 kg)
6-cell Lithium-Ion
Energy
Watt-hour Capacity
51 WHr
Temperature
Operating (Charging)
Operating (Discharging)
Non-operating
System in OFF mode or
Standby
System ON
32° to 113° F (0° to 45° C)
14° to 140° F (–10° to 60° C)
–4° to 140° F (–20° to 60° C)
2.5 hours
Battery Re-Charge Time
3 to 5 hours (depending on system power
consumption)
Displays
14.0-inch LED HD (1366 x Active Area (W x H)
768)
Diagonal Size
anti-glare
Surface Treatment
12.74 x 7.56 in (32.4 x 19.2 cm)
14.0 in (35.6cm)
Anti-glare
Contrast Ratio
300:1 (typical)
Refresh Rate
60 Hz
Brightness
200 nit (typical)
Pixel Resolution
Pitch
0.227 mm
Format
1366 x 768
Configuration
RGB Stripe
Backlight
LED
PPI
112 ppi
Viewing Angle
±30° Horizontal, ±10° Vertical (minimum)
30/30/20/10 (Left/Right/Down/Up) (minimum) or
45/45/35/25 (Left/Right/Down/Up) (typical)
DA - 13596 Canada — Version 18 — February 15, 2012
Page 25
HP ProBook 6455b Notebook PC
HP ProBook 6555b Notebook PC
QuickSpecs
Technical Specifications
15.6-inch LED HD (1366 x Active Area (W x H)
768)
Diagonal Size
anti-glare
Surface Treatment
15.6-inch LED HD+ WVA
(1600 x 900)
anti-glare
13.54 x 7.59 in (34.4 x 19.4 cm)
15.6 in (39.6cm)
Anti-glare
Contrast Ratio
300:1 (typical)
Refresh Rate
60 Hz
Brightness
200 nit (typical)
Pixel Resolution
Pitch
0.252 mm
Format
1366 x 768
Configuration
RGB Stripe
Backlight
LED
PPI
100 ppi
Viewing Angle
±30° Horizontal, ±10° Vertical (minimum)
30/30/20/10 (Left/Right/Down/Up) (minimum) or
45/45/35/25 (Left/Right/Down/Up) (typical)
Active Area (W x H)
13.54 x 7.59 in (34.4 x 19.4 cm)
Diagonal Size
15.6 in (39.6 cm)
Surface Treatment
Anti-glare
Contrast Ratio
300:1 (typical)
Refresh Rate
60 Hz
Brightness
200 nit (typical)
Pixel Resolution
Pitch
0.215 mm
Format
1600 x 900
Configuration
RGB Stripe
Backlight
LED
PPI
118 ppi
Viewing Angle
±60° Horizontal, ± 50° Vertical (minimum) or
±70° Horizontal, ±60° Vertical (typical)
Internal Storage
DA - 13596 Canada — Version 18 — February 15, 2012
Page 26
HP ProBook 6455b Notebook PC
HP ProBook 6555b Notebook PC
QuickSpecs
Technical Specifications
320 GB 7200 rpm SATA
Hard Drive
250 GB 7200 rpm SATA
Hard Drive
Drive Weight
0.25 lbs (115 g)
Capacity
320 GB
Height
0.37 in (9.5 mm) or on some models 0.28 in (7 mm)
Width
2.75 in (70 mm)
Interface
ATA-8, SATA 2.6, 3.0 Gb/s, NCQ
Transfer Rate
Synchronous (maximum) 100 MB/s (Drive Capability)
Seek Time
(typical reads, including
settling)
Single Track
1.5 ms
Average
11 ms
Maximum
22 ms
Rotational Speed
7200 rpm
Logical Blocks
625,142,448
Operating Temperature
32° to 140° F (0° to 60° C) [case temp]
Features
ATA Security
Drive Weight
0.25 lbs (115g)
Capacity
250 GB
Height
0.37 in (9.5 mm) or on some models 0.28 in (7 mm)
Width
2.75 in (70 mm)
Interface
ATA-8, SATA 2.6, 3.0 Gb/s, NCQ
Transfer Rate
Synchronous (maximum) 100 MB/s (Drive Capability)
Seek Time
(typical reads, including
settling)
Single Track
1.5 ms
Average
11 ms
Maximum
22 ms
Rotational Speed
7200 rpm
Logical Blocks
488,397,168
Operating Temperature
32° to 140° F (0° to 60° C) [case temp]
Features
ATA Security
DA - 13596 Canada — Version 18 — February 15, 2012
Page 27
HP ProBook 6455b Notebook PC
HP ProBook 6555b Notebook PC
QuickSpecs
Technical Specifications
160 GB 7200 rpm SATA
Hard Drive
Drive Weight
0.25 lb (115 g)
Capacity
160 GB
Height
0.37 in (9.5 mm)
Width
2.75 in (70 mm)
Interface
ATA-8, SATA 2.6, 3.0 Gb/s, NCQ
Transfer Rate
Synchronous (maximum) 100 MB/s (Drive Capability)
Seek Time
(typical reads, including
settling)
Single Track
1.5 ms
Average
11 ms
Maximum
22 ms
Rotational Speed
7200 rpm
Logical Blocks
312,581,808
Operating Temperature
32° to 140° F (0° to 60° C) [case temp]
Features
ATA Security
128 GB
Weight
2.5-inch SATA Solid State Capacity
Drive
Height
80.1 Grams
128 GB
0.37 in (9.5 mm)
Width
2.75 in (70 mm)
Interface
SATA
Performance
Maximum Sequential
Read
Maximum Sequential Write
220 MB/s
250,069,680
200 MB/s
Logical Blocks
Operating Temperature
32° to 158°F (0° to 70°C) [case temp]
Features
ATA Security; ATA-7 ;SATA 2.6; DIPM
DA - 13596 Canada — Version 18 — February 15, 2012
Page 28
HP ProBook 6455b Notebook PC
HP ProBook 6555b Notebook PC
QuickSpecs
Technical Specifications
DVD-ROM Drive
Access Times
Random
Max Data Transfer Rate
Transfer Mode
24X CD-ROM
8X-DVD
UDMA Mode 5
Interface
Gen 1 SATA
Supported Media (read)
CD-DA, CD+(E)G, CD-MIDI, CD-TEXT, CD-ROM, CD-ROM XA, MIXED MODE CD,
CD-I, CD-I Bridge (Photo-CD, Video CD), Multisession CD (Photo-CD, CD-EXTRA,
Portfolio, CD-R, CD-RW), CD-R, CD-RW, DVD-ROM (DVD-5, DVD-9, DVD-10,
DVD-18), DVD-R, DVD-RW, DVD+R, DVD+RW, DVD-RAM
None
Supported Media (write)
< 110 ms CD (typical)
< 110 ms DVD (typical)
Up to 3,600 KB/s
Up to 10,800 KB/s
Max Media Capacity (read) 8.5 GB
Transport
DVD+/-RW SuperMulti DL Access Times
LightScribe Drive
Max Data Transfer Rate
Tray Loading
Random
< 150ms CD (typical)
< 160 ms DVD (typical)
Up to 3,600 KB/s
Up to 10,800 KB/s
Up to 3,600 KB/s
Up to 2,400 KB/s
Up to 10,800 KB/s
Up to 10,800 KB/s
Up to 10,800 KB/s
Up to 8100KB/s
Up to 5,400 KB/s
Up to 5,400 KB/s
Up to 6,750 KB/s
Transfer Mode
24X CD-ROM
8X DVD
24X CD-R
16X CD-RW
8X DVD+R
8X DVD+RW
8X DVD-R
6X DVD-RW
4X - DVD+R Dual Layer
4X - DVD-R Dual Layer
5X DVD-RAM
UDMA Mode 5
Interface
Gen 1 SATA
Supported Media (read)
CD-DA, CD+(E)G, CD-MIDI, CD-TEXT, CD-ROM, CD-ROM XA, MIXED MODE CD,
CD-I, CD-I Bridge (Photo-CD, Video CD), Multisession CD (Photo-CD, CD-EXTRA,
Portfolio, CD-R, CD-RW), CD-R, CD-RW, DVD-ROM (DVD-5, DVD-9, DVD-10,
DVD-18), DVD-R, DVD-RW, DVD+R, DVD+RW, DVD-RAM
CD-R, CD-RW, DVD+R, DVD+RW, DVD-R, DVD-RW, DVD-RAM, LightScribe
Supported Media (write)
Max Media Capacity (read) 8.5 GB
Max Media Capacity
(write)
Transport
8.5 GB
Tray Loading
DA - 13596 Canada — Version 18 — February 15, 2012
Page 29
HP ProBook 6455b Notebook PC
HP ProBook 6555b Notebook PC
QuickSpecs
Technical Specifications
Audio
Hardware
Implementation
IDT 92HD75B High Definition CODEC
Touch-Sensitive Volume Volume up, volume down, and mute
Controls
Audio Output Quality
Full Duplex
Yes
Microphone In
Stereo
Headphone/Line Out
Stereo
Integrated Microphone
Yes, one microphone on configurations without optional webcam; dualmicrophone array when equipped with optional webcam
Frequency Response
20 Hz – 20 kHz
Signal to Noise Ratio
>85 dB
Total Harmonic Distortion 0.01%
Integrated Stereo
Speakers
Noise Floor
–110 dB
Play/Record Sampling
Rate(s)
8 kHz – 48kHz
DAC
16, 20 or 24-bit
ADC
16 or 20-bit
Power Rating
2 Watts
Impedance
4 Ohms
Security
HP Fingerprint Sensor
(optional)
Mobile Voltage Operation 3.0V-3.6V Single Supply
Operating Temperature
32° - 158°F (0° - 70°C)
Current Consumption @
3.3V
Less than 70 mA peak imaging and scrolling
Less than 25 mA hardware finger detection
Advanced Power Management
High-Rate Image Capture Up to 240 image frames /sec
ESD Resistance
IEC 61000-4-2 Level 4 (±15KV)
Detection Matrix
192 x 16 Pixels
9.7 mm x 0.81 mm
500 ppi High-Resolution Images
Communications
DA - 13596 Canada — Version 18 — February 15, 2012
Page 30
HP ProBook 6455b Notebook PC
HP ProBook 6555b Notebook PC
QuickSpecs
Technical Specifications
Integrated Marvell
10/100/1000 NIC
Ethernet Features
Power Management
Performance Features
Manageability
10 Mbit/s operation (10BASE-T; IEEE 802.3i; IEEE 802.3 clauses 13-14)
100 Mbit/s operation (100BASE-TX; IEEE 802.3u; IEEE 802.3 clauses 21-30)
1000 Mbit/s operation (1000BASE-T; IEEE 802.3z and 802.3ab; IEEE 802.3
clauses 34-42)
Auto-Negotiation (Automatic Speed Selection)
Full Duplex Operation at all Speeds, Half Duplex operation at 10 and 100
Mbit/s
IEEE 802.1p QoS (Quality of Service) Support
IEEE 802.3x Flow Control (IEEE 802.3 clauses 31-32; configurable)
ACPI compliant – multiple power modes
Situation-sensitive features reduce power consumption
TCP/IP/UDP Checksum Offload (configurable)
Interface
Wake-on-LAN from standby and hibernation (Magic Packet and Microsoft
Wake-Up Frame); Wake-on-LAN from off (Magic Packet only)
PXE 2.1 Remote Boot
Statistics Gathering (SNMP MIB II, Ethernet-like MIB, Ethernet MIB (802.3x,
clause 30))
Comprehensive diagnostic and configuration software suite
PCI Express x1
NIC Device Driver Name
Marvell Yukon 88E8072 PCI-E Gigabit Ethernet Controller
V.92 56K Data/Fax Modem Form Factor
MDC 1.5 Daughtercard
Power Management
Support
APM Revision 1.2, ACPI
Approvals/
Certifications
UL, CSA, NEMKO, CCIB, Industry Canada, FCC Part 68, CTR21, FCC Part 15 Class
B, Canadian ICES-003 Class B, C.I.S.P.R.22, Australian ACA, CE Mark, Other
Countries
V.92 data
V.8bis
V.80
V44, V.42bis, MNP5 (Compression)
V.42 (LAPM, MNP2-4) (Error Correction)
Optional symbol rates:
2800, 3429
Asymmetric Symbol rates
Synchronous primary channel data signaling rates:
3600, 31200
Automatic rate re-negotiation
V.34
V.32bis
V.32
V.23
V.22bis
V.22
V.21
Bell 212A
Data Mode Capabilities
DA - 13596 Canada — Version 18 — February 15, 2012
Page 31
HP ProBook 6455b Notebook PC
HP ProBook 6555b Notebook PC
QuickSpecs
Technical Specifications
Fax Mode Capabilities
Command Set
HP un2420
EV-DO/HSPA Mobile
Broadband Module
Technology/Operating
Bands
Wireless Protocol
Standards
Wireless Parametric
Standards
Maximum Data Rates
Bell 103J
TIA/EIA-578-B (Class 1)
T.30, T.4 (Group 3)
V.17
V.29
V.27ter
V.21 Channel 2
V.250 (Partial)
TIA-602
Identification: +GMI, +GMM, +GMR
Port control: +IPR, +ICF, +IFC, +ILRR
Modulation: +MS, +MR, +MA
Error control: +ES, +ER, +EB, +ESR, +ETBM
Data compression: +DS, +DR
V.251
GSM/GPRS/EDGE: 850MHz(Cell), 900MHz(EGSM), 1800MHz(DCS), 1900MHz
(PCS)
UMTS/WCDMA with receive diversity: 2100MHz (UTRA FDD Band I), 1900MHz
(UTRA FDD Band II), 900MHz (UTRA FDD Band VIII), 850MHz (UTRA FDD Band V)
1xEVDO/1xRTT with receive diversity: 850MHz (Band Class0-Cell), 1900MHz
(Band Class1-PCS)
GSM/GPRS/EDGE: Class B, Multi-slot operation, coding schemes CS1 – CS4 and
MSC1 – MSC9.
UMTS/WCDMA: Release 99 and Release 6
CDMA: 1xEVDO Release 0 and Release A, IS-95A, IS-95B, IS-2000
Meets or exceeds TIA/EIA IS-98-D
GPS
UMTS (HSPA) – 7.2 Mbps (Download ), 2.0 Mbps (Upload)
CDMA (EVDO Release A) – 3.1 Mbps (Download), 1.8 Mbps (Upload)
Standalone GPS enabled
GPS Bands
L1 – 1575.42 MHz
Maximum Output Power
GSM/GPRS/EDGE: 32dBm (+/-1)
WCDMA: 24dBm (+/-1)
CDMA: 24dBm (+/-1)
2500mA (peak); 1000mA (average)
Maximum Power
Consumption
Power Consumption,
Sleep Mode
5 mA
Power Management
Form Factor
USB selective suspend
Integrated notebook wireless button
Dual high efficiency 5 band antennae with spatial diversity, mounted in the
display enclosure
PCI-Express MiniCard, USB 2.0 interface
Weight
11.5 g
Antenna Type
DA - 13596 Canada — Version 18 — February 15, 2012
Page 32
HP ProBook 6455b Notebook PC
HP ProBook 6555b Notebook PC
QuickSpecs
Technical Specifications
Broadcom 4322AGN
802.11a/b/g/n
WiFi Adapter
Dimensions (Length x
Width x Thickness)
Voltage, Operating
2.01 x 1.18 x 0.18 in (51 x 30 x 5 mm)
Temperature, Operating
(from TIA/EIA/IS-98-D)
Temperature, Nonoperating, 96 hours (from
MIL-STD 202 Method 108)
Humidity, Non-operating
–22° to 140° F (–30° to 60° C) (full RF performance)
–22° to 167° F (–30° to 75° C) (reduced RF performance)
Configuration Utilities
HP Connection Manager
LED Activity
LED Off – Radio Off;
Solid LED On – Radio On
Wireless LAN Standards
IEEE 802.11a
IEEE 802.11b
IEEE 802.11g
IEEE 802.11n
Wi-Fi certified (802.11abg only)
Cisco Compatible Extensions Program compliant (802.11abg only) with
Microsoft Windows Vista and XP
2.4 GHz and 5 GHz
Interoperability
Frequency Band
Data Rates
Frequency Support
Modulation
Security1
3.3v +/- 10%
–40° to 185° F (–40° to 85° C)
85% relative humidity for 48 hours @ 185° F (85° C) (non-condensing)
802.11b: 1, 2, 5.5, 11 Mbps
802.11a/g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11n: 6, 6.5, 9, 12, 13, 13.5, 18, 19.5, 24, 26, 27, 36, 39, 40.5, 48, 52, 54,
58.5, 65, 78, 81, 104, 108, 117, 121.5, 130, 135, 162, 216, 243, 270, 300 Mbps
20 MHz: 2.4 GHz and 5 GHz bands
40 MHz: 2.4 GHz and 5 GHz bands
Direct Sequence Spread Spectrum
DBPSK, DQPSK, CCK, OFDM, BPSK, QPSK, 16-QAM, 64-QAM
Supports 64- and 128-bit WEP, WPA, WPA2, hardware-accelerated AES,
802.1x authentication types EAP-TLS, EAP-TTLS, PEAP-GTC, PEAP-MSCHAPv2,
LEAP, EAP-FAST.
Media Access Protocol
Support for Cisco Security Features (proven compatibility with Cisco Aironet
infrastructure products through the Cisco Compatible Extensions Program
Version 4) with Microsoft Windows Vista and XP only.
Multinational support with frequency bands and channels compliant to local
regulations.
CSMA/CA (Collision Avoidance) with ACK
Network Architecture
Models
Ad-hoc (Peer to Peer)
Infrastructure (Access Point Required)
Roaming
IEEE 802.11 compliant roaming between access points
Output Power (for CCK)2
17 dBm
Sub-channels
DA - 13596 Canada — Version 18 — February 15, 2012
Page 33
HP ProBook 6455b Notebook PC
HP ProBook 6555b Notebook PC
QuickSpecs
Technical Specifications
Output Power (for OFDM; 15 dBm
power varies by data rate)2
Power Consumption
Idle associated: 250 mW
Idle unassociated: 150 mW
Transmit/Receive 20 MHz channel: 2.0 W (max)
Transmit/Receive 40 MHz channel: 2.0 W (max)
Power Management
ACPI compliant power management
802.11 compliant power saving mode
3
Receiver Sensitivity
270 Mbps: -61dBm, , 54 Mbps: -72 dBm, 11 Mbps: -85 dBm , 1 Mbps: -92 dBm
Antenna type
High efficiency dual band antenna with spatial diversity, mounted in the
display enclosure
Form Factor
PCI-Express Half-MiniCard
Weight
0.013 lb (6 g)
Dimensions
0.19 x 1.06 x 1.18 in (4.75 x 26.8 x 30 mm)
Operating Voltage
3.3v +/- 10%
Temperature
Operating
14° to 149° F (–10° to 65° C)
Non-operating
–40° to 176° F (–40° to 80° C)
Operating
10% to 90% (non-condensing)
Non-operating
5% to 95% (non-condensing)
Operating
0 to 10,000 ft (3,048 m)
Non-operating
0 to 50,000 ft (15,240 m)
Microsoft Windows XP
Choice of Configuration Utility:
Humidity
Altitude
Configuration Utility4
Microsoft Windows XP Wireless Network Connection Manager
Broadcom Wireless Configuration Utility (required for Cisco Compatible
Extensions support)
Microsoft Windows Vista
LED Activity
Microsoft Windows Vista Wireless Network Connection Manager
Broadcom IHV extensions for Windows Vista available to support Cisco
Compatible Extensions.
LED Off – Radio OFF; Solid LED On – Radio ON
1. Check latest software/driver release for updates on supported security features.
2. Maximum output power may vary by country according to local regulations.
3. Receiver sensitivity is measured at a packet error rate of 8% for 802.11b (CCK modulation) and a
packet error rate of 10% for 802.11a/g (OFDM modulation).
4. WLAN supplier's client utility is required for Cisco Compatible Extensions support with Microsoft
Windows XP. WLAN may also be compatible with certain third-party software supplicants. WLAN
supplier IHV extensions required for Cisco Compatible Extensions support for Microsoft Windows
Vista.
Broadcom 4313GN
802.11b/g/n
WiFi Adapter
Wireless LAN Standards
IEEE 802.11b
IEEE 802.11g
IEEE 802.11n
DA - 13596 Canada — Version 18 — February 15, 2012
Page 34
HP ProBook 6455b Notebook PC
HP ProBook 6555b Notebook PC
QuickSpecs
Technical Specifications
WiFi Adapter
Interoperability
Frequency Band
Data Rates
Frequency Support
Wi-Fi certified
Cisco Compatible Extensions Program compliant with Microsoft Win7, Vista
and XP (details at: http://www.hp.com/go/notebooks/WLAN)
2.4 GHz
802.11b: 1, 2, 5.5, 11 Mbps
802.11g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11n: 6.5, 7.2, 13, 14.4, 19.5, 21.7, 26, 28.9, 39, 43.3, 52, 57.8, 58.5, 65,
72.2Mbps
20 MHz: 2.4 GHz bands
Modulation
Direct Sequence Spread Spectrum
DBPSK, DQPSK, CCK, OFDM, BPSK, QPSK, 16-QAM, 64-QAM
Security1
Supports 64- and 128-bit WEP, WPA, WPA2, hardware-accelerated AES,
802.1x authentication types EAP-TLS, EAP-TTLS, PEAP-GTC, PEAP-MSCHAPv2,
LEAP, EAP-FAST.
Media Access Protocol
Support for Cisco Security Features (proven compatibility with Cisco Aironet
infrastructure products through the Cisco Compatible Extensions Program
Version 4) with Microsoft Windows Vista and XP only.
Multinational support with frequency bands and channels compliant to local
regulations.
CSMA/CA (Collision Avoidance) with ACK
Network Architecture
Models
Ad-hoc (Peer to Peer)
Infrastructure (Access Point Required)
Roaming
IEEE 802.11 compliant roaming between access points
Output Power (for CCK)2
17 dBm , nominal
Sub-channels
Output Power (for OFDM; 15 dBm , nominal
power varies by data rate)2
Power Consumption
Idle associated: 250 mW avg (CLKREQ enabled)
Idle unassociated: 425 mW avg
Transmit/Receive 20 MHz channel: 5.5 W (max)
Power Management
ACPI compliant power management
802.11 compliant power saving mode
Receiver Sensitivity3
72.2 Mbps: -71dBm
Antenna type
Form Factor
High efficiency dual band antenna with spatial diversity, usually mounted in
the display enclosure
PCI-Express Half-MiniCard
Weight
0.013 lb (6 g)
Dimensions
0.19 x 1.06 x 1.18 in (4.75 x 26.8 x 30 mm)
Operating Voltage
3.3v +/- 10%
Temperature
Operating
Non-operating
Operating
Non-operating
Operating
Non-operating
Humidity
Altitude
14° to 149° F (-10° to 65° C)
-40° to 176° F (-40° to 80° C)
10% to 90% (non-condensing)
5% to 95% (non-condensing)
0 to 10,000 ft (3,048 m)
0 to 50,000 ft (15,240 m)
DA - 13596 Canada — Version 18 — February 15, 2012
Page 35
HP ProBook 6455b Notebook PC
HP ProBook 6555b Notebook PC
QuickSpecs
Technical Specifications
LED Activity
LED Off - Radio OFF; Solid LED On - Radio ON
1. Check latest software/driver release for updates on supported security features.
2. Maximum output power may vary by country according to local regulations.
3. Receiver sensitivity is measured at a packet error rate of 8% for 802.11b (CCK modulation) and a
packet error rate of 10% for 802.11a/g (OFDM modulation).
4. WLAN supplier's client utility is required for Cisco Compatible Extensions support with Microsoft
Windows XP. WLAN may also be compatible with certain third-party software supplicants. WLAN
supplier IHV extensions required for Cisco Compatible Extensions support for Microsoft Windows
Vista and Win7.
HP Integrated Module
with Bluetooth 2.1+EDR
Wireless Technology
Bluetooth Specification
2.1+EDR Compliant
Dimensions
1.18 x 0.26 x 0.13 in (30 x 6.5 x 3.25 mm)
Frequency Band
2402 to 2480 MHz
Number of Available
Channels
79 (1 MHz) available channels
Data Rates and
Throughput
Transmit Power
3 Mbps data rate; throughput up to 2.17 Mbps
Synchronous Connection Oriented links up to 3, 64 kbps, voice channels
Asynchronous Connection Less links 2178.1 kbps/177.1 kbps asymmetric or
1306.9 kbps symmetric
-6 dBm to 4 dBm (Bluetooth Class II)
Receiver Sensitivity
Better than -80 dBM at 0.1 % raw bit error rate
Power Consumption
Antenna
Peak (Tx) 264 mW
Peak (Rx) 231 mW
Sleep <1 mW
Internally integrated within module
Range
Up 33 ft (10 m)
Electrical Interface
Link Topology
USB 2.0 compliant
Microsoft Windows Plug and Play compliant
Broadcom Bluetooth for Windows
Microsoft Windows Bluetooth Software
Point to Point, Multipoint Pico Nets up to 7 slaves
Security
Full support of Bluetooth Security Provisions
Power Management
Microsoft Windows ACPI, and USB Bus Support
Self configurable to optimize power conservation in all operating modes,
including Standby, Hold, Park, and Sniff
All necessary regulatory approvals for supported countries, including:
FCC (47 CFR) Part 15C, Section 15.247 & 15.249
ETS 300 328, ETS 300 826
Low Voltage Directive IEC950
UL, CSA, and CE Mark
Operating
-4° to 158° F (-20° to 70° C)
Non-operating
-40° to 176° F (-40° to 80° C)
Bluetooth Software
Supported
Certifications
Temperature
DA - 13596 Canada — Version 18 — February 15, 2012
Page 36
HP ProBook 6455b Notebook PC
HP ProBook 6555b Notebook PC
QuickSpecs
Technical Specifications
Humidity
Altitude
Bluetooth Profiles
Supported
Operating
10% to 90%
Non-operating
5% to 95%
Operating
15,000 ft (4,572 m)
Non-operating
40,000 ft (12,192 m)
Serial Port Profile (SPP)1
Service Discovery Applicaton Profile (SDAP)
Dial-Up Networking (DUN)1,2
Generic Object Exchange Profile (GOEP)1,2
Object Push Profile (OPP)1,2
File Transfer Profile (FTP)
Synchronization Profile (SYNC)
Hard Copy Cable Replacement (HCRP)1,2
Personal Area Networking Profile (PAN)1,2
Human Interface Device Profile (HID)1,2,3
FAX Profile (FAX)
Basic Imaging Profile (BIP)2
Headset Profile (HSP)
Hands Free Profile (HFP)
Advanced Audio Distribution Profile (A2DP)
1 indicates the profile is supported by Microsoft Windows XP SP2
2 indicates the profile is part of Windows Vista
Environmental Data
Eco-Label Certifications
This product has received or is in the process of being certified to the following
approvals and may be labeled with one or more of these marks:
US Energy Star
IT ECO declaration
EPEAT – Gold where HP registers commercial notebook products. See
http://www.epeat.net for registration status in your country.
System Configuration
The configuration used for the Energy Consumption and Declared Noise
Emissions data for the Convertible Mini tower Desktop model is based on a
"Typically Configured Notebook"
HP ProBook 6455b Notebook PC
Energy Consumption
Normal Operation
Sleep (Energy Star low
power mode)
Off
Heat Dissipation*
Normal Operation
Sleep
115 VAC
230 VAC
100 VAC
10.93W
0.71W
11.11W
0.77W
10.68W
0.68W
0.57W
0.63W
0.56W
115 VAC
230 VAC
100 VAC
37 BTU/hr
2 BTU/hr
38 BTU/hr
3 BTU/hr
37 BTU/hr
2 BTU/hr
DA - 13596 Canada — Version 18 — February 15, 2012
Page 37
HP ProBook 6455b Notebook PC
HP ProBook 6555b Notebook PC
QuickSpecs
Technical Specifications
Off
1 BTU/hr
2 BTU/hr
1 BTU/hr
* Heat dissipation is calculated based on the measured watts, assuming the
service level is attained for one hour.
Declared Noise Emissions
(in accordance with
ISO 7779 and ISO 9296)
System Fan Off
Sound Power
(LWAd, bels)
2.6
2.7
Sound Pressure
(LpAm, decibels)
17.3
17.6
Idle
Fixed Disk
(random writes)
System fan is usually off except when charging the battery
HP ProBook 6555b Notebook PC
Energy Consumption
Normal Operation
Sleep (Energy Star low
power mode)
Off
Heat Dissipation*
Normal Operation
Sleep
Off
115 VAC
230 VAC
100 VAC
10.93W
0.71W
11.11W
0.77W
10.68W
0.68W
0.57W
0.63W
0.56W
115 VAC
230 VAC
100 VAC
37 BTU/hr
38 BTU/hr
37 BTU/hr
2 BTU/hr
3 BTU/hr
2 BTU/hr
2 BTU/hr
2 BTU/hr
2 BTU/hr
* Heat dissipation is calculated based on the measured watts, assuming the
service level is attained for one hour.
Declared Noise Emissions
(in accordance with
ISO 7779 and ISO 9296)
System Fan Off
Sound Power
(LWAd, bels)
3.0
3.0
Idle
Fixed Disk
(random writes)
System fan is usually off except when charging the battery
Sound Pressure
(LpAm, decibels)
22.5
22.6
HP ProBook 6455b Notebook PC and HP 6555b Notebook PC
Batteries
This battery(s) in this product comply with EU Directive 2006/66/EC
Batteries used in the product do not contain:
Mercury greater the 5ppm by weight
Cadmium greater than 10ppm by weight
DA - 13596 Canada — Version 18 — February 15, 2012
Page 38
HP ProBook 6455b Notebook PC
HP ProBook 6555b Notebook PC
QuickSpecs
Technical Specifications
Additional
information
The battery type and chemistry used in the product is:
Li-ion
High capacity Lithium-Ion battery
This product is in compliance with the Restrictions of Hazardous Substances
(RoHS) directive – 2002/95/EC.
This HP product is designed to comply with the Waste Electrical and Electronic
Equipment (WEEE) Directive - 2002/96/EC.
This product is in compliance with California Proposition 65 (State of
California; Safe Drinking Water and Toxic Enforcement Act of 1986).
This product is in compliance with the IEEE 1680 (EPEAT) standard at the Gold
level, see www.epeat.net
Plastics parts weighing over 25 grams used in the product are marked per ISO
11469 and ISO1043.
This product contains 0% post consumer recycled plastic (by wt.)
This product is greater than 95.1% recycle-able when properly disposed of at
end of life.
Packaging Materials
External:
Corrugated carton – 360 g
Cardboard & misc. – 365 g
Internal:
Polyethylene low density – 15 g
EPE - Expanded Polyethylene – 90 g
The Corrugated carton packaging material is made from 70% – 80%
recycled content.
The Cardboard & misc. packaging material is made from 70% – 80%
recycled content.
The Polyethylene low density packaging material is made from 0%
recycled content.
The EPE –Expanded Polyethylene packaging material is made from 70%
– 80% recycled content.
HP follows these guidelines to decrease the environmental impact of product
packaging:
Eliminate the use of heavy metals such as lead, chromium, mercury and
cadmium in packaging materials.
Eliminate the use of ozone-depleting substances (ODS) in packaging
materials.
Design packaging materials for ease of disassembly.
Maximize the use of post-consumer recycled content materials in
packaging materials.
Use readily recyclable packaging materials such as paper and
DA - 13596 Canada — Version 18 — February 15, 2012
Page 39
HP ProBook 6455b Notebook PC
HP ProBook 6555b Notebook PC
QuickSpecs
Technical Specifications
Material Usage
corrugated materials.
Reduce size and weight of packages to improve transportation fuel
efficiency.
Plastic packaging materials are marked according to ISO 11469 and DIN
6120 standards.
This product does not contain any of the following substances in excess of
regulatory limits (for reference of these limits please refer to the HP General
Specification of the Environment
(http://www.hp.com/hpinfo/globalcitizenship/environment/supplychain/
gen_specifications.html):
Asbestos
Certain Azo Colorants
Certain Brominated Flame Retardants – may not be used as flame
retardants in plastics
Cadmium
Chlorinated Hydrocarbons
Chlorinated Paraffins
Formaldehyde
Halogenated Diphenyl Methanes
Lead carbonates and sulfates
Lead and Lead compounds
Mercuric Oxide Batteries
Ozone Depleting Substances
Polybrominated Biphenyls (PBBs)
Polybrominated Biphenyl Ethers (PBBEs)
Polybrominated Biphenyl Oxides (PBBOs)
Polychlorinated Biphenyl (PCB)
Polychlorinated Terphenyls (PCT)
Polyvinyl Chloride (PVC) – except for wires and cables, and certain retail
packaging has been voluntarily removed from most applications.
Radioactive Substances
Tributyl Tin (TBT), Triphenyl Tin (TPT), Tributyl Tin Oxide (TBTO)
Nickel finishes that release greater than 0.5 µgrams/cm2/week,
measured according to EN 1811:1998, are not used on any product
surface designed to be frequently handled or touched by users.
End-of-life Management Hewlett-Packard offers end-of-life HP product return and recycling programs
in many geographic areas. To recycle your product, please go to:
and Recycling
http://www.hp.com/go/reuse-recycle or contact your nearest HP sales office.
Products returned to HP will be recycled, recovered or disposed of in a
responsible manner.
The EU WEEE directive (2002/95/EC) requires manufacturers to provide
treatment information for each product type for use by treatment facilities.
This information (product disassembly instructions) is posted on the Hewlett
Packard web site at: http://www.hp.com/go/recyclers. These instructions may
be used by recyclers and other WEEE treatment facilities as well as HP OEM
customers who integrate and re-sell HP equipment.
Hewlett-Packard
For more information about HP's commitment to the environment:
Corporate Environmental Global Citizenship Report
DA - 13596 Canada — Version 18 — February 15, 2012
Page 40
HP ProBook 6455b Notebook PC
HP ProBook 6555b Notebook PC
QuickSpecs
Technical Specifications
Information
http://www.hp.com/hpinfo/globalcitizenship/gcreport/index.html
Environment website
http://www.hp.com/environment
Eco-label certifications
http://www.hp.com/hpinfo/globalcitizenship/environment/productdesign/
ecolabels.html
ISO 14001 certificates:
http://www.hp.com/hpinfo/globalcitizenship/environment/operations/
envmanagement.html
Copyright © 2012 Hewlett-Packard Development Company, L.P.
All rights reserved. Microsoft, Windows, Windows 7, Windows Vista and Windows XP are registered trademarks or trademarks of
Microsoft Corporation in the U.S. and/or other countries. Phenom, Turion, and Athlon are registered trademarks or trademarks of AMD
Corporation in the U.S. and/or other countries. Bluetooth is a registered trademark of Bluetooth SIG, Inc., in the U.S. and other
countries. All other product names mentioned herein may be trademarks of their respective companies.
The information contained herein is subject to change without notice and is provided "as is" without warranty of any kind. The
warranties for HP products are set forth in the express limited warranty statements accompanying such products. Nothing herein
should be construed as constituting an additional warranty. HP shall not be liable for technical or editorial errors or omissions
contained herein.
DA - 13596 Canada — Version 18 — February 15, 2012
Page 41
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
