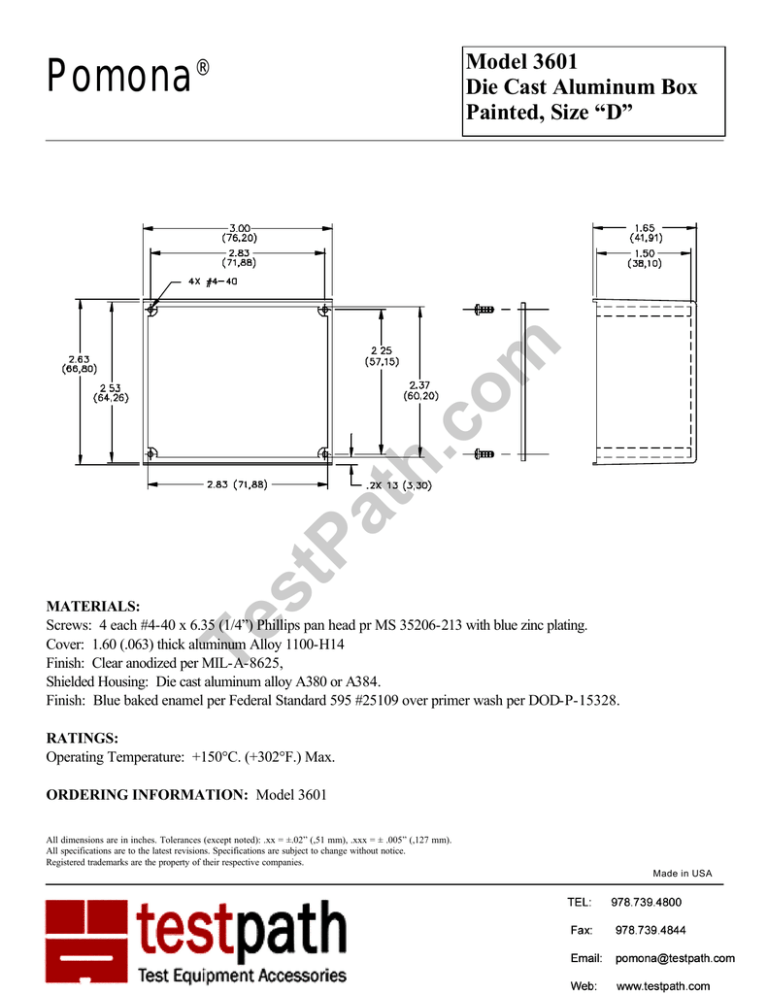

Model 3601
Die Cast Aluminum Box
Painted, Size “D”
st
Pa
t
h.
co
m
Pomona
®
Te
MATERIALS:
Screws: 4 each #4-40 x 6.35 (1/4”) Phillips pan head pr MS 35206-213 with blue zinc plating.
Cover: 1.60 (.063) thick aluminum Alloy 1100-H14
Finish: Clear anodized per MIL-A-8625,
Shielded Housing: Die cast aluminum alloy A380 or A384.
Finish: Blue baked enamel per Federal Standard 595 #25109 over primer wash per DOD-P-15328.
RATINGS:
Operating Temperature: +150°C. (+302°F.) Max.
ORDERING INFORMATION: Model 3601
All dimensions are in inches. Tolerances (except noted): .xx = ±.02” (,51 mm), .xxx = ± .005” (,127 mm).
All specifications are to the latest revisions. Specifications are subject to change without notice.
Registered trademarks are the property of their respective companies.
Made in USA
6/9/99
SY/EH/LS
Sales: 800-490-2361 Fax: 888-403-3360
Technical Assistance: 800-241-2060
S:\Engineering \Release\DataSheets\FlukeDataSheet\d3601_1_01.doc
