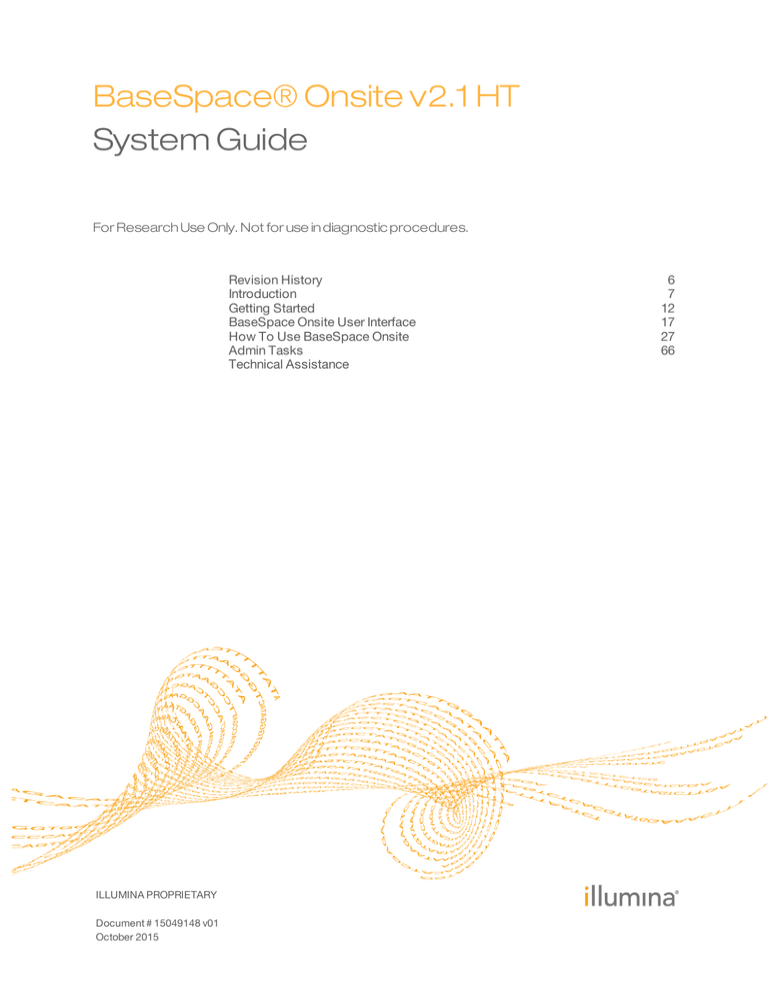

BaseSpace® Onsite v2.1 HT
System Guide
For Research Use Only. Not for use in diagnostic procedures. Revision History
Introduction
Getting Started
BaseSpace Onsite User Interface
How To Use BaseSpace Onsite
Admin Tasks
Technical Assistance
ILLUMINA PROPRIETARY
Document # 15049148 v01
October 2015
6
7
12
17
27
66
This document and its contents are proprietary to Illumina, Inc. and its affiliates ("Illumina"), and are intended solely for the
contractual use of its customer in connection with the use of the product(s) described herein and for no other purpose. This
document and its contents shall not be used or distributed for any other purpose and/or otherwise communicated, disclosed,
or reproduced in any way whatsoever without the prior written consent of Illumina. Illumina does not convey any license
under its patent, trademark, copyright, or common-law rights nor similar rights of any third parties by this document.
The instructions in this document must be strictly and explicitly followed by qualified and properly trained personnel in order
to ensure the proper and safe use of the product(s) described herein. All of the contents of this document must be fully read
and understood prior to using such product(s).
FAILURE TO COMPLETELY READ AND EXPLICITLY FOLLOW ALL OF THE INSTRUCTIONS CONTAINED HEREIN
MAY RESULT IN DAMAGE TO THE PRODUCT(S), INJURY TO PERSONS, INCLUDING TO USERS OR OTHERS, AND
DAMAGE TO OTHER PROPERTY.
ILLUMINA DOES NOT ASSUME ANY LIABILITY ARISING OUT OF THE IMPROPER USE OF THE PRODUCT(S)
DESCRIBED HEREIN (INCLUDING PARTS THEREOF OR SOFTWARE).
© 2015 Illumina, Inc. All rights reserved.
Illumina, 24sure, BaseSpace, BeadArray, BlueFish, BlueFuse, BlueGnome, cBot, CSPro, CytoChip, DesignStudio,
Epicentre, ForenSeq, Genetic Energy, GenomeStudio, GoldenGate, HiScan, HiSeq, HiSeq X, Infinium, iScan, iSelect,
MiSeq, MiSeqDx, MiSeq FGx, NeoPrep, NextBio, Nextera, NextSeq, Powered by Illumina, SureMDA, TruGenome,
TruSeq, TruSight, Understand Your Genome, UYG, VeraCode, verifi, VeriSeq, the pumpkin orange color, and the
streaming bases design are trademarks of Illumina, Inc. and/or its affiliate(s) in the U.S. and/or other countries. All other
names, logos, and other trademarks are the property of their respective owners.
Read Before Using this Product
This Product, and its use and disposition, is subject to the following terms and conditions. If
Purchaser does not agree to these terms and conditions then Purchaser is not authorized by Illumina
to use this Product and Purchaser must not use this Product.
1
Definitions. "Application Specific IP" means Illumina owned or controlled intellectual property rights that pertain
to this Product (and use thereof) only with regard to specific field(s) or specific application(s). Application Specific
IP excludes all Illumina owned or controlled intellectual property that cover aspects or features of this Product (or
use thereof) that are common to this Product in all possible applications and all possible fields of use (the "Core IP").
Application Specific IP and Core IP are separate, non-overlapping, subsets of all Illumina owned or controlled
intellectual property. By way of non-limiting example, Illumina intellectual property rights for specific diagnostic
methods, for specific forensic methods, or for specific nucleic acid biomarkers, sequences, or combinations of
biomarkers or sequences are examples of Application Specific IP. "Consumable(s)" means Illumina branded
reagents and consumable items that are intended by Illumina for use with, and are to be consumed through the use
of, Hardware. "Documentation" means Illumina's user manual for this Product, including without limitation,
package inserts, and any other documentation that accompany this Product or that are referenced by the Product or in
the packaging for the Product in effect on the date of shipment from Illumina. Documentation includes this
document. "Hardware" means Illumina branded instruments, accessories or peripherals. "Illumina" means Illumina,
Inc. or an Illumina affiliate, as applicable. "Product" means the product that this document accompanies (e.g.,
Hardware, Consumables, or Software). "Purchaser" is the person or entity that rightfully and legally acquires this
Product from Illumina or an Illumina authorized dealer. "Software" means Illumina branded software (e.g.,
Hardware operating software, data analysis software). All Software is licensed and not sold and may be subject to
additional terms found in the Software's end user license agreement. "Specifications" means Illumina's written
specifications for this Product in effect on the date that the Product ships from Illumina.
2
Research Use Only Rights. Subject to these terms and conditions and unless otherwise agreed upon in writing by
an officer of Illumina, Purchaser is granted only a non-exclusive, non-transferable, personal, non-sublicensable right
under Illumina's Core IP, in existence on the date that this Product ships from Illumina, solely to use this Product in
Purchaser's facility for Purchaser's internal research purposes (which includes research services provided to third
parties) and solely in accordance with this Product's Documentation, but specifically excluding any use that (a)
would require rights or a license from Illumina to Application Specific IP, (b) is a re-use of a previously used
Consumable, (c) is the disassembling, reverse-engineering, reverse-compiling, or reverse-assembling of this
Product, (d) is the separation, extraction, or isolation of components of this Product or other unauthorized analysis
of this Product, (e) gains access to or determines the methods of operation of this Product, (f) is the use of nonIllumina reagent/consumables with Illumina's Hardware (does not apply if the Specifications or Documentation state
otherwise), or (g) is the transfer to a third-party of, or sub-licensing of, Software or any third-party software. All
Software, whether provided separately, installed on, or embedded in a Product, is licensed to Purchaser and not
sold. Except as expressly stated in this Section, no right or license under any of Illumina's intellectual property rights
is or are granted expressly, by implication, or by estoppel.
Purchaser is solely responsible for determining whether Purchaser has all intellectual property rights that
are necessary for Purchaser's intended uses of this Product, including without limitation, any rights from
third parties or rights to Application Specific IP. Illumina makes no guarantee or warranty that purchaser's
specific intended uses will not infringe the intellectual property rights of a third party or Application
Specific IP.
3
Regulatory. This Product has not been approved, cleared, or licensed by the United States Food and Drug
Administration or any other regulatory entity whether foreign or domestic for any specific intended use, whether
research, commercial, diagnostic, or otherwise. This Product is labeled For Research Use Only. Purchaser must
ensure it has any regulatory approvals that are necessary for Purchaser's intended uses of this Product.
4
Unauthorized Uses. Purchaser agrees: (a) to use each Consumable only one time, and (b) to use only Illumina
consumables/reagents with Illumina Hardware. The limitations in (a)-(b) do not apply if the Documentation or
Specifications for this Product state otherwise. Purchaser agrees not to, nor authorize any third party to, engage in
any of the following activities: (i) disassemble, reverse-engineer, reverse-compile, or reverse-assemble the Product,
(ii) separate, extract, or isolate components of this Product or subject this Product or components thereof to any
analysis not expressly authorized in this Product's Documentation, (iii) gain access to or attempt to determine the
methods of operation of this Product, or (iv) transfer to a third-party, or grant a sublicense, to any Software or any
third-party software. Purchaser further agrees that the contents of and methods of operation of this Product are
proprietary to Illumina and this Product contains or embodies trade secrets of Illumina. The conditions and
restrictions found in these terms and conditions are bargained for conditions of sale and therefore control the sale of
and use of this Product by Purchaser.
5
Limited Liability. TO THE EXTENT PERMITTED BY LAW, IN NO EVENT SHALL ILLUMINA OR ITS
SUPPLIERS BE LIABLE TO PURCHASER OR ANY THIRD PARTY FOR COSTS OF PROCUREMENT OF
SUBSTITUTE PRODUCTS OR SERVICES, LOST PROFITS, DATA OR BUSINESS, OR FOR ANY
INDIRECT, SPECIAL, INCIDENTAL, EXEMPLARY, CONSEQUENTIAL, OR PUNITIVE DAMAGES OF ANY
KIND ARISING OUT OF OR IN CONNECTION WITH, WITHOUT LIMITATION, THE SALE OF THIS
PRODUCT, ITS USE, ILLUMINA'S PERFORMANCE HEREUNDER OR ANY OF THESE TERMS AND
CONDITIONS, HOWEVER ARISING OR CAUSED AND ON ANY THEORY OF LIABILITY (WHETHER IN
CONTRACT, TORT (INCLUDING NEGLIGENCE), STRICT LIABILITY OR OTHERWISE).
6
ILLUMINA'S TOTAL AND CUMULATIVE LIABILITY TO PURCHASER OR ANY THIRD PARTY ARISING
OUT OF OR IN CONNECTION WITH THESE TERMS AND CONDITIONS, INCLUDING WITHOUT
LIMITATION, THIS PRODUCT (INCLUDING USE THEREOF) AND ILLUMINA'S PERFORMANCE
HEREUNDER, WHETHER IN CONTRACT, TORT (INCLUDING NEGLIGENCE), STRICT LIABILITY OR
OTHERWISE, SHALL IN NO EVENT EXCEED THE AMOUNT PAID TO ILLUMINA FOR THIS PRODUCT.
7
Limitations on Illumina Provided Warranties. TO THE EXTENT PERMITTED BY LAW AND SUBJECT TO
THE EXPRESS PRODUCT WARRANTY MADE HEREIN ILLUMINA MAKES NO (AND EXPRESSLY
DISCLAIMS ALL) WARRANTIES, EXPRESS, IMPLIED OR STATUTORY, WITH RESPECT TO THIS
PRODUCT, INCLUDING WITHOUT LIMITATION, ANY IMPLIED WARRANTY OF MERCHANTABILITY,
FITNESS FOR A PARTICULAR PURPOSE, NONINFRINGEMENT, OR ARISING FROM COURSE OF
PERFORMANCE, DEALING, USAGE OR TRADE. WITHOUT LIMITING THE GENERALITY OF THE
FOREGOING, ILLUMINA MAKES NO CLAIM, REPRESENTATION, OR WARRANTY OF ANY KIND AS
TO THE UTILITY OF THIS PRODUCT FOR PURCHASER'S INTENDED USES.
8
Product Warranty. All warranties are personal to the Purchaser and may not be transferred or assigned to a thirdparty, including an affiliate of Purchaser. All warranties are facility specific and do not transfer if the Product is
moved to another facility of Purchaser, unless Illumina conducts such move.
a
Warranty for Consumables. Illumina warrants that Consumables, other than custom Consumables, will
conform to their Specifications until the later of (i) 3 months from the date of shipment from Illumina, and
b
c
d
e
f
9
(ii) any expiration date or the end of the shelf-life pre-printed on such Consumable by Illumina, but in no
event later than 12 months from the date of shipment. With respect to custom Consumables (i.e.,
Consumables made to specifications or designs made by Purchaser or provided to Illumina by, or on
behalf of, Purchaser), Illumina only warrants that the custom Consumables will be made and tested in
accordance with Illumina's standard manufacturing and quality control processes. Illumina makes no
warranty that custom Consumables will work as intended by Purchaser or for Purchaser's intended uses.
Warranty for Hardware. Illumina warrants that Hardware, other than Upgraded Components, will
conform to its Specifications for a period of 12 months after its shipment date from Illumina unless the
Hardware includes Illumina provided installation in which case the warranty period begins on the date of
installation or 30 days after the date it was delivered, whichever occurs first ("Base Hardware Warranty").
"Upgraded Components" means Illumina provided components, modifications, or enhancements to
Hardware that was previously acquired by Purchaser. Illumina warrants that Upgraded Components will
conform to their Specifications for a period of 90 days from the date the Upgraded Components are
installed. Upgraded Components do not extend the warranty for the Hardware unless the upgrade was
conducted by Illumina at Illumina's facilities in which case the upgraded Hardware shipped to Purchaser
comes with a Base Hardware Warranty.
Exclusions from Warranty Coverage. The foregoing warranties do not apply to the extent a nonconformance is due to (i) abuse, misuse, neglect, negligence, accident, improper storage, or use contrary to
the Documentation or Specifications, (ii) improper handling, installation, maintenance, or repair (other than
if performed by Illumina's personnel), (iii) unauthorized alterations, (iv) Force Majeure events, or (v) use
with a third party's good not provided by Illumina (unless the Product's Documentation or Specifications
expressly state such third party's good is for use with the Product).
Procedure for Warranty Coverage. In order to be eligible for repair or replacement under this warranty
Purchaser must (i) promptly contact Illumina's support department to report the non-conformance, (ii)
cooperate with Illumina in confirming or diagnosing the non-conformance, and (iii) return this Product,
transportation charges prepaid to Illumina following Illumina's instructions or, if agreed by Illumina and
Purchaser, grant Illumina's authorized repair personnel access to this Product in order to confirm the nonconformance and make repairs.
Sole Remedy under Warranty. Illumina will, at its option, repair or replace non-conforming Product that
it confirms is covered by this warranty. Repaired or replaced Consumables come with a 30-day warranty.
Hardware may be repaired or replaced with functionally equivalent, reconditioned, or new Hardware or
components (if only a component of Hardware is non-conforming). If the Hardware is replaced in its
entirety, the warranty period for the replacement is 90 days from the date of shipment or the remaining
period on the original Hardware warranty, whichever is shorter. If only a component is being repaired or
replaced, the warranty period for such component is 90 days from the date of shipment or the remaining
period on the original Hardware warranty, whichever ends later. The preceding states Purchaser's sole
remedy and Illumina's sole obligations under the warranty provided hereunder.
Third-Party Goods and Warranty. Illumina has no warranty obligations with respect to any goods
originating from a third party and supplied to Purchaser hereunder. Third-party goods are those that are
labeled or branded with a third-party's name. The warranty for third-party goods, if any, is provided by
the original manufacturer. Upon written request Illumina will attempt to pass through any such warranty to
Purchaser.
Indemnification.
a
Infringement Indemnification by Illumina. Subject to these terms and conditions, including without
limitation, the Exclusions to Illumina's Indemnification Obligations (Section 9(b) below), the Conditions to
Indemnification Obligations (Section 9(d) below), Illumina shall (i) defend, indemnify and hold harmless
Purchaser against any third-party claim or action alleging that this Product when used for research use
purposes, in accordance with these terms and conditions, and in accordance with this Product's
Documentation and Specifications infringes the valid and enforceable intellectual property rights of a third
party, and (ii) pay all settlements entered into, and all final judgments and costs (including reasonable
attorneys' fees) awarded against Purchaser in connection with such infringement claim. If this Product or
any part thereof, becomes, or in Illumina's opinion may become, the subject of an infringement claim,
Illumina shall have the right, at its option, to (A) procure for Purchaser the right to continue using this
Product, (B) modify or replace this Product with a substantially equivalent non-infringing substitute, or
(C) require the return of this Product and terminate the rights, license, and any other permissions provided
to Purchaser with respect this Product and refund to Purchaser the depreciated value (as shown in
b
c
d
e
Purchaser's official records) of the returned Product at the time of such return; provided that, no refund
will be given for used-up or expired Consumables. This Section states the entire liability of Illumina for
any infringement of third party intellectual property rights.
Exclusions to Illumina Indemnification Obligations. Illumina has no obligation to defend, indemnify
or hold harmless Purchaser for any Illumina Infringement Claim to the extent such infringement arises
from: (i) the use of this Product in any manner or for any purpose outside the scope of research use
purposes, (ii) the use of this Product in any manner not in accordance with its Specifications, its
Documentation, the rights expressly granted to Purchaser hereunder, or any breach by Purchaser of these
terms and conditions, (iii) the use of this Product in combination with any other products, materials, or
services not supplied by Illumina, (iv) the use of this Product to perform any assay or other process not
supplied by Illumina, or (v) Illumina's compliance with specifications or instructions for this Product
furnished by, or on behalf of, Purchaser (each of (i) – (v), is referred to as an "Excluded Claim").
Indemnification by Purchaser. Purchaser shall defend, indemnify and hold harmless Illumina, its
affiliates, their non-affiliate collaborators and development partners that contributed to the development of
this Product, and their respective officers, directors, representatives and employees against any claims,
liabilities, damages, fines, penalties, causes of action, and losses of any and every kind, including without
limitation, personal injury or death claims, and infringement of a third party's intellectual property rights,
resulting from, relating to, or arising out of (i) Purchaser's breach of any of these terms and conditions, (ii)
Purchaser's use of this Product outside of the scope of research use purposes, (iii) any use of this Product
not in accordance with this Product's Specifications or Documentation, or (iv) any Excluded Claim.
Conditions to Indemnification Obligations. The parties' indemnification obligations are conditioned
upon the party seeking indemnification (i) promptly notifying the other party in writing of such claim or
action, (ii) giving the other party exclusive control and authority over the defense and settlement of such
claim or action, (iii) not admitting infringement of any intellectual property right without prior written
consent of the other party, (iv) not entering into any settlement or compromise of any such claim or action
without the other party's prior written consent, and (v) providing reasonable assistance to the other party in
the defense of the claim or action; provided that, the party reimburses the indemnified party for its
reasonable out-of-pocket expenses incurred in providing such assistance.
Third-Party Goods and Indemnification. Illumina has no indemnification obligations with respect to
any goods originating from a third party and supplied to Purchaser. Third-party goods are those that are
labeled or branded with a third-party's name. Purchaser's indemnification rights, if any, with respect to
third party goods shall be pursuant to the original manufacturer's or licensor's indemnity. Upon written
request Illumina will attempt to pass through such indemnity, if any, to Purchaser.
Revision History
Revision History
Part #
Document #
15049148 v01
Date
October
2015
Description of Change
Updated document for BaseSpace Onsite HT System v2.1:
• Updated supported apps list
• Added information about annotation options
• Updated supported browsers
• Added information about new instruments supported: NextSeq 550,
MiSeq, NeoPrep, and HiSeq 3000/4000
• Updated User Interface descriptions to match current release
• Added NeoPrep setup workflow for Prep tab
• Updated Download Run File Package with information about
BaseSpace Onsite Downloader
• Updated Admin Tasks-Updates section about capability to upload
additional genomes files
Part # 15049148
Rev. E
May
2015
Minor changes for final launch.
Part # 15049148
Rev. D
April
2015
Supporting BaseSpace Onsite v2.0 using BaseSpace version 3.14.
Part # 15049148
Rev. C
August
2014
Part # 15049148
Rev. B
June
2014
Part # 15049148
Rev. A
March
2014
Added log package descriptions.
Added descriptions for the following features:
• Prep tab library import
• Upload VCF file
• Custom library
• VariantStudio app
Initial Release
BaseSpace Onsite v2.1 HT System Guide
6
The BaseSpace Onsite LT System is a genomics analysis platform that is a directly
integrated end-to-end solution for the MiSeq System, using MiSeq Control Software
(MCS) v2.6 or later.
The BaseSpace Onsite HT System is a genomics analysis platform that is a directly
integrated end-to-end solution for the following systems:
} NextSeq 500 System
} NextSeq 550 System—For sequencing analysis only, with NextSeq Control Software
(NCS) v2.0.0.10 or later
} NeoPrep System—With NeoPrep Control Software v1.1 or later
} HiSeq 1000, HiSeq 1500, HiSeq 2000, HiSeq 2500 Systems—With HiSeq
Control Software (HCS) v2.2.68 or later
} HiSeq 3000, HiSeq 4000 Systems—With HCS v3.3.52 or later
} MiSeq System—With MiSeq Control Software (MCS) v2.6 or later
BaseSpace Onsite has the following features:
} You can prepare a NextSeq and NeoPrep run on the BaseSpace Onsite Prep Tab, and
then start that run from your instrument.
} The instrument seamlessly pushes the base call (*.bcl) files and associated files to
BaseSpace Onsite for automatic analysis and storage. There is no need for a manual
and time-consuming data-transfer step.
} BaseSpace Onsite provides a mechanism to share data with others and easily scale
storage and computing needs.
} BaseSpace Onsite runs locally; no need to connect to the cloud.
Workflow Model
Processing a flow cell on a sequencing instrument produces various files, collectively
referred to as a run. A run contains log files, instrument health data, run metrics, sample
sheet, and base call information (*.bcl files). The base call information is demultiplexed
in BaseSpace Onsite to create the samples used in secondary analysis.
Samples are analyzed by launching BaseSpace Onsite apps. BaseSpace Onsite apps are
processing software and routines that interact with BaseSpace Onsite data through the
API.
The result files from an app session are stored in an analysis. Analyses are created to
record every time an app is launched. For example, when a resequencing app executes
alignment and variant calling, an analysis is created that contains the app results for
each sample. App results generally contain BAM and VCF files, but they can also
contain other file types. App results can also be used as inputs to apps.
Finally, projects are simple containers that store samples and analyses.
BaseSpace Onsite v2.1 HT System Guide
7
Introduction
Introduction
Figure 1 BaseSpace Onsite Data Model
8
Document # 15049148 v01
Introduction
BaseSpace Onsite Apps
BaseSpace Onsite supports the following apps.
App
Description
Illumina Core Apps
The following Illumina Core Apps are available:
• Isaac Whole-Genome Sequencing v4
• Isaac Enrichment v1.0
• Isaac Enrichment v2.1
• BWA Whole-Genome Sequencing v1
• BWA Enrichment v1.0
• BWA Enrichment v2.1
• Tumor Normal v1.0
• TopHat Alignment v1 (multilaunch feature not available)
• Cufflinks Assembly and Differential Expression v1
• TruSeq Amplicon v1.1
• TruSeq Long Reads v1.1
• TruSeq Phasing v1.1
• Amplicon DS v1.1
• 16S Metagenomics v1.0.1
• MethylSeq v1.0
• Small RNA v1.0
• TruSeq Targed RNA v1.0
For documentation, see the Illumina support page for BaseSpace.
VariantStudio
Illumina VariantStudio enables you to view annotation
information for variants and transcripts and filter to the variants of
interest in one easy to use application. See Run the VariantStudio
App on page 43 for instructions on launching this app, and the
BaseSpace VariantStudio User Guide for instructions on using the
software application.
Integrative
Genomics Viewer
Illumina has generated an app with the Integrative Genomics
Viewer (IGV) of the Broad Institute for visualizing your sequence
data in great detail. See Launch the IGV App on page 42 for
instructions on using this app.
BaseSpace Labs
Apps
The following apps are developed using an accelerated
development process. Illumina provides limited support for
BaseSpace Labs Apps and are provided without a warranty.
• FastQC v1.0
• FASTQ Toolkit v1.0
• Kraken Metagenomics v1.0
• Variant Calling Assessment Tool (VCAT) v.2.0
Third-Party Apps
Currently, BaseSpace Onsite provides SPAdes Genome Assembler
3.5. For more information, see the SPAdes App page on the Apps
tab.
Note—The NovoAlign app is no longer available. However, legacy
analysis results are still viewable.
BaseSpace Onsite v2.1 HT System Guide
9
App
Description
BaseMount
BaseMount is a tool that allows command line read access to your
BaseSpace Onsite data. The BaseMount app is a stand-alone
installable application that you can install on your own computer.
Then you can connect BaseMount to the data on your BaseSpace
Onsite server or servers.
For more information, see the following links:
• BaseMount Web Page
• BaseMount Help
• BaseSpace Blog
Note—BaseSpace is the default API endpoint for BaseMount. Make
sure to launch BaseMount using the correct server configuration
option for BaseSpace Onsite:
basemount --config {config_file_prefix} -api-server=http://{BSO_windows_IP}:8080
{mount-point_folder_path}
• The --config parameter is optional. Use this parameter to
mount against multiple user accounts.
• The BSO_windows_IP is the IP address that you enter in your
browser to access your BaseSpace Onsite account. The API url is
at port 8080.
• The mount-point_folder_path is the path to a user-created
directory on the system where BaseMount is running.
Annotation Options
Depending on the application used, the following annotation options are available.
10
Option
Description
Illumina
Annotation
Service
RefSeq or Ensembl
This option utilizes the Illumina Annotation Service (hosted at
annotation.basespace.illumina.com) to provide annotation of
variants (SNPs, insertions, and deletions) in the sample VCF files.
This service requires an external network connection and also
requires you to whitelist the IP address of your BaseSpace Onsite
system.
Basic
Annotation with
local genome files
from the UCSC
hg19 genome
This option utilizes a basic set of annotations, including SNPs and
indels, using the genome files hosted locally on the BaseSpace
Onsite system. This option does not require an external network
connection.
On-node analysis
RefSeq or Ensembl
This option is a localized version of Illumina Annotation Service
provided with the BaseSpace Onsite v2.1 software update. It
provides annotations for known variants as provided by Illumina
Annotation Service, and can also predict novel variants. This option
does not require an external network connection.
None
No annotation is performed with this option. The reports
generated for analyses using this option shows either a 0 or N/A
for the various annotations.
Document # 15049148 v01
The following apps provide the Illumina Annotation Service, Basic, or None options:
} BWA Enrichment v1.0
} BWA Whole Genome Sequencing v1.0
} Isaac Enrichment v1.0
} Isaac Whole Genome Sequencing v2
The Isaac Whole Genome Sequencing v4.0 application can perform annotation on-node,
without the need for an external network connection to the Illumina Annotation Service.
All other applications on BaseSpace Onsite do not provide annotation options. To
perform annotation on the results of these analyses, you can use the VariantStudio
application, which also performs annotation using the Illumina Annotation Service.
BaseSpace Onsite v2.1 HT System Guide
11
Introduction
The following apps provide either the Illumina Annotation Service or None options:
} Amplicon DS v1.0
} BWA Enrichment v2.1
} Isaac Enrichment v2.1
} TruSeq Amplicon v1.1
} Tumor Normal v1.0
Getting Started
Make sure to have a compatible desktop computer. BaseSpace Onsite v2.1 is compatible
with Internet Explorer (10 or higher), Chrome (43 or higher), Firefox (38 or higher), and
Safari (8 or higher). Hardware requirements for these browsers can be found on the
developer website. A PC running Windows 7 or greater is required to access the
BaseSpace Onsite.
See the following topics to get started with BaseSpace Onsite.
} Using BaseSpace Onsite with NextSeq on page 12
} Using BaseSpace Onsite with NeoPrep on page 13
} Using BaseSpace Onsite with HiSeq on page 13
} Using BaseSpace Onsite with MiSeq on page 15
} Getting Shared Data on page 16
NOTE
When connecting your instrument to BaseSpace Onsite, you are asked to enter the full
path to your BaseSpace Onsite server. Your BaseSpace Onsite IP address can be found in
the broker configuration file of the sequencing system that you want to connect BaseSpace
Onsite to. The BaseSpace Onsite IP address is included as part of the API URL value.
Using BaseSpace Onsite with NextSeq
BaseSpace Onsite is the Illumina analysis local environment. BaseSpace Onsite facilitates
your experiments on the NextSeq system in 2 different ways:
} BaseSpace Onsite helps to organize your samples and experiments, and preps runs
for NextSeq.
} BaseSpace Onsite stores and analyzes your sequencing run data, providing the
following benefits:
} Enables browser-based data management and analysis
} Provides tools for institute-wide collaboration and sharing
} Eliminates the need to manage your own storage and computing solutions
BaseSpace Onsite has limited storage capacity, and checks the free space available before
uploading a run. If there is not enough available space, you see an error message; see
Storage Check on page 68 for more information.
NOTE
Only use BaseSpace Onsite with NextSeq 550 when performing sequencing runs. To
analyze array scanning data from NextSeq 550, use BlueFuse Multi Software.
NOTE
When you bookmark the BaseSpace Onsite location in your browser, make sure to
bookmark the Dashboard page after logging on. Do not bookmark the Login page.
NextSeq Connection
Perform the following steps to connect NextSeq to BaseSpace Onsite.
12
1
If you are using NextSeq 550, make sure that you have NCS v2.0.0.10 or later. If you
do not, upgrade your control software.
2
Make sure that you have a stable connection of at least 10 Mbps upload speed from
the NextSeq.
3
From the Manage Instrument screen, click System Configuration.
4
Click BaseSpace Configuration.
Document # 15049148 v01
Select BaseSpace Onsite.
6
In the Server Name field, enter the full path to your BaseSpace Onsite server.
7
[Optional] Select Browse and navigate to a secondary network Output Folder
location to save a copy of data in addition to the BaseSpace Onsite server.
8
Click Save.
9
Log in to BaseSpace Onsite when setting up the run on the NextSeq system.
Getting Started
5
Using BaseSpace Onsite with NeoPrep
The NeoPrep library prep workflow is integrated with BaseSpace Onsite. For instruments
configured for BaseSpace Onsite, library information and run parameters are specified on
the BaseSpace Onsite Prep tab before setting up the run on the instrument. Runs that
were set up in BaseSpace Onsite appear on the instrument interface during run setup. As
the run progresses, output files are streamed in real time to BaseSpace Onsite or
BaseSpace Onsite.
NeoPrep Connection
Perform the following steps to connect NeoPrep to BaseSpace Onsite.
1
Make sure that you have NeoPrep Control Software version v1.1 or later. If you do
not, upgrade your control software.
2
From the Manage Instrument screen on the NeoPrep, select System Configuration.
3
Select BaseSpace Configuration.
4
Select BaseSpace Onsite.
5
In the Api Url field, enter the full path to your BaseSpace Onsite server.
6
[Optional] Select ..., and navigate to a secondary network Output Folder location to
save a copy of data in addition to the BaseSpace Onsite server.
CAUTION
Do not specify a location on the instrument computer for the output folder. Illumina
recommends using a network location only. The capacity of the instrument hard
drive is sufficient for multiple runs, however a full drive can prevent subsequent runs.
7
Select Next.
8
Set the BaseSpace Onsite parameters as follows.
} Enter a BaseSpace Onsite User Name and Password to register the instrument
with BaseSpace Onsite.
} Select Use default login and bypass the BaseSpace login screen to set the
registered user name and password as the default login. This setting bypasses the
BaseSpace screen during NeoPrep run setup.
9
Select Finish.
Using BaseSpace Onsite with HiSeq
The HiSeq sequencing systems feature an option to send instrument health and
sequencing data to BaseSpace Onsite in real time to streamline both instrument quality
control and analysis. Real-time monitoring of runs enables fast troubleshooting. Free
alignment and variant calling provide many easy to use workflows that tailor analysis
for diverse biological applications.
BaseSpace Onsite v2.1 HT System Guide
13
When you set up the run on the HiSeq, select the option to log in to BaseSpace Onsite. If
you have a problem with the data upload between HiSeq and BaseSpace Onsite, see
HiSeq Connection on page 14.
NOTE
Raw data from the run is also stored on the instrument, or in the location of the output
folder that you specified in the Storage screen.
BaseSpace Onsite has limited storage capacity, and checks the free space available before
uploading a run. If there is not enough available space, you see an error message; see
Storage Check on page 68 for more information.
BaseSpace Onsite automatically disconnects from the HiSeq at the end of the run or
when all base calling files have finished uploading. If the internet connection is
interrupted, analysis files continue uploading after the connection is restored from the
point when the interruption occurred.
When the last base call file is uploaded to BaseSpace Onsite, secondary analysis of your
data begins. For information about how to run tasks, see How To Use BaseSpace Onsite on
page 27.
HiSeq Connection
Perform the following steps to connect HiSeq to BaseSpace Onsite.
1
Make sure that you have the correct HCS version:
} HiSeq 1000, HiSeq, 1500, HiSeq 2000, HiSeq 2500—HCS v2.2.68 or later
} HiSeq 3000, HiSeq 4000—HCS v3.3.52 or later
If you do not, upgrade your HCS.
2
Make sure that you have a stable internet connection of at least 10 Mbps upload
speed from the HiSeq.
3
During run configuration, the Integration screen on the HiSeq enables you to define
where your run data are output and stored. Perform the following steps.
a
b
c
d
4
Select BaseSpace Onsite.
Select Storage and Analysis—Sends run data to BaseSpace for remote monitoring
and secondary analysis. A sample sheet is required with this option.
Enter your BaseSpace Onsite account information.
Go to the Storage screen and specify the storage options.
If BaseSpace Onsite is not available, open Windows Services and start or restart
Illumina BaseSpace Onsite Broker.
a
b
c
d
e
f
Click the Windows Start button.
Right-click Computer, and then select Manage.
On the left side, under Services and Applications, choose Services.
Scroll down the list to find Illumina BaseSpace Broker.
Right-click Illumina BaseSpace Broker. If available, click Start. If the Start option
is grayed out, click Restart. The service starts, or closes then restarts.
Close the Computer management window.
NOTE
To use BaseSpace Onsite, load a sample sheet at the start of your run.
For more information, see the system guide for your HiSeq instrument.
14
Document # 15049148 v01
Using BaseSpace Onsite with MiSeq
The MiSeq System features an option to send instrument health and sequencing data to
BaseSpace Onsite in real time to streamline both instrument quality control and analysis.
Real-time monitoring of runs enables fast troubleshooting. Free alignment and variant
calling provide many easy to use workflows that tailor analysis for diverse biological
applications.
When you set up the run on the MiSeq, select the option to log in to BaseSpace Onsite.
For more information, see MiSeq Connection on page 15.
NOTE
Raw data from the run is also stored on the instrument, or in the location of the output
folder that you specified in the Storage screen.
BaseSpace Onsite has limited storage capacity, and checks the free space available before
uploading a run. If there is not enough available space, you see an error message; see
Storage Check on page 68 for more information.
BaseSpace Onsite automatically disconnects from the MiSeq at the end of the run or
when all RTA analysis files have finished uploading. If the internet connection is
interrupted, analysis files continue uploading after the connection is restored from the
point when the interruption occurred.
When the last base call file is uploaded to BaseSpace Onsite, secondary analysis of your
data begins. For information about how to run tasks, see How To Use BaseSpace Onsite on
page 27.
NOTE
Unlike BaseSpace, BaseSpace Onsite does not have a MiSeq Reporter app. BaseSpace
Onsite directs all workflow types uploaded from MiSeq through the GenerateFASTQ app.
To perform additional secondary analysis, manually launch the relevant app or apps on
the resulting FASTQ samples.
MiSeq Connection
Perform the following steps to connect MiSeq to BaseSpace Onsite.
1
Make sure that you have MCS version 2.6 or later. If you do not, upgrade your MCS.
2
Make sure that you have a stable internet connection of at least 10 Mbps upload
speed from the MiSeq.
3
During run configuration, enter the full path to your BaseSpace Onsite server.
4
Select or clear When using BaseSpace or BaseSpace Onsite, replicate analysis
locally on MiSeq.
The Replicate Analysis Locally setting specifies analysis processing locations when
using BaseSpace Onsite. The setting provides the option to perform analysis both
locally on the instrument and in BaseSpace Onsite. Consider the following items
when selecting or deselecting this option:
} If you select this option, MiSeq Reporter launches automatically after the run and
performs analysis locally.
} If you do not select this option, MiSeq Reporter does not launch automatically after
the run and analysis is performed in BaseSpace Onsite only.
} If performing the VeriSeq PGS workflow with BlueFuse Multi, select this option.
BaseSpace Onsite v2.1 HT System Guide
15
Getting Started
When you begin your sequencing run on the HiSeq, the BaseSpace Onsite icon changes
to indicate that the HiSeq is connected to BaseSpace Onsite and data files are being
transferred.
5
Click Save and Return.
6
When starting a sequencing run, select Use BaseSpace Onsite for storage and
analysis on the BaseSpace Options screen.
NOTE
To use BaseSpace Onsite, load a sample sheet at the start of your run.
For more information, see the MiSeq System Guide (document # 15027617).
When you begin your sequencing run on the MiSeq, the BaseSpace Onsite icon changes
to indicate that the MiSeq is connected to BaseSpace Onsite and data files are being
transferred.
Getting Shared Data
If you receive a link to shared data in BaseSpace Onsite, click the link.
Use your BaseSpace Onsite account to log on; the first time you visit you are asked to
accept the BaseSpace Onsite agreement. After that, you are ready to run BaseSpace
Onsite. Ask your local administrator to set up a new account.
If someone shares data with you, you receive a notification. The shared data show up in
your project list. Now you can use the BaseSpace Onsite tools to look at and download
the data. For information about how to run tasks, see How To Use BaseSpace Onsite on
page 27.
NOTE
The owner of the data can disable the sharing feature at any time.
NOTE
When you bookmark the BaseSpace Onsite location in your browser, make sure to
bookmark the Dashboard page after logging on. Do not bookmark the Login page.
16
Document # 15049148 v01
BaseSpace Onsite User Interface
BaseSpace Onsite User Interface
This section describes the various aspects of the BaseSpace Onsite UI.
} Toolbar on page 17
} MyAccount on page 18
} Admin Panel on page 18
} Dashboard Tab on page 18
} Prep Tab on page 20
} Prep Tab on page 1
} Runs Tab on page 22
} Projects Tab on page 24
} Apps Tab on page 26
Toolbar
The BaseSpace Onsite toolbar elements are listed in the following table.
Icon
Element
Description
Dashboard See Dashboard Tab on page 18.
Tab
Prep Tab
See Prep Tab on page 20.
Runs Tab
See Runs Tab on page 22.
Projects
Tab
See Projects Tab on page 24.
Apps Tab
See Apps Tab on page 26.
Support
Page
The BaseSpace Onsite Support page provides access to the
BaseSpace Onsite Knowledge Base, User Guide, and Illumina
Technical Support.
Access to this information requires that your computer is
connected to the internet.
The Search box allows you to find runs, projects, samples, files,
or apps. For more information, see Search for Runs, Projects,
Samples, Files, and Apps on page 65.
The Account drop-down list provides access to:
• MyAccount—See MyAccount on page 18
• Trash—See Delete Items on page 61
• Terms—Leads to the User Agreement
• Admin Panel—Only available if you have admin privileges;
see Admin Panel on page 18
• Blog—Leads to the blog, which includes latest news,
developments, and updates
• Sign out
Search
Account
BaseSpace Onsite v2.1 HT System Guide
17
MyAccount
MyAccount provides access to the Settings, Transfer History, Library Prep Kits, and
Storage pages.
Settings
On the Settings page you can edit your notifications settings, edit your profile, or update
your profile picture.
Transfer History
The Transfer History page allows you to review projects or runs that have been
transferred. For more information, see Transfer Owner on page 61.
Library Prep Kits
The Library Prep Kits page shows all the available library prep kits in Sample Prep. To
enter a custom kit, click New. Custom kits allow you to define nonstandard index
combinations and to define your own default layout for the indexes on a plate.
Storage
The Storage page shows the total amount of storage used (owned by you and shared)
and the amount of storage used in Runs, Projects, and Trash.
Admin Panel
The Admin Panel allows you to manage analysis, notifications, storage, users, system
health, planned runs, software updates, and alarms. See Admin Tasks on page 66 for a
description.
NOTE
You need administrator privileges to see and work in the admin panel.
Dashboard Tab
After login, the first tab you see is the dashboard. The dashboard provides access to
storage information, the developers page, the newsfeed, notifications, latest runs, and
latest analyses. The dashboard is always accessible in BaseSpace Onsite from the top
ribbon selector.
NOTE
If a run or project is not showing on BaseSpace Onsite, it is possible your data has not been
sent to BaseSpace Onsite. Set the BaseSpace Onsite option on your sequencing instrument.
For more information, see the system guide for your instrument.
Storage
The storage pane shows the total amount of storage used (used by you and shared). Click
the Details button to open the Storage page under My Account.
Developers
Click the Details button on the Developers pane to go to the BaseSpace developer portal.
Access to the BaseSpace developer portal requires an external internet connection outside
18
Document # 15049148 v01
Newsfeed
The Newsfeed pane shows the most recent posts from the BaseSpace blog. Click an
article name to open the article, or click the Read more link at the bottom of the pane to
open the BaseSpace blog.
The Newsfeed pane requires an external internet connection outside of your local
network to show content. Access to the BaseSpace blog also requires an external internet
connection.
Notifications
This pane shows invitations to shared projects, along with other notifications and alerts.
The most recent notifications listed first. There are multiple types of notifications:
} Runs
} Run in progress
} Run completed
} Run error
} Collaborators
} Collaborator joined a project/run of which you are a member
} Collaborator invited you to a project/run
} (optionally) collaborator has included a personal message
} Collaborator recommended an App
} Collaborator accepted your offer to transfer ownership
} Collaborator offered to transfer ownership to you.
} Analyses by you
} Analysis in progress
} Analysis completed
} Analysis error
} Analyses by collaborators
} Analysis in progress
} Analysis completed
} Analysis error
} Uploads, additions, or deletions to/from a project of which you are a member
} By you
} By a collaborator
NOTE
If you did not configure SMTP during install, all notifications show up on the dashboard.
No notifications are sent through email.
Latest Runs
The Latest Runs pane shows the 3 most recent runs with their dates and status, and is
updated automatically.
Click All Runs to open the Runs tab. Clicking a run opens the Runs tab with the run
loaded. For more information, see Runs Tab on page 22.
BaseSpace Onsite v2.1 HT System Guide
19
BaseSpace Onsite User Interface
of your local network.
Latest Analyses
The Latest Analyses pane shows the 3 most recent analysis with their dates and status,
and is updated automatically.
Click All Analyses to open the Analyses page, which lists all analysis results, along with
the application used, project name, date updated, size of the result, and status.
Clicking an analysis on the dashboard pane opens the specific analysis report. For more
information, see Analyses Page on page 25.
Prep Tab
The Prep tab enables you to set up a run on the NeoPrep or NextSeq system.
This tab is only available for NeoPrep and NextSeq. Other sequencing instruments use a
sample sheet to provide sample information to BaseSpace.
To use the Prep functionality for a NeoPrep run, click the NeoPrep option. For more
information, see NeoPrep on page 20.
To use the Prep functionality for a NextSeq run, click the 4 steps under Manual Prep.
1
Biological Samples—Contains information about the samples that are going to be
sequenced. See Biological Samples on page 20.
2
Libraries—Consists of biological samples that are prepped and contain adapters.
Each library usually derives from a single biological sample, though biological
samples can be used in multiple libraries. See Libraries on page 21.
3
Pools—Consists of groups of libraries that share analysis parameters. Pools can
consist of 1 or multiple libraries. See Pools on page 21.
4
Planned Runs—Contains pools that run with the same analysis parameters, on the
same machine, at the same time. Planned runs can consist of 1 or multiple pools. See
Planned Runs on page 22.
NeoPrep
The NeoPrep Runs Prep page allows you to create library cards and manage NeoPrep
runs. The top of the page shows the number of runs that are ready, running, or complete.
Using the Show Runs functionality, you can filter the list of runs to include or exclude
runs according to its status. Click 1 or more of the following statuses: Ready,
Running, Completed, Failed, and Planning. Statuses with orange toggle switch icons are
included in the list. Statuses with gray toggle switch icons are excluded. Using the filters
for Ready, Running, and Complete statuses affects the run status count at the top of the
page.
To create a run, click Create New Run at the upper right corner of the page. For more
information, see Prepare a NeoPrep Run on page 27.
Manual Prep
Biological Samples
The Biological Samples list shows all available samples that you have created on your
account.
If you want information about the samples, you can perform the following:
} Sort the list by clicking the column headers.
20
Document # 15049148 v01
Click a sample to go to the sample page.
This page provides the following actions to prepare your analysis:
} Create a sample.
} Import new samples.
} Select a sample and edit its properties.
} Select 1 or more samples and continue with Prep Libraries.
NOTE
You can select multiple samples by using the following methods:
• Select multiple checkboxes.
• Click anywhere on a sample row while holding Ctrl button to add to a selection.
• Click anywhere on a sample row while holding Shift button to select all samples in
between.
• Click the checkbox next to Plate/Tube ID to select all samples on the current page.
The box next to the Biological Samples header tracks the total number of samples, and
how many are selected. Click X next to the selection count to clear the current selection.
For more information about these actions, see Create New Biological Samples on page 29,
Import Biological Samples on page 29, and Use Existing Biological Samples on page 30.
Libraries
The Libraries list shows all available plates or tubes with libraries that you have created
on your account. You can sort the list by clicking the column headers, or click a plate to
see its properties and associated libraries.
This page provides the following actions to prepare your analysis:
} Click a plate, then click Edit to edit its properties or libraries.
} Select 1 or more plates or tubes and move to Pool Libraries.
} Import libraries and associate them to new biological samples at the same time.
When going through the Import workflow, you can also download a template import
CSV file. For more information, see Import Samples and Libraries on page 32.
NOTE
You can select multiple libraries by using the following methods:
• Select multiple checkboxes.
• Click anywhere on a library row while holding Ctrl button to add to a selection.
• Click anywhere on a library row while holding Shift button to select all libraries in
between.
• Click the checkbox next to Plate/Tube ID to select all samples on the current page.
• Use the import function.
The box next to the Libraries header tracks the total number of libraries, and how many
are selected. Click X next to the selection count to clear the current selection.
For more information about these actions, see Prep Libraries on page 30. When prepping a
library, you can also create a custom library kit; see Set Up Custom Library Prep Kit on
page 31.
Pools
The Pools list shows all available pools of libraries that you have created on your
account. You can sort the list by clicking the column headers, or click a pool to see its
properties and associated libraries.
This page provides the following actions to prepare your analysis:
} Click a pool, and then click the Edit button to edit the notes.
} Select a pool and move to Plan Run.
BaseSpace Onsite v2.1 HT System Guide
21
BaseSpace Onsite User Interface
}
}
Merge pools from multiple plates.
The box next to the Pools header tracks the total number of pools, and how many are
selected.
For more information about these actions, see Pool Libraries on page 33.
Planned Runs
The Planned Runs tab you see the Planned Runs list shows all planned runs that you
have created on your account.
You can sort the list by clicking the column headers, or click a run to see or edit its
properties. For more information about these actions, see Plan Runs on page 34.
The runs can have the following states:
} Ready to Sequence—The run can be started from the NextSeq System.
} Planning—The run does not show up on the NextSeq System, because it is still in the
planning stage.
NOTE
You can select multiple samples by using the following methods:
• Select multiple checkboxes.
• Click anywhere on a planned run row while holding Ctrl button to add to a selection.
• Click anywhere on a planned run row while holding Shift button to select all runs in
between.
• Click the checkbox next Experiment Name to select all planned runs on the current
page.
The box next to the Planned Runs header tracks the total number of runs, and how many
are selected. Click X next to the selection count to clear the current selection.
When sequencing on a run starts, the run is removed automatically from the Planned
Runs list.
Runs Tab
The Runs button leads to the runs list, which allows you to sort your runs based on
experiment name, state, workflow, created date, machine, and owner.
The following run states are possible. The blue boxes indicate final states.
22
Document # 15049148 v01
You manage the runs by using the buttons above the list:
} Share—Manage sharing a run with a particular collaborator. See Share a Run Using
the Email Option on page 58.
} Get Link—Forward the sharing link to any number of collaborators. See Share a Run
with Get Link on page 57.
} Download Run—Download files from this run. See Download Run File Package on
page 45.
} Transfer Owner—Hand control of data over to a collaborator or customer. This
button is visible if a run is selected. See Transfer Owner on page 61.
} Move to Trash—Delete a project. This button is visible if a run is selected. See Delete
Project on page 62.
} View Trash—View the deleted items in the trash, so you can restore the items or
empty the trash. See Delete Items on page 61.
NOTE
Runs and projects have separate permissions. If you share a project, you do not share the
runs contained within the project.
Run Overview Page
The Run Overview page provides 5 panes:
} Run Details—Provides a summary of the run with links to view files and download
and share options. For more information, see Share Data on page 56, View Files and
Results on page 35, or Download Files on page 44.
} Samples —Provides a list of all the app results in the run, the associated projects,
and the number of samples in that analysis.
} Charts—Shows an intensity by cycle chart. Clicking the header takes you to the
Charts page, which contains 5 charts with run metrics.
} Run Summary—Shows tables with basic data quality metrics. Clicking the header
takes you to the Run Summary page.
BaseSpace Onsite v2.1 HT System Guide
23
BaseSpace Onsite User Interface
If you want to look at a run in detail, click the name to view metrics in more detail. For
more information, see Run Overview Page on page 23.
}
Indexing QC—Lists count information for indexes used in the run. Clicking the
header takes you to the Indexing QC page.
In addition, the Side Navigation ribbon provides easy navigation in the Run Details
area.
It contains links to the Overview, Run Samples List, Charts, Run Summary, Indexing
QC, Run Settings, and Files pages.
Run Samples List
The samples list allows you to sort the samples in your run based on sample ID, app,
date created, and project. If you want to look at a sample, app result, or project in detail,
click the links to get to the following pages:
} Sample Overview Page on page 25.
} Analyses Page on page 25.
} Project Overview Page on page 24.
In addition, the Side Navigation ribbon provides easy navigation in the Run Details
area.
It contains links to the Overview, Run Samples List, Charts, Run Summary, Indexing
QC, Run Settings, and Files pages.
Projects Tab
The Projects button opens a list of your projects. You can sort the list by name, last
update, or owner. Clicking a project provides access to the app results and samples
within that project.
You manage the projects by using the buttons above the list:
} New Project—Generate a new project. See Set Up a New Project on page 59.
} Edit project—Edit the name and description of the project. See Edit Project Details on
page 58.
} Share Project—Manage sharing a project with a particular collaborator. See Share a
Project Using the Email Option on page 57.
} Get Link—Forward the sharing link to any number of collaborators. See Share a
Project using the Get Link option on page 56.
} Transfer Owner—Hand control of data over to a collaborator or customer. See
Transfer Owner on page 61.
} Move to Trash—Delete a project. This button is visible if a project is selected. See
Delete Project on page 62.
} View Trash—View the deleted items in the trash, so you can restore them or empty
the trash. See Delete Items on page 61.
NOTE
Runs and projects have separate permissions. If you share a project, you do not share the
runs contained within the project.
Project Overview Page
The Project Overview page provides access to 3 panes with information about the
project:
} About—Provides summary information about the project, including the project
owner, shared status, date created, and collaborators.
} Analyses—Provides a list of all the App Sessions in the project. This tab can be
sorted based on analysis name, last modified date created, status, or application
24
Document # 15049148 v01
NOTE
You can access these panes through the left navigation bar.
Project Toolbar
The Project toolbar provides the following actions:
} Launch app—Run apps on your sample. Clicking the app name leads to a page with
more information about launching that app, including access permissions. See
Analyze Samples Further on page 42.
} Download Project—Download all files in a project. See Download Project or Analysis
Package on page 1.
} Import—Upload files to a project. See Upload Files on page 59.
} Share project—Manage sharing a project with a particular collaborator. See Share a
Project Using the Email Option on page 57.
} Get link—Forward the sharing link to any number of collaborators. See Share a
Project using the Get Link option on page 56.
} Edit project—Edit the name and description of the project. See Edit Project Details on
page 58.
} Transfer Owner—Hand control of data over to a collaborator or customer. See
Transfer Owner on page 61.
} Move to Trash—Move the project to the trash. Deleting a project deletes all
associated data, including samples and analyses. See Delete Project on page 62.
} View Trash—View all deleted runs, projects, analyses, and samples. See Delete Items
on page 61.
Options that are not available for the particular analysis or sample are grayed out.
If you have selected samples in the Samples pane, you can perform additional actions:
} Copy to...—Copy samples from this project to another. See Copy Samples on page 59.
} Combine—Combine samples. See Combine Samples on page 59.
The app session states are defined as follows.
State
Running
Complete
Aborted
Needs
Attention
Description
The app is processing or uploading data.
Processing and file upload has finished and the data are now available to
use.
This AppResult or Sample has been aborted and cannot be resumed.
Cannot continue without user intervention.
Analyses Page
The Analyses page provides access to the results for that app session. There is a general
information pane to the left, and several graphs, depending on the app run.
Sample Overview Page
The Sample Overview page provides 2 panes:
BaseSpace Onsite v2.1 HT System Guide
25
BaseSpace Onsite User Interface
}
used to generate the analysis. Clicking the analysis links to the app results for that
sample. For more information, see Analyses Page on page 25.
Samples—Provides a list of all the samples in the project. Clicking a sample links to
the page for that sample. For more information, see Sample Overview Page on page 25.
Selecting the samples allows you to launch it in an app, copy to a different project, or
combine with another result.
}
}
Sample Details—Provides a summary of the run with a links to launch a custom
BaseSpace Onsite app on your sample. Clicking the app name leads to a page with
more information about that app, including access permissions.
Running apps can incur a charge.
Files—Provides a list of files associated with that sample. You can either look at all
FASTQ files, or look at files specific for an app session.
For more information, see View Files and Results on page 35. You can also download
selected files; see Download Multiple FASTQ Files on page 45.
Apps Tab
The Apps button leads to the Apps page, which provides an overview of the custom
BaseSpace Onsite apps that you can run.
} Clicking the app name leads to a page with more information about that app,
including the version, a link to the developer, and their app support contact details.
} Clicking the Launch button leads you through the launch pages, which allow you to
set up the app session. Specify parameters like the project, sample, or output folder
used by the app, depending on the app, and accept access permissions.
} You can search for apps using Search.
26
Document # 15049148 v01
The following topics describe how to run different functions in BaseSpace Onsite.
} Prepare a NeoPrep Run on page 27
} Prepare a NextSeq Run on page 28
} View Files and Results on page 35
} Analyze Samples Further on page 42
} Download Files on page 44
} Project and Sample Management on page 58
} Search for Runs, Projects, Samples, Files, and Apps on page 65
Prepare a NeoPrep Run
You can prepare NeoPrep runs through the BaseSpace Onsite Prep tab. Use this option if
you want to perform library preparation on a NeoPrep instrument, and have the data
stream seamlessly to BaseSpace Onsite.
To create a NeoPrep run, perform the following steps.
1
Log in to BaseSpace Onsite. If it is your first time logging in, accept the user
agreement.
2
Click the Prep icon.
3
Click the NeoPrep option.
4
Click Create New Run and enter the required information in the following screens:
} Configure Run
} Assign Samples to Wells
} Review Run Details
Configure Run
1
Select TruSeq Nano DNA or TruSeq Stranded mRNA in the Protocol dropdown.
2
Select a version of the protocol.
3
[Optional] Enter notes about the run.
4
Enter a run name.
5
Click Select Project(s) to select a default project.
Previously unassigned and any new biological samples created for the NeoPrep run
are assigned to the default project. This selection does not change the project
assignments of any previously assigned biological samples that are used in the
NeoPrep run.
6
Select a project, and then click Confirm.
7
Click Next.
The Configure Run screen expands to allow you to enter more information.
8
If performing quantification or normalization in addition to library prep, select the
Quantitate or Normalize checkboxes.
Library Prep is selected by default and cannot be deselected.
9
Select the number of samples in the Sample Count dropdown.
10 If available, select the insert size.
BaseSpace Onsite v2.1 HT System Guide
27
How To Use BaseSpace Onsite
How To Use BaseSpace Onsite
11 Select the number of PCR cycles for the run. The supported number of cycles is
indicated.
If you select a number that is not recommended, you are warned that run success
and library quality are only guaranteed with the supported number. Click OK to
acknowledge the message.
12 Click Next.
Assign Samples to Wells
1
For each well, enter the following information:
} Sample ID—Select a sample from the dialog, and then click Select. Alternatively,
click New to create a biological sample, and then enter the sample ID, sample
name, species, and nucleic acid type.
NOTE
The sample ID and sample name can only contain alphanumeric characters,
dashes, or underscores. The sample ID must be unique and short. The sample
name can be more descriptive to provide a human-readable identifier.
NOTE
You can use the same sample in multiple wells, as long as different library IDs are
used.
} Library ID—Enter a library ID. You cannot use the same library ID for multiple
wells.
} Index—Select an index. You cannot use the same index for multiple wells.
} Insert Size—Select the insert size.
2
Click Next.
Review Run Details
1
Review the run details.
If any information is incorrect, click Back to return to the previous screens.
2
Click Finish to create the run.
Prepare a NextSeq Run
You can prepare NextSeq runs through the BaseSpace Onsite Prep tab, which organizes
samples, libraries, pools, and run in a single environment. This option allows NextSeq
sequencing data stream seamlessly to BaseSpace Onsite.
Do not use it to prepare sequencing runs for other sequencing instruments. If you do
have a NextSeq sequencing system but do not want to use BaseSpace Onsite, you can
also start a run straight on the instrument.
To prepare a NextSeq run, perform the following steps.
1
Log in to BaseSpace Onsite. If it is your first time logging in, accept the user
agreement.
2
Click the Prep icon.
3
Set up a NextSeq run on the Prep Tab in 4 consecutive steps.
a
28
Biological Samples—Contains information about the samples that are going to
be sequenced. You can create samples, import samples, or use existing samples.
Document # 15049148 v01
c
d
Create New Biological Samples
If you want to create a new biological sample, perform the following steps.
NOTE
Use the import function to create several new samples. For more information, see Import
Biological Samples on page 29.
1
Click the Prep icon.
2
Click Biological Samples.
3
Click the + Create button.
4
Fill out the required fields Sample ID, Name, and Nucleic Acid type.
NOTE
The sample ID and sample name can only contain alphanumeric characters, dashes, or
underscores. The sample ID must be unique and short. The sample name can be more
descriptive to provide a human-readable identifier.
5
[Optional] Fill out the Organism (species) field.
6
[Optional] Fill out the Project fields. You can also generate a new project. A project is
optional here, but required later, because the output data gets stored to the project.
7
When finished, perform 1 of the following:
} If you only want to select the newly created samples, click Next: Prep Libraries.
Continue with Prep Libraries on page 30.
} If you want to select multiple samples, click Save & Continue Later. This selection
takes you back to the Biological Samples list, with the recently created sample at
the top of the list. Continue with Use Existing Biological Samples on page 30.
Import Biological Samples
If you want to import new biological samples, perform the following steps.
1
Click the Prep icon.
2
Click Biological Samples.
3
Click the Import button.
BaseSpace Onsite v2.1 HT System Guide
29
How To Use BaseSpace Onsite
b
For instructions, see Create New Biological Samples on page 29, Import Biological
Samples on page 29, or Use Existing Biological Samples on page 30.
Libraries—Consists of biological samples that are prepped and contain adapters.
Each library usually derives from a single biological sample, though biological
samples can be used in multiple libraries; see Libraries on page 21. You can also
import biological samples and libraries in one step; see Import Samples and
Libraries on page 32.
Pools—Consists of groups of libraries that share analysis parameters. Pools can
consist of 1 or multiple libraries. See Pools on page 21.
Planned Runs—Contains pools that run with the same analysis parameters, on
the same machine, at the same time. Planned runs can consist of 1 or multiple
pools. See Planned Runs on page 22.
4
If you have not generated an import file yet, click the template link and fill out the
samples. Note the following items when filling out the template:
} The sample ID and sample name can only contain alphanumeric characters,
dashes, or underscores. The sample ID must be unique and short. The sample
name can be more descriptive to provide a human-readable identifier.
} The Organism (species) field is optional.
} The Project field is optional, but a project is required later because the output are
stored to the project.
} Fill out the Nucleic Acid column with DNA or RNA.
Figure 2 Import Sample Template
5
Click the Choose File button.
6
Browse to the import file, and then click Open.
7
Click Import.
8
When finished, perform 1 of the following:
} If you only want to select the newly created samples, click Next: Prep Libraries.
Continue with Prep Libraries on page 30.
} If you want to select multiple samples, click Save & Continue Later. This selection
takes you back to the Biological Samples list, with the recently created sample at
the top of the list. Continue with Use Existing Biological Samples on page 30.
Use Existing Biological Samples
The Biological Samples list shows all available samples that you have created on your
account.
1
To select existing samples, perform 1 of the following steps in the Biological Samples
list:
} Select the checkboxes.
} Click the sample. If you want to select multiple samples, hold the Ctrl button.
} Select all samples by selecting the checkbox next to the SampleID header.
2
Click the Prep Libraries button in the top navigation bar.
Prep Libraries
On the Prep Libraries page, you assign indexes to biological samples, based on the
indexes available in the library preparation chosen. Every used well or tube contains a
separate library. The best practice is to set up the libraries in BaseSpace Onsite first. Then
export a file of your library settings, and use that to pipette the biological samples into
the proper wells or tubes.
30
Document # 15049148 v01
1
Select the library prep type. BaseSpace Onsite now automatically assigns indexes to
wells or tubes, depending on the format of the library prep type.
2
Enter the plate ID. The ID must be unique.
3
Click the Auto Prep button to fill the plate or tubes automatically with all samples
listed.
Alternatively, manually drag the samples to the wells or tubes.
a
b
c
Select 1 or more samples. Hold the Shift key to select multiple samples. To select
multiple samples on Firefox or Internet Explorer, click the well twice.
Drag the selected samples to a position.
Make sure that the indexes have been assigned to the proper samples. Hovering
over a position reveals the sample that is assigned to that position. You can drag
samples from position to position.
4
Save a file of your library settings by clicking the Download CSV button. Use this
file in the lab to indicate which biological samples get pipetted into specific wells.
5
When finished, perform 1 of the following.
} If you want to select the new plate or tubes, click the Pool Libraries button.
Continue with Pool Libraries on page 33.
} If you want to select multiple library preps or plates, perform the following steps.
a
b
c
Click Save & Continue Later. This selection takes you to the Libraries list,
with the recently created set-up at the top of the list.
Select the checkboxes in the Libraries list.
Click the Pool Libraries button in the top navigation bar.
NOTE
If any samples are not assigned to a project, you cannot continue. Select the sample, click
the Set Project button, and assign it to a project. You can also generate a new project.
Set Up Custom Library Prep Kit
When you have selected your biological samples, perform the following steps to set up a
custom library prep kit.
1
When prepping a library, select + Custom Library Prep Kit in the Library Prep Kit
dropdown menu.
The Custom Library Prep Kit Definition page opens.
2
Enter a name for the custom prep that meets the following requirements:
} Unique for your account
} Contains only alphanumeric, hyphen, underscores, and spaces
} Contains ≤ 50 characters
3
Select at least 1 of the supported read types.
4
Select at least 1 of the indexing strategies. You cannot only select None.
5
Fill out the default number of cycles.
6
Click template to download the index definition file template.
BaseSpace Onsite v2.1 HT System Guide
31
How To Use BaseSpace Onsite
NOTE
If you do not want to use indexed sequencing, you still assign your biological sample to an
index. When you set up your sequencing run, you can specify that you do not want to
sequence the index.
7
Fill out the Settings section:
} For single read only—No adapter (blank), or 1 adapter sequence for Read 1.
} For paired-end—No adapter (blank), or 2 adapter sequences, 1 for Read 1 and 1 for
Read 2.
} Make sure that each adapter sequence meets the following criteria:
} Sequence of A, T, C, or G character
} Length from 1 to 20 characters
8
Fill out the Index1Sequences and Index2Sequences sections:
} For Single Index, with or without None:
} 1 to 100 Index 1 names
} For each Index 1 name an associated Index 1 sequence
} For Dual Index, with or without None and Single Index:
} 1 to 100 Index 1 names
} For each Index 1 name an associated Index 1 sequence
} 1 to 100 Index 2 names
} For each Index 2 name an associated Index 2 sequence
} Each index name meets the following criteria:
} Unique within the file
} Length from 1 to 8 characters alphanumeric, hyphen, or underscore characters
} Each index sequence meets the following criteria:
} Sequence of A, T, C, or G characters
} Length from 1 to 20 characters
} All index sequence lengths (Read 1 and Read 2) are equal
} Index 1 sequences are unique within the file set of Index 1 sequences
} Index 2 sequences are unique within the file set of Index 2 sequences
9
If the supported indexing strategy specifies Single Index, you can set up Default
Layout By Well:
} Each well unique from A01 to H12
} For each well, an associated index name exists in the specified Index1Sequences
section
10 If the supported indexing strategy specifies Single Index or Dual Index, you can set
up Default Layout By Column:
} Each column number unique from 1 to 12
} For each column, an associated index name exists in the specified
Index1Sequences section
11 If the supported indexing strategy specifies Dual Index, you can set up Default
Layout By Row:
} Each row letter unique from A to H
} For each row, an associated index name exists in the specified Index2Sequences
section
12 Click the Choose.csv File button to select and upload your custom index file.
13 Click Create New Kit to complete the process.
Your custom library prep is added to the library kit dropdown.
Import Samples and Libraries
To import libraries and associate them to new biological samples at the same time,
perform the following steps.
32
Document # 15049148 v01
Click the Prep icon.
2
Click Libraries.
3
Click the Import button.
4
If you have not generated an import file yet, click the template link and fill out the
samples. Note the following items when filling out the template:
} The sample ID and sample name can only contain alphanumeric characters,
dashes, or underscores. The sample ID must be unique and short. The sample
name can be more descriptive to provide a human-readable identifier.
} The Species field is optional.
} The Project field is optional, but a project is required later because the output data
are stored to the project.
} Fill out the Nucleic Acid column with DNA or RNA.
Figure 3 Import Sample Template
5
Click the Choose File button.
6
Browse to the import file, and then click Open.
7
Click Import.
8
When finished, perform 1 of the following:
} If you only want to select the newly created samples, click the Pool Libraries
button. Continue with Pool Libraries on page 33.
} If you want to select other libraries, click Save & Continue Later. This selection
takes you back to the Libraries list, with the recently created sample at the top of
the list.
Pool Libraries
The Pool Libraries page allows you to pool samples and sequence them in the same run,
using the same analysis parameters.
1
Fill out the first pool ID. Pool ID must be unique.
2
If needed, you can create additional pools on the right by clicking the + Add Pool
button and filling out the pool IDs.
} Colors of the wells correspond to the colors of the pools.
} You can hover over the wells to see the library IDs.
3
Drag and drop individual samples from their well on the plate to a pool.
You can select multiple samples by holding Shift. To select multiple samples on
Firefox or Internet Explorer, click the well twice.
BaseSpace Onsite v2.1 HT System Guide
33
How To Use BaseSpace Onsite
1
4
If you want to pool libraries from multiple plates, use the Plate drop-down menu to
specify the plate.
Alternatively, you can merge pools using the following steps.
a
b
c
5
Click Save & Continue Later. This selection takes you to the Pools list, with the
recently created plate at the top of the list.
Select the checkboxes in the Pools list.
Click the Merge Pools button in the top navigation bar.
Click the Plan Run button.
Plan Runs
On the Planned Runs page, you can set up the parameters for the sequencing run on
your NextSeq instrument.
1
Enter a name for your planned run.
2
[Optional] Enter the reagent barcode you plan to use, which links a reagent kit to this
run.
3
Make sure that the rehyb checkbox is not selected. Currently, there is no supported
rehyb workflow available for NextSeq.
4
Fill out the Enter Cycles section:
} Single- vs. paired-end
} Number of cycles per read
5
Verify the Review Indexes section for the indexing strategy. For indexing, it is set
according to the index/library prep type chosen previously. If you choose to override
this default indexing scheme, you are required to select the Index type (Single, Dual,
or No Index). Make sure that you enter the number of index cycles accordingly. If
you have selected multiple libraries, you cannot specify No Index.
BaseSpace Onsite automatically checks if the indexes chosen all start with 2 Gs; if so,
it warns you to change your index strategy.
6
Verify the pool that is included in the planned run.
7
When your settings are complete, choose 1 of these options to continue:
} Click the Sequence button, which opens the Planned Runs list, and sets the state
of the recently planned run to Ready to Sequence.
} Click the Save & Continue Later button, which opens the Planned Runs list, and
sets the state of the recently planned run to Planning.
NOTE
A planned run must be in the Ready to Sequence state in order for it to show up in the
Planned Runs list in the control software on the instrument.
8
If you want to change a planned run to the Ready to Sequence state, select the planned
run from the list. Click the Sequence arrow link in the top navigation bar on the
Planned Runs list page.
Your run now shows up in the Planned Runs list in the control software on your
NextSeq sequencing system. Complete the run from your sequencing instrument. A
sample sheet is not required. BaseSpace Onsite automatically generates FASTQ files
when the sequencing run is complete.
34
Document # 15049148 v01
View Files and Results
The following topics describe how to view files and results in BaseSpace Onsite.
View Files from a Run
BaseSpace Onsite gives you an option to view your run files or download them
individually.
To view files, perform the following steps.
1
Click the Runs icon.
2
Click the desired run.
3
From the Run Overview Page, select the Files icon
4
Select the desired file to view.
from the left navigation menu.
See BaseSpace Onsite Files on page 46 for a description of the available files.
View Indexing QC Page
The Indexing QC page lists count information for indexes used in the run. The Indexing
QC is only available if the run is an index run.
By viewing the indexing QC results, you can see unexpected results for a sample with a
particular index and use the information for troubleshooting purposes. You can also use
this feature to confirm that all indexed samples were represented properly.
To view indexing QC results, perform the following steps.
1
Click the Runs icon.
2
Click the desired run.
3
There are 2 methods to go to the Indexing QC page:
} From the Run Overview page, click the Indexing QC link.
} From the Run Overview page, click the Indexing QC icon
navigation menu.
from the left
You can select the displayed lane through the drop-down list.
The first table provides an overall summary of the indexing performance for that lane,
including the following information.
Total Reads
The total number of reads for this lane.
PF Reads
The total number of passing filter reads for this lane.
% Reads Identified
(PF)
The total fraction of passing filter reads assigned to an index.
CV
The coefficient of variation for the number of counts across all
indexes.
Min
The lowest representation for any index.
Max
The highest representation for any index.
BaseSpace Onsite v2.1 HT System Guide
35
How To Use BaseSpace Onsite
NOTE
You can connect as many instruments as you have BaseSpace Onsite nodes installed, up to
a maximum of 6.
Further information is provided regarding the frequency of individual indexes in both
table and graph form. The table includes the following columns.
Index Number
A unique number assigned to each index by BaseSpace Onsite for
display purposes.
Sample ID
The sample ID assigned to an index in the sample sheet.
Project
The project assigned to an index in the sample sheet.
Index 1 (I7)
The sequence for the first Index Read.
Index 2 (I5)
The sequence for the second Index Read.
% Reads Identified
(PF)
The number of reads (only includes Passing Filter reads) mapped
to this index.
This information is also displayed in graphical form. In the graphical display, indexes
are ordered according to the unique Index Number assigned by BaseSpace Onsite.
View Run Charts
The Charts page shows charts with run metrics.
1
Click the Runs icon.
2
Click the desired run.
3
There are 2 methods to go to the Charts page:
} From the Run Overview page, click the Charts link.
} From the Run Overview page, click the Charts icon
menu.
from the left navigation
Flow Cell Chart
The Flow Cell chart shows color-coded graphical quality metrics per tile for the entire
flow cell.
Use the Flow Cell chart to judge local differences per cycle, per lane, or per read in
sequencing metrics on a flow cell. It is also an easy way to see the %Q30 metric, which is
an excellent single metric to judge a run. Do not use the Flow Cell chart to look at
downstream analysis metrics.
The Flow Cell chart has the following features:
} You can select the displayed metric, surface, cycle, and base through the drop-down
lists.
} The color bar to the right of the chart indicates the values that the colors represent.
} The chart is displayed with tailored scaling by default.
} Tiles that have not been measured or are not monitored are gray.
You can monitor the following quality metrics using the Flow Cell chart.
36
Intensity
This chart shows the intensity by color and cycle of the 90%
percentile of the data for each tile.
FWHM
The average full width of clusters at half maximum (in pixels). Used
to display focus quality.
Document # 15049148 v01
The percentage of clusters for which the selected base (A, C, T, or
G) has been called.
%Q > 20, %Q > 30
The percentage of bases with a quality score of > 20 or > 30,
respectively. These charts are generated after the 25th cycle, and
the values represent the current scored cycle.
Median Q-Score
The median Q-Score for each tile over all bases for the current
cycle. These charts are generated after the 25th cycle. This plot is
best used to examine the Q-scores of your run as it progresses.
Bear in mind that the %Q30 plot can give an over simplified view
due to its reliance on a single threshold.
Density
The density of clusters for each tile (in thousands per mm 2 ).
Density PF
The density of clusters passing filter for each tile (in thousands per
mm 2 ).
Clusters
The number of clusters for each tile (in millions).
Clusters PF
The number of clusters passing filter for each tile (in millions).
Error Rate
The calculated error rate, as determined by a spiked in PhiX control
sample. If no PhiX control sample is run in the lane, this chart is not
available.
% Phasing, %
Prephasing.
The estimated percentage of molecules in a cluster for which
sequencing falls behind (phasing) or jumps ahead (prephasing) the
current cycle within a read.
% Aligned
The percentage of reads from clusters in each tile that aligned to
the PhiX genome.
Perfect Reads
The percentage of reads that align perfectly, as determined by a
spiked in PhiX control sample. If no PhiX control sample is run in
the lane, this chart is all gray.
Corrected Intensity
The intensity corrected for cross talk between the color channels
by the matrix estimation and phasing and prephasing.
Called Intensity
The intensity for the called base.
Signal to Noise
The signal to noise ratio is calculated as mean called intensity
divided by standard deviation of noncalled intensities.
Note the variable scales used on these different parameters.
Data By Cycle Plot
The Data by Cycle plot shows the progression of quality metrics during a run as a line
graph.
Use the Data By Cycle plot to judge the progression of quality metrics during a run on a
cycle by cycle basis. Do not use the Data By Cycle plot to look at downstream analysis
metrics, or aggregate analysis for a whole lane regardless of cycle.
The Data by Cycle plots have the following features:
} You can select the displayed metric and base through the drop-down lists.
} The symbol in the top right-hand corner toggles the plot between pane view and full
screen view.
You can monitor the following quality metrics with this plot.
BaseSpace Onsite v2.1 HT System Guide
37
How To Use BaseSpace Onsite
% Base
Intensity
This chart shows the intensity by color and cycle of the 90%
percentile of the data for each tile.
FWHM
The average full width of clusters at half maximum (in pixels). Used
to display focus quality.
% Base
The percentage of clusters for which the selected base (A, C, T, or
G) has been called.
%Q > 20, %Q > 30
The percentage of bases with a quality score of > 20 or > 30,
respectively. These charts are generated after the 25th cycle, and
the values represent the current scored cycle.
Median Q-Score
The median Q-Score for each tile over all bases for the current
cycle. These charts are generated after the 25th cycle. This plot is
best used to examine the Q-scores of your run as it progresses.
Bear in mind that the %Q30 plot can give an over simplified view
due to its reliance on a single threshold.
Error Rate
The calculated error rate, as determined by a spiked in PhiX control
sample. If no PhiX control sample is run in the lane, this chart is not
available.
Perfect Reads
The percentage of reads that align perfectly, as determined by a
spiked in PhiX control sample. If no PhiX control sample is run in
the lane, this chart is all gray.
Corrected Intensity
The intensity corrected for cross talk between the color channels
by the matrix estimation and phasing and prephasing.
Called Intensity
The intensity for the called base.
Signal to Noise
The signal to noise ratio is calculated as mean called intensity
divided by standard deviation of noncalled intensities.
You can expand a chart by clicking the expand button
.
Q-score Distribution
The Q-score Distribution plot shows a bar graph that allows you to view the number of
bases by quality score. The quality score is cumulative for current cycle and previous
cycles, and only bases from reads that pass the quality filter are included.
Use it to judge the Q-score distribution for a run, which is an excellent indicator for run
performance. Do not use the Q-score Distribution plot to look at metrics other than
quality scores.
The Q-score Distribution pane shows plots that allow you to view the number of reads
by quality score. The quality score is cumulative for current cycle and previous cycles,
and only reads that pass the quality filter are included.
These plots have the following features:
} You can select the displayed read, and cycle through the drop-down lists.
} The symbol in the top right-hand corner toggles the plot between pane view and full
screen view.
The Q-score is based on the Phred scale. The following list shows Q-scores and the
corresponding chance that the base call is wrong:
} Q10—10% chance of wrong base call
} Q20—1% chance of wrong base call
} Q30—0.1% chance of wrong base call
38
Document # 15049148 v01
Q40—0.01% chance of wrong base call
You can slide the threshold (set at ≥ Q30 by default) to examine the proportion of bases
at or above any particular Q-score. When using Q-score binning, this plot reflects the
subset of Q-scores used.
Data by Lane Plot
The Data by Lane plots allow you to view quality metrics per lane.
Use the Data By Lane plot to judge the difference in quality metrics between lanes. Do
not use the Data By Lane plot to look at alignment or variant calling analysis metrics.
The Data by Lane plots have the following features:
} You can select the displayed metric through the drop-down lists.
} The symbol in the top right-hand corner toggles the plot between pane view and full
screen view.
The plots share several characteristics:
} The plots show the distribution of mean values for a given parameter across all tiles
in a given lane.
} The red line indicates the median tile value for the parameter displayed.
} Blue boxes are for raw clusters, green boxes for clusters passing filter.
} The box outlines the interquartile range (the middle 50% of the data) for the tiles
analyzed for the data point.
} The error bars delineate the minimum and maximum without outliers.
} The outliers are the values that are more than 1.5 times the interquartile range below
the 25th percentile, or more than 1.5 times the interquartile range above the 75th
percentile. Outliers are indicated as dots.
You can monitor the following quality metrics with this plot:
} The density of clusters for each tile (in thousands per mm2).
} The number of clusters for each tile (in millions).
} The estimated percentage of molecules in a cluster for which sequencing falls behind
(phasing) or jumps ahead (prephasing) the current cycle within a read.
} The percentage of reads from clusters in each tile that aligned to the PhiX genome.
You can expand a chart by clicking the expand button
.
Q-score Heat Map
The Q-score heat map shows plots that allow you to view the Q-score by cycle.
View the Q-score heat map for a quick overview of the Q-scores over the cycles. Do not
use the Q-score heat map to look at metrics other than quality scores.
These plots have the following features:
} The color bars to the right of each chart indicate the values that the colors represent.
The charts are displayed with tailored scaling; the scale is always 0% to 100% of
maximum value.
} The symbol in the top right-hand corner toggles the plot between pane view and full
screen view.
You can expand a chart by clicking the expand button
.
View Run Samples List
The Run Samples List contains a list of all the samples in the run.
BaseSpace Onsite v2.1 HT System Guide
39
How To Use BaseSpace Onsite
}
Use this option when you want to see a list of all the samples in the run or to navigate to
details regarding a specific sample.
To view the Run Samples List, perform the following steps.
1
Click the Runs icon.
2
Click the desired run.
3
There are 2 methods to go to the Run Samples List:
} From the Runs Overview page, click the Samples link.
} From the Runs Overview page, click the Samples icon
menu.
from the left navigation
You can now click a sample to see the sample overview; for more information, see
Sample Overview Page on page 25.
View Run Summary
The Run Summary page has the overall statistics about the run.
Use this option when you want to view information about the run such as percent
alignment, cycles, and densities.
To view the Run Summary page, perform the following steps.
1
Click the Runs icon.
2
Click the desired run.
3
There are 2 methods to go to the Run Summary:
} From the Run Overview Page, select Run Summary button.
} From the Run Overview Page, select the Run Summary icon
navigation menu.
from the left
The following metrics are displayed in the top table, split out by read and total.
Level
The sequencing read level.
Yield Total
The number of bases sequenced, which is updated as the run
progresses.
Projected Total
Yield
The projected number of bases expected to be sequenced at the
end of the run.
Aligned
The percentage of the sample that aligned to the PhiX genome,
which is determined for each level or read independently.
Error Rate
The calculated error rate of the reads that aligned to PhiX.
Intensity Cycle 1
The average of the A channel intensity measured at the first cycle
averaged over filtered clusters. For the NextSeq 500 System, the
red channel is used.
%Q ≥ 30
The percentage of bases with a quality score of 30 or higher,
respectively. This chart is generated after the 25th cycle, and the
values represent the current cycle.
The following metrics are available in the Read tables, split out by lane.
Tiles
40
The number of tiles per lane.
Document # 15049148 v01
The density of clusters (in thousands per mm 2 ) detected by
image analysis, +/- 1 standard deviation.
Clusters PF
The percentage of clusters passing filtering, +/- 1 standard
deviation.
Phas./Prephas.
The value used by RTA for the percentage of molecules in a cluster
for which sequencing falls behind (phasing) or jumps ahead
(prephasing) the current cycle within a read.
For MiSeq and NextSeq, RTA generates phasing and prephasing
estimates empirically for every cycle. The value displayed here is
therefore not used in the actual phasing/prephasing calculations,
but is an aggregate value determined from the first 25 cycles. For
most applications, the value reported is very close to the value that
is applied. For low diversity samples or samples with unbalanced
base composition, the reported value can diverge from the values
being applied because the value changes from cycle to cycle.
Reads
The number of clusters (in millions).
Reads PF
The number of clusters (in millions) passing filtering.
%Q ≥ 30
The percentage of bases with a quality score of 30 or higher,
respectively. This chart is generated after the 25th cycle, and the
values represent the current cycle.
Yield
The number of bases sequenced which passed filter.
Cycles Err Rated
The number of cycles that have been error-rated using PhiX,
starting at cycle 1.
Aligned
The percentage that aligned to the PhiX genome.
Error Rate
The calculated error rate, as determined by the PhiX alignment.
Subsequent columns display the error rate for cycles 1–35, 1–75,
and 1–100.
Intensity Cycle 1
The average of the A channel intensity measured at the first cycle
averaged over filtered clusters.
%Intensity Cycle 20
The corresponding intensity statistic at cycle 20 as a percentage of
that value at the first cycle. 100%x(Intensity at cycle 20)/(Intensity
at cycle 1).
How To Use BaseSpace Onsite
Density
View the Project Sample List
The Project Sample List contains the list of samples in a project. Use this option when
you want to see a list of all the samples in the project or navigate to details regarding a
specific sample.
To view the Project Sample List, perform the following steps.
1
Click the Projects icon.
2
Click the desired project.
3
Click the Samples link from the left navigation menu.
You can now click a sample to see the sample overview; for more information, see
Sample Overview Page on page 25.
BaseSpace Onsite v2.1 HT System Guide
41
View the Analyses List
The Analyses List contains a list of app sessions in a project. Use this option when you
want to navigate to details regarding a specific app session.
To view the Analyses List, perform the following steps.
1
Click the Projects icon.
2
Click the desired project.
You can now click an Analysis to see the results; for more information, see Analyses Page
on page 25.
Analyze Samples Further
The following topics describe how to analyze samples further in BaseSpace Onsite.
} Launch Apps on page 42
} Launch the IGV App on page 42
} Run the VariantStudio App on page 43
Launch Apps
You can launch apps that perform additional analysis, visualization, or annotation of
data.
To launch an app, perform the following steps.
1
There are 2 ways to start an app:
} Navigate to the project, sample, or analysis that you want to run the app on, click
the Launch Apps button, and select the desired app from the drop-down list.
} Go to the Apps button, select the desired app from the list and click Launch. If you
are running BWA Enrichment v2.1 or Isaac Enrichment v2.1, read Enrichment v2.1
Apps Adapter Trimming on page 44.
2
Read the End-User License Agreement and permissions, and then click Accept.
The app now guides you through the start-up process. BaseSpace Onsite has limited
storage capacity, and checks the free space available before starting an app. If there is not
enough available space, BaseSpace Onsite displays an error message. For more
information, see Storage Check on page 68.
Launch the IGV App
The Integrative Genomics Viewer (IGV) of the Broad Institute is a fully featured genome
browser that allows you to visualize your sequence data in great detail. Illumina has
modified IGV to display alignment and variant data from BaseSpace Onsite (BAM and
VCF files).
IGV enables you to perform variant analysis after launching Resequencing or Amplicon
workflows in BaseSpace Onsite. IGV is run on a project, which is the highest level
directory and contains one or more AppResults. IGV retains all its native functions,
including loading data from your local computer.
NOTE
Make sure that the Java Runtime Environment is installed on the computer in order for
IGV to work properly. Download Java here: java.com/en/.
Perform the following steps to launch the IGV app.
1
42
Click the Projects icon.
Document # 15049148 v01
Click desired project.
3
Click the Launch Apps button and select the IGV application from the drop-down
list.
4
Select the Accept button.
5
Depending on your browser, it asks you to open or save the *.jnlp file.
} For Internet Explorer, click the Open button.
} For Chrome, click the Keep button and then click file to open.
} For Firefox, select the Open with Java(TM) Web Start Launcher (default) option.
The IGV App opens on your desktop with the requested project loaded.
BaseSpace Onsite Data in IGV
The BaseSpace Onsite file browser shows data in BaseSpace Onsite that is available for
viewing in IGV. The directory structure shown is according to how data are organized in
BaseSpace Onsite.
A project is the highest level directory and it contains one or more AppResults. If an
AppResult was the result of analyzing a single sample, then the sample name is
appended to the AppResult name. Each AppResult contains zero or more files.
The file browser shows alignment (BAM) and variant (VCF) files, and, if produced, BED,
GTF, and BEDGRAPH files. Double-click a file to load it as an IGV track. First load VCF
files before BAM files because read tracks can take up an entire IGV screen, which
requires scrolling to see variants.
Additional Reference Genomes
IGV contains several installed reference genomes:
} Homo sapiens: Human hg19
} Mus musculus: Mouse mm9
} Saccharomyces cerevisiae: S. cerevisiae (sacCer2)
} Arabidopsis thaliana: A. thaliana (TAIR10)
Run the VariantStudio App
The Illumina VariantStudio data analysis software application enables researchers to
identify and classify disease-relevant variants quickly, and then communicate significant
findings in concise and actionable reports.
This application provides an intuitive framework for nonexpert users and offers the
following features:
} Flexible filtering options
} Streamlined variant classification
} Rapid and rich annotations
} Customizable reporting
Use VariantStudio if you want to perform the following:
} Explore and isolate key variants
} Categorize variants and determine biological impact
To launch the VariantStudio app, perform the following steps.
1
Click the Apps button.
2
Select the VariantStudio app from the list and click Launch.
3
Select the project you want to run the app on. You can only select projects you own.
BaseSpace Onsite v2.1 HT System Guide
43
How To Use BaseSpace Onsite
2
4
Click Continue.
5
If you use the app for the first time, install VariantStudio:
a
b
c
6
Click the Install VariantStudio button.
Run the setup.exe file. Your web browser can ask you to save the file first. After
the download has completed, double-click the setup file.
If you are prompted with a security warning, click Install.
Click the Launch VariantStudio.
The VariantStudio application opens on your desktop with the requested project
loaded. For instructions on how to run VariantStudio, see the VariantStudio User
Guide.
Enrichment v2.1 Apps Adapter Trimming
BWA Enrichment v2.1 and Isaac Enrichment v2.1 Apps do not support adapter
trimming in this BaseSpace Onsite release. Here are some notes on the use of these apps:
} NextSeq—You do not need to use adapter trimming for NextSeq data in any of the
secondary analysis apps. Adapter trimming is performed automatically in FASTQ
generation based on the library prep kit type selected during run setup in the Prep
Tab workflow.
} HiSeq—You can go back to the uploaded run and requeue FASTQ generation by
fixing the sample sheet. To fix the sample sheet, add the adapter sequences to the
Settings subsection, and then requeue the analysis. For more information, see Fix
Sample Sheet / Rerun Workflow on page 63.
} MiSeq—You can only upload MiSeq FASTQ files through BaseSpace Onsite Import.
Trim the adapters from the FASTQ files before import.
Download Files
The following topics describe how to download files in BaseSpace Onsite.
} Download Individual Files on page 44
} Download Multiple FASTQ Files on page 45
} Download Run File Package on page 45
} Download Project or Analysis Package on page 1
Download Individual Files
BaseSpace Onsite allows you to download data as a package, individually, or as a group
of FASTQ files. Use this option when you want to download individual files, and do not
need all files for a run, sample, project, or analysis.
To download multiple FASTQ files, perform the following steps.
44
1
Click the Runs icon or Projects icon.
2
Navigate to the file you want to download
3
Click the file.
4
Click the Download button.
BaseSpace Onsite now downloads the files to the desired location.
Document # 15049148 v01
BaseSpace Onsite allows you to download data as a package, individually, or as a group
of FASTQ files. If you want to download FASTQ files per sample, use this option to save
time.
To download multiple FASTQ files, perform the following steps.
1
Click the Runs icon or Projects icon.
2
Click the desired run or project.
3
Click the desired sample in the Samples pane.
4
In the Files pane, select the checkboxes for the desired FASTQ files.
5
Click the Download Selected button.
The BaseSpace Onsite Downloader is not signed, which can lead to the following
warnings.
} A Windows popup appears when trying to install the setup.exe. Choose Run
anyway to install the BaseSpace Onsite Downloader.
} Antivirus software can flag the file. Make sure that you allow this file to be
installed.
The BaseSpace Onsite Downloader guides you through the download process, and
starts the download of the files to the desired location.
Download Run File Package
BaseSpace Onsite allows you to download data as a package, individually, or as a group
of FASTQ files. This topic describes how to download a package of files in a run.
The packages available depend on your workflow; packages that are grayed out are not
available for download. There are 4 types of data packages:
} Variant Data, containing VCF files with variant calls.
} Aligned Data, containing BAM files with aligned reads.
} Unaligned Data, containing FASTQ files with unaligned reads.
} SAV Data, containing files describing the set-up of the run and InterOp files.
For more information about file types, see BaseSpace Onsite Files on page 46.
To download a run file package, perform the following steps.
1
Click the Runs icon.
2
Click the desired run.
3
Click Download Run.
4
If not yet installed, click Install the Downloader to install BaseSpace Onsite
Downloader.
BaseSpace Onsite Downloader is a desktop client that allows for fast, reliable
downloads transferred securely over SSL.
5
Select the files to be downloaded.
6
Click Download your files.
BaseSpace Onsite Downloader is launched.
7
In the Confirm Download dialog, browse to a download folder, and then click Start
Download.
BaseSpace Onsite Downloader tracks the progress of the download.
BaseSpace Onsite v2.1 HT System Guide
45
How To Use BaseSpace Onsite
Download Multiple FASTQ Files
BaseSpace Onsite Files
BaseSpace Onsite uses and produces various files. See the topics in this section for
details.
} BAM Files on page 46
} gVCF Files on page 46
} VCF Files on page 50
} FASTQ Files on page 52
} Health Runs on page 56
BAM Files
What is it?
The Sequence Alignment/Map (SAM) format is a generic alignment format for storing
read alignments against reference sequences, supporting short and long reads (up to 128
Mb) produced by different sequencing platforms. SAM is a text format file that is humanreadable. The Binary Alignment/Map (BAM) keeps the same information as SAM, but in
a compressed, binary format that is only machine readable.
When to use it
Allows you to see alignments. Use it for direct interpretation or as a starting point for
further analysis with downstream analysis tools that are compatible with BAM. BAM
files are suitable for viewing with an external viewer such as IGV or the UCSC Genome
Browser.
When not to use it
Do not use it with tools that are not compatible with the BAM format. Do not use with
applications that cannot handle large files, as BAM files can get large, depending on the
application and data.
How to use it
If you use an app in BaseSpace that uses BAM files as input, the app locates the file
when launched. If using BAM files in other tools, download the file to use it in the
external tool.
Detailed Description
Go to samtools.sourceforge.net/SAM1.pdf to see the exact SAM specification.
gVCF Files
What is it?
This application also produces the Genome Variant Call Format file (gVCF). gVCF was
developed to store sequencing information for both variant and nonvariant positions,
which is required for human clinical applications. gVCF is a set of conventions applied
to the standard variant call format (VCF) 4.1 as documented by the 1000 Genomes
Project. These conventions allow representation of genotype, annotation, and other
information across all sites in the genome in a compact format. Typical human wholegenome sequencing results expressed in gVCF with annotation are less than 1 Gbyte, or
about 1/100 the size of the BAM file used for variant calling. If you are performing
46
Document # 15049148 v01
gVCF is a text file format, stored as a gzip compressed file (*.genome.vcf.gz).
Compression is further achieved by joining contiguous nonvariant regions with similar
properties into single ‘block’ VCF records. To maximize the utility of gVCF, especially for
high stringency applications, the properties of the compressed blocks are conservative.
Block properties like depth and genotype quality reflect the minimum of any site in the
block. The gVCF file can be indexed (creating a *.tbi file) and used with existing VCF
tools such as tabix and IGV, making it convenient both for direct interpretation and as a
starting point for further analysis.
For more information, see sites.google.com/site/gvcftools/home/about-gvcf.
When to use it
Use it for direct interpretation or as a starting point for further analysis with downstream
analysis that is compatible with gVCF, such as tabix and IGV.
When not to use it
Do not use it with tools that are not compatible with the gVCF format.
How to use it
Apps that use gVCF files find it when kicked off and directed to the sample. If using
gVCF files in other tools, download the file to use it in the outside tool.
Detailed Description
The following conventions are used in the variant caller gVCF files.
Samples per File
There is only one sample per gVCF file.
Nonvariant Blocks Using END Key
Contiguous nonvariant segments of the genome can be represented as single records in
gVCF. These records use the standard 'END' INFO key to indicate the extent of the
record. Even though the record can span multiple bases, only the first base is provided
in the REF field to reduce file size.
The following is a simplified segment of a gVCF file, describing a segment of nonvariant
calls (starting with an A) on chromosome 1 from position 51845 to 51862.
##INFO=<ID=END,Number=1,Type=Integer,Description="End position
of the variant described in this record">#CHROM POS ID REF
ALT QUAL FILTER INFO FORMAT NA19238chr1 51845 . A . . PASS
END=51862
Any field provided for a block of sites, such as read depth (using the DP key), shows the
minimum value that is observed among all sites encompassed by the block. Each
sample value shown for the block, such as the depth (DP), is restricted to a range where
the maximum value is within 30% or 3 of the minimum. For example, for sample value
range [x,y], y <= x+max(3,x*0.3). This range restriction applies to each of the sample
values printed in the final block record.
Indel Regions
Sites that are "filled in" inside deletions have additional changes:
BaseSpace Onsite v2.1 HT System Guide
47
How To Use BaseSpace Onsite
targeted sequencing, gVCF is also an appropriate choice to represent and compress the
results.
All deletions:
} Sites inside any deletion are marked with the deletion filters, in addition to any
filters that have already been applied to the site.
} Sites inside deletions cannot have a genotype or alternate allele quality score higher
than the corresponding value from the enclosing indel.
Heterozygous deletions:
} Sites inside heterozygous deletions are altered to have haploid genotype entries (eg,
"0" instead of "0/0", "1" instead of "1/1").
} Heterozygous SNV calls inside heterozygous deletions are marked with the
"SiteConflict" filter and their genotype is unchanged.
Homozygous deletions:
} Homozygous reference and no-call sites inside homozygous deletions have genotype
"."
} Sites inside homozygous deletions that have a nonreference genotype are marked
with a “SiteConflict” filter, and their genotype is unchanged.
} Site and genotype quality are set to "."
The described modifications reflect the notion that the site confidence is bound within
the enclosing indel confidence.
On occasion, the variant caller produces multiple overlapping indel calls that cannot be
resolved into 2 haplotypes. If this case, all indels and sites in the region of the overlap
are marked with the IndelConflict filter.
Genotype Quality for Variant and Nonvariant Sites
The gVCF file uses an adapted version of genotype quality for variant and nonvariant
site filtration. This value is associated with the key GQX. The GQX value is intended to
represent the minimum of {Phred genotype quality assuming the site is variant, Phred
genotype quality assuming the site is nonvariant}. The reason for using this value is to
allow a single value to be used as the primary quality filter for both variant and
nonvariant sites. Filtering on this value corresponds to a conservative assumption
appropriate for applications where reference genotype calls must be determined at the
same stringency as variant genotypes, ie:
} An assertion that a site is homozygous reference at GQX >= 30 is made assuming the
site is variant.
} An assertion that a site is a nonreference genotype at GQX >= 30 is made assuming
the site is nonvariant.
Section Descriptions
The gVCF file contains the following sections:
} Metainformation lines start with ## and contain metadata, config information, and
define the values that the INFO, FILTER, and FORMAT fields can have.
} The header line starts with # and names the fields that the data lines use. These
fields are #CHROM, POS, ID, REF, ALT, QUAL, FILTER, INFO, FORMAT, followed
by one or more sample columns.
} Data lines that contain information about one or more positions in the genome.
If you extract the variant lines from a gVCF file, you produce a conventional variant VCF
file.
48
Document # 15049148 v01
The fixed fields #CHROM, POS, ID, REF, ALT, QUAL are defined in the VCF 4.1
standard provided by the 1000 Genomes Project. The fields ID, INFO, FORMAT, and
sample are described in the metainformation.
} CHROM: Chromosome: an identifier from the reference genome or an anglebracketed ID String ("<ID>") pointing to a contig.
} POS: Position: The reference position, with the first base having position 1. Positions
are sorted numerically, in increasing order, within each reference sequence CHROM.
There can be multiple records with the same POS. Telomeres are indicated by using
positions 0 or N+1, where N is the length of the corresponding chromosome or
contig.
} ID: Semicolon separated list of unique identifiers where available. If this ID is a
dbSNP variant, it is encouraged to use the rs number. No identifier is present in
more than 1 data record. If there is no identifier available, then the missing value is
used.
} REF: Reference bases: A,C,G,T,N; there can be multiple bases. The value in the POS
field refers to the position of the first base in the string. For simple insertions and
deletions in which either the REF or 1 of the ALT alleles would otherwise be
null/empty, the REF and ALT strings include the base before the event. This
modification is reflected in the POS field. The exception is when the event occurs at
position 1 on the contig, in which case they include the base after the event. If any of
the ALT alleles is a symbolic allele (an angle-bracketed ID String "<ID>"), the
padding base is required. In that case, POS denotes the coordinate of the base
preceding the polymorphism.
} ALT: Comma-separated list of alternate nonreference alleles called on at least 1 of the
samples. Options are:
} Base strings made up of the bases A,C,G,T,N
} Angle-bracketed ID String (”<ID>”)
} Break-end replacement string as described in the section on break-ends.
} If there are no alternative alleles, then the missing value is used.
} QUAL: Phred-scaled quality score for the assertion made in ALT. ie -10log_10
probability (call in ALT is wrong). If ALT is ”.” (no variant), this score is -10log_10 p
(variant). If ALT is not ”.”, this score is -10log_10 p(no variant). High QUAL scores
indicate high confidence calls. Although traditionally people use integer Phred
scores, this field is permitted to be a floating point to enable higher resolution for low
confidence calls if desired. If unknown, the missing value is specified. (Numeric)
} FILTER: PASS if this position has passed all filters, ie a call is made at this position.
Otherwise, if the site has not passed all filters, a semicolon-separated list of codes for
filters that fail. gVCF files use the following values:
} PASS: position has passed all filters.
} IndelConflict: Locus is in region with conflicting indel calls.
} SiteConflict: Site genotype conflicts with proximal indel call, which is typically a
heterozygous SNV call made inside a heterozygous deletion.
} LowGQX: Locus GQX (minimum of {Genotype quality assuming variant
position,Genotype quality assuming nonvariant position}) is less than 30 or not
present.
} HighDPFRatio: The fraction of base calls filtered out at a site is greater than 0.3.
} HighSNVSB: SNV strand bias value (SNVSB) exceeds 10. High strand bias
indicates a potential high false-positive rate for SNVs.
} HighSNVHPOL: SNV contextual homopolymer length (SNVHPOL) exceeds 6.
BaseSpace Onsite v2.1 HT System Guide
49
How To Use BaseSpace Onsite
Field Descriptions
}
}
}
} HighREFREP: Indel contains an allele that occurs in a homopolymer or
dinucleotide track with a reference repeat greater than 8.
} HighDepth: Locus depth is greater than 3x the mean chromosome depth.
INFO: Additional information. INFO fields are encoded as a semicolon-separated
series of short keys with optional values in the format: <key>=<data>[,data]. gVCF
files use the following values:
} END: End position of the region described in this record.
} BLOCKAVG_min30p3a: nonvariant site block. All sites in a block are constrained
to be nonvariant, have the same filter value, and have all sample values in range
[x,y], y <= max(x+3,(x*1.3)). All printed site block sample values are the minimum
observed in the region spanned by the block.
} SNVSB: SNV site strand bias.
} SNVHPOL: SNV contextual homopolymer length.
} CIGAR: CIGAR alignment for each alternate indel allele.
} RU: Smallest repeating sequence unit extended or contracted in the indel allele
relative to the reference. If longer than 20 bases, RUs are not reported.
} REFREP: Number of times RU is repeated in reference.
} IDREP: Number of times RU is repeated in indel allele.
FORMAT: Format of the sample field. FORMAT specifies the data types and order of
the subfields. gVCF files use the following values:
} GT: Genotype.
} GQ: Genotype Quality.
} GQX: Minimum of {Genotype quality assuming variant position, Genotype quality
assuming nonvariant position}.
} DP: Filtered base call depth used for site genotyping.
} DPF: Base calls filtered from input before site genotyping.
} AD: Allelic depths for the ref and alt alleles in the order listed. For indels, this
value only includes reads that confidently support each allele (posterior
probability 0.999 or higher that read contains indicated allele vs all other
intersecting indel alleles).
} DPI: Read depth associated with indel, taken from the site preceding the indel.
SAMPLE: Sample fields as defined by the header.
VCF Files
What is it?
VCF is a text file format that contains information about variants found at specific
positions in a reference genome. The file format consists of metainformation lines, a
header line, and then data lines. Each data line contains information about a single
variant.
When to use it
Use it for direct interpretation or as a starting point for further analysis with downstream
analysis that is compatible with VCF, such as IGV or the UCSC Genome Browser.
When not to use it
Do not use it with tools that are not compatible with the VCF format.
50
Document # 15049148 v01
How to use it
If you use an app in BaseSpace that uses VCF files as input, the app locates the file when
launched. If using VCF files in other tools, download the file to use it in the external tool.
Detailed Description
The file naming convention for VCF files is as follows: SampleName_S#.vcf (where # is
the sample number determined by ordering in the sample sheet).
The header of the VCF file describes the tags used in the remainder of the file and has
the column header:
##fileformat=VCFv4.1
##fileDate=20120317
##source=SequenceAnalysisReport.vshost.exe
##reference=
##phasing=none
##INFO=<ID=DP,Number=1,Type=Integer,Description="Total Depth">
##INFO=<ID=TI,Number=.,Type=String,Description="Transcript ID">
##INFO=<ID=GI,Number=.,Type=String,Description="Gene ID">
##INFO=<ID=CD,Number=0,Type=Flag,Description="Coding Region">
##FILTER=<ID=q20,Description="Quality below 20">
##FORMAT=<ID=GT,Number=1,Type=String,Description="Genotype">
##FORMAT=<ID=GQ,Number=1,Type=Integer,Description="Genotype
Quality">
#CHROM POS ID REF ALT QUAL FILTER INFO FORMAT SAMPLE
A sample line of the VCF file, with the data that is used to populate each column
described:
chr22 16285888 rs76548004 T C 17 d15;q20 DP=11;TI=NM_
001136213;GI=POTEH;CD GT:GQ 1/0:17
Setting
Description
ALT
The alleles that differ from the reference read. For example, an insertion of a
single T could show reference A and alternate AT.
CHROM
The chromosome of the reference genome. Chromosomes appear in the same
order as the reference FASTA file (generally karyotype order)
FILTER
If all filters are passed, the' PASS' is written. The possible filters are as follows:
• q20 – The variant score is less than 20. (Configurable using the
VariantFilterQualityCutoff setting in the config file)
• r8 – For an Indel, the number of repeats in the reference (of a 1- or 2-base
repeat) is greater than 8. (Configurable using the IndelRepeatFilterCutoff
setting in the config file)
BaseSpace Onsite v2.1 HT System Guide
51
How To Use BaseSpace Onsite
NOTE
Windows recognizes VCF files as an Outlook contact file. Do not open VCF files in
Outlook.
Setting
Description
FORMAT
The format column lists fields (separated by colons), for example, "GT:GQ". The
list of fields provided depends on the variant caller used. The available fields are
as follows:
AD – Entry of the form X,Y where X is the number of reference calls, Y the
number of alternate calls
GQ – Genotype quality
GT – Genotype. 0 corresponds to the reference base, 1 corresponds to the first
entry in the ALT column, 2 corresponds to the second entry in the ALT column,
and so on. The '/' indicates that there is no phasing information.
NL – Noise level; an estimate of base calling noise at this position
SB – Strand bias at this position. Larger negative values indicate more bias;
values near 0 indicate little strand bias.
VF – Variant frequency. The percentage of reads supporting the alternate allele.
ID
The rs number for the SNP obtained from dbSNP. If there are multiple rs
numbers at this location, the list is semicolon delimited. If no dbSNP entry exists
at this position, the missing value ('.') is used.
INFO
The possible entries in the INFO column:
• AD – Entry of the form X,Y where X is the number of reference calls, Y the
number of alternate calls.
• CD – A flag indicating that the SNP occurs within the coding region of at least 1
RefGene entry
• DP – The depth (number of base calls aligned to this position)
• GI – A comma-separated list of gene IDs read from RefGene
• NL – Noise level; an estimate of base calling noise at this position.
• TI – A comma-separated list of transcript IDs read from RefGene
• SB – Strand bias at this position.
• VF – Variant frequency. The number of reads supporting the alternate allele.
POS
The 1-based position of this variant in the reference chromosome. The
convention for VCF files is that, for SNPs, this base is the reference base with the
variant. For indels or deletions, this base is the reference base immediately
before the variant. Variants are in order of position.
QUAL
A Phred-scaled quality score assigned by the variant caller. Higher scores
indicate higher confidence in the variant (and lower probability of errors). For a
quality score of Q, the estimated probability of an error is 10-(Q/10). For
example, the set of Q30 calls has a 0.1% error rate. Many variant callers assign
quality scores (based on their statistical models) which are high relative to the
error rate observed in practice.
REF
The reference genotype. For example, a deletion of a single T can read reference
TT and alternate T.
SAMPLE
The sample column gives the values specified in the FORMAT column. One
MAXGT sample column is provided for the normal genotyping (assuming the
reference). For reference, a second column is provided for genotyping assuming
the site is polymorphic. See the Starling documentation for more details.
FASTQ Files
What is it?
BaseSpace Onsite converts *.bcl files into FASTQ files, which contain base call and
quality information for all reads passing filtering.
52
Document # 15049148 v01
FASTQ files can be used as sequence input for alignment and other secondary analysis
software.
When not to use it.
Do not use it with tools that are not compatible with the FASTQ format.
How to use it
BaseSpace Onsite automatically generates FASTQ files in sample sheet-driven workflow
apps. Other apps that perform alignment and variant calling also automatically use
FASTQ files.
Naming
FASTQ files are named with the sample name and the sample number, which is a
numeric assignment based on the order that the sample is listed in the sample sheet.
Example:
Data\Intensities\BaseCalls\SampleName_S1_L001_R1_001.fastq.gz
} SampleName—The sample name provided in the sample sheet. If a sample name is
not provided, the file name includes the sample ID, which is a required field in the
sample sheet and must be unique.
} S1—The sample number based on the order that samples are listed in the sample
sheet starting with 1. In this example, S1 indicates that this sample is the first
sample listed in the sample sheet.
NOTE
Reads that cannot be assigned to any sample are written to a FASTQ file for sample
number 0, and excluded from downstream analysis.
}
}
}
L001—The lane number.
R1—The read. In this example, R1 means Read 1. For a paired-end run, there is at
least one file with R2 in the file name for Read 2. When generated, index reads are I1
or I2.
001—The last segment is always 001.
Compression
FASTQ files are saved compressed in the GNU zip format (an open source file
compression program), indicated by the .gz file extension.
Format
Each entry in a FASTQ file consists of 4 lines:
} Sequence identifier
} Sequence
} Quality score identifier line (consisting only of a +)
} Quality score
@<instrument>:<run number>:<flowcell ID>:<lane>:<tile>:<xpos>:<y-pos>:<UMI> <read>:<is filtered>:<control
number>:<index>
The following table describes the elements.
BaseSpace Onsite v2.1 HT System Guide
53
How To Use BaseSpace Onsite
When to use it.
Element
Requirements Description
@
@
Each sequence identifier line starts with @.
<instrument> Characters
Instrument ID.
allowed:
a–z, A–Z, 0–9
and
underscore
<run number> Numerical
Run number on instrument.
<flowcell
Characters
ID>
allowed:
a–z, A–Z, 0–9
<lane>
Numerical
Lane number.
<tile>
Numerical
Tile number.
<x_pos>
Numerical
X coordinate of cluster.
<y_pos>
Numerical
Y coordinate of cluster.
<UMI>
Restricted
Optional, appears when UMI is specified in sample sheet.
characters:
UMI sequences for Read 1 and Read 2, seperated by a
A/T/G/C/N
plus [+].
<read>
Numerical
Read number. 1 can be single read or Read 2 of pairedend.
<is
Y or N
Y if the read is filtered (did not pass), N otherwise.
filtered>
<control
Numerical
0 when none of the control bits are on, otherwise it is an
number>
even number.
<index>
Restricted
Index of the read.
characters:
A/T/G/C/N
An example of a valid entry is as follows; note the space preceding the read number
element:
@SIM:1:FCX:1:15:6329:1045:GATTACT+GTCTTAAC 1:N:0:ATCCGA
TCGCACTCAACGCCCTGCATATGACAAGACAGAATC
+
<>;##=><9=AAAAAAAAAA9#:<#<;<<<????#=
Quality Scores
A quality score (or Q-score) expresses an error probability. In particular, it serves as a
convenient and compact way to communicate small error probabilities.
Given an assertion, A, the quality score, Q(A), expresses the probability that A is not true,
P(~A), according to the relationship:
Q(A) =-10 log10(P(~A))
where P(~A) is the estimated probability of an assertion A being wrong.
The relationship between the quality score and error probability is demonstrated with the
following table.
Quality score, Q(A)
10
20
30
54
Error probability, P(~A)
0.1
0.01
0.001
Document # 15049148 v01
Quality Scores Encoding
In FASTQ files, quality scores are encoded into a compact form, which uses only 1 byte
per quality value. In this encoding, the quality score is represented as the character with
an ASCII code equal to its value + 33. The following table demonstrates the relationship
between the encoding character, its ASCII code, and the quality score represented.
NOTE
When Q-score binning is in use, the subset of Q-scores applied by the bins is displayed.
Table 1 ASCII Characters Encoding Q-scores 0–40
Symbol
ASCII Code
QScore
Symbol
ASCII Code
QScore
!
33
0
6
54
21
"
34
1
7
55
22
#
35
2
8
56
23
$
36
3
9
57
24
%
37
4
:
58
25
&
38
5
;
59
26
'
39
6
<
60
27
(
40
7
=
61
28
)
41
8
>
62
29
*
42
9
?
63
30
+
43
10
@
64
31
,
44
11
A
65
32
-
45
12
B
66
33
.
46
13
C
67
34
/
47
14
D
68
35
0
48
15
E
69
36
1
49
16
F
70
37
2
50
17
G
71
38
3
51
18
H
72
39
4
52
19
I
73
40
5
53
20
BaseSpace Onsite v2.1 HT System Guide
55
How To Use BaseSpace Onsite
NOTE
On the systems we currently support, Q-scores are automatically binned. The specific
binning applied depends on the current Q-table. See the white paper Reducing Whole
Genome Data Storage Footprint for more information, available from www.illumina.com.
Health Runs
A user can choose whether to send anonymous system health information to Illumina.
Health runs help Illumina diagnose issues and improve our products. The information
consists of InterOp files and log files, and is not tied to any user account. This option is
on by default.
Share Data
Data in BaseSpace Onsite can be shared with collaborators in a couple of different ways.
You can either share data at a run or project level, via an email invitation or through a
hyperlink. With the email invitation option, only the accounts with the specified email
can view shared data. Sharing via a hyperlink option allows anyone with access to the
hyperlink to be able to view the shared data, as long as the hyperlink is still active.
You can only share data to collaborators who have an account on the same BaseSpace
Onsite.
Sharing is for read-only access. If you want a collaborator to have write access, see
Transfer Owner on page 61.
NOTE
Runs and projects have separate permissions. If you share a run, the project associated
with that run is not shared automatically. Therefore, samples and app results are not
accessible to collaborators of the run.
The following topics describe how to share data.
} Share a Project using the Get Link option on page 56
} Share a Project Using the Email Option on page 57
} Share a Run with Get Link on page 57
} Share a Run Using the Email Option on page 58
Share a Project using the Get Link option
Sharing using the Get Link option allows you to share a project or a run with any
collaborator who is in your company, and has an account on the BaseSpace Onsite
system. The hyperlink can be turned on or off by setting the activate or deactivate option.
Anyone can access the project or run when the link is activated. Furthermore, anyone
who previously accepted the link still has access to the run even when the link is
deactivated.
Use the Get Link option when you do not want to assign a project to a specific person.
However, do not use this option if you want to confine the list of who has access to the
project.
NOTE
If you want more control, use the email share option to specify who can view the project.
SeeShare a Project Using the Email Option on page 57.
To use the Get Link option, perform the following steps.
56
1
Click the Projects icon.
2
Click the desired project.
3
Click the Get Link button.
4
Click the Activate button.
5
Copy the URL to share with collaborators.
Document # 15049148 v01
6
Navigate to the shared item.
7
Click the Get Link button.
8
Click the Deactivate button.
Share a Project Using the Email Option
Use the Share Project option to share a Project using an email link. The specified
collaborators receive an email with a link to the Project and only that person can view
the corresponding data.
The email option allows greater control over who can view your data. Sharing using the
Get Link options gives anyone access to your data, as long as the link is left activated.
To email a link, perform the following steps.
1
Click the Projects icon.
2
Click the desired project.
3
Click Share Project.
4
In the Share Settings dialog box, enter the collaborators email address, and then click
Invite.
NOTE
The invitation email address must match your BaseSpace Onsite login email address.
Otherwise, your collaborator is not able to view the project.
5
Click Save Settings.
Share a Run with Get Link
Sharing using the Get Link option allows you to share a run with any collaborator who
has access to the link. The hyperlink can be turned on or off by setting the activate or
deactivate option. Anyone can access the project or run when the link is activated.
Furthermore, anyone who previously accepted the link still has access to the run even
though the link is deactivated.
Sharing runs with the Get Link option is similar to sharing projects with the Get Link
option.
NOTE
If you want more control, use the email share option to specify who can view the project.
See Share a Run Using the Email Option on page 58.
To share a run using the Get Link option, perform the following steps.
1
Click the Runs icon.
2
Click the desired run.
3
Click the More button and select the Get Link option.
4
Click the Activate button.
5
Copy the URL to share with collaborators.
The link is active until the Deactivate option is selected. To deactivate a link, perform the
following steps.
6
Navigate to the run
BaseSpace Onsite v2.1 HT System Guide
57
How To Use BaseSpace Onsite
The link is active until the Deactivate option is selected. To deactivate a link, perform the
following steps.
7
Click the Get Link button.
8
Click the Deactivate button.
NOTE
Runs and projects have separate permissions. If you share a run, the project associated
with that run is not shared automatically. Therefore, samples and app results are not
accessible to collaborators of the run.
Share a Run Using the Email Option
Use the Share Project option to share a Run with a specified collaborator via an email
link. The specified collaborators receive an email with a link to the Run and only that
person can view the corresponding data.
The email option allows greater control over who can view your data. Sharing using the
Get Link options gives anyone access to your data, as long as the link is left activated.
To email a link, perform the following steps.
1
Click the Runs icon.
2
Click the desired run.
3
Click Share.
4
In the Share Settings dialog box, enter the collaborators email address, and then click
Invite.
NOTE
The invitation email address must match your BaseSpace Onsite login email address.
Otherwise, your collaborator is not able to view the project.
5
Click Save Settings.
NOTE
Runs and projects have separate permissions. If you share a run, the project associated
with that run is not shared automatically. Therefore, samples and app results are not
accessible to collaborators of the run.
Project and Sample Management
The following topics describe how to manage projects and samples in BaseSpace Onsite.
} Combine Samples on page 59
} Transfer Owner on page 61
Edit Project Details
Use the Edit Project option to change details regarding the project, such as the
description or project name.
To edit a project, perform the following steps.
58
1
Click the Projects icon.
2
Click the desired project.
3
Click Edit Project.
4
Change project details in the Edit Project dialog box.
5
Click Save.
Document # 15049148 v01
The following list includes reasons to set up a new project.
} To analyze a sample in the context of 2 different projects
} To transfer ownership of samples to a collaborator, but still keep a copy yourself
} To split a project into multiple projects
To set up a new project, perform the following steps.
1
Click the Projects icon.
2
Click New Project in the top left corner.
3
Enter a new name and description.
4
Click Create.
To copy samples into the new project, see Copy Samples on page 59.
Combine Samples
Use the following method to combine the data from 2 or more different sequencing runs
on the same sample. You can only combine samples that have the same read lengths.
To combine samples, perform the following steps.
1
Click the Projects icon.
2
Click the desired project.
3
Click the Samples link from the left navigation menu.
4
Select the checkboxes of the samples you want to combine.
5
Click Combine.
6
Click Combine in the pop-up screen.
Copy Samples
You can copy samples from a project to another project for the following reasons:
} To analyze a sample in the context of 2 different projects
} To transfer ownership of samples to a collaborator, but still keep a copy yourself
} To assign a sample to the correct project
To copy samples, perform the following steps.
1
Click the Projects icon.
2
Click the desired project.
3
Click the Samples link from the left navigation menu.
4
Select the checkboxes of the samples you want to copy.
5
Click Copy.
6
Select the new project in the drop-down list.
7
Click the Copy button.
Upload Files
Some apps need additional files generated outside of BaseSpace Onsite. Some appls also
provide downstream analysis for results generated outside of BaseSpace Onsite.
BaseSpace Onsite v2.1 HT System Guide
59
How To Use BaseSpace Onsite
Set Up a New Project
To upload files, perform the following steps.
1
Click the Projects icon.
2
Go to the project you want to add the file to.
NOTE
You can only upload files to projects you own.
3
Click Import.
4
Select the file to upload using 1 of the following methods:
} Drag and drop the file in the Drag and Drop box.
} Browse to the file through the select file link and click Open.
5
BaseSpace Onsite now uploads the file to your project.
6
Enter the analysis name in the Name of analysis box.
7
[Optional] Associate the file you are importing with the samples used as inputs. By
making this association, the analysis is listed on the sample detail page. You can
also locate these uploaded files later by navigating to 1 of the samples.
8
Click Complete Import.
FASTQ File Upload Requirements
The FASTQ file is a text format file used to represent sequences. Each record has 4 lines.
The 4 lines of data are an identifier (read descriptor), the sequence, +, and the quality
scores. For a detailed description of the FASTQ format, see FASTQ Files on page 52.
Make sure that the FASTQ file adheres to the following upload requirements:
} The uploader only supports gzipped FASTQ files generated on Illumina instruments
} The name of the FASTQ files conforms to the following convention:
SampleName_SampleNumber_Lane_Read_FlowCellIndex.fastq.gz
For example,
SampleName_S1_L001_R1_001.fastq.gz
SampleName_S1_L001_R2_001.fastq.gz)
} The read descriptor in the FASTQ files conforms to the following convention:
@Instrument:RunID:FlowCellID:Lane:Tile:X:Y
ReadNum:FilterFlag:0:SampleNumber:
For example, a Read 1 descriptor could look like this line:
@M00900:62:000000000-A2CYG:1:1101:18016:2491 1:N:0:13
And the corresponding Read 2 would have a 2 in the ReadNum field:
@M00900:62:000000000-A2CYG:1:1101:18016:2491 2:N:0:13
Quality considerations:
} The number of base calls for each read equals the number of quality scores.
} The number of entries for Read 1 equals the number of entries for Read 2.
} The uploader determines whether files are paired-end based on matching file names
in which the only difference is the ReadNum.
} For paired-end reads, the descriptor must match for every entry for both reads 1 and
2.
} Each read has passed filter.
The uploader rejects any upload session containing files that do not meet the
requirements. If a file is rejected, a message is provided. This message states why the
upload failed and what to do to remedy the problem.
60
Document # 15049148 v01
You can use the Transfer Owner option to hand control of data over to a collaborator or
customer. You can use this option for the following reasons:
} To give control of your data to a collaborator. You can only transfer data to
collaborators who have an account on BaseSpace Onsite.
NOTE
If items from a project are in the trash, you cannot transfer ownership of the project.
To use this option, perform the following steps.
1
Select the project or run you want to transfer.
} To transfer a project, perform the following steps.
a
b
c
Click the Projects icon.
Click the desired project.
Click the Transfer Owner button.
} To transfer a run, perform the following steps.
a
b
c
Click the Runs icon.
Click the desired run.
Click the More button, and then select Transfer Ownership.
2
Enter new owner email and an optional message in the Transfer Ownership dialog
box.
3
Click Continue.
Delete Items
You can delete items in a 2-step process:
1
Move the item to trash.
2
Clean up the trash.
For more information, see the following topics.
} Delete Run on page 61
} Delete Project on page 62
} Delete Analysis on page 62
} Delete Sample on page 63
} Empty Trash on page 63
} Restore Trash on page 63
Delete Run
To move a project out of your Runs list into the trash, perform the following steps.
1
Click the Runs icon.
2
Click the desired run.
3
Click Move to Trash.
4
If there are analyses or samples associated with this run, BaseSpace Onsite asks if
you also want to delete those analyses and samples. Select the checkbox if you want
to delete the associated items.
5
Click Confirm.
BaseSpace Onsite v2.1 HT System Guide
61
How To Use BaseSpace Onsite
Transfer Owner
If you are the owner of the run, the run now appears in the trash.
You can permanently delete the run from trash by emptying all items in the trash;
see Empty Trash on page 63 You can also restore the run to its original location; see
Restore Trash on page 63.
Note the following items about deleting a run:
} If you received the run as a share, the deleted run does not appear in the trash. If you
want to restore a run shared with you, click the previously sent share link or contact
the owner.
} Runs cannot be removed if they are in a nonterminal state (eg, running, uploading,
or analyzing).
} Do not perform this action if you want to archive a run.
Delete Project
To move a project out of your Projects list into the trash, perform the following steps.
1
Click the Projects icon.
2
Click the desired project.
3
Click Move to Trash.
4
Click Confirm.
If you are the owner of the project, the project now appears in the trash.
You can permanently delete it from trash by emptying all items in the trash; see
Empty Trash on page 63 You can also restore the project to its original location; see
Restore Trash on page 63.
Note the following items about deleting a project:
} If you received the project as a share, the deleted project does not appear in the trash.
If you want to restore a project shared with you, click the previously sent share link
or contact the owner.
} Do not perform this action if you want to archive a project.
Delete Analysis
To move an analysis out of your Analysis Results list into the trash, perform the
following steps.
1
Click the Projects icon.
2
Click the desired project.
3
Select the analysis results to be deleted.
4
Click Move to Trash.
5
Click Confirm.
The analysis is now in the trash.
You can permanently delete the analysis from BaseSpace Onsite by emptying all
items in the trash; see Empty Trash on page 63. You can also restore the analysis to
its original location; see Restore Trash on page 63.
Note the following items about deleting an analysis result:
} You cannot delete an analysis that is in a nonterminal state (eg, pending execution
or running).
} Deleting an analysis from a project that is in ownership transfer can cause a delay
until the transfer has completed.
} Do not perform this action if you want to archive an analysis result.
62
Document # 15049148 v01
To move a sample out of your Samples list into the trash, perform the following steps.
1
Click the Projects icon.
2
Click the desired project.
3
Click the Samples tab on the left navigation bar.
4
Select the samples to be deleted.
5
Click Move to Trash.
6
Click Confirm.
The sample is now in the trash.
You can permanently delete the sample from BaseSpace Onsite by emptying all
items in the trash; see Empty Trash on page 63. You can also restore the analysis to
its original location; see Restore Trash on page 63.
Note the following items about deleting a sample:
} If you received the sample as a share, the deleted sample does not appear in the
trash. If you want to restore a sample shared with you, click the previously sent
share link or contact the owner.
} Do not perform this action if you want to archive a sample.
Empty Trash
After you have deleted an item, it is present in the Trash if you are the owner of that
item. With this method, you can delete all items in the trash from BaseSpace Onsite
permanently.
To delete an item from BaseSpace Onsite permanently, perform the following steps.
1
Click View Trash.
2
Click Empty Trash.
3
Click Confirm.
The items are now ready to be purged from BaseSpace Onsite by the admin; see
Purge Deleted Items on page 68.
Restore Trash
After you have deleted an item, it is present in the Trash if you are the owner of that
item. To restore an item from the trash to its original location, perform the following
steps.
1
Click View Trash.
2
Select the items you want to restore.
3
Click Restore Trash.
The item is now restored to its original location. Restored items keep all their original
attributes except for the share recipients.
Fix Sample Sheet / Rerun Workflow
The Fix Sample Sheet page lets you correct errors in your sample sheet for HiSeq runs, or
set up a new analysis to requeue. Use this feature for the following reasons:
BaseSpace Onsite v2.1 HT System Guide
63
How To Use BaseSpace Onsite
Delete Sample
}
}
}
To fix errors in the sample sheet—Errors in the sample sheet can prevent BaseSpace
Onsite from processing a run. This option allows BaseSpace Onsite to finish the
analysis.
To change analysis parameters—If first analysis is suboptimal, you can resubmit the
sample sheet and requeue the run with new analysis parameters one time.
To change indexing details—If index settings for samples were wrong, you can
correct the settings.
NOTE
You can only submit a corrected sample sheet and requeue the run 1 time.
To fix a sample sheet and rerun a workflow, perform the following steps.
1
Open the Fix Sample Sheet page using 1 of the following methods:
} If a run has a Needs Attention state, open the run and click Fix Sample Sheet.
} Go to a run, click the More drop-down list, and then select Fix Sample Sheet.
The Fix Sample Sheet page opens. If BaseSpace Onsite has detected an error, it shows
the issue above the black sample sheet editor.
2
Make changes depending on the complexity of the change:
} Easy fix—Edit the sample sheet in the sample sheet editor. BaseSpace Onsite keeps
validating the sample sheet as you edit; any remaining issues are displayed above
the sample sheet editor.
} Complex Fix—Use Illumina Experiment Manager (IEM) to create a sample sheet.
a
b
c
3
If necessary, install IEM and open the program.
Import the original sample sheet from your system in IEM and edit it, or
generate a new sample sheet. For more information, see the Illumina
Experiment Manager User Guide (part # 15031335).
Copy and paste the sample sheet into the Sample Sheet Editor in BaseSpace
Onsite.
BaseSpace Onsite validates the sample sheet; any issues are displayed above
the sample sheet editor.
When you are done editing and the sample sheet is valid, click the Queue Analysis
button.
BaseSpace Onsite starts analyzing the run using the new sample sheet.
You can only resubmit a sample sheet and requeue the run 1 time.
NOTE
If your edits result in an invalid sample sheet, the Queue Analysis button is not available.
You can return to the original using the Load Original button.
Common Sample Sheet Fixes
If a sample sheet is invalid, it could be because the genome path is not set up correctly.
This situation is indicated through the Genome Path Unknown Genome warning (as in the
example). The paths of the standard BaseSpace Onsite genomes have to conform to the
following relative paths:
Arabidopsis_thaliana\NCBI\build9.1\Sequence\WholeGenomeFASTA
Bos_taurus\Ensembl\UMD3.1\Sequence\WholeGenomeFASTA
Escherichia_coli_K_12_DH10B\NCBI\2008-0317\Sequence\WholeGenomeFASTA
Homo_sapiens\UCSC\hg19\Sequence\WholeGenomeFASTA
Mus_musculus\UCSC\mm9\Sequence\WholeGenomeFASTA
PhiX\Illumina\RTA\Sequence\WholeGenomeFASTA
Rattus_norvegicus\UCSC\rn4\Sequence\WholeGenomeFASTA
64
Document # 15049148 v01
Fix Indexes in the Prep Tab
You can correct errors in your indexes through the Prep tab and regenerate the FASTQ
files. You can use this feature to change indexes and regenerate FASTQ files for samples
have already been sequenced.
You cannot use this feature for the following situations:
} For runs that are not set up with the Prep tab.
} For runs where the wrong library prep kit was selected in the Prep tab.
To fix indexes in the Prep Tab, perform the following steps.
1
Go to the run with the wrong indexes.
2
Click the Run Settings button
3
Go to the bottom of the page, and click the pool.
4
Click the Plate ID of the plate.
5
Click Edit.
6
Correct the index in the dropdown menu.
7
Go to the affected run.
8
In the More dropdown menu, select Generate FASTQ Files.
BaseSpace Onsite now starts regenerating the FASTQ files with the corrected indexes.
The new FASTQ files get added to the sample list and you can identify the new files
by date.
in the navigation task pane.
NOTE
If you do not want to identify the samples by date, you can also rename the sample_ID, or
assign the new FASTQ files to a new project in the Prep tab.
Search for Runs, Projects, Samples, Files, and Apps
The Search function allows you to find runs, projects, samples, files, and apps.
1
Click the search icon.
2
Type in the run, project, or sample name in the search field and hit enter.
3
Select the desired run, project, sample, file, or app in the search results. You can also
filter the search results by these categories using the drop-down list at the right of the
results page.
BaseSpace Onsite v2.1 HT System Guide
65
How To Use BaseSpace Onsite
Saccharomyces_cerevisiae\UCSC\sacCer2\Sequence\WholeGenomeFASTA
Staphylococcus_aureus_NCTC_8325\NCBI\2006-0213\Sequence\WholeGenomeFASTA
Admin Tasks
The admin of BaseSpace Onsite has the following tasks:
} Manage analysis, notifications, storage, users, system health, planned runs, software
updates, and alarms using the Admin Panel. For more information, see Manage
BaseSpace Onsite on page 66.
} Replace hard drive or power supply. For more information, see Replacement
Procedures on page 69.
In addition, BaseSpace Onsite sends an email alert if there is an issue with your system.
Error Codes on page 71 provides a list of possible codes and descriptions to help you
troubleshoot.
Manage BaseSpace Onsite
If you have admin privileges, the Account drop-down list provides access to the Admin
Panel. The Admin Panel allows you to manage analysis, notifications, storage, users,
system health, planned runs, software updates, and alarms.
Manage Analysis
On the Analysis page, you see the analyses that are currently running, and the analyses
that are queued. You can sort the analyses by the column headers.
You can perform the following actions:
} Select an active analysis and click Stop to stop the analysis.
} Select a queued analysis and click Remove to remove the analysis from the queue.
} Click Settings to set the administrator notifications you get through email.
Manage Storage
The Storage page contains 3 tabs:
} Active Storage—Provides an overview of the total amount of active storage used and
free, and the storage by user. Active samples, runs, and analyses are stored on the
BaseSpace Onsite system, and can be used for analysis. At the bottom, you see the
list of active samples, runs, and analyses stored; you can sort this list by clicking the
column headers. Any changes that add or remove data usually take 3–5 minutes to
be reflected in the pie chart. Active samples, runs and analyses are stored on the
BaseSpace Onsite system, and can be used for analysis.
NOTE
If there are many merged samples and copied samples on the system, the usage peruser values are overestimated in the Storage Use By Owners pie chart. The Total
Active Storage is not affected.
}
}
66
Archive Storage—Provides an overview of the archived analyses. Archived samples,
runs, and analyses are stored on the archive system, and cannot be used for analysis
on BaseSpace Onsite without restoring. At the bottom, you see the list of archived
samples, runs, and analyses; you can sort this list by clicking the column headers.
Deleted Items—Provides an overview of the items that have been deleted. At the
bottom, you see the list of deleted samples, runs, and analyses; you can sort this list
by clicking the column headers. You can restore these items to active storage, or
purge them from BaseSpace Onsite, which deletes them permanently.
Document # 15049148 v01
Admin Tasks
NOTE
Illumina highly recommends that you set up an archive location.
Archive or Backup Analysis
To archive or backup an analysis, perform the following steps.
1
On the Storage page, go to the Archive Storage tab.
2
Select the analysis.
3
Click Archive.
4
A dialog box appears, asking you if you want to keep the data in active storage.
} If you keep the data in active storage, you can keep working with the analysis,
while making a backup in the archive.
} If you do not keep the analysis in active storage, the data are archived, and you
cannot work with the analysis in BaseSpace Onsite. You can always move it back
to active storage as described in Restore Analysis From Archive on page 67.
The maximum speed for archiving is 25 Mb/s, so it does not interfere with other
BaseSpace Onsite tasks.
Restore Analysis From Archive
To restore an analysis from archive to active status, perform the following steps.
1
On the Storage page, go to the Archive Storage tab.
2
Select the analysis.
3
Click Unarchive.
If there is sufficient free space, BaseSpace Onsite restores the analysis. If there is not
enough space, BaseSpace Onsite displays an error message.
NOTE
You cannot restore an archived item that has been deleted and purged from BaseSpace
Onsite.
Set Up Archive Location
To set up an archive location, perform the following steps.
1
On the Storage page, go to the Archive Storage tab.
2
Click Mount
3
Fill out the form.
You can set up 1 archive location per BaseSpace Onsite system.
Restore Deleted Item
To restore a deleted item to active status, perform the following steps.
1
On the Storage page, go to the Deleted Items tab.
2
Select the analysis.
3
Click Unarchive.
If there is sufficient free space, BaseSpace Onsite restores the item. If there is not
enough space, BaseSpace Onsite displays an error message.
BaseSpace Onsite v2.1 HT System Guide
67
Purge Deleted Items
To purge deleted items from BaseSpace Onsite permanently, perform the following:
1
On the Storage page, go to the Deleted Items tab.
2
Click Purge.
This action removes all items in the trash from BaseSpace Onsite permanently.
Storage Check
BaseSpace Onsite has limited storage capacity, and checks the free space available before
uploading a run or starting an app. The necessary space is then reserved until the
process completes.
If there is not enough space, you see an error message and the run or app does not start.
If the space check fails before starting FASTQ generation, the run gets into Needs
Attention state. To manage available space, see Archive or Backup Analysis on page 67.
Manage Users
On the Users page, you see a list of current BaseSpace Onsite accounts, and their roles.
You can sort the users by the column headers.
To set up a new user, click Add User and fill out the form.
The new user gets an email with a link to set up a new password. If the user does not get
an email, the user can go to the BaseSpace Onsite login page and click Forgot Password
to resend the email.
If you did not configure SMTP during install, be aware of the following items:
} You enter the password for the new user.
} BaseSpace Onsite does not enforce usernames to be in the form of an email, which
can cause a problem with HiSeq integration. Make sure to enforce that all users
create a username in the format of an email.
} If you enable the SMTP support after using BaseSpace Onsite without SMTP support,
all users that are logged in must log out and then log back in. Otherwise, they do not
receive notifications by email or on the dashboard.
Monitor System Health
On the System Health page, you see the BaseSpace Onsite system health alerts. You can
sort the alerts by the column headers.
Many sensors are monitored for health in the BaseSpace Onsite server. If a sensor
indicates a failure, BaseSpace Onsite sends an alert to the administrator. When you
receive an alert, contact Illumina Support to diagnose the error and, if necessary, arrange
a site visit to correct the problem.
Some of these errors, such as a failure of a disk drive or 1 of the power supplies, you can
resolve. See Replacement Procedures on page 69 for instructions. Illumina Support can also
guide you through the process of replacing the faulty component.
If you want to remove an alert, select the alert and click Dismiss.
Unlock Planned Runs
On the Planned Runs page, you see the runs that are currently planned. You can sort the
runs by the column headers.
68
Document # 15049148 v01
To unlock a run, select the planned run and click Unlock.
Updates
To update the server software and upload additional genome content, perform the
following steps.
1
Plug the external USB drive with the software update into the BaseSpace Onsite head
node server.
2
Go to the Updates page.
3
Click Detect Drive.
The Updates wizard leads you through the update.
System Logs
The System Logs page provides a download of the log files. You can download all log
files, or packages that contain the system state log files, active analysis log files, or delete
log files.
If an issue arises with your BaseSpace Onsite, Illumina support uses these files to
troubleshoot your system. To speed up troubleshooting, download the appropriate
package before calling Illumina support.
About Page / Licenses
The About page provides a download containing the licenses for third-party software
components.
Manage Alarms on the Settings Page
If there are problems with the hard drive, BaseSpace Onsite sounds a loud alarm. The
Disable Alarm button on the Settings page allows you to turn off a current alarm.
See Replace Hard Drive on page 70 to continue.
CAUTION
Do not disable the alarm and ignore the warning. Failure to address the warning could
lead to irretrievable data loss.
Replacement Procedures
You have received a spare hard drive and power supply module with the instrument. If
needed, you can perform the replacement without calling Illumina, using the instructions
in this section.
To order more, use the following material numbers.
Part
Nomenclature
Material Number
Power Supply
Hard drive
PSU 750W 1U CRPS 80PLUS PLATINUM
Hard Drive, 2 TB SATA, 6GB/S
Hard Drive, 4 TB SATA, 6GB/S
10535S
15049450S
20000882
BaseSpace Onsite v2.1 HT System Guide
69
Admin Tasks
The sequencing system locks planned runs when they are selected. In rare instances, the
sequencing system leaves the run in locked state without starting the run. These runs
must be manually unlocked to access again. Unlocking runs allows the users to edit the
run in the Prep tab, and makes the run available for selection on other sequencing
systems. Unlocking also frees up the reserved run storage space on the BaseSpace Onsite
system.
Replace Power Supply Module
To replace the power supply module, perform the following steps.
1
Remove the power cord from the power supply.
2
Press the green and black tab and slide the power supply out.
Figure 4 Slide Power Supply Out
3
Push the new power supply into the slot and make sure that it is seated properly.
Figure 5 Reseat Power Supply
4
Attach the power cord to the power supply.
Replace Hard Drive
To replace the hard drive, perform the following steps.
1
Lift the green tab on hard drive tray, and then pull out the drive.
Figure 6 Lift Tab
70
Document # 15049148 v01
Admin Tasks
Figure 7 Pull Drive Out
2
Look at the label on the drive and check whether it is a 2 TB or 4 TB drive.
3
Remove the 3 screws on each side of the carrier, then remove the old drive from the
carrier.
Figure 8 Remove Drive From Carrier
4
Attach the new drive to the carrier.
5
Insert the new drive into the bay and make sure the tray latches closed.
The new drive is automatically rebuilt.
6
Go to the Settings page in the Admin Panel, and click Enable Alarm.
Data Recovery
To recover data, contact Illumina Technical Support.
Error Codes
If there is an issue with your system, BaseSpace Onsite sends an email alert. The possible
codes and descriptions are listed in this topic to help you troubleshoot.
Error
Code/
Item
ID
Item Name
Message
Status
Pwr_
Unit_
Status
Power Unit
Status
The power unit has detected a shutdown
Error
Pwr_
Unit_
Status
Power Unit
Status
The power unit has detected that the system
has been turned on
OK
BaseSpace Onsite v2.1 HT System Guide
71
Error
Code/
Item
ID
72
Item Name
Message
Status
Pwr_
Unit_
Status
Power Unit
Status
The power unit has detected a loss of AC
power
Error
Pwr_
Unit_
Status
Power Unit
Status
The power unit has detected that the AC
power has been restored
OK
Pwr_
Unit_
Status
Power Unit
Status
The power unit has detected a soft-power
failure
Error
Pwr_
Unit_
Status
Power Unit
Status
The power unit has recovered from a softpower failure
OK
Pwr_
Unit_
Status
Power Unit
Status
The power unit has detected an unexpected
failure
Error
Pwr_
Unit_
Status
Power Unit
Status
The power unit has recovered from an
unexpected failure
OK
PU_$C
Power supply
unit number $C
The power supply is no longer redundant due
to power unit number $C failing
Error
PU_$C
Power supply
unit number $C
The power supply is no longer redundant due
to power unit number $C failing
Error
PU_$C
Power supply
unit number $C
The power supply is no longer redundant due
to power unit number $C failing
Error
PU_$C
Power supply
unit number $C
The power supply is no longer redundant due
to power unit number $C failing
Error
PU_$C
Power supply
unit number $C
The power supply is no longer redundant due
to power unit number $C failing
Error
PU_$C
Power supply
unit number $C
The power supply is no longer redundant due
to power unit number $C failing
Error
PU_$C
Power supply
unit number $C
The power supply is no longer redundant due
to power unit number $C failing
Error
PU_$C
Power supply
unit number $C
The power supply is redundant again
OK
IPMI
IPMI Watchdog
The hardware monitor has detected an
expired timer
Error
IPMI
IPMI Watchdog
The hardware monitor has detected hard
reset of the system
Error
IPMI
IPMI Watchdog
The hardware monitor has detected that the
system is shutting down
Error
Document # 15049148 v01
Item Name
Message
Status
IPMI
IPMI Watchdog
The hardware monitor has detected that the
system is restarting
Error
IPMI
IPMI Watchdog
The hardware monitor has detected a timer
interrupt
Error
Phy_Sec
Physical Security
The system cover has been opened
Error
Phy_Sec
Physical Security
The system cover has been closed
OK
Phy_Sec
Physical Security
The system has been unplugged from the
network
Error
Phy_Sec
Physical Security
The system network connection has been
restored
OK
FPB
Front Panel
Board
The front panel board has detected a critical
interrupt error
Error
SMI
System Board
Timeout
The system board has detected a timeout
Error
SMI
System Board
Timeout
The system board has recovered from a
timeout
OK
SE
System Event
There was a PEF Action detected
Error
SB
System Board
The system board has detected that the
power button has been pressed
OK
SB
System Board
The system board has detected that the reset
button has been pressed
OK
VR
Voltage
Watchdog
The voltage sensor has detected that the
voltage is not within normal range
Error
VR
Voltage
Watchdog
The voltage sensor has detected that the
voltage is back within normal range
OK
F_$C
Fan number $C
The fans are no longer redundant due to fan
number $C failing
Error
F_$C
Fan number $C
The fans are no longer redundant due to fan
number $C failing
Error
F_$C
Fan number $C
The fans are no longer redundant due to fan
number $C failing
Error
F_$C
Fan number $C
The fans are no longer redundant due to fan
number $C failing
Error
F_$C
Fan number $C
The fans are no longer redundant due to fan
number $C failing
Error
F_$C
Fan number $C
The fans are no longer redundant due to fan
number $C failing
Error
BaseSpace Onsite v2.1 HT System Guide
73
Admin Tasks
Error
Code/
Item
ID
74
Error
Code/
Item
ID
Item Name
Message
Status
F_$C
Fan number $C
The fans are no longer redundant due to fan
number $C failing
Error
F_$C
Fan number $C
The fans are redundant again
OK
TEMP
System Board
Temperature
The system board temperature has exceeded
the normal range
Error
TEMP
System Board
Temperature
The system board temperature is back within
normal range
OK
BMC_
FW
BMC Firmware
Health
The BMC board has detected a sensor failure
Error
F1
Fan 1
Fan number 1 is not functioning
Error
F1
Fan 1
Fan number 1 is functioning
OK
F2
Fan 2
Fan number 2 is not functioning
Error
F2
Fan 2
Fan number 2 is functioning
OK
F3
Fan 3
Fan number 3 is not functioning
Error
F3
Fan 3
Fan number 3 is functioning
OK
F4
Fan 4
Fan number 4 is not functioning
Error
F4
Fan 4
Fan number 4 is functioning
OK
F5
Fan 5
Fan number 5 is not functioning
Error
F5
Fan 5
Fan number 5 is functioning
OK
PS_$C
Power supply
number $C
The number $C AC power supply is no
longer available
Error
PS_$C
Power supply
number $C
The number $C AC power supply has been
connected
OK
PS_$C
Power supply
number $C
The number $C AC power supply has
recovered from failure
OK
PS_$C
Power supply
number $C
The number $C AC power supply has
detected a failure
Error
PS_$C
Power supply
number $C
The number $C AC power supply has
recovered from a predictive failure
OK
PS_$C
Power supply
number $C
The number $C AC power supply has
detected a predictive failure
Error
PS_$C
Power supply
number $C
The number $C AC power supply has been
lost
Error
PS_$C
Power supply
number $C
The number $C AC power supply has been
restored
OK
Document # 15049148 v01
Item Name
Message
Status
PS_$C
Power supply
number $C
The number $C AC power supply has
resolved the configuration error for a vendor
mismatch
OK
PS_$C
Power supply
number $C
The number $C AC power supply has
detected a configuration error for a vendor
mismatch
Error
PS_$C
Power supply
number $C
The number $C AC power supply has
resolved the configuration error for a revision
mismatch
OK
PS_$C
Power supply
number $C
The number $C AC power supply has
detected a configuration error for a revision
mismatch
Error
PS_$C
Power supply
number $C
The number $C AC power supply has
resolved the configuration error for a missing
processor
OK
PS_$C
Power supply
number $C
The number $C AC power supply has
detected a configuration error for a missing
processor
Error
PS_$C
Power supply
number $C
The number $C AC power supply has
resolved an unexpected configuration error
OK
PS_$C
Power supply
number $C
The number $C AC power supply has
detected an unexpected configuration error
Error
CBPB
Chassis Back
Panel Board
The panel board in the back of the chassis has
changed to being offline
Error
CBPB
Chassis Back
Panel Board
The panel board in the back of the chassis is
back online
OK
P_$C
Processor
number $C
The processor number $C has exceeded the
normal range
Error
P_$C
Processor
number $C
The processor number $C is back within the
normal range
OK
P_$C
Processor
number $C
The processor number $C has been detected
OK
P_$C
Processor
number $C
The processor number $C is not being
detected
OK
P_ERR_
$C
Processor
number $C
digital state error
The processor number $C has detected a
digital state error
Error
P_ERR_
$C
Processor
number $C
digital state error
The processor number $C has recovered
from a digital state error
OK
BaseSpace Onsite v2.1 HT System Guide
75
Admin Tasks
Error
Code/
Item
ID
Error
Code/
Item
ID
76
Item Name
Message
Status
P_
TEMP_
$C
System
temperature
The system temperature has exceeded its
threshold
Error
P_
TEMP_
$C
System
temperature
The system temperature is back within
normal operating range
OK
PS_
FAN_
$C
Power Supply
Fan $C
The power supply fan number $C has failed
Error
PS_
FAN_
$C
Power Supply
Fan $C
The power supply fan number $C has been
restored
OK
M_$C
Memory Sensor
number $C
The thermal sensor at memory location $C
has exceeded its threshold
Error
M_$C
Memory Sensor
number $C
The thermal sensor at memory location $C is
back within normal range
OK
HD_$C
Disk in slot $C
Disk rebuild in progress at slot $C
Error
HD_$C
Disk in slot $C
Disk rebuild at slot $C has completed
OK
HD_$C
Disk in slot $C
Disk at slot $C is no longer online
Error
HD_$C
Disk in slot $C
Disk at slot $C is back online
OK
HD_$C
Disk in slot $C
Disk at slot $C is no longer working
HD_$C
Disk in slot $C
Disk at slot $C is no functioning correctly
again
LV_$B
Logical volume
$B with capacity
$C $D
The logical volume at $B size $C $D is not
currently active
Error
Document # 15049148 v01
For technical assistance, contact Illumina Technical Support.
Table 2 Illumina General Contact Information
Website
Email
www.illumina.com
[email protected]
Table 3 Illumina Customer Support Telephone Numbers
Region
Contact Number
Region
North America
1.800.809.4566
Italy
Australia
1.800.775.688
Netherlands
Austria
0800.296575
New Zealand
Belgium
0800.81102
Norway
Denmark
80882346
Spain
Finland
0800.918363
Sweden
France
0800.911850
Switzerland
Germany
0800.180.8994
United Kingdom
Ireland
1.800.812949
Other countries
Contact Number
800.874909
0800.0223859
0800.451.650
800.16836
900.812168
020790181
0800.563118
0800.917.0041
+44.1799.534000
Safety data sheets (SDSs)—Available on the Illumina website at
support.illumina.com/sds.html.
Product documentation—Available for download in PDF from the Illumina website. Go
to support.illumina.com, select a product, then select Documentation & Literature.
BaseSpace Onsite v2.1 HT System Guide
Technical Assistance
Technical Assistance
Illumina
San Diego, California 92122 U.S.A.
+1.800.809.ILMN (4566)
+1.858.202.4566 (outside North America)
[email protected]
www.illumina.com
Was this manual useful for you? yes no
Thank you for your participation!
