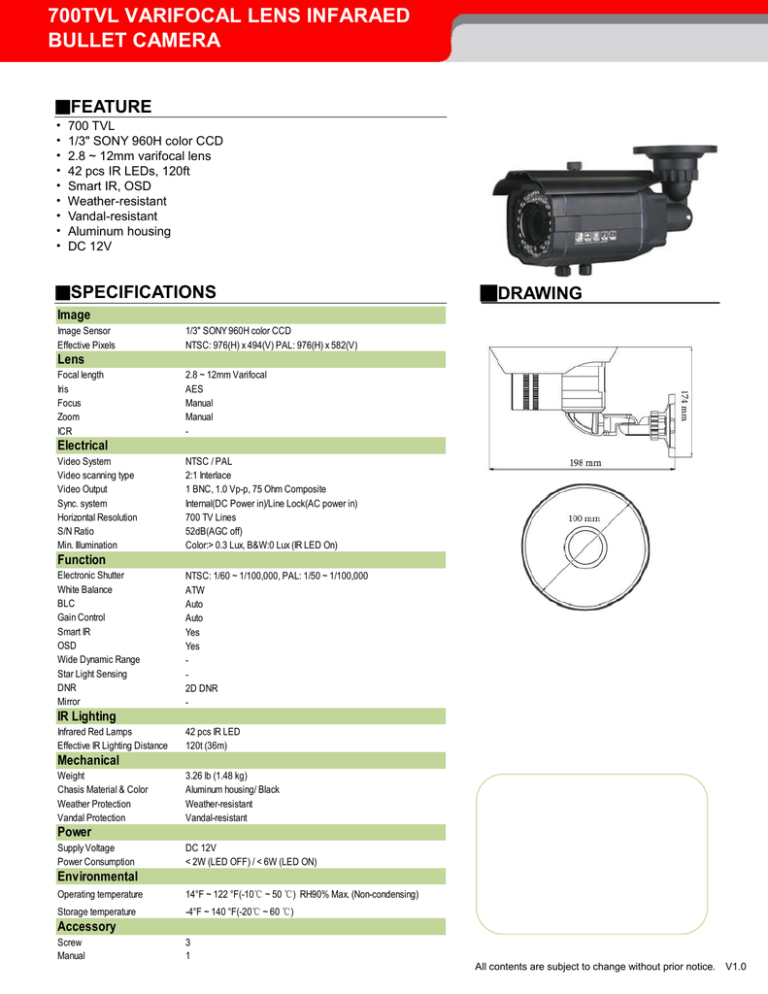

CCTV LB8270B Specifications

CCTV LB8270B Specifications
700TVL VARIFOCAL LENS INFARAED
BULLET CAMERA
█FEATURE
•
•
•
•
•
•
•
•
•
700 TVL
1/3" SONY 960H color CCD
2.8 ~ 12mm varifocal lens
42 pcs IR LEDs, 120ft
Smart IR, OSD
Weather-resistant
Vandal-resistant
Aluminum housing
DC 12V
█SPECIFICATIONS
█DRAWING
Image Sensor
Effective Pixels
1/3" SONY 960H color CCD
NTSC: 976(H) x 494(V) PAL: 976(H) x 582(V)
Lens
Focal length
Iris
Focus
Zoom
ICR
2.8 ~ 12mm Varifocal
AES
Manual
Manual
-
Electrical
Video System
Video scanning type
Video Output
Sync. system
Horizontal Resolution
S/N Ratio
Min. Illumination
NTSC / PAL
2:1 Interlace
1 BNC, 1.0 Vp-p, 75 Ohm Composite
Internal(DC Power in)/Line Lock(AC power in)
700 TV Lines
52dB(AGC off)
Color:> 0.3 Lux, B&W:0 Lux (IR LED On)
Function
Electronic Shutter
White Balance
BLC
Gain Control
Smart IR
OSD
Wide Dynamic Range
Star Light Sensing
DNR
Mirror
NTSC: 1/60 ~ 1/100,000, PAL: 1/50 ~ 1/100,000
ATW
Auto
Auto
Yes
Yes
2D DNR
-
IR Lighting
Infrared Red Lamps
Effective IR Lighting Distance
42 pcs IR LED
120t (36m)
Mechanical
Weight
Chasis Material & Color
Weather Protection
Vandal Protection
3.26 lb (1.48 kg)
Aluminum housing/ Black
Weather-resistant
Vandal-resistant
Power
Supply Voltage
Power Consumption
DC 12V
< 2W (LED OFF) / < 6W (LED ON)
Environmental
Operating temperature
14°F ~ 122 °F(-10℃ ~ 50 ℃) RH90% Max. (Non-condensing)
Storage temperature
-4°F ~ 140 °F(-20℃ ~ 60 ℃)
Accessory
Screw
Manual
3
1
All contents are subject to change without prior notice. V1.0
