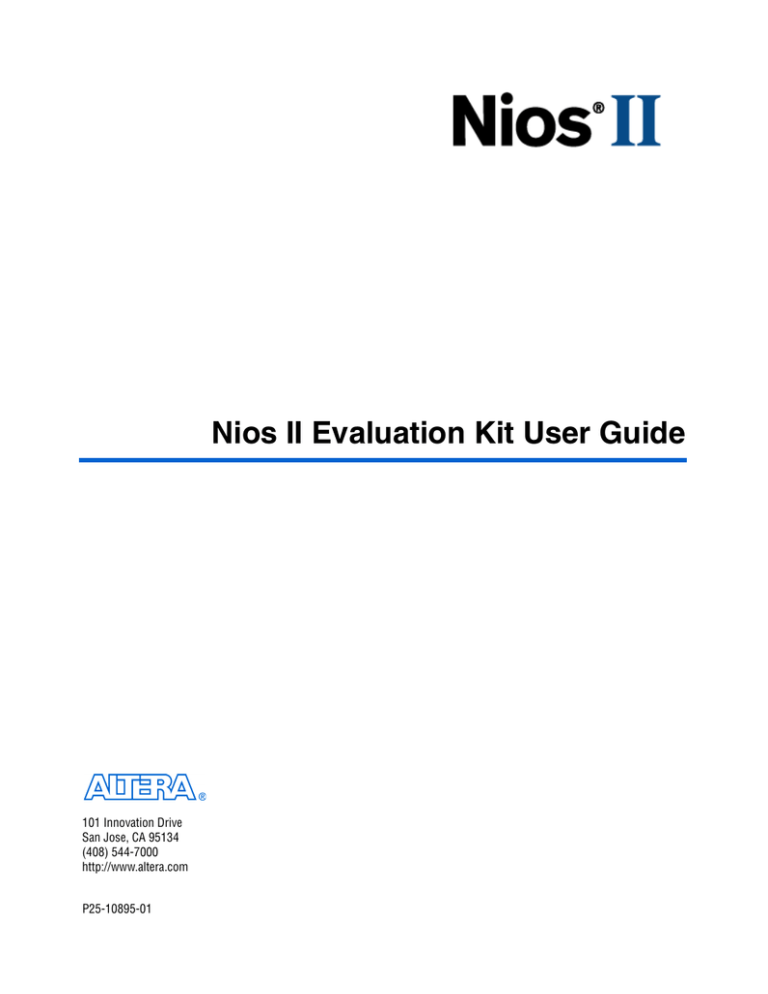

Nios II Evaluation Kit User Guide

Nios II Evaluation Kit User Guide
Nios II Evaluation Kit User Guide
Preliminary Information
101 Innovation Drive
San Jose, CA 95134
(408) 544-7000
http://www.altera.com
P25-10895-01
Copyright © 2005 Altera Corporation. All rights reserved. Altera, The Programmable Solutions Company, the stylized Altera logo, specific device designations, and all other words and logos that are identified as trademarks and/or service marks are, unless noted otherwise, the trademarks and
service marks of Altera Corporation in the U.S. and other countries. All other product or service names are the property of their respective holders. Altera products are protected under numerous U.S. and foreign patents and pending applications, maskwork rights, and copyrights. Altera warrants
performance of its semiconductor products to current specifications in accordance with Altera's standard warranty, but reserves the right to make
changes to any products and services at any time without notice. Altera assumes no responsibility or liability arising out of the application or use of any information, product, or service described herein except as expressly agreed to in writing by Altera
Corporation. Altera customers are advised to obtain the latest version of device specifications before relying on any published information and before placing orders for products or services
Printed on recycled paper
ii
Nios II Evaluation Kit User Guide
UG-N2122804-1.1
Altera Corporation
Contents
About this User Guide ............................................................................. v
How to Contact Altera .............................................................................................................................. v
Typographic Conventions .................................................................................................................. 1–vi
Using the Nios II Evaluation Kit .................................................................. 7
Introduction ............................................................................................................................................ 1–7
Before You Begin ................................................................................................................................... 1–7
Development Tools ............................................................................................................................... 1–7
The Altera Design Software Suite .................................................................................................. 1–8
Installing the Development Tools .................................................................................................. 1–8
The Nios II Evaluation Board .............................................................................................................. 1–9
Setting Up the Nios II Evaluation Board .................................................................................... 1–10
Verifying Correct Operation of the Nios II Evaluation Board ................................................. 1–11
Instructions for Restoring the Factory Configuration ............................................................... 1–12
Using Nios II Linux ............................................................................................................................. 1–13
Opening a Terminal Connection to Linux .................................................................................. 1–13
Logging into Nios II Linux ............................................................................................................ 1–13
Enabling Network Support ........................................................................................................... 1–14
Configuring Network Support Manually ............................................................................. 1–14
Configuring Network Support with DHCP .......................................................................... 1–14
Using Sample Network Applications .......................................................................................... 1–15
Starting the Nios II Development Tools ........................................................................................... 1–16
Starting the Quartus II Software .................................................................................................. 1–16
Downloading a Hardware Image to the FPGA ......................................................................... 1–16
Starting the Nios II IDE from SOPC Builder .............................................................................. 1–17
Building Your First Software Project ........................................................................................... 1–17
Downloading Executable Code to the Nios II Evaluation Board ............................................ 1–19
Taking the Next Step ........................................................................................................................... 1–21
Writing Software for the Nios II Processor ................................................................................. 1–21
Creating Customized Processor Systems ................................................................................... 1–22
Learning More about the Nios II Processor ................................................................................ 1–22
Altera Corporation
October 2005
iii
Nios II Evaluation Kit User Guide
Contents
iv
Nios II Evaluation Kit User Guide
Altera Corporation
October 2005
About this User Guide
This user guide provides information about how to use the Nios® II
Evaluation Kit.
Table 1. User Guide Revision History
Date
How to Contact
Altera
Information Type
Technical support
Description
October 2005
Updates for the Nios II version 5.1 release.
January 2005
Initial publication.
For the most up-to-date information about Altera products, go to the
Altera world-wide web site at www.altera.com. For technical support on
this product, go to www.altera.com/mysupport. For additional
information about Altera products, consult the sources shown below.
USA & Canada
All Other Locations
www.altera.com/mysupport/
www.altera.com/mysupport/
(800) 800-EPLD (3753)
(7:00 a.m. to 5:00 p.m. Pacific Time)
+1 408-544-8767
7:00 a.m. to 5:00 p.m. (GMT -8:00)
Pacific Time
www.altera.com
www.altera.com
Altera literature services
[email protected]
[email protected]
Non-technical customer
service
(800) 767-3753
+ 1 408-544-7000
7:00 a.m. to 5:00 p.m. (GMT -8:00)
Pacific Time
FTP site
ftp.altera.com
ftp.altera.com
Product literature
Altera Corporation
October 2005
v
Nios II Evaluation Kit User Guide
About this User Guide
Typographic
Conventions
This document uses the typographic conventions shown below.
Visual Cue
Meaning
Bold Type with Initial
Capital Letters
Command names, dialog box titles, checkbox options, and dialog box options are
shown in bold, initial capital letters. Example: Save As dialog box.
bold type
External timing parameters, directory names, project names, disk drive names,
filenames, filename extensions, and software utility names are shown in bold type.
Examples: fMAX, \QuartusII directory, d: drive, chiptrip.gdf file.
Bold italic type
Book titles are shown in bold italic type with initial capital letters. Example:
1999 Device Data Book.
Italic Type with Initial
Capital Letters
Document titles are shown in italic type with initial capital letters. Example: AN 75
(High-Speed Board Design).
Italic type
Internal timing parameters and variables are shown in italic type. Examples: tPIA, n + 1.
Variable names are enclosed in angle brackets (< >) and shown in italic type. Example:
<file name>, <project name>.pof file.
Initial Capital Letters
Keyboard keys and menu names are shown with initial capital letters. Examples:
Delete key, the Options menu.
“Subheading Title”
References to sections within a document and titles of Quartus II Help topics are
shown in quotation marks. Example: “Configuring a FLEX 10K or FLEX 8000 Device
with the BitBlaster™ Download Cable.”
Courier type
Signal and port names are shown in lowercase Courier type. Examples: data1, tdi,
input. Active-low signals are denoted by suffix n, e.g., resetn.
Anything that must be typed exactly as it appears is shown in Courier type. For
example: c:\quartusII\qdesigns\tutorial\chiptrip.gdf. Also,
sections of an actual file, such as a Report File, references to parts of files (e.g., the
AHDL keyword SUBDESIGN), as well as logic function names (e.g., TRI) are shown
in Courier.
1., 2., 3., and a., b., c.,... Numbered steps are used in a list of items when the sequence of the items is
important, such as the steps listed in a procedure.
■
Bullets are used in a list of items when the sequence of the items is not important.
v
The checkmark indicates a procedure that consists of one step only.
1
The hand points to information that requires special attention.
c
The caution indicates required information that needs special consideration and
understanding and should be read prior to starting or continuing with the procedure or
process.
w
The warning indicates information that should be read prior to starting or continuing
the procedure or processes
r
The angled arrow indicates you should press the Enter key.
f
The feet direct you to more information on a particular topic.
vi
Nios II Evaluation Kit User Guide
Altera Corporation
October 2005
Using the Nios II
Evaluation Kit
Introduction
Welcome to the Nios II Evaluation Kit! This kit is a low-cost platform for
evaluating the Nios II family of embedded processors. In addition to the
Nios II evaluation board, the kit includes all the hardware and software
development tools, documentation, and accessories you need to begin
developing with the Nios II embedded processor.
This user guide will familiarize you with the contents of the Nios II
evaluation kit and walk you through setting up your Nios II development
environment. In this guide, you will:
■
■
■
■
Install the development tools
Set up and verify correct operation of the Nios II evaluation board
Establish communication between the Nios II evaluation board and
the host PC
Compile C code and download the code to the Nios II evaluation
board
When you finish this guide, you will be ready to begin designing with the
Nios II embedded processor. At your aid are additional tutorials, user
guides, and other documentation that go into greater detail regarding the
creation and programming of the Nios II processor.
Before You
Begin
Before proceeding, check the contents of the kit and verify that you
received the following items:
■
■
■
■
■
■
Development
Tools
The kit includes the Altera Design Software Suite from Altera. This suite
contains the following development tools:
■
■
Altera Corporation
October 2005
Nios II evaluation board
USB cable
Ethernet cable
Ethernet-crossover connector
Altera Design Software Suite
Nios II Evaluation Kit User Guide (this document)
Nios II Embedded Processor Evaluation Edition
Quartus II Web Edition Software
7
Nios II Evaluation Kit User Guide
Using the Nios II Evaluation Kit
f
See www.altera.com for the latest releases of the Nios II Evaluation
Edition and the Quartus II Web Edition software, both available free for
download.
Your PC system must meet the minimum system requirements as
described below:
■
■
■
Pentium II PC running at 400 MHz or faster
Microsoft Windows 2000, or Windows XP Professional
Powered USB port for use with the Nios II evaluation board
The Altera Design Software Suite
The Altera Design Software Suite consists of the following CD-ROMs:
■
■
Altera Design Software Suite CD-ROM
Nios II Embedded Processor Evaluation Edition
The Altera Design Software Suite CD-ROM contains the Quartus II Web
Edition Software. The Quartus II software is a comprehensive
environment for system-on-a-programmable-chip (SOPC) hardware
design. Using the Quartus II software, designers can develop hardware
design files, synthesize a netlist for the design, and output a configuration
file for the target FPGA. Designers use the Quartus II software to assign
I/O pin locations, apply compilation constraints (e.g. timing
requirements), and perform timing analysis on the FPGA design.
Quartus II software installation also includes the SOPC Builder systemintegration tool. Nios II hardware designers use SOPC Builder to define
and integrate Nios II processor-based hardware systems.
The Nios II Embedded Processor Evaluation Edition CD-ROM contains
the tools listed below along with other components:
■
■
■
Nios II IDE - Provides an integrated environment for editing,
compiling, and debugging embedded software.
The GNU toolchain – The GNU toolchain contains the basic tools for
source-code compilation such as an assembler, C/C++ compiler, and
linker.
The Nios II CPU Component for SOPC Builder – The CPU
component provides three processor cores, Nios II/e, Nios II/s, and
Nios II/f, for the SOPC Builder hardware component library.
Installing the Development Tools
It is important to install the Altera Design Software Suite development
tools in the order listed below. To install the required software, perform
the following steps:
8
Nios II Evaluation Kit User Guide
Altera Corporation
October 2005
The Nios II Evaluation Board
1.
Insert the Altera Design Software Suite CD.
2.
Install the Quartus II Web Edition software. During the installation,
you can customize the installation by selecting a destination folder
as well as choosing components to install. Altera recommends that
you perform a complete installation.
1
3.
After successfully completing the installation of the Quartus II Web
Edition software, insert the Nios II Embedded Processor Evaluation
Edition CD.
4.
Install the Nios II Embedded Processor Evaluation Edition software.
During the installation, you have the option of installing all or some
of the available components. Altera recommends that you perform a
complete installation.
w
The Nios II
Evaluation
Board
If you choose to install a custom setup, at a minimum, you must
install the Quartus II component, the SOPC Builder component,
and Cyclone device family support.
If you need to re-install the Nios II Processor Evaluation Edition,
Altera recommends that you first uninstall the previous
installation.
Hardware designers can use the Nios II evaluation board as a platform to
prototype complex embedded systems. Software developers can use the
Nios II reference design pre-programmed on the evaluation board to
begin prototyping software immediately. See “Writing Software for the
Nios II Processor” on page 21 for more information.
The evaluation board consists of a base carrier board with a mounted
embedded processor module. The evaluation board comes preconfigured with a Nios II processor hardware reference design and a
software reference design stored in flash memory. See Figure 1 on
page 10 for board component details.
Altera Corporation
October 2005
9
Nios II Evaluation Kit User Guide
Using the Nios II Evaluation Kit
Figure 1. Detailed View of the Nios II Evaluation Board
USB Connector
8-MB Flash Memory
Prototyping Area
EP1C12F324 FPGA
Prototyping Header
16-MB SDRAM
EPCS4 Serial
Configuration Device
User-Defined LEDs
Speaker Connector
User-Defined Switches
10/100 Ethernet PHY Device
RJ-45 Ethernet Connector
Setting Up the Nios II Evaluation Board
To set up the Nios II evaluation board, follow these steps:
1.
Remove the Nios II evaluation board from its anti-static shipping
bag. Take care not to expose the board to electrostatic discharge
(ESD) during setup or use.
2.
Place the board legs-down on a flat surface.
3.
Connect the USB cable between the board and your PC. Your PC
will detect new hardware.
10
Nios II Evaluation Kit User Guide
Altera Corporation
October 2005
The Nios II Evaluation Board
4.
f
For details on installing the USB-Blaster software driver on the host PC,
see the USB Blaster Download Cable User Guide at www.altera.com.
5.
w
f
Follow the on-screen instructions to install the driver for the Nios II
evaluation board. You must install the Altera USB-Blaster™ driver to
use the board. The driver is located at
<quartus_install_dir>\drivers\usb-blaster.
Disconnect any other Altera USB download cables, such as the USBBlaster download cable.
If another Altera USB download cable is connected to your PC
while using the evaluation board, you might not be able to
download or debug on one or both cables.
Further details on the board, including full schematic and pinout
information is available in the directory
<Nios II kit path>\documents\nios_cyclone_1c12_eval.
Verifying Correct Operation of the Nios II Evaluation Board
Verify the following indicators of a properly functioning Nios II
evaluation board:
■
■
The LED labeled "LED1" at the top of the board is lit.
The LED labeled "LED1" on the embedded processor module is lit.
As soon as you apply power to the Nios II evaluation board, the
embedded processor module will be configured with a Nios II processor
hardware reference design, stored in the EPCS serial configuration
device. Once the embedded processor module configuration is complete,
the Nios II processor wakes up and initializes itself with boot code from
flash memory.
After the FPGA is configured and the Nios II CPU begins to run, the
Linux boot code is copied from flash and starts executing.
1
If you are not the first user of your Nios II evaluation board, the
board may no longer contain the original factory image
programmed in flash memory. If you want to restore your board
to its factory default condition, see “Instructions for Restoring
the Factory Configuration” on page 12.
If this is the first time you are applying power to the Nios II evaluation
board and you do not see the indicators above, check all the connections.
For further assistance, visit Altera's online technical support web site at
mysupport.altera.com.
Altera Corporation
October 2005
11
Nios II Evaluation Kit User Guide
Using the Nios II Evaluation Kit
See “Using Nios II Linux” on page 13 for more information about the preloaded version of Nios II Linux on your Nios II evaluation board.
You now have successfully set up your evaluation board. You now have
the choice to continue to “Using Nios II Linux” on page 13 to learn about
the example Linux kernel that is programmed into the flash on your
board, or you may skip ahead to “Starting the Nios II Development
Tools” on page 16 to begin learning how to develop your own software
for the Nios II processor.
Instructions for Restoring the Factory Configuration
The Nios II evaluation board can always be restored to its factoryprogrammed configuration. To restore the factory configuration, you
must reprogram both the Cyclone FPGA on the embedded processor
module and the flash memory on the embedded processor module.
To reprogram the embedded processor module, perform the following
steps:
1.
On the Windows Start menu, click Programs, Altera, Nios II
Evaluation Kit <installed version>, Nios II SDK Shell to open a
Nios II SDK Shell.
2.
From the examples directory, change to the factory_recovery
directory for your development kit by typing the following at the
shell prompt:
cd factory_recovery/niosII_cyclone_1c12_eval r
3.
Run the flash-restoration script:
./restore_my_flash r
4.
12
Nios II Evaluation Kit User Guide
Follow the script's instructions.
Altera Corporation
October 2005
The Nios II Evaluation Board
Using Nios II
Linux
This section describes the procedures for establishing a serial connection
and logging into Nios II Linux to access sample network applications.
Opening a Terminal Connection to Linux
The boot code in flash memory is the µClinux 2.6 kernel. The startup
procedure for the kernel will pause until a terminal connection is
established between your PC and the board via the USB cable. To watch
the kernel complete its startup procedure, perform the following steps:
1.
On the Windows Start menu, click Programs, Altera, Nios II
Evaluation Kit <installed version>, Nios II SDK Shell to start the
Nios II SDK Shell.
2.
At the shell prompt, type nios2-terminal r
The kernel startup messages will start scrolling, ending with a Nios II
Linux login prompt. See Figure 2.
Figure 2. Nios II Linux Login Prompt
Logging into Nios II Linux
At the login prompt, use the following username and password:
Username: nios
Altera Corporation
October 2005
13
Nios II Evaluation Kit User Guide
Using the Nios II Evaluation Kit
Password: uClinux
After logging in, the Nios II Linux shell prompt (#) appears.
Enabling Network Support
If you wish to enable network support, you can do so manually or using
DHCP.
Configuring Network Support Manually
v At the Nios II Linux shell prompt, run the following command
replacing <ip address> and <netmask> with valid parameters for
your local network.
# ifconfig eth0 <ip address> netmask <netmask> r
Configuring Network Support with DHCP
To configure your IP address with DHCP, perform the following steps:
1.
Run the following command:
# dhcpcd –NRY & r
2.
Wait a few moments, and then run:
# ifconfig eth0 r
The output will be similar to that in Figure 3 on page 15.
14
Nios II Evaluation Kit User Guide
Altera Corporation
October 2005
The Nios II Evaluation Board
Figure 3. Configuring Network Support
If you don't see an inet addr entry when running ifconfig, wait a few
moments and try again. It can take time to retrieve an IP address from a
DHCP server.
For more information regarding Nios II Linux, visit
www.niosforum.com where you will be able to download the latest Nios
II Linux distribution for your Nios II evaluation kit.
Using Sample Network Applications
The Nios II evaluation board ships with a web server, telnet server, and
an FTP server. Once network support is enabled, all these network
services can be accessed through the board’s IP address. For example,
typing http://<IP address> into a web browser on your PC will access the
web pages served from the Linux web server running on the evaluation
board.
Altera Corporation
October 2005
15
Nios II Evaluation Kit User Guide
Using the Nios II Evaluation Kit
Starting the
Nios II
Development
Tools
Once you have connected your Nios II evaluation board to your
computer, you can start the Nios II integrated development environment
(IDE) from the Quartus II software.
Starting the Quartus II Software
To start the Quartus II software and open a Nios II project, perform the
following steps:
1.
On the Windows Start menu, click Programs, Altera, Quartus II
<version> Web Edition Full.
2.
When the Altera Quartus II window displays, on the File menu,
click Open Project....
3.
Browse to <Nios II kit
path>\examples\verilog\niosII_cyclone_1c12_eval\standard.
4.
Select the standard_eval_board.qpf file and click Open.
The standard_eval_board.qpf file contains project definitions for the
standard reference design used as the example in this guide.
1
You can use the VHDL directory in place of the Verilog
directory, if you prefer.
Downloading a Hardware Image to the FPGA
You will now configure the Cyclone device on the Nios II evaluation
board by downloading a SRAM Object File (.sof) image. To download the
Nios II .sof image to the Nios II evaluation board, perform the following
steps:
1.
On the Tools menu, click Programmer.
2.
Click Hardware Setup.
3.
Double-click Nios II Evaluation Board in the Available hardware
items list.
4.
Click Close.
5.
Turn on the Program/Configure check box found on the same line
as standard_eval_board.sof.
6.
Close the Nios II SDK shell if it is still open and connected to Linux.
16
Nios II Evaluation Kit User Guide
Altera Corporation
October 2005
The Nios II Evaluation Board
7.
Click Start.
You've now reconfigured the Cyclone FPGA on your evaluation board
with a new Nios II processor hardware design. Next, you will find out
how to run software on this processor.
Starting the Nios II IDE from SOPC Builder
Now that you have configured the FPGA with a Nios II system .sof file,
you can proceed to the Nios II IDE to download software to the processor.
To start the Nios II IDE, perform the following steps:
1.
On the Tools menu, click SOPC Builder.
2.
When SOPC Builder opens, click the System Generation tab.
3.
Click Run Nios II IDE to start the Nios II IDE. See Figure 4.
Figure 4. Starting the Nios II IDE
Building Your First Software Project
To create the Hello World project, perform the following steps:
Altera Corporation
October 2005
17
Nios II Evaluation Kit User Guide
Using the Nios II Evaluation Kit
1.
On the File menu, click New, C/C++ Application. The New Project
wizard opens. See Figure 5.
2.
Select Hello World from the Select Project Template list.
3.
Click Finish to create the hello_world_0 project and associated
system library project.
4.
In the C/C++ Projects view on the left, right-click hello_world_0
and select Build Project.
Figure 5. Nios II New Project
When the build is done, the message “Build completed” displays in
the Console view at the bottom of the Nios II IDE window.
18
Nios II Evaluation Kit User Guide
Altera Corporation
October 2005
The Nios II Evaluation Board
1
If the Console view is not visible, click on the Console tab to
display the view.
Downloading Executable Code to the Nios II Evaluation Board
From the Nios II IDE, perform the following:
1.
On the Run menu, click Run... . The Run dialog box opens.
1.
Select Nios II Hardware in the Configurations pane and click New.
2.
Click the Target Connection tab.
3.
Select Nios II Evaluation Board from the JTAG cable list.
Wait while the Nios II IDE sets up the run configuration. The Run
button becomes active when this process is complete.
4.
Click Run at the bottom of the dialog box. The hello_world image
downloads to the Nios II evaluation board and executes.
The results appear in the Console view of the Nios II IDE. See
Figure 6 on page 20.
1
Altera Corporation
October 2005
If the Console view is not visible, click on the Console tab to
display the view.
19
Nios II Evaluation Kit User Guide
Using the Nios II Evaluation Kit
Figure 6. Console View
20
Nios II Evaluation Kit User Guide
Altera Corporation
October 2005
The Nios II Evaluation Board
Taking the Next
Step
Congratulations! You have completed the first steps to familiarize
yourself with the Nios II Evaluation Kit. If you completed all of the steps
in this user guide, then you have installed your Nios II processor
development environment, and verified that the Nios II evaluation board
and tools function correctly.
Writing Software for the Nios II Processor
The Nios II Software Development Tutorial, available within the Nios II IDE,
is a good place to begin learning more about writing software for the Nios
II processor. This document will introduce you to the software
development process for the Nios II processor, presented in a step-bystep format.
The Nios II evaluation kit includes a set of example hardware designs.
The Nios II IDE includes several templates for software example designs.
Table 2 shows which software example are compatible with the hardware
designs in the Nios II evaluation kit.
Table 2. Compatibility of Example Software and Hardware Designs
Hardware Design
Software Template
Small
Standard
Full Featured
O
O
O
O
O
O
O
O
O
Hello World
O
O
Hello World Small
O
O
Host Filing System
O
O
Memory Test
O
O
O
O
Blank Project
Board Diagnostics
Custom Instruction Tutorial
Count Binary
Dhrystone
Hello Freestanding
Hello LED
O
Hello MicroC/OS-II
Simple Socket Server
Tightly Coupled Memory
MicroC/OS-II Message Box
MicroC/OS-II Tutorial
Web Server
Zip Filing System
Altera Corporation
October 2005
21
Nios II Evaluation Kit User Guide
Using the Nios II Evaluation Kit
Creating Customized Processor Systems
Hardware and system designers can create their own customized
systems using SOPC Builder and the Quartus II software. The best place
to learn more about this powerful capability is by purchasing one of the
following full-featured Nios II development kits:
■
■
■
■
■
Nios II Development Kit, Stratix II Edition
Nios II Development Kit, Stratix Edition
Nios II Development Kit, Stratix Professional Edition
Nios II Development Kit, Cyclone II Edition
Nios II Development Kit, Cyclone Edition
These kits contain extensive reference designs, documentation, and stepby-step tutorials that will aid you in creating embedded processor
subsystems just the way you require.
1
A 10/100 Ethernet MAC from MoreThanIP GmbH is included
in the factory programmed design on the embedded processor
module. If you want to generate hardware systems using this
MAC, contact MoreThanIP at www.morethanip.com.
Learning More about the Nios II Processor
The Altera website (www.altera.com/nios2) provides you with the latest
information on the Nios II family of embedded processors.
The Nios Forum (www.niosforum.com) is a user driven, web-enabled
forum dedicated to designing with the Nios II processor. Users exchange
information, designs, and development techniques for maximizing their
experience with the Nios II processor.
1
Both the µClinux and eCos operating systems are available free
for download from the Nios Forum.
22
Nios II Evaluation Kit User Guide
Altera Corporation
October 2005
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
