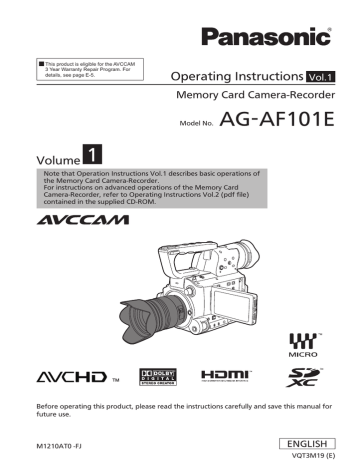

Operating Instructions
Vol.1
Memory Card Camera-Recorder
Model No.
Volume
AG-AF101E
1
Note that Operation Instructions Vol.1 describes basic operations of
the Memory Card Camera-Recorder.
For instructions on advanced operations of the Memory Card
Camera-Recorder, refer to Operating Instructions Vol.2 (pdf file)
contained in the supplied CD-ROM.
Before operating this product, please read the instructions carefully and save this manual for
future use.
M1210AT0 -FJ
ENGLISH
VQT3M19 (E)
Read this first!
WARNING:
• To reduce the risk of fire or electric shock,
do not expose this equipment to rain or
moisture.
• To reduce the risk of fire or electric shock
hazard, keep this equipment away from all
liquids. Use and store only in locations which
are not exposed to the risk of dripping or
splashing liquids, and do not place any liquid
containers on top of the equipment.
WARNING:
his equipment must be earthed
T
To ensure safe operation, the three-pin plug must
be inserted only into a standard three-pin power
point which is effectively earthed through normal
house-hold wiring.
Extension cords used with the equipment must
have three cores and be correctly wired to provide
connection to the earth. Wrongly wired extension
cords are a major cause of fatalities.
The fact that the equipment operates satisfactorily
does not imply that the power point is earthed or
that the installation is completely safe. For your
safety, if you are in any doubt about the effective
earthing of the power point, please consult a
qualified electrician.
CAUTION:
Do not lift the unit by its handle while the
tripod is attached. When the tripod is attached,
its weight will also affect the unit’s handle,
possibly causing the handle to break and
hurting the user. To carry the unit while the
tripod is attached, take hold of the tripod.
CAUTION:
The mains plug of the power supply cord shall
remain readily operable.
The AC receptacle (mains socket outlet) shall be
installed near the equipment and shall be easily
accessible.
To completely disconnect this equipment from the
AC mains, disconnect the power cord plug from the
AC receptacle.
CAUTION:
lways keep memory cards or accessories
A
(coin battery, microphone holder screws,
microphone holder adaptor, cable clamper,
screws for cable clamper, INPUT terminal
covers, major hook) out of the reach of babies
and small children.
Danger of explosion or fire if battery is
incorrectly replaced or mistreated.
• Do not disassemble the battery or dispose of it
in fire.
• Do not store in temperatures over 60°C.
• Do not expose the battery to excessive heat
such as sunshine, fire or the like.
For Battery Pack
• Use specified charger.
• Replace only with same or specified type.
For Battery of Remote Controller
• Replace battery with part No. CR2025 only.
• Do not recharge the battery.
CAUTION:
CAUTION:
CAUTION:
CAUTION:
CAUTION:
CAUTION:
WARNING:
Do not remove panel covers by unscrewing
them.
To reduce the risk of electric shock, do not
remove the covers. No user serviceable parts
inside.
Refer servicing to qualified service personnel.
To reduce the risk of fire or electric shock and
annoying interference, use the recommended
accessories only.
In order to maintain adequate ventilation, do
not install or place this unit in a bookcase,
built-in cabinet or any other confined space.
To prevent risk of electric shock or fire hazard
due to overheating, ensure that curtains and any
other materials do not obstruct the ventilation.
E-1
indicates safety information.
Do not jar, swing, or shake the unit by its
handle while the conversion lens or another
accessory is attached.
Due to the added weight of the conversion
lens, any strong jolt to the handle may damage
the unit or result in personal injury.
Excessive sound pressure from earphones
and headphones can cause hearing loss.
Do not leave the unit in direct contact with the
skin for long periods of time when in use.
Low temperature burn injuries may be suffered
if the high temperature parts of this unit are
in direct contact with the skin for long periods
of time. When using the equipment for long
periods of time, make use of the tripod.
indicates safety information.
Caution for AC Mains Lead
For battery charger
FOR YOUR SAFETY PLEASE READ THE FOLLOWING TEXT CAREFULLY.
This product is equipped with 2 types of AC mains cable. One is for continental Europe, etc.
and the other one is only for U.K.
Appropriate mains cable must be used in each local area, since the other type of mains cable is
not suitable.
FOR CONTINENTAL EUROPE, ETC.
Not to be used in the U.K.
FOR U.K. ONLY
FOR U.K. ONLY
This appliance is supplied with a moulded
three pin mains plug for your safety and
convenience.
A 5 amp fuse is fitted in this plug.
Should the fuse need to be replaced please
ensure that the replacement fuse has a
rating of 5 amps and that it is approved by
ASTA or BSI to BS1362.
Check for the ASTA mark
or the BSI mark
on the body of the fuse.
How to replace the fuse
1. Open the fuse compartment with a
screwdriver.
If the plug contains a removable fuse cover
you must ensure that it is refitted when the
fuse is replaced.
If you lose the fuse cover the plug must
not be used until a replacement cover is
obtained.
A replacement fuse cover can be purchased
from your local Panasonic Dealer.
2. Replace the fuse
Fuse
Camera-Recorder
The rating plate is on the underside of the viewfinder.
Battery Charger / AC Adaptor
The rating plate is on the underside of the Battery Charger and AC Adaptor. Disconnect the AC mains
plug from the AC mains socket when not in use.
EEE Yönetmeliğine Uygundur.
EEE Complies with Directive of Turkey.
E-2
indicates safety information.
Caution for AC Mains Lead
For AC adaptor
FOR YOUR SAFETY PLEASE READ THE FOLLOWING TEXT CAREFULLY.
This product is equipped with 2 types of AC mains cable. One is for continental Europe, etc.
and the other one is only for U.K.
Appropriate mains cable must be used in each local area, since the other type of mains cable is
not suitable.
FOR CONTINENTAL EUROPE, ETC.
Not to be used in the U.K.
FOR U.K. ONLY
FOR U.K. ONLY
E-3
This appliance is supplied with a moulded
three pin mains plug for your safety and
convenience.
A 13 amp fuse is fitted in this plug.
Should the fuse need to be replaced please
ensure that the replacement fuse has a rating
of 13 amps and that it is approved by ASTA
or BSI to BS1362.
Check for the ASTA mark
or the BSI mark
on the body of the fuse.
How to replace the fuse
1. O
pen the fuse compartment with a
screwdriver.
If the plug contains a removable fuse cover
you must ensure that it is refitted when the
fuse is replaced.
If you lose the fuse cover the plug must
not be used until a replacement cover is
obtained.
A replacement fuse cover can be purchased
from your local Panasonic Dealer.
2. Replace the fuse
Fuse
EMC NOTICE FOR THE PURCHASER/USER OF THE APPARATUS
1. Applicable standards and operating environment
The apparatus is compliant with:
• standards EN55103-1 and EN55103-2 2009, and
• electromagnetic environments E1, E2, E3 and E4.
2. Pre-requisite conditions to achieving compliance with the above standards
<1> P
eripheral equipment to be connected to the apparatus and special connecting cables
• The purchaser/user is urged to use only equipment which has been recommended by us as
peripheral equipment to be connected to the apparatus.
• The purchaser/user is urged to use only the connecting cables described below.
<2> For the connecting cables, use shielded cables which suit the intended purpose of the
apparatus.
• Video signal connecting cables
Use double shielded coaxial cables, which are designed for 75-ohm type high-frequency
applications, for SDI (Serial Digital Interface).
Coaxial cables, which are designed for 75-ohm type high-frequency applications, are
recommended for analog video signals.
• Audio signal connecting cables
If your apparatus supports AES/EBU serial digital audio signals, use cables designed for AES/
EBU.
Use shielded cables, which provide quality performance for high-frequency transmission
applications, for analog audio signals.
• Other connecting cables (IEEE1394, USB)
Use shielded cables, which provide quality performance for high-frequency applications, as
connecting cables.
• When connecting to the DVI signal terminal, use a cable with a ferrite core.
• If your apparatus is supplied with ferrite core(s), they must be attached on cable(s) following
instructions in this manual.
3. Performance level
The performance level of the apparatus is equivalent to or better than the performance level
required by these standards.
However, the apparatus may be adversely affected by interference if it is being used in an EMC
environment, such as an area where strong electromagnetic fields are generated (by the presence
of signal transmission towers, cellular phones, etc.). In order to minimize the adverse effects of the
interference on the apparatus in cases like this, it is recommended that the following steps be taken
with the apparatus being affected and with its operating environment:
1. Place the apparatus at a distance from the source of the interference.
2. Change the direction of the apparatus.
3. Change the connection method used for the apparatus.
4. Connect the apparatus to another power outlet where the power is not shared by any other
appliances.
■■
Batteries that may be used with this product (Correct as of December 2010)
Panasonic VW-VBG260 and VW-VBG6 batteries may be used with this product.
The VW-VBG260 and VW-VBG6 batteries contain a function to enable verification as to whether they
may be safely used with this product.
It has been found that counterfeit battery packs which look very similar to the genuine product are
made available to purchase in some markets. Some of these battery packs are not adequately
protected with internal protection to meet the requirements of appropriate safety standards. There is
a possibility that these battery packs may lead to fire or explosion. Please be advised that we are not
liable for any accident or failure occurring as a result of use of a counterfeit battery pack. To ensure that
safe products are used we would recommend that a genuine Panasonic battery pack is used.
E-4
EU
To remove the battery
Main Power Battery (Lithium ion Battery)
(Refer to page E-25 for the detail.)
Press the battery release button.
Remote Control Battery (Lithium Battery)
1)Push the catch in the direction shown by
arrow
1 to remove the holder.
Battery
release button
2)Remove the button-type battery from the
battery holder..
Back-up Battery (Lithium Battery)
• For the removal of the battery for disposal at
the end of its service life, please consult your
dealer.
AVCCAM 3 Year Warranty Repair Program*1
Thank you for purchasing this Panasonic AVCCAM device.
Register as a user for this device to receive a special service warranty up to three years of free warranty repairs.
Customers who register as users on the website will receive an extended warranty repair valid for up to
three years.
1st year
AVCCAM device*
2
Basic warranty*
2nd year
3
3rd year
Extended warranty repair*4
*1: Please note that this extended warranty is not available in some countries/regions. *2: Not all models eligible for extended warranty coverage.
*3: The basic warranty period may vary depending on the country/region. *4: Not all repair work is covered by this extended warranty.
Free 3 years of Warranty Repairs
Purchase
AVCCAM product
Register online
within 1 month
“Registration Notice”
e-mail sent
Details about user registration and the extended warranty:
Make sure to save the “Registration Notice” e-mail
during the warranty period.
http://panasonic.biz/sav/pass_e
Please note, this is a site that is not maintained by Panasonic Canada Inc. The Panasonic Canada Inc. privacy policy does not apply and is not applicable in relation to any
information submitted. This link is provided to you for convenience.
E-5
Contents
Volume 1 (This Book)
Read this first!............................................. E-1
Outline of operations.................................. E-8
Please read before use............................... E-9
Lenses compatible with this camera...............E-9
Lens attachment and detachment.................E-10
SD Memory Cards compatible with this product...E-12
(SD speed class 4)......................E-13
(SD speed class 6)......................E-13
Operating precautions.............................. E-14
Before use
Precaution for use..................................... E-16
Accessories............................................... E-19
Optional accessories................................ E-19
Description of parts
Description of parts................................... E-20
Left side.........................................................E-20
Right side and rear side................................E-21
Left side and front side..................................E-22
Remote control..............................................E-23
Preparation
Recharging the battery............................. E-23
Recharging....................................................E-23
Power sources........................................... E-25
Using the battery...........................................E-25
Using the AC adaptor....................................E-25
Adjusting the hand strap.......................... E-26
Attaching/detaching the handle............... E-26
Attaching/detaching the grip.................... E-26
The remote control.................................... E-27
Shooting
Basic shooting operations....................... E-35
Preparing for recording..................................E-35
Checking photos taken (REC CHECK).........E-35
SD Memory Card access lamp......................E-36
Selecting a slot............................................. E-36
Formatting SD Memory Cards.......................E-36
SD Memory Card recording times.................E-37
Removing SD Memory Card.........................E-38
Protecting SD Memory Cards........................E-38
Repairing SD Memory Cards........................E-38
Basic operations of the camera............... E-39
Manual focusing ...........................................E-39
Using focus assist.........................................E-40
Iris adjustments.............................................E-40
Adjusting the gain..........................................E-41
Light intensity adjustments............................E-41
Adjusting the white balance...........................E-41
Menu
Using the setup menus............................. E-44
Using the menus...........................................E-44
Initializing the menu settings.........................E-45
Setup menu structure............................... E-46
Menu.............................................................E-46
Reference
Specifications............................................ E-48
Insert the battery...........................................E-27
Remote control usable range........................E-27
Turn on/off the camera.............................. E-27
Tally lamp................................................... E-28
Viewfinder.................................................. E-29
Using the viewfinder......................................E-29
Using the LCD...............................................E-30
Emphasizing outlines....................................E-30
Adjusting the screen display..........................E-31
Changing backlight brightness......................E-32
Setting the calendar.................................. E-33
E-6
Contents (continued)
Volume2 (CD)
Shooting
Shooting in progressive mode
Shooting techniques for different targets
Adjusting the shutter speed
Switching Audio Input
Using scene files
Saving scene files and other settings on
SD Memory Cards
Clip metadata
Using the Counter
Charging the built-in battery/
Setting the time code
Playback
Basic playback operations
Thumbnail screen
Playback settings (PLAY SETUP)
Thumbnail operations
Useful playback functions
E-7
Editing
Connecting external units
Nonlinear editing
Displays
Screen displays
Menu
Setup menu list
Reference
Before calling for service
Updating the firmware incorporated into
the unit
Cleaning
Storage Precautions
How to handle data recorded on
SD Memory Card
Outline of operations
This camera-recorder is compatible with the AVCHD standard, and uses low-cost and easily-available SD/
SDHC/SDXC Memory Cards as recording media.
The unit enables high-quality picture recording of close to broadcasting standard, as well as highly creative
video production.
Television/Video device/Monitor
1
Recording to and playback
from SD/SDHC/SDXC
Memory Cards
(Page E-35, Page 28 of Vol.2)
SD/SDHC Memory Card
LOCK
HDMI cable
32
BNC cable (HD SDI)
•Images can be recorded in HD
(high definition).
Please see page 73 of Vol.2 for details
on the handling of recorded data.
•A set number of user files can be
recorded to and read from the SD
Memory Card. (Page 21 of Vol.2)
Video cable
SD/SDHC/SDXC
Memory Card
LOCK
32
2
PC mode
(Page 44 of Vol.2)
Computer
USB2.0
Send data (files) to your computer
for non-linear editing, etc.
Lens (No lenses are included with this camera. Please use lenses purchased
separately.)
Micro Four Thirds (Page E-9)
Four Thirds (Page E-9)
A separately available mount adaptor (DMWMA1) is necessary
E-8
Please read before use
Lenses compatible with this camera
No lenses are included with this camera. Please use lenses purchased separately.
This camera includes a Micro Four ThirdsTM system lens mount. However, the successful operation of all
Micro Four Thirds and Four ThirdsTM standard lenses cannot be guaranteed.
Also, some functions such as optical image stabilization (OIS) and auto focus (AF) cannot be used
depending on the lens.
Panasonic has confirmed the compatibility of the following lenses (as of December 2010).
Please use a lens support when using large lenses weighing more than 1kg. Not using a lens support may
result in damage to the lens mount.
*Micro Four Thirds™ and Four Thirds are trademarks or registered trademarks of Olympus
Imaging Corporation in Japan, USA, the EU, and other countries.
(○: Usable, l: Some functions/features limited, —: Not usable)
AF *1
Lens Type
OnePush
AF
MF
Camera Focus
by Remote
Control
l *4
○
○
○
l *4
○
○
○
l *3
l *4
○
○
○
○
○
○
○
○
60i/60p/30p/
50i/50p/25p
24p
l *3
*3
H-F007014 (Panasonic) *2
H-VS014140 (Panasonic)
Micro Four Thirds Lens
H-FS014045 (Panasonic) *2
H-FS045200 (Panasonic)
*2
l
-
-
○
○
○
H-ES045 (Panasonic) *2
l *3
l *4
○
○
○
H-F008 (Panasonic) *2
l *3
l *4
○
○
○
H-FS014042 (Panasonic) *2
l *3
l *4
○
○
○
H-H020 (Panasonic) *2
Four Thirds Lens
(a mount adaptor (DMW-MA1), available separately, is necessary when using a Four Thirds lens)
L-ES014050 (Panasonic) *2
-
-
-
○
-
L-RS014050 (Panasonic) *2
-
-
l *5
○
l *5
L-RS014150 (Panasonic) *2
-
-
l *5
○
l *5
L-X025 (Panasonic) *2
-
-
l *5
○
l *5
ZUIKO DIGITAL ED
14-35mm F2.0 SWD
(OLYMPUS) *2
-
-
l *5
○
l *5
*1Tracking becomes extremely slow in slow shutter mode.
*2Sounds from focus and iris operation may be recorded.
*3Tracking performance is inferior compared to H-VS014140 (lens for movie recording, Micro Four
Thirds mount).
*4AF tracking becomes slow in 24p mode.
*5Limitations apply to the simultaneous operation of FOCUS and IRIS.
Note: use of H-VS014140 (lens for movie recording, Micro Four Thirds mount) is assumed throughout this
operating instructions document.
For the latest information regarding supported lenses, please refer to Panasonic catalogs/web
site etc.
http://pro-av.panasonic.net/
E-9
Lens attachment and detachment
• Check that the power switch is set to OFF.
■■Attaching a lens to the camera
1 Turn the lens rear cap and body cap in the direction indicated by the arrows and remove.
Lens detachment
button
Body cap
Lens rear cap
• Do not insert fingers into the mount.
2Line up the lens attachment marks (red) on the camera and lens, and then turn the lens in the
direction indicated by the arrows until it audibly clicks into place.
• Do not press the lens detachment button while attaching
the lens.
• Damage may occur to the lens attachment if the lens is
not at right angles to the camera during attachment.
• Ensure that the lens is attached properly.
3Remove lens cap.
• Remove lens cap prior to recording.
E-10
Precaution for use (continued)
■■Detaching a lens from the camera
1 Attach the lens cap.
2While pressing the lens detachment button, turn the
lens in the direction indicated by the arrows until it
stops, and detach.
3Attach the body cap.
• Ensure that the body cap is attached to prevent dust or
dirt from entering the camera.
• To prevent damage to the lens connection, be sure to
attach the lens rear cap.
Lens detachment
button
• When using lenses other than those conforming to the Micro Four Thirds and Four Thirds standard,
see the LENS CHECK item in the OTHER FUNCTIONS screen of MENU settings.
• Change lenses in a place that is relatively free of dust and dirt.
• When the power switch is [OFF] or when carrying the camera, attach the lens cap to prevent damage
to the surface of the lens.
• Be careful not to misplace the body cap, lens cap, or lens rear cap.
■■
Enabling Image Stabilization
Image Stabilization can be enabled with lenses equipped with OIS.
Set the OIS switch of the lens to [ON]
Setting the OIS switch to [OFF] is recommended when using a tripod.
• Use the OIS switch on the camera if a lens has an Image Stabilization function but does not have an
OIS switch. If the lens has an OIS switch, the OIS switch on the camera is disabled.
E-11
SD Memory Cards compatible with this product
Speed class 4 or above is required for recording in the PH mode or HA mode. Speed class 6 or above
is required when using the VFR function. It is recommended that you use the following Panasonic SD
memory cards, SDHC memory cards, or SDXC memory cards. (As of December, 2010)
Card type
SD Memory
Card
Recording capacity
Recording/playback
8 MB
16 MB
Cannot be used.
32 MB
64 MB
128 MB
256 MB
Successful operation cannot be
guaranteed. Recording may be
suddenly terminated with certain
SD Memory Cards.
Saving/reading of scene files and
user files, reading of metadata
512 MB
1 GB
2 GB
Can be used.
4 GB
6 GB
SDHC Memory
Card
8 GB
Can be used.
12 GB
16 GB
32 GB
SDXC Memory
Card
48 GB
64 GB
• Please see our support page at the following website for the latest information not included in these
operating instructions.
http://pro-av.panasonic.net/
• This camera supports FAT12 & FAT16 formatted SD memory cards, FAT32 formatted SDHC memory
cards, and exFAT formatted SDXC memory cards that are compliant with the SD standard.
• 4 GB (or greater) memory cards without the SDHC logo and 48 GB (or greater) memory cards without
the SDXC logo are not based on the SD standard.
• Use this product to format the SD Memory Cards to be used. Formatting memory cards on computers
or other devices may cause recording to take longer than normal, or may cause cards to become
incompatible with this product. (Page E-36) (Use this product to reformat any cards that have already
been formatted on computers, etc.)
• MultiMediaCards cannot be used with this product.
(Continued on the next page)
E-12
Please read before use (continued)
(SD speed class 4)
This refers to a class 4 speed standard (SD speed class) for the continuous writing of data between SDcompatible devices and SD Memory Cards, as designated by the SD standards.
When the use of an SD speed class 4 card is recommended for SD-compatible products, this indicates
that stable recording operation can be achieved when using SD Memory Cards of class 4 and above.
(SD speed class 6)
This refers to a class 6 speed standard (SD speed class) for the continuous writing of data between SDcompatible devices and SD Memory Cards, as designated by the SD standards.
When the use of an SD speed class 6 card is recommended for SD-compatible products, this indicates
that stable recording operation can be achieved when using SD Memory Cards of class 6 and above.
Cautions for usage
• Do not allow dirt, water, or other substances to come into contact with the connector part on the
reverse of the card.
• Do not leave the card in the following places:
– In direct sunlight or in places of high humidity, e.g. close to heating equipment
– In highly humid or dusty locations
– In locations with high variations in temperature (condensation may appear on card)
– In places subject to static electricity or electromagnetic waves
• Store cards in bags or cases after use.
E-13
Operating precautions
Do not allow any water to get into the camerarecorder when using it in the rain or snow or at
the beach.
• Failure to heed this caution will cause the
camera-recorder or a card to malfunction (and
may result in irreparable damage).
Keep the camera-recorder away from
equipment (such as TV sets and video game
machines) that generate magnetic fields.
• Using the camera-recorder on top of or near a
TV set may cause distortion in the images and/
or sound due to the electromagnetic waves that
the set emits.
• The powerful magnetic fields generated by
speakers or large motors may damage your
recordings or distort the images.
• The electromagnetic waves emitted from a
microcomputer will adversely affect the camerarecorder, causing the images and/or sound to be
distorted.
• If the camera-recorder is so adversely affected by
products that generate magnetic fields that it no
longer operates properly, turn it off and remove
the battery or unplug the AC adaptor from the
power outlet. Then install the battery again or
reconnect the AC adaptor. After this, turn the
camera-recorder back on.
Do not use the camera-recorder near radio
transmitters or high-voltage equipment.
• Using the camera-recorder near a radio
transmitter or high-voltage equipment may
adversely affect the recorded images and/or
sound.
Do not allow any sand or dust to get into the
camera-recorder when using it at the beach
and other similar places.
• Sand and dust can damage the camera-recorder
or a card. (Be especially careful when inserting or
removing a card.)
AC adaptor (battery charger) and battery
• If the CHARGE lamp continues to blink even
when the battery temperature is normal, there
may be something wrong with the battery or AC
adaptor (battery charger). Contact your dealer.
• The battery takes longer to charge when it is
warm.
• The AC adaptor (battery charger) can interfere
with radio reception so keep radios at least 1
meter away from it.
• The AC adaptor (battery charger) may make
some noise when you are using it, but this is
normal.
Take precautions not to drop the camera when
moving it.
• Strong impacts may damage the camera and
cause it to stop working.
• Handle the camera with care, using the hand
strap or shoulder strap to carry it.
Do not spray the camera with insect sprays or
other volatile substances.
• These can warp the camera or cause the finish
to come off.
• Do not leave the camera-recorder in contact with
rubber or PVC products for extended periods of
time.
After use, remove the battery and disconnect
the AC power supply cord.
Battery characteristics
This camera-recorder uses a rechargeable
lithiumion battery that uses its internal chemical
reaction to generate electrical energy. This reaction
is easily influenced by the ambient temperature
and humidity, and the battery’s effective operating
time is reduced as the temperature rises or falls.
If you use this camera at locations with extremely
low temperatures, its operating time will be
reduced.
Protective circuitry functions if you use the battery
where it is very hot and you will have to wait before
you can use it again.
Remove the battery after use.
Completely remove the battery. (The battery
continues to be used even if you have turned
the camera off.) The battery can over discharge
if you leave it in the camera and it may become
impossible to recharge it.
Disposing of spent batteries
The battery will become unchargeable. Rather than
throwing the battery into the garbage, take it to a
store that can assist in recycling it.
Do not remove the battery when the POWER
switch is ON.
Disconnect the power supply after turning OFF the
POWER switch and making sure the mode lamp is
completely OFF.
E-14
Operating precautions (continued)
What to remember when throwing memory
cards away or transferring them to others
Formatting memory cards or deleting data using
the functions of the unit or a computer will merely
change the file management information: it will
not completely erase the data on the cards. When
throwing these cards away or transferring them
to others, either physically destroy them or use a
data deletion program for computers (commercially
available) to completely erase the data. Users are
responsible for managing the data on their memory
cards.
Liquid crystal displays
• Images or letters can get burned onto the screen
of the LCD or viewfinder if they are displayed for
a long time, but you can fix this by leaving the
camera off for several hours.
• The liquid crystal parts are highly precise with
99.99% of the pixels effective. This leaves less
than 0.01% of pixels that may not light or may
remain on all the time. These phenomena are
normal and will have no effect on the images you
shoot.
• Condensation may form if you use the camera
where temperatures fluctuate. Wipe dry with a
soft, dry cloth.
• The LCD may appear dim after immediately
turning on a cold camera, but will brighten as the
camera warms up.
Do not point the lens or viewfinder at the sun.
Doing so may damage the parts inside.
Protective caps for the connectors
Keep the protective caps fitted over any
connectors that are not being used.
E-15
Precaution for use
Before use
Always take some trial shots before actual shooting.
• When shooting important events (such as weddings), always take some trial shots and check that the
sound and images have been recorded properly before actual shooting.
Be sure to check and set the calendar and time zone.
• These settings affect the control and playback sequence of the recorded contents. Before making a
recording, set and check the calendar and time zone. (Page E-33)
Panasonic makes no guarantees for your recordings.
• In the unlikely event that content that was not recorded due to a fault related to this camera or SD/SDHC/
SDXC memory card during use, please understand that no compensation can be provided.
Respect copyrights
• Copyright laws forbid the use of video and audio material you have recorded for any purpose other than
your own personal enjoyment. Remember that restrictions apply to the shooting of certain material even
if it is intended for private use.
Caution regarding laser beams
• Lenses may suffer damage if it is struck by a laser beam. Ensure that laser beams do not strike the lens
when shooting in an environment where laser devices are used.
Media that can be used in this unit
• SD/SDHC/SDXC memory cards can be used. See page E-12 for details.
Mounting the camera-recorder on a tripod
• The tripod mounting hole supports 1/4-20UNC and 3/8-16UNC screws. Please use this in according to
the fixing screw on the tripod.
• The depth of the tripod mounting hole is 5.5mm. Avoid applying excessive force to the tripod screws
when mounting the camera onto a tripod.
Attach the tripod to the tripod hole on the bottom side.
E-16
Precaution for use (continued)
About this manual
Note concerning illustrations in these instructions
• Illustrations (camera-recorder, menu screens, etc.) in these operating instructions differ slightly from the
actual camera-recorder.
References
• References are shown as (Page 00).
SD/SDHC/SDXC Memory Cards
• SD/SDHC/SDXC memory cards are noted as SD memory cards.
●●The SDHC logo and SDXC logo are trademarks
of SD-3C, LLC.
●●“AVCHD” and the “AVCHD” logo are trademarks
of Panasonic Corporation and Sony Corporation.
●●This product has been manufactured under
license from Dolby Laboratories.
Dolby and the double-D symbol are trademarks
of Dolby Laboratories.
●●HDMI, the HDMI logo, and High-Definition
Multimedia Interface are trademarks or
registered trademarks of HDMI Licensing LLC.
●●LEICA is a registered trademark of Leica
Microsystems IR GmbH.
●●DICOMAR is a registered trademark of Leica
Camera AG.
●●Microsoft®, Windows®, and Windows Vista® are
either registered trademarks or trademarks of
Microsoft Corporation in the United States and/
or other countries.
●●Screenshots are used in accordance with
Microsoft Corporation guidelines.
●●IBM and PC/AT are registered trademarks of
International Business Machines Corporation.
●●Intel® is a registered trademark or a trademark
of Intel Corporation in the United States and/or
other countries.
●●Apple®, Macintosh®, and Mac OS® are
trademarks or registered trademarks of Apple
Inc. in the United States and/or other countries.
●●Other model names, company names, and
product names listed in these operating
instructions are trademarks or registered
trademarks of their respective companies.
E-17
●●This product is licensed under the AVC Patent
Portfolio License for the personal and noncommercial use of a consumer, and no license
is granted or shall be implied for any use other
than the personal uses detailed below.
– To encode video in compliance with the AVC
standard (“AVC Video”)
– To decode AVC Video that was encoded by
a consumer engaged in a personal and noncommercial activity
– To decode AVC Video that was obtained from a
video provider licensed to provide AVC Video
• Additional information may be obtained from
MPEG LA, LLC (http://www.mpegla.com).
– Separate license contracts must be obtained from
MPEG LA where SD Memory Cards containing
information recorded with this product are to be
distributed to end users for commercial purposes.
“End user” refers to persons or organizations
handling such contents for personal use.
Before use
What is AVCHD?
AVCHD is a standard for the recording and playback of highly detailed, high-definition video.
Video is compressed in the MPEG-4 AVC/H.264 formats, and audio is recorded in Dolby Digital or
linear PCM.
Information regarding compatibility of SDHC Memory Cards and recorded video
SDHC/SDXC Memory Cards
●●SDHC/SDXC Memory Cards cannot be used with non-SDHC-compatible
equipment.
●●Ensure that all equipment is SDHC/SDXC-compatible when using card
with other devices.
Compatibility of recorded video
●●Recorded video cannot be used with non-AVCHD-compatible equipment. For details, please see
your product’s operating instructions.
●●Recorded video cannot be played back on non-compatible (non-AVCHD-compatible) equipment.
●●Playback may not always be possible on all AVCHD-compatible equipment. Please use this product
for playback in such instances.
E-18
Accessories
Battery
Battery charger
(Page E-23)
AC power supply cables
For the U.K.
Wireless remote
control and battery
(CR2025) (Page E-27)
AC Adaptor
(Page E-25)
AC power supply cables
For the U.K.
Eye cup
(Page E-29)
Microphone holder
(Page 41 of Vol.2)
Microphone holder
screws
(Page 41 of Vol.2)
Length 6-mm (M4) (2)
For areas other than
the U.K.
For areas other than
the U.K.
Microphone holder
adaptor
(Page 41 of Vol.2)
Length 12-mm (M4) (2)
Cable clamper
(Page 41 of Vol.2)
Screws for cable
clamper
Length 4-mm (M2) (1)
(Page 41 of Vol.2)
CD-ROM
The following accessories are attached to the unit.
Bodycap
Handle
Grip
• Please consult a retailer when purchasing additional accessories.
Optional accessories
• XLR microphone
AG-MC200G
• Battery
VW-VBG6 (7.2 V, 5800 mAh (typ.))
E-19
INPUT 1/2 terminal
cover (2)
Description of parts
16
14
6
15
13
Before use
Left side
4 5
Description
of parts
8 10 9
MENU
EXEC
MENU
START/
STOP 2
EXEC
PUSH-ENTER
–
+
START/
STOP 2
PUSH-ENTER
–
AUDIO MON
+
AUDIO MON
7
12
11
MEGA
O.I.S.
ON
25 24 23 21 3
OFF
PUSH AUTO
DISP/
POWER
FUNCTION USER 1 MODE CHK OFF ON CAM MODE
FOCUS
..
A
M
∞
FOCUS
B
A
PRST
USER 2
CH1
17
AUDIO LEVEL
CH2
2
1
DISP/
POWER
FUNCTION USER 1 MODE CHK OFF ON CAM MODE
A
..
M
∞
PB
PB
IRIS GAIN WHITE BAL
L
M
H
PUSH AUTO
IRIS GAIN WHITE BAL
L
M
H
B
A
PRST
USER 2
CH1
18 19 20 22
AUDIO LEVEL
CH2
26
1 POWER switch (Page E-27)
19 GAIN switch (Page E-41)
2 MODE button (Page 28 of Vol.2)
20 WHITE BAL switch (Page E-41)
3 DISP/MODE CHK button (Page 6 of Vol.2)
21 USER1 button (Page 11 of Vol.2)
4 Viewfinder (Page E-29)
5 Diopter adjustment dial (Page E-29)
6 Built-in speaker (Page 40 of Vol.2)
7 START/STOP2 button (Page E-35)
8 MENU button (Page E-44)
9 EXEC button (Page 35 of Vol.2)
10 OPERATION lever
27
22 USER2 button (Page 11 of Vol.2)
23 FUNCTION knob (Page 10 of Vol.2)
24 FOCUS switch (Page E-39)
25 PUSH AUTO button (Page E-39)
26 AUDIO LEVEL dial (CH1, CH2)
(Page 18 of Vol.2)
27 Mode lamp (Page E-27)
11 AUDIO MON/ADV button
(Pages 12 and 40 of Vol.2)
12 LCD monitor (Page E-30, Page 45 of Vol.2)
13 Built-in microphone (Page 17 of Vol.2)
14 Light shoe
15 Major hook
16 ND dial (Page E-41)
17 IRIS dial (Page E-40)
18 IRIS button (Page E40)
E-20
Description of parts (continued)
Right side and rear side
2
9
1
18
10
8
7
17
11
12
13
14
15
16
4
3
6
5
19
20
21
22
27
23
24
25
26
1 Handle (Page E-26)
18 Card slot cover and OPEN lever (Page E-38)
2 Handle attachment screw (x2) (Page E-26)
19 AUDIO OUT CH1/CH2 terminal
(Page 42 of Vol.2)
3 USER3 button (Page 11 of Vol.2)
4 START/STOP1 button (Page E-35)
5 Grip attachment screw (x2) (Page E-26)
6 Grip (Page E-26)
7 INPUT 1/2 terminal (XLR3 pin)
(Page 17 of Vol.2)
8 INPUT 1/2 (audio input switching) switch
(Page 17 of Vol.2)
9 Microphone holder attachment (x2)
(Page 41 of Vol.2)
10 SD memory card slot and SD memory card
access lamp (Pages E-36 and E-38)
11 SLOT SELECT button
(Page E-36, Page 31 of Vol.2)
12 DIAL SELECT button (Page 14 of Vol.2)
13 SHUTR/F.RATE dial (Page 14 of Vol.2)
14 Remote control sensor (rear) (Page E-27)
15 Tally lamp (rear) (Page E-28)
16 Battery compartment (Page E-25)
17 Battery release button (Page E-25)
20 VIDEO OUT terminal
(Page 42 of Vol.2)
21 USB terminal
(Page 42 of Vol.2)
22 HDMI OUT terminal
(Page 42 of Vol.2)
23 INDEX REMOTE jack (2.5 mm stereo mini
jack)
24 CAM REMOTE jack *
FOCUS/IRIS (3.5mm mini jack)
S/S (2.5mm mini jack)
You can connect a remote control unit (optional)
to control the FOCUS and IRIS (aperture), as
well as REC start / stop operation.
* Do not connect any equipment except the remote
control to the CAM REMOTE jack. Connecting
any equipment other than the remote control may
cause the image brightness to change and/or the
images to appear out of focus.
25 Headphone jack (3.5mm stereo mini jack)
(Page 41 of Vol.2)
26 SDI OUT terminal (Page 42 of Vol.2)
27 Body cap (Page E-10)
E-21
2 3
1
12
13
14
BARS
OIS
CH1 SEL CH2 SEL
INT(L)
INPUT1
INPUT1
INPUT2
INPUT2
WFM
AUDIO
INPUT1
COUNTER-RESET/TC SET
INPUT2
ON
OFF
ON
OFF
MIC POWER +48V
FOCUS
10 11
ZEBRA
EVF DTL
4
5
6
DISP/
7
8
Description
of parts
Left side and front side
..
POWER
9
1 BARS button (Page 11 of Vol.2)
2 ZEBRA button (Page 5 of Vol.2)
3 OIS button (Page 11 of Vol.2)
4 EVF DTL button (Page E-30)
5 WFM button (Page 12 of Vol.2)
6 COUNTER – RESET/TC SET button
(Page 24 of Vol.2)
7 CH1/CH2 SELECT switch (Page 17 of Vol.2)
8 INPUT 1/2 switch (MIC POWER +48V)
(Page 17 of Vol.2)
9 Tripod hole (bottom side) (Page E-16)
10 Lens detachment button (Page E-11)
11 AWB button (Page E-41)
12 White balance sensor (Page E-43)
13 Remote control sensor (front) (Page E-27)
14 Tally lamp (front) (Page E-28)
E-22
Description of parts (continued)
Remote control
To use the remote control, set the IR REMOTE item on the OTHER FUNCTIONS menu to ON. The default
setting for this item is OFF. (Page 62 of Vol.2)
The following buttons are for functions that
cannot be executed on this camera-recorder.
• button
1 EXT. DISPLAY button (Page 40 of Vol.2)
2 DATE/TIME button (Page 40 of Vol.2)
3 START/STOP button
13
EXT
DISPLAY SHOT
1
2
DATE/
TIME
4 ZOOM/VOL buttons (Page 40 of Vol.2)
START/
STOP
ZOOM
11
SEARCH
PLAY
SEARCH
STILL ADV
PAUSE
STILL ADV
SKIP
STOP
SKIP
MENU
ENTER
3
4
VOL
5
7 6
9 8
10
Same function as the START/STOP button on
the camera.
6
8
10
12
5 PLAY button (Page 28 of Vol.2)
6 SEARCH buttons (Pages 28 and 39 of Vol.2)
7 PAUSE button (Page 28 of Vol.2)
8 STILL ADV buttons (Page 40 of Vol.2)
9 STOP button (Page 28 of Vol.2)
10 SKIP buttons (Pages 28 and 39 of Vol.2)
11 OPERATION buttons
Same function as the Operation lever on the
camera.
12 MENU button
Remote control usable range (Page E-27)
Same function as the MENU button on the
camera.
13 PHOTO SHOT button (Page 13 of Vol.2)
Same function as the CAPTURE feature
assigned to a USER SW function on the
camera.
Recharging the battery
Recharging
The battery does not come ready charged when the camera is purchased. Charge the battery before use.
It is recommended that you keep one extra battery as a spare.
1 Connect the power cord to the AC adaptor.
2 Insert the battery.
Charging lamp [CHARGE]
Insert until fully in place.
 
E-23
Align the battery with the
mark and insert fully.
■■Charging time and available recording time
(Approx.)
Battery
model
CGA-E/625
(included)
VW-VBG6
(optional)
Voltage/
capacity
7.2 V/
5800 mAh
(typ.)
5400 mAh
(min.)
7.2 V/
5800 mAh
(typ.)
Charging
time
Maximum
continuous
recording time
Approx.
350
minutes
Approx.
230 minutes
Approx.
350
minutes
Approx.
230 minutes
• The figures in the table above are guidelines
for use in normal temperature conditions
(temperature 25 °C (77 °F), humidity 60%).
Charging may take longer in higher or lower
temperatures.
• Charging may take longer if the battery has not
been in use for a long period of time.
• Given here are the approximate continuous
recording times when recording using the
viewfinder with no connections to any external
devices and with the LCD monitor closed.
• Available recording time may vary according to
usage conditions.
• Charging times are based on charging batteries
from an empty state.
■■
Remaining battery capacity displays
When using Panasonic-manufactured batteries
compatible with this product, the remaining battery
capacity is displayed in minutes.
90min
Time remaining will be displayed after a brief
Description
of parts
■■
If charging lamp is flashing
Check that there is no dirt, dust, or other
substances attached to the connectors on the
battery or AC adaptor, and ensure that the adaptor
has been connected correctly.
• If there is dirt or dust on the connectors,
disconnect the power plug from the socket before
cleaning.
• If the charging lamp continues to flash, there
may be a fault with the battery or the AC adaptor.
Please consult with the place of purchase.
pause.
• The battery display will change
→
→
→
→
as battery capacity decreases.
will be
displayed in red when less than 3 minutes are
remaining, and
will flash when the battery
is empty.
• Remaining battery capacity may not be displayed
correctly when using in high or low temperatures,
or when the battery has not been used for a
long period of time. To ensure that remaining
battery capacity is displayed correctly, use the
battery completely from a fully-charged state,
and charge the battery again. (Remaining battery
capacity may still not be displayed correctly if the
battery has been used for long periods in high
or low temperatures, or if the battery has been
recharged a large number of times.)
• The remaining battery capacity display is a
guideline and may change according to usage
conditions.
• The remaining battery capacity display will
momentarily disappear when switching between
modes, when conducting REC CHECK
operations or when changing the LCD brightness
since the capacity is recalculated at these times.
• Not displayed when using AC adaptor.
Preparation
■■
Charging lamp
On: Charging in progress
Off: Charging complete
Flashing: See below
• Keep metal objects (such as necklaces and
hairpins) away from the battery.
Short-circuiting may occur across the
terminals, causing the battery to heat up,
and you may seriously burn yourself if you
touch the battery in this state.
• The battery becomes hot while it is being used
or charged. The camera-recorder itself also
becomes hot during use.
• The recordable time reduces if you repeatedly
start and stop recording.
• The battery takes longer to charge when it is
warm.
• The AC adaptor can interfere with radio
reception so keep radios at least 1 meter away
from it.
• The AC adaptor may make some noise when
you are using it, but this is normal.
• Battery cannot be recharged when the DC
cord is connected to the AC adaptor.
E-24
Power sources
Using the battery
Installation
Insert the battery until it clicks into place.
2 Remove the battery while pressing the
battery release button.
• Support the battery with your hand to ensure
that it will not fall.
Battery
release button
. . ON
POWER
OFF
CAM MODE
PB
AUDIO LEVEL
CH2
Mode lamp
Removal
1 Set the POWER switch to OFF, and check
that the mode lamp is off.
Using the AC adaptor
Installation
Removal
1 Connect the AC power supply cables to the
1Set the POWER switch to OFF, and check
2Plug the AC power supply cord into the
2Remove the DC cord’s battery connector
3Insert the DC cord’s battery connector until
3 Disconnect the AC power supply cord from
AC adaptor.
power outlet.
it clicks into place.
that the mode lamp is off.
while pressing the battery release button.
the power outlet.
• Disconnect the AC power supply cord from the
power outlet when the unit is not going to be used.
DC cord’s battery
connector
E-25
Adjusting the hand strap
Adjust the hand strap to suit your hand.
1 Open the cover and adjust the length.
2 Close the cover.
Preparation
• Make sure the cover is fully closed.
Attaching/detaching the handle
Detaching the handle
1 Use a Philips-head screwdriver and remove
Screws
the two screws.
2 Slide in the direction of the arrow.
The handle will detach.
Attaching the handle
Carry out the reverse of the detaching procedure to
attach the handle.
• Ensure both screws are firmly fixed in place.
• When holding the handle, make sure the screws
are not loose.
Attaching/detaching the grip
Detaching the grip
1 Use a Philips-head screwdriver and remove
the two screws.
2 Slide in the direction of the arrow.
The grip will detach.
Screws
Attaching the grip
Carry out the reverse of the detaching procedure to
attach the grip.
• When attaching, ensure both screws are firmly
fixed in place.
E-26
The remote control
Insert the battery
1Push the catch in the direction shown by
arrow ① to remove the holder.
Remote control usable range
The distance between the remote control and the
unit’s remote control sensor: Within approx. 5 m
Angle: Approximately 10° upward,
approximately 15° downward,
approximately 15° leftward, or
approximately 15° rightward
(when the accessory battery is used)
2 Insert the battery with the “+” marked side
facing up.
3 Return the holder to its original position.
• When the battery (CR2025) has run out, replace
it with a new one. (The battery lasts about one
year, depending on the frequency of use.)
If the remote control unit fails to work even when
it is operated near the camera-recorder’s remote
control sensor, the battery has run out.
• Keep the battery out of the reach of children.
Remote control
sensor (Rear)
Remote control
sensor (Front)
• The remote control is intended for indoor operation.
Outdoors or under strong light, the unit may not
operate properly even within the usable ranges.
• The remote control is set to OFF in the factory
settings. When using the remote control, set
the REMOTE CONTROL item in the OTHER
FUNCTIONS screen to ON. (Page 62 of Vol.2)
Turn on/off the camera
Set the POWER switch to ON.
Turn on the camera:
The mode lamp (CAM) lights red (CAMERA mode)
and the camera is now in the recording pause mode.
Turn off the camera:
The mode lamp (CAM/PB) goes out.
• Energy-saving mode
According to the settings made in the POWER
SAVE item of the OTHER FUNCTIONS screen
in the settings menu, the following will apply if
no designated operations* are performed for
approximately five minutes while recording is paused
(when an SD Memory Card has been inserted).
ON: T
he camera recorder turns off automatically.
OFF: D
oes not switch OFF the camera.
ee the setup menus, POWER SAVE
*S
(Page 63 of Vol.2) for details.
E-27
MENU
START/
STOP 2
EXEC
PUSH-ENTER
–
+
AUDIO MON
MEGA
O.I.S.
ON
OFF
PUSH AUTO
DISP/
POWER
FUNCTION USER 1 MODE CHK OFF ON CAM MODE
FOCUS
..
A
M
∞
PB
IRIS GAIN WHITE BAL
L
M
H
B
A
PRST
USER 2
CH1
AUDIO LEVEL
CH2
POWER switch
. . ON
POWER
OFF
CAM MODE
PB
Mode lamp
Tally lamp
The tally lamp can be illuminated during recording
by setting the TALLY LAMP item of the OTHER
FUNCTIONS screen (Page 62 of Vol.2) to any
setting other than OFF.
The tally lamp will flash in any of the following
circumstances.
Tally lamp
Preparation
• Receiving remote control operation
(flashes 8 times per second)
• Recording error has occurred
(flashes 4 times per second)
• Battery is low (flashes 4 times per second)
• Available SD Memory Card capacity is low
(flashes 4 times per second)
• Remaining battery capacity is low
(flashes once per second)
• Remaining memory of the SD Memory Card is
low (flashes once per second)
E-28
Viewfinder
This camera has two viewfinders; one is a
miniature LCD in the viewfinder and the other is a
retractable 3.5-inch LCD.
Use the viewfinder that best suits the application
and shooting conditions.
• The brightness and hue may differ between the
images appearing on the viewfinder and LCD
monitor and those displayed on a TV monitor. To
see how the final images will appear, check them
on a TV monitor.
Fitting the eye cup
Attach the eye cup by aligning the projections on
the eye cup holder and eye cup and fitting them
together.
• Turning the eye cup after attaching it may
cause the eye cup holder to come off. If the
eyecup holder does come off, see “Cleaning
the Viewfinder” (Page 71 of Vol.2) for details
on how to refit it.
Eye cup holder
Using the viewfinder
1 Set the POWER switch to ON and check that
Eye cup
images appear in the viewfinder.
2 Adjust the viewfinder’s angle so that the
screen is positioned where it is easiest to
see.
• You can move the viewfinder out to about
90° perpendicular to the camera.
3 Adjust the diopter adjustment dial so
that you can see the characters on the
viewfinder screen clearly.
Diopter adjustment dial
Eye cup
Do not allow the eyepiece of the viewfinder
to remain in direct contact with sunlight or
other strong light sources.
• Internal components may be damaged and fire
may be caused if light accumulates through
the lens.
• When the LCD monitor is open, the viewfinder
may not display anything. Close the LCD
monitor.
E-29
Projections
• The pixels of the LCD monitor are controlled
to obtain high precision with 99.99 % of the
effective pixels. This leaves less than 0.01 %
of pixels that may not light or may remain on
all the time. These phenomena are normal and
will have no effect on the images you shoot.
• Screen burn-in may occur in the LCD monitor.
However, this is not a defect.
Using the LCD
1 Set the POWER switch to ON.
(Page E-27)
2 Open the LCD monitor.
• The monitor opens to an angle of 90
degrees. The camera may be damaged by
attempting to open it further than this.
Emphasizing outlines
Emphasizing the outlines of the images you see
in the viewfinder or on the LCD makes it easier to
focus.
Emphasizing the outlines does not effect the
images you shoot.
1 In CAM mode, press EVF DTL button.
MENU
Preparation
“EVF DTL ON” appears on the screen for about
2 seconds.
EXEC
START/
STOP 2
PUSH-ENTER
–
+
AUDIO MON
ZEBRA
BARS
EVF DTL
MEGA
O.I.S.
AUDIO
INPUT1
INPUT2
ON
OFF
COUNTER-RESET/TC SET
OFF
ON
OFF
MIC POWER +48V
DISP/
POWER
FUNCTION USER 1 MODE CHK OFF ON CAM MODE
FOCUS
..
A
M
∞
PB
IRIS GAIN WHITE BAL
L
M
H
B
A
PRST
USER 2
CH1
AUDIO LEVEL
CH2
EVF DTL button
3 Position the LCD monitor where it is easiest
to see.
• The monitor can be rotated 180° toward the
lens and 90° toward you.
• Do not apply unnecessary force to the
open LCD. This can damage the camera.
OIS
CH1 SEL CH2 SEL
INT(L)
INPUT1
INPUT1
INPUT2
INPUT2
WFM
ON
BARS
ZEBRA
EVF DTL
OIS
CH1 SEL CH2 SEL
INT(L)
INPUT1
INPUT1
INPUT2
INPUT2
WFM
AUDIO
INPUT1
COUNTER-RESET/TC SET
INPUT2
ON
OFF
ON
OFF
MIC POWER +48V
FOCUS
..
POWER
Press EVF DTL button again to return to the
original display. “EVF DTL OFF” appears on the
screen for about 2 seconds.
• Ensure the LCD is fully closed.
• Operation status displays during self-portrait
recording
No display: Cannot record (no card, etc.)
:Recording in progress, during transition
to the recording pause mode
: Recording paused (recording standby)
: Warning display
E-30
Viewfinder (continued)
Adjusting the screen display
1 Set the POWER switch to ON. (Page E-27)
2 Press the MENU button.
5 Adjust the selected item by tilting the
Operation lever in the
directions.
• For menu operation (Page E-44)
• Operations may also be performed
using buttons on the remote control that
correspond to those on the camera. For
details, see “Description of parts (Remote
control)”. (Page E-23)
3 Viewfinder adjustments
Set YES under EVF SET on the setting menu
DISPLAY SETUP screen.
6 Press MENU button to exit the menus.
• The viewfinder display can be in color or black
and white. (See the setup menus, DISPLAY
SETUP screen, EVF COLOR.) The resolution
is the same for both of them.
LCD monitor adjustments
Set YES under LCD SET on the setting menu
DISPLAY SETUP screen.
4 Select the desired item by tilting the
Operation lever in the
directions, and
push the Operation lever.
E-31
Changing backlight brightness
The brightness of the LCD monitor backlight can
be adjusted between five different settings.
1 Select LCD BACKLIGHT from the setup
menu DISPLAY SETUP screen.
2 Select and set a value in the range of +1 to
• This setting will remain saved even if the
camera’s power is switched off.
Preparation
-3.
The greater the value the brighter the screen.
E-32
Setting the calendar
The CLOCK SET value is recorded in the contents
(clip), and affects the sequence of playback of
the thumbnails. Before carrying out recording, be
sure to check and set TIME ZONE and CLOCK
SET. This shows you how to adjust the calendar to
17:20 on December 25, 2010.
5 Tilt the Operation lever in the
direction and
select YES in the CLOCK SET item on the
settings menu OTHER FUNCTIONS screen.
1 Set the camera’s power switch to ON.
(Page E-27)
2 Press the MENU button.
• Menu operation (Page E-44)
• Operations may also be performed
using buttons on the remote control that
correspond to those on the camera. For
details, see “Description of parts (Remote
control)”. (Page E-23)
6 Tilt the Operation lever in the
and set to DEC.
directions
3 Select the TIME ZONE item on the settings
menu OTHER FUNCTIONS screen, and
push the Operation lever (or tilt lever in
direction).
7 Tilt the Operation lever to the
direction
to change to the next item, and set to 25 by
tilting in the
directions.
4 Pushing the Operation lever twice brings up
the setting screen. Tilt the Operation lever in
the
directions to set the time difference
from Greenwich Mean Time, and push the
Operation lever again.
Factory default setting is +00:00.
8 Repeat steps 6 and 7 to set the remaining
items.
• The date can be set to any date between
January 1, 2000 and December 31, 2039.
• For any date after December 31, 2039, “- -”
will appear on screen.
• Time is displayed in 24-hour format.
E-33
9 When settings are complete, push
• The clock can vary in accuracy so check that
the time is correct before shooting.
• When using the camera overseas, do not
set the CLOCK SET option to the local time,
but instead enter the time difference from
Greenwich mean time according to TIME
ZONE. (Page 63 of Vol.2)
Preparation
the Operation lever, select YES on the
confirmation screen, and push the
Operation lever again.
E-34
Basic shooting operations
Preparing for recording
1 Turn the POWER switch to ON.
(Page E-27)
• Make sure the mode lamp is lit up.
2 Lift the viewfinder up, and slide the card slot
cover OPEN lever right to open.
3 Fully insert an SD Memory Card into the
card slot.
4 Close the SD Memory Card slot cover.
• Ensure that the cover firmly clicks into place.
the
3 Insert
connector part
in the direction
shown here, and
push until the
card clicks firmly
into place.
• Do not perform any of the following operations
while the SD Memory Card access lamp is
flashing.
Performing these operations may damage the
SD Memory Card or its contents, or cause the
camera to fail to operate correctly.
āā Opening the card door and removing the SD
Memory Card
āā Switching off the power
āā Connecting or disconnecting the USB
connection cable
āā Shaking or striking the camera
• Always format SD Memory Cards that have
been used in other devices when first using
them with this camera. (Page E-36)
• If “CHECK CARD” is displayed on the
viewfinder or the LCD monitor, please remove
the SD Memory Card and insert it again.
E-35
• The images shot from when shooting starts
until it is stopped are recorded as one clip.
• When recording is paused after a short period,
a small amount of time may be required after
pressing the START/STOP button to stop
recording before writing to the SD Memory
Card is terminated.
This means that operations cannot be
accepted if the START/STOP button is
pressed immediately.
• The camera will read information from the SD
Memory Card immediately after the card is
inserted. Press the START/STOP button to
begin recording after PAUSE is displayed in
the operation status display. (Page 47 of Vol.2)
• The camera’s factory default setting is PH
mode 1080/60i recording.
(To view current setting status: Page 6 of
Vol.2)
• The upper limit for the number of clips which
can be recorded on a single SD Memory Card
is 900. (However, this number may exceed
900 clips at times such as when shooting
immediately after the POWER switch has been
set to ON.)
Checking photos taken (REC CHECK)
When recording is paused, the REC CHECK
function can be used to review the video and audio
recorded 2 seconds immediately prior. You can
assign the REC CHECK function to USER switch
1/2/3 via the menu.
• The REC CHECK images are also recorded
when a device is connected to the camera and
backup images have been recorded.
• The REC CHECK function does not work when
PC has been selected as the operation mode.
• This function does not work if the REC format is
changed, if the camera is set to the CAM mode
after having been switched to the PB mode, if the
SD memory card slot cover is opened, or if the
slot is switched after shooting.
CAM mode/PB mode
Illuminated orange: Reading/writing possible
Flashing orange (fast): Verifying card/inspecting
card for possible defects
Flashing orange (slow):Accessing card
Flashing green (slow):Card write-protected/
no space left on card
Illuminated green: Card not selected for
recording
Off: N
o card inserted/unformatted or incompatible
card inserted
When the USB is connected
Flashing orange: Accessing card
Off: A status other than access underway.
Formatting SD Memory Cards
1 Set the camera’s power switch to ON.
(Page E-27)
2 Press the MENU button.
3 Select CARD FUNCTIONS→CARD
FORMAT from the menu, and then push the
OPERATION lever to confirm.
• Select the slot number of the card to format
when the following screen is displayed.
Select NO if you do not wish to format the
card.
• Press the MENU button to close the menu display.
Shooting
SD Memory Card access lamp
SD Memory Card access lamp
4 Select YES on the conformation screen.
• The SD Memory Card will be formatted.
Selecting a slot
Of the two SD memory card slots, the slot to be
used for recording can be switched.
1 Press the SLOT SELECT button while
recording is paused.
The access lamp of the slot for recording lights
up orange.
5 Press the MENU button to finish.
• When an SD Memory Card is formatted, all
data including video data and still images
recorded on the card will be erased and will
not be restorable.
Save all important data to your computer.
• This function works when a recordable SD
card is inserted in both slots.
• The slot cannot be switched during recording.
E-36
Basic shooting operations (continued)
SD Memory Card recording times
Total available recording times (approx.) when using SD/SDHC/SDXC Memory Cards manufactured by
Panasonic
SD Memory Card
capacity
512 MB
1 GB
2 GB
4 GB
6 GB
8 GB
12 GB
16 GB
32 GB
48 GB
64 GB
PH∗1
(Highest quality mode∗3/
1920 × 1080 pixels or 1280 ×
720 pixels)
Approx. 2 min
Approx. 5 min
Approx. 10 min
Approx. 21 min
Approx. 33 min
Approx. 45 min
Approx. 65 min
Approx. 90 min
Approx.180 min
Approx.270 min
Approx.360 min
Recording mode
HA∗1
(High quality mode/
1920 × 1080 pixels)
HE∗2
(Long duration mode/
1440 × 1080 pixels)
Approx. 3 min
Approx. 7 min
Approx. 15 min
Approx. 30 min
Approx. 45 min
Approx. 60 min
Approx. 90 min
Approx.120 min
Approx.240 min
Approx.360 min
Approx.480 min
Approx. 10 min
Approx. 21 min
Approx. 45 min
Approx. 90 min
Approx.135 min
Approx.180 min
Approx.270 min
Approx.360 min
Approx.720 min
Approx.1080 min
Approx.1440 min
∗1Use an SD memory class of SD speed class 4 or above when recording on PH mode or HA mode.
Recording cannot be completed on SD Memory Cards of lower speed classes.
∗2Use an SD memory class of SD speed class 2 or above when recording in HG mode or HE mode.
Recording cannot be completed on SD Memory Cards of lower speed classes.
∗3 This is the highest quality mode of this camera.
• This camera uses the VBR recording system. “VBR” stands for Variable Bit Rate, and it refers to a system in
which the bit rate (volume of data per given time period) varies automatically depending on the subject which is
being shot. This means that the recording times will be shorter when fast-moving subjects have been recorded.
• Times displayed include time needed for processing, etc. – actual available recording times will be
slightly shorter.
• The camera is capable of continuous recording for a maximum of 12 hours.
• Recording can be restarted even if it was paused due to shortage of space.
• Even for the same card, the recording time differs depending on conditions such as the recording format
and recorded images.
• Mosaic-like noise may appear on the playback screen under the following shooting conditions:
āā When there are complex patterns in the background
āā When the camera is moved in large motions or when it is moved very quickly
āā When a fast-moving subject has been recorded (and especially when HE has been set as the recording mode)
• When an SD memory card is formatted, the entire data including still images recorded on the card is
erased and cannot be restored. Save any valuable data on your personal computer before formatting.
• Please use an SD memory card class of SD speed class 6 or above when using the VFR function.
Recording cannot be performed with less than SD speed class 6.
E-37
Removing SD Memory Card
1 Lift the viewfinder up, and slide the card slot
cover OPEN lever right to open.
• Ensure that the SD Memory Card access
lamp is not flashing orange before opening
the cover.
2 Press the center of the SD Memory Card so
that it pops out slightly, and pull the card
straight outwards.
Repairing SD Memory Cards
Never remove the SD Memory Card or disconnect
the battery or DC cord while the SD Memory Card
access lamp is flashing, as doing so may damage
the SD Memory Card. In the event that the SD
Memory Card has been removed while the SD
Memory Card access lamp was flashing, or that
the battery or DC cord has been disconnected
during recording or the recording finalization
process, a repair verification screen will be
displayed the next time the power is switched on in
order to allow errors to be repaired.
• Do not remove the SD Memory Card or switch off
the power in the following circumstances. Doing
so may damage your SD Memory Card.
1) W
hile the SD Memory Card access lamp is still
flashing orange after an SD Memory Card has
been inserted.
2) W
hile the SD Memory Card access lamp is
flashing such as during recording or during
recording finalization.
Protecting SD Memory Cards
Move the write-protect switch on the SD Memory
Card to the “LOCK” position to prevent recorded
contents being accidentally erased from the card.
LOCK
Write-protect
switch
32
Select YES to begin repairing. When repairing is
complete, “REPAIR FINISHED” will be displayed, and
the camera will switch to the recording paused screen.
Select NO to switch directly to the recording
paused screen without repairing.
• Memory cards cannot be repaired with the camera
if NO is selected, but can still be repaired by using
the AVCCAM Restorer∗ contents repair software.
• An SD Memory Card on which an error occurred
can be repaired by using either the camera
that was used for the shooting, or the AVCCAM
Restorer contents repair software.
• A repair confirmation message may be displayed
after inserting an SD Memory Card which has no
error, but repair will not be performed even when
YES or NO is selected.
• Repair may take up to 20 minutes or so depending
on the places where the errors occurred on the card.
• Use a battery with an adequate charge or the AC adaptor.
• If the repair operation has failed, “SYSTEM
ERROR TURN POWER OFF” will be displayed.
In this case, please use the AVCCAM Restorer
contents repair software.
Depending on the status of the data, it may not be
possible to restore all data completely. In this case,
it will no longer be possible to play back the clips
that were recorded before the power was turned off.
• Clips with a total recording time of less than 10
seconds may not be able to be repaired.
• Indexes attached during recording cannot be repaired.
∗ AVCCAM Restorer is included on the supplied
CD-ROM.
For details on how to install it, refer to install.txt.
For details on how to use it, read the operating
instructions (PDF file).
The AVCCAM Viewer can also be downloaded
from the following website.
http://pro-av.panasonic.net/
Shooting
SD Memory Card access lamp
E-38
Basic operations of the camera
Manual focusing
Focus ring
MENU
START/
STOP 2
EXEC
Temporarily switching to auto focus
Even if you have switched FOCUS to M (MANUAL)
the camera will focus automatically while you press
down PUSH AUTO.
PUSH-ENTER
–
+
AUDIO MON
MEGA
O.I.S.
ON
OFF
PUSH AUTO
DISP/
POWER
FUNCTION USER 1 MODE CHK OFF ON CAM MODE
FOCUS
..
A
M
∞
PB
IRIS GAIN WHITE BAL
L
M
H
B
A
PRST
USER 2
CH1
AUDIO LEVEL
CH2
PUSH AUTO FOCUS switch
button
1 Use the FOCUS switch to choose how to
control focusing.
A (AUTO):
Auto focus mode
M (MANUAL):
Manual focus mode
Turn the focus ring by hand.
:
The camera first focuses on infinity, then it
switches to manual focus.
The FOCUS switch automatically moves
back to M (MANUAL) after you move it to .
E-39
• Auto focus may not work properly if there is
flickering. Select a shutter speed suited to the
ambient light. (Page 14 of Vol.2)
• If the auto focus mode is set with any format
except 60i, 60P, 50i and 50p, controlling the
focus will take slightly longer than in the normal
focus mode.
• Auto focus is not available for some models of
lens.
• Auto focus is not available when using the VFR
function.
• The focus position display does not move
linearly.
Using focus assist
OFF
Assign FA to any of the USER 1 – 3 buttons
in the menu SW MODE screen.
PUSH AUTO
FUNCTION
A
M
∞
IRIS GAIN WHITE BAL
2 Press the button assigned FA.
The contours of the image is taken in the red
outline. Adjust the focus so that the subject to
focus is surrounded by the red outline.
FOCUS
L
M
H
IRIS dial
IRIS button
1 Press the IRIS button to switch how to
adjust the aperture of lens.
AUTO IRIS: Adjust the iris automatically.
MANUAL IRIS: Adjust the iris manually.
2 Turn the IRIS dial to adjust the aperture of
lens when in the manual iris mode.
• In the auto iris mode, the lens iris can be
corrected using this dial.
• Set the direction of the IRIS DIAL and aperture
control in the setup menus, SW MODE screen,
IRIS DIAL. (Page 54 of Vol.2)
• Depending on your lens, AUTO IRIS may not
operate.
• Depending on your lens, the CLOSE function
may not work during the IRIS operation.
• Depending on your lens, for example if you are
using a mount adaptor, the IRIS dial may not
operate. Operate the IRIS ring of the lens.
• See the display on the iris meter for the status
of the light intensity. For details on the iris
meter display, see page 47 of Vol. 2.
Shooting
1
Iris adjustments
E-40
Basic operations of the camera (continued)
Adjusting the gain
Light intensity adjustments
When the display is dark, increase the gain to
brighten the display.
MENU
START/
STOP 2
EXEC
PUSH-ENTER
–
+
AUDIO MON
MEGA
O.I.S.
ON
Use the ND dial to change the ND Filter used (filter
to change light intensity).
1:ND filter is not used.
2:Cuts light intensity by up to about 1/4.
3:Cuts light intensity by up to about 1/16.
4:Cuts light intensity by up to about 1/64.
OFF
PUSH AUTO
DISP/
POWER
FUNCTION USER 1 MODE CHK OFF ON CAM MODE
FOCUS
..
A
M
∞
PB
IRIS GAIN WHITE BAL
L
M
H
B
A
PRST
USER 2
CH1
AUDIO LEVEL
CH2
ND dial
GAIN switch
MENU
1 Switch the gain with the GAIN switch.
L:
Set here under normal conditions. (The
default value is ISO400/0 dB)
M:
Increase the gain of the image amplifier.
(The default value is ISO800/6 dB.)
H:
Increase the gain of the image amplifier.
(The default value is ISO1600/12 dB.)
• You can change the L, M, and H gain values
using the LOW GAIN, MID GAIN and HIGH
GAIN on the setting menu SW MODE screen.
(Page 54 of Vol.2)
START/
STOP 2
EXEC
PUSH-ENTER
–
+
AUDIO MON
MEGA
O.I.S.
ON
OFF
PUSH AUTO
DISP/
POWER
FUNCTION USER 1 MODE CHK OFF ON CAM MODE
FOCUS
..
A
M
∞
PB
IRIS GAIN WHITE BAL
L
M
H
B
A
PRST
USER 2
CH1
AUDIO LEVEL
CH2
Adjusting the white balance
In order to reproduce the white accurately, adjust
the ratio between the three RGB primary colors. If
the white balance is not adjusted properly, not only
will the white be reproduced poorly but the color
tones of the entire screen will also be downgraded.
When you are shooting in manual mode, readjust
the white balance whenever lighting conditions
change.
You can save adjustments and reselect them by
setting the WHITE BAL switch to A or B.
You can also use the preset values.
Use the settings to suit the shooting conditions.
WHITE BAL switch
AWB button
E-41
1 Set the shutter speed. (Page 14 of Vol.2)
2 Place a white pattern in a location with the
same lighting conditions and light source as
the subject, then zoom in and fill the whole
screen with white.
Something white (a white cloth or wall) near the
subject can be used instead.
• Do not include bright spotlights in your shot.
3 Set the WHITE BAL switch to A or B
(whichever one you want to save the
adjustment in).
4 Press the AWB button.
• Adjustment takes a few seconds.
(The following messages appear on the
screen.)
Message during adjustment
AWB Ach ACTIVE
Message after adjustment
AWB Ach OK
• An error message appears on the screen
when white balance adjustment is not
possible.
Using presets
Use this feature when you have no time to make
white balance adjustments.
1 Set the WHITE BAL switch to PRST.
The current white balance value appears.
• White balance values 3200 K and 5600 K
are preset in the PRST position.
Guide to the preset values
P3.2K (3200 K): halogen light
P5.6K (5600 K): outdoors
2 Press the AWB button.
The white balance value switches in the
following order: 3200K, 5600K, VARIABLE.
• Selecting VARIABLE enables the white
balance to be set to an arbitrary value between
2.4 K and 9.9 K by moving the FUNCTION
knob up and down.
• The VARIABLE white balance value displayed
is not guaranteed to be an absolute value.
Please use it as a reference value.
• The VARIABLE white balance value can be
checked by pressing the AWB button
• The value of VARIABLE cannot be changed
when the AREA function of the FUNCTION
KNOB is operating and a frame is displayed.
Shooting
White balance adjustments
Message when adjustment cannot be
done
AWB Ach NG
• White balance cannot be adjusted if the ATW
(Auto Tracking White) function is working.
• Make the necessary adjustments if one of the
following error messages appears, then try
adjusting the white balance again.
Error messages
Adjustments
LOW LIGHT
Increase light or increase
the gain.
LEVEL OVER
Reduce light or decrease
the gain.
• If the messages repeatedly appear even after
trying a number of times, consult your dealer.
E-42
Basic operations of the camera (continued)
Black balance adjustments
In order to reproduce the black accurately, adjust
the zero level of all three RGB primary colors. If the
black balance is not adjusted properly, not only will
the black be reproduced poorly but the color tones
of the entire screen will also be downgraded.
It is not normally necessary to adjust the black
balance. Adjust it when:
• You use the camera for the first time.
• You use the camera after not using it for a long
time.
• The ambient temperature changes greatly.
• You change the gain and shutter speed.
• You switch to the CAM mode from the PB mode.
• You change the SYSTEM FREQ.
Auto Tracking White (ATW)
Using the ATW function enables the recording
environment to be automatically analyzed and an
optimum white balance to be constantly maintained
during recording.
You can allocate the ATW feature to one of the
positions on the WHITE BAL switch (A, B, or
PRST). Allocate it by going to the setup menus,
SW MODE screen, ATW. (Page 54 of Vol.2)
White balance sensor
White balance can be adjusted automatically by
pressing the AWB button, while black balance can
be adjusted by holding the button down. Set the
conditions for white balance adjustment before
proceeding.
Message during adjustment
ABB ACTIVE
Message after adjustment
ABB END
• Black balance can be adjusted by holding
the AWB button down even when the ATW
function is in use.
• You cannot adjust the black balance while you
are shooting.
• Black balance adjustment takes around 30
seconds when the shutter speed is 1/8 or less.
E-43
• Depending on the environment, there may be
some error in the adjustment.
• Use the procedure described on the previous
page whenever you need more precise white
balance.
• Do not block the white balance sensor when
using the ATW feature. ATW will not work if
you do.
Using the setup menus
Use the setup menus to change the settings to
suit the scenes you are shooting or what you are
recording.
MENU
EXEC
MENU button
START/
STOP 2
Operation
lever
PUSH-ENTER
–
+
2 Tilt the Operation lever in the
directions
to move the yellow cursor to the function
you wish to set.
3 Push the Operation lever (or tilt in the
direction) to display the setting items.
Example:
AUDIO MON
4 Tilt the Operation lever in the
directions
to move the yellow cursor to the item you
wish to set.
Example:
Playback
Using the menus
• The menu items indicated in the gray
characters cannot be changed its settings.
recording mode, press the MENU button.
The following is displayed on the viewfinder and
LCD monitor.
CAM mode (Example)
5 Push the Operation lever (or tilt in the
Menu
1 When the unit is in other than playback or
direction) to set the item.
To change values or other parameters, tilt the
Operation lever in the
directions. Select the
item to be set, and then push the OPERATION
lever to confirm.
Example:
PB mode (Example)
• Tilt the Operation lever in the
return to the previous menu.
direction to
E-44
Using the setup menus (continued)
6 Repeat steps 4 - 5 to change any other
items.
Press the MENU button to complete settings
and return to the normal screen.
• Tilt the OPERATION lever in the direction,
or push the OPERATION lever to change the
set value and return to the previous menu (in
some cases).
7Repeat steps 2 - 5 to change any other
settings.
Press the MENU button to complete settings
and return to the normal screen.
Initializing the menu settings
The menu settings contain both the user file
settings and the scene file settings. You can
initialize them separately.
To initialize the user file (i.e. all the settings
other than the scene file settings)
Select INIT in LOAD/SAVE/INIT of the USER FILE
screen. The current menu settings of user file will
return to the factory settings.
To initialize the scene file
Of the six scene files, select the file you want to
initialize from the SCENE SELECT item in the
SCENE FILE screen. Then in the SCENE FILE
screen, LOAD/SAVE/INIT, select INIT.
The settings for only the selected scene file are
returned to the factory settings.
If you wish to initialize the user file and scene
files at the same time, the user file and all six
scene files can be restored to their factory
default settings by selecting YES for the MENU
INIT item on the OTHER FUNCTIONS screen.
E-45
Setup menu structure
Menu
SCENE FILE
(Pages 51 to 53 of Vol.2)
SW MODE
(Pages 53 to 55 of Vol.2)
FUNCTION KNOB
LOW GAIN
MID GAIN
HIGH GAIN
ATW
IRIS DIAL
USER1 SW
USER2 SW
USER3 SW
WFM
S/S SW INH
FACE FRAMING
RECORDING SETUP
(Page 56 of Vol.2)
PREREC MODE
INTERVAL REC
RELAY REC
PH AUDIO MODE
MIC ALC
MIC GAIN1
MIC GAIN2
SDI & HDMI OUT SEL
SDI OUT
SDI 24PsF
SDI EDH
DOWNCON MODE
HP MODE
TEST TONE
VIDEO SETUP
AUDIO OUT
Menu
TC MODE
TCG
TD PRESET
UB PRESET
EXT TC LINK
TC/UB SETUP
(Page 57 of Vol.2)
AV IN/OUT SETUP
(Page 58 of Vol.2)
SCENE SELECT
OPERATION TYPE
REC FORMAT
VFR MODE
FRAME RATE
SYNCRO SCAN
DETAIL LEVEL
V DETAIL LEVEL
DETAIL CORING
CHROMA LEVEL
CHROMA PHASE
COLOR TEMP Ach
COLOR TEMP Bch
MASTER PED
A.IRIS LEVEL
DRS
GAMMA
KNEE
MATRIX
SKIN TONE DTL
B/W MODE
CARD READ
CARD WRITE
LOAD/SAVE/INIT
NAME EDIT
E-46
Setup menu structure (continued)
Menu (continued)
DISPLAY SETUP
(Pages 59 to 60 of Vol.2)
CARD FUNCTIONS
(Page 61 of Vol.2)
CARD FORMAT
CARD STATUS
CLIP PROPERTY
(only PB MENU)
USER FILE
(Page 61 of Vol.2)
CARD READ
CARD WRITE
LOAD/SAVE/INT
META DATA
(Page 62 of Vol.2)
CARD READ
RECORD
USER CLIP NAME
META DATA PROP
CLIP COUNTER RST
META INIT SET
OTHER FUNCTIONS
(Pages 62 to 64 of Vol.2)
PLAY SETUP
(Page 64 of Vol.2)
PB FORMAT
REPEAT PLAY
RESUME PLAY
SKIP MODE
THUMBNAIL
(Page 65 of Vol.2)
OPERATION
(Page 65 of Vol.2)
E-47
DELETE
INDEX
CLIP PROTECT
COPY
ZEBRA DETECT1
ZEBRA DETECT2
Y GET MARKER
SAFETY ZONE
CENTER MARKER
FOCUS BAR
REC COUNTER
VIDEO OUT OSD
IRIS METER
DATE/TIME
DATE FORMAT
LEVEL METER
ZOOM & FOCUS
CARD & BATTERY
OTHER DISPLAY
LCD BACKLIGHT
LCD SET
EVF SET
SELF SHOOT
EVF MODE
EVF COLOR
LENS CHECK
IR REMOTE
TALLY LAMP
CLOCK SET
TIME ZONE
POWER SAVE
LANGUAGE
SYSTEM FREQ
SYSTEM INFO
LENS INFO
MENU INT
OPERATION TIME
UPDATE
LENS UPDATE
THUMBNAIL MODE
INDICATOR
DATA DISPLAY
DATA FORMAT
Supply voltage:DC 7.2 V
(when the battery is used)/
7.3 V
(when the AC adaptor is used)
Power consumption: Recording: 12.4 W
indicates safety information.
Ambient operating temperature
0 °C to 40 °C
Ambient operating humidity
10% to 80% (no condensation)
Weight
Approx. 1.3 kg
(Excluding the handle, grip, battery and
accessories)
Dimensions (W x H x D)
163.4 mm × 195 mm × 290.4 mm
(Including the handle and grip)
[Camera]
Pickup devices
4/3 MOS fixed pickup device
Single panel (primary color filter)
Number of pixels
Effective pixels: 12.4 million approx.
Single panel (16:9)
Image size
Valid image range
Approx. 17.8 mm (H) × Approx. 10.0 mm (V)
Lens
Not included
Lens mount
Micro Four Thirds system
Lens mount
ND filter
1/4, 1/16, 1/64
Gain settings
-6 - +18dB (3dB increments)
(VIDEO CAM mode)
ISO200 – ISO3200
(FILM CAM mode)
Color temperature settings
ATW, ATW LOCK, preset 3200K, preset 5600K,
preset VAR, Ach, Bch
Shutter speed settings
Preset
when SYSTEM FREQ is 59.94 Hz
60i/60P mode:
1/60, 1/100, 1/120, 1/250, 1/500, 1/1000,
1/2000 seconds
30P mode:
1/30, 1/50, 1/60, 1/120, 1/250, 1/500,
1/1000, 1/2000 seconds
24P mode:
1/24, 1/50, 1/60, 1/120, 1/250, 1/500,
1/1000, 1/2000 seconds
when SYSTEM FREQ is 50 Hz
50i/50P mode:
1/50, 1/60, 1/120, 1/250, 1/500, 1/1000,
1/2000 seconds
25P mode:
1/25, 1/50, 1/60, 1/120, 1/250, 1/500,
1/1000, 1/2000 seconds
* Underline indicates when shutter is OFF
Syncro scan
(when SYSTEM FREQ is 59.94 Hz, and
OPERATION TYPE is VIDEO CAM)
60i/60P mode:
1/60.0 seconds – 1/250.6 seconds
30P mode: 1/30.0 seconds – 1/250.6 seconds
24P mode: 1/24.0 seconds – 1/250.6 seconds
(when SYSTEM FREQ is 50 Hz, and
OPERATION TYPE is VIDEO CAM)
50i/50P mode:
1/50.0 seconds – 1/250.0 seconds
25P mode: 1/25.0 seconds to 1/250.0 seconds
(OPERATION TYPE is FILM CAM)
10.0 d – 180.0 d – 360.0d
(0.5d increments, angle display)
* Underline indicates default
Slow shutter speed settings
when SYSTEM FREQ is 59.94 Hz
60i/60P mode:
1/2, 1/4, 1/8, 1/15, 1/30 seconds
30P mode:
1/2, 1/4, 1/8, 1/15 seconds
24P mode:
1/2, 1/3, 1/6, 1/12 seconds
when SYSTEM FREQ is 50 Hz
50i/50P mode:
1/2, 1/3, 1/6, 1/12, 1/25 seconds
25P mode:
1/2, 1/3, 1/6, 1/12 seconds
* Only when OPERATION TYPE is set to VIDEO
CAM
Reference
[General]
Menu
Specifications
E-48
Specifications (continued)
Normal sensitivity
F8.0 normal
(2000lx, 3200K, 89.9% reflex, 1080-59.94i)
Horizontal resolution
800 TV lines (standard)
(in the center of the screen)
[Image/recording/playback]
Recording Format
AVCHD compliant
Compression formats
MPEG-4 AVC/H.264
Recording media
SD Memory Card:
Up to 512 MB, 1 GB, 2 GB
(FAT12, FAT16 format supported)
SDHC Memory Card:
4 GB, 6 GB, 8 GB, 12 GB, 16 GB, 32 GB
(FAT32 format supported)
SDXC memory cards:
48 GB, 64GB (exFAT format supported)
However, above Class4 is supported in PH
and HA modes, and above Class6 is supported
during VFR recording.
Recording format (Recording mode, resolution)
(when SYSTEM FREQ is 59.94 Hz)
PH 1080/59.94i
PH 1080/29.97p
PH 1080/23.98p
PH 720/59.94p
PH 720/29.97p
PH 720/23.98p
HA 1080/59.94i
HE 1080/59.94i
(when SYSTEM FREQ is 50 Hz)
PH 1080/50i
PH 1080/25p
PH 720/50p
PH 720/25p
HA 1080/50i
HE 1080/50i
Transmission rate
PH mode: 21 Mbps approx. (VBR)
HA mode: 17 Mbps approx. (VBR)
HE mode: 6 Mbps approx. (VBR)
Interval recording
Start/1 second/10 seconds/30 seconds
/1min/2min
* Recording mode is fixed to PH 1080/24P
(when SYSTEM FREQ is 59.94 Hz), PH
1080/25P(when SYSTEM FREQ is 50 Hz) and
the maximum shooting time is 24 hours
E-49
VFR recording
When REC FORMAT is 1080 24p/30p:
12/15/18/20/21/22/24/25/26/27/28/30/32/34/
36/40/44/48/54/60 frame/sec
When REC FORMAT is 1080 25p:
12/15/18/20/21/22/23/24/25/26/27/28/30/32/
34/37/42/45/48/50 frame/sec
[Image output]
SDI output
BNC, 0.8V [p-p], 75 Ω
HD HDI
1080/60i, 1080/24psF, 720/60p
(when SYSTEM FREQ is 59.94 Hz)
1080/50i, 720/50p
(when SYSTEM FREQ is 50 Hz)
SD SDI
480/60i
(when SYSTEM FREQ is 59.94 Hz)
576/50i
(when SYSTEM FREQ is 50 Hz)
HDMI terminal
HDMI (HDMI TypeA terminal)
1080/60i, 720/60p, 480/60p
(when SYSTEM FREQ is 59.94 Hz)
1080/50i, 720/50p, 576/50p
(when SYSTEM FREQ is 50 Hz)
(VIERA Link not supported)
VIDEO terminal
Pin jack, 1.0 V[p-p], 75 Ω
480/60i
(when SYSTEM FREQ is 59.94 Hz)
576/50i
(when SYSTEM FREQ is 50 Hz)
[Audio recording playback]
Recording format
Dolby Digital/2ch (in HA/HE mode)
Dolby Digital/2ch, linear PCM digital/2ch switch
(only in PH mode)
Sampling frequency
48 kHz
Encoding
16 bit
Compressed bit rate
Dolby Digital
PH mode: 384 kbps
HA, HE mode: 256 kbps
[Audio input]
Built-in microphone
Stereo microphone
XLR input
XLR (3 pin) x 2 (INPUT 1, INPUT 2),
LINE/MIC selectable, high impedance
LINE: 0 dBu
MIC: -50 dBu/-60 dBu (menu selectable)
MIC POWER + 48 V ON/OFF selectable
[AUDIO output]
AUDIO output
Output: 600 Ω, 316 mV
Pin jack × 2 (CH1, CH2)
SDI
2ch (linear PCM)
HDMI
2ch (linear PCM)/5.1ch (Dolby Digital)
Headphone
3.5mm diameter, stereo mini jack × 1
Speaker
Round, 20mm diameter
[AC adaptor]
Power Source:100 V - 240 V AC, 50 Hz/60 Hz
0.4 A
Power Output:7.3 V DC, 1.95 A
indicates safety information.
Weight
165 g
Dimensions (W x H x D)
42 mm × 31 mm × 104.4 mm
[Battery charger]
Power Source:110 V - 240 V AC, 50 Hz/60 Hz
22 W
Power Output:8.4 V DC, 1.3 A
indicates safety information.
Weight
140 g
Dimensions (W x H x D)
103 mm × 36 mm × 62 mm
[Other terminals]
Camera remote terminal
Super mini jack × 1 (2.5 mm diameter) (S/S)
Mini jack × 1 (3.5 mm diameter) (FOCUS, IRIS)
INDEX remote terminal
Super mini jack × 1 (2.5mm diameter)
TC PRESET IN/OUT terminal
VIDEO terminal dual purpose
IN: 1.0 V – 4.0 V [p-p], 10 kΩ
OUT: 2.0 V ± 0.5 V [p-p]
Low impedance
Reference
USB terminal
Card reader function
(no copyright protection support)
Type mini B connector
(compliant with USB ver. 2.0)
[Monitor]
LCD
3.45 type, wide LCD color monitor
(920,000 dots approx.)
Viewfinder wide
0.45 type LCD color monitor
(1,220,000 dots equivalent approx.)
Inrush current, measured according to European
standard EN55103-1:6.5 A (AC Adaptor),
5 A (Battery charger)
Weight and dimensions are approximate.
Specifications are subject to change without notice.
E-50
