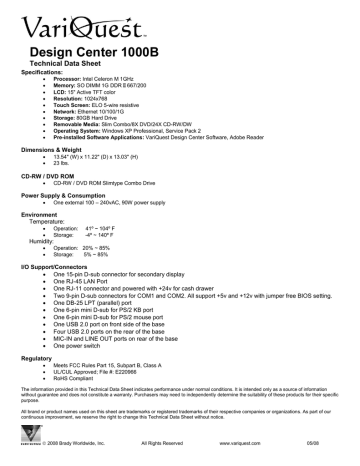

Design Center 1000B Tech Data Sheet
Design Center 1000B
Technical Data Sheet
Specifications:










Processor: Intel Celeron M 1GHz
Memory: SO DIMM 1G DDRⅡ667/200
LCD: 15" Active TFT color
Resolution: 1024x768
Touch Screen: ELO 5-wire resistive
Network: Ethernet 10/100/1G
Storage: 80GB Hard Drive
Removable Media: Slim Combo/8X DVD/24X CD-RW/DW
Operating System: Windows XP Professional, Service Pack 2
Pre-installed Software Applications: VariQuest Design Center Software, Adobe Reader
Dimensions & Weight


13.54" (W) x 11.22" (D) x 13.03" (H)
23 lbs.
CD-RW / DVD ROM

CD-RW / DVD ROM Slimtype Combo Drive
Power Supply & Consumption

One external 100 – 240vAC, 90W power supply
Environment
Temperature:


Operation:
Storage:
41º ~ 104º F
-4º ~ 140º F
Humidity:


Operation: 20% ~ 85%
Storage:
5% ~ 85%
I/O Support/Connectors
 One 15-pin D-sub connector for secondary display
 One RJ-45 LAN Port
 One RJ-11 connector and powered with +24v for cash drawer
 Two 9-pin D-sub connectors for COM1 and COM2. All support +5v and +12v with jumper free BIOS setting.
 One DB-25 LPT (parallel) port
 One 6-pin mini D-sub for PS/2 KB port
 One 6-pin mini D-sub for PS/2 mouse port
 One USB 2.0 port on front side of the base
 Four USB 2.0 ports on the rear of the base
 MIC-IN and LINE OUT ports on rear of the base
 One power switch
Regulatory



Meets FCC Rules Part 15, Subpart B, Class A
UL/CUL Approved; File #: E220966
RoHS Compliant
The information provided in this Technical Data Sheet indicates performance under normal conditions. It is intended only as a source of information
without guarantee and does not constitute a warranty. Purchasers may need to independently determine the suitability of these products for their specific
purpose.
All brand or product names used on this sheet are trademarks or registered trademarks of their respective companies or organizations. As part of our
continuous improvement, we reserve the right to change this Technical Data Sheet without notice.
 2008 Brady Worldwide, Inc.
All Rights Reserved
www.variquest.com
05/08
