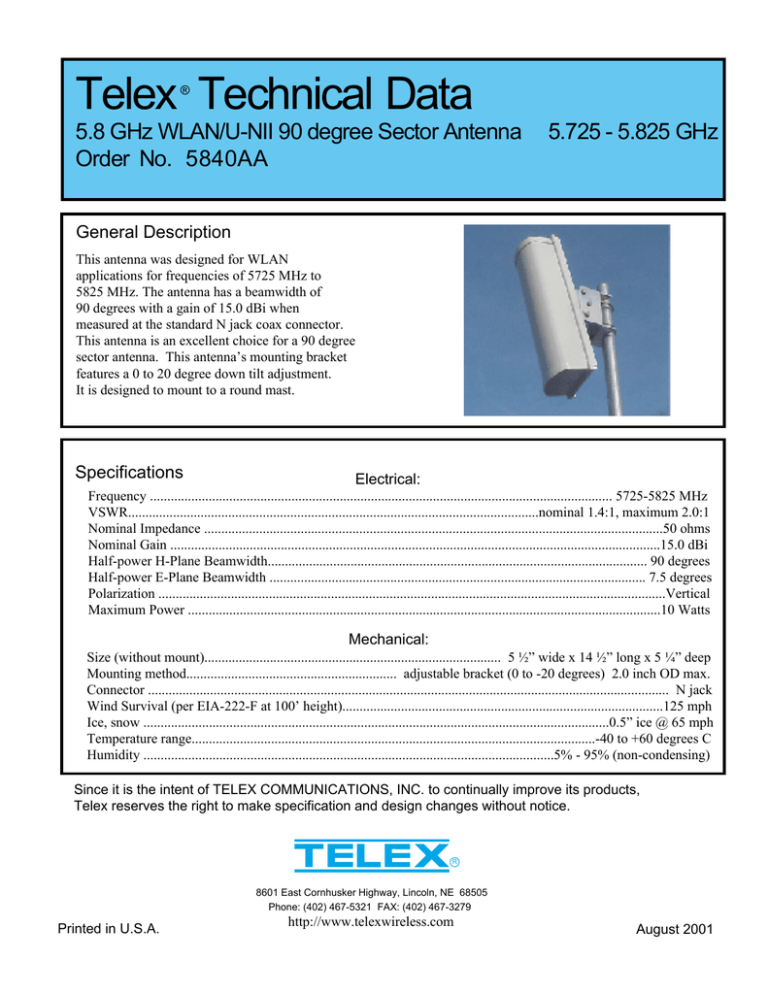

Telex Technical Data
®
5.8 GHz WLAN/U-NII 90 degree Sector Antenna
Order No. 5840AA
5.725 - 5.825 GHz
General Description
This antenna was designed for WLAN
applications for frequencies of 5725 MHz to
5825 MHz. The antenna has a beamwidth of
90 degrees with a gain of 15.0 dBi when
measured at the standard N jack coax connector.
This antenna is an excellent choice for a 90 degree
sector antenna. This antenna’s mounting bracket
features a 0 to 20 degree down tilt adjustment.
It is designed to mount to a round mast.
Specifications
Electrical:
Frequency ...................................................................................................................................... 5725-5825 MHz
VSWR.......................................................................................................................nominal 1.4:1, maximum 2.0:1
Nominal Impedance .....................................................................................................................................50 ohms
Nominal Gain ..............................................................................................................................................15.0 dBi
Half-power H-Plane Beamwidth.............................................................................................................. 90 degrees
Half-power E-Plane Beamwidth ............................................................................................................. 7.5 degrees
Polarization ...................................................................................................................................................Vertical
Maximum Power .........................................................................................................................................10 Watts
Mechanical:
Size (without mount)...................................................................................... 5 ½” wide x 14 ½” long x 5 ¼” deep
Mounting method............................................................. adjustable bracket (0 to -20 degrees) 2.0 inch OD max.
Connector ....................................................................................................................................................... N jack
Wind Survival (per EIA-222-F at 100’ height).............................................................................................125 mph
Ice, snow .......................................................................................................................................0.5” ice @ 65 mph
Temperature range.....................................................................................................................-40 to +60 degrees C
Humidity .......................................................................................................................5% - 95% (non-condensing)
Since it is the intent of TELEX COMMUNICATIONS, INC. to continually improve its products,
Telex reserves the right to make specification and design changes without notice.
R
8601 East Cornhusker Highway, Lincoln, NE 68505
Phone: (402) 467-5321 FAX: (402) 467-3279
Printed in U.S.A.
http://www.telexwireless.com
August 2001
