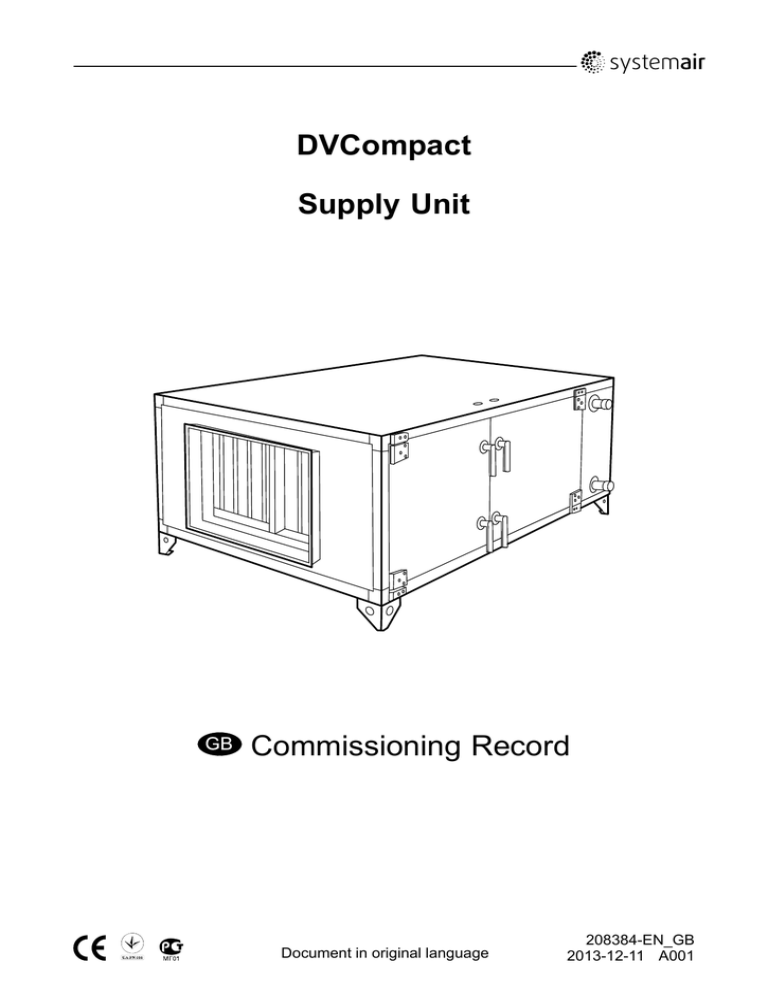

DVCompact
Supply Unit
Commissioning Record
Document in original language
208384-EN_GB
2013-12-11 A001
Contents
1 Commissioning Instructions ........................................................................................................ 1
2 Commissioning Protocol............................................................................................................. 2
1 Commissioning Instructions
General
Systemair assemblies are tested and function tested at the factory before delivery. The automation is
factory preset and a special document titled Test and control chart accompanies aggregate supply (a copy
of the document is also filed with the manufacturer). This chart shows the settings applied.
A thorough inspection of the unit is done by the manufacturer before delivery. The unit should still be
checked again by an electrician before deployment.
It is important that any changes to settings recorded in the commissioning protocol.
Fig. 1 Regulator
Before starting the unit
• The units are delivered in sections, fitted with quick connectors for the control and motor cables
between each section. Make sure that these couplings are connected.
• DVCompact is equipped in different ways, for example, with water heater or electric heating coil. The
control unit is fitted with cables towed out of the unit. Make sure that these cables are connected
according to the schedule. The units are supplied with a master switch, which is also the point at
which the electrician will connect the unit to the mains. Check voltage - measure between all phases
and between all phases and earth. Electric Heating Batteries supplied for a separate power supply.
Also check all phases.
• Supply air sensor is mounted in the channel. Check that this sensor is not damaged and is far enough
away from the heating coil.
• Control panel with display is included with the delivery (pickled in the cabinet) and shall be connected
to the bus cable.
Turn on main switch and fuses in the electrical cabinet. Wait a few minutes while the control panel loads all
values. Any error messages is shown on the display.
The unit should now be ready to start.
Commissioning Record
DVCompact
208384
1
Systemair AB
2 Commissioning Protocol
Company:
Responsible:
Customer
Date
Installation
Object/Unit
Item
Installation address
Model
Serial number
Time and date set:
Weekly program set:
External connections (sensors, dampers, external alarm, etc.) performed:
Function
Default setting
Temp. (°C)
Regulatory Function
Temp.
Supply
Set value
Supply
Room
Outside compensatory supply air temp.
Room
Outside compensatory supply air temp.
Outdoor temperature
compensation (supply
air)
Set point
21,0
°C
°C
Breakpoint 1, 2 and 3 -20,0 / 25,0
-10,0
/ 23,0
/
/
Breakpoint 4, 5 and 6 -5,0
5,0
/ 20,0
/
/
Breakpoint 7 and 8
Low set point supply
air
High set point supply
air
Temperature for
switching between
supply-and cascade
control
/ 23,0
10,0 / 18,0
/
14,0
°C
°C
30,0
°C
°C
13,0
°C
°C
Commissioning Record
DVCompact
208384
2
Systemair AB
Function
Default setting
Set value
Airflow (m3/h)
Airflow (m3/h)
Pressure (Pa)
Pressure (Pa)
Airflow
Fan control
Setpoint normal1
Inlet fan
Inlet fan
Setpoint reduced1
Inlet fan
Inlet fan
Outdoor
temperature
compensation
1.
Lower point
-22
°C
-500
m3/h
Lower point
°C
m3/h
Higher point
3
°C
0
m3/h
Higher point
°C
m3/h
The airflow and pressure is according to the calculation in the technical description
Setting the weekly program
• Times for normal and reduced fan speed is factory set as shown below.
• Period 1. 07:00 to 16:00 Monday to Friday, normal fan speed. 00:00 to 00:00 Saturday-Sunday and
holidays.
• Period 2. 00:00 to 00:00 Monday to Sunday and public holidays. 00:00 to 00:00 off period.
• OBS! Normal fan speed has priority over a reduced fan speed.
Weekday
Period
Monday
Normal fan speed
Reduced fan speed
1
:
—
:
:
—
:
2
:
—
:
:
—
:
Tuesday
1
:
—
:
:
—
:
2
:
—
:
:
—
:
Wednesday
1
:
—
:
:
—
:
2
:
—
:
:
—
:
1
:
—
:
:
—
:
2
:
—
:
:
—
:
1
:
—
:
:
—
:
2
:
—
:
:
—
:
1
:
—
:
:
—
:
2
:
—
:
:
—
:
1
:
—
:
:
—
:
2
:
—
:
:
—
:
Thursday
Friday
Saturday
Sunday
Holiday (month.day)
Holiday (month.day)
Holiday (month.day)
Holiday (month.day)
1.
.
—
.
7.
.
—
.
13.
.
—
.
19.
.
—
.
2.
.
—
.
8.
.
—
.
14.
.
—
.
20.
.
—
.
3.
.
—
.
9.
.
—
.
15.
.
—
.
21.
.
—
.
4.
.
—
.
10.
.
—
.
16.
.
—
.
22.
.
—
.
5.
.
—
.
11.
.
—
.
17.
.
—
.
23.
.
—
.
6.
.
—
.
12.
.
—
.
18.
.
—
.
24.
.
—
.
Commissioning Record
DVCompact
208384
3
Systemair AB
Function
Default setting
Set value
Night Cooling
Location
Activation at outdoor
temperatures higher than
Stopped at outdoor night
temperatures higher than
Stopped at outdoor night
temperatures lower than
Stopped at room temperatures
lower than
On
Off
On
Off
22
°C
°C
15
°C
°C
5
°C
°C
18
°C
°C
CO2—adjustment
Active
Shortest running time
Activation Level
Never
At off time channel
Never
At off time channel
Always
At on time channel
Always
At on time channel
20
min
min
Half speed
800
ppm
Half speed
ppm
Full speed
Difference (below
half-speed, fan stops)
1000
ppm
ppm
160
ppm
Full speed
Difference (below
half-speed, fan stops)
ppm
Fire Function
Supply fans at fire
No
Fire entry
Sealing
Sealing
Breaking
Breaking
Function
Yes
No
Default setting
Yes
Set value
HW Heat Pump
Pump end (generating sets off)
On
Stop Delay
Pump stop at outdoor
temperature
5
min
min
10
°C
°C
Hysteresis
1
°C
°C
Hours for exercising
15
h
h
5
min
min
60
min
min
Off
On
Off
Cooling, cold water pump
Stop Delay
Other
Extended operation
Commissioning Record
DVCompact
208384
4
Systemair AB
Alarm settings
Def.setting
Set
value
Alarm settings
Def.setting Set value
10. Moisture Deviation
1. Malfunction, supply fan
Class
A
Class
Not
active
Delay
120 s
Delay
0 s
The unit stopped at alarm
No
The unit stopped at alarm
No
11. High inlet air temperature
2. Malfunctinl, P1–heat,
HW-pump
(HW-units)
Class
Not
active
Class
B
Delay
5s
Delay
300 s
The unit stopped at alarm
No
The unit stopped at alarm
High inlet air
temperature
No
35°C
12. Low inlet air temperature
3. Malfunction, P1–cooling
(Cold water pump)
Class
Not
active
Class
A
Delay
5s
Delay
300 s
The unit stopped at alarm
No
The unit stopped at alarm
Low inlet air
temperature
4. Filter guard
No
35°C
13. Inlet fan, upper limit
Class
B
Class
Not
active
Delay
180 s
Delay
0 s
The unit stopped at alarm
No
The unit stopped at alarm
No
5. Pressure sensor
14. Inlet fan, lower limit
Class
Not
active
Class
Not
active
Delay
5s
Delay
0 s
The unit stopped at alarm
No
The unit stopped at alarm
No
15. High room temperature
6. External freeze guard
Class
Not
active
Class
Not
active
Delay
0s
Delay
0 s
The unit stopped at alarm
No
The unit stopped at alarm
No
High room temperature
7. Fire alarm
30°C
16. Low room temperature
Class
A
Class
Not
active
Delay
0s
Delay
0 s
The unit stopped at alarm
No
The unit stopped at alarm
No
Low room temperature
8. External switch
10°C
17. Overheating, electric heating
(Off on HW-units)
Class
C
Class
Commissioning Record
DVCompact
208384
A
5
Systemair AB
Alarm settings
Def.setting
Set
value
Alarm settings
Def.setting Set value
Delay
0S
Delay
0 s
The unit stopped at alarm
No
The unit stopped at alarm
Yes
9. External alarm
18. Freeze protection
Class
B
Class
Not
active
Delay
0s
Delay
0 s
The unit stopped at alarm
No
The unit stopped at alarm
No
Alarm settings
Def.setting
19. Low freeze protection
temperature
Set
value
Alarm settings
Def.setting Set value
27. Inlet fan, freq. conv. manual
(Applies to HW-units)
Class
A
Class
Not
active
Delay
0s
Delay
0s
The unit stopped at alarm
Yes
The unit stopped at alarm
No
Freezing
limit
2°C
28. Heating coil in manual mode
20. Sensor failure
Class
B
Class
Not
active
Delay
5s
Delay
0s
The unit stopped at alarm
No
The unit stopped at alarm
No
21. Fire dampers
29. Cooling coil in manual mode
Class
Not
active
Class
Not
active
Delay
0s
Delay
0s
The unit stopped at alarm
No
The unit stopped at alarm
No
30. P1–heat in manual mode
22. Inlet fan, control errors
(Only for HW-units)
Class
B
Class
Not
active
Delay
15 min
Delay
0s
The unit stopped at alarm
No
The unit stopped at alarm
Largest diff. between must
/ is value
Yes
200 Pa
23. Inlet fan, external
operating
31. P1–Cooling in manual modee
Class
Not
active
Class
Not
active
Delay
1200 s
Delay
0s
The unit stopped at alarm
No
The unit stopped at alarm
No
24. Ventilation in manual
modee
32. Fire dampers manual
Class
Not
active
Class
Not
active
Delay
0s
Delay
0s
The unit stopped at alarm
No
The unit stopped at alarm
No
Commissioning Record
DVCompact
208384
6
Systemair AB
Alarm settings
Def.setting
Set
value
Alarm settings
Def.setting Set value
33. Error on internal battery
25. Supply air control in
manual model
Class
Not
active
Class
A
Delay
0s
Delay
0s
The unit stopped at alarm
No
The unit stopped at alarm
No
26. Supply fan in manual
mode
Class
Not
active
Delay
0s
The unit stopped at alarm
No
Commissioning Record
DVCompact
208384
7
Systemair AB
