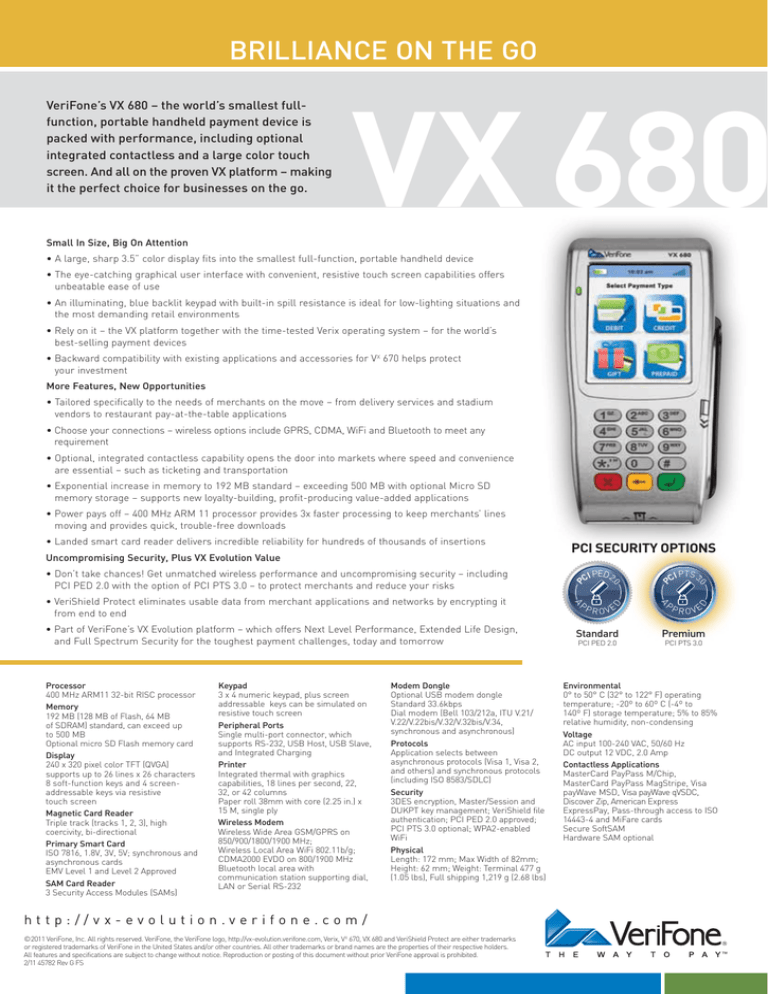

VeriFone VX 680 Fact Sheet

VeriFone VX 680 Fact Sheet
Brilliance on the Go
VeriFone’s VX 680 – the world’s smallest fullfunction, portable handheld payment device is
packed with performance, including optional
integrated contactless and a large color touch
screen. And all on the proven VX platform – making
it the perfect choice for businesses on the go.
VX 680
Small In Size, Big On Attention
• A large, sharp 3.5” color display fits into the smallest full-function, portable handheld device
• The eye-catching graphical user interface with convenient, resistive touch screen capabilities offers
unbeatable ease of use
• An illuminating, blue backlit keypad with built-in spill resistance is ideal for low-lighting situations and
the most demanding retail environments
• Rely on it – the VX platform together with the time-tested Verix operating system – for the world’s best-selling payment devices
• Backward compatibility with existing applications and accessories for V X 670 helps protect
your investment
More Features, New Opportunities
• Tailored specifically to the needs of merchants on the move – from delivery services and stadium
vendors to restaurant pay-at-the-table applications
• Choose your connections – wireless options include GPRS, CDMA, WiFi and Bluetooth to meet any
requirement
• Optional, integrated contactless capability opens the door into markets where speed and convenience
are essential – such as ticketing and transportation
• Exponential increase in memory to 192 MB standard – exceeding 500 MB with optional Micro SD
memory storage – supports new loyalty-building, profit-producing value-added applications
• Power pays off – 400 MHz ARM 11 processor provides 3x faster processing to keep merchants’ lines
moving and provides quick, trouble-free downloads
• Landed smart card reader delivers incredible reliability for hundreds of thousands of insertions
Uncompromising Security, Plus VX Evolution Value
pci security options
• Don’t take chances! Get unmatched wireless performance and uncompromising security – including
PCI PED 2.0 with the option of PCI PTS 3.0 – to protect merchants and reduce your risks
• VeriShield Protect eliminates usable data from merchant applications and networks by encrypting it
from end to end
• Part of VeriFone’s VX Evolution platform – which offers Next Level Performance, Extended Life Design,
and Full Spectrum Security for the toughest payment challenges, today and tomorrow
Processor
400 MHz ARM11 32-bit RISC processor
Memory
192 MB (128 MB of Flash, 64 MB
of SDRAM) standard, can exceed up
to 500 MB
Optional micro SD Flash memory card
Display
240 x 320 pixel color TFT (QVGA)
supports up to 26 lines x 26 characters 8 soft-function keys and 4 screenaddressable keys via resistive touch screen
Magnetic Card Reader
Triple track (tracks 1, 2, 3), high
coercivity, bi-directional
Primary Smart Card
ISO 7816, 1.8V, 3V, 5V; synchronous and
asynchronous cards
EMV Level 1 and Level 2 Approved
SAM Card Reader
3 Security Access Modules (SAMs)
Keypad
3 x 4 numeric keypad, plus screen
addressable keys can be simulated on
resistive touch screen
Peripheral Ports
Single multi-port connector, which
supports RS-232, USB Host, USB Slave,
and Integrated Charging
Printer
Integrated thermal with graphics
capabilities, 18 lines per second, 22,
32, or 42 columns
Paper roll 38mm with core (2.25 in.) x
15 M, single ply
Wireless Modem
Wireless Wide Area GSM/GPRS on
850/900/1800/1900 MHz;
Wireless Local Area WiFi 802.11b/g;
CDMA2000 EVDO on 800/1900 MHz
Bluetooth local area with
communication station supporting dial,
LAN or Serial RS-232
Modem Dongle
Optional USB modem dongle
Standard 33.6kbps
Dial modem (Bell 103/212a, ITU V.21/
V.22/V.22bis/V.32/V.32bis/V.34,
synchronous and asynchronous)
Protocols
Application selects between
asynchronous protocols (Visa 1, Visa 2,
and others) and synchronous protocols
(including ISO 8583/SDLC)
Security
3DES encryption, Master/Session and
DUKPT key management; VeriShield file
authentication; PCI PED 2.0 approved;
PCI PTS 3.0 optional; WPA2-enabled
WiFi
Physical
Length: 172 mm; Max Width of 82mm;
Height: 62 mm; Weight: Terminal 477 g
(1.05 lbs), Full shipping 1,219 g (2.68 lbs)
http://v x-evolution.verifone.com/
© 2011 VeriFone, Inc. All rights reserved. VeriFone, the VeriFone logo, http://vx-evolution.verifone.com, Verix, VX 670, VX 680 and VeriShield Protect are either trademarks
or registered trademarks of VeriFone in the United States and/or other countries. All other trademarks or brand names are the properties of their respective holders.
All features and specifications are subject to change without notice. Reproduction or posting of this document without prior VeriFone approval is prohibited. 2/11 45782 Rev G FS
Standard
PCI PED 2.0
Premium
PCI PTS 3.0
Environmental
0° to 50° C (32° to 122° F) operating
temperature; -20º to 60º C (-4º to
140º F) storage temperature; 5% to 85%
relative humidity, non-condensing
Voltage
AC input 100-240 VAC, 50/60 Hz
DC output 12 VDC, 2.0 Amp
Contactless Applications
MasterCard PayPass M/Chip,
MasterCard PayPass MagStripe, Visa
payWave MSD, Visa payWave qVSDC,
Discover Zip, American Express
ExpressPay, Pass-through access to ISO
14443-4 and MiFare cards
Secure SoftSAM
Hardware SAM optional
