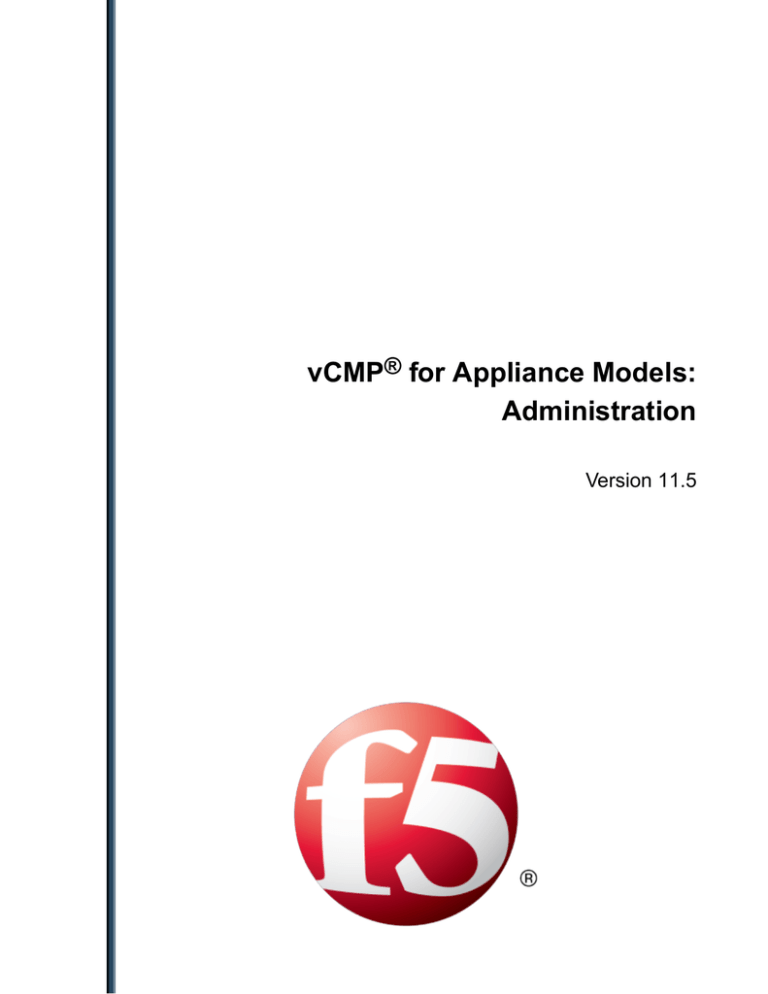

vCMP® for Appliance Models:
Administration
Version 11.5
Table of Contents
Table of Contents
Legal Notices.....................................................................................................5
Acknowledgments.............................................................................................7
Chapter 1: Introduction to the vCMP System........................................................................11
What is vCMP?................................................................................................................12
Other vCMP system components....................................................................................13
BIG-IP license considerations for vCMP..........................................................................13
vCMP provisioning...........................................................................................................13
Network isolation..............................................................................................................14
System administration overview.......................................................................................14
Guest access to the management network......................................................................15
About bridged guests............................................................................................15
About isolated guests............................................................................................15
About Appliance mode.....................................................................................................16
User access restrictions with Appliance mode......................................................16
BIG-IP version restrictions with Appliance mode..................................................16
Chapter 2: Additional Network Considerations....................................................................19
About management network modes for a vCMP guest....................................................20
Network separation of Layer 2 and Layer 3 objects.........................................................21
About the VLAN publishing strategy................................................................................21
Overview of VLAN subscription.............................................................................21
About VLANs with identical tags and different names...........................................22
About VLANs with identical names and different tags...........................................23
Solution for tag discrepancy between host and guest VLANs...............................24
Interface assignment for vCMP guests............................................................................26
Chapter 3: Flexible Resource Allocation...............................................................................27
What is flexible resource allocation?................................................................................28
Understanding guest resource requirements...................................................................28
Resource allocation planning...........................................................................................28
Prerequisite hardware considerations...................................................................28
About core allocation for a guest...........................................................................29
About single-core guests.......................................................................................29
About SSL and compression hardware.................................................................29
Guest states and resource allocation...............................................................................29
Chapter 4: Device Service Clustering for vCMP Systems...................................................31
Overview: Device service clustering for vCMP systems..................................................32
3
Table of Contents
Required IP addresses for DSC configuration.................................................................32
Failover methods for vCMP guests..................................................................................33
About HA groups for vCMP systems................................................................................33
About connection mirroring for vCMP systems................................................................33
Chapter 5: Initial vCMP Configuration Tasks........................................................................35
Overview: vCMP application volume management..........................................................36
Viewing disk space allocation for a vCMP application volume..............................36
Modifying disk space allocation for a vCMP application volume...........................36
vCMP host administrator tasks........................................................................................37
Accessing the vCMP host.....................................................................................37
Provisioning the vCMP feature..............................................................................37
Creating a vCMP guest.........................................................................................38
Setting a vCMP guest to the Deployed state.........................................................39
vCMP guest administrator tasks......................................................................................40
Provisioning BIG-IP modules within a guest.........................................................40
Creating a self IP address for application traffic....................................................41
Next steps.............................................................................................................41
Configuration results........................................................................................................42
Chapter 6: Managing vCMP Virtual Disks.............................................................................43
Overview: Managing vCMP virtual disks..........................................................................44
About virtual disk allocation...................................................................................44
About virtual disk images......................................................................................44
About virtual disk detachment and re-attachment.................................................44
Deleting a virtual disk from the BIG-IP system................................................................46
Chapter 7: Viewing vCMP Statistics.......................................................................................47
Overview: Viewing vCMP statistics..................................................................................48
Viewing virtual disk statistics............................................................................................48
Viewing vCMP guest statistics with the BIG-IP Configuration utility................................48
Viewing disk usage statistics............................................................................................49
Appendix A: Additional Tasks for Isolated Guests in Appliance Mode...............................51
Additional tasks for isolated guests in Appliance mode...................................................52
Preparing an isolated guest for Appliance mode...................................................52
Enabling Appliance mode on an isolated guest....................................................53
4
Legal Notices
Publication Date
This document was published on June 29, 2015.
Publication Number
MAN-0491-02
Copyright
Copyright © 2013-2015, F5 Networks, Inc. All rights reserved.
F5 Networks, Inc. (F5) believes the information it furnishes to be accurate and reliable. However, F5 assumes
no responsibility for the use of this information, nor any infringement of patents or other rights of third
parties which may result from its use. No license is granted by implication or otherwise under any patent,
copyright, or other intellectual property right of F5 except as specifically described by applicable user
licenses. F5 reserves the right to change specifications at any time without notice.
Trademarks
AAM, Access Policy Manager, Advanced Client Authentication, Advanced Firewall Manager, Advanced
Routing, AFM, APM, Application Acceleration Manager, Application Security Manager, ARX, AskF5,
ASM, BIG-IP, BIG-IQ, Cloud Extender, CloudFucious, Cloud Manager, Clustered Multiprocessing, CMP,
COHESION, Data Manager, DevCentral, DevCentral [DESIGN], DNS Express, DSC, DSI, Edge Client,
Edge Gateway, Edge Portal, ELEVATE, EM, Enterprise Manager, ENGAGE, F5, F5 [DESIGN], F5 Certified
[DESIGN], F5 Networks, F5 SalesXchange [DESIGN], F5 Synthesis, f5 Synthesis, F5 Synthesis [DESIGN],
F5 TechXchange [DESIGN], Fast Application Proxy, Fast Cache, FirePass, Global Traffic Manager, GTM,
GUARDIAN, iApps, IBR, Intelligent Browser Referencing, Intelligent Compression, IPv6 Gateway,
iControl, iHealth, iQuery, iRules, iRules OnDemand, iSession, L7 Rate Shaping, LC, Link Controller, Local
Traffic Manager, LTM, LineRate, LineRate Systems [DESIGN], LROS, LTM, Message Security Manager,
MSM, OneConnect, Packet Velocity, PEM, Policy Enforcement Manager, Protocol Security Manager,
PSM, Real Traffic Policy Builder, SalesXchange, ScaleN, Signalling Delivery Controller, SDC, SSL
Acceleration, software designed applications services, SDAC (except in Japan), StrongBox, SuperVIP,
SYN Check, TCP Express, TDR, TechXchange, TMOS, TotALL, Traffic Management Operating System,
Traffix Systems, Traffix Systems (DESIGN), Transparent Data Reduction, UNITY, VAULT, vCMP, VE
F5 [DESIGN], Versafe, Versafe [DESIGN], VIPRION, Virtual Clustered Multiprocessing, WebSafe, and
ZoneRunner, are trademarks or service marks of F5 Networks, Inc., in the U.S. and other countries, and
may not be used without F5's express written consent.
All other product and company names herein may be trademarks of their respective owners.
Patents
This product may be protected by one or more patents indicated at:
http://www.f5.com/about/guidelines-policies/patents
Acknowledgments
This product includes software developed by Bill Paul.
This product includes software developed by Jonathan Stone.
This product includes software developed by Manuel Bouyer.
This product includes software developed by Paul Richards.
This product includes software developed by the NetBSD Foundation, Inc. and its contributors.
This product includes software developed by the Politecnico di Torino, and its contributors.
This product includes software developed by the Swedish Institute of Computer Science and its contributors.
This product includes software developed by the University of California, Berkeley and its contributors.
This product includes software developed by the Computer Systems Engineering Group at the Lawrence
Berkeley Laboratory.
This product includes software developed by Christopher G. Demetriou for the NetBSD Project.
This product includes software developed by Adam Glass.
This product includes software developed by Christian E. Hopps.
This product includes software developed by Dean Huxley.
This product includes software developed by John Kohl.
This product includes software developed by Paul Kranenburg.
This product includes software developed by Terrence R. Lambert.
This product includes software developed by Philip A. Nelson.
This product includes software developed by Herb Peyerl.
This product includes software developed by Jochen Pohl for the NetBSD Project.
This product includes software developed by Chris Provenzano.
This product includes software developed by Theo de Raadt.
This product includes software developed by David Muir Sharnoff.
This product includes software developed by SigmaSoft, Th. Lockert.
This product includes software developed for the NetBSD Project by Jason R. Thorpe.
This product includes software developed by Jason R. Thorpe for And Communications, http://www.and.com.
This product includes software developed for the NetBSD Project by Frank Van der Linden.
This product includes software developed for the NetBSD Project by John M. Vinopal.
This product includes software developed by Christos Zoulas.
This product includes software developed by the University of Vermont and State Agricultural College and
Garrett A. Wollman.
This product includes software developed by Balazs Scheidler ([email protected]), which is protected under
the GNU Public License.
This product includes software developed by Niels Mueller ([email protected]), which is protected under
the GNU Public License.
Acknowledgments
In the following statement, This software refers to the Mitsumi CD-ROM driver: This software was developed
by Holger Veit and Brian Moore for use with 386BSD and similar operating systems. Similar operating
systems includes mainly non-profit oriented systems for research and education, including but not restricted
to NetBSD, FreeBSD, Mach (by CMU).
This product includes software developed by the Apache Group for use in the Apache HTTP server project
(http://www.apache.org/).
This product includes software licensed from Richard H. Porter under the GNU Library General Public
License (© 1998, Red Hat Software), www.gnu.org/copyleft/lgpl.html.
This product includes the standard version of Perl software licensed under the Perl Artistic License (© 1997,
1998 Tom Christiansen and Nathan Torkington). All rights reserved. You may find the most current standard
version of Perl at http://www.perl.com.
This product includes software developed by Jared Minch.
This product includes software developed by the OpenSSL Project for use in the OpenSSL Toolkit
(http://www.openssl.org/).
This product includes cryptographic software written by Eric Young ([email protected]).
This product contains software based on oprofile, which is protected under the GNU Public License.
This product includes RRDtool software developed by Tobi Oetiker (http://www.rrdtool.com/index.html)
and licensed under the GNU General Public License.
This product contains software licensed from Dr. Brian Gladman under the GNU General Public License
(GPL).
This product includes software developed by the Apache Software Foundation (http://www.apache.org/).
This product includes Hypersonic SQL.
This product contains software developed by the Regents of the University of California, Sun Microsystems,
Inc., Scriptics Corporation, and others.
This product includes software developed by the Internet Software Consortium.
This product includes software developed by Nominum, Inc. (http://www.nominum.com).
This product contains software developed by Broadcom Corporation, which is protected under the GNU
Public License.
This product contains software developed by MaxMind LLC, and is protected under the GNU Lesser General
Public License, as published by the Free Software Foundation.
This product includes Intel QuickAssist kernel module, library, and headers software licensed under the
GNU General Public License (GPL).
This product includes software licensed from Gerald Combs ([email protected]) under the GNU General
Public License as published by the Free Software Foundation; either version 2 of the License, or any later
version. Copyright ©1998 Gerald Combs.
This product includes software developed by Thomas Williams and Colin Kelley. Copyright ©1986 - 1993,
1998, 2004, 2007
Permission to use, copy, and distribute this software and its documentation for any purpose with or without
fee is hereby granted, provided that the above copyright notice appear in all copies and that both that
copyright notice and this permission notice appear in supporting documentation. Permission to modify the
software is granted, but not the right to distribute the complete modified source code. Modifications are to
be distributed as patches to the released version. Permission to distribute binaries produced by compiling
modified sources is granted, provided you
1. distribute the corresponding source modifications from the released version in the form of a patch file
along with the binaries,
8
vCMP® for Appliance Models: Administration
2. add special version identification to distinguish your version in addition to the base release version
number,
3. provide your name and address as the primary contact for the support of your modified version, and
4. retain our contact information in regard to use of the base software.
Permission to distribute the released version of the source code along with corresponding source modifications
in the form of a patch file is granted with same provisions 2 through 4 for binary distributions. This software
is provided "as is" without express or implied warranty to the extent permitted by applicable law.
This product contains software developed by Google, Inc. Copyright ©2011 Google, Inc.
Permission is hereby granted, free of charge, to any person obtaining a copy of this software and associated
documentation files (the "Software"), to deal in the Software without restriction, including without limitation
the rights to use, copy, modify, merge, publish, distribute, sublicense, and/or sell copies of the Software,
and to permit persons to whom the Software is furnished to do so, subject to the following conditions:
The above copyright notice and this permission notice shall be included in all copies or substantial portions
of the Software.
THE SOFTWARE IS PROVIDED "AS IS", WITHOUT WARRANTY OF ANY KIND, EXPRESS OR
IMPLIED, INCLUDING BUT NOT LIMITED TO THE WARRANTIES OF MERCHANTABILITY,
FITNESS FOR A PARTICULAR PURPOSE AND NONINFRINGEMENT. IN NO EVENT SHALL THE
AUTHORS OR COPYRIGHT HOLDERS BE LIABLE FOR ANY CLAIM, DAMAGES OR OTHER
LIABILITY, WHETHER IN AN ACTION OF CONTRACT, TORT OR OTHERWISE, ARISING FROM,
OUT OF OR IN CONNECTION WITH THE SOFTWARE OR THE USE OR OTHER DEALINGS IN
THE SOFTWARE.
This product includes software developed by Jeremy Ashkenas and DocumentCloud, and distributed under
the MIT license. Copyright © 2010-2013 Jeremy Ashkenas, DocumentCloud.
This product includes gson software, distributed under the Apache License version 2.0. Copyright ©
2008-2011 Google Inc.
9
Chapter
1
Introduction to the vCMP System
•
•
•
•
•
•
•
•
What is vCMP?
Other vCMP system components
BIG-IP license considerations for vCMP
vCMP provisioning
Network isolation
System administration overview
Guest access to the management network
About Appliance mode
Introduction to the vCMP System
What is vCMP?
Virtual Clustered Multiprocessing™ (vCMP®) is a feature of the BIG-IP® system that allows you to provision
and manage multiple, hosted instances of the BIG-IP software on a single hardware device. A vCMP
hypervisor allocates a dedicated amount of CPU, memory, and storage to each BIG-IP instance. As a vCMP
system administrator, you can create BIG-IP instances and then delegate the management of the BIG-IP
software within each instance to individual administrators.
A key part of the vCMP system is its built-in flexible resource allocation feature. With flexible resource
allocation, you can instruct the hypervisor to allocate a different amount of resource to each BIG-IP instance
according to the particular needs of each instance. The hypervisor provides these resources to BIG-IP
instances in the form of cores, which contain a portion of system CPU and memory.
At a high level, the vCMP system includes two main components:
vCMP host
The vCMP host is the system-wide hypervisor that makes it possible for you to create and view BIG-IP
instances, known as guests. Through the vCMP host, you can also manage guest properties. For each
guest, the vCMP host allocates system resources according to the particular resource needs of the guest.
vCMP guests
A vCMP guest is an instance of the BIG-IP software that you create on the vCMP system for the purpose
of provisioning one or more BIG-IP® modules to process application traffic. A guest consists of a TMOS®
instance, plus one or more BIG-IP modules. Each guest has its own share of hardware resources that
the vCMP host allocates to the guest, as well as its own management IP addresses, self IP addresses,
virtual servers, and so on. This effectively allows each guest to function as a separate BIG-IP device,
configured to receive and process application traffic, with no knowledge of other guests on the system.
Furthermore, each guest can use TMOS® features such as route domains and administrative partitions
to create its own multi-tenant configuration. Each guest requires its own guest administrator to provision,
configure, and manage BIG-IP modules within the guest. Depending on the hardware model, a vCMP
system can support up to approximately six guests.
This illustration shows a basic vCMP system with a host and four guests. Note that each guest a different
set of modules provisioned, depending on the guest's particular traffic requirements.
Figure 1: Example of a four-guest vCMP system
12
vCMP® for Appliance Models: Administration
Other vCMP system components
In addition to the host and guests, the vCMP® system includes these components:
Virtual disk
A virtual disk is an amount of disk space that the system has allocated to a guest (typically 100 gigabytes).
Each virtual disk is implemented as an image file with an .img extension, such as guest_A.img.
Core
A core is a portion of CPU and memory that the vCMP host allocates to a guest. The amount of CPU
and memory that a core provides varies by hardware platform.
BIG-IP license considerations for vCMP
The BIG-IP® system license authorizes you to provision the vCMP® feature and create guests with one or
more BIG-IP system modules provisioned. Note the following considerations:
•
•
•
•
Each guest inherits the license of the vCMP host.
The host license must include all BIG-IP modules that are to be provisioned across all guest instances.
Examples of BIG-IP modules are BIG-IP Local Traffic Manager™ and BIG-IP Global Traffic Manager™.
The license allows you to deploy the maximum number of guests that the platform allows.
If the license includes the appliance mode feature, you cannot enable appliance mode for individual
guests; when licensed, appliance mode applies to all guests and cannot be disabled.
You activate the BIG-IP system license when you initially set up the vCMP host.
vCMP provisioning
To enable the vCMP® feature, you perform two levels of provisioning. First, you provision the vCMP feature
as a whole. When you do this, the BIG-IP® system, by default, dedicates most of the disk space to running
the vCMP feature, and in the process, creates the host portion of the vCMP system. Second, once you have
configured the host to create the guests, each guest administrator logs in to the relevant guest and provisions
the required BIG-IP modules. In this way, each guest can run a different combination of modules. For
example, one guest can run BIG-IP® Local Traffic Manager™ (LTM®) only, while a second guest can run
LTM® and BIG-IP ASM™.
Important: Once you provision the vCMP feature, you cannot provision any BIG-IP modules, such as
BIG-IP LTM, on the vCMP host. Moreover, if any BIG-IP modules are already provisioned on the system
before you provision the vCMP feature, those modules are de-provisioned when you provision the vCMP
feature. This, in turn, interrupts any application traffic currently being processed.
Note: The reserved disk space protects against any possible resizing of the file system.
13
Introduction to the vCMP System
Network isolation
The vCMP® system separates the data plane network from the management network. That is, the host
operates with the hardware switch fabric to control the guest data plane traffic. This provides true
multi-tenancy by ensuring that traffic for a guest remains separate from all other guest traffic on the system.
The following illustration shows the separation of the data plane network from the management network.
Figure 2: Isolation of the data plane network from the management network
System administration overview
Administering a vCMP® system requires two distinct types of administrators: a vCMP host administrator
who creates guests and allocates resources to those guests, and a vCMP guest administrator who provisions
and configures BIG-IP modules within a specific guest.
At a minimum, these tasks must be performed on the vCMP host, by a host administrator:
•
•
•
•
•
•
Provision the vCMP feature
Create vCMP guests, including allocating system resources to each guest
Create and manage VLANs
Create and manage trunks
Manage interfaces
Configure access control to the host by other host administrators, through user accounts and roles,
partition access, and so on
These tasks are performed on a vCMP guest by a guest administrator:
•
•
•
•
•
Provision BIG-IP modules
Create self IP addresses and associate them with host VLANs
Create and manage features within BIG-IP modules, such as virtual servers, pools, policies, and so on
Configure device service clustering (DSC)
Configure access control to the guest by other guest administrators, through user accounts and roles,
partition access, and so on
Important: vCMP host administration tasks can only be performed on the vCMP host and not from within
a guest. This prevents a guest administrator from accessing either the host or other guests on the system,
thereby ensuring the separation of administrative tasks across the vCMP deployment.
14
vCMP® for Appliance Models: Administration
After you initially set up the vCMP host, you will have a standalone, multi-tenant vCMP system with some
number of guests defined. A guest administrator will then be ready to provision and configure the BIG-IP
modules within a guest to process application traffic. Optionally, if the host administrator has set up a second
chassis with equivalent guests, a guest administrator can configure high availability for any two equivalent
guests.
Guest access to the management network
As a vCMP host administrator, you can configure each vCMP® guest to be either bridged to or isolated
from the management network.
Important: F5 Networks recommends that you configure all vCMP guests to be bridged to the management
network, unless you have a specific business or security requirement that requires guests to be isolated
from the management network, or to be isolated from the management network but remain accessible by
way of the host-only interface.
About bridged guests
When you create a vCMP® guest, you can specify that the guest is a bridged guest. A bridged guest is one
that is connected to the management network. This is the default network state for a vCMP guest. This
network state bridges the guest's virtual management interface to the physical management interface of the
blade on which the guest virtual machine (VM) is running.
You typically log in to a bridged guest using its cluster management IP address, and by default, guest
administrators with the relevant permissions on their user accounts have access to the bash shell, the BIG-IP®
Configuration utility, and the Traffic Management Shell (tmsh). However, if per-guest Appliance mode is
enabled on the guest, administrators have access to the BIG-IP Configuration utility and tmsh only.
Although the guest and the host share the host's Ethernet interface, the guest appears as a separate device
on the local network, with its own MAC address and IP address.
Note that changing the network state of a guest from isolated to bridged causes the vCMP host to dynamically
add the guest's management interface to the bridged management network. This immediately connects all
of the guest's VMs to the physical management network.
Important: If you want to easily make TCP connections (for SSH, HTTP, and so on) from either the host
or the external network to the guest, or from the guest to the host or external network, you can configure a
guest's management port to be on the same IP network as the host's management port, with a gateway
identical to the host's management gateway. However, you should carefully consider the security implications
of doing so.
About isolated guests
When you create a vCMP® guest, you can specify that the guest is an isolated guest. Unlike a bridged guest,
an isolated guest is disconnected from the management network. As such, the guest cannot communicate
with other guests on the system. Also, because an isolated guest has no management IP address for
administrators to use to access the guest, the host administrator, after creating the guest, must use the
vconsole utility to log in to the guest and create a self IP address that guest administrators can then use
to access the guest.
15
Introduction to the vCMP System
About Appliance mode
Appliance mode is a BIG-IP system feature that adds a layer of security in two ways:
•
•
By preventing administrators from using the root user account.
By granting administrators access to the Traffic Management Shell (tmsh) instead of and the advanced
(bash) shell.
You can implement Appliance mode in one of two ways:
System-wide through the BIG-IP license
You can implement Appliance mode on a system-wide basis through the BIG-IP® system license.
However, this solution might not be ideal for a vCMP® system. When a vCMP system is licensed for
Appliance mode, administrators for all guests on the system are subject to Appliance mode restrictions.
Also, you cannot disable the Appliance mode feature when it is included in the BIG-IP system license.
On a per-guest basis
Instead of licensing the system for Appliance mode, you can enable or disable the appliance mode
feature for each guest individually. By default, per-guest Appliance mode is disabled when you create
the guest. After Appliance mode is enabled, you can disable or re-enable this feature on a guest at any
time.
Note: If the license for the BIG-IP system includes Appliance mode, the system ignores the per-guest
Appliance mode feature and permanently enforces Appliance mode for the vCMP host and all guests on
the system.
User access restrictions with Appliance mode
When you enable Appliance mode on a guest, the system enhances security by preventing administrators
from accessing the root-level advanced shell (bash).
For bridged guests
For a bridged guest with Appliance mode enabled, administrators can access the guest through the guest's
management IP address. Administrators for a bridged guest can manage the guest using the BIG-IP®
Configuration utility and tmsh.
For isolated guests
For an isolated guest with Appliance mode enabled, administrators must access a guest through one of
the guest's self IP addresses, configured with appropriate port lockdown values. Administrators for an
isolated guest can manage the guest using the BIG-IP Configuration utility and tmsh.
Important: When you enable Appliance mode on a guest, any accounts with advanced shell access
automatically lose that permission and the permission reverts to tmsh. If you disable Appliance mode later,
you can re-assign advanced shell access to those accounts.
BIG-IP version restrictions with Appliance mode
If you want to use the BIG-IP® version 11.5 Appliance mode feature on a guest, both the host and the guest
must run BIG-IP version 11.5 or later.
16
vCMP® for Appliance Models: Administration
Warning: If you enable Appliance mode on a guest, and a previous version of the BIG-IP software is
installed in another boot location, a guest administrator with an Administrator user role can boot to the
previous version and obtain advanced shell access.
17
Chapter
2
Additional Network Considerations
•
•
•
•
About management network modes for a
vCMP guest
Network separation of Layer 2 and Layer 3
objects
About the VLAN publishing strategy
Interface assignment for vCMP guests
Additional Network Considerations
About management network modes for a vCMP guest
As a vCMP host administrator, you can configure each vCMP® guest to operate in one of two modes:
Bridged or Isolated. The mode you choose specifies whether the guest is bridged to or isolated from the
vCMP host's management network. F5 Networks recommends that you configure all vCMP guests to run
in Bridged mode, unless you have a specific business or security requirement that requires Isolated mode.
About the Bridged network mode
Bridged mode is the default network mode for a vCMP guest. This mode bridges the guest's virtual
management interface to the physical management port. Typically, you configure a guest's management
port to be on the same IP network as the host's management port, with a gateway identical to the host's
management gateway. This allows you to make TCP connections (for SSH, HTTP, and so on) easily from
either the host or the external network to the guest, or from the guest to the host or external network. Although
the guest and the host share the host's Ethernet interface, the guest appears as a separate device on the local
network, with its own MAC address and IP address.
Important: If appliance mode is enabled on a guest in Bridged mode, access to the Bash shell is disabled
for all administrators of that guest. In this case, only the BIG-IP Configuration utility and the tmsh
command-line interface are available for managing the guest.
About the Isolated network mode
Isolated mode isolates the guest from the management network. A guest in Isolated mode cannot communicate
with other guests on the system. Also, the only way that the vCMP host can access the console of a guest
that is in Isolated mode is through the console port (using the vConsole utility) or through a self IP address
on the guest that allows traffic.
Note: Althouth a guest in Isolaged mode is inaccessible through its management interface, guest
administrators can configure self IP addresses, routes, access control, and port lockdown settings appropriate
to the environment to achieve their individual connectivity goals.
Important: If appliance mode is enabled on a guest in Isolated mode, access to the Bash shell, the vConsole
utility, and the BIG-IP Configuration utility is disabled for all administrators of that guest. In this case,
only tmsh is available for managing the guest.
Other considerations
If the guest is in a Deployed state:
•
•
Setting the network mode from Bridged to Isolated mode causes the vCMP host to disconnect the guest's
management interface from its bridged management network, which in turn disconnects the guest from
the physical management network.
Setting the network mode from Isolated to Bridged mode causes the vCMP host to dynamically add the
guest's management interface to the bridged management network. This immediately connects the guest
to the physical management network.
Changing the network mode while the guest is in the Configured or Provisioned state has no immediate
effect.
20
vCMP® for Appliance Models: Administration
Network separation of Layer 2 and Layer 3 objects
On a vCMP system, you must configure BIG-IP® Layer 2 objects, such as trunks and VLANs, on the vCMP
host and then selectively decide which of these objects you want each guest to inherit. Typically, to ensure
that each guest's data plane traffic is securely isolated from other guests, the host administrator creates a
separate VLAN for each guest to use. Other objects such as self IP addresses, virtual servers, pools, and
profiles are configured on the guest by each guest administrator. With this separation of Layer 2 and Layer
3 objects, application traffic is targeted directly to the relevant guest, further allowing each guest to function
as a fully-independent BIG-IP® device.
The following illustration shows the separation of Layer 2 objects from higher-layer objects on the vCMP
system:
Figure 3: Isolation of network objects on the vCMP system
About the VLAN publishing strategy
For both host and guest administrators, it is important to understand certain concepts about VLAN
configuration on a vCMP® system:
•
•
VLAN subscription from host to guest
System behavior when a host and a guest VLAN have duplicate names or tags
Overview of VLAN subscription
As a vCMP® host administrator, when you create or modify a guest, you typically publish one or more
host-based VLANs to the guest. When you publish a host-based VLAN to a guest, you are granting a
subscription to the guest for use of that VLAN configuration, with the VLAN's underlying Layer 2 resources.
When you publish a VLAN to a guest, if there is no existing VLAN within the guest with the same name
or tag as the host-based VLAN, the vCMP system automatically creates, on the guest, a configuration for
the published VLAN.
If you modify a guest's properties to remove a VLAN publication from a guest, you are removing the guest's
subscription to that host-based VLAN. However, the actual VLAN configuration that the host created within
21
Additional Network Considerations
the guest during initial VLAN publication to the guest remains there for the guest to use. In this case, any
changes that a host administrator might make to that VLAN are not propagated to the guest.
In general, VLANs that appear within a guest can be either host-based VLANs currently published to the
guest, host-based VLANs that were once but are no longer published to the guest, or VLANs that the guest
administrator manually created within the guest.
This example shows the effect of publishing a host-based VLAN to, and then deleting the VLAN from, a
guest that initially had no VLANs.
# Within guest G1, show that the guest has no VLANs configured:
[[email protected]:/S1-green-P:Active:Standalone] config # tmsh list net vlan
# From the host, publish VLAN v1024 to guest G1:
[[email protected]_210:/S1-green-P:Active:Standalone] config # tmsh modify vcmp guest G1 vlans add {
v1024 }
# Within guest G1, list all VLANs:
[[email protected]:/S1-green-P:Active:Standalone] config # tmsh list net vlan
net vlan v1024 {
if-index 96
tag 1024
}
# On the host, delete the host-based VLAN publication from guest G1:
[[email protected]_210:/S1-green-P:Active:Standalone] config # tmsh modify vcmp guest G1 vlans del {
v1024 }
# Notice that the host-based VLAN still exists within the guest:
[[email protected]:/S1-green-P:Active:Standalone] config # tmsh list net vlan
vlan v1024 {
if-index 96
tag 1024
}
About VLANs with identical tags and different names
Sometimes a host administrator might publish a VLAN to a guest, but the guest administrator has already
created, or later creates, a VLAN with a different name but the same VLAN tag. In this case, the guest
VLAN always overrides the host VLAN. The VLAN can still exist on the host (for other guests to subscribe
to), but it is the guest VLAN that is used.
Whenever host and guest VLANs have different names but the same tags, traffic flows successfully across
the host from the guest because the VLAN tag alignment is correct. That is, when the tags match, the
underlying Layer 2 infrastructure of the VLANs matches, thereby enabling the host to reach the guest.
The example here shows the tmsh command sequence for creating two separate VLANs with different
names and the same tag, and the resulting successful traffic flow.
# On the host, create a VLAN with a unique name but with a tag matching that of a guest VLAN
VLAN_A:
[[email protected]_210:/S1-green-P:Active:Standalone] config # tmsh create net vlan VLAN_B tag 1000
# On the host, publish the host VLAN to the guest:
22
vCMP® for Appliance Models: Administration
[[email protected]_210:/S1-green-P:Active:Standalone] config # tmsh modify vcmp guest guest1 vlans
add { VLAN_B }
# Within the guest, show that the guest still has its own VLAN only, and not the VLAN published
from the host:
[[email protected]:/S1-green-P:Active:Standalone] config # tmsh list net vlan all
net vlan VLAN_A {
if-index 192
tag 1000
}
# On the guest, create a self IP address for VLAN_A:
[[email protected]:/S1-green-P:Active:Standalone] config # tmsh create net self 10.1.1.1/24 vlan VLAN_A
# On the host, delete the self IP address on VLAN_A (this VLAN also exists on the guest) and
re-create the self IP address on VLAN_B (this VLAN has the same tag as VLAN_A):
[[email protected]_210:/S1-green-P:Active:Standalone] config # tmsh delete net self 10.1.1.2/24
[[email protected]_210:/S1-green-P:Active:Standalone] config # tmsh create net self 10.1.1.2/24 vlan
VLAN_B
# From the host, open a connection to the guest, and notice that because the two VLANs have
the same tags, the connection succeeds:
[[email protected]_210:/S1-green-P:Active:Standalone] config # ping -c2 10.1.1.1
PING 10.1.1.1 (10.1.1.1) 56(84) bytes of data.
64 bytes from 10.1.1.1: icmp_seq=1 ttl=255 time=3.35 ms
64 bytes from 10.1.1.1: icmp_seq=2 ttl=255 time=0.989 ms
--- 10.1.1.1 ping statistics --2 packets transmitted, 2 received, 0% packet loss, time 1001ms
rtt min/avg/max/mdev = 0.989/2.170/3.352/1.182 ms
About VLANs with identical names and different tags
Sometimes a host administrator might publish a VLAN to a guest, but the guest administrator has already
created, or later creates, a VLAN with the same name but with a different VLAN tag. In this case, the guest
VLAN always overrides the host VLAN. The VLAN can still exist on the host (for other guests to subscribe
to), but it is the guest VLAN that is used.
Whenever host and guest VLANs have the same names but different tags, traffic cannot flow between the
identically-named VLANs at Layer 2. That is, when the tags do not match, the underlying Layer 2
infrastructure of the VLANs does not match, thereby preventing the host from reaching the guest.
The example here shows the tmsh command sequence for creating two separate VLANs with the same
names and different tags, and the resulting traffic flow issue.
# While logged into the guest, create a VLAN:
[[email protected]:/S1-green-P:Active:Standalone] config # tmsh create net vlan VLAN_A tag 1000
# Show that no VLANs exist on the host:
[[email protected]_210:/S1-green-P:Active:Standalone] config # tmsh list net vlan all
[[email protected]_210:/S1-green-P:Active:Standalone] config #
# On the host, create a VLAN with the same name as the guest VLAN but with a unique tag on
the host:
[[email protected]_210:/S1-green-P:Active:Standalone] config # tmsh create net vlan VLAN_A tag 1001
23
Additional Network Considerations
# Publish the host VLAN to the guest:
[[email protected]_210:/S1-green-P:Active:Standalone] config # tmsh modify vcmp guest guest1 vlans
add { VLAN_A }
# Within the guest, show that the guest still has its own VLAN only, and not the VLAN published
from the host:
[[email protected]:/S1-green-P:Active:Standalone] config # tmsh list net vlan all
net vlan VLAN_A {
if-index 192
tag 1000
}
# Within the guest, create a self IP address for the VLAN:
[[email protected]:/S1-green-P:Active:Standalone] config # tmsh create net self 10.1.1.1/24 vlan VLAN_A
# On the host, create a self IP address for the identically-named VLAN:
[[email protected]_210:/S1-green-P:Active:Standalone] config # tmsh create net self 10.1.1.2/24 vlan
VLAN_A
# From the host, open a connection to the guest, and notice that because the two VLANs have
different tags, the connection fails:
[[email protected]_210:/S1-green-P:Active:Standalone] config # ping -c2 10.1.1.1
PING 10.1.1.1 (10.1.1.1) 56(84) bytes of data.
From 10.1.1.2 icmp_seq=1 Destination Host Unreachable
From 10.1.1.2 icmp_seq=2 Destination Host Unreachable
--- 10.1.1.1 ping statistics --2 packets transmitted, 0 received, +2 errors, 100% packet loss, time 3000ms
pipe 2
Solution for tag discrepancy between host and guest VLANs
When a host-based VLAN and a guest-created VLAN have identical names but different VLAN tags, traffic
flow at Layer 2 is impeded between host and guest. Fortunately, you can resolve this issue by performing
these tasks, in the sequence shown:
•
•
•
•
•
Within the guest, delete the relevant VLAN from within the guest.
On the host, remove the VLAN publication from the guest.
On the host, modify the tag of the host-based VLAN.
On the host, publish the VLAN to the guest.
Within the guest, view the VLAN from within the guest.
Deleting the VLAN within the guest
You use this task when you want to delete a VLAN from within a vCMP® guest. One reason for deleting a
VLAN from within a guest is to help resolve a tag discrepancy between a guest VLAN and a host VLAN.
Important: To perform this task, you must be logged in to the relevant vCMP guest.
1. On the Main tab, click Network > VLANs.
The VLAN List screen opens.
24
vCMP® for Appliance Models: Administration
2. In the Name column, locate the name of the VLAN for which you want to change the partition, and to
the left of the name, select the check box and click Delete.
The system prompts you to confirm the delete action.
3. Click Delete.
After performing this task, you no longer see the VLAN name in the list of VLANs on the guest.
Removing the VLAN publication on the guest
You perform this task when you want to remove a VLAN subscription on a particular guest. One reason
for deleting a VLAN from within a guest is to help resolve a tag discrepancy between a guest VLAN and
a host VLAN.
Important: To perform this task, you must be logged in to the vCMP host.
1. On the Main tab, click vCMP > Guest List.
This displays a list of vCMP guests on the system.
2. In the Name column, click the name of the guest that you want to modify.
This displays the configured properties of the guest.
3. For the VLAN List setting, select the relevant VLAN name from the Selected list, and use the Move
button to move the name to the Available list.
4. Click Update.
Modifying the tag of the host-based VLAN
You perform this task to change a VLAN tag on a vCMP® host to ensure that the tag matches that of a
VLAN on a guest.
Important: To perform this task, you must be logged in to the vCMP host.
1. On the Main tab, click Network > VLANs.
The VLAN List screen opens.
2. In the Name column, click the relevant VLAN name.
This displays the properties of the VLAN.
3. In the Tag field, type the same tag that was assigned to the VLAN you previously deleted.
4. If the host and guest VLANs have an optional customer tag, type the same customer tag that was assigned
to the VLAN you previously deleted.
5. Click Update.
Publishing the VLAN to the guest
You perform this task when you want to publish a host-based VLAN to a particular guest.
Important: To perform this task, you must be logged in to the vCMP® host.
1. On the Main tab, click vCMP > Guest List.
This displays a list of vCMP guests on the system.
2. In the Name column, click the name of the guest that you want to modify.
This displays the configured properties of the guest.
25
Additional Network Considerations
3. For the VLAN List setting, select the relevant VLAN name from the Available list, and use the Move
button to move the name to the Selected list.
4. Click Update.
After performing this task, the guest can use the selected host-based VLAN.
Viewing the new VLAN within the guest
You perform this task to verify that the VLAN that the host published to a guest appears on the guest, with
the correct tag.
Important: To perform this task, you must be logged in to the relevant vCMP® guest.
1. On the Main tab, click Network > VLANs.
The VLAN List screen opens.
2. In the Name column, click the name of the VLAN that the host published to the guest.
3. In the Tag field, verify that the correct tag is shown.
4. Click Cancel.
After you perform this task, you can see that the VLAN which the host published to the guest has appeared
on the guest, with the correct tag.
Interface assignment for vCMP guests
The virtualized nature of vCMP® guests abstracts many underlying hardware dependencies, which means
that there is no direct relationship between guest interfaces and the physical interfaces assigned to VLANs
on the vCMP host.
Rather than configuring any interfaces on a guest, a guest administrator simply creates a self IP address
within the guest, specifying one of the VLANs that the host administrator previously configured on the host
and assigned to the guest during guest creation.
As host administrator, if you want to limit the guest to using specific physical interfaces, you simply change
the physical interface assignments on the VLANs that you assign to that guest.
26
Chapter
3
Flexible Resource Allocation
•
•
•
•
What is flexible resource allocation?
Understanding guest resource requirements
Resource allocation planning
Guest states and resource allocation
Flexible Resource Allocation
What is flexible resource allocation?
Flexible resource allocation is a built-in vCMP® feature that allows vCMP host administrators to optimize
the use of available system resources. Flexible resource allocation gives you the ability to configure the
vCMP host to allocate a different amount of CPU and memory to each guest, based on the needs of the
specific BIG-IP® modules provisioned within a guest. When you create each guest, you specify the number
of cores that you want the host to allocate to the guest. Configuring these settings determines the total
amount of CPU and memory that the host allocates to the guest. With flexible allocation, you can customize
CPU and memory allocation in granular ways that meet the specific resource needs of each individual guest.
Understanding guest resource requirements
Before you create vCMP® guests and allocate system resources to them, you need to determine the specific
CPU and memory needs of each guest. You can then decide how many cores to allocate to a guest, factoring
in the resource capacity of your hardware platform.
To determine the CPU and memory resource needs, you must know:
•
•
•
The number of guests you need to create
The specific BIG-IP® modules you need to provision within each guest
The combined memory requirement of all BIG-IP modules within each guest
Resource allocation planning
To determine the resource allocation that you need to configure for each guest, you must know the resource
capacity of your hardware platform and the total memory requirement for each guest. You can then calculate
the number of cores required for each guest based on the memory requirement that you want to configure
for each guest.
Prerequisite hardware considerations
Appliance models vary in terms of how many cores the model provides and how much memory each core
contains. Also variable is the maximum number of guests that each model supports.
Before you can determine the number of cores to allocate to a guest, you should understand:
•
•
•
The total number of cores that the model provides
The amount of memory that the model provides
The maximum number of guests that the model supports
By understanding these metrics, you ensure that the total amount of resource you allocate to guests is aligned
with the amount of resource that your appliance model supports.
For specific information on the resources that each appliance model provides, see the vCMP® guest
memory/CPU core allocation matrix on the AskF5™ Knowledge Base at http://support.f5.com.
28
vCMP® for Appliance Models: Administration
About core allocation for a guest
When you create a guest on the vCMP® system, you must specify the total number of cores that you want
the host to allocate to the guest based on the guest's total resource needs. Each core provides some amount
of CPU and a fixed amount of memory. You should therefore specify enough cores to satisfy the combined
memory requirements of all BIG-IP® modules that you provision within the guest.
Important: For metrics on memory and CPU support per appliance model, refer to the vCMP guest
memory/CPU allocation matrix at http://support.f5.com.
About single-core guests
On platforms with hard drives, the vCMP® host always allocates cores for a guest in increments of two
cores. In the case of platforms with solid-state drives, however, the host can allocate a single core to a guest,
but only for a guest that requires a maximum of one core; for guests that require more than one core, the
host does not allocate an odd number of cores (such as three, five, or seven cores).
The illustration shows a possible guest configuration on an appliance with a solid-state drive, where one of
the guests has a single core only allocated to it.
Figure 4: A vCMP configuration with a single-core guest
Because the amount of CPU and memory in a single-core guest is limited, F5 Networks® highly recommends
that you provision only the BIG-IP® Local Traffic Manager™ (LTM®) module within a single-core guest,
and no other modules.
About SSL and compression hardware
On systems that include SSL and compression hardware processors, the vCMP® feature shares these hardware
resources among all guests on the system, in a round robin fashion.
When sharing SSL hardware, if all guests are using similar-sized keys, then each guest receives an equal
share of the SSL resource. Also, if any guests are not using SSL keys, then other guests can take advantage
of the extra SSL resource.
Guest states and resource allocation
As a vCMP® host administrator, you can control when the system allocates or de-allocates system resources
to a guest. You can do this at any time, by setting a guest to one of three states: Configured, Provisioned,
or Deployed. These states affect resource allocation in these ways:
Configured
This is the initial (and default) state for newly-created guests. In this state, the guest is not running, and
no resources are allocated to the guest. If you change a guest from another state to the Configured state,
the vCMP host does not delete any virtual disks that were previously attached to that guest; instead, the
29
Flexible Resource Allocation
guest's virtual disks persist on the system. The host does, however, automatically de-allocate other
resources such as CPU and memory. When the guest is in the Configured state, you cannot configure
the BIG-IP® modules that are licensed to run within the guest; instead, you must set the guest to the
Deployed state to provision and configure the BIG-IP modules within the guest.
Provisioned
When you change a guest from Configured to Provisioned, the vCMP host allocates system resources
to the guest (CPU, memory, and any unallocated virtual disks). If the guest is new, the host creates new
virtual disks for the guest and installs the selected ISO image on them. A guest does not run while in
the Provisioned state. When you change a guest from Deployed to Provisioned, the host shuts down the
guest but retains its current resource allocation.
Deployed
When you change a guest to the Deployed state, the guest administrator can then provision and configure
the BIG-IP modules within the guest. If you are a host administrator and you reconfigure the properties
of a guest after its initial deployment, the host immediately propagates those changes to all of the guests
and also propagates the list of allowed VLANs.
30
Chapter
4
Device Service Clustering for vCMP Systems
•
•
•
•
•
Overview: Device service clustering for
vCMP systems
Required IP addresses for DSC configuration
Failover methods for vCMP guests
About HA groups for vCMP systems
About connection mirroring for vCMP
systems
Device Service Clustering for vCMP Systems
Overview: Device service clustering for vCMP systems
One of the tasks of a vCMP® guest administrator is to configure device service clustering (DSC®). Using
DSC, a guest administrator can implement config sync, failover, and mirroring across two or more hardware
devices. Configuring DSC is the same on a vCMP system as on non-virtualized systems, except that the
members of a device group are virtual devices (guests) rather than physical devices.
When configuring DSC, a guest administrator creates a device group that consists of vCMP guests as
members, where each member is deployed on a separate BIG-IP device.
For example, a Sync-Failover device group in an active-standby configuration can consist of:
•
•
•
guest_A on device_1 and guest_A on device_2
guest_B on device_1 and guest_B on device_2
guest_C on device_1 and guest_C on device_2
Creating a device group that consists of guests on separate devices ensures that if a device member goes
out of service, any active traffic groups on a guest can fail over to another member of the device.
This illustration shows this DSC configuration. The illustration shows two chassis, with three guests on
each chassis. Each guest and its equivalent guest on the other chassis form a separate Sync-Failover device
group.
Figure 5: vCMP guests forming three device groups across two appliances
Required IP addresses for DSC configuration
This table describes the types of IP addresses that a guest administrator specifies when configuring device
service clustering (DSC®) on a vCMP system.
Table 1: Required IP addresses for DSC configuration on a vCMP system
Configuration IP addresses required
feature
32
Device trust
The cluster IP address that the vCMP host administrator assigned to the guest during
guest creation.
Config sync
Any non-floating self IP address on the guest that is associated with an internal VLAN
on the host.
Failover
A unicast non-floating self IP address on the guest that is associated with an internal
VLAN on the host (preferably VLAN HA) and the management IP address of the device.
Connection
mirroring
For both the primary and the secondary IP addresses, a non-floating self IP address on
the guest that is associated with an internal VLAN on the host. The secondary address
is optional.
vCMP® for Appliance Models: Administration
Failover methods for vCMP guests
Each traffic group in a device service clustering (DSC®) device group has a property known as a failover
method. The failover method dictates the way that the system chooses a target device for failover. Available
failover methods that the user can choose from are: load-aware failover, an ordered list, and an HA group.
The specific core allocation for a guest in a Sync-Failover device group determines the particular failover
method that is appropriate for a DSC traffic group within the guest:
•
•
Guests in a device group that are identical in terms of core allocation are considered to be homogeneous
guests. In this case, an ordered list would be an appropriate failover method, since relative capacity is
equal among all guests.
Guests in a device group that differ from one another in terms of core allocation are considered to be
heterogeneous guests. In this case, load-aware failover is an appropriate failover method because the
guest administrator can define a relative capacity and relative traffic load for each guest.
An additional type of failover method is an HA group, which applies to both homogeneous and heterogeneous
guests.
About HA groups for vCMP systems
For failover configuration, an alternative to using load-aware failover or an ordered list is to use HA groups.
An HA group is a specification of certain pools or host trunks (or any combination of these) that a guest
administrator associates with a traffic group instance. The most common reason to configure an HA group
is to ensure that failover is triggered when some number of trunk members become unavailable.
The BIG-IP® system uses an HA group to calculate an overall health score for the instance of a traffic group
on a guest. The instance of a traffic group that has the best overall score at any given time becomes or
remains the active traffic group instance. With an HA group, the system triggers failover of a traffic group
based on changes to trunk or pool health instead of on system, gateway, or VLAN failure.
Because trunks and HA groups are never synchronized among guests as part of a config sync operation,
you must assign a separate HA group to each traffic group instance. For example, you could create
ha_group_A to reference the host trunk my_trunk and assign the HA group to traffic-group-1 on
guest_A. You could then create another HA group, ha_group_B, to also reference my_trunk and assign
the HA group to the same traffic group (traffic-group-1)on guest_B.
About connection mirroring for vCMP systems
Connection mirroring is a device service clustering (DSC®) feature that allows a device to mirror its
connection and persistence information to another device. Connection mirroring prevents interruption in
service during failover. On a vCMP system, the devices that mirror their connections to each other are
virtual devices (vCMP guests).
Within any Sync-Failover device group on a vCMP system, connection mirroring can only be implemented
between exactly two guests, and the two guests must reside on separate hardware devices and be
homogeneous. The term homogeneous normally refers to platforms that are the same model of hardware,
but in the context of vCMP, the term refers to guests that are equivalent in terms of resource allocation; that
is, the guests have the same number of cores allocated to them.
33
Chapter
5
Initial vCMP Configuration Tasks
•
•
•
•
Overview: vCMP application volume
management
vCMP host administrator tasks
vCMP guest administrator tasks
Configuration results
Initial vCMP Configuration Tasks
Overview: vCMP application volume management
The BIG-IP® system allocates all but 30 gigabytes of the total disk space to the vCMP® application volume.
Known as the reserve disk space, the remaining 30 gigabytes of disk space are left available for other uses,
such as for installing additional versions of the BIG-IP system in the future. The vCMP disk space allocation,
as well as the creation of the reserve disk space, occurs when you initially provision the vCMP feature as
part of vCMP host configuration.
If you want the system to reserve more than the standard 30 gigabytes of disk space for non-vCMP uses,
you must do this prior to provisioning the vCMP feature. Adjusting the reserved disk space after you have
provisioned the vCMP feature can produce unwanted results.
Important: When increasing the reserve disk space for additional BIG-IP installations, the recommended
amount of space to reserve is 8 gigabytes per installation.
Viewing disk space allocation for a vCMP application volume
Using this procedure, you can view the amount of disk space, in megabytes, that the system has allocated
to a vCMP application volume.
1. In the URL field, type the management IP address that you previously assigned to the chassis.
https://<ip_address>
The browser displays the login screen for the BIG-IP Configuration utility.
2. On the Main tab, click System > Disk Management.
The display shows the logical disks and application volumes from the perspective of the vCMP host.
3. Click the logical disk for which you want to reserve disk space.
An example of a logical disk is HD1.
4. On the menu bar, click Image List if displayed.
The screen displays a list of the installed images on the system.
5. If a list of images appears, locate the relevant image, and in the Disk column, click the logical disk name.
6. In the Contained Application Volumes area of the screen, in the Volume column, locate the vCMP
application volume.
7. In the Size (MB) column, view the size of the application volume, in megabytes.
Modifying disk space allocation for a vCMP application volume
When you provision the BIG-IP system for vCMP, the BIG-IP system dedicates all but 30 gigabytes of disk
space to running the vCMP feature. (The 30 gigabytes of reserved disk space protects against any possible
resizing of the file system.) Before provisioning the vCMP feature, you can reserve additional space for a
logical disk. Use this procedure if you decide that you need to change the amount of disk space (in megabytes)
that the system allocates to a vCMP application volume.
1. In the URL field, type the management IP address that you previously assigned to the chassis.
https://<ip_address>
The browser displays the login screen for the BIG-IP Configuration utility.
36
vCMP® for Appliance Models: Administration
2. On the Main tab, click System > Disk Management.
The display shows the logical disks and application volumes from the perspective of the vCMP host.
3. Click the logical disk for which you want to reserve disk space.
An example of a logical disk is HD1.
4. On the menu bar, click Image List if displayed.
The screen displays a list of the installed images on the system.
5. If a list of images appears, locate the relevant image, and in the Disk column, click the logical disk name.
6. In the Reserved (MB) field, increase the amount of disk space that you want to reserve for the logical
disk.
The more space your reserve, the less disk space is available for the vCMP application volume.
7. Click Update.
vCMP host administrator tasks
As a vCMP® host administrator, you have the important task of initially planning the amount of total system
CPU and memory that you want the vCMP host to allocate to each guest. This decision is based on the
resource needs of the particular BIG-IP® modules that guest administrators intend to provision within each
guest, as well as the maximum system resource limits for the relevant hardware platform. Thoughtful
resource allocation planning prior to creating the guests ensures optimal performance of each guest. Once
you have determined the resource allocation requirements for the guests, you are ready to configure the
host. Overall, your primary duties are to provision the vCMP feature and to create and manage guests,
ensuring that the proper system resources are allocated to those guests.
Task summary
Accessing the vCMP host
Performing this task allows you to access the vCMP host. Primary reasons to access the host are to create
and manage vCMP® guests, manage virtual disks, and view or manage host and guest properties. You can
also view host and guest statistics.
1. From a system on the external network, display a browser window.
2. In the URL field, type the management IP address that you previously assigned to the system, as follows:
https://<ip_address>
The browser displays the login screen for the BIG-IP® Configuration utility.
Provisioning the vCMP feature
Before performing this task, ensure that the amount of reserve disk space that the provisioning process
creates is sufficient. Attempting to adjust the reserve disk space after you have provisioned the vCMP®
feature produces unwanted results.
Performing this task creates the vCMP host (the hypervisor) and dedicates most of the system resources to
running vCMP.
37
Initial vCMP Configuration Tasks
Warning: If the system currently contains any BIG-IP® module configuration data, this data will be deleted
when you provision the vCMP feature.
1.
2.
3.
4.
On the Main tab, click System > Resource Provisioning.
Verify that all BIG-IP modules are set to None.
From the vCMP list, select Dedicated.
Click Update.
After provisioning the vCMP feature, the system reboots TMOS® and prompts you to log in again. This
action logs you in to the vCMP host, thereby allowing you to create guests and perform other host
configuration tasks.
Creating a vCMP guest
Before creating a guest on the system:
•
•
Verify that you have configured the base network on the system to create any necessary trunks, as well
as VLANs for guests to use when processing application traffic.
If you plan to enable the Appliance Mode setting for the guest, verify that the vCMP license on the
host does not specify appliance mode; if appliance mode is specified in the vCMP license, the feature
is applied system-wide to the host and to all guests on the system, instead of on a per-guest basis.
You create a vCMP guest when you want to create an instance of the BIG-IP software for the purpose of
running one or more BIG-IP® modules to process application traffic. For example, you can create a guest
that runs BIG-IP® Local Traffic Manager™ and BIG-IP® Global Traffic Manager™. When creating a guest,
you specify the number of cores that you want the vCMP host to allocate to each guest.
Note: When creating a guest, if you see an error message such as Insufficient disk space on
/shared/vmdisks. Need 24354M additional space., you must delete existing unattached
virtual disks until you have freed up that amount of disk space.
1. Use a browser to log in to system, using the management IP address.
This logs you in to the vCMP® host.
2. On the Main tab, click vCMP > Guest List.
This displays a list of vCMP guests on the system.
3. Click Create.
4. From the Properties list, select Advanced.
5. In the Name field, type a name for the guest.
6. In the Host Name field, type a fully-qualified domain name (FQDN) name for the guest.
If you leave this field blank, the system assigns the name localhost.localdomain.
7. From the Cores Per Guest list, select the number of cores that you want the host to allocate to the guest.
8. From the Management Network list, select a value:
•
•
If you want the guest to be connected to the management network, select the recommended value,
Bridged.
If you do not want the guest to be connected to the management network, select Isolated.
Important: If you select Isolated, do not enable the Appliance Mode setting when you initially
create the guest. For more information, see the step for enabling the Appliance Mode setting.
Selecting Bridged causes the IP Address setting to appear.
38
vCMP® for Appliance Models: Administration
9. For the Management Port setting, fill in the required information:
a) In the IP Address field, type a unique management IP address that you want to assign to the guest.
You use this IP address to access the guest when you want to manage the BIG-IP modules running
within the guest.
b) In the Network Mask field, type the network mask for the management IP address.
c) In the Management Route field, type a gateway address for the management IP address.
Important: Assigning an IP address that is on the same network as the host management port has
security implications that you should carefully consider.
10. From the Initial Image list, select an ISO image file for installing TMOS® software onto the guest's
virtual disk.
11. In the Virtual Disk list, retain the default value of None.
Note that if an unattached virtual disk file with that default name already exists, the system displays a
message, and you must manually attach the virtual disk. You can do this using the tmsh command line
interface, or use the Configuration utility to view and select from a list of available unattached virtual
disks.
The BIG-IP system creates a virtual disk with a default name (the guest name plus the string .img, such
as guestA.img).
12. For the VLAN List setting, select both an internal and an external VLAN name from the Available list,
and use the Move button to move the VLAN names to the Selected list.
The VLANs in the Available list are part of the vCMP host configuration.
After you create the guest, the guest can use the selected VLANs to process application traffic.
13. From the Requested State list, select Provisioned.
After the guest is created, the vCMP host allocates all necessary resources to the guest, such as cores
and virtual disk.
14. If you want to enable Appliance mode for the guest, select the Appliance Mode check box.
Warning: Before enabling this feature on an isolated guest, you must perform some prerequisite tasks,
such as creating a self IP address on the guest. Failure to perform these prerequisite tasks will make
the guest unreachable by all host and guest administrators. Therefore, you must create the isolated guest
with Appliance mode disabled, perform the prerequisite tasks, and then modify the guest to enable this
setting. For more information, see the relevant appendix of this guide.
When you enable Appliance Mode for a guest, the system enhances security by denying access to the
root account and the Bash shell for all administrators.
15. Click Finish.
The system installs the selected ISO image onto the guest's virtual disk and displays a status bar to show
the progress of the resource allocation.
You now have a new vCMP guest on the system that a guest administrator can access to provision and
configure BIG-IP modules.
Setting a vCMP guest to the Deployed state
Setting a guest to the Deployed state enables a guest administrator to then provision and configure the
BIG-IP® modules within the guest.
39
Initial vCMP Configuration Tasks
Warning: For any isolated guest with Appliance mode enabled, you must first perform some additional
tasks before deploying the guest. For more information, see the relevant appendix of this guide.
1. Ensure that you are logged in to the vCMP host.
2. On the Main tab, click vCMP > Guest List.
This displays a list of vCMP guests on the system.
3. In the Name column, click the name of the vCMP guest that you want to deploy.
4. From the Requested State list, select Deployed.
5. Click Update.
After moving a vCMP® guest to the Deployed state, a guest administrator can provision and configure the
BIG-IP modules within the guest so that the guest can begin processing application traffic.
vCMP guest administrator tasks
The primary duties of a vCMP® guest administrator are to provision BIG-IP® modules within the guest and
configure any self IP addresses that the guest needs for processing application traffic. The guest administrator
must also configure all BIG-IP modules, such as creating virtual servers and load balancing pools within
BIG-IP Local Traffic Manager™ (LTM).
Optionally, a guest administrator who wants a redundant system configuration can create a device group
with the peer guests as members.
Provisioning BIG-IP modules within a guest
Before a guest administrator can access a guest to provision licensed BIG-IP® modules, the vCMP® guest
must be in the Deployed state.
To run BIG-IP modules within a guest, the guest administrator must first provision them. For example, a
guest administrator for guestA who wants to run LTM® and GTM™ must log into guestA and provision
the LTM and GTM modules.
Note: For guests that are isolated from the management network, you must access them using a self IP
address instead of a management IP address.
1. Open a browser, and in the URL field, specify the management IP address that the host administrator
assigned to the guest.
2. At the login prompt, type the default user name admin, and password admin, and click Log in.
The Setup utility screen opens.
3. Click Next.
This displays the Resource Provisioning screen.
4. For each licensed BIG-IP module in the list, select the check box and select Minimal, Nominal, or
Dedicated.
5. Click Next.
This displays the Certificate Properties screen.
6. Click Next.
This displays some general properties of the guest.
7. Click Next.
40
vCMP® for Appliance Models: Administration
This displays the screen for specifying the guest's cluster member IP addresses.
8. Click Next.
9. Click Finished.
Creating a self IP address for application traffic
A vCMP® guest administrator creates a self IP address within a guest, assigning a VLAN to the address in
the process. The self IP address serves as a hop for application traffic destined for a virtual server configured
within the guest. On a standalone system, the self IP address that a guest administrator creates is a static
(non-floating) IP address. Note that the administrator does not need to create VLANs within the guest;
instead, the VLANs available for assigning to a self IP address are VLANs that a host administrator previously
created on the vCMP host.
1. On the Main tab of the BIG-IP Configuration utility, click Network > Self IPs.
The Self IPs screen opens.
2. Click Create.
The New Self IP screen opens.
3. In the Name field, type a unique name for the self IP.
4. In the IP Address field, type an IPv4 or IPv6 address.
This IP address should represent the address space of the VLAN that you specify with the VLAN/Tunnel
setting.
5. In the Netmask field, type the network mask for the specified IP address.
6. From the VLAN/Tunnel list, select the VLAN to associate with this self IP address.
•
•
On the internal network, select the VLAN that is associated with an internal interface or trunk.
On the external network, select the VLAN that is associated with an external interface or trunk.
7. From the Port Lockdown list, select Allow Default.
8. Click Finished.
The screen refreshes, and displays the new self IP address.
After creating a self IP address, the BIG-IP system can send and receive traffic destined for a virtual server
that allows traffic through the specified VLAN.
Next steps
After all guests are in the Deployed state, each individual guest administrator can configure the appropriate
BIG-IP modules for processing application traffic. For example, a guest administrator can use BIG-IP®
Local Traffic Manager™ (LTM®) to create a standard virtual server and a load-balancing pool. Optionally,
if guest redundancy is required, a guest administrator can set up device service clustering (DSC®).
Another important task for a guest administrator is to create other guest administrator accounts as needed.
Important: If the guest has an isolated (rather than bridged) management network, you must grant access
to the Traffic Management Shell (tmsh) to all guest administrator accounts. Otherwise, guest administrators
have no means of logging in to the guest, due to the lack of access to the management network.
41
Initial vCMP Configuration Tasks
Configuration results
After you and all guest administrators have completed the initial configuration tasks, you should have a
system provisioned for vCMP, with one or more guests ready to process application traffic.
When logged in to the vCMP host, you can see the VLANs and trunks configured on the system, as well
as all of the guests that you created, along with their virtual disks. You can also see the number of cores
that the host allocated to each guest.
When logged in to a guest, the guest administrator can see one or more BIG-IP® modules provisioned and
configured within the guest to process application traffic. If the guest administrator configured device service
clustering (DSC®), the guest is a member of a device group.
42
Chapter
6
Managing vCMP Virtual Disks
•
•
Overview: Managing vCMP virtual disks
Deleting a virtual disk from the BIG-IP
system
Managing vCMP Virtual Disks
Overview: Managing vCMP virtual disks
A virtual disk is the portion of disk space that the system has allocated to a guest. Each virtual disk is
implemented as an image file with an .img extension, such as guest_A.img.
The vCMP® system automatically creates a virtual disk when you create a vCMP guest. However, after you
have created and deployed all guests, you can manage the virtual disks on the system as a way to optimize
performance. You must be logged into the vCMP host to manage virtual disks on the system.
Using the BIG-IP® Configuration utility or the Traffic Management Shell (tmsh), you can delete virtual
disks on the system as a way to optimize disk space.
About virtual disk allocation
On the vCMP system, the host assigns a fixed amount of disk space (100 gigabytes) for each guest. This
amount of available disk space per guest remains fixed regardless of the number of cores that you configure
for that guest. For example, allocating two cores to guest_A provides the same amount of available disk
space for the guest as allocating four cores to the guest.
Note that you cannot explicitly create virtual disks; instead, the BIG-IP® system creates virtual disks when
the guest changes to a Provisioned or Deployed state. You can create a guest that remains in the Configured
state, but in this case, the guest has no virtual disk allocated to it.
About virtual disk images
A virtual disk is in the form of an image that resides in the /shared/vmdisks directory. The default file
name that the BIG-IP® system initially assigns to a virtual disk is the guest name plus a .img extension (for
example, guestA.img). You identify and manage virtual disks on the system using these file names.
About virtual disk detachment and re-attachment
When a vCMP® guest has no virtual disk and moves from the Configured state to the Provisioned state, the
system creates a virtual disk and attaches the disk to the guest. This attachment ensures that only that guest
can use the virtual disk. A guest can have only one virtual disk attached to it at any one time.
A virtual disk can become unattached from a guest when you perform one of these actions:
•
•
Delete a guest.
Change the Virtual Disk property of the guest to None. Note that to perform this action, you must first
change the guest state to Configured.
With either of these actions, the system retains the virtual disks on the system for future use.
You can attach an existing, unattached virtual disk to a new guest that you create. Attaching an existing
virtual disk to a newly-created guest saves the BIG-IP® system from having to create a new virtual disk for
the guest.
44
vCMP® for Appliance Models: Administration
Detaching virtual disks from a vCMP guest
Before you can detach a virtual disk from a guest, you must be logged into the vCMP host. Also, you must
change the Requested State property on the guest to Configured.
You can detach a virtual disk from the guest, but retain the virtual disk on the BIG-IP® system so that you
can attach it to another guest later.
Important: Unattached virtual disks consume disk space on the system. To prevent unattached virtual disks
from depleting available disk space, routinely monitor the number of unattached virtual disks that exist on
the system.
1. On the Main tab, click vCMP > Guest List.
This displays a list of vCMP guests on the system.
2. In the Name column, locate the relevant guest name, and to the left of the name, select the check box.
3. Click the Configured button.
4. In the Name column, click the guest name.
5. From the Virtual Disk list, select the default value, None.
6. Click Update.
The vCMP guest no longer has any virtual disk attached to it.
Viewing virtual disks not attached to a vCMP guest
Before you can view unattached virtual disks, you must be logged into the vCMP host.
You can view virtual disks that are not attached to a vCMP® guest so that you can monitor virtual disks that
might be unused but still consuming disk space.
1. On the Main tab, click vCMP > Virtual Disk List.
2. Locate the Virtual Disk List area of the screen.
3. To the right of the list of virtual disk names, note any disks that do not have any guest names associated
with them. These disks are unattached.
Attaching a detached virtual disk to a vCMP guest
Before you begin this task, ensure that:
•
•
•
You are logged into the vCMP® host.
The guest to which you are attaching the virtual disk is in the Configured state.
The virtual disk is not currently be attached to another guest.
It is possible for a virtual disk to become detached from a vCMP guest. A disk that is no longer attached to
a guest is known as an unattached virtual disk.
You can attach an unattached virtual disk to another guest either when you create the guest or when you
modify the Virtual Disk property of a guest.
1. On the Main tab, click vCMP > Guest List.
This displays a list of vCMP guests on the system.
2. In the Name column, click the name of the vCMP guest that you want to view.
3. From the Properties list, select Advanced.
45
Managing vCMP Virtual Disks
4. From the Virtual Disk list, select a file name.
The guest uses the newly-selected virtual disk when being deployed.
5. Click Update.
Deleting a virtual disk from the BIG-IP system
Before deleting a virtual disk, ensure that you are logged into the vCMP host.
Using the BIG-IP® Configuration utility, you can delete a virtual disk from the system.
Important: This is the only way to delete a virtual disk from the system. If you delete the associated guest
instead, the system retains the virtual disk for re-use by another guest later.
On the Main tab, click vCMP > Virtual Disk List.
Locate the Virtual Disk List area of the screen.
In the Name column, locate the name of the virtual disk that you want to delete.
To the left of the virtual disk name, select the check box.
Click Delete.
The system prompts you to confirm the delete action.
6. Click Delete.
1.
2.
3.
4.
5.
46
Chapter
7
Viewing vCMP Statistics
•
•
•
•
Overview: Viewing vCMP statistics
Viewing virtual disk statistics
Viewing vCMP guest statistics with the
BIG-IP Configuration utility
Viewing disk usage statistics
Viewing vCMP Statistics
Overview: Viewing vCMP statistics
After creating vCMP® guests to process application traffic, you can display vCMP guest statistics to better
manage performance.
Viewing virtual disk statistics
Before viewing virtual disk statistics, you must be logged in to the vCMP host.
Using the BIG-IP® Configuration utility, you can view information about the virtual disks that are currently
allocated to vCMP® guests:
•
•
•
The virtual disk names
The size in gigabytes of each virtual disk
The name of the guest to which each virtual disk is currently allocated
1. On the Main tab, click vCMP > Virtual Disk List.
2. Locate the Virtual Disk List area of the screen.
The following table shows sample statistics for three separate virtual disks.
Virtual Disk Name
Operating System
Status
Disk use
GuestA.img
TMOS
Ready
64.4G
GuestB.img
Unknown
Unknown
64.4G
GuestC.img
TMOS
Ready
64.4G
Viewing vCMP guest statistics with the BIG-IP Configuration utility
Before viewing guest statistics, you must be logged in to the vCMP host.
Using the BIG-IP® Configuration utility, you can list the names of, and information about, the vCMP®
guests that are currently on the system.
1. Log out of the guest.
2. On an external system, open a browser window and access the vCMP host, using the vCMP host's
management IP address.
3. Using your user credentials, log in to the BIG-IP Configuration utility.
4. On the Main tab, click vCMP.
The system displays a list of vCMP guest names, as well as this information:
•
•
48
The state configured for the guest
The guest's management IP address and netmask
vCMP® for Appliance Models: Administration
Viewing disk usage statistics
Before viewing disk usage statistics, you must be logged in to the vCMP host.
Using the BIG-IP® Configuration utility, you can view information about the vCMP® disk usage:
•
•
•
•
Disk name
The number of virtual disks
The total vCMP application volume size, in gigabytes
The available vCMP application volume size, in gigabytes
1. On the Main tab, click vCMP > Virtual Disk List.
2. Locate the Disk Usage area of the screen.
49
Appendix
A
Additional Tasks for Isolated Guests in Appliance Mode
•
Additional tasks for isolated guests in
Appliance mode
Additional Tasks for Isolated Guests in Appliance Mode
Additional tasks for isolated guests in Appliance mode
To ensure that guest administrators can access an isolated guest and manage the BIG-IP® software within
the guest, you must create the isolated guest with Appliance mode disabled, perform some additional tasks,
and then modify the guest to enable Appliance mode. These additional tasks are:
•
•
Creating a self IP address for guest administrators to use to access the guest, and granting tmsh access
to the guest's admin user account.
Enabling Appliance mode on the guest.
After performing these tasks, administrators for an isolated guest are restricted to using either the BIG-IP®
Configuration utility or tmsh to manage BIG-IP modules within the guest (when port lockdown settings
on the self IP address allow such traffic).
Additional Tasks for Isolated Guests in Appliance Mode
Preparing an isolated guest for Appliance mode
Enabling Appliance mode on an isolated guest
Preparing an isolated guest for Appliance mode
You use this task to prepare an isolated guest to operate in Appliance mode. Specifically, you use this task
to:
•
•
Grant access to the Traffic Management Shell (tmsh) for the admin user account within a vCMP® guest.
Because the admin user for an isolated guest in Appliance mode is restricted to using tmsh, you must
first grant the admin account permission to use tmsh. By default, the admin account for a guest has no
access to tmsh.
Create a self IP address for guest administrators to use to access the guest. This is necessary because an
isolated guest is not connected to the management network and therefore has no management IP address
assigned to it.
You perform this task by accessing the guest from the vCMP® host.
1. From the vCMP host, access the Bash shell by typing vconsole guest_name.
For example, you can type vconsole guest_A
The system prompts you to enter a user name and password.
2. Log in to the guest using the root account and the password default.
A system prompt is displayed.
3. Type the command tmsh modify auth user admin shell tmsh.
This command grants tmsh access to the admin user account.
4. Type the command tmsh create net self address ip_address/netmask vlan vlan_name
allow-service default.
This creates the specified IP address on the guest and makes required adjustments to the port lockdown
settings.
5. At the prompt, exit the guest by typing exit.
6. Exit the vConsole utility by typing the key sequence ctrl-].
This displays the prompt telnet>.
7. Type q.
Additional tasks for isolated guests in Appliance mode
52
vCMP® for Appliance Models: Administration
Enabling Appliance mode on an isolated guest
You use this task to enable Appliance mode on an existing guest that is isolated from the management
network.
Note: You can perform this task while the guest is in the Deployed or Provisioned state; there is no need
to set the guest state to Configured prior to performing this task.
1. Use a browser to log in to the vCMP® host, using the primary cluster management IP address.
Note: If you provisioned the system for vCMP®, this step logs you in to the vCMP host.
2. On the Main tab, click vCMP > Guest List.
This displays a list of vCMP guests on the system.
3. In the Name column, click the name of the guest that you want to modify.
This displays the configured properties of the guest.
4. For the Appliance Mode setting, select the check box.
When you enable Appliance Mode for an isolated guest, the system enhances security by denying access
to the root account and the Bash shell for all guest administrators.
5. Click Update.
The guest is now running in Appliance mode. All guest administrators are restricted to using the BIG-IP®
Configuration utility and tmsh to manage the guest.
Additional tasks for isolated guests in Appliance mode
53
Index
Index
A
access control
administrative 14
administrator tasks 14, 37
admin user account
modifying 52
allocation
for vCMP application volume 36
Appliance mode
additional tasks 52
and boot locations 16
and user access restrictions 16
enabling on existing guest 53
Appliance mode types
described 16
audience 14
B
BIG-IP instances 12
BIG-IP modules
and guest states 29
provisioning 13–14
provisioning within guests 40
BIG-IP version requirements 16
bridged guests
described 15
Bridged mode
described 20
CPU cores
and guest states 29
D
data plane 14
Deployed guest state
purpose of 39
Deployed state
described 29
next steps 41
device groups
for vCMP systems 32
device trust IP addresses 32
disk space
and vCMP application volume 36
and vCMP provisioning 37
modifying 36
reserving 12–13
viewing 36
disk space allocation
about 44
disk usage 49
E
Ethernet connection
sharing 20
Ethernet interface
of host 15
C
F
cluster availability
and vCMP guests 33
components 13
config sync
for vCMP systems 32
config sync IP addresses 32
configuration data
and vCMP provisioning 37
Configured state
and disk attachment 44
described 29
connection mirroring
on vCMP systems 33
control plane 14
core allocation
based on appliance model 28
explained 29
on solid-state platforms 29
cores
as system resource 28
defined 13
CPU allocation
based on appliance model 28
explained 29
failover
for vCMP systems 32–33
on vCMP systems 33
failover IP addresses 32
failover methods
for vCMP systems 33
flexible resource allocation
defined 28
floating IP addresses
configuring 37
front-panel management port 20
G
guest access
with vconsole utility 15
guest administrators
about 14
duties of 14
guest failover 33
guest interfaces
bridging to physical interface 15
guests
about 12
55
Index
guests (continued)
additional tasks 52
and management network 20
and resource requirements 28
and virtual disks 44
configuring BIG-IP modules on 41
configuring for LTM 48
creating 38
provisioning BIG-IP modules for 40
setting to Deployed state 39
guest states
described 29
guest tasks 40
guest-to-external-network communication 20
guest-to-guest communication 20
guest-to-host TCP communication 20
guest-to-vCMP host communication 20
guest VLANs
removing subscription from host 25
H
HA groups
for vCMP systems 33
hardware resources
sharing for SSL and compression 29
high availability
about 14
for vCMP systems 32
host
about 12
host administrators
about 14
host administrator tasks 37
host VLANs
publishing to guests 25
hypervisors 12
I
instances 12
IP addresses
for DSC 32
ISO images
and guest states 29
isolated guests
accessing 40
additional tasks 52
and Appliance mode 53
described 15
Isolated mode
described 20
L
Layer 2/Layer 3 configuration 21
licensing
and Appliance mode 16
and guests 13
56
M
MAC addresses 20
management gateways 20
management interfaces
bridging 20
on guests 14
management IP addresses
configuring 37
management network
and bridged guests 15
and connection to guests 15
and guests 20
and isolated guests 15
vs. data plane network 14
management ports 20
memory allocation
based on appliance model 28
explained 29
mirroring
on vCMP systems 33
mirroring IP addresses 32
modes
of guests 20
module configuration 41
N
network, See management network
network configuration
host vs. guest 21
network isolation 14
network modes
about 20
network state
changing 15
P
pool availability
and vCMP guests 33
pools
for BIG-IP modules 41
Provisioned state
described 29
provisioning
for vCMP feature 37
provisioning process 13
R
redundancy
for vCMP systems 32
resource allocation
and guest states 29
based on appliance model 28
defined 28
explained 29
on solid-state platforms 29
resource requirements
understanding 28
Index
resources
allocating 13
S
self IP address configuration 21
self IP addresses
and VLANs 41
creating 41
size
of vCMP application volume 36
solid-state drives
and core allocation 29
statistics
and disk usage 49
viewing for guests/virtual disks 48
system administrator tasks 37
system components 13
system provisioning
for vCMP feature 37
system resources
allocating 13
and host allocation 28
T
tag discrepancy, VLANs
between host and guest 24
tags, VLANs
changing 25
identical 22
non-matching 23
resolving discrepancies 24
TCP connections
to vCMP host or guest 20
tmsh access
granting 52
trunk availability
and vCMP guests 33
trunk configuration 21
trunks
about 14
U
user access restrictions 16
user account permissions 15
V
vCMP application volume
and disk space 36
and disk space allocation 36
vCMP configuration results 42
vCMP feature
provisioning 13–14
vCMP guests, See guests
vCMP host
accessing 37
vCMP host-to-guest TCP connections 20
vCMP systems
provisioning 12, 37
vconsole utility 15
version requirements 16
virtual disks
about 44
and guest states 29
as system resource 28
attaching 45
defined 13
deleting 46
detaching and re-attaching 44–45
file names and location of 44
viewing unattached 45
virtual disk statistics
viewing 48
virtual interfaces
bridging to physical interface 15
virtual servers
for BIG-IP modules 41
VLAN configuration
and vCMP host 21
VLANs
about 14
about publishing strategy 21
about tag discrepancy solution 24
and self IP addresses 41
deleting within the guest 24
overview of subscription 21
publishing to guests 25
removing publication on the guest 25
viewing within guests 26
with identical name but different tags 23
with identical tags but different names 22
VLAN tags
changing 25
VMs
disconnecting 20
volumes, See vCMP application volume
