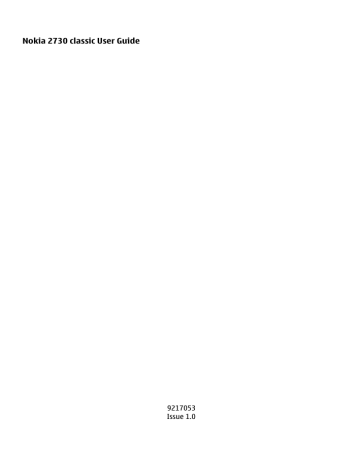

Nokia 2730 classic User Guide
9217053
Issue 1.0
2
Contents
Contents
Safety
4
Get started
Insert SIM card and battery
Insert a microSD card
Remove the microSD card
Charge the battery
Antenna
Headset
Magnets and magnetic fields
Keys and parts
Switch on and off
Volume control
Standby mode
Keypad lock
Functions without a SIM card
Applications running in background
5
5
5
6
6
7
7
7
8
8
8
9
9
9
10
General information
About your device
Network mode
Network services
Shared memory
Access codes
Software updates using your PC
Support
11
11
11
11
12
12
12
13
Calls
Make and answer a call
Loudspeaker
Dialling shortcuts
14
14
14
14
Write text
Text modes
Traditional text input
Predictive text input
15
15
15
15
Navigate the menus
16
2
Messaging
Text and multimedia messages
Flash messages
Nokia Xpress audio messages
E-mail
Instant messaging
Voice messages
Message settings
17
17
18
18
18
19
19
19
Contacts
20
Call log
21
Settings
Profiles
Tones
Display
Date and time
Shortcuts
Synchronisation and backup
Connectivity
Call and phone
Voice commands and voice dialling
Enhancements
Configuration
Restore factory settings
22
22
22
22
22
22
23
23
24
25
26
26
26
Operator menu
27
Gallery
28
Media
Camera and video
FM radio
Voice recorder
Music player
29
29
29
30
30
Applications
32
Organiser
Alarm clock
Calendar and to-do list
33
33
33
© 2009 Nokia. All rights reserved.
Contents
Maps
Download maps
Maps and GPS
Extra services
35
35
36
36
Web or Internet
Connect to a web service
37
37
SIM services
38
Green tips
Save energy
Recycle
Learn more
39
39
39
39
Accessories
40
Battery
Battery and charger information
Nokia battery authentication
guidelines
40
40
Taking care of your device
Recycle
41
42
Additional safety information
Small children
Operating environment
Medical devices
Vehicles
Potentially explosive environments
Emergency calls
Certification information (SAR)
MANUFACTURER’S LIMITED
WARRANTY
42
42
42
42
42
42
43
43
Index
46
© 2009 Nokia. All rights reserved.
3
41
43
3
4
Safety
Safety
Read these simple guidelines. Not following them may be dangerous or illegal. Read
the complete user guide for further information.
SWITCH ON SAFELY
Do not switch the device on when wireless phone use is prohibited or when
it may cause interference or danger.
ROAD SAFETY COMES FIRST
Obey all local laws. Always keep your hands free to operate the vehicle while
driving. Your first consideration while driving should be road safety.
INTERFERENCE
All wireless devices may be susceptible to interference, which could affect
performance.
SWITCH OFF IN RESTRICTED AREAS
Follow any restrictions. Switch the device off in aircraft, near medical
equipment, fuel, chemicals, or blasting areas.
QUALIFIED SERVICE
Only qualified personnel may install or repair this product.
ACCESSORIES AND BATTERIES
Use only approved accessories and batteries. Do not connect incompatible
products.
WATER-RESISTANCE
Your device is not water-resistant. Keep it dry.
4
© 2009 Nokia. All rights reserved.
Get started
5
Get started
Insert SIM card and battery
Safe removal. Always switch the device off and disconnect the charger before removing
the battery.
The SIM card and its contacts can be easily damaged by scratches or bending, so be
careful when handling, inserting, or removing the card.
1
2
3
4
Press and slide the back cover towards the bottom of the phone, and remove it (1).
Remove the battery (2).
Open the SIM card holder (3), insert the SIM card with the contact surface facing
down (4), and close the holder (5).
Insert the battery (6), and replace the back cover (7).
Insert a microSD card
Use only compatible microSD cards approved by Nokia for use with this device. Nokia
uses approved industry standards for memory cards, but some brands may not be fully
compatible with this device. Incompatible cards may damage the card and the device
and corrupt data stored on the card.
Your phone supports microSD cards with a capacity of up to 2 GB.
A compatible memory card may be supplied with the device, and may already be
inserted in the device. If not, do the following:
1
Open the cover of the memory card slot.
© 2009 Nokia. All rights reserved.
5
6
2
3
Get started
Insert the card into the memory card slot with the contact surface facing up, and
press until it locks into place.
Close the cover of the memory card slot.
Remove the microSD card
Important: Do not remove the memory card during an operation when the card is
being accessed. Doing so may damage the memory card and the device, and corrupt
data stored on the card.
You can remove or replace the memory card during phone operation without switching
the device off, but you need to ensure that no application is currently accessing the
memory card.
Charge the battery
Your battery has been partially charged at the factory. If the device indicates a low
charge, do the following:
1
Connect the charger to a wall outlet.
2
3
Connect the charger to the device.
When the device indicates a full charge, disconnect the charger from the device,
then from the wall outlet.
You do not need to charge the battery for a specific length of time, and you can use the
device while it is charging. If the battery is completely discharged, it may take several
minutes before the charging indicator appears on the display or before any calls can be
made.
6
© 2009 Nokia. All rights reserved.
Get started
7
Antenna
Your device may have internal and external antennas. Avoid touching the antenna area
unnecessarily while the antenna is transmitting or receiving. Contact with antennas
affects the communication quality and may cause a higher power level during operation
and may reduce the battery life.
The figure shows the antenna area marked in grey.
Headset
Warning:
When you use the headset, your ability to hear outside sounds may be affected. Do not
use the headset where it can endanger your safety.
When connecting any external device or any headset, other than those approved by
Nokia for use with this device, to the Nokia AV Connector, pay special attention to volume
levels.
Do not connect products that create an output signal as this may cause damage to the
device. Do not connect any voltage source to the Nokia AV Connector.
Magnets and magnetic fields
Keep your device away from magnets or magnetic fields.
© 2009 Nokia. All rights reserved.
7
8
Get started
Keys and parts
1
End/Power key
2
Earpiece
3
Display
4
Selection keys
5
Navi™ key; hereafter referred to as
scroll key
6
Call key
7
Keypad
8
Headset connector/Nokia AV Connector
(3.5 mm)
9
Charger connector
10
Camera lens
11
Micro USB connector
12
Loudspeaker
13
Microphone
14
Memory card slot
15
Wrist strap eyelet
Switch on and off
Press and hold the power key.
Volume control
Warning:
Continuous exposure to high volume may damage your hearing. Listen to music at a
moderate level, and do not hold the device near your ear when the loudspeaker is in
use.
8
© 2009 Nokia. All rights reserved.
Get started
9
To adjust the earpiece or loudspeaker volume during a call or when listening to an audio
file or the FM radio, scroll up or down.
Standby mode
When the phone is ready for use, and you have not entered any characters, the phone
is in the standby mode.
1
Network signal strength
2
Battery charge level
3
Network name or operator logo
4
Functions of selection keys
The left selection key, Go to, allows you to access the functions in your personal shortcut
list. When viewing the list, select Options > Select options to view the available
functions, or select Options > Organise to arrange the functions in your shortcut list.
Keypad lock
Lock the keypad
Select Menu, and press * within 3.5 seconds to lock the keypad.
Unlock the keypad
Select Unlock, and press * within 1.5 seconds. If the security keyguard is activated, enter
the security code when requested.
Set automatic keypad lock
Select Menu > Settings > Phone > Automatic keyguard > On, and set the length of
time, after which the keypad locks.
Answer a call when the keypad is locked
Press the call key. When you end or reject the call, the keypad locks automatically.
When the device or keypad is locked, calls may be possible to the official emergency
number programmed into your device.
Functions without a SIM card
Some functions of your phone may be used without inserting a SIM card, such as
Organiser functions and games. Some functions appear dimmed in the menus and
cannot be used.
© 2009 Nokia. All rights reserved.
9
10
Get started
Applications running in background
Leaving applications running in the background increases the demand on battery power
and reduces the battery life.
10
© 2009 Nokia. All rights reserved.
General information
11
General information
About your device
The wireless device described in this guide is approved for use on the (E)GSM 850, 900,
1800, and 1900 MHz networks, and UMTS 900/2100 networks. Contact your service
provider for more information about networks.
Your device may have preinstalled bookmarks and links for third-party internet sites
and may allow you to access third-party sites. These are not affiliated with Nokia, and
Nokia does not endorse or assume liability for them. If you access such sites, take
precautions for security or content.
Warning:
To use any features in this device, other than the alarm clock, the device must be
switched on. Do not switch the device on when wireless device use may cause
interference or danger.
When using this device, obey all laws and respect local customs, privacy and legitimate
rights of others, including copyrights. Copyright protection may prevent some images,
music, and other content from being copied, modified, or transferred.
Make back-up copies or keep a written record of all important information stored in
your device.
When connecting to any other device, read its user guide for detailed safety instructions.
Do not connect incompatible products.
The images in this guide may differ from your device display.
Refer to the user guide for other important information about your device.
Network mode
To select the type of network to use, select Menu > Settings > Phone > Network
mode. You cannot access this option during an active call.
Network services
To use the device you must have service from a wireless service provider. Some features
are not available on all networks; other features may require that you make specific
arrangements with your service provider to use them. Network services involve
transmission of data. Check with your service provider for details about fees in your
home network and when roaming on other networks. Your service provider can explain
what charges will apply. Some networks may have limitations that affect how you can
use some features of this device requiring network support such as support for specific
technologies like WAP 2.0 protocols (HTTP and SSL) that run on TCP/IP protocols and
language-dependent characters.
© 2009 Nokia. All rights reserved.
11
12
General information
Your service provider may have requested that certain features be disabled or not
activated in your device. If so, these features will not appear on your device menu. Your
device may also have customized items such as menu names, menu order, and icons.
Shared memory
The following features in this device may share memory: multimedia messaging (MMS),
e-mail application, instant messaging. Use of one or more of these features may reduce
the memory available for the remaining features. If your device displays a message that
the memory is full, delete some of the information stored in the shared memory.
Access codes
The security code helps to protect your phone against unauthorised use. The preset code
is 12345. You can create and change the code, and set the phone to request the code.
Keep the code secret and in a safe place separate from your phone. If you forget the
code and your phone is locked, your phone will require service and additional charges
may apply. For more information, contact a Nokia Care point or your phone dealer.
The PIN code supplied with the SIM card protects the card against unauthorised use.
The PIN2 code supplied with some SIM cards is required to access certain services. If you
enter the PIN or PIN2 code incorrectly three times in succession, you are asked for the
PUK or PUK2 code. If you do not have them, contact your service provider.
The module PIN is required to access the information in the security module of your SIM
card. The signing PIN may be required for the digital signature. The barring password
is required when using the call barring service.
To set how your phone uses the access codes and security settings, select Menu >
Settings > Security.
Software updates using your PC
Software updates may include new features and enhanced functions that were not
available at the time of purchase of your device. Updating the software may also
improve the device performance.
Nokia Software Updater is a PC application that enables you to update your device
software. To update your device software, you need a compatible PC, broadband
internet access, and a compatible USB data cable to connect your device to the PC.
To get more information, to check the release notes for the latest software versions,
and to download the Nokia Software Updater application, see www.nokia-asia.com/
softwareupdate or your local Nokia website.
To update the device software, do the following:
1
12
Download and install the Nokia Software Updater application to your PC.
© 2009 Nokia. All rights reserved.
General information
2
13
Connect your device to the PC using a USB data cable, and open the Nokia Software
Updater application. The Nokia Software Updater application guides you to back up
your files, update the software, and restore your files.
Support
When you want to learn more about how to use your product or you are unsure how
your device should function, see the user guide or see the support pages at
www.nokia.com/support or your local Nokia website, or with a mobile device,
www.nokia.mobi/support.
If this does not resolve your issue, do the following:
•
•
•
Restart the device: switch off the device, and remove the battery. After about a
minute, replace the battery, and switch on the device.
With the Nokia Software Updater application, update your device software regularly
for optimum performance and possible new features. See www.nokia-asia.com/
softwareupdate or your local Nokia website. Remember to back up your device data
before updating the device software.
Restore the original factory settings as explained in the user guide.
If the issue remains unsolved, contact Nokia for repair options. See www.nokiaasia.com/repair. Before sending your device for repair, always back up the data in your
device.
© 2009 Nokia. All rights reserved.
13
14
Calls
Calls
Make and answer a call
Make a call
Enter the phone number, including the country and area code if necessary, and press
the call key.
Answer an incoming call
Press the call key.
Reject a call
Press the end key.
Adjust the volume
During a phone call, scroll up or down.
Loudspeaker
If available, you may select Loudsp. or Handset to use the loudspeaker or the earpiece
of the phone during a call.
Dialling shortcuts
Assign a phone number to a number key
Select Menu > Contacts > Speed dials, scroll to a desired number (2-9), and select
Assign. Enter the desired phone number, or select Search and a saved contact.
Activate speed dialling
Select Menu > Settings > Call > Speed dialling > On.
Make a call using speed dialling
In the standby mode, press and hold the desired number key.
14
© 2009 Nokia. All rights reserved.
Write text
15
Write text
Text modes
To enter text (for example, when writing messages) you can use traditional or predictive
text input.
When you write text, press and hold Options to switch between traditional text input,
. Not all languages are
indicated by , and predictive text input, indicated by
supported by predictive text input.
The character cases are indicated by
,
, and
.
To change the character case, press #. To change from the letter to number mode,
indicated by
, press and hold #, and select Number mode. To change from the
number to the letter mode, press and hold #.
To set the writing language, select Options > Writing language.
Traditional text input
Press a number key, 2-9, repeatedly until the desired character appears. The available
characters depend on the selected writing language.
If the next letter you want is located on the same key as the present one, wait until the
cursor appears, and enter the letter.
To access the most common punctuation marks and special characters, press 1
repeatedly. To access the list of special characters, press *.
Predictive text input
Predictive text input is based on a built-in dictionary to which you can also add new
words.
1
2
Start writing a word, using the keys 2 to 9. Press each key only once for one letter.
To confirm a word, scroll right or add a space.
If the word is not correct, press * repeatedly, and select the word from the list.
If the ? character is displayed after the word, the word you intended to write is
not in the dictionary. To add the word to the dictionary, select Spell. Enter the
word using traditional text input, and select Save.
• To write compound words, enter the first part of the word, and scroll right to
confirm it. Write the last part of the word, and confirm the word.
Start writing the next word.
•
•
3
© 2009 Nokia. All rights reserved.
15
16
Navigate the menus
Navigate the menus
The phone functions are grouped into menus. Not all menu functions or option items
are described here.
In the standby mode, select Menu and the desired menu and submenu. Select Exit or
Back to exit the current level of menu. Press the end key to return to the standby mode
directly. To change the menu view, select Menu > Options > Main menu view.
16
© 2009 Nokia. All rights reserved.
Messaging
17
Messaging
You can read, write, send, and save text, multimedia, audio, and flash messages, and email. The messaging services can only be used if your network or service provider
supports them.
Text and multimedia messages
You can create a message and optionally attach, for example, a picture. Your phone
automatically changes a text message to a multimedia message when a file is attached.
Text messages
Your device supports text messages beyond the limit for a single message. Longer
messages are sent as two or more messages. Your service provider may charge
accordingly. Characters with accents, other marks, or some language options take more
space, and limit the number of characters that can be sent in a single message.
The total number of characters left and the number of messages needed for sending
are displayed.
To send messages, the correct message centre number must be stored in your device.
Normally, this number is set by default through your SIM card. To set the number
manually, select Menu > Messaging > Message settings > Text messages >
Message centres > Add centre, and enter a name and the number from the service
provider.
Multimedia messages
A multimedia message can contain text, pictures, and sound or video clips.
Only devices that have compatible features can receive and display multimedia
messages. The appearance of a message may vary depending on the receiving device.
The wireless network may limit the size of MMS messages. If the inserted picture exceeds
this limit, the device may make it smaller so that it can be sent by MMS.
Important: Exercise caution when opening messages. Messages may contain malicious
software or otherwise be harmful to your device or PC.
For availability and subscription to the multimedia messaging service (MMS), contact
your service provider. You may also download the configuration settings.
Create a text or multimedia message
1 Select Menu > Messaging > Create message > Message.
© 2009 Nokia. All rights reserved.
17
18
2
3
4
5
Messaging
To add recipients, scroll to the To: field, and enter the recipient’s number or e-mail
address, or select Add to select recipients from the available options. Select
Options to add recipients and subjects and to set sending options.
Scroll to the Text: field, and enter the message text.
To attach content to the message, scroll to the attachment bar at the bottom of the
display and select the desired type of content.
To send the message, press Send.
The message type is indicated at the top of the display and changes automatically
depending on the content of the message.
Service providers may charge differently depending on the message type. Check with
your service provider for details.
Flash messages
Flash messages are text messages that are instantly displayed upon reception.
1
2
To write a flash message, select Menu > Messaging > Create message > Flash
message.
Enter the recipient’s phone number, write your message (maximum 70 characters),
and select Send.
Nokia Xpress audio messages
Create and send an audio message using MMS in a convenient way.
1
2
3
4
Select Menu > Messaging > Create message > Audio message. The voice
recorder opens.
Record your message.
Enter one or more phone numbers in the To: field, or select Add to retrieve a
number.
To send the message, select Send.
E-mail
Access your POP3 or IMAP4 e-mail account with your device to read, write, and send email. Using the e-mail application to send an e-mail is not the same as sending an email as a text message.
Before you can use e-mail, ensure that you have the correct settings. You can sign up
for a new e-mail account or use an existing account, if your existing e-mail provider
allows mobile access to e-mail. The settings may be available from Nokia. Follow the
displayed instructions, or select your e-mail provider manually. To check the availability
and the settings of your e-mail account, contact your e-mail service provider. You may
receive the e-mail configuration settings as a configuration message.
18
© 2009 Nokia. All rights reserved.
Messaging
19
Access the e-mail application
Select Menu > Messaging and E-mail or an existing e-mail account.
Important: Exercise caution when opening messages. Messages may contain malicious
software or otherwise be harmful to your device or PC.
Instant messaging
With instant messaging (IM, network service) you can send short text messages to online
users. You must subscribe to a service and register with the IM service you want to use.
Check the availability of this service, pricing, and instructions with your service provider.
The menus may vary depending on your IM provider.
To connect to the service, select Menu > Messaging > IMs and follow the instructions
on the display.
Voice messages
The voice mailbox is a network service to which you may need to subscribe. For more
information, contact your service provider.
Call your voice mailbox
Press and hold 1.
Edit voice mailbox number
Select Menu > Messaging > Voice messages > Voice mailbox no..
Message settings
Select Menu > Messaging > Message settings and from the following:
General settings — Save copies of sent messages in your phone, overwrite old
messages if the message memory becomes full, and set up other preferences related to
messages.
Text messages — Allow delivery reports, set up message centres for SMS and SMS email, select the type of character support, and set up other preferences related to text
messages.
Multimedia messages — Allow delivery reports, set up the appearance of multimedia
messages, allow the reception of multimedia messages and advertisements, and set up
other preferences related to multimedia messages.
Service messages — Activate service messages and set up preferences related to
service messages.
© 2009 Nokia. All rights reserved.
19
20
Contacts
Contacts
Select Menu > Contacts.
You can save names and phone numbers in the phone memory and SIM card memory.
In the phone memory, you can save contacts with numbers and text items. Names and
.
numbers saved in the SIM card memory are indicated with
Add a contact
Select Names > Options > Add new contact.
Add details to a contact
Ensure that the memory in use is either Phone or Phone and SIM. Select Names, scroll
to the name, and select Details > Options > Add detail.
Search for a contact
Select Names, and scroll through the list of contacts, or enter the first letters of the
name.
Copy a contact between the phone memory and SIM card memory
Select Names, scroll to the contact, and select Options > Copy contact. In the SIM card
memory, you can save only one phone number for each name.
To select the SIM card or phone memory for your contacts, to select how the names and
numbers in the contacts list are displayed, and to view the memory capacity for contacts,
select Settings.
You can send and receive a person's contact information as a business card from a
compatible device that supports the vCard standard.
Send a business card
Select Names, search for the contact whose information you want to send, and select
Details > Options > Send business card.
20
© 2009 Nokia. All rights reserved.
Call log
21
Call log
To view the information on your calls, messages, data, and synchronisation, select
Menu > Log and from the available options.
Note: The actual invoice for calls and services from your service provider may vary,
depending on network features, rounding off for billing, taxes, and so forth.
© 2009 Nokia. All rights reserved.
21
22
Settings
Settings
Profiles
Your phone has various setting groups called profiles, which you can customise with
ringing tones for different events and environments.
Select Menu > Settings > Profiles, the desired profile, and from the following options:
Activate — to activate the selected profile
Personalise — to change the profile settings
Timed — to set the profile to be active for a certain time. When the time set for the
profile expires, the previous profile that was not timed becomes active.
Tones
You can change the tone settings of the selected active profile.
Select Menu > Settings > Tones. You can find the same settings in the Profiles menu.
Display
To view or adjust the wallpaper, font size, or other features related to the phone display,
select Menu > Settings > Display.
Date and time
Select Menu > Settings > Date and time.
Set the date and time
Select Date & time settings.
Set the date and time format
Select Date and time format.
Set the phone to update the time and date automatically according to the current
time zone
Select Auto-update of time (network service).
Shortcuts
With personal shortcuts, you can get quick access to frequently used phone functions.
Select Menu > Settings > My shortcuts.
22
© 2009 Nokia. All rights reserved.
Settings
23
Assign phone functions to the selection keys
Select Right selection key or Left selection key and a function from the list.
Select shortcut functions for the scroll key
Select Navigation key. Scroll to the desired direction, and select Change or Assign and
a function from the list.
Synchronisation and backup
Select Menu > Settings > Sync and backup and from the following:
Phone switch — Synchronise or copy selected data between your phone and another
phone using Bluetooth technology.
Create backup — Create a backup of selected data to the memory card or to an external
device.
Restore backup — Select a backup file stored on the memory card or on an external
device and restore it to the phone. Select Options > Details for information about the
selected backup file.
Data transfer — Synchronise or copy selected data between your phone and another
device, PC, or network server (network service).
Connectivity
Your phone has several features that allow you to connect to other devices to transmit
and receive data.
Bluetooth wireless technology
Bluetooth technology allows you to connect your phone, using radio waves, to a
compatible Bluetooth device within 10 metres (32 feet).
This device is compliant with Bluetooth Specification 2.0 + EDR supporting the following
profiles: generic access, hands-free, headset, object push, file transfer, dial-up
networking, serial port, SIM access, generic object exchange, advanced audio
distribution, audio video remote control, and generic audio video distribution. To
ensure interoperability between other devices supporting Bluetooth technology, use
Nokia approved accessories for this model. Check with the manufacturers of other
devices to determine their compatibility with this device.
Features using Bluetooth technology increase the demand on battery power and reduce
the battery life.
Set up a Bluetooth connection
Select Menu > Settings > Connectivity > Bluetooth and take the following steps:
1
Select My phone's name and enter a name for your phone.
© 2009 Nokia. All rights reserved.
23
24
2
3
4
Settings
To activate Bluetooth connectivity select Bluetooth > On.
indicates that
Bluetooth is active.
To connect your phone with an audio enhancement, select Connect audio
enhan. and the device that you want to connect to.
To pair your phone with any Bluetooth device in range, select Paired devices >
Add new device.
Scroll to a found device, and select Add.
Enter a passcode (up to 16 characters) on your phone and allow the connection on
the other Bluetooth device.
If you are concerned about security, turn off the Bluetooth function, or set My phone's
visibility to Hidden. Accept Bluetooth communication only from those you trust.
PC connection to the internet
Use Bluetooth technology to connect your compatible PC to the internet without PC Suite
software. Your phone must have activated a service provider that supports internet
access, and your PC has to support Bluetooth personal area network (PAN). After
connecting to the network access point (NAP) service of the phone, and pairing with
your PC, your phone automatically opens a packet data connection to the internet.
Packet data
General packet radio service (GPRS) is a network service that allows mobile phones to
send and receive data over an internet protocol (IP)-based network.
To define how to use the service, select Menu > Settings > Connectivity > Packet
data > Packet data conn. and from the following options:
When needed — to establish the packet data connection when an application needs
it. The connection is closed when the application is terminated.
Always online — to automatically connect to a packet data network when you switch
the phone on
You can use your phone as a modem by connecting it to a compatible PC using Bluetooth
technology. For details, see the Nokia PC Suite documentation.
Call and phone
Select Menu > Settings > Call.
Divert incoming calls
Select Call divert (network service). For details, contact your service provider.
Automatically redial ten times after an unsuccessful attempt
Select Automatic redial > On.
24
© 2009 Nokia. All rights reserved.
Settings
25
Get a notification of incoming calls while you are in a call
Select Call waiting > Activate (network service).
Display or hide your number to the person you are calling
Select Send my caller ID (network service).
Set the display language
Select Menu > Settings > Phone > Language settings > Phone language.
Voice commands and voice dialling
Use your phone by saying a voice command, and make a phone call by saying a name
saved in the contacts list.
Voice commands and voice dialling are language-dependent. Voice recognition is not
supported in all languages. To see which languages are supported, select Menu >
Settings > Phone > Language settings > Recognition lang.. To set the recognition
language, select the desired language.
Note: Using voice tags may be difficult in a noisy environment or during an emergency,
so you should not rely solely upon voice dialling in all circumstances.
Train the voice recognition of your phone to your voice
Select Menu > Settings > Phone > Voice recognition > Voice recog. training.
Activate a voice command for a function
Select Menu > Settings > Phone > Voice recognition > Voice commands, a feature,
and the function.
indicates that the voice command is activated.
Play the activated voice command
Scroll to the desired function, and select Play.
Manage the voice commands
Scroll to a function, and select Options.
Use voice commands or voice dialling
In the standby mode, press and hold the right selection key. A short tone sounds, and
Speak now is displayed. Say the command or the name of the contact you want to dial.
If the voice recognition is successful, a list of proposed matches is displayed. The phone
plays the voice command of the first match in the list. If it is not the correct command,
scroll to another entry.
© 2009 Nokia. All rights reserved.
25
26
Settings
Enhancements
This menu and its various options are shown only if the phone is or has been connected
to a compatible mobile enhancement.
Select Menu > Settings > Enhancements. Select an enhancement, and an option
depending on the enhancement.
Configuration
You can configure your phone with settings that are required for certain services. Your
service provider may also send you these settings.
Select Menu > Settings > Configuration and from the following options:
Default config. sett. — to view the service providers saved in the phone and set a
default service provider
Act. def. in all apps. — to activate the default configuration settings for supported
applications
Preferred access pt. — to view the saved access points
Device manager sett. — to allow or prevent the phone from receiving software
updates. This option may not be available, depending on your phone.
Personal config. sett. — to manually add new personal accounts for various services
and to activate or delete them. To add a new personal account, select Add or
Options > Add new. Select the service type, and enter the required parameters. To
activate a personal account, scroll to it, and select Options > Activate.
Restore factory settings
To restore the phone back to factory conditions, select Menu > Settings > Rest.
factory sett. and from the following options:
Restore settings only — to reset all preference settings without deleting any personal
data
Restore all — to reset all preference settings and delete all personal data, such as
contacts, messages, media files and activation keys
26
© 2009 Nokia. All rights reserved.
Operator menu
27
Operator menu
Access a portal to services provided by your network operator. For more information,
contact your network operator. The operator can update this menu with a service
message.
© 2009 Nokia. All rights reserved.
27
28
Gallery
Gallery
Your phone supports a digital rights management (DRM) system to protect acquired
content. Always check the delivery terms of any content and activation key before
acquiring them, as they may be subject to a fee.
Digital rights management
Content owners may use different types of digital rights management (DRM)
technologies to protect their intellectual property, including copyrights. This device uses
various types of DRM software to access DRM-protected content. With this device you
can access content protected with WMDRM 10, OMA DRM 1.0, OMA DRM 1.0 forward lock,
and OMA DRM 2.0. If certain DRM software fails to protect the content, content owners
may ask that such DRM software's ability to access new DRM-protected content be
revoked. Revocation may also prevent renewal of such DRM-protected content already
in your device. Revocation of such DRM software does not affect the use of content
protected with other types of DRM or the use of non-DRM-protected content.
Digital rights management (DRM) protected content comes with an associated
activation key that defines your rights to use the content.
If your device has OMA DRM-protected content, to back up both the activation keys and
the content, use the backup feature of Nokia PC Suite.
If your device has WMDRM-protected content, both the activation keys and the content
will be lost if the device memory is formatted. You may also lose the activation keys and
the content if the files on your device get corrupted. Losing the activation keys or the
content may limit your ability to use the same content on your device again. For more
information, contact your service provider.
View the contents in Gallery
Select Menu > Gallery.
28
© 2009 Nokia. All rights reserved.
Media
29
Media
Camera and video
Your device supports an image capture resolution of 1200x1600 pixels.
Camera mode
Use the still image function
Select Menu > Media > Camera.
Zoom in or out
Scroll up or down.
Capture an image
Select Capture.
Set the preview mode and time
Select Options > Settings > Image preview time.
To activate the self-timer, or to capture images in a fast sequence, select Options and
the desired option.
Video mode
Use the video function
Select Menu > Media > Video.
Start recording a video clip
Select Record.
When recording, lower quality video can be recorded for a greater length of time. To
change the quality settings, and to set the maximum length of the video clip, select
Menu > Media > Camera > Options > Settings > Video clip quality or Video clip
length.
Switch between camera and video mode
In camera or video mode, scroll left or right.
FM radio
Select Menu > Media > Radio or, in the standby mode, press and hold *.
© 2009 Nokia. All rights reserved.
29
30
Media
Search for a neighbouring station
Press and hold the scroll key to the left or right.
Save a station
Tune to the desired station, and select Options > Save station.
Switch between saved stations
Scroll left or right to switch between stations, or press the corresponding number key
of the memory location of a desired station.
Adjust the volume
Scroll up or down.
Leave the radio playing in the background
Press the end key.
Close the radio
Press and hold the end key.
Voice recorder
Start recording
Select Menu > Media > Voice recorder and the record button on the display.
Start recording during a call
Select Options > Record. When recording a call, hold the phone in the normal position
near to your ear. The recording is saved in the Recordings folder in Gallery.
Listen to the latest recording
Select Options > Play last recorded.
Send the last recording in a multimedia message
Select Options > Send last recorded.
Music player
Your phone includes a music player for listening to songs or other MP3 or AAC sound
files.
Select Menu > Media > Music player.
30
© 2009 Nokia. All rights reserved.
Media
31
Start or pause playing
Press the scroll key.
Skip to the beginning of the current song
Scroll left.
Skip to the previous song
Scroll left twice.
Skip to the next song
Scroll right.
Rewind the current song
Press and hold the scroll key to the left.
Fast-forward the current song
Press and hold the scroll key to the right.
Adjust the volume
Scroll up or down.
Mute or unmute the music player
Press #.
Leave the music player playing in the background
Press the end key.
Close the music player
Press and hold the end key.
© 2009 Nokia. All rights reserved.
31
32
Applications
Applications
Your phone software may include some games and Java™ applications specially
designed for this Nokia phone.
Select Menu > Applications.
Open a game or application
Select Games or Collection. Scroll to a game or application, and select Open.
View the amount of memory available for game and application installations
Select Options > Memory status.
Download a game or application
Select Options > Downloads > Game downloads or App. downloads.
Your phone supports J2ME™ Java applications. Ensure that the application is compatible
with your phone before downloading it.
Important: Only install and use applications and other software from trusted sources,
such as applications that are Symbian Signed or have passed the Java Verified™ testing.
Downloaded applications may be saved in Gallery instead of Applications.
32
© 2009 Nokia. All rights reserved.
Organiser
33
Organiser
Alarm clock
Select Menu > Organiser > Alarm clock.
Activate or deactivate an alarm
Select Alarm:.
Set the time for the alarm
Select Alarm time:.
Set the phone to alert you on selected days of the week
Select Repeat:.
Personalise the alarm tone
Select Alarm tone:.
Set the time-out period for the snooze alert
Select Snooze time-out:.
Stop the alarm
Select Stop.
If you let the phone continue to sound the alarm for a minute or select Snooze, the
alarm stops for the snooze time-out period, then resumes.
Calendar and to-do list
Select Menu > Organiser > Calendar. The current day is framed. If there are any notes
set for the day, the day is in bold.
Add a calendar note
Scroll to the date, and select Options > Make a note.
View the details of a note
Scroll to a note, and select View.
Delete all notes from the calendar
Select Options > Delete notes > All notes.
View the to-do list
Select Menu > Organiser > To-do list.
© 2009 Nokia. All rights reserved.
33
34
Organiser
The to-do list is displayed and sorted by priority. To add, delete, or send a note, to mark
the note as done, or to sort the to-do list by deadline, select Options.
34
© 2009 Nokia. All rights reserved.
Maps
35
Maps
You can browse maps for different cities and countries, search for addresses and points
of interest, plan routes from one location to another, save locations as landmarks, and
send them to compatible devices.
Almost all digital cartography is inaccurate and incomplete to some extent. Never rely
solely on the cartography that you download for use in this device.
Note: Downloading content such as maps, satellite images, voice files, guides or traffic
information may involve transmission of large amounts of data (network service).
Content such as satellite images, guides, weather and traffic information and related
services are generated by third parties independent of Nokia. The content may be
inaccurate and incomplete to some extent and is subject to availability. Never rely solely
on the aforementioned content and related services.
To use the Maps application, select Menu > Maps and from the available options.
Download maps
Your phone may contain pre-installed maps on the memory card. You can download a
new set of maps through the internet using the Nokia Map Loader PC software.
Nokia Map Loader
To download the Nokia Map Loader on your PC and for further instructions, see
www.maps.nokia.com.
Before you download new maps for the first time, ensure that you have a memory card
inserted in the phone.
Select Menu > Maps to do an initial configuration.
To change the selection of maps on your memory card, use the Nokia Map Loader to
delete all maps on the memory card and download a new selection, to ensure that all
maps are from the same release.
Network map service
You can set your phone to automatically download maps that you do not have in your
phone when needed.
Select Menu > Maps > Settings > Network settings > Allow network usage >
Yes or In home network.
To prevent automatic download of maps, select No.
© 2009 Nokia. All rights reserved.
35
36
Maps
Note: Downloading content such as maps, satellite images, voice files, guides or traffic
information may involve transmission of large amounts of data (network service).
Maps and GPS
Your device does not have an internal GPS antenna. To use applications that require a
GPS connection, use a compatible external GPS receiver (accessory sold separately). Pair
the GPS receiver with your device using Bluetooth wireless technology. For more
information, see the user guide of the GPS receiver.
You can use the Global Positioning System (GPS) to support the Maps application. Find
out your location, or measure distances and plot coordinates.
After pairing your device with an external GPS receiver, it may take several minutes for
the device to display the current location.
The Global Positioning System (GPS) is operated by the government of the United States,
which is solely responsible for its accuracy and maintenance. The accuracy of location
data can be affected by adjustments to GPS satellites made by the United States
government and is subject to change with the United States Department of Defense civil
GPS policy and the Federal Radionavigation Plan. Accuracy can also be affected by poor
satellite geometry. Availability and quality of GPS signals may be affected by your
location, buildings, natural obstacles, and weather conditions. GPS signals may not be
available inside buildings or underground and may be impaired by materials such as
concrete and metal.
GPS should not be used for precise location measurement, and you should never rely
solely on location data from the GPS receiver and cellular radio networks for positioning
or navigation.
Extra services
You can upgrade Maps with a full voice-guided navigation, which requires a regional
licence.
To use this service, you need a compatible external GPS device that supports Bluetooth
wireless technology.
To purchase a navigation service with voice guidance, select Menu > Maps > Extra
services > Purchase navigation, and follow the instructions.
To use navigation with voice guidance, you must allow the Maps application to use a
network connection.
The navigation licence is connected to your SIM card. If you insert another SIM card in
your phone, you are asked to purchase a licence when starting navigation. During the
purchase procedure, you are offered to transfer the existing navigation licence to the
new SIM card without extra charge.
36
© 2009 Nokia. All rights reserved.
Web or Internet
37
Web or Internet
You can access various internet services with your phone browser. The appearance of
the web pages may vary due to screen size. You may not be able to see all the details
on the web pages.
Depending on your phone, the web browsing function may be displayed as Web or
Internet in the menu, hereafter referred to as Web.
Important: Use only services that you trust and that offer adequate security and
protection against harmful software.
For the availability of these services, pricing, and instructions, contact your service
provider.
You may receive the configuration settings required for browsing as a configuration
message from your service provider.
Connect to a web service
Select Menu > Web > Home. Or, in the standby mode, press and hold 0.
After you make a connection to the service, you can start browsing its pages. The
function of the phone keys may vary in different services. Follow the text guides on the
phone display. For more information, contact your service provider.
© 2009 Nokia. All rights reserved.
37
38
SIM services
SIM services
Your SIM card may provide additional services. You can access this menu only if it is
supported by your SIM card. The name and contents of the menu depend on the available
services.
38
© 2009 Nokia. All rights reserved.
Green tips
39
Green tips
Here are tips on how you can contribute to protecting the environment.
Save energy
When you have fully charged the battery and disconnected the charger from the device,
remember to also unplug the charger from the wall outlet.
You do not need to charge your battery so often if you do the following:
•
•
•
•
Close and disable applications, services, and connections when you are not using
them.
Decrease the brightness of the screen.
Set the device to enter the power saver mode after the minimum period of inactivity,
if available in your device.
Disable unnecessary sounds, such as keypad tones. Set the volume of your device
to an average level.
Recycle
Did you remember to recycle your old device? 65-80% of the materials in a Nokia mobile
phone can be recycled. Always return your used electronic products, batteries, and
packaging materials to a dedicated collection point. By doing this, you help prevent
uncontrolled waste disposal and promote the recycling of materials. Check how to
recycle your Nokia products at www.nokia.com/werecycle or www.nokia.mobi/
werecycle.
You may recycle the packaging and user guides at your local recycling scheme.
Learn more
For more information on the environmental attributes of your device, see
www.nokia.com/ecodeclaration.
© 2009 Nokia. All rights reserved.
39
40
Accessories
Accessories
Nokia original accessories
Warning:
Use only batteries, chargers, and accessories approved by
Nokia for use with this particular model. The use of any other
types may invalidate any approval or warranty, and may be
dangerous. In particular, use of unapproved chargers or
batteries may present a risk of fire, explosion, leakage, or
other hazard.
For availability of approved accessories, check with your
dealer.
An extensive range of accessories is available for your device.
For more details, see www.nokia-asia.com/accessories.
Practical rules about accessories
•
Keep all accessories out of the reach of small children.
When you disconnect the power cord of any accessory,
grasp and pull the plug, not the cord.
•
Check regularly that accessories installed in a vehicle
are mounted and are operating properly.
•
Installation of any complex car accessories must be
made by qualified personnel only.
•
Battery
Type
Talk time
BL-5C
Up to 170
Up to 350 hours
minutes (WCDMA/ (WCDMA/GSM)
GSM)
Standby
Important: Battery talk and stand-by times are estimates
and only possible under optimal network conditions. Actual
battery talk and standby times depend on SIM cards, features
used, battery age and condition, temperatures to which
battery is exposed, network conditions, and many other
factors, and may be significantly shorter than those specified
above. Ringing tones, hands free call handling, use in digital
mode, and other features will also consume the battery, and
the amount of time a device is used for calls will affect its
stand-by time. Likewise, the amount of time that the device
is turned on and in the standby mode will affect its talk time.
40
Battery
Battery and charger information
Your device is powered by a rechargeable battery. The battery
intended for use with this device is BL-5C. Nokia may make
additional battery models available for this device. This
device is intended for use when supplied with power from
the following chargers: AC-3. The exact charger model
number may vary depending on the type of plug. The plug
variant is identified by one of the following: E, EB, X, AR, U, A,
C, K, or UB.
The battery can be charged and discharged hundreds of
times, but it will eventually wear out. When the talk and
standby times are noticeably shorter than normal, replace the
battery. Use only Nokia approved batteries, and recharge
your battery only with Nokia approved chargers designated
for this device.
If a battery is being used for the first time or if the battery has
not been used for a prolonged period, it may be necessary to
connect the charger, then disconnect and reconnect it to
begin charging the battery. If the battery is completely
discharged, it may take several minutes before the charging
indicator appears on the display or before any calls can be
made.
Safe removal. Always switch the device off and disconnect the
charger before removing the battery.
Proper charging. Unplug the charger from the electrical plug
and the device when not in use. Do not leave a fully charged
battery connected to a charger, since overcharging may
shorten its lifetime. If left unused, a fully charged battery will
lose its charge over time.
Avoid extreme temperatures. Always try to keep the battery
between 15°C and 25°C (59°F and 77°F). Extreme
temperatures reduce the capacity and lifetime of the battery.
A device with a hot or cold battery may not work temporarily.
Battery performance is particularly limited in temperatures
well below freezing.
Do not short-circuit. Accidental short-circuiting can occur
when a metallic object such as a coin, clip, or pen causes direct
connection of the positive (+) and negative (-) terminals of
the battery. (These look like metal strips on the battery.) This
might happen, for example, when you carry a spare battery
in your pocket or purse. Short-circuiting the terminals may
damage the battery or the connecting object.
Disposal. Do not dispose of batteries in a fire as they may
explode. Dispose of batteries according to local regulations.
Please recycle when possible. Do not dispose as household
waste.
© 2009 Nokia. All rights reserved.
Taking care of your device
Leak. Do not dismantle, cut, open, crush, bend, puncture, or
shred cells or batteries. In the event of a battery leak, prevent
battery liquid contact with skin or eyes. If this happens, flush
the affected areas immediately with water, or seek medical
help.
Damage. Do not modify, remanufacture, attempt to insert
foreign objects into the battery, or immerse or expose it to
water or other liquids. Batteries may explode if damaged.
Correct use. Use the battery only for its intended purpose.
Improper battery use may result in a fire, explosion, or other
hazard. If the device or battery is dropped, especially on a
hard surface, and you believe the battery has been damaged,
take it to a service centre for inspection before continuing to
use it. Never use any charger or battery that is damaged. Keep
your battery out of the reach of small children.
Nokia battery authentication guidelines
Always use original Nokia batteries for your safety. To check
that you are getting an original Nokia battery, purchase it
from a Nokia authorised service centre or dealer, and inspect
the hologram label using the following steps:
Authenticate hologram
1
When you look at the hologram on the label, you should
see the Nokia connecting hands symbol from one angle
and the Nokia Original Enhancements logo when
looking from another angle.
Successful completion of the steps is not a total assurance of
the authenticity of the battery. If you cannot confirm
authenticity or if you have any reason to believe that your
Nokia battery with the hologram on the label is not an
authentic Nokia battery, you should refrain from using it, and
take it to the nearest Nokia authorised service centre or
dealer for assistance.
To find out more about original Nokia batteries, see
www.nokia.com/batterycheck
Taking care of your device
Your device is a product of superior design and craftsmanship
and should be treated with care. The following suggestions
will help you protect your warranty coverage.
•
•
•
•
•
•
2
When you angle the hologram left, right, down and up,
you should see 1, 2, 3 and 4 dots on each side
respectively.
•
•
•
•
•
© 2009 Nokia. All rights reserved.
41
Keep the device dry. Precipitation, humidity, and all
types of liquids or moisture can contain minerals that
will corrode electronic circuits. If your device does get
wet, remove the battery, and allow the device to dry
completely before replacing it.
Do not use or store the device in dusty, dirty areas. Its
moving parts and electronic components can be
damaged.
Do not store the device in high or cold temperature.
High temperatures can shorten the life of electronic
devices, damage batteries, and warp or melt certain
plastics. When the device warms to its normal
temperature from a cold temperature, moisture can
form inside the device and damage electronic circuit
boards.
Do not attempt to open the device other than as
instructed in this guide.
Do not drop, knock, or shake the device. Rough
handling can break internal circuit boards and fine
mechanics.
Do not use harsh chemicals, cleaning solvents, or strong
detergents to clean the device. Only use a soft, clean,
dry cloth to clean the surface of the device.
Do not paint the device. Paint can clog the moving parts
and prevent proper operation.
Use only the supplied or an approved replacement
antenna. Unauthorised antennas, modifications, or
attachments could damage the device and may violate
regulations governing radio devices.
Use chargers indoors.
Backup all data you want to keep, such as contacts and
calendar notes.
To reset the device from time to time for optimum
performance, power off the device and remove the
battery.
41
42
Additional safety information
These suggestions apply equally to your device, battery,
charger, or any accessory.
Recycle
Always return your used electronic products, batteries, and
packaging materials to dedicated collection points. This way
you help prevent uncontrolled waste disposal and promote
the recycling of materials. Check product environmental
information and how to recycle your Nokia products at
www.nokia.com/werecycle, or nokia.mobi/werecycle.
Additional safety information
The surface of this device is nickel-free.
Small children
Your device and its accessories are not toys. They may contain
small parts. Keep them out of the reach of small children.
Operating environment
This device meets RF exposure guidelines in the normal use
position at the ear or at least 2.2 centimetres (7/8 inch) away
from the body. Any carry case, belt clip, or holder for bodyworn operation should not contain metal and should position
the device the above-stated distance from your body.
To send data files or messages requires a quality connection
to the network. Data files or messages may be delayed until
such a connection is available. Follow the separation distance
instructions until the transmission is completed.
Parts of the device are magnetic. Metallic materials may be
attracted to the device. Do not place credit cards or other
magnetic storage media near the device, because
information stored on them may be erased.
Medical devices
Operation of radio transmitting equipment, including
wireless phones, may interfere with the function of
inadequately protected medical devices. Consult a physician
or the manufacturer of the medical device to determine
whether they are adequately shielded from external RF
energy. Switch off your device when regulations posted
instruct you to do so. Hospitals or health care facilities may
use equipment sensitive to external RF energy.
Implanted medical devices
Manufacturers of medical devices recommend a minimum
separation of 15.3 centimetres (6 inches) between a wireless
device and an implanted medical device, such as a pacemaker
or implanted cardioverter defibrillator, to avoid potential
interference with the medical device. Persons who have such
devices should:
•
42
Always keep the wireless device more than 15.3
centimetres (6 inches) from the medical device.
•
•
•
•
Not carry the wireless device in a breast pocket.
Hold the wireless device to the ear opposite the medical
device.
Turn the wireless device off if there is any reason to
suspect that interference is taking place.
Follow the manufacturer directions for the implanted
medical device.
If you have any questions about using your wireless device
with an implanted medical device, consult your health care
provider.
Hearing aids
Some digital wireless devices may interfere with some
hearing aids.
Vehicles
RF signals may affect improperly installed or inadequately
shielded electronic systems in motor vehicles such as
electronic fuel injection, electronic antilock braking,
electronic speed control, and air bag systems. For more
information, check with the manufacturer of your vehicle or
its equipment.
Only qualified personnel should service the device or install
the device in a vehicle. Faulty installation or service may be
dangerous and may invalidate your warranty. Check regularly
that all wireless device equipment in your vehicle is mounted
and operating properly. Do not store or carry flammable
liquids, gases, or explosive materials in the same
compartment as the device, its parts, or accessories.
Remember that air bags inflate with great force. Do not place
your device or accessories in the air bag deployment area.
Switch off your device before boarding an aircraft. The use of
wireless teledevices in an aircraft may be dangerous to the
operation of the aircraft and may be illegal.
Potentially explosive environments
Switch off your device in any area with a potentially explosive
atmosphere. Obey all posted instructions. Sparks in such
areas could cause an explosion or fire resulting in bodily
injury or death. Switch off the device at refuelling points such
as near gas pumps at service stations. Observe restrictions in
fuel depots, storage, and distribution areas; chemical plants;
or where blasting operations are in progress. Areas with a
potentially explosive atmosphere are often, but not always,
clearly marked. They include areas where you would be
advised to turn off your vehicle engine, below deck on boats,
chemical transfer or storage facilities and where the air
contains chemicals or particles such as grain, dust, or metal
powders. You should check with the manufacturers of
vehicles using liquefied petroleum gas (such as propane or
butane) to determine if this device can be safely used in their
vicinity.
© 2009 Nokia. All rights reserved.
Additional safety information
43
Emergency calls
Important: This device operates using radio signals,
wireless networks, landline networks, and user-programmed
functions. If your device supports voice calls over the internet
(internet calls), activate both the internet calls and the
cellular phone. The device may attempt to make emergency
calls over both the cellular networks and through your
internet call provider if both are activated. Connections in all
conditions cannot be guaranteed. You should never rely
solely on any wireless device for essential communications
like medical emergencies.
the network. That amount changes depending on a number
of factors such as how close you are to a network base station.
To make an emergency call:
MANUFACTURER’S LIMITED WARRANTY
This Limited Warranty is in addition to, and does not affect
your legal (statutory) rights under your applicable national
laws relating to the sale of consumer products.
1
If the device is not on, switch it on. Check for adequate
signal strength. Depending on your device, you may
also need to complete the following:
•
•
•
2
3
4
Insert a SIM card if your device uses one.
Remove certain call restrictions you have
activated in your device.
Change your profile from Offline or Flight profile
to an active profile.
Press the end key as many times as needed to clear the
display and ready the device for calls.
Enter the official emergency number for your present
location. Emergency numbers vary by location.
Press the call key.
When making an emergency call, give all the necessary
information as accurately as possible. Your wireless device
may be the only means of communication at the scene of an
accident. Do not end the call until given permission to do so.
Certification information (SAR)
This mobile device meets guidelines for exposure to
radio waves.
Your mobile device is a radio transmitter and receiver. It is
designed not to exceed the limits for exposure to radio waves
recommended by international guidelines. These guidelines
were developed by the independent scientific organisation
ICNIRP and include safety margins designed to assure the
protection of all persons, regardless of age and health.
The exposure guidelines for mobile devices employ a unit of
measurement known as the Specific Absorption Rate or SAR.
The SAR limit stated in the ICNIRP guidelines is 2.0 watts/
kilogram (W/kg) averaged over 10 grams of tissue. Tests for
SAR are conducted using standard operating positions with
the device transmitting at its highest certified power level in
all tested frequency bands. The actual SAR level of an
operating device can be below the maximum value because
the device is designed to use only the power required to reach
© 2009 Nokia. All rights reserved.
The highest SAR value under the ICNIRP guidelines for use of
the device at the ear is 1.02 W/kg.
Use of device accessories may result in different SAR values.
SAR values may vary depending on national reporting and
testing requirements and the network band. Additional SAR
information may be provided under product information at
www.nokia.com.
Nokia Corporation (“Nokia”) provides this Limited Warranty
to person who has purchased the Nokia product(s) included
in the sales package (“Product”).
Nokia warrants to you that during the warranty period Nokia
or a Nokia authorised service company will in a commercially
reasonable time remedy defects in materials, design and
workmanship free of charge by repairing or, should Nokia in
its absolute discretion deem it necessary, replacing the
Product in accordance with this Limited Warranty (unless
otherwise required by law). This Limited Warranty is only
valid and enforceable in the country where you have
purchased the Product provided that it is intended for sale in
that country.
Warranty period
The warranty period starts at the time of Product's original
purchase by the first end-user. The Product may consist of
several different parts and different parts may be covered by
a different warranty period (hereinafter “Warranty Period”).
The different Warranty Periods are:
a) twelve (12) months for the mobile device and accessories
(whether included in the mobile device sales package or sold
separately) other than the consumable parts and accessories
listed in (b) and (c) below;
b) six (6) months for the following consumable parts and
accessories: batteries, chargers, desk stands, headsets, cables
and covers; and
c) ninety (90) days for the media on which any software is
provided, for example, CD-ROM or memory card
As far as your national laws permit, the Warranty Period will
not be extended or renewed or otherwise affected due to
subsequent resale, repair or replacement of the Product.
However, repaired part(s) will be warranted for the
43
44
Additional safety information
remainder of the original Warranty Period or for sixty (60)
days from the date of repair, whichever is longer.
How to get warranty service
If you wish to make a claim under the Limited Warranty, you
may call the Nokia call centre (where this is available and
please note national rates apply to calls) and/or where
necessary, return your Product or the affected part (if it is not
the entire Product) to a Nokia care centre or Nokia designated
service location. Information about Nokia care centres, Nokia
designated service locations and Nokia call centres can be
found at local Nokia web pages where available.
You must return your Product or the affected part (if it is not
the entire Product) to a Nokia care centre or Nokia designated
service location before the expiry of the Warranty Period.
When making a Limited Warranty claim you have to present:
a) the Product (or affected part thereto), b) the legible and
unmodified original proof of purchase, which clearly
indicates the name and address of the seller, the date and
place of purchase, the product type and the IMEI or other
serial number.
This Limited Warranty extends only to the original first enduser of the Product and is not assignable or transferable to
any subsequent purchaser/end-user.
What is not covered?
1. This Limited Warranty does not cover user manuals or any
third party software, settings, content, data or links, whether
included/downloaded in the Product, whether included
during installment, assembly, shipping or at any other time
in the delivery chain or otherwise and in any way acquired by
you. To the extent permitted by applicable law(s), Nokia does
not warrant that any Nokia software will meet your
requirements, will work in combination with any hardware
or software applications provided by a third party, that the
operation of the software will be uninterrupted or error free
or that any defects in the software are correctable or will be
corrected.
2. This Limited Warranty does not cover a) normal wear and
tear (including, without limitation, wear and tear of camera
lenses, batteries or displays), b) transport costs, c) defects
caused by rough handling (including, without limitation,
defects caused by sharp items, by bending, compressing or
dropping, etc.), d) defects or damage caused by misuse of the
Product, including use that is contrary to the instructions
provided by Nokia (e.g. as set out in the Product's user guide)
and/or e) other acts beyond the reasonable control of Nokia.
3. This Limited Warranty does not cover defects or alleged
defects caused by the fact that the Product was used with, or
connected to, a product, accessories, software and/or service
not manufactured, supplied or authorised by Nokia or was
44
used otherwise than for its intended use. Defects can be
caused by viruses from your or from a third party's
unauthorised access to services, other accounts, computer
systems or networks. This unauthorised access can take place
through hacking, password-mining or through a variety of
other means.
4. This Limited Warranty does not cover defects caused by the
fact that the battery has been short-circuited or by the fact
that the seals of the battery enclosure or the cells are broken
or show evidence of tampering or by the fact that the battery
has been used in equipment other than those for which it has
been specified.
5. This Limited Warranty does not apply if the Product has
been opened, modified or repaired by anyone other than an
authorised service centre, if it is repaired using unauthorised
spare parts or if the Product’s serial number, the mobile
accessory date code or the IMEI number has been removed,
erased, defaced, altered or are illegible in any way and this
shall be determined in the sole discretion of Nokia.
6. This Limited Warranty does not apply if the Product has
been exposed to moisture, to dampness or to extreme
thermal or environmental conditions or to rapid changes in
such conditions, to corrosion, to oxidation, to spillage of food
or liquid or to influence from chemical products.
Other important notices
A third party, independent operator provides the SIM card and
cellular and/or other network or system on which the Product
operates. Therefore, Nokia will not accept responsibility
under this warranty for the operation, availability, coverage,
services or range of the cellular or other network or system.
Before the Product can be repaired or replaced, the operator
may need to unlock any SIM-lock or other lock that may have
been added to lock the product to a specific network or
operator. Accordingly, Nokia does not accept responsibility
for any delays in warranty repairs or for the inability of Nokia
to complete warranty repairs that are caused by the
operator's delay or failure to unlock any SIM-lock or other
lock.
Please remember to make backup copies or keep written
records of all important content and data stored in your
Product, because content and data may be lost during repair
or replacement of the Product. Nokia, in a manner consistent
with the provisions of the section entitled “Limitation of
Nokia's Liability” below, to the extent permitted by
applicable law(s), shall not under any circumstances be liable,
either expressly or implied, for any damages or losses of any
kind whatsoever resulting from loss of, damage to, or
corruption of, content or data during repair or replacement
of the Product.
© 2009 Nokia. All rights reserved.
Additional safety information
All parts of the Product or other equipment that Nokia has
replaced shall become the property of Nokia. If the returned
Product is found not to be covered by the terms and
conditions of the Limited Warranty, Nokia and its authorised
service companies reserve the right to charge a handling fee.
When repairing or replacing the Product, Nokia may use
products or parts that are new, equivalent to new or
reconditioned.
Your Product may contain country specific elements,
including software. If the Product has been re-exported from
its original destination country to another country, the
Product may contain country specific elements that are not
considered to be a defect under this Limited Warranty.
Limitation of Nokia's liability
This Limited Warranty is your sole and exclusive remedy
against Nokia and Nokia's sole and exclusive liability in
respect of defects in your Product. However, this Limited
Warranty shall neither exclude nor limit i) any of your legal
(statutory) rights under the applicable national laws or ii) any
of your rights against the seller of the Product.
45
Note: Your Product is a sophisticated electronic device. Nokia
strongly encourages you to familiarise yourself with the user
guide and instructions provided with and for the Product.
Please also note that the Product might contain high
precision displays, camera lenses and other such parts, which
could be scratched or otherwise damaged if not handled very
carefully.
All warranty information, product features and specifications
are subject to change without notice.
Nokia Corporation
Keilalahdentie 2-4
FIN-02150 Espoo
Finland
This Limited Warranty replaces all other Nokia warranties and
liabilities, whether oral, written, (non-mandatory) statutory,
contractual, in tort or otherwise, including, without
limitation, and where permitted by applicable law, any
implied conditions, warranties or other terms as to
satisfactory quality or fitness for purpose. To the extent
permitted by applicable law(s) Nokia does not assume any
liability for loss of or damage to or corruption of data, for any
loss of profit, loss of use of Products or functionality, loss of
business, loss of contracts, loss of revenues or loss of
anticipated savings, increased costs or expenses or for any
indirect loss or damage, consequential loss or damage or
special loss or damage. To the extent permitted by applicable
law, Nokia’s liability shall be limited to the purchase value of
the Product. The above limitations shall not apply to death or
personal injury resulting from Nokia’s proven negligence.
Statutory obligations
This Limited Warranty must be read subject to any statutory
provisions that imply warranties or conditions into this
Limited Warranty that cannot be excluded, restricted or
modified or cannot be excluded, restricted or modified except
to a limited extent. If such statutory provisions apply, to the
extent to which Nokia is able to do so, its liability under those
provisions will be limited, at its option to, in the case of
goods: the replacement of the goods or the supply of
equivalent goods, the repair of the goods, the payment of the
cost of replacing the goods or of acquiring equivalent goods,
or the payment of the cost of having the goods repaired; and
in the case of services: the supplying of the services again or
the payment of the cost of having the services supplied again.
© 2009 Nokia. All rights reserved.
45
46
Index
Index
A
access code
applications
audio messages
12
32
18
B
battery
— charging
browser
6
37
C
call log
calls
configuration
21
14
26
D
display
22
E
e-mail
enhancements
18
26
F
flash messages
18
G
games
GPS (global positioning system)
GSM
32
36
11
H
headset
I
IM
instant messaging
internet
46
7
19
19
37
K
keyguard
keypad lock
keys
M
Maps
memory card
message centre number
messaging
— audio messages
microSD card
9
9
8
35
5
17
18
5
N
network settings
Nokia original accessories
Nokia support information
number mode
11
40
13
15
O
offline mode
operator menu
organiser
9
27
33
P
parts
password
PIN
predictive text input
profiles
8
12
12
15
22
S
security code
settings
— configuration
— date
— display
— factory
— phone
— time
— tones
shortcuts
12
22
26
22
22
26
24
22
22
22
© 2009 Nokia. All rights reserved.
Index
SIM card
software updates
speed dialling
support resources
T
text modes
tones
traditional text input
U
UMTS
updates
— device software
5, 9
12
14
13
15
22
15
11
12
V
voice commands
voice dialling
voice recognition
voice recorder
volume control
25
25
25
30
8
W
web
write text
37
15
© 2009 Nokia. All rights reserved.
47
47
48
DECLARATION OF CONFORMITY
TO THE MAXIMUM EXTENT PERMITTED BY APPLICABLE LAW,
UNDER NO CIRCUMSTANCES SHALL NOKIA OR ANY OF ITS
LICENSORS BE RESPONSIBLE FOR ANY LOSS OF DATA OR INCOME
OR ANY SPECIAL, INCIDENTAL, CONSEQUENTIAL OR INDIRECT
DAMAGES HOWSOEVER CAUSED.
Hereby, NOKIA CORPORATION declares that this RM-578
product is in compliance with the essential requirements and
other relevant provisions of Directive 1999/5/EC. A copy of the
Declaration of Conformity can be found at http://
www.nokia.com/phones/declaration_of_conformity/.
THE CONTENTS OF THIS DOCUMENT ARE PROVIDED "AS IS".
EXCEPT AS REQUIRED BY APPLICABLE LAW, NO WARRANTIES OF
ANY KIND, EITHER EXPRESS OR IMPLIED, INCLUDING, BUT NOT
LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY
AND FITNESS FOR A PARTICULAR PURPOSE, ARE MADE IN
RELATION TO THE ACCURACY, RELIABILITY OR CONTENTS OF THIS
DOCUMENT. NOKIA RESERVES THE RIGHT TO REVISE THIS
DOCUMENT OR WITHDRAW IT AT ANY TIME WITHOUT PRIOR
NOTICE.
The availability of particular products and applications and
services for these products may vary by region. Please check
with your Nokia dealer for details and availability of language
options. This device may contain commodities, technology or
software subject to export laws and regulations from the US
and other countries. Diversion contrary to law is prohibited.
© 2009 Nokia. All rights reserved.
Nokia, Nokia Connecting People, and Navi are trademarks or
registered trademarks of Nokia Corporation. Nokia tune is a
sound mark of Nokia Corporation. Other product and
company names mentioned herein may be trademarks or
tradenames of their respective owners.
Reproduction, transfer, distribution, or storage of part or all
of the contents in this document in any form without the prior
written permission of Nokia is prohibited. Nokia operates a
policy of continuous development. Nokia reserves the right
to make changes and improvements to any of the products
described in this document without prior notice.
Includes RSA BSAFE cryptographic or security protocol
software from RSA Security.
Java and all Java-based marks are trademarks or registered
trademarks of Sun Microsystems, Inc.
This product is licensed under the MPEG-4 Visual Patent
Portfolio License (i) for personal and noncommercial use in
connection with information which has been encoded in
compliance with the MPEG-4 Visual Standard by a consumer
engaged in a personal and noncommercial activity and (ii) for
use in connection with MPEG-4 video provided by a licensed
video provider. No license is granted or shall be implied for
any other use. Additional information, including that related
to promotional, internal, and commercial uses, may be
obtained from MPEG LA, LLC. See http://www.mpegla.com.
Portions of the Nokia Maps software are ©1996-2009 The
FreeType Project. All rights reserved.
The third-party applications provided with your device may
have been created and may be owned by persons or entities
not affiliated with or related to Nokia. Nokia does not own
the copyrights or intellectual property rights to the thirdparty applications. As such, Nokia does not take any
responsibility for end-user support, functionality of the
applications, or the information in the applications or these
materials. Nokia does not provide any warranty for the thirdparty applications.
BY USING THE APPLICATIONS YOU ACKNOWLEDGE THAT THE
APPLICATIONS ARE PROVIDED AS IS WITHOUT WARRANTY OF
ANY KIND, EXPRESS OR IMPLIED, TO THE MAXIMUM EXTENT
PERMITTED BY APPLICABLE LAW. YOU FURTHER ACKNOWLEDGE
THAT NEITHER NOKIA NOR ITS AFFILIATES MAKE ANY
REPRESENTATIONS OR WARRANTIES, EXPRESS OR IMPLIED,
INCLUDING BUT NOT LIMITED TO WARRANTIES OF TITLE,
MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE, OR
THAT THE APPLICATIONS WILL NOT INFRINGE ANY THIRD-PARTY
PATENTS, COPYRIGHTS, TRADEMARKS, OR OTHER RIGHTS.
FCC/INDUSTRY CANADA NOTICE
Your device may cause TV or radio interference (for example,
when using a telephone in close proximity to receiving
equipment). The FCC or Industry Canada can require you to
stop using your telephone if such interference cannot be
eliminated. If you require assistance, contact your local
service facility. This device complies with part 15 of the FCC
rules. Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and (2)
this device must accept any interference received, including
interference that may cause undesired operation. Any
changes or modifications not expressly approved by Nokia
could void the user's authority to operate this equipment.
49
Some operations and features are SIM card and/or network
dependent, MMS dependent, or dependent on the
compatibility of devices and the content formats supported.
Some services are subject to a separate charge.
Your device may have preinstalled bookmarks and links for
third-party internet sites. You may also access other thirdparty sites through your device. Third-party sites are not
affiliated with Nokia, and Nokia does not endorse or assume
liability for them. If you choose to access such sites, you
should take precautions for security or content.
9217053/Issue 1.0 EN
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
