OTDECT312 Data Sheet 223kb pdf

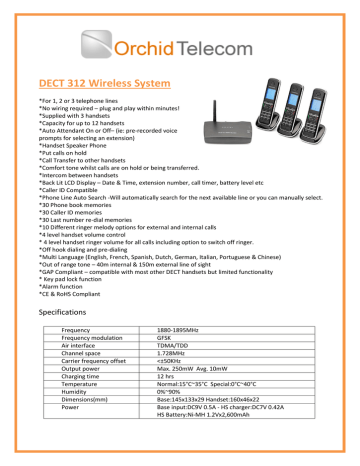

DECT 312 Wireless System
*For 1, 2 or 3 telephone lines
*No wiring required – plug and play within minutes!
*Supplied with 3 handsets
*Capacity for up to 12 handsets
*Auto Attendant On or Off– (ie: pre-recorded voice
prompts for selecting an extension)
*Handset Speaker Phone
*Put calls on hold
*Call Transfer to other handsets
*Comfort tone whilst calls are on hold or being transferred.
*Intercom between handsets
*Back Lit LCD Display – Date & Time, extension number, call timer, battery level etc
*Caller ID Compatible
*Phone Line Auto Search -Will automatically search for the next available line or you can manually select.
*30 Phone book memories
*30 Caller ID memories
*30 Last number re-dial memories
*10 Different ringer melody options for external and internal calls
*4 level handset volume control
* 4 level handset ringer volume for all calls including option to switch off ringer.
*Off hook dialing and pre-dialing
*Multi Language (English, French, Spanish, Dutch, German, Italian, Portuguese & Chinese)
*Out of range tone – 40m internal & 150m external line of sight
*GAP Compliant – compatible with most other DECT handsets but limited functionality
* Key pad lock function
*Alarm function
*CE & RoHS Compliant
Specifications
Frequency
Frequency modulation
Air interface
Channel space
Carrier frequency offset
Output power
Charging time
Temperature
Humidity
Dimensions(mm)
Power
1880-1895MHz
GFSK
TDMA/TDD
1.728MHz
<±50KHz
Max. 250mW Avg. 10mW
12 hrs
Normal:15°C~35°C Special:0°C~40°C
0%~90%
Base:145x133x29 Handset:160x46x22
Base input:DC9V 0.5A - HS charger:DC7V 0.42A
HS Battery:Ni-MH 1.2Vx2,600mAh
