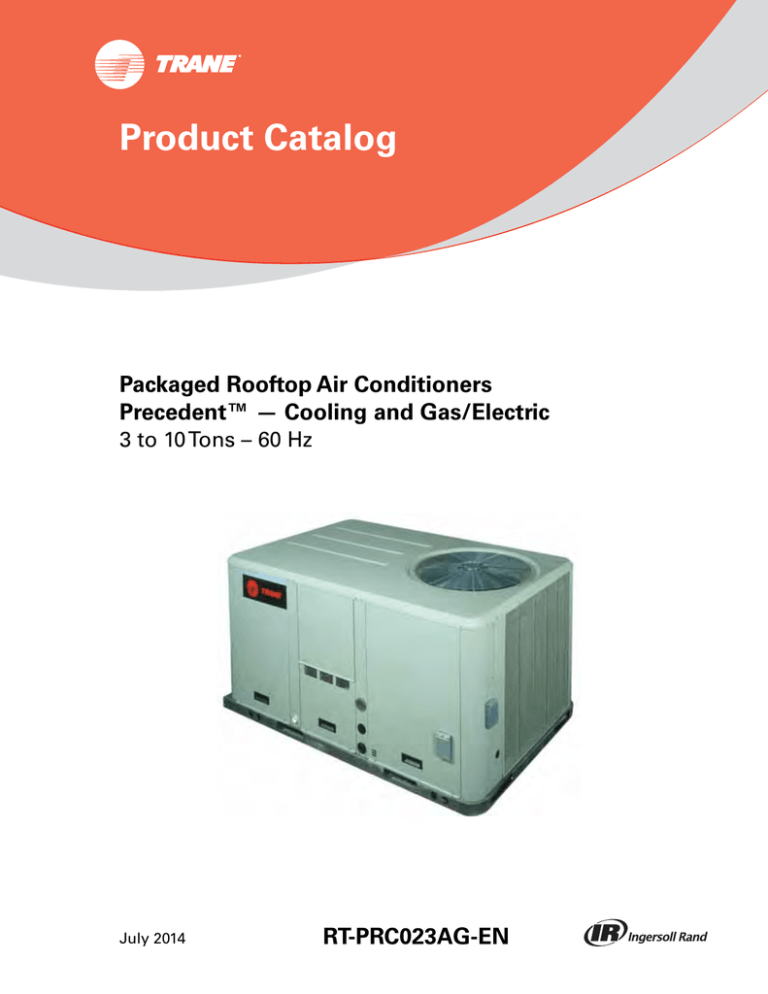

Product Catalog
Packaged Rooftop Air Conditioners
Precedent™ — Cooling and Gas/Electric
3 to 10Tons – 60 Hz
July 2014
RT-PRC023AG-EN
Introduction
Packaged Rooftop Air Conditioners
Trane customers demand products that provide exceptional reliability, meet stringent performance
requirements, and are competitively priced.Trane delivers with Precedent™.
Precedent features cutting edge technologies: reliable compressors, Trane engineered ReliaTel
controls, computer-aided run testing, and Integrated Comfort™ Systems. So, whether you’re the
contractor, the engineer, or the owner you can be certain Precedent products are built to meet your
needs.
Through the years, Trane has designed and developed the most complete line of Packaged Rooftop
products available in the market today. Trane was the first to introduce the Micro—microelectronic
unit controls—and has continued to improve and revolutionize this design concept.
Electromechanical controls are available for simpler applications, and for the more sophisticated,
ReliaTel™ microprocessor controls.
The ReliaTel control platform offers the same great features and functionality as the original Micro,
with additional benefits for greater application flexibility.
With its sleek, compact cabinet, Precedent continues to provide the highest standards in quality
and reliability, comfort, ease of service, and the performance of Trane light commercial products.
Copyright
This document and the information in it are the property ofTrane, and may not be used or
reproduced in whole or in part without written permission.Trane reserves the right to revise this
publication at any time, and to make changes to its content without obligation to notify any person
of such revision or change.
Trademarks
All trademarks referenced in this document are the trademarks of their respective owners.
CompleteCoat, Frostat, Integrated Comfort Systems, Precedent, ReliaTel,Tracer,Tracker,Trane and
theTrane logo are trademarks ofTrane in the United States and other countries. BACnet and
VariTrac are registered trademarks. All trademarks referenced in this document are the trademarks
of their respective owners.
Revision History
RT-PRC023AG-EN (11 July 2014)
•
Updated Low Leak Economizer Factory and Field Installed Option
RT-PRC023AF-EN (01 February 2014)
•
Added Low Leak Economizer Field Installed Option
•
Multiple Zone VAV Control Verbiage Refresh
•
Electrical Updates - 3Ton -Tables 147, 148, 149
RT-PRC023-EN (04 September 2013)
•
Added 575 volt to HIgh Efficiency Units
•
5GIII update - Cooling and Gas/Electric -T/YHC120
•
Human Interface - 5 inch ColorTouchscreen
© 2014Trane All rights reserved
RT-PRC023AG-EN
Table of Contents
Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Packaged Rooftop Air Conditioners . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Features and Benefits . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Standard Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Options . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Other Benefits . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Standard Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Variety of Options . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Factory Installed Options . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Factory or Field Installed Options . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Field Installed Options . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
10
10
13
15
Other Benefits . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Application Considerations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Selection Procedure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
Cooling Capacity . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Heating Capacity . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Air Delivery Selection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Dehumidification Selection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
21
22
22
23
Model Number Description - 3-10 Ton . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
Model Number Notes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
General Data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
Performance Data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44
Direct Drive - Evaporator Fan Performance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 81
Evaporator Fan Performance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 87
Fan Performance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 179
Controls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 191
ReliaTel™ Controlled Units . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 191
Electrical Data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 194
Jobsite Connections . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 206
Dimensional Data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 207
Weights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 223
Mechanical Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 226
Factory Installed Options . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 228
Factory or Field Installed Options . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 231
Field Installed Options . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 232
RT-PRC023AG-EN
3
Features and Benefits
Standard Features
•
5-year Limited Compressor Warranty
•
5-year Limited Heat Exchanger Warranty
•
1-year Limited Parts Warranty
•
Anti-Short CycleTimer (Standard with ReliaTel™)
•
Colored and Numbered Wiring
•
Convertible Airflow
•
Crankcase Heaters1
•
Direct Drive Plenum Fan2
•
Easy Access Low VoltageTerminal Board (LTB)
•
Electromechanical or ReliaTel Microprocessor Controls
•
Filters are Standard on all Units
•
Foil-Faced and Edge Captured Insulation
•
High Pressure Control
•
IAQ Dual Sloped, Plastic, Removable, Reversible Drain Pan
•
Liquid Line Refrigerant Drier
•
Low Ambient Cooling to 0°F on Microprocessor Models
•
Low Ambient Cooling to 40°F on Electromechanical Models
•
Low Pressure Control
•
Microchannel Coils3
•
Multispeed Direct Drive Motors
•
Operating Charge of R-410A
•
Plastic Drain Pan
•
Patent-Pending Hybrid Condenser Coil for easy cleaning
•
Phase Loss Protection
•
Phase Monitor
•
Phase Reversal Protection
•
Phase Balance Protection
•
ProgressiveTubular Aluminized Steel Heat Exchanger
•
Provisions forThrough-the-Base Gas and Condensate Drain Connections
•
Quick Access Panels
•
Quick Adjust Fan Motor Mounting Plate
•
Single Point Power
•
Single Side Service
•
Standardized Components
•
Thermal Expansion Valve
1
2
3
Crankcase heaters are optional on (T,Y)SC (036, 048, 060, 072, 090, 102, 120); standard on (T,Y)HC (036, 048, 060, 072, 092, 102, 120)
Standard on: (T,Y)SC120F, (T,Y)HC092,102F, (T,Y)HC120E
The microchannel type condenser coil is standard for T/YSC(072,090,092,102,120)F and T/YHC(048,060,072,092,102)F models. The
microchannel type condenser coil is not offered on the T/YHC(048,060)F dehumidification model.
4
RT-PRC023AG-EN
Features and Benefits
•
Trane built Scroll Compressors
Options1
Factory Installed Options
•
Belt Drive Motors2 (Three-phase)
•
Black Epoxy Pre-Coated Coils3
•
CO2 Sensor (wiring only)
•
CompleteCoat™ Condenser Coil
•
Condensate Overflow Switch
•
Crankcase Heaters
•
Dehumidification Option
•
Fault Detection & Diagnostics (FDD); Meets CATitle 24 Requirements
•
Hinged Access Doors
•
Human Interface - 5 inch ColorTouchscreen
•
Multiple Zone VAV (Variable Air Volume)
•
Novar Return Air Sensor
•
Novar Unit Controls
•
Powered or Unpowered Convenience Outlet
•
Single Zone Variable Air Volume (SZVAV)
•
Stainless Steel Drain Pan
•
Stainless Steel Heat Exchanger with 10-year warranty
•
Supply, Return or Plenum Air Smoke Detector
•
Through-the-Base Electrical Access
•
Multi-Speed Indoor Fan System
•
Through-the-Base Electrical with Circuit Breaker
•
Through-the-Base Electrical with Disconnect Switch
•
2” MERV 8 Filters or 2” MERV 13 Filters with Filter RemovalTool
Factory or Field Installed Options
1
•
Barometric Relief
•
Clogged Filter/Fan Failure Switch
•
Demand Control Ventilation
•
Discharge AirTemperature Sensing Kit
•
Economizer: Standard and Low Leak
•
Electric Heaters
•
Frostat™
•
LonTalk® Communications Interface (LCI)
•
BACnet® Communications Interface (BCI)
Refer to Model Number Description for option availability.
2 Option on 3-5 Ton High Efficiency Units
3 Not available on Microchannel coils.
RT-PRC023AG-EN
5
Features and Benefits
•
Reference or Comparative Enthalpy
•
Tool-less Hail Guards
•
Trane Communications Interface (TCI)
Field Installed Options
•
CO2 Sensor1
•
DualThermistor Remote Zone Sensor
•
Economizer: Low Leak
•
High Altitude Kit
•
High Static Drive
•
Humidity Sensor/Humidistat
•
LP Conversion Kit
•
Manual Outside Air Damper
•
Motorized Outside Air Dampers
•
Powered Exhaust
•
Quick Adapt Curbs
•
Quick Start Kit
•
Remote Potentiometer
•
Roof Curb
•
Thermostat
•
Ventilation Override Accessory
•
Wireless Zone Sensor
•
Zone Sensor
Other Benefits
•
Cabinet design ensures water integrity
•
Ease of Service, Installation and Maintenance
•
Mixed model build enables “fastest in the industry” ship cycle times
•
Outstanding Airflow Distribution
•
ReliaTel™ Controls
•
Unmatched Product Support is one of our finest assets. Trane Sales Representatives are a
Support Group that can assist you with:
• Product
• Application
• Service
• Training
• Special Applications
• Specifications
• Computer Programs and much more
1
6
CO2 sensor always field installed; associated with demand control ventilation
RT-PRC023AG-EN
Features and Benefits
Standard Features
Anti-Short Cycle Timer (Standard with ReliaTel)
Provides a 3 minute minimum “ON” time and 3 minute “OFF” time for compressors to enhance
compressor reliability by assuring proper oil return.
Direct Drive Motors
For additional static requirements, single-phase units offer multi-speed, direct drive motors. All 10
ton units and 7½-8½ high efficiency units offer variable speed direct drive motors.
Colored And Numbered Wiring
Save time and money tracing wires and diagnosing the unit.
Compressors
Condenser Coil
Precedent contains the
best compressor
technology available to
achieve the highest
possible performance.
Dual compressors are
outstanding for humidity
control, light load cooling
conditions and system
back-up applications. Dual
compressors are available on 7½ to 10 ton
models and allow for efficient cooling utilizing
3-stages of compressor operation (high
efficiency models only).
Precedent™ boasts a patent-pending 1+1+1
condenser coil, permanently gapped for easy
cleaning.
Microchannel Condenser Coils
Due to flat streamlined tubes with small ports, and
metallurgical tube-to-fin bond, microchannel coil has
better heat transfer performance. Microchannel
condenser coil can reduce system refrigerant charge by
up to 50% because of smaller internal volume, which
leads to better compressor reliability. Compact allaluminum microchannel coils also help to reduce the unit
weight.These all aluminum coils are recyclable. Galvanic
corrosion is also minimized due to all aluminum
construction. Strong aluminum brazed structure
provides better fin protection. In addition, flat
streamlined tubes also make microchannel coils more
dust resistant and easier to clean.
Controls – ReliaTel™ or Electromechanical
ReliaTel microprocessor controls provide unit control for heating, cooling and ventilating utilizing
input from sensors that measure indoor and outdoor temperature and other zone sensors. ReliaTel
also provides outputs for building automation systems and expanded diagnostics. For a complete
list of ReliaTel offerings, refer to the “Other Benefits” section within the Features and Benefits
section of this catalog.
For the simpler job that does not require a building automation system, or expanded diagnostics
capabilities, Precedent offers electromechanical controls.This 24-volt control includes the control
transformer and contactor pressure lugs for power wiring.
RT-PRC023AG-EN
7
Features and Benefits
Convertible Units
The units ship in a downflow configuration.
They can be easily converted to horizontal by
simply moving two panels.
Units come complete with horizontal duct
flanges so the contractor doesn’t have to field
fabricate them.These duct flanges are a time
and cost saver.
Cooling
Standard or High Efficiency cooling available.
Crankcase Heaters1
These band heaters provide improved compressor reliability by warming the oil to prevent
migration during off-cycles or low ambient conditions.
Easy Access Low Voltage Terminal Board
Foil Faced Insulation
All panels in the
evaporator section
of the unit have
cleanable foil-faced
insulation. All edges
are either captured
or sealed to ensure
no insulation fibers
get into the
airstream.
Precedent’s Low Voltage
Terminal Board is external
to the electrical control
cabinet. It is extremely
easy to locate and attach
the thermostat wire and
test operation of all unit
functions.This is another
cost and time saving
installation feature.
Heat Exchanger
The compact cabinet features a progressive tubular heat exchanger in low, medium and high heat
capacities.
The heat exchanger is fabricated using stainless steel burners and corrosion-resistant aluminized
steel tubes as standard on all models. It has an induced draft blower to pull the gas mixture through
the burner tubes.The heater has a direct spark ignition system which doubles as a safety device
to prove the flame.
Gas/Electric Precedent models exceed all California seasonal efficiency requirements.They also
perform better than required to meet the California NOx emission requirements.
High Pressure Control
All units include High Pressure Control as standard.
IAQ Dual Sloped, Plastic, Removable,
Reversible Drain Pans
Every Precedent unit has a plastic, removable,
dual-sloped drain pan that’s easy to clean and
reversible to allow installation of drain trap on
either side of the unit.
1
8
Crankcase heaters are optional on (T,Y)SC (036, 048, 060, 072, 090, 102, 120); standard on (T,Y)HC (036, 048, 060, 072, 092, 102, 120)
RT-PRC023AG-EN
Features and Benefits
Low Ambient Cooling
All Precedent microprocessor units have cooling capabilities down to 0°F as standard.
Electromechanical models have cooling capabilities to 40°F as built, or to 0°F by adding the optional
low ambient control (Frostat™).
Low Voltage Connections
The wiring of the low voltage connections to the unit and
the zone sensors is as simple as 1-1, 2-2, and 3-3.This
simplified system makes it easy for the installer to wire.
Phase Monitoring Protection
Precedent™ units with 3-phase power are equipped with phase monitoring protection as standard.
These devices protect motors and compressors against problems caused by phase loss, phase
imbalance and phase reversal indication.
Plenum Fan1
The following units are equipped with a direct drive plenum fan design (all 10 ton units and 7½8½ ton high efficiency units). Plenum fan design includes a backward-curved fan wheel along with
an external rotor direct drive variable speed indoor motor. All plenum fan designs have a variable
speed adjustment potentiometer located in the control box.
Quick-Access Panels
Remove two screws for access to the standardized internal components and wiring.
Single Point Power
A single electrical connection powers the unit.
Single Side Service
Single side service is standard on all units.
Standardized Components
Components are placed in the same location on all Precedent units.
Due to standardized components throughout the Precedent line, contractors/owners can stock
fewer parts.
Thermal Expansion Valve
This feature is standard on all units.
Through-the-Base Condensate
Every unit includes provisions for through-the-base condensate drain connections.This allows the
drain to be connected through the roof curb instead of a roof penetration.
1
RT-PRC023AG-EN
Standard on: (T,Y)SC120F, (T,Y)HC092, 102F, (T/Y)HC120E
9
Features and Benefits
Variety of Options
Factory Installed Options1
Black Epoxy Pre-Coated Coils2
The pre-coated coils are an economical option for protection in mildly corrosive environments.
CO2 Sensor Wiring
This unit wiring for field installed C02 sensors. Factory-installed C02 sensor wiring saves time and
ensures proper unit connections for the field installed C02 sensor kits.
CompleteCoat™ Condenser Coil
These coils provide excellent corrosion resistance as well as uniformity of coverage and coating
thickness.This option is available for both fin-tube and microchannel condenser coils.
Condensate Overflow Switch
A condensate overflow switch is available to shut the unit down in the event that the condensate
drain line becomes clogged.This option protects the unit from water overflowing from the drain
pan and entering the base of the units.
Fault Detection & Diagnostics (FDD)
This offering meets the mandatory requirement of CATitle 24 of fully configurable diagnostics
allowing fault history and reading fault codes at the unit.This option provides detection of the
following faults: Air temperature sensor failure/fault and notification of acceptable economizer
mode.The FDD system shall be certified by the Energy Commission as meeting the requirements.
High Efficiency Filtration
Precedent units offer a variety of high efficiency filtration options. MERV 8 and MERV 13 filters
provide additional filtration beyond the capabilities of typical 2” throwaway filters. Also, when
MERV 8 or MERV 13 filters are ordered, units come equipped with a filter removal tool.
Human Interface - 5 Inch Color Touchscreen
The 5 inch ColorTouchscreen Human Interface provides an intuitive user interface to the rooftop
unit that speeds up unit commissioning, shortens unit troubleshooting times, and enhances
preventative maintenance measures.The human interface includes several features.
•
Data trending capabilities by means of
time series graphs
•
Historical alarm messages
•
Real-time sensor measurements
•
On board system setpoints
•
USB port that enables the downloading
of component runtime information as
well as trended historical sensor data
•
Customized reports
Note: Refer to RT-SVX49*-EN for
additional information.
1
Refer to Model Number Description for option availability.
2 Not available on Microchannel condenser coils.
10
RT-PRC023AG-EN
Features and Benefits
Novar Unit Controls
Novar 3051 and 2024 are available for Precedent Gas and Electric Heat models.
Belt Drive Motors (Three-phase)
For additional static requirements,
Precedent™ 3-5 ton units offer an optional
belt drive motor to meet a wide range of
airflow needs.
Dehumidification (Hot Gas Reheat) Option
This option allows for increased outdoor
air ventilation. It reduces humidity levels
while increasing comfort level in the air
space. Cooling can operate without a
demand for dehumidification.The hot gas
reheat coil is designed to deliver maximum
reheat temperatures.
Disconnect Switch (Available on units equipped with Through-the-Base
Electrical)
Factory installed 3-pole, molded case, disconnect switch for through-the-base electrical
connections.
Codes require a method of assured unit shutdown for servicing. Field-installed disconnects
sometimes interfere with service access. Factory installation of unit disconnects reduces costs,
assures proper mounting and provides the opportunity to upgrade to unit circuit breaker
protection.
Circuit Breaker (Available on units equipped
with Through-the-Base Electrical)
This option is a factory
installed thermal
magnetic, molded
case, HACR Circuit
Breaker with provisions
for through-the-base
electrical connections.
Hinged Access Doors
These doors permit
easy access to the
filter, fan/heat and
compressor/control
sections.They
reduce the potential
roof damage from
screws or sharp
access door corners.
Multi-Speed Indoor Fan System
Multi-speed indoor fan system is designed for use in applications for meeting the minimum
requirement of CATitle 24.
This system incorporates a multi-speed fan control to change the speed of the fan to 67% of full
airflow based off of compressor stages.
RT-PRC023AG-EN
11
Features and Benefits
Multiple-Zone VAV Control
A multiple-zone VAV (MZVAV) system consists of a packaged rooftop unit that serves several
individually controlled zones. Each zone is equipped with a VAV terminal unit that varies the
quantity of air delivered to maintain the desired temperature in that zone.The rooftop unit
controller varies the speed of the indoor fan to maintain the static pressure in the supply ductwork
at a setpoint, ensuring that all zones receive the necessary quantity of air. In addition, cooling
capacity is cycled to maintain the supply air temperature at the desired setpoint.
For decades,Trane has been an industry leader in rooftop VAV systems. Now, multiple-zone VAV
control is available in the light commercial rooftop platform (3-25 tons).
Powered or Unpowered Convenience Outlet
This option is a GFCI, 120V/15amp, 2 plug,
convenience outlet, either powered or
unpowered.This option can only be ordered
whenThrough-the-Base Electrical with either
the Disconnect Switch or Circuit Breaker option
is ordered.
Note: Not available on 575V units.
Note: Not available on 3-5 Ton High Efficiency units with Direct
Drive Indoor Motor.
Single Zone VAV – One Zone Variable Air Volume Mode
Single zone VAV is designed for use in single zone applications like gymnasiums, auditoriums,
manufacturing facilities, retail box stores, and any large open spaces, where there is a lot of
diversity in the load profile. Single Zone VAV (SZ VAV) is an ideal replacement to “yesterday’s”
constant volume (CV) systems, by reducing operating costs while improving occupant comfort.
SZ VAV systems combineTrane application, control and system integration knowledge to exactly
match fan speed with cooling and heating loads, regardless of the operating condition.Trane
algorithms meet/exceed ASHRAE 90.1- 2010 SZ VAV energy-saving recommendations, and those
of CATitle 24.The result is an optimized balance between zone temperature control and system
energy savings. Depending on your specific application, energy savings can be as much as 20+%.
Note: Building system modeling in energy simulation software likeTRACE is recommended to
evaluate performance improvements for your application.
SZ VAV is fully integrated into the ReliaTel™ control system and is available today. It provides the
simplest and fastest commissioning in the industry through proven factory-installed, wired, and
tested system controllers. All control modules, logic and sensors are factory installed, and tested
to assure the highest quality and most reliable system available.This means no special
programming of algorithms, or hunting at the jobsite for sensors, boards, etc. that need to be
installed in the field. Single zone VAV is a quick and simple solution for many applications and is
available from your most trusted rooftop VAV system solution provider -Trane.
Stainless Steel Drain Pan
For excellent corrosion and oxidation resistance, the optional stainless steel drain pan provides a
cleanable surface that complement other IAQ solutions such as high efficiency filtration (MERV 8
or 13), demand control ventilation (CO2), and hot gas reheat.
Stainless Steel Heat Exchanger
The optional stainless steel heat exchanger is constructed of 409 stainless steel. It is resistant to
corrosion and oxidation and easy to clean.The high strength to weight ratio allows for high
ventilation rates with gas units. It is an excellent option to compliment the dehumidification option
as a high outside air ventilation unit. With this option, a 10-year stainless steel heat exchanger
warranty is standard.
12
RT-PRC023AG-EN
Features and Benefits
Supply, Return, and Plenum Air Smoke Detector
With this option installed, if smoke is detected, all unit
operation will be shut down. Reset will be manual at the
unit. In order for the supply air smoke detector or return
air smoke detector to properly sense smoke in the supply
air stream or the return air stream, the air velocity
entering the smoke detector unit must be between 500 4000 feet per minute. Equipment covered in this manual
will develop an airflow velocity that falls within these
limits over the entire airflow range specified in the
evaporator fan performance table. Supply and/or Return
Smoke Detectors may not be used with the Plenum
Smoke Detector.
Through-the-Base Electrical Utility Access
An electrical service entrance shall be
provided allowing electrical access for both
control and main power connections inside
the curb and through-the-base of the unit.
Option will allow for field installation of
liquid-tight conduit and an external field
installed disconnect switch.
Factory provided through-the-base openings
simplify wiring and piping. Because these utility
openings frequently minimize the number of roof
penetrations, the integrity of roofing materials is
enhanced.
Factory or Field Installed Options1
Barometric Relief
Designed to be used on downflow units, barometric relief is an unpowered means of relieving
excess building pressure.
Clogged Filter/Fan Failure Switch
A dedicated differential pressure switch is available to achieve active fan failure indication and/or
clogged filter indication.
These sensors allow a zone sensor service light or Integrated Comfort System to indicate a dirty
filter or a fan that’s not working.The field installation charges for these valuable feedback devices
often eliminate them from consideration. Factory installation can make such features a good
investment.
Discharge Air Temperature Sensing Kit
Provides true discharge air temperature sensing in heating models.The kit is functional only with
the ReliaTel™ Options Module.
1
Refer to Model Number Description for option availability.
RT-PRC023AG-EN
13
Features and Benefits
Economizer (Standard)
This accessory shall be available with or without barometric relief.The assembly includes fully
modulating 0-100 percent motor and dampers, minimum position setting, preset linkage, wiring
harness with plug, spring return actuator and fixed dry bulb control.The barometric relief shall
provide a pressure operated damper that shall be gravity closing and shall prohibit entrance of
outside air during the equipment “off” cycle. Optional solid state or differential enthalpy control
shall be available for either factory or field installation.The economizer arrives in the shipping
position and shall be moved to the operating position by the installing contractor.
Electric Heaters
Electric heat modules are available within the basic unit. If ordering theThrough-the-Base Electrical
option with an Electrical Heater, the heater must be factory installed.
Fresh Air Options – Dampers and Economizer
0 - 25% manual or 0 - 50% motorized outside air hoods are available.
Economizers are equipped with either dry bulb or reference or comparative enthalpy sensing.
These economizers provide free cooling as the outdoor temperature and/or humidity decreases.
Correctly installed, they offer a valuable energy savings. Factory-installed economizers save time
and ensure proper installation.
Low Leak Economizer
This accessory meets low leak requirements for ASHRAE 90.1, IECC, and CATitle 24 standards
(3 cfm/ft^[email protected]" wg exterior air, 4 cfm/ft^[email protected]" wg return air).This option allows 100% outdoor air
supply from 0-100% modulating dampers and is standard with barometric relief. It can be paired
with powered exhaust for additional building pressure relief.This option can be paired with or
without Fault Detection & Diagnostics (FDD) to meet current mandatory CATitle 24 requirements.
Available on downflow units only.
The economizers come with three control options, dry bulb and reference or comparative enthalpy
(optional).
Frostat™
This capillary bulb embedded in the face of the evaporator coil monitors coil temperature to
prevent evaporator icing and protect the compressor. Recommended for applications with low
leaving air temperatures, low airflow and or high latent load applications. Frostat is standard on
all Single-Zone VAV and Multiple-Zone VAV models.
LonTalk® Communications Interface
The LonTalk communications interface allows the unit to communicate as aTracer™ LCI-V device
or directly with the generic LonTalk Network Building Automation System Controls.
BACnet® Communications Interface
The BACnet communications interface allows the unit to communicate directly with a generic open
protocol BACnet MS/TP Network Building Automation System Controls.
Reference or Comparative Enthalpy
Measures and communicates humidity while maximizing comfort control.
Trane Communication Interface (TCI)
Available factory or field installed.This module when applied with the ReliaTel™ easily interfaces
withTrane’s Integrated Comfort™ System.
14
RT-PRC023AG-EN
Features and Benefits
Tool-less Hail Guards
Tool-less, hail protection quality coil guards shall be either
factory or field-installed for condenser coil protection.This
option protects the condenser coil from vandalism and/or hail
damage.
Field Installed Options1
CO2 Sensor - Demand Control Ventilation (DCV)
Demand-controlled ventilation (DCV) is a control strategy that responds to the actual demand
(need) for ventilation by regulating the rate at which the HVAC system brings outdoor air into the
building. A CO2 sensor measures the concentration (parts per million, ppm) of CO2 (Carbon
Dioxide) in the air. As the CO2 concentration changes, the outside air damper modulates to meet
the current ventilation needs of the zone.The CO2 sensor kit is available as a field installed
accessory.Two field installed kits are offered; C02 sensor and wiring or C02 sensor only.The C02
Sensor only kit should be ordered with factory installed C02 sensor wiring. Factory installed C02
sensor wiring saves set-up time and ensures proper unit connections for the C02 sensor.
High Altitude Kit
Previously a Canadian Agency requirement for units applied above 2000 feet, it is not required by
the U.S. Domestic contractors should consult with local authority on best practice. Derates gas
orifices by 10%.
High Static Drive
Available on many models, this high static drive accessory extends the capability of the standard
motor. Avoid expensive motors and operating costs by installing this optimized sheave accessory.
Humidity Sensor/Humidistat
The humidity sensor/humidistat, when used in conjunction with our Dehumidification (Hot Gas
Reheat) units will provide outstanding humidity control and comfort. Humidity sensors can be wall
or duct mounted.The humidity deadband can be set between 40% and 60% relative humidity.
Low Leak Economizer
This accessory meets low leak requirements for ASHRAE 90.1, IECC, and CATitle 24 standards (3
cfm/ft^[email protected]" wg exterior air, 4 cfm/ft^[email protected]" wg return air).This option allows 100% outdoor air
supply from 0-100% modulating dampers and is standard with barometric relief. It can be paired
with powered exhaust for additional building pressure relief. Available on downflow units only.
LP Conversion Kit
Provided for field conversion of gas/electric units from Natural gas to Propane.
Quick Adapt Curbs
Enables easy conversion of existingVoyager 3-10 ton units to Precedent units on replacement jobs.
Quick Start Kits
Single phase equipment to enable startup and prevent building lighting dimming during low
voltage.
1
Refer to Model Number Description for option availability.
RT-PRC023AG-EN
15
Features and Benefits
Roof Curbs
Available for downflow units. Only three roof curbs for the entire line simplifies curb selection.
Remote Potentiometer
When properly installed in the economizer control circuitry, this accessory provides a remote
variable resistance to enable the operator to adjust the minimum damper position.
Ventilation Override Accessory
With theVentilation Override Accessory installed, the unit can be set to transition to up to 3 different
pre-programmed sequences for Smoke Purge, Pressurization, and Exhaust.The transition occurs
when a binary input on the RTOM is closed (shorted).This would typically be a hard wired relay
output from a smoke detector or fire control panel.The ventilation override kit is available as a field
installed accessory.
Zone Sensors/Thermostats
Available in programmable, automatic and manual styles.
Other Benefits
Easy to Install, Service and Maintain
Because today’s owners are very cost-conscious when it comes to service and maintenance, the
Precedent was designed with direct input from service contractors.This valuable information
helped to design a product that would get the service person off the job quicker and save the owner
money. Precedent offers outstanding standard features enhanced by a variety of factory and field
installed options, multiple control options, rigorously tested proven designs and superior product
and technical support.
Airflow Distribution
Airflow is outstanding. Precedent can replace an older machine with old ductwork and, in many
cases, improve the comfort through better air distribution.
Cabinet Integrity
For added water integrity, Precedent has a raised 1 1/8” lip
around the supply and return of the downflow units to
prevent water from blowing into the ductwork.
Flexibility
Precedent offers ultimate flexibility. Units are built to order in our standard “shortest in the
industry” ship cycle time.
16
RT-PRC023AG-EN
Features and Benefits
ReliaTel™ Controls
ReliaTel controls provide unit control for heating,
cooling and ventilating utilizing input from sensors
that measure outdoor and indoor temperature.
ReliaTel Control Logic Enhances Quality and
Reliability
– prevents the unit from short cycling,
considerably improving compressor life.
– ensures that the compressor will run for a
specific amount of time which allows oil to
return for better lubrication, enhancing the
reliability of the compressor.
Precedent units with ReliaTel reduces the number of
components required to operate the unit, thereby
reducing possibilities for component failure.
ReliaTel Makes Installing and Servicing Easy
ReliaTel eliminates the need for field installed anti-shortcycle timer and time delay relays. ReliaTel
controls provide these functions as an integral part of the unit.The contractor no longer has to
purchase these controls as options and pay to install them.
The wiring of the low voltage connections to the unit and the zone sensors is as easy as 1-1, 2-2,
and 3-3.This simplified system makes wiring easier for the installer.
ReliaTel Makes Testing Easy
ReliaTel requires no special tools to run the Precedent unit through its paces. Simply place a jumper
betweenTest 1 andTest 2 terminals on the Low VoltageTerminal Board and the unit will walk
through its operational steps automatically.
The unit automatically returns control to the zone sensor after stepping through the test mode a
single time, even if the jumper is left on the unit.
As long as the unit has power and the “system on” LED is lit, ReliaTel is operational.The light
indicates that the controls are functioning properly.
ReliaTel features expanded diagnostic capabilities when utilized withTrane Integrated Comfort™
Systems.
Some zone sensor options have central control panel lights which indicate the mode the unit is in
and possible diagnostic information (dirty filters for example).
Other ReliaTel Benefits
The ReliaTel built-in anti-shortcycle timer, time delay relay and minimum “on” time control
functions are factory tested to assure proper operation.
ReliaTel softens electrical “spikes” by staging on fans, compressors and heaters.
Intelligent Fallback is a benefit to the building occupant. If a component fails, the unit will continue
to operate at predetermined temperature setpoint.
Intelligent Anticipation is a standard ReliaTel feature. It functions continuously as ReliaTel and zone
sensor(s) work together in harmony to provide much tighter comfort control than conventional
electro-mechanical thermostats.
The same ReliaTel Board fits all Packaged Gas/Electric and Cooling with Electric Heat models.This
provides standardization of parts for contractors. Less money is tied up in inventory with ReliaTel.
RT-PRC023AG-EN
17
Features and Benefits
Unit Cabinet
The compact cabinet with rounded corners takes up less room.The beveled and ribbed top is
aesthetically pleasing and designed to prevent water from pooling.
VariTrac® – Changeover-Bypass System
A changeover-bypass system consists of a
packaged rooftop unit that serves several
individually controlled zones. Each zone is
equipped with a damper that varies the
quantity of air delivered to maintain the
desired temperature in that zone. However,
unlike a conventional multiple-zone VAV
system, the fan inside the rooftop unit
operates at a constant speed. Any
unneeded air is diverted to the return air
stream through a bypass damper.
The term “changeover” refers to how this
system handles the cooling and heating
requirements of the building.The central
rooftop unit can provide either cooled or
heated air, and it makes this decision by
periodically “polling” the zones.
Note: VariTrac is for Precedent™ units with constant-speed indoor fan control. It is not
recommended for use with Multiple-Speed Indoor Fan Control, Single-Zone VAV Control,
or Multiple-Zone VAV Control.
Rigorous Testing
All of Precedent’s designs were rigorously rain tested at the factory to ensure water integrity.
Actual shipping tests were performed to determine packaging requirements. Units were test
shipped around the country to determine the best packaging design. Factory shake and drop tests
were used as part of the package design process to help assure that the unit arrives at the job site
in top condition.
Rigging tests include lifting a unit into the air and letting it drop one foot, assuring that the lifting
lugs and rails hold up under stress.
We perform a 100% coil leak test at the factory.The evaporator and condenser coils are leak tested
at 600 psig.The assembled unit is leak tested to 465 psig.
All parts are inspected at the point of final assembly. Sub-standard parts are identified and rejected
immediately.
Every unit receives a 100% unit run test before leaving the production line to make sure it meets
rigorous Trane requirements.
18
RT-PRC023AG-EN
Application Considerations
Application of this product should be within the cataloged airflow and cooling considerations.
Barometric Relief
This product line offers an optional barometric relief damper for use in conjunction with
economizer option.This accessory consists of gravity dampers which open with increased
pressure. As the building air pressure increases, the pressure in the unit return air section also
increases, opening the dampers and relieving the conditioned space.
Note: The effectiveness of barometric relief damper during economizing operation is limited,
depending on the pressure drop of the return-air path. For some applications, powered
exhaust may be better suited for preventing over-pressurization when economizing.
Black Epoxy Coil
The coils are manufactured with a thermoset, vinyl coating that is bonded to the aluminum fin stock
prior to the fin stamping process.These coils are an economical option for protection in mildly
corrosive environments.
Note: Not to be used where seacoast applications exist.
Note: Not available on Microchannel condenser coils.
Clearance Requirements
The recommended clearances identified with unit dimensions should be maintained to assure
adequate service maximum capacity and peak operating efficiency. Actual clearances which
appear inadequate should be reviewed with the localTrane sales personnel.
Model Number
Clearance required from duct to
combustible surfaces (inches)
T(S/H)C036E
0
T(S/H)C048E
0
THC048F
0
T(S/H)C060E
0
THC060F
0
TSC072F
0
THC072F
1
TSC090F
1
TSC092F
0
THC092F
1
TSC102F
0
THC102F
1
TSC120F
1
THC120E
1
CompleteCoat™ Condenser Coil
The coils provide protection from corrosive environments and are ideal for seacoast applications.
Condensate Trap
The evaporator is a draw-thru configuration. A trap must be field provided prior to start-up on the
cooling cycle.
Heating Operation
The heat exchanger is manufactured with aluminized steel.To prevent condensation within the
heat exchanger, do not exceed 50% outside air or a minimum mixed air temperature of 40°F.
RT-PRC023AG-EN
19
Application Considerations
Low Airflow/VAV Operation
Units equipped electric heat or staged gas heat may not be selected for supply airflow less than
320 cfm/ton. Cooling-only units can be used in applications designed for supply airflow below 320
cfm/ton.The units must be high-efficiency models with dehumidification (hot gas reheat) or be
equipped with aTXV, Frostat™, and crankcase heaters.
Units selected with Multiple-Speed Indoor Fan Control, Single-ZoneVAV Control, or Multiple-Zone
VAV Control are capable of operating at supply airflows below 320 cfm/ton at part-load conditions,
but design (or "full") airflow must be set to 320 cfm/ton or higher.
Low Ambient Cooling
The Precedent™ line features, with ReliaTel™ microprocessor controls, low ambient cooling down
to 0°F. With electromechanical controls, Precedent features low ambient cooling to 40°F.The
following features or options need to be included/considered when low ambient applications are
required: continuous fan operation, crankcase heaters, thermal expansion valves, Frostat™.
Contact a local Trane Representative for more assistance with low ambient cooling applications.
Optional Stainless Steel Heat Exchanger
The optional stainless steel heat exchanger is manufactured with 409 stainless steel.To prevent
corrosion and prolong heat exchanger reliability, the minimum mixed air temperature allowed
across the heat exchanger is 20°F.
The stainless steel heat exchanger option is an excellent option that compliments the
dehumidification package. Whenever high outside air or outside applications exist, these options
should be utilized.
VariTrac®
VariTrac is for Precedent™ units with constant-speed indoor fan control. It is not recommended for
use with Multiple-Speed Indoor Fan Control, Single-Zone VAV Control, or Multiple-Zone VAV
Control.
Unit Pitch
The unit has a reversible sloped condensate drain pans.The unit must be installed level. Any unit
slope must be toward the side of unit where condensate drain is connected.
20
RT-PRC023AG-EN
Selection Procedure
Cooling Capacity
Note: Cooling Capacity Procedure is the same for electric heat (T*C) and gas heat (Y*C).
Step 1.
Calculate the building’s total and sensible cooling loads at design conditions. Use the Trane
calculation methods or any other standard accepted method.
Factors used in unit selection:
• Packaged Cooling with Optional Electric Heat
• Total Cooling Load: 59 MBh
• Sensible Cooling Load: 40 MBh
• Airflow: 2000 cfm
• Electrical Characteristics: 460/60/3
• Summer Design Conditions: Entering Evaporator Coil: 80 DB
• 67 WB Outdoor Ambient: 95
• External Static Pressure: 0.36 in. wg
• Downflow Configuration
• Efficiency: 13 SEER
• Economizer
Step 2.
As a starting point, a rough determination must be made of the size of the unit.The final selection
will be made after examining the performance at the given conditions. Divide the total cooling load
by nominal Btuh per ton (12 MBh per ton); then round up to the nearest unit size.
59 MBh / 12 MBh = approx. 5 tons
Step 3.
Table 13, p. 48 shows that aTSC060E4 has a gross cooling capacity of 62.3 MBh and 48.1 MBh
sensible capacity at 2000 cfm and 95 DB outdoor ambient with 80 DB, 67 WB air entering the
evaporator.
To Find Capacity at Intermediate Conditions not in the table.
When the design conditions are between two numbers that are in the capacity table, interpolation
is required to approximate the capacity.
Note: Extrapolation outside of the table conditions is not recommended.
Step 4.
In order to select the correct unit which meets the building’s requirements, the fan motor heat must
be deducted from the gross cooling capacity.The amount of heat that the fan motor generates is
dependent on the effort by the motor - cfm and static pressure.To determine the total unit static
pressure:
External Static Duct System
0.36 wg
Standard Filter 2 in. from
0.049 wg
Table 139, p. 183
Economizer from Table 139,
p. 183 (100% Outside Air)
0.105 wg
*worst case
Electric Heater Size 6 kW
0.021 wg
from Table 139, p. 183
(reference "Heating Capacity" section on this
page for determination of heater size)
Total Static Pressure
0.535 wg
Note: The Evaporator Fan Performance Table 36, p. 84 has deducted the pressure drop for a filter
already in the unit (see note below Table 36, p. 84).Therefore, the actual total static pressure
is 0.535 -0.049 (from Table 139, p. 183) = 0.486 wg.
RT-PRC023AG-EN
21
Selection Procedure
With 2000 cfm and 0.5 wg.
Table 36, p. 84 shows 0.575 bhp for this unit.
Note: Below the table is the formula to calculate Fan Motor Heat
2.87 x bhp + 0.75 = MBh
2.87 x 0.575 + 0.75 = 2.4 MBh
Now subtract the fan motor heat from the gross cooling capacity of the unit:
NetTotal Cooling Capacity
= 62.3 MBh - 2.4 = 59.9 MBh
Net Sensible Cooling Capacity
= 48.1 MBh - 2.4 = 45.7 MBh
Subtracting Sensible fromTotal Capacity to find Latent Capacity
Net Latent Capacity
= 59.9 - 45.7 = 14.2 MBh
Step 5.
Compare your resulting capacities to the building load. If the performance will not meet the
required load of the building’s total or sensible cooling load, try a selection at the next higher size
unit.
Heating Capacity
Note: Heating capacity procedure DIFFERS for electric heat (T*C) and gas heat (Y*C) units
Step 1.
Calculate the building heating load using the Trane calculation form or other standard accepted
method.
Step 2.
Size the system heating capacity to match the calculated building heating load.The following are
building heating requirements:
Total heating load of 15 MBh
2000 cfm
T*C units with optional electric heat: 460V/3 phase Power Supply
The electric heat accessory capacities are listed in Table 142, p. 186. From the table, a 6 kW heater
will deliver 20.48 MBh at 480 volts. In order to determine capacity at 460 volts, the heater voltage
correction factor from Table 144, p. 188 must be used.Therefore, 20.48 MBh x 0.918 (voltage
correction factor) = 18.8 MBh.
Y*C units with gas heat: Fuel- natural gas.
60 MBh, 80 MBh and 130 MBh input models shown in Table 140, p. 184.The output capacities of
these furnaces are 48 MBh, 64 MBh and 104 MBh respectively.The low heat model with 48 MBh
best matches the building requirements.
Air Delivery Selection
Note: Air Delivery procedure is the same for electric heat and gas heat units.)
External static pressure drop through the air distribution system has been calculated to be 0.5
inches of water. Enter Table 52, p. 100 for aTSC060E4 at 2000 cfm and 0.5 static pressure.The
standard direct drive motor will give the desired airflow at a rated bhp of 0.73 and 951 rpm.
22
RT-PRC023AG-EN
Selection Procedure
Dehumidification Selection
Note: Dehumidification selection procedure is the same for both electric heat (THC) and gas heat
(YHC) models).
Typical 5 tonTHC060E
2000 cfmTotal Supply airflow
400 cfm Outside Air (40%)
600 cfm Return Air
0.34” External Static Pressure
OA Conditions
Part load day and raining
68°F db
67°F wb
95% RH
RA conditions
75°F db
63°F wb
Step 1:
Determine the mixed/entering air condition (MA)
MA = (% outside air*outside air dry-bulb temperature) + (% return air*return air dry-bulb
temperature)
MA = (0.40*68°F) + (0.60*75°F)
MA = 72.20°F db
Repeat for wet-bulb temperature (wb)
MA
72.2°F db
64.6°F wb
Step 2:
Determine the additional static pressure drop for a reheat unit
Table 139, p. 183 shows a static pressure drop of 0.13” for the reheat coil and an additional 0.08 for
the mandatory 2” pleated filters required when ordering the dehumidification option.Total static
pressure =
.34 + 0.08 + 0.13= 0.55
Do not forget to also add any additional static from other accessories.This selection does not
include additional accessories.
Table 101, p. 149 (airflow table for 5 ton downflow unit) indicates that a standard motor and drive
is needed for this airflow and static pressure range.
Step 3a:
Determine leaving evaporator temperature (SA’)
Leaving EvaporatorTemperature = SA’
Utilizing the manual Cooling Capacity selection method as previously described, find the leaving
evaporator temperatures with the formula:
Temp =
RT-PRC023AG-EN
gross sensible or
gross latent cooling
capacity in Btuh
________________
(cfm) (1.085)
23
Selection Procedure
Subtract your sensible temp from the entering db and latent  temp from the entering wb to
determine the leaving evaporator db & wb (temperatures without the addition of fan heat).
52.7°F db
52.7°F wb
52.7°F dp
Step 3b:
Determine leaving unit temperature in standard cooling mode
Repeat Step 3a substituting net sensible or latent capacity for gross sensible or latent capacity to
find the leaving unit temperature including fan heat.
53.7°F db
53.1°F wb
Step 4:
Determine reheat temperature rise
Using the leaving evaporator temp (SA’), go to Table 144, p. 188 and determine the reheat
temperature rise for that particular cfm: 19.0°F db
Note: Reheat temperature rise is based on supply airflow and leaving evaporator coil
temperature.
Step 5:
Determine leaving unit sensible temperature with reheat active (SA)
Reheat temperature (obtained in step 4) + (SA’ + fan heat) = SA
(SA’ + fan heat) = leaving unit temperature in standard cooling mode from step 3b.
19.0°F db + 53.7°F = 72.7°F db
SA=72.7°F
Since reheat adds only sensible heat, the dewpoint temperature will remain constant so follow the
dewpoint temperature line across the psychrometric chart to find the new wb temperature.
 60.5°F wb
52.7 dp
49.9% RH
If the space relative humidity is equal to or above the space relative humidity setpoint, the
Dehumidification option will:
•
Energize compressor or both compressors (2 stage compressor units).
•
Hot gas reheat valve is energized and hot gas is diverted to the reheat coil.
•
Dehumidification/reheat is terminated when space humidity is reduced to 5% below relative
humidity setpoint.
At MA air enters the RTU.The RTU filters, cools, and dehumidifies the air as it moves through the
evaporator coil. Air leaves the evaporator coil saturated at the preset dew point condition (SA’) and
is reheated by the hot gas reheat coil to deliver 72.7°F (SA) supply air to the space.
24
RT-PRC023AG-EN
Model Number Description - 3-10 Ton
Y
S
C
0
3
6
E
3
R
Z
A
*
*
1
2
3
4
5
6
7
8
9
10
11
12
13
Digit 1 - Unit Type
Digit 14 - Fresh Air Selection
T
Y
0
A
B
DX Cooling
DX Cooling, Gas Heat
Digit 2 - Efficiency
S
H
Standard Efficiency
High Efficiency
Digit 3 - Airflow
C
Convertible
Digit 4,5,6 - Nominal Gross
Cooling Capacity (MBh)
036
048
060
072
090
092
102
120
3Ton
4Ton
5Ton
6Ton
7½Ton, Single Compressor
7½Ton, Dual Compressor
8½Ton
10Ton
Digit 7 - Major Design Sequence
E
F
R-410A Refrigerant
MicrochannelType Condenser Coils24
Digit 8 - Voltage Selection
1
3
4
W
208/230/60/1
208-230/60/3
460/60/3
575/60/3
Digit 15 - Supply Fan/Drive Type/
Motor
Digit 9 - Unit Controls
E
R
Electromechanical
ReliaTel™ Microprocessor
Digit 10 - Heating Capacity
0=No Electric Heat
A=5 kW (1 phase)1
B=6 kW (3 phase)
C=9 kW (3 phase)
D=10 kW (1 phase)1
E=12 kW (3 phase)
L
M
H
X
No Fresh Air
Manual Outside Air Damper 0-50%4
Motorized Outside Air Damper
0-50%29
C Economizer, Dry Bulb 0-100%
without Barometric Relief7
D Economizer, Dry Bulb 0-100%
with Barometric Relief7
E Economizer, Reference Enthalpy
0-100% without Barometric Relief3,7
F Economizer, Reference Enthalpy
0-100% with Barometric Relief3,7
G Economizer, Comparative
Enthalpy 0-100% without
Barometric Relief3,7
H Economizer, Comparative
Enthalpy 0-100% with Barometric
Relief3,7
K Low Leak Economizer with
Barometric Relief
M Low Leak Economizer with Reference
Enthalpy with Barometric Relief
P Low Leak Economizer with
Comparative Enthalpy with
Barometric Relief
F=14 kW (1 phase)1
G=18 kW (1&3 phase)
J=23 kW (3 phase)
K= 27 kW (3 phase)
N = 36 kW (3 phase)
P = 54 kW (3 phase)
0
1
2
6
7
E
Digit 16 - Hinged Service Access/
Filters
0
A
Low Heat
Medium Heat
High Heat
Low Heat, Stainless Steel Heat
Exchanger
Medium Heat, Stainless Steel Heat
Exchanger
High Heat, Stainless Steel Heat
Exchanger
B
C
Digit 11 - Minor Design Sequence
0
1
2
Y
Z
A
B
First Sequence21
Second Sequence20
Digit 12,13 - Service Sequence
** Factory Assigned
RT-PRC023AG-EN
Standard Drive6
Oversized Motor
Optional Belt Drive Motor18
Single Zone VAV27,34
Multi-Speed Indoor Fan28
VAV Supply AirTemperature Control
Standard Motor34
D
E
Standard Panels/Standard Filters
Hinged Access Panels/Standard
Filters
Standard Panels/2” MERV 8 Filters
Hinged Access Panels/2” MERV 8
Filters
Standard Panels/2” MERV 13 Filters
Hinged Access Panels/2” MERV 13
Filters
Digit 17 - Condenser Coil
Protection
3
4
5
Standard Coil
Standard Coil with Hail Guard
Black Epoxy Pre-Coated Condenser
Coil26
Black Epoxy Pre-Coated
Condenser Coil with Hail Guard26
CompleteCoat™ Condenser Coil
CompleteCoat™ Condenser Coil
with Hail Guard
Digit 18 - Through-the-Base
Provisions
Note: Applicable to Digit 1,T orY models
0 NoThrough-the-Base Provisions
A Through-the-Base Electric8
Note: Applicable to Digit 1,Y models
only
B Through-the-Base Gas Piping16
C Through-the-Base Electric and Gas
Piping16
Digit 19 - Disconnect/Circuit
Breaker (three-phase only)
0
1
2
No Disconnect/No Circuit Breaker
Unit Mounted Non-Fused
Disconnect8
Unit Mounted Circuit Breaker8
Digit 20 - Convenience Outlet
0
A
B
No Convenience Outlet
Unpowered Convenience Outlet
Powered Convenience Outlet
(three-phase only)9
Digit 21 - Communications
Options3
0
1
2
3
4
5
6
No Communications Interface
Trane Communications Interface
LonTalk® Communications
Interface
Novar 2024 Controls31
Novar 3051 Controls without Zone
Sensor31
Novar 3051Controls Interface with
DCV31
BACnet® Communications Interface
Digit 22 - Refrigeration System
Option
0
B
Standard Refrigeration System10
Dehumidification Option22,23
Digit 23 - Refrigeration Controls
Note: Applicable to Digit 7 = E, F
0 No Refrigeration Control5
1 Frostat™11,30
2 Crankcase Heater2
3 Frostat™11,30 and Crankcase Heater2
Digit 24 - Smoke Detector17
0
A
B
C
D
No Smoke Detector
Return Air Smoke Detector12,13
Supply Air Smoke Detector
Supply and Return Air Smoke
Detectors12,13
Plenum Smoke Detector
25
Model Number Description - 3-10 Ton
Digit 25 - System Monitoring
Controls
0
1
2
3
4
5
6
7
8
9
A
B
C
D
E
F
G
H
No Monitoring Control14
Clogged Filter Switch14
Fan Failure Switch14
Discharge Air SensingTube14
Clogged Filter Switch and Fan
Failure Switch14
Clogged Filter Switch and Discharge
Air SensingTube14
Fan Failure Switch and Discharge Air
SensingTube14
Clogged Filter Switch, Fan Failure
Switch and Discharge Air
SensingTube14
Novar Return Air Sensor
(NOVAR 2024)15,31
Novar ZoneTemp Sensor
(NOVAR 3051)19,31
Condensate Drain Pan Overflow
Switch
Clogged Filter Switch14 and
Condensate Drain Pan Overflow
Switch
Fan Failure Switch14 and Condensate
Drain Pan Overflow Switch
Discharge Air Sensing14 and
Condensate Drain Pan Overflow
Switch
Clogged Filter Switch14, Fan Failure
Switch14 and Condensate Drain Pan
Overflow Switch
Clogged Filter Switch14, Discharge Air
SensingTube14 and Condensate
Drain Pan Overflow Switch
Fan Failure Switch, Discharge Air
SensingTube14 and Condensate
Drain Pan Overflow Switch
Clogged Filter Switch14, Fan Failure
Switch14, Discharge Air Sensing14 and
Condensate Drain Pan Overflow
Switch
Digit 26 - System Monitoring
Controls
0
A
B
C
No Monitoring Controls
Demand Control Ventilation (CO2)32,33
Low Leak Economizer with FDD (Fault
Detection & Diagnostics)
FDD (Fault Detection & Diagnostics)
with DCV (Demand Control
Ventilation)
Digit 27 - Unit Hardware
Enhancements
0
1
No Enhancements
Stainless Steel Drain Pan
Digit 31 - Advanced Unit
Controls
0 Standard Unit Controls
1 Human Interface
Model Number Notes
1. Available on 3-5 ton models.
26
2. Crankcase heaters are optional on
(T,Y)SC (036, 048, 060, 072, 090,
102, 120); standard on (T,Y)HC
(036, 048, 060, 072, 092, 102, 120).
10. Standard metering devices are
TXVs.
3. Not available with
electromechanical controls.
12. The return air smoke detector may
not fit up or work properly on the
Precedent units when used in
conjunction with 3rd party
accessories such as bolt on heat
wheels, economizers and power
exhaust. Do not order the return
air smoke detectors when using
this type of accessory.
4. Manual outside air damper will
ship factory supplied within the
unit, but must be field installed.
5. High pressure control is standard
on all units.
6. On 3-5 ton, multispeed direct drive
is standard on single phase and 15
SEER. On 6-10 ton, multispeed
direct drive is standard on all 10
ton and 7.5-8.5 ton high efficiency.
Belt drive is standard on all other
units.
Digit 15 = 0
Standard Efficiency
1 Phase = High Efficiency Multispeed Direct
Drive Motor
3 Phase (3-8½ Ton) = Belt Drive
3 Phase (10 Ton) = Ultra High Efficiency Direct
Drive Plenum Fan
High Efficiency
1 Phase = High Efficiency Multispeed Direct
Drive Motor
3 Phase (3-5 ton) = High Efficiency Multispeed
Direct Drive Motor
3 Phase (3-5 ton w/Dehumidification) = Belt
Drive Motor
3 Phase (7½-10 ton) = Ultra High Efficiency
Direct Drive Plenum Fan
7.
Economizer with Barometric
Relief is for downflow configured
units only. Order Economizer
without Barometric Relief for
horizontal configuration.
Barometric Relief for horizontal
configured units must be ordered
as field installed accessory.
8. Through-the-base electric
required when ordering
disconnect/circuit breaker
options.
9. Requires use of Disconnect or
Circuit Breaker.
Not Available
Standard Efficiency
10 Ton w/575V
High Efficiency
3-5 ton w/Standard Indoor Motor w/460V
High Efficiency 575V
11. Frostat™ cannot be field installed
in electro-mechanical units.
13. Return Air Smoke Detector cannot
be ordered with Novar Controls.
14. These options are standard when
ordering Novar Controls.
15. This option is used when ordering
Novar Controls.
16. Includes gas piping and shutoff
(field assembly required).
17. Not available with high
temperature duct sensor
accessory.
18. Digit 15 = 2
Standard Efficiency
1 Phase = Not Available
3 Phase = Not Available
High Efficiency
1 Phase = Not Available
3 Phase (3-5 ton) = May be Ordered
3 Phase (3-5 ton w/Dehumidification) = Not
Available
3 Phase (6-10 ton) = Not Available
19. Novar Sensor utilized with
Digit 21 = (4) Novar 3051 Controls
without Zone Sensor.
20. Available forT/Y 10 ton standard
efficiency models only.
21. Available forT/Y 3, 4, 5, 6, 7½, 8½
ton standard/high efficiency
models only.
22. Requires selection of 2” Pleated
Filters (option B or C) for Digit 16.
23. Not available on all single phase
or standard efficiency.
24. Standard onT/YSC 6, 7½ (single
and dual systems), 8½, 10 ton
standard efficiency models and
T/YHC 4, 5, 6, 7½, 8½ ton high
RT-PRC023AG-EN
Model Number Description - 3-10 Ton
efficiency models (except for 4, 5,
6 ton dehumidification models).
25. Not available on High Efficiency
575V.
26. Epoxy coil and epoxy with
hailguard options are not
available for units with
microchannel condenser coil.
27. Single Zone VAV is only available
on 7.5-10 ton high efficiency and 10
ton standard efficiency products
with ReliaTel™ controls.
28. Multi-speed indoor fan available
only on 7.5 & 8.5 ton high
efficiency, and 10 ton products
with ReliaTel™ controls.
29. Motorized Outside Air Damper is
not available on Multi-Speed or
SZVAV (Single Zone Variable Air
Volume) products.
30. Frostat™ standard on MultiSpeed and SZVAV (Single Zone
Variable Air Volume) products.
31. Novar is not available with SZVAV
products.
32. Demand Control Ventilation not
available with electromechanical
controls.
33. Demand Control Ventilation
Option includes wiring only.The
C02 sensor is a field-installed only
option.
34. Discharge Air Sensing is also
standard equipment on units with
Single Zone and Supply Air
Temperature Control VAV.
RT-PRC023AG-EN
27
General Data
Table 1.
General data - 3-4 tons - standard efficiency
3 Tons
Cooling
4 Tons
T/YSC036E1
T/YSC036E3,4,W
T/YSC048E1
T/YSC048E3,4,W
35,620
11.5/13.0
1,200/1,200
35,000
3.04
37,150
11.2/13.0
1,200/1,200
35,800
3.20
49,210
11.1/13.0
1,600/1,600
48,000
4.32
49,450
10.9/13.0
1,600/1,600
48,000
4.39
1/Scroll
1/Scroll
1/Scroll
1/Scroll
Performance(a)
Gross Cooling Capacity
EER/SEER(b)
Nominal cfm/AHRI Rated cfm
AHRI Net Cooling Capacity
System Power (kW)
Compressor
Number/Type
Sound
Outdoor Sound Rating (dB)(c)
Outdoor Coil - Type
Configuration
Tube Size (in.)
Face Area (sq. ft.)
Rows/FPI
Indoor Coil - Type
Configuration
Tube Size (in.)
Face Area (sq. ft.)
Rows/FPI
Refrigerant Control
Drain Connection Number/Size (in.)
81
81
82
82
Lanced
Lanced
Lanced
Lanced
Full Face
0.3125
10.96
2/16
Full Face
0.3125
9.59
2/16
Full Face
0.3125
10.96
2/16
Full Face
0.3125
10.96
2/16
Lanced
Lanced
Lanced
Lanced
Full Face
Full Face
Full Face
Full Face
0.3125
0.3125
0.3125
0.3125
7.71
7.71
7.71
7.71
4/16
4/16
3/16
3/16
Thermal Expansion Valve Thermal Expansion Valve Thermal Expansion Valve Thermal Expansion Valve
1¾ NPT
1¾ NPT
1¾ NPT
1¾ NPT
Outdoor Fan - Type
Propeller
Propeller
Propeller
Propeller
Number Used/Diameter (in.)
Drive Type/No. Speeds
cfm
Motor hp
Motor rpm
1/22
Direct/1
3,466
0.33
1,075
1/22
Direct/1
3,375
0.33
1,075
1/22
Direct/1
3,411
0.33
1,075
1/22
Direct/1
3,403
0.33
1,075
FC Centrifugal
FC Centrifugal
FC Centrifugal
FC Centrifugal
1/11x11
Direct/5(d)
1
0.75
48
1/11x11
Belt/Variable/1,750
1
1.0
56
1/11x11
Direct/5(d)
1
1.0
48
1/11x11
Belt/Variable/1,750
1
1.0
56
Throwaway
(2) 20x30x2
Throwaway
(2) 20x30x2
Throwaway
(2) 20x30x2
Throwaway
(2) 20x30x2
6.3
6.0
7.0
7.0
Indoor Fan - Type (Standard)
Number Used/Diameter (in.)/Width (in.)
Drive Type/No. Speeds/RPM
Number Motors
Motor hp
Motor Frame Size
Filters(e)
Type Furnished
Number Size Recommended
Refrigerant Charge(f)
Pounds of R-410A
continued on next page
28
RT-PRC023AG-EN
General Data
Table 1.
General data - 3-4 tons - standard efficiency (continued)
3 Tons
Heating
4 Tons
T/YSC036E1
T/YSC036E3,4,W
T/YSC048E1
T/YSC048E3,4,W
60,000
80,000
120,000
60,000
80,000
120,000
60,000
80,000
120,000
60,000
80,000
120,000
48,000
65,000
96,000
48,000
64,000
96,000
49,000
65,000
96,000
48,000
64,000
96,000
78
78
78
80
80
80
79
79
79
80
80
80
80
81
80
80
80
80
81
81
80
80
80
80
2
2
3
2
2
3
2
2
3
2
2
3
1
1
1
1
1
1
1
1
1
1
1
1
4.5/14.0
11.0/14.0
4.5/14.0
11.0/14.0
4.5/14.0
11.0/14.0
4.5/14.0
11.0/14.0
1/2
1/2
1/2
1/2
1/2
1/2
1/2
1/2
1/2
1/2
1/2
1/2
Performance(g)
(Gas/Electric Only)
Heating Input
Low Heat Input (Btu)
Mid Heat Input (Btu)
High Heat Input (Btu)
Heating Output
Low Heat Input (Btu)
Mid Heat Input (Btu)
High Heat Input (Btu)
AFUE%(h)
Low Heat Input (Btu)
Mid Heat Input (Btu)
High Heat Input (Btu)
Steady State Efficiency%
Low Heat Input (Btu)
Mid Heat Input (Btu)
High Heat Input (Btu)
No. Burners
Low Heat Input (Btu)
Mid Heat Input (Btu)
High Heat Input (Btu)
No. Stages
Low Heat Input (Btu)
Mid Heat Input (Btu)
High Heat Input (Btu)
Gas Supply Line Pressure
Natural (minimum/maximum)
LP (minimum/maximum)
Gas Connection Pipe Size (in)
Low Heat
Mid Heat
High Heat
(a) Cooling performance is rated at 95°F ambient, 80°F entering dry bulb, 67°F entering wet bulb. Gross capacity does not include the effect of fan motor
heat. AHRI capacity is net and includes the effect of fan motor heat. Units are suitable for operation to ±20% of nominal cfm. Units are certified in
accordance with the Unitary Air-Conditioner Equipment certification program, which is based on AHRI Standard 210/240.
(b) EER and/or SEER are rated at AHRI conditions and in accordance with DOE test procedures.
(c) Outdoor Sound Rating shown is tested in accordance with AHRI Standard 270. For additional information refer to Table 137, p. 181.
(d) For multispeed direct drive rpm TSC values, reference Table 33, p. 81. For multispeed direct drive rpm YSC (low & medium gas heat) values reference
Table 34, p. 82. For multispeed direct drive rpm YSC (high gas heat) values reference Table 35, p. 83.
(e) Optional 2” MERV 8 and MERV 13 filters also available.
(f) Refrigerant charge is an approximate value. For a more precise value, see unit nameplate and service instructions.
(g) Heating performance limit settings and rating data were established and approved under laboratory test conditions using American National Standards
Institute standards. Ratings shown are for elevations up to 2000 feet. For elevations above 2000 feet, ratings should be reduced at the rate of 4% for
each 1000 feet above sea level. Applicable to Gas/Electric units only.
(h) AFUE is rated in accordance with DOE test procedures.
RT-PRC023AG-EN
29
General Data
Table 2.
General data - 5 tons - standard efficiency
5 Tons
Cooling
T/YSC060E1
T/YSC060E3,4,W
59,900
11.0/13.0
2,000/2,000
58,000
5.25
62,270
11.0/13.0
2,000/2,000
60,000
5.46
1/Scroll
1/Scroll
Performance(a)
Gross Cooling Capacity
EER/SEER(b)
Nominal cfm/AHRI Rated cfm
AHRI Net Cooling Capacity
System Power (kW)
Compressor
Number/Type
Sound
Outdoor Sound Rating (dB)(c)
Outdoor Coil - Type
Configuration
Tube Size (in.)
Face Area (sq. ft.)
Rows/FPI
Indoor Coil - Type
82
82
Lanced
Lanced
Full Face
0.3125
10.96
3/16
Full Face
0.3125
10.96
3/16
Lanced
Lanced
Full Face
0.3125
7.71
4/16
Thermal Expansion Valve
1¾ NPT
Full Face
0.3125
7.71
4/16
Thermal Expansion Valve
1¾ NPT
Outdoor Fan - Type
Propeller
Propeller
Number Used/Diameter (in.)
Drive Type/No. Speeds
cfm
Number Motors/hp
Motor rpm
1/22
Direct/1
3,271
0.40
1,075
1/22
Direct/1
3,245
0.40
1,075
FC Centrifugal
FC Centrifugal
1/11x11
Direct/5(d)
1.0
48
1/11x11
Belt/Variable/1,750
1.0
56
Throwaway
(2) 20x30x2
Throwaway
(2)20x30x2
9.5
9.4
Configuration
Tube Size (in.)
Face Area (sq. ft.)
Rows/FPI
Refrigerant Control
Drain Connection Number/Size (in.)
Indoor Fan - Type (Standard)
Number Used/Diameter (in.)/Width (in.)
Drive Type/No. Speeds/rpm
Motor hp
Motor Frame Size
Filters(e)
Type Furnished
Number Size Recommended
Refrigerant Charge
(f)
Pounds of R-410A
continued on next page
30
RT-PRC023AG-EN
General Data
Table 2.
General data - 5 tons - standard efficiency (continued)
5 Tons
Heating
T/YSC060E1
T/YSC060E3,4,W
60,000
80,000
130,000
60,000
80,000
130,000
48,000
65,000
104,000
48,000
64,000
104,000
78
79
78
80
80
80
80
81
80
80
80
80
2
2
3
2
2
3
1
1
1
1
1
1
4.5/14.0
11.0/14.0
4.5/14.0
11.0/14.0
1/2
1/2
1/2
1/2
1/2
1/2
Performance(g)
(Gas/Electric Only)
Heating Input
Low Heat Input (Btu)
Mid Heat Input (Btu)
High Heat Input (Btu)
Heating Output
Low Heat Input (Btu)
Mid Heat Input (Btu)
High Heat Input (Btu)
AFUE%(h)
Low Heat Input (Btu)
Mid Heat Input (Btu)
High Heat Input (Btu)
Steady State Efficiency%
Low Heat Input (Btu)
Mid Heat Input (Btu)
High Heat Input (Btu)
No. Burners
Low Heat Input (Btu)
Mid Heat Input (Btu)
High Heat Input (Btu)
No. Stages
Low Heat Input (Btu)
Mid Heat Input (Btu)
High Heat Input (Btu)
Gas Supply Line Pressure
Natural (minimum/maximum)
LP (minimum/maximum)
Gas Connection Pipe Size (in)
Low Heat
Mid Heat
High Heat
(a) Cooling performance is rated at 95°F ambient, 80°F entering dry bulb, 67°F entering wet bulb. Gross capacity does not include the effect of fan motor
heat. AHRI capacity is net and includes the effect of fan motor heat. Units are suitable for operation to ±20% of nominal cfm. Units are certified in
accordance with the Unitary Air-Conditioner Equipment certification program, which is based on AHRI Standard 210/240.
(b) EER and/or SEER are rated at AHRI conditions and in accordance with DOE test procedures.
(c) Outdoor Sound Rating shown is tested in accordance with AHRI Standard 270. For additional information refer to Table 137, p. 181.
(d) For multispeed direct drive rpm TSC values, reference Table 33, p. 81. For multispeed direct drive rpm YSC (low & medium gas heat) values reference
Table 34, p. 82. For multispeed direct drive rpm YSC (high gas heat) values reference Table 35, p. 83.
(e) Optional 2” MERV 8 and MERV 13 filters also available.
(f) Refrigerant charge is an approximate value. For a more precise value, see unit nameplate and service instructions.
(g) Heating performance limit settings and rating data were established and approved under laboratory test conditions using American National Standards
Institute standards. Ratings shown are for elevations up to 2000 feet. For elevations above 2000 feet, ratings should be reduced at the rate of 4% for
each 1000 feet above sea level. Applicable to Gas/Electric units only.
(h) AFUE is rated in accordance with DOE test procedures.
RT-PRC023AG-EN
31
General Data
Table 3.
General data - 6-7½ tons - standard efficiency
6 Tons
7½ Tons
7½ Tons
T/YSC072F3,4,W
T/YSC090F3,4,W
T/YSC092F3,4,W
75,000
11.2
2,400/2,100
71,000
13.0
6.36
89,000
11.2
3,000/2,400
83,000
12.2
7.48
94,000
11.2
3,000/2,625
89,000
13.0
7.97
1/Scroll
1/Scroll
2/Scroll
Cooling Performance(a)
Gross Cooling Capacity
EER(b)
Nominal cfm/AHRI Rated cfm
AHRI Net Cooling Capacity
IEER(c)
System Power (kW)
Compressor
Number/Type
Sound
Outdoor Sound Rating (dB)(d)
Outdoor Coil - Type
Configuration
Tube Size (in.)
Face Area (sq. ft.)
Rows/FPI
Indoor Coil - Type
Configuration
Tube Size (in.)
Face Area (sq. ft.)
Rows/FPI
Refrigerant Control
Drain Connection Number/Size (in.)
89
89
91
Microchannel
Microchannel
Microchannel
Full Face
0.71
16.91
1/23
Full Face
0.71
16.91
1/23
Face-Split
0.71
17.31
1/23
Lanced
Lanced
Lanced
Face-Split
Full Face
Full Face
0.3125
0.3125
0.3125
12.36
9.89
9.89
3/16
4/16
3/16
Thermal Expansion Valve Thermal Expansion Valve Thermal Expansion Valve
1¾ NPT
1¾ NPT
1¾ NPT
Outdoor Fan - Type
Propeller
Propeller
Propeller
Number Used/Diameter (in.)
Drive Type/No. Speeds
cfm
Motor hp
Motor rpm
1/26
Direct/1
6,037
0.7
1,100
1/26
Direct/1
6,037
0.7
1,100
1/26
Direct/1
6,610
0.75
1,100
FC Centrifugal
FC Centrifugal
FC Centrifugal
1/12x12
Belt/Variable/1,750
1.0/2.0
56/56
1/12x12
Belt/Variable/1,750
1.0/3.0
56/56
1/15x15
Belt/Variable/1,750
1.0/3.0
56/56
Throwaway
(4) 16x25x2
Throwaway
(4) 16x25x2
Throwaway
(4) 20x25x2
5.5
5.9
3.9/3.6
Indoor Fan - Type
Number Used/Diameter (in.)/Width (in.)
Drive Type/No. Speeds/rpm
Motor hp (Standard/Oversized)
Motor Frame Size (Standard/Oversized)
Filters(e)
Type Furnished
Number Size Recommended
Refrigerant Charge
(f)
Pounds of R-410A
continued on next page
32
RT-PRC023AG-EN
General Data
Table 3.
General data - 6-7½ tons - standard efficiency (continued)
6 Tons
7½ Tons
7½ Tons
T/YSC072F3,4,W
T/YSC090F3,4,W
T/YSC092F3,4,W
80,000
120,000
150,000/105,000
120,000
150,000/105,000
200,000/140,000
120,000
150,000/105,000
200,000/140,000
64,000
96,000
120,000/84,000
96,000
120,000/84,000
160,000/112,000
96,200
120,000/84,000
160,000/112,000
—
—
—
—
—
—
—
—
—
80
80
80
80
80
80
80
80
80
2
3
3
3
3
4
3
3
4
1
1
2
1
2
2
1
2
2
4.5/14.0
11.0/14.0
4.5/14.0
11.0/14.0
4.5/14.0
11.0/14.0
1/2
1/2
3/4
1/2
3/4
3/4
1/2
3/4
3/4
Heating Performance(g)
(Gas/Electric Only)
Heating Input
Low Heat Input (Btu)
Mid Heat Input (Btu)
High Heat Input (Btu)
Heating Output
Low Heat Input (Btu)
Mid Heat Input (Btu)
High Heat Input (Btu)
AFUE%(h)
Low Heat Input (Btu)
Mid Heat Input (Btu)
High Heat Input (Btu)
Steady State Efficiency%
Low Heat Input (Btu)
Mid Heat Input (Btu)
High Heat Input (Btu)
No. Burners
Low Heat Input (Btu)
Mid Heat Input (Btu)
High Heat Input (Btu)
No. Stages
Low Heat Input (Btu)
Mid Heat Input (Btu)
High Heat Input (Btu)
Gas Supply Line Pressure
Natural (minimum/maximum)
LP (minimum/maximum)
Gas Connection Pipe Size (in)
Low Heat
Mid Heat
High Heat
(a) Cooling performance is rated at 95°F ambient, 80°F entering dry bulb, 67°F entering wet bulb. Gross capacity does not
include the effect of fan motor heat. AHRI capacity is net and includes the effect of fan motor heat. Units are suitable for
operation to ±20% of nominal cfm. Units are certified in accordance with the Unitary Air-Conditioner Equipment certification
program, which is based on AHRI Standard 340/360.
(b) EER is rated at AHRI conditions and in accordance with DOE test procedures.
(c) Integrated Efficiency Ratio (IEER) is rated in accordance with AHRI Standard 340/360. The IEER rating requires that the
unit efficiency be determined at 100%, 75%, 50% and 25% load (net capacity) at the specified in AHRI Standard.
(d) Outdoor Sound Rating shown is tested in accordance with AHRI Standard 270. For additional information refer to Table 137,
p. 181.
(e) Optional 2” MERV 8 and MERV 13 filters also available.
(f) Refrigerant charge is an approximate value. For a more precise value, see unit nameplate and service instructions.
(g) Heating performance limit settings and rating data were established and approved under laboratory test conditions using
American National Standards Institute standards. Ratings shown are for elevations up to 2000 feet. For elevations above
2000 feet, ratings should be reduced at the rate of 4% for each 1000 feet above sea level. Applicable to Gas/Electric units
only.
(h) AFUE is rated in accordance with DOE test procedures.
RT-PRC023AG-EN
33
General Data
Table 4.
General data - 8½-10 tons - standard efficiency
8½ Tons
10 Tons
T/YSC102F3,4,W
T/YSC120F3,4,W
102,000
11.2
3,400/2,720
96,600
13.0
8.62
119,000
11.3
4,000/3,500
113,000
13.0
10.0
2/Scroll
2/Scroll
Cooling Performance(a)
Gross Cooling Capacity
EER(b)
Nominal cfm/AHRI Rated cfm
AHRI Net Cooling Capacity
IEER(c)
System Power (kW)
Compressor
Number/Type
Sound
Outdoor Sound Rating (dB)(d)
Outdoor Coil - Type
Configuration
Tube Size (in.)
Face Area (sq. ft.)
Rows/FPI
Indoor Coil - Type
88
88
Microchannel
Microchannel
Face-Split
1
20.77
1/20
Face Split
1
20.77
1/20
Lanced
Lanced
Face-Split
0.3125
12.36
3/16
Thermal Expansion Valve
1¾ NPT
Intertwined
0.3125
12.36
4/16
Thermal Expansion Valve
1¾ NPT
Outdoor Fan - Type
Propeller
Propeller
Number Used/Diameter (in.)
Drive Type/No. Speeds
cfm
Motor hp
Motor rpm
1/26
Direct/1
6,610
0.75
1,100
1/26
Direct/1
6,800
0.75
1,100
FC Centrifugal
BC Plenum
1/15x15
Belt/Variable/1,750
2.0/3.0
56/56
1/19.7x15
Direct/Variable(e)
3.75/—
—/—
Throwaway
(4) 20x25x2
Throwaway
(4) 20x25x2
4.7/3.9
5.5/4.2
Configuration
Tube Size (in.)
Face Area (sq. ft.)
Rows/FPI
Refrigerant Control
Drain Connection Number/Size (in.)
Indoor Fan - Type
Number Used/Diameter (in.)/Width (in.)
Drive Type/No. Speeds/rpm
Motor hp (Standard/Oversized)
Motor Frame Size (Standard/Oversized)
Filters(f)
Type Furnished
Number Size Recommended
Refrigerant Charge
(g)
Pounds of R-410A
continued on next page
34
RT-PRC023AG-EN
General Data
Table 4.
General data - 8½-10 tons - standard efficiency (continued)
8½ Tons
10 Tons
T/YSC102F3,4,W
T/YSC120F3,4,W
120,000
150,000/105,000
200,000/140,000
150,000/105,000
200,000/140,000
250,000/175,000
96,000
120,000/84,000
160,000/112,000
120,000/84,000
160,000/112,000
200,000/140,000
—
—
—
—
—
—
80
80
80
80
80
80
3
3
4
3
4
5
1
2
2
2
2
2
4.5/14.0
11.0/14.0
4.5/14.0
11.0/14.0
1/2
3/4
3/4
3/4
3/4
3/4
Heating Performance(h)
(Gas/Electric Only)
Heating Input
Low Heat Input (Btu)
Mid Heat Input (Btu)
High Heat Input (Btu)
Heating Output
Low Heat Input (Btu)
Mid Heat Input (Btu)
High Heat Input (Btu)
AFUE%(i)
Low Heat Input (Btu)
Mid Heat Input (Btu)
High Heat Input (Btu)
Steady State Efficiency%
Low Heat Input (Btu)
Mid Heat Input (Btu)
High Heat Input (Btu)
No. Burners
Low Heat Input (Btu)
Mid Heat Input (Btu)
High Heat Input (Btu)
No. Stages
Low Heat Input (Btu)
Mid Heat Input (Btu)
High Heat Input (Btu)
Gas Supply Line Pressure
Natural (minimum/maximum)
LP (minimum/maximum)
Gas Connection Pipe Size (in)
Low Heat
Mid Heat
High Heat
(a) Cooling performance is rated at 95°F ambient, 80°F entering dry bulb, 67°F entering wet bulb. Gross capacity does not
include the effect of fan motor heat. AHRI capacity is net and includes the effect of fan motor heat. Units are suitable for
operation to ±20% of nominal cfm. Units are certified in accordance with the Unitary Air-Conditioner Equipment certification
program, which is based on AHRI Standard 340/360.
(b) EER is rated at AHRI conditions and in accordance with DOE test procedures.
(c) Integrated Efficiency Ratio (IEER) is rated in accordance with AHRI Standard 340/360. The IEER rating requires that the
unit efficiency be determined at 100%, 75%, 50% and 25% load (net capacity) at the specified in AHRI Standard.
(d) Outdoor Sound Rating shown is tested in accordance with AHRI Standard 270. For additional information refer to Table 137,
p. 181.
(e) For multispeed direct drive rpm T/YSC values, reference Table 136, p. 180.
(f) Optional 2” MERV 8 and MERV 13 filters also available.
(g) Refrigerant charge is an approximate value. For a more precise value, see unit nameplate and service instructions.
(h) Heating performance limit settings and rating data were established and approved under laboratory test conditions using
American National Standards Institute standards. Ratings shown are for elevations up to 2000 feet. For elevations above
2000 feet, ratings should be reduced at the rate of 4% for each 1000 feet above sea level. Applicable to Gas/Electric units
only.
(i) AFUE is rated in accordance with DOE test procedures.
RT-PRC023AG-EN
35
General Data
Table 5.
General data - 3-4 tons - high efficiency
3 Tons
4 Tons
T/YHC036E1 T/YHC036E3,4W(a),(b) T/YHC048F1 T/YHC048E3,4W(b) T/YHC048F3,4W(b)
Cooling Performance(c)
Gross Cooling Capacity
EER/SEER(d)
Nominal cfm/AHRI Rated cfm
AHRI Net Cooling Capacity
System Power (kW)
38,490
13.0/15.2
1,200/1,200
37,000
2.93
37,600
12.7/15.0(a)
1,200/1,200
37,000
2.99
48,930
12.55/15.0
1,600/1,600
48,000
3.83
49,930
15.0
1,600/1,600
49,000
3.67
49,930
13.35/15.0
1,600/1,600
49,000
3.67
1/Scroll
1/Scroll
1/Scroll
1/Scroll
1/Scroll
81
81
87
87
87
Compressor
Number/Type
Sound
Outdoor Sound Rating (dB)(e)
Outdoor Coil - Type
Configuration
Tube Size (in.)
Face Area (sq. ft.)
Rows/FPI
Indoor Coil - Type
Lanced
Lanced
Microchannel
Lanced
Microchannel
Full Face
0.3125
10.96
2/16
Full Face
0.3125
10.96
2/16
Full Face
0.71
16.91
1/23
Full Face
0.3125
17.00
3/16
Full Face
0.71
16.91
1/23
Lanced
Lanced
Lanced
Lanced
Lanced
Full Face
0.3125
7.71
3/16
Thermal Expansion Valve
1¾ NPT
Full Face
0.3125
9.27
3/16
Thermal
Expansion Valve
1¾ NPT
Full Face
Configuration
0.3125
Tube Size (in.)
7.71
Face Area (sq. ft.)
3/16
Rows/FPI
Thermal
Refrigerant Control
Expansion Valve
Drain Connection Number/Size (in.)
1¾ NPT
Full Face
Full Face
0.3125
0.3125
9.27
9.27
3/16
3/16
Thermal Expansion Valve Thermal Expansion Valve
1¾ NPT
1¾ NPT
Outdoor Fan - Type
Propeller
Propeller
Propeller
Propeller
Propeller
Number Used/Diameter (in.)
Drive Type/No. Speeds
cfm
Motor hp
Motor rpm
1/22
Direct/1
3,064
0.2
1,075
1/22
Direct/1
3,064
0.2
1,075
1/26
Direct/1
3,986
0.4
1,075
1/26
Direct/1
3.982
0.4
1,075
1/26
Direct/1
3,982
0.4
1,075
FC Centrifugal
FC Centrifugal
FC Centrifugal
FC Centrifugal
FC Centrifugal
1/11x11
Direct/5(g)
1
0.75
48
1/11x11
Direct/5(g)
1
.75
48
1/11x11
Direct/5(g)
1
1.0
48
1/11x11
Direct/5(g)
1
1.0
48
1/11x11
Direct/5(g)
1
1.0
48
FC Centrifugal
FC Centrifugal
Indoor Fan - Type
(Standard)(f)
Number Used/Diameter (in.)/Width
(in.)
Drive Type/No. Speeds/rpm
Number Motors
Motor hp (Standard/Oversized)
Motor Frame Size (Standard/
Oversized)
Indoor Fan - Type
(Optional)
Number Used/Diameter (in.)/
Width (in.)
Drive Type/No. Speeds
Number Motors
Motor hp (Standard/Oversized)
Motor Frame Size (Standard/
Oversized)
FC Centrifugal
—
—
—
—
—
1/11x11
Belt/Variable
1
1.0
56
—
—
—
—
—
1/11x11
Belt/Variable
1
1.0
56
1/11x11
Belt/Variable
1
1.0
56
Throwaway
(2) 20x30x2
Throwaway
(2) 20x30x2
Throwaway
(4) 16x25x2
Throwaway
(4) 16x25x2
Throwaway
(4) 16x25x2
—
—
—
0.3125
5.23
1/16
—
—
—
0.3125
6.28
1/16
—
—
—
Filters(h)
Type Furnished
Number Size Recommended
Optional Hot Gas Reheat
Coil (Type)
Tube Size (in.) OD
Face Area (sq. ft.)
Rows/FPI
36
RT-PRC023AG-EN
General Data
Table 5.
General data - 3-4 tons - high efficiency (continued)
3 Tons
4 Tons
T/YHC036E1 T/YHC036E3,4W(a),(b) T/YHC048F1 T/YHC048E3,4W(b) T/YHC048F3,4W(b)
Refrigerant Charge
(Lbs. of R-410A)(i)
Standard
Optional Hot Gas Reheat Coil
6.2
—
6.2
10.5
Heating Performance(j)
5.2
—
—
15.2
5.2
—
(Gas/Electric Only)
Heating Input
Low Heat Input (Btu)
Mid Heat Input (Btu)
High Heat Input (Btu)
60,000
80,000
120,000
60,000
80,000
120,000
60,000
80,000
120,000
60,000
80,000
120,000
60,000
80,000
120,000
48,000
65,000
96,000
48,000
64,000
96,000
49,000
64,000
96,000
49,000
64,000
96,000
49,000
64,000
96,000
78
78
78
78
78
78
80
79
79
80
79
79
80
79
79
80
81
80
80
80
80
81
80
80
81
80
81
81
80
81
2
2
3
2
2
3
2
2
3
2
2
3
2
2
3
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
4.5/14.0
11.0/14.0
4.5/14.0
11.0/14.0
4.5/14.0
11.0/14.0
4.5/14.0
11.0/14.0
4.5/14.0
11.0/14.0
1/2
1/2
1/2
1/2
1/2
1/2
1/2
1/2
1/2
1/2
1/2
1/2
1/2
1/2
1/2
Heating Output
Low Heat Input (Btu)
Mid Heat Input (Btu)
High Heat Input (Btu)
AFUE%(k)
Low Heat Input (Btu)
Mid Heat Input (Btu)
High Heat Input (Btu)
Steady State Efficiency%
Low Heat Input (Btu)
Mid Heat Input (Btu)
High Heat Input (Btu)
No. Burners
Low Heat Input (Btu)
Mid Heat Input (Btu)
High Heat Input (Btu)
No. Stages
Low Heat Input (Btu)
Mid Heat Input (Btu)
High Heat Input (Btu)
Gas Supply Line Pressure
Natural (minimum/maximum)
LP (minimum/maximum)
Gas Connection Pipe Size
(in)
Low Heat
Mid Heat
High Heat
(a)YHC036EW: EER = 12.4; SEER = 14.8
(b)575V (W voltage) is only available as YHC. No THC models available with 575V (W voltage).
(c) Cooling performance is rated at 95°F ambient, 80°F entering dry bulb, 67°F entering wet bulb. Gross capacity does not include the effect of fan motor
heat. AHRI capacity is net and includes the effect of fan motor heat. Units are suitable for operation to ±20% of nominal cfm. Units are certified in
accordance with the Unitary Air-Conditioner Equipment certification program, which is based on AHRI Standard 210/240.
(d) EER and/or SEER are rated at AHRI conditions and in accordance with DOE test procedures.
(e) Outdoor Sound Rating shown is tested in accordance with AHRI Standard 270. For additional information refer to Table 137, p. 181.
(f) Belt drive fan is standard on units with reheat option.
(g) For multispeed direct drive rpm THC values, reference Table 36, p. 84. For multispeed direct drive rpm YHC (low & medium gas heat) values reference
Table 37, p. 85. For multispeed direct drive rpm YHC (high gas heat) values reference Table 38, p. 86.
(h) Optional 2” MERV 8 and MERV 13 filters also available.
(i) Refrigerant charge is an approximate value. For a more precise value, see unit nameplate and service instructions.
(j) Heating performance limit settings and rating data were established and approved under laboratory test conditions using American National Standards
Institute standards. Ratings shown are for elevations up to 2000 feet. For elevations above 2000 feet, ratings should be reduced at the rate of 4% for
each 1000 feet above sea level. Applicable to Gas/Electric units only.
(k) AFUE is rated in accordance with DOE test procedures.
RT-PRC023AG-EN
37
General Data
Table 6.
General data - 5 tons - high efficiency
5 Tons
Cooling
T/YH060F1
T/YHC060E3,4W(a)
T/YHC060F3,4W(a)
61,000
12.85/15.0
2,000/2,000
59,500
4.63
61,000
15.0
2,000/2,000
60,000
4.67
61,000
12.85/15.0
2,000/2,000
60,000
4.67
1/Scroll
1/Scroll
1/Scroll
Performance(b)
Gross Cooling Capacity
EER/SEER(c)
Nominal cfm/AHRI Rated cfm
AHRI Net Cooling Capacity
System Power (kW)
Compressor
Number/Type
Sound
Outdoor Sound Rating (dB)(d)
Outdoor Coil - Type
Configuration
Tube Size (in.)
Face Area (sq. ft.)
Rows/FPI
Indoor Coil - Type
87
87
87
Microchannel
Lanced
Microchannel
Full Face
0.71
16.91
1/23
Full Face
0.3125
17
3/16
Full Face
0.71
16.91
1/23
Lanced
Lanced
Lanced
Full Face
0.3125
9.89
4/16
Thermal Expansion Valve
1¾ NPT
Full Face
0.3125
9.89
4/16
Thermal Expansion Valve
1¾ NPT
Full Face
0.3125
9.89
4/16
Thermal Expansion Valve
1¾ NPT
Outdoor Fan - Type
Propeller
Propeller
Propeller
Number Used/Diameter (in.)
Drive Type/No. Speeds
cfm
Number Motors/hp
Motor rpm
1/26
Direct/1
3,953
0.40
1,075
1/26
Direct/1
3,953
0.40
1,075
1/26
Direct/1
3,953
0.40
1,075
FC Centrifugal
FC Centrifugal
FC Centrifugal
1/11x11
Direct/5(f)
1.0
48
1/11x11
Direct/5(f)
1.0
48
1/11x11
Direct/5(f)
1.0
48
Configuration
Tube Size (in.)
Face Area (sq. ft.)
Rows/FPI
Refrigerant Control
Drain Connection Number/Size (in.)
Indoor Fan - Type (Standard)(e)
Number Used/Diameter (in.)/Width (in.)
Drive Type/No. Speeds/rpm
Motor hp
Motor Frame Size
Indoor Fan - Type (Optional)
Number Used/Diameter (in.)/Width (in.)
Drive Type/No. Speeds
Motor hp
Motor Frame Size
FC Centrifugal
FC Centrifugal
—
—
—
—
1/11x11
Belt/Variable
1.0
56
1/11x11
Belt/Variable
1.0
56
Throwaway
(4) 16x25x2
Throwaway
(4) 16x25x2
Throwaway
(4) 16x25x2
—
—
—
0.3125
6.28
1/16
—
—
—
6.1
—
—
15.7
6.1
—
Filters(g)
Type Furnished
Number Size Recommended
Optional Hot Gas Reheat Coil - Type
Tube Size (in.) OD
Face Area (sq. ft.)
Rows/FPI
Refrigerant Charge (Lbs. of R-410A) (h)
Standard
Optional Hot Gas Reheat Coil
continued on next page
38
RT-PRC023AG-EN
General Data
Table 6.
General data - 5 tons - high efficiency (continued)
5 Tons
Heating
T/YH060F1
T/YHC060E3,4W(a)
T/YHC060F3,4W(a)
60,000
80,000
130,000
60,000
80,000
130,000
60,000
80,000
130,000
49,000
64,000
104,000
49,000
64,000
104,000
49,000
64,000
104,000
80
79
80
80
79
80
80
79
80
81
80
80
81
80
80
81
80
80
2
2
3
2
2
3
2
2
3
1
1
1
1
1
1
1
1
1
4.5/14.0
11.0/14.0
4.5/14.0
11.0/14.0
4.5/14.0
11.0/14.0
1/2
1/2
1/2
1/2
1/2
1/2
1/2
1/2
1/2
Performance(i)
(Gas/Electric Only)
Heating Input
Low Heat Input (Btu)
Mid Heat Input (Btu)
High Heat Input (Btu)
Heating Output
Low Heat Input (Btu)
Mid Heat Input (Btu)
High Heat Input (Btu)
AFUE%(j)
Low Heat Input (Btu)
Mid Heat Input (Btu)
High Heat Input (Btu)
Steady State Efficiency%
Low Heat Input (Btu)
Mid Heat Input (Btu)
High Heat Input (Btu)
No. Burners
Low Heat Input (Btu)
Mid Heat Input (Btu)
High Heat Input (Btu)
No. Stages
Low Heat Input (Btu)
Mid Heat Input (Btu)
High Heat Input (Btu)
Gas Supply Line Pressure
Natural (minimum/maximum)
LP (minimum/maximum)
Gas Connection Pipe Size (in)
Low Heat
Mid Heat
High Heat
(a) 575V (W voltage) is only available as YHC. No THC models available with 575V (W voltage).
(b) Cooling performance is rated at 95°F ambient, 80°F entering dry bulb, 67°F entering wet bulb. Gross capacity does not include the effect of fan motor
heat. AHRI capacity is net and includes the effect of fan motor heat. Units are suitable for operation to ±20% of nominal cfm. Units are certified in
accordance with the Unitary Air-Conditioner Equipment certification program, which is based on AHRI Standard 210/240.
(c) EER and/or SEER are rated at AHRI conditions and in accordance with DOE test procedures.
(d) Outdoor Sound Rating shown is tested in accordance with AHRI Standard 270. For additional information refer to Table 137, p. 181.
(e) Belt drive is standard on units with reheat option.
(f) For multispeed direct drive rpm THC values, reference Table 36, p. 84. For multispeed direct drive rpm YHC (low & medium gas heat) values reference
Table 37, p. 85. For multispeed direct drive rpm YHC (high gas heat) values reference Table 38, p. 86.
(g) Optional 2” MERV 8 and MERV 13 filters also available.
(h) Refrigerant charge is an approximate value. For a more precise value, see unit nameplate and service instructions.
(i) Heating performance limit settings and rating data were established and approved under laboratory test conditions using American National Standards
Institute standards. Ratings shown are for elevations up to 2000 feet. For elevations above 2000 feet, ratings should be reduced at the rate of 4% for
each 1000 feet above sea level. Applicable to Gas/Electric units only.
(j) AFUE is rated in accordance with DOE test procedures.
RT-PRC023AG-EN
39
General Data
Table 7.
General data - 6-7½ tons - high efficiency
6 Tons
7½ Tons
T/YHC072E/F3,4W(a)
T/YHC092F3,4W(a)
72,000
12.6
2,400/2,100
68,000
14.5
5.37
92,000
12.6
3,000/2,625
89,000
14.5
7.06
1/Scroll
2/Scroll
Cooling Performance(b)
Gross Cooling Capacity
EER(c)
Nominal cfm/AHRI Rated cfm
AHRI Net Cooling Capacity
IEER(d),(e)
System Power (kW)
Compressor
Number/Type
Sound
Outdoor Sound Rating (dB)(f)
Outdoor Coil - Type
Configuration
Tube Size (in.)
Face Area (sq. ft.)
Rows/FPI
Indoor Coil - Type
89
88
Microchannel
Microchannel
Full Face
0.71
20.77
1/23
Face-Split
1
20.77
1/20
Lanced
Lanced
Full Face
0.3125
12.36
4/16
Thermal Expansion Valve
1¾ NPT
Intertwined
0.3125
12.36
4/16
Thermal Expansion Valve
1¾ NPT
Outdoor Fan - Type
Propeller
Propeller
Number Used/Diameter (in.)
Drive Type/No. Speeds
cfm
Motor hp
Motor rpm
1/26
Direct/1
5,900
0.7
1,100
1/26
Direct/1
6,800
0.75
1,100
FC Centrifugal
BC Plenum
1/15x15
Belt/Variable/1,750
1.0/2.0
56/56
1/19.7x15
Direct/Variable(g)
3.75/—
—/—
Throwaway
(4) 20x25x2
Throwaway
(4) 20x25x2
—
—
—
0.3125
8.652
1/16
7.7
—
5.5/4.2
6.2/4.3
Configuration
Tube Size (in.)
Face Area (sq. ft.)
Rows/FPI
Refrigerant Control
Drain Connection Number/Size (in.)
Indoor Fan - Type
Number Used/Diameter (in.)/Width (in.)
Drive Type/No. Speeds/rpm
Motor hp (Standard/Oversized)
Motor Frame Size (Standard/Oversized)
Filters(h)
Type Furnished
Number Size Recommended
Optional Hot Gas Reheat Coil - Type
Tube Size (in.) OD
Face Area (sq. ft.)
Rows/FPI
Refrigerant Charge (Lbs. of R-410A)(i)
Standard
Optional Hot Gas Reheat Coil
continued on next page
40
RT-PRC023AG-EN
General Data
Table 7.
General data - 6-7½ tons - high efficiency (continued)
6 Tons
7½ Tons
T/YHC072E/F3,4W(a)
T/YHC092F3,4W(a)
80,000
120,000
150,000/105,000
120,000
150,000/105,000
200,000/140,000
64,000
96,000
120,000/84,000
96,000
120,000/84,000
160,000/112,000
—
—
—
—
—
—
80
80
80
80
80
80
3
3
4
3
3
4
1
1
2
1
2
2
4.5/14.0
11.0/14.0
4.5/14.0
11.0/14.0
1/2
1/2
3/4
1/2
3/4
3/4
Heating Performance(j)
(Gas/Electric Only)
Heating Input
Low Heat Input (Btu)
Mid Heat Input (Btu)
High Heat Input (Btu)
Heating Output
Low Heat Input (Btu)
Mid Heat Input (Btu)
High Heat Input (Btu)
AFUE%(k)
Low Heat Input (Btu)
Mid Heat Input (Btu)
High Heat Input (Btu)
Steady State Efficiency%
Low Heat Input (Btu)
Mid Heat Input (Btu)
High Heat Input (Btu)
No. Burners
Low Heat Input (Btu)
Mid Heat Input (Btu)
High Heat Input (Btu)
No. Stages
Low Heat Input (Btu)
Mid Heat Input (Btu)
High Heat Input (Btu)
Gas Supply Line Pressure
Natural (minimum/maximum)
LP (minimum/maximum)
Gas Connection Pipe Size (in)
Low Heat
Mid Heat
High Heat
(a) 575V (W voltage) is only available as YHC. No THC models available with 575V (W voltage).
(b) Cooling performance is rated at 95°F ambient, 80°F entering dry bulb, 67°F entering wet bulb. Gross capacity does not
include the effect of fan motor heat. AHRI capacity is net and includes the effect of fan motor heat. Units are suitable for
operation to ±20% of nominal cfm. Units are certified in accordance with the Unitary Air-Conditioner Equipment certification
program, which is based on AHRI Standard 340/360.
(c) EER is rated at AHRI conditions and in accordance with DOE test procedures.
(d) Integrated Efficiency Ratio (IEER) is rated in accordance with AHRI Standard 340/360. The IEER rating requires that the
unit efficiency be determined at 100%, 75%, 50% and 25% load (net capacity) at the specified in AHRI Standard.
(e) 15.0 IEER for SZVAV.
(f) Outdoor Sound Rating shown is tested in accordance with AHRI Standard 270. For additional information refer to Table 137,
p. 181.
(g) For multispeed direct drive rpm THC/YHC values, reference Table 136, p. 180.
(h) Optional 2” MERV 8 and MERV 13 filters also available.
(i) Refrigerant charge is an approximate value. For a more precise value, see unit nameplate and service instructions.
(j) Heating performance limit settings and rating data were established and approved under laboratory test conditions using
American National Standards Institute standards. Ratings shown are for elevations up to 2000 feet. For elevations above
2000 feet, ratings should be reduced at the rate of 4% for each 1000 feet above sea level. Applicable to Gas/Electric units
only.
(k) AFUE is rated in accordance with DOE test procedures.
RT-PRC023AG-EN
41
General Data
Table 8.
General data - 6-10 tons - high efficiency
8½ Tons
10 Tons
T/YHC102F3,4W(a)
T/YHC120E3,4W(a)
104,000
12.5(e)
3,400/2,720
99,000
14.7(f)(g)
7.92
119,000
12.5
4,000/3,500
113,000
14.7(h)
9.04
2/Scroll
2/Scroll
89
87
Cooling Performance(b)
Gross Cooling Capacity
EER(c)
Nominal cfm/AHRI Rated cfm
AHRI Net Cooling Capacity
IEER(d)
System Power (kW)
Compressor
Number/Type
Sound
Outdoor Sound Rating (dB)(i)
Outdoor Coil - Type
Configuration
Tube Size (in.)
Face Area (sq. ft.)
Rows/FPI
Indoor Coil - Type
Microchannel
Face Split
1
20.77
1/20
Full Face
0.3125
36.1
3/16
Lanced
Lanced
Intertwined
0.3125
12.36
5/16
Thermal Expansion Valve
1¾ NPT
Intertwined
0.3125
16.65
4/16
Thermal Expansion Valve
1¾ NPT
Outdoor Fan - Type
Propeller
Propeller
Number Used/Diameter (in.)
Drive Type/No. Speeds
cfm
Motor hp
Motor rpm
1/26
Direct/1
6,800
0.75
1,100
1/30
Direct/1
7,540
0.75
1,100
BC Plenum
BC Plenum
1/19.7x15
Direct/Variable(j)
3.75/—
—/—
1/19.7x15
Direct/Variable(j)
3.75/—
—/—
Throwaway
(4) 20x25x2
Throwaway
(3) 20x25x2
(2) 20x30x2
0.3125
8.652
1/16
0.3125
15.225
1/16
6.3/4.9
6.6/4.7
12.8/12.8
13.3/12.8
Configuration
Tube Size (in.)
Face Area (sq. ft.)
Rows/FPI
Refrigerant Control
Drain Connection Number/Size (in.)
Indoor Fan - Type
Number Used/Diameter (in.)/Width (in.)
Drive Type/No. Speeds/rpm
Motor hp (Standard/Oversized)
Motor Frame Size (Standard/Oversized)
Filters(k)
Type Furnished
Number Size Recommended
Optional Hot Gas Reheat Coil - Type
Tube Size (in.) OD
Face Area (sq. ft.)
Rows/FPI
Refrigerant Charge (Lbs. of R-410A)(l)
Standard
Optional Hot Gas Reheat Coil
continued on next page
42
RT-PRC023AG-EN
General Data
Table 8.
General data - 6-10 tons - high efficiency (continued)
8½ Tons
10 Tons
T/YHC102F3,4W(a)
T/YHC120E3,4W(a)
120,000
150,000/105,000
200,000/140,000
150,000/105.000
200,000/140,000
250,000/175,000
96,000
120,000/84,000
160,000/112,000
120,000/84,000
160,000/112,000
200,000/140,000
—
—
—
—
—
—
80
80
80
80
80
80
3
3
4
3
4
5
1
2
2
2
2
2
4.5/14.0
11.0/14.0
4.5/14.0
11.0/14.0
1/2
3/4
3/4
3/4
3/4
3/4
Heating Performance(m)
(Gas/Electric Only)
Heating Input
Low Heat Input (Btu)
Mid Heat Input (Btu)
High Heat Input (Btu)
Heating Output
Low Heat Input (Btu)
Mid Heat Input (Btu)
High Heat Input (Btu)
AFUE%(n)
Low Heat Input (Btu)
Mid Heat Input (Btu)
High Heat Input (Btu)
Steady State Efficiency%
Low Heat Input (Btu)
Mid Heat Input (Btu)
High Heat Input (Btu)
No. Burners
Low Heat Input (Btu)
Mid Heat Input (Btu)
High Heat Input (Btu)
No. Stages
Low Heat Input (Btu)
Mid Heat Input (Btu)
High Heat Input (Btu)
Gas Supply Line Pressure
Natural (minimum/maximum)
LP (minimum/maximum)
Gas Connection Pipe Size (in)
Low Heat
Mid Heat
High Heat
(a) 575V (W voltage) is only available as YHC. No THC models available with 575V (W voltage).
(b) Cooling performance is rated at 95°F ambient, 80°F entering dry bulb, 67°F entering wet bulb. Gross capacity does not
include the effect of fan motor heat. AHRI capacity is net and includes the effect of fan motor heat. Units are suitable for
operation to ±20% of nominal cfm. Units are certified in accordance with the Unitary Air-Conditioner Equipment certification
program, which is based on AHRI Standard 340/360.
(c) EER is rated at AHRI conditions and in accordance with DOE test procedures.
(d) Integrated Efficiency Ratio (IEER) is rated in accordance with AHRI Standard 340/360. The IEER rating requires that the
unit efficiency be determined at 100%, 75%, 50% and 25% load (net capacity) at the specified in AHRI Standard.
(e) YHC102FW: EER = 12.4
(f) 15.5 IEER for SZVAV.
(g) YHC102FW IEER = 14.5
(h) 15.2 IEER for SZVAV.
(i) Outdoor Sound Rating shown is tested in accordance with AHRI Standard 270. For additional information refer to Table 137,
p. 181.
(j) For multispeed direct drive rpm THC/YHC values, reference Table 136, p. 180.
(k) Optional 2” MERV 8 and MERV 13 filters also available.
(l) Refrigerant charge is an approximate value. For a more precise value, see unit nameplate and service instructions.
(m)Heating performance limit settings and rating data were established and approved under laboratory test conditions using
American National Standards Institute standards. Ratings shown are for elevations up to 2000 feet. For elevations above
2000 feet, ratings should be reduced at the rate of 4% for each 1000 feet above sea level. Applicable to Gas/Electric units
only.
(n) AFUE is rated in accordance with DOE test procedures.
RT-PRC023AG-EN
43
Performance Data
Table 9.
Gross cooling capacities 3 tons standard efficiency - single phase T/YSC036E1
Ambient Temperature
85
Air
95
Ent
105
Entering Wet Bulb
Flow
DB
61
cfm
(F)
MBh SHC
MBh
67
SHC
MBh SHC MBh SHC MBh SHC
73
61
67
MBh
73
SHC
MBh
61
SHC
MBh
67
SHC
MBh
73
960
75
32.7
26.3
36.4
19.7
40.1
12.2
30.2
24.8
33.6
18.1
37.2
10.7
27.4
23.0
30.7
16.7
34.1
9.2
960
80
33.4
32.2
36.8
25.1
40.8
18.7
30.9
30.6
34.1
23.3
37.9
17.2
28.5
28.5
31.2
21.9
34.9
15.8
960
85
35.2
35.2
37.2
30.4
41.2
23.7
33.0
33.0
34.5
28.8
38.3
22.3
30.6
30.6
31.7
27.2
35.2
20.5
960
90
37.4
37.4
37.8
36.3
41.5
28.9
35.2
35.2
35.2
34.8
38.6
27.4
32.8
32.8
32.7
32.7
35.6
25.9
1080
75
33.6
28.2
37.2
20.6
41.0
12.4
31.0
26.6
34.4
19.3
38.0
10.9
28.2
25.2
31.4
17.4
34.9
9.2
1080
80
34.6
34.5
37.7
26.6
41.7
19.7
32.2
32.2
34.9
25.2
38.8
17.6
29.8
29.8
31.9
23.5
35.6
16.2
1080
85
36.8
36.8
38.2
32.8
42.1
25.2
34.4
34.4
35.4
31.3
39.1
23.5
32.0
32.0
32.5
30.0
36.0
22.0
1080
90
39.1
39.1
39.2
39.1
42.4
30.9
36.8
36.8
36.7
36.7
39.5
29.4
34.3
34.3
34.2
34.2
36.4
27.9
1200
75
34.4
30.2
38.0
21.7
41.8
12.5
31.7
28.7
35.1
20.2
38.7
11.6
28.9
27.3
32.0
18.4
35.5
9.5
1200
80
35.8
35.8
38.5
28.2
42.6
20.0
33.4
33.4
35.6
26.9
39.5
18.6
30.9
30.9
32.6
25.1
36.2
16.9
1200
85
38.2
38.2
39.0
35.3
42.8
26.4
35.8
35.8
36.2
34.0
39.8
24.9
33.2
33.2
33.4
32.5
36.6
23.5
1200
90
40.6
40.6
40.6
40.6
43.2
33.1
38.2
38.2
38.1
38.1
40.2
31.5
35.6
35.6
35.5
35.5
37.1
29.9
1320
75
35.0
32.3
38.6
22.6
42.4
12.7
32.4
30.7
35.6
20.9
39.3
11.1
29.6
29.0
32.5
19.4
36.0
10.3
1320
80
37.0
37.0
39.1
30.3
43.2
20.9
34.5
34.5
36.2
28.5
40.0
19.3
31.8
31.8
33.2
26.8
36.7
17.7
1320
85
39.4
39.4
39.8
37.9
43.5
27.9
36.9
36.9
37.1
36.3
40.4
26.4
34.3
34.3
34.3
34.2
37.1
24.7
1320
90
41.9
41.9
41.9
41.9
43.9
35.0
39.4
39.4
39.4
39.4
40.8
33.6
36.7
36.7
36.6
36.6
37.6
32.2
1440
75
35.7
34.2
39.1
23.7
43.0
13.6
33.0
32.4
36.1
22.2
39.8
11.4
30.2
30.2
33.0
20.4
36.5
10.6
1440
80
38.0
38.0
39.7
31.6
43.7
21.7
35.4
35.4
36.7
30.1
40.5
20.4
32.7
32.7
33.7
28.8
37.1
18.4
1440
85
40.5
40.5
40.6
40.0
44.0
29.3
37.9
37.9
37.9
37.9
40.9
27.8
35.2
35.2
35.2
35.2
37.6
26.2
1440
90
43.1
43.1
43.1
43.1
44.5
37.2
40.5
40.5
40.4
40.4
41.5
36.1
37.7
37.7
37.7
37.7
38.3
34.8
SHC
Ambient Temperature
115
Air
Ent
125
Entering Wet Bulb
Flow
DB
61
cfm
(F)
MBh SHC
MBh
67
SHC
MBh SHC MBh SHC MBh SHC
73
61
67
MBh
73
960
75
24.6
21.5
27.7
14.7
31.0
8.1
21.7
19.3
24.2
14.1
27.9
5.9
960
80
26.0
26.0
28.1
20.2
31.6
14.2
23.1
23.1
24.8
19.5
27.9
12.9
960
85
28.1
28.1
28.7
25.9
32.0
19.0
25.6
25.6
25.9
24.0
28.3
19.0
960
90
30.2
30.2
30.2
30.2
32.4
24.2
27.3
27.3
27.3
27.3
29.1
24.3
1080
75
25.3
23.7
28.3
15.8
31.6
8.3
22.6
20.3
24.8
14.9
28.4
6.6
1080
80
27.1
27.1
28.8
21.8
32.3
14.6
24.0
24.0
25.7
20.4
28.6
13.7
1080
85
29.4
29.4
29.6
28.6
32.7
20.4
26.6
26.6
26.8
25.1
29.1
20.0
1080
90
31.6
31.6
31.6
31.6
33.1
26.3
28.4
28.4
28.4
28.4
30.0
25.4
1200
75
26.0
25.5
28.8
16.7
32.1
8.5
23.3
21.2
25.4
15.6
28.9
7.1
1200
80
28.2
28.2
29.4
23.5
32.8
15.6
24.9
24.9
26.4
21.3
29.2
14.4
1200
85
30.5
30.5
30.5
30.4
33.2
21.8
27.4
27.4
27.7
26.1
29.8
20.8
1200
90
32.8
32.8
32.8
32.8
33.8
28.5
29.4
29.4
29.4
29.4
30.9
26.3
1320
75
26.7
26.7
29.3
17.8
32.6
8.7
23.9
21.9
25.9
16.2
29.2
7.5
1320
80
29.1
29.1
29.9
25.4
33.2
16.4
25.6
25.6
26.9
22.0
29.6
14.9
1320
85
31.4
31.4
31.4
31.4
33.8
23.1
28.1
28.1
28.4
27.0
30.4
21.5
1320
90
33.8
33.8
33.8
33.8
34.3
31.1
30.2
30.2
30.2
30.2
31.6
27.2
1440
75
27.4
27.4
29.7
18.6
32.9
8.9
24.3
22.6
26.2
16.6
29.4
7.7
1440
80
29.9
29.9
30.4
27.3
33.6
16.7
26.2
26.2
27.4
22.6
29.9
15.3
1440
85
32.3
32.3
32.3
32.3
34.2
24.7
28.7
28.7
29.0
27.7
30.9
22.1
1440
90
34.7
34.7
34.7
34.7
35.0
33.5
31.0
31.0
31.0
31.0
32.2
27.9
SHC
Notes:
1. All capacities shown are gross and have not considered indoor fan heat. To obtain NET cooling capacity
subtract indoor fan heat. For indoor fan heat formula, refer to appropriate airflow table notes.
2. MBh = Total Gross Capacity
3. SHC = Sensible Heat Capacity
44
RT-PRC023AG-EN
Performance Data
Table 10. Gross cooling capacities 3 tons standard efficiency - three phase T/YSC036E3,4,W
Ambient Temperature
85
Air
95
Ent
105
Entering Wet Bulb
Flow
DB
cfm
(F)
MBh
61
SHC
MBh
67
SHC
MBh
73
SHC MBh SHC MBh SHC
61
67
MBh
73
SHC
MBh SHC MBh SHC MBh SHC
61
67
73
960
75
33.9
27.2
37.7
20.1
41.6
12.2
31.5
25.7
35.2
18.9
38.9
11.1
29.0
24.3
32.5
17.5
36.1
9.8
960
80
34.4
33.0
38.1
25.9
42.2
18.5
32.1
31.8
35.5
24.4
39.5
16.9
29.8
29.8
32.9
23.1
36.6
15.7
960
85
36.2
36.2
38.4
31.3
42.5
24.2
34.2
34.2
35.9
29.9
39.8
22.9
32.0
32.0
33.2
28.4
37.0
21.5
960
90
38.3
38.3
38.8
36.8
42.8
29.8
36.3
36.3
36.5
35.9
40.1
28.3
34.1
34.1
34.0
34.0
37.3
27.0
1080
75
34.9
29.1
38.7
21.5
42.6
12.9
32.4
27.7
36.0
19.8
39.8
11.8
29.8
26.2
33.3
18.4
36.9
9.9
1080
80
35.6
35.6
39.0
27.6
43.2
19.3
33.5
33.5
36.4
26.1
40.3
18.2
31.2
31.2
33.6
24.7
37.4
16.7
1080
85
37.9
37.9
39.4
33.5
43.5
25.8
35.7
35.7
36.8
32.2
40.7
24.5
33.5
33.5
34.1
30.9
37.8
23.3
1080
90
40.1
40.1
40.1
40.1
43.7
31.8
38.0
38.0
37.9
37.9
41.0
30.5
35.7
35.7
35.6
35.6
38.1
29.1
1200
75
35.6
31.1
39.4
22.3
43.4
13.3
33.2
29.7
36.7
21.0
40.5
11.2
30.5
28.3
33.9
19.3
37.5
10.1
1200
80
36.9
36.9
39.8
29.2
43.9
19.6
34.7
34.7
37.2
27.8
41.1
18.7
32.4
32.4
34.4
26.3
38.1
17.9
1200
85
39.3
39.3
40.2
36.1
44.3
27.3
37.1
37.1
37.6
34.8
41.5
26.0
34.7
34.7
35.0
33.8
38.5
24.6
1200
90
41.7
41.7
41.6
41.6
44.5
33.9
39.4
39.4
39.4
39.4
41.7
32.6
37.0
37.0
37.0
37.0
38.8
31.2
1320
75
36.3
33.1
40.1
23.3
44.0
13.2
33.8
31.7
37.3
22.0
41.1
11.4
31.2
30.4
34.4
20.1
38.0
10.0
1320
80
38.1
38.1
40.5
30.9
44.6
21.0
35.8
35.8
37.8
29.4
41.7
20.1
33.4
33.4
34.9
28.1
38.6
17.9
1320
85
40.6
40.6
41.0
38.8
45.0
28.7
38.3
38.3
38.5
37.6
42.0
27.0
35.8
35.8
35.9
35.8
39.0
25.9
1320
90
43.0
43.0
43.0
43.0
45.2
36.0
40.7
40.7
40.6
40.6
42.4
34.8
38.2
38.2
38.1
38.1
39.4
33.3
1440
75
37.0
35.1
40.6
24.3
44.6
13.4
34.5
33.8
37.8
22.8
41.6
12.0
31.8
31.8
34.9
21.5
38.5
10.7
1440
80
39.1
39.1
41.1
32.6
45.2
22.3
36.8
36.8
38.3
31.1
42.2
21.2
34.3
34.3
35.4
29.8
39.1
19.6
1440
85
41.7
41.7
41.8
41.3
45.5
30.2
39.3
39.3
39.3
39.3
42.5
28.7
36.8
36.8
36.8
36.8
39.5
27.1
1440
90
44.2
44.2
44.2
44.2
45.8
38.1
41.8
41.8
41.7
41.7
43.0
36.7
39.2
39.2
39.2
39.2
39.9
35.6
Ambient Temperature
115
Air
Ent
125
Entering Wet Bulb
Flow
DB
cfm
(F)
MBh
61
SHC
MBh
67
SHC
MBh
73
61
67
960
75
26.3
22.8
29.6
16.2
33.0
8.4
23.5
20.8
26.1
15.4
30.1
7.0
960
80
27.5
27.5
30.0
21.7
33.5
14.8
24.8
24.7
26.7
20.9
30.0
14.0
960
85
29.6
29.6
30.4
27.0
33.9
20.3
26.5
26.5
27.7
25.5
30.3
20.2
960
90
31.7
31.7
31.6
31.6
34.2
25.5
29.0
29.0
29.0
29.0
31.0
25.6
1080
75
27.0
24.8
30.3
16.9
33.7
8.6
24.4
21.9
26.9
16.3
30.7
7.7
1080
80
28.7
28.7
30.7
23.2
34.2
15.4
25.8
25.8
27.6
21.9
30.8
14.9
1080
85
30.9
30.9
31.2
29.8
34.6
21.6
27.6
27.6
28.7
26.7
31.2
21.3
1080
90
33.1
33.1
33.1
33.1
34.9
27.5
30.2
30.2
30.2
30.2
32.0
26.8
1200
75
27.7
27.0
30.8
18.0
34.3
8.7
25.2
22.8
27.5
17.0
31.2
8.3
1200
80
29.8
29.8
31.3
24.8
34.8
15.9
26.8
26.8
28.4
22.8
31.4
15.7
1200
85
32.1
32.1
32.1
32.1
35.2
23.0
29.4
29.4
29.7
27.7
32.0
22.2
1200
90
34.4
34.4
34.3
34.3
35.6
29.8
31.3
31.3
31.3
31.3
32.9
27.8
1320
75
28.4
28.4
31.3
18.7
34.7
8.6
25.8
23.6
28.0
17.7
31.5
8.7
1320
80
30.7
30.7
31.8
26.5
35.3
17.4
27.5
27.5
29.0
23.6
31.9
16.3
1320
85
33.1
33.1
33.1
33.1
35.7
24.4
30.1
30.1
30.4
28.7
32.6
22.9
1320
90
35.5
35.5
35.5
35.5
36.1
32.0
32.2
32.2
32.2
32.2
33.7
28.7
1440
75
29.1
29.1
31.7
19.8
35.1
9.2
26.3
24.2
28.3
18.1
31.7
9.0
1440
80
31.6
31.6
32.3
28.4
35.7
18.3
28.2
28.2
29.5
24.2
32.2
16.7
1440
85
34.0
34.0
34.0
34.0
36.2
25.9
30.7
30.7
31.1
29.4
33.1
23.6
1440
90
36.4
36.4
36.4
36.4
36.7
34.6
33.0
33.0
33.0
33.0
34.3
29.5
SHC MBh SHC MBh SHC
73
MBh
SHC
Notes:
1. All capacities shown are gross and have not considered indoor fan heat. To obtain NET cooling capacity
subtract indoor fan heat. For indoor fan heat formula, refer to appropriate airflow table notes.
2. MBh = Total Gross Capacity
3. SHC = Sensible Heat Capacity
RT-PRC023AG-EN
45
Performance Data
Table 11. Gross cooling capacities 4 tons standard efficiency - single phase T/YSC048E1
Ambient Temperature
85
Air
95
Ent
105
Entering Wet Bulb
Flow
DB
cfm
(F)
MBh
61
SHC
MBh
67
SHC
MBh
73
SHC MBh SHC MBh SHC
61
67
MBh
73
SHC
MBh SHC MBh SHC MBh SHC
61
67
73
1280
75
45.0
35.9
50.4
26.8
56.0
16.7
41.7
34.0
46.8
24.9
52.3
15.7
38.1
31.9
43.1
22.9
48.3
13.8
1280
80
45.4
43.6
50.7
34.1
56.4
24.8
42.2
41.6
47.1
32.2
52.7
23.1
39.0
39.0
43.4
30.2
48.7
21.4
1280
85
47.7
47.7
50.9
41.5
56.7
32.1
44.9
44.9
47.5
39.6
53.0
30.3
41.8
41.8
43.8
37.7
49.1
28.4
1280
90
50.6
50.6
51.3
49.0
56.9
39.3
47.8
47.8
47.9
47.2
53.2
37.4
44.7
44.7
44.6
44.6
49.4
35.7
1440
75
46.2
38.6
51.6
28.3
57.2
17.8
42.8
36.7
48.0
26.4
53.4
15.6
39.1
34.6
44.1
24.4
49.3
15.6
1440
80
46.9
46.9
51.9
36.5
57.6
26.2
44.0
44.0
48.3
34.6
53.9
24.3
40.8
40.8
44.4
32.6
49.7
22.0
1440
85
49.9
49.9
52.2
44.8
57.9
34.2
47.0
47.0
48.6
42.9
54.1
32.3
43.8
43.8
44.9
41.1
50.1
30.4
1440
90
53.0
53.0
52.9
52.9
58.2
42.3
50.0
50.0
49.9
49.9
54.4
40.5
46.8
46.8
46.7
46.7
50.3
38.7
1600
75
47.2
41.3
52.6
29.7
58.3
18.0
43.8
39.3
48.9
27.8
54.3
18.1
40.0
37.4
44.9
25.8
50.2
14.1
1600
80
48.7
48.7
52.9
38.8
58.8
27.2
45.7
45.7
49.2
36.9
54.8
25.4
42.4
42.4
45.3
35.0
50.6
23.5
1600
85
51.9
51.9
53.3
48.2
59.0
36.2
48.8
48.8
49.7
46.4
55.1
34.4
45.5
45.5
45.9
44.4
51.0
32.5
1600
90
55.0
55.0
55.0
55.0
59.2
45.3
51.9
51.9
51.9
51.9
55.4
43.5
48.6
48.6
48.6
48.6
51.4
41.8
1760
75
48.2
44.0
53.5
31.1
59.1
18.2
44.6
42.0
49.7
29.2
55.1
16.2
40.8
40.0
45.6
27.1
50.8
14.8
1760
80
50.3
50.3
53.8
41.2
59.6
28.3
47.1
47.1
50.1
39.3
55.6
26.5
43.8
43.8
46.0
37.3
51.4
24.6
1760
85
53.6
53.6
54.2
51.5
59.9
38.3
50.4
50.4
50.7
49.7
56.0
36.4
47.0
47.0
46.9
46.9
51.7
34.6
1760
90
56.8
56.8
56.8
56.8
60.1
48.3
53.7
53.7
53.6
53.6
56.3
46.5
50.2
50.2
50.2
50.2
52.1
44.7
1920
75
48.9
46.6
54.2
32.5
59.9
20.1
45.3
44.7
50.3
30.6
55.7
17.1
41.7
41.7
46.2
28.7
51.4
14.4
1920
80
51.7
51.7
54.5
43.5
60.4
29.4
48.5
48.5
50.8
41.7
56.3
27.7
45.0
45.0
46.7
39.7
52.0
25.8
1920
85
55.0
55.0
55.3
54.9
60.6
40.3
51.8
51.8
51.8
51.8
56.6
38.5
48.3
48.3
48.3
48.3
52.4
36.6
1920
90
58.4
58.4
58.3
58.3
60.9
51.3
55.2
55.2
55.1
55.1
57.0
49.6
51.7
51.7
51.6
51.6
52.9
47.8
Ambient Temperature
115
Air
Ent
125
Entering Wet Bulb
Flow
DB
cfm
(F)
MBh
61
SHC
MBh
67
SHC
MBh
73
SHC MBh SHC MBh SHC
61
67
MBh
73
1280
75
34.4
29.9
39.1
20.9
44.0
12.7
30.5
27.0
34.2
19.9
39.9
8.9
1280
80
35.7
35.7
39.4
28.2
44.5
19.2
32.2
32.0
34.9
27.0
39.6
18.1
1280
85
38.5
38.5
39.8
35.7
44.8
26.4
34.3
34.3
36.1
33.0
39.9
26.2
1280
90
41.4
41.4
41.3
41.3
45.2
33.7
37.5
37.5
37.9
37.8
40.7
33.1
1440
75
35.3
32.6
40.0
22.3
44.9
11.9
31.7
28.3
35.2
21.0
40.7
9.8
1440
80
37.4
37.4
40.3
30.6
45.5
20.3
33.5
33.5
36.1
28.3
40.6
19.2
1440
85
40.4
40.4
40.9
39.1
45.8
28.5
35.9
35.9
37.5
34.5
41.1
27.5
1440
90
43.3
43.3
43.3
43.3
46.2
36.7
39.5
39.5
39.5
39.5
42.1
34.7
1600
75
36.1
35.2
40.7
23.7
45.6
12.5
32.8
29.5
36.1
22.0
41.3
10.6
1600
80
38.9
38.9
41.2
33.0
46.3
21.4
34.8
34.8
37.1
29.6
41.4
20.3
1600
85
41.9
41.9
42.0
42.0
46.6
30.6
37.3
37.3
38.7
36.0
42.1
28.8
1600
90
45.0
45.0
45.0
45.0
47.0
39.8
40.9
40.9
40.9
40.9
43.3
36.1
1760
75
37.0
37.0
41.3
25.2
46.3
12.6
33.6
30.6
36.8
22.9
41.8
11.4
1760
80
40.2
40.2
41.8
35.3
46.8
22.6
35.8
35.8
38.0
30.7
42.1
21.2
1760
85
43.4
43.4
43.3
43.3
47.2
32.6
38.6
38.6
39.8
37.3
42.9
29.9
1760
90
46.5
46.5
46.4
46.4
47.7
42.8
42.1
42.1
42.1
42.1
44.3
37.5
1920
75
38.1
38.1
41.8
26.5
46.8
12.4
34.4
31.7
37.3
23.8
42.1
12.0
1920
80
41.3
41.3
42.4
37.7
47.4
23.7
36.7
36.7
38.7
31.8
42.6
22.1
1920
85
44.6
44.6
44.6
44.6
47.9
34.7
39.7
39.7
40.7
38.6
43.6
31.0
1920
90
47.8
47.8
47.8
47.8
48.3
45.8
43.2
43.2
43.2
43.2
45.2
38.8
SHC
Notes:
1. All capacities shown are gross and have not considered indoor fan heat. To obtain NET cooling capacity
subtract indoor fan heat. For indoor fan heat formula, refer to appropriate airflow table notes.
2. MBh = Total Gross Capacity
3. SHC = Sensible Heat Capacity
46
RT-PRC023AG-EN
Performance Data
Table 12. Gross cooling capacities 4 tons standard efficiency - three phase T/YSC048E3,4,W
Ambient Temperature
85
Air
95
Ent
105
Entering Wet Bulb
Flow
DB
cfm
(F)
MBh
61
SHC
MBh
67
SHC
MBh
73
SHC MBh SHC MBh SHC
61
67
MBh SHC MBh SHC MBh SHC MBh SHC
73
61
67
73
1280
75
45.0
36.2
50.4
27.1
56.1
17.9
41.6
34.3
47.0
25.4
52.3
15.7
38.1
32.3
43.1
23.0
48.3
13.8
1280
80
45.5
43.8
50.8
34.4
56.6
25.0
42.3
42.0
47.3
32.6
52.8
24.0
39.2
39.2
43.5
30.6
48.7
20.6
1280
85
48.1
48.1
51.2
42.0
56.9
32.4
45.2
45.2
47.7
40.1
53.2
30.5
42.2
42.2
44.0
38.1
49.3
29.3
1280
90
51.1
51.1
51.7
49.4
57.3
39.8
48.2
48.2
48.3
47.7
53.6
38.0
45.1
45.1
45.1
45.1
49.6
36.3
1440
75
46.2
38.9
51.7
28.6
57.3
17.6
42.8
37.0
48.0
26.6
53.5
16.0
39.2
35.0
44.1
24.5
49.3
14.0
1440
80
47.2
47.2
52.0
36.8
57.9
25.5
44.2
44.2
48.4
34.9
54.0
24.4
41.1
41.1
44.6
33.1
49.9
22.8
1440
85
50.4
50.4
52.5
45.3
58.3
34.5
47.4
47.4
48.9
43.4
54.4
32.7
44.2
44.2
45.2
41.5
50.3
31.0
1440
90
53.5
53.5
53.5
53.5
58.7
42.8
50.5
50.5
50.4
50.4
54.8
40.9
47.3
47.3
47.2
47.2
50.8
39.2
1600
75
47.3
41.6
52.7
29.9
58.3
17.6
43.8
39.7
48.9
27.9
54.4
16.2
40.1
37.6
44.9
25.9
50.1
14.1
1600
80
49.1
49.1
53.1
39.2
59.0
27.8
46.0
46.0
49.4
37.3
55.0
25.6
42.7
42.7
45.5
35.5
50.8
23.8
1600
85
52.3
52.3
53.7
48.6
59.4
36.5
49.3
49.3
50.0
46.6
55.4
35.0
46.0
46.0
46.2
44.9
51.2
32.9
1600
90
55.6
55.6
55.6
55.6
59.8
45.8
52.5
52.5
52.4
52.4
55.9
44.1
49.2
49.2
49.1
49.1
51.8
42.3
1760
75
48.3
44.3
53.5
31.3
59.3
18.4
44.7
42.3
49.7
29.3
55.2
16.2
41.0
40.5
45.6
27.7
50.8
14.5
1760
80
50.7
50.7
54.1
41.6
59.9
28.9
47.6
47.6
50.3
39.7
55.9
27.0
44.1
44.1
46.3
37.8
51.5
24.7
1760
85
54.1
54.1
54.7
51.9
60.3
38.6
50.9
50.9
51.1
50.2
56.3
36.8
47.5
47.5
47.4
47.4
52.0
34.8
1760
90
57.5
57.5
57.5
57.5
60.8
48.9
54.3
54.3
54.3
54.3
56.9
47.2
50.8
50.8
50.7
50.7
52.6
45.2
1920
75
49.1
46.9
54.3
32.9
59.9
18.3
45.5
45.0
50.4
30.8
55.8
16.6
42.0
42.0
46.2
29.0
51.3
15.3
1920
80
52.1
52.1
54.8
44.1
60.7
30.0
48.9
48.9
51.1
42.1
56.5
27.3
45.4
45.4
46.9
40.1
52.1
26.2
1920
85
55.6
55.6
55.7
55.3
61.1
40.8
52.3
52.3
52.3
52.3
57.0
38.9
48.8
48.8
48.8
48.8
52.7
37.1
1920
90
59.2
59.2
59.2
59.2
61.6
52.0
55.8
55.8
55.8
55.8
57.6
50.1
52.3
52.3
52.2
52.2
53.4
48.1
Ambient Temperature
115
Air
Ent
125
Entering Wet Bulb
Flow
DB
cfm
(F)
MBh
61
SHC
MBh
67
SHC
MBh
73
SHC MBh SHC MBh SHC
61
67
MBh SHC
73
1280
75
34.3
30.2
39.0
21.0
44.0
11.9
30.7
27.2
34.3
20.3
39.9
9.6
1280
80
36.0
36.0
39.5
28.6
44.5
19.5
32.4
32.2
35.1
27.4
39.7
18.8
1280
85
38.9
38.9
40.0
36.2
45.0
26.7
34.7
34.7
36.4
33.4
40.1
26.8
1280
90
41.8
41.8
41.7
41.7
45.4
34.2
37.9
37.9
38.3
38.2
41.0
33.7
1440
75
35.3
32.9
39.9
22.7
44.8
11.5
31.8
28.6
35.3
21.5
40.6
10.6
1440
80
37.7
37.7
40.5
31.1
45.5
20.6
33.8
33.8
36.3
28.9
40.7
20.0
1440
85
40.8
40.8
41.0
39.5
46.0
28.8
36.3
36.3
37.8
35.0
41.3
28.2
1440
90
43.8
43.8
43.7
43.7
46.4
37.2
39.9
39.9
39.9
39.9
42.4
35.3
1600
75
36.2
35.7
40.7
23.7
45.5
11.5
32.9
29.9
36.1
22.6
41.2
11.4
1600
80
39.2
39.2
41.3
33.4
46.3
21.7
35.0
35.0
37.3
30.1
41.5
21.0
1600
85
42.4
42.4
42.3
42.3
46.8
30.9
37.7
37.7
39.0
36.5
42.3
29.5
1600
90
45.5
45.5
45.5
45.5
47.4
40.5
41.3
41.3
41.3
41.3
43.6
36.8
1760
75
37.2
37.2
41.3
25.7
46.2
12.5
33.7
31.0
36.7
23.5
41.7
12.1
1760
80
40.5
40.5
42.0
35.8
46.9
23.0
36.1
36.1
38.1
31.3
42.1
21.9
1760
85
43.8
43.8
43.8
43.8
47.5
32.9
38.9
38.9
40.1
37.9
43.1
30.6
1760
90
47.0
47.0
46.9
46.9
48.1
43.4
42.6
42.6
42.6
42.6
44.7
38.2
1920
75
38.3
38.3
41.8
26.9
46.8
13.0
34.4
32.0
37.2
24.2
42.0
12.6
1920
80
41.7
41.7
42.6
38.1
47.5
24.1
37.0
37.0
38.8
32.2
42.6
22.7
1920
85
45.0
45.0
44.9
44.9
48.0
35.0
40.6
40.6
41.0
39.1
43.8
31.6
1920
90
48.4
48.4
48.4
48.4
48.8
46.4
43.7
43.7
43.7
43.7
45.6
39.4
Notes:
1. All capacities shown are gross and have not considered indoor fan heat. To obtain NET cooling capacity
subtract indoor fan heat. For indoor fan heat formula, refer to appropriate airflow table notes.
2. MBh = Total Gross Capacity
3. SHC = Sensible Heat Capacity
RT-PRC023AG-EN
47
Performance Data
Table 13. Gross cooling capacities 5 tons standard efficiency - single phase T/YSC060E1
Ambient Temperature
85
Air
95
Ent
105
Entering Wet Bulb
Flow
DB
cfm
(F)
MBh
61
SHC
MBh
67
SHC
MBh
73
SHC MBh SHC MBh SHC
61
67
MBh SHC MBh SHC MBh SHC MBh SHC
73
61
67
73
1600
75
55.1
45.0
61.1
33.1
67.6
20.1
51.4
43.0
57.2
30.8
63.4
18.3
47.4
40.9
53.0
29.1
58.9
16.5
1600
80
55.7
54.7
61.5
42.2
68.0
29.8
52.2
52.2
57.6
40.3
63.9
28.0
48.7
48.7
53.4
38.3
59.4
26.1
1600
85
58.6
58.6
61.9
51.6
68.4
39.3
55.5
55.5
58.0
49.7
64.2
37.4
52.0
52.0
53.8
47.8
59.7
35.5
1600
90
62.1
62.1
62.5
61.3
68.7
48.5
58.8
58.8
58.9
58.8
64.5
46.6
55.3
55.3
55.2
55.2
60.1
44.8
1800
75
56.4
48.2
62.4
34.4
69.0
21.3
52.6
46.3
58.4
32.8
64.7
18.5
48.5
44.2
54.1
30.8
60.1
17.6
1800
80
57.5
57.5
62.8
45.1
69.4
31.1
54.3
54.3
58.9
43.2
65.2
29.5
50.7
50.7
54.5
41.2
60.5
27.6
1800
85
61.1
61.1
63.3
55.7
69.8
41.7
57.8
57.8
59.3
53.8
65.5
39.9
54.2
54.2
55.1
51.9
60.9
38.0
1800
90
64.7
64.7
64.6
64.6
70.1
52.1
61.3
61.3
61.2
61.2
65.9
50.3
57.6
57.6
57.6
57.6
61.3
48.4
2000
75
57.5
51.4
63.6
36.1
70.1
21.4
53.7
49.5
59.5
34.1
65.8
19.9
49.6
47.6
55.0
32.2
61.1
17.4
2000
80
59.5
59.5
64.0
47.9
70.6
32.6
56.1
56.1
59.9
46.0
66.3
30.7
52.5
52.5
55.5
44.1
61.6
28.8
2000
85
63.2
63.2
64.6
59.7
71.0
44.1
59.8
59.8
60.5
58.0
66.6
42.5
56.1
56.1
56.4
56.0
61.9
40.4
2000
90
67.0
67.0
66.9
66.9
71.4
55.8
63.5
63.5
63.5
63.5
67.0
53.9
59.7
59.7
59.6
59.6
62.3
52.1
2200
75
58.6
54.7
64.6
37.8
71.2
22.1
54.7
52.8
60.3
35.9
66.7
18.5
50.6
50.3
55.8
34.0
61.9
17.6
2200
80
61.3
61.3
65.0
50.7
71.6
33.9
57.8
57.8
60.8
48.9
67.2
32.1
54.0
54.0
56.3
47.0
62.3
30.2
2200
85
65.1
65.1
65.8
63.9
72.0
46.6
61.6
61.6
61.8
61.6
67.5
44.8
57.8
57.8
57.7
57.7
62.7
42.9
2200
90
69.0
69.0
68.9
68.9
72.4
59.3
65.4
65.4
65.4
65.4
68.0
57.7
61.4
61.4
61.4
61.4
63.2
55.8
2400
75
59.5
57.9
65.4
39.5
72.1
20.4
55.6
55.4
61.1
37.6
67.4
19.7
51.6
51.6
56.5
35.6
62.5
17.6
2400
80
62.8
62.8
65.9
53.6
72.5
34.9
59.2
59.2
61.6
51.8
68.0
33.5
55.3
55.3
57.0
49.8
63.1
31.5
2400
85
66.8
66.8
66.9
66.8
72.9
49.2
63.2
63.2
63.2
63.2
68.3
47.3
59.2
59.2
59.1
59.1
63.4
45.4
2400
90
70.9
70.9
70.7
70.7
73.3
63.1
67.0
67.0
67.0
67.0
68.8
61.4
63.0
63.0
62.9
62.9
64.0
59.7
Ambient Temperature
115
Air
Ent
125
Entering Wet Bulb
Flow
DB
cfm
(F)
MBh
61
SHC
MBh
67
SHC
MBh
73
SHC MBh SHC MBh SHC
61
67
MBh SHC
73
1600
75
43.1
38.8
48.4
26.7
54.1
14.9
38.8
35.1
43.0
26.2
49.3
12.2
1600
80
45.0
45.0
48.8
36.3
54.5
24.2
40.7
40.7
43.7
35.0
48.9
23.7
1600
85
48.2
48.2
49.3
45.8
54.8
33.5
43.2
43.2
45.1
42.3
49.2
33.8
1600
90
51.4
51.4
51.4
51.4
55.1
42.8
47.1
47.1
47.1
47.1
50.1
42.4
1800
75
44.2
42.1
49.4
28.4
55.1
15.2
40.2
36.6
44.1
27.4
50.2
13.2
1800
80
46.9
46.9
49.8
39.1
55.5
25.5
42.2
42.2
45.0
36.5
50.1
25.0
1800
85
50.2
50.2
50.5
49.9
55.8
35.9
44.9
44.9
46.6
44.1
50.5
35.3
1800
90
53.5
53.5
53.5
53.5
56.2
46.5
48.8
48.8
48.8
48.8
51.6
44.1
2000
75
45.2
45.0
50.2
30.2
55.9
15.2
41.3
38.0
45.0
28.6
50.9
14.0
2000
80
48.5
48.5
50.7
42.0
56.3
26.9
43.6
43.6
46.2
37.8
51.0
26.1
2000
85
51.9
51.9
51.9
51.9
56.7
38.5
46.5
46.5
48.0
45.6
51.7
36.6
2000
90
55.4
55.4
55.4
55.4
57.2
50.2
50.4
50.4
50.4
50.4
53.0
45.7
2200
75
46.3
46.3
50.9
31.9
56.6
15.6
42.3
39.2
45.7
29.5
51.4
14.7
2200
80
49.8
49.8
51.4
44.9
57.0
28.2
44.8
44.8
47.1
39.0
51.7
27.0
2200
85
53.4
53.4
53.4
53.4
57.4
41.0
47.9
47.9
49.1
47.0
52.6
37.8
2200
90
57.0
57.0
57.0
57.0
58.0
54.0
51.8
51.8
51.8
51.8
54.2
47.1
2400
75
47.5
47.5
51.5
33.6
57.2
15.7
43.1
40.2
46.3
30.3
51.8
15.3
2400
80
51.0
51.0
52.1
47.9
57.6
29.6
45.8
45.8
47.9
40.0
52.3
27.8
2400
85
54.7
54.7
54.7
54.7
58.0
43.6
49.6
49.6
50.1
48.3
53.4
38.8
2400
90
58.4
58.4
58.4
58.4
58.8
57.7
53.0
53.0
53.0
53.0
55.2
48.3
Notes:
1. All capacities shown are gross and have not considered indoor fan heat. To obtain NET cooling capacity
subtract indoor fan heat. For indoor fan heat formula, refer to appropriate airflow table notes.
2. MBh = Total Gross Capacity
3. SHC = Sensible Heat Capacity
48
RT-PRC023AG-EN
Performance Data
Table 14. Gross cooling capacities 5 tons standard efficiency - three phase T/YSC060E3,4,W
Ambient Temperature
85
Air
95
Ent
105
Entering Wet Bulb
Flow
DB
cfm
(F)
MBh
61
SHC
MBh
67
SHC
MBh
73
SHC MBh SHC MBh SHC MBh SHC MBh
61
67
73
61
SHC
MBh
67
SHC
MBh
73
SHC
1600
75
57.3
46.6
63.6
34.8
70.2
23.4
53.3
44.5
59.4
32.7
65.8 21.3
49.2
42.2
55.0
30.7
61.1
18.4
1600
80
57.8
56.1
63.9
44.0
70.7
32.1
54.0
53.9
59.7
41.9
66.2 30.2
50.4
50.4
55.3
39.9
61.5
28.5
1600
85
60.9
60.9
64.4
53.5
71.0
41.1
57.5
57.5
60.2
51.5
66.5 39.1
53.8
53.8
55.7
49.2
61.8
36.9
1600
90
64.4
64.4
64.9
62.9
71.3
50.3
60.9
60.9
60.8
60.7
66.9 48.7
57.2
57.2
57.1
57.1
62.1
46.2
1800
75
58.8
50.1
65.0
36.7
71.7
22.6
54.7
47.9
60.6
35.4
67.1 20.8
50.3
45.5
56.1
32.4
62.3
19.5
1800
80
59.9
59.9
65.4
47.0
72.1
33.4
56.3
56.3
61.1
44.9
67.5 31.4
52.6
52.6
56.6
42.9
62.7
29.6
1800
85
63.5
63.5
65.9
57.7
72.5
43.9
59.9
59.9
61.6
55.6
67.9 41.6
56.1
56.1
57.0
53.3
63.0
39.8
1800
90
67.1
67.1
67.1
67.1
72.9
54.1
63.5
63.5
63.5
63.5
68.2 52.3
59.6
59.6
59.5
59.5
63.4
50.3
2000
75
60.0
53.4
66.2
38.7
72.9
24.5
55.8
51.1
61.8
35.8
68.2 22.4
51.5
49.0
57.1
34.3
63.3
20.3
2000
80
62.0
62.0
66.7
50.2
73.4
35.3
58.4
58.4
62.3
48.1
68.6 33.6
54.5
54.5
57.6
46.0
63.6
30.5
2000
85
65.8
65.8
67.2
61.8
73.8
46.5
62.1
62.1
62.8
59.8
69.1 44.7
58.1
58.1
58.1
57.5
64.1
42.6
2000
90
69.6
69.6
69.6
69.6
74.1
58.0
65.8
65.8
65.8
65.8
69.3 56.1
61.7
61.7
61.7
61.7
64.5
54.2
2200
75
61.0
56.8
67.3
41.3
74.0
24.2
56.8
54.4
62.7
38.2
69.2 22.2
52.4
52.1
58.0
36.2
64.1
21.3
2200
80
63.9
63.9
67.7
53.1
74.5
38.1
60.1
60.1
63.2
51.0
69.6 35.1
56.1
56.1
58.5
49.0
64.6
32.2
2200
85
67.8
67.8
68.4
66.0
74.8
49.4
64.0
64.0
64.0
63.7
70.0 47.3
59.9
59.9
59.7
59.7
64.9
45.4
2200
90
71.7
71.7
71.8
71.8
75.2
62.0
67.8
67.8
67.8
67.8
70.4 60.1
63.6
63.6
63.5
63.5
65.2
57.8
2400
75
62.0
60.1
68.1
42.2
74.9
24.2
57.8
57.6
63.5
40.0
70.0 22.2
53.7
53.7
58.7
38.0
64.9
20.6
2400
80
65.6
65.6
68.6
56.1
75.2
39.4
61.7
61.7
64.0
54.1
70.5 36.4
57.6
57.6
59.2
51.9
65.3
34.4
2400
85
69.6
69.6
69.6
69.5
75.7
51.8
65.7
65.7
65.6
65.6
70.9 50.1
61.4
61.4
61.4
61.4
65.7
47.9
2400
90
73.6
73.6
73.5
73.5
76.2
65.7
69.6
69.6
69.5
69.5
71.2 63.6
65.2
65.2
65.2
65.2
66.1
61.5
Ambient Temperature
115
Air
Ent
125
Entering Wet Bulb
Flow
DB
cfm
(F)
MBh
61
SHC
MBh
67
SHC
MBh
73
SHC MBh SHC MBh SHC MBh SHC
61
67
73
1600
75
44.8
40.0
50.2
28.5
56.0
17.0
40.6
36.3
44.9
27.9
51.4 15.0
1600
80
46.6
46.6
50.6
37.7
56.4
26.1
42.5
42.2
45.7
36.3
51.0 25.9
1600
85
49.9
49.9
51.0
47.0
56.7
35.0
45.1
45.1
47.0
43.3
51.3 35.3
1600
90
53.1
53.1
53.1
53.1
57.1
44.4
48.6
48.6
49.1
48.8
52.2 43.4
1800
75
45.8
43.3
51.2
30.4
57.1
18.0
42.0
38.0
46.0
29.4
52.3 16.2
1800
80
48.6
48.6
51.7
40.7
57.4
27.8
44.1
44.1
47.0
38.1
52.1 27.4
1800
85
52.0
52.0
52.2
51.2
57.8
37.7
46.9
46.9
48.6
45.3
52.6 37.1
1800
90
55.4
55.4
55.3
55.3
58.2
48.2
50.9
50.9
50.9
50.9
53.7 45.4
2000
75
46.9
46.7
52.1
32.2
58.0
16.9
43.2
39.6
47.0
30.7
53.0 17.3
2000
80
50.3
50.3
52.6
43.7
58.3
29.6
45.6
45.6
48.2
39.6
53.0 28.7
2000
85
53.8
53.8
53.8
53.8
58.7
40.5
48.5
48.5
50.0
47.1
53.8 38.7
2000
90
57.3
57.3
57.3
57.3
59.1
52.0
52.5
52.5
52.5
52.5
55.1 47.3
2200
75
48.2
48.2
52.9
34.0
58.7
17.6
44.2
40.9
47.7
31.8
53.5 18.2
2200
80
51.8
51.8
53.4
46.7
59.0
30.4
46.8
46.8
49.2
41.0
53.8 29.9
2200
85
55.4
55.4
55.4
55.4
59.4
43.1
50.0
50.0
51.2
48.8
54.7 40.2
2200
90
59.0
59.0
59.0
59.0
59.9
55.7
53.9
53.9
53.9
53.9
56.3 49.0
2400
75
49.3
49.3
53.5
35.7
59.3
17.7
45.0
42.1
48.3
32.8
53.8 18.9
2400
80
53.1
53.1
54.0
49.5
59.7
32.2
47.8
47.8
49.9
42.2
54.3 30.9
2400
85
56.8
56.8
56.8
56.8
60.1
45.8
51.7
51.7
52.2
50.3
55.5 41.4
2400
90
60.5
60.5
60.5
60.5
60.7
59.5
55.2
55.2
55.2
55.2
57.3 50.5
Notes:
1. All capacities shown are gross and have not considered indoor fan heat. To obtain NET cooling capacity
subtract indoor fan heat. For indoor fan heat formula, refer to appropriate airflow table notes.
2. MBh = Total Gross Capacity
3. SHC = Sensible Heat Capacity
RT-PRC023AG-EN
49
Performance Data
Table 15. Gross cooling capacities 6 tons standard efficiency - three phase T/YSC072F3,4,W
Ambient Temperature
85
Air
95
Ent
105
Entering Wet Bulb
Flow
DB
cfm
(F)
MBh
61
SHC
MBh
67
SHC
MBh
73
SHC MBh SHC MBh SHC
61
67
MBh
73
SHC
MBh SHC MBh SHC MBh SHC
61
67
73
1920
75
69.0
55.1
75.2
40.7
83.7
19.8
65.0
52.5
70.8
38.6
79.0
18.1
60.7
49.8
66.2
36.3
74.0
16.3
1920
80
70.7
64.2
75.8
53.2
83.1
35.7
66.8
61.4
71.5
50.9
78.5
33.8
62.6
58.5
66.9
48.3
73.6
31.7
1920
85
73.0
71.4
76.9
63.8
83.1
49.8
69.2
68.4
72.7
61.3
78.5
47.6
65.1
65.1
68.2
58.5
73.7
45.3
1920
90
75.9
75.9
78.6
72.6
83.6
62.0
72.1
72.1
74.5
69.8
79.1
59.6
68.1
68.1
70.1
66.8
74.3
57.0
2160
75
71.0
57.3
77.0
42.5
85.3
21.2
66.9
54.7
72.5
40.3
80.4
19.4
62.5
51.8
67.8
37.9
75.3
17.5
2160
80
73.0
66.6
77.8
55.2
84.9
37.4
68.9
63.8
73.4
52.8
80.1
35.4
64.6
60.7
68.7
50.2
75.1
33.2
2160
85
75.5
74.1
79.1
66.1
85.0
51.7
71.5
71.0
74.8
63.4
80.3
49.4
67.3
67.3
70.2
60.5
75.4
46.9
2160
90
78.5
78.5
81.0
75.1
85.7
64.1
74.6
74.6
76.7
72.2
81.1
61.6
70.5
70.5
72.2
69.1
76.3
58.9
2400
75
72.8
59.3
78.5
44.1
86.5
22.5
68.6
56.6
73.9
41.8
81.6
20.6
64.1
53.6
69.1
39.3
76.4
18.5
2400
80
74.9
68.9
79.5
57.1
86.3
38.8
70.8
65.9
75.0
54.5
81.5
36.7
66.4
62.7
70.2
51.8
76.4
34.4
2400
85
77.6
76.6
81.0
68.2
86.7
53.4
73.6
73.4
76.6
65.4
81.9
51.0
69.2
69.2
71.9
62.4
76.9
48.4
2400
90
80.9
80.9
83.1
77.5
87.6
66.0
76.9
76.9
78.8
74.4
82.9
63.4
72.7
72.7
74.2
71.2
77.9
60.6
2640
75
74.3
61.2
79.8
45.6
87.6
23.5
70.0
58.3
75.1
43.2
82.5
21.5
65.4
55.3
70.2
40.6
77.2
19.3
2640
80
76.7
71.0
81.0
58.8
87.6
40.1
72.4
67.9
76.4
56.1
82.6
37.9
67.9
64.6
71.5
53.3
77.4
35.5
2640
85
79.6
78.9
82.7
70.1
88.1
54.9
75.4
75.4
78.2
67.2
83.2
52.4
71.0
71.0
73.4
64.1
78.1
49.7
2640
90
83.0
83.0
85.0
79.6
89.2
67.7
78.9
78.9
80.5
76.5
84.4
65.0
74.6
74.6
75.8
73.1
79.4
62.1
2880
75
75.6
62.9
80.8
46.9
88.4
24.4
71.1
59.9
76.0
44.4
83.2
22.3
66.5
56.8
71.0
41.6
77.8
20.0
2880
80
78.1
72.9
82.2
60.3
88.6
41.3
73.8
69.7
77.5
57.5
83.5
38.9
69.2
66.3
72.5
54.6
78.2
36.4
2880
85
81.2
81.1
84.1
71.9
89.3
56.2
76.9
76.9
79.5
68.9
84.3
53.6
72.4
72.4
74.6
65.7
79.1
50.9
2880
90
84.9
84.9
86.6
81.6
90.6
69.3
80.7
80.7
82.0
78.3
85.7
66.5
76.2
76.2
77.2
74.9
80.5
63.5
Ambient Temperature
115
Air
Ent
125
Entering Wet Bulb
Flow
DB
cfm
(F)
MBh
61
SHC
MBh
67
SHC
MBh
73
SHC MBh SHC MBh SHC
61
67
MBh
73
SHC
1920
75
56.2
46.9
61.3
33.8
68.8
14.3
51.4
43.8
56.2
31.2
63.3
12.0
1920
80
58.2
55.3
62.2
45.6
68.4
29.4
53.5
52.0
57.1
42.7
63.0
27.0
1920
85
60.7
60.7
63.5
55.5
68.6
42.8
56.1
56.1
58.6
52.4
63.3
40.1
1920
90
64.8
64.8
65.4
63.6
69.4
54.2
60.0
60.0
60.6
60.2
64.1
51.3
2160
75
57.9
48.8
62.8
35.3
70.0
15.3
53.0
45.6
57.6
32.5
64.4
13.0
2160
80
60.1
57.4
63.8
47.3
69.9
30.8
55.3
54.0
58.7
44.3
64.4
28.2
2160
85
62.8
62.8
65.4
57.5
70.2
44.3
58.1
58.1
60.3
54.2
64.8
41.5
2160
90
66.8
66.8
67.5
65.8
71.2
56.0
61.9
61.9
62.5
62.3
65.9
52.9
2400
75
59.4
50.5
64.0
36.6
71.0
16.2
54.4
47.2
58.7
33.7
65.3
13.8
2400
80
61.7
59.4
65.2
48.9
71.0
31.9
56.9
55.8
60.0
45.7
65.4
29.2
2400
85
64.7
64.7
67.0
59.2
71.6
45.7
59.9
59.9
61.8
55.9
66.1
42.7
2400
90
68.6
68.6
69.3
67.7
72.8
57.6
63.6
63.6
64.2
64.1
67.3
54.4
2640
75
60.6
52.1
65.0
37.7
71.7
17.0
55.5
48.6
59.6
34.8
65.9
14.4
2640
80
63.2
61.1
66.4
50.2
71.9
32.9
58.2
57.5
61.1
47.0
66.2
30.1
2640
85
66.3
66.3
68.4
60.8
72.7
46.9
61.4
61.4
63.1
57.4
67.1
43.8
2640
90
70.2
70.2
70.9
69.6
74.1
59.0
65.7
65.7
65.7
65.7
68.5
55.7
2880
75
61.5
53.4
65.7
38.7
72.2
17.5
56.3
49.9
60.2
35.6
66.3
14.9
2880
80
64.3
62.7
67.3
51.4
72.6
33.6
59.2
59.0
61.9
48.1
66.8
30.7
2880
85
67.6
67.6
69.5
62.3
73.6
47.9
62.6
62.6
64.1
58.7
67.9
44.7
2880
90
71.5
71.5
72.2
71.2
75.1
60.3
66.9
66.9
66.9
66.9
69.5
56.9
Notes:
1. All capacities shown are gross and have not considered indoor fan heat. To obtain NET cooling capacity
subtract indoor fan heat. For indoor fan heat formula, refer to appropriate airflow table notes.
2. MBh = Total Gross Capacity
3. SHC = Sensible Heat Capacity
50
RT-PRC023AG-EN
Performance Data
Table 16. Gross cooling capacities 7½ tons standard efficiency - three phase T/YSC090F3,4,W
Ambient Temperature
85
Air
95
Ent
105
Entering Wet Bulb
Flow
DB
cfm
(F)
MBh
61
SHC
MBh
67
SHC
MBh
SHC MBh SHC MBh SHC
MBh
SHC
MBh SHC MBh SHC MBh SHC
2400
75
82.8
67.2
88.9
49.1
97.0
22.6
78.5
64.5
84.3
46.9
92.1
21.0
73.7
61.4
79.2
44.4
86.8
19.0
2400
80
85.3
78.3
90.1
64.6
97.0
42.5
81.0
75.4
85.5
62.1
92.1
40.6
76.3
72.0
80.5
59.3
86.8
38.3
2400
85
88.4
87.2
91.9
77.8
97.5
60.0
84.2
83.9 100.8 10.6
83.3
83.3
79.4
79.4
82.3
72.0
87.4
55.3
2400
90
92.1
92.1
94.3
88.7
98.6
75.3
87.0
87.0
87.9
87.7
93.8
72.8
83.2
83.2
84.8
82.3
88.6
69.9
2700
75
84.9
69.8
90.6
51.4
98.4
24.6
80.5
67.0
85.9
49.1
93.4
22.8
75.6
63.8
80.7
46.5
88.0
20.7
2700
80
87.6
81.2
92.1
67.1
98.6
44.7
83.2
78.1
87.4
64.5
93.7
42.6
78.4
74.6
82.2
61.6
88.2
40.2
2700
85
90.9
90.3
94.1
80.5
99.4
62.4
86.6
86.6 102.0 12.4
86.6
86.6
81.7
81.7
84.3
74.4
89.0
57.4
2700
90
94.8
94.8
96.7
91.7
100.7
77.9
90.5
90.5
92.1
88.5
95.8
75.3
85.7
85.7
87.0
85.0
90.5
72.3
3000
75
86.7
72.2
92.1
53.4
99.6
26.3
82.2
69.2
87.3
51.0
94.5
24.4
77.2
65.9
82.0
48.2
88.9
22.1
3000
80
89.7
83.8
93.8
69.3
100.0
46.5
85.2
80.5
89.0
66.6
94.9
44.4
80.2
76.9
83.7
63.5
89.4
41.8
3000
85
93.2
93.1
96.0
83.0
101.0
64.5
94.9
44.4 103.0 13.8
96.0
62.0
83.8
83.8
86.1
76.6
90.5
59.2
3000
90
97.3
97.3
98.9
94.3
102.5
80.2
92.9
92.9
94.2
91.0
97.6
77.4
88.1
88.1
89.0
87.3
92.1
74.3
3300
75
88.2
74.2
93.3
55.1
100.5
27.6
83.6
71.1
88.4
52.5
95.3
25.6
78.5
67.6
83.0
49.6
89.6
23.2
3300
80
91.4
86.0
95.2
71.2
101.1
48.1
86.8
82.6
90.3
68.4
95.9
45.8
81.7
78.9
85.0
65.2
90.3
43.1
3300
85
95.2
95.2
97.7
85.1
102.3
66.3
95.9
45.8 103.6 14.8
97.2
63.7
85.6
85.6
87.5
78.4
91.6
60.7
3300
90
99.5
99.5
100.8
96.6
104.1
82.2
95.0
95.0
96.0
93.2
99.0
79.3
89.8
89.8
90.7
89.4
93.5
76.0
3600
75
89.5
75.9
94.2
56.4
101.1
28.6
84.8
72.7
89.2
53.7
95.8
26.5
79.5
69.1
83.7
50.7
90.0
24.0
3600
80
92.9
87.9
96.4
72.8
101.9
49.3
85.2
80.5
91.4
69.8
96.7
46.9
83.0
80.5
85.9
66.5
90.9
44.1
3600
85
96.9
96.9
99.1
86.9
103.4
67.7
96.7
46.9 104.1 15.6
98.2
65.0
87.1
87.1
88.7
79.9
90.5
59.2
3600
90
98.6
105.4
83.8
96.9
96.9
100.2
80.8
91.2
91.2
92.1
91.1
94.5
77.4
101.5 101.5 102.4
73
61
67
97.5
95.0
73
61
67
73
Ambient Temperature
115
Air
Ent
125
Entering Wet Bulb
Flow
DB
cfm
(F)
MBh
61
SHC
MBh
67
SHC
MBh
73
SHC MBh SHC MBh SHC
61
67
MBh
73
SHC
2400
75
68.4
58.0
73.6
41.5
80.9
16.7
62.7
54.2
67.6
38.3
74.6
14.0
2400
80
71.0
68.3
75.0
56.2
81.0
35.7
65.3
64.2
69.0
52.6
74.7
32.7
2400
85
74.2
74.2
76.9
68.5
81.6
52.3
68.5
68.5
70.9
64.7
75.4
49.1
2400
90
78.6
78.6
79.4
78.5
82.8
66.7
73.4
73.4
73.4
73.4
76.6
63.1
2700
75
70.2
60.3
75.1
43.4
82.0
18.3
64.3
56.4
68.9
40.1
75.6
15.5
2700
80
73.0
70.8
76.6
58.3
82.3
37.5
67.2
66.6
70.5
54.6
76.0
34.3
2700
85
76.4
76.4
78.8
70.8
83.2
54.3
70.7
70.7
72.7
66.9
76.8
50.9
2700
90
80.7
80.7
81.5
81.1
84.6
68.9
75.5
75.5
75.5
75.5
78.3
65.2
3000
75
71.7
62.2
76.2
45.0
82.9
19.5
65.7
58.2
70.0
41.6
76.4
16.6
3000
80
74.7
72.9
78.0
60.1
83.4
38.9
68.8
68.6
71.8
56.3
76.9
35.7
3000
85
78.4
78.4
80.4
72.9
84.5
56.0
72.5
72.5
74.2
68.8
78.1
52.5
3000
90
82.5
82.5
83.3
83.3
86.2
70.8
77.2
77.2
77.2
77.2
79.8
67.0
3300
75
72.9
63.8
77.1
46.3
83.5
20.5
66.9
59.6
70.8
42.7
76.9
17.4
3300
80
76.2
74.7
79.2
61.6
84.2
40.1
70.2
70.2
72.9
57.7
77.6
36.7
3300
85
80.1
80.1
81.7
74.6
85.5
57.4
74.1
74.1
75.5
70.3
79.0
53.7
3300
90
84.9
84.9
84.9
84.9
87.4
72.4
78.7
78.7
78.7
78.7
80.9
68.4
3600
75
73.9
65.1
76.2
45.0
73.9
65.1
67.7
60.8
71.3
43.5
77.1
17.9
3600
80
77.4
76.2
80.0
62.8
84.7
40.9
71.3
71.3
73.6
58.7
78.1
37.4
3600
85
81.5
81.5
82.8
75.9
86.3
58.4
75.4
75.4
76.5
71.6
79.6
54.6
3600
90
86.2
86.2
86.2
86.2
88.4
73.6
79.9
79.9
79.9
79.9
81.8
69.5
Notes:
1. All capacities shown are gross and have not considered indoor fan heat. To obtain NET cooling capacity
subtract indoor fan heat. For indoor fan heat formula, refer to appropriate airflow table notes.
2. MBh = Total Gross Capacity
3. SHC = Sensible Heat Capacity
RT-PRC023AG-EN
51
Performance Data
Table 17. Gross cooling capacities 7½ tons standard efficiency - three phase T/YSC092F3,4,W
Ambient Temperature
85
Air
95
Ent
105
Entering Wet Bulb
Flow
DB
cfm
(F)
MBh
61
SHC
MBh
67
SHC
MBh
73
SHC MBh SHC MBh SHC
61
67
MBh
73
SHC
MBh SHC MBh SHC MBh SHC
61
67
73
2400
75
87.1
70.9
94.8
53.8
105.4
29.1
82.4
67.9
89.7
51.4
99.9
27.2
77.5
64.7
84.3
48.6
94.1
24.9
2400
80
88.8
81.7
95.0
68.8
104.0
48.3
84.2
78.4
90.0
66.1
98.6
46.1
79.3
74.9
84.6
63.0
92.8
43.5
2400
85
91.2
90.1
95.8
81.5
103.3
65.2
86.7
86.6
90.8
78.4
97.9
62.6
81.8
81.8
85.6
75.1
92.2
59.7
2400
90
94.2
94.2
97.3
91.8
103.2
79.7
89.8
89.8
92.4
88.4
97.9
76.8
85.0
85.0
87.1
84.8
92.2
73.6
2700
75
89.5
73.7
96.8
56.3
107.1
31.2
84.7
70.7
91.6
53.7
101.5
29.1
79.6
67.3
86.1
50.9
95.5
26.7
2700
80
91.4
84.7
97.3
71.5
106.0
50.6
86.7
81.4
92.1
68.6
100.4
48.2
81.7
77.7
86.6
65.4
94.5
45.5
2700
85
94.1
93.4
98.3
84.4
105.5
67.7
89.4
89.4
93.2
81.2
100.0
65.0
84.4
84.4
87.8
77.7
94.1
62.0
2700
90
97.3
97.3
100.0
94.9
105.7
82.4
92.7
92.7
95.0
91.4
100.2
79.4
87.8
87.8
89.6
87.6
94.4
76.0
3000
75
91.6
76.4
98.6
58.6
108.6
33.1
86.7
73.2
93.3
55.8
102.8
30.8
81.4
69.7
87.6
52.8
96.7
28.3
3000
80
93.8
87.6
99.3
73.9
107.7
52.7
88.9
84.1
94.0
70.9
102.0
50.1
83.7
80.3
88.4
67.6
95.9
47.3
3000
85
96.7
96.4
100.6
87.0
107.5
69.9
91.8
91.8
95.4
83.7
101.8
67.1
86.7
86.7
89.8
80.0
95.8
63.9
3000
90
100.1 100.1 102.5
97.7
107.8
84.8
95.4
95.4
97.4
94.1
102.2
81.7
90.9
90.9
91.8
90.1
96.3
78.2
3300
75
93.4
78.7
100.2
60.5
109.8
34.7
88.4
75.4
94.7
57.7
103.9
32.3
83.0
71.8
88.8
54.5
97.6
29.6
3300
80
95.9
90.1
101.1
76.1
109.2
54.5
90.9
86.5
95.6
73.0
103.3
51.8
85.5
82.6
89.8
69.5
97.1
48.8
3300
85
99.0
99.0
102.6
89.4
109.1
71.9
94.0
94.0
97.2
85.9
103.3
68.9
88.7
88.7
91.5
82.1
97.2
65.6
3300
90
102.7 102.7 104.8 100.3 109.8
87.0
97.8
97.8
99.4
96.5
104.0
83.7
92.8
92.8
93.8
92.4
97.9
80.1
3600
75
3600
80
3600
85
3600
90
95.0
80.8
101.4
62.2
110.7
36.0
89.8
77.3
95.8
59.2
104.7
33.5
84.2
73.6
89.8
55.9
98.3
30.6
97.7
92.4
102.6
78.0
110.3
56.0
92.5
88.7
97.0
74.7
104.3
53.1
87.0
84.6
91.0
71.1
98.0
50.0
101.0 101.0 104.3
91.5
110.5
73.6
95.9
95.9
98.8
87.9
104.6
70.5
90.5
90.5
92.9
84.0
98.3
67.1
105.0 105.0 106.7 102.6 111.4
88.9
99.9
99.9 101.3 98.7
105.5
85.5
94.5
94.5
95.5
94.5
99.3
81.8
Ambient Temperature
115
Air
Ent
125
Entering Wet Bulb
Flow
DB
cfm
(F)
MBh
61
SHC
MBh
67
SHC
MBh
73
SHC MBh SHC MBh SHC
61
67
MBh
73
SHC
2400
75
72.2
61.2
78.6
45.6
87.9
22.3
66.5
57.4
72.5
42.2
81.4
19.5
2400
80
74.1
71.1
78.9
59.7
86.7
40.6
68.5
66.9
72.9
56.0
80.3
37.4
2400
85
76.6
76.6
79.9
71.4
86.2
56.5
71.1
71.1
74.0
67.5
79.8
53.1
2400
90
80.8
80.8
81.6
80.8
86.3
70.1
75.7
75.7
75.7
75.7
79.9
66.3
2700
75
74.1
63.7
80.2
47.7
89.2
24.0
68.3
59.7
74.0
44.2
82.6
21.0
2700
80
76.3
73.7
80.8
62.0
88.3
42.5
70.6
69.5
74.7
58.2
81.7
39.2
2700
85
79.1
79.1
82.1
73.9
87.9
58.6
73.4
73.4
76.0
69.8
81.4
55.0
2700
90
83.1
83.1
83.9
83.5
88.3
72.4
77.9
77.9
77.9
77.9
81.8
68.5
3000
75
75.8
65.9
81.6
49.5
90.3
25.4
69.9
61.8
75.2
45.9
83.5
22.3
3000
80
78.2
76.2
82.4
64.0
89.5
44.1
72.3
71.8
76.1
60.1
82.8
40.7
3000
85
81.2
81.2
83.9
76.1
89.5
60.5
75.4
75.4
77.6
71.9
82.8
56.7
3000
90
85.1
85.1
86.0
85.9
90.0
74.5
79.8
79.8
79.8
79.8
83.4
70.4
3300
75
77.2
67.8
82.7
51.0
91.0
26.6
71.1
63.6
76.2
47.3
84.1
23.3
3300
80
79.8
78.3
83.7
65.7
90.5
45.5
73.8
73.8
77.3
61.7
83.7
41.9
3300
85
83.1
83.1
85.4
78.1
90.7
62.0
77.1
77.1
79.1
73.7
83.9
58.1
3300
90
87.8
87.8
87.8
87.8
91.5
76.2
81.5
81.5
81.5
81.5
84.7
72.0
3600
75
78.4
69.5
83.5
52.3
91.5
27.5
72.1
65.1
76.8
48.4
84.4
24.1
3600
80
81.2
80.2
84.8
67.2
91.3
46.6
75.1
75.1
78.2
63.0
84.3
42.9
3600
85
84.7
84.7
86.7
79.8
91.7
63.3
78.6
78.6
80.2
75.3
84.7
59.3
3600
90
89.3
89.3
89.3
89.3
92.7
77.7
82.9
82.9
82.9
82.9
85.8
73.4
Notes:
1. All capacities shown are gross and have not considered indoor fan heat. To obtain NET cooling capacity
subtract indoor fan heat. For indoor fan heat formula, refer to appropriate airflow table notes.
2. MBh = Total Gross Capacity
3. SHC = Sensible Heat Capacity
52
RT-PRC023AG-EN
Performance Data
Table 18. Gross cooling capacities 8½ tons standard efficiency - three phase T/YSC102F3,4,W
Ambient Temperature
85
Air
95
Ent
105
Entering Wet Bulb
Flow
DB
cfm
(F)
MBh
61
SHC
MBh
SHC
MBh
SHC MBh SHC MBh SHC
MBh
SHC
MBh SHC MBh SHC MBh SHC
2720
75
94.9
77.8
102.8
57.5
113.7
27.9
89.1
74.3
96.5
54.7
107.0
25.8
83.1
70.5
90.0
51.6 100.0 23.4
2720
80
97.3
90.2
103.6
74.9
113.0
50.3
91.6
86.3
97.4
71.7
106.3
47.8
85.6
82.0
90.9
68.2
99.4
44.9
2720
85
100.6 100.0 105.3
89.7
113.1
70.0
94.9
94.9
99.1
86.0
106.5
67.1
88.8
88.8
92.6
82.1
99.5
63.8
2720
90
104.6 104.6 107.8 101.8 114.0
87.1
98.9
98.9 101.6 97.7
107.4
83.7
94.2
94.2
95.1
93.3 100.4 80.0
3060
75
97.5
80.8
105.1
60.2
115.7
30.2
91.6
77.1
98.7
57.2
108.8
27.9
85.4
73.1
92.0
53.9 101.7 25.3
3060
80
100.3
93.5
106.3
77.9
115.3
52.9
94.4
89.4
99.9
74.5
108.4
50.2
88.2
85.0
93.2
70.7 101.3 47.1
3060
85
103.8 103.6 108.2
93.0
115.7
72.9
97.9
97.9 101.9 89.1
108.8
69.8
91.7
91.7
95.2
84.9 101.7 66.3
3060
90
108.1 108.1 111.0 105.4 116.8
90.3 102.3 102.3 104.6 101.1 110.0
86.7
97.0
97.0
98.0
96.5 102.9 82.8
3400
75
99.9
83.5
107.1
32.2
93.8
79.6 100.5 59.4
110.3
29.7
87.4
75.5
93.7
55.9 103.0 26.9
3400
80
102.9
96.6
108.5
80.6
117.2
55.2
96.8
92.3 102.0 77.0
110.2
52.3
90.4
87.7
95.1
73.0 102.9 49.1
3400
85
106.7 106.7 110.8
96.0
117.9
75.6 100.6 100.6 104.3 91.9
110.9
72.2
94.3
94.3
97.4
87.6 103.6 68.5
3400
90
111.3 111.3 113.8 108.7 119.4
93.3 105.3 105.3 107.3 104.2 112.4
89.5
99.5
99.5 100.5 99.4 105.1 85.4
3740
75
101.9
86.0
108.8
64.7
118.7
33.9
95.6
81.9 102.0 61.3
111.5
31.2
89.0
77.5
95.0
57.6 104.0 28.2
3740
80
105.2
99.4
110.5
83.0
118.8
57.3
98.9
94.9 103.8 79.2
111.7
54.1
92.3
90.0
96.7
75.1 104.2 50.7
3740
85
109.3 109.3 113.0
98.7
119.8
77.9 103.0 103.0 106.3 94.4
112.6
74.4
96.5
96.5
99.3
89.9 105.1 70.5
3740
90
114.2 114.2 116.3 111.7 121.5
95.9 107.9 107.9 109.6 107.0 114.4
91.9
4080
75
103.5
110.1
66.5
119.7
35.4
83.9 103.2 62.9
112.3
32.5
90.3
79.3
96.0
59.0 104.6 29.3
4080
80
107.1 101.9 112.1
85.1
120.1
59.0 100.7 97.2 105.2 81.1
112.8
55.7
93.9
92.2
98.0
76.8 105.1 52.1
4080
85
111.5 111.5 114.9 101.1 121.4
80.0 105.1 105.1 108.0 96.7
114.0
76.2
98.4
98.4 100.8 91.9 106.4 72.2
4080
90
116.7 116.7 118.5 114.5 123.4
98.3 110.3 110.3 111.7 109.6 116.1
94.1
88.2
67
62.6
73
117.4
61
97.1
67
73
61
67
73
101.6 101.6 102.6 102.1 106.9 87.7
103.4 103.4 104.5 104.4 108.4 89.6
Ambient Temperature
115
Air
Ent
125
Entering Wet Bulb
Flow
DB
cfm
(F)
MBh
61
SHC
MBh
67
SHC
MBh
73
SHC MBh SHC MBh SHC
61
67
MBh
73
SHC
2720
75
76.7
66.4
83.2
48.3
92.7
20.7
70.0
62.0
76.0
44.6
85.1
17.8
2720
80
79.2
77.5
84.1
64.4
92.1
41.8
72.5
72.5
77.0
60.3
84.5
38.4
2720
85
82.5
82.5
85.8
77.8
92.2
60.3
75.8
75.8
78.7
73.3
84.6
56.4
2720
90
88.4
88.4
88.4
88.4
93.2
76.0
81.2
81.2
81.2
81.2
85.6
71.8
3060
75
78.8
68.8
85.0
50.3
94.2
22.4
71.9
64.3
77.6
46.5
86.4
19.3
3060
80
81.6
80.3
86.2
66.7
93.8
43.8
74.8
74.8
78.9
62.5
86.0
40.2
3060
85
85.2
85.2
88.2
80.5
94.3
62.6
78.4
78.4
80.9
75.8
86.5
58.6
3060
90
91.0
91.0
91.0
91.0
95.5
78.7
83.7
83.7
83.7
83.7
87.7
74.2
3400
75
80.6
71.0
86.5
52.1
95.3
23.8
73.6
66.2
78.9
48.0
87.3
20.5
3400
80
83.7
82.8
88.0
68.8
95.2
45.6
76.7
76.7
80.5
64.4
87.3
41.8
3400
85
87.6
87.6
90.2
82.9
96.0
64.6
80.5
80.5
82.8
78.0
88.0
60.4
3400
90
93.3
93.3
93.3
93.3
97.5
81.0
85.9
85.9
85.9
85.9
89.5
76.4
3740
75
82.1
72.9
87.6
53.6
96.1
25.0
74.9
67.9
79.9
49.3
88.0
21.4
3740
80
85.5
85.0
89.4
70.7
96.3
47.0
78.2
78.2
81.7
66.0
88.2
43.0
3740
85
89.6
89.6
92.0
85.1
97.3
66.4
82.4
82.4
84.3
79.9
89.2
61.9
3740
90
95.3
95.3
95.3
95.3
99.1
83.1
87.7
87.7
87.7
87.7
91.0
78.2
4080
75
83.2
74.5
88.4
54.8
96.6
25.8
75.8
69.3
80.5
50.4
88.3
22.1
4080
80
86.9
86.9
90.5
72.2
97.1
48.2
79.5
79.5
82.6
67.3
88.8
44.0
4080
85
91.3
91.3
93.3
86.9
98.4
67.8
83.9
83.9
85.5
81.6
90.1
63.2
4080
90
97.0
97.0
97.0
97.0
100.4
84.9
89.1
89.1
89.1
89.1
92.2
79.8
Notes:
1. All capacities shown are gross and have not considered indoor fan heat. To obtain NET cooling capacity
subtract indoor fan heat. For indoor fan heat formula, refer to appropriate airflow table notes.
2. MBh = Total Gross Capacity
3. SHC = Sensible Heat Capacity
RT-PRC023AG-EN
53
Performance Data
Table 19. Gross cooling capacities 10 tons standard efficiency - three phase T/YSC120F3,4,W
Ambient Temperature
85
Air
95
Ent
105
Entering Wet Bulb
Flow
DB
cfm
(F)
MBh
61
SHC
MBh
3200
75
110.9
92.2
120.3
70.0
3200
80
113.5 106.1 120.8
89.5
3200
85
116.9 116.9 122.2 105.8 131.1
84.5 110.8 110.8 115.6 102.0 124.0
81.3
104.4 104.4 108.6 97.7 116.5 77.8
3200
90
121.1 121.1 124.4 119.0 131.3 103.2 115.1 115.1 117.9 114.8 124.3
99.7
109.8 109.8 110.9 110.1 116.8 95.7
3600
75
113.8
122.8
73.5
135.3
40.7 107.6 92.1 116.0 70.3
128.0
38.1
100.9 87.6 108.7 66.5 120.3 35.1
3600
80
116.7 110.2 123.5
93.3
134.1
66.0 110.4 105.8 116.8 89.6
126.8
63.0
103.8 101.0 109.6 85.5 119.1 59.6
3600
85
120.3 120.3 125.2 109.9 133.7
88.2 114.2 114.2 118.5 105.8 126.5
84.8
107.5 107.5 111.3 101.2 118.8 80.9
3600
90
124.9 124.9 127.7 123.4 134.2 107.2 118.7 118.7 121.0 118.8 127.0 103.4 112.8 112.8 113.9 113.8 119.3 99.1
4000
75
116.3
124.8
76.6
137.0
43.5 109.9 95.2 117.9 73.0
129.5
40.6
103.0 90.5 110.5 69.0 121.6 37.3
4000
80
119.5 113.9 125.9
96.6
136.0
69.0 113.1 109.2 119.0 92.7
128.6
65.8
106.2 104.1 111.6 88.2 120.7 62.0
4000
85
123.4 123.4 127.9 113.5 136.0
91.5 117.1 117.1 121.0 109.1 128.5
87.8
110.3 110.3 113.7 104.3 120.7 83.7
4000
90
128.3 128.3 130.7 127.2 136.7 110.8 122.6 122.6 123.8 122.4 129.4 106.7 116.6 116.6 116.6 116.6 121.5 102.1
4400
75
118.5 102.4 126.5
79.2
138.3
45.8 111.9 97.9 119.4 75.4
130.6
42.6
104.9 92.9 111.9 71.1 122.5 39.0
4400
80
121.9 117.1 127.9
99.5
137.6
71.6 115.3 112.2 120.8 95.3
130.0
68.0
108.3 106.8 113.3 90.6 121.9 64.1
4400
85
126.2 126.2 130.2 116.7 137.8
94.3 119.7 119.7 123.1 112.0 130.2
90.3
112.7 112.7 115.6 106.9 122.2 85.9
4400
90
131.3 131.3 133.3 130.6 138.9 113.9 125.0 125.0 126.3 125.6 131.4 109.5 118.8 118.8 118.8 118.8 123.4 104.6
4800
75
120.3 104.9 127.9
139.2
47.6 113.5 100.1 120.6 77.3
131.3
44.2
106.3 94.8 112.9 72.7 123.1 40.3
4800
80
124.0 119.9 129.6 102.0 138.8
73.7 117.2 114.7 122.3 97.4
131.0
69.9
110.1 109.0 114.6 92.4 122.8 65.6
4800
85
128.5 128.5 132.1 119.4 139.3
96.7 121.9 121.9 124.9 114.4 131.6
92.4
114.7 114.7 117.2 109.0 123.4 87.7
4800
90
134.2 134.2 135.5 133.6 140.7 116.5 127.0 127.0 128.3 128.2 133.0 111.8 120.7 120.7 120.7 120.7 124.8 106.7
96.0
99.4
67
SHC
81.4
73
MBh
61
67
73
SHC MBh SHC MBh SHC
MBh
SHC
133.3
37.5 104.8 88.5 113.7 67.0
126.2
35.2
131.8
62.6 107.4 102.0 114.2 86.1
124.7
59.9
61
67
73
MBh SHC MBh SHC MBh SHC
98.3
84.3 106.6 63.6 118.6 32.5
100.9 97.4 107.2 82.2 117.1 56.7
Ambient Temperature
115
Air
Ent
125
Entering Wet Bulb
Flow
DB
cfm
(F)
MBh
61
SHC
MBh
67
SHC
MBh
73
SHC MBh SHC MBh SHC
61
67
MBh
73
SHC
3200
75
91.3
79.7
99.1
59.7
110.5
29.3
83.9
74.7
91.1
55.3
102.0
25.7
3200
80
94.0
92.4
99.7
77.9
109.1
53.1
86.6
86.6
91.8
73.2
100.7
49.0
3200
85
97.5
97.5
101.2
93.0
108.5
73.7
90.1
90.1
93.3
87.8
100.1
69.3
3200
90
103.5 103.5 103.5 103.5 108.9
91.2
95.7
95.7
95.7
95.7
100.5
86.4
3600
75
3600
80
3600
85
3600
90
4000
75
4000
80
4000
85
4000
90
108.8 108.8 108.8 108.8 113.3
4400
75
4400
4400
93.7
82.8
101.1
62.4
112.0
31.6
86.1
77.5
92.9
57.7
103.4
27.7
96.6
95.7
102.0
80.9
110.9
55.7
89.1
89.1
93.9
75.8
102.3
51.4
100.4 100.4 103.7
96.2
110.7
76.6
92.9
92.9
95.7
90.8
102.1
71.9
106.4 106.4 106.4 106.4 111.3
94.4
98.3
98.3
98.3
98.3
102.7
89.2
95.7
85.3
102.6
64.6
113.2
33.6
88.0
79.7
94.3
59.7
104.4
29.4
99.0
98.5
103.8
83.4
112.4
57.9
91.2
91.2
95.6
78.1
103.6
53.3
103.0 103.0 105.9
99.0
112.4
79.1
95.4
95.4
97.7
93.3
103.6
74.1
97.4
91.7
103.8
66.4
114.0
35.0
89.4
81.6
95.4
61.2
105.0
30.5
80
100.9 100.9 105.3
85.4
113.4
59.6
93.0
93.0
96.9
79.8
104.5
54.7
85
105.3 105.3 107.7 101.3 113.8
81.1
97.4
97.4
99.3
95.3
104.8
75.8
4400
90
110.9 110.9 110.9 110.9 114.9
99.4 102.6 102.6 102.6 102.6 106.1
93.7
4800
75
4800
4800
4800
98.6
87.5
97.1 100.6 100.6 100.6 100.6 104.6
89.1
104.7
67.7
114.4
36.0
90.6
83.0
96.1
62.3
105.2
31.3
80
102.5 102.5 106.5
87.0
114.1
60.9
94.4
94.4
97.9
81.2
105.0
55.7
85
107.1 107.1 109.1 103.2 114.7
82.6
99.1
99.1 100.6 96.9
105.7
77.0
90
112.6 112.6 112.6 112.6 116.2 101.2 104.1 104.1 104.1 104.1 107.2
95.2
Notes:
1. All capacities shown are gross and have not considered indoor fan heat. To obtain NET cooling capacity
subtract indoor fan heat. For indoor fan heat formula, refer to appropriate airflow table notes.
2. MBh = Total Gross Capacity
3. SHC = Sensible Heat Capacity
54
RT-PRC023AG-EN
Performance Data
Table 20. Gross cooling capacities 3 tons high efficiency - single phase T/YHC036E1
Ambient Temperature
85
Air
95
Ent
105
Entering Wet Bulb
Flow
DB
cfm
(F)
MBh
61
SHC
MBh
67
SHC
MBh
73
SHC
MBh
61
SHC
MBh
67
SHC
MBh
73
SHC
MBh
61
SHC
MBh
67
SHC
MBh
73
600
75
30.5
23.4
34.4
17.3
39.7
8.3
28.5
22.1
32.2
16.3
37.2
7.5
26.4
20.8
29.8
15.2
34.7
6.5
600
80
31.2
27.5
34.4
23.1
39.0
15.7
29.2
26.1
32.2
21.9
36.6
14.7
27.0
24.6
29.9
20.6
34.0
13.6
600
85
32.2
30.7
34.8
27.9
38.8
22.2
30.2
29.1
32.6
26.6
36.3
21.0
28.1
27.5
30.3
25.1
33.8
19.8
600
90
33.7
33.0
35.6
31.9
38.9
27.8
31.7
31.3
33.4
30.4
36.5
26.4
29.6
29.5
31.1
28.8
34.0
25.1
720
75
32.1
25.1
35.8
18.8
40.9
9.6
30.0
23.7
33.5
17.7
38.4
8.7
27.8
22.3
31.1
16.5
35.8
7.7
720
80
32.9
29.3
36.0
24.7
40.4
17.1
30.8
27.8
33.7
23.5
37.9
16.0
28.6
26.3
31.3
22.1
35.3
14.9
720
85
34.1
32.7
36.5
29.7
40.3
23.8
32.0
31.1
34.2
28.3
37.8
22.5
29.8
29.3
31.9
26.8
35.2
21.2
720
90
35.7
35.2
37.5
33.9
40.6
29.5
33.6
33.4
35.2
32.3
38.1
28.2
31.5
31.5
32.8
30.6
35.5
26.7
840
75
33.5
26.6
37.1
20.2
42.0
10.8
31.3
25.2
34.7
19.0
39.5
9.8
29.0
23.8
32.2
17.7
36.8
8.7
840
80
34.4
31.1
37.4
26.3
41.7
18.5
32.3
29.5
35.0
24.9
39.1
17.3
30.0
27.9
32.6
23.5
36.4
16.1
840
85
35.8
34.6
38.1
31.4
41.7
25.3
33.7
32.9
35.7
29.9
39.2
24.0
31.4
31.1
33.3
28.4
36.5
22.6
840
90
37.5
37.2
39.2
35.7
42.1
31.2
35.4
35.4
36.8
34.1
39.6
29.8
33.2
33.2
34.4
32.3
37.0
28.2
960
75
35.0
27.4
38.8
20.7
42.8
13.0
32.8
26.0
36.4
19.2
40.2
12.0
30.4
24.6
33.9
17.7
37.5
10.3
960
80
35.6
33.5
39.2
26.2
43.3
19.2
33.4
32.2
36.8
24.7
40.7
17.7
31.1
30.8
34.3
23.3
38.0
17.1
960
85
37.3
37.3
39.6
31.5
43.7
24.3
35.3
35.3
37.2
30.1
41.2
23.6
33.2
33.2
34.7
28.7
38.4
22.1
960
90
39.5
39.5
40.2
37.4
44.1
30.0
37.5
37.5
37.9
36.3
41.5
28.7
35.3
35.3
35.4
35.0
38.7
27.2
1080
75
36.0
29.3
39.8
21.8
43.8
13.2
33.7
28.0
37.3
20.4
41.1
11.6
31.2
26.7
34.7
19.0
38.3
10.5
1080
80
36.7
36.1
40.2
27.8
44.3
18.7
34.6
34.6
37.7
26.3
41.7
19.2
32.4
32.4
35.1
24.9
38.9
17.4
1080
85
39.0
39.0
40.7
34.0
44.8
26.2
36.9
36.9
38.2
32.6
42.1
24.9
34.7
34.7
35.6
31.4
39.2
23.3
1080
90
41.4
41.4
41.5
40.9
45.1
32.0
39.2
39.2
39.2
39.2
42.5
30.7
36.9
36.9
36.9
36.9
39.6
29.2
1200
75
36.8
31.3
40.6
22.7
44.6
13.1
34.5
30.2
38.0
21.4
41.8
12.1
31.9
28.8
35.3
19.9
38.9
10.7
1200
80
38.0
38.0
41.0
29.4
45.2
19.9
35.9
35.9
37.6
28.0
42.5
19.4
33.6
33.6
35.8
26.5
39.5
18.4
1200
85
40.4
40.4
41.6
36.5
45.6
27.7
38.3
38.3
39.1
35.3
42.8
26.2
36.0
36.0
36.4
34.2
39.9
24.6
1200
90
42.9
42.9
42.9
42.9
46.0
34.1
40.7
40.7
40.7
40.7
43.2
32.7
38.3
38.3
38.3
38.3
40.3
31.3
1320
75
37.6
33.6
41.2
23.7
45.2
13.3
35.1
32.2
38.7
21.9
42.4
12.2
32.6
30.9
35.9
20.8
39.5
10.6
1320
80
39.2
39.2
41.7
31.0
46.0
22.5
37.0
37.0
39.1
29.5
43.1
20.3
34.7
34.7
36.4
28.2
40.1
19.1
1320
85
41.8
41.8
42.4
39.2
46.3
29.0
39.5
39.5
39.9
38.0
43.5
27.4
37.1
37.1
37.2
36.5
40.5
25.7
1320
90
44.3
44.3
44.3
44.3
46.8
36.0
42.0
42.0
42.0
42.0
43.9
34.8
39.6
39.6
39.5
39.5
41.0
33.5
1440
75
38.2
35.6
41.8
24.5
45.9
13.7
35.8
34.2
39.2
23.6
42.9
12.1
33.2
32.5
36.4
21.7
39.9
10.8
1440
80
40.3
40.3
42.4
32.7
46.5
22.1
38.0
38.0
39.7
31.4
43.6
21.0
35.6
35.6
36.9
30.1
40.6
19.9
1440
85
42.9
42.9
43.3
41.8
46.9
30.2
40.6
40.6
40.7
40.1
44.0
28.9
38.1
38.1
38.1
38.1
41.0
27.4
1440
90
45.6
45.6
45.5
45.5
47.4
38.2
43.1
43.1
43.1
43.1
44.6
37.1
40.6
40.6
40.6
40.6
41.6
36.0
SHC
continued on next page
RT-PRC023AG-EN
55
Performance Data
Table 20. Gross cooling capacities 3 tons high efficiency - single phase T/YHC036E1 (continued)
Ambient Temperature
115
Air
Ent
125
Entering Wet Bulb
Flow
DB
cfm
(F)
MBh
61
SHC
MBh
67
SHC
MBh
73
SHC
MBh
61
SHC
MBh
67
SHC
MBh
73
600
75
24.1
19.4
27.4
14.0
32.0
5.5
21.7
17.9
24.8
12.6
29.2
4.4
600
80
24.8
23.0
27.4
19.2
31.4
12.4
22.4
21.4
24.8
17.8
28.6
11.2
600
85
25.9
25.8
27.9
23.6
31.2
18.4
23.6
23.6
25.3
22.0
28.4
17.0
600
90
28.4
28.4
28.7
27.1
31.3
23.6
25.9
25.9
26.2
25.3
28.6
22.0
720
75
25.4
20.8
28.6
15.2
33.0
6.6
23.0
19.3
25.9
13.8
30.2
5.4
720
80
26.3
24.6
28.8
20.6
32.6
13.6
23.9
22.9
26.1
19.1
29.7
12.3
720
85
27.5
27.5
29.4
25.2
32.5
19.8
25.1
25.1
26.7
23.5
29.7
18.4
720
90
30.0
30.0
30.3
28.9
32.8
25.1
27.5
27.5
27.7
27.0
30.0
23.5
840
75
26.7
22.2
29.6
16.4
34.0
7.5
24.1
20.5
26.9
14.9
31.0
6.3
840
80
27.7
26.2
30.0
22.0
33.7
14.8
25.2
24.3
27.3
20.4
30.7
13.4
840
85
29.1
29.1
30.7
26.7
33.7
21.1
26.6
26.6
28.0
24.9
30.8
19.6
840
90
31.5
31.5
31.9
30.5
34.2
26.6
28.9
28.9
29.2
28.6
31.3
24.9
960
75
28.0
23.3
31.2
16.5
34.6
8.9
25.2
21.7
27.8
15.9
31.8
7.0
960
80
28.9
28.9
31.6
21.8
35.1
15.1
26.4
25.7
28.3
21.5
31.6
14.3
960
85
30.9
30.9
32.0
27.3
35.5
20.4
27.9
27.9
29.2
26.2
31.9
20.7
960
90
33.0
33.0
33.0
33.0
35.8
25.6
30.2
30.2
30.5
30.1
32.5
26.1
1080
75
28.7
25.5
31.9
17.5
35.3
9.2
26.1
22.8
28.6
16.7
32.4
7.7
1080
80
30.1
30.1
32.3
23.4
35.9
16.2
27.4
26.9
29.2
22.5
32.4
15.1
1080
85
32.3
32.3
32.8
30.1
36.2
21.8
29.1
29.1
30.3
27.4
32.8
21.6
1080
90
34.5
34.5
34.5
34.5
36.6
27.7
31.4
31.4
31.7
31.4
33.6
27.3
1200
75
29.4
27.5
32.5
18.4
35.9
9.0
26.8
23.7
29.2
17.5
32.9
8.2
1200
80
31.2
31.2
33.0
25.1
36.5
16.5
28.3
28.0
30.0
23.4
33.0
15.8
1200
85
33.5
33.5
33.7
32.9
36.8
23.2
30.2
30.2
31.2
28.5
33.6
22.5
1200
90
35.8
35.8
35.8
35.8
37.3
29.8
32.5
32.5
32.8
32.6
34.5
28.3
1320
75
30.0
29.3
33.0
19.0
36.4
9.3
27.5
24.5
29.7
18.1
33.2
8.7
1320
80
32.2
32.2
33.5
27.0
37.0
17.3
29.1
29.0
30.6
24.2
33.5
16.4
1320
85
34.5
34.5
34.5
34.5
37.4
24.6
31.1
31.1
32.0
29.4
34.2
23.3
1320
90
36.9
36.9
36.9
36.9
37.9
32.4
33.7
33.7
33.7
33.7
35.3
29.3
1440
75
30.7
30.6
33.4
20.3
36.8
9.4
28.0
25.2
30.0
18.6
33.4
9.0
1440
80
33.0
33.0
34.0
28.9
37.4
18.3
29.8
29.8
31.2
24.9
33.9
16.9
1440
85
35.5
35.5
35.4
35.4
37.9
26.0
31.9
31.9
32.7
30.3
34.7
23.9
1440
90
37.9
37.9
37.9
37.9
38.5
34.9
34.6
34.6
34.6
34.6
36.0
30.1
SHC
Notes:
1. All capacities shown are gross and have not considered indoor fan heat. To obtain NET cooling capacity
subtract indoor fan heat. For indoor fan heat formula, refer to appropriate airflow table notes.
2. MBh = Total Gross Capacity
3. SHC = Sensible Heat Capacity
* Unit applications below 320 CFM/Ton are only applicable on THC models without electric heat. Electric and
Gas heat applications are restricted to applications 320 CFM/Ton and above.
56
RT-PRC023AG-EN
Performance Data
Table 21. Gross cooling capacities 3 tons high efficiency - three phase T/YHC036E3,4,W
Ambient Temperature
85
Air
95
Ent
105
Entering Wet Bulb
Flow
DB
cfm
(F)
MBh
61
SHC
MBh
67
SHC
MBh
73
SHC
MBh
61
SHC
MBh
67
SHC
MBh
73
SHC
MBh
61
SHC
MBh
67
SHC
MBh
73
600
75
30.5
23.1
34.4
16.9
39.8
7.7
28.2
21.7
32.0
15.8
37.1
6.9
25.9
20.3
29.4
14.6
34.3
5.9
600
80
31.1
27.1
34.4
22.6
39.1
15.1
28.9
25.6
32.0
21.4
36.4
14.0
26.6
24.0
29.5
20.0
33.7
13.0
600
85
32.2
30.3
34.8
27.5
38.8
21.5
30.0
28.7
32.4
26.0
36.2
20.4
27.7
26.9
29.9
24.6
33.4
19.1
600
90
33.6
32.6
35.6
31.4
38.9
27.1
31.5
30.8
33.2
29.9
36.3
25.8
29.2
28.9
30.7
28.2
33.6
24.4
720
75
32.0
24.9
35.9
18.6
41.0
9.2
29.7
23.5
33.3
17.4
38.3
8.2
27.3
22.0
30.7
16.1
35.4
7.2
720
80
32.8
29.1
36.0
24.4
40.5
16.7
30.6
27.5
33.5
23.1
37.8
15.6
28.2
25.9
30.9
21.7
35.0
14.4
720
85
34.1
32.5
36.5
29.4
40.4
23.3
31.8
30.8
34.0
27.9
37.7
22.1
29.4
28.9
31.5
26.4
34.9
20.7
720
90
35.6
35.0
37.4
33.6
40.6
29.1
33.4
33.1
35.0
31.9
37.9
27.7
31.1
31.1
32.5
30.2
35.2
26.2
840
75
33.5
26.6
37.1
20.1
42.2
10.5
31.1
25.1
34.5
18.8
39.3
9.4
28.6
23.5
31.8
17.4
36.4
8.3
840
80
34.4
31.0
37.4
26.1
41.8
18.1
32.1
29.3
34.9
24.7
39.0
17.0
29.6
27.6
32.2
23.2
36.1
15.7
840
85
35.8
34.5
38.1
31.3
41.8
25.0
33.5
32.7
35.6
29.7
39.0
23.6
31.0
30.8
32.9
28.0
36.2
22.2
840
90
37.5
37.2
39.2
35.6
42.2
30.9
35.2
35.2
36.7
33.9
39.5
29.4
33.7
33.7
34.1
32.0
36.6
27.9
960
75
35.0
27.4
39.0
20.8
43.0
13.1
32.6
25.9
36.4
18.7
40.3
11.7
30.1
24.4
33.6
17.6
37.3
10.3
960
80
35.6
33.5
39.4
26.2
43.5
19.2
33.3
32.2
36.8
24.7
40.7
17.8
30.8
30.6
34.0
23.1
37.8
16.2
960
85
37.3
37.3
39.8
31.6
43.9
25.2
35.2
35.2
37.2
30.1
41.2
23.5
33.0
33.0
34.4
28.7
38.2
21.8
960
90
39.6
39.6
40.3
37.5
44.4
30.1
37.5
37.5
37.9
36.3
41.5
28.7
35.1
35.1
35.2
34.9
38.6
27.2
1080
75
36.0
29.2
39.9
21.9
44.0
13.3
33.6
28.0
37.2
19.7
41.1
12.0
31.0
26.6
34.4
18.6
38.1
10.4
1080
80
36.8
36.2
40.4
27.8
44.6
18.9
34.5
34.5
37.7
26.3
41.7
19.2
32.2
32.2
34.9
24.8
38.7
17.2
1080
85
39.1
39.1
40.9
34.0
45.0
26.3
36.9
36.9
38.2
32.6
42.1
24.9
34.5
34.5
35.4
31.3
39.0
23.3
1080
90
41.5
41.5
41.7
40.9
45.4
32.2
39.2
39.2
39.2
39.2
42.5
30.8
36.8
36.8
36.7
36.7
39.4
29.1
1200
75
36.9
31.4
40.8
22.8
44.8
13.2
34.4
30.1
38.0
21.3
41.9
12.1
31.6
28.7
35.1
19.7
38.7
10.5
1200
80
38.1
38.1
41.2
29.4
45.4
21.7
35.8
35.8
3706
27.9
42.5
19.4
33.4
33.4
35.6
26.4
39.4
18.3
1200
85
40.6
40.6
41.8
36.5
45.9
27.8
38.3
38.3
39.0
35.2
42.9
26.3
35.8
35.8
36.2
34.0
39.7
24.6
1200
90
43.1
43.1
43.1
43.1
46.3
34.2
40.7
40.7
40.7
40.7
43.3
32.6
38.2
38.2
38.1
38.1
40.2
31.1
1320
75
37.7
33.7
41.4
23.6
45.5
13.2
35.0
32.2
38.6
21.9
42.5
12.3
32.4
30.9
35.7
20.8
39.3
10.6
1320
80
39.3
39.3
41.9
31.1
46.3
22.5
37.0
37.0
39.2
29.6
43.1
20.5
34.4
34.4
36.2
28.2
39.9
19.0
1320
85
41.9
41.9
42.6
39.2
46.6
29.2
39.5
39.5
39.9
38.0
43.5
27.5
36.9
36.9
37.1
36.4
40.4
26.0
1320
90
44.5
44.5
44.5
44.5
47.1
36.1
42.1
42.1
42.0
42.0
44.0
34.8
39.4
39.4
39.4
39.4
40.9
33.5
1440
75
38.3
35.6
42.0
24.6
46.1
13.8
35.7
34.2
39.2
23.6
43.0
12.2
33.0
32.4
36.1
21.7
39.7
10.8
1440
80
40.4
40.4
42.6
32.7
46.8
21.5
38.0
38.0
39.8
31.4
43.7
21.0
35.4
35.4
36.7
30.0
40.4
19.5
1440
85
43.1
43.1
43.5
41.9
47.3
30.6
40.6
40.6
40.8
40.2
44.1
28.9
37.9
37.9
38.0
37.9
40.9
27.3
1440
90
45.8
45.8
45.8
45.8
47.7
38.3
43.3
43.3
43.2
43.2
44.7
37.2
40.5
40.5
40.5
40.5
41.5
36.0
SHC
continued on next page
RT-PRC023AG-EN
57
Performance Data
Table 21. Gross cooling capacities 3 tons high efficiency - three phase T/YHC036E3,4,W (continued)
Ambient Temperature
115
Air
Ent
125
Entering Wet Bulb
Flow
DB
cfm
(F)
MBh
61
SHC
MBh
67
SHC
MBh
73
SHC
MBh
61
SHC
MBh
67
SHC
MBh
73
600
75
23.4
18.8
26.8
13.4
31.4
4.9
20.9
17.2
24.0
12.0
28.5
3.8
600
80
24.2
22.4
26.8
18.6
30.8
11.8
21.7
20.6
24.2
17.1
27.9
10.5
600
85
25.3
25.1
27.3
23.0
30.6
17.8
22.9
22.9
24.7
21.3
27.8
16.4
600
90
27.9
27.9
28.2
26.5
30.8
22.9
25.3
25.3
25.5
24.7
28.0
21.3
720
75
24.8
20.3
28.0
14.8
32.5
6.1
22.2
18.7
25.2
13.3
29.5
4.9
720
80
25.7
24.1
28.2
20.2
32.1
13.1
23.2
22.3
25.4
18.6
29.1
11.8
720
85
27.0
27.0
28.8
24.7
32.0
19.3
24.5
24.5
26.1
23.0
29.0
17.8
720
90
29.5
29.5
29.8
28.4
32.3
24.6
26.9
26.9
27.1
26.5
29.4
23.0
840
75
26.0
21.8
29.0
16.0
33.4
7.1
23.4
20.0
26.2
14.5
30.3
5.9
840
80
27.1
25.7
29.4
21.6
33.1
14.4
24.5
23.8
26.6
19.9
30.1
12.9
840
85
28.5
28.5
30.2
26.3
33.2
20.7
25.9
25.9
27.4
24.5
30.2
19.1
840
90
31.0
31.0
31.4
30.1
33.7
26.2
28.3
28.3
28.6
28.2
30.7
24.5
960
75
27.3
23.0
30.7
16.4
34.1
8.8
24.4
21.2
27.0
15.5
31.0
6.7
960
80
28.4
28.4
31.1
21.6
34.5
13.9
25.6
25.2
27.6
21.1
30.9
13.9
960
85
30.5
30.5
31.5
27.2
35.1
20.2
27.3
27.3
28.6
25.8
31.2
20.3
960
90
32.7
32.7
32.6
32.6
35.4
25.5
29.6
29.6
29.9
29.7
31.9
25.8
1080
75
28.1
25.2
31.4
17.4
34.8
9.0
25.3
22.3
27.8
16.4
31.6
7.4
1080
80
29.7
29.7
31.8
23.2
35.4
16.0
26.7
26.4
28.5
22.1
31.7
14.8
1080
85
31.9
31.9
32.4
30.0
35.8
21.7
28.5
28.5
29.6
27.1
32.1
21.3
1080
90
34.1
34.1
34.1
34.1
36.2
27.5
30.8
30.8
31.1
31.1
32.9
27.0
1200
75
28.8
27.3
32.0
18.2
35.4
8.8
26.1
23.2
28.4
17.1
32.1
7.9
1200
80
30.8
30.8
32.5
25.0
36.0
16.4
27.6
27.5
29.3
23.0
32.3
15.5
1200
85
33.1
33.1
33.3
32.6
36.4
23.0
29.5
29.5
30.5
28.1
32.9
22.2
1200
90
35.4
35.4
35.4
35.4
36.9
29.8
32.2
32.2
32.2
32.2
33.8
28.1
1320
75
29.5
29.0
32.5
18.7
35.9
9.5
26.7
24.0
28.9
17.7
32.4
8.3
1320
80
31.8
31.8
33.0
26.8
36.5
17.2
28.4
28.4
29.9
23.8
32.8
16.1
1320
85
34.2
34.2
34.2
34.2
37.0
24.2
30.5
30.5
31.3
29.1
33.5
23.0
1320
90
36.6
36.6
36.5
36.5
37.5
32.2
33.1
33.1
33.1
33.1
34.6
29.0
1440
75
30.2
30.1
32.9
20.1
36.3
9.3
27.2
24.6
29.2
18.1
32.6
8.6
1440
80
32.6
32.6
33.5
28.8
36.9
17.9
29.0
29.0
30.4
24.4
33.1
16.5
1440
85
35.1
35.1
35.1
35.1
37.5
25.8
31.3
31.3
32.0
29.9
34.0
23.6
1440
90
37.5
37.5
37.5
37.5
38.1
34.8
33.9
33.9
33.9
33.9
35.3
29.8
SHC
Notes:
1. All capacities shown are gross and have not considered indoor fan heat. To obtain NET cooling capacity
subtract indoor fan heat. For indoor fan heat formula, refer to appropriate airflow table notes.
2. MBh = Total Gross Capacity
3. SHC = Sensible Heat Capacity
* Unit applications below 320 CFM/Ton are only applicable on THC models without electric heat. Electric and
Gas heat applications are restricted to applications 320 CFM/Ton and above.
58
RT-PRC023AG-EN
Performance Data
Table 22. Gross cooling capacities 4 tons high efficiency - single phase T/YHC048F1
Ambient Temperature
85
Air
95
Ent
105
Entering Wet Bulb
Flow
DB
cfm
(F)
MBh
61
SHC
MBh
67
SHC
MBh
73
SHC
MBh
61
SHC
MBh
67
SHC
MBh
73
SHC
MBh
61
SHC
MBh
67
SHC
MBh
73
800
75
38.1
28.9
42.8
21.8
49.1
11.3
35.7
27.5
40.2
20.6
46.2
10.3
33.1
25.9
37.3
19.2
43.1
9.2
800
80
38.8
33.7
42.8
28.3
48.4
19.5
36.4
32.1
40.2
26.9
45.6
18.4
33.9
30.4
37.5
25.5
42.5
17.2
800
85
39.9
37.5
43.3
33.8
48.1
26.8
37.6
35.8
40.7
32.3
45.3
25.6
35.1
33.9
38.0
30.7
42.4
24.2
800
90
41.5
40.3
44.1
38.4
48.2
33.1
39.2
38.5
41.6
36.8
45.5
31.7
36.8
36.5
38.9
35.0
42.6
30.2
960
75
40.4
31.2
45.0
23.7
51.1
12.9
37.9
29.6
42.2
22.4
48.1
11.8
35.2
28.0
39.3
21.0
44.9
10.6
960
80
41.4
36.2
45.2
30.5
50.6
21.4
38.9
34.5
42.5
29.0
47.6
20.2
36.2
32.7
39.6
27.4
44.5
18.8
960
85
42.7
40.3
45.8
36.3
50.5
28.9
40.3
38.5
43.2
34.7
47.6
27.6
37.7
36.5
40.4
33.0
44.5
26.1
960
90
44.4
43.4
46.9
41.1
50.8
35.5
42.1
41.4
44.3
39.4
48.0
34.0
39.5
39.3
41.5
37.6
45.0
32.4
1120
75
42.5
33.2
46.9
25.4
52.8
14.2
39.9
31.6
44.0
24.0
49.7
13.1
37.1
29.8
41.0
22.5
46.4
11.8
1120
80
43.6
38.5
47.3
32.4
52.5
23.0
41.1
36.8
44.5
30.9
49.5
21.7
38.3
34.8
41.5
29.2
46.2
20.3
1120
85
45.2
42.9
48.1
38.5
52.6
30.8
42.7
41.0
45.4
36.8
49.6
29.4
40.0
38.9
42.5
35.0
46.5
27.8
1120
90
47.1
46.3
49.4
43.6
53.2
37.7
44.7
44.2
46.7
41.8
50.2
36.1
42.0
42.0
43.8
39.9
47.1
34.4
1280
75
44.3
35.1
48.5
26.9
54.2
15.4
41.6
33.4
45.6
25.4
51.0
14.1
38.7
31.5
42.4
23.8
47.7
12.7
1280
80
45.7
40.7
49.2
34.2
54.2
24.4
43.0
38.8
46.3
32.6
51.0
23.0
40.1
36.8
43.2
30.8
47.7
21.5
1280
85
47.4
45.3
50.2
40.6
54.5
32.5
44.8
43.3
47.3
38.8
51.4
31.0
42.0
41.1
44.3
36.9
48.1
29.3
1280
90
49.5
48.9
51.6
46.0
55.2
39.6
47.0
46.8
48.8
44.1
52.2
38.0
44.2
44.2
45.8
42.0
49.0
36.1
1440
75
45.9
36.8
49.9
28.2
55.4
16.4
43.1
34.9
46.8
26.6
52.1
15.0
40.0
32.9
43.6
24.9
48.6
13.5
1440
80
47.4
42.6
50.7
35.8
55.6
25.6
44.6
40.6
47.7
34.1
52.3
24.2
41.7
38.5
44.5
32.2
48.9
22.5
1440
85
49.4
47.5
52.0
42.4
56.1
34.0
46.6
45.3
49.0
40.5
52.9
32.4
43.7
43.1
45.9
38.5
49.5
30.6
1440
90
51.7
51.4
53.6
48.1
57.0
41.4
49.0
49.0
50.7
46.1
53.9
39.6
46.2
46.2
47.6
43.9
50.5
37.7
1600
75
47.2
38.2
51.0
29.3
56.4
17.1
44.2
36.3
47.8
27.6
53.0
15.6
41.1
34.2
44.5
25.8
49.4
14.0
1600
80
48.9
44.3
52.0
37.2
56.7
26.7
46.0
42.2
48.9
35.3
53.3
25.1
43.0
40.0
45.6
33.4
49.8
23.3
1600
85
51.1
49.4
53.5
44.0
57.4
35.3
48.2
47.2
50.4
42.1
54.1
33.6
45.2
44.9
47.2
40.0
50.6
31.7
1600
90
53.6
53.6
55.3
50.0
58.6
42.9
50.8
50.8
52.3
47.9
55.3
41.1
47.9
47.9
49.1
45.6
51.9
39.1
1760
75
48.2
39.4
51.9
30.2
57.0
17.7
45.2
37.4
48.6
28.4
53.5
16.1
41.9
35.2
45.1
26.5
49.8
14.4
1760
80
50.1
45.8
53.1
38.3
57.6
27.5
47.2
43.6
49.9
36.4
54.1
25.8
44.0
41.3
46.5
34.3
50.5
24.0
1760
85
52.5
51.2
54.7
45.5
58.5
36.4
49.6
48.9
51.6
43.4
55.1
34.5
46.4
46.4
48.2
41.2
51.5
32.6
1760
90
55.2
55.2
56.8
51.7
59.8
44.3
52.4
52.4
53.7
49.5
56.5
42.3
49.3
49.3
50.4
47.1
52.9
40.2
1920
75
49.0
40.5
52.4
30.9
57.4
18.0
45.8
38.3
49.1
29.0
53.8
16.3
42.5
36.1
45.5
27.0
50.0
14.5
1920
80
51.1
47.1
53.9
39.3
58.2
28.1
48.0
44.8
50.5
37.3
54.6
26.3
44.7
42.4
47.0
35.1
50.8
24.4
1920
85
53.6
52.8
55.7
46.7
59.3
37.2
50.6
50.4
52.4
44.5
55.8
35.3
47.4
47.4
49.0
42.2
52.1
33.2
1920
90
56.6
56.6
58.0
53.2
60.8
45.4
53.6
53.6
54.7
50.9
57.4
43.4
50.5
50.5
51.3
48.4
53.7
41.2
SHC
continued on next page
RT-PRC023AG-EN
59
Performance Data
Table 22. Gross cooling capacities 4 tons high efficiency - single phase T/YHC048F1 (continued)
Ambient Temperature
115
Air
Ent
125
Entering Wet Bulb
Flow
DB
cfm
(F)
MBh
61
SHC
MBh
67
SHC
MBh
73
SHC
MBh
61
SHC
MBh
67
SHC
MBh
73
800
75
30.3
24.2
34.3
17.8
39.9
8.0
27.3
22.3
31.1
16.1
36.4
6.6
800
80
31.2
28.5
34.5
23.8
39.3
15.8
28.2
26.5
31.3
22.1
35.9
14.3
800
85
32.5
31.9
35.1
29.0
39.2
22.7
29.6
29.6
32.0
27.1
35.9
21.0
800
90
34.2
34.2
36.1
33.1
39.5
28.6
32.7
32.7
33.0
31.1
36.2
26.8
960
75
32.3
26.1
36.2
19.4
41.5
9.3
29.2
24.2
32.9
17.6
38.0
7.8
960
80
33.4
30.7
36.6
25.7
41.2
17.3
30.4
28.6
33.3
23.9
37.7
15.7
960
85
34.9
34.4
37.3
31.1
41.3
24.5
31.9
31.9
34.1
29.1
37.8
22.7
960
90
36.8
36.8
38.5
35.6
41.8
30.7
35.0
35.0
35.4
33.4
38.4
28.8
1120
75
34.1
27.9
37.8
20.8
42.9
10.3
30.9
25.8
34.3
19.0
39.3
8.7
1120
80
35.4
32.8
38.3
27.4
42.8
18.7
32.3
30.6
35.0
25.4
39.2
16.9
1120
85
37.1
36.7
39.3
33.1
43.1
26.1
34.0
34.0
36.0
31.0
39.5
24.2
1120
90
39.2
39.2
40.7
37.8
43.8
32.5
37.1
37.1
37.5
35.5
40.3
30.5
1280
75
35.6
29.5
39.1
22.0
44.1
11.2
32.3
27.3
35.6
20.1
40.3
9.5
1280
80
37.1
34.6
39.9
28.9
44.2
19.8
33.9
32.3
36.4
26.8
40.5
18.0
1280
85
39.0
38.8
41.1
34.8
44.6
27.5
35.8
35.8
37.6
32.6
41.0
25.5
1280
90
41.3
41.3
42.7
39.8
45.5
34.2
38.9
38.9
39.3
37.5
41.9
32.1
1440
75
36.8
30.8
40.2
23.0
45.0
11.8
33.5
28.5
36.5
21.0
41.1
10.1
1440
80
38.5
36.2
41.1
30.2
45.2
20.7
35.2
33.8
37.6
28.0
41.4
18.8
1440
85
40.6
40.6
42.5
36.4
45.9
28.7
37.3
37.3
39.0
34.1
42.2
26.6
1440
90
43.1
43.1
44.3
41.6
47.0
35.7
40.4
40.4
40.9
39.2
43.3
33.5
1600
75
37.8
32.0
40.9
23.8
45.6
12.3
34.3
29.6
37.2
21.7
41.6
10.4
1600
80
39.7
37.6
42.1
31.2
46.1
21.5
36.3
35.1
38.5
29.0
42.1
19.4
1600
85
42.0
42.0
43.7
37.7
47.0
29.7
38.6
38.6
40.1
35.3
43.1
27.5
1600
90
44.7
44.7
45.7
43.2
48.2
36.9
41.7
41.7
42.2
40.7
44.4
34.6
1760
75
38.5
32.9
41.5
24.4
45.9
12.6
34.9
30.4
37.6
22.2
41.9
10.6
1760
80
40.6
38.8
42.9
32.1
46.6
22.0
37.1
36.2
39.1
29.7
42.6
19.8
1760
85
43.1
43.1
44.7
38.8
47.7
30.4
39.6
39.6
40.9
36.3
43.7
28.2
1760
90
46.0
46.0
46.9
44.6
49.2
38.0
42.8
42.8
43.2
42.0
45.3
35.6
1920
75
39.0
33.6
41.7
24.8
46.0
12.6
35.3
31.1
37.8
22.5
41.8
10.5
1920
80
41.3
39.9
43.3
32.8
46.9
22.3
37.6
37.2
39.4
30.3
42.8
20.1
1920
85
44.0
44.0
45.3
39.8
48.2
31.0
40.4
40.4
41.5
37.2
44.1
28.7
1920
90
47.3
47.3
47.7
45.8
49.9
38.8
43.5
43.5
44.0
43.1
45.9
36.3
SHC
Notes:
1. All capacities shown are gross and have not considered indoor fan heat. To obtain NET cooling capacity
subtract indoor fan heat. For indoor fan heat formula, refer to appropriate airflow table notes.
2. MBh = Total Gross Capacity
3. SHC = Sensible Heat Capacity
* Unit applications below 320 CFM/Ton are only applicable on THC models without electric heat. Electric and
Gas heat applications are restricted to applications 320 CFM/Ton and above.
60
RT-PRC023AG-EN
Performance Data
Table 23. Gross cooling capacities 4 tons high efficiency - three phase T/YHC048E3,4,W
Ambient Temperature
85
Air
95
Ent
105
Entering Wet Bulb
Flow
DB
cfm
(F)
MBh
61
SHC
MBh
67
SHC
MBh
73
SHC
MBh
61
SHC
MBh
67
SHC
MBh
73
SHC
MBh
61
SHC
MBh
67
SHC
MBh
73
800
75
39.5
31.1
44.6
23.3
51.6
11.5
36.8
29.6
41.6
22.2
48.3
10.8
33.9
28.0
38.5
20.9
44.9
9.9
800
80
40.3
36.2
44.5
30.6
50.6
21.0
37.6
34.5
41.6
29.3
47.4
20.0
34.8
32.7
38.5
27.8
44.0
18.9
800
85
41.6
40.1
45.0
36.7
50.2
29.2
39.0
38.2
42.1
35.1
47.0
28.0
36.2
36.2
39.0
33.4
43.6
26.7
800
90
43.5
42.9
45.9
41.6
50.2
36.3
40.9
40.8
43.0
39.8
47.0
34.9
38.1
38.1
39.9
37.9
43.7
33.3
960
75
41.5
33.1
46.4
25.1
53.2
13.0
38.7
31.5
43.4
23.8
49.9
12.1
35.7
29.8
40.1
22.5
46.3
11.1
960
80
42.5
38.5
46.6
32.6
52.5
22.6
39.7
36.7
43.5
31.1
49.1
21.6
36.8
34.7
40.3
29.5
45.6
20.3
960
85
44.0
42.6
47.2
38.9
52.2
31.1
41.3
40.6
44.2
37.2
48.9
29.8
38.4
38.4
41.0
35.4
45.4
28.4
960
90
46.1
45.6
48.3
44.0
52.5
38.4
43.4
43.4
45.3
42.2
49.2
36.9
40.5
40.5
42.2
40.1
45.7
35.3
1120
75
43.3
35.0
48.1
26.7
54.7
14.3
40.4
33.3
44.9
25.3
51.3
13.3
37.4
31.5
41.6
23.8
47.6
12.2
1120
80
44.5
40.6
48.4
34.4
54.2
24.2
41.7
38.7
45.3
32.9
50.7
23.0
38.7
36.6
42.0
31.1
47.1
21.7
1120
85
46.3
45.0
49.2
41.0
54.1
32.9
43.4
42.9
46.1
39.2
50.7
31.5
40.4
40.4
42.8
37.3
47.1
29.9
1120
90
48.5
48.2
50.6
46.3
54.5
40.4
45.7
45.7
47.5
44.4
51.1
38.8
43.8
43.8
44.2
42.2
47.6
37.1
1280
75
45.4
36.1
50.5
26.4
55.8
16.0
42.5
34.5
47.2
24.7
52.3
15.2
39.3
32.9
43.8
22.9
48.7
13.1
1280
80
46.2
44.2
51.0
34.1
56.4
24.0
43.2
42.5
47.7
32.3
53.0
22.7
40.1
40.1
44.3
30.8
49.2
20.7
1280
85
48.3
48.3
51.5
41.7
56.9
31.7
45.7
45.7
48.2
40.0
53.4
30.0
42.8
42.8
44.8
38.4
49.7
28.3
1280
90
51.2
51.2
52.2
49.6
57.3
39.1
48.5
48.5
49.0
48.0
53.8
37.5
45.7
45.7
45.7
45.7
50.1
35.8
1440
75
46.7
38.9
51.7
27.7
57.1
16.8
43.6
37.3
48.4
26.5
53.5
15.0
40.4
35.7
44.9
24.2
49.7
13.3
1440
80
47.6
47.3
52.3
36.3
57.8
25.6
44.7
44.7
48.9
34.6
54.1
23.3
41.8
41.8
45.4
33.0
50.3
21.3
1440
85
50.5
50.5
52.9
45.0
58.3
33.4
47.7
47.7
49.5
43.3
54.6
31.9
44.8
44.8
46.0
41.8
50.8
30.3
1440
90
53.6
53.6
53.8
53.5
58.7
42.0
50.8
50.8
50.7
50.7
55.0
40.2
47.7
47.7
47.7
47.7
51.2
38.7
1600
75
47.8
41.6
52.8
29.5
58.2
16.6
44.6
40.0
49.4
27.3
54.5
15.0
41.3
38.3
45.8
25.9
50.6
13.4
1600
80
49.2
49.2
53.3
38.6
58.8
25.3
46.4
46.4
49.9
37.0
55.2
24.3
43.4
43.4
46.3
35.5
51.2
23.6
1600
85
52.4
52.4
54.0
48.2
59.4
35.5
49.5
49.5
50.6
46.7
55.7
33.8
46.4
46.4
47.1
45.3
51.7
32.3
1600
90
55.7
55.7
55.6
55.6
59.9
44.8
52.7
52.7
52.6
52.6
56.1
43.2
49.5
49.5
49.4
49.4
52.2
41.7
1760
75
48.8
44.2
53.7
30.6
59.2
16.8
45.5
42.6
50.2
28.8
55.4
15.2
42.1
40.8
46.5
27.3
51.4
13.6
1760
80
50.8
50.8
54.3
41.0
59.8
27.3
47.9
47.9
50.8
39.3
56.0
25.6
44.7
44.7
47.0
37.7
52.0
24.8
1760
85
54.1
54.1
55.1
51.6
60.3
37.5
51.1
51.1
51.7
50.1
56.5
35.9
47.9
47.9
48.0
47.8
52.5
34.3
1760
90
57.5
57.5
57.4
57.4
60.9
47.9
54.3
54.3
54.2
54.2
57.1
46.3
51.1
51.1
51.1
51.1
53.0
44.7
1920
75
49.6
46.9
54.5
31.8
60.0
16.9
46.3
45.0
50.9
30.2
56.1
15.5
42.9
42.6
47.1
28.6
52.0
13.7
1920
80
52.2
52.2
55.1
43.2
60.6
27.5
49.2
49.2
51.5
41.6
56.8
26.8
46.0
46.0
47.7
40.1
52.6
25.4
1920
85
55.6
55.6
56.1
54.7
61.2
39.5
52.5
52.5
52.7
52.5
57.2
37.9
49.2
49.2
49.2
49.2
53.1
36.3
1920
90
59.1
59.1
59.0
59.0
61.8
50.7
55.9
55.9
55.8
55.8
57.9
49.3
52.5
52.5
52.4
52.4
53.8
47.8
SHC
continued on next page
RT-PRC023AG-EN
61
Performance Data
Table 23. Gross cooling capacities 4 tons high efficiency - three phase T/YHC048E3,4,W (continued)
Ambient Temperature
115
Air
Ent
125
Entering Wet Bulb
Flow
DB
cfm
(F)
MBh
61
SHC
MBh
67
SHC
MBh
73
SHC
MBh
61
SHC
MBh
67
SHC
MBh
73
800
75
30.9
26.2
35.2
19.5
41.3
8.8
27.7
24.3
31.6
17.9
37.5
7.6
800
80
31.8
30.7
35.2
26.1
40.4
17.6
28.6
28.5
31.7
24.3
36.6
16.2
800
85
33.2
33.2
35.7
31.6
40.0
25.2
30.0
30.0
32.2
29.6
36.3
23.6
800
90
36.3
36.3
36.7
35.8
40.1
31.6
33.3
33.3
33.3
33.3
36.4
29.8
960
75
32.6
27.9
36.7
20.9
42.6
10.0
29.3
25.8
33.1
19.2
38.7
8.6
960
80
33.7
32.6
36.9
27.8
41.9
19.0
30.4
30.3
33.3
25.9
38.1
17.4
960
85
35.3
35.3
37.6
33.5
41.7
26.8
32.0
32.0
34.0
31.3
37.9
25.0
960
90
38.4
38.4
38.8
38.0
42.1
33.4
35.3
35.3
35.3
35.3
38.2
31.5
1120
75
34.2
29.5
38.1
22.2
43.8
10.9
30.8
27.3
34.4
20.4
39.9
9.5
1120
80
35.5
34.4
38.5
29.3
43.3
20.2
32.1
32.0
34.8
27.3
39.4
18.5
1120
85
37.2
37.2
39.4
35.2
43.3
28.2
33.9
33.9
35.7
33.0
39.4
26.4
1120
90
40.3
40.3
40.8
39.9
43.8
35.1
37.1
37.1
37.1
37.1
39.9
33.0
1280
75
35.9
31.2
40.1
21.3
44.7
11.5
32.1
28.6
35.5
21.4
40.8
10.2
1280
80
37.2
37.2
40.6
29.0
45.3
19.2
33.6
33.6
36.1
28.5
40.5
19.5
1280
85
39.8
39.8
41.1
36.7
45.7
26.7
35.6
35.6
37.2
34.5
40.7
27.6
1280
90
42.5
42.5
42.5
42.5
46.0
34.1
38.8
38.8
38.8
38.8
41.4
34.5
1440
75
36.9
34.0
41.1
22.7
45.7
11.6
33.2
29.8
36.5
22.3
41.6
10.8
1440
80
38.7
38.7
41.6
31.3
46.2
19.7
34.9
34.9
37.3
29.7
41.5
20.3
1440
85
41.6
41.6
42.2
40.2
46.7
28.7
37.1
37.1
38.5
35.8
41.9
28.7
1440
90
44.4
44.4
44.3
44.3
47.0
37.1
40.3
40.3
40.3
40.3
42.8
35.8
1600
75
37.7
36.6
41.8
24.1
46.4
11.8
34.2
30.9
37.2
23.1
42.2
11.3
1600
80
40.2
40.2
42.4
33.7
47.0
21.8
36.0
36.0
38.2
30.7
42.3
21.0
1600
85
43.1
43.1
43.3
43.0
47.5
30.7
38.4
38.4
39.7
37.1
42.9
29.6
1600
90
46.0
46.0
46.0
46.0
47.9
40.0
41.7
41.7
41.7
41.7
44.0
37.0
1760
75
38.5
38.4
42.5
25.6
47.1
12.0
35.0
31.8
37.9
23.7
42.6
11.6
1760
80
41.4
41.4
43.1
36.1
47.7
22.2
37.0
37.0
39.0
31.5
42.9
21.6
1760
85
44.4
44.4
44.4
44.4
48.1
32.7
39.6
39.6
40.7
38.2
43.7
30.4
1760
90
47.4
47.4
47.4
47.4
48.6
43.2
42.9
42.9
42.9
42.9
45.0
38.0
1920
75
39.3
39.3
43.0
26.9
47.7
12.5
35.6
32.6
38.3
24.2
42.9
11.8
1920
80
42.5
42.5
43.7
38.4
48.2
23.5
37.9
37.9
39.7
32.3
43.4
22.0
1920
85
45.6
45.6
45.5
45.5
48.7
34.7
40.6
40.6
41.6
39.1
44.4
31.1
1920
90
48.7
48.7
48.6
48.6
49.4
46.5
43.9
43.9
43.9
43.9
45.8
38.9
SHC
Notes:
1. All capacities shown are gross and have not considered indoor fan heat. To obtain NET cooling capacity
subtract indoor fan heat. For indoor fan heat formula, refer to appropriate airflow table notes.
2. MBh = Total Gross Capacity
3. SHC = Sensible Heat Capacity
* Unit applications below 320 CFM/Ton are only applicable on THC models without electric heat. Electric and
Gas heat applications are restricted to applications 320 CFM/Ton and above.
62
RT-PRC023AG-EN
Performance Data
Table 24. Gross cooling capacities 4 tons high efficiency - three phase T/YHC048F3,4,W
Ambient Temperature
85
Air
95
Ent
105
Entering Wet Bulb
Flow
DB
cfm
(F)
MBh
61
SHC
MBh
67
SHC
MBh
73
SHC
MBh
61
SHC
MBh
67
SHC
MBh
73
SHC
MBh
61
SHC
MBh
67
SHC
MBh
73
800
75
38.6
28.5
43.5
21.3
50.0
10.6
36.1
27.0
40.8
20.0
47.1
9.7
33.5
25.3
37.9
18.6
43.9
8.5
800
80
39.3
33.3
43.5
27.9
49.3
19.0
36.9
31.6
40.9
26.5
46.4
17.9
34.3
29.9
38.0
24.9
43.3
16.6
800
85
40.5
37.2
44.0
33.5
49.0
26.4
38.2
35.4
41.4
32.0
46.1
25.1
35.6
33.5
38.6
30.3
43.1
23.7
800
90
42.1
40.1
44.8
38.2
49.1
32.8
39.8
38.2
42.3
36.5
46.3
31.4
37.3
36.1
39.6
34.7
43.4
29.8
960
75
41.0
30.8
45.8
23.3
52.1
12.2
38.4
29.2
42.9
21.9
49.0
11.2
35.7
27.5
39.9
20.4
45.8
10.0
960
80
42.0
35.9
46.0
30.1
51.6
20.9
39.5
34.2
43.2
28.6
48.6
19.7
36.8
32.3
40.3
27.0
45.4
18.3
960
85
43.4
40.1
46.6
36.0
51.5
28.5
40.9
38.2
43.9
34.4
48.5
27.2
38.3
36.2
41.0
32.7
45.4
25.7
960
90
45.2
43.3
47.7
41.0
51.8
35.2
42.8
41.3
45.0
39.2
48.9
33.7
40.2
39.1
42.2
37.3
45.8
32.1
1120
75
43.2
32.9
47.7
25.0
53.9
13.6
40.5
31.3
44.8
23.6
50.7
12.5
37.6
29.4
41.7
22.0
47.4
11.2
1120
80
44.4
38.3
48.2
32.1
53.6
22.5
41.7
36.5
45.3
30.6
50.5
21.2
38.9
34.5
42.3
28.9
47.2
19.8
1120
85
46.0
42.8
49.0
38.3
53.7
30.5
43.4
40.8
46.2
36.6
50.6
29.0
40.6
38.7
43.2
34.8
47.4
27.4
1120
90
48.0
46.2
50.3
43.6
54.2
37.5
45.5
44.1
47.6
41.7
51.2
35.9
42.8
41.9
44.6
39.8
48.0
34.2
1280
75
45.1
34.8
49.5
26.5
55.4
14.8
42.3
33.1
46.4
25.0
52.1
13.5
39.3
31.1
43.2
23.4
48.7
12.1
1280
80
46.5
40.5
50.1
34.0
55.3
24.0
43.7
38.6
47.1
32.3
52.1
22.6
40.8
36.5
44.0
30.5
48.7
21.0
1280
85
48.3
45.2
51.2
40.4
55.6
32.2
45.6
43.2
48.2
38.6
52.5
30.7
42.7
41.0
45.1
36.7
49.1
29.0
1280
90
50.5
49.0
52.6
45.9
56.4
39.5
47.9
46.8
49.8
44.0
53.3
37.8
45.1
44.5
46.7
41.9
50.0
36.0
1440
75
46.7
36.5
50.9
27.9
56.7
15.7
43.8
34.7
47.8
26.2
53.3
14.4
40.7
32.6
44.4
24.5
49.7
12.9
1440
80
48.3
42.5
51.7
35.5
56.8
25.2
45.5
40.5
48.7
33.8
53.5
23.7
42.4
38.3
45.4
31.9
49.9
22.1
1440
85
50.3
47.5
53.0
42.3
57.3
33.7
47.5
45.3
50.0
40.4
54.0
32.1
44.6
43.0
46.8
38.4
50.6
30.3
1440
90
52.7
51.5
54.7
48.1
58.3
41.2
50.0
49.2
51.7
46.1
55.1
39.5
47.1
46.8
48.6
43.9
51.7
37.6
1600
75
48.1
38.0
52.1
28.9
57.7
16.4
45.0
36.0
48.8
27.2
54.2
15.0
41.9
33.9
45.4
25.4
50.5
13.4
1600
80
49.9
44.2
53.1
36.9
58.0
26.2
46.9
42.1
49.9
35.1
54.5
24.6
43.8
39.9
46.6
33.1
50.9
22.9
1600
85
52.1
49.5
54.6
43.9
58.7
34.9
49.2
47.2
51.5
42.0
55.3
33.2
46.1
44.9
48.2
39.8
51.8
31.4
1600
90
54.7
53.8
56.5
50.0
59.9
42.8
51.9
51.4
53.4
47.9
56.6
40.9
48.9
48.9
50.2
45.6
53.1
38.9
1760
75
49.1
39.2
53.0
29.8
58.4
16.9
46.0
37.1
49.6
28.0
54.8
15.4
42.7
35.0
46.1
26.1
51.0
13.7
1760
80
51.1
45.7
54.2
38.0
58.9
26.9
48.1
43.5
50.9
36.1
55.4
25.3
44.8
41.2
47.4
34.0
51.6
23.5
1760
85
53.6
51.2
55.9
45.3
59.8
36.0
50.6
48.9
52.7
43.3
56.4
34.2
47.4
46.5
49.2
41.1
52.7
32.2
1760
90
56.4
55.8
58.0
51.7
61.2
44.1
53.5
53.4
54.8
49.5
57.8
42.2
50.4
50.4
51.5
47.1
54.2
40.1
1920
75
49.9
40.2
53.6
30.4
58.8
17.2
46.7
38.1
50.1
28.5
55.1
15.6
43.3
35.8
46.5
26.5
51.2
13.8
1920
80
52.2
47.0
55.1
39.0
59.5
27.5
49.0
44.7
51.6
36.9
55.9
25.7
45.6
42.3
48.1
34.8
52.1
23.8
1920
85
54.8
52.8
57.0
46.5
60.7
36.8
51.7
50.4
53.6
44.4
57.1
34.9
48.4
47.8
50.1
42.1
53.3
32.9
1920
90
57.9
57.7
59.3
53.2
62.3
45.2
54.8
54.8
56.0
50.9
58.7
43.2
51.6
51.6
52.5
48.4
55.0
41.0
SHC
continued on next page
RT-PRC023AG-EN
63
Performance Data
Table 24. Gross cooling capacities 4 tons high efficiency - three phase T/YHC048F3,4,W (continued)
Ambient Temperature
115
Air
Ent
125
Entering Wet Bulb
Flow
DB
cfm
(F)
MBh
61
SHC
MBh
67
SHC
MBh
73
SHC
MBh
61
SHC
MBh
67
SHC
MBh
73
800
75
30.6
23.5
34.8
17.1
40.6
7.2
27.6
21.6
31.6
15.4
37.1
5.8
800
80
31.6
27.9
35.0
23.3
40.1
15.2
28.6
25.9
31.8
21.5
36.6
13.6
800
85
32.9
31.4
35.6
28.5
39.9
22.1
30.0
29.2
32.5
26.5
36.5
20.4
800
90
34.7
33.9
36.7
32.8
40.2
28.2
31.8
31.6
33.6
30.7
36.9
26.3
960
75
32.8
25.6
36.8
18.8
42.4
8.6
29.6
23.6
33.4
17.0
38.8
7.1
960
80
33.9
30.3
37.2
25.3
42.0
16.8
30.8
28.1
33.9
23.4
38.5
15.1
960
85
35.4
34.0
38.0
30.8
42.1
24.0
32.4
31.7
34.7
28.7
38.6
22.3
960
90
37.4
36.8
39.2
35.3
42.6
30.3
34.5
34.4
36.0
33.1
39.2
28.4
1120
75
34.6
27.4
38.4
20.3
43.8
9.7
31.4
25.3
35.0
18.4
40.1
8.1
1120
80
35.9
32.4
39.0
27.0
43.7
18.2
32.8
30.2
35.6
25.0
40.0
16.4
1120
85
37.7
36.4
40.1
32.8
44.0
25.7
34.6
34.1
36.7
30.7
40.4
23.8
1120
90
39.9
39.5
41.5
37.6
44.7
32.3
36.8
36.8
38.2
35.4
41.2
30.3
1280
75
36.2
29.1
39.8
21.6
45.0
10.6
32.8
26.9
36.2
19.6
41.2
8.9
1280
80
37.7
34.3
40.6
28.6
45.1
19.4
34.4
32.0
37.1
26.5
41.4
17.5
1280
85
39.7
38.6
41.9
34.6
45.6
27.2
36.5
36.1
38.4
32.4
41.9
25.2
1280
90
42.1
42.0
43.5
39.7
46.5
34.0
38.9
38.9
40.1
37.4
42.9
31.9
1440
75
37.5
30.5
40.9
22.6
46.0
11.3
34.0
28.2
37.2
20.5
42.0
9.5
1440
80
39.2
36.0
41.9
29.9
46.3
20.3
35.8
33.6
38.3
27.7
42.4
18.4
1440
85
41.4
40.6
43.4
36.2
47.0
28.4
38.1
38.0
39.8
33.9
43.1
26.3
1440
90
44.0
44.0
45.3
41.6
48.1
35.5
40.7
40.7
41.7
39.1
44.3
33.3
1600
75
38.5
31.7
41.8
23.4
46.6
11.7
34.9
29.3
38.0
21.3
42.6
9.8
1600
80
40.5
37.5
43.0
31.0
47.1
21.0
37.0
34.9
39.3
28.7
43.1
19.0
1600
85
42.9
42.3
44.7
37.6
48.0
29.4
39.4
39.4
41.0
35.2
44.1
27.2
1600
90
45.7
45.7
46.7
43.2
49.4
36.8
42.3
42.3
43.1
40.7
45.5
34.5
1760
75
39.2
32.6
42.3
24.0
47.0
11.9
35.6
30.1
38.4
21.8
42.9
9.9
1760
80
41.4
38.7
43.8
31.8
47.7
21.5
37.8
36.1
39.9
29.5
43.6
19.4
1760
85
44.0
43.8
45.6
38.7
48.8
30.1
40.5
40.5
41.9
36.2
44.8
27.9
1760
90
47.0
47.0
47.9
44.7
50.4
37.8
43.6
43.6
44.2
42.0
46.4
35.5
1920
75
39.7
33.3
42.6
24.3
47.1
11.9
36.0
30.8
38.6
22.0
42.9
9.8
1920
80
42.1
39.7
44.3
32.5
48.0
21.8
38.4
37.0
40.3
30.0
43.8
19.6
1920
85
44.9
44.9
46.4
39.6
49.4
30.7
41.3
41.3
42.5
37.0
45.2
28.4
1920
90
48.2
48.2
48.9
45.8
51.1
38.7
44.6
44.6
45.0
43.1
47.0
36.2
SHC
Notes:
1. All capacities shown are gross and have not considered indoor fan heat. To obtain NET cooling capacity
subtract indoor fan heat. For indoor fan heat formula, refer to appropriate airflow table notes.
2. MBh = Total Gross Capacity
3. SHC = Sensible Heat Capacity
* Unit applications below 320 CFM/Ton are only applicable on THC models without electric heat. Electric and
Gas heat applications are restricted to applications 320 CFM/Ton and above.
64
RT-PRC023AG-EN
Performance Data
Table 25. Gross cooling capacities 5 tons high efficiency - single phase T/YHC060F1
Ambient Temperature
85
Air
95
Ent
105
Entering Wet Bulb
Flow
DB
cfm
(F)
MBh
61
SHC
MBh
67
SHC
MBh
73
SHC
MBh
61
SHC
MBh
67
SHC
MBh
73
SHC
MBh
61
SHC
MBh
67
SHC
MBh
73
SHC
1000
75
48.6
37.7
54.4
28.8
62.3
15.7
45.8
36.1
51.3
27.5
58.9
14.7
42.7
34.3
47.9
26.1
55.2
13.6
1000
80
49.3
43.5
54.2
36.8
61.2
25.9
46.6
41.7
51.3
35.4
58.0
24.8
43.7
39.8
48.0
33.9
54.4
23.6
1000
85
50.5
48.0
54.5
43.6
60.6
34.9
48.0
46.1
51.7
42.1
57.5
33.7
45.1
44.1
48.6
40.4
54.1
32.3
1000
90
52.1
51.2
55.2
49.1
60.4
42.6
49.7
49.3
52.5
47.4
57.4
41.3
47.0
47.0
49.6
45.6
54.1
39.8
1200
75
51.2
40.5
56.8
31.3
64.4
17.8
48.3
38.8
53.6
29.9
61.0
16.7
45.1
36.9
50.1
28.3
57.2
15.4
1200
80
52.2
46.6
56.9
39.6
63.6
28.3
49.4
44.7
53.8
38.1
60.3
27.1
46.4
42.7
50.5
36.4
56.6
25.7
1200
85
53.6
51.4
57.4
46.6
63.2
37.6
51.0
49.4
54.5
45.0
60.0
36.3
48.1
47.3
51.3
43.2
56.5
34.8
1200
90
55.4
55.0
58.3
52.4
63.2
45.6
53.0
52.9
55.5
50.6
60.2
44.1
50.2
50.2
52.5
48.7
56.8
42.5
1400
75
53.5
43.0
58.9
33.4
66.3
19.6
50.5
41.2
55.6
31.9
62.7
18.4
47.3
39.2
52.0
30.2
58.9
17.0
1400
80
54.7
49.4
59.2
42.1
65.7
30.4
51.9
47.5
56.1
40.4
62.3
29.1
48.7
45.3
52.6
38.6
58.5
27.6
1400
85
56.4
54.6
60.0
49.4
65.5
40.0
53.7
52.5
56.9
47.6
62.2
38.5
50.7
50.2
53.7
45.7
58.7
36.9
1400
90
58.5
58.4
61.1
55.5
65.8
48.3
55.9
55.9
58.3
53.6
62.7
46.7
53.1
53.1
55.1
51.5
59.2
45.0
1600
75
55.6
45.3
60.7
35.3
67.9
21.1
52.5
43.4
57.3
33.7
64.2
19.8
49.1
41.2
53.6
31.9
60.2
18.3
1600
80
57.0
52.0
61.2
44.3
67.5
32.2
54.1
49.9
58.0
42.5
64.0
30.8
50.8
47.7
54.5
40.6
60.2
29.2
1600
85
58.9
57.4
62.2
51.9
67.6
42.1
56.1
55.2
59.1
50.0
64.2
40.5
53.0
52.8
55.7
48.0
60.5
38.8
1600
90
61.2
61.2
63.7
58.3
68.1
50.7
58.6
58.6
60.7
56.3
64.8
49.0
55.6
55.6
57.4
54.1
61.3
47.2
1800
75
57.3
47.3
62.2
37.0
69.1
22.3
54.1
45.2
58.7
35.2
65.4
20.9
50.6
43.0
55.0
33.3
61.3
19.3
1800
80
59.0
54.3
63.0
46.2
69.0
33.8
55.9
52.1
59.6
44.3
65.4
32.2
52.6
49.7
56.0
42.2
61.5
30.5
1800
85
61.1
60.0
64.2
54.1
69.3
44.0
58.2
57.7
61.0
52.1
65.8
42.3
55.0
55.0
57.5
50.0
62.1
40.4
1800
90
63.7
63.7
65.9
60.8
70.1
52.9
60.9
60.9
62.8
58.7
66.7
51.1
57.9
57.9
59.5
56.4
63.1
49.1
2000
75
58.7
49.0
63.4
38.3
70.1
23.3
55.5
46.8
59.8
36.4
66.2
21.8
51.9
44.5
56.0
34.4
62.1
20.0
2000
80
60.7
56.3
64.4
47.8
70.2
35.1
57.5
54.0
61.0
45.8
66.5
33.4
54.1
51.5
57.3
43.7
62.5
31.5
2000
85
63.1
62.4
65.9
56.1
70.8
45.5
60.0
59.9
62.6
54.0
67.2
43.7
56.8
56.8
59.0
51.7
63.3
41.8
2000
90
65.9
65.9
67.8
63.1
71.8
54.8
63.0
63.0
64.7
60.8
68.3
52.8
59.9
59.9
61.2
58.4
64.6
50.7
2200
75
59.9
50.5
64.3
39.4
70.8
24.0
56.5
48.2
60.6
37.4
66.8
22.3
52.9
45.7
56.7
35.2
62.6
20.5
2200
80
62.1
58.1
65.6
49.2
71.2
36.1
58.8
55.6
62.1
47.1
67.3
34.3
55.3
53.0
58.3
44.8
63.2
32.3
2200
85
64.7
64.4
67.3
57.8
72.0
46.8
61.6
61.6
63.9
55.5
68.3
44.9
58.2
58.2
60.2
53.1
64.3
42.8
2200
90
67.7
67.7
69.4
65.1
73.2
56.4
64.8
64.8
66.2
62.7
69.7
54.3
61.5
61.5
62.7
60.1
65.8
52.1
2400
75
60.7
51.7
64.9
40.2
71.2
24.4
57.3
49.2
61.2
38.1
67.1
22.6
53.5
46.6
57.1
35.8
62.8
20.7
2400
80
63.2
59.5
66.4
50.3
71.8
36.8
59.8
57.0
62.8
48.1
67.9
34.9
56.2
54.3
58.9
45.7
63.7
32.8
2400
85
66.0
66.0
68.4
59.2
72.8
47.9
62.8
62.8
64.9
56.8
69.0
45.8
59.4
59.4
61.2
54.3
65.0
43.6
2400
90
69.3
69.3
70.8
66.8
74.3
57.7
66.3
66.3
67.4
64.3
70.7
55.5
62.9
62.9
63.8
61.6
66.8
53.2
continued on next page
RT-PRC023AG-EN
65
Performance Data
Table 25. Gross cooling capacities 5 tons high efficiency - single phase T/YHC060F1 (continued)
Ambient Temperature
115
Air
Ent
125
Entering Wet Bulb
Flow
DB
cfm
(F)
MBh
61
SHC
MBh
67
SHC
MBh
73
SHC
MBh
61
SHC
MBh
67
SHC
MBh
73
SHC
1000
75
39.3
32.4
44.3
24.5
51.3
12.3
35.7
30.3
40.3
22.7
47.0
10.8
1000
80
40.5
37.8
44.5
32.1
50.6
22.2
37.0
35.6
40.7
30.2
46.5
20.6
1000
85
42.1
41.9
45.2
38.5
50.4
30.8
38.7
38.7
41.6
36.4
46.4
29.0
1000
90
44.1
44.1
46.3
43.6
50.6
38.1
42.4
42.4
42.8
41.4
46.8
36.3
1200
75
41.7
34.8
46.4
26.6
53.1
14.0
37.9
32.6
42.3
24.7
48.8
12.4
1200
80
43.1
40.5
46.9
34.5
52.7
24.2
39.5
38.2
43.0
32.5
48.5
22.5
1200
85
44.9
44.9
47.8
41.2
52.7
33.1
41.4
41.4
44.0
39.0
48.7
31.2
1200
90
47.2
47.2
49.2
46.6
53.2
40.7
45.1
45.1
45.5
44.3
49.3
38.8
1400
75
43.7
37.0
48.2
28.4
54.7
15.5
39.9
34.7
44.1
26.4
50.3
13.8
1400
80
45.3
43.0
48.9
36.6
54.5
25.9
41.6
40.6
44.9
34.5
50.3
24.1
1400
85
47.4
47.4
50.1
43.6
54.8
35.1
43.9
43.9
46.2
41.3
50.7
33.2
1400
90
49.9
49.9
51.7
49.3
55.5
43.1
47.5
47.5
48.0
46.9
51.5
41.0
1600
75
45.4
38.9
49.7
29.9
56.0
16.6
41.5
36.5
45.5
27.8
51.5
14.8
1600
80
47.3
45.3
50.7
38.5
56.1
27.4
43.5
42.7
46.6
36.2
51.7
25.4
1600
85
49.6
49.6
52.1
45.7
56.6
36.9
46.0
46.0
48.1
43.3
52.3
34.8
1600
90
52.4
52.4
53.9
51.7
57.5
45.1
49.6
49.6
50.1
49.2
53.4
42.9
1800
75
46.9
40.6
50.9
31.2
57.0
17.5
42.9
38.0
46.6
28.9
52.4
15.6
1800
80
49.0
47.2
52.1
40.0
57.3
28.6
45.1
44.5
48.0
37.6
52.8
26.5
1800
85
51.6
51.6
53.8
47.6
58.0
38.4
47.8
47.8
49.8
45.1
53.7
36.2
1800
90
55.3
55.3
55.9
53.9
59.2
46.9
51.5
51.5
52.0
51.3
55.0
44.6
2000
75
48.1
42.0
51.8
32.2
57.7
18.1
43.9
39.3
47.4
29.8
53.0
16.1
2000
80
50.4
48.9
53.3
41.3
58.2
29.5
46.4
46.0
49.0
38.8
53.7
27.3
2000
85
53.2
53.2
55.2
49.2
59.2
39.6
49.4
49.4
51.1
46.6
54.8
37.3
2000
90
56.9
56.9
57.5
55.8
60.6
48.4
53.0
53.0
53.5
53.1
56.3
46.0
2200
75
48.9
43.0
52.5
32.9
58.1
18.5
44.7
40.2
48.0
30.4
53.3
16.3
2200
80
51.5
50.3
54.2
42.3
58.9
30.1
47.5
47.3
49.8
39.7
54.2
27.8
2200
85
54.6
54.6
56.3
50.5
60.1
40.6
50.6
50.6
52.1
47.8
55.6
38.1
2200
90
58.3
58.3
58.9
57.4
61.7
49.7
54.2
54.2
54.8
54.6
57.4
47.1
2400
75
49.5
43.9
52.8
33.3
58.2
18.5
45.2
40.9
48.2
30.7
53.3
16.2
2400
80
52.3
51.4
54.7
43.1
59.2
30.5
48.2
48.2
50.3
40.3
54.5
28.1
2400
85
55.6
55.6
57.1
51.6
60.7
41.2
51.6
51.6
52.8
48.7
56.1
38.7
2400
90
59.3
59.3
59.9
58.8
62.6
50.7
55.8
55.8
55.8
55.8
58.1
48.0
Notes:
1. All capacities shown are gross and have not considered indoor fan heat. To obtain NET cooling capacity
subtract indoor fan heat. For indoor fan heat formula, refer to appropriate airflow table notes.
2. MBh = Total Gross Capacity
3. SHC = Sensible Heat Capacity
* Unit applications below 320 CFM/Ton are only applicable on THC models without electric heat. Electric and
Gas heat applications are restricted to applications 320 CFM/Ton and above.
66
RT-PRC023AG-EN
Performance Data
Table 26. Gross cooling capacities 5 tons high efficiency - three phase T/YHC060E3,4,W
Ambient Temperature
85
Air
95
Ent
105
Entering Wet Bulb
Flow
DB
cfm
(F)
MBh
61
SHC
MBh
67
SHC
MBh
73
SHC
MBh
61
SHC
MBh
67
SHC
MBh
73
SHC
MBh
61
SHC
MBh
67
SHC
MBh
73
SHC
1000
75
50.6
39.4
57.2
29.5
66.2
14.8
47.3
37.5
53.5
28.1
62.2
13.9
43.8
35.5
49.7
26.6
58.0
12.7
1000
80
51.5
45.7
57.0
38.5
64.8
26.5
48.2
43.6
53.3
36.9
60.8
25.2
44.8
41.4
49.5
35.1
56.6
23.8
1000
85
53.1
50.7
57.4
46.1
64.0
36.6
49.8
48.3
53.8
44.2
60.1
35.1
46.4
45.8
50.0
42.1
55.9
33.5
1000
90
55.3
54.1
58.5
52.1
64.0
45.3
52.1
51.5
54.9
50.0
60.0
43.6
48.7
48.7
51.1
47.6
55.9
41.7
1200
75
53.1
42.1
59.5
31.9
68.2
17.0
49.7
40.1
55.7
30.4
64.1
15.8
46.1
38.0
51.7
28.7
59.8
14.6
1200
80
54.3
48.7
59.5
41.2
67.0
28.9
50.8
46.5
55.7
39.4
62.9
27.5
47.3
44.1
51.8
37.5
58.7
26.0
1200
85
56.1
53.9
60.1
49.0
66.5
39.3
52.7
51.4
56.4
47.0
62.5
37.7
49.2
48.8
52.5
44.8
58.2
35.9
1200
90
58.5
57.6
61.4
55.4
66.7
48.3
55.2
54.9
57.7
53.1
62.6
46.4
51.7
51.7
53.9
50.6
58.5
44.3
1400
75
55.4
44.6
61.5
34.2
70.0
18.9
51.8
42.5
57.6
32.5
65.8
17.6
48.1
40.3
53.6
30.7
61.4
16.2
1400
80
56.8
51.5
61.7
43.7
69.1
31.1
53.3
49.2
57.9
41.8
64.9
29.6
49.6
46.7
53.9
39.7
60.5
27.9
1400
85
58.8
57.0
62.6
51.8
68.8
41.8
55.3
54.4
58.8
49.6
64.6
40.0
51.7
51.6
54.8
47.3
60.3
38.1
1400
90
61.5
61.0
64.2
58.4
69.2
51.0
58.1
58.1
60.4
56.0
65.1
49.0
54.5
54.5
56.4
53.4
60.8
46.8
1600
75
58.0
46.3
64.5
34.2
71.3
22.4
54.3
44.3
60.5
32.5
67.1
21.0
50.4
42.2
56.3
30.5
62.5
18.4
1600
80
58.7
55.9
64.8
43.5
71.8
31.7
55.0
53.9
60.9
41.7
67.6
29.9
51.3
51.3
56.7
39.7
63.1
27.9
1600
85
61.3
61.3
65.3
53.0
72.2
41.1
58.1
58.1
61.3
51.0
67.9
39.0
54.7
54.7
57.1
49.0
63.4
37.0
1600
90
64.9
64.9
65.8
62.4
72.6
50.2
61.6
61.6
61.9
60.6
68.3
47.9
58.1
58.1
58.0
58.0
63.7
46.0
1800
75
59.6
49.6
66.0
35.9
72.9
22.5
55.7
47.5
61.9
34.5
68.5
20.7
51.7
45.4
57.5
32.4
63.8
18.6
1800
80
60.5
60.3
66.4
46.6
73.5
33.3
57.1
57.1
62.3
44.5
69.0
31.2
53.5
53.5
58.0
42.6
64.3
29.3
1800
85
64.1
64.1
66.9
57.0
73.9
43.4
60.7
60.7
62.8
55.1
69.4
41.5
57.1
57.1
58.5
53.1
64.7
39.4
1800
90
67.8
67.8
67.9
67.7
74.2
53.6
64.3
64.3
64.3
64.3
69.8
51.4
60.6
60.6
60.6
60.6
65.1
49.6
2000
75
60.8
52.8
67.3
37.9
74.2
22.9
56.9
50.8
63.0
35.7
69.6
21.2
52.8
48.7
58.6
33.8
64.9
19.0
2000
80
62.6
62.6
67.7
49.4
74.8
34.6
59.1
59.1
63.5
47.3
70.2
32.6
55.4
55.4
59.0
45.4
65.4
30.5
2000
85
66.5
66.5
68.4
61.1
75.2
45.8
62.9
62.9
64.2
59.2
70.6
43.8
59.2
59.2
59.7
57.2
65.8
41.8
2000
90
70.4
70.4
70.3
70.3
75.5
57.1
66.8
66.8
66.7
66.7
71.0
55.2
62.9
62.9
62.8
62.8
66.2
53.2
2200
75
61.9
56.0
68.3
39.5
75.3
23.3
58.0
54.1
64.0
37.9
70.6
21.0
53.8
52.0
59.4
35.3
65.8
19.1
2200
80
64.5
64.5
68.8
52.2
75.9
35.9
60.9
60.9
64.6
50.2
71.2
33.9
57.2
57.2
60.0
48.2
66.3
31.9
2200
85
68.5
68.5
69.5
65.2
76.3
48.4
64.9
64.9
65.3
63.4
71.7
46.3
61.0
61.0
61.0
60.9
66.7
44.3
2200
90
72.6
72.6
72.6
72.6
76.8
60.8
68.9
68.9
68.8
68.8
72.1
58.8
64.8
64.8
64.8
64.8
67.2
56.9
2400
75
62.9
59.3
69.2
41.2
76.1
22.9
58.9
57.3
64.8
39.1
71.4
21.7
54.8
54.7
60.2
37.0
66.5
19.5
2400
80
66.2
66.2
69.8
55.0
76.9
37.1
62.5
62.5
65.4
53.0
72.1
35.1
58.6
58.6
60.8
51.0
67.1
33.0
2400
85
70.4
70.4
70.8
69.3
77.3
51.0
66.6
66.6
66.7
66.6
72.5
48.5
62.6
62.6
62.5
62.5
67.6
46.8
2400
90
74.6
74.6
74.5
74.5
77.8
64.3
70.7
70.7
70.7
70.7
72.9
62.5
66.6
66.6
66.5
66.5
68.2
60.7
continued on next page
RT-PRC023AG-EN
67
Performance Data
Table 26. Gross cooling capacities 5 tons high efficiency - three phase T/YHC060E3,4,W (continued)
Ambient Temperature
115
Air
Ent
125
Entering Wet Bulb
Flow
DB
cfm
(F)
MBh
61
SHC
MBh
67
SHC
MBh
73
SHC
MBh
61
SHC
MBh
67
SHC
MBh
73
SHC
1000
75
40.1
33.4
45.7
24.9
53.6
11.4
36.3
31.1
41.5
23.0
49.0
10.0
1000
80
41.1
39.0
45.5
33.1
52.3
22.3
37.3
36.5
41.4
31.0
47.8
20.6
1000
85
42.8
42.8
46.0
39.8
51.6
31.7
39.0
39.0
41.9
37.5
47.2
29.7
1000
90
46.8
46.8
47.2
45.1
51.7
39.6
42.7
42.7
43.1
42.5
47.3
37.4
1200
75
42.3
35.7
47.6
26.9
55.3
13.2
38.3
33.3
43.3
24.9
50.7
11.6
1200
80
43.5
41.6
47.7
35.4
54.2
24.3
39.6
38.9
43.4
33.1
49.6
22.5
1200
85
45.5
45.5
48.4
42.4
53.8
33.9
41.6
41.6
44.2
39.9
49.3
31.9
1200
90
49.4
49.4
49.9
48.0
54.1
42.1
45.2
45.2
45.7
45.2
49.6
39.8
1400
75
44.2
37.9
49.3
28.7
56.8
14.7
40.2
35.3
44.9
26.6
52.0
13.0
1400
80
45.7
44.0
49.7
37.5
56.0
26.1
41.7
41.2
45.3
35.1
51.3
24.1
1400
85
47.9
47.9
50.7
44.8
55.8
36.0
43.9
43.9
46.3
42.1
51.1
33.8
1400
90
51.8
51.8
52.3
50.6
56.3
44.5
47.6
47.6
48.0
47.7
51.7
42.0
1600
75
46.3
40.0
51.8
28.3
57.7
16.5
41.9
37.1
46.4
28.1
53.2
14.2
1600
80
47.8
47.8
52.2
37.5
58.2
25.8
43.6
43.3
47.0
36.9
52.7
25.6
1600
85
51.0
51.0
52.6
46.9
58.5
35.0
46.1
46.1
48.2
44.2
52.8
35.6
1600
90
54.3
54.3
54.3
54.3
58.9
44.0
49.7
49.7
50.2
50.1
53.6
44.1
1800
75
47.4
43.3
52.9
30.0
58.9
16.7
43.3
38.7
47.6
29.4
54.2
15.2
1800
80
49.8
49.8
53.4
40.3
59.4
27.1
45.3
45.2
48.4
38.5
53.9
26.9
1800
85
53.3
53.3
54.0
51.0
59.8
37.2
48.0
48.0
49.9
46.1
54.3
37.2
1800
90
56.7
56.7
56.7
56.7
60.1
47.7
52.1
52.1
52.1
52.1
55.3
45.9
2000
75
48.5
46.5
53.8
31.6
59.8
17.0
44.6
40.2
48.6
30.6
55.0
16.1
2000
80
51.6
51.6
54.4
43.2
60.4
28.5
46.8
46.8
49.7
39.9
54.9
28.1
2000
85
55.2
55.2
55.3
55.1
60.7
40.2
49.7
49.7
51.4
47.8
55.5
38.6
2000
90
58.7
58.7
58.7
58.7
61.2
51.3
53.8
53.8
53.8
53.8
56.8
47.6
2200
75
49.4
49.3
54.6
33.2
60.6
17.3
45.6
41.5
49.4
31.6
55.6
16.8
2200
80
53.1
53.1
55.2
46.0
61.1
29.8
48.1
48.1
50.7
41.2
55.7
29.0
2200
85
56.8
56.8
56.8
56.8
61.6
42.5
51.2
51.2
52.7
49.3
56.5
39.8
2200
90
60.6
60.6
60.5
60.5
62.1
55.1
55.3
55.3
55.3
55.3
58.0
49.1
2400
75
50.7
50.7
55.3
35.0
61.3
17.5
46.4
42.6
50.0
32.4
55.9
17.3
2400
80
54.5
54.5
55.9
49.0
61.8
31.1
49.1
49.1
51.5
42.2
56.3
29.8
2400
85
58.3
58.3
58.2
58.2
62.3
44.9
52.5
52.5
53.7
50.7
57.4
40.8
2400
90
62.2
62.2
62.1
62.1
62.9
58.8
56.6
56.6
56.6
56.6
59.1
50.4
Notes:
1. All capacities shown are gross and have not considered indoor fan heat. To obtain NET cooling capacity
subtract indoor fan heat. For indoor fan heat formula, refer to appropriate airflow table notes.
2. MBh = Total Gross Capacity
3. SHC = Sensible Heat Capacity
* Unit applications below 320 CFM/Ton are only applicable on THC models without electric heat. Electric and
Gas heat applications are restricted to applications 320 CFM/Ton and above.
68
RT-PRC023AG-EN
Performance Data
Table 27. Gross cooling capacities 5 tons high efficiency - three phase T/YHC060F3,4,W
Ambient Temperature
85
Air
95
Ent
105
Entering Wet Bulb
Flow
DB
cfm
(F)
MBh
61
SHC
MBh
67
SHC
MBh
73
SHC
MBh
61
SHC
MBh
67
SHC
MBh
73
SHC
MBh
61
SHC
MBh
67
SHC
MBh
73
SHC
1000
75
48.4
37.7
54.4
28.8
62.5
15.5
45.5
35.9
51.2
27.3
59.1
14.3
42.3
34.0
47.8
25.7
55.4
13.0
1000
80
49.1
43.6
54.1
36.9
61.3
25.8
46.3
41.7
51.1
35.3
58.0
24.6
43.3
39.6
47.8
33.6
54.5
23.2
1000
85
50.3
48.3
54.3
43.8
60.5
34.9
47.6
46.2
51.4
42.0
57.4
33.5
44.8
44.1
48.4
40.2
54.1
32.0
1000
90
51.9
51.7
55.0
49.4
60.2
42.8
49.4
49.4
52.3
47.6
57.3
41.3
46.8
46.8
49.4
45.6
54.1
39.7
1200
75
51.1
40.5
56.8
31.2
64.7
17.6
48.0
38.6
53.5
29.6
61.2
16.3
44.8
36.6
50.0
27.9
57.4
15.0
1200
80
52.0
46.7
56.8
39.6
63.7
28.2
49.1
44.7
53.6
37.9
60.3
26.9
46.0
42.5
50.3
36.1
56.8
25.4
1200
85
53.4
51.7
57.2
46.8
63.2
37.6
50.7
49.5
54.3
45.0
60.0
36.1
47.8
47.2
51.1
43.0
56.6
34.5
1200
90
55.3
55.3
58.2
52.7
63.2
45.8
52.7
52.7
55.3
50.8
60.1
44.2
50.0
50.0
52.4
48.7
56.9
42.4
1400
75
53.4
43.1
58.9
33.4
66.6
19.4
50.3
41.1
55.6
31.7
63.0
18.1
47.0
39.0
52.0
29.9
59.2
16.6
1400
80
54.6
49.6
59.2
42.1
65.9
30.3
51.6
47.4
55.9
40.3
62.4
28.9
48.5
45.2
52.5
38.4
58.7
27.3
1400
85
56.3
54.8
59.9
49.6
65.6
40.0
53.4
52.5
56.8
47.7
62.3
38.5
50.4
50.2
53.5
45.6
58.8
36.7
1400
90
58.4
58.4
61.0
55.8
65.8
48.5
55.7
55.7
58.1
53.8
62.7
46.8
52.9
52.9
55.0
51.6
59.3
45.0
1600
75
55.5
45.3
60.8
35.3
68.2
21.0
52.3
43.3
57.3
33.6
64.5
19.5
48.8
41.0
53.6
31.7
60.6
18.0
1600
80
56.9
52.1
61.2
44.3
67.7
32.2
53.8
49.9
57.9
42.4
64.1
30.6
50.6
47.6
54.4
40.4
60.4
29.0
1600
85
58.8
57.6
62.2
52.1
67.7
42.2
55.9
55.3
59.0
50.1
64.3
40.5
52.8
52.8
55.7
47.9
60.7
38.7
1600
90
61.2
61.2
63.6
58.6
68.1
50.9
58.5
58.5
60.6
56.5
64.9
49.1
55.6
55.6
57.4
54.2
61.5
47.2
1800
75
57.3
47.3
62.3
37.0
69.5
22.3
53.9
45.2
58.7
35.1
65.7
20.7
50.4
42.8
55.0
33.1
61.7
19.1
1800
80
58.9
54.4
63.0
46.2
69.2
33.8
55.8
52.1
59.6
44.3
65.6
32.1
52.4
49.6
56.0
42.2
61.8
30.3
1800
85
61.1
60.2
64.2
54.3
69.5
44.0
58.1
57.8
61.0
52.2
66.0
42.3
54.9
54.9
57.5
50.0
62.3
40.4
1800
90
63.7
63.7
65.9
61.1
70.2
53.1
60.9
60.9
62.8
58.9
66.9
51.2
57.9
57.9
59.6
56.5
63.4
49.2
2000
75
58.7
49.1
63.5
38.3
70.5
23.3
55.3
46.8
59.9
36.4
66.6
21.7
51.7
44.4
56.0
34.3
62.5
19.9
2000
80
60.6
56.4
64.5
47.9
70.5
35.1
57.4
54.0
61.0
45.8
66.8
33.3
54.0
51.5
57.3
43.6
62.9
31.5
2000
85
63.0
62.5
65.9
56.2
71.0
45.7
60.0
60.0
62.6
54.0
67.4
43.8
56.7
56.7
59.1
51.7
63.7
41.8
2000
90
65.9
65.9
67.9
63.3
71.9
55.0
63.0
63.0
64.7
61.0
68.5
53.0
59.9
59.9
61.4
58.6
65.0
50.9
2200
75
59.9
50.5
64.5
39.4
71.2
24.0
56.4
48.1
60.7
37.4
67.2
22.3
52.7
45.6
56.8
35.2
63.1
20.5
2200
80
62.1
58.1
65.7
49.3
71.4
36.1
58.7
55.7
62.1
47.1
67.6
34.3
55.2
53.0
58.4
44.8
63.6
32.3
2200
85
64.7
64.5
67.4
57.9
72.2
47.0
61.6
61.6
64.0
55.6
68.5
45.0
58.2
58.2
60.4
53.2
64.7
42.9
2200
90
67.9
67.9
69.5
65.3
73.4
56.6
64.9
64.9
66.3
62.9
69.9
54.5
61.7
61.7
62.9
60.4
66.2
52.3
2400
75
60.8
51.7
65.1
40.3
71.6
24.5
57.2
49.2
61.3
38.1
67.5
22.7
53.4
46.6
57.3
35.8
63.3
20.7
2400
80
63.2
59.6
66.6
50.4
72.1
36.9
59.8
57.0
62.9
48.2
68.2
35.0
56.2
54.3
59.1
45.8
64.1
32.9
2400
85
66.1
66.1
68.5
59.3
73.1
48.0
62.8
62.8
65.0
57.0
69.4
46.0
59.4
59.4
61.3
54.4
65.4
43.8
2400
90
69.5
69.5
70.9
67.0
74.6
57.9
66.4
66.4
67.6
64.5
71.0
55.8
63.1
63.1
64.1
61.9
67.2
53.5
continued on next page
RT-PRC023AG-EN
69
Performance Data
Table 27. Gross cooling capacities 5 tons high efficiency - three phase T/YHC060F3,4,W (continued)
Ambient Temperature
115
Air
Ent
125
Entering Wet Bulb
Flow
DB
cfm
(F)
MBh
61
SHC
MBh
67
SHC
MBh
73
SHC
MBh
61
SHC
MBh
67
SHC
MBh
73
SHC
1000
75
39.0
31.9
44.2
23.9
51.6
11.6
35.5
29.7
40.5
22.0
47.6
10.1
1000
80
40.1
37.4
44.4
31.7
50.9
21.6
36.8
35.1
40.8
29.7
47.0
20.0
1000
85
41.8
41.7
45.1
38.2
50.6
30.4
38.6
38.6
41.7
36.1
46.9
28.6
1000
90
43.9
43.9
46.3
43.5
50.8
37.9
42.6
42.6
43.0
41.2
47.3
36.0
1200
75
41.4
34.4
46.4
26.1
53.5
13.4
37.8
32.1
42.5
24.1
49.4
11.8
1200
80
42.8
40.3
46.8
34.2
53.0
23.7
39.4
37.8
43.2
32.1
49.1
22.0
1200
85
44.7
44.7
47.8
41.0
53.0
32.8
41.4
41.4
44.3
38.7
49.2
30.9
1200
90
47.1
47.1
49.2
46.5
53.5
40.6
45.4
45.4
45.8
44.2
49.9
38.6
1400
75
43.5
36.7
48.2
28.0
55.2
15.0
39.8
34.3
44.3
25.9
51.0
13.3
1400
80
45.1
42.8
48.9
36.3
54.9
25.6
41.6
40.3
45.2
34.1
50.9
23.7
1400
85
47.3
47.3
50.1
43.4
55.1
34.9
43.9
43.9
46.5
41.1
51.3
32.9
1400
90
49.9
49.9
51.8
49.3
55.8
43.0
47.9
47.9
48.4
46.9
52.2
40.9
1600
75
45.3
38.7
49.8
29.6
56.5
16.3
41.5
36.2
45.8
27.5
52.2
14.4
1600
80
47.2
45.1
50.8
38.3
56.5
27.1
43.6
42.4
46.9
36.0
52.4
25.2
1600
85
49.6
49.6
52.2
45.7
57.0
36.8
46.1
46.1
48.5
43.2
53.0
34.7
1600
90
52.5
52.5
54.1
51.8
57.9
45.1
50.1
50.1
50.6
49.3
54.2
42.9
1800
75
46.8
40.4
51.1
31.0
57.5
17.3
42.9
37.8
47.0
28.7
53.2
15.3
1800
80
48.9
47.1
52.3
39.9
57.8
28.4
45.2
44.4
48.3
37.5
53.6
26.4
1800
85
51.6
51.6
54.0
47.6
58.5
38.3
48.1
48.1
50.2
45.1
54.5
36.2
1800
90
54.7
54.7
56.1
54.0
59.7
47.0
52.0
52.0
52.5
51.4
55.9
44.7
2000
75
48.0
41.8
52.0
32.1
58.3
18.0
44.0
39.1
47.9
29.7
53.9
16.0
2000
80
50.4
48.8
53.5
41.3
58.8
29.5
46.6
46.0
49.5
38.8
54.5
27.3
2000
85
53.3
53.3
55.4
49.3
59.7
39.7
49.7
49.7
51.6
46.7
55.6
37.4
2000
90
57.3
57.3
57.9
56.0
61.2
48.6
53.6
53.6
54.2
53.3
57.3
46.2
2200
75
48.9
43.0
52.7
32.9
58.7
18.5
44.9
40.2
48.5
30.4
54.2
16.4
2200
80
51.6
50.3
54.4
42.4
59.5
30.2
47.7
47.3
50.3
39.8
55.1
28.0
2200
85
54.7
54.7
56.6
50.7
60.7
40.7
51.0
51.0
52.7
48.0
56.5
38.3
2200
90
58.7
58.7
59.3
57.7
62.4
50.0
55.0
55.0
55.5
54.9
58.4
47.5
2400
75
49.5
43.9
53.1
33.4
58.9
18.7
45.4
41.0
48.8
30.9
54.3
16.4
2400
80
52.4
51.4
55.1
43.2
59.9
30.7
48.5
48.4
50.9
40.6
55.4
28.4
2400
85
55.8
55.8
57.5
51.8
61.3
41.5
52.0
52.0
53.5
49.0
57.1
39.0
2400
90
59.8
59.8
60.4
59.1
63.3
51.0
56.0
56.0
56.6
56.2
59.2
48.5
Notes:
1. All capacities shown are gross and have not considered indoor fan heat. To obtain NET cooling capacity
subtract indoor fan heat. For indoor fan heat formula, refer to appropriate airflow table notes.
2. MBh = Total Gross Capacity
3. SHC = Sensible Heat Capacity
* Unit applications below 320 CFM/Ton are only applicable on THC models without electric heat. Electric and
Gas heat applications are restricted to applications 320 CFM/Ton and above.
70
RT-PRC023AG-EN
Performance Data
Table 28. Gross cooling capacities 6 tons high efficiency - three phase T/YHC072F3,4,W
Ambient Temperature
85
Air
95
Ent
105
Entering Wet Bulb
Flow
DB
cfm
(F)
MBh
61
1200
75
57.38 45.11 64.42 34.56 73.89 18.95 54.03 43.15 60.77 33.00 69.96 17.80 50.35 40.96 56.80 31.22 65.70 16.42
1200
80
58.22 52.14 64.05 44.19 72.33 31.17 55.02 50.02 60.56 42.47 68.55 29.87 51.50 47.68 56.75 40.54 64.44 28.34
1200
85
59.60 57.69 64.23 52.33 71.31 41.91 56.56 55.42 60.90 50.46 67.68 40.46 53.19 52.92 57.24 48.38 63.73 38.78
1200
90
61.53 61.53 64.96 59.00 70.84 51.18 58.64 58.64 61.78 56.98 67.36 49.56 55.43 55.43 58.28 54.74 63.56 47.73
1440
75
60.55 48.45 67.30 37.48 76.48 21.46 57.11 46.38 63.56 35.82 72.45 20.20 53.35 44.08 59.51 33.93 68.10 18.73
1440
80
61.64 55.77 67.18 47.41 75.16 33.98 58.36 53.55 63.60 45.59 71.29 32.57 54.75 51.10 59.70 43.55 67.10 30.94
1440
85
63.28 61.62 67.62 55.85 74.40 45.02 60.15 59.24 64.19 53.88 70.68 43.46 56.69 56.64 60.44 51.68 66.63 41.67
1440
90
65.46 65.46 68.60 62.81 74.17 54.58 62.48 62.48 65.33 60.68 70.61 52.86 59.18 59.18 61.73 58.34 66.72 50.92
1680
75
63.35 51.47 69.80 40.09 78.69 23.66 59.82 49.29 65.98 38.32 74.57 22.30 55.97 46.89 61.83 36.33 70.13 20.71
1680
80
64.69 59.09 69.94 50.31 77.62 36.48 61.32 56.76 66.27 48.39 73.66 34.96 57.62 54.20 62.28 46.24 69.37 33.22
1680
85
66.58 65.23 70.62 59.05 77.10 47.81 63.36 62.74 67.11 56.97 73.30 46.14 59.82 59.82 63.27 54.67 69.16 44.25
1680
90
69.01 69.01 71.85 66.30 77.13 57.66 65.95 65.95 68.49 64.07 73.48 55.84 62.56 62.56 64.81 61.62 69.50 53.80
1920
75
65.78 54.17 71.93 42.38 80.52 25.54 62.16 51.88 68.01 40.51 76.31 24.07 58.22 49.38 63.78 38.41 71.78 22.38
1920
80
67.37 62.08 72.32 52.90 79.70 38.65 63.90 59.65 68.56 50.87 75.65 37.03 60.12 56.99 64.48 48.62 71.28 35.18
1920
85
69.51 68.52 73.25 61.93 79.44 50.28 66.19 65.93 69.65 59.75 75.54 48.51 62.56 62.56 65.72 57.34 71.32 46.51
1920
90
72.19 72.19 74.73 69.48 79.71 60.43 69.03 69.03 71.28 67.15 75.97 58.50 65.55 65.55 67.51 64.59 71.90 56.35
2160
75
67.82 56.56 73.67 44.36 81.97 27.11 64.11 54.16 69.67 42.38 77.67 25.53 60.08 51.55 65.35 40.17 73.05 23.73
2160
80
69.66 64.77 74.31 55.17 81.41 40.51 66.11 62.22 70.47 53.03 77.26 38.78 62.23 59.46 66.30 50.68 72.80 36.83
2160
85
72.05 71.50 75.50 64.50 81.39 52.44 68.65 68.65 71.81 62.21 77.40 50.56 64.93 64.93 67.79 59.70 73.09 48.45
2160
90
74.99 74.99 77.23 72.35 81.92 62.89 71.74 71.74 73.69 69.90 78.09 60.85 68.17 68.17 69.83 67.24 73.93 58.59
2400
75
69.49 58.62 75.05 46.02 83.04 28.36 65.69 56.13 70.95 43.93 78.66 26.67 61.57 53.41 66.54 41.62 73.95 24.77
2400
80
71.58 67.13 75.94 57.12 82.73 42.06 67.94 64.48 72.00 54.88 78.50 40.22 63.97 61.61 67.74 52.42 73.95 38.16
2400
85
74.22 74.16 77.37 66.75 82.97 54.28 70.73 70.73 73.59 64.35 78.89 52.29 66.92 66.92 69.48 61.74 74.49 50.08
2400
90
77.41 77.41 79.36 74.89 83.75 65.02 74.07 74.07 75.73 72.34 79.82 62.88 70.41 70.41 71.78 69.58 75.58 60.52
2640
75
70.78 60.38 76.04 47.36 83.74 29.29 66.89 57.78 71.86 45.17 79.26 27.50 62.68 54.95 67.36 42.75 74.47 25.49
2640
80
73.13 69.18 77.18 58.76 83.68 43.29 69.39 66.43 73.16 56.41 79.36 41.34 65.34 63.45 68.81 53.84 74.72 39.18
2640
85
76.02 76.02 78.87 68.68 84.17 55.80 72.44 72.44 75.00 66.18 80.00 53.71 68.53 68.53 70.80 63.46 75.51 51.39
2640
90
79.45 79.45 81.10 77.12 85.20 66.84 76.03 76.03 77.39 74.47 81.19 64.59 72.61 72.61 73.34 71.59 76.85 62.13
2880
75
71.69 61.82 76.66 48.39 84.06 29.90 67.72 59.11 72.39 46.09 79.50 28.01 63.42 56.18 67.79 43.56 74.61 25.89
2880
80
74.29 70.92 78.05 60.09 84.25 44.20 70.47 68.05 73.93 57.63 79.84 42.15 66.32 64.97 69.49 54.96 75.11 39.88
2880
85
77.43 77.43 79.99 70.30 84.99 57.01 73.76 73.76 76.03 67.69 80.73 54.81 69.77 69.77 71.74 64.87 76.15 52.39
2880
90
81.12 81.12 82.47 79.04 86.27 68.35 77.60 77.60 78.67 76.28 82.17 65.99 73.79 73.79 74.53 73.30 77.74 63.42
SHC
67
MBh
SHC
73
MBh
SHC
61
MBh
SHC
67
MBh
SHC
73
MBh
SHC
61
MBh
SHC
67
MBh
SHC
73
MBh
SHC
continued on next page
RT-PRC023AG-EN
71
Performance Data
Table 28. Gross cooling capacities 6 tons high efficiency - three phase T/YHC072F3,4,W (continued)
Ambient Temperature
115
Air
Ent
125
Entering Wet Bulb
Flow
DB
cfm
(F)
MBh
61
1200
75
46.36 38.55 52.51 29.22 61.11 14.83 42.04 35.93 47.90 27.00 56.20 13.02
1200
80
47.66 45.12 52.61 38.39 60.01 26.59 43.49 42.34 48.15 36.02 55.26 24.63
1200
85
49.50 49.50 53.26 46.07 59.45 36.88 45.49 45.49 48.95 43.55 54.85 34.76
1200
90
51.90 51.90 54.45 52.28 59.44 45.68 49.79 49.79 50.30 49.60 54.99 43.41
1440
75
49.26 41.57 55.13 31.83 63.43 17.03 44.85 38.84 50.42 29.50 58.43 15.11
1440
80
50.82 48.44 55.48 41.29 62.58 29.09 46.56 45.55 50.93 38.81 57.73 27.01
1440
85
52.91 52.91 56.37 49.27 62.27 39.67 48.81 48.81 51.98 46.64 57.58 37.44
1440
90
57.23 57.23 57.81 55.77 62.51 48.76 53.04 53.04 53.57 52.99 57.97 46.39
1680
75
51.80 44.27 57.36 34.12 65.37 18.91 47.30 41.43 52.57 31.69 60.28 16.88
1680
80
53.60 51.43 57.96 43.88 64.76 31.26 49.25 48.44 53.32 41.29 59.83 29.08
1680
85
55.95 55.95 59.11 52.15 64.71 42.14 51.76 51.76 54.62 49.42 59.93 39.81
1680
90
60.19 60.19 60.80 58.95 65.20 51.53 55.90 55.90 56.47 56.06 60.57 49.05
1920
75
53.95 46.66 59.22 36.09 66.93 20.47 49.36 43.71 54.34 33.55 61.75 18.34
1920
80
56.00 54.11 60.07 46.15 66.58 33.12 51.57 51.02 55.34 43.45 61.55 30.84
1920
85
58.60 58.60 61.47 54.72 66.77 44.29 54.32 54.32 56.89 51.88 61.90 41.85
1920
90
62.78 62.78 63.41 61.81 67.51 53.98 58.40 58.40 58.99 58.82 62.80 51.39
2160
75
55.73 48.72 60.70 37.75 68.11 21.71 51.05 45.67 55.73 35.10 62.85 19.48
2160
80
58.03 56.48 61.80 48.10 68.01 34.66 53.51 53.27 56.98 45.30 62.90 32.27
2160
85
60.88 60.88 63.45 56.97 68.46 46.13 56.51 56.51 58.79 54.02 63.50 43.59
2160
90
64.99 64.99 65.64 64.36 69.45 56.12 61.13 61.13 61.13 61.13 64.65 53.42
2400
75
57.13 50.48 61.80 39.09 68.92 22.65 52.36 47.32 56.74 36.34 63.56 20.30
2400
80
59.68 58.52 63.16 49.74 69.07 35.89 55.07 55.07 58.25 46.83 63.87 33.39
2400
85
62.78 62.78 65.05 58.90 69.77 47.65 58.32 58.32 60.30 55.85 64.72 45.00
2400
90
66.82 66.82 67.50 66.59 71.01 57.94 62.90 62.90 62.90 62.90 66.12 55.13
2640
75
58.15 51.91 62.53 40.11 69.35 23.26 53.29 48.65 57.38 37.26 63.90 20.81
2640
80
60.96 60.26 64.13 51.06 69.75 36.80 56.25 56.25 59.13 48.05 64.46 34.20
2640
85
64.31 64.31 66.28 60.52 70.70 48.86 59.76 59.76 61.44 57.36 65.56 46.10
2640
90
68.29 68.29 68.98 68.50 72.19 59.44 64.29 64.29 64.29 64.29 67.21 56.53
2880
75
58.79 53.03 62.88 40.82 69.40 23.56 53.85 49.66 57.64 37.86 63.86 21.00
2880
80
61.85 61.67 64.73 52.06 70.05 37.39 57.06 57.06 59.64 48.95 64.67 34.68
2880
85
65.45 65.45 67.13 61.82 71.25 49.75 60.82 60.82 62.20 58.55 66.02 46.89
2880
90
70.08 70.08 70.08 70.08 72.99 60.62 65.30 65.30 65.30 65.30 67.92 57.61
SHC
67
MBh
SHC
73
MBh
SHC
61
MBh
SHC
67
MBh
SHC
73
MBh
SHC
Notes:
1. All capacities shown are gross and have not considered indoor fan heat. To obtain NET cooling capacity
subtract indoor fan heat. For indoor fan heat formula, refer to appropriate airflow table notes.
2. MBh = Total Gross Capacity
3. SHC = Sensible Heat Capacity
* Unit applications below 320 CFM/Ton are only applicable on THC models without electric heat. Electric and
Gas heat applications are restricted to applications 320 CFM/Ton and above.
72
RT-PRC023AG-EN
Performance Data
Table 29. Gross cooling capacities 6 tons high efficiency - three phase T/YHC072E3,4,W
Ambient Temperature
85
Air
95
Ent
105
Entering Wet Bulb
Flow
DB
cfm
(F)
MBh
61
SHC
MBh
67
SHC
MBh
73
SHC
MBh
61
SHC
MBh
67
SHC
MBh
73
SHC
MBh
61
SHC
MBh
67
SHC
MBh
73
SHC
1200
75
62.5
48.5
69.3
36.5
78.5
19.0
59.7
47.2
66.1
35.7
74.8
18.6
56.6
45.7
62.6
34.7
71.0
18.0
1200
80
63.6
55.8
69.3
46.8
77.3
32.3
60.9
54.3
66.1
45.8
73.8
31.6
57.9
52.6
62.7
44.5
70.0
30.8
1200
85
65.4
61.5
70.0
55.5
76.9
43.9
62.7
59.7
66.9
54.2
73.4
43.0
59.8
57.7
63.5
52.6
69.7
41.9
1200
90
67.9
65.5
71.3
62.5
77.1
53.9
65.3
63.5
68.3
60.9
73.7
52.7
62.4
61.3
65.0
59.1
70.0
51.4
1440
75
64.9
51.2
71.3
38.6
80.1
20.4
61.9
49.7
67.9
37.6
76.3
19.9
58.7
48.0
64.3
36.4
72.3
19.1
1440
80
66.5
59.0
71.7
49.4
79.4
34.2
63.5
57.3
68.4
48.1
75.6
33.4
60.3
55.3
64.8
46.7
71.7
32.3
1440
85
68.7
65.2
72.8
58.6
79.3
46.4
65.8
63.2
69.5
57.1
75.6
45.3
62.7
61.0
66.0
55.3
71.7
44.0
1440
90
71.5
69.8
74.5
66.1
79.9
56.9
68.7
67.5
71.3
64.3
76.3
55.5
65.7
65.1
67.9
62.3
72.5
53.9
1680
75
66.9
53.4
72.9
40.2
81.3
21.4
63.7
51.7
69.3
39.0
77.3
20.6
60.3
49.8
65.5
37.5
73.0
19.6
1680
80
68.8
61.7
73.7
51.5
80.9
35.7
65.7
59.8
70.1
50.0
77.0
34.7
62.3
57.6
66.4
48.3
72.8
33.4
1680
85
71.4
68.5
75.1
61.2
81.2
48.4
68.3
66.3
71.7
59.5
77.4
47.1
65.0
63.9
68.0
57.5
73.3
45.6
1680
90
74.6
73.5
77.3
69.3
82.2
59.4
71.7
71.1
73.9
67.3
78.5
57.8
68.4
68.4
70.3
65.0
74.4
56.0
1920
75
68.3
55.1
73.9
41.3
81.9
21.9
64.9
53.2
70.2
39.9
77.7
20.9
61.3
51.1
66.2
38.2
73.3
19.7
1920
80
70.6
64.0
75.1
53.2
81.9
36.7
67.3
61.8
71.4
51.5
77.8
35.5
63.8
59.5
67.5
49.6
73.5
34.0
1920
85
73.6
71.2
76.9
63.4
82.7
49.9
70.4
68.8
73.3
61.4
78.6
48.4
66.9
66.2
69.4
59.2
74.4
46.7
1920
90
77.2
76.8
79.5
71.9
84.0
61.4
74.1
74.1
75.9
69.7
80.1
59.6
70.7
70.7
72.1
67.3
75.9
57.7
2160
75
69.2
56.4
74.4
41.9
82.0
21.9
65.7
54.2
70.5
40.3
77.7
20.7
61.9
51.9
66.3
38.4
73.1
19.3
2160
80
71.9
65.7
76.0
54.3
82.5
37.3
68.5
63.4
72.1
52.4
78.2
35.8
64.7
60.8
68.0
50.3
73.7
34.1
2160
85
75.3
73.5
78.2
65.0
83.6
50.9
71.9
70.9
74.4
62.9
79.4
49.2
68.2
68.1
70.4
60.5
74.9
47.3
2160
90
79.3
79.3
81.2
74.1
85.4
63.0
76.0
76.0
77.4
71.7
81.2
61.0
72.4
72.4
73.5
69.0
76.8
58.8
2400
75
69.7
57.1
74.5
42.1
81.7
21.5
65.9
54.8
70.4
40.2
77.1
20.0
62.0
52.3
66.0
38.2
72.4
18.4
2400
80
72.7
67.0
76.4
55.0
82.5
37.3
69.1
64.5
72.4
52.9
78.0
35.6
65.2
61.7
68.1
50.5
73.3
33.7
2400
85
76.5
75.3
79.1
66.2
84.0
51.5
72.9
72.5
75.1
63.8
79.6
49.6
69.1
69.1
70.9
61.2
75.0
47.4
2400
90
80.9
80.9
82.4
75.8
86.2
64.1
77.4
77.4
78.4
73.2
81.8
61.9
73.7
73.7
74.3
70.3
77.3
59.5
2640
75
69.6
57.4
74.0
41.8
80.8
20.5
65.7
54.9
69.7
39.7
76.1
18.9
61.5
52.2
65.2
37.4
71.1
17.0
2640
80
73.0
67.8
76.3
55.2
82.0
36.9
69.2
65.1
72.1
52.8
77.4
35.0
65.2
62.1
67.6
50.3
72.5
32.9
2640
85
77.2
76.6
79.4
66.9
83.9
51.6
73.4
73.4
75.2
64.3
79.3
49.4
69.4
69.4
70.8
61.5
74.5
47.1
2640
90
82.0
82.0
83.0
77.0
86.4
64.7
78.3
78.3
79.0
74.2
82.0
62.2
74.4
74.4
74.6
71.1
77.2
59.6
2880
75
69.0
57.2
73.0
41.0
79.4
19.1
64.9
54.5
68.5
38.7
74.5
17.2
60.6
51.6
63.8
36.2
69.4
15.2
2880
80
72.8
68.2
75.7
54.9
81.0
36.0
68.8
65.2
71.3
52.3
76.2
33.9
64.6
62.0
66.7
49.6
71.2
31.6
2880
85
77.4
77.4
79.1
67.1
83.3
51.2
73.4
73.4
74.8
64.3
78.5
48.8
69.3
69.3
70.2
61.3
73.6
46.3
2880
90
82.6
82.6
83.2
77.7
86.2
64.8
78.7
78.7
79.0
74.7
81.6
62.2
74.6
74.6
74.5
71.4
76.7
59.3
continued on next page
RT-PRC023AG-EN
73
Performance Data
Table 29. Gross cooling capacities 6 tons high efficiency - three phase T/YHC072E3,4,W (continued)
Ambient Temperature
115
Air
Ent
125
Entering Wet Bulb
Flow
DB
cfm
(F)
MBh
61
SHC
MBh
67
SHC
MBh
73
SHC
MBh
61
SHC
MBh
67
SHC
MBh
73
SHC
1200
75
53.3
44.1
58.9
33.5
66.9
17.3
49.7
42.2
54.9
32.0
62.5
16.3
1200
80
54.6
50.6
59.1
43.0
65.9
29.8
51.1
48.5
55.2
41.3
61.7
28.5
1200
85
56.6
55.5
60.0
50.9
65.7
40.6
53.2
53.2
56.2
48.9
61.5
39.1
1200
90
59.3
58.8
61.5
57.1
66.1
49.8
56.0
56.0
57.8
54.9
62.0
48.1
1440
75
55.2
46.1
60.4
34.9
68.0
18.1
51.5
44.0
56.3
33.3
63.4
16.9
1440
80
56.9
53.2
61.0
45.0
67.4
31.1
53.3
50.9
56.9
43.1
63.0
29.6
1440
85
59.3
58.6
62.3
53.4
67.6
42.5
55.7
55.7
58.3
51.2
63.2
40.8
1440
90
62.4
62.4
64.2
60.1
68.4
52.2
58.9
58.9
60.3
57.7
64.1
50.2
1680
75
56.6
47.7
61.4
35.9
68.6
18.4
52.7
45.4
57.1
34.0
63.9
17.0
1680
80
58.7
55.3
62.4
46.4
68.4
32.0
54.9
52.7
58.2
44.3
63.8
30.3
1680
85
61.5
61.2
64.1
55.4
69.0
43.8
57.8
57.8
59.9
53.0
64.4
41.9
1680
90
65.0
65.0
66.4
62.6
70.2
54.1
61.3
61.3
62.3
60.0
65.7
51.9
1920
75
57.5
48.8
61.9
36.4
68.7
18.3
53.4
46.3
57.4
34.3
63.8
16.7
1920
80
60.0
56.9
63.3
47.4
68.9
32.3
56.0
54.2
58.9
45.1
64.1
30.5
1920
85
63.2
63.2
65.3
56.9
69.9
44.7
59.3
59.3
61.0
54.3
65.1
42.6
1920
90
67.1
67.1
68.1
64.6
71.5
55.5
63.2
63.2
63.8
61.8
66.8
53.1
2160
75
57.9
49.4
61.9
36.4
68.3
17.7
53.6
46.7
57.3
34.1
63.2
15.9
2160
80
60.8
58.1
63.7
48.0
68.9
32.2
56.6
55.1
59.1
45.4
63.9
30.2
2160
85
64.4
64.4
66.1
57.9
70.2
45.1
60.3
60.3
61.6
55.1
65.3
42.8
2160
90
68.6
68.6
69.2
66.2
72.2
56.4
64.2
64.2
64.8
63.2
67.4
53.8
2400
75
57.8
49.6
61.4
35.9
67.4
16.6
53.3
46.6
56.6
33.4
62.1
14.5
2400
80
61.1
58.7
63.6
48.0
68.4
31.6
56.7
55.5
58.8
45.3
63.3
29.4
2400
85
65.0
65.0
66.4
58.4
70.1
45.1
60.7
60.7
61.7
55.5
65.0
42.5
2400
90
69.7
69.7
69.9
67.3
72.5
56.9
64.6
64.6
65.3
64.0
67.5
54.1
2640
75
57.2
49.2
60.4
34.9
66.0
15.0
52.6
46.1
55.4
32.2
60.6
12.8
2640
80
60.8
58.9
62.9
47.5
67.4
30.6
56.3
55.5
58.0
44.6
62.1
28.1
2640
85
65.2
65.2
66.2
58.5
69.5
44.5
60.7
60.7
61.3
55.3
64.2
41.8
2640
90
70.2
70.2
70.1
67.8
72.3
56.8
64.6
64.6
65.3
64.4
67.1
53.8
2880
75
56.0
48.4
58.9
33.5
64.1
12.9
51.3
45.1
53.7
30.6
58.5
10.5
2880
80
60.1
58.6
61.8
46.6
65.9
29.0
55.4
55.0
56.7
43.5
60.4
26.3
2880
85
64.9
64.9
65.4
58.1
68.4
43.5
60.2
60.2
60.4
54.7
62.9
40.5
2880
90
69.0
69.0
69.7
68.0
71.5
56.3
64.1
64.1
64.8
64.3
66.2
53.1
Notes:
1. All capacities shown are gross and have not considered indoor fan heat. To obtain NET cooling capacity
subtract indoor fan heat. For indoor fan heat formula, refer to appropriate airflow table notes.
2. MBh = Total Gross Capacity
3. SHC = Sensible Heat Capacity
* Unit applications below 320 CFM/Ton are only applicable on THC models without electric heat. Electric and
Gas heat applications are restricted to applications 320 CFM/Ton and above.
74
RT-PRC023AG-EN
Performance Data
Table 30. Gross cooling capacities 7½ tons high efficiency - three phase T/YHC092F3,4,W
Ambient Temperature
85
Air
95
Ent
105
Entering Wet Bulb
Flow
DB
cfm
(F)
MBh
61
SHC
MBh
67
SHC
MBh
73
SHC
MBh
61
SHC
MBh
67
SHC
MBh
73
SHC
MBh
61
SHC
MBh
67
SHC
MBh
73
SHC
1500
75
73.3
55.9
82.4
43.1
94.8
24.4
69.0
53.3
77.7
40.9
89.7
22.7
64.4
50.6
72.8
38.6
84.4
20.9
1500
80
74.0
64.4
81.6
54.6
92.4
39.1
69.8
61.6
77.1
52.3
87.5
37.1
65.4
58.6
72.3
49.7
82.3
35.0
1500
85
75.5
71.1
81.6
64.4
90.9
52.0
71.5
68.0
77.2
61.8
86.1
49.8
67.2
64.8
72.5
59.0
81.0
47.4
1500
90
77.7
76.0
82.3
72.4
90.1
63.1
73.8
72.6
78.0
69.5
85.4
60.6
69.7
69.2
73.5
66.5
80.5
58.0
1800
75
77.3
60.2
86.1
46.9
98.1
27.8
72.8
57.5
81.3
44.6
92.9
25.9
68.1
54.7
76.2
42.2
87.4
23.9
1800
80
78.3
69.1
85.6
58.9
96.1
42.9
74.0
66.1
80.9
56.3
91.0
40.7
69.5
63.0
76.0
53.6
85.7
38.4
1800
85
80.1
76.2
85.9
69.1
94.9
56.1
76.0
73.0
81.3
66.3
89.9
53.8
71.5
69.6
76.5
63.3
84.7
51.2
1800
90
82.7
81.5
86.9
77.5
94.4
67.6
78.7
78.0
82.5
74.4
89.6
65.0
74.4
74.4
77.9
71.2
84.5
62.2
2100
75
80.8
64.2
89.3
50.4
101.0
30.7
76.3
61.3
84.4
47.9
95.7
28.7
71.4
58.3
79.1
45.3
90.1
26.5
2100
80
82.2
73.5
89.2
62.7
99.3
46.2
77.8
70.3
84.4
60.0
94.1
43.9
73.1
67.1
79.3
57.2
88.6
41.5
2100
85
84.4
80.9
89.8
73.3
98.4
59.9
80.0
77.6
85.1
70.4
93.3
57.3
75.5
74.0
80.1
67.3
88.0
54.6
2100
90
87.2
86.6
91.1
82.1
98.3
71.8
83.1
83.0
86.6
78.9
93.3
69.0
78.6
78.6
81.8
75.5
88.1
66.0
2400
75
84.0
67.7
92.2
53.4
103.5
33.3
79.3
64.7
87.0
50.8
98.0
31.1
74.3
61.5
81.7
48.0
92.2
28.7
2400
80
85.7
77.4
92.3
66.2
102.1
49.1
81.1
74.1
87.3
63.3
96.8
46.7
76.2
70.7
82.1
60.3
91.1
44.1
2400
85
88.1
85.3
93.2
77.1
101.5
63.2
83.7
81.7
88.4
74.0
96.3
60.5
79.0
78.1
83.3
70.8
90.8
57.7
2400
90
91.4
91.4
94.9
86.3
101.7
75.5
87.0
87.0
90.2
83.0
96.6
72.5
82.5
82.5
85.3
79.4
91.3
69.4
2700
75
86.7
70.8
94.5
56.0
105.5
35.4
81.8
67.7
89.3
53.3
99.9
33.0
76.7
64.3
83.7
50.4
94.0
30.6
2700
80
88.7
80.9
95.0
69.2
104.5
51.6
84.0
77.5
89.9
66.2
99.0
49.0
79.0
73.9
84.5
63.0
93.2
46.3
2700
85
91.5
89.2
96.3
80.6
104.2
66.1
86.9
85.5
91.3
77.3
98.9
63.3
82.0
81.7
86.0
73.9
93.2
60.3
2700
90
95.0
95.0
98.3
90.1
104.7
78.8
90.6
90.6
93.4
86.6
99.5
75.7
85.8
85.8
88.3
83.0
94.0
72.4
3000
75
89.0
73.6
96.5
58.2
107.2
37.1
83.9
70.2
91.1
55.3
101.4
34.6
78.7
66.7
85.4
52.3
95.3
32.0
3000
80
91.3
84.0
97.3
71.8
106.4
53.7
86.4
80.4
92.0
68.6
100.8
51.0
81.3
76.7
86.5
65.3
94.9
48.1
3000
85
94.4
92.7
98.8
83.6
106.5
68.6
89.7
88.9
93.7
80.1
101.0
65.6
84.7
84.7
88.3
76.6
95.2
62.5
3000
90
98.3
98.3
101.2
93.6
107.3
81.7
93.7
93.7
96.2
89.9
101.9
78.4
88.8
88.8
90.9
86.0
96.2
75.0
3300
75
90.8
75.9
98.0
60.0
108.3
38.4
85.6
72.4
92.4
57.0
102.4
35.7
80.2
68.7
86.6
53.8
96.2
33.0
3300
80
93.5
86.7
99.1
74.0
107.9
55.4
88.4
83.0
93.7
70.7
102.1
52.5
83.1
79.1
88.0
67.2
96.1
49.5
3300
85
96.9
95.8
101.0
86.2
108.3
70.7
92.0
91.8
95.7
82.6
102.6
67.6
86.8
86.8
90.2
78.9
96.7
64.2
3300
90
101.1 101.1 103.6
96.5
109.4
84.2
96.3
96.3
98.5
92.7
103.9
80.8
91.3
91.3
93.1
88.7
98.1
77.2
3600
75
92.2
77.8
99.0
61.4
109.1
39.3
86.9
74.1
93.3
58.2
103.0
36.5
81.3
70.3
87.4
54.8
96.6
33.5
3600
80
95.2
89.0
100.5
75.8
109.0
56.7
90.0
85.1
94.9
72.3
103.0
53.7
84.6
81.1
89.1
68.7
96.8
50.5
3600
85
98.9
98.5
102.7
88.4
109.7
72.4
93.9
93.9
97.3
84.6
103.9
69.1
88.6
88.6
91.6
80.7
97.8
65.6
3600
90
103.4 103.4 105.7
99.1
111.1
86.3
98.5
98.5
100.4
95.1
105.4
82.7
93.4
93.4
94.8
91.0
99.5
79.0
continued on next page
RT-PRC023AG-EN
75
Performance Data
Table 30. Gross cooling capacities 7½ tons high efficiency - three phase T/YHC092F3,4,W (continued)
Ambient Temperature
115
Air
Ent
125
Entering Wet Bulb
Flow
DB
cfm
(F)
MBh
61
SHC
MBh
67
SHC
MBh
73
SHC
MBh
61
SHC
MBh
67
SHC
MBh
73
SHC
1500
75
59.6
47.7
67.6
36.2
78.8
18.8
54.5
44.7
62.1
33.6
72.9
16.7
1500
80
60.7
55.5
67.2
47.0
76.9
32.7
55.8
52.2
61.9
44.2
71.1
30.3
1500
85
62.6
61.4
67.6
56.0
75.7
44.9
57.8
57.8
62.4
52.9
70.1
42.2
1500
90
65.3
65.3
68.7
63.3
75.3
55.2
60.6
60.6
63.7
59.9
69.9
52.2
1800
75
63.2
51.6
70.8
39.6
81.7
21.7
57.9
48.5
65.2
36.8
75.7
19.4
1800
80
64.6
59.8
70.8
50.8
80.1
36.0
59.5
56.3
65.3
47.8
74.2
33.4
1800
85
66.9
66.1
71.5
60.2
79.3
48.5
61.9
61.9
66.1
57.0
73.5
45.7
1800
90
69.8
69.8
72.9
67.8
79.2
59.3
65.0
65.0
67.7
64.3
73.6
56.2
2100
75
66.3
55.1
73.6
42.6
84.2
24.2
60.9
51.8
67.9
39.7
78.0
21.7
2100
80
68.1
63.6
73.9
54.2
82.9
38.9
62.9
60.0
68.3
51.0
76.9
36.1
2100
85
70.6
70.3
74.9
64.0
82.4
51.8
65.6
65.6
69.4
60.6
76.5
48.8
2100
90
74.0
74.0
76.7
72.0
82.6
62.9
69.0
69.0
71.4
68.3
76.9
59.7
2400
75
69.0
58.2
76.0
45.1
86.2
26.3
63.5
54.7
70.1
42.1
79.9
23.6
2400
80
71.1
67.1
76.6
57.1
85.3
41.4
65.7
63.4
70.8
53.8
79.1
38.5
2400
85
74.0
74.0
77.9
67.3
85.1
54.7
68.8
68.8
72.3
63.8
79.0
51.5
2400
90
77.6
77.6
80.0
75.8
85.6
66.2
72.5
72.5
74.5
71.9
79.8
62.8
2700
75
71.3
60.9
77.9
47.3
87.8
27.9
65.6
57.2
71.9
44.1
81.4
25.1
2700
80
73.7
70.2
78.9
59.7
87.2
43.4
68.2
66.3
72.9
56.2
80.9
40.4
2700
85
76.9
76.9
80.5
70.3
87.3
57.1
71.5
71.5
74.7
66.6
81.2
53.8
2700
90
80.9
80.9
82.9
79.1
88.2
69.0
75.6
75.6
77.3
75.1
82.2
65.5
3000
75
73.1
63.1
79.4
49.0
89.0
29.2
67.3
59.3
73.3
45.7
82.4
26.2
3000
80
75.9
72.8
80.7
61.8
88.7
45.1
70.2
68.8
74.6
58.2
82.2
41.8
3000
85
79.4
79.4
82.7
72.8
89.1
59.2
73.9
73.9
76.7
69.0
82.8
55.7
3000
90
83.7
83.7
85.4
82.1
90.3
71.5
78.8
78.8
79.6
77.9
84.2
67.7
3300
75
74.5
64.9
80.5
50.4
89.7
30.0
68.6
61.0
74.2
46.9
83.0
26.9
3300
80
77.6
75.0
82.1
63.6
89.7
46.3
71.8
70.8
75.9
59.8
83.1
42.9
3300
85
81.4
81.4
84.4
75.0
90.5
60.8
75.8
75.8
78.3
70.9
84.1
57.2
3300
90
86.0
86.0
87.4
84.6
92.0
73.5
80.7
80.7
81.5
80.3
85.7
69.6
3600
75
75.5
66.4
81.1
51.3
90.0
30.4
69.4
62.3
74.7
47.6
83.1
27.2
3600
80
78.9
76.9
83.0
64.9
90.3
47.1
72.9
72.5
76.7
61.0
83.6
43.6
3600
85
83.0
83.0
85.6
76.7
91.4
62.0
77.2
77.2
79.4
72.5
84.8
58.2
3600
90
88.0
88.0
89.0
86.7
93.3
75.1
82.1
82.1
83.0
82.3
86.8
71.1
Notes:
1. All capacities shown are gross and have not considered indoor fan heat. To obtain NET cooling capacity
subtract indoor fan heat. For indoor fan heat formula, refer to appropriate airflow table notes.
2. MBh = Total Gross Capacity
3. SHC = Sensible Heat Capacity
* Unit applications below 320 CFM/Ton are only applicable on THC models without electric heat. Electric and
Gas heat applications are restricted to applications 320 CFM/Ton and above.
76
RT-PRC023AG-EN
Performance Data
Table 31. Gross cooling capacities 8½ tons high efficiency - three phase T/YHC102F3,4,W
Ambient Temperature
85
Air
95
Ent
105
Entering Wet Bulb
Flow
DB
cfm
(F)
MBh
61
SHC
MBh
SHC
MBh
SHC
MBh SHC MBh SHC
MBh
SHC
MBh
SHC
MBh
SHC
MBh
SHC
1700
75
84.40
64.2
93.7
45.5
106.8
18.8
80.3
62.2
89.2
44.2
101.9
31.4
75.7
59.8
84.2
42.6
96.6
30.3
1700
80
85.75
74.8
92.9
60.7
103.8
38.6
81.7
72.4
88.4
59.0
98.9
37.5
77.1
69.6
83.5
56.9
93.6
36.2
1700
85
87.95
82.5
92.9
73.0
101.6
55.4
83.9
79.6
88.4
70.8
96.7
54.0
79.4
76.4
83.5
68.3
91.5
52.2
1700
90
91.00
87.2
93.7
82.3
100.3
69.4
87.0
83.9
89.3
79.7
95.4
67.5
82.5
80.3
84.4
76.8
90.2
65.2
2040
75
87.32
68.6
96.2
50.1
108.8
23.5
83.1
66.4
91.5
48.6
103.8
35.6
78.4
63.9
86.4
46.8
98.3
34.2
2040
80
88.93
79.4
95.6
65.4
106.0
43.4
84.7
76.7
90.9
63.5
101.0
42.2
80.1
73.7
85.9
61.2
95.6
40.6
2040
85
91.38
87.1
95.8
77.8
104.1
60.4
87.2
84.0
91.2
75.4
99.1
58.7
82.6
80.6
86.2
72.7
93.7
56.7
2040
90
94.68
92.0
96.9
87.2
103.0
74.4
90.5
88.5
92.4
84.4
98.1
72.3
86.0
84.6
87.4
81.3
92.7
69.9
2380
75
89.93
72.7
98.3
54.3
110.5
27.9
85.6
70.3
93.5
52.6
105.3
39.4
80.8
67.6
88.3
50.6
99.7
37.9
2380
80
91.79
83.5
97.9
69.8
107.9
47.9
87.5
80.7
93.2
67.6
102.8
46.5
82.7
77.5
88.1
65.1
97.3
44.7
2380
85
94.50
91.4
98.5
82.2
106.2
65.0
90.2
88.1
93.8
79.6
101.2
63.1
85.5
84.5
88.6
76.8
95.6
60.9
2380
90
98.05
96.3
99.8
91.8
105.4
79.1
93.8
92.6
95.2
88.7
100.4
76.8
89.1
88.6
90.1
85.4
94.9
74.2
2720
75
92.23
76.4
100.1
58.2
111.8
31.9
87.7
73.8
95.2
56.3
106.5
43.0
82.8
70.9
89.9
54.1
100.8
41.3
2720
80
94.34
87.3
100.0
73.7
109.5
52.0
89.9
84.3
95.2
71.4
104.3
50.4
85.0
80.9
89.9
68.7
98.6
48.5
2720
85
97.30
95.3
100.8
86.3
108.1
69.2
92.9
91.8
96.0
83.5
102.9
67.1
88.0
88.1
90.7
80.4
97.3
64.8
2720
90
101.11 100.4 102.4
95.9
107.5
83.4
96.7
96.5
97.6
92.7
102.3
80.9
91.9
92.2
92.4
89.2
96.7
78.1
3060
75
94.21
79.8
101.6
61.7
112.8
47.8
89.6
77.0
96.6
59.6
107.5
46.2
84.6
73.8
91.2
57.2
101.6
44.3
3060
80
96.57
90.8
101.8
77.3
110.8
55.8
92.0
87.6
96.8
74.8
105.5
54.0
87.0
84.0
91.4
72.0
99.7
51.8
3060
85
99.79
98.9
102.8
90.0
109.6
73.1
95.3
95.2
97.9
87.0
104.3
70.8
90.3
91.2
92.5
83.8
98.6
68.2
3060
90
103.85 104.0 104.7
99.7
109.3
87.4
99.3
99.9
99.8
96.3
104.0
84.7
94.4
95.5
94.4
92.6
98.3
81.7
3400
75
95.88
82.8
102.8
64.9
113.6
50.8
91.2
79.8
97.7
62.6
108.0
49.1
86.0
76.4
92.1
60.0
102.1
47.0
3400
80
98.49
93.9
103.2
80.6
111.8
69.2
93.8
90.5
98.1
77.9
106.3
67.0
88.7
86.7
92.6
74.8
100.4
64.6
3400
85
101.96 102.1 104.5
93.4
110.9
76.6
97.3
98.2
99.4
90.2
105.4
74.1
92.2
94.0
94.0
86.7
99.5
71.4
3400
90
106.28 107.3 106.6 103.2 110.8
91.0
101.7 103.0 101.6 99.6
105.4
88.1
96.6
98.4
96.2
95.7
99.5
84.9
3740
75
85.4
103.7
67.7
114.0
53.6
92.4
82.2
98.4
65.2
108.3
51.7
87.1
78.7
92.8
62.4
102.3
49.4
3740
80
100.10 96.6
104.4
83.5
112.4
72.1
95.3
93.0
99.2
80.6
106.8
69.8
90.1
89.1
93.5
77.3
100.8
67.1
3740
85
103.82 104.9 105.9
96.4
111.8
79.7
99.0 100.9 100.7 93.0
106.2
77.1
93.9
96.5
95.1
89.3
100.2
74.1
3740
90
108.39 110.3 108.3 106.3 111.9
91.2
98.5
101.0
97.6
98.4
100.5
87.8
4080
75
53.9
87.9
80.6
93.1
64.4
102.1
51.5
4080
4080
4080
97.23
98.27
67
73
94.3
87.7
104.2
70.1
114.1
56.0
80
101.39 99.0
105.2
86.0
112.8
74.7
85
105.36 107.4 106.9
99.0
112.4
82.5
90
110.19 112.9 109.6 104.7 112.8
97.1
61
67
73
103.6 105.8 103.1 102.5 106.4
108.3
61
67
73
93.3
84.3
98.9
67.4
96.5
95.2
99.8
82.9
107.1
72.2
91.1
91.0
94.1
79.5
100.9
69.4
100.5 103.1 101.7 95.4
106.7
79.7
95.2
98.6
95.9
91.6
100.6
76.5
105.3 108.2 104.3 105.0 107.1
93.9
100.7 101.1
90.3
100.0 103.2
98.6
continued on next page
RT-PRC023AG-EN
77
Performance Data
Table 31. Gross cooling capacities 8½ tons high efficiency - three phase T/YHC102F3,4,W (continued)
Ambient Temperature
115
Air
Ent
125
Entering Wet Bulb
Flow
DB
cfm
(F)
MBh
61
SHC
MBh
67
SHC
MBh
73
SHC
MBh SHC MBh SHC
61
67
MBh
73
SHC
1700
75
70.8
57.2
78.9
40.6
90.8
16.0
65.4
54.2
73.1
38.3
84.6
14.4
1700
80
72.2
66.5
78.1
54.5
87.9
34.5
66.9
63.1
72.4
51.8
81.7
32.5
1700
85
74.5
72.9
78.2
65.5
85.8
50.1
69.2
69.0
72.5
62.4
79.7
47.6
1700
90
77.7
76.3
79.2
73.5
84.5
62.7
72.4
72.0
73.5
70.0
78.5
59.8
2040
75
73.3
61.0
81.0
44.6
92.4
20.1
67.8
57.8
75.1
42.1
86.1
18.4
2040
80
75.0
70.4
80.5
58.6
89.7
38.8
69.6
66.8
74.6
55.7
83.5
36.6
2040
85
77.6
76.9
80.8
69.7
87.9
54.4
72.1
72.9
75.0
66.4
81.7
51.8
2040
90
81.0
80.5
82.0
77.8
86.9
67.1
75.6
76.0
76.2
74.1
80.7
64.1
2380
75
75.6
64.5
82.7
48.3
93.7
23.9
69.9
61.1
76.7
45.6
87.3
22.0
2380
80
77.5
74.0
82.5
62.4
91.3
42.7
71.9
70.2
76.5
59.3
84.9
40.3
2380
85
80.3
80.6
83.1
73.5
89.7
58.4
74.8
76.4
77.2
70.0
83.4
55.6
2380
90
84.0
84.3
84.6
81.8
89.0
71.2
78.5
79.6
78.7
77.8
82.7
68.0
2720
75
77.5
67.6
84.2
51.5
94.7
27.4
71.8
64.1
78.1
48.7
88.2
25.2
2720
80
79.7
77.3
84.2
65.8
92.5
46.2
74.0
73.3
78.1
62.5
86.0
43.6
2720
85
82.8
83.9
85.1
77.0
91.2
62.1
77.1
79.5
79.0
73.3
84.7
59.0
2720
90
86.7
87.7
86.8
85.4
90.7
75.0
81.1
82.8
80.8
81.2
84.3
71.5
3060
75
79.1
70.4
85.3
54.5
95.4
30.5
73.3
66.6
79.1
51.4
88.7
28.1
3060
80
81.6
80.1
85.6
68.8
93.5
49.4
75.8
75.9
79.4
65.3
86.8
46.6
3060
85
84.9
86.9
86.7
80.2
92.4
65.3
79.1
82.3
80.5
76.2
85.8
62.1
3060
90
89.1
90.8
88.7
88.6
92.2
78.4
83.3
85.7
82.6
84.3
85.6
74.7
3400
75
80.4
72.8
86.2
57.0
95.8
44.7
74.5
68.9
79.8
53.8
89.0
30.7
3400
80
83.2
82.6
86.7
71.5
94.1
52.2
77.2
78.3
80.4
67.8
87.3
49.2
3400
85
86.7
89.5
88.1
82.9
93.3
68.3
80.8
84.7
81.8
78.8
86.5
64.9
3400
90
91.2
93.5
90.3
91.5
93.3
81.4
85.3
88.2
84.0
86.9
86.6
77.6
3740
75
81.4
74.9
86.7
59.2
95.8
46.9
75.3
70.7
80.2
55.8
88.9
32.8
3740
80
84.4
84.8
87.5
73.8
94.4
64.2
78.3
80.2
81.0
69.9
87.5
51.5
3740
85
88.2
91.8
89.1
85.3
93.8
70.8
82.2
86.8
82.7
81.0
87.0
67.2
3740
90
92.9
95.8
91.6
94.0
94.1
84.1
86.9
90.4
85.2
89.2
87.3
80.0
4080
75
82.1
76.6
86.9
61.1
95.5
48.8
75.9
72.2
80.3
57.5
88.5
34.6
4080
80
85.3
86.6
87.9
75.7
94.4
66.2
79.2
81.8
81.4
71.6
87.4
53.4
4080
85
89.4
93.7
89.8
87.4
94.0
73.0
83.3
88.5
83.3
82.9
87.1
69.3
4080
90
94.4
97.8
92.5
96.1
94.6
86.4
88.2
92.2
86.0
91.2
87.7
82.2
Notes:
1. All capacities shown are gross and have not considered indoor fan heat. To obtain NET cooling capacity
subtract indoor fan heat. For indoor fan heat formula, refer to appropriate airflow table notes.
2. MBh = Total Gross Capacity
3. SHC = Sensible Heat Capacity
* Unit applications below 320 CFM/Ton are only applicable on THC models without electric heat. Electric and
Gas heat applications are restricted to applications 320 CFM/Ton and above.
78
RT-PRC023AG-EN
Performance Data
Table 32. Gross cooling capacities 10 tons high efficiency - three phase T/YHC120E3,4,W
Ambient Temperature
85
Air
Ent
Flow
DB
(cfm) (F)
95
105
Entering Wet Bulb
61
67
73
61
67
73
61
67
73
MBh
SHC
MBh
SHC
MBh
SHC
MBh
SHC
MBh
SHC
MBh
SHC
MBh
SHC
MBh
SHC
MBh
SHC
2000
75
93.8
74.5
106.3
54.0
122.9
23.2
88.7
71.5
100.4
52.1
116.1
38.0
83.2
68.2
94.0
49.9
109.0
36.6
2000
80
95.7
83.6
106.1
68.9
120.6
43.8
90.6
80.1
100.2
66.4
113.9
42.5
85.2
76.2
94.0
63.7
106.8
40.9
2000
85
98.4
90.2
106.8
81.2
119.1
61.9
93.5
86.1
101.0
78.2
112.6
60.1
88.2
81.7
94.9
74.9
105.6
57.9
2000
90
102.1
94.2
108.4
91.0
118.7
77.4
97.3
89.5
102.7
87.4
112.2
75.0
92.1
84.6
96.7
83.6
105.4
72.3
2400
75
98.7
80.6
110.5
59.6
126.3
28.3
93.3
77.3
104.3
57.4
119.3
42.7
87.6
73.7
97.7
54.9
111.9
41.0
2400
80
100.9
90.6
110.7
75.3
124.4
49.8
95.7
86.7
104.6
72.6
117.5
48.2
90.1
82.6
98.1
69.6
110.3
46.3
2400
85
104.1
98.1
111.8
88.6
123.5
68.8
99.0
93.7
105.8
85.3
116.7
66.6
93.5
88.9
99.5
81.7
109.5
64.2
2400
90
108.3 103.0 113.8
99.2
123.5
85.2
103.2
98.0
107.9
95.4
116.8
82.5
97.8
92.8
101.7
91.3
109.7
79.5
2800
75
103.0
86.1
114.1
64.7
129.3
32.9
97.4
82.5
107.7
62.2
122.1
46.9
91.5
78.6
101.0
59.4
114.5
44.9
2800
80
105.8
97.1
114.8
81.3
127.9
55.3
100.3
92.9
108.5
78.3
120.8
53.4
94.4
88.4
101.8
75.0
113.3
51.2
2800
85
109.4 105.4 116.4
95.5
127.4
75.2
104.0 100.7 110.1
91.9
120.4
72.7
98.3
95.7
103.6
88.0
113.0
69.9
2800
90
114.0 111.3 118.9 107.0 127.8
92.5
108.7 106.0 112.7 102.9 120.9
89.5
103.0 100.4 106.3
98.4
113.6
86.2
3200
75
107.0
117.4
69.2
131.9
37.0
101.1
87.3
110.7
66.5
124.4
50.6
94.9
83.1
103.7
63.4
116.6
48.3
3200
80
110.1 103.0 118.5
86.8
130.9
60.3
104.4
98.6
111.9
83.5
123.5
58.1
98.3
93.8
105.0
79.8
115.8
55.6
3200
85
114.2 112.3 120.5 101.8 130.8
81.0
108.6 107.3 114.0
97.9
123.6
78.3
102.6 102.0 107.3
93.7
116.0
75.2
3200
90
119.2 119.0 123.4 114.3 131.7
99.3
113.7 113.5 117.1 109.9 124.5
95.9
107.9 107.6 110.4 105.1 117.0
92.3
3600
75
110.4
120.1
73.3
134.0
56.1
104.4
113.3
70.2
126.3
53.9
98.0
87.0
106.1
66.8
118.2
3600
80
114.0 108.5 121.7
91.8
133.4
64.7
108.1 103.7 114.9
88.1
125.8
62.2
101.8
98.7
107.8
84.2
117.9
59.4
3600
85
118.6 118.6 124.2 107.7 133.8
86.4
112.7 112.7 117.5 103.5 126.3
83.3
106.5 106.5 110.5
99.0
118.5
80.0
3600
90
124.1 124.1 127.6 121.0 135.1 105.5 118.3 118.3 121.0 116.3 127.7 101.9 112.2 112.2 114.1 111.2 120.0
98.0
4000
75
113.4
122.5
76.9
135.6
59.2
107.2
115.4
73.5
127.7
56.6
100.5
107.9
69.8
119.4
53.8
4000
80
117.5 113.4 124.5
96.2
135.5
81.6
111.3 108.4 117.5
92.3
127.7
78.6
104.8 103.0 110.1
88.0
119.5
75.2
4000
85
122.5 122.5 127.4 113.0 136.4
91.3
116.4 116.4 120.5 108.5 128.6
87.9
110.0 110.0 113.2 103.7 120.6
84.2
4000
90
128.4 128.4 131.2 127.3 138.1 111.3 122.4 122.4 124.4 122.3 130.5 107.4 116.1 116.1 117.3 116.9 122.5 103.1
4400
75
116.0 103.4 124.3
136.8
61.8
109.5
117.0
76.2
128.6
58.9
102.6
109.3
72.2
120.1
55.8
4400
80
120.5 117.9 126.8 100.2 137.1
85.1
114.1 112.5 119.6
95.9
129.1
81.8
107.3 106.8 112.0
91.4
120.7
78.1
4400
85
126.0 126.0 130.2 117.9 138.4
95.6
119.6 119.6 123.0 113.1 130.5
91.9
113.0 113.0 115.6 108.0 122.2
87.9
4400
90
132.3 132.3 134.4 133.0 140.6 116.5 126.1 126.1 127.4 127.4 132.8 112.3 119.6 119.6 120.0 120.0 124.6 107.7
4800
75
118.1 106.4 125.8
137.5
63.9
111.4 101.3 118.2
78.5
129.1
60.8
104.3
110.3
74.1
120.4
57.3
4800
80
123.1 121.8 128.7 103.6 138.3
88.1
116.4 116.1 121.2
99.1
130.1
84.5
109.4 109.4 113.4
94.2
121.4
81.1
4800
85
129.0 129.0 132.5 122.2 140.1
99.4
122.4 122.4 125.1 117.1 131.9
95.5
115.5 115.5 117.4 111.7 123.4
91.2
4800
90
135.8 135.8 137.2 128.3 142.7 121.2 129.3 129.3 130.0 130.0 134.7 116.7 122.6 122.6 122.4 122.4 126.2 111.9
91.2
95.8
99.8
79.9
82.4
91.6
95.3
98.6
90.5
93.4
95.8
51.3
continued on next page
RT-PRC023AG-EN
79
Performance Data
Table 32. Gross cooling capacities 10 tons high efficiency - three phase T/YHC120E3,4,W (continued)
Ambient Temperature
115
Air
Ent
Flow
DB
(cfm) (F)
125
Entering Wet Bulb
61
67
73
61
67
73
MBh
SHC
MBh
SHC
MBh
SHC
MBh
SHC
MBh
SHC
MBh
SHC
2000
75
77.4
64.5
87.4
47.4
101.5
20.0
71.1
60.6
80.3
44.6
93.6
18.3
2000
80
79.5
72.0
87.4
60.6
99.4
39.0
73.4
67.5
80.5
57.3
91.7
36.7
2000
85
82.5
76.9
88.4
71.3
98.3
55.4
76.5
71.9
81.6
67.4
90.7
52.6
2000
90
86.5
79.3
90.3
79.4
98.2
69.2
80.6
73.7
83.6
74.9
90.6
65.9
2400
75
81.5
69.7
90.8
52.1
104.2
24.2
75.1
65.4
83.6
49.0
96.2
22.2
2400
80
84.1
78.1
91.3
66.2
102.7
44.1
77.7
73.3
84.2
62.5
94.7
41.5
2400
85
87.6
83.9
92.8
77.8
102.0
61.4
81.4
78.5
85.7
73.5
94.1
58.2
2400
90
92.0
87.2
95.1
86.8
102.3
76.1
85.9
81.2
88.2
82.0
94.5
72.4
2800
75
85.2
74.4
93.8
56.3
106.5
27.9
78.5
69.8
86.3
52.8
98.3
25.6
2800
80
88.2
83.6
94.8
71.3
105.4
48.6
81.7
78.5
87.4
67.3
97.2
45.8
2800
85
92.2
90.4
96.7
83.7
105.2
66.8
85.7
84.7
89.4
79.2
97.1
63.4
2800
90
97.0
94.5
99.5
93.7
105.9
82.5
90.7
88.3
92.3
88.6
98.0
78.5
3200
75
88.4
78.5
96.4
59.9
108.4
31.0
81.5
73.7
88.7
56.2
99.9
28.4
3200
80
91.9
88.7
97.8
75.9
107.7
52.7
85.1
83.3
90.2
71.5
99.3
49.5
3200
85
96.3
96.3
100.1
89.2
108.0
71.8
89.6
89.6
92.6
84.4
99.7
68.1
3200
90
101.6 101.4 103.4 100.0 109.2
88.4
95.0
94.8
96.0
94.6
100.9
84.1
3600
75
3600
80
3600
85
3600
90
4000
75
93.5
85.3
100.1
65.7
4000
80
97.9
97.3
102.4
4000
85
103.2 103.2 105.6
4000
90
4400
75
4400
91.2
82.2
98.5
63.1
109.8
33.7
84.1
77.0
90.5
59.0
101.1
30.8
95.1
93.3
100.3
79.9
109.6
56.3
88.1
87.5
92.5
75.3
100.9
52.8
100.0 100.0 103.1
94.2
110.3
76.3
93.1
93.1
95.4
89.0
101.7
72.2
105.8 105.8 106.8 105.9 111.9
93.7
98.9
98.9
99.2
99.2
103.5
89.1
110.8
50.6
86.2
79.9
92.0
61.4
101.8
32.6
83.4
111.0
59.3
90.7
90.7
94.4
78.5
102.1
55.5
98.6
112.1
80.2
96.1
96.1
97.7
93.1
103.4
75.9
109.4 109.4 109.8 109.8 114.2
98.5
102.4 102.4 101.9 101.9 105.5
93.6
95.4
101.3
67.9
111.3
52.4
87.8
82.2
92.9
63.2
102.1
33.9
80
100.2 100.2 104.1
86.5
112.0
74.6
92.8
92.8
95.8
81.3
102.8
57.7
4400
85
106.0 106.0 107.7 102.5 113.5
83.6
98.6
98.6
99.5
96.8
104.5
79.0
4400
90
112.7 112.7 112.3 112.3 116.1 102.9 105.4 105.4 104.2 104.2 107.2
97.7
4800
75
4800
96.8
88.0
90.1
102.0
69.5
111.3
53.6
89.0
84.0
93.4
64.5
101.9
34.8
80
102.1 102.1 105.2
89.0
112.5
77.6
94.4
94.4
96.7
83.5
103.1
59.5
4800
85
108.3 108.3 109.4 105.9 114.5
86.5
99.9
105.3
81.6
4800
90
115.4 115.4 114.4 114.4 117.5 106.7 107.9 107.9 106.1 106.1 108.3 101.2
100.7 100.7 101.0
Notes:
1. All capacities shown are gross and have not considered indoor fan heat. To obtain NET cooling capacity
subtract indoor fan heat. For indoor fan heat formula, refer to appropriate airflow table notes.
2. MBh = Total Gross Capacity
3. SHC = Sensible Heat Capacity
* Unit applications below 320 CFM/Ton are only applicable on THC models without electric heat. Electric and
Gas heat applications are restricted to applications 320 CFM/Ton and above.
80
RT-PRC023AG-EN
Direct Drive - Evaporator Fan Performance
Table 33. Multispeed direct drive evaporator fan performance 3 - 5 tons - standard efficiency - no electric heat
TSC036, 048, 060E1
Tons
Unit Model
Number
cfm
3
TSC036E1
Downflow
Airflow
3
TSC036E1
Horizontal
Airflow
4
TSC048E1
Downflow
Airflow
4
TSC048E1
Horizontal
Airflow
5
TSC060E1
Downflow
Airflow
5
TSC060E1
Horizontal
Airflow
960
1020
1080
1140
1200
1260
1320
1380
1440
960
1020
1080
1140
1200
1260
1320
1380
1440
1280
1360
1440
1520
1600
1680
1760
1840
1920
1280
1360
1440
1520
1600
1680
1760
1840
1920
1600
1700
1800
1900
2000
2100
2200
2300
2400
1600
1700
1800
1900
2000
2100
2200
2300
2400
External Static Pressure (Inches of Water) & Motor Power (Bhp)(a)
Standard Low
Standard High
Rated
Speed
Mid Speed
Speed
High Speed
Speed Set 1
Speed Set 2
Speed Set 3
Speed Set 4
Speed Set 5
ESP rpm bhp ESP rpm bhp ESP rpm bhp ESP rpm bhp ESP rpm bhp
0.45
0.39
0.33
0.27
0.21
0.15
0.09
0.03
—
0.45
0.39
0.32
0.26
0.20
0.13
0.07
0.01
—
0.60
0.48
0.37
0.25
0.14
0.02
—
—
—
0.61
0.51
0.40
0.30
0.19
0.09
—
—
—
0.75
0.60
0.45
0.30
0.14
0.00
—
—
—
0.73
0.60
0.46
0.33
0.19
0.05
—
—
—
715
695
675
654
634
614
593
573
—
711
689
667
644
622
599
577
555
—
865
833
802
770
739
707
—
—
—
864
831
798
766
733
701
—
—
—
1006
969
933
896
860
826
—
—
—
1003
968
934
899
864
829
—
—
—
0.21
0.20
0.20
0.19
0.18
0.18
0.17
0.17
—
0.21
0.20
0.19
0.19
0.18
0.17
0.17
0.16
—
0.36
0.35
0.34
0.32
0.31
0.30
—
—
—
0.36
0.35
0.33
0.32
0.31
0.29
—
—
—
0.60
0.58
0.56
0.54
0.52
0.50
—
—
—
0.60
0.58
0.56
0.54
0.52
0.50
—
—
—
0.74
0.66
0.59
0.51
0.43
0.35
0.28
0.20
0.12
0.70
0.63
0.56
0.48
0.41
0.33
0.26
0.18
0.11
0.84
0.72
0.60
0.48
0.36
0.24
0.13
0.01
—
0.84
0.73
0.62
0.51
0.40
0.29
0.18
0.08
—
0.91
0.75
0.58
0.42
0.25
0.09
—
—
—
0.90
0.74
0.59
0.44
0.28
0.13
0.00
—
—
851
826
800
774
749
723
697
671
646
835
811
787
763
739
715
691
667
642
977
944
912
879
846
814
781
748
—
967
935
904
873
842
810
779
748
—
1065
1024
982
941
899
858
—
—
—
1075
1034
993
952
911
870
837
—
—
0.31
0.30
0.29
0.28
0.27
0.26
0.25
0.24
0.23
0.30
0.29
0.28
0.28
0.27
0.26
0.25
0.24
0.23
0.47
0.45
0.44
0.42
0.41
0.39
0.38
0.36
—
0.47
0.45
0.44
0.42
0.41
0.39
0.38
0.36
—
0.69
0.66
0.63
0.61
0.58
0.55
—
—
—
0.69
0.67
0.64
0.62
0.59
0.56
0.54
—
—
0.92
0.84
0.77
0.69
0.61
0.53
0.45
0.37
0.29
0.89
0.81
0.73
0.65
0.57
0.50
0.42
0.34
0.26
1.02
0.90
0.77
0.65
0.52
0.39
0.27
0.14
0.02
1.00
0.88
0.77
0.66
0.55
0.44
0.32
0.21
0.10
—
0.96
0.78
0.61
0.43
0.25
0.08
—
—
—
0.89
0.74
0.59
0.43
0.28
0.13
0.00
—
929
905
880
855
831
806
782
757
732
913
890
868
845
823
800
777
755
732
1044
1012
980
948
915
883
851
819
787
1038
1006
974
943
911
879
848
816
784
—
1101
1059
1017
975
933
891
—
—
—
1104
1064
1023
983
942
902
868
—
0.38
0.37
0.36
0.35
0.34
0.33
0.32
0.31
0.30
0.37
0.36
0.35
0.34
0.33
0.32
0.32
0.31
0.30
0.55
0.54
0.52
0.50
0.49
0.47
0.45
0.43
0.42
0.55
0.53
0.52
0.50
0.48
0.47
0.45
0.43
0.42
—
0.77
0.74
0.71
0.68
0.65
0.62
—
—
—
0.77
0.74
0.71
0.69
0.66
0.63
0.61
—
1.07
0.99
0.91
0.83
0.75
0.67
0.59
0.51
0.43
1.04
0.96
0.88
0.80
0.72
0.64
0.56
0.48
0.40
1.17
1.04
0.92
0.80
0.68
0.56
0.43
0.31
0.19
1.16
1.05
0.94
0.82
0.71
0.60
0.48
0.37
0.26
—
—
—
0.82
0.64
0.46
0.28
0.10
—
—
—
—
0.75
0.60
0.44
0.28
0.12
0.00
993
969
945
921
898
874
850
826
802
978
957
935
913
892
870
848
826
805
1090
1062
1033
1005
976
948
920
891
863
1115
1084
1052
1020
989
957
925
893
861
—
—
—
1105
1062
1019
975
932
—
—
—
—
1095
1053
1012
971
930
897
0.44
0.43
0.42
0.41
0.40
0.39
0.38
0.37
0.36
0.44
0.43
0.42
0.41
0.40
0.39
0.38
0.37
0.36
0.63
0.61
0.60
0.58
0.56
0.55
0.53
0.52
0.50
0.65
0.63
0.61
0.59
0.57
0.55
0.54
0.52
0.50
—
—
—
0.83
0.80
0.77
0.74
0.70
—
—
—
—
0.83
0.79
0.76
0.73
0.70
0.68
1.25
1.17
1.08
1.00
0.91
0.83
0.74
0.66
0.57
1.21
1.13
1.04
0.95
0.87
0.78
0.69
0.61
0.52
—
—
—
1.06
0.92
0.78
0.64
0.50
0.37
—
—
1.10
0.99
0.87
0.75
0.64
0.52
0.40
—
—
—
—
0.70
0.54
0.37
0.20
0.03
—
—
—
—
0.69
0.53
0.37
0.21
0.06
1053
1030
1007
985
962
939
916
893
871
1037
1016
996
975
955
934
913
893
872
—
—
—
1100
1069
1038
1006
975
944
—
—
1114
1084
1054
1023
993
963
932
—
—
—
—
1083
1045
1007
969
931
—
—
—
—
1090
1051
1012
972
933
0.52
0.50
0.49
0.48
0.47
0.46
0.45
0.44
0.43
0.51
0.50
0.49
0.48
0.47
0.46
0.45
0.44
0.43
—
—
—
0.69
0.67
0.65
0.63
0.62
0.60
—
—
0.70
0.68
0.66
0.65
0.63
0.61
0.59
—
—
—
—
0.85
0.82
0.79
0.76
0.73
—
—
—
—
0.86
0.83
0.80
0.77
0.74
For 036 Models, fan motor heat (MBh) = 2.72 x Fan Bhp + 0.16. For 048 & 060 Models, fan motor heat (MBh) = 2.87 x Fan Bhp + 0.15.
Factory supplied motors, in commercial equipment, are definite purpose motors, specifically designed and tested to operate reliably and continuously at
all cataloged conditions. Using the full horsepower range of our fan motors as shown in our tabular data will not result in nuisance tripping or premature
motor failure. Our product’s warranty will not be affected.
(a) Data includes pressure drop due to wet coil and filters.
RT-PRC023AG-EN
81
Direct Drive - Evaporator Fan Performance
Table 34. Multispeed direct drive evaporator fan performance 3 - 5 tons - standard efficiency - low & medium gas heat
YSC036, 048, 060E1
Tons
Unit Model
Number
3
YSC036E1*L,M
Downflow
Airflow
3
YSC036E1*L,M
Horizontal
Airflow
4
YSC048E1*L,M
Downflow
Airflow
4
YSC048E1*L,M
Horizontal
Airflow
5
YSC060E1*L,M
Downflow
Airflow
5
YSC060E1*L,M
Horizontal
Airflow
cfm
External Static Pressure (Inches of Water) & Motor Power (bhp)(a)
Standard Low
Standard High
Rated
Speed
Mid Speed
Speed
High Speed
Speed Set 1
Speed Set 2
Speed Set 3
Speed Set 4
Speed Set 5
ESP rpm bhp ESP rpm bhp ESP rpm bhp ESP rpm bhp ESP rpm bhp
960
1020
1080
1140
1200
1260
1320
1380
1440
960
1020
1080
1140
1200
1260
1320
1380
1440
1280
1360
1440
1520
1600
1680
1760
1840
1920
1280
1360
1440
1520
1600
1680
1760
1840
1920
1600
1700
1800
1900
2000
2100
2200
2300
2400
1600
1700
1800
1900
2000
2100
2200
2300
2400
0.43
0.37
0.30
0.24
0.18
0.11
0.05
—
—
0.42
0.37
0.31
0.26
0.20
0.14
0.09
0.03
—
0.71
0.59
0.47
0.34
0.22
0.10
—
—
—
0.66
0.54
0.43
0.31
0.20
0.08
—
—
—
0.97
0.79
0.60
0.42
0.24
0.06
—
—
—
0.83
0.67
0.51
0.36
0.20
0.04
—
—
—
718
696
675
654
633
612
590
—
—
715
695
675
654
634
614
594
574
—
933
903
874
845
815
786
—
—
—
894
863
831
799
768
736
—
—
—
1110
1068
1026
984
942
900
—
—
—
1054
1013
971
930
888
847
—
—
—
0.19
0.18
0.18
0.17
0.17
0.16
0.16
—
—
0.19
0.18
0.18
0.17
0.17
0.16
0.16
0.15
—
0.42
0.41
0.39
0.38
0.37
0.36
—
—
—
0.40
0.39
0.38
0.36
0.35
0.33
—
—
—
0.71
0.68
0.66
0.63
0.60
0.57
—
—
—
0.67
0.65
0.62
0.59
0.57
0.54
—
—
—
0.64
0.57
0.49
0.42
0.34
0.26
0.19
0.11
0.03
0.67
0.61
0.54
0.47
0.41
0.34
0.27
0.20
0.14
0.89
0.76
0.63
0.50
0.38
0.25
0.12
—
—
0.81
0.70
0.58
0.47
0.35
0.24
0.12
0.01
—
—
0.91
0.73
0.54
0.36
0.18
0.00
—
—
—
0.83
0.65
0.48
0.30
0.12
0.00
—
—
825
800
775
749
724
698
673
647
622
842
819
796
772
749
725
702
678
654
1003
973
943
913
883
852
822
—
—
967
935
904
872
840
809
777
745
—
—
1120
1079
1038
997
956
916
—
—
—
1084
1039
995
951
907
877
—
—
0.27
0.26
0.26
0.25
0.24
0.23
0.22
0.21
0.21
0.28
0.27
0.26
0.26
0.25
0.24
0.23
0.22
0.22
0.49
0.48
0.46
0.45
0.43
0.42
0.41
—
—
0.48
0.46
0.45
0.43
0.41
0.40
0.38
0.37
—
—
0.77
0.74
0.71
0.68
0.65
0.63
—
—
—
0.74
0.71
0.68
0.65
0.62
0.60
—
—
0.88
0.80
0.72
0.64
0.56
0.48
0.39
0.31
0.23
0.90
0.83
0.75
0.68
0.61
0.54
0.47
0.40
0.33
1.11
0.97
0.84
0.70
0.56
0.42
0.28
0.15
0.01
1.01
0.88
0.76
0.63
0.51
0.38
0.26
0.13
0.00
—
—
—
0.69
0.50
0.31
0.12
0.00
—
—
—
0.75
0.57
0.39
0.21
0.02
—
—
923
900
877
854
832
809
786
763
740
937
916
895
874
853
832
811
789
768
1094
1061
1027
993
959
926
892
858
824
1051
1016
982
947
912
877
842
807
773
—
—
—
1093
1050
1006
963
936
—
—
—
1075
1031
987
942
898
—
—
0.35
0.35
0.34
0.33
0.32
0.31
0.30
0.29
0.28
0.36
0.35
0.34
0.34
0.33
0.32
0.31
0.30
0.29
0.59
0.57
0.56
0.54
0.52
0.50
0.48
0.46
0.45
0.57
0.55
0.53
0.51
0.49
0.47
0.46
0.44
0.42
—
—
—
0.78
0.74
0.71
0.68
0.66
—
—
—
0.76
0.73
0.70
0.67
0.64
—
—
1.12
1.04
0.96
0.87
0.79
0.71
0.63
0.55
0.47
1.15
1.07
0.99
0.91
0.83
0.75
0.67
0.59
0.51
—
1.14
1.00
0.86
0.72
0.58
0.45
0.31
0.17
1.14
1.01
0.89
0.77
0.64
0.52
0.40
0.28
0.15
—
—
—
—
0.60
0.42
0.24
0.05
—
—
—
—
0.72
0.54
0.36
0.17
0.00
—
1017
997
977
957
938
918
898
878
859
1037
1014
992
970
948
926
903
881
859
—
1116
1085
1053
1021
990
958
926
895
1101
1069
1037
1006
974
942
911
879
847
—
—
—
—
1079
1040
1001
962
—
—
—
—
1086
1045
1004
963
924
—
0.46
0.45
0.44
0.43
0.42
0.41
0.40
0.39
0.38
0.46
0.45
0.44
0.43
0.42
0.41
0.40
0.39
0.38
—
0.64
0.62
0.61
0.59
0.57
0.55
0.53
0.51
0.63
0.61
0.60
0.58
0.56
0.54
0.52
0.51
0.49
—
—
—
—
0.82
0.79
0.76
0.73
—
—
—
—
0.82
0.79
0.76
0.73
0.70
—
1.28
1.20
1.11
1.03
0.94
0.86
0.77
0.68
0.60
1.25
1.18
1.11
1.04
0.97
0.90
0.83
0.76
0.69
—
—
—
1.05
0.90
0.76
0.61
0.47
0.32
—
—
1.05
0.93
0.80
0.67
0.55
0.42
0.29
—
—
—
—
—
0.52
0.32
0.13
0.00
—
—
—
—
0.67
0.48
0.29
0.10
0.00
1074
1053
1033
1013
992
972
951
931
910
1062
1047
1032
1017
1002
987
972
957
942
—
—
—
1122
1089
1057
1024
992
960
—
—
1101
1069
1037
1005
973
941
909
—
—
—
—
—
1078
1036
994
965
—
—
—
—
1092
1051
1010
968
946
0.52
0.51
0.50
0.49
0.48
0.47
0.46
0.45
0.44
0.51
0.50
0.50
0.49
0.48
0.48
0.47
0.46
0.45
—
—
—
0.70
0.68
0.66
0.64
0.62
0.60
—
—
0.69
0.67
0.65
0.63
0.61
0.59
0.57
—
—
—
—
—
0.86
0.83
0.79
0.77
—
—
—
—
0.87
0.84
0.81
0.77
0.76
For 036 Models, fan motor heat (MBh) = 2.72 x Fan Bhp + 0.16. For 048 & 060 Models, fan motor heat (MBh) = 2.87 x Fan Bhp + 0.15.
Factory supplied motors, in commercial equipment, are definite purpose motors, specifically designed and tested to operate reliably and continuously at
all cataloged conditions. Using the full horsepower range of our fan motors as shown in our tabular data will not result in nuisance tripping or premature
motor failure. Our product’s warranty will not be affected.
(a) Data includes pressure drop due to wet coil and filters.
82
RT-PRC023AG-EN
Direct Drive - Evaporator Fan Performance
Table 35. Multispeed direct drive evaporator fan performance 3 - 5 tons - standard efficiency - high heat
YSC036, 048, 060E1
Tons
Unit Model
Number
3
YSC036E1*H
Downflow
Airflow
3
YSC036E1*H
Horizontal
Airflow
4
YSC048E1*H
Downflow
Airflow
4
YSC048E1*H
Horizontal
Airflow
5
YSC060E1*H
Downflow
Airflow
5
YSC060E1*H
Horizontal
Airflow
cfm
External Static Pressure (Inches of Water) & Motor Power (bhp)(a)
Standard Low
Standard High
Rated
Speed
Mid Speed
Speed
High Speed
Speed Set 1
Speed Set 2
Speed Set 3
Speed Set 4
Speed Set 5
ESP rpm bhp ESP rpm bhp ESP rpm bhp ESP rpm bhp ESP rpm bhp
960
1020
1080
1140
1200
1260
1320
1380
1440
960
1020
1080
1140
1200
1260
1320
1380
1440
1280
1360
1440
1520
1600
1680
1760
1840
1920
1280
1360
1440
1520
1600
1680
1760
1840
1920
1600
1700
1800
1900
2000
2100
2200
2300
2400
1600
1700
1800
1900
2000
2100
2200
2300
2400
0.43
0.37
0.30
0.24
0.18
0.11
0.05
—
—
0.44
0.37
0.31
0.24
0.18
0.11
0.05
—
—
0.73
0.61
0.48
0.35
0.23
0.10
—
—
—
0.69
0.57
0.45
0.33
0.21
0.08
—
—
—
0.97
0.79
0.60
0.42
0.24
0.06
—
—
—
0.95
0.76
0.58
0.40
0.21
0.03
—
—
—
718
696
675
654
633
612
590
—
—
732
708
684
660
636
612
588
—
—
951
917
883
849
816
782
—
—
—
933
899
865
831
797
764
—
—
—
1110
1068
1026
984
942
900
—
—
—
1110
1064
1019
973
927
882
—
—
—
0.19
0.19
0.18
0.18
0.17
0.16
0.16
—
—
0.20
0.19
0.18
0.18
0.17
0.16
0.16
—
—
0.44
0.42
0.41
0.39
0.38
0.36
—
—
—
0.43
0.42
0.40
0.38
0.37
0.35
—
—
—
0.73
0.70
0.67
0.65
0.62
0.59
—
—
—
0.73
0.70
0.67
0.64
0.61
0.58
—
—
—
0.64
0.57
0.49
0.42
0.34
0.26
0.19
0.11
0.03
0.65
0.58
0.51
0.43
0.36
0.29
0.21
0.14
0.07
0.93
0.80
0.66
0.53
0.39
0.26
0.12
—
—
0.86
0.74
0.61
0.49
0.36
0.24
0.11
—
—
—
0.91
0.73
0.54
0.36
0.18
0.00
—
—
—
0.87
0.69
0.51
0.32
0.14
0.00
—
—
825
800
775
749
724
698
673
647
622
836
811
787
762
737
712
688
663
638
1025
991
957
923
888
854
820
—
—
1005
971
938
904
870
837
803
—
—
—
1120
1079
1038
997
956
916
—
—
—
1110
1067
1024
982
939
907
—
—
0.26
0.26
0.25
0.24
0.23
0.22
0.21
0.21
0.20
0.27
0.26
0.25
0.24
0.24
0.23
0.22
0.21
0.20
0.52
0.50
0.49
0.47
0.45
0.43
0.42
—
—
0.51
0.49
0.48
0.46
0.44
0.42
0.41
—
—
—
0.78
0.75
0.72
0.69
0.66
0.64
—
—
—
0.77
0.74
0.71
0.68
0.65
0.63
—
—
0.88
0.80
0.72
0.64
0.56
0.48
0.39
0.31
0.23
0.87
0.80
0.72
0.64
0.56
0.48
0.40
0.32
0.24
1.10
0.96
0.82
0.69
0.55
0.42
0.28
0.14
0.01
1.04
0.91
0.78
0.65
0.52
0.38
0.25
0.12
—
—
—
—
0.69
0.50
0.31
0.12
0.00
—
—
—
—
0.64
0.45
0.26
0.08
—
—
923
900
877
854
832
809
786
763
740
935
911
886
862
838
814
789
765
741
1084
1051
1019
986
954
922
889
857
824
1075
1041
1006
972
938
904
870
835
—
—
—
—
1093
1050
1006
963
936
—
—
—
—
1075
1033
991
949
—
—
0.34
0.34
0.33
0.32
0.31
0.30
0.29
0.28
0.28
0.35
0.34
0.33
0.32
0.31
0.30
0.29
0.28
0.28
0.60
0.58
0.56
0.55
0.53
0.51
0.49
0.47
0.46
0.59
0.57
0.56
0.54
0.52
0.50
0.48
0.46
—
—
—
—
0.81
0.78
0.74
0.71
0.69
—
—
—
—
0.79
0.76
0.73
0.70
—
—
1.12
1.04
0.96
0.87
0.79
0.71
0.63
0.55
0.47
1.12
1.03
0.95
0.87
0.79
0.70
0.62
0.54
0.45
—
1.14
1.00
0.86
0.72
0.58
0.45
0.31
0.17
1.18
1.05
0.92
0.79
0.65
0.52
0.39
0.26
0.12
—
—
—
—
0.60
0.42
0.24
0.05
—
—
—
—
—
0.55
0.37
0.18
0.00
—
1017
997
977
957
938
918
898
878
859
1033
1010
987
964
941
918
895
872
849
—
1116
1085
1053
1021
990
958
926
895
1124
1091
1059
1026
993
961
928
896
863
—
—
—
—
1079
1040
1001
962
—
—
—
—
—
1069
1029
989
949
—
0.44
0.43
0.42
0.42
0.41
0.40
0.39
0.38
0.37
0.45
0.44
0.43
0.42
0.41
0.40
0.39
0.38
0.37
—
0.67
0.65
0.63
0.61
0.59
0.57
0.55
0.53
0.67
0.65
0.63
0.61
0.59
0.57
0.55
0.54
0.52
—
—
—
—
0.84
0.81
0.78
0.75
—
—
—
—
—
0.83
0.80
0.77
0.74
—
1.28
1.20
1.11
1.03
0.94
0.86
0.77
0.68
0.60
1.25
1.17
1.09
1.01
0.93
0.85
0.77
0.69
0.61
—
—
—
—
0.91
0.76
0.62
0.47
0.32
—
—
—
0.95
0.82
0.69
0.55
0.42
0.29
—
—
—
—
—
0.52
0.32
0.13
0.00
—
—
—
—
0.64
0.45
0.26
0.07
—
1074
1053
1033
1013
992
972
951
931
910
1078
1059
1040
1021
1002
983
964
945
926
—
—
—
—
1093
1060
1028
995
962
—
—
—
1091
1060
1030
999
968
937
—
—
—
—
—
1078
1036
994
965
—
—
—
—
1103
1060
1017
975
—
0.51
0.50
0.49
0.48
0.47
0.46
0.45
0.44
0.43
0.51
0.50
0.49
0.48
0.47
0.47
0.46
0.45
0.44
—
—
—
—
0.71
0.68
0.66
0.64
0.62
—
—
—
0.70
0.68
0.66
0.65
0.63
0.61
—
—
—
—
—
0.86
0.83
0.79
0.77
—
—
—
—
0.88
0.85
0.81
0.78
—
For 036 Models, fan motor heat (MBh) = 2.72 x Fan Bhp + 0.16. For 048 & 060 Models, fan motor heat (MBh) = 2.87 x Fan Bhp + 0.15.
Factory supplied motors, in commercial equipment, are definite purpose motors, specifically designed and tested to operate reliably and continuously at
all cataloged conditions. Using the full horsepower range of our fan motors as shown in our tabular data will not result in nuisance tripping or premature
motor failure. Our product’s warranty will not be affected.
(a) Data includes pressure drop due to wet coil and filters.
RT-PRC023AG-EN
83
Direct Drive - Evaporator Fan Performance
Table 36. Multispeed direct drive evaporator fan performance 3 - 5 tons - high efficiency - no electric heat
THC036E1,3,4,W / THC048 and THC060E3,4W / THC048F and THC060F1,3,4W
Tons
Unit Model
Number
3
THC036E1,3,4,W
Downflow
Airflow
3
THC036E1,3,4,W
Horizontal
Airflow
4
4
5
5
THC048E3,4,W/
THC048F1,3,4,W
Downflow
Airflow
THC048E3,4,W/
THC048F1,3,4,W
Horizontal
Airflow
THC060E3,4,W/
THC060F1,3,4,W
Downflow
Airflow
THC060E3,4,W/
THC060F1,3,4,W
Horizontal
Airflow
cfm
External Static Pressure (Inches of Water) & Motor Power (bhp)(a)
Standard Low
Standard High
Rated
Speed
Mid Speed
Speed
High Speed
Speed Set 1
Speed Set 2
Speed Set 3
Speed Set 4
Speed Set 5
ESP rpm bhp ESP rpm bhp ESP rpm bhp ESP rpm bhp ESP rpm bhp
960
1020
1080
1140
1200
1260
1320
1380
1440
960
1020
1080
1140
1200
1260
1320
1380
1440
1280
1360
1440
1520
1600
1680
1760
1840
1920
1280
1360
1440
1520
1600
1680
1760
1840
1920
1600
1700
1800
1900
2000
2100
2200
2300
2400
1600
1700
1800
1900
2000
2100
2200
2300
2400
0.45
0.39
0.33
0.27
0.21
0.15
0.09
0.03
—
0.45
0.39
0.32
0.26
0.20
0.13
0.07
0.01
—
0.65
0.55
0.46
0.36
0.27
0.17
—
—
—
0.56
0.48
0.39
0.30
0.22
0.13
—
—
—
0.82
0.67
0.53
0.39
0.25
0.11
—
—
—
0.71
0.59
0.46
0.33
0.21
0.08
—
—
—
715
695
675
654
634
614
593
573
—
711
689
667
644
622
599
577
555
—
805
769
733
696
660
624
—
—
—
795
760
725
690
655
619
—
—
—
918
873
828
782
737
692
—
—
—
918
875
832
788
745
701
—
—
—
0.21
0.20
0.20
0.19
0.18
0.18
0.17
0.17
—
0.21
0.20
0.19
0.19
0.18
0.17
0.17
0.16
—
0.31
0.30
0.28
0.27
0.25
0.24
—
—
—
0.31
0.29
0.28
0.27
0.25
0.24
—
—
—
0.50
0.47
0.45
0.42
0.40
0.37
—
—
—
0.50
0.47
0.45
0.43
0.40
0.38
—
—
—
0.74
0.66
0.59
0.51
0.43
0.35
0.28
0.20
0.12
0.70
0.63
0.56
0.48
0.41
0.33
0.26
0.18
0.11
0.86
0.76
0.66
0.56
0.46
0.36
0.26
0.16
0.06
0.77
0.67
0.58
0.48
0.39
0.30
0.20
0.11
0.01
1.04
0.89
0.74
0.59
0.45
0.30
0.15
0.00
—
0.91
0.78
0.65
0.51
0.38
0.25
0.12
—
—
851
826
800
774
749
723
697
671
646
835
811
787
763
739
715
691
667
642
902
866
830
794
758
722
686
650
614
880
847
814
780
747
714
681
647
614
1002
957
913
869
824
780
735
691
—
1001
959
916
874
831
788
746
—
—
0.31
0.30
0.29
0.28
0.27
0.26
0.25
0.24
0.23
0.30
0.29
0.28
0.28
0.27
0.26
0.25
0.24
0.23
0.40
0.38
0.37
0.35
0.33
0.32
0.30
0.29
0.27
0.39
0.37
0.36
0.34
0.33
0.31
0.30
0.29
0.27
0.60
0.58
0.55
0.52
0.50
0.47
0.44
0.42
—
0.60
0.58
0.55
0.53
0.50
0.47
0.45
—
—
0.92
0.84
0.77
0.69
0.61
0.53
0.45
0.37
0.29
0.89
0.81
0.73
0.65
0.57
0.50
0.42
0.34
0.26
1.04
0.94
0.84
0.74
0.63
0.53
0.43
0.33
0.23
0.95
0.86
0.76
0.66
0.57
0.47
0.37
0.28
0.18
1.26
1.11
0.96
0.82
0.67
0.52
0.37
0.22
0.07
1.09
0.96
0.82
0.68
0.54
0.41
0.27
0.13
—
929
905
880
855
831
806
782
757
732
913
890
868
845
823
800
777
755
732
966
934
902
869
837
805
772
740
707
967
935
903
871
838
806
774
742
710
1087
1043
1000
957
914
870
827
784
741
1070
1029
987
945
903
861
819
778
—
0.38
0.37
0.36
0.35
0.34
0.33
0.32
0.31
0.30
0.37
0.36
0.35
0.34
0.33
0.32
0.32
0.31
0.30
0.48
0.46
0.44
0.43
0.41
0.40
0.38
0.36
0.35
0.48
0.46
0.44
0.43
0.41
0.40
0.38
0.37
0.35
0.72
0.69
0.66
0.63
0.60
0.58
0.55
0.52
0.49
0.71
0.68
0.65
0.62
0.60
0.57
0.54
0.51
—
1.07
0.99
0.91
0.83
0.75
0.67
0.59
0.51
0.43
1.04
0.96
0.88
0.80
0.72
0.64
0.56
0.48
0.40
1.27
1.17
1.06
0.95
0.85
0.74
0.63
0.53
0.42
1.16
1.06
0.96
0.86
0.76
0.66
0.56
0.46
0.36
—
—
1.16
1.02
0.87
0.72
0.57
0.42
0.27
—
1.11
0.97
0.84
0.71
0.57
0.44
0.31
0.17
993
969
945
921
898
874
850
826
802
978
957
935
913
892
870
848
826
805
1042
1010
977
944
912
879
847
814
782
1040
1010
980
951
921
891
861
831
802
—
—
1083
1041
999
957
914
872
830
—
1102
1063
1023
984
944
904
865
825
0.44
0.43
0.42
0.41
0.40
0.39
0.38
0.37
0.36
0.44
0.43
0.42
0.41
0.40
0.39
0.38
0.37
0.36
0.58
0.56
0.54
0.52
0.50
0.49
0.47
0.45
0.43
0.57
0.56
0.54
0.53
0.51
0.49
0.48
0.46
0.44
—
—
0.78
0.75
0.72
0.69
0.66
0.63
0.60
—
0.79
0.77
0.74
0.71
0.68
0.65
0.62
0.59
1.25
1.17
1.08
1.00
0.91
0.83
0.74
0.66
0.57
1.21
1.13
1.04
0.95
0.87
0.78
0.69
0.61
0.52
—
1.43
1.31
1.20
1.08
0.97
0.85
0.74
0.62
—
1.26
1.16
1.06
0.96
0.86
0.76
0.66
0.56
—
—
—
1.17
1.02
0.87
0.71
0.56
0.41
—
—
—
1.01
0.87
0.73
0.59
0.45
0.31
1053
1030
1007
985
962
939
916
893
871
1037
1016
996
975
955
934
913
893
872
—
1113
1078
1043
1009
974
939
905
870
—
1105
1075
1045
1016
986
956
926
896
—
—
—
1099
1056
1014
971
929
886
—
—
—
1093
1052
1010
968
926
884
0.52
0.50
0.49
0.48
0.47
0.46
0.45
0.44
0.43
0.51
0.50
0.49
0.48
0.47
0.46
0.45
0.44
0.43
—
0.68
0.66
0.64
0.62
0.60
0.58
0.55
0.53
—
0.68
0.66
0.64
0.62
0.60
0.59
0.57
0.55
—
—
—
0.85
0.82
0.78
0.75
0.72
0.68
—
—
—
0.85
0.81
0.78
0.75
0.72
0.68
For 036 Models, fan motor heat (MBh) = 2.72 x Fan Bhp + 0.16.
For 048 & 060 Models, fan motor heat (MBh) = 2.87 x Fan Bhp + 0.15.
Factory supplied motors, in commercial equipment, are definite purpose motors, specifically designed and tested to operate reliably and continuously at
all cataloged conditions. Using the full horsepower range of our fan motors as shown in our tabular data will not result in nuisance tripping or premature
motor failure. Our product’s warranty will not be affected.
(a) Data includes pressure drop due to wet coil and filters.
84
RT-PRC023AG-EN
Direct Drive - Evaporator Fan Performance
Table 37. Multispeed direct drive evaporator fan performance 3 - 5 tons - high efficiency - low & medium gas heat
YHC036E1,3,4,W / YHC048 and 060E3,4,W / YHC048F and YHC060F1,3,4,W
Tons
3
3
4
4
5
5
Unit Model
Number
cfm
960
1020
1080
YHC036E1,3,4,W*L,M 1140
Downflow
1200
1260
Airflow
1320
1380
1440
960
1020
1080
YHC036E1,3,4,W*L,M 1140
Horizontal
1200
1260
Airflow
1320
1380
1440
1280
1360
1440
YHC048***L,M
1520
Downflow
1600
1680
Airflow
1760
1840
1920
1280
1360
1440
YHC048***L,M
1520
Horizontal
1600
1680
Airflow
1760
1840
1920
1600
1700
1800
YHC060***L,M
1900
Downflow
2000
2100
Airflow
2200
2300
2400
1600
1700
1800
YHC060***L,M
1900
Horizontal
2000
2100
Airflow
2200
2300
2400
External Static Pressure (Inches of Water) & Motor Power (bhp)(a)
Standard Low
Standard High
Rated
Speed
Mid Speed
Speed
High Speed
Speed Set 1
Speed Set 2
Speed Set 3
Speed Set 4
Speed Set 5
ESP rpm bhp ESP rpm bhp ESP rpm bhp ESP rpm bhp ESP rpm bhp
0.43
0.37
0.30
0.24
0.18
0.11
0.05
—
—
0.42
0.37
0.31
0.26
0.20
0.14
0.09
0.03
—
0.69
0.59
0.49
0.40
0.30
0.20
0.10
0.01
—
0.61
0.51
0.42
0.32
0.22
0.13
0.03
—
—
0.90
0.76
0.62
0.48
0.34
0.20
0.06
—
—
0.75
0.61
0.48
0.34
0.20
0.07
—
—
—
718
696
675
654
633
612
590
—
—
715
695
675
654
634
614
594
574
—
820
785
750
714
679
643
608
572
—
813
777
742
707
671
636
600
—
—
962
919
875
832
788
745
701
—
—
944
899
855
811
766
722
—
—
—
0.19
0.18
0.18
0.17
0.17
0.16
0.16
—
—
0.19
0.18
0.18
0.17
0.17
0.16
0.16
0.15
—
0.33
0.32
0.30
0.29
0.27
0.26
0.25
0.23
—
0.33
0.31
0.30
0.28
0.27
0.26
0.24
—
—
0.55
0.53
0.50
0.48
0.45
0.43
0.40
—
—
0.54
0.52
0.49
0.47
0.44
0.42
—
—
—
0.64
0.57
0.49
0.42
0.34
0.26
0.19
0.11
0.03
0.67
0.61
0.54
0.47
0.41
0.34
0.27
0.20
0.14
0.88
0.78
0.68
0.58
0.48
0.38
0.28
0.18
0.08
0.81
0.70
0.60
0.50
0.40
0.29
0.19
0.09
—
1.07
0.93
0.78
0.64
0.49
0.35
0.20
0.06
—
0.91
0.77
0.63
0.49
0.35
0.21
0.07
—
—
825
800
775
749
724
698
673
647
622
842
819
796
772
749
725
702
678
654
903
869
835
801
767
733
699
666
632
896
862
828
794
760
725
691
657
—
1027
985
943
900
858
815
773
730
—
1010
969
927
885
843
801
759
—
—
0.27
0.26
0.26
0.25
0.24
0.23
0.22
0.21
0.21
0.28
0.27
0.26
0.26
0.25
0.24
0.23
0.22
0.22
0.41
0.40
0.38
0.37
0.35
0.34
0.32
0.31
0.29
0.41
0.40
0.38
0.36
0.35
0.33
0.32
0.30
—
0.64
0.61
0.59
0.56
0.53
0.51
0.48
0.46
—
0.63
0.60
0.58
0.55
0.53
0.50
0.47
—
—
0.88
0.80
0.72
0.64
0.56
0.48
0.39
0.31
0.23
0.90
0.83
0.75
0.68
0.61
0.54
0.47
0.40
0.33
1.07
0.96
0.86
0.75
0.65
0.54
0.44
0.33
0.23
1.00
0.89
0.79
0.68
0.57
0.46
0.36
0.25
0.14
1.28
1.14
0.99
0.84
0.70
0.55
0.41
0.26
0.12
1.10
0.96
0.82
0.67
0.53
0.39
0.25
0.10
—
923
900
877
854
832
809
786
763
740
937
916
895
874
853
832
811
789
768
969
936
903
870
837
804
771
738
705
977
944
911
878
845
812
779
746
713
1099
1060
1022
984
945
907
868
830
792
1094
1052
1011
969
928
887
845
804
—
0.35
0.35
0.34
0.33
0.32
0.31
0.30
0.29
0.28
0.36
0.35
0.34
0.34
0.33
0.32
0.31
0.30
0.29
0.49
0.48
0.46
0.44
0.42
0.41
0.39
0.37
0.36
0.50
0.48
0.46
0.45
0.43
0.41
0.40
0.38
0.36
0.75
0.72
0.70
0.67
0.65
0.62
0.59
0.57
0.54
0.75
0.72
0.69
0.66
0.63
0.61
0.58
0.55
—
1.12
1.04
0.96
0.87
0.79
0.71
0.63
0.55
0.47
1.15
1.07
0.99
0.91
0.83
0.75
0.67
0.59
0.51
1.07
0.96
0.86
0.75
0.65
0.54
0.44
0.33
0.23
1.00
0.89
0.79
0.68
0.57
0.46
0.36
0.25
0.14
—
—
1.15
1.00
0.86
0.71
0.56
0.41
0.26
—
1.12
0.97
0.83
0.68
0.54
0.39
0.25
0.10
1017
997
977
957
938
918
898
878
859
1037
1014
992
970
948
926
903
881
859
969
936
903
870
837
804
771
738
705
977
944
911
878
845
812
779
746
713
—
—
1092
1051
1010
969
928
887
846
—
1114
1074
1035
995
956
916
877
837
0.46
0.45
0.44
0.43
0.42
0.41
0.40
0.39
0.38
0.46
0.45
0.44
0.43
0.42
0.41
0.40
0.39
0.38
0.49
0.48
0.46
0.44
0.42
0.41
0.39
0.37
0.36
0.50
0.48
0.46
0.45
0.43
0.41
0.40
0.38
0.36
—
—
0.81
0.78
0.75
0.72
0.69
0.66
0.63
—
0.82
0.79
0.76
0.74
0.71
0.68
0.65
0.62
1.28
1.20
1.11
1.03
0.94
0.86
0.77
0.68
0.60
1.25
1.18
1.11
1.04
0.97
0.90
0.83
0.76
0.69
1.27
1.16
1.05
0.94
0.84
0.73
0.62
0.51
0.41
1.17
1.06
0.95
0.84
0.73
0.62
0.51
0.40
0.29
—
—
—
1.18
1.03
0.88
0.73
0.58
0.43
—
—
—
1.01
0.87
0.72
0.57
0.42
0.27
1074
1053
1033
1013
992
972
951
931
910
1062
1047
1032
1017
1002
987
972
957
942
1039
1007
976
944
912
881
849
817
786
1044
1011
979
946
913
881
848
815
783
—
—
—
1116
1076
1037
997
958
918
—
—
—
1111
1070
1028
987
945
904
0.52
0.51
0.50
0.49
0.48
0.47
0.46
0.45
0.44
0.51
0.50
0.50
0.49
0.48
0.48
0.47
0.46
0.45
0.58
0.56
0.55
0.53
0.51
0.49
0.48
0.46
0.44
0.58
0.57
0.55
0.53
0.51
0.49
0.47
0.46
0.44
—
—
—
0.89
0.86
0.83
0.80
0.77
0.73
—
—
—
0.89
0.85
0.82
0.79
0.76
0.72
For 036 Models, fan motor heat (MBh) = 2.72 x Fan Bhp + 0.16.
For 048 & 060 Models, fan motor heat (MBh) = 2.87 x Fan Bhp + 0.15.
Factory supplied motors, in commercial equipment, are definite purpose motors, specifically designed and tested to operate reliably and continuously at
all cataloged conditions. Using the full horsepower range of our fan motors as shown in our tabular data will not result in nuisance tripping or premature
motor failure. Our product’s warranty will not be affected.
(a) Data includes pressure drop due to wet coil and filters.
RT-PRC023AG-EN
85
Direct Drive - Evaporator Fan Performance
Table 38. Multispeed direct drive evaporator fan performance 3 - 5 tons - high efficiency - high heat YHC036E1,3,4,W /
YHC048 and 060E3,4,W / YHC048F and YHC060F1,3,4,W
Tons
3
3
4
4
5
5
Unit Model
Number
cfm
960
1020
1080
YHC036E1,3,4,W*H 1140
Downflow
1200
1260
Airflow
1320
1380
1440
960
1020
1080
YHC036E1,3,4,W*H 1140
Horizontal
1200
1260
Airflow
1320
1380
1440
1280
1360
1440
YHC048***H
1520
Downflow
1600
1680
Airflow
1760
1840
1920
1280
1360
1440
YHC048***H
1520
Horizontal
1600
1680
Airflow
1760
1840
1920
1600
1700
1800
YHC060***H
1900
Downflow
2000
2100
Airflow
2200
2300
2400
1600
1700
1800
YHC060***H
1900
Horizontal
2000
2100
Airflow
2200
2300
2400
External Static Pressure (Inches of Water) & Motor Power (bhp)(a)
Standard Low
Standard High
Rated
Speed
Mid Speed
Speed
High Speed
Speed Set 1
Speed Set 2
Speed Set 3
Speed Set 4
Speed Set 5
ESP rpm bhp ESP rpm bhp ESP rpm bhp ESP rpm bhp ESP rpm bhp
0.43
0.37
0.30
0.24
0.18
0.11
0.05
—
—
0.44
0.37
0.31
0.24
0.18
0.11
0.05
—
—
0.69
0.60
0.50
0.40
0.31
0.21
0.12
—
—
0.60
0.51
0.41
0.31
0.22
0.12
0.03
—
—
0.90
0.76
0.62
0.47
0.33
0.19
0.04
—
—
0.77
0.63
0.48
0.34
0.20
0.06
—
—
—
718
696
675
654
633
612
590
—
—
732
708
684
660
636
612
588
—
—
833
796
759
722
684
647
610
—
—
822
787
752
718
683
648
613
—
—
955
910
865
819
774
729
683
—
—
948
903
859
814
770
725
—
—
—
0.19
0.19
0.18
0.18
0.17
0.16
0.16
—
—
0.20
0.19
0.18
0.18
0.17
0.16
0.16
—
—
0.35
0.33
0.32
0.30
0.29
0.27
0.26
—
—
0.34
0.33
0.31
0.30
0.29
0.27
0.26
—
—
0.57
0.54
0.52
0.49
0.46
0.44
0.41
—
—
0.57
0.54
0.51
0.49
0.46
0.43
—
—
—
0.64
0.57
0.49
0.42
0.34
0.26
0.19
0.11
0.03
0.65
0.58
0.51
0.43
0.36
0.29
0.21
0.14
0.07
0.90
0.80
0.71
0.61
0.51
0.41
0.31
0.22
0.12
0.81
0.70
0.60
0.49
0.38
0.28
0.17
0.07
—
1.06
0.92
0.77
0.63
0.49
0.34
0.20
0.05
—
0.95
0.80
0.66
0.51
0.36
0.22
0.07
—
—
825
800
775
749
724
698
673
647
622
836
811
787
762
737
712
688
663
638
924
889
855
820
785
751
716
681
647
912
876
840
805
769
733
697
661
—
1022
977
932
888
843
798
754
709
—
1016
973
930
888
845
803
760
—
—
0.26
0.26
0.25
0.24
0.23
0.22
0.21
0.21
0.20
0.27
0.26
0.25
0.24
0.24
0.23
0.22
0.21
0.20
0.43
0.42
0.40
0.39
0.37
0.35
0.34
0.32
0.30
0.43
0.41
0.40
0.38
0.36
0.34
0.33
0.31
—
0.66
0.63
0.60
0.57
0.54
0.52
0.49
0.46
—
0.66
0.63
0.60
0.57
0.55
0.52
0.49
—
—
0.88
0.80
0.72
0.64
0.56
0.48
0.39
0.31
0.23
0.87
0.80
0.72
0.64
0.56
0.48
0.40
0.32
0.24
1.07
0.97
0.87
0.77
0.67
0.57
0.47
0.37
0.27
0.97
0.87
0.76
0.66
0.55
0.45
0.34
0.23
0.13
1.25
1.11
0.96
0.82
0.67
0.52
0.38
0.23
0.09
1.10
0.96
0.81
0.67
0.52
0.38
0.23
0.09
—
923
900
877
854
832
809
786
763
740
935
911
886
862
838
814
789
765
741
989
956
922
889
855
822
788
755
721
986
952
918
885
851
818
784
750
717
1095
1052
1009
966
922
879
836
793
750
1093
1052
1012
971
931
890
850
809
—
0.34
0.34
0.33
0.32
0.31
0.30
0.29
0.28
0.28
0.35
0.34
0.33
0.32
0.31
0.30
0.29
0.28
0.28
0.51
0.50
0.48
0.46
0.44
0.43
0.41
0.39
0.37
0.51
0.49
0.48
0.46
0.44
0.42
0.41
0.39
0.37
0.77
0.74
0.71
0.68
0.65
0.62
0.59
0.56
0.53
0.77
0.74
0.71
0.68
0.65
0.62
0.60
0.57
0.00
1.12
1.04
0.96
0.87
0.79
0.71
0.63
0.55
0.47
1.12
1.03
0.95
0.87
0.79
0.70
0.62
0.54
0.45
1.07
0.97
0.87
0.77
0.67
0.57
0.47
0.37
0.27
0.97
0.87
0.76
0.66
0.55
0.45
0.34
0.23
0.13
—
1.28
1.13
0.98
0.83
0.68
0.54
0.39
0.24
—
—
1.00
0.85
0.70
0.55
0.39
0.24
0.09
1017
997
977
957
938
918
898
878
859
1033
1010
987
964
941
918
895
872
849
989
956
922
889
855
822
788
755
721
986
952
918
885
851
818
784
750
717
—
1113
1072
1031
990
949
908
867
826
—
—
1084
1042
1000
959
917
875
833
0.44
0.43
0.42
0.42
0.41
0.40
0.39
0.38
0.37
0.45
0.44
0.43
0.42
0.41
0.40
0.39
0.38
0.37
0.51
0.50
0.48
0.46
0.44
0.43
0.41
0.39
0.37
0.51
0.49
0.48
0.46
0.44
0.42
0.41
0.39
0.37
—
0.85
0.82
0.79
0.75
0.72
0.69
0.66
0.63
—
—
0.83
0.79
0.76
0.73
0.70
0.67
0.63
1.28
1.20
1.11
1.03
0.94
0.86
0.77
0.68
0.60
1.25
1.17
1.09
1.01
0.93
0.85
0.77
0.69
0.61
1.27
1.17
1.06
0.96
0.85
0.75
0.64
0.54
0.43
1.18
1.07
0.96
0.84
0.73
0.62
0.51
0.40
0.29
—
—
—
1.18
1.02
0.87
0.71
0.55
0.40
—
—
—
1.01
0.86
0.70
0.54
0.39
0.23
1074
1053
1033
1013
992
972
951
931
910
1078
1059
1040
1021
1002
983
964
945
926
1066
1033
1000
966
933
900
867
834
801
1063
1031
998
966
933
901
868
836
803
—
—
—
1105
1062
1019
976
933
890
—
—
—
1106
1063
1021
979
937
894
0.51
0.50
0.49
0.48
0.47
0.46
0.45
0.44
0.43
0.51
0.50
0.49
0.48
0.47
0.47
0.46
0.45
0.44
0.61
0.59
0.57
0.56
0.54
0.52
0.50
0.48
0.46
0.61
0.59
0.57
0.56
0.54
0.52
0.50
0.48
0.46
—
—
—
0.91
0.87
0.84
0.80
0.77
0.73
—
—
—
0.91
0.87
0.84
0.80
0.77
0.73
For 036 Models, fan motor heat (MBh) = 2.72 x Fan Bhp + 0.16. For 048 & 060 Models, fan motor heat (MBh) = 2.87 x Fan Bhp + 0.15.
Factory supplied motors, in commercial equipment, are definite purpose motors, specifically designed and tested to operate reliably and continuously at
all cataloged conditions. Using the full horsepower range of our fan motors as shown in our tabular data will not result in nuisance tripping or premature
motor failure. Our product’s warranty will not be affected.
(a) Data includes pressure drop due to wet coil and filters.
86
RT-PRC023AG-EN
Evaporator Fan Performance
Table 39. Belt drive evaporator fan performance - 3 tons standard efficiency - TSC036E3,E4,EW downflow airflow
External Static Pressure (Inches of Water)
0.10
cfm
0.20
0.30
0.40
0.50
0.60
rpm bhp rpm bhp rpm bhp rpm bhp rpm bhp rpm
bhp
1-hp Standard Motor & Field Supplied Low Static Drive(a)
0.70
rpm
bhp
0.80
rpm
bhp
0.90
rpm
bhp
1.00
rpm
bhp
1-hp Standard Motor & Drive
960
—
—
—
—
614
0.17
683
0.22
742
0.27
795
0.32
845
0.37
891
0.42
935
0.47
977
0.53
1080
—
—
561
0.15
635
0.20
704
0.25
765
0.30
818
0.36
868
0.42
913
0.47
957
0.53
998
0.59
1200
—
—
592
0.18
658
0.23
725
0.29
786
0.35
842
0.41
891
0.47
936
0.53
979
0.59
1019
0.66
1320
555
0.17
625
0.22
686
0.27
747
0.33
807
0.39
862
0.46
914
0.53
959
0.59
1002
0.66
1043
0.73
1440
592
0.21
658
0.27
717
0.32
772
0.38
828
0.44
882
0.51
933
0.58
980
0.66
1025
0.73
1065
0.80
Continued
External Static Pressure (Inches of Water)
1.10
1.20
1.30
1.40
1.50
cfm
rpm bhp rpm bhp rpm bhp rpm bhp rpm bhp
960
1016 0.59 1054 0.65 1089 0.70 1124 0.76 1155 0.82
1080
1036 0.65 1075 0.72 1111 0.78 1146 0.84 1180 0.91
1200
1058 0.72 1095 0.78 1131 0.85 1167 0.92 1201 0.99
1320
1082 0.80 1119 0.87 1153 0.94 1188 1.01 1221 1.08
1-hp Standard Motor & Drive
1440
1104 0.88 1141 0.95 1176 1.03 1211 1.10
—
—
1-hp Standard Motor & Field Supplied High Static Drive(b)
Notes:
1. For Standard Evaporator Fan Speed (rpm), reference Table 131, p. 179.
2. Data includes pressure drop due to standard filters and wet coils. No accessories or options are included in pressure drop data.
3. Data does not include pressure drop due to reheat coil.
4. Refer to Table 138, p. 182 to determine additional static pressure drop due to other options/accessories.
5. 1-hp Fan Motor Heat (MBh) = 2.7672 x Fan bhp + 0.4705.
6. Factory supplied motors, in equipment, are definite purpose motors, specifically designed and tested to operate at all cataloged conditions. Using the
full horsepower range of our fan motors as shown in our tabular data will not result in nuisance tripping or premature motor failure. Our product’s
warranty will not be affected.
(a) Field Supplied Fan Sheave AK71x3/4" required. Field Supplied Belt may be necessary.
(b) Field Supplied Fan Sheave AK41x3/4" required. Field Supplied Belt may be necessary.
RT-PRC023AG-EN
87
Evaporator Fan Performance
Table 40. Belt drive evaporator fan performance - 3 tons standard efficiency - TSC036E3,E4,EW horizontal airflow
External Static Pressure (Inches of Water)
0.10
cfm
0.20
0.30
0.40
0.50
0.60
rpm bhp rpm bhp rpm bhp rpm bhp rpm bhp rpm
bhp
1-hp Standard Motor & Field Supplied Low Static Drive(a)
0.70
rpm
bhp
0.80
rpm
bhp
0.90
rpm
bhp
1.00
rpm
bhp
1-hp Standard Motor & Drive
960
—
—
552
0.12
626
0.16
689
0.20
748
0.25
802
0.30
852
0.35
898
0.39
942
0.44
982
0.49
1080
—
—
576
0.14
654
0.19
716
0.24
772
0.29
825
0.34
874
0.39
921
0.45
964
0.50
1005
0.55
1200
—
—
600
0.17
681
0.23
744
0.28
799
0.33
850
0.39
898
0.44
943
0.50
987
0.56
1028
0.62
1320
554
0.16
627
0.20
705
0.27
773
0.33
828
0.38
877
0.44
923
0.50
967
0.56
1010
0.62
1052
0.69
1440
590
0.20
657
0.24
728
0.30
797
0.37
855
0.44
904
0.50
950
0.56
993
0.63
1034
0.69
1074
0.76
Continued
External Static Pressure (Inches of Water)
1.10
1.20
1.30
1.40
1.50
cfm
rpm bhp rpm bhp rpm bhp rpm bhp rpm bhp
960
1020 0.54 1057 0.59 1092 0.64 1126 0.69 1158 0.74
1080
1045 0.61 1082 0.67 1116 0.72 1151 0.77 1183 0.83
1200
1067 0.68 1104 0.74 1141 0.80 1174 0.86 1207 0.92
1320
1091 0.75 1127 0.82 1163 0.88 1198 0.95 1230 1.02
1-hp Standard Motor & Drive
1440
1112 0.83 1150 0.90 1186 0.97 1221 1.04 1254 1.11
1-hp Standard Motor & Field Supplied High Static Drive(b)
Notes:
1. For Standard Evaporator Fan Speed (rpm), reference Table 131, p. 179.
2. Data includes pressure drop due to standard filters and wet coils. No accessories or options are included in pressure drop data.
3. Data does not include pressure drop due to reheat coil.
4. Refer to Table 138, p. 182 to determine additional static pressure drop due to other options/accessories.
5. 1-hp Fan Motor Heat (MBh) = 2.7672 x Fan bhp + 0.4705.
6. Factory supplied motors, in equipment, are definite purpose motors, specifically designed and tested to operate at all cataloged conditions. Using the
full horsepower range of our fan motors as shown in our tabular data will not result in nuisance tripping or premature motor failure. Our product’s
warranty will not be affected.
(a) Field Supplied Fan Sheave AK71x3/4" required. Field Supplied Belt may be necessary.
(b) Field Supplied Fan Sheave AK41x3/4" required. Field Supplied Belt may be necessary.
88
RT-PRC023AG-EN
Evaporator Fan Performance
Table 41. Belt drive evaporator fan performance - 3 tons standard efficiency - YSC036E3,E4,EW*L,M low & medium gas
heat downflow airflow
External Static Pressure (Inches of Water)
0.10
cfm
0.20
0.30
0.40
0.50
0.60
rpm bhp rpm bhp rpm bhp rpm bhp rpm bhp rpm
bhp
1-hp Standard Motor & Field Supplied Low Static Drive(a)
0.70
rpm
bhp
0.80
rpm
bhp
0.90
rpm
bhp
1.00
rpm
bhp
0.45
1-hp Standard Motor & Drive
960
—
—
—
—
605
0.15
671
0.19
730
0.23
784
0.27
835
0.31
881
0.36
924
0.41
965
1080
—
—
563
0.14
630
0.17
693
0.22
751
0.26
804
0.31
854
0.35
901
0.40
946
0.46
986
0.50
1200
—
—
596
0.17
659
0.21
718
0.25
773
0.30
825
0.35
875
0.40
921
0.45
964
0.51
1005
0.56
1320
555
0.16
629
0.20
689
0.25
745
0.29
797
0.34
848
0.40
897
0.45
941
0.51
984
0.56
1026
0.62
1440
593
0.20
663
0.25
721
0.29
775
0.34
824
0.39
873
0.45
919
0.51
963
0.57
1006
0.63
1046
0.69
Continued
External Static Pressure (Inches of Water)
1.10
cfm
1.20
1.30
1.40
1.50
rpm bhp rpm bhp rpm bhp rpm bhp rpm bhp
1-hp Standard Motor & Drive
960
1004 0.50 1039 0.55 1073 0.59 1105 0.64 1137 0.69
1080
1025 0.56 1063 0.61 1098 0.66 1132 0.72 1163 0.77
1200
1046 0.62 1082 0.67 1119 0.73 1153 0.79 1187 0.85
1320
1064 0.68 1103 0.74 1139 0.80 1174 0.86 1207 0.93
1440
1085 0.75 1123 0.81 1159 0.88 1193 0.94
—
—
1-hp Standard Motor & Field Supplied High Static Drive(b)
Notes:
1. For Standard Evaporator Fan Speed (rpm), reference Table 131, p. 179.
2. Data includes pressure drop due to standard filters and wet coils. No accessories or options are included in pressure drop data.
3. Data does not include pressure drop due to reheat coil.
4. Refer to Table 138, p. 182 to determine additional static pressure drop due to other options/accessories.
5. 1-hp Fan Motor Heat (MBh) = 2.7672 x Fan bhp + 0.4705.
6. Factory supplied motors, in equipment, are definite purpose motors, specifically designed and tested to operate at all cataloged conditions. Using the
full horsepower range of our fan motors as shown in our tabular data will not result in nuisance tripping or premature motor failure. Our product’s
warranty will not be affected.
(a) Field Supplied Fan Sheave AK71x3/4" required. Field Supplied Belt may be necessary.
(b) Field Supplied Fan Sheave AK41x3/4" required. Field Supplied Belt may be necessary.
RT-PRC023AG-EN
89
Evaporator Fan Performance
Table 42. Belt drive evaporator fan performance - 3 tons standard efficiency - YSC036E3,E4,EW*L,M low & medium gas
heat horizontal airflow
External Static Pressure (Inches of Water)
0.10
cfm
0.20
0.30
0.40
0.50
0.60
rpm bhp rpm bhp rpm bhp rpm bhp rpm bhp rpm
bhp
1-hp Standard Motor & Field Supplied Low Static Drive(a)
0.70
rpm
bhp
0.80
rpm
bhp
0.90
rpm
bhp
1.00
rpm
bhp
1-hp Standard Motor & Drive
960
—
—
—
—
613
0.15
679
0.20
736
0.24
788
0.28
837
0.32
886
0.37
930
0.42
973
0.47
1080
—
—
561
0.14
636
0.18
702
0.23
761
0.28
812
0.32
860
0.37
904
0.42
947
0.47
991
0.52
1200
—
—
589
0.16
661
0.21
726
0.26
784
0.31
836
0.37
884
0.42
929
0.47
970
0.52
1011
0.58
1320
—
—
619
0.20
687
0.25
750
0.30
807
0.36
859
0.41
909
0.47
953
0.53
995
0.59
1034
0.65
1440
585
0.19
651
0.24
715
0.29
775
0.35
831
0.40
883
0.47
931
0.53
976
0.59
1019
0.66
1058
0.72
Continued
External Static Pressure (Inches of Water)
1.10
cfm
1.20
1.30
1.40
1.50
rpm bhp rpm bhp rpm bhp rpm bhp rpm bhp
1-hp Standard Motor & Drive
960
1014 0.53 1051 0.58 1087 0.63 1121 0.68 1155 0.74
1080
1031 0.58 1071 0.64 1108 0.69 1142 0.75 1177 0.81
1200
1049 0.63 1087 0.69 1124 0.75 1161 0.82 1195 0.88
1320
1071 0.70 1107 0.76 1143 0.82 1178 0.89 1213 0.96
1440
1095 0.78 1130 0.84 1166 0.91 1199 0.97
—
—
1-hp Standard Motor & Field Supplied High Static Drive(b)
Notes:
1. For Standard Evaporator Fan Speed (rpm), reference Table 131, p. 179.
2. Data includes pressure drop due to standard filters and wet coils. No accessories or options are included in pressure drop data.
3. Data does not include pressure drop due to reheat coil.
4. Refer to Table 138, p. 182 to determine additional static pressure drop due to other options/accessories.
5. 1-hp Fan Motor Heat (MBh) = 2.7672 x Fan bhp + 0.4705.
6. Factory supplied motors, in equipment, are definite purpose motors, specifically designed and tested to operate reliably and continuously at all
cataloged conditions. Using the full horsepower range of our fan motors as shown in our tabular data will not result in nuisance tripping or premature
motor failure. Our product’s warranty will not be affected.
(a) Field Supplied Fan Sheave AK71x3/4" required. Field Supplied Belt may be necessary.
(b) Field Supplied Fan Sheave AK41x3/4" required. Field Supplied Belt may be necessary.
90
RT-PRC023AG-EN
Evaporator Fan Performance
Table 43. Belt drive evaporator fan performance - 3 tons standard efficiency -YSC036E3,E4,EW*H high gas heat downflow
airflow
External Static Pressure (Inches of Water)
0.10
cfm
0.20
0.30
0.40
0.50
0.60
rpm bhp rpm bhp rpm bhp rpm bhp rpm bhp rpm
bhp
1-hp Standard Motor & Field Supplied Low Static Drive(a)
0.70
rpm
bhp
0.80
rpm
bhp
0.90
rpm
bhp
1.00
rpm
bhp
1-hp Standard Motor & Drive
960
—
—
—
—
609
0.15
671
0.19
730
0.24
785
0.28
835
0.33
881
0.37
924
0.42
966
0.47
1080
—
—
572
0.14
638
0.18
697
0.23
752
0.27
805
0.32
855
0.37
900
0.42
945
0.47
986
0.53
1200
—
—
606
0.18
668
0.22
725
0.26
778
0.31
827
0.36
876
0.42
922
0.47
964
0.52
1007
0.58
1320
573
0.17
641
0.22
700
0.26
754
0.31
805
0.36
853
0.41
898
0.47
942
0.53
985
0.59
1026
0.65
1440
613
0.21
677
0.27
733
0.31
786
0.36
835
0.42
881
0.47
925
0.53
966
0.59
1007
0.65
1047
0.71
Continued
External Static Pressure (Inches of Water)
1.10
cfm
1.20
1.30
1.40
1.50
rpm bhp rpm bhp rpm bhp rpm bhp rpm bhp
1-hp Standard Motor & Drive
960
1004 0.52 1041 0.58 1076 0.63 1109 0.68 1142 0.73
1080
1026 0.58 1063 0.64 1098 0.69 1133 0.75 1165 0.81
1200
1046 0.64 1083 0.70 1120 0.76 1154 0.82 1187 0.88
1320
1065 0.71 1103 0.77 1139 0.83 1175 0.90 1207 0.96
1440
1086 0.78 1123 0.84 1160 0.91 1194 0.98 1227 1.05
1-hp Standard Motor & Field Supplied High Static Drive(b)
Notes:
1. For Standard Evaporator Fan Speed (rpm), reference Table 131, p. 179.
2. Data includes pressure drop due to standard filters and wet coils. No accessories or options are included in pressure drop data.
3. Data does not include pressure drop due to reheat coil.
4. Refer to Table 138, p. 182 to determine additional static pressure drop due to other options/accessories.
5. 1-hp Fan Motor Heat (MBh) = 2.7672 x Fan bhp + 0.4705.
6. Factory supplied motors, in equipment, are definite purpose motors, specifically designed and tested to operate at all cataloged conditions. Using the
full horsepower range of our fan motors as shown in our tabular data will not result in nuisance tripping or premature motor failure. Our product’s
warranty will not be affected.
(a) Field Supplied Fan Sheave AK71x3/4" required. Field Supplied Belt may be necessary.
(b) Field Supplied Fan Sheave AK41x3/4" required. Field Supplied Belt may be necessary.
RT-PRC023AG-EN
91
Evaporator Fan Performance
Table 44. Belt drive evaporator fan performance - 3 tons standard efficiency -YSC036E3,E4,EW*H high gas heat horizontal
airflow
External Static Pressure (Inches of Water)
0.10
cfm
0.20
0.30
0.40
0.50
0.60
rpm bhp rpm bhp rpm bhp rpm bhp rpm bhp rpm
bhp
1-hp Standard Motor & Field Supplied Low Static Drive(a)
0.70
rpm
bhp
0.80
rpm
bhp
0.90
rpm
bhp
1.00
rpm
bhp
1-hp Standard Motor & Drive
960
—
—
—
—
621
0.15
685
0.20
745
0.24
799
0.29
849
0.33
894
0.38
936
0.42
975
0.47
1080
—
—
580
0.14
649
0.19
711
0.23
768
0.28
821
0.32
871
0.38
917
0.43
960
0.48
1000
0.53
1200
—
—
613
0.18
679
0.22
738
0.27
793
0.32
845
0.37
892
0.42
939
0.48
982
0.53
1024
0.59
1320
574
0.17
647
0.22
710
0.26
767
0.31
820
0.37
870
0.42
917
0.48
962
0.53
1004
0.59
1046
0.66
1440
612
0.21
682
0.26
742
0.31
797
0.37
849
0.42
897
0.48
943
0.54
986
0.60
1028
0.66
1068
0.72
Continued
External Static Pressure (Inches of Water)
1.10
cfm
1.20
1.30
1.40
1.50
rpm bhp rpm bhp rpm bhp rpm bhp rpm bhp
1-hp Standard Motor & Drive
960
1012 0.52 1048 0.57 1082 0.62 1116 0.67 1148 0.72
1080
1039 0.59 1075 0.64 1109 0.69 1142 0.74 1173 0.80
1200
1063 0.65 1100 0.71 1134 0.77 1168 0.83 1199 0.88
1320
1085 0.72 1122 0.78 1159 0.85 1193 0.91 1226 0.98
1440
1107 0.79 1145 0.86 1181 0.93 1216 1.00 1248 1.07
1-hp Standard Motor & Field Supplied High Static Drive(b)
Notes:
1. For Standard Evaporator Fan Speed (rpm), reference Table 131, p. 179.
2. Data includes pressure drop due to standard filters and wet coils. No accessories or options are included in pressure drop data.
3. Data does not include pressure drop due to reheat coil.
4. Refer to Table 138, p. 182 to determine additional static pressure drop due to other options/accessories.
5. 1-hp Fan Motor Heat (MBh) = 2.7672 x Fan bhp + 0.4705.
6. Factory supplied motors, in equipment, are definite purpose motors, specifically designed and tested to operate at all cataloged conditions. Using the
full horsepower range of our fan motors as shown in our tabular data will not result in nuisance tripping or premature motor failure. Our product’s
warranty will not be affected.
(a) Field Supplied Fan Sheave AK71x3/4" required. Field Supplied Belt may be necessary.
(b) Field Supplied Fan Sheave AK41x3/4" required. Field Supplied Belt may be necessary.
92
RT-PRC023AG-EN
Evaporator Fan Performance
Table 45. Belt drive evaporator fan performance - 4 tons standard efficiency - TSC048E3,E4,EW downflow airflow
External Static Pressure (Inches of Water)
0.10
cfm
0.20
0.30
0.40
0.50
0.60
rpm bhp rpm bhp rpm bhp rpm bhp rpm bhp rpm
bhp
1-hp Standard Motor & Field Supplied Low Static Drive(a)
0.70
rpm
bhp
0.80
rpm
bhp
0.90
rpm
bhp
1.00
rpm
bhp
1-hp Standard Motor & Drive
1280
—
—
619
0.20
680
0.24
735
0.29
789
0.34
843
0.39
894
0.45
940
0.51
983
0.56
1025
0.63
1440
597
0.20
664
0.25
724
0.30
775
0.35
823
0.40
872
0.46
921
0.52
968
0.58
1012
0.65
1052
0.71
1600
648
0.26
710
0.32
768
0.37
818
0.43
864
0.49
908
0.54
950
0.60
995
0.67
1039
0.74
1081
0.81
1760
700
0.34
758
0.39
812
0.46
862
0.52
907
0.58
948
0.64
988
0.71
1027
0.77
1068
0.84
1108
0.91
1920
753
0.43
807
0.49
858
0.55
906
0.62
952
0.70
992
0.76
1029
0.83
1066
0.89
1102
0.96
1138
1.03
Continued
External Static Pressure (Inches of Water)
1.10
1.20
1.30
1.40
1.50
cfm
rpm bhp rpm bhp rpm bhp rpm bhp rpm bhp
1280
1063 0.69 1101 0.75 1138 0.81 1175 0.88 1208 0.94
1440
1091 0.78 1128 0.85 1164 0.91 1198 0.98 1233 1.05
1600
1120 0.88 1157 0.95 1193 1.02 1227 1.10 1259 1.17
1760
1147 0.99 1185 1.07 1220 1.14 1256 1.23
—
—
1920
1174 1.11 1212 1.19 1247 1.27
—
—
1-hp Standard Motor & Drive
—
—
1-hp Standard Motor & Field Supplied High Static Drive(b)
Note:
1. For Standard Evaporator Fan Speed (rpm), reference Table 131, p. 179.
2. Data includes pressure drop due to standard filters and wet coils. No accessories or options are included in pressure drop data.
3. Data does not include pressure drop due to reheat coil.
4. Refer to Table 138, p. 182 to determine additional static pressure drop due to other options/accessories.
5. 1-hp Fan Motor Heat (MBh) = 2.7672 x Fan bhp + 0.4705.
6. Factory supplied motors, in equipment, are definite purpose motors, specifically designed and tested to operate at all cataloged conditions. Using the
full horsepower range of our fan motors as shown in our tabular data will not result in nuisance tripping or premature motor failure. Our product’s
warranty will not be affected.
(a) Field Supplied Fan Sheave AK69x3/4" required. Field Supplied Belt may be necessary.
(b) Field Supplied Fan Sheave AK41x3/4" required. Field Supplied Belt may be necessary.
RT-PRC023AG-EN
93
Evaporator Fan Performance
Table 46. Belt drive evaporator fan performance - 4 tons standard efficiency - TSC048E3,E4,EW horizontal airflow
External Static Pressure (Inches of Water)
0.10
cfm
0.20
0.30
0.40
0.50
0.60
rpm bhp rpm bhp rpm bhp rpm bhp rpm bhp rpm
bhp
1-hp Standard Motor & Field Supplied Low Static Drive(a)
0.70
rpm
bhp
0.80
rpm
bhp
0.90
rpm
bhp
1.00
rpm
bhp
1-hp Standard Motor & Drive
1280
—
—
633
0.20
704
0.26
767
0.31
822
0.37
871
0.42
915
0.48
957
0.54
997
0.60
1035
0.66
1440
604
0.20
676
0.26
744
0.32
805
0.38
859
0.44
909
0.50
954
0.57
996
0.63
1035
0.69
1073
0.76
1600
656
0.27
721
0.32
785
0.39
843
0.45
897
0.52
946
0.59
991
0.66
1034
0.73
1075
0.80
1110
0.87
1760
709
0.34
768
0.40
827
0.47
883
0.54
936
0.61
984
0.69
1030
0.77
1072
0.84
1113
0.92
1149
1.00
1920
762
0.43
817
0.50
872
0.57
925
0.64
975
0.72 1023
0.80
1067
0.88
1109
0.97
1150
1.05
1188
1.14
1-hp Standard Motor & Field Supplied High Static Drive(b)
Continued
External Static Pressure (Inches of Water)
1.10
1.20
1.30
1.40
1.50
cfm
rpm bhp rpm bhp rpm bhp rpm bhp rpm bhp
1280
1072 0.71 1107 0.77 1142 0.84 1176 0.90 1210 0.97
1440
1108 0.83 1143 0.89 1176 0.96 1209 1.02 1239 1.09
1600
1146 0.95 1180 1.02 1212 1.09 1243 1.16
—
—
1760
1185 1.08 1219 1.16 1251 1.24
—
—
—
—
1920
1223 1.22 1258 1.31
—
—
—
—
1-hp Standard Motor & Drive
—
—
1-hp Standard Motor & Field Supplied High Static Drive(b)
Notes:
1. For Standard Evaporator Fan Speed (rpm), reference Table 131, p. 179.
2. Data includes pressure drop due to standard filters and wet coils. No accessories or options are included in pressure drop data.
3. Data does not include pressure drop due to reheat coil.
4. Refer to Table 138, p. 182 to determine additional static pressure drop due to other options/accessories.
5. 1-hp Fan Motor Heat (MBh) = 2.7672 x Fan bhp + 0.4705.
6. Factory supplied motors, in equipment, are definite purpose motors, specifically designed and tested to operate at all cataloged conditions. Using the
full horsepower range of our fan motors as shown in our tabular data will not result in nuisance tripping or premature motor failure. Our product’s
warranty will not be affected.
(a) Field Supplied Fan Sheave AK69x3/4" required. Field Supplied Belt may be necessary.
(b) Field Supplied Fan Sheave AK41x3/4" required. Field Supplied Belt may be necessary.
94
RT-PRC023AG-EN
Evaporator Fan Performance
Table 47. Belt drive evaporator fan performance - 4 tons standard efficiency - YSC048E3,E4,EW*L,M low & medium gas
heat downflow airflow
External Static Pressure (Inches of Water)
0.10
cfm
0.20
0.30
0.40
0.50
0.60
rpm bhp rpm bhp rpm bhp rpm bhp rpm bhp rpm
bhp
1-hp Standard Motor & Field Supplied Low Static Drive(a)
0.70
rpm
bhp
0.80
rpm
bhp
0.90
rpm
bhp
1.00
rpm
bhp
0.67
1-hp Standard Motor & Drive
1280
571
0.17
641
0.22
701
0.26
755
0.31
807
0.36
858
0.42
907
0.49
953
0.55
996
0.61
1037
1440
624
0.23
689
0.28
747
0.33
799
0.39
847
0.44
892
0.50
938
0.56
983
0.63
1027
0.71
1067
0.78
1600
679
0.30
740
0.35
794
0.41
844
0.47
890
0.53
933
0.59
975
0.66
1016
0.72
1057
0.80
1097
0.88
1760
735
0.38
791
0.44
843
0.51
891
0.58
936
0.64
977
0.71
1017
0.77
1056
0.84
1092
0.91
1130
0.99
1920
791
0.48
844
0.55
893
0.62
939
0.69
982
0.76 1023
0.84
1061
0.91
1097
0.98
1133
1.05
1168
1.13
1-hp Standard Motor & Field Supplied High Static Drive(b)
Continued
External Static Pressure (Inches of Water)
1.10
1.20
1.30
1.40
1.50
cfm
rpm bhp rpm bhp rpm bhp rpm bhp rpm bhp
1280
1075 0.73 1113 0.79 1147 0.85 1181 0.92 1215 0.98
1440
1106 0.85 1143 0.91 1179 0.98 1211 1.05 1245 1.11
1600
1137 0.96 1173 1.04 1209 1.12 1242 1.19
1760
1166 1.07 1203 1.16 1239 1.25
—
—
—
—
1920
1201 1.21 1236 1.29
—
—
—
—
1-hp Standard Motor & Drive
—
—
—
—
1-hp Standard Motor & Field Supplied High Static Drive(b)
Notes:
1. For Standard Evaporator Fan Speed (rpm), reference Table 131, p. 179.
2. Data includes pressure drop due to standard filters and wet coils. No accessories or options are included in pressure drop data.
3. Data does not include pressure drop due to reheat coil.
4. Refer to Table 138, p. 182 to determine additional static pressure drop due to other options/accessories.
5. 1-hp Fan Motor Heat (MBh) = 2.7672 x Fan bhp + 0.4705.
6. Factory supplied motors, in equipment, are definite purpose motors, specifically designed and tested to operate at all cataloged conditions. Using the
full horsepower range of our fan motors as shown in our tabular data will not result in nuisance tripping or premature motor failure. Our product’s
warranty will not be affected.
(a) Field Supplied Fan Sheave AK69x3/4" required. Field Supplied Belt may be necessary.
(b) Field Supplied Fan Sheave AK41x3/4" required. Field Supplied Belt may be necessary.
RT-PRC023AG-EN
95
Evaporator Fan Performance
Table 48. Belt drive evaporator fan performance - 4 tons standard efficiency - YSC048E3,E4,EW*L,M low & medium gas
heat horizontal airflow
External Static Pressure (Inches of Water)
0.10
cfm
0.20
0.30
0.40
0.50
0.60
rpm bhp rpm bhp rpm bhp rpm bhp rpm bhp rpm
bhp
1-hp Standard Motor & Field Supplied Low Static Drive(a)
0.70
rpm
bhp
0.80
rpm
bhp
0.90
rpm
bhp
1.00
rpm
bhp
1-hp Standard Motor & Drive
1280
—
—
638
0.21
704
0.26
766
0.31
822
0.37
875
0.42
922
0.48
968
0.54
1010
0.60
1052
0.66
1440
621
0.22
685
0.26
746
0.32
804
0.38
858
0.44
909
0.50
957
0.56
1002
0.63
1043
0.70
1084
0.76
1600
676
0.29
734
0.34
790
0.39
844
0.45
896
0.52
946
0.59
992
0.66
1036
0.73
1078
0.80
1118
0.87
1760
732
0.37
786
0.42
838
0.48
888
0.55
936
0.62
984
0.69
1029
0.76
1071
0.84
1112
0.91
1152
0.99
1920
789
0.47
839
0.53
887
0.59
934
0.66
979
0.73 1023
0.80
1067
0.88
1108
0.96
1149
1.04
1187
1.13
1-hp Standard Motor & Field Supplied High Static Drive(b)
Continued
External Static Pressure (Inches of Water)
1.10
1.20
1.30
1.40
1.50
cfm
rpm bhp rpm bhp rpm bhp rpm bhp rpm bhp
1280
1091 0.73 1129 0.79 1166 0.85 1201 0.92 1234 0.98
1440
1122 0.83 1159 0.90 1196 0.97 1230 1.04
—
—
1600
1155 0.95 1192 1.02 1228 1.10 1261 1.17
—
—
1760
1189 1.07 1225 1.15 1261 1.24
—
—
—
—
1920
1225 1.21 1260 1.30
—
—
—
—
1-hp Standard Motor & Drive
—
—
1-hp Standard Motor & Field Supplied High Static Drive(b)
Notes:
1. For Standard Evaporator Fan Speed (rpm), reference Table 131, p. 179.
2. Data includes pressure drop due to standard filters and wet coils. No accessories or options are included in pressure drop data.
3. Data does not include pressure drop due to reheat coil.
4. Refer to Table 138, p. 182 to determine additional static pressure drop due to other options/accessories.
5. 1-hp Fan Motor Heat (MBh) = 2.7672 x Fan bhp + 0.4705.
6. Factory supplied motors, in equipment, are definite purpose motors, specifically designed and tested to operate at all cataloged conditions. Using the
full horsepower range of our fan motors as shown in our tabular data will not result in nuisance tripping or premature motor failure. Our product’s
warranty will not be affected.
(a) Field Supplied Fan Sheave AK69x3/4" required. Field Supplied Belt may be necessary.
(b) Field Supplied Fan Sheave AK41x3/4" required. Field Supplied Belt may be necessary.
96
RT-PRC023AG-EN
Evaporator Fan Performance
Table 49. Belt drive evaporator fan performance - 4 tons standard efficiency -YSC048E3,E4,EW*H high gas heat downflow
airflow
External Static Pressure (Inches of Water)
0.10
cfm
0.20
0.30
0.40
0.50
0.60
rpm bhp rpm bhp rpm bhp rpm bhp rpm bhp rpm
bhp
1-hp Standard Motor & Field Supplied Low Static Drive(a)
0.70
rpm
bhp
0.80
rpm
bhp
0.90
rpm
bhp
1.00
rpm
bhp
0.65
1-hp Standard Motor & Drive
1280
586
0.17
652
0.21
711
0.26
766
0.31
818
0.36
870
0.41
919
0.47
965
0.53
1008
0.59
1049
1440
642
0.23
704
0.28
759
0.33
810
0.38
859
0.43
906
0.49
951
0.55
996
0.61
1039
0.68
1080
0.74
1600
699
0.30
757
0.36
809
0.41
857
0.47
903
0.53
947
0.59
990
0.65
1030
0.71
1071
0.78
1111
0.85
1760
757
0.39
811
0.45
861
0.51
906
0.57
950
0.63
991
0.70
1031
0.76
1071
0.83
1109
0.90
1146
0.97
1920
816
0.49
867
0.56
914
0.63
957
0.69
998
0.76 1037
0.82
1076
0.89
1113
0.96
1149
1.04
1184
1.11
1-hp Standard Motor & Field Supplied High Static Drive(b)
Continued
External Static Pressure (Inches of Water)
1.10
1.20
1.30
1.40
1.50
cfm
rpm bhp rpm bhp rpm bhp rpm bhp rpm bhp
1280
1086 0.71 1122 0.77 1157 0.83 1190 0.89 1221 0.94
1440
1119 0.81 1156 0.88 1191 0.94 1224 1.01 1257 1.08
1600
1151 0.92 1187 0.99 1223 1.07 1258 1.14
1760
1182 1.04 1218 1.12 1255 1.20
—
—
—
—
1920
1219 1.19 1252 1.27
—
—
—
—
1-hp Standard Motor & Drive
—
—
—
—
1-hp Standard Motor & Field Supplied High Static Drive(b)
Notes:
1. For Standard Evaporator Fan Speed (rpm), reference Table 131, p. 179.
2. Data includes pressure drop due to standard filters and wet coils. No accessories or options are included in pressure drop data.
3. Data does not include pressure drop due to reheat coil.
4. Refer to Table 138, p. 182 to determine additional static pressure drop due to other options/accessories.
5. 1-hp Fan Motor Heat (MBh) = 2.7672 x Fan bhp + 0.4705.
6. Factory supplied motors, in commercial equipment, are definite purpose motors, specifically designed and tested to operate reliably and continuously
at all cataloged conditions. Using the full horsepower range of our fan motors as shown in our tabular data will not result in nuisance tripping or
premature motor failure. Our product’s warranty will not be affected.
(a) Field Supplied Fan Sheave AK69x3/4" required. Field Supplied Belt may be necessary.
(b) Field Supplied Fan Sheave AK41x3/4" required. Field Supplied Belt may be necessary.
RT-PRC023AG-EN
97
Evaporator Fan Performance
Table 50. Belt drive evaporator fan performance - 4 tons standard efficiency -YSC048E3,E4,EW*H high gas heat horizontal
airflow
External Static Pressure (Inches of Water)
0.10
cfm
0.20
0.30
0.40
0.50
0.60
rpm bhp rpm bhp rpm bhp rpm bhp rpm bhp rpm
bhp
1-hp Standard Motor & Field Supplied Low Static Drive(a)
0.70
rpm
bhp
0.80
rpm
bhp
0.90
rpm
bhp
1.00
rpm
bhp
1-hp Standard Motor & Drive
1280
587
0.18
659
0.23
722
0.28
782
0.33
835
0.39
886
0.45
931
0.51
975
0.57
1016
0.64
1056
0.70
1440
641
0.24
709
0.29
769
0.35
824
0.41
876
0.47
924
0.53
970
0.60
1013
0.67
1053
0.74
1092
0.81
1600
696
0.31
761
0.37
817
0.44
869
0.50
918
0.56
965
0.63
1009
0.70
1053
0.78
1092
0.85
1131
0.93
1760
753
0.40
813
0.47
867
0.54
917
0.61
963
0.68 1008
0.75
1051
0.82
1092
0.90
1132
0.98
1169
1.06
1920
810
0.50
867
0.58
919
0.66
966
0.73 1011 0.81 1053
0.88
1094
0.96
1134
1.04
1172
1.12
1209
1.21
1-hp Standard Motor & Field Supplied High Static Drive(b)
Continued
External Static Pressure (Inches of Water)
1.10
1.20
1.30
1.40
1.50
cfm
rpm bhp rpm bhp rpm bhp rpm bhp rpm bhp
1280
1095 0.76 1131 0.83 1167 0.89 1200 0.95 1233 1.02
1440
1130 0.88 1164 0.95 1199 1.02 1234 1.09
—
—
1600
1167 1.00 1201 1.08 1236 1.16
—
—
1760
1206 1.14 1240 1.22
—
—
—
—
—
—
1920
1245 1.30
—
—
—
—
—
—
1-hp Standard Motor & Drive
—
—
—
—
1-hp Standard Motor & Field Supplied High Static Drive(b)
Notes:
1. For Standard Evaporator Fan Speed (rpm), reference Table 131, p. 179.
2. Data includes pressure drop due to standard filters and wet coils. No accessories or options are included in pressure drop data.
3. Data does not include pressure drop due to reheat coil.
4. Refer to Table 138, p. 182 to determine additional static pressure drop due to other options/accessories.
5. 1-hp Fan Motor Heat (MBh) = 2.7672 x Fan bhp + 0.4705.
6. Factory supplied motors, in commercial equipment, are definite purpose motors, specifically designed and tested to operate reliably and continuously
at all cataloged conditions. Using the full horsepower range of our fan motors as shown in our tabular data will not result in nuisance tripping or
premature motor failure. Our product’s warranty will not be affected.
(a) Field Supplied Fan Sheave AK69x3/4" required. Field Supplied Belt may be necessary.
(b) Field Supplied Fan Sheave AK41x3/4" required. Field Supplied Belt may be necessary.
98
RT-PRC023AG-EN
Evaporator Fan Performance
Table 51. Belt drive evaporator fan performance - 5 tons standard efficiency - TSC060E3,E4,EW downflow airflow
External Static Pressure (Inches of Water)
0.10
cfm
0.20
0.30
0.40
0.50
0.60
rpm bhp rpm bhp rpm bhp rpm bhp rpm bhp rpm
bhp
1-hp Standard Motor & Field Supplied Low Static Drive(a)
0.70
rpm
bhp
0.80
rpm
bhp
0.90
rpm
bhp
1.00
rpm
bhp
1-hp Standard Motor & Drive
1600
—
—
706
0.31
763
0.37
814
0.42
862
0.47
908
0.53
951
0.59
992
0.65
1031
0.71
1069
0.77
1800
710
0.35
767
0.41
819
0.47
868
0.53
913
0.59
957
0.66
998
0.72
1038
0.78
1075
0.85
1112
0.91
2000
777
0.46
828
0.53
877
0.60
924
0.67
967
0.74 1008
0.80
1047
0.87
1086
0.94
1122
1.01
1157
1.08
2200
844
0.60
892
0.68
938
0.75
981
0.83 1022 0.90 1061
0.97
1099
1.05
1136
1.13
1170
1.20
1205
1.28
2400
912
0.77
957
0.85
999
0.93 1040 1.01 1079 1.09 1117
1.17
1153
1.25
1187
1.33
1222
1.42
1254
1.50
Continued
External Static Pressure (Inches of Water)
1.10
1.20
1.30
1.40
1.50
cfm
rpm bhp rpm bhp rpm bhp rpm bhp rpm bhp
1600
1105 0.83 1140 0.89 1174 0.96 1209 1.03 1242 1.10
1800
1146 0.98 1181 1.05 1213 1.12 1245 1.19 1276 1.26
2000
1191 1.15 1225 1.23 1256 1.30 1287 1.37
—
—
2200
1238 1.35 1269 1.43
—
—
—
—
—
—
2400
1286 1.58
—
—
—
—
—
—
1-hp Standard Motor & Drive
—
—
Notes:
1. For Standard Evaporator Fan Speed (rpm), reference Table 131, p. 179.
2. Data includes pressure drop due to standard filters and wet coils. No accessories or options are included in pressure drop data.
3. Data does not include pressure drop due to reheat coil.
4. Refer to Table 138, p. 182 to determine additional static pressure
5. drop due to other options/accessories.
6. 1-hp Fan Motor Heat (MBh) = 2.7672 x Fan bhp + 0.4705.
7. Factory supplied motors, in equipment, are definite purpose motors, specifically designed and tested to operate at all cataloged conditions.Using the
full horsepower range of our fan motors as shown in our tabular data will not result in nuisance tripping or premature motor failure. Our product’s
warranty will not be affected.
(a) Field Supplied Fan Sheave AK61x3/4" required. Field Supplied Belt may be necessary.
RT-PRC023AG-EN
99
Evaporator Fan Performance
Table 52. Belt drive evaporator fan performance - 5 tons standard efficiency - TSC060E3,E4,EW horizontal airflow
External Static Pressure (Inches of Water)
0.10
cfm
0.20
0.30
0.40
0.50
0.60
rpm bhp rpm bhp rpm bhp rpm bhp rpm bhp rpm
bhp
1-hp Standard Motor & Field Supplied Low Static Drive(a)
0.70
rpm
bhp
0.80
rpm
bhp
0.90
rpm
bhp
1.00
rpm
bhp
1-hp Standard Motor & Drive
1600
653
0.26
714
0.31
774
0.37
829
0.43
879
0.48
924
0.54
967
0.60
1007
0.66
1045
0.71
1082
0.78
1800
720
0.36
775
0.41
829
0.47
881
0.54
930
0.60
975
0.67
1016
0.73
1055
0.79
1093
0.86
1128
0.92
2000
787
0.47
837
0.54
887
0.60
935
0.67
982
0.74 1026
0.81
1068
0.88
1106
0.96
1142
1.03
1176
1.10
2200
856
0.61
902
0.68
947
0.75
992
0.83 1036 0.90 1078
0.98
1119
1.06
1157
1.14
1193
1.22
1227
1.30
2400
926
0.78
969
0.86 1010 0.94 1051 1.01 1092 1.09 1131
1.17
1170
1.26
1208
1.35
1244
1.43
1278
1.52
Continued
External Static Pressure (Inches of Water)
1.10
1.20
1.30
1.40
1.50
cfm
rpm bhp rpm bhp rpm bhp rpm bhp rpm bhp
1600
1118 0.84 1152 0.90 1187 0.97 1219 1.04 1253 1.11
1800
1163 0.99 1195 1.06 1228 1.13 1260 1.20 1291 1.28
2000
1210 1.17 1243 1.24 1274 1.32
2200
1260 1.38 1292 1.45
1-hp Standard Motor & Drive
2400
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
Notes:
1. For Standard Evaporator Fan Speed (rpm), reference Table 131, p. 179.
2. Data includes pressure drop due to standard filters and wet coils. No accessories or options are included in pressure drop data.
3. Data does not include pressure drop due to reheat coil.
4. Refer to Table 138, p. 182 to determine additional static pressure drop due to other options/accessories.
5. 1-hp Fan Motor Heat (MBh) = 2.7672 x Fan bhp + 0.4705.
6. Factory supplied motors, in equipment, are definite purpose motors, specifically designed and tested to operate at all cataloged conditions. Using the
full horsepower range of our fan motors as shown in our tabular data will not result in nuisance tripping or premature motor failure. Our product’s
warranty will not be affected.
(a) Field Supplied Fan Sheave AK61x3/4" required. Field Supplied Belt may be necessary.
100
RT-PRC023AG-EN
Evaporator Fan Performance
Table 53. Belt drive evaporator fan performance - 5 tons standard efficiency - YSC060E3,E4,EW*L,M low & medium gas
heat downflow airflow
External Static Pressure (Inches of Water)
0.10
cfm
0.20
0.30
0.40
0.50
0.60
rpm bhp rpm bhp rpm bhp rpm bhp rpm bhp rpm
bhp
1-hp Standard Motor & Field Supplied Low Static Drive(a)
0.70
rpm
bhp
0.80
rpm
bhp
0.90
rpm
bhp
1.00
rpm
bhp
1-hp Standard Motor & Drive
1600
704
0.31
762
0.36
815
0.42
861
0.47
904
0.53
0.58
987
0.64
1028
0.70
1064
0.75
1101
0.82
1800
777
0.42
831
0.48
880
0.54
925
0.60
966
0.67 1005
0.73
1043
0.79
1080
0.86
1116
0.92
1151
0.98
2000
851
0.56
901
0.63
947
0.70
990
0.77 1031 0.83 1068
0.90
1102
0.97
1137
1.04
1171
1.11
1205
1.18
2200
926
0.73
973
0.81 1016 0.88 1057 0.96 1096 1.03 1131
1.10
1165
1.18
1198
1.26
1229
1.33
1260
1.41
1002 0.93 1045 1.01 1086 1.10 1124 1.18 1162 1.26 1197
1.34
1230
1.42
1261
1.51
1291
1.59
—
—
2400
947
Continued
External Static Pressure (Inches of Water)
1.10
cfm
1.20
1.30
1.40
1.50
rpm bhp rpm bhp rpm bhp rpm bhp rpm bhp
1-hp Standard Motor & Drive
1600
1137 0.88 1172 0.95 1205 1.01 1238 1.08 1270 1.15
1800
1186 1.05 1217 1.12 1251 1.19 1281 1.26
—
—
2000
1237 1.25 1269 1.32
—
—
—
—
—
—
2200
1291 1.49
2400
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
Notes:
1. For Standard Evaporator Fan Speed (rpm), reference Table 131, p. 179.
2. Data includes pressure drop due to standard filters and wet coils. No accessories or options are included in pressure drop data.
3. Data does not include pressure drop due to reheat coil.
4. Refer to Table 138, p. 182 to determine additional static pressure drop due to other options/accessories.
5. 1-hp Fan Motor Heat (MBh) = 2.7672 x Fan bhp + 0.4705.
6. Factory supplied motors, in equipment, are definite purpose motors, specifically designed and tested to operate at all cataloged conditions. Using the
full horsepower range of our fan motors as shown in our tabular data will not result in nuisance tripping or premature motor failure. Our product’s
warranty will not be affected.
(a) Field Supplied Fan Sheave AK61x3/4" required. Field Supplied Belt may be necessary.
RT-PRC023AG-EN
101
Evaporator Fan Performance
Table 54. Belt drive evaporator fan performance - 5 tons standard efficiency - YSC060E3,E4,EW*L,M low & medium gas
heat horizontal airflow
External Static Pressure (Inches of Water)
0.10
cfm
0.20
0.30
0.40
0.50
0.60
rpm bhp rpm bhp rpm bhp rpm bhp rpm bhp rpm
bhp
1-hp Standard Motor & Field Supplied Low Static Drive(a)
0.70
rpm
bhp
0.80
rpm
bhp
0.90
rpm
bhp
1.00
rpm
bhp
1-hp Standard Motor & Drive
1600
—
—
732
0.33
789
0.38
843
0.43
894
0.49
941
0.55
986
0.61
1028
0.68
1069
0.74
1107
0.80
1800
741
0.38
795
0.43
848
0.49
898
0.55
946
0.61
991
0.68
1034
0.74
1075
0.81
1114
0.88
1151
0.95
2000
811
0.50
861
0.57
909
0.63
956
0.69 1000 0.76 1044
0.83
1084
0.90
1124
0.97
1162
1.05
1198
1.12
2200
883
0.65
929
0.72
973
0.79 1016 0.86 1058 0.94 1098
1.01
1138
1.09
1176
1.16
1213
1.24
1249
1.32
2400
955
0.83
997
0.91 1038 0.99 1078 1.06 1118 1.14 1156
1.22
1193
1.30
1229
1.38
1264
1.46
—
—
Continued
External Static Pressure (Inches of Water)
1.10
cfm
1.20
1.30
1.40
1.50
rpm bhp rpm bhp rpm bhp rpm bhp rpm bhp
1-hp Standard Motor & Drive
1600
1144 0.87 1180 0.94 1213 1.00 1247 1.07 1279 1.14
1800
1188 1.02 1224 1.10 1257 1.17 1289 1.24
—
—
2000
1234 1.20 1269 1.28
—
—
—
—
—
—
2200
1282 1.40
2400
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
Notes:
1. For Standard Evaporator Fan Speed (rpm), reference Table 131, p. 179.
2. Data includes pressure drop due to standard filters and wet coils. No accessories or options are included in pressure drop data.
3. Data does not include pressure drop due to reheat coil.
4. Refer to Table 138, p. 182 to determine additional static pressure drop due to other options/accessories.
5. 1-hp Fan Motor Heat (MBh) = 2.7672 x Fan bhp + 0.4705.
6. Factory supplied motors, in equipment, are definite purpose motors, specifically designed and tested to operate at all cataloged conditions. Using the
full horsepower range of our fan motors as shown in our tabular data will not result in nuisance tripping or premature motor failure. Our product’s
warranty will not be affected.
(a) Field Supplied Fan Sheave AK61x3/4" required. Field Supplied Belt may be necessary.
102
RT-PRC023AG-EN
Evaporator Fan Performance
Table 55. Belt drive evaporator fan performance - 5 tons standard efficiency -YSC060E3,E4,EW*H high gas heat downflow
airflow
External Static Pressure (Inches of Water)
0.10
cfm
0.20
0.30
0.40
0.50
0.60
rpm bhp rpm bhp rpm bhp rpm bhp rpm bhp rpm
bhp
1-hp Standard Motor & Field Supplied Low Static Drive(a)
0.70
rpm
bhp
0.80
rpm
bhp
0.90
rpm
bhp
1.00
rpm
bhp
1-hp Standard Motor & Drive
1600
714
0.32
773
0.37
827
0.43
873
0.48
916
0.54
0.60
1003
0.66
1044
0.73
1083
0.79
1122
0.86
1800
788
0.44
842
0.50
893
0.56
939
0.62
980
0.68 1019
0.75
1056
0.81
1095
0.88
1133
0.95
1170
1.02
2000
863
0.58
914
0.65
961
0.72 1005 0.79 1045 0.86 1082
0.93
1117
0.99
1152
1.07
1187
1.14
1221
1.22
2200
939
0.76
986
0.84 1030 0.92 1073 0.99 1112 1.07 1148
1.14
1182
1.21
1214
1.29
1246
1.37
1277
1.44
1016 0.97 1060 1.05 1101 1.14 1141 1.22 1179 1.31 1215
1.39
1248
1.47
1280
1.55
—
—
—
—
2400
959
Continued
External Static Pressure (Inches of Water)
1.10
cfm
1.20
1.30
1.40
1.50
rpm bhp rpm bhp rpm bhp rpm bhp rpm bhp
1-hp Standard Motor & Drive
1600
1157 0.92 1193 0.99 1226 1.06 1258 1.12 1290 1.19
1800
1205 1.10 1240 1.17 1273 1.24
2000
1256 1.30 1289 1.38
—
—
—
—
—
—
—
—
—
—
2200
—
—
—
—
—
—
—
—
—
—
2400
—
—
—
—
—
—
—
—
—
—
Notes:
1. For Standard Evaporator Fan Speed (rpm), reference Table 131, p. 179.
2. Data includes pressure drop due to standard filters and wet coils. No accessories or options are included in pressure drop data.
3. Data does not include pressure drop due to reheat coil.
4. Refer to Table 138, p. 182 to determine additional static pressure drop due to other options/accessories.
5. 1-hp Fan Motor Heat (MBh) = 2.7672 x Fan bhp + 0.4705.
6. Factory supplied motors, in equipment, are definite purpose motors, specifically designed and tested to operate at all cataloged conditions. Using the
full horsepower range of our fan motors as shown in our tabular data will not result in nuisance tripping or premature motor failure. Our product’s
warranty will not be affected.
(a) Field Supplied Fan Sheave AK61x3/4" required. Field Supplied Belt may be necessary.
RT-PRC023AG-EN
103
Evaporator Fan Performance
Table 56. Belt drive evaporator fan performance - 5 tons standard efficiency -YSC060E3,E4,EW*H high gas heat horizontal
airflow
External Static Pressure (Inches of Water)
0.10
cfm
0.20
0.30
0.40
0.50
0.60
rpm bhp rpm bhp rpm bhp rpm bhp rpm bhp rpm
bhp
1-hp Standard Motor & Field Supplied Low Static Drive(a)
0.70
rpm
bhp
0.80
rpm
bhp
0.90
rpm
bhp
1.00
rpm
bhp
1-hp Standard Motor & Drive
1600
711
0.30
769
0.36
823
0.41
874
0.47
923
0.53
0.59
1010
0.65
1050
0.71
1088
0.78
1126
0.84
1800
784
0.42
839
0.48
889
0.54
935
0.60
981
0.67 1024
0.73
1066
0.80
1104
0.87
1142
0.94
1177
1.00
2000
859
0.56
910
0.63
956
0.69
999
0.76 1041 0.83 1083
0.90
1123
0.98
1161
1.05
1197
1.12
1232
1.20
2200
934
0.72
982
0.80 1026 0.88 1067 0.95 1106 1.03 1144
1.10
1181
1.18
1218
1.26
1254
1.34
1288
1.42
1010 0.92 1055 1.01 1097 1.09 1135 1.17 1173 1.25 1208
1.34
1242
1.42
1277
1.50
—
—
—
—
2400
969
Continued
External Static Pressure (Inches of Water)
1.10
cfm
1.20
1.30
1.40
1.50
rpm bhp rpm bhp rpm bhp rpm bhp rpm bhp
1-hp Standard Motor & Drive
1600
1163 0.91 1197 0.98 1232 1.05 1265 1.12 1296 1.19
1800
1211 1.08 1244 1.15 1278 1.22
2000
1265 1.28
—
—
—
—
—
—
—
—
—
—
—
—
2200
—
—
—
—
—
—
—
—
—
—
2400
—
—
—
—
—
—
—
—
—
—
Notes:
1. For Standard Evaporator Fan Speed (rpm), reference Table 131, p. 179.
2. Data includes pressure drop due to standard filters and wet coils. No accessories or options are included in pressure drop data.
3. Data does not include pressure drop due to reheat coil.
4. Refer to Table 138, p. 182 to determine additional static pressure drop due to other options/accessories.
5. 1-hp Fan Motor Heat (MBh) = 2.7672 x Fan bhp + 0.4705.
6. Factory supplied motors, in equipment, are definite purpose motors, specifically designed and tested to operate at all cataloged conditions. Using the
full horsepower range of our fan motors as shown in our tabular data will not result in nuisance tripping or premature motor failure. Our product’s
warranty will not be affected.
(a) Field Supplied Fan Sheave AK61x3/4" required. Field Supplied Belt may be necessary.
104
RT-PRC023AG-EN
Evaporator Fan Performance
Table 57. Belt drive evaporator fan performance - 6 tons standard efficiency - TSC072F3,4,W downflow airflow
External Static Pressure (Inches of Water)
0.10
cfm
rpm
bhp
0.20
0.30
0.40
0.50
0.60
0.70
0.80
0.90
rpm bhp rpm bhp rpm bhp rpm bhp rpm bhp rpm bhp rpm bhp rpm
1-hp Standard Motor & Field Supplied Low Static Drive(a)
bhp
1.00
rpm
bhp
1-hp Standard Motor & Drive
1920
—
—
—
—
588
0.35
643
0.43
693
0.50
738
0.57
782
0.65
823
0.73
862
0.81
900
0.89
2160
—
—
564
0.37
618
0.44
672
0.52
721
0.60
765
0.68
806
0.76
847
0.85
885
0.93
922
1.02
2400
—
—
602
0.47
652
0.54
701
0.63
750
0.72
794
0.81
834
0.90
873
0.98
909
1.08
945
1.17
2640
589
0.50
642
0.59
690
0.67
734
0.76
779
0.85
822
0.95
864
1.05
901
1.15
936
1.24
971
1.34
2880
634
0.63
682
0.74
728
0.82
770
0.91
810
1.01
851
1.11
892
1.22
930
1.33
965
1.44
999
1.54
Continued
External Static Pressure (Inches of Water)
1.10
cfm
rpm
bhp
1.20
1.30
1.40
1.50
1.60
1.70
1.80
1.90
rpm bhp rpm bhp rpm bhp rpm bhp rpm bhp rpm bhp rpm bhp rpm
bhp
2.00
rpm
bhp
1-hp Standard Motor & Drive 1-hp Standard Motor & High Static Drive Kit (or 2-hp Oversized Motor & Drive)
1920
937
0.98
971
1.06 1004 1.14 1037 1.22 1068 1.30 1097 1.38 1127 1.47 1154 1.55 1182
1.64
1210
1.74
2160
957
1.12
991
1.21 1024 1.30 1057 1.40 1087 1.49 1117 1.58 1146 1.67 1174 1.76 1201
1.85
1227
1.95
980
1.27
1013 1.37 1046 1.47 1076 1.57 1106 1.68 1137 1.78 1166 1.89 1194 1.99 1220
2.19
2400
2.08
1248
2640
1004 1.44(b) 1036 1.55 1067 1.65 1098 1.77 1129 1.88 1158 1.99 1185 2.10 1214 2.22
—
—
—
—
2880
1030
—
—
—
—
1.64
1061 1.75 1092 1.86 1123 1.98 1151 2.09 1181 2.22
—
—
—
—
2-hp Oversized Motor & Drive
Notes:
1. For Standard Evaporator Fan Speed (rpm), reference Table 131, p. 179.
2. Data includes pressure drop due to standard filters and wet coils. No accessories or options are included in pressure drop data.
3. Refer to Table 138, p. 182 to determine additional static pressure drop due to other options/accessories.
4. 1-hp Fan Motor Heat (MBh) = 2.829 x Fan bhp +.4024. 2-hp Fan Motor Heat (MBh) = 3.000 x Fan bhp +.5000.
5. Factory supplied motors, in commercial equipment, are definite purpose motors, specifically designed and tested to operate reliably and continuously
at all cataloged conditions. Using the full horse power range of our fan motors as shown in our tabular data will not result in nuisance tripping or
premature motor failure. Our product's warranty will not be affected.
(a) Field Supplied Fan Sheave AK84 and Belt AX36 required.
(b) 1-hp Standard Motor & High Static Drive Kit (or 2-hp Oversized Motor & Drive)
RT-PRC023AG-EN
105
Evaporator Fan Performance
Table 58. Belt drive evaporator fan performance - 6 tons standard efficiency - TSC072F3,4,W horizontal airflow
External Static Pressure (Inches of Water)
0.10
cfm
0.20
0.30
0.40
0.50
0.60
0.70
0.80
0.90
rpm bhp rpm bhp rpm bhp rpm bhp rpm bhp rpm bhp rpm bhp rpm bhp rpm
1-hp Standard Motor & Field Supplied Low Static Drive(a)
1.00
bhp
rpm
bhp
1-hp Standard Motor & Drive
1920
—
—
580
0.33
641
0.41
692
0.47
738
0.54
783
0.63
827
0.71
870
0.79
912
0.88
951
0.96
2160
578
0.37
623
0.43
679
0.51
731
0.59
775
0.67
817
0.74
857
0.83
896
0.93
935
1.02
974
1.12
2400
633
0.49
673
0.56
718
0.63
769
0.72
814
0.82
855
0.90
893
0.98
929
1.08
965
1.18
999
1.29
2640
688
0.64
725
0.71
762
0.79
808
0.87
853
0.98
894
1.09
931
1.17
966
1.26 1000
1.36
1032
1.47(b)
2880
743
0.81
778
0.90
811
0.98
848
1.06
891
1.16
932
1.28
970
1.40 1004 1.49 1037
1.59
1068
1.69
1-hp Standard Motor & High Static Drive Kit (or 2-hp Oversized Motor)
Continued
External Static Pressure (Inches of Water)
1.10
cfm
1.20
1.30
1.50
1.60
1.70
1.80
1.90
rpm bhp rpm bhp rpm bhp rpm bhp rpm bhp rpm bhp rpm bhp rpm bhp rpm
1-hp Standard Motor & Drive
1920
1.40
990
2.00
bhp
rpm
bhp
1-hp Standard Motor & High Static Drive Kit (or 2-hp Oversized Motor & Drive)
1.05 1026 1.14 1062 1.24 1096 1.33 1130 1.43 1160 1.52 1190 1.61 1218 1.71 1247
1.80
1273
1.90
2160
1010 1.21 1047 1.31 1082 1.40 1116 1.50 1150 1.61 1182 1.71 1211 1.81 1242 1.92 1271
2.03
1298
2.14
2400
1035 1.39 1070 1.50 1104 1.60 1137 1.70 1168 1.81 1201 1.92 1232 2.03 1261 2.14 1291
2.26
—
—
2640
1065 1.59 1097 1.71 1129 1.82 1161 1.93 1192 2.05 1223 2.16 1252 2.27
—
—
—
—
—
—
2880
1099 1.80 1130 1.93 1159 2.05 1188 2.18 1217 2.30
—
—
—
—
—
—
2-hp Oversized Motor & Drive
—
—
—
—
2-hp Oversized Motor & Field Supplied
Drive(c)
Notes:
1. For Standard Evaporator Fan Speed (rpm), reference Table 131, p. 179.
2. Data includes pressure drop due to standard filters and wet coils. No accessories or options are included in pressure drop data.
3. Refer to Table 138, p. 182 to determine additional static pressure drop due to other options accessories.
4. 1-hp Fan Motor Heat (MBh) = 2.829 x Fan bhp +.4024. 2-hp Fan Motor Heat (MBh) = 3.000 x Fan bhp +.5000.
5. Factory supplied motors, in commercial equipment, are definite purpose motors, specifically designed and tested to operate reliably and continuously
at all cataloged conditions. Using the full horsepower range of our fan motors as shown in our tabular data will not result in nuisance tripping or
premature motor failure. Our product's warranty will not be affected.
(a) Field Supplied Fan Sheave AK84 and Belt AX36 required.
(b) 2-hp Oversized Motor & Field Supplied Drive
(c) Field Supplied Fan Sheave AK56 and Belt AX30.
106
RT-PRC023AG-EN
Evaporator Fan Performance
Table 59. Belt drive evaporator fan performance - 6 tons standard efficiency with gas heat - YSC072F3,4,W*L,M low &
medium heat downflow airflow
External Static Pressure (Inches of Water)
0.10
cfm
rpm
bhp
0.20
0.30
0.40
0.50
0.60
0.70
0.80
0.90
rpm bhp rpm bhp rpm bhp rpm bhp rpm bhp rpm bhp rpm bhp rpm
1-hp Standard Motor & Field Supplied Low Static Drive(a)
1.00
bhp
rpm
bhp
1-hp Standard Motor & Drive
1920
—
—
—
—
597
0.37
652
0.44
700
0.51
745
0.58
788
0.66
829
0.74
869
0.82
906
0.91
2160
—
—
575
0.38
629
0.46
683
0.54
730
0.62
774
0.70
815
0.78
854
0.86
893
0.95
929
1.04
2400
561
0.41
615
0.49
664
0.57
714
0.65
762
0.74
805
0.83
844
0.92
882
1.01
918
1.10
954
1.20
2640
606
0.53
657
0.62
703
0.70
747
0.79
792
0.88
835
0.98
875
1.08
912
1.18
947
1.27
980
1.37
2880
651
0.67
699
0.77
743
0.85
785
0.94
825
1.05
867
1.15
906
1.26
943
1.37
978
1.47
1010
1.58
2-hp Oversized Motor & Drive
Continued
External Static Pressure (Inches of Water)
1.10
cfm
rpm
bhp
1.20
1.30
1.40
1.50
1.60
1.70
1.80
1.90
rpm bhp rpm bhp rpm bhp rpm bhp rpm bhp rpm bhp rpm bhp rpm
bhp
2.00
rpm
bhp
1.75
1-hp Standard Motor & Drive 1-hp Standard Motor & High Static Drive Kit (or 2-hp Oversized Motor & Drive)
1920
941
0.99
977
1.07 1009 1.15 1041 1.23 1073 1.32 1103 1.40 1132 1.49 1159 1.57 1187
1.66
1213
2160
964
1.13
997
1.23 1031 1.32 1061 1.41 1093 1.50 1123 1.60 1151 1.69 1179 1.78 1207
1.87
1234
1.97
2400
988
1.29
1020 1.39 1054 1.50 1085 1.60 1114 1.70 1143 1.80 1171 1.90 1200 2.01 1227
2.11
1254
2.21
2640
1014 1.47(b) 1046 1.58 1077 1.69 1107 1.80 1138 1.91 1166 2.02 1193 2.13 1222 2.25
—
—
—
—
2880
1042
—
—
—
—
1.68
1073 1.79 1103 1.90 1132 2.02 1162 2.14 1190 2.26
—
—
—
—
2-hp Oversized Motor & Drive
Notes:
1. For Standard Evaporator Fan Speed (rpm), reference Table 131, p. 179.
2. Data includes pressure drop due to standard filters and wet coils. No accessories or options are included in pressure drop data.
3. Refer to Table 138, p. 182 to determine additional static pressure drop due to other options/accessories.
4. 1-hp Fan Motor Heat (MBh) = 2.829 x Fan bhp +.4024. 2-hp Fan Motor Heat (MBh) = 3.000 x Fan bhp +.5000
5. Factory supplied motors, in commercial equipment, are definite purpose motors, specifically designed and tested to operate reliably and continuously
at all cataloged conditions. Using the full horsepower range of our fan motors as shown in our tabular data will not result in nuisance tripping or
premature motor failure. Our product's warranty will not be affected.
(a) Field Supplied Fan Sheave AK84 and Belt AX36 required.
(b) 1-hp Standard Motor & High Static Drive Kit (or 2-hp Oversized Motor & Drive)
RT-PRC023AG-EN
107
Evaporator Fan Performance
Table 60. Belt drive evaporator fan performance - 6 tons standard efficiency with gas heat - YSC072F3,4,W*L,M low &
medium heat horizontal airflow
External Static Pressure (Inches of Water)
0.10
cfm
0.20
0.30
0.40
0.50
0.60
0.70
0.80
0.90
rpm bhp rpm bhp rpm bhp rpm bhp rpm bhp rpm bhp rpm bhp rpm bhp rpm
1-hp Standard Motor & Field Supplied Low Static Drive(a)
1.00
bhp
rpm
bhp
1-hp Standard Motor & Drive
1920
—
—
591
0.34
649
0.42
699
0.48
745
0.56
789
0.64
834
0.72
877
0.81
918
0.89
957
0.97
2160
587
0.38
633
0.44
690
0.52
740
0.61
784
0.68
825
0.76
865
0.85
904
0.95
943
1.04
981
1.13
2400
643
0.51
682
0.58
732
0.65
781
0.75
825
0.84
864
0.92
902
1.01
938
1.11
974
1.21
1010 1.32(b)
2640
700
0.66
736
0.74
775
0.81
822
0.90
866
1.01
906
1.11
942
1.20
976
1.29 1009
1.40
1042
1.51
2880
756
0.84
790
0.93
823
1.01
864
1.09
907
1.20
947
1.32
983
1.43 1017 1.53 1048
1.62
1080
1.73
2-hp Oversized Motor & Drive
Continued
External Static Pressure (Inches of Water)
1.10
1.20
1.30
1.40
1.50
1.60
1.70
1.80
1.90
cfm
rpm bhp rpm bhp rpm bhp rpm bhp rpm bhp rpm bhp rpm bhp rpm bhp rpm
1920
996
1-hp Standard Motor & Drive
2.00
bhp
rpm
bhp
1-hp Standard Motor & High Static Drive Kit (or 2-hp Oversized Motor & Drive)
1.06 1033 1.16 1067 1.25 1102 1.35 1134 1.44 1165 1.53 1195 1.63 1223 1.72 1251
1.82
1277
1.91
2160
1018 1.23 1054 1.32 1090 1.42 1123 1.52 1156 1.63 1188 1.73 1218 1.84 1247 1.94 1276
2.05
1304
2.16
2400
1044 1.42 1079 1.52 1112 1.62 1145 1.73 1177 1.83 1208 1.94 1240 2.06 1268 2.17 1298
2.29
—
—
2640
1075 1.62 1107 1.74 1139 1.85 1170 1.96 1201 2.08 1232 2.19
—
—
—
—
—
—
—
—
2880
1111 1.85 1140 1.97 1169 2.09 1200 2.22
—
—
—
—
—
—
—
—
—
2-hp Oversized Motor & Drive
—
—
—
2-hp Oversized Motor & Field Supplied High Static Drive(c)
Notes:
1. For Standard Evaporator Fan Speed (rpm), reference Table 131, p. 179.
2. Data includes pressure drop due to standard filters and wet coils. No accessories or options are included in pressure drop data.
3. Refer to Table 138, p. 182 to determine additional static pressure drop due to other options/accessories.
4. 1-hp Fan Motor Heat (MBh) = 2.829 x Fan bhp +.4024. 2-hp Fan Motor Heat (MBh) = 3.000 x Fan bhp +.5000.
5. Factory supplied motors, in commercial equipment, are definite purpose motors, specifically designed and tested to operate reliably and continuously
at all cataloged conditions. Using the full horsepower range of our fan motors as shown in our tabular data will not result in nuisance tripping or
premature motor failure. Our product's warranty will not be affected.
(a) Field Supplied Fan Sheave AK84 and Belt AX36 required.
(b) 1-hp Standard Motor & High Static Drive (or 2-hp Oversized Motor)
(c) Field Supplied Fan Sheave AK56 and Belt AX30 required.
108
RT-PRC023AG-EN
Evaporator Fan Performance
Table 61. Belt drive evaporator fan performance - 6 tons standard efficiency with gas heat - YSC072F3,4,W*H high heat
downflow airflow
External Static Pressure (Inches of Water)
0.10
cfm
0.20
0.30
0.40
0.50
0.60
0.70
0.80
0.90
rpm bhp rpm bhp rpm bhp rpm bhp rpm bhp rpm bhp rpm bhp rpm bhp rpm
1-hp Standard Motor & Field Supplied Low Static Drive(a)
1.00
bhp
rpm
bhp
1-hp Standard Motor & Drive
1920
—
—
574
0.34
631
0.41
681
0.48
727
0.55
771
0.63
814
0.71
853
0.79
892
0.87
928
0.95
2160
562
0.36
616
0.44
671
0.52
719
0.60
763
0.68
805
0.76
845
0.84
884
0.93
921
1.02
957
1.11
2400
612
0.48
662
0.56
711
0.65
759
0.74
802
0.83
842
0.91
879
1.00
916
1.09
951
1.19
986
1.29
2640
663
0.63
709
0.71
754
0.80
798
0.90
842
1.00
881
1.10
917
1.19
951
1.29
986
1.39
1018
1.49(b)
2880
715
0.80
758
0.88
799
0.98
840
1.08
880
1.19
920
1.30
955
1.41
990
1.51 1022
1.62
1053
1.72
2-hp Oversized Motor & Drive
Continued
External Static Pressure (Inches of Water)
1.10
cfm
1.20
1.30
1.40
1.50
1.60
1.70
1.80
1.90
rpm bhp rpm bhp rpm bhp rpm bhp rpm bhp rpm bhp rpm bhp rpm bhp rpm
bhp
2.00
rpm
bhp
1-hp Standard Motor & Drive 1-hp Standard Motor & High Static Drive Kit (or 2-hp Oversized Motor & Drive)
1920
963
1.04
1.12 1028 1.20 1061 1.28 1090 1.36 1119 1.45 1149 1.54 1177 1.63 1203
1.71
1229
1.80
2160
990
1.21 1023 1.30 1055 1.39 1086 1.48 1115 1.57 1144 1.66 1173 1.76 1200 1.85 1227
997
1.95
1253
2.04
2400
1019 1.39 1051 1.49 1083 1.60 1113 1.70 1141 1.80 1171 1.90 1199 2.01 1225 2.10 1252
2.20
—
—
2640
1050 1.59 1081 1.70 1111 1.81 1141 1.93 1170 2.04 1198 2.15 1226 2.27
—
—
—
—
—
—
2880
1084 1.83 1114 1.94 1143 2.06 1172 2.18 1199 2.30
—
—
—
—
—
—
—
—
—
—
2-hp Oversized Motor & Drive
Notes:
1. For Standard Evaporator Fan Speed (rpm), reference Table 131, p. 179.
2. Data includes pressure drop due to standard filters and wet coils. No accessories or options are included in pressure drop data.
3. Refer to Table 138, p. 182 to determine additional static pressure drop due to other options/accessories.
4. 1-hp Fan Motor Heat (MBh) = 2.829 x Fan bhp +.4024. 2-hp Fan Motor Heat (MBh) = 3.000 x Fan bhp +.5000
5. Factory supplied motors, in commercial equipment, are definite purpose motors, specifically designed and tested to operate reliably and continuously
at all cataloged conditions. Using the full horsepower range of our fan motors as shown in our tabular data will not result in nuisance tripping or
premature motor failure. Our product's warranty will not be affected.
(a) Field Supplied Fan Sheave AK84 and Belt AX36 required.
(b) 1-hp Standard Motor & High Static Drive Kit (or 2-hp Oversized Motor)
RT-PRC023AG-EN
109
Evaporator Fan Performance
Table 62. Belt drive evaporator fan performance - 6 tons standard efficiency with gas heat - YSC072F3,4,W*H high heat
horizontal airflow
External Static Pressure (Inches of Water)
0.10
cfm
0.20
0.30
0.40
0.50
0.60
0.70
0.80
rpm bhp rpm bhp rpm bhp rpm bhp rpm bhp rpm bhp rpm bhp rpm bhp
1-hp Standard Motor & Field Supplied Low Static Drive(a)
0.90
rpm
1.00
bhp
rpm
bhp
981
1.03
1-hp Standard Motor & Drive
1920
565
0.31
627
0.39
680
0.46
727
0.52
772
0.61
816
0.69
859
0.77
902
0.86
942
0.94
2160
621
0.43
677
0.50
729
0.59
774
0.66
816
0.74
856
0.83
895
0.93
934
1.02
973
1.11
1009 1.21(b)
2400
680
0.57
729
0.65
778
0.74
823
0.84
862
0.92
900
1.00
936
1.10
972
1.20
1006
1.31
1041
1.41
2640
741
0.75
782
0.82
828
0.92
872
1.03
911
1.13
947
1.21
981
1.31 1014 1.41
1048
1.53
1079
1.64
2880
802
0.95
837
1.04
880
1.13
921
1.24
960
1.36
995
1.47 1028 1.56 1060 1.66
1091
1.77
1122
1.89
2-hp Oversized Motor & Drive
Continued
External Static Pressure (Inches of Water)
1.10
cfm
1.20
1.30
1.40
1.50
1.60
1.70
1.80
rpm bhp rpm bhp rpm bhp rpm bhp rpm bhp rpm bhp rpm bhp rpm bhp
1.90
2.00
rpm
bhp
rpm
bhp
1-hp Standard Motor & High Static Drive Kit (or 2-hp Oversized Motor & Drive)
1920
1018 1.12 1054 1.21 1089 1.31 1122 1.40 1154 1.50 1184 1.59 1212 1.69 1241 1.78
1268
1.88
1293
1.97
2160
1045 1.30 1081 1.40 1114 1.50 1149 1.61 1181 1.71 1211 1.81 1241 1.92 1270 2.03
1298
2.13
1324
2.24
2400
1076 1.51 1110 1.62 1143 1.72 1176 1.83 1206 1.94 1238 2.05 1267 2.16 1297 2.28
—
—
—
—
2640
1111 1.75 1144 1.87 1174 1.98 1205 2.09 1236 2.21
—
—
—
—
—
—
—
—
—
—
2880
1151 2.02 1180 2.14 1209 2.27
—
—
—
—
—
—
—
—
—
—
2-hp Oversized Motor & Drive
—
—
—
—
2-hp Oversized Motor & Field Supplied High Static Drive(c)
Notes:
1. For Standard Evaporator Fan Speed (rpm), reference Table 131, p. 179.
2. Data includes pressure drop due to standard filters and wet coils. No accessories or options are included in pressure drop data.
3. Refer to Table 138, p. 182 to determine additional static pressure drop due to other options/accessories.
4. 1-hp Fan Motor Heat (MBh) = 2.829 x Fan bhp +.4024. 2-hp Fan Motor Heat (MBh) = 3.000 x Fan bhp +.5000.
5. Factory supplied motors, in commercial equipment, are definite purpose motors, specifically designed and tested to operate reliably and continuously
at all cataloged conditions. Using the full horsepower range of our fan motors as shown in our tabular data will not result in nuisance tripping or
premature motor failure. Our product's warranty will not be affected.
(a) Field Supplied Fan Sheave AK84 and Belt AX36 required.
(b) 1-hp Standard Motor & High Static Drive Kit (or 2-hp Oversized Motor).
(c) Field Supplied Fan Sheave AK56 and Belt AX30 required.
110
RT-PRC023AG-EN
Evaporator Fan Performance
Table 63. Belt drive evaporator fan performance - 7½ tons standard efficiency - TSC090F3,4,W downflow airflow
External Static Pressure (Inches of Water)
0.10
cfm
0.20
0.30
0.40
0.50
0.60
0.70
0.80
0.90
rpm bhp rpm bhp rpm bhp rpm bhp rpm bhp rpm bhp rpm bhp rpm bhp rpm
1-hp Standard Motor & Field Supplied Low Static Drive(a)
bhp
1.00
rpm
bhp
1-hp Standard Motor & Drive
2400
613
0.42
668
0.50
711
0.57
756
0.65
798
0.72
838
0.80
875
0.88
911
0.96
945
1.04
978
1.12
2700
676
0.56
733
0.69
767
0.74
808
0.83
848
0.91
886
1.00
922
1.09
956
1.18
989
1.27
1021
1.36
3000
741
0.75
793
0.89
832
0.98
863
1.04
901
1.14
936
1.24
971
1.33 1003 1.43 1036
1.53
1067
1.63
3300
807
0.98
849
1.10
897
1.26
925
1.32
954
1.40
989
1.51 1022 1.62 1053 1.73 1084
1.83
1113
1.94
3600
874
1.25
909
1.36
957
1.55
990
1.67 1015 1.73 1042 1.82 1074 1.95 1104 2.07 1134
2.18
1163
2.30
3-hp Oversized Motor & Drive
Continued
External Static Pressure (Inches of Water)
1.10
cfm
1.20
1.30
1.40
1.50
1.60
1.70
1.80
1.90
rpm bhp rpm bhp rpm bhp rpm bhp rpm bhp rpm bhp rpm bhp rpm bhp rpm
1-hp Standard Motor & Drive
2.00
bhp
rpm
bhp
3-hp Oversized Motor & Drive
2400
1011 1.20 1041 1.28 1070 1.36 1099 1.44 1127 1.52 1153 1.60 1178 1.68 1203 1.76 1229
1.84
1252
1.92
2700
1051 1.45 1082 1.54 1111 1.63 1139 1.72 1166 1.81 1192 1.90 1217 1.98 1243 2.08 1268
2.17
1291
2.25
3000
1096 1.73 1124 1.83 1153 1.93 1180 2.03 1207 2.13 1233 2.23 1258 2.33 1283 2.43 1308
2.53
1331
2.63
3300
1142 2.05 1170 2.16 1197 2.27 1223 2.37 1249 2.48 1275 2.59 1300 2.71 1324 2.82 1347
2.92
1371
3.03
3600
1191 2.41 1218 2.53 1244 2.65 1269 2.77 1294 2.89 1319 3.01 1342 3.12 1366 3.24 1389
3.36
—
—
3-hp Oversized Motor & Field Supplied High Static
Drive(b)
Notes:
1. For Standard Evaporator Fan Speed (rpm), reference Table 131, p. 179.
2. Data includes pressure drop due to standard filters and wet coils. No accessories or options are included in pressure drop data.
3. Refer to Table 138, p. 182 to determine additional static pressure drop due to other options/accessories.
4. 1-hp Fan Motor Heat (MBh) = 2.829 x Fan bhp +.4024. 3-hp Fan Motor Heat (MBh) = 2.900 x Fan bhp +.4750
5. Factory supplied motors, in commercial equipment, are definite purpose motors, specifically designed and tested to operate reliably and continuously
at all cataloged conditions. Using the full horsepower range of our fan motors as shown in our tabular data will not result in nuisance tripping or
premature motor failure. Our product's warranty will not be affected.
(a) Field Supplied Fan Sheave AK74 and Belt AX35
(b) Field Supplied Fan Sheave BK52 and Belt BX30
RT-PRC023AG-EN
111
Evaporator Fan Performance
Table 64. Belt drive evaporator fan performance - 7½ tons standard efficiency - TSC090F3,4,W horizontal airflow
External Static Pressure (Inches of Water)
0.10
cfm
0.20
0.30
0.40
0.50
0.60
0.70
0.80
0.90
rpm bhp rpm bhp rpm bhp rpm bhp rpm bhp rpm bhp rpm bhp rpm bhp rpm
1-hp Standard Motor & Field Supplied Low Static Drive(a)
1.00
bhp
rpm
bhp
1-hp Standard Motor & Drive
2400
681
0.52
726
0.60
770
0.69
811
0.77
852
0.85
892
0.94
931
1.02
1.11 1007
1.20
1046
1.31
2700
754
0.72
796
0.81
835
0.90
874
0.99
910
1.08
947
1.18
983
1.27 1018 1.37 1052
969
1.47
1087
1.57
3000
828
0.97
868
1.07
903
1.17
938
1.27
973
1.37 1005 1.47 1039 1.57 1072 1.68 1103
1.78
1135
1.90
3300
904
1.26
940
1.37
974
1.48 1004 1.59 1037 1.71 1069 1.82 1098 1.93 1129 2.04 1159
2.15
1188
2.27
3600
979
1.62 1013 1.74 1045 1.86 1074 1.98 1103 2.10 1133 2.22 1162 2.35 1189 2.46 1217
2.58
1245
2.71
3-hp Oversized Motor & Drive
Continued
External Static Pressure (Inches of Water)
1.10
cfm
1.20
1.30
1.40
1.50
1.60
1.70
1.80
1.90
rpm bhp rpm bhp rpm bhp rpm bhp rpm bhp rpm bhp rpm bhp rpm bhp rpm
1-hp Standard Motor & Drive
2.00
bhp
rpm
bhp
3-hp Oversized Motor & Drive
2400
1083 1.42 1119 1.52 1153 1.63 1185 1.73 1218 1.84 1249 1.95 1278 2.06 1307 2.16 1337
2.28
1364
2.38
2700
1120 1.67 1154 1.79 1188 1.91 1220 2.02 1252 2.14 1283 2.26 1313 2.39 1342 2.51 1370
2.63
1397
2.74
3000
1166 2.00 1197 2.12 1227 2.23 1256 2.34 1288 2.47 1318 2.61 1347 2.73 1377 2.87 1406
3.01
1433
3.14
3300
1217 2.39 1246 2.51 1274 2.63 1302 2.75 1330 2.88 1357 3.00 1384 3.13 1413 3.27 1441
3.42
—
—
3600
1272 2.83 1299 2.96 1326 3.09 1352 3.22 1378 3.35
—
—
—
—
—
—
—
—
—
—
3-hp Oversized Motor & Field Supplied High Static Drive(b)
Notes:
1. For Standard Evaporator Fan Speed (rpm), reference Table 131, p. 179.
2. Data includes pressure drop due to standard filters and wet coils. No accessories or options are included in pressure drop data.
3. Refer to Table 138, p. 182 to determine additional static pressure drop due to other options/accessories.
4. 1-hp Fan Motor Heat (MBh) = 2.829 x Fan bhp +.4024. 3-hp Fan Motor Heat (MBh) = 2.900 x Fan bhp +.4750
5. Factory supplied motors, in commercial equipment, are definite purpose motors, specifically designed and tested to operate reliably and continuously
at all cataloged conditions. Using the full horsepower range of our fan motors as shown in our tabular data will not result in nuisance tripping or
premature motor failure. Our product's warranty will not be affected.
(a) Field Supplied Fan Sheave AK74 and Belt AX35
(b) Field Supplied Fan Sheave BK52 and Belt BX30
112
RT-PRC023AG-EN
Evaporator Fan Performance
Table 65. Belt drive evaporator fan performance - 7½ tons standard efficiency with gas heat - YSC090F3,4,W low &
medium gas heat downflow airflow
External Static Pressure (Inches of Water)
0.10
cfm
0.20
0.30
0.40
0.50
0.60
0.70
0.80
0.90
rpm bhp rpm bhp rpm bhp rpm bhp rpm bhp rpm bhp rpm bhp rpm bhp rpm
1-hp Standard Motor & Field Supplied Low Static Drive(a)
bhp
1.00
rpm
bhp
1-hp Standard Motor & Drive
2400
655
0.47
707
0.55
758
0.64
802
0.72
845
0.80
886
0.88
925
0.97
1.14
1028
1.22
2700
724
0.64
770
0.73
817
0.83
861
0.92
900
1.02
939
1.11
976
1.20 1011 1.30 1045
961
1.05
997
1.39
1077
1.49
3000
794
0.86
837
0.96
878
1.06
920
1.17
958
1.27
994
1.38 1029 1.48 1063 1.58 1096
1.69
1128
1.79
3300
865
1.12
905
1.23
942
1.34
980
1.45 1018 1.57 1053 1.69 1085 1.80 1117 1.92 1148
2.03
1179
2.14
3600
937
1.43
973
1.55 1008 1.67 1042 1.79 1077 1.91 1112 2.05 1144 2.18 1174 2.30 1203
2.42
1232
2.55
3-hp Oversized Motor & Drive
Continued
External Static Pressure (Inches of Water)
1.10
1.20
1.30
1.40
1.50
1.60
1.70
1.80
1.90
cfm
rpm bhp rpm bhp rpm bhp rpm bhp rpm bhp rpm bhp rpm bhp rpm bhp rpm
2400
2.00
bhp
rpm
bhp
1060 1.30 1091 1.39 1120 1.48 1150 1.57 1178 1.65 1204 1.74 1231 1.83 1256 1.91 1281
2.00
1304
2.09
2700
1109 1.58 1139 1.68 1167 1.77 1195 1.86 1223 1.96 1249 2.06 1275 2.16 1301 2.26 1325
2.35
1349
2.45
3000
1158 1.90 1188 2.00 1216 2.11 1244 2.21 1271 2.32 1296 2.42 1321 2.53 1346 2.64 1371
2.75
1393
2.85
3300
1209 2.26 1238 2.37 1265 2.49 1293 2.61 1319 2.72 1344 2.84 1369 2.95 1393 3.07 1416
3.18
1441
3.30
3600
1261 2.67 1289 2.80 1316 2.92 1342 3.04 1368 3.17 1393 3.30 1419 3.43
—
—
—
1-hp Standard Motor & Drive
3-hp Oversized Motor & Drive
—
—
—
3-hp Oversized Motor & Field Supplied High Static Drive(b)
Notes:
1. For Standard Evaporator Fan Speed (rpm), reference Table 131, p. 179.
2. Data includes pressure drop due to standard filters and wet coils. No accessories or options are included in pressure drop data.
3. Refer to Table 138, p. 182 to determine additional static pressure drop due to other options/accessories.
4. 1-hp Fan Motor Heat (MBh) = 2.829 x Fan bhp +.4024. 3-hp Fan Motor Heat (MBh) = 2.900 x Fan bhp +.4750
5. Factory supplied motors, in commercial equipment, are definite purpose motors, specifically designed and tested to operate reliably and continuously
at all cataloged conditions. Using the full horsepower range of our fan motors as shown in our tabular data will not result in nuisance tripping or
premature motor failure. Our product's warranty will not be affected.
(a) Field Supplied Fan Sheave AK74 and Belt AX35
(b) Field Supplied Fan Sheave BK52 and Belt BX30
RT-PRC023AG-EN
113
Evaporator Fan Performance
Table 66. Belt drive evaporator fan performance - 7½ tons standard efficiency with gas heat - YSC090F3,4,W low &
medium gas heat - horizontal airflow
External Static Pressure (Inches of Water)
0.10
cfm
0.20
0.30
0.40
0.50
0.60
0.70
0.80
0.90
rpm bhp rpm bhp rpm bhp rpm bhp rpm bhp rpm bhp rpm bhp rpm bhp rpm
1-hp Standard Motor & Field Supplied Low Static Drive(a)
1.00
bhp
rpm
bhp
1-hp Standard Motor & Drive
2400
739
0.61
783
0.69
825
0.77
866
0.85
903
0.93
1.11 1013 1.20 1046
1.28
1078
1.37
2700
821
0.85
861
0.94
898
1.03
935
1.12
972
1.21 1005 1.30 1038 1.39 1072 1.49 1104
1.59
1135
1.69
3000
904
1.14
940
1.24
974
1.34 1008 1.44 1042 1.54 1075 1.65 1105 1.74 1135 1.85 1164
1.95
1195
2.06
3300
987
1.49 1020 1.60 1052 1.71 1083 1.82 1113 1.93 1144 2.04 1174 2.16 1203 2.27 1230
2.38
1257
2.49
1071 1.92 1101 2.04 1131 2.15 1160 2.27 1188 2.39 1216 2.51 1244 2.64 1272 2.76 1298
2.88
1323
3.00
3600
941
1.02
978
3-hp Oversized Motor & Field Supplied Drive(b)
3-hp Oversized Motor & Drive
Continued
External Static Pressure (Inches of Water)
1.10
1.20
1.30
1.40
1.50
1.60
1.70
1.80
1.90
cfm
rpm bhp rpm bhp rpm bhp rpm bhp rpm bhp rpm bhp rpm bhp rpm bhp rpm
2400
2.00
bhp
rpm
bhp
1110 1.46 1140 1.55 1169 1.64 1198 1.73 1225 1.82 1251 1.91 1277 2.01 1301 2.10 1326
2.19
1350
2.28
2700
1165 1.78 1195 1.88 1223 1.98 1251 2.08 1277 2.18 1304 2.29 1330 2.39 1355 2.49 1378
2.59
1402
2.70
3000
1224 2.17 1252 2.28 1279 2.39 1306 2.49 1332 2.60 1358 2.71 1383 2.83 1407 2.94 1430
3.05
1454
3.16
3300
1283 2.61 1311 2.73 1338 2.85 1364 2.97 1389 3.09 1413 3.21 1439 3.33
—
—
—
—
—
—
3600
1349 3.13 1373 3.25 1398 3.38
—
—
—
—
—
—
3-hp Oversized Motor & Drive
—
—
—
—
—
—
—
—
3-hp Oversized Motor & Field Supplied High Static Drive(b)
Notes:
1. For Standard Evaporator Fan Speed (rpm), reference Table 131, p. 179.
2. Data includes pressure drop due to standard filters and wet coils. No accessories or options are included in pressure drop data.
3. Refer to Table 138, p. 182 to determine additional static pressure drop due to other options/accessories.
4. 1-hp Fan Motor Heat (MBh) = 2.829 x Fan bhp +.4024. 3-hp Fan Motor Heat (MBh) = 2.900 x Fan bhp +.4750
5. Factory supplied motors, in commercial equipment, are definite purpose motors, specifically designed and tested to operate reliably and continuously
at all cataloged conditions. Using the full horsepower range of our fan motors as shown in our tabular data will not result in nuisance tripping or
premature motor failure. Our product's warranty will not be affected.
(a) Field Supplied Fan Sheave AK74 and Belt AX35
(b) Field Supplied Fan Sheave BK52 and Belt BX30
114
RT-PRC023AG-EN
Evaporator Fan Performance
Table 67. Belt drive evaporator fan performance - 7½ tons standard efficiency with gas heat -YSC090F3,4,W high gas heat
downflow airflow
External Static Pressure (Inches of Water)
0.10
cfm
0.20
0.30
0.40
0.50
0.60
0.70
0.80
0.90
rpm bhp rpm bhp rpm bhp rpm bhp rpm bhp rpm bhp rpm bhp rpm bhp rpm
1-hp Standard Motor & Field Supplied Low Static Drive(a)
bhp
1.00
rpm
bhp
1-hp Standard Motor & Drive
2400
675
0.51
727
0.60
772
0.68
815
0.76
857
0.85
896
0.93
935
1.02
1.11 1006
1.19
1041
1.29
2700
748
0.70
793
0.80
837
0.89
877
0.98
915
1.08
952
1.17
988
1.27 1022 1.37 1056
971
1.47
1089
1.57
3000
821
0.94
862
1.04
903
1.15
941
1.25
976
1.35 1011 1.46 1045 1.57 1077 1.67 1109
1.78
1140
1.89
3300
895
1.23
932
1.34
970
1.46 1007 1.58 1040 1.69 1072 1.79 1104 1.91 1134 2.03 1164
2.15
1194
2.27
3600
969
1.57 1004 1.70 1038 1.82 1073 1.95 1106 2.07 1136 2.19 1166 2.32 1195 2.44 1223
2.57
1251
2.70
3-hp Oversized Motor & Drive
Continued
External Static Pressure (Inches of Water)
1.10
1.20
1.30
1.40
1.50
1.60
1.70
1.80
1.90
cfm
rpm bhp rpm bhp rpm bhp rpm bhp rpm bhp rpm bhp rpm bhp rpm bhp rpm
2400
2.00
bhp
rpm
bhp
1074 1.37 1105 1.46 1136 1.55 1165 1.64 1194 1.73 1222 1.83 1250 1.92 1275 2.00 1301
2.10
1326
2.18
2700
1121 1.66 1151 1.76 1181 1.86 1211 1.97 1238 2.06 1266 2.17 1292 2.27 1318 2.37 1344
2.47
1369
2.57
3000
1170 2.00 1199 2.11 1229 2.22 1256 2.33 1285 2.44 1311 2.55 1336 2.66 1363 2.77 1388
2.89
1413
3.00
3300
1223 2.39 1251 2.50 1279 2.62 1305 2.74 1333 2.87 1358 2.98 1384 3.11 1408 3.23 1434
3.35
—
—
3600
1279 2.83 1305 2.95 1331 3.08 1357 3.21 1383 3.34
—
—
—
3-hp Oversized Motor & Drive
3-hp Oversized Motor & Drive
—
—
—
—
—
—
—
3-hp Oversized Motor & Field Supplied High Static Drive(b)
Notes:
1. For Standard Evaporator Fan Speed (rpm), reference Table 131, p. 179.
2. Data includes pressure drop due to standard filters and wet coils. No accessories or options are included in pressure drop data.
3. Refer to Table 138, p. 182 to determine additional static pressure drop due to other options/accessories.
4. 1-hp Fan Motor Heat (MBh) = 2.829 x Fan bhp +.4024. 3-hp Fan Motor Heat (MBh) = 2.900 x Fan bhp +.4750
5. Factory supplied motors, in commercial equipment, are definite purpose motors, specifically designed and tested to operate reliably and continuously
at all cataloged conditions. Using the full horsepower range of our fan motors as shown in our tabular data will not result in nuisance tripping or
premature motor failure. Our product's warranty will not be affected.
(a) Field Supplied Fan Sheave AK74 and Belt AX35
(b) Field Supplied Fan Sheave BK52 and Belt BX30
RT-PRC023AG-EN
115
Evaporator Fan Performance
Table 68. Belt drive evaporator fan performance - 7½ tons standard efficiency with gas heat -YSC090F3,4,W high gas heat
horizontal airflow
External Static Pressure (Inches of Water)
0.10
cfm
0.20
0.30
0.40
0.50
0.60
0.70
0.80
0.90
rpm bhp rpm bhp rpm bhp rpm bhp rpm bhp rpm bhp rpm bhp rpm bhp rpm
1-hp Standard Motor & Field Supplied Low Static Drive(a)
936
1.05
1.00
bhp
rpm
bhp
1-hp Standard Motor & Drive
2400
776
0.70
819
0.79
859
0.87
898
0.96
1.13 1007 1.22 1039 1.31 1071
1.40
1102
1.49
2700
863
0.97
901
1.07
938
1.16
974
1.26 1009 1.36 1043 1.46 1075 1.55 1106 1.65 1136
972
1.75
1165
1.85
3000
951
1.31
985
1.42 1019 1.52 1052 1.63 1084 1.73 1116 1.84 1146 1.95 1176 2.06 1205
2.17
1232
2.28
3300
1039 1.72 1071 1.84 1102 1.95 1132 2.07 1162 2.18 1191 2.30 1220 2.42 1248 2.54 1275
2.66
1302
2.78
3600
1128 2.21 1157 2.34 1186 2.46 1214 2.59 1242 2.71 1269 2.84 1296 2.97 1322 3.10 1348
3.23
1373
3.36
3-hp Oversized Motor & Field Supplied High Static Drive(b)
3-hp Oversized Motor & Drive
Continued
External Static Pressure (Inches of Water)
1.10
1.20
1.30
1.40
1.50
1.60
1.70
1.80
1.90
cfm
rpm bhp rpm bhp rpm bhp rpm bhp rpm bhp rpm bhp rpm bhp rpm bhp rpm
2400
2.00
bhp
rpm
bhp
1132 1.58 1161 1.68 1189 1.77 1216 1.86 1242 1.95 1268 2.04 1293 2.13 1318 2.23 1342
2.33
1364
2.42
2700
1194 1.95 1222 2.05 1249 2.16 1276 2.26 1301 2.37 1327 2.48 1350 2.57 1374 2.68 1398
2.78
1421
2.88
3000
1260 2.39 1286 2.50 1312 2.61 1337 2.72 1363 2.84 1387 2.96 1410 3.07 1434 3.19 1457
3.31
—
—
3300
1328 2.90 1353 3.02 1378 3.14 1402 3.26 1426 3.39
3-hp Oversized Motor & Drive
3600
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
3-hp Oversized Motor & Field Supplied High Static Drive(b)
Notes:
1. For Standard Evaporator Fan Speed (rpm), reference Table 131, p. 179.
2. Data includes pressure drop due to standard filters and wet coils. No accessories or options are included in pressure drop data.
3. Refer to Table 138, p. 182 to determine additional static pressure drop due to other options/accessories.
4. 1-hp Fan Motor Heat (MBh) = 2.829 x Fan bhp +.4024. 3-hp Fan Motor Heat (MBh) = 2.900 x Fan bhp +.4750
5. Factory supplied motors, in commercial equipment, are definite purpose motors, specifically designed and tested to operate reliably and continuously
at all cataloged conditions. Using the full horsepower range of our fan motors as shown in our tabular data will not result in nuisance tripping or
premature motor failure. Our product's warranty will not be affected.
(a) Field Supplied Fan Sheave AK74 and Belt AX35
(b) Field Supplied Fan Sheave BK52 and Belt BX30
116
RT-PRC023AG-EN
Evaporator Fan Performance
Table 69. Belt drive evaporator fan performance - 7½ tons standard efficiency - TSC092F3,4,W downflow airflow
External Static Pressure (Inches of Water)
0.10
cfm
0.20
0.30
0.40
0.50
0.60
0.70
0.80
0.90
rpm bhp rpm bhp rpm bhp rpm bhp rpm bhp rpm bhp rpm bhp rpm bhp rpm
1-hp Standard Motor & Field Supplied Low Static Drive(a)
1.00
bhp
rpm
bhp
1-hp Standard Motor & Drive
2400
—
—
474
0.36
524
0.44
570
0.52
611
0.59
650
0.68
686
0.76
720
0.84
752
0.93
783
1.02
2700
458
0.39
508
0.47
554
0.55
598
0.64
638
0.73
676
0.82
711
0.91
745
1.00
776
1.09
806
1.19
3000
498
0.52
544
0.60
587
0.69
628
0.78
666
0.88
704
0.98
738
1.08
770
1.18
801
1.28
831
1.38
3300
539
0.67
581
0.76
621
0.85
660
0.96
696
1.06
732
1.17
766
1.28
797
1.39
828
1.49
856
1.60
3600
580
0.85
620
0.95
657
1.05
693
1.16
728
1.27
761
1.38
794
1.50
825
1.62
855
1.74
882
1.85
3-hp Oversized Motor & Drive(b)
Continued
External Static Pressure (Inches of Water)
1.10
cfm
1.20
1.30
1.40
1.50
1.60
1.70
1.80
1.90
rpm bhp rpm bhp rpm bhp rpm bhp rpm bhp rpm bhp rpm bhp rpm bhp rpm
bhp
2.00
rpm
bhp
3-hp Oversized Motor & Drive(b)
1-hp Standard Motor Drive
2400
813
1.10
841
1.19
868
1.28
894
1.37
920
1.46
943
1.54
967
1.63
990
1.72 1012
1.81
1035
1.90
2700
836
1.29
864
1.39
891
1.48
917
1.58
942
1.68
966
1.78
990
1.88 1012 1.97 1035
2.07
1056
2.17
3000
860
1.49
887
1.60
914
1.70
940
1.81
964
1.92
988
2.03 1012 2.13 1035 2.24 1056
2.35
1079
2.46
3300
885
1.72
911
1.83
938
1.94
963
2.06
988
2.18 1012 2.30 1035 2.42 1057 2.54 1079
2.65
1100
2.77
3600
910
1.97
937
2.09
963
2.22
988
2.34 1012 2.46 1035 2.59 1059 2.72 1081 2.85 1104
2.98
1124
3.11
3-hp Oversized Motor & Field Supplied High Static Drive(c)
Notes:
1. For Evaporator Fan Speed (rpm), reference Table 131, p. 179.
2. Data includes pressure drop due to standard filters and wet coils. No accessories or options are included in pressure drop data.
3. Refer to Table 138, p. 182 to determine additional static pressure drop due to other options/accessories.
4. 1-hp Fan Motor Heat (MBh) = 2.829 x Fan bhp +.4024. 3-hp Fan Motor Heat (MBh) = 2.900 x Fan bhp -.3800
5. Factory supplied motors, in commercial equipment, are definite purpose motors, specifically designed and tested to operate reliably and continuously
at all cataloged conditions. Using the full horsepower range of our fan motors as shown in our tabular data will not result in nuisance tripping or
premature motor failure. Our product's warranty will not be affected.
(a) BAYLSDR009A
(b) BAYHSMT400A
(c) Field Supplied AK56 x 1" Fan Sheave
RT-PRC023AG-EN
117
Evaporator Fan Performance
Table 70. Belt drive evaporator fan performance - 7½ tons standard efficiency - TSC092F3,4,W horizontal airflow
External Static Pressure (Inches of Water)
0.10
cfm
0.20
0.30
0.40
0.50
0.60
0.70
0.80
0.90
rpm bhp rpm bhp rpm bhp rpm bhp rpm bhp rpm bhp rpm bhp rpm bhp rpm
1-hp Standard Motor & Field Supplied Low Static Drive(a)
1.00
bhp
rpm
bhp
1-hp Standard Motor & Drive
2400
478
0.36
528
0.43
576
0.52
626
0.62
681
0.75
731
0.88
778
1.02
821
1.15
862
1.29
901
1.43
2700
526
0.49
570
0.57
614
0.66
656
0.76
701
0.88
751
1.02
797
1.17
840
1.32
880
1.47
920
1.63
3000
575
0.65
615
0.74
655
0.84
694
0.94
731
1.05
770
1.17
817
1.34
859
1.50
900
1.67
938
1.83
3300
624
0.84
661
0.94
698
1.04
734
1.15
768
1.27
802
1.39
838
1.52
878
1.69
919
1.87
957
2.05
3600
675
1.07
709
1.17
742
1.28
776
1.41
809
1.53
840
1.65
871
1.79
903
1.92
939
2.10
977
2.29
3-hp Oversized Motor & Drive(b)
Continued
External Static Pressure (Inches of Water)
1.10
cfm
1.20
1.30
1.40
1.50
1.60
1.70
1.80
1.90
rpm bhp rpm bhp rpm bhp rpm bhp rpm bhp rpm bhp rpm bhp rpm bhp rpm
2.00
bhp
rpm
bhp
3-hp Oversized Motor & Drive(b)
2400
938
1.57
973
1.71 1007 1.86 1038 1.99 1070 2.14 1101 2.29 1130 2.44 1159 2.59 1187
2.74
1214
2.89
2700
956
1.78
991
1.93 1024 2.08 1057 2.25 1088 2.40 1119 2.56 1149 2.73 1177 2.89 1206
3.06
1233
3.22
3000
975
2.00 1009 2.16 1044 2.34 1075 2.51 1108 2.69 1138 2.86 1167 3.03 1195 3.21 1222
3.38
—
—
3300
994
2.24 1028 2.42 1063 2.61 1094 2.79 1126 2.98 1155 3.16 1185 3.35
3600
1013 2.49 1048 2.69 1081 2.88 1114 3.09 1145 3.29
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
3-hp Oversized Motor & Field Supplied High Static
Drive(c)
Notes:
1. For Evaporator Fan Speed (rpm), reference Table 131, p. 179.
2. Data includes pressure drop due to standard filters and wet coils. No accessories or options are included in pressure drop data.
3. Refer to Table 138, p. 182 to determine additional static pressure drop due to other options/accessories.
4. 1-hp Fan Motor Heat (MBh) = 2.829 x Fan bhp +.4024. 3-hp Fan Motor Heat (MBh) = 2.900 x Fan bhp -.3800
5. Factory supplied motors, in commercial equipment, are definite purpose motors, specifically designed and tested to operate reliably and continuously
at all cataloged conditions. Using the full horsepower range of our fan motors as shown in our tabular data will not result in nuisance tripping or
premature motor failure. Our product's warranty will not be affected.
(a) BAYLSDR009A
(b) BAYHSMT400A
(c) Field Supplied AK56 x 1" Fan Sheave
118
RT-PRC023AG-EN
Evaporator Fan Performance
Table 71.
Belt drive evaporator fan performance - 7½ tons standard efficiency with gas heat - YSC092F3,4,W low &
medium heat downflow airflow
External Static Pressure (Inches of Water)
0.10
cfm
0.20
0.30
0.40
0.50
0.60
0.70
0.80
0.90
rpm bhp rpm bhp rpm bhp rpm bhp rpm bhp rpm bhp rpm bhp rpm bhp rpm
1-hp Standard Motor & Field Supplied Low Static Drive(a)
1.00
bhp
rpm
bhp
1-hp Standard Motor & Drive
2400
—
—
500
0.39
549
0.47
594
0.55
636
0.63
674
0.71
709
0.80
742
0.88
772
0.96
800
1.04
2700
493
0.44
533
0.50
584
0.60
626
0.69
666
0.78
704
0.87
739
0.96
772
1.05
802
1.15
830
1.24
3000
536
0.58
575
0.65
620
0.75
661
0.86
698
0.95
734
1.05
769
1.15
802
1.25
832
1.35
861
1.46
3300
580
0.75
620
0.84
653
0.91
696
1.05
732
1.16
766
1.26
799
1.37
831
1.48
862
1.59
891
1.70
3600
625
0.96
665
1.07
693
1.13
730
1.25
768
1.39
800
1.51
832
1.62
861
1.74
891
1.86
920
1.98
3-hp Oversized Motor & Drive(b)
Continued
External Static Pressure (Inches of Water)
1.10
cfm
1.20
1.30
1.40
1.50
1.60
1.70
1.80
1.90
rpm bhp rpm bhp rpm bhp rpm bhp rpm bhp rpm bhp rpm bhp rpm bhp rpm
1-hp Standard Motor Drive
3-hp Oversized Motor &
974
1.61
996
bhp
2.00
rpm
bhp
Drive(b)
2400
828
1.12
855
1.20
881
1.29
905
1.37
928
1.45
952
1.53
1.69 1017
1.77
1038
1.86
2700
858
1.33
884
1.42
909
1.51
933
1.60
957
1.69
980
1.79 1002 1.88 1024 1.97 1044
2.06
1066
2.15
3000
888
1.56
913
1.66
939
1.77
963
1.87
986
1.97 1008 2.07 1032 2.17 1053 2.27 1073
2.37
1093
2.47
3300
918
1.82
944
1.93
969
2.04
994
2.16 1016 2.26 1039 2.38 1061 2.49 1082 2.60 1103
2.71
1123
2.83
3600
948
2.10
974
2.22 1000 2.35 1024 2.47 1046 2.59 1069 2.72 1091 2.84 1112 2.96 1133
3.08
1152
3.20
3-hp Oversized Motor & Field Supplied High Static Drive(c)
Notes:
1. For Evaporator Fan Speed (rpm), reference Table 131, p. 179.
2. Data includes pressure drop due to standard filters and wet coils. No accessories or options are included in pressure drop data.
3. Refer to Table 138, p. 182 to determine additional static pressure drop due to other options/accessories.
4. 2-hp Fan Motor Heat (MBh) = 3.100 x Fan bhp +.200. 3-hp Fan Motor Heat (MBh) = 2.900 x Fan bhp -.3800
5. Factory supplied motors, in commercial equipment, are definite purpose motors, specifically designed and tested to operate reliably and continuously
at all cataloged conditions. Using the full horsepower range of our fan motors as shown in our tabular data will not result in nuisance tripping or
premature motor failure. Our product's warranty will not be affected.
(a) BAYLSDR009A
(b) BAYHSMT400A
(c) Field Supplied AK56 x 1" Fan Sheave
RT-PRC023AG-EN
119
Evaporator Fan Performance
Table 72. Belt drive evaporator fan performance - 7½ tons standard efficiency with gas heat - YSC092F3,4,W low &
medium heat horizontal airflow
External Static Pressure (Inches of Water)
0.10
cfm
0.20
0.30
0.40
0.50
0.60
0.70
0.80
0.90
rpm bhp rpm bhp rpm bhp rpm bhp rpm bhp rpm bhp rpm bhp rpm bhp rpm
1-hp Standard Motor & Field Supplied Low Static Drive(a)
1.00
bhp
rpm
bhp
1-hp Standard Motor & Drive
2400
527
0.43
573
0.51
615
0.59
656
0.68
693
0.77
728
0.86
760
0.95
791
1.04
819
1.13
847
1.22
2700
581
0.59
624
0.68
663
0.77
699
0.86
736
0.96
770
1.07
801
1.17
830
1.27
859
1.37
886
1.47
3000
636
0.78
675
0.88
712
0.98
747
1.09
779
1.19
812
1.30
843
1.42
872
1.53
899
1.64
926
1.75
3300
692
1.02
728
1.13
763
1.24
795
1.35
827
1.47
856
1.58
886
1.70
915
1.83
942
1.95
968
2.08
3600
748
1.30
782
1.42
814
1.54
845
1.66
874
1.78
903
1.91
929
2.04
957
2.17
985
2.30
1010
2.44
3-hp Oversized Motor & Drive(b)
Continued
External Static Pressure (Inches of Water)
1.10
cfm
1.20
1.30
1.40
1.50
1.60
1.70
1.80
1.90
rpm bhp rpm bhp rpm bhp rpm bhp rpm bhp rpm bhp rpm bhp rpm bhp rpm
1-hp Standard Motor & Drive
3-hp Oversized Motor &
992
bhp
Drive(b)
873
1.31
899
1.40
923
1.48
946
1.57
1.75 1013 1.84 1034 1.93 1054
2.02
1074
2.11
2700
912
1.57
937
1.67
961
1.77
984
1.87 1007 1.97 1028 2.07 1050 2.17 1071 2.27 1090
2.36
1110
2.47
3000
951
1.86
976
1.97 1000 2.09 1023 2.20 1045 2.31 1067 2.42 1088 2.53 1107 2.64 1128
2.75
1147
2.86
992
2.20 1016 2.32 1040 2.44 1062 2.57 1084 2.68 1105 2.81 1126 2.93 1147 3.06 1166
3.17
1186
3.30
—
—
—
3600
1.66
rpm
2400
3300
969
2.00
bhp
1034 2.57 1057 2.70 1081 2.84 1103 2.98 1124 3.11 1145 3.24 1165 3.37
—
—
—
3-hp Oversized Motor & Field Supplied High Static Drive(c)
Notes:
1. For Evaporator Fan Speed (rpm), reference Table 131, p. 179.
2. Data includes pressure drop due to standard filters and wet coils. No accessories or options are included in pressure drop data.
3. Refer to Table 138, p. 182 to determine additional static pressure drop due to other options/accessories.
4. 1-hp Fan Motor Heat (MBh) = 2.829 x Fan bhp +.4024. 3-hp Fan Motor Heat (MBh) = 2.900 x Fan bhp -.3800
5. Factory supplied motors, in commercial equipment, are definite purpose motors, specifically designed and tested to operate reliably and continuously
at all cataloged conditions. Using the full horsepower range of our fan motors as shown in our tabular data will not result in nuisance tripping or
premature motor failure. Our product's warranty will not be affected.
(a) BAYLSDR009A
(b) BAYHSMT400A
(c) Field Supplied AK56 x 1" Fan Sheave
120
RT-PRC023AG-EN
Evaporator Fan Performance
Table 73. Belt drive evaporator fan performance - 7½ tons standard efficiency with gas heat - YSC092F3,4,W high heat
downflow airflow
External Static Pressure (Inches of Water)
0.10
cfm
0.20
0.30
0.40
0.50
0.60
0.70
0.80
0.90
rpm bhp rpm bhp rpm bhp rpm bhp rpm bhp rpm bhp rpm bhp rpm bhp rpm
1-hp Standard Motor & Field Supplied Low Static Drive(a)
bhp
1.00
rpm
bhp
1-hp Standard Motor & Drive
2400
—
—
508
0.40
556
0.48
603
0.56
645
0.65
683
0.73
718
0.81
751
0.90
782
0.98
811
1.06
2700
500
0.45
549
0.54
592
0.61
635
0.70
676
0.80
714
0.89
749
0.99
782
1.08
812
1.17
842
1.27
3000
545
0.60
591
0.70
630
0.78
669
0.87
707
0.97
744
1.08
780
1.18
812
1.28
843
1.39
873
1.49
3300
591
0.77
632
0.88
672
0.98
706
1.07
741
1.18
776
1.29
810
1.40
842
1.52
874
1.63
903
1.75
3600
637
0.98
675
1.10
713
1.22
747
1.32
778
1.42
810
1.53
843
1.65
874
1.78
904
1.90
933
2.03
3-hp Oversized Motor & Drive(b)
Continued
External Static Pressure (Inches of Water)
1.10
cfm
1.20
1.30
1.40
1.50
1.60
1.70
1.80
1.90
rpm bhp rpm bhp rpm bhp rpm bhp rpm bhp rpm bhp rpm bhp rpm bhp rpm
1-hp Standard Motor & Drive
3-hp Oversized Motor &
986
bhp
2.00
rpm
bhp
Drive(b)
2400
839
1.15
866
1.23
891
1.31
916
1.39
941
1.48
963
1.56
1.64 1008 1.73 1029
1.81
1050
1.89
2700
869
1.36
895
1.45
921
1.54
946
1.64
969
1.73
992
1.82 1015 1.92 1037 2.01 1058
2.11
1078
2.20
3000
900
1.59
926
1.70
952
1.80
975
1.90
999
2.01 1022 2.11 1044 2.22 1066 2.32 1088
2.43
1108
2.53
3300
930
1.86
957
1.98
983
2.09 1007 2.21 1029 2.31 1053 2.43 1075 2.55 1096 2.66 1117
2.77
1137
2.88
3600
961
2.15
987
2.28 1013 2.41 1037 2.53 1061 2.65 1083 2.78 1105 2.90 1127 3.03 1147
3.15
1168
3.28
3-hp Oversized Motor & Field Supplied High Static Drive(c)
Notes:
1. For Evaporator Fan Speed (rpm), reference Table 131, p. 179.
2. Data includes pressure drop due to standard filters and wet coils. No accessories or options are included in pressure drop data.
3. Refer to Table 138, p. 182 to determine additional static pressure drop due to other options/accessories.
4. 1-hp Fan Motor Heat (MBh) = 2.829 x Fan bhp +.4024. 3-hp Fan Motor Heat (MBh) = 2.900 x Fan bhp -.3800
5. Factory supplied motors, in commercial equipment, are definite purpose motors, specifically designed and tested to operate reliably and continuously
at all cataloged conditions. Using the full horsepower range of our fan motors as shown in our tabular data will not result in nuisance tripping or
premature motor failure. Our product's warranty will not be affected.
(a) BAYLSDR009A
(b) BAYHSMT400A
(c) Field Supplied AK56 x 1" Fan Sheave
RT-PRC023AG-EN
121
Evaporator Fan Performance
Table 74. Belt drive evaporator fan performance - 7½ tons standard efficiency with gas heat - YSC092F3,4,W high heat
horizontal airflow
External Static Pressure (Inches of Water)
0.10
cfm
0.20
0.30
0.40
0.50
0.60
0.70
0.80
0.90
rpm bhp rpm bhp rpm bhp rpm bhp rpm bhp rpm bhp rpm bhp rpm bhp rpm
1-hp Standard Motor & Field Supplied Low Static Drive(a)
1.00
bhp
rpm
bhp
1-hp Standard Motor & Drive
2400
548
0.47
593
0.56
635
0.64
674
0.74
709
0.82
744
0.92
777
1.01
808
1.10
837
1.20
865
1.29
2700
605
0.65
647
0.74
686
0.84
721
0.94
756
1.04
787
1.14
818
1.24
849
1.35
878
1.45
905
1.56
3000
663
0.86
702
0.97
737
1.08
772
1.18
803
1.29
834
1.41
864
1.52
891
1.63
919
1.74
946
1.86
3300
722
1.12
757
1.24
791
1.36
823
1.48
853
1.59
882
1.72
911
1.85
938
1.97
964
2.09
988
2.21
3600
782
1.44
814
1.56
846
1.69
875
1.82
905
1.95
933
2.08
959
2.21
985
2.35 1010
2.49
1034
2.62
3-hp Oversized Motor & Drive(b)
Continued
External Static Pressure (Inches of Water)
1.10
cfm
1.20
1.30
1.40
1.50
1.60
1.70
1.80
1.90
rpm bhp rpm bhp rpm bhp rpm bhp rpm bhp rpm bhp rpm bhp rpm bhp rpm
1-hp Standard Motor & Drive
3-hp Oversized Motor &
966
1.66
989
2.00
bhp
rpm
bhp
2.23
Drive(b)
2400
892
1.38
917
1.48
942
1.57
1.76 1012 1.85 1034 1.94 1055 2.04 1076
2.14
1096
2700
931
1.66
957
1.77
982
1.87 1005 1.98 1027 2.08 1050 2.19 1072 2.29 1093 2.40 1113
2.50
1133
2.61
3000
972
1.98
997
2.10 1021 2.21 1044 2.33 1067 2.45 1089 2.56 1111 2.68 1131 2.80 1152
2.91
1171
3.03
3300
1014 2.34 1038 2.46 1062 2.59 1085 2.72 1107 2.85 1129 2.98 1151 3.11 1171 3.24 1192
3.37
—
—
3600
1058 2.75 1081 2.88 1105 3.02 1127 3.16 1149 3.30 1171 3.45
—
—
—
—
—
—
—
—
3-hp Oversized Motor & Field Supplied High Static Drive(c)
Notes:
1. For Evaporator Fan Speed (rpm), reference Table 131, p. 179.
2. Data includes pressure drop due to standard filters and wet coils. No accessories or options are included in pressure drop data.
3. Refer to Table 138, p. 182 to determine additional static pressure drop due to other options/accessories.
4. 1-hp Fan Motor Heat (MBh) = 2.829 x Fan bhp +.4024. 3-hp Fan Motor Heat (MBh) = 2.900 x Fan bhp -.3800
5. Factory supplied motors, in commercial equipment, are definite purpose motors, specifically designed and tested to operate reliably and continuously
at all cataloged conditions. Using the full horsepower range of our fan motors as shown in our tabular data will not result in nuisance tripping or
premature motor failure. Our product's warranty will not be affected.
(a) BAYLSDR009A
(b) BAYHSMT400A
(c) Field Supplied AK56 x 1" Fan Sheave
122
RT-PRC023AG-EN
Evaporator Fan Performance
Table 75. Belt drive evaporator fan performance - 8½ tons standard efficiency - TSC102F3,4,W downflow airflow
External Static Pressure (Inches of Water)
0.10
cfm
0.20
0.30
0.40
0.50
0.60
0.70
0.80
0.90
rpm bhp rpm bhp rpm bhp rpm bhp rpm bhp rpm bhp rpm bhp rpm bhp rpm
1.00
bhp
rpm
bhp
2-hp Standard Motor & Field Supplied Low Static Drive(a)
2720
—
—
—
—
550
0.51
592
0.59
629
0.67
665
0.76
698
0.84
729
0.92
758
1.00
787
1.08
3060
—
—
546
0.57
588
0.65
627
0.75
663
0.83
697
0.93
729
1.02
760
1.11
789
1.20
817
1.30
3400
548
0.65
589
0.74
628
0.83
664
0.93
698
1.03
731
1.13
763
1.23
792
1.34
820
1.44
847
1.54
3740
594
0.84
633
0.94
668
1.04
703
1.15
735
1.25
766
1.36
796
1.47
825
1.58
853
1.70
880
1.82
4080
640
1.07
678
1.19
711
1.29
743
1.40
774
1.51
804
1.63
832
1.75
860
1.87
887
1.99
912
2.11
2-hp Standard Motor & Drive
Continued
External Static Pressure (Inches of Water)
1.10
cfm
1.20
1.30
1.40
1.50
1.60
1.70
1.80
1.90
rpm bhp rpm bhp rpm bhp rpm bhp rpm bhp rpm bhp rpm bhp rpm bhp rpm
2.00
bhp
rpm
bhp
1.78
1017
1.85
2-hp Standard Motor & Drive
2720
814
1.16
839
1.23
864
1.31
889
1.39
911
1.47
933
1.54
955
1.62
977
3060
844
1.39
869
1.48
893
1.56
918
1.66
940
1.74
962
1.83
985
1.92 1005 2.00 1025
2.09
1045
2.18
3400
874
1.64
900
1.74
924
1.85
947
1.94
970
2.04
992
2.14 1014 2.24 1034 2.34 1055
2.44
1073
2.53
3740
905
1.93
931
2.04
954
2.15
978
2.26 1000 2.37 1022 2.48 1043 2.59 1064 2.70 1084
2.81
1104
2.92
4080
938
2.24
962
2.37
986
2.49 1009 2.62 1031 2.74 1052 2.86 1074 2.98 1094 3.10 1114
3.22
1133
3.34
3-hp Oversized Motor &
1.70
997
Drive(b)
Notes:
1. For Standard Evaporator Fan Speed (rpm), reference Table 131, p. 179.
2. Data includes pressure drop due to standard filters and wet coils. No accessories or options are included in pressure drop data.
3. Refer to Table 138, p. 182 to determine additional static pressure drop due to other options/accessories.
4. 1 hp Fan Motor Heat (MBh) = 2.829 x Fan bhp +.4024. 2-hp Fan Motor Heat (MBh) = 2.000 x Fan bhp +.5000. 3-hp Fan Motor Heat (MBh) =
2.900 x Fan bhp +.4750
5. Factory supplied motors, in commercial equipment, are definite purpose motors, specifically designed and tested to operate reliably and continuously
at all cataloged conditions. Using the full horsepower range of our fan motors as shown in our tabular data will not result in nuisance tripping or
premature motor failure. Our product's warranty will not be affected.
(a) BAYLSDR009A required.
(b) BAYHSMT097A required.
RT-PRC023AG-EN
123
Evaporator Fan Performance
Table 76. Belt drive evaporator fan performance - 8½ tons standard efficiency - TSC102F3,4,W horizontal airflow
External Static Pressure (Inches of Water)
0.10
cfm
0.20
0.30
0.40
0.50
0.60
0.70
0.80
0.90
rpm bhp rpm bhp rpm bhp rpm bhp rpm bhp rpm bhp rpm bhp rpm bhp rpm
1.00
bhp
rpm
bhp
2-hp Standard Motor & Field Supplied Low Static Drive Accessory Kit(a)
2720
528
0.46
571
0.54
616
0.63
669
0.75
711
0.86
752
0.98
788
1.09
821
1.20
851
1.31
880
1.42
3060
583
0.63
623
0.72
660
0.81
702
0.92
750
1.06
788
1.19
824
1.32
859
1.45
891
1.57
920
1.69
3400
639
0.84
676
0.94
709
1.04
743
1.14
783
1.27
827
1.43
862
1.57
896
1.72
928
1.86
959
2.00
3740
696
1.09
730
1.20
761
1.31
792
1.42
823
1.53
860
1.68
900
1.85
933
2.02
964
2.17
994
2.33
4080
753
1.39
785
1.52
815
1.64
843
1.75
870
1.87
899
2.00
933
2.16
969
2.34 1003
2.53
1032
2.70
3-hp Oversized Motor & Drive(b)
2-hp Standard Motor & Drive
Continued
External Static Pressure (Inches of Water)
1.10
cfm
1.20
1.30
1.40
1.50
1.60
1.70
1.80
1.90
rpm bhp rpm bhp rpm bhp rpm bhp rpm bhp rpm bhp rpm bhp rpm bhp rpm
bhp
rpm
bhp
3-hp Oversized Motor & Drive(b)
2-hp Standard Motor & Drive
984
2.00
2720
908
1.53
933
1.64
959
1.75
1.87 1007 1.98 1031 2.09 1053 2.20 1075 2.32 1096
2.44
1116
2.55
3060
947
1.81
972
1.93
998
2.06 1023 2.19 1046 2.31 1068 2.43 1092 2.57 1113 2.69 1134
2.82
1155
2.95
3400
986
2.13 1013 2.27 1038 2.41 1062 2.54 1085 2.68 1108 2.82 1130 2.96 1152 3.10 1172
3.24
1192
3.37
3740
1024 2.50 1051 2.65 1078 2.80 1103 2.94 1126 3.09 1148 3.24 1170 3.39
—
—
—
—
—
—
4080
1061 2.88 1087 3.05 1114 3.22 1140 3.39
—
—
—
—
—
—
—
—
—
—
—
—
Notes:
1. For Standard Evaporator Fan Speed (rpm), reference Table 131, p. 179.
2. Data includes pressure drop due to standard filters and wet coils. No accessories or options are included in pressure drop data.
3. Refer to Table 138, p. 182 to determine additional static pressure drop due to other options/accessories.
4. 1 hp Fan Motor Heat (MBh) = 2.829 x Fan bhp +.4024. 2-hp Fan Motor Heat (MBh) = 2.000 x Fan bhp +.5000. 3-hp Fan Motor Heat (MBh) =
2.900 x Fan bhp+.4750
5. Factory supplied motors, in commercial equipment, are definite purpose motors, specifically designed and tested to operate reliably and continuously
at all cataloged conditions. Using the full horsepower range of our fan motors as shown in our tabular data will not result in nuisance tripping or
premature motor failure. Our product's warranty will not be affected.
(a) BAYLSDR009A required.
(b) BAYHSMT097A required.
124
RT-PRC023AG-EN
Evaporator Fan Performance
Table 77. Belt drive evaporator fan performance - 8½ tons standard efficiency with gas heat -YSC102F3,4,W*L low heat
downflow airflow
External Static Pressure (Inches of Water)
0.10
cfm
0.20
0.30
0.40
0.50
0.60
0.70
0.80
0.90
rpm bhp rpm bhp rpm bhp rpm bhp rpm bhp rpm bhp rpm bhp rpm bhp rpm
1.00
bhp
rpm
bhp
2-hp Standard Motor & Low Static Drive(a)
2720
—
—
—
—
550
0.51
592
0.59
629
0.67
665
0.76
698
0.84
729
0.92
758
1.00
787
1.08
3060
—
—
546
0.57
588
0.65
627
0.75
663
0.83
697
0.93
729
1.02
760
1.11
789
1.20
817
1.30
3400
548
0.65
589
0.74
628
0.83
664
0.93
698
1.03
731
1.13
763
1.23
792
1.34
820
1.44
847
1.54
3740
594
0.84
633
0.94
668
1.04
703
1.15
735
1.25
766
1.36
796
1.47
825
1.58
853
1.70
880
1.82
4080
640
1.07
678
1.19
711
1.29
743
1.40
774
1.51
804
1.63
832
1.75
860
1.87
887
1.99
912
2.11
2-hp Standard Motor & Drive
Continued
External Static Pressure (Inches of Water)
1.10
1.20
1.30
1.40
1.50
1.60
1.70
1.80
1.90
cfm
rpm bhp rpm bhp rpm bhp rpm bhp rpm bhp rpm bhp rpm bhp rpm bhp rpm
2720
814
1.16
839
1.23
864
1.31
889
1.39
911
1.47
933
1.54
955
1.62
3060
844
1.39
869
1.48
893
1.56
918
1.66
940
1.74
962
1.83
985
1.92 1005 2.00 1025
3400
874
1.64
900
1.74
924
1.85
947
1.94
970
2.04
992
3740
905
1.93
931
2.04
954
2.15
978
4080
938
2.24
962
2.37
986
2.00
bhp
rpm
bhp
1.78
1017
1.85
2.09
1045
2.18
2.14 1014 2.24 1034 2.34 1055
2.44
1073
2.53
2.26 1000 2.37 1022 2.48 1043 2.59 1064 2.70 1084
2.81
1104
2.92
2.49 1009 2.62 1031 2.74 1052 2.86 1074 2.98 1094 3.10 1114
3.22
1133
3.34
2-hp Standard Motor & Drive
977
1.70
997
3-hp Oversized Motor & Drive(b)
Notes:
1. For Standard Evaporator Fan Speed (rpm), reference Table 131, p. 179.
2. Data includes pressure drop due to standard filters and wet coils. No accessories or options are included in pressure drop data.
3. Refer to Table 138, p. 182 to determine additional static pressure drop due to other options/accessories.
4. 2-hp Fan Motor Heat (MBh) = 2.000 x Fan bhp +.5000. 3-hp Fan Motor Heat (MBh) = 2.900 x Fan bhp +.4750
5. Factory supplied motors, in commercial equipment, are definite purpose motors, specifically designed and tested to operate reliably and continuously
at all cataloged conditions. Using the full horsepower range of our fan motors as shown in our tabular data will not result in nuisance tripping or
premature motor failure. Our product's warranty will not be affected.
(a) BAYLSDR009A
(b) BAYHSMT097A
RT-PRC023AG-EN
125
Evaporator Fan Performance
Table 78. Belt drive evaporator fan performance - 8½ tons standard efficiency with gas heat -YSC102F3,4,W*L low heat
horizontal airflow
External Static Pressure (Inches of Water)
0.10
cfm
0.20
0.30
0.40
0.50
0.60
0.70
0.80
0.90
rpm bhp rpm bhp rpm bhp rpm bhp rpm bhp rpm bhp rpm bhp rpm bhp rpm
2-hp Standard Motor & Low Static Drive(a)
1.00
bhp
rpm
bhp
2-hp Standard Motor & Drive
2720
577
0.55
619
0.64
657
0.73
696
0.82
732
0.92
765
1.02
797
1.12
828
1.21
858
1.31
887
1.42
3060
639
0.75
677
0.85
712
0.95
747
1.06
781
1.16
813
1.27
843
1.38
873
1.50
901
1.61
928
1.71
3400
701
1.00
737
1.12
770
1.23
800
1.34
832
1.46
863
1.57
892
1.69
920
1.81
946
1.94
972
2.07
3740
764
1.31
797
1.44
828
1.56
857
1.68
884
1.81
914
1.93
942
2.06
969
2.19
995
2.32
1019
2.46
4080
827
1.67
859
1.81
888
1.95
915
2.08
941
2.22
966
2.36
992
2.77
1069
2.92
2.49 1019 2.62 1045
3-hp Oversized Motor & Drive(b)
Continued
External Static Pressure (Inches of Water)
1.10
cfm
1.20
1.30
1.40
1.50
1.60
1.70
1.80
1.90
rpm bhp rpm bhp rpm bhp rpm bhp rpm bhp rpm bhp rpm bhp rpm bhp rpm
2-hp Standard Motor & Drive
966
1.75
991
2.00
bhp
3-hp Oversized Motor &
rpm
bhp
Drive(b)
2720
914
1.53
941
1.64
1.86 1015 1.97 1039 2.08 1061 2.19 1082 2.29 1104
2.41
1125
2.52
3060
954
1.82
981
1.94 1006 2.07 1030 2.19 1054 2.31 1078 2.43 1099 2.55 1121 2.68 1142
2.80
1163
2.92
3400
998
2.19 1023 2.30 1047 2.42 1071 2.55 1095 2.69 1116 2.82 1139 2.96 1160 3.10 1182
3.24
1202
3.37
3740
1043 2.59 1068 2.74 1091 2.88 1114 3.00 1136 3.13 1158 3.26 1180 3.41
—
—
—
—
—
—
4080
1092 3.06 1114 3.20 1136 3.35
—
—
—
—
—
—
—
—
—
—
—
—
—
—
Notes:
1. For Standard Evaporator Fan Speed (rpm), reference Table 131, p. 179.
2. Data includes pressure drop due to standard filters and wet coils. No accessories or options are included in pressure drop data.
3. Refer to Table 138, p. 182 to determine additional static pressure drop due to other options/accessories.
4. 2-hp Fan Motor Heat (MBh) = 2.000 x Fan bhp +.5000. 3-hp Fan Motor Heat (MBh) = 2.900 x Fan bhp +.4750
5. Factory supplied motors, in commercial equipment, are definite purpose motors, specifically designed and tested to operate reliably and continuously
at all cataloged conditions. Using the full horsepower range of our fan motors as shown in our tabular data will not result in nuisance tripping or
premature motor failure. Our product's warranty will not be affected.
(a) BAYLSDR009A
(b) BAYHSMT097A
126
RT-PRC023AG-EN
Evaporator Fan Performance
Table 79. Belt drive evaporator fan performance - 8½ tons with gas heat - YSC102F3,4,W*M medium heat downflow
airflow
External Static Pressure (Inches of Water)
0.10
cfm
0.20
0.30
0.40
0.50
0.60
0.70
0.80
0.90
rpm bhp rpm bhp rpm bhp rpm bhp rpm bhp rpm bhp rpm bhp rpm bhp rpm
1.00
bhp
rpm
bhp
2-hp Standard Motor & Low Static Drive(a)
2720
—
—
538
0.48
583
0.56
624
0.65
662
0.73
697
0.82
730
0.91
761
1.00
789
1.08
817
1.17
3060
539
0.54
583
0.63
624
0.73
663
0.82
700
0.92
734
1.01
766
1.11
796
1.21
825
1.31
852
1.41
3400
588
0.72
630
0.82
668
0.92
704
1.03
739
1.14
772
1.25
803
1.35
833
1.45
861
1.56
888
1.68
3740
639
0.93
678
1.05
713
1.16
747
1.27
780
1.39
812
1.51
841
1.63
870
1.75
898
1.86
924
1.97
4080
689
1.18
726
1.31
760
1.44
792
1.55
822
1.68
853
1.81
881
1.94
909
2.07
936
2.20
962
2.33
3-hp Oversized Motor & Drive(b)
2-hp Standard Motor & Drive
Continued
External Static Pressure (Inches of Water)
1.10
1.20
1.30
1.40
1.50
1.60
1.70
1.80
1.90
bhp
2.00
cfm
rpm bhp rpm bhp rpm bhp rpm bhp rpm bhp rpm bhp rpm bhp rpm bhp rpm
rpm
bhp
2720
843
1.25
869
1.33
894
1.42
917
1.50
940
1.59
962
1.67
1.76 1004 1.84 1025
1.92
1044
2.00
3060
878
1.50
904
1.60
928
1.69
951
1.79
974
1.88
995
1.98 1016 2.07 1038 2.17 1057
2.26
1078
2.36
3400
914
1.79
939
1.89
962
2.00
986
2.11 1008 2.21 1030 2.32 1050 2.42 1071 2.53 1092
2.63
1111
2.74
3740
950
2.10
974
2.22
998
2.34 1021 2.46 1042 2.57 1064 2.69 1085 2.81 1106 2.93 1125
3.04
1144
3.16
4080
987
2.45 1011 2.58 1034 2.71 1057 2.85 1079 2.98 1099 3.11 1121 3.24 1141 3.37
—
—
—
2-hp Standard Motor & Drive
984
—
3-hp Oversized Motor & Drive(b)
Notes:
1. For Standard Evaporator Fan Speed (rpm), reference Table 131, p. 179.
2. Data includes pressure drop due to standard filters and wet coils. No accessories or options are included in pressure drop data.
3. Refer to Table 138, p. 182 to determine additional static pressure drop due to other options/accessories.
4. 2-hp Fan Motor Heat (MBh) = 2.000 x Fan bhp +.5000. 3-hp Fan Motor Heat (MBh) = 2.900 x Fan bhp +.4750
5. Factory supplied motors, in commercial equipment, are definite purpose motors, specifically designed and tested to operate reliably and continuously
at all cataloged conditions. Using the full horsepower range of our fan motors as shown in our tabular data will not result in nuisance tripping or
premature motor failure. Our product's warranty will not be affected.
(a) BAYLSDR009A
(b) BAYLHSMT097A
RT-PRC023AG-EN
127
Evaporator Fan Performance
Table 80. Belt drive evaporator fan performance - 8½ tons with gas heat - YSC102F3,4,W*M medium heat horizontal
airflow
External Static Pressure (Inches of Water)
0.10
cfm
0.20
0.30
0.40
0.50
0.60
0.70
0.80
0.90
rpm bhp rpm bhp rpm bhp rpm bhp rpm bhp rpm bhp rpm bhp rpm bhp rpm
2-hp Standard Motor & Low Static Drive(a)
1.00
bhp
rpm
bhp
2-hp Standard Motor & Drive
2720
580
0.57
621
0.65
660
0.74
698
0.83
732
0.92
765
1.02
796
1.11
826
1.21
856
1.31
886
1.42
3060
642
0.78
680
0.88
714
0.97
749
1.07
783
1.18
814
1.28
843
1.38
872
1.49
900
1.60
927
1.71
3400
705
1.05
740
1.15
773
1.26
803
1.36
835
1.48
865
1.60
894
1.71
920
1.82
946
1.94
972
2.06
3740
768
1.37
801
1.49
832
1.60
860
1.71
888
1.83
916
1.96
945
2.09
971
2.21
996
2.34
1020
2.47
4080
832
1.76
863
1.89
891
2.01
919
2.13
944
2.25
969
2.38
996
2.80
1070
2.94
2.53 1022 2.67 1046
3-hp Oversized Motor & Drive(b)
Continued
External Static Pressure (Inches of Water)
1.10
cfm
1.20
1.30
1.40
1.50
1.60
1.70
1.80
1.90
rpm bhp rpm bhp rpm bhp rpm bhp rpm bhp rpm bhp rpm bhp rpm bhp rpm
2-hp Standard Motor & Drive
965
1.75
990
2.00
bhp
rpm
3-hp Oversized Motor &
bhp
Drive(b)
2720
912
1.53
939
1.64
1.87 1014 1.98 1037 2.09 1060 2.21 1082 2.32 1104
2.44
1125
2.55
3060
953
1.82
979
1.94 1004 2.07 1029 2.19 1053 2.31 1076 2.44 1098 2.56 1120 2.69 1141
2.82
1162
2.95
3400
997
2.18 1022 2.30 1046 2.43 1069 2.56 1093 2.70 1114 2.82 1136 2.96 1158 3.10 1180
3.24
1200
3.38
3740
1043 2.60 1067 2.73 1090 2.86 1112 2.99 1135 3.13 1156 3.27 1177 3.42
—
—
—
—
—
—
4080
1093 3.08 1115 3.22 1136 3.36
—
—
—
—
—
—
—
—
—
—
—
—
—
—
Notes:
1. For Standard Evaporator Fan Speed (rpm), reference Table 131, p. 179.
2. Data includes pressure drop due to standard filters and wet coils. No accessories or options are included in pressure drop data.
3. Refer to Table 138, p. 182 to determine additional static pressure drop due to other options/accessories.
4. 2-hp Fan Motor Heat (MBh) = 2.000 x Fan bhp +.5000. 3-hp Fan Motor Heat (MBh) = 2.900 x Fan bhp +.4750
5. Factory supplied motors, in commercial equipment, are definite purpose motors, specifically designed and tested to operate reliably and continuously
at all cataloged conditions. Using the full horsepower range of our fan motors as shown in our tabular data will not result in nuisance tripping or
premature motor failure. Our product's warranty will not be affected.
(a) BAYLSDR009A
(b) BAYLSDR097A
128
RT-PRC023AG-EN
Evaporator Fan Performance
Table 81. Belt drive evaporator fan performance - 8½ tons standard efficiency with gas heat -YSC102F3,4,W*H high heat
downflow airflow
External Static Pressure (Inches of Water)
0.10
cfm
0.20
0.30
0.40
0.50
0.60
0.70
0.80
0.90
rpm bhp rpm bhp rpm bhp rpm bhp rpm bhp rpm bhp rpm bhp rpm bhp rpm
1.00
bhp
rpm
bhp
2-hp Standard Motor & Low Static Drive(a)
2720
—
—
543
0.49
588
0.58
627
0.67
665
0.75
699
0.83
731
0.92
762
1.01
790
1.09
816
1.17
3060
545
0.56
589
0.65
630
0.74
668
0.85
704
0.94
738
1.03
769
1.13
798
1.23
827
1.32
853
1.42
3400
595
0.74
637
0.85
675
0.95
711
1.05
745
1.17
777
1.28
807
1.37
837
1.48
864
1.59
891
1.70
3740
646
0.95
685
1.08
721
1.19
754
1.30
787
1.42
818
1.55
847
1.67
875
1.78
902
1.89
928
2.01
4080
698
1.21
734
1.35
768
1.48
800
1.60
830
1.72
860
1.85
888
1.99
915
2.13
941
2.25
967
2.37
3-hp Oversized Motor & Drive(b)
2-hp Standard Motor & Drive
Continued
External Static Pressure (Inches of Water)
1.10
1.20
1.30
1.40
1.50
1.60
1.70
1.80
1.90
cfm
rpm bhp rpm bhp rpm bhp rpm bhp rpm bhp rpm bhp rpm bhp rpm bhp rpm
2720
842
1.26
867
1.34
891
1.43
914
1.51
936
1.60
957
1.68
3060
878
1.51
903
1.61
926
1.70
949
1.80
971
1.89
992
3400
916
1.81
939
1.91
963
2.02
985
3740
953
2.13
977
4080
991
2.49 1015 2.62 1038 2.75 1060 2.88 1082 3.01 1102 3.14 1122 3.26 1142 3.40
2.00
bhp
rpm
bhp
1.85 1019
1.93
1038
2.02
1.99 1013 2.08 1034 2.18 1053
2.27
1073
2.37
2.12 1007 2.22 1029 2.33 1049 2.44 1069 2.54 1089
2.65
1108
2.76
2.25 1000 2.36 1023 2.48 1044 2.60 1065 2.72 1085 2.83 1105 2.95 1124
3.06
1143
3.18
—
—
—
2-hp Standard Motor & Drive
979
1.77
999
—
3-hp Oversized Motor & Drive(b)
Notes:
1. For Standard Evaporator Fan Speed (rpm), reference Table 131, p. 179.
2. Data includes pressure drop due to standard filters and wet coils. No accessories or options are included in pressure drop data.
3. Refer to Table 138, p. 182 to determine additional static pressure drop due to other options/accessories.
4. 2-hp Fan Motor Heat (MBh) = 2.000 x Fan bhp +.5000. 3-hp Fan Motor Heat (MBh) = 2.900 x Fan bhp +.4750
5. Factory supplied motors, in commercial equipment, are definite purpose motors, specifically designed and tested to operate reliably and continuously
at all cataloged conditions. Using the full horsepower range of our fan motors as shown in our tabular data will not result in nuisance tripping or
premature motor failure. Our product's warranty will not be affected.
(a) BAYLSDR009A
(b) BAYHSMT097A
RT-PRC023AG-EN
129
Evaporator Fan Performance
Table 82. Belt drive evaporator fan performance - 8½ tons standard efficiency with gas heat -YSC102F3,4,W*H high heat
horizontal airflow
External Static Pressure (Inches of Water)
0.10
cfm
0.20
0.30
0.40
0.50
0.60
0.70
0.80
0.90
rpm bhp rpm bhp rpm bhp rpm bhp rpm bhp rpm bhp rpm bhp rpm bhp rpm
2-hp Standard Motor & Low Static Drive(a)
1.00
bhp
rpm
bhp
2-hp Standard Motor & Drive
2720
573
0.53
629
0.65
675
0.77
710
0.86
744
0.96
776
1.05
806
1.14
835
1.23
863
1.33
892
1.43
3060
631
0.71
683
0.86
729
1.00
766
1.11
797
1.21
827
1.33
856
1.43
884
1.53
911
1.63
936
1.74
3400
688
0.94
738
1.10
781
1.26
822
1.42
852
1.53
880
1.65
907
1.77
934
1.89
960
2.00
985
2.11
3740
747
1.21
793
1.39
835
1.56
873
1.74
909
1.91
936
2.03
962
2.16
986
2.29 1011
2.42
1035
2.55
4080
807
1.53
850
1.73
890
1.92
926
2.11
961
2.30
993
2.49 1018 2.62 1041 2.75 1064
2.89
1087
3.04
3-hp Oversized Motor & Drive(b)
Continued
External Static Pressure (Inches of Water)
1.10
cfm
1.20
1.30
1.40
1.50
1.60
1.70
1.80
1.90
rpm bhp rpm bhp rpm bhp rpm bhp rpm bhp rpm bhp rpm bhp rpm bhp rpm
919
1.53
946
1.64
1.86 1020 1.98 1044 2.10 1065 2.21 1087 2.33 1108
2.44
1130
2.56
3060
961
1.85
987
1.96 1012 2.07 1036 2.19 1060 2.31 1082 2.44 1105 2.57 1126 2.69 1147
2.82
1168
2.95
3400
1009 2.23 1033 2.35 1055 2.47 1077 2.59 1100 2.71 1123 2.84 1145 2.96 1166 3.10 1187
3.24
1207
3.38
3740
1059 2.68 1082 2.80 1104 2.93 1125 3.06 1145 3.19 1166 3.32 1186 3.45
—
—
—
—
—
—
4080
1109 3.19 1132 3.33
—
—
—
—
—
—
—
995
bhp
2720
—
1.75
rpm
3-hp Oversized Motor & Drive(b)
2-hp Standard Motor & Drive
971
2.00
bhp
—
—
—
—
—
—
—
—
Notes:
1. For Standard Evaporator Fan Speed (rpm), reference Table 131, p. 179.
2. Data includes pressure drop due to standard filters and wet coils. No accessories or options are included in pressure drop data.
3. Refer to Table 138, p. 182 to determine additional static pressure drop due to other options/accessories.
4. 2-hp Fan Motor Heat (MBh) = 2.000 x Fan bhp +.5000. 3-hp Fan Motor Heat (MBh) = 2.900 x Fan bhp +.4750
5. Factory supplied motors, in commercial equipment, are definite purpose motors, specifically designed and tested to operate reliably and continuously
at all cataloged conditions. Using the full horsepower range of our fan motors as shown in our tabular data will not result in nuisance tripping or
premature motor failure. Our product's warranty will not be affected.
(a) BAYLSDR009A
(b) BAYHSMT097A
130
RT-PRC023AG-EN
Evaporator Fan Performance
Table 83. Direct drive evaporator fan performance - 10 tons standard efficiency - TSC120F3,4,W downflow airflow
External Static Pressure (Inches of Water)
0.10
0.20
0.30
0.40
0.50
0.60
0.70
0.80
0.90
1.00
cfm
rpm bhp rpm bhp rpm bhp rpm bhp rpm bhp rpm bhp rpm bhp rpm bhp rpm
bhp
rpm
bhp
3200
1028 0.67 1054 0.74 1079 0.81 1105 0.88 1131 0.96 1157 1.04 1184 1.12 1209 1.21 1234
1.30
1258
1.38
3600
1150 0.93 1173 1.01 1196 1.09 1219 1.17 1242 1.25 1265 1.34 1288 1.43 1312 1.52 1335
1.61
1357
1.71
4000
1272 1.25 1294 1.34 1315 1.43 1335 1.52 1356 1.61 1376 1.70 1397 1.80 1418 1.90 1440
2.00
1460
2.09
4400
1395 1.65 1415 1.75 1435 1.84 1453 1.94 1472 2.04 1490 2.14 1509 2.24 1528 2.34 1547
2.45
1566
2.56
4800
1518 2.12 1537 2.23 1555 2.33 1572 2.44 1590 2.54 1606 2.65 1623 2.76 1641 2.87 1657
2.98
1675
3.10
Continued
External Static Pressure (Inches of Water)
1.10
1.20
1.30
1.40
1.50
1.60
1.70
1.80
1.90
2.00
cfm
rpm bhp rpm bhp rpm bhp rpm bhp rpm bhp rpm bhp rpm bhp rpm bhp rpm
bhp
rpm
bhp
3200
1280 1.46 1302 1.54 1324 1.63 1347 1.71 1370 1.80 1392 1.89 1414 1.99 1436 2.09 1458
2.19
1479
2.28
3600
1379 1.80 1401 1.90 1422 2.00 1441 2.09 1461 2.18 1480 2.27 1501 2.36 1521 2.46 1542
2.57
1561
2.67
4000
1481 2.20 1501 2.30 1522 2.41 1542 2.52 1561 2.63 1579 2.73 1597 2.84 1614 2.94 1631
3.04
1649
3.14
4400
1585 2.67 1604 2.78 1623 2.89 1642 3.01 1660 3.12 1679 3.25 1696 3.36
—
—
—
—
—
—
4800
1693 3.22
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
Notes:
1. For Direct Drive Evaporator Fan Speed (rpm), reference Table 136, p. 180.
2. Data includes pressure drop due to standard filters and wet coils. No accessories or options are included in pressure drop data.
3. Refer to Table 138, p. 182 to determine additional static pressure drop due to other options/accessories.
4. Direct Drive Fan Motor Heat (MBH) = 2.8623 x Fan BHP - 0.1504
5. Factory supplied motors, in commercial equipment, are definite purpose motors, specifically designed and tested to operate reliably and continuously
at all cataloged conditions. Using the full horsepower range of our fan motors as shown in our tabular data will not result in nuisance tripping or
premature motor failure. Our product's warranty will not be affected.
RT-PRC023AG-EN
131
Evaporator Fan Performance
Table 84. Direct drive evaporator fan performance - 10 tons standard efficiency - TSC120F3,4,W horizontal airflow
External Static Pressure (Inches of Water)
0.10
0.20
0.30
0.40
0.50
0.60
0.70
0.80
0.90
1.00
cfm
rpm bhp rpm bhp rpm bhp rpm bhp rpm bhp rpm bhp rpm bhp rpm bhp rpm
bhp
rpm
bhp
3200
1016 0.65 1044 0.72 1070 0.79 1097 0.87 1123 0.95 1148 1.03 1173 1.10 1197 1.18 1221
1.26
1245
1.34
3600
1137 0.91 1162 0.99 1185 1.07 1209 1.15 1232 1.24 1256 1.32 1279 1.41 1301 1.49 1323
1.58
1344
1.66
4000
1258 1.22 1280 1.31 1302 1.40 1323 1.49 1344 1.58 1366 1.68 1387 1.78 1408 1.87 1428
1.97
1448
2.06
4400
1379 1.60 1400 1.70 1420 1.80 1439 1.90 1459 2.00 1478 2.10 1497 2.21 1517 2.32 1535
2.42
1554
2.52
4800
1501 2.06 1520 2.17 1538 2.28 1557 2.38 1575 2.49 1592 2.60 1609 2.71 1627 2.83 1646
2.94
1663
3.06
Continued
External Static Pressure (Inches of Water)
1.10
1.20
1.30
1.40
1.50
1.60
1.70
1.80
1.90
2.00
cfm
rpm bhp rpm bhp rpm bhp rpm bhp rpm bhp rpm bhp rpm bhp rpm bhp rpm
bhp
rpm
bhp
3200
1269 1.43 1293 1.52 1317 1.61 1339 1.70 1361 1.78 1383 1.87 1404 1.96 1425 2.05 1447
2.14
1468
2.24
3600
1366 1.75 1386 1.84 1408 1.94 1429 2.04 1451 2.15 1472 2.25 1492 2.35 1513 2.45 1532
2.54
1551
003
4000
1467 2.15 1487 2.25 1506 2.34 1525 2.44 1544 2.55 1563 2.65 1582 2.76 1602 2.89 1620
3.00
1639
3.12
4400
1573 2.63 1591 2.73 1609 2.84 1626 2.94 1643 3.04 1661 3.15 1679 3.26 1696 3.37
—
—
—
—
4800
1681 3.18 1698 3.29
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
Notes:
1. For Direct Drive Evaporator Fan Speed (rpm), reference Table 136, p. 180.
2. Data includes pressure drop due to standard filters and wet coils.
3. Refer to Table 138, p. 182 to determine additional static pressure drop due to other options/accessories.
4. Direct Drive Fan Motor Heat (MBH) = 2.8623 x Fan BHP - 0.1504
5. Factory supplied motors, in commercial equipment, are definite purpose motors, specifically designed and tested to operate reliably and continuously
at all cataloged conditions. Using the full horsepower range of our fan motors as shown in our tabular data will not result in nuisance tripping or
premature motor failure. Our product's warranty will not be affected.
132
RT-PRC023AG-EN
Evaporator Fan Performance
Table 85. Direct drive evaporator fan performance - 10 tons standard efficiency with gas heat - YSC120F3,4,W*L,M low
& medium heat downflow airflow
External Static Pressure (Inches of Water)
0.10
0.20
0.30
0.40
0.50
0.60
0.70
0.80
0.90
1.00
cfm
rpm bhp rpm bhp rpm bhp rpm bhp rpm bhp rpm bhp rpm bhp rpm bhp rpm
bhp
rpm
bhp
3200
1055 0.73 1081 0.81 1105 0.88 1128 0.94 1152 1.01 1177 1.09 1202 1.17 1225 1.25 1249
1.33
1273
1.42
3600
1181 1.02 1204 1.10 1226 1.19 1248 1.27 1268 1.34 1289 1.42 1311 1.50 1333 1.59 1355
1.68
1376
1.77
4000
1307 1.38 1328 1.47 1348 1.56 1368 1.65 1388 1.74 1406 1.82 1425 1.91 1444 2.00 1464
2.10
1483
2.20
4400
1433 1.82 1453 1.92 1472 2.02 1490 2.12 1508 2.22 1525 2.32 1542 2.40 1559 2.49 1577
2.59
1594
2.69
4800
1560 2.34 1578 2.45 1595 2.56 1613 2.67 1629 2.77 1646 2.89 1662 2.99 1677 3.09 1692
3.18
—
—
Continued
External Static Pressure (Inches of Water)
1.10
1.20
1.30
1.40
1.50
1.60
1.70
1.80
1.90
2.00
cfm
rpm bhp rpm bhp rpm bhp rpm bhp rpm bhp rpm bhp rpm bhp rpm bhp rpm
bhp
rpm
bhp
3200
1296 1.51 1319 1.61 1343 1.70 1366 1.81 1390 1.91 1415 2.02 1438 2.11 1461 2.21 1484
2.31
1506
2.41
3600
1397 1.86 1418 1.95 1439 2.05 1460 2.16 1480 2.27 1501 2.38 1522 2.49 1543 2.61 1564
2.72
1585
2.83
4000
1503 2.30 1522 2.39 1542 2.49 1561 2.60 1579 2.70 1598 2.81 1616 2.93 1635 3.05 1654
3.29
4400
1612 2.80 1630 2.91 1647 3.02 1665 3.13 1683 3.24 1700 3.34
4800
—
—
—
—
—
—
—
—
—
—
—
—
3.17
1673
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
Notes:
1. For Direct Drive Evaporator Fan Speed (rpm), reference Table 136, p. 180.
2. Data includes pressure drop due to standard filters and wet coils.
3. Refer to Table 138, p. 182 to determine additional static pressure drop due to other options/accessories.
4. Direct Drive Fan Motor Heat (MBH) = 2.8623 x Fan BHP - 0.1504
5. Factory supplied motors, in commercial equipment, are definite purpose motors, specifically designed and tested to operate reliably and continuously
at all cataloged conditions. Using the full horsepower range of our fan motors as shown in our tabular data will not result in nuisance tripping or
premature motor failure. Our product's warranty will not be affected.
RT-PRC023AG-EN
133
Evaporator Fan Performance
Table 86. Direct drive evaporator fan performance - 10 tons standard efficiency with gas heat - YSC120F3,4,W*L,M low
& medium heat horizontal airflow
External Static Pressure (Inches of Water)
0.10
0.20
0.30
0.40
0.50
0.60
0.70
0.80
0.90
1.00
cfm
rpm bhp rpm bhp rpm bhp rpm bhp rpm bhp rpm bhp rpm bhp rpm bhp rpm
bhp
rpm
bhp
3200
1043 0.70 1072 0.78 1099 0.85 1128 0.94 1154 1.02 1179 1.10 1203 1.17 1227 1.26 1250
1.35
1274
1.44
3600
1166 0.98 1192 1.06 1217 1.14 1241 1.23 1267 1.33 1291 1.42 1314 1.51 1335 1.59 1356
1.68
1378
1.78
4000
1290 1.32 1314 1.41 1337 1.50 1359 1.60 1381 1.69 1404 1.80 1426 1.91 1447 2.01 1467
2.10
1486
2.20
4400
1415 1.73 1436 1.83 1458 1.94 1478 2.04 1498 2.14 1518 2.25 1539 2.37 1560 2.49 1579
2.60
1597
2.70
4800
1540 2.23 1560 2.34 1579 2.45 1598 2.56 1617 2.67 1635 2.79 1653 2.90 1672 3.03 1692
3.16
—
—
Continued
External Static Pressure (Inches of Water)
1.10
1.20
1.30
1.40
1.50
1.60
1.70
1.80
1.90
2.00
cfm
rpm bhp rpm bhp rpm bhp rpm bhp rpm bhp rpm bhp rpm bhp rpm bhp rpm
bhp
rpm
bhp
3200
1298 1.53 1323 1.63 1347 1.72 1370 1.82 1394 1.92 1416 2.02 1437 2.12 1459 2.22 1482
2.33
1503
2.43
3600
1398 1.88 1419 1.98 1440 2.08 1462 2.19 1484 2.30 1505 2.40 1527 2.52 1547 2.62 1568
2.74
1587
2.84
4000
1505 2.30 1524 2.41 1542 2.51 1562 2.63 1581 2.74 1600 2.85 1619 2.97 1639 3.09 1658
3.32
4400
1615 2.81 1633 2.91 1650 3.02 1667 3.14 1685 3.26 1700 3.38
4800
—
—
—
—
—
—
—
—
—
—
—
—
3.20
1677
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
Notes:
1. For Direct Drive Evaporator Fan Speed (rpm), reference Table 136, p. 180.
2. Data includes pressure drop due to standard filters and wet coils.
3. Refer to Table 138, p. 182 to determine additional static pressure drop due to other options/accessories.
4. Direct Drive Fan Motor Heat (MBH) = 2.8623 x Fan BHP - 0.1504
5. Factory supplied motors, in commercial equipment, are definite purpose motors, specifically designed and tested to operate reliably and continuously
at all cataloged conditions. Using the full horsepower range of our fan motors as shown in our tabular data will not result in nuisance tripping or
premature motor failure. Our product's warranty will not be affected.
134
RT-PRC023AG-EN
Evaporator Fan Performance
Table 87. Direct drive evaporator fan performance - 10 tons with standard efficiency gas heat -YSC120F3,4,W*H high heat
downflow airflow
External Static Pressure (Inches of Water)
0.10
0.20
0.30
0.40
0.50
0.60
0.70
0.80
0.90
1.00
cfm
rpm bhp rpm bhp rpm bhp rpm bhp rpm bhp rpm bhp rpm bhp rpm bhp rpm
bhp
rpm
bhp
3200
1055 0.70 1082 0.79 1109 0.87 1132 0.93 1156 1.01 1180 1.09 1205 1.17 1228 1.25 1252
1.33
1275
1.41
3600
1180 0.98 1205 1.07 1229 1.16 1252 1.25 1272 1.33 1293 1.40 1315 1.49 1337 1.59 1358
1.68
1379
1.77
4000
1305 1.32 1328 1.42 1350 1.52 1372 1.63 1392 1.73 1410 1.80 1429 1.89 1448 1.99 1468
2.09
1488
2.19
4400
1432 1.73 1452 1.84 1473 1.96 1493 2.07 1512 2.19 1530 2.29 1547 2.38 1564 2.47 1581
2.57
1599
2.68
4800
1558 2.22 1577 2.34 1596 2.47 1615 2.59 1633 2.72 1650 2.84 1667 2.96 1683 3.06 1698
3.15
—
—
Continued
External Static Pressure (Inches of Water)
1.10
1.20
1.30
1.40
1.50
1.60
1.70
1.80
1.90
2.00
cfm
rpm bhp rpm bhp rpm bhp rpm bhp rpm bhp rpm bhp rpm bhp rpm bhp rpm
bhp
rpm
bhp
3200
1298 1.49 1322 1.59 1348 1.69 1374 1.81 1398 1.91 1421 2.00 1443 2.10 1465 2.20 1488
2.30
1511
2.41
3600
1400 1.86 1421 1.95 1441 2.04 1462 2.14 1483 2.24 1507 2.36 1530 2.48 1552 2.61 1574
2.72
1594
2.83
4000
1507 2.29 1526 2.39 1544 2.49 1563 2.59 1582 2.69 1601 2.79 1619 2.90 1639 3.01 1657
3.26
4400
1617 2.79 1635 2.91 1652 3.02 1669 3.13 1687 3.23
4800
—
—
—
—
—
—
—
—
—
—
3.13
1678
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
Notes:
1. For Direct Drive Evaporator Fan Speed (rpm), reference Table 136, p. 180.
2. Data includes pressure drop due to standard filters and wet coils.
3. Refer to Table 138, p. 182 to determine additional static pressure drop due to other options/accessories.
4. Direct Drive Fan Motor Heat (MBH) = 2.8623 x Fan BHP - 0.1504
5. Factory supplied motors, in commercial equipment, are definite purpose motors, specifically designed and tested to operate reliably and continuously
at all cataloged conditions. Using the full horsepower range of our fan motors as shown in our tabular data will not result in nuisance tripping or
premature motor failure. Our product's warranty will not be affected.
RT-PRC023AG-EN
135
Evaporator Fan Performance
Table 88. Direct drive evaporator fan performance - 10 tons standard efficiency with gas heat -YSC120F3,4,W*H high heat
horizontal airflow
External Static Pressure (Inches of Water)
0.10
0.20
0.30
0.40
0.50
0.60
0.70
0.80
0.90
1.00
cfm
rpm bhp rpm bhp rpm bhp rpm bhp rpm bhp rpm bhp rpm bhp rpm bhp rpm
bhp
rpm
bhp
3200
1054 0.72 1084 0.79 1112 0.86 1141 0.95 1168 1.04 1193 1.12 1218 1.20 1242 1.28 1266
1.38
1289
1.48
3600
1179 1.00 1205 1.08 1231 1.16 1256 1.24 1282 1.35 1306 1.45 1329 1.54 1352 1.63 1374
1.72
1395
1.82
4000
1304 1.35 1328 1.44 1352 1.53 1375 1.62 1397 1.71 1420 1.83 1442 1.94 1463 2.04 1484
2.14
1504
2.24
4400
1429 1.78 1452 1.88 1474 1.98 1495 2.07 1515 2.17 1536 2.27 1556 2.40 1577 2.53 1597
2.64
1616
2.75
4800
1555 2.29 1576 2.40 1596 2.51 1616 2.61 1635 2.72 1654 2.82 1673 2.93 1692 3.07
—
—
—
—
Continued
External Static Pressure (Inches of Water)
1.10
1.20
1.30
1.40
1.50
1.60
1.70
1.80
1.90
2.00
cfm
rpm bhp rpm bhp rpm bhp rpm bhp rpm bhp rpm bhp rpm bhp rpm bhp rpm
bhp
rpm
bhp
3200
1314 1.57 1338 1.65 1362 1.74 1385 1.84 1407 1.93 1430 2.02 1453 2.12 1477 2.22 1498
2.32
1521
2.44
3600
1416 1.92 1436 2.03 1458 2.14 1480 2.24 1501 2.33 1522 2.43 1543 2.54 1563 2.64 1583
2.74
1604
2.85
4000
1524 2.35 1543 2.46 1562 2.56 1581 2.68 1600 2.80 1619 2.93 1638 3.04 1658 3.15 1677
4400
1635 2.87 1653 2.97 1671 3.09 1689 3.21
4800
—
—
—
—
—
—
—
—
3.26
1695
3.37
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
Notes:
1. For Direct Drive Evaporator Fan Speed (rpm), reference Table 136, p. 180.
2. Data includes pressure drop due to standard filters and wet coils.
3. Refer to Table 138, p. 182 to determine additional static pressure drop due to other options/accessories.
4. Direct Drive Fan Motor Heat (MBH) = 2.8623 x Fan BHP - 0.1504
5. Factory supplied motors, in commercial equipment, are definite purpose motors, specifically designed and tested to operate reliably and continuously
at all cataloged conditions. Using the full horsepower range of our fan motors as shown in our tabular data will not result in nuisance tripping or
premature motor failure. Our product's warranty will not be affected.
136
RT-PRC023AG-EN
Evaporator Fan Performance
Table 89. Belt drive evaporator fan performance - 3 tons high efficiency - THC036E3,E4 downflow airflow
External Static Pressure (Inches of Water)
0.10
cfm
0.20
0.30
0.40
0.50
0.60
rpm bhp rpm bhp rpm bhp rpm bhp rpm bhp rpm
bhp
1-hp Standard Motor & Low Static Drive Accessory Kit(a)
0.70
rpm
bhp
0.80
rpm
bhp
0.90
rpm
bhp
1.00
rpm
bhp
1-hp Standard Motor & Drive
600*
—
—
468
0.07
547
0.1
616
0.13
677
0.17
729
0.21
776
0.24
819
0.28
860
0.32
898
0.36
720*
386
0.05
490
0.08
570
0.12
638
0.16
697
0.12
752
0.24
802
0.28
848
0.33
889
0.37
928
0.42
840*
416
0.06
511
0.10
593
0.14
661
0.19
719
0.23
773
0.28
823
0.32
870
0.37
914
0.42
954
0.47
960
449
0.08
534
0.12
614
0.17
683
0.22
742
0.27
795
0.32
845
0.37
891
0.42
935
0.47
977
0.53
1080
483
0.11
561
0.15
635
0.20
704
0.25
765
0.30
818
0.36
868
0.42
913
0.47
957
0.53
998
0.59
1200
518
0.14
592
0.18
658
0.23
725
0.29
786
0.35
842
0.41
891
0.47
936
0.53
979
0.59
1019
0.66
1320
555
0.17
625
0.22
686
0.27
747
0.33
807
0.39
862
0.46
914
0.53
959
0.59
1002
0.66
1043
0.73
1440
592
0.21
658
0.27
717
0.32
772
0.38
828
0.44
882
0.51
933
0.58
980
0.66
1025
0.73
1065
0.80
Continued
External Static Pressure (Inches of Water)
1.10
1.20
1.30
1.40
1.50
cfm
rpm bhp rpm bhp rpm bhp rpm bhp rpm bhp
600*
934
0.41
968
0.45 1001 0.49 1034 0.54 1066 0.59
720*
965
0.46
999
0.51 1032 0.56 1065 0.61 1095 0.66
840*
992
0.53 1029 0.58 1063 0.63 1096 0.68 1125 0.74
1-hp Standard Motor & Drive
960
1016 0.59 1054 0.65 1089 0.70 1124 0.76 1155 0.82
1080
1036 0.65 1075 0.72 1111 0.78 1146 0.84 1180 0.91
1200
1058 0.72 1095 0.78 1131 0.85 1167 0.92 1201 0.99
1320
1082 0.80 1119 0.87 1153 0.94 1188 1.01 1221 1.08
1440
1104 0.88 1141 0.95 1176 1.03 1211 1.10 1243 1.18
1-hp Standard Motor & Field Supplied High Static Drive(b)
Notes:
1. For Standard Evaporator Fan Speed (rpm), reference Table 131, p. 179.
2. Data includes pressure drop due to standard filters and wet coils. Data does not include pressure drop due to reheat coil.
3. Refer to Table 139, p. 183 to determine additional static pressure drop due to other options/accessories.
4. 1-hp Fan Motor Heat (MBh) = 2.7672 x Fan bhp + 0.4705.
5. Factory supplied motors, in equipment, are definite purpose motors, specifically designed and tested to operate at all cataloged conditions. Using the
full horsepower range of our fan motors as shown in our tabular data will not result in nuisance tripping or premature motor failure. Our product’s
warranty will not be affected.
* For 600, 720, and 840 CFM, unit application below 320 CFM/Ton are only applicable on T_C models only (No Gas Heat). See below for restrictions.
* Electric heaters restricted on applications below 320 CFM/Ton
* Dehumidification (Hot Gas Reheat) or TXV with Frostat and Crankcase Heaters are required on applications below 320 CFM/Ton
(a) BAYLSDR006AB
(b) Field Supplied Fan Sheave AK41x3/4" required. Field Supplied Belt may be necessary.
RT-PRC023AG-EN
137
Evaporator Fan Performance
Table 90. Belt drive evaporator fan performance - 3 tons high efficiency - THC036E3,E4 horizontal airflow
External Static Pressure (Inches of Water)
0.10
cfm
0.20
0.30
0.40
0.50
0.60
rpm bhp rpm bhp rpm bhp rpm bhp rpm bhp rpm
bhp
1-hp Standard Motor & Low Static Drive Accessory Kit(a)
0.70
rpm
bhp
0.80
rpm
bhp
0.90
rpm
bhp
1.00
rpm
bhp
1-hp Standard Motor & Drive
600*
372
0.04
472
0.06
552
0.09
619
0.12
678
0.15
730
0.18
778
0.22
823
0.25
865
0.29
904
0.32
720*
398
0.05
496
0.08
575
0.11
643
0.15
702
0.18
756
0.22
805
0.26
849
0.29
892
0.33
931
0.37
840*
422
0.06
524
0.10
598
0.13
665
0.17
726
0.22
780
0.26
829
0.30
875
0.34
918
0.39
957
0.43
960
449
0.08
552
0.12
626
0.16
689
0.20
748
0.25
802
0.30
852
0.35
898
0.39
942
0.44
982
0.49
1080
482
0.10
576
0.14
654
0.19
716
0.24
772
0.29
825
0.34
874
0.39
921
0.45
964
0.50
1005
0.55
1200
517
0.13
600
0.17
681
0.23
744
0.28
799
0.33
850
0.39
898
0.44
943
0.50
987
0.56
1028
0.62
1320
554
0.16
627
0.20
705
0.27
773
0.33
828
0.38
877
0.44
923
0.50
967
0.56
1010
0.62
1052
0.69
1440
590
0.20
657
0.24
728
0.30
797
0.37
855
0.44
904
0.50
950
0.56
993
0.63
1034
0.69
1074
0.76
Continued
External Static Pressure (Inches of Water)
1.10
1.20
1.30
1.40
1.50
cfm
rpm bhp rpm bhp rpm bhp rpm bhp rpm bhp
600*
941
0.36
720*
969
0.41 1005 0.45 1040
840*
995
0.47 1031 0.52 1066 0.56 1100 0.61 1131 0.66
1-hp Standard Motor & Drive
977
0.4
1010 0.44 1042 0.48 1074 0.53
0.5
1073 0.54 1105
0.5
960
1020 0.54 1057 0.59 1092 0.64 1126 0.69 1158 0.74
1080
1045 0.61 1082 0.67 1116 0.72 1151 0.77 1183 0.83
1200
1067 0.68 1104 0.74 1141 0.80 1174 0.86 1207 0.92
1320
1091 0.75 1127 0.82 1163 0.88 1198 0.95 1230 1.02
1440
1112 0.83 1150 0.90 1186 0.97 1221 1.04 1254 1.11
1-hp Standard Motor & Field Supplied High Static Drive(b)
Notes:
1. For Standard Evaporator Fan Speed (rpm), reference Table 131, p. 179.
2. Data includes pressure drop due to standard filters and wet coils. Data does not include pressure drop due to reheat coil.
3. Refer to Table 139, p. 183 to determine additional static pressure drop due to other options/accessories.
4. 1-hp Fan Motor Heat (MBh) = 2.7672 x Fan bhp + 0.4705.
5. Factory supplied motors, in equipment, are definite purpose motors, specifically designed and tested to operate at all cataloged conditions. Using the
full horsepower range of our fan motors as shown in our tabular data will not result in nuisance tripping or premature motor failure. Our product’s
warranty will not be affected.
* For 600, 720, and 840 CFM, unit application below 320 CFM/Ton are only applicable on T_C models only (No Gas Heat). See below for restrictions.
* Electric heaters restricted on applications below 320 CFM/Ton
* Dehumidification (Hot Gas Reheat) or TXV with Frostat™ and Crankcase Heaters are required on applications below 320 CFM/Ton
(a) BAYLSDR006AB
(b) Field Supplied Fan Sheave AK41x3/4" required. Field Supplied Belt may be necessary.
138
RT-PRC023AG-EN
Evaporator Fan Performance
Table 91. Belt drive evaporator fan performance - 3 tons high efficiency -YHC036E3,E4,EW*L,M low & medium gas heat
downflow airflow
External Static Pressure (Inches of Water)
0.10
cfm
0.20
0.30
0.40
0.50
0.60
rpm bhp rpm bhp rpm bhp rpm bhp rpm bhp rpm
bhp
1-hp Standard Motor & Field Supplied Low Static Drive(a)
0.70
rpm
bhp
0.80
rpm
bhp
0.90
rpm
bhp
1.00
rpm
bhp
0.45
1-hp Standard Motor & Drive
960
—
—
—
—
605
0.15
671
0.19
730
0.23
784
0.27
835
0.31
881
0.36
924
0.41
965
1080
—
—
563
0.14
630
0.17
693
0.22
751
0.26
804
0.31
854
0.35
901
0.40
946
0.46
986
0.50
1200
—
—
596
0.17
659
0.21
718
0.25
773
0.30
825
0.35
875
0.40
921
0.45
964
0.51
1005
0.56
1320
555
0.16
629
0.20
689
0.25
745
0.29
797
0.34
848
0.40
897
0.45
941
0.51
984
0.56
1026
0.62
1440
593
0.20
663
0.25
721
0.29
775
0.34
824
0.39
873
0.45
919
0.51
963
0.57
1006
0.63
1046
0.69
Continued
External Static Pressure (Inches of Water)
1.10
cfm
1.20
1.30
1.40
1.50
rpm bhp rpm bhp rpm bhp rpm bhp rpm bhp
1-hp Standard Motor & Drive(b)
960
1004 0.50 1039 0.55 1073 0.59 1105 0.64 1137 0.69
1080
1025 0.56 1063 0.61 1098 0.66 1132 0.72 1163 0.77
1200
1046 0.62 1082 0.67 1119 0.73 1153 0.79 1187 0.85
1320
1064 0.68 1103 0.74 1139 0.80 1174 0.86 1207 0.93
1440
1085 0.75 1123 0.81 1159 0.88 1193 0.94
—
—
1-hp Standard Motor & Field Supplied High Static Drive(b)
Notes:
1. For Standard Evaporator Fan Speed (rpm), reference Table 131, p. 179.
2. Data includes pressure drop due to standard filters and wet coils. No accessories or options are included in pressure drop data.
3. Data does not include pressure drop due to reheat coil.
4. Refer to Table 139, p. 183 to determine additional static pressure drop due to other options/accessories.
5. 1-hp Fan Motor Heat (MBh) = 2.7672 x Fan bhp + 0.4705.
6. Factory supplied motors, in equipment, are definite purpose motors, specifically designed and tested to operate at all cataloged conditions. Using the
full horsepower range of our fan motors as shown in our tabular data will not result in nuisance tripping or premature motor failure. Our product’s
warranty will not be affected.
(a) Field Supplied Fan Sheave AK71x3/4" required. Field Supplied Belt may be necessary.
(b) Field Supplied Fan Sheave AK41x3/4" required. Field Supplied Belt may be necessary.
RT-PRC023AG-EN
139
Evaporator Fan Performance
Table 92. Belt drive evaporator fan performance - 3 tons high efficiency -YHC036E3,E4,EW*L,M low & medium gas heat
horizontal airflow
External Static Pressure (Inches of Water)
0.10
cfm
0.20
0.30
0.40
0.50
0.60
rpm bhp rpm bhp rpm bhp rpm bhp rpm bhp rpm
bhp
1-hp Standard Motor & Field Supplied Low Static Drive(a)
0.70
rpm
bhp
0.80
rpm
bhp
0.90
rpm
bhp
1.00
rpm
bhp
1-hp Standard Motor & Drive
960
—
—
—
—
613
0.15
679
0.20
736
0.24
788
0.28
837
0.32
886
0.37
930
0.42
973
0.47
1080
—
—
561
0.14
636
0.18
702
0.23
761
0.28
812
0.32
860
0.37
904
0.42
947
0.47
991
0.52
1200
—
—
589
0.16
661
0.21
726
0.26
784
0.31
836
0.37
884
0.42
929
0.47
970
0.52
1011
0.58
1320
—
—
619
0.20
687
0.25
750
0.30
807
0.36
859
0.41
909
0.47
953
0.53
995
0.59
1034
0.65
1440
585
0.19
651
0.24
715
0.29
775
0.35
831
0.40
883
0.47
931
0.53
976
0.59
1019
0.66
1058
0.72
Continued
External Static Pressure (Inches of Water)
1.10
cfm
1.20
1.30
1.40
1.50
rpm bhp rpm bhp rpm bhp rpm bhp rpm bhp
1-hp Standard Motor & Drive
960
1014 0.53 1051 0.58 1087 0.63 1121 0.68 1155 0.74
1080
1031 0.58 1071 0.64 1108 0.69 1142 0.75 1177 0.81
1200
1049 0.63 1087 0.69 1124 0.75 1161 0.82 1195 0.88
1320
1071 0.70 1107 0.76 1143 0.82 1178 0.89 1213 0.96
1440
1095 0.78 1130 0.84 1166 0.91 1199 0.97
—
—
1-hp Standard Motor & Field Supplied High Static Drive(b)
Notes:
1. For Standard Evaporator Fan Speed (rpm), reference Table 131, p. 179.
2. Data includes pressure drop due to standard filters and wet coils. No accessories or options are included in pressure drop data.
3. Data does not include pressure drop due to reheat coil.
4. Refer to Table 139, p. 183 to determine additional static pressure drop due to other options/accessories.
5. 1-hp Fan Motor Heat (MBh) = 2.7672 x Fan bhp + 0.4705.
6. Factory supplied motors, in equipment, are definite purpose motors, specifically designed and tested to operate reliably and continuously at all
cataloged conditions. Using the full horsepower range of our fan motors as shown in our tabular data will not result in nuisance tripping or premature
motor failure. Our product’s warranty will not be affected.
(a) Field Supplied Fan Sheave AK71x3/4" required. Field Supplied Belt may be necessary.
(b) Field Supplied Fan Sheave AK41x3/4" required. Field Supplied Belt may be necessary.
140
RT-PRC023AG-EN
Evaporator Fan Performance
Table 93. Belt drive evaporator fan performance - 3 tons high efficiency - YHC036E3,E4,EW*H high gas heat downflow
airflow
External Static Pressure (Inches of Water)
0.10
cfm
0.20
0.30
0.40
0.50
0.60
rpm bhp rpm bhp rpm bhp rpm bhp rpm bhp rpm
bhp
1-hp Standard Motor & Field Supplied Low Static Drive(a)
0.70
rpm
bhp
0.80
rpm
bhp
0.90
rpm
bhp
1.00
rpm
bhp
1-hp Standard Motor & Drive
960
—
—
—
—
609
0.15
671
0.19
730
0.24
785
0.28
835
0.33
881
0.37
924
0.42
966
0.47
1080
—
—
572
0.14
638
0.18
697
0.23
752
0.27
805
0.32
855
0.37
900
0.42
945
0.47
986
0.53
1200
—
—
606
0.18
668
0.22
725
0.26
778
0.31
827
0.36
876
0.42
922
0.47
964
0.52
1007
0.58
1320
573
0.17
641
0.22
700
0.26
754
0.31
805
0.36
853
0.41
898
0.47
942
0.53
985
0.59
1026
0.65
1440
613
0.21
677
0.27
733
0.31
786
0.36
835
0.42
881
0.47
925
0.53
966
0.59
1007
0.65
1047
0.71
Continued
External Static Pressure (Inches of Water)
1.10
cfm
1.20
1.30
1.40
1.50
rpm bhp rpm bhp rpm bhp rpm bhp rpm bhp
1-hp Standard Motor & Drive
960
1004 0.52 1041 0.58 1076 0.63 1109 0.68 1142 0.73
1080
1026 0.58 1063 0.64 1098 0.69 1133 0.75 1165 0.81
1200
1046 0.64 1083 0.70 1120 0.76 1154 0.82 1187 0.88
1320
1065 0.71 1103 0.77 1139 0.83 1175 0.90 1207 0.96
1440
1086 0.78 1123 0.84 1160 0.91 1194 0.98 1227 1.05
1-hp Standard Motor & Field Supplied High Static Drive(b)
Notes:
1. For Standard Evaporator Fan Speed (rpm), reference Table 131, p. 179.
2. Data includes pressure drop due to standard filters and wet coils. No accessories or options are included in pressure drop data.
3. Data does not include pressure drop due to reheat coil.
4. Refer to Table 139, p. 183 to determine additional static pressure drop due to other options/accessories.
5. 1-hp Fan Motor Heat (MBh) = 2.7672 x Fan bhp + 0.4705.
6. Factory supplied motors, in equipment, are definite purpose motors, specifically designed and tested to operate at all cataloged conditions. Using the
full horsepower range of our fan motors as shown in our tabular data will not result in nuisance tripping or premature motor failure. Our product’s
warranty will not be affected.
(a) Field Supplied Fan Sheave AK71x3/4" required. Field Supplied Belt may be necessary.
(b) Field Supplied Fan Sheave AK41x3/4" required. Field Supplied Belt may be necessary.
RT-PRC023AG-EN
141
Evaporator Fan Performance
Table 94. Belt drive evaporator fan performance - 3 tons high efficiency - YHC036E3,E4,EW*H high gas heat horizontal
airflow
External Static Pressure (Inches of Water)
0.10
cfm
0.20
0.30
0.40
0.50
0.60
rpm bhp rpm bhp rpm bhp rpm bhp rpm bhp rpm
bhp
1-hp Standard Motor & Field Supplied Low Static Drive(a)
0.70
rpm
bhp
0.80
rpm
bhp
0.90
rpm
bhp
1.00
rpm
bhp
1-hp Standard Motor & Drive
960
—
—
—
—
621
0.15
685
0.20
745
0.24
799
0.29
849
0.33
894
0.38
936
0.42
975
0.47
1080
—
—
580
0.14
649
0.19
711
0.23
768
0.28
821
0.32
871
0.38
917
0.43
960
0.48
1000
0.53
1200
—
—
613
0.18
679
0.22
738
0.27
793
0.32
845
0.37
892
0.42
939
0.48
982
0.53
1024
0.59
1320
574
0.17
647
0.22
710
0.26
767
0.31
820
0.37
870
0.42
917
0.48
962
0.53
1004
0.59
1046
0.66
1440
612
0.21
682
0.26
742
0.31
797
0.37
849
0.42
897
0.48
943
0.54
986
0.60
1028
0.66
1068
0.72
Continued
External Static Pressure (Inches of Water)
1.10
cfm
1.20
1.30
1.40
1.50
rpm bhp rpm bhp rpm bhp rpm bhp rpm bhp
1-hp Standard Motor & Drive
960
1012 0.52 1048 0.57 1082 0.62 1116 0.67 1148 0.72
1080
1039 0.59 1075 0.64 1109 0.69 1142 0.74 1173 0.80
1200
1063 0.65 1100 0.71 1134 0.77 1168 0.83 1199 0.88
1320
1085 0.72 1122 0.78 1159 0.85 1193 0.91 1226 0.98
1440
1107 0.79 1145 0.86 1181 0.93 1216 1.00 1248 1.07
1-hp Standard Motor & Field Supplied High Static Drive(b)
Notes:
1. For Standard Evaporator Fan Speed (rpm), reference Table 131, p. 179.
2. Data includes pressure drop due to standard filters and wet coils. No accessories or options are included in pressure drop data.
3. Data does not include pressure drop due to reheat coil.
4. Refer to Table 139, p. 183 to determine additional static pressure drop due to other options/accessories.
5. 1-hp Fan Motor Heat (MBh) = 2.7672 x Fan bhp + 0.4705.
6. Factory supplied motors, in equipment, are definite purpose motors, specifically designed and tested to operate at all cataloged conditions. Using the
full horsepower range of our fan motors as shown in our tabular data will not result in nuisance tripping or premature motor failure. Our product’s
warranty will not be affected.
(a) Field Supplied Fan Sheave AK71x3/4" required. Field Supplied Belt may be necessary.
(b) Field Supplied Fan Sheave AK41x3/4" required. Field Supplied Belt may be necessary.
142
RT-PRC023AG-EN
Evaporator Fan Performance
Table 95. Belt drive evaporator fan performance - 4 tons high efficiency -THC048E3,E4,EW, F3, F4, FW downflow airflow
External Static Pressure (Inches of Water)
0.10
cfm
0.20
0.30
0.40
0.50
0.60
rpm bhp rpm bhp rpm bhp rpm bhp rpm bhp rpm bhp
1-hp Standard Motor & Low Static Drive Accessory Kit(a)
0.70
rpm
bhp
0.80
rpm
bhp
0.90
rpm
bhp
1.00
rpm
bhp
1-hp Standard Motor & Drive
800*
—
—
444
0.06
526
0.09
598
0.13
663
0.16
720
0.20
772
0.24
820
0.28
863
0.32
905
0.36
960*
—
—
462
0.08
542
0.12
610
0.15
672
0.19
731
0.23
785
0.27
835
0.32
881
0.36
923
0.41
1120*
399
0.07
485
0.11
559
0.14
626
0.18
687
0.22
743
0.26
795
0.31
846
0.36
893
0.41
937
0.46
1280
429
0.10
510
0.14
581
0.17
644
0.21
703
0.26
757
0.30
809
0.35
857
0.40
903
0.45
947
0.51
1440
459
0.12
537
0.17
604
0.21
665
0.26
722
0.30
774
0.35
823
0.40
871
0.45
916
0.51
959
0.56
1600
492
0.16
567
0.21
630
0.26
689
0.31
742
0.36
793
0.41
842
0.46
887
0.51
932
0.57
974
0.63
1760
526
0.20
597
0.26
658
0.31
713
0.36
765
0.42
814
0.47
860
0.53
905
0.58
947
0.64
989
0.70
1920
561
0.25
627
0.31
687
0.37
739
0.43
790
0.49
838
0.55
882
0.60
924
0.66
966
0.72
1006
0.79
Continued
External Static Pressure (Inches of Water)
1.10
1.20
1.30
1.40
1.50
cfm
rpm bhp rpm bhp rpm bhp rpm bhp rpm bhp
800*
942
0.40
960*
964
0.46 1002 0.50 1038 0.55 1072 0.60 1105 0.65
1120*
979
0.51 1019 0.56 1055 0.62 1091 0.67 1125 0.725
1280
990
0.56 1031 0.62 1069 0.68 1105 0.74 1140 0.80
1440
999
0.62 1040 0.68 1079 0.75 1115 0.81 1152 0.87
1-hp Standard Motor & Drive
980
0.44 1015 0.48 1047 0.53 1079 0.569
1600
1014 0.69 1051 0.75 1089 0.82 1125 0.88 1162 0.95
1760
1028 0.77 1066 0.83 1104 0.90 1139 0.96 1175 1.04
1920
1044 0.85 1083 0.92 1118 0.99 1155 1.06 1188 1.13
1-hp Standard Motor & Field Supplied High Static Drive(b)
Notes:
1. For Standard Evaporator Fan Speed (rpm), reference Table 131, p. 179.
2. Data includes pressure drop due to standard filters and wet coils. Data does not include pressure drop due to reheat coil.
3. Refer to Table 139, p. 183 to determine additional static pressure drop due to other options/accessories.
4. 1-hp Fan Motor Heat (MBh) = 2.7672 x Fan bhp + 0.4705.
5. Factory supplied motors, in equipment, are definite purpose motors, specifically designed and tested to operate at all cataloged conditions. Using the
full horsepower range of our fan motors as shown in our tabular data will not result in nuisance tripping or premature motor failure. Our product’s
warranty will not be affected.
* For 800, 960, and 1120 CFM, unit application below 320 CFM/Ton are only applicable on T_C models only (No Gas Heat). See below for restrictions.
* Electric heaters restricted on applications below 320 CFM/Ton
* Dehumidification (Hot Gas Reheat) or TXV with Frostat™ and Crankcase Heaters are required on applications below 320 CFM/Ton
(a) BAYLSDR006AB
(b) Field Supplied Fan Sheave AK41x3/4" required. Field Supplied Belt may be necessary.
RT-PRC023AG-EN
143
Evaporator Fan Performance
Table 96. Belt drive evaporator fan performance - 4 tons high efficiency -THC048E3,E4,EW, F3, F4, FW horizontal airflow
External Static Pressure (Inches of Water)
0.10
cfm
0.20
0.30
0.40
0.50
0.60
rpm bhp rpm bhp rpm bhp rpm bhp rpm bhp rpm bhp
1-hp Standard Motor & Low Static Drive Accessory Kit(a)
0.70
rpm
bhp
0.80
rpm
bhp
0.90
rpm
bhp
1.00
rpm
bhp
1-hp Standard Motor & Drive
800*
368
0.05
481
0.08
562
0.12
623
0.16
677
0.20
730
0.24
780
0.28
825
0.32
0.37
911
0.41
960*
392
0.06
501
0.10
587
0.15
655
0.20
711
0.24
759
0.29
804
0.33
848
0.38 891.1 0.43
870
932
0.48
1120*
420
0.08
519
0.13
607
0.18
679
0.23
740
0.29
792
0.34
837
0.39
879
0.45
918
0.50
955
0.55
1280
449
0.11
541
0.16
625
0.21
700
0.27
764
0.33
819
0.40
868
0.46
912
0.52
951
0.58
989
0.64
1440
482
0.14
567
0.19
644
0.25
718
0.32
783
0.38
841
0.45
892
0.52
939
0.59
982
0.66
1022
0.73
1600
518
0.18
596
0.24
668
0.30
736
0.36
801
0.44
861
0.51
915
0.59
963
0.67
1007
0.74
1048
0.82
1760
555
0.23
625
0.29
694
0.35
757
0.42
820
0.50
879
0.58
933
0.66
984
0.74
1030
0.83
1072
0.91
1920
593
0.28
657
0.35
723
0.42
783
0.49
840
0.57
897
0.65
951
0.74
1001
0.83
1049
0.92
1093
1.01
1-hp Standard Motor & Field Supplied High Static Drive(b)
Continued
External Static Pressure (Inches of Water)
1.10
1.20
1.30
1.40
1.50
cfm
rpm bhp rpm bhp rpm bhp rpm bhp rpm bhp
800*
950
0.46
960*
972
0.53 1009 0.58 1045 0.64 1080 0.692 1111 0.74
994
0.61 1031 0.67 1067 0.73 1101 0.786 1134 0.85
1-hp Standard Motor & Drive
1120*
986
0.51 1024 0.56 1057 0.602 1090 0.65
1280
1023 0.70 1057 0.76 1090 0.82 1123 0.89 1157 0.95
1440
1057 0.80 1091 0.86 1123 0.93 1155 1.00 1184 1.07
1600
1087 0.90 1123 0.97 1156 1.05 1187 1.12 1217 1.20
1760
1113 1.00 1150 1.08 1184 1.17 1219 1.25 1250 1.34
1920
1135 1.10 1174 1.19 1210 1.29 1244 1.38 1278 1.47
1-hp Standard Motor & Field Supplied High Static Drive
Notes:
1. For Standard Evaporator Fan Speed (rpm), reference Table 131, p. 179.
2. Data includes pressure drop due to standard filters and wet coils. Data does not include pressure drop due to reheat coil.
3. Refer to Table 139, p. 183 to determine additional static pressure drop due to other options/accessories.
4. 1-hp Fan Motor Heat (MBh) = 2.7672 x Fan bhp + 0.4705.
5. Factory supplied motors, in equipment, are definite purpose motors, specifically designed and tested to operate at all cataloged conditions. Using the
full horsepower range of our fan motors as shown in our tabular data will not result in nuisance tripping or premature motor failure. Our product’s
warranty will not be affected.
* For 800, 960, and 1120 CFM, unit application below 320 CFM/Ton are only applicable on T_C models only (No Gas Heat). See below for restrictions.
* Electric heaters restricted on applications below 320 CFM/Ton
* Dehumidification (Hot Gas Reheat) or TXV with Frostat™ and Crankcase Heaters are required on applications below 320 CFM/Ton
(a) BAYLSDR006AB
(b) Field Supplied Fan Sheave AK41x3/4" required. Field Supplied Belt may be necessary.
144
RT-PRC023AG-EN
Evaporator Fan Performance
Table 97. Belt drive evaporator fan performance - 4 tons high efficiency -YHC048E3,E4,EW,F3,F4,FW*L,M low & medium
gas heat downflow airflow
External Static Pressure (Inches of Water)
0.10
cfm
0.20
0.30
0.40
0.50
0.60
rpm bhp rpm bhp rpm bhp rpm bhp rpm bhp rpm
bhp
1-hp Standard Motor & Field Supplied Low Static Drive(a)
0.70
rpm
bhp
0.80
rpm
bhp
0.90
rpm
bhp
1.00
rpm
bhp
1-hp Standard Motor & Drive
1280
—
—
—
—
589
0.18
652
0.23
710
0.27
763
0.32
812
0.37
858
0.42
905
0.47
949
0.53
1440
—
—
546
0.18
614
0.22
675
0.27
731
0.32
782
0.37
830
0.42
876
0.48
919
0.53
961
0.59
1600
—
—
575
0.22
641
0.27
699
0.32
752
0.37
803
0.43
851
0.49
895
0.54
938
0.60
978
0.66
1760
538
0.21
606
0.27
668
0.32
725
0.38
776
0.44
826
0.50
872
0.56
916
0.62
958
0.68
997
0.75
1920
574
0.27
638
0.32
696
0.38
752
0.45
802
0.51
850
0.57
895
0.63
938
0.70
978
0.77
1018
0.84
Continued
External Static Pressure (Inches of Water)
1.10
cfm
1.20
1.30
1.40
1.50
rpm bhp rpm bhp rpm bhp rpm bhp rpm bhp
1-hp Standard Motor & Drive
1280
993
0.58 1032 0.64 1070 0.70 1107 0.76 1143 0.82
1440
1003 0.65 1043 0.71 1082 0.77 1118 0.84 1154 0.90
1600
1017 0.72 1054 0.78 1092 0.85 1129 0.92 1165 0.98
1760
1036 0.81 1073 0.88 1108 0.94 1142 1.01 1177 1.08
1920
1056 0.91 1092 0.98 1127 1.04 1160 1.11 1193 1.19
1-hp Standard Motor & Field Supplied High Static Drive(b)
Notes:
1. For Standard Evaporator Fan Speed (rpm), reference Table 131, p. 179.
2. Data includes pressure drop due to standard filters and wet coils. No accessories or options are included in pressure drop data.
3. Data does not include pressure drop due to reheat coil.
4. Refer to Table 139, p. 183 to determine additional static pressure drop due to other options/accessories.
5. 1-hp Fan Motor Heat (MBh) = 2.7672 x Fan bhp + 0.4705.
6. Factory supplied motors, in equipment, are definite purpose motors, specifically designed and tested to operate at all cataloged conditions. Using the
full horsepower range of our fan motors as shown in our tabular data will not result in nuisance tripping or premature motor failure. Our product’s
warranty will not be affected.
(a) Field Supplied Fan Sheave AK74x3/4" required. Field Supplied Belt may be necessary.
(b) Field Supplied Fan Sheave AK41x3/4" required. Field Supplied Belt may be necessary.
RT-PRC023AG-EN
145
Evaporator Fan Performance
Table 98. Belt drive evaporator fan performance - 4 tons high efficiency -YHC048E3,E4,EW,F3,F4,FW*L,M low & medium
gas heat horizontal airflow
External Static Pressure (Inches of Water)
0.10
cfm
0.20
0.30
0.40
0.50
0.60
rpm bhp rpm bhp rpm bhp rpm bhp rpm bhp rpm bhp
1-hp Standard Motor & Field Supplied Low Static Drive(a)
0.70
rpm
bhp
0.80
rpm
bhp
0.90
rpm
1.00
bhp
rpm
bhp
1-hp Standard Motor & Drive
1280
—
—
554
0.16
622
0.21
685
0.26
741
0.31
794
0.36
842
0.42
888
0.47
931
0.53
973
0.59
1440
—
—
590
0.21
652
0.26
712
0.31
767
0.36
818
0.42
866
0.48
911
0.54
953
0.60
995
0.67
1600
561
0.21
628
0.26
686
0.32
741
0.37
794
0.43
844
0.49
890
0.55
935
0.62
976
0.68
1017
0.75
1760
602
0.27
667
0.33
722
0.38
773
0.44
822
0.50
871
0.57
917
0.63
960
0.70
1001
0.77
1040
0.84
1920
644
0.33
706
0.40
760
0.46
809
0.52
855
0.59
900
0.66
944
0.73
987
0.80
1027
0.87
1066 0.95(b)
Continued
External Static Pressure (Inches of Water)
1.10
cfm
1.20
1.30
1.40
1.50
rpm bhp rpm bhp rpm bhp rpm bhp rpm bhp
1-hp Standard Motor & Drive
1280
1012 0.65 1052 0.72 1090 0.78 1127 0.84 1162 0.91
1440
1032 0.73 1070 0.80 1107 0.87 1142 0.94 1175 1.01
1600
1055 0.82 1093 0.89 1128 0.96 1162 1.03 1195 1.11
1760
1078 0.91 1114 0.99 1150 1.06 1183 1.14 1217 1.22
1920
1103 1.02 1139 1.10 1174 1.18 1207 1.26 1239 1.34
1-hp Standard Motor & Field Supplied High Static Drive(b)
Notes:
1. For Standard Evaporator Fan Speed (rpm), reference Table 131, p. 179.
2. Data includes pressure drop due to standard filters and wet coils. No accessories or options are included in pressure drop data.
3. Data does not include pressure drop due to reheat coil.
4. Refer to Table 139, p. 183 to determine additional static pressure drop due to other options/accessories.
5. 1-hp Fan Motor Heat (MBh) = 2.7672 x Fan bhp + 0.4705.
6. Factory supplied motors, in equipment, are definite purpose motors, specifically designed and tested to operate at all cataloged conditions. Using the
full horsepower range of our fan motors as shown in our tabular data will not result in nuisance tripping or premature motor failure. Our product’s
warranty will not be affected.
(a) Field Supplied Fan Sheave AK74x3/4" required. Field Supplied Belt may be necessary.
(b) Field Supplied Fan Sheave AK41x3/4" required. Field Supplied Belt may be necessary.
146
RT-PRC023AG-EN
Evaporator Fan Performance
Table 99. Belt drive evaporator fan performance - 4 tons high efficiency - YHC048E3,E4,F3,EW,F4,FW*H high gas heat
downflow airflow
External Static Pressure (Inches of Water)
0.10
cfm
0.20
0.30
0.40
0.50
0.60
rpm bhp rpm bhp rpm bhp rpm bhp rpm bhp rpm
bhp
1-hp Standard Motor & Field Supplied Low Static Drive(a)
0.70
rpm
bhp
0.80
rpm
bhp
0.90
rpm
bhp
1.00
rpm
bhp
1-hp Standard Motor & Drive
1280
—
—
528
0.15
600
0.19
661
0.23
717
0.28
771
0.33
821
0.38
870
0.43
915
0.48
959
0.54
1440
—
—
556
0.18
626
0.23
687
0.28
740
0.33
790
0.38
839
0.43
886
0.49
930
0.54
974
0.61
1600
—
—
586
0.22
651
0.28
712
0.34
766
0.39
814
0.44
860
0.50
904
0.55
947
0.61
990
0.68
1760
554
0.22
619
0.28
680
0.33
738
0.39
792
0.46
841
0.52
884
0.58
926
0.63
967
0.69
1007
0.76
1920
592
0.28
653
0.34
710
0.39
765
0.46
817
0.53
866
0.60
912
0.67
953
0.73
992
0.79
1028
0.85
Continued
External Static Pressure (Inches of Water)
1.10
cfm
1.20
1.30
1.40
1.50
rpm bhp rpm bhp rpm bhp rpm bhp rpm bhp
1-hp Standard Motor & Drive
1280
1003 0.60 1045 0.66 1083 0.71 1121 0.77 1156 0.83
1440
1013 0.66 1054 0.73 1094 0.79 1132 0.86 1168 0.92
1600
1029 0.74 1069 0.81 1106 0.87 1142 0.94 1177 1.01
1760
1046 0.82 1084 0.89 1121 0.96 1156 1.03 1191 1.11
1920
1066 0.92 1103 0.99 1139 1.06 1174 1.14 1206 1.21
1-hp Standard Motor & Field Supplied High Static Drive(b)
Notes:
1. For Standard Evaporator Fan Speed (rpm), reference Table 131, p. 179.
2. Data includes pressure drop due to standard filters and wet coils. No accessories or options are included in pressure drop data.
3. Data does not include pressure drop due to reheat coil.
4. Refer to Table 139, p. 183 to determine additional static pressure drop due to other options/accessories.
5. 1-hp Fan Motor Heat (MBh) = 2.7672 x Fan bhp + 0.4705.
6. Factory supplied motors, in equipment, are definite purpose motors, specifically designed and tested to operate at all cataloged conditions. Using the
full horsepower range of our fan motors as shown in our tabular data will not result in nuisance tripping or premature motor failure. Our product’s
warranty will not be affected.
(a) Field Supplied Fan Sheave AK74x3/4" required. Field Supplied Belt may be necessary.
(b) Field Supplied Fan Sheave AK41x3/4" required. Field Supplied Belt may be necessary.
RT-PRC023AG-EN
147
Evaporator Fan Performance
Table 100. Belt drive evaporator fan performance - 4 tons high efficiency - YHC048E3,E4,EW,F3,F4,FW*H high gas heat
horizontal airflow
External Static Pressure (Inches of Water)
0.10
cfm
0.20
0.30
0.40
0.50
0.60
rpm bhp rpm bhp rpm bhp rpm bhp rpm bhp rpm bhp
1-hp Standard Motor & Field Supplied Low Static Drive(a)
0.70
rpm
bhp
0.80
rpm
bhp
0.90
rpm
1.00
bhp
rpm
bhp
1-hp Standard Motor & Drive
1280
—
—
561
0.16
626
0.20
684
0.25
739
0.29
792
0.34
842
0.39
890
0.45
935
0.50
977
0.56
1440
—
—
595
0.20
659
0.25
715
0.30
766
0.35
816
0.40
864
0.45
909
0.51
953
0.57
995
0.63
1600
561
0.20
628
0.25
694
0.31
748
0.36
798
0.41
843
0.47
888
0.52
932
0.58
974
0.64
1015
0.71
1760
603
0.26
665
0.31
727
0.37
782
0.43
830
0.49
875
0.54
917
0.60
958
0.67
998
0.73
1038
0.80
1920
646
0.32
705
0.38
761
0.44
816
0.52
864
0.58
908
0.63
949
0.70
988
0.76
1026
0.83
1063
0.90(b)
Continued
External Static Pressure (Inches of Water)
1.10
cfm
1.20
1.30
1.40
1.50
rpm bhp rpm bhp rpm bhp rpm bhp rpm bhp
1-hp Standard Motor & Drive
1280
1018 0.62 1058 0.68 1095 0.74 1131 0.81 1166 0.87
1440
1036 0.69 1075 0.76 1113 0.82 1148 0.89 1183 0.96
1600
1055 0.77 1093 0.84 1130 0.91 1166 0.98 1201 1.05
1760
1075 0.86 1113 0.93 1149 1.00 1184 1.08 1219 1.15
1920
1100 0.97 1135 1.04 1171 1.11 1204 1.19 1237 1.26
1-hp Standard Motor & Field Supplied High Static Drive(b)
Notes:
1. For Standard Evaporator Fan Speed (rpm), reference Table 131, p. 179.
2. Data includes pressure drop due to standard filters and wet coils. No accessories or options are included in pressure drop data.
3. Data does not include pressure drop due to reheat coil.
4. Refer to Table 139, p. 183 to determine additional static pressure drop due to other options/accessories.
5. 1-hp Fan Motor Heat (MBh) = 2.7672 x Fan bhp + 0.4705.
6. Factory supplied motors, in equipment, are definite purpose motors, specifically designed and tested to operate at all cataloged conditions. Using the
full horsepower range of our fan motors as shown in our tabular data will not result in nuisance tripping or premature motor failure. Our product’s
warranty will not be affected.
(a) Field Supplied Fan Sheave AK74x3/4" required. Field Supplied Belt may be necessary.
(b) Field Supplied Fan Sheave AK41x3/4" required. Field Supplied Belt may be necessary.
148
RT-PRC023AG-EN
Evaporator Fan Performance
Table 101. Belt drive evaporator fan performance - 5 tons high efficiency - THC060E3,E4,EW,F3,F4,FW downflow airflow
External Static Pressure (Inches of Water)
0.10
cfm
rpm
0.20
0.30
0.40
0.50
bhp rpm bhp rpm bhp rpm bhp rpm
bhp
0.60
rpm bhp
0.70
rpm
bhp
1-hp Standard Motor & Low Static Drive Accessory Kit(a)
0.12
0.80
rpm
bhp
0.90
rpm
bhp
1.00
rpm
bhp
1-hp Standard Motor & Drive
1000*
379
0.06
469
0.09
546
614
0.16
676
0.20
732
0.24
784
0.28
833
0.33
879
0.37
922
0.42
1200*
416
0.09
498
0.12
571 0.158 635
0.20
694
0.24
749
0.28
800
0.33
849
0.38
894
0.43
938
0.48
1400*
456
0.12
531
0.16
599
0.20
662
0.25
717
0.29
769
0.34
820
0.39
867
0.44
911
0.50
955
0.56
1600
499
0.16
570
0.21
631
0.25
691
0.31
745
0.36
794
0.41
842
0.46
887
0.52
930
0.57
972
0.63
1800
544
0.22
609
0.27
667
0.32
721
0.37
773
0.43
823
0.49
868
0.55
911
0.61
953
0.67
992
0.73
2000
589
0.29
650
0.35
706
0.40
755
0.46
804
0.52
851
0.58
897
0.65
938
0.71
978
0.77
1017
0.84
2200
636
0.37
692
0.43
745
0.50
793
0.56
838
0.62
882
0.68
925
0.75
967
0.83
1007
0.90
1044
0.97
2400
683
0.47
736
0.54
785
0.61
833
0.68
875
0.74
916
0.81
956
0.88
996
0.95
1036
1.03
1073
1.11
Continued
External Static Pressure (Inches of Water)
1.10
1.20
1.30
1.40
1.50
cfm
rpm
bhp rpm bhp rpm bhp rpm bhp rpm
bhp
1000*
962
0.46 1002 0.51 1040 0.56 1076 0.61 1111
0.66
1200*
979
0.54 1018 0.50 1055 0.64 1091 0.70 1126
0.75
1400*
996
0.61 1035 0.67 1072 0.73 1107 0.79 1143
0.85
1600
1013
0.70 1051 0.76 1088 0.82 1124 0.89 1160
0.96
1800
1031
0.79 1070 0.86 1106 0.93 1142 1.00 1176
1.07
2000
1054
0.91 1091 0.98 1126 1.04 1161 1.12 1195
1.19
2200
1080
1.04 1115 1.11 1148 1.18 1183 1.26 1215
1.33
2400
1108
1.19 1142 1.27 1176 1.34 1207 1.42 1238
1.49
1-hp Standard Motor & Drive
1-hp Standard Motor & Field Supplied High Static Drive(b)
Notes:
1. For Standard Evaporator Fan Speed (rpm), reference Table 131, p. 179.
2. Data includes pressure drop due to standard filters and wet coils. Data does not include pressure drop due to reheat coil.
3. Refer to Table 139, p. 183 to determine additional static pressure drop due to other options/accessories.
4. 1-hp Fan Motor Heat (MBh) = 2.7672 x Fan bhp + 0.4705.
5. Factory supplied motors, in equipment, are definite purpose motors, specifically designed and tested to operate at all cataloged conditions. Using the
full horsepower range of our fan motors as shown in our tabular data will not result in nuisance tripping or premature motor failure. Our product’s
warranty will not be affected.
* For 1000, 1200, and 1400 CFM, unit application below 320 CFM/Ton are only applicable on T_C models only (No Gas Heat). See below for restrictions.
* Electric heaters restricted on applications below 320 CFM/Ton
* Dehumidification (Hot Gas Reheat) or TXV with Frostat™ and Crankcase Heaters are required on applications below 320 CFM/Ton
(a) BAYLSDR006AB
(b) Field Supplied Fan Sheave AK41x3/4" required. Field Supplied Belt may be necessary.
RT-PRC023AG-EN
149
Evaporator Fan Performance
Table 102. Belt drive evaporator fan performance - 5 tons high efficiency - THC060E3,E4,EW,F3,F4,FW horizontal airflow
External Static Pressure (Inches of Water)
0.10
cfm
rpm
0.20
0.30
0.40
0.50
bhp rpm bhp rpm bhp rpm bhp rpm
bhp
0.60
rpm bhp
0.70
rpm
bhp
1-hp Standard Motor & Low Static Drive Accessory Kit(a)
0.80
rpm
bhp
0.90
rpm
bhp
1.00
rpm
bhp
1-hp Standard Motor & Drive
1000*
412
0.07
517
0.10
601
0.15
664
0.19
716
0.23
764
0.27
810
0.31
853
0.35
897
0.40
939
0.44
1200*
456
0.10
542
0.14
631
0.19
702
0.24
758
0.29
808
0.33
851
0.38
892
0.43
932
0.48
970
0.53
1400*
502
0.14
580
0.18
654
0.23
730
0.29
795
0.35
848
0.41
893
0.46
936
0.52
974
0.58
1010
0.63
1600
550
0.19
622
0.24
688
0.29
753
0.35
820
0.41
881
0.49
930
0.55
975
0.62
1015
0.68
1052
0.75
1800
598
0.25
668
0.31
728
0.37
785
0.42
843
0.49
903
0.56
960
0.64
1010
0.72
1053
0.80
1092
0.87
2000
648
0.33
714
0.39
771
0.46
824
0.52
875
0.58
927
0.66
982
0.74
1034
0.83
1082
0.91
1126
1.00
2200
699
0.42
762
0.50
816
0.57
866
0.63
914
0.70
960
0.77
1006
0.85
1056
0.94
1106
1.03
1152
1.13
2400
750
0.54
810
0.61
863
0.69
911
0.77
956
0.84
999
0.92
1042
1.00
1084
1.08
1130
1.17
1176
1.27
1-hp Standard Motor & Field Supplied High Static Drive
(b)
Continued
External Static Pressure (Inches of Water)
1.10
cfm
rpm
1.20
1.30
1.40
1.50
bhp rpm bhp rpm bhp rpm bhp rpm
bhp
1-hp Standard Motor & Drive
1000*
977
0.49 1014 0.53 1049 0.58 1084 0.63 1118
0.68
1200*
1006
0.58 1042 0.63 1078 0.69 1112 0.74 1145
0.80
1400*
1045
0.69 1078 0.74 1111
1144 0.86 1174
0.92
1600
1087
0.81 1121 0.88 1152 0.94 1182 1.00 1213
1.07
1800
1129
0.95 1163 1.02 1195 1.09 1226 1.16 1255
1.23
2000
1165
1.08 1201 1.17 1236 1.25 1268 1.33 1298
1.41
2200
1196
1.23 1237 1.33 1271 1.42 1305 1.51 1338
1.60
2400
1219
1.37 1261 1.48 1301 1.58 1339 1.69 1373
1.79
0.8
1-hp Standard Motor & Field Supplied High Static Drive(b)
Notes:
1. For Standard Evaporator Fan Speed (rpm), reference Table 131, p. 179.
2. Data includes pressure drop due to standard filters and wet coils. Data does not include pressure drop due to reheat coil.
3. Refer to Table 139, p. 183 to determine additional static pressure drop due to other options/accessories.
4. 1-hp Fan Motor Heat (MBh) = 2.7672 x Fan bhp + 0.4705.
5. Factory supplied motors, in equipment, are definite purpose motors, specifically designed and tested to operate at all cataloged conditions. Using the
full horsepower range of our fan motors as shown in our tabular data will not result in nuisance tripping or premature motor failure. Our product’s
warranty will not be affected.
* For 1000, 1200, and 1400 CFM, unit application below 320 CFM/Ton are only applicable on T_C models only (No Gas Heat). See below for restrictions.
* Electric heaters restricted on applications below 320 CFM/Ton
* Dehumidification (Hot Gas Reheat) or TXV with Frostat™ and Crankcase Heaters are required on applications below 320 CFM/Ton
(a) BAYLSDR006AB
(b) Field Supplied Fan Sheave AK41x3/4” required. Field Supplied Belt may be necessary.
150
RT-PRC023AG-EN
Evaporator Fan Performance
Table 103. Belt drive evaporator fan performance - 5 tons high efficiency -YHC060E3,E4,F3,EW,F4,FW*L,M low & medium
gas heat downflow airflow
External Static Pressure (Inches of Water)
0.10
cfm
0.20
0.30
0.40
0.50
0.60
rpm bhp rpm bhp rpm bhp rpm bhp rpm bhp rpm
bhp
1-hp Standard Motor & Field Supplied Low Static Drive(a)
0.70
rpm
bhp
0.80
rpm
bhp
0.90
rpm
bhp
1.00
rpm
bhp
1-hp Standard Motor & Drive
1600
—
—
583
0.22
648
0.27
705
0.32
755
0.37
804
0.42
852
0.47
897
0.53
941
0.59
982
0.65
1800
—
—
623
0.28
683
0.34
740
0.40
790
0.45
835
0.50
879
0.56
922
0.62
964
0.68
1004
0.74
2000
605
0.30
665
0.36
721
0.42
774
0.48
824
0.55
870
0.61
911
0.66
951
0.73
991
0.79
1028
0.86
2200
653
0.39
709
0.45
762
0.51
812
0.58
859
0.65
905
0.72
948
0.79
986
0.86
1022
0.92
1057
0.99
2400
701
0.49
756
0.56
803
0.63
851
0.70
896
0.77
939
0.85
982
0.93
1022
1.00
1057
1.07
1092
1.14
Continued
External Static Pressure (Inches of Water)
1.10
cfm
1.20
1.30
1.40
1.50
rpm bhp rpm bhp rpm bhp rpm bhp rpm bhp
1-hp Standard Motor & Drive
1600
1024 0.71 1061 0.77 1099 0.83 1136 0.90 1170 0.96
1800
1044 0.81 1081 0.87 1118 0.94 1155 1.01 1188 1.08
2000
1067 0.93 1103 1.00 1139 1.07 1175 1.14 1209 1.22
2200
1094 1.06 1129 1.13 1163 1.21 1197 1.29 1229 1.36
2400
1124 1.21 1157 1.29 1189 1.37 1222 1.45
—
—
1-hp Standard Motor & Field Supplied High Static Drive(b)
Notes:
1. For Standard Evaporator Fan Speed (rpm), reference Table 131, p. 179.
2. Data includes pressure drop due to standard filters and wet coils. No accessories or options are included in pressure drop data.
3. Data does not include pressure drop due to reheat coil.
4. Refer to Table 139, p. 183 to determine additional static pressure drop due to other options/accessories.
5. 1-hp Fan Motor Heat (MBh) = 2.7672 x Fan bhp + 0.4705.
6. Factory supplied motors, in equipment, are definite purpose motors, specifically designed and tested to operate at all cataloged conditions. Using the
full horsepower range of our fan motors as shown in our tabular data will not result in nuisance tripping or premature motor failure. Our product’s
warranty will not be affected.
(a) Field Supplied Fan Sheave AK69x3/4" required. Field Supplied Belt may be necessary.
(b) Field Supplied Fan Sheave AK41x3/4" required. Field Supplied Belt may be necessary.
RT-PRC023AG-EN
151
Evaporator Fan Performance
Table 104. Belt drive evaporator fan performance - 5 tons high efficiency -YHC060E3,E4,F3,EW,F4,FW*L,M low & medium
gas heat horizontal airflow
External Static Pressure (Inches of Water)
0.10
cfm
0.20
0.30
0.40
0.50
0.60
rpm bhp rpm bhp rpm bhp rpm bhp rpm bhp rpm
bhp
1-hp Standard Motor & Field Supplied Low Static Drive(a)
0.70
rpm
bhp
0.80
rpm
bhp
0.90
rpm
1.00
bhp
rpm
bhp
1-hp Standard Motor & Drive
1600
566
0.21
633
0.26
694
0.31
747
0.36
798
0.41
848
0.47
895
0.52
939
0.58
981
0.65
1021
0.71
1800
621
0.28
681
0.33
739
0.39
790
0.45
837
0.51
884
0.57
929
0.63
971
0.69
1013
0.76
1052
0.82
2000
676
0.37
731
0.43
785
0.49
836
0.56
880
0.62
923
0.69
966
0.75
1006
0.82
1046
0.89
1084
0.96
2200
732
0.48
784
0.54
832
0.61
881
0.68
927
0.75
967
0.83
1005
0.90
1044
0.97
1082
1.04
1118
1.12
2400
789
0.61
838
0.68
882
0.75
927
0.82
972
0.90 1012
0.98
1049
1.06
1085
1.14
1121
1.22
1155 1.30(b)
Continued
External Static Pressure (Inches of Water)
1.10
cfm
1.20
1.30
1.40
1.50
rpm bhp rpm bhp rpm bhp rpm bhp rpm bhp
1-hp Standard Motor & Drive
1600
1060 0.78 1097 0.84 1135 0.91 1169 0.98 1203 1.04
1800
1090 0.89 1126 0.96 1161 1.04 1195 1.11 1229 1.19
2000
1121 1.03 1156 1.10 1192 1.18 1224 1.26 1257 1.34
2200
1155 1.19 1189 1.27 1223 1.34 1256 1.42
—
—
1190 1.38 1223 1.46
—
—
2400
—
—
—
—
1-hp Standard Motor & Field Supplied High Static Drive(b)
Notes:
1. For Standard Evaporator Fan Speed (rpm), reference Table 131, p. 179.
2. Data includes pressure drop due to standard filters and wet coils. No accessories or options are included in pressure drop data.
3. Data does not include pressure drop due to reheat coil.
4. Refer to Table 139, p. 183 to determine additional static pressure drop due to other options/accessories.
5. 1-hp Fan Motor Heat (MBh) = 2.7672 x Fan bhp + 0.4705.
6. Factory supplied motors, in equipment, are definite purpose motors, specifically designed and tested to operate at all cataloged conditions. Using the
full horsepower range of our fan motors as shown in our tabular data will not result in nuisance tripping or premature motor failure. Our product’s
warranty will not be affected.
(a) Field Supplied Fan Sheave AK69x3/4" required. Field Supplied Belt may be necessary.
(b) Field Supplied Fan Sheave AK41x3/4" required. Field Supplied Belt may be necessary.
152
RT-PRC023AG-EN
Evaporator Fan Performance
Table 105. Belt drive evaporator fan performance - 5 tons high efficiency - YHC060E3,E4,EW,F3,F4,FW*H high gas heat
downflow airflow
External Static Pressure (Inches of Water)
0.10
cfm
0.20
0.30
0.40
0.50
0.60
rpm bhp rpm bhp rpm bhp rpm bhp rpm bhp rpm
bhp
1-hp Standard Motor & Field Supplied Low Static Drive(a)
0.70
rpm
bhp
0.80
rpm
bhp
0.90
rpm
bhp
1.00
rpm
bhp
1-hp Standard Motor & Drive
1600
—
—
595
0.22
658
0.27
716
0.32
768
0.37
817
0.42
864
0.47
910
0.53
954
0.59
996
0.65
1800
—
—
637
0.29
697
0.34
752
0.40
802
0.45
849
0.51
893
0.56
936
0.62
979
0.68
1019
0.75
2000
621
0.31
680
0.36
737
0.42
790
0.49
838
0.55
884
0.61
927
0.67
967
0.73
1007
0.80
1046
0.86
2200
671
0.40
726
0.46
779
0.52
829
0.59
876
0.66
919
0.72
962
0.79
1002
0.86
1039
0.93
1076
1.00
2400
721
0.50
773
0.57
822
0.64
870
0.71
916
0.78
957
0.86
998
0.93
1036
1.00
1074
1.08
1109
1.15
Continued
External Static Pressure (Inches of Water)
1.10
cfm
1.20
1.30
1.40
1.50
rpm bhp rpm bhp rpm bhp rpm bhp rpm bhp
1-hp Standard Motor & Drive
1600
1037 0.72 1076 0.78 1114 0.85 1151 0.91 1184 0.98
1800
1058 0.82 1096 0.88 1133 0.95 1169 1.02 1204 1.10
2000
1083 0.93 1120 1.00 1155 1.07 1189 1.15 1224 1.23
2200
1111 1.07 1146 1.14 1181 1.22 1214 1.29 1248 1.37
2400
1144 1.23 1177 1.30 1210 1.38 1241 1.46 1274 1.54
1-hp Standard Motor & Field Supplied High Static Drive(b)
Notes:
1. For Standard Evaporator Fan Speed (rpm), reference Table 131, p. 179.
2. Data includes pressure drop due to standard filters and wet coils. No accessories or options are included in pressure drop data.
3. Data does not include pressure drop due to reheat coil.
4. Refer to Table 139, p. 183 to determine additional static pressure drop due to other options/accessories.
5. 1-hp Fan Motor Heat (MBh) = 2.7672 x Fan bhp + 0.4705.
6. Factory supplied motors, in equipment, are definite purpose motors, specifically designed and tested to operate at all cataloged conditions. Using the
full horsepower range of our fan motors as shown in our tabular data will not result in nuisance tripping or premature motor failure. Our product’s
warranty will not be affected.
(a) Field Supplied Fan Sheave AK69x3/4" required. Field Supplied Belt may be necessary.
(b) Field Supplied Fan Sheave AK41x3/4" required. Field Supplied Belt may be necessary.
RT-PRC023AG-EN
153
Evaporator Fan Performance
Table 106. Belt drive evaporator fan performance - 5 tons high efficiency - YHC060E3,E4,EW,F3,F4,FW*H high gas heat
horizontal airflow
External Static Pressure (Inches of Water)
0.10
cfm
0.20
0.30
0.40
0.50
0.60
rpm bhp rpm bhp rpm bhp rpm bhp rpm bhp rpm bhp
1-hp Standard Motor & Field Supplied Low Static Drive(a)
0.70
rpm
bhp
0.80
rpm
bhp
0.90
rpm
1.00
bhp
rpm
bhp
1-hp Standard Motor & Drive
1600
570
0.21
639
0.26
703
0.32
760
0.37
809
0.41
854
0.46
894
0.52
936
0.58
977
0.64
1019
0.70
1800
620
0.28
689
0.34
746
0.40
801
0.46
851
0.52
896
0.57
937
0.62
974
0.68
1011
0.75
1048
0.81
2000
671
0.36
741
0.44
792
0.50
844
0.57
893
0.64
939
0.71
980
0.76
1019
0.82
1054
0.88
1087
0.95
2200
723
0.46
791
0.55
843
0.62
889
0.69
936
0.77
981
0.85
1022
0.92
1061
0.99
1097
1.05
1131
1.11
2400
776
0.58
841
0.68
895
0.76
937
0.84
981
0.91 1023 1.00
1064
1.09
1103
1.17
1140
1.25
1173 1.31(b)
Continued
External Static Pressure (Inches of Water)
1.10
cfm
1.20
1.30
1.40
1.50
rpm bhp rpm bhp rpm bhp rpm bhp rpm bhp
1-hp Standard Motor & Drive
1600 1057 0.76 1096 0.83 1133 0.90 1167 0.96 1201 1.03
1800 1086 0.88 1123 0.95 1159 1.02 1192 1.09 1226 1.17
2000 1119 1.02 1153 1.09 1188 1.17 1221 1.24 1253 1.32
2200 1162 1.18 1193 1.25 1223 1.33 1253 1.41 1284 1.49
2400 1206 1.38 1236 1.44 1266 1.52 1294 1.61 1320 1.69
1-hp Standard Motor & Field Supplied High Static Drive(b)
Notes:
1. For Standard Evaporator Fan Speed (rpm), reference Table 131, p. 179.
2. Data includes pressure drop due to standard filters and wet coils. No accessories or options are included in pressure drop data.
3. Data does not include pressure drop due to reheat coil.
4. Refer to Table 139, p. 183 to determine additional static pressure drop due to other options/accessories.
5. 1-hp Fan Motor Heat (MBh) = 2.7672 x Fan bhp + 0.4705.
6. Factory supplied motors, in equipment, are definite purpose motors, specifically designed and tested to operate at all cataloged conditions. Using the
full horsepower range of our fan motors as shown in our tabular data will not result in nuisance tripping or premature motor failure. Our product’s
warranty will not be affected.
(a) Field Supplied Fan Sheave AK69x3/4" required. Field Supplied Belt may be necessary.
(b) Field Supplied Fan Sheave AK41x3/4" required. Field Supplied Belt may be necessary.
154
RT-PRC023AG-EN
Evaporator Fan Performance
Table 107. Belt drive evaporator fan performance - 6 tons high efficiency - THC072E3,E4,EW,F3,F4,FW downflow airflow
External Static Pressure (Inches of Water)
0.10
cfm
0.20
0.30
0.40
rpm bhp rpm bhp rpm bhp rpm
0.50
0.60
bhp rpm bhp rpm bhp
0.70
rpm
0.80
bhp
0.90
1.00
rpm
bhp
rpm
bhp
rpm
bhp
1-hp Standard Motor & Low Static Drive Accessory Kit(a)
1920
—
—
437
0.23
491
0.29
545
0.36
594
0.44
637
0.51
677
0.58
715
0.65
750
0.72
784
0.80
2160
407
0.22
465
0.29
513
0.36
563
0.43
610
0.51
654
0.60
694
0.68
731
0.76
766
0.84
799
0.92
2400
439
0.29
494
0.37
540
0.44
583
0.51
628
0.60
671
0.69
711
0.78
748
0.87
783
0.96
817
1.05
2640
472
0.36
523
0.45
568
0.54
609
0.62
647
0.70
688
0.79
728
0.89
765
0.99
801
1.09
834
1.19
2880
505
0.45
553
0.55
597
0.65
637
0.74
673
0.82
708
0.91
746
1.01
782
1.12
817
1.23
851
1.34
1-hp Standard Motor & Drive
Continued
External Static Pressure (Inches of Water)
1.10
cfm
1.20
1.30
1.40
rpm bhp rpm bhp rpm bhp rpm
1.50
1.60
bhp rpm bhp rpm bhp
1.70
1.80
1.90
2.00
rpm
bhp
rpm
bhp
rpm
bhp
rpm
bhp
984
1.31
1008
1.38
1033
1.46
1056
1.53
1-hp Standard Motor & Drive
1920
815
0.87
847
0.94
875
1.01
903
1.08
930
1.16
958
1.23
2160
832
1.00
863
1.08
891
1.16
920
1.24
947
1.32
974
1.41
999
1.49
1024
1.57
1048
1.65
1071
1.73
2400
848
1.14
878
1.23
908
1.32
935
1.41
963
1.50
989
1.59
1015
1.68
1040
1.77
1064
1.86
1088
1.95
2640
865
1.29
895
1.39
924
1.48
953
1.59
979
1.68 1006
1.78
1031
1.88
1056
1.98
1080
2.08
1104
2.18
2880
882
1.45
912
1.56
941
1.66
969
1.77
996
1.88 1021
1.98
1047
2.09
1072
2.20
—
—
—
—
2-hp Oversized Motor & Drive
Notes:
1. For Standard Evaporator Fan Speed (rpm), reference Table 131, p. 179.
2. Data includes pressure drop due to standard filters and wet coils.
3. Refer to Table 139, p. 183 to determine additional static pressure drop due to other options/accessories.
4. 1-HP Fan Motor Heat (MBH) = 2.829 x Fan BHP +.4024. 2-HP Fan Motor Heat (MBH) = 3.000 x Fan BHP +.5000.
5. Factory supplied motors, in equipment, are definite purpose motors, specifically designed and tested to operate at all cataloged conditions. Using the
full horsepower range of our fan motors as shown in our tabular data will not result in nuisance tripping or premature motor failure. Our product’s
warranty will not be affected.
(a) BAYLSDR009AA
RT-PRC023AG-EN
155
Evaporator Fan Performance
Table 108. Belt drive evaporator fan performance - 6 tons high efficiency - THC072E3,E4,EW,F3,F4,FW horizontal airflow
External Static Pressure (Inches of Water)
0.10
cfm
0.20
0.30
0.40
0.50
0.60
rpm bhp rpm bhp rpm bhp rpm bhp rpm bhp rpm bhp
0.70
rpm
bhp
0.80
rpm
1-hp Standard Motor & Low Static Drive Accessory Kit(a)
bhp
0.90
rpm
1.00
bhp
rpm
bhp
1-hp Standard Motor & Drive
1920
422
0.21
490
0.28
551
0.37
595
0.44
634
0.51
670
0.59
704
0.66
735
0.74
765
0.82
794
0.89
2160
461
0.28
514
0.35
581
0.46
629
0.55
667
0.62
702
0.70
735
0.78
767
0.87
796
0.96
824
1.04
2400
501
0.37
547
0.44
604
0.54
661
0.66
701
0.75
735
0.84
768
0.93
798
1.02
827
1.11
855
1.21
2640
541
0.47
584
0.55
629
0.64
685
0.77
734
0.90
769
1.00
800
1.09
831
1.19
860
1.29
886
1.39
2880
582
0.59
623
0.69
661
0.76
708
0.88
759
1.03
803
1.17
834
1.28
864
1.39
892
1.49
919
1.59(b)
Continued
External Static Pressure (Inches of Water)
1.10
cfm
1.20
1.30
1.40
1.50
1.60
rpm bhp rpm bhp rpm bhp rpm bhp rpm bhp rpm bhp
1.70
rpm
bhp
1.80
1.90
2.00
rpm
bhp
rpm
bhp
rpm
bhp
1-hp Standard Motor & Drive
1920
821
0.98
847
1.06
873
1.14
896
1.22
920
1.30
943
1.39
965
1.47
986
1.55
1006
1.64
1028
1.73
2160
851
1.13
876
1.22
902
1.31
925
1.39
949
1.49
971
1.58
993
1.67
1014
1.76
1035
1.85
1055
1.95
2400
881
1.30
907
1.40
932
1.49
955
1.59
978
1.69 1001
1.79
1022
1.88
1043
1.98
1064
2.09
1084
2.19
2640
913
1.49
938
1.59
962
1.70
986
1.80 1009 1.91 1030
2.02
1052
2.12
1074
2.23
—
—
—
—
2880
944
1.70
969
1.81
993
1.92 1016 2.04 1040 2.15 1061
2.26
—
—
—
—
—
—
—
—
2-hp Oversized Motor & Drive
Notes:
1. For Standard Evaporator Fan Speed (rpm), reference Table 131, p. 179.
2. Data includes pressure drop due to standard filters and wet coils.
3. Refer to Table 139, p. 183 to determine additional static pressure drop due to other options/accessories.
4. 1-HP Fan Motor Heat (MBH) = 2.829 x Fan BHP +.4024. 2-HP Fan Motor Heat (MBH) = 3.000 x Fan BHP +.5000.
5. Factory supplied motors, in equipment, are definite purpose motors, specifically designed and tested to operate at all cataloged conditions. Using the
full horsepower range of our fan motors as shown in our tabular data will not result in nuisance tripping or premature motor failure. Our product’s
warranty will not be affected.
(a) BAYLSDR009AA
(b) 2-HP Oversized Motor & Drive
156
RT-PRC023AG-EN
Evaporator Fan Performance
Table 109. Belt drive evaporator fan performance - 6 tons high efficiency -YHC072E3,E4,EW,F3,F4,FW low & medium gas
heat downflow airflow
External Static Pressure (Inches of Water)
0.10
cfm
0.20
0.30
0.40
rpm bhp rpm bhp rpm bhp rpm
0.50
0.60
bhp rpm bhp rpm bhp
0.70
0.80
0.90
1.00
rpm
bhp
rpm
bhp
rpm
bhp
rpm
bhp
1-hp Standard Motor & Low Static Drive Accessory Kit(a)
1920
393
0.18
450
0.23
503
0.29
549
0.35
590
0.41
628
0.47
663
0.53
696
0.59
726
0.65
755
0.71
2160
427
0.24
480
0.30
529
0.37
574
0.43
615
0.50
652
0.57
687
0.63
719
0.70
750
0.77
779
0.84
2400
463
0.31
511
0.38
557
0.45
601
0.52
641
0.60
678
0.67
712
0.75
744
0.82
774
0.90
803
0.97
2640
500
0.39
544
0.47
587
0.55
627
0.63
666
0.71
703
0.79
737
0.87
769
0.96
798
1.04
827
1.12
2880
538
0.50
579
0.58
618
0.66
656
0.75
693
0.84
729
0.93
762
1.01
794
1.10
824
1.19
852
1.28
Continued
1-hp Standard Motor & Drive
External Static Pressure (Inches of Water)
1.10
cfm
1.20
1.30
1.40
rpm bhp rpm bhp rpm bhp rpm
1.50
1.60
bhp rpm bhp rpm bhp
1.70
rpm
1.80
1.90
bhp
rpm
bhp
rpm
bhp
2.00
rpm
bhp
1-hp Standard Motor & Drive
1920
783
0.77
811
0.84
836
0.90
861
0.96
885
1.02
908
1.08
930
1.14
953
1.20
973
1.26
995
1.33
2160
806
0.90
833
0.97
859
1.04
883
1.11
907
1.18
931
1.25
952
1.31
974
1.38
996
1.45
1016
1.52
2400
830
1.05
856
1.12
883
1.20
906
1.27
930
1.35
952
1.42
976
1.50
998
1.58
1018
1.65
1039
1.73
2640
854
1.20
880
1.29
906
1.37
930
1.45
953
1.53
976
1.62
998
1.70
1020
1.78
1041
1.86
1062
1.95
2880
879
1.37
905
1.47
929
1.55
953
1.64
977
1.73 1000 1.83
1022
1.91
1044
2.01
1063
2.09
1084
2.18
2-hp Oversized Motor & Drive
Notes:
1. For Standard Evaporator Fan Speed (rpm), reference Table 131, p. 179.
2. Data includes pressure drop due to standard filters and wet coils.
3. Refer to Table 139, p. 183 to determine additional static pressure drop due to other options/accessories.
4. 1-HP Fan Motor Heat (MBH) = 2.829 x Fan BHP +.4024. 2-HP Fan Motor Heat (MBH) = 3.000 x Fan BHP +.5000.
5. Factory supplied motors, in equipment, are definite purpose motors, specifically designed and tested to operate at all cataloged conditions. Using the
full horsepower range of our fan motors as shown in our tabular data will not result in nuisance tripping or premature motor failure. Our product’s
warranty will not be affected.
(a) BAYLSDR009AA
RT-PRC023AG-EN
157
Evaporator Fan Performance
Table 110. Belt drive evaporator fan performance - 6 tons high efficiency -YHC072E3,E4,EW,F3,F4,FW low & medium gas
heat horizontal airflow
External Static Pressure (Inches of Water)
0.10
cfm
0.20
0.30
0.40
0.50
0.60
rpm bhp rpm bhp rpm bhp rpm bhp rpm bhp rpm bhp
0.70
rpm
bhp
0.80
rpm
1-hp Standard Motor & Low Static Drive Accessory Kit(a)
bhp
0.90
rpm
1.00
bhp
rpm
bhp
1-hp Standard Motor & Drive
1920
462
0.25
517
0.32
565
0.38
609
0.45
648 0.52 684
0.59
719
0.66
751
0.73
782
0.80
811
0.87
2160
503
0.33
557
0.41
602
0.49
644
0.56
682 0.64 718
0.71
751
0.79
783
0.87
813
0.95
842
1.03
2400
546
0.43
598
0.53
641
0.61
680
0.69
717 0.78 753
0.86
785
0.95
815
1.03
845
1.12
873
1.21
2640
590
0.56
640
0.66
681
0.76
719
0.85
754 0.94 788
1.03
820
1.12
850
1.21
879
1.31
906
1.41
2880
636
0.71
681
0.82
722
0.93
758
1.02
793 1.13 824
1.22
855
1.32
885
1.42
913
1.52
940
1.62(b)
Continued
External Static Pressure (Inches of Water)
1.10
cfm
1.20
1.30
1.40
1.50
1.60
rpm bhp rpm bhp rpm bhp rpm bhp rpm bhp rpm bhp
1.70
rpm
1.80
1.90
2.00
bhp
rpm
bhp
rpm
bhp
rpm
bhp
1-hp Standard Motor & Drive
1920
838
0.94
865
1.01
890
1.08
915
1.16
939 1.23 962
1.30
985
1.37
1007
1.45
1027
1.52
1049
1.59
2160
870
1.11
895
1.19
920
1.27
945
1.35
969 1.43 991
1.51
1014
1.59
1035
1.67
1057
1.75
1077
1.83
2400
901
1.30
926
1.38
952
1.47
975
1.56
999 1.65 1022 1.74
1044
1.82
1066
1.91
1086
2.00
1108
2.09
2640
933
1.51
959
1.60
982
1.69 1007 1.79 1029 1.89 1053 1.99
1075
2.08
1096
2.18
1116
2.27
—
—
2880
966
1.73
991
1.84 1015 1.94 1039 2.05 1062 2.16 1084 2.26
—
—
—
—
—
—
—
—
2-hp Oversized Motor & Drive
Notes:
1. For Standard Evaporator Fan Speed (rpm), reference Table 131, p. 179.
2. Data includes pressure drop due to standard filters and wet coils.
3. Refer to Table 139, p. 183 to determine additional static pressure drop due to other options/accessories.
4. 1-HP Fan Motor Heat (MBH) = 2.829 x Fan BHP +.4024. 2-HP Fan Motor Heat (MBH) = 3.000 x Fan BHP +.5000.
5. Factory supplied motors, in equipment, are definite purpose motors, specifically designed and tested to operate at all cataloged conditions. Using the
full horsepower range of our fan motors as shown in our tabular data will not result in nuisance tripping or premature motor failure. Our product’s
warranty will not be affected.
(a) BAYLSDR009AA
(b) 2-hp Oversized Motor & Drive
158
RT-PRC023AG-EN
Evaporator Fan Performance
Table 111. Belt drive evaporator fan performance - 6 tons high efficiency - YHC072E3,E4,EW,F3,F4,FW high gas heat,
downflow airflow
External Static Pressure (Inches of Water)
0.10
cfm
0.20
0.30
0.40
rpm bhp rpm bhp rpm bhp rpm
0.50
0.60
bhp rpm bhp rpm bhp
0.70
rpm
bhp
1-hp Standard Motor & Low Static Drive Accessory Kit(a)
0.80
rpm
bhp
0.90
rpm
bhp
1.00
rpm
bhp
1-hp Standard Motor & Drive
1920
412
0.20
472
0.26
524
0.32
571
0.38
612
0.44
651
0.51
686
0.57
719
0.64
750
0.71
779
0.77
2160
454
0.27
504
0.33
553
0.40
599
0.47
640
0.54
678
0.61
712
0.68
745
0.75
776
0.83
805
0.90
2400
495
0.36
534
0.41
585
0.50
627
0.57
668
0.65
705
0.73
739
0.81
771
0.88
802
0.96
831
1.05
2640
535
0.46
570
0.52
617
0.61
657
0.69
696
0.77
732
0.86
767
0.95
799
1.03
829
1.12
858
1.20
2880
575
0.58
612
0.65
646
0.72
690
0.83
725
0.92
761
1.01
795
1.11
827
1.20
857
1.29
884
1.38
Continued
External Static Pressure (Inches of Water)
1.10
cfm
1.20
1.30
1.40
rpm bhp rpm bhp rpm bhp rpm
1.50
1.60
bhp rpm bhp rpm bhp
1.70
rpm
bhp
1.80
1.90
2.00
rpm
bhp
rpm
bhp
rpm
bhp
1-hp Standard Motor & Drive
1920
808
0.84
835
0.91
862
0.97
887
1.04
910
1.11
935
1.18
957
1.25
979
1.32
1001
1.39
1022
1.46
2160
834
0.98
860
1.05
886
1.13
911
1.20
935
1.28
959
1.35
982
1.43
1004
1.51
1025
1.58
1046
1.66
2400
859
1.13
886
1.21
912
1.29
936
1.37
960
1.45
984
1.54
1007
1.63
1028
1.71
1050
1.79
1071
1.88
2640
885
1.29
911
1.38
937
1.47
962
1.56
985
1.65 1009 1.74
1032
1.84
1054
1.93
1074
2.01
1095
2.11
2880
913
1.48
938
1.57
963
1.67
988
1.77 1012 1.86 1035 1.96
1057
2.06
1079
2.16
1099
2.26
—
—
2-hp Oversized Motor & Drive
Notes:
1. For Standard Evaporator Fan Speed (rpm), reference Table 131, p. 179.
2. Data includes pressure drop due to standard filters and wet coils.
3. Refer to Table 139, p. 183 to determine additional static pressure drop due to other options/accessories.
4. 1-HP Fan Motor Heat (MBH) = 2.829 x Fan BHP +.4024. 2-HP Fan Motor Heat (MBH) = 3.000 x Fan BHP +.5000.
5. Factory supplied motors, in equipment, are definite purpose motors, specifically designed and tested to operate at all cataloged conditions. Using the
full horsepower range of our fan motors as shown in our tabular data will not result in nuisance tripping or premature motor failure. Our product’s
warranty will not be affected.
(a) BAYLSDR009AA
RT-PRC023AG-EN
159
Evaporator Fan Performance
Table 112. Belt drive evaporator fan performance - 6 tons high efficiency - YHC072E3,E4,EW,F3,F4,FW high gas heat,
horizontal airflow
External Static Pressure (Inches of Water)
0.10
cfm
0.20
0.30
0.40
0.50
0.60
rpm bhp rpm bhp rpm bhp rpm bhp rpm bhp rpm bhp
0.70
rpm
bhp
0.80
rpm
1-hp Standard Motor & Low Static Drive Accessory Kit(a)
bhp
0.90
rpm
1.00
bhp
rpm
bhp
1-hp Standard Motor & Drive
1920
476
0.27
528
0.34
575
0.40
619
0.47
660
0.54
697
0.62
731
0.69
763
0.77
793
0.84
821
0.92
2160
520
0.36
571
0.44
614
0.51
655
0.59
694
0.67
731
0.75
765
0.83
796
0.91
826
1.00
854
1.08
2400
566
0.47
615
0.56
656
0.65
694
0.73
730
0.81
765
0.90
799
0.99
830
1.08
860
1.17
888
1.27
2640
612
0.61
659
0.71
698
0.81
734
0.89
769
0.98
802
1.08
834
1.17
865
1.27
894
1.37
922
1.47
2880
660
0.77
703
0.88
742
0.99
777
1.09
808
1.18
840
1.28
870
1.38
899
1.49
929
1.60
957
1.70(b)
Continued
External Static Pressure (Inches of Water)
1.10
cfm
1.20
1.30
1.40
1.50
1.60
rpm bhp rpm bhp rpm bhp rpm bhp rpm bhp rpm bhp
1.70
rpm
1.80
1.90
2.00
bhp
rpm
bhp
rpm
bhp
rpm
bhp
1-hp Standard Motor & Drive
1920
849
0.99
876
1.07
900
1.14
925
1.22
949
1.30
994
1.45
1015
1.53
1037
1.61
1057
1.69
2160
881
1.17
908
1.25
933
1.34
957
1.42
980
1.51 1003 1.59
1026
1.68
1046
1.76
1067
1.85
1088
1.94
2400
915
1.36
941
1.46
966
1.55
990
1.64 1012 1.73 1035 1.83
1057
1.92
1079
2.02
1099
2.11
1119
2.21
2640
949
1.57
975
1.67
999
1.78 1023
1.88 1045 1.98 1068 2.09
1090
2.19
1110
2.29
—
—
—
—
2880
983
1.81 1009 1.92 1034 2.03 1056
—
—
—
—
—
—
—
—
2.14 1080 2.26
972
—
1.38
—
2-hp Oversized Motor & Drive
Notes:
1. For Standard Evaporator Fan Speed (rpm), reference Table 131, p. 179.
2. Data includes pressure drop due to standard filters and wet coils.
3. Refer to Table 139, p. 183 to determine additional static pressure drop due to other options/accessories.
4. 1-HP Fan Motor Heat (MBH) = 2.829 x Fan BHP +.4024. 2-HP Fan Motor Heat (MBH) = 3.000 x Fan BHP +.5000.
5. Factory supplied motors, in equipment, are definite purpose motors, specifically designed and tested to operate at all cataloged conditions. Using the
full horsepower range of our fan motors as shown in our tabular data will not result in nuisance tripping or premature motor failure. Our product’s
warranty will not be affected.
(a) BAYLSDR009AA
(b) 2-hp Oversized Motor & Drive
160
RT-PRC023AG-EN
Evaporator Fan Performance
Table 113. Direct drive evaporator fan performance - 7½ tons high efficiency - THC092F3,F4,FW downflow airflow
External Static Pressure (Inches of Water)
0.10
0.20
0.30
0.40
0.50
0.60
0.70
0.80
0.90
1.00
cfm
rpm
bhp rpm bhp rpm bhp rpm
bhp rpm bhp rpm bhp
rpm
bhp
rpm
bhp
rpm
bhp
rpm
bhp
1500*
525
0.10
580
0.13
628
0.17
675
0.22
722
0.26
767
0.31
808
0.36
847
0.42
884
0.47
919
0.53
1800*
609
0.15
656
0.19
701
0.24
740
0.28
780
0.33
820
0.39
858
0.44
897
0.50
933
0.56
968
0.63
2100*
697
0.21
736
0.26
776
0.32
814
0.37
848
0.43
883
0.48
917
0.54
951
0.61
984
0.67
1018
0.74
2400
786
0.30
820
0.36
855
0.42
890
0.48
923
0.54
954
0.61
984
0.67
1014
0.73
1044
0.80
1074
0.87
2700
876
0.42
907
0.48
937
0.54
968
0.61
999
0.68 1030 0.75
1058
0.82
1084
0.89
1110
0.96
1137
1.03
3000
967
0.56
995
0.62 1022 0.69 1050
0.76 1078 0.84 1106 0.91
1133
0.99
1159
1.07
1184
1.15
1207
1.23
3300
1058
0.73 1084 0.80 1108 0.87 1133
0.95 1159 1.03 1184 1.11
1209
1.19
1235
1.28
1259
1.37
1283
1.46
3600
1150
0.93 1173 1.01 1196 1.09 1219
1.17 1242 1.25 1265 1.34
1288
1.43
1312
1.52
1335
1.61
1357
1.71
Continued
External Static Pressure (Inches of Water)
1.10
1.20
1.30
1.40
1.50
1.60
1.70
1.80
1.90
2.00
cfm
rpm
bhp rpm bhp rpm bhp rpm
bhp rpm bhp rpm bhp
rpm
bhp
rpm
bhp
rpm
bhp
rpm
bhp
1500*
952
0.59
0.64 1015 0.71 1043
0.77 1072 0.83 1101 0.90
1127
0.96
1154
1.03
1179
1.10
1203
1.16
1800* 1000
0.69 1032 0.75 1063 0.82 1091
0.88 1119 0.95 1147 1.02
1173
1.09
1200
1.17
1225
1.24
1249
1.32
2100* 1050
0.80 1080 0.87 1111 0.95 1139
1.02 1167 1.09 1194 1.17
1222
1.25
1246
1.32
1271
1.40
1296
1.48
983
2400
1103
0.95 1132 1.02 1162 1.09 1190
1.17 1217 1.25 1244 1.33
1269
1.41
1295
1.50
1319
1.58
1345
1.67
2700
1164
1.11 1191 1.19 1217 1.27 1243
1.35 1268 1.43 1295 1.52
1321
1.61
1346
1.69
1369
1.78
1393
1.87
3000
1231
1.30 1255 1.38 1280 1.47 1304
1.56 1328 1.65 1351 1.74
1375
1.83
1397
1.92
1420
2.01
1443
2.10
3300
1305
1.54 1326 1.63 1348 1.71 1369
1.80 1391 1.88 1413 1.98
1435
2.08
1456
2.18
1479
2.28
1500
2.38
3600
1379
1.80 1401 1.90 1422 2.00 1441
2.09 1461 2.18 1480 2.27
1501
2.36
1521
2.46
1542
2.57
1561
2.67
Notes:
1. For Direct Drive Fan Speed (RPM), reference Table 136, p. 180.
2. Data includes pressure drop due to standard filters and wet coils.
3. Refer to Table 139, p. 183 to determine additional static pressure drop due to other options/accessories.
4. Direct Drive Fan Motor Heat (MBH) = 2.8623 x Fan BHP - 0.1504
5. Factory supplied motors, in commercial equipment, are definite purpose motors, specifically designed and tested to operate reliably and continuously
at all cataloged conditions. Using the full horsepower range of our fan motors as shown in our tabular data will not result in nuisance tripping or
premature motor failure. Our product's warranty will not be affected.
* For 1500, 1800, and 2100 CFM, unit application below 320 CFM/Ton are only applicable on T_C models only (No Gas Heat). See below for restrictions.
* Electric heaters restricted on applications below 320 CFM/Ton.
* Dehumidification (Hot Gas Reheat) or TXV with Frostat™ and Crankcase Heaters are required on applications below 320 CFM/Ton.
RT-PRC023AG-EN
161
Evaporator Fan Performance
Table 114. Direct drive evaporator fan performance - 7½ tons high efficiency - THC092F3,F4,FW horizontal airflow
External Static Pressure (Inches of Water)
0.10
0.20
0.30
0.40
0.50
0.60
0.70
0.80
0.90
1.00
cfm
rpm
bhp rpm bhp rpm bhp rpm
bhp rpm bhp rpm bhp
rpm
bhp
rpm
bhp
rpm
bhp
rpm
bhp
1500*
521
0.09
573
0.13
624
0.17
670
0.21
714
0.26
758
0.31
799
0.35
837
0.40
873
0.45
906
0.49
1800*
604
0.14
650
0.19
693
0.23
736
0.28
775
0.33
813
0.38
850
0.43
887
0.49
922
0.55
956
0.61
2100*
691
0.21
731
0.26
769
0.31
806
0.36
842
0.42
878
0.48
912
0.54
943
0.59
974
0.65
1007
0.72
2400
778
0.30
814
0.35
849
0.41
882
0.47
914
0.53
946
0.59
977
0.66
1008
0.73
1037
0.79
1065
0.85
2700
867
0.41
899
0.47
930
0.53
961
0.60
990
0.66 1019 0.73
1047
0.79
1076
0.87
1104
0.95
1131
1.02
3000
956
0.54
985
0.61 1014 0.68 1042
0.75 1069 0.83 1096 0.90
1122
0.97
1147
1.04
1173
1.12
1198
1.21
3300
1046
0.71 1073 0.78 1099 0.86 1125
0.94 1150 1.02 1175 1.09
1199
1.17
1222
1.25
1246
1.33
1269
1.41
3600
1137
0.91 1162 0.99 1185 1.07 1209
1.15 1232 1.24 1256 1.32
1279
1.41
1301
1.49
1323
1.58
1344
1.66
Continued
External Static Pressure (Inches of Water)
1.10
1.20
1.30
1.40
1.50
1.60
1.70
1.80
1.90
2.00
cfm
rpm
bhp rpm bhp rpm bhp rpm
bhp rpm bhp rpm bhp
rpm
bhp
rpm
bhp
rpm
bhp
rpm
bhp
1500*
939
0.54
0.67 1058 0.72 1085 0.76
1110
0.81
1137
0.85
1162
0.90
1185
0.94
1800*
987
2100* 1038
970
0.58 1000 0.63 1029
0.66 1019 0.72 1048 0.77 1077
0.83 1104 0.88 1131 0.94
1157
0.99
1183
1.05
1208
1.10
1231
1.16
0.79 1069 0.85 1098 0.92 1127
0.99 1153 1.05 1180 1.12
1205
1.18
1231
1.25
1254
1.31
1279
1.38
2400
1093
0.92 1120 0.99 1149 1.07 1176
1.15 1204 1.22 1229 1.30
1256
1.38
1280
1.45
1303
1.52
1328
1.60
2700
1157
1.09 1182 1.17 1207 1.24 1231
1.32 1257 1.40 1281 1.49
1307
1.57
1331
1.66
1354
1.74
1378
1.83
3000
1223
1.29 1248 1.38 1272 1.46 1295
1.54 1318 1.62 1341 1.70
1362
1.79
1384
1.87
1406
1.97
1429
2.06
3300
1292
1.50 1316 1.60 1339 1.69 1361
1.78 1383 1.87 1405 1.96
1427
2.05
1446
2.14
1467
2.23
1488
2.33
3600
1366
1.75 1386 1.84 1408 1.94 1429
2.04 1451 2.15 1472 2.25
1492
2.35
1513
2.45
1532
2.54
1551
2.64
Notes:
1. For Direct Drive Fan Speed (RPM), reference Table 136, p. 180.
2. Data includes pressure drop due to standard filters and wet coils.
3. Refer to Table 139, p. 183 to determine additional static pressure drop due to other options/accessories.
4. Direct Drive Fan Motor Heat (MBH) = 2.8623 x Fan BHP - 0.1504
5. Factory supplied motors, in commercial equipment, are definite purpose motors, specifically designed and tested to operate reliably and continuously
at all cataloged conditions. Using the full horsepower range of our fan motors as shown in our tabular data will not result in nuisance tripping or
premature motor failure. Our product's warranty will not be affected.
* For 1500, 1800, and 2100 CFM, unit application below 320 CFM/Ton are only applicable on T_C models only (No Gas Heat). See below for restrictions.
* Electric heaters restricted on applications below 320 CFM/Ton.
* Dehumidification (Hot Gas Reheat) or TXV with Frostat™ and Crankcase Heaters are required on applications below 320 CFM/Ton.
162
RT-PRC023AG-EN
Evaporator Fan Performance
Table 115. Direct drive evaporator fan performance - 7½ tons high efficiency - YHC092F3,F4,FW low & medium gas heat,
downflow airflow
External Static Pressure (Inches of Water)
0.10
0.20
0.30
0.40
0.50
0.60
0.70
0.80
0.90
1.00
cfm
rpm bhp rpm bhp rpm bhp rpm
bhp rpm bhp rpm bhp
rpm
bhp
rpm
bhp
rpm
bhp
rpm
bhp
2400
788
0.29
821
0.35
858
0.41
892
0.48
0.61
989
0.68
1019
0.75
1048
0.82
1074
0.89
2700
877
0.40
907
0.47
939
0.54
971
0.60 1001 0.67 1031
0.75
1061
0.82
1090
0.90
1117
0.98
1143
1.06
3000
966
0.53
996
0.61 1022 0.68 1052
0.76 1081 0.83 1108
0.91
1134
0.99
1162
1.07
1188
1.16
1214
1.25
3300
1055 0.69 1086 0.77 1108 0.85 1134
0.94 1162 1.02 1187
1.10
1212
1.19
1237
1.28
1261
1.37
1286
1.46
3600
1145 0.88 1175 0.97 1198 1.06 1219
1.15 1244 1.24 1269
1.33
1292
1.42
1315
1.51
1337
1.60
1360
1.70
925
0.54
958
Continued
External Static Pressure (Inches of Water)
1.10
1.20
1.30
1.40
1.50
1.60
1.70
1.80
1.90
2.00
cfm
rpm bhp rpm bhp rpm bhp rpm
bhp rpm bhp rpm bhp
rpm
bhp
rpm
bhp
rpm
bhp
rpm
bhp
2400
1101 0.97 1126 1.04 1151 1.12 1174
1.20 1198 1.28 1221
1.36
1242
1.44
1264
1.53
1285
1.61
1306
1.69
2700
1169 1.14 1193 1.22 1217 1.30 1240
1.39 1262 1.47 1285
1.56
1307
1.65
1327
1.73
1348
1.82
1368
1.91
3000
1238 1.33 1262 1.42 1285 1.51 1308
1.60 1330 1.69 1352
1.78
1372
1.87
1392
1.97
1413
2.07
1432
2.16
3300
1309 1.55 1333 1.65 1355 1.74 1378
1.84 1398 1.93 1419
2.03
1440
2.14
1460
2.23
1479
2.33
1498
2.44
3600
1382 1.80 1404 1.90 1426 2.01 1447
2.11 1469 2.21 1489
2.32
1509
2.42
1529
2.53
1548
2.64
1567
2.75
Notes:
1. For Direct Drive Fan Speed (RPM), reference Table 136, p. 180.
2. Data includes pressure drop due to standard filters and wet coils.
3. Refer to Table 139, p. 183 to determine additional static pressure drop due to other options/accessories.
4. Direct Drive Fan Motor Heat (MBH) = 2.8623 x Fan BHP - 0.1504
5. Factory supplied motors, in commercial equipment, are definite purpose motors, specifically designed and tested to operate reliably and continuously
at all cataloged conditions. Using the full horsepower range of our fan motors as shown in our tabular data will not result in nuisance tripping or
premature motor failure. Our product's warranty will not be affected.
RT-PRC023AG-EN
163
Evaporator Fan Performance
Table 116. Direct drive evaporator fan performance - 7½ tons high efficiency - YHC092F3,F4,FW low & medium gas heat,
horizontal airflow
External Static Pressure (Inches of Water)
0.10
0.20
0.30
0.40
0.50
0.60
0.70
0.80
0.90
1.00
cfm
rpm bhp rpm bhp rpm bhp rpm
bhp rpm bhp rpm bhp
rpm
bhp
rpm
bhp
rpm
bhp
rpm
bhp
2400
765
0.27
815
0.35
854
0.42
892
0.49
0.65
1004
0.74
1039
0.83
1073
0.92
1106
1.01
2700
847
0.37
895
0.45
934
0.53
967
0.61 1002 0.69 1036
0.78
1067
0.87
1101
0.97
1133
1.06
1166
1.17
3000
931
0.48
975
0.57 1014 0.67 1046
0.75 1077 0.84 1108
0.94
1139
1.03
1168
1.13
1196
1.23
1227
1.34
3300
1015 0.62 1056 0.72 1095 0.82 1127
0.92 1156 1.02 1183
1.12
1211
1.22
1239
1.32
1267
1.43
1293
1.54
3600
1100 0.79 1138 0.90 1175 1.01 1207
1.12 1236 1.22 1262
1.33
1287
1.43
1313
1.54
1338
1.66
1365
1.77
930
0.57
966
Continued
External Static Pressure (Inches of Water)
1.10
1.20
1.30
1.40
1.50
1.60
1.70
1.80
1.90
2.00
cfm
rpm bhp rpm bhp rpm bhp rpm
bhp rpm bhp rpm bhp
rpm
bhp
rpm
bhp
rpm
bhp
rpm
bhp
2400
1137 1.11 1166 1.21 1195 1.31 1224
1.41 1251 1.51 1278
1.62
1303
1.72
1328
1.83
1352
1.94
1376
2.05
2700
1196 1.27 1225 1.37 1254 1.48 1281
1.59 1308 1.70 1334
1.81
1359
1.92
1384
2.04
1408
2.15
1431
2.27
3000
1256 1.45 1285 1.56 1313 1.67 1339
1.79 1366 1.90 1392
2.03
1417
2.15
1441
2.27
1465
2.39
1487
2.51
3300
1319 1.65 1346 1.77 1373 1.89 1401
2.01 1427 2.14 1452
2.27
1475
2.39
1500
2.52
1523
2.65
1545
2.78
3600
1389 1.89 1412 2.01 1436 2.13 1462
2.26 1487 2.39 1511
2.52
1535
2.66
1559
2.79
1581
2.93
1605
3.07
Notes:
1. For Direct Drive Fan Speed (RPM), reference Table 136, p. 180.
2. Data includes pressure drop due to standard filters and wet coils.
3. Refer to Table 139, p. 183 to determine additional static pressure drop due to other options/accessories.
4. Direct Drive Fan Motor Heat (MBH) = 2.8623 x Fan BHP - 0.1504
5. Factory supplied motors, in commercial equipment, are definite purpose motors, specifically designed and tested to operate reliably and continuously
at all cataloged conditions. Using the full horsepower range of our fan motors as shown in our tabular data will not result in nuisance tripping or
premature motor failure. Our product's warranty will not be affected.
164
RT-PRC023AG-EN
Evaporator Fan Performance
Table 117. Direct drive evaporator fan performance - 7½ tons high efficiency -YHC092F3,F4,FW high gas heat, downflow
airflow
External Static Pressure (Inches of Water)
0.10
0.20
0.30
0.40
0.50
0.60
0.70
0.80
0.90
1.00
cfm
rpm bhp rpm bhp rpm bhp rpm
bhp rpm bhp rpm bhp
rpm
bhp
rpm
bhp
rpm
bhp
rpm
bhp
2400
789
0.29
820
0.35
857
0.41
892
0.47
0.60
987
0.67
1017
0.74
1046
0.81
1073
0.88
2700
879
0.40
907
0.47
938
0.54
970
0.60 1001 0.67 1030
0.74
1059
0.82
1088
0.89
1114
0.97
1141
1.05
3000
969
0.53
998
0.61 1022 0.68 1051
0.76 1080 0.83 1107
0.91
1134
0.99
1160
1.07
1186
1.15
1212
1.23
3300
1059 0.70 1088 0.77 1109 0.86 1134
0.94 1161 1.02 1186
1.10
1212
1.18
1236
1.27
1260
1.36
1284
1.45
3600
1149 0.89 1178 0.97 1200 1.06 1219
1.15 1243 1.24 1267
1.33
1291
1.42
1314
1.51
1337
1.60
1359
1.70
924
0.54
956
Continued
External Static Pressure (Inches of Water)
1.10
1.20
1.30
1.40
1.50
1.60
1.70
1.80
1.90
2.00
cfm
rpm bhp rpm bhp rpm bhp rpm
bhp rpm bhp rpm bhp
rpm
bhp
rpm
bhp
rpm
bhp
rpm
bhp
2400
1099 0.96 1125 1.03 1150 1.11 1174
1.19 1197 1.26 1219
1.34
1241
1.43
1263
1.51
1284
1.59
1304
1.67
2700
1167 1.13 1192 1.21 1216 1.29 1238
1.37 1262 1.46 1283
1.54
1304
1.62
1326
1.72
1347
1.81
1366
1.89
3000
1236 1.32 1260 1.40 1283 1.49 1306
1.58 1328 1.67 1350
1.76
1370
1.85
1391
1.95
1411
2.04
1431
2.14
3300
1307 1.54 1330 1.63 1353 1.73 1375
1.82 1397 1.92 1417
2.02
1438
2.11
1458
2.21
1477
2.31
1496
2.41
3600
1380 1.79 1402 1.89 1424 1.99 1445
2.09 1466 2.19 1486
2.29
1507
2.40
1526
2.50
1545
2.61
1564
2.72
Notes:
1. For Direct Drive Fan Speed (RPM), reference Table 136, p. 180.
2. Data includes pressure drop due to standard filters and wet coils.
3. Refer to Table 139, p. 183 to determine additional static pressure drop due to other options/accessories.
4. Direct Drive Fan Motor Heat (MBH) = 2.8623 x Fan BHP - 0.1504
5. Factory supplied motors, in commercial equipment, are definite purpose motors, specifically designed and tested to operate reliably and continuously
at all cataloged conditions. Using the full horsepower range of our fan motors as shown in our tabular data will not result in nuisance tripping or
premature motor failure. Our product's warranty will not be affected.
RT-PRC023AG-EN
165
Evaporator Fan Performance
Table 118. Direct drive evaporator fan performance - 7½ tons high efficiency - YHC092F3,F4,FW high gas heat, horizontal
airflow
External Static Pressure (Inches of Water)
0.10
0.20
0.30
0.40
0.50
0.60
0.70
0.80
0.90
1.00
cfm
rpm bhp rpm bhp rpm bhp rpm
bhp rpm bhp rpm bhp
rpm
bhp
rpm
bhp
rpm
bhp
rpm
bhp
2400
768
0.28
818
0.35
858
0.42
897
0.50
0.66
1011
0.75
1046
0.84
1080
0.93
1112
1.03
2700
851
0.37
898
0.46
937
0.54
972
0.62 1007 0.71 1042
0.79
1075
0.89
1109
0.98
1142
1.08
1173
1.18
3000
935
0.49
979
0.58 1018 0.67 1050
0.76 1082 0.86 1114
0.95
1145
1.05
1176
1.15
1205
1.25
1236
1.36
3300
1020 0.63 1060 0.73 1098 0.83 1131
0.93 1160 1.03 1188
1.14
1217
1.24
1246
1.35
1275
1.46
1301
1.56
3600
1105 0.80 1143 0.91 1178 1.02 1212
1.13 1240 1.24 1267
1.35
1293
1.46
1319
1.57
1346
1.69
1372
1.81
936
0.58
973
Continued
External Static Pressure (Inches of Water)
1.10
1.20
1.30
1.40
1.50
1.60
1.70
1.80
1.90
2.00
cfm
rpm bhp rpm bhp rpm bhp rpm
bhp rpm bhp rpm bhp
rpm
bhp
rpm
bhp
rpm
bhp
rpm
bhp
2400
1143 1.12 1172 1.22 1202 1.32 1229
1.42 1255 1.53 1282
1.63
1307
1.74
1333
1.85
1356
1.96
1379
2.07
2700
1203 1.28 1232 1.39 1260 1.50 1288
1.61 1315 1.72 1340
1.83
1365
1.95
1388
2.05
1412
2.17
1437
2.30
3000
1266 1.47 1294 1.59 1321 1.70 1348
1.81 1374 1.93 1399
2.05
1424
2.17
1448
2.29
1472
2.42
1495
2.54
3300
1329 1.68 1356 1.80 1383 1.92 1410
2.04 1435 2.17 1460
2.29
1484
2.42
1508
2.55
1531
2.68
1553
2.81
3600
1398 1.92 1423 2.04 1448 2.17 1474
2.30 1498 2.43 1523
2.57
1547
2.70
1569
2.83
1592
2.97
1614
3.11
Notes:
1. For Direct Drive Fan Speed (RPM), reference Table 136, p. 180.
2. Data includes pressure drop due to standard filters and wet coils.
3. Refer to Table 139, p. 183 to determine additional static pressure drop due to other options/accessories.
4. Direct Drive Fan Motor Heat (MBH) = 2.8623 x Fan BHP - 0.1504
5. Factory supplied motors, in commercial equipment, are definite purpose motors, specifically designed and tested to operate reliably and continuously
at all cataloged conditions. Using the full horsepower range of our fan motors as shown in our tabular data will not result in nuisance tripping or
premature motor failure. Our product's warranty will not be affected.
166
RT-PRC023AG-EN
Evaporator Fan Performance
Table 119. Direct drive evaporator fan performance - 8½ tons high efficiency - THC102F3,F4,FW downflow airflow
External Static Pressure (Inches of Water)
0.10
0.20
0.30
0.40
0.50
0.60
0.70
0.80
0.90
1.00
cfm
rpm
bhp rpm bhp rpm bhp rpm
bhp rpm bhp rpm bhp
rpm
bhp
rpm
bhp
rpm
bhp
rpm
bhp
1700*
583
0.13
632
0.17
678
0.22
722
0.26
762
0.32
799
0.37
834
0.42
867
0.48
897
0.53
927
0.59
2040*
677
0.19
730
0.25
762
0.30
801
0.35
840
0.41
874
0.47
908
0.53
940
0.60
969
0.66
998
0.72
2380*
775
0.29
819
0.35
861
0.42
887
0.47
920
0.53
954
0.60
985
0.67
1016
0.74
1044
0.81
1073
0.88
2720
874
0.41
912
0.48
953
0.55
986
0.63 1009 0.69 1034 0.76
1066
0.83
1094
0.91
1122
0.99
1149
1.07
3060
974
0.56 1008 0.64 1042 0.72 1079
0.80 1108 0.89 1129 0.96
1148
1.03
1175
1.11
1202
1.20
1228
1.28
3400
1075
0.75 1106 0.84 1136 0.92 1167
1.01 1201 1.11 1227 1.20
1247
1.28
1264
1.36
1284
1.44
1309
1.54
3740
1177
0.99 1204 1.07 1232 1.17 1259
1.26 1288 1.36 1319 1.47
1345
1.57
1364
1.67
1380
1.75
1395
1.84
4080
1279
1.27 1304 1.36 1330 1.46 1355
1.56 1381 1.66 1407 1.77
1436
1.90
1461
2.01
1479
2.11
1495
2.21
Continued
External Static Pressure (Inches of Water)
1.10
1.20
1.30
1.40
1.50
1.60
1.70
1.80
1.90
2.00
cfm
rpm
bhp rpm bhp rpm bhp rpm
bhp rpm bhp rpm bhp
rpm
bhp
rpm
bhp
rpm
bhp
rpm
bhp
1700*
956
0.65
0.71 1009 0.77 1034
0.84 1058 0.90 1083 0.97
1107
1.04
1129
1.10
1151
1.17
1172
1.24
2040* 1026
0.79 1052 0.86 1078 0.93 1102
0.99 1128 1.07 1150 1.14
1173
1.21
1195
1.28
1217
1.36
1238
1.44
2380* 1099
0.95 1124 1.03 1150 1.10 1173
1.18 1198 1.26 1220 1.33
1242
1.41
1264
1.50
1286
1.58
1306
1.66
983
2720
1175
1.15 1200 1.23 1224 1.31 1247
1.39 1270 1.48 1292 1.56
1314
1.65
1336
1.74
1356
1.82
1377
1.91
3060
1253
1.37 1277 1.46 1301 1.55 1323
1.64 1345 1.73 1367 1.82
1389
1.92
1409
2.01
1429
2.10
1450
2.20
3400
1333
1.63 1357 1.73 1379 1.83 1402
1.93 1423 2.02 1444 2.12
1465
2.22
1485
2.32
1504
2.42
1524
2.52
3740
1414
1.93 1437 2.03 1460 2.14 1481
2.25 1503 2.36 1522 2.46
1542
2.56
1563
2.67
1582
2.78
1601
2.89
4080
1510
2.30 1524 2.40 1541 2.50 1562
2.61 1583 2.73 1603 2.84
1623
2.96
1642
3.07
1661
3.19
1679
3.31
Notes:
1. For Direct Drive Fan Speed (RPM), reference Table 136, p. 180.
2. Data includes pressure drop due to standard filters and wet coils.
3. Refer to Table 139, p. 183 to determine additional static pressure drop due to other options/accessories.
4. Direct Drive Fan Motor Heat (MBH) = 2.8623 x Fan BHP - 0.1504
5. Factory supplied motors, in commercial equipment, are definite purpose motors, specifically designed and tested to operate reliably and continuously
at all cataloged conditions. Using the full horsepower range of our fan motors as shown in our tabular data will not result in nuisance tripping or
premature motor failure. Our product's warranty will not be affected.
* For 1700, 2040, and 2380 CFM, unit application below 320 CFM/Ton are only applicable on T_C models only (No Gas Heat). See below for restrictions.
* Electric heaters restricted on applications below 320 CFM/Ton
* Dehumidification (Hot Gas Reheat) or TXV with Frostat™ and Crankcase Heaters are required on applications below 320 CFM/Ton
RT-PRC023AG-EN
167
Evaporator Fan Performance
Table 120. Direct drive evaporator fan performance - 8½ tons high efficiency - THC102F3,F4,FW horizontal airflow
External Static Pressure (Inches of Water)
0.10
0.20
0.30
0.40
0.50
0.60
0.70
0.80
0.90
1.00
cfm
rpm
bhp rpm bhp rpm bhp rpm
bhp rpm bhp rpm bhp
rpm
bhp
rpm
bhp
rpm
bhp
rpm
bhp
1700*
603
0.14
665
0.20
726
0.27
781
0.33
833
0.41
880
0.48
924
0.55
966
0.63
1006
0.72
1043
0.80
2040*
695
0.21
749
0.28
804
0.36
856
0.44
903
0.51
948
0.60
991
0.68
1032
0.77
1070
0.86
1107
0.95
2380*
791
0.31
846
0.40
888
0.47
935
0.56
979
0.65 1022 0.74
1061
0.83
1100
0.93
1137
1.03
1173
1.13
2720
888
0.44
938
0.53
981
0.62 1018
0.71 1059 0.81 1099 0.91
1137
1.02
1174
1.13
1207
1.23
1242
1.34
3060
987
0.60 1032 0.69 1075 0.81 1109
0.90 1143 1.00 1179 1.11
1216
1.23
1250
1.35
1284
1.47
1316
1.59
3400
1087
0.80 1128 0.90 1168 1.02 1206
1.15 1233 1.24 1264 1.36
1297
1.48
1330
1.60
1363
1.74
1392
1.87
3740
1188
1.04 1224 1.15 1262 1.27 1298
1.41 1332 1.55 1355 1.65
1382
1.76
1413
1.90
1442
2.04
1473
2.18
4080
1290
1.32 1323 1.45 1358 1.57 1391
1.71 1423 1.87 1454 2.01
1476
2.12
1498
2.24
1527
2.40
1554
2.54
Continued
External Static Pressure (Inches of Water)
1.10
cfm
1.20
1.30
1.40
1.50
1.60
1.70
1.80
1.90
2.00
rpm
bhp rpm bhp rpm bhp rpm
bhp rpm bhp rpm bhp
rpm
bhp
rpm
bhp
rpm
bhp
rpm
bhp
1700* 1078
0.88 1113 0.97 1145 1.06 1177
1.15 1209 1.25 1238 1.34
1266
1.43
1295
1.54
1322
1.63
1349
1.74
2040* 1142
1.05 1175 1.14 1207 1.24 1239
1.34 1269 1.44 1299 1.54
1327
1.65
1355
1.76
1382
1.86
1409
1.97
2380* 1207
1.23 1240 1.34 1272 1.44 1303
1.55 1333 1.67 1362 1.78
1390
1.89
1416
2.00
1444
2.12
1469
2.23
2720
1276
1.45 1308 1.57 1340 1.69 1370
1.80 1399 1.92 1427 2.04
1454
2.16
1481
2.28
1507
2.41
1534
2.54
3060
1347
1.71 1378 1.83 1408 1.95 1437
2.08 1466 2.21 1493 2.33
1521
2.47
1548
2.60
1574
2.73
1600
2.87
3400
1423
2.00 1453 2.13 1481 2.27 1507
2.39 1535 2.53 1562 2.67
1590
2.81
1616
2.96
1641
3.10
1667
3.25
3740
1501
2.33 1528 2.47 1557 2.62 1584
2.76 1610 2.91 1636 3.06
1660
3.20
1685
3.35
—
—
—
—
4080
1582
2.69 1609 2.85 1635 3.01 1661
3.17 1686 3.32
—
—
—
—
—
—
—
—
—
—
Notes:
1. For Direct Drive Fan Speed (RPM), reference Table 136, p. 180.
2. Data includes pressure drop due to standard filters and wet coils.
3. Refer Table 139, p. 183 to determine additional static pressure drop due to other options/accessories.
4. Direct Drive Fan Motor Heat (MBH) = 2.8623 x Fan BHP - 0.1504
5. Factory supplied motors, in commercial equipment, are definite purpose motors, specifically designed and tested to operate reliably and continuously
at all cataloged conditions. Using the full horsepower range of our fan motors as shown in our tabular data will not result in nuisance tripping or
premature motor failure. Our product's warranty will not be affected.
* For 1700, 2040, and 2380 CFM, unit application below 320 CFM/Ton are only applicable on T_C models only (No Gas Heat). See below for restrictions.
* Electric heaters restricted on applications below 320 CFM/Ton
* Dehumidification (Hot Gas Reheat) or TXV with Frostat™ and Crankcase Heaters are required on applications below 320 CFM/Ton
168
RT-PRC023AG-EN
Evaporator Fan Performance
Table 121. Direct drive evaporator fan performance - 8½ tons high efficiency - YHC102F3,F4,FW low & medium gas heat,
downflow airflow
External Static Pressure (Inches of Water)
0.10
0.20
0.30
0.40
0.50
0.60
0.70
0.80
0.90
1.00
cfm
rpm bhp rpm bhp rpm bhp rpm
bhp rpm bhp rpm bhp
rpm
bhp
rpm
bhp
rpm
bhp
rpm
bhp
2720
913
0.63 1017
0.70 1047 0.77 1073
0.85
1100
0.92
1128
0.99
1154
1.07
1180
1.15
3060
1017 0.66 1052 0.74 1084 0.83 1113
0.91 1143 1.00 1169
1.08
1194
1.16
1217
1.24
1241
1.32
1266
1.40
3400
1122 0.88 1155 0.98 1184 1.07 1212
1.16 1239 1.25 1265
1.35
1290
1.44
1312
1.53
1334
1.62
1355
1.71
3740
1227 1.15 1259 1.26 1286 1.36 1312
1.46 1337 1.56 1362
1.66
1386
1.77
1409
1.87
1430
1.97
1450
2.07
4080
1333 1.47 1363 1.59 1389 1.70 1414
1.81 1437 1.92 1460
2.03
1482
2.14
1504
2.26
1526
2.37
1547
2.48
0.48
950
0.55
984
Continued
External Static Pressure (Inches of Water)
1.10
1.20
1.30
1.40
1.50
1.60
1.70
1.80
1.90
2.00
cfm
rpm bhp rpm bhp rpm bhp rpm
bhp rpm bhp rpm bhp
rpm
bhp
rpm
bhp
rpm
bhp
rpm
bhp
2720
1206 1.23 1231 1.31 1254 1.39 1277
1.47 1299 1.55 1322
1.63
1343
1.71
1364
1.80
1384
1.89
1404
1.97
3060
1290 1.49 1313 1.58 1337 1.67 1359
1.75 1380 1.84 1401
1.93
1422
2.02
1443
2.12
1463
2.21
1482
2.30
3400
1376 1.80 1398 1.89 1421 1.99 1442
2.08 1463 2.18 1483
2.28
1503
2.37
1524
2.48
1543
2.58
1563
2.68
3740
1469 2.16 1489 2.26 1508 2.36 1528
2.46 1548 2.57 1568
2.67
1587
2.78
1606
2.88
1625
2.99
1644
3.10
4080
1566 2.59 1583 2.69 1601 2.80 1619
2.91 1636 3.01 1654
3.12
1673
3.24
1692
3.35
—
—
—
—
Notes:
1. For Direct Drive Fan Speed (RPM), reference Table 136, p. 180.
2. Data includes pressure drop due to standard filters and wet coils.
3. Refer to Table 139, p. 183 to determine additional static pressure drop due to other options/accessories.
4. Direct Drive Fan Motor Heat (MBH) = 2.8623 x Fan BHP - 0.1504
5. Factory supplied motors, in commercial equipment, are definite purpose motors, specifically designed and tested to operate reliably and continuously
at all cataloged conditions. Using the full horsepower range of our fan motors as shown in our tabular data will not result in nuisance tripping or
premature motor failure. Our product's warranty will not be affected.
RT-PRC023AG-EN
169
Evaporator Fan Performance
Table 122. Direct drive evaporator fan performance - 8½ tons high efficiency - YHC102F3,F4,FW low & medium gas heat,
horizontal airflow
External Static Pressure (Inches of Water)
0.10
0.20
0.30
0.40
0.50
0.60
0.70
0.80
0.90
1.00
cfm
rpm bhp rpm bhp rpm bhp rpm
bhp rpm bhp rpm bhp
rpm
bhp
rpm
bhp
rpm
bhp
rpm
bhp
2720
925
0.60 1020 0.70 1061
0.80 1098 0.90 1141
1.02
1179
1.13
1218
1.26
1259
1.40
1296
1.53
3060
1028 0.67 1074 0.79 1117 0.90 1155
1.02 1191 1.13 1226
1.25
1262
1.37
1297
1.50
1331
1.63
1366
1.77
3400
1133 0.89 1175 1.02 1213 1.15 1251
1.28 1286 1.40 1317
1.53
1351
1.66
1379
1.78
1415
1.94
1445
2.08
3740
1239 1.16 1276 1.29 1313 1.44 1348
1.58 1381 1.72 1413
1.86
1441
2.00
1472
2.15
1499
2.28
1528
2.43
4080
1344 1.48 1379 1.62 1414 1.78 1446
1.93 1479 2.09 1508
2.24
1537
2.39
1564
2.54
1591
2.70
1619
2.86
0.49
975
Continued
External Static Pressure (Inches of Water)
1.10
1.20
1.30
1.40
1.50
1.60
1.70
1.80
1.90
2.00
cfm
rpm bhp rpm bhp rpm bhp rpm
bhp rpm bhp rpm bhp
rpm
bhp
rpm
bhp
rpm
bhp
rpm
bhp
2720
1332 1.66 1369 1.80 1403 1.94 1437
2.08 1470 2.23 1502
2.38
1533
2.53
1564
2.69
1594
2.84
1623
3.00
3060
1402 1.93 1436 2.08 1469 2.22 1501
2.37 1533 2.53 1564
2.68
1596
2.85
1625
3.01
1654
3.18
1685
3.36
3400
1476 2.22 1507 2.38 1539 2.54 1571
2.71 1602 2.88 1631
3740
1559 2.60 1586 2.75 1615 2.91 1643
3.08 1672 3.25
4080
1642 3.00 1669 3.17 1699 3.36
—
—
—
—
3.04
1660
3.21
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
Notes:
1. For Direct Drive Fan Speed (RPM), reference Table 136, p. 180.
2. Data includes pressure drop due to standard filters and wet coils.
3. Refer to Table 139, p. 183 to determine additional static pressure drop due to other options/accessories.
4. Direct Drive Fan Motor Heat (MBH) = 2.8623 x Fan BHP - 0.1504
5. Factory supplied motors, in commercial equipment, are definite purpose motors, specifically designed and tested to operate reliably and continuously
at all cataloged conditions. Using the full horsepower range of our fan motors as shown in our tabular data will not result in nuisance tripping or
premature motor failure. Our product's warranty will not be affected.
170
RT-PRC023AG-EN
Evaporator Fan Performance
Table 123. Direct drive evaporator fan performance - 8½ tons high efficiency - YHC102F3,F4,FW high gas heat, downflow
airflow
External Static Pressure (Inches of Water)
0.10
0.20
0.30
0.40
0.50
0.60
0.70
0.80
0.90
1.00
cfm
rpm bhp rpm bhp rpm bhp rpm
bhp rpm bhp rpm bhp
rpm
bhp
rpm
bhp
rpm
bhp
rpm
bhp
2720
917
0.64 1021
0.71 1050 0.78 1077
0.85
1105
0.93
1132
1.00
1159
1.08
1184
1.16
3060
1022 0.67 1059 0.76 1092 0.84 1122
0.92 1147 1.01 1173
1.09
1197
1.17
1221
1.25
1246
1.33
1271
1.42
3400
1128 0.90 1161 0.99 1192 1.09 1222
1.18 1248 1.27 1270
1.36
1294
1.46
1316
1.55
1338
1.63
1360
1.72
3740
1235 1.18 1264 1.28 1294 1.38 1322
1.49 1349 1.59 1372
1.69
1392
1.79
1413
1.89
1435
1.99
1455
2.09
4080
1342 1.51 1368 1.62 1397 1.73 1423
1.84 1448 1.96 1472
2.07
1494
2.18
1512
2.29
1531
2.40
1551
2.51
0.49
957
0.56
993
Continued
External Static Pressure (Inches of Water)
1.10
1.20
1.30
1.40
1.50
1.60
1.70
1.80
1.90
2.00
cfm
rpm bhp rpm bhp rpm bhp rpm
bhp rpm bhp rpm bhp
rpm
bhp
rpm
bhp
rpm
bhp
rpm
bhp
2720
1209 1.24 1233 1.32 1256 1.41 1279
1.49 1301 1.57 1323
1.66
1344
1.75
1364
1.83
1384
1.92
1404
2.01
3060
1295 1.51 1318 1.60 1340 1.69 1362
1.78 1384 1.87 1404
1.96
1424
2.05
1444
2.15
1465
2.25
1483
2.34
3400
1382 1.82 1405 1.91 1426 2.01 1447
2.11 1468 2.21 1488
2.31
1507
2.41
1528
2.51
1547
2.62
1565
2.72
3740
1474 2.18 1494 2.28 1515 2.39 1534
2.49 1555 2.60 1574
2.70
1593
2.81
1612
2.92
1630
3.03
1648
3.14
4080
1571 2.62 1589 2.72 1607 2.83 1625
2.93 1643 3.05 1662
3.16
1680
3.27
—
—
—
—
—
—
Notes:
1. For Direct Drive Fan Speed (RPM), reference Table 136, p. 180.
2. Data includes pressure drop due to standard filters and wet coils.
3. Refer to Table 139, p. 183 to determine additional static pressure drop due to other options/accessories.
4. Direct Drive Fan Motor Heat (MBH) = 2.8623 x Fan BHP - 0.1504
5. Factory supplied motors, in commercial equipment, are definite purpose motors, specifically designed and tested to operate reliably and continuously
at all cataloged conditions. Using the full horsepower range of our fan motors as shown in our tabular data will not result in nuisance tripping or
premature motor failure. Our product's warranty will not be affected.
RT-PRC023AG-EN
171
Evaporator Fan Performance
Table 124. Direct drive evaporator fan performance - 8½ tons high efficiency - YHC102F3,F4,FW high gas heat, horizontal
airflow
External Static Pressure (Inches of Water)
0.10
0.20
0.30
0.40
0.50
0.60
0.70
0.80
0.90
1.00
cfm
rpm bhp rpm bhp rpm bhp rpm
bhp rpm bhp rpm bhp
rpm
bhp
rpm
bhp
rpm
bhp
rpm
bhp
2720
932
0.61 1030 0.72 1072
0.83 1119 0.95 1157
1.06
1196
1.18
1236
1.31
1277
1.45
1314
1.59
3060
1035 0.68 1083 0.81 1127 0.93 1166
1.05 1204 1.17 1244
1.30
1282
1.44
1315
1.56
1351
1.71
1387
1.86
3400
1140 0.91 1184 1.04 1225 1.18 1264
1.32 1297 1.44 1332
1.58
1367
1.72
1405
1.88
1436
2.02
1466
2.16
3740
1245 1.18 1286 1.32 1324 1.47 1360
1.62 1395 1.78 1426
1.91
1456
2.06
1489
2.22
1523
2.39
1556
2.56
4080
1351 1.50 1389 1.66 1425 1.82 1459
1.98 1492 2.15 1524
2.31
1552
2.47
1578
2.61
1608
2.79
1639
2.96
0.50
984
Continued
External Static Pressure (Inches of Water)
1.10
1.20
1.30
1.40
1.50
1.60
1.70
1.80
1.90
2.00
cfm
rpm bhp rpm bhp rpm bhp rpm
bhp rpm bhp rpm bhp
rpm
bhp
rpm
bhp
rpm
bhp
rpm
bhp
2720
1349 1.72 1383 1.86 1415 1.99 1447
2.13 1477 2.27 1506
2.41
1536
2.56
1564
2.70
1592
2.85
1618
2.99
3060
1423 2.01 1457 2.16 1489 2.31 1520
2.46 1549 2.61 1579
2.76
1608
2.92
1634
3.07
1663
3.23
—
—
3400
1497 2.32 1529 2.48 1562 2.66 1593
2.82 1625 3.00 1652
3.16
1681
3.33
—
—
—
—
—
—
3740
1582 2.70 1608 2.85 1638 3.03 1667
3.21
—
—
—
—
—
—
—
—
—
—
—
—
4080
1669 3.15 1699 3.33
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
Notes:
1. For Direct Drive Fan Speed (RPM), reference Table 136, p. 180.
2. Data includes pressure drop due to standard filters and wet coils.
3. Refer to Table 139, p. 183 to determine additional static pressure drop due to other options/accessories.
4. Direct Drive Fan Motor Heat (MBH) = 2.8623 x Fan BHP - 0.1504
5. Factory supplied motors, in commercial equipment, are definite purpose motors, specifically designed and tested to operate reliably and continuously
at all cataloged conditions. Using the full horsepower range of our fan motors as shown in our tabular data will not result in nuisance tripping or
premature motor failure. Our product's warranty will not be affected.
172
RT-PRC023AG-EN
Evaporator Fan Performance
Table 125. Direct drive evaporator fan performance - 10 tons high efficiency - THC120E3,E4,EW downflow airflow
External Static Pressure (Inches of Water)
0.10
0.20
0.30
0.40
0.50
0.60
0.70
0.80
0.90
1.00
cfm
rpm
bhp rpm bhp rpm bhp rpm
bhp rpm bhp rpm bhp
rpm
bhp
rpm
bhp
rpm
bhp
rpm
bhp
2000*
666
0.19
713
0.24
756
0.29
799
0.35
836
0.41
876
0.47
916
0.54
953
0.62
988
0.69
1021
0.77
2400*
780
0.29
822
0.35
860
0.42
895
0.48
933
0.55
966
0.62
997
0.69
1030
0.77
1063
0.85
1096
0.93
2800*
897
0.44
933
0.51
969
0.58 1001
0.65 1031 0.73 1063 0.81
1094
0.90
1122
0.98
1148
1.05
1176
1.14
3200
1014
0.63 1047 0.71 1079 0.79 1110
0.88 1138 0.96 1164 1.04
1191
1.13
1219
1.22
1247
1.32
1272
1.42
3600
1133
0.87 1163 0.96 1191 1.06 1220
1.15 1247 1.24 1272 1.33
1296
1.42
1319
1.52
1343
1.62
1368
1.73
4000
1252
1.17 1280 1.28 1306 1.38 1332
1.48 1356 1.58 1381 1.68
1404
1.78
1426
1.89
1447
1.99
1468
2.10
4400
1372
1.54 1397 1.65 1422 1.76 1445
1.87 1468 1.99 1491 2.10
1514
2.21
1535
2.32
1555
2.44
1575
2.55
4800
1492
1.98 1516 2.10 1538 2.22 1560
2.34 1582 2.47 1603 2.59
1624
2.71
1644
2.83
1665
2.95
1684
3.08
Continued
External Static Pressure (Inches of Water)
1.10
cfm
1.20
1.30
1.40
1.50
1.60
1.70
1.80
1.90
2.00
rpm
bhp rpm bhp rpm bhp rpm
bhp rpm bhp rpm bhp
rpm
bhp
rpm
bhp
rpm
bhp
rpm
bhp
2000* 1053
0.84 1084 0.92 1114 1.00 1142
1.09 1170 1.17 1197 1.25
1224
1.34
1248
1.43
1273
1.52
1297
1.61
2400* 1127
1.02 1158 1.11 1187 1.20 1215
1.29 1242 1.38 1268 1.47
1294
1.57
1319
1.66
1343
1.76
1367
1.86
2800* 1205
1.23 1234 1.32 1262 1.42 1290
1.52 1317 1.62 1342 1.72
1367
1.83
1392
1.93
1416
2.04
1439
2.14
3200
1295
1.51 1317 1.59 1342 1.69 1368
1.79 1393 1.90 1418 2.01
1443
2.12
1468
2.24
1491
2.35
1514
2.47
3600
1393
1.84 1418 1.96 1438 2.06 1458
2.15 1478 2.25 1500 2.35
1522
2.47
1545
2.59
1569
2.71
1591
2.83
4000
1490
2.21 1512 2.33 1535 2.45 1558
2.58 1578 2.70 1597 2.81
1615
2.92
1634
3.03
1652
3.14
1672
3.26
4400
1594
2.67 1613 2.79 1632 2.90 1653
3.03 1673 3.16 1694 3.31
—
—
—
—
—
—
—
—
4800
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
Notes:
1. For Direct Drive Fan Speed (RPM), reference Table 136, p. 180.
2. Data includes pressure drop due to standard filters and wet coils.
3. Refer to Table 139, p. 183 to determine additional static pressure drop due to other options/accessories.
4. Direct Drive Fan Motor Heat (MBH) = 2.8623 x Fan BHP - 0.1504
5. Factory supplied motors, in commercial equipment, are definite purpose motors, specifically designed and tested to operate reliably and continuously
at all cataloged conditions. Using the full horsepower range of our fan motors as shown in our tabular data will not result in nuisance tripping or
premature motor failure. Our product's warranty will not be affected.
* For 2000, 2400, and 2800 CFM, unit application below 320 CFM/Ton are only applicable on T_C models only (No Gas Heat). See below for restrictions.
* Electric heaters restricted on applications below 320 CFM/Ton
* Dehumidification (Hot Gas Reheat) or TXV with Frostat™ and Crankcase Heaters are required on applications below 320 CFM/Ton
RT-PRC023AG-EN
173
Evaporator Fan Performance
Table 126. Direct drive evaporator fan performance - 10 tons high efficiency - THC120E3,E4,EW horizontal airflow
External Static Pressure (Inches of Water)
0.10
0.20
0.30
0.40
0.50
0.60
0.70
0.80
0.90
1.00
cfm
rpm
bhp rpm bhp rpm bhp rpm
bhp rpm bhp rpm bhp
rpm
bhp
rpm
bhp
rpm
bhp
rpm
bhp
2000*
685
0.20
740
0.27
796
0.34
847
0.42
894
0.50
984
0.67
1024
0.75
1063
0.84
1099
0.93
2400*
797
0.32
852
0.40
894
0.48
940
0.57
984
0.66 1027 0.75
1066
0.85
1105
0.94
1141
1.04
1177
1.14
2800*
911
0.47
961
0.57 1005 0.67 1039
0.75 1079 0.85 1119 0.96
1155
1.06
1193
1.18
1226
1.28
1259
1.40
3200
1029
0.68 1072 0.77 1114 0.89 1151
1.00 1179 1.09 1215 1.21
1250
1.33
1285
1.45
1316
1.57
1348
1.70
3600
1147
0.93 1185 1.04 1224 1.16 1260
1.30 1293 1.42 1316 1.51
1349
1.65
1379
1.78
1410
1.91
1442
2.05
4000
1267
1.25 1300 1.38 1335 1.49 1370
1.64 1402 1.79 1433 1.93
1453
2.02
1479
2.16
1509
2.31
1535
2.45
4400
1386
1.64 1417 1.77 1449 1.90 1481
2.04 1512 2.21 1541 2.37
1569
2.53
1591
2.65
1609
2.76
1637
2.93
4800
1506
2.09 1536 2.24 1563 2.40 1593
2.53 1622 2.69 1651 2.88
1677
3.06
—
—
—
—
—
—
940
0.58
Continued
External Static Pressure (Inches of Water)
1.10
cfm
1.20
1.30
1.40
1.50
1.60
1.70
1.80
1.90
2.00
rpm
bhp rpm bhp rpm bhp rpm
bhp rpm bhp rpm bhp
rpm
bhp
rpm
bhp
rpm
bhp
rpm
bhp
2000* 1135
1.03 1169 1.12 1201 1.22 1233
1.32 1262 1.42 1292 1.52
1321
1.62
1349
1.73
1376
1.84
1402
1.94
2400* 1212
1.25 1245 1.35 1277 1.46 1307
1.57 1338 1.68 1367 1.79
1394
1.91
1421
2.02
1448
2.14
1473
2.25
2800* 1292
1.51 1324 1.62 1355 1.74 1386
1.87 1415 1.99 1443 2.11
1471
2.23
1497
2.35
1523
2.48
1550
2.61
3200
1380
1.83 1408 1.95 1437 2.07 1466
2.20 1495 2.34 1522 2.47
1550
2.61
1577
2.75
1602
2.88
1628
3.02
3600
1470
2.19 1498 2.32 1527 2.47 1554
2.61 1579 2.75 1605 2.89
1631
3.03
1657
3.18
1681
3.33
—
—
4000
1564
2.60 1592 2.76 1618 2.91 1644
3.07 1670 3.22 1695 3.38
4400
1661
3.09 1687 3.25
4800
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
Notes:
1. For Direct Drive Fan Speed (RPM), reference Table 136, p. 180.
2. Data includes pressure drop due to standard filters and wet coils.
3. Refer to Table 139, p. 183 to determine additional static pressure drop due to other options/accessories.
4. Direct Drive Fan Motor Heat (MBH) = 2.8623 x Fan BHP - 0.1504
5. Factory supplied motors, in commercial equipment, are definite purpose motors, specifically designed and tested to operate reliably and continuously
at all cataloged conditions. Using the full horsepower range of our fan motors as shown in our tabular data will not result in nuisance tripping or
premature motor failure. Our product's warranty will not be affected.
* For 2000, 2400, and 2800 CFM, unit application below 320 CFM/Ton are only applicable on T_C models only (No Gas Heat). See below for restrictions.
* Electric heaters restricted on applications below 320 CFM/Ton
* Dehumidification (Hot Gas Reheat) or TXV with Frostat™ and Crankcase Heaters are required on applications below 320 CFM/Ton
174
RT-PRC023AG-EN
Evaporator Fan Performance
Table 127. Direct drive evaporator fan performance - 10 tons high efficiency - YHC120E3,E4,EW low & medium gas heat,
downflow airflow
External Static Pressure (Inches of Water)
0.10
0.20
0.30
0.40
0.50
0.60
0.70
0.80
0.90
1.00
cfm
rpm bhp rpm bhp rpm bhp rpm
bhp rpm bhp rpm bhp
rpm
bhp
rpm
bhp
rpm
bhp
rpm
bhp
3200
1036 0.65 1065 0.73 1088 0.81 1116
0.89 1143 0.98 1169
1.06
1195
1.14
1218
1.23
1244
1.32
1268
1.41
3600
1156 0.91 1186 1.00 1208 1.08 1229
1.17 1253 1.27 1278
1.36
1301
1.45
1325
1.54
1346
1.63
1368
1.73
4000
1277 1.22 1307 1.32 1329 1.42 1348
1.51 1367 1.62 1389
1.72
1411
1.82
1432
1.93
1453
2.03
1474
2.13
4400
1399 1.60 1427 1.71 1450 1.82 1469
1.93 1485 2.03 1503
2.15
1522
2.26
1543
2.37
1562
2.49
1582
2.60
4800
1521 2.06 1547 2.18 1571 2.30 1590
2.41 1606 2.53 1621
2.65
1636
2.77
1655
2.89
1674
3.02
1692
3.14
Continued
External Static Pressure (Inches of Water)
1.10
1.20
1.30
1.40
1.50
1.60
1.70
1.80
1.90
2.00
cfm
rpm bhp rpm bhp rpm bhp rpm
bhp rpm bhp rpm bhp
rpm
bhp
rpm
bhp
rpm
bhp
rpm
bhp
3200
1292 1.50 1317 1.59 1339 1.69 1361
1.78 1383 1.87 1403
1.97
1425
2.07
1445
2.17
1465
2.27
1484
2.37
3600
1391 1.83 1413 1.94 1435 2.04 1456
2.14 1477 2.25 1497
2.35
1517
2.46
1537
2.56
1555
2.67
1575
2.78
4000
1494 2.23 1514 2.34 1533 2.45 1553
2.56 1573 2.67 1592
2.79
1612
2.91
1631
3.02
1650
3.14
1668
3.26
4400
1602 2.71 1620 2.82 1638 2.93 1655
3.05 1673 3.17 1691
3.29
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
4800
—
—
—
—
—
—
—
—
—
—
—
Notes:
1. For Direct Drive Fan Speed (RPM), reference Table 136, p. 180.
2. Data includes pressure drop due to standard filters and wet coils.
3. Refer to Table 139, p. 183 to determine additional static pressure drop due to other options/accessories.
4. Direct Drive Fan Motor Heat (MBH) = 2.8623 x Fan BHP - 0.1504
5. Factory supplied motors, in commercial equipment, are definite purpose motors, specifically designed and tested to operate reliably and continuously
at all cataloged conditions. Using the full horsepower range of our fan motors as shown in our tabular data will not result in nuisance tripping or
premature motor failure. Our product's warranty will not be affected.
RT-PRC023AG-EN
175
Evaporator Fan Performance
Table 128. Direct drive evaporator fan performance - 10 tons high efficiency - YHC120E3,E4,EW low & medium gas heat,
horizontal airflow
External Static Pressure (Inches of Water)
0.10
0.20
0.30
0.40
0.50
0.60
0.70
0.80
0.90
1.00
cfm
rpm bhp rpm bhp rpm bhp rpm
bhp rpm bhp rpm bhp
rpm
bhp
rpm
bhp
rpm
bhp
rpm
bhp
3200
1014 0.62 1054 0.72 1092 0.82 1125
0.92 1153 1.01 1180
1.11
1209
1.21
1237
1.32
1265
1.42
1291
1.53
3600
1131 0.86 1167 0.97 1202 1.08 1235
1.19 1263 1.30 1289
1.41
1313
1.52
1338
1.63
1364
1.74
1388
1.86
4000
1248 1.14 1281 1.27 1314 1.39 1345
1.51 1374 1.64 1400
1.76
1423
1.88
1445
2.00
1467
2.12
1490
2.25
4400
1367 1.49 1397 1.63 1427 1.77 1456
1.90 1484 2.04 1510
2.17
1534
2.31
1556
2.44
1576
2.58
1597
2.71
4800
1485 1.91 1514 2.06 1541 2.21 1568
2.35 1595 2.50 1620
2.65
1645
2.80
1667
2.95
1687
3.10
—
—
Continued
External Static Pressure (Inches of Water)
1.10
1.20
1.30
1.40
1.50
1.60
1.70
1.80
1.90
2.00
cfm
rpm bhp rpm bhp rpm bhp rpm
bhp rpm bhp rpm bhp
rpm
bhp
rpm
bhp
rpm
bhp
rpm
bhp
3200
1317 1.65 1345 1.76 1372 1.88 1398
2.00 1423 2.12 1448
2.25
1472
2.38
1496
2.50
1519
2.63
1541
2.76
3600
1413 1.98 1437 2.10 1460 2.22 1484
2.35 1509 2.49 1532
2.62
1555
2.75
1579
2.89
1602
3.03
1623
3.17
4000
1512 2.37 1535 2.50 1557 2.63 1579
2.77 1600 2.90 1621
4400
1616 2.84 1637 2.98 1658 3.12 1678
3.26 1698 3.40
4800
—
—
—
—
—
—
—
—
—
—
3.04
1642
3.19
1664
3.33
1686
3.48
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
Notes:
1. For Direct Drive Fan Speed (RPM), reference Table 136, p. 180.
2. Data includes pressure drop due to standard filters and wet coils.
3. Refer to Table 139, p. 183 to determine additional static pressure drop due to other options/accessories.
4. Direct Drive Fan Motor Heat (MBH) = 2.8623 x Fan BHP - 0.1504
5. Factory supplied motors, in commercial equipment, are definite purpose motors, specifically designed and tested to operate reliably and continuously
at all cataloged conditions. Using the full horsepower range of our fan motors as shown in our tabular data will not result in nuisance tripping or
premature motor failure. Our product's warranty will not be affected.
176
RT-PRC023AG-EN
Evaporator Fan Performance
Table 129. Direct drive evaporator fan performance - 10 tons high efficiency - YHC120E3,E4,EW high gas heat, downflow
airflow
External Static Pressure (Inches of Water)
0.10
0.20
0.30
0.40
0.50
0.60
0.70
0.80
0.90
1.00
cfm
rpm bhp rpm bhp rpm bhp rpm
bhp rpm bhp rpm bhp
rpm
bhp
rpm
bhp
rpm
bhp
rpm
bhp
3200
1051 0.68 1081 0.76 1102 0.84 1126
0.92 1153 1.00 1179
1.08
1204
1.17
1229
1.25
1252
1.34
1276
1.42
3600
1175 0.95 1203 1.03 1225 1.12 1243
1.21 1266 1.31 1289
1.39
1313
1.49
1336
1.58
1358
1.67
1380
1.77
4000
1299 1.27 1326 1.37 1348 1.47 1366
1.57 1382 1.67 1403
1.77
1424
1.87
1445
1.97
1466
2.07
1487
2.18
4400
1423 1.67 1448 1.78 1471 1.89 1490
2.00 1505 2.11 1519
2.22
1538
2.33
1557
2.44
1577
2.55
1596
2.66
4800
1548 2.15 1571 2.27 1593 2.38 1612
2.50 1629 2.62 1642
2.74
1655
2.86
1672
2.99
1689
3.11
—
—
Continued
External Static Pressure (Inches of Water)
1.10
1.20
1.30
1.40
1.50
1.60
1.70
1.80
1.90
2.00
cfm
rpm bhp rpm bhp rpm bhp rpm
bhp rpm bhp rpm bhp
rpm
bhp
rpm
bhp
rpm
bhp
rpm
bhp
3200
1300 1.52 1323 1.61 1346 1.71 1368
1.80 1389 1.90 1410
1.99
1430
2.09
1450
2.19
1470
2.29
1489
2.38
3600
1401 1.87 1423 1.97 1444 2.07 1464
2.17 1485 2.27 1505
2.38
1524
2.48
1545
2.59
1563
2.70
1582
2.81
4000
1506 2.28 1526 2.39 1546 2.50 1564
2.60 1583 2.71 1602
3.29
4400
1615 2.77 1633 2.89 1652 3.01 1670
3.12 1687 3.24
4800
—
—
—
—
—
—
—
—
—
—
2.82
1622
2.94
1640
3.06
1659
3.18
1676
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
Notes:
1. For Direct Drive Fan Speed (RPM), reference Table 136, p. 180.
2. Data includes pressure drop due to standard filters and wet coils.
3. Refer to Table 139, p. 183 to determine additional static pressure drop due to other options/accessories.
4. Direct Drive Fan Motor Heat (MBH) = 2.8623 x Fan BHP - 0.1504
5. Factory supplied motors, in commercial equipment, are definite purpose motors, specifically designed and tested to operate reliably and continuously
at all cataloged conditions. Using the full horsepower range of our fan motors as shown in our tabular data will not result in nuisance tripping or
premature motor failure. Our product's warranty will not be affected.
RT-PRC023AG-EN
177
Evaporator Fan Performance
Table 130. Direct drive evaporator fan performance - 10 tons high efficiency - YHC120E3,E4,EW high gas heat, horizontal
airflow
External Static Pressure (Inches of Water)
0.10
0.20
0.30
0.40
0.50
0.60
0.70
0.80
0.90
1.00
cfm
rpm bhp rpm bhp rpm bhp rpm
bhp rpm bhp rpm bhp
rpm
bhp
rpm
bhp
rpm
bhp
rpm
bhp
3200
1002 0.60 1043 0.70 1081 0.80 1113
0.89 1142 0.99 1171
1.09
1200
1.19
1230
1.30
1259
1.41
1287
1.52
3600
1118 0.83 1155 0.94 1190 1.05 1222
1.15 1250 1.26 1276
1.38
1302
1.49
1328
1.60
1354
1.72
1381
1.84
4000
1234 1.11 1268 1.23 1300 1.35 1331
1.47 1359 1.59 1385
1.71
1408
1.83
1431
1.96
1454
2.08
1478
2.21
4400
1350 1.45 1382 1.58 1412 1.72 1440
1.85 1468 1.98 1494
2.11
1517
2.24
1539
2.38
1560
2.52
1581
2.65
4800
1467 1.85 1497 2.00 1524 2.15 1551
2.29 1578 2.43 1603
2.57
1626
2.72
1648
2.87
1669
3.01
1688
3.16
Continued
External Static Pressure (Inches of Water)
1.10
1.20
1.30
1.40
1.50
1.60
1.70
1.80
1.90
2.00
cfm
rpm bhp rpm bhp rpm bhp rpm
bhp rpm bhp rpm bhp
rpm
bhp
rpm
bhp
rpm
bhp
rpm
bhp
3200
1315 1.63 1344 1.75 1370 1.87 1398
2.00 1424 2.12 1449
2.25
1473
2.38
1497
2.50
1521
2.64
1543
2.76
3600
1406 1.96 1432 2.08 1456 2.20 1482
2.33 1507 2.47 1531
2.60
1555
2.74
1579
2.88
1602
3.02
1623
3.16
4000
1502 2.34 1526 2.47 1549 2.60 1573
2.74 1595 2.88 1617
4400
1602 2.79 1624 2.92 1645 3.06 1667
3.21 1689 3.36
4800
—
—
—
—
—
—
—
—
—
—
3.01
1640
3.16
1663
3.31
1685
3.46
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
Notes:
1. For Direct Drive Fan Speed (RPM), reference Table 136, p. 180.
2. Data includes pressure drop due to standard filters and wet coils.
3. Refer to Table 139, p. 183 to determine additional static pressure drop due to other options/accessories.
4. Direct Drive Fan Motor Heat (MBH) = 2.8623 x Fan BHP - 0.1504
5. Factory supplied motors, in commercial equipment, are definite purpose motors, specifically designed and tested to operate reliably and continuously
at all cataloged conditions. Using the full horsepower range of our fan motors as shown in our tabular data will not result in nuisance tripping or
premature motor failure. Our product's warranty will not be affected.
178
RT-PRC023AG-EN
Fan Performance
Table 131. Standard motor & sheave/fan speed (rpm)
Unit Model
Fan
6 Turns
5 Turns
4 Turns
3 Turns
2 Turns
1 Turn
Tons
Number
Sheave
Open
Open
Open
Open
Open
Open
Closed
3
T/YSC036E
AK51x3/4”
N/A
765
835
905
975
1045
1115
4
T/YSC048E
AK49x3/4”
N/A
804
876
948
1020
1091
1163
5
T/YSC060E
AK44x3/4”
N/A
885
966
1049
1131
1212
1295
6
T/YSC072F
AK64x1”
N/A
723
779
835
890
946
1002
1105
7½
T/YSC090F
AK59x1”
N/A
805
865
925
985
1045
7½
T/YSC092F
AK59x1”
N/A
639
696
753
810
867
924
8½
T/YSC102F
AK64x1”
N/A
767
807
847
888
928
1036
3
T/YHC036E
AK51x3/4”
N/A
765
835
905
975
1045
1115
4
T/YHC048E
AK54x3/4”
N/A
729
794
860
926
911
1057
4
T/YHC048F
AK54x3/4”
N/A
729
794
860
926
911
1057
5
T/YHC060E
AK49x3/4”
N/A
801
871
942
1012
1083
1154
5
T/YHC060F
AK49x3/4”
N/A
801
871
942
1012
1083
1154
6
T/YHC072*
AK64x1”
N/A
728
784
840
896
952
1008
Note: Factory set at 3 turns open.
Table 132. Standard motor & low static drive accessory sheave/fan speed (rpm)
Unit Model
Fan
6 Turns
5 Turns
4 Turns
3 Turns
2 Turns
1 Turn
Tons
Number
Sheave
Open
Open
Open
Open
Open
Open
3
T/YSC036E
AK71x3/4”
N/A
556
606
657
707
757
Closed
808
4
T/YSC048E
AK69x3/4”
N/A
N/A
624
675
727
779
832
5
T/YSC060E
AK61x3/4”
N/A
N/A
708
765
823
880
938
7½
T/YSC090F
AK74x1”
N/A
602
650
698
746
794
842
7½
TSC092F
AK99x1”
N/A
462
498
533
569
604
640
7½
TSC092F
AK79x1”
N/A
614
657
700
743
786
829
8½
TSC102F
AK99x1”
N/A
512
548
583
619
654
690
8½
TSC102F
AK79x1”
N/A
631
676
721
766
811
856
3
YHC036E
AK71x3/4”
N/A
556
607
657
707
758
808
3
THC036E
AK99x3/4”
N/A
385
424
462
501
539
578
4
YHC048E,F
AK71x3/4”
N/A
556
607
657
707
758
808
4
THC048E,F
AK99x3/4”
N/A
385
424
462
501
539
578
5
YHC060E,F
AK71x3/4”
N/A
556
607
657
707
758
808
5
THC060E,F
AK99x3/4”
N/A
385
424
462
501
539
578
6
YHC072E,F
AK79x1”
N/A
581
626
671
716
761
805
6
THC072E,F
AK99x1”
N/A
462
497
533
569
604
640
Note: Factory set at 3 turns open.
RT-PRC023AG-EN
179
Fan Performance
Table 133. Standard motor & high static drive accessory sheave/fan speed (rpm)
Unit Model
Fan
6 Turns
5 Turns
4 Turns
3 Turns
2 Turns
1 Turn
Tons
Number
Sheave
Open
Open
Open
Open
Open
Open
Closed
3
T/YSC036E
AK41x3/4”
N/A
967
1040
1113
1187
1228
N/A
4
T/YSC048E
AK41x3/4”
N/A
957
1033
1110
1187
1263
N/A
6
T/YSC072F
AK56x1”
N/A
831
895
959
1022
1086
1150
3
T/YHC036E
AK41x3/4”
N/A
N/A
967
1040
1113
1187
N/A
4
T/YHC048E,F
AK41x3/4”
N/A
N/A
966
1048
1132
1215
N/A
5
T/YHC060E,F
AK41x3/4”
N/A
N/A
961
1041
1122
1203
N/A
Note: Factory set at 3 turns open.
Table 134. Oversized motor & drive sheave/fan speed (rpm)
Unit Model
6 Turns
5 Turns
4 Turns
3 Turns
2 Turns
1 Turn
Tons
Number
Open
Open
Open
Open
Open
Open
Closed
6
T/YSC072F
AK56x1”
N/A
958
1022
1086
1150
1214
7½
T/YSC090F
AK56x1”
N/A
958
1022
1086
1150
1214
7½
T/YSC092F
AK64x1”
860
910
960
1010
1060
1110
8½
T/YSC102F
AK56x1”
998
1050
1103
1155
1207
1260
6
T/YHC072E,F
AK56x1”
N/A
885
948
1010
1073
1135
Notes: Factory set at 3 turns open.
* Indicates both standard and high efficiency units and both ReliaTel™ and Electromechanical controls.
Table 135. Oversized motor & high static drive sheave/fan speed (rpm)
Unit Model
6 Turns
5 Turns
4 Turns
3 Turns
2 Turns
1 Turn
Tons
Number
Open
Open
Open
Open
Open
Open
Closed
6
T/YSC072F
AK54x1”
N/A
995
1061
1128
1194
1261
7½
T/YSC090F
BK52x1”
N/A
1127
1197
1268
1338
1409
7½
T/YSC092F
AK56x1”
986
1043
1099
1156
1212
1269
Notes: Factory set at 3 turns open.
* Indicates both standard and high efficiency units and both ReliaTel™ and Electromechanical controls.
Table 136. Direct drive plenum fan settings (rpm vs. voltage)(a),(b)
T/YHC092F, T/YHC102F, T/YSC120F, T/YHC120E
Potentiometer Voltage
Motor RPM
1.25
217
1.5
312
1.75
362
2.0
427
2.25
479
2.50
543
2.75
605
3.00
668
3.25
732
3.50
797
3.75
863
continued on next page
180
RT-PRC023AG-EN
Fan Performance
Table 136. Direct drive plenum fan settings (rpm vs. voltage)(a),(b) (continued)
T/YHC092F, T/YHC102F, T/YSC120F, T/YHC120E
Potentiometer Voltage
Motor RPM
4.00
929
4.25
995
4.50
1061
4.75
1126
5.00
1191
5.25
1253
5.50
1315
5.75
1374
6.00
1432
6.25
1487
6.50
1539
6.75
1588
7.00
1633
7.25
1675
7.50
1700
(a) See fan tables for unit rpm and cfm units.
(b) Factory setting is 5V.
Table 137. Outdoor sound power level - dB (ref. 10 - 12 W)
Unit Model
Octave Center Frequency
Overall
Tons
Number
63
125
250
500
1000
2000
4000
8000
dBA
3
T/YSC036E
79
85
79
79
77
71
67
58
81
4
T/YSC048E
82
84
83
80
76
72
66
58
82
5
T/YSC060E
85
82
81
81
77
72
67
61
82
6
T/YSC072F
91
95
90
87
84
79
75
68
89
7½
T/YSC090F
91
95
90
87
84
79
75
68
89
7½
T/YSC092F
92
96
92
89
85
80
76
69
91
8½
T/YSC102F
91
95
90
87
84
79
75
68
89
10
T/YSC120F
91
86
90
86
82
78
73
67
88
3
T/YHC036E
79
85
79
79
77
71
67
58
81
4
T/YHC048E
80
86
84
85
83
79
73
67
87
4
T/YHC048F
80
86
84
85
83
79
73
67
87
5
T/YHC060E
80
86
84
85
83
79
73
67
87
5
T/YHC060F
80
86
84
85
83
79
73
67
87
6
T/YHC072E,F
91
95
90
87
84
79
75
68
89
7½
T/YHC092F
91
86
90
86
82
78
73
67
88
8½
T/YHC102F
83
85
85
86
84
78
74
70
88
10
T/YHC120E
89
87
91
85
80
77
73
66
87
Note: Tests follow ARI270-95.
RT-PRC023AG-EN
181
Fan Performance
Table 138. Static pressure drop through accessories (inches water column) - 3-10 tons
Economizer with OA/RA Dampers(a)
2" MERV 2" MERV 100% 100% 100% 100% 100% 100%
8
13
OA
RA
OA
RA
OA
RA
Unit Model
Standard
Tons
Number
cfm
Filters(d)
Filter
Filter
Downflow
3
T/YSC036E1
960
0.01
0.03
0.04
0.04
0.01
0.10
0.04
0.04
3
T/YSC036E1 1200
0.02
0.04
0.05
0.06
0.01
0.20
0.07
0.06
3
T/YSC036E1 1440
0.03
0.05
0.06
0.08
0.02
0.20
0.09
3
T/YSC036E3
0.01
0.03
0.04
0.04
0.01
0.11
3
T/YSC036E3 1200
0.02
0.04
0.05
0.06
0.01
0.17
3
T/YSC036E3 1440
0.03
0.05
0.06
0.08
0.02
4
T/YSC048E1 1280
0.03
0.05
0.06
0.09
4
T/YSC048E1 1600
0.04
0.07
0.07
4
T/YSC048E1 1920
0.06
0.10
0.08
4
T/YSC048E3 1280
0.03
0.05
4
T/YSC048E3 1600
0.04
4
T/YSC048E3 1920
5
T/YSC060E1 1600
5
Electric Heater
Accessory (kW)(b),(c)
5-6
9-18 23-36 54
0.01
0.01
0.01
0.01
—
0.01
0.02
0.02
0.02
—
0.08
0.01
0.02
0.03
0.03
—
0.04
0.04
0.01
0.01
0.01
0.01
—
0.07
0.06
0.01
0.02
0.02
0.02
—
0.23
0.09
0.08
0.01
0.02
0.03
0.03
—
0.02
0.08
0.04
0.09
0.01
0.02
0.03
0.03
—
0.13
0.04
0.13
0.08
0.13
0.02
0.04
0.05
0.05
—
0.17
0.06
0.20
0.09
0.17
0.02
0.05
0.06
0.08
—
0.06
0.09
0.02
0.08
0.04
0.09
0.01
0.02
0.03
0.03
—
0.07
0.07
0.13
0.04
0.13
0.08
0.13
0.02
0.04
0.05
0.05
—
0.06
0.10
0.08
0.17
0.06
0.20
0.09
0.17
0.02
0.05
0.06
0.08
—
0.04
0.07
0.07
0.13
0.04
0.14
0.08
0.13
0.02
0.04
0.05
0.05
—
T/YSC060E1 2000
0.06
0.10
0.09
0.18
0.07
0.22
0.10
0.18
0.02
0.06
0.07
0.08
—
5
T/YSC060E1 2400
0.08
0.13
0.10
0.25
0.11
0.31
0.11
0.25
0.03
0.08
0.10
0.12
—
5
T/YSC060E3 1600
0.04
0.07
0.07
0.13
0.04
0.14
0.08
0.13
0.02
0.04
0.05
0.05
—
5
T/YSC060E3 2000
0.06
0.10
0.09
0.18
0.07
0.22
0.10
0.18
0.02
0.06
0.07
0.08
—
5
T/YSC060E3 2400
0.08
0.13
0.10
0.25
0.11
0.31
0.11
0.25
0.03
0.08
0.10
0.12
—
960
Low
Leak(e)
Horizontal
6
T/YSC072F
1920
0.04
0.07
0.10
0.10
0.01
0.20
0.09
0.06
0.02
—
0.01
0.02
—
6
T/YSC072F
2400
0.06
0.09
0.13
0.11
0.02
0.31
0.11
0.08
0.02
—
0.02
0.03
—
6
T/YSC072F
2880
0.09
0.12
0.15
0.13
0.04
0.46
0.19
0.10
0.04
—
0.03
0.05
—
7½
T/YSC090F
2400
0.04
0.06
0.12
0.11
0.02
0.20
0.09
0.08
0.02
—
0.02
0.02
—
7½
T/YSC090F
3000
0.06
0.09
0.13
0.14
0.05
0.31
0.11
0.12
0.05
—
0.03
0.03
—
7½
T/YSC090F
3600
0.09
0.13
0.15
0.21
0.07
0.46
0.19
0.25
0.08
—
0.04
0.05
—
7½
T/YSC092F
2400
0.04
0.06
0.12
0.11
0.02
0.20
0.11
0.08
0.02
—
0.02
0.02
—
7½
T/YSC092F
3000
0.06
0.09
0.13
0.14
0.05
0.31
0.20
0.12
0.05
—
0.03
0.03
—
7½
T/YSC092F
3600
0.09
0.13
0.15
0.21
0.07
0.46
0.30
0.25
0.08
—
0.04
0.05
—
8½
T/YSC102F
2720
0.05
0.08
0.13
0.12
0.03
0.42
0.18
0.09
0.04
—
0.02
0.03
—
8½
T/YSC102F
3400
0.08
0.11
0.14
0.19
0.06
0.63
0.21
0.18
0.06
—
0.03
0.04
—
8½
T/YSC102F
4080
0.12
0.16
0.16
0.30
0.07
0.91
0.34
0.31
0.09
—
0.05
0.06
—
10
T/YSC120F
3200
0.07
0.10
0.14
0.17
0.05
0.42
0.18
0.14
0.05
—
0.02
0.03
0.05
10
T/YSC120F
4000
0.11
0.15
0.16
0.26
0.07
0.63
0.21
0.30
0.08
—
0.02
0.03
0.05
10
T/YSC120F
4800
0.16
0.20
0.18
0.34
0.09
0.91
0.34
0.35
0.10
—
0.03
0.04
0.06
(a) OA = Outside Air and RA = Return Air.
(b) Nominal kW ratings at 240, 480, 600 volts. Heaters only available on T units.
(c) Electric heaters restricted on applications below 320 cfm/Ton.
(d) Tested with standard filters. Difference in pressure drop should be considered when utilizing optional 2” MERV 8 and MERV 13 filters.
(e) Low Leak - Downflow only.
182
RT-PRC023AG-EN
Fan Performance
Table 139. Static pressure drop through accessories (inches water column) - 3-10 tons
Economizer with OA/RA Dampers(a)
Unit Model
2"
2"
100% 100% 100% 100% 100% 100%
9- 23MERV 8 MERV 13 Reheat OA
RA
OA
RA
OA
RA 5-6 18 36 54
cfm Filters(d)
Filter
Filter
Coil
T/YHC036E1
960
0.01
0.03
0.04
—
0.04
0.01
0.10
0.04
0.04
0.01
0.01 0.01 0.01
—
T/YHC036E1
1200
0.02
0.04
0.05
—
0.06
0.01
0.20
0.07
0.06
0.01
0.02 0.02 0.02
—
T/YHC036E1
1440
0.02 0.03 0.03
Tons
Number
3
3
3
Std.
Electric Heater
Accessory
(kW)(b),(c)
Downflow
Low Leak(e)
Horizontal
0.03
0.05
0.06
—
0.08
0.02
0.20
0.09
0.08
0.01
3
T/YHC036E3,4,W 600
0.01
0.02
0.03
0.04
0.03
0.01
0.04
0.01
0.03
0.01
3
T/YHC036E3,4,W 960
0.01
0.03
0.04
0.08
0.04
0.01
0.11
0.04
0.04
0.01
0.01 0.01 0.01
—
3
T/YHC036E3,4,W 1200
0.02
0.04
0.05
0.10
0.06
0.01
0.17
0.07
0.06
0.01
0.02 0.02 0.02
—
3
T/YHC036E3,4,W 1440
—
—
—
—
—
0.03
0.05
0.06
0.14
0.08
0.02
0.23
0.09
0.08
0.01
0.02 0.03 0.03
—
4
T/YHC048F1
1280
0.02
0.04
0.03
—
0.08
0.00
0.08
0.04
0.04
0.01
0.01 0.00 0.01
—
4
T/YHC048F1
1600
0.03
0.06
0.05
—
0.09
0.01
0.13
0.08
0.05
0.02
0.02 0.01 0.02
—
4
T/YHC048F1
1920
0.05
0.08
0.07
—
0.10
0.01
0.20
0.09
0.07
0.02
0.02 0.01 0.03
—
4
T/YHC048E/
F3,4,W
800
0.01
0.03
0.04
0.03
0.06
0.00
0.02
0.03
0.03
0.01
4
T/YHC048E/
F3,4,W
1280
0.02
0.04
0.03
0.07
0.08
0.00
0.08
0.04
0.04
0.01
0.01 0.00 0.01
—
4
T/YHC048E/
F3,4,W
1600
0.03
0.06
0.05
0.09
0.09
0.01
0.13
0.08
0.05
0.02
0.02 0.01 0.02
—
4
T/YHC048E/
F3,4,W
1920
0.05
0.08
0.07
0.12
0.10
0.01
0.20
0.09
0.07
0.02
0.02 0.01 0.03
—
5
T/YHC060F1
1600
0.03
0.06
0.08
—
0.09
0.01
0.14
0.08
0.05
0.02
0.02 0.01 0.02
—
5
T/YHC060F1
2000
0.05
0.08
0.11
—
0.11
0.01
0.22
0.10
0.07
0.02
0.02 0.02 0.03
—
5
T/YHC060F1
2400
0.07
0.10
0.13
—
0.12
0.03
0.31
0.11
0.09
0.03
0.03 0.02 0.04
—
5
T/YHC060E/
F3,4,W
1000
0.01
0.04
0.03
0.05
0.06
0.01
0.04
0.03
0.06
0.01
5
T/YHC060E/
F3,4,W
1600
0.03
0.06
0.08
0.09
0.09
0.01
0.14
0.08
0.05
0.01
0.02 0.01 0.02
—
5
T/YHC060E/
F3,4,W
2000
0.05
0.08
0.11
0.13
0.11
0.01
0.22
0.10
0.07
0.02
0.02 0.02 0.03
—
5
T/YHC060E/
F3,4,W
2400
0.07
0.10
0.13
0.17
0.12
0.03
0.31
0.11
0.09
0.04
0.03 0.02 0.04
—
6
T/YHC072E/F
1920
0.04
0.07
0.10
0.03
0.10
0.01
0.20
0.09
0.06
0.02
—
0.01 0.02
—
6
T/YHC072E/F
2400
0.06
0.09
0.13
0.07
0.11
0.02
0.31
0.11
0.08
0.02
—
0.02 0.03
—
6
T/YHC072E/F
2880
0.09
0.12
0.15
0.12
0.13
0.04
0.46
0.19
0.10
0.04
—
0.03 0.05
—
—
—
—
—
—
—
—
—
continued on next page
RT-PRC023AG-EN
183
Fan Performance
Table 139. Static pressure drop through accessories (inches water column) - 3-10 tons (continued)
Economizer with OA/RA Dampers(a)
Unit Model
Electric Heater
Accessory
(kW)(b),(c)
2"
2"
100% 100% 100% 100% 100% 100%
9- 23MERV 8 MERV 13 Reheat OA
RA
OA
RA
OA
RA 5-6 18 36 54
Std.
cfm Filters(d)
Filter
Filter
Coil
Downflow
T/YHC092F
1500
0.02
0.03
0.08
0.03
0.07
0.01
0.07
0.05
0.04
0.01
—
7½
T/YHC092F
2400
0.04
0.06
0.12
0.06
0.11
0.02
0.20
0.11
0.08
0.02
—
0.01 0.01
—
7½
T/YHC092F
3000
0.06
0.09
0.13
0.08
0.14
0.05
0.31
0.20
0.12
0.05
—
0.01 0.02
—
7½
T/YHC092F
3600
0.09
0.13
0.15
0.11
0.21
0.07
0.46
0.30
0.25
0.08
—
0.02 0.03
8½
T/YHC102F
1700
0.02
0.05
0.11
0.04
0.07
0.01
0.16
0.09
0.05
0.02
—
8½
T/YHC102F
2720
0.05
0.08
0.13
0.07
0.12
0.03
0.42
0.18
0.09
0.04
—
0.01 0.02
—
8½
T/YHC102F
3400
0.08
0.11
0.14
0.10
0.19
0.06
0.63
0.21
0.18
0.06
—
0.02 0.02
—
8½
T/YHC102F
4080
0.12
0.16
0.16
0.13
0.30
0.07
0.91
0.34
0.31
0.09
—
0.03 0.03
10
T/YHC120E
2000
0.03
0.06
0.11
0.05
0.80
0.03
0.22
0.10
0.07
0.02
—
10
T/YHC120E
3200
0.07
0.10
0.14
0.09
0.17
0.05
0.57
0.20
0.14
0.05
—
0.02 0.03 0.05
10
T/YHC120E
4000
0.11
0.15
0.16
0.12
0.26
0.07
0.87
0.33
0.30
0.08
—
0.02 0.03 0.05
10
T/YHC120E
4800
0.16
0.20
0.18
0.16
0.34
0.09
1.23
0.49
0.35
0.10
—
0.03 0.04 0.06
Tons
Number
7½
Low Leak(e)
Horizontal
—
—
—
—
—
—
—
—
—
—
—
(a) OA = Outside Air and RA = Return Air.
(b) Nominal kW ratings at 240, 480, 600 volts. Heaters only available on T units.
(c) Electric heaters restricted on applications below 320 cfm/Ton.
(d) Tested with standard filters. Difference in pressure drop should be considered when utilizing optional 2” MERV 8 and MERV 13 filters.
(e) Low Leak - Downflow only.
Table 140. Gas fired heating capacities - standard efficiency
Unit Model
Heating
Heating
Air Temp.
Tons
Number
Input MBh(a)
Output MBh
Rise, F
3
YSC036E1*(L,X)
60
48
25-55
3
YSC036E1*(M,Y)
80
65
35-65
3
YSC036E1*(H,Z)
120
96
55-85
3
YSC036E(3,4,W)*(L,X)
60
48
25-55
3
YSC036E(3,4,W)*(M,Y)
80
64
35-65
3
YSC036E(3,4,W)*(H,Z)
120
96
55-85
4
YSC048E1*(L,X)
60
49
15-45
4
YSC048E1*(M,Y)
80
65
20-50
4
YSC048E1*(H,Z)
120
96
40-70
4
YSC048E(3,4,W)*(L,X)
60
48
15-45
4
YSC048E(3,4,W)*(M,Y)
80
64
20-50
4
YSC048E(3,4,W)*(H,Z)
120
96
40-70
5
YSC060E1*(L,X)
60
48
10-40
5
YSC060E1*(M,Y)
80
65
15-45
5
YSC060E1*(H,Z)
130
104
35-65
5
YSC060E(3,4,W)*(L,X)
60
48
10-40
5
YSC060E(3,4,W)*(M,Y)
80
64
15-45
5
YSC060E(3,4,W)*(H,Z)
130
104
35-65
continued on next page
184
RT-PRC023AG-EN
Fan Performance
Table 140. Gas fired heating capacities - standard efficiency (continued)
Tons
Unit Model
Heating
Heating
Air Temp.
Number
Input MBh(a)
Output MBh
Rise, F
6
YSC072F(3,4,W)*(L,X)
80
64
15-45
6
YSC072F(3,4,W)*(M,Y)
120
96
20-50
6
YSC072F(3,4,W)*(H,Z)
150/105
120/84
25-55
7½
YSC090F(3,4,W)*(L,X)
120
96
20-50
7½
YSC090F(3,4,W)*(M,Y)
150/105
120/84
25-55
7½
YSC090F(3,4,W)*(H,Z)
200/140
160/112
35-65
7½
YSC092F(3,4,W)*(L,X)
120
96
15-45
7½
YSC092F(3,4,W)*(M,Y)
150/105
120/84
20-50
7½
YSC092F(3,4,W)*(H,Z)
200/140
160/112
35-65
8½
YSC102F(3,4,W)*(L,X)
120
96
15-45
8½
YSC102F(3,4,W)*(M,Y)
150/105
120/84
20-50
8½
YSC102F(3,4,W)*(H,Z)
200/140
160/112
35-65
10
YSC120F(3,4,W)*(L,X)
150/105
120/84
20-50
10
YSC120F(3,4,W)*(M,Y)
200/140
160/112
25-55
10
YSC120F(3,4,W)*(H,Z)
250/175
200/140
35-65
Note: Ratings shown are for elevations up to 2,000 ft. For higher elevations, reduce ratings at a rate of 4% per 1,000 ft. elevation.
(a) For two stage heaters (input or output), Second stage is total heating capacity. Second Stage/First Stage.
Table 141. Gas fired heating capacities - high efficiency
Unit Model
Heating
Heating
Air Temp.
Tons
Number
Input MBh
Output MBh
Rise, F
3
YHC036E1*(L,X)
60
48
25-55
3
YHC036E1*(M,Y)
80
65
35-65
3
YHC036E1*(H,Z)
120
96
55-85
3
YHC036E(3,4,W)*(L,X)
60
48
25-55
3
YHC036E(3,4,W)*(M,Y)
80
64
35-65
3
YHC036E(3,4,W)*(H,Z)
120
96
55-85
4
YHC048F1*(L,X)
60
49
10-40
4
YHC048F1*(M,Y)
80
64
20-50
4
YHC048F1*(H,Z)
120
96
40-70
4
YHC048E(3,4,W)*(L,X)
60
48
10-40
4
YHC048E(3,4,W)*(M,Y)
80
64
20-50
4
YHC048E(3,4,W)*(H,Z)
120
96
40-70
4
YHC048F(3,4,W)*(L,X)
60
48
10-40
20-50
4
YHC048F(3,4,W)*(M,Y)
80
64
4
YHC048F(3,4,W)*(H,Z)
120
96
40-70
5
YHC060F1*(L,X)
60
49
10-40
5
YHC060F1*(M,Y)
80
64
15-45
5
YHC060F1*(H,Z)
130
104
35-65
5
YHC060E(3,4,W)*(L,X)
60
48
10-40
5
YHC060E(3,4,W)*(M,Y)
80
64
15-45
5
YHC060E(3,4,W)*(H,Z)
130
104
35-65
continued on next page
RT-PRC023AG-EN
185
Fan Performance
Table 141. Gas fired heating capacities - high efficiency (continued)
Unit Model
Heating
Heating
Air Temp.
Number
Input MBh
Output MBh
Rise, F
5
YHC060F(3,4,W)*(L,X)
60
48
10-40
5
YHC060F(3,4,W)*(M,Y)
80
64
15-45
5
YHC060F(3,4,W)*(H,Z)
130
104
35-65
6
YHC072*(3,4,W)*(L,X)
80
64
15-45
6
YHC072*(3,4,W)*(M,Y)
120
96
20-50
6
YHC072*(3,4,W)*(H,Z)
150/105
120/84
25-55
7½
YHC092F(3,4,W)*(L,X)
120
96
20-50
7½
YHC092F(3,4,W)*(M,Y)
150/105
120/84
20-50
Tons
7½
YHC092F(3,4,W)*(H,Z)
200/140
160/112
35-65
8½
YHC102F(3,4,W)*(L,X)
120
96
20-50
8½
YHC102F(3,4,W)*(M,Y)
150/105
120/84
20-50
8½
YHC102F(3,4,W)*(H,Z)
200/140
160/112
35-65
10
YHC120E(3,4,W)*(L,X)
150/105
120/84
20-50
10
YHC120E(3,4,W)*(M,Y)
200/140
160/112
25-55
10
YHC120E(3,4,W)*(H,Z)
250/175
200/140
35-65
Note: Ratings shown are for elevations up to 2,000 ft. For higher elevations, reduce ratings at a rate of 4% per 1,000 ft. elevation.
Table 142. Auxiliary electric heat capacity
Total(a)
Tons
Stage1
Stage 2
Unit Model
kW
MBh
No. of
kW
MBh
kW
MBh
Number
Input(b)
Output
Stages
Input
Output
Input
Output
3
T*C036E1
5.00
17.07
1
5.00
17.07
—
—
3
T*C036E1
10.00
34.14
2
5.00
17.07
5.00
17.07
30.04
3
T*C036E1
13.80
47.11
2
5.00
17.07
8.80
3
T*C036E3, E4, EW
6.00
20.48
1
6.00
20.48
—
—
3
T*C036E3, E4, EW
12.00
40.97
2
6.00
20.48
6.00
20.48
3
T*C036E3, E4, EW
17.40
59.40
2
8.70
29.70
8.70
29.70
4
T*C048*1
5.00
17.07
1
5.00
17.07
—
—
4
T*C048*1
10.00
34.14
2
5.00
17.07
5.00
17.07
4
T*C048*1
13.80
47.11
2
5.00
17.07
8.80
30.04
4
T*C048*1
17.60
60.09
2
8.80
30.04
8.80
30.04
4
T*C048*3, *4, EW
6.00
20.48
1
6.00
20.48
—
—
4
T*C048*3, *4, EW
12.00
40.97
2
6.00
20.48
6.00
20.48
4
T*C048*3, *4, EW
17.40
59.40
2
8.70
29.70
8.70
29.70
5
T*C060*1
5.00
17.07
1
5.00
17.07
—
—
5
T*C060*1
10.00
34.14
2
5.00
17.07
5.00
17.07
5
T*C060*1
13.80
47.11
2
5.00
17.07
8.80
30.04
5
T*C060*1
17.60
60.09
2
8.80
30.04
8.80
30.04
5
T*C060*3, *4, EW
6.00
20.48
1
6.00
20.48
—
—
5
T*C060*3, *4, EW
12.00
40.97
2
6.00
20.48
6.00
20.48
5
T*C060*3, *4, EW
17.40
59.40
2
8.70
29.70
8.70
29.70
5
T*C060*3, *4, EW
23.00
78.52
2
8.70
29.70
14.30
48.82
continued on next page
186
RT-PRC023AG-EN
Fan Performance
Table 142. Auxiliary electric heat capacity (continued)
Total(a)
Stage1
Stage 2
Unit Model
kW
MBh
No. of
kW
MBh
kW
MBh
Tons
Number
Input(b)
Output
Stages
Input
Output
Input
Output
6
TSC072F3,4,W
9.00
30.73
1
9.00
30.73
—
—
6
TSC072F3,4,W
18.00
61.45
1
18.00
61.45
—
—
6
TSC072F3,4,W
27.00
92.18
2
18.00
61.45
9.00
30.73
6
TSC072F3,4,W
36.00
122.90
2
18.00
61.45
18.00
61.45
6
THC072*3,4,W
9.00
30.73
1
9.00
30.73
—
—
6
THC072*3,4,W
18.00
61.45
1
18.00
61.45
—
—
6
THC072*3,4,W
27.00
92.18
2
18.00
61.45
9.00
30.73
6
THC072*3,4,W
36.00
122.90
2
18.00
61.45
18.00
61.45
7½
TSC090F3,4,W
9.00
30.73
1
9.00
30.73
—
—
7½
TSC090F3,4,W
18.00
61.45
1
18.00
61.45
—
—
7½
TSC090F3,4,W
27.00
92.18
2
18.00
61.45
9.00
30.73
7½
TSC090F3,4,W
36.00
122.90
2
18.00
61.45
18.00
61.45
7½
TSC092F3,4,W
9.00
30.73
1
9.00
30.73
—
—
7½
TSC092F3,4,W
18.00
61.45
1
18.00
61.45
—
—
7½
TSC092F3,4,W
27.00
92.18
2
18.00
61.45
9.00
30.73
7½
TSC092F3,4,W
36.00
122.90
2
18.00
61.45
18.00
61.45
7½
THC092F3,4,W
9.00
30.73
1
9.00
30.73
—
—
7½
THC092F3,4,W
18.00
61.45
1
18.00
61.45
—
—
7½
THC092F3,4,W
27.00
92.18
2
18.00
61.45
9.00
30.73
7½
THC092F3,4,W
36.00
122.90
2
18.00
61.45
18.00
61.45
8½
TSC102F3,4,W
9.00
30.73
1
9.00
30.73
—
—
8½
TSC102F3,4,W
18.00
61.45
1
18.00
61.45
—
—
8½
TSC102F3,4,W
27.00
92.18
2
18.00
61.45
9.00
30.73
8½
TSC102F3,4,W
36.00
122.90
2
18.00
61.45
18.00
61.45
8½
THC102F3,4,W
9.00
30.73
1
9.00
30.73
—
—
8½
THC102F3,4,W
18.00
61.45
1
18.00
61.45
—
—
8½
THC102F3,4,W
27.00
92.18
2
18.00
61.45
9.00
30.73
8½
THC102F3,4,W
36.00
122.90
2
18.00
61.45
18.00
61.45
10
TSC120F3,4,W
18.00
61.45
1
18.00
61.45
—
—
10
TSC120F3,4,W
27.00
92.18
2
18.00
61.45
9.00
30.73
10
TSC120F3,4,W
36.00
122.90
2
18.00
61.45
18.00
61.45
10
TSC120F3,4,W
54.00
184.36
2
36.00
122.90
18.00
61.45
10
THC120E3,4
18.00
61.45
1
18.00
61.45
—
—
10
THC120E3,4,W
27.00
92.18
2
18.00
61.45
9.00
30.73
10
THC120E3,4,W
36.00
122.90
2
18.00
61.45
18.00
61.45
10
THC120E3,4,W
54.00
184.36
2
36.00
122.90
18.00
61.45
(a) Heaters are rated at 240V,380V,480V and 600V. For other than rated voltage, CAP= (voltage/rated voltage)2 x rated cap.
(b) All input/output does not include indoor fan power or heat.
RT-PRC023AG-EN
187
Fan Performance
Table 143. Electric heater voltage correction factors (applicable to auxiliary heat capacity)
Nominal
Distribution
Capacity
Voltage
Voltage
Multiplier
240
208
0.751
240
230
0.918
240
240
1.000
480
440
0.840
480
460
0.918
480
480
1.000
600
540
0.810
600
575
0.918
600
600
1.000
Table 144. Air temperature rise across electric heaters (°F)
Single
Phase
3 Tons(a)
4 Tons
5 Tons(b)
1200 cfm
1600 cfm
2000 cfm
Three Phase
Single Phase
Three Phase
kW Stages T*C036E1 T*C036E3,E4,EW T*C048E/F1 T*C048E/F3, E/F4, EW
Single Phase
Three Phase
T*C060E/F1
T*C060E/F3, E/F4, EW
5.00
1
13.8
—
10.5
—
8.5
—
6.00
1
—
18.5
—
10.5
—
11.4
10.00
2
26.8
—
20.3
—
16.3
—
12.00
2
—
36.2
—
22.3
—
21.5
13.80
2
36.9
—
27.8
—
22.3
—
17.40
2
—
48.2
—
33.0
—
30.0
17.60
2
—
—
35.5
—
28.3
—
23.0
2
—
—
—
—
—
38.8
Notes:
1. For minimum design airflow, see airflow performance table for each unit.
2. To calculate temp rise at different airflow, use the following formula: Temp. rise across Electric Heater = kWx3414/1.08xCFM.
(a) The minimum allowable airflow for a 3 ton with a 17.4 kW heater is 1080 cfm.
(b) The minimum allowable airflow for a 5 ton unit with a 23.0 kW heater is 1900 cfm.
Table 145. 6-10 tons air temperature rise across electric heaters (°F)
6 Tons
7½ Tons
8½ Tons
10 Tons
2000 cfm
3000 cfm
3400 cfm
4000 cfm(a)
TSC090F3,4,W
TSC092F3,4,W
THC092F3,4,W
TSC102F3,4,W
THC102F3,4,W
TSC120F3,4,W
THC120E3,4,W
kW
Stages
TSC072F3,4,W
THC072F3,4,W
9.0
1
14.2
9.5
8.4
—
18.0
1
28.5
19.0
16.7
14.2
27.0
2
42.7
28.5
25.1
21.3
36.0
2
56.9
37.9
33.5
28.5
54.0
2
—
—
—
42.7
Notes:
1. For minimum design airflow, see airflow performance table for each unit.
2. To calculate temp rise at different airflow, use the following formula:
Temp. rise across Electric Heater = kWx3414/1.08xcfm.
(a) Minimum allowable airflow with a 54 kW heater for the TSC120F and THC120E is 3400 cfm.
188
RT-PRC023AG-EN
Fan Performance
Table 146. Reheat temperature rise table
Leaving Evaporator Dry Bulb
Tons
Unit Model
No.
CFM
35
40
45
50
55
60
65
3
THC
600
26.3
24.6
22.8
21.0
19.2
17.5
15.8
3
THC
720
24.4
22.8
21.1
19.4
17.7
16.1
14.6
3
THC
840
22.8
21.3
19.8
18.3
16.7
15.2
13.7
3
T/YHC
960
21.3
20.0
18.6
17.2
15.7
14.3
13.0
3
T/YHC
1080
20.0
18.8
17.5
16.2
14.9
13.6
12.3
3
T/YHC
1200
18.9
17.7
16.5
15.3
14.1
12.9
11.7
3
T/YHC
1320
17.9
16.8
15.7
14.6
13.4
12.2
11.1
3
T/YHC
1440
17.0
16.0
14.9
13.9
12.8
11.7
10.6
4
THC
800
18.1
16.7
15.4
14.1
12.8
11.6
10.6
4
THC
960
16.5
15.3
14.1
12.9
11.7
10.6
9.6
4
THC
1120
15.1
14.0
12.9
11.9
10.8
9.8
8.8
4
T/YHC
1280
14.0
13.0
12.0
11.0
10.0
9.1
8.2
4
T/YHC
1440
13.1
12.2
11.3
10.3
9.4
8.5
7.7
4
T/YHC
1600
12.3
11.4
10.6
9.7
8.8
8.0
7.2
4
T/YHC
1760
11.6
10.8
10.0
9.2
8.4
7.6
6.8
4
T/YHC
1920
10.9
10.2
9.4
8.7
7.9
7.2
6.4
5
THC
1000
24.4
22.9
21.5
20.1
18.8
17.4
16.1
5
THC
1200
22.4
21.1
19.8
18.5
17.3
16.1
14.9
5
THC
1400
20.8
19.6
18.4
17.2
16.1
15.0
13.9
5
T/YHC
1600
19.4
18.3
17.2
16.1
15.0
14.0
13.0
5
T/YHC
1800
18.1
17.1
16.1
15.1
14.2
13.2
12.2
5
T/YHC
2000
17.0
16.1
15.2
14.3
13.4
12.4
11.5
5
T/YHC
2200
16.1
15.3
14.4
13.5
12.6
11.8
10.9
5
T/YHC
2400
15.2
14.4
13.7
12.8
12.0
11.2
10.4
6
THC
1200
27.4
25.3
23.5
21.8
20.3
18.9
17.7
6
THC
1680
22.7
20.9
19.3
17.9
16.6
15.4
14.4
6
THC
1920
21.0
19.3
17.8
16.4
15.2
14.1
13.1
6
T/YHC
2160
19.4
17.8
16.4
15.2
14.1
13.1
12.2
6
T/YHC
2400
18.0
16.5
15.3
14.1
13.1
12.2
11.3
6
T/YHC
2640
16.8
15.5
14.3
13.2
12.3
11.4
10.6
6
T/YHC
2880
12.7
11.8
11.0
10.4
9.7
9.2
8.7
7½
THC
1500
36.7
39.1
41.2
43.1
44.9
46.4
47.8
7½
THC
1800
30.2
32.2
33.9
35.3
36.3
37.0
37.3
7½
THC
2100
25.4
27.1
28.6
29.8
30.7
31.3
31.7
7½
T/YHC
2400
21.9
23.4
24.7
25.8
26.6
27.3
27.7
7½
T/YHC
2700
19.3
20.6
21.8
22.8
23.6
24.3
24.8
7½
T/YHC
3000
17.1
18.3
19.4
20.3
21.1
21.7
22.2
7½
T/YHC
3300
15.5
16.6
17.6
18.5
19.3
19.9
20.4
7½
T/YHC
3600
14.1
15.1
16.0
16.7
17.5
18.1
18.6
continued on next page
RT-PRC023AG-EN
189
Fan Performance
Table 146. Reheat temperature rise table (continued)
Leaving Evaporator Dry Bulb
190
Tons
Unit Model
No.
CFM
35
40
45
50
55
60
65
8½
THC
1700
34.4
36.8
39.0
41.0
42.8
44.5
46.0
8½
THC
2040
28.3
30.4
32.2
33.8
35.2
36.4
37.4
8½
THC
2380
24.0
25.9
27.5
29.0
30.2
31.3
32.2
8½
T/YHC
2720
20.9
22.5
24.0
25.3
26.4
27.3
28.1
8½
T/YHC
3060
18.4
19.9
21.3
22.5
23.5
24.4
25.1
8½
T/YHC
3400
16.4
17.8
19.1
20.2
21.2
22.0
22.7
8½
T/YHC
3740
14.8
16.2
17.4
18.4
19.4
20.1
20.8
8½
T/YHC
4080
13.5
14.7
15.8
16.8
17.7
18.4
19.0
10
THC
2000
34.9
36.4
37.9
39.4
40.9
42.3
43.7
10
THC
2400
29.3
30.6
32.0
33.3
34.6
35.8
37.0
10
THC
2800
25.3
26.5
27.6
28.8
30.0
31.1
32.2
10
T/YHC
3200
22.3
23.3
24.4
25.4
26.5
27.5
28.4
10
T/YHC
3600
19.9
20.8
21.8
22.8
23.7
24.6
25.5
10
T/YHC
4000
17.9
18.8
19.7
20.6
21.5
22.3
23.1
10
T/YHC
4400
16.3
17.2
18.0
18.8
19.6
20.4
21.1
10
T/YHC
4800
15.0
15.8
16.6
17.3
18.1
18.8
19.5
RT-PRC023AG-EN
Controls
ReliaTel™ Controlled Units
Zone Sensors are the building occupant’s comfort control devices.The following zone sensor
options are available for Precedent units with ReliaTel™ control:
Differential Enthalpy
Differential Enthalpy replaces the standard dry bulb control with two enthalpy sensors that
compare total heat content of the indoor air and outdoor air to determine the most efficient air
source.This control option offers the highest level of comfort control, plus energy efficiency,
available.
Differential Pressure Switches
This factory or field-installed option allows individual fan failure and dirty filter indication.The fan
failure switch will disable all unit functions and “flash” the Service LED on the zone sensor.The dirty
filter switch will light the Service LED on the zone sensor and will allow continued unit operation.
RT-PRC023AG-EN
Manual Changeover
Manual/Automatic
Changeover
Manual/Automatic
Changeover
Heat, Cool or Off System
Switch. Fan Auto or Off
Switch. One temperature
setpoint lever.
Auto, Heat, Cool or Off System
Switch. Fan Auto or Off Switch.
Two temperature setpoint
levers.
Auto, Heat, Cool or Off System
Switch. Fan Auto or Off Switch.
Two temperature setpoint
levers. Status Indication LED
lights, System On, Heat, Cool, or
Service.
Manual/Automatic
Changeover
Remote Sensor
Integrated Comfort™
System
Auto, Heat, Cool or Off
System Switch. Fan Auto
or Off Switch.Two
temperature setpoint
levers.
Sensor(s) available for all zone
sensors to provide remote
sensing capabilities.
Sensor(s) available with
optional temperature
adjustment and override
buttons to provide central
control through aTrane
Integrated Comfort™ system.
191
Controls
Digital Display Programmable
Thermostat (1H/1C)
Digital Display Thermostat
(3H/2C)
Digital Display
Programmable Thermostat
(3H/2C)
One heat/One Cool Auto changeover
digital display thermostat.
Three Heat,Two Cool Auto
changeover digital display
thermostat.
Three Heat/Two Cool Auto
changeover digital display
thermostat. 7-day programmable
stat with night setback is available.
Programmable Night
Setback
Wireless Zone Sensor
CO2 Sensing
Humidity Sensor
Auto or manual changeover
with seven-day programming.
Keyboard selection of Heat,
Cool, Fan, Auto, or On. All
programmable sensors have
System On, Heat, Cool,
Service LED/indicators as
standard. Night Setback
Sensors have one (1)
Occupied, one (1) Unoccupied, and one (1) Override
program per day.
LCD display that provides
heat, cool, auto or off.
Includes two temperature
setpoints and a lockable
setting with °F or °C
indicators.
The CO2 sensor shall
have the ability to
monitor the
concentration (parts per
million, ppm) of CO2
(Carbon Dioxide) in the
air. As the CO2
concentration changes,
the outside air damper
modulates to meet the
current ventilation needs
of the zone.
Field installed, wallmounted or duct-mounted
humidity sensor is used to
control activation of the
hot gas reheat
dehumidification option.
The humidity sensor can
be set for humidity levels
between 40% and 60%
relative humidity by
adjusting the ReliaTel™
Options Module.
192
RT-PRC023AG-EN
Controls
Touchscreen Programmable
Thermostat (2H/2C)
Digital Display Programmable Thermostat
with Built-In Relative Humidity Sensing
(3H/2C)
Tue
MON
TUE
WED
THU
FRI
SAT
FAN
ON
AUTO
CIRC
SUN
HEAT
SYSTEM
EM HEAT
HEAT
OFF
COOL
AUTO
RESET
CANCEL
PERIOD
DONE
EDIT
WAKE
DEHUMIDIFIER
COOL
PM
LEAVE
RETURN
SLEEP
CANCEL
Two Heat,Two Cool programmable
thermostat with touch screen digital
display. Menu-driven
programming. Effortless set-up.
Program each day separately with
no need to copy multiple days. All
programming can be done on one
screen. Easy to read and use. Large,
clear backlit digital display.
Three Heat,Two Cool digital display thermostat with
built-in humidity control and display.This thermostat
combines both humidity and dry bulb into one. Fully
programmable with night setback.
Economizer Controls
The standard equipment offering is a fixed dry bulb changeover control. In addition, there are two
optional controls, Enthalpy and Differential Enthalpy Control.
Enthalpy Control
Replaces the dry bulb control with a wet bulb changeover controller which has a fully adjustable
setpoint. Enthalpy control offers a higher level of comfort control, along with energy savings
potential, than the standard dry bulb control.This is due to the additional wet bulb sensing
capability.
RA Remote Sensor
Return Air Remote Sensor which can be mounted in the return air duct to report return air
temperature.
Room Remote Sensor
Space Remote Sensor which can be mounted on the wall to report/control from a remote location
in the space.
Remote Potentiometer
Minimum position setting of economizer can be remotely adjusted with this accessory.
Trane Communication Interface (TCI)
This factory or field-installed micro-processor interface allows the unit to communicate toTrane’s
Integrated Comfort™ system.
BACnet® Communication Interface
This option shall be provided to allow the unit to communicate directly with a generic open protocol
BACnet MS/TP Network Building Automation System Controls.
RT-PRC023AG-EN
193
Electrical Data
Table 147. Unit wiring - standard efficiency
Standard Indoor Fan Motor(a)
Oversized Indoor Fan Motor
Tons
Unit Model
Number
Voltage
Range
MCA
Max Fuse Size
or Max Circuit
Breaker
3
T/YSC036E1
187-253
28.8
45
—
—
3
T/YSC036E3
187-253
23.0
35
—
—
MCA
Max Fuse Size
or Max Circuit
Breaker
3
T/YSC036E4
414-506
11.7
15
—
—
3
T/YSC036EW
517-633
9.4
15
—
—
4
T/YSC048E1
187-253
36.8
50
—
—
4
T/YSC048E3
187-253
24.1
35
—
—
—
4
T/YSC048E4
414-506
11.5
15
—
4
T/YSC048EW
517-633
8.6
15
—
—
5
T/YSC060E1
187-253
41.1
60
—
—
5
T/YSC060E3
187-253
27.4
40
—
—
—
5
T/YSC060E4
414-506
12.3
15
—
5
T/YSC060EW
517-633
8.9
15
—
—
6
T/YSC072F3
187-253
36.5
50
37.8
60
6
T/YSC072F4
414-506
18.2
25
19.4
25
6
T/YSC072FW
517-633
12.7
20
13.5
20
7½
T/YSC090F3
187-253
38.2
60
44.0
60
7½
T/YSC090F4
414-506
19.5
30
22.4
35
7½
T/YSC090FW
517-633
14.7
20
16.7
25
7½(b)
T/YSC092F3
187-253
39.3
50
45.1
50
7½(b)
T/YSC092F4
414-506
18.5
20
21.4
25
7½(b)
T/YSC092FW
517-633
15.5
20
17.8
20
8½
T/YSC102F3
187-253
43.3
50
46.4
60
8½
T/YSC102F4
414-506
21.4
25
22.4
25
8½
T/YSC102FW
517-633
16.8
20
18.0
20
10
T/YSC120F3
187-253
49.6
60
—
—
10
T/YSC120F4
414-506
22.7
30
—
—
10
T/YSC120FW
517-633
18.9
25
—
—
(a) No optional motors available for 3-5 tons. The standard motor for the 1-phase models is a Multispeed Direct Drive Motor. The standard motor for
3-phase (3-8½ ton models) is a Belt Drive Motor.
(b) Dual refrigeration system.
194
RT-PRC023AG-EN
Electrical Data
Table 148. Unit wiring with electric heat (single point connection) - standard efficiency
Standard Indoor Motor
Tons
Unit Model Heater Model
Number
Number
Heater kW
Rating(a)
Control
Stages
MCA
Max Fuse Size or
Max Circuit
Breaker
Oversized Indoor Motor
MCA
Max Fuse Size or
Max Circuit
Breaker
208/230 Volts Single Phase
3
TSC036E1
BAYHTRE105*
3.8/5.0
1
30.1/33.5
45.0/45.0
—
—
3
TSC036E1
BAYHTRE110*
7.5/10.0
2
52.6/59.6
60.0/60.0
—
—
3
TSC036E1
BAYHTRE114*
10.4/13.8
2
69.8/79.4
70.0/80.0
—
—
4
TSC048E1
BAYHTRE105*
3.8/5.0
1
36.8/36.8
50.0/50.0
—
—
4
TSC048E1
BAYHTRE110*
7.5/10.0
2
54.6/61.6
60.0/70.0
—
—
4
TSC048E1
BAYHTRE114*
10.4/13.8
2
71.8/81.4
80.0/90.0
—
—
4
TSC048E1
BAYHTRE118*
13.2/17.6
2
89.0/101.1
90.0/110.0
—
—
5
TSC060E1
BAYHTRE105*
3.8/5.0
1
41.1/41.4
60.0/60.0
—
—
5
TSC060E1
BAYHTRE110*
7.5/10.0
2
54.6/61.6
70.0/70.0
—
—
5
TSC060E1
BAYHTRE114*
10.4/13.8
2
71.8/81.4
80.0/90.0
—
—
5
TSC060E1
BAYHTRE118*
13.2/17.6
2
89.0/101.1
90.0/110.0
—
—
208/230 Volts Three Phase
3
TSC036E3
BAYHTRE306*
4.5/6.0
1
23.0/24.3
35.0/35.0
—
—
3
TSC036E3
BAYHTRE312*
9.0/12.0
2
37.5/42.4
40.0/45.0
—
—
3
TSC036E3
BAYHTRE318*
13.1/17.4
2
51.6/58.6
60.0/60.0
—
—
4
TSC048E3
BAYHTRE306*
4.5/6.0
1
24.1/24.3
35.0/35.0
—
—
4
TSC048E3
BAYHTRE312*
9.0/12.0
2
37.5/42.4
40.0/45.0
—
—
4
TSC048E3
BAYHTRE318*
13.1/17.4
2
51.6/58.6
60.0/60.0
—
—
5
TSC060E3
BAYHTRE306*
4.5/6.0
1
27.4/27.4
40.0/40.0
—
—
5
TSC060E3
BAYHTRE312*
9.0/12.0
2
37.5/42.4
40.0/45.0
—
—
5
TSC060E3
BAYHTRE318*
13.1/17.4
2
51.6/58.6
60.0/60.0
—
—
5
TSC060E3
BAYHTRE323*
17.3/23.0
2
66.3/75.4
70.0/80.0
—
—
6
TSC072F3
BAYHTRS309*
6.8/9.0
1
36.5/36.5
50/50
37.8/37.8
60/60
6
TSC072F3
BAYHTRS318*
13.5/18.0
1
53.1/60.4
60/70
54.8/62.0
60/70
6
TSC072F3
BAYHTRS327*
20.3/27.0
2
76.6/87.5
80/90
78.3/89.1
80/90
6
TSC072F3
BAYHTRS336*
27.0/36.0
2
100.1/114.5
110/125
101.8/116.1
110/125
7½
TSC090F3
BAYHTRW309*
6.8/9.0
1
38.2/38.2
60/60
44.0/44.0
60/60
7½
TSC090F3
BAYHTRW318*
13.5/18.0
1
51.4/58.6
60/60
58.6/65.9
60/70
7½
TSC090F3
BAYHTRW327*
20.3/27.0
2
74.9/85.8
80/90
82.1/93.0
90/100
7½
TSC090F3
BAYHTRW336*
27.0/36.0
2
98.4/112.8
100/125
105.6/120.0
110/125
7½(b)
TSC092F3
BAYHTRT309*
6.8/9.0
1
39.3/39.3
50/50
45.1/45.1
50/50
7½(b)
TSC092F3
BAYHTRT318*
13.5/18.0
1
51.4/58.6
60/60
58.6/65.9
60/70
7½(b)
TSC092F3
BAYHTRT327*
20.3/27.0
2
74.9/85.8
80/90
82.1/93.0
90/100
7½(b)
TSC092F3
BAYHTRT336*
27.0/36.0
2
98.4/112.8
100/125
105.6/120.0
110/125
8½
TSC102F3
BAYHTRT309*
6.8/9.0
1
43.3/43.3
50/50
46.4/46.4
60/60
8½
TSC102F3
BAYHTRT318*
13.5/18.0
1
54.8/62.0
60/70
58.6/65.9
60/70
8½
TSC102F3
BAYHTRT327*
20.3/27.0
2
78.3/89.1
80/90
82.1/93.0
90/100
8½
TSC102F3
BAYHTRT336*
27.0/36.0
2
101.8/116.1
110/125
105.6/120.0
110/125
10
TSC120F3
BAYHTRA318*
13.5/18.0
1
57.5/64.8
60/70
—/—
—/—
continued on next page
RT-PRC023AG-EN
195
Electrical Data
Table 148. Unit wiring with electric heat (single point connection) - standard efficiency (continued)
Standard Indoor Motor
Tons
Unit Model Heater Model
Number
Number
Heater kW
Rating(a)
Control
Stages
MCA
Max Fuse Size or
Max Circuit
Breaker
Oversized Indoor Motor
MCA
Max Fuse Size or
Max Circuit
Breaker
208/230 Volts Three Phase
10
TSC120F3
BAYHTRA327*
20.3/27.0
2
81.0/91.9
90/100
—/—
—/—
10
TSC120F3
BAYHTRA336*
27.0/36.0
2
104.5/118.9
110/125
—/—
—/—
10
TSC120F3
BAYHTRA354*
40.6/54.0
2
151.4/140.5
175/150
—/—
—/—
3
TSC036E4
BAYHTRE406*
6.0
1
12.1
15
—
—
3
TSC036E4
BAYHTRE412*
12.0
2
21.1
25
—
—
3
TSC036E4
BAYHTRE418*
17.4
2
29.3
30
—
—
460 Volts Three Phase
4
TSC048E4
BAYHTRE406*
6.0
1
12.1
15
—
—
4
TSC048E4
BAYHTRE412*
12.0
2
21.1
25
—
—
4
TSC048E4
BAYHTRE418*
17.4
2
29.3
30
—
—
5
TSC060E4
BAYHTRE406*
6.0
1
12.3
15
—
—
5
TSC060E4
BAYHTRE412*
12.0
2
21.1
25
—
—
5
TSC060E4
BAYHTRE418*
17.4
2
29.3
30
—
—
5
TSC060E4
BAYHTRE423*
23.0
2
37.8
40
—
—
6
TSC072F4
BAYHTRS409*
9.0
1
18.2
25
19.3
25
6
TSC072F4
BAYHTRS418*
18.0
1
30.3
35
31.6
35
6
TSC072F4
BAYHTRS427*
27.0
2
43.8
45
45.1
50
6
TSC072F4
BAYHTRS436*
36.0
2
57.3
60
58.6
60
7½
TSC090F4
BAYHTRW409*
9.0
1
19.5
30
22.4
35
7½
TSC090F4
BAYHTRW418*
18.0
1
29.3
30
32.9
35
7½
TSC090F4
BAYHTRW427*
27.0
2
42.8
45
46.4
50
7½
TSC090F4
BAYHTRW436*
36.0
2
56.3
60
59.9
60
7½(b)
TSC092F4
BAYHTRT409*
9.0
1
18.5
20
21.4
25
7½(b)
TSC092F4
BAYHTRT418*
18.0
1
29.3
30
32.9
35
7½(b)
TSC092F4
BAYHTRT427*
27.0
2
42.8
45
46.4
50
7½(b)
TSC092F4
BAYHTRT436*
36.0
2
56.3
60
59.9
60
8½
TSC102F4
BAYHTRT409*
9.0
1
21.4
25
22.4
25
8½
TSC102F4
BAYHTRT418*
18.0
1
31.6
35
32.9
35
8½
TSC102F4
BAYHTRT427*
27.0
2
45.1
50
46.4
50
8½
TSC102F4
BAYHTRT436*
36.0
2
58.6
60
59.9
60
10
TSC120F4
BAYHTRA418*
18.0
1
32.5
35
—
—
10
TSC120F4
BAYHTRA427*
27.0
2
46.0
50
—
—
10
TSC120F4
BAYHTRA436*
36.0
2
59.5
60
—
—
10
TSC120F4
BAYHTRA454*
54.0
2
70.4
80
—
—
3
TSC036EW
BAYHTREW06*
6.0
1
9.4
15
—
—
3
TSC036EW
BAYHTREW12*
12.0
2
16.5
20
—
—
3
TSC036EW
BAYHTREW18*
17.4
2
23.0
25
—
—
4
TSC048EW
BAYHTREW06*
6.0
1
9.4
15
—
—
4
TSC048EW
BAYHTREW12*
12.0
2
16.5
20
—
—
575 Volts Three Phase
continued on next page
196
RT-PRC023AG-EN
Electrical Data
Table 148. Unit wiring with electric heat (single point connection) - standard efficiency (continued)
Standard Indoor Motor
Tons
Unit Model Heater Model
Number
Number
Heater kW
Rating(a)
Control
Stages
Oversized Indoor Motor
Max Fuse Size or
Max Circuit
Breaker
MCA
MCA
Max Fuse Size or
Max Circuit
Breaker
575 Volts Three Phase
4
TSC048EW
BAYHTREW18*
17.4
2
23.0
25
—
—
5
TSC060EW
BAYHTREW06*
6.0
1
9.4
15
—
—
5
TSC060EW
BAYHTREW12*
12.0
2
16.5
20
—
—
5
TSC060EW
BAYHTREW18*
17.4
2
23.0
25
—
—
5
TSC060EW
BAYHTREW23*
23.0
2
29.8
30
—
—
6
TSC072FW
BAYHTRSW09*
9.0
1
13.0
20
14.0
20
6
TSC072FW
BAYHTRSW18*
18.0
1
23.8
25
24.8
25
6
TSC072FW
BAYHTRSW27*
27.0
2
34.6
35
35.6
40
6
TSC072FW
BAYHTRSW36*
36.0
2
45.4
50
46.4
50
7½
TSC090FW
BAYHTRWW18*
18.0
1
23.4
25
25.9
30
7½
TSC090FW
BAYHTRWW27*
27.0
2
34.3
35
36.8
40
7½
TSC090FW
BAYHTRWW36*
36.0
2
45.0
45
47.5
50
7½(b)
TSC092FW
BAYHTRTW18*
18.0
1
23.4
25
26.3
30
7½(b)
TSC092FW
BAYHTRTW27*
27.0
2
34.3
35
37.1
40
7½(b)
TSC092FW
BAYHTRTW36*
36.0
2
45.0
45
47.9
50
8½
TSC102FW
BAYHTRTW18*
18.0
1
24.8
25
26.3
30
8½
TSC102FW
BAYHTRTW27*
27.0
2
35.6
40
37.1
40
8½
TSC102FW
BAYHTRTW36*
36.0
2
46.4
50
47.9
50
10
TSC120FW
BAYHTRAW18*
18.0
1
27.0
30
—
—
10
TSC120FW
BAYHTRAW36*
36.0
2
48.6
50
—
—
10
TSC120FW
BAYHTRAW54*
54.0
2
57.4
60
—
—
(a) No optional motors available for 3-5 tons. The standard motor for 1-phase models is a Multispeed, Direct Drive Motor. The Standard Motor for the 3phase (3-8½ ton models) is a Belt Drive Motor.
(b) Dual refrigeration system.
Table 149. Electrical characteristics - compressor motor and condenser motor - 60 cycle - standard efficiency
Compressor Motors
Condenser Fan Motors
Amps(a)
Unit Model
Amps(a)
Tons
Number
No.
Volts
Phase
hp(b)
rpm
RLA
LRA
No.
Volts
Phase
hp
FLA
LRA
3
T/YSC036E1
1
208-230
1
2.7
3500
16.7
79.0
1
208-230
1
0.33
2.0
6.6
3
T/YSC036E3
1
208-230
3
2.8
3500
12.8
95.0
1
208-230
1
0.33
2.0
6.6
3
T/YSC036E4
1
460
3
2.8
3500
6.4
45.0
1
460
1
0.33
1.2
2.5
3
T/YSC036EW
1
575
3
2.8
3500
5.4
38.0
1
575
1
0.33
0.9
1.3
4
T/YSC048E1
1
208-230
1
3.6
3500
21.8
117.0
1
208-230
1
0.33
2.0
6.6
4
T/YSC048E3
1
208-230
3
3.6
3500
13.7
83.1
1
208-230
1
0.33
2.0
6.6
4
T/YSC048E4
1
460
3
3.6
3500
6.2
41.0
1
460
1
0.33
1.2
2.5
4
T/YSC048EW
1
575
3
3.5
3500
4.8
33.0
1
575
1
0.33
0.9
1.3
5
T/YSC060E1
1
208-230
1
4.4
3500
25.0
134.0
1
208-230
1
0.40
2.5
6.6
5
T/YSC060E3
1
208-230
3
4.3
3500
15.9
110.0
1
208-230
1
0.40
2.5
6.6
5
T/YSC060E4
1
460
3
4.3
3500
7.1
52.0
1
460
1
0.40
1.0
2.8
continued on next page
RT-PRC023AG-EN
197
Electrical Data
Table 149. Electrical characteristics - compressor motor and condenser motor - 60 cycle - standard efficiency (continued)
Compressor Motors
Condenser Fan Motors
Amps(a)
Unit Model
Amps(a)
Tons
Number
No.
Volts
Phase
hp(b)
rpm
RLA
LRA
No.
Volts
Phase
hp
FLA
5
T/YSC060EW
1
575
3
4.3
3500
5.1
39.5
1
575
1
0.40
0.8
2.0
6
T/YSC072F3
1
208-230
3
5.6
3500
22.4
149.0
1
208-230
1
.70
3.5
10.9
LRA
6
T/YSC072F4
1
460
3
5.6
3500
10.6
75.0
1
460
1
.70
2.4
6.6
6
T/YSC072FW
1
575
3
5.6
3500
7.7
54.0
1
575
1
.70
1.4
3.6
7½
T/YSC090F3
1
208-230
3
6.7
3500
25.0
164.0
1
208-230
1
.70
3.3
9.5
7½
T/YSC090F4
1
460
3
6.7
3500
12.8
100.0
1
460
1
.70
1.8
5.5
7½
T/YSC090FW
1
575
3
6.7
3500
9.6
78.0
1
575
1
.70
1.3
3.2
7½
T/YSC092F3
1
208-230
3
3.7/3.1
3500/3500 14.5/13.6 98.0/83.0
1
208-230
1
.75
4.0
9.4
7½
T/YSC092F4
1
460
3
3.7/3.1
3500/3500
6.3/6.1
55.0/41.0
1
460
1
.75
2.8
6.8
7½
T/YSC092FW
1
575
3
3.7/3.1
3500/3500
6.0/4.2
41.0/33.0
1
575
1
.75
2.4
6.2
8½
T/YSC102F3
2
208-230
3
3.7/3.7
3500/3500 15.9/13.1 110.0/83.0
1
208-230
1
.75
4.0
9.4
8½
T/YSC102F4
2
460
3
3.7/3.7
3500/3500
7.1/6.1
52.0/41.0
1
460
1
.75
2.8
6.8
8½
T/YSC102FW
2
575
3
3.7/3.7
3500/3500
6.0/4.4
41.0/33.0
1
575
1
.75
2.4
6.2
10
T/YSC120F3
2
208-230
3
4.8/3.7
3500/3500 20.5/16.0 155.0/91.0
1
208-230
1
.75
4.0
9.4
10
T/YSC120F4
2
460
3
4.8/3.7
3500/3500
9.6/7.1
75.0/46.0
1
460
1
.75
2.8
6.8
10
T/YSC120FW
2
575
3
4.8/3.7
3500/3500
7.6/5.6
54.0/37.0
1
575
1
.75
2.4
6.2
(a) Amp draw for each motor; multiply value by number of motors to determine total amps.
(b) hp for each compressor.
Table 150. Electrical characteristics - standard evaporator fan motor - 60 cycle - direct or belt drive
standard efficiency
Unit Model
Direct or Belt
Amps
Tons
Number
Drive
No.
Volts
Phase
hp
FLA
3
T/YSC036E1
Direct Drive
1
208-230
1
0.75
6.0
LRA
—
3
T/YSC036E3
Belt Drive
1
208-230
3
1.00
5.0
32.2
3
T/YSC036E4
Belt Drive
1
460
3
1.00
2.5
16.1
3
T/YSC036EW
Belt Drive
1
575
3
1.00
1.7
13.2
4
T/YSC048E1
Direct Drive
1
208-230
1
1.00
7.6
—
4
T/YSC048E3
Belt Drive
1
208-230
3
1.00
5.0
32.2
4
T/YSC048E4
Belt Drive
1
460
3
1.00
2.5
16.1
4
T/YSC048EW
Belt Drive
1
575
3
1.00
1.7
13.2
5
T/YSC060E1
Direct Drive
1
208-230
1
1.00
7.6
—
5
T/YSC060E3
Belt Drive
1
208-230
3
1.00
5.0
32.2
5
T/YSC060E4
Belt Drive
1
460
3
1.00
2.5
16.1
5
T/YSC060EW
Belt Drive
1
575
3
1.00
1.7
13.2
6
T/YSC072F3
Belt Drive
1
208-230
3
1.00
5.0
32.2
6
T/YSC072F4
Belt Drive
1
460
3
1.00
2.5
16.1
13.2
6
T/YSC072FW
Belt Drive
1
575
3
1.00
1.7
7½
T/YSC090F3
Belt Drive
1
208-230
3
1.00
3.6-3.5
12.5
7½
T/YSC090F4
Belt Drive
1
460
3
1.00
1.7
12.5
7½
T/YSC090FW
Belt Drive
1
575
3
1.00
1.4
10.0
7½
T/YSC092F3
Belt Drive
1
208-230
3
1.00
3.6-3.5
12.5
continued on next page
198
RT-PRC023AG-EN
Electrical Data
Table 150. Electrical characteristics - standard evaporator fan motor - 60 cycle - direct or belt drive
standard efficiency (continued)
Unit Model
Direct or Belt
Tons
Number
Drive
No.
Volts
Phase
hp
FLA
Amps
7½
T/YSC092F4
Belt Drive
1
460
3
1.00
1.7
12.5
7½
T/YSC092FW
Belt Drive
1
575
3
1.00
1.4
10.0
LRA
8½
T/YSC102F3
Belt Drive
1
208-230
3
2.00
6.3
48.0
8½
T/YSC102F4
Belt Drive
1
460
3
2.00
3.6
24.0
8½
T/YSC102FW
Belt Drive
1
575
3
2.00
2.5
18.2
10
T/YSC120F3
Direct Drive
1
208-230
3
3.80
8.5-8.5
—
10
T/YSC120F4
Direct Drive
1
460
3
3.60
4.3
—
10
T/YSC120FW(a)
Direct Drive
1
575
3
3.60
4.3
—
(a) T/YSC120FW utilizes a 460V evaporator motor.
Table 151. Electrical characteristics - oversized evaporator fan motor - 60 cycle - belt drive - standard efficiency
Unit Model
Amps
Tons
Number
No.
Volts
Phase
hp
FLA
LRA
6
T/YSC072F3
1
208-230
3
2.00
6.30
48.0
6
T/YSC072F4
1
460
3
2.00
3.6
24.0
6
T/YSC072FW
1
575
3
2.00
2.50
18.2
7½
T/YSC090F3
1
208-230
3
3.00
9.40-9.20
52.4
7½
T/YSC090F4
1
460
3
3.00
4.60
26.3
7½
T/YSC090FW
1
575
3
3.00
3.40
29.4
7½
T/YSC092F3
1
208-230
3
3.00
9.40
83.0
7½
T/YSC092F4
1
460
3
3.00
4.60
42.0
7½
T/YSC092FW
1
575
3
3.00
3.70
31.0
8½
T/YSC102F3
1
208-230
3
3.00
9.40
83.0
8½
T/YSC102F4
1
460
3
3.00
4.60
42.0
8½
T/YSC102FW
1
575
3
3.00
3.70
31.0
Table 152. Electrical characteristics — power exhaust (cooling and gas/electric)
Tons
Volts
Phase
hp
rpm
FLA
3-5
208-230
1
0.33
1075
2.2
LRA
3.9
3-5
460
1
0.33
1075
1.1
2.0
3-5
575
1
0.33
1075
1.0
1.8
6-10
208-230
1
0.87
1075(a)
5.7
13.6
6-10
460
1
0.87
1075(a)
3.3
6.8
6-10
575
1
0.87
1075(a)
2.3
5.4
(a) Two speed.
RT-PRC023AG-EN
199
Electrical Data
Table 153. Electrical characteristics - inducer motor
Unit Model Number
Stages
hp
rpm
Volts
Phase
YSC(036-060)E**(L,M,X,Y)
1
1/35
3000
208-230
1
LRA
0.6
YSC(036-060)E**(H,Z)
1
1/15
3300
208-230
1
0.4
YSC072F**(L,M,X,Y)
YSC(090-102)F**(L,X)
1
1/35
3000
208-230
1
0.6
YSC072F**(H,Z)
YSC(090-102)F**(M,H,Y,Z)
YSC120F
2
1/15
2800/3350
208-230
1
0.4
Table 154. Unit wiring - high efficiency
Standard Indoor Fan Motor
Optional Belt Drive Indoor Fan Motor(a)
MCA
Max Fuse Size
or Max Circuit
Breaker
MCA
Max Fuse Size
or Max Circuit Breaker
187-253
28.3
45
(a)
(a )
T/YHC036E3
187-253
20.6
30
19.6
25
T/YHC036E4
414-506
11.0
15
10.3
15
3
YHC036EW
517-633
7.9
15
7.2
15
4
T/YHC048F1
187-253
37.3
50
(a)
(a )
4
T/YHC048E_F3
187-253
27.2
40
24.6
35
4
T/YHC048E_F4
414-506
12.8
15
11.3
15
4
YHC048FW
517-633
9.8
15
8.5
15
5
T/YHC060F1
187-253
41.4
60
(a)
(a )
5
T/YHC060E_F3
187-253
30.0
45
27.4
40
5
T/YHC060E_F4
414-506
13.8
20
12.3
15
5
YHC060E_FW
517-633
10.2
15
8.9
15
6
T/YHC072E_F3
187-253
32.3
50
33.6
50
6
T/YHC072E_F4
414-506
15.1
20
15.7
20
6
YHCO72E_FW
517-633
12.7
15
13.5
20
7½
T/YHC092F3
187-253
41.9
50
—
—
7½
T/YHC092F4
414-506
19.9
25
—
—
7½
YHC092FW
517-633
15.6
20
—
—
8½
T/YHC102F3
187-253
42.0
50
—
—
8½
T/YHC102F4
414-506
21.6
25
—
—
8½
YHC102FW
517-633
16.5
20
—
—
10
T/YHC120E3
187-253
48.9
60
—
—
10
T/YHC120E4
414-506
22.1
30
—
—
10
YHC120EW
517-633
16.8
20
—
—
Tons
Unit Model
Number
Voltage
Range
3
T/YHC036E1
3
3
(a) No optional motors available for 3-5 tons. The standard motor for the 1-phase models is a Multispeed Direct Drive Motor.
200
RT-PRC023AG-EN
Electrical Data
Table 155. Unit wiring with electric heat (single point connection) - high efficiency - 3-5 tons
Standard
Indoor Motor
Tons
Unit Model Heater Model
Number
Number
Heater kW
Rating(a)
Control
Stages
MCA
Optional Belt Drive
Indoor Motor
Max Fuse Size
or Max Circuit
Breaker
MCA
Max Fuse Size
or Max Circuit
Breaker
208/230 Volts Single Phase
3
THC036E1
BAYHTRE105*
3.8/5.0
1
30.1/33.5
45/45
—
—
3
THC036E1
BAYHTRE110*
7.5/10.0
2
52.6/59.6
60/60
—
—
3
THC036E1
BAYHTRE114*
10.4/13.8
2
69.8/79.4
70/80
—
—
4
THC048F1
BAYHTRX105*
3.8/5.0
1
37.3/37.3
50/50
—
—
4
THC048F1
BAYHTRX110*
7.5/10.0
2
54.6/61.6
60/70
—
—
4
THC048F1
BAYHTRX114*
10.4/13.8
2
71.8/81.4
80/90
—
—
4
THC048F1
BAYHTRX118*
13.2/17.6
2
89.0/101.1
90/110
—
—
5
THC060F1
BAYHTRX105*
3.8/5.0
1
41.1/41.4
60/60
—
—
5
THC060F1
BAYHTRX110*
7.5/10.0
2
54.6/61.6
60/70
—
—
5
THC060F1
BAYHTRX114*
10.4/13.8
2
71.8/81.4
80/90
—
—
5
THC060F1
BAYHTRX118*
13.2/17.6
2
89.0/101.1
90/110
—
—
3
THC036E3
BAYHTRE306*
4.5/6.0
1
23.1/25.5
30/30
21.9/24.3
30/30
3
THC036E3
BAYHTRE312*
9.0/12.0
2
38.8/43.6
40/45
37.5/42.4
40/45
208/230 Volts Three Phase
3
THC036E3
BAYHTRE318*
13.1/17.4
2
52.9/59.9
60/60
51.6/58.6
60/60
4
THC048E_F3
BAYHTRX306*
4.5/6.0
1
27.2/27.5
40/40
24.6/24.6
35/35
4
THC048E_F3
BAYHTRX312*
9.0/12.0
2
40.8/45.6
45/50
37.5/42.4
40/45
4
THC048E_F3
BAYHTRX318*
13.1/17.4
2
54.9/61.9
60/70
51.6/58.6
60/60
5
THC060E_F3
BAYHTRX306*
4.5/6.0
1
30.0/30.0
45/45
27.4/27.4
40/40
5
THC060E_F3
BAYHTRX312*
9.0/12.0
2
40.8/45.6
45/50
37.5/42.4
40/45
5
THC060E_F3
BAYHTRX318*
13.1/17.4
2
54.9/61.9
60/70
51.6/58.6
60/60
5
THC060E_F3
BAYHTRX323*
17.3/23.0
2
69.5/78.6
70/80
66.3/75.4
70/80
3
THC036E4
BAYHTRE406*
6.0
1
13.0
15
12.1
15
3
THC036E4
BAYHTRE412*
12.0
2
22.0
25
21.1
25
3
THC036E4
BAYHTRE418*
17.4
2
30.1
35
29.3
30
4
THC048E_F4
BAYHTRX406*
6.0
1
14.0
15
12.1
15
4
THC048E_F4
BAYHTRX412*
12.0
2
23.0
25
21.1
25
4
THC048E_F4
BAYHTRX418*
17.4
2
31.1
35
29.3
30
5
THC060E_F4
BAYHTRX406*
6.0
1
14.0
20
12.3
15
5
THC060E_F4
BAYHTRX412*
12.0
2
23.0
25
21.1
25
5
THC060E_F4
BAYHTRX418*
17.4
2
31.1
35
29.3
30
5
THC060E_F4
BAYHTRX423*
23.0
2
39.6
40
37.8
40
460 Volts Three Phase
(a) Heater kW ratings are at 208/240V for 208/230V units, 480V for 460V units.
RT-PRC023AG-EN
201
Electrical Data
Table 156. Unit wiring with electric heat (single point connection) - high efficiency - 6-10 tons
Standard
Indoor Motor
Tons
Unit Model Heater Model
Number
Number
Heater kW
Rating(a)
Control
Stages
MCA
Oversize
Indoor Motor
Max Fuse Size
or Max Circuit
Breaker
MCA
Max Fuse Size
or Max Circuit
Breaker
208/230 Volts Three Phase
6
THC072E/F3
BAYHTRU309*
6.8/9.0
1
32.3/33.4
50/50
33.6/35.0
50/50
6
THC072*3
BAYHTRU318*
13.5/18.0
1
53.1/60.4
60/70
54.8/62.0
60/70
6
THC072*3
BAYHTRU327*
20.3/27.0
2
76.6/87.5
80/90
78.3/89.1
80/90
6
THC072*3
BAYHTRU336*
27.0/36.0
2
100.1/114.5
110/125
101.8/116.1
125/110
7½
THC092F3
BAYHTRA309*
6.8/9.0
1
41.9/41.9
50/50
—/—
—/—
7½
THC092F3
BAYHTRA318*
13.5/18.0
1
57.5/64.8
60/70
—/—
—/—
7½
THC092F3
BAYHTRA327*
20.3/27.0
2
81.0/91.9
90/100
—/—
—/—
7½
THC092F3
BAYHTRA336*
27.0/36.0
2
104.5/118.9
110/125
—/—
—/—
8½
THC102F3
BAYHTRA309*
6.8/9.0
1
42.0/42.0
50/50
—/—
—/—
8½
THC102F3
BAYHTRA318*
13.5/18.0
1
57.5/64.8
60/70
—/—
—/—
8½
THC102F3
BAYHTRA327*
20.3/27.0
2
81.0/91.9
90/100
—/—
—/—
8½
THC102F3
BAYHTRA336*
27.0/36.0
2
104.5/118.9
110/125
—/—
—/—
10
THC120E3
BAYHTRD318*
13.5/18.0
1
57.5/64.8
60/70
—/—
—/—
10
THC120E3
BAYHTRD327*
20.3/27.0
2
81.0/91.9
90/100
—/—
—/—
10
THC120E3
BAYHTRD336*
27.0/36.0
2
104.5/118.9
110/125
—/—
—/—
10
THC120E3
BAYHTRD354*
40.6/54.0
2
151.4/140.5
175/150
—/—
—/—
460 Volts Three Phase
6
THC072*4
BAYHTRU409*
9.0
1
16.6
20
17.4
20
6
THC072*4
BAYHTRU418*
18.0
1
30.3
35
31.0
35
6
THC072*4
BAYHTRU427*
27.0
2
43.8
45
44.5
45
6
THC072*4
BAYHTRU436*
36.0
2
57.3
60
58.0
60
7½
THC092F4
BAYHTRA409*
9.0
1
19.9
25
—
—
7½
THC092F4
BAYHTRA418*
18.0
1
32.5
35
—
—
7½
THC092F4
BAYHTRA427*
27.0
2
46.0
50
—
—
7½
THC092F4
BAYHTRA436*
36.0
2
59.5
60
—
—
8½
THC102F4
BAYHTRA409*
9.0
1
21.6
25
—
—
8½
THC102F4
BAYHTRA418*
18.0
1
32.5
35
—
—
8½
THC102F4
BAYHTRA427*
27.0
2
46.0
50
—
—
8½
THC102F4
BAYHTRA436*
36.0
2
59.5
60
—
—
10
THC120E4
BAYHTRD418*
18.0
1
32.5
35
—
—
10
THC120E4
BAYHTRD427*
27.0
2
46.0
50
—
—
10
THC120E4
BAYHTRD436*
36.0
2
59.5
60
—
—
10
THC120E4
BAYHTRD454*
54.0
2
70.4
80
—
—
(a) Heater kW ratings are at 208/240V for 208/230V units, 480V for 460V units.
202
RT-PRC023AG-EN
Electrical Data
Table 157. Electrical characteristics - compressor motor and condenser fan motor - 60 cycle - high efficiency
Unit Model
Compressor Motors
Condenser Fan Motors
Tons
Number
No.
Volts
Phase
hp
rpm
RLA
LRA
No.
Volts
Phase
hp
FLA
LRA
3
T/YHC036E1
1
208-230
1
2.7
3500
16.7
79.0
1
208-230
1
0.20
1.5
2.4
3
T/YHC036E3
1
208-230
3
2.7
3500
10.4
73.0
1
208-230
1
0.20
1.5
2.4
3
T/YHC036E4
1
460
3
2.7
3500
5.8
38.0
1
460
1
0.20
0.6
1.3
3
T/YHC036EW
1
575
3
2.7
3500
3.8
36.5
1
575
1
0.40
0.8
2.0
4
T/YHC048F1
1
208-230
1
3.6
3500
21.8
117.0
1
208-230
1
0.40
2.5
6.6
4
T/YHC048E_F3
1
208-230
3
3.5
3500
13.7
83.1
1
208-230
1
0.40
2.5
6.6
4
T/YHC048E_F4
1
460
3
3.5
3500
6.2
41.0
1
460
1
0.40
1.0
2.8
4
YHC048FW
1
575
3
3.5
3500
4.8
33
1
575
1
0.40
0.8
2.0
5
T/YHC060F1
1
208-230
1
4.4
3500
25.0
134.0
1
208-230
1
0.40
2.5
6.6
5
T/YHC060E_F3
1
208-230
3
4.3
3500
15.9
110.0
1
208-230
1
0.40
2.5
6.6
5
T/YHC060E_F4
1
460
3
4.3
3500
7.1
52.0
1
460
1
0.40
1.0
2.8
5
YHC060FW
1
575
3
4.1
3500
5.1
39.5
1
575
1
0.40
0.8
2.0
6
T/YHC072E/F3
1
208-230
3
4.9
3500
19.2
136.0
1
208-230
1
0.70
3.3
9.5
6
T/YHC072E/F4
1
460
3
4.9
3500
8.7
66.0
1
460
1
0.70
1.8
5.5
6
YHC072E/FW
1
575
3
4.8
3500
6.9
55
1
575
1
0.75
2.4
6.2
7½
T/YHC092F3
2
208-230
3
4.1/2.4
3500/3500 15.9/10.0 110.0/71.0
1
208-230
1
0.75
3.5
9.3
7½
T/YHC092F4
2
460
3
4.1/2.4
3500/3500
7.1/4.7
52.0/38.0
1
460
1
0.75
2.0
6.2
5.1/3.7
40/28
6.2
7½
YHC092FW
2
575
3
3.8/2.4
3500/3500
1
575
1
0.75
2.4
8½
T/YHC102F3
2
208-230
3
4.5/2.4
3500/3500 15.6/10.0 110.0/71.0
1
208-230
1
0.75
3.5
9.3
8½
T/YHC102F4
2
460
3
4.5/2.4
3500/3500
7.8/4.7
52.0/38.0
1
460
1
0.75
2.0
6.2
8½
YHC102FW
2
575
3
4.6/2.4
3500/3500
5.8/3.7
39/28
1
575
1
0.75
2.4
6.2
10
T/YHC120E3
2
208-230
3
5.1/3.0
3500/3500 19.6/13.2 136.0/88.0
1
208-230
3
0.75
2.7
9.8
10
T/YHC120E4
2
460
3
5.1/3.0
3500/3500
8.2/6.0
66.0/44.0
1
460
3
0.75
1.5
4.8
10
YHC120FW
2
575
3
5.1/3.0
3500/3500
6.6/4.2
55/30
1
575
1
0.75
1.2
4.8
Table 158. Electrical characteristics - evaporator fan motor - 60 cycle - direct drive - high efficiency(a)
Unit Model
Motor
Tons
Number
Volts
Hz
Phase
No.
FLA
LRA
bhp
3
T/YHC036E1
208-230
60
1
1
6.0
—
0.75
3
T/YHC036E3
208-230
60
1
1
6.0
—
0.75
3
T/YHC036E4
460
60
1
1
3.2
—
0.75
3
YHC036EW
575(b)
60
1
1
2.4
—
0.75
4
T/YHC048F1
208-230
60
1
1
7.6
—
1.00
4
T/YHC048E_F3
208-230
60
1
1
7.6
—
1.00
4
T/YHC048E_F4
460
60
1
1
4.0
—
1.00
4
YHC048FW
575(b)
60
1
1
3.0
—
1.00
5
T/YHC060F1
208-230
60
1
1
7.6
—
1.00
5
T/YHC060E_F3
208-230
60
1
1
7.6
—
1.00
5
T/YHC060E_F4
460
60
1
1
4.0
—
1.00
5
YHC060FW
575(b)
60
1
1
3.0
—
1.00
(a) Belt drive indoor motor is standard equipment on T/YHC036E-T/YHC060E with optional dehumidification.
(b) 575V rated units utilize a high efficiency 230 evaporator fan motor powered through a 575/230V transformer. Motor voltage/FLA rated at transformer
input.
RT-PRC023AG-EN
203
Electrical Data
Table 159. Electrical characteristics - evaporator fan motor - 60 cycle - optional belt drive - high efficiency(a)
Unit Model
Tons
Number
Volts
Hz
Phase
No.
FLA
LRA
bhp
3
T/YHC036E3
3
T/YHC036E4
208-230
60
3
1
5.0
32.2
1.00
460
60
3
1
2.5
16.1
3
1.00
YHC036EW
575
60
3
1
1.7
13.2
1.00
4
T/YHC048E3
208-230
60
3
1
5.0
32.2
1.00
4
T/YHC048E4
460
60
3
1
2.5
16.1
1.00
4
T/YHC048F3
208-230
60
3
1
5.0
32.2
1.00
4
T/YHC048E4
460
60
3
1
2.5
16.1
1.00
4
YHC048FW
575
60
3
1
1.7
13.2
1.00
5
T/YHC060E3
208-230
60
3
1
5.0
32.2
1.00
5
T/YHC060E4
460
60
3
1
2.5
16.1
1.00
5
T/YHC060F3
208-230
60
3
1
5.0
32.2
1.00
5
T/YHC060F4
460
60
3
1
2.5
16.1
1.00
5
YHC060FW
575
60
3
1
1.7
13.2
1.00
(a) Belt drive indoor motor is standard equipment on T/YHC036E-T/YHC060E with optional dehumidification.
Table 160. Electrical characteristics - standard evaporator fan motor - 60 cycle - direct or belt drive - high efficiency
Unit Model
Direct or
Tons
Number
Belt Drive
Volts
6
T/YHC072*3
Belt Drive
208-230
6
T/YHC072*4
Belt Drive
460
Hz
Phase
hp
FLA
LRA
60
3
1.0
4.0-5.0
24.5
60
3
1.0
2.5
12.3
6
YHC072*W
Belt Drive
575(a)
60
3
1.5
1.7
—
7½
T/YHC092F3
Direct Drive
208-230
60
3
3.8
8.5-8.5
—
7½
T/YHC092F4
Direct Drive
460
60
3
3.6
4.3
—
7½
YHC092FW
Direct Drive
575(a)
60
3
3.4
31
—
8½
T/YHC102F3
Direct Drive
208-230
60
3
3.8
8.5-8.5
—
8½
T/YHC102F4
Direct Drive
460
60
3
3.6
4.3
—
8½
YHC102FW
Direct Drive
575(a)
60
3
3.4
3.1
—
10
T/YHC120E3
Direct Drive
208-230
60
3
3.8
8.5-8.5
—
10
T/YHC120E4
Direct Drive
460
60
3
3.6
4.3
—
10
YHC120EW
Direct Drive
575(a)
60
3
3.4
3.1
—
(a) Precedent 575V rated units utilize a high efficiency 380-480V evaporator fan motor powered through a 575/480V transformer assembly.
Table 161. Electrical characteristics - oversize evaporator fan motor - 60 cycle - direct or belt drive - high efficiency
Unit Model
Direct or
Tons
Number
Belt Drive
Volts
Hz
Phase
hp
FLA
LRA
6
T/YHC072*3
Belt Drive
208-230
60
3
2.0
6.3-6.2
48.0
6
T/YHC072*4
Belt Drive
460
60
3
2.0
3.1
24.0
6
YHC072*W
Belt Drive
575
60
3
2.5
2.0
18.2
204
RT-PRC023AG-EN
Electrical Data
Table 162. Electrical characteristics - inducer motor
Unit Model Number
Stages
hp
rpm
Volts
Phase
LRA
YHC036E(L,M,X,Y)
YHC(048,060)E, F
1
1/35
3000
208-230
1
0.6
YHC036E(H,Z)
1
1/15
3300
208-230
1
0.4
YHC072*(L,M,X,Y)
YHC(092-102)**(L,X)
1
1/35
3000
208-230
1
0.6
YHC072*(H,Z)
YHC(092-102)(M,H,Y,Z)
YHC120
2
1/15
3350
208-230
1
0.4
RT-PRC023AG-EN
205
Jobsite Connections
Table 163.Typical Number of Wires
Zone Sensors
A
Manual Changeover..............................
4
Manual/Auto Changeover......................
5
Manual/Auto Changeover with
Status Indication LED’s.........................
10
Programmable Night Setback
with Status Indication LED’s...................
7
Thermostats
A
3 Wires, 24V, Cooling only
4 Wires, 24V, with Electric Heat
B
3 Power Wires + 1 Ground Wire (3-phase)
2 Power Wires + 1 Ground Wire (1-phase)
DISCONNECT
SWITCH
(BY OTHERS)
B
ZONE SENSOR OR
THERMOSTAT
A
ROOFTOP
UNIT
For specific wiring information, see the installation instructions.
All wiring except power wire is low voltage.
All customer supplied wiring to be copper and must conform to applicable electrical codes
(such as NEC or CEC) and local electric codes. Wiring shown dotted is to be furnished and
installed by the customer.
206
RT-PRC023AG-EN
Dimensional Data
Figure 1. Cooling and gas/electric - 3-5 tons standard efficiency, 3 tons high efficiency
Notes:
1. All dimensions are in inches/millimeters.
2. ½ NPT Gas Connection = (Y_C Models only); 2" Electrical Connection: Single Point Power When Heat Installed (T_C Models only.)
Figure 2. Cooling and gas/electric - 3-5 tons standard efficiency, 3 tons high efficiency
downflow airflow supply/return - through-the-base utilities
Note: All dimensions are in inches/millimeters.
Note: All dimensions are in inches/millimeters.
3 5/8”
92 MM
9 1/4”
235 MM
14”
356 MM
15 1/2”
394 MM
4”
102 MM
SUPPLY
16”
406 MM
24”
610 MM
RETURN
27 9/16”
701 MM
TBU CONDENSATE
2 13/16”
71 MM
6 1/2”
3 11/16” 165 MM
94 MM
4 9/16”
116 MM
4 3/16”
106 MM
4 7/8”
124 MM
23 1/2”
597 MM
THROUGH
THE BASE GAS
(Y_C MODELS
ONLY)
RT-PRC023AG-EN
THROUGH
THE BASE
ELECTRICAL
5 1/16”
128 MM
9 15/16”
253 MM
207
Dimensional Data
Figure 3. Cooling and gas/electric - 3-5 tons standard efficiency, 3 tons high efficiency
horizontal airflow supply/return
Note: All dimensions are in inches/millimeters.
Figure 4. Cooling and gas/electric - 3-5 tons standard efficiency, 3 tons high efficiency
unit clearance and roof opening
Note: All dimensions are in inches/millimeters.
CLEARANCE 36” (914 MM)
208
RT-PRC023AG-EN
Dimensional Data
Figure 5. Cooling and gas/electric - 3-5 tons standard efficiency, 3 tons high efficiency - roof curb
Note: All dimensions are in inches/millimeters.
44 MM
44 MM
7
1038 MM
1053 MM
Figure 6. Cooling and gas/electric - 3-5 tons standard efficiency; 3 tons high efficiency
downflow duct connections - field fabricated
Note: All dimensions are in inches/millimeters.
7
(433 MM)
RT-PRC023AG-EN
209
Dimensional Data
Figure 7.
Cooling and gas/electric - 3-5 tons standard
efficiency, 3 tons high efficiency
economizer, manual or motorized fresh air
damper; power exhaust
Note: All dimensions are in inches/millimeters.
12 1/2”
318 MM
Figure 8. Cooling and gas/electric - 3-5 tons standard
efficiency, 3 tons high efficiency
economizer & barometric relief damper hood
Note: All dimensions are in inches/millimeters.
6 1/4”
159 MM
Dimensions extends to 16.5"/419 MM
when powered exhaust is coupled
with low leak economizer
Figure 9. Cooling and gas/electric models - 3-5 tons
standard efficiency, 3 tons high efficiency
swing diameter for hinged door(s) option
Note: All dimensions are in inches/millimeters.
17 7/8"
(454 MM)
210
16"
(406 MM)
Applicable to
Y_C models only
Figure 10. Gas/electric models - 3-5 tons standard
efficiency, 3 tons high efficiency
height of gas pipe required from inside base of
unit to gas shut off assembly (factory provided) Y_C models only
Note: All dimensions are in inches/millimeters.
22 1/4"
(565 MM)
RT-PRC023AG-EN
Dimensional Data
Figure 11. Cooling and gas/electric - 6, 7½ (single) tons standard efficiency, 4-5 tons high efficiency
Note: All dimensions are in inches/millimeters.
Figure 12. Cooling and gas/electric - 6, 7½ (single) tons standard efficiency, 4-5 tons high efficiency
downflow airflow supply/return - through-the-base utilities
Note: All dimensions are in inches/millimeters.
RT-PRC023AG-EN
211
Dimensional Data
Figure 13. Cooling and gas/electric - 6, 7½ (single) tons standard efficiency, 4-5 tons high efficiency
horizontal airflow supply and return
Note: All dimensions are in inches/millimeters.
Return
Supply
Figure 14. Cooling and gas/electric - 6, 7½ (single) tons standard efficiency, 4-5 tons high efficiency
unit clearance and roof opening
Note: All dimensions are in inches/millimeters.
212
RT-PRC023AG-EN
Dimensional Data
Figure 15. Cooling and gas/electric - 6, 7½ (single) tons standard efficiency, 4-5 tons high efficiency - roof curb
Note: All dimensions are in inches/millimeters.
(356 MM)
(2130 MM)
Figure 16. Cooling and gas/electric - 6, 7½ (single) tons standard efficiency, 4-5 tons high efficiency
downflow duct connections field fabricated
Note: All dimensions are in inches/millimeters.
Note: See “Clearance required from duct to combustible surfaces (inches),” p. 19 for duct clearance to combustible materials.
857
857
RT-PRC023AG-EN
SUP
PLY
RET
UR
N
ALL FLANGES 1 1/4" (31 MM)
213
Dimensional Data
Figure 17. Cooling and gas/electric - 6, 7½ (single) tons standard efficiency, 4-5 tons high efficiency
economizer, manual or motorized fresh air damper
Note: All dimensions are in inches/millimeters.
ECONOMIZER HOOD
BAROMETRIC RELIEF HOOD
7 3/4”
(198 MM)
12”
(304 MM)
6 7/8”
(175 MM)
16 3/4”
(425 MM)
Dimensions extends to 21 5/8", 549 MM
when powered exhaust is coupled
with low leak economizer
Figure 18. Cooling and gas/electric - 6, 7½ (single) tons standard efficiency, 4-5 tons high efficiency
swing diameter for hinged door(s) option
Note: All dimensions are in inches/millimeters.
17”
(432 MM)
21 3/8”
(543 MM)
34 5/8”
(879 MM)
214
RT-PRC023AG-EN
Dimensional Data
Figure 19. Cooling and gas/electric - 7½ tons (dual compressor standard efficiency) - 10 tons standard efficiency,
6-8½ tons high efficiency
Note: All dimensions are in inches/millimeters.
1/2 NPT GAS CONNECTION
(80 mbh, 120 mbh)
3/4 NPT GAS CONNECTION
(150 mbh, 200 mbh, 250 mbh)
(YC MODELS)
Figure 20. Cooling and gas/electric - 7½ tons (dual compressor standard efficiency) - 10 tons standard efficiency,
6-8½ tons high efficiency; downflow airflow supply/return through-the-base utilities
Note: All dimensions are in inches/millimeters.
RT-PRC023AG-EN
215
Dimensional Data
Figure 21. Cooling and gas/electric - 7½ tons (dual compressor standard efficiency) - 10 tons standard efficiency,
6-8½ tons high efficiency; horizontal airflow supply and return
Note: All dimensions are in inches/millimeters.
Return
Supply
Figure 22. Cooling and gas/electric - 7½ tons (dual compressor standard efficiency), 10 tons standard efficiency,
6-8½ tons high efficiency; unit clearance and roof opening
Note: All dimensions are in inches/millimeters.
216
RT-PRC023AG-EN
Dimensional Data
Figure 23. Cooling and gas/electric - 7½ tons (dual compressor standard efficiency), 10 tons standard efficiency,
6-8½ tons high efficiency; roof curb
Note: All dimensions are in inches/millimeters.
(356 MM)
(2130 MM)
Figure 24. Cooling and gas/electric - 7½ tons (dual compressor standard efficiency), 10 tons standard efficiency
downflow, 6-8½ tons high efficiency; duct connections field fabricated
Note: All dimensions are in inches/millimeters.
Note: See “Clearance required from duct to combustible surfaces (inches),” p. 19 for duct clearance to combustible materials.
857
857
PLY
SUP
RET
UR
N
ALL FLANGES 1 1/4" (31 MM)
RT-PRC023AG-EN
217
Dimensional Data
Figure 25. Cooling and gas/electric - 7½ tons (dual
compressor standard efficiency), 10 tons
standard efficiency, 6-8½ tons high
efficiency; power exhaust
Note: All dimensions are in inches/millimeters.
Figure 26. Cooling and gas/electric - 7½ tons (dual compressor
standard efficiency), 10 tons standard efficiency,
6-8½ tons high efficiency; swing diameter for hinged
door(s) option
Note: All dimensions are in inches/millimeters.
17"
432 MM
21 3/8"
543 MM
Applicable to
Y_C models only
34 5/8"
879 MM
Figure 27. Cooling and gas/electric - 6-10 tons
standard efficiency, 4-6 tons high
efficiency, 7½-8½ tons high efficiency;
economizer, manual or motorized fresh air
damper
Note: All dimensions are in inches/millimeters.
Figure 28. Gas/electric - 6-10 tons standard efficiency, 4-6
tons high efficiency, 7½-8½ tons high efficiency;
height of gas pipe required from inside base of
unit to gas shut off assembly (factory provided) Y_C models only
Note: All dimensions are in inches/millimeters.
ECONOMIZER HOOD
BAROMETRIC RELIEF HOOD
7 3/4”
(198 MM)
12”
(304 MM)
6 7/8”
(175 MM)
16 3/4”
(425 MM)
Dimensions extends to 21 5/8", 549 MM
when powered exhaust is coupled
with low leak economizer
218
RT-PRC023AG-EN
Dimensional Data
Figure 29. Cooling and gas/electric -10 tons high efficiency
Notes:
1. All dimensions are in inches/millimeters.
2. ½ or ¾ NPT Gas Connection = (Y_C Models only); 2" Electrical Connection: Single Point Power When Heat Installed (T_C Models only.)
INDOOR TOP PANEL
OUTDOOR TOP PANEL
UNIT CONTROL WIRE
7/8” (22MM) DIA HOLE
CONTROL BOX SECTION
ACCESS PANEL
50 7/8”
1292 MM
EVAPORATOR SECTION
ACCESS PANEL
ALTERNATE CONDENSATE DRAIN
CONNECTION 3/4-14 NPT DIA.HOLE
27 5/8”
701 MM
CONDENSER COIL
47 7/8”
1216 MM
99 11/16”
2532 MM
63 3/16”
1605 MM
1/2 NPT GAS CONNECTION
(120mbh)
3/4 NPT GAS CONNECTION
(150mbh, 200mbh, 250mbh)
COMPRESSOR ACCESS PANEL
UNIT POWER WIRE
1 3/8” (35MM) DIA. HOLE
SERVICE GAUGE PORT
ACCESS 1 3/8” (35MM) DIA.
HOLE
Figure 30. Cooling and gas/electric - 10 tons high efficiency; downflow airflow supply/return, through-the-base utilities
Notes:
1. All dimensions are in inches/millimeters.
2. ½ or ¾ NPT Gas Connection = (Y_C Models only); 2" Electrical Connection: Single Point Power When Heat Installed (T_C Models only.)
3 5/8”
92 MM
17 1/2”
444 MM
9 7/8”
251 MM
17 1/2”
444 MM
4”
102 MM
Return
32 1/8”
816 MM
Supply
33”
838 MM
THROUGH THE
BASE ELECTRICAL
THROUGH THE
BASE CONDENSATE
6 3/8”
163 MM
4 5/8”
119 MM
4 1/8”
104 MM
27 5/8”
701 MM
RT-PRC023AG-EN
2 3/4”
71 MM
THROUGH THE
BASE GAS
5 7/8”
149 MM
42 3/16”
1072 MM
51 13/16”
1316 MM
219
Dimensional Data
Figure 31. Cooling and gas/electric - 10 tons high efficiency; horizontal airflow supply/return
Notes:
1. All dimensions are in inches/millimeters.
2. ½ or ¾ NPT Gas Connection = (Y_C Models only); 2" Electrical Connection: Single Point Power When Heat Installed (T_C Models only.)
3 7/8”
98 MM
9 3/8”
238 MM
Supply
Return
16 3/4”
425 MM
32 1/4”
832 MM
19 1/4”
489 MM
32 1/4”
832 MM
4 3/4”
120 MM
27 5/8”
701 MM
4 1/4”
108 MM
3/4-14 NPT DIA. HOLE
CONDENSATE DRAIN
Figure 32. Cooling and gas/electric - 10 tons high efficiency; unit clearance and roof opening
Notes:
1. All dimensions are in inches/millimeters.
2. ½ or ¾ NPT Gas Connection = (Y_C Models only); 2" Electrical Connection: Single Point Power When Heat Installed (T_C Models only.)
99 11/16”
(2532 MM)
63 3/16”
(1605 MM)
220
RT-PRC023AG-EN
Dimensional Data
Figure 33. Cooling and gas/electric - 10 tons high efficiency - roof curb
Notes:
1. All dimensions are in inches/millimeters.
2. ½ or ¾ NPT Gas Connection = (Y_C Models only); 2" Electrical Connection: Single Point Power When Heat Installed (T_C Models only.)
CLE
AR
AN
CLE
A
18 1/2”
(470 MM)
56 3/8”
(1432 MM)
1”
(25 MM)
34 3/8”
(873 MM)
RA
NC
6 5/8”
(168 MM)
CE
36”
(91
4M
E1
M)
8” (
FO
457
RD
MM
OW
) FO
NF
LO
RH
W
OR
IZO
NTA
L
83 7/8”
(2130 MM)
18 1/2”
(470 MM)
1”
(25 MM)
80 1/2”
(2045 MM)
1”
(25 MM)
14”
(356 MM)
1 3/4”
(44 MM)
34 3/8”
(873 MM)
59 7/8”
(1521 MM)
84 1/2”
(2146 MM)
60 3/8”
(1534 MM)
2”
(51 MM)
2”
(51 MM)
Figure 34. Cooling and gas/electric - 10 tons high efficiency; duct connections field fabricated
Notes:
1. All dimensions are in inches/millimeters.
2. ½ or ¾ NPT Gas Connection = (Y_C Models only); 2" Electrical Connection: Single Point Power When Heat Installed (T_C Models only.)
3. See “Clearance required from duct to combustible surfaces (inches),” p. 19 for duct clearance to combustible materials.
857
857
PLY
SUP
RET
U
RN
ALL FLANGES 1 1/4" (31 MM)
RT-PRC023AG-EN
221
Dimensional Data
Figure 35. Cooling and gas/electric - 10 tons high
efficiency - power exhaust
Note: All dimensions are in inches/millimeters.
Figure 36. Cooling and gas/electric - 10 tons high efficiency;
swing diameter for hinged door(s) option
Note: All dimensions are in inches/millimeters.
ECONOMIZER HOOD
5 5/8"
(143 MM)
21 5/8"
(549 MM)
Figure 37. Cooling and gas/electric - 10 tons high
efficiency - economizer, manual or
motorized fresh air damper
Note: All dimensions are in inches/millimeters.
Figure 38. Gas/electric - 10 tons high efficiency - height of
gas pipe required from inside base of unit to gas
shut off assembly (factory provided) - Y_C
models only
Note: All dimensions are in inches/millimeters.
ECONOMIZER HOOD
BAROMETRIC RELIEF HOOD
7 3/4”
(198 MM)
12”
(304 MM)
16 3/4”
(425 MM)
6 7/8”
(175 MM)
Dimensions extends to 21 5/8", 549 MM
when powered exhaust is coupled
with low leak economizer
222
RT-PRC023AG-EN
Weights
Table 164. Maximum unit & corner weights (lbs) and center of gravity dimensions (in.) - cooling models
Unit
Maximum Model
Weights(a)
Corner Weights(b)
Center of Gravity (in.)
Tons
Model No.
Shipping
Net
A
B
C
D
Length
Width
3
TSC036E
555
481
157
122
95
107
31
19
4
TSC048E
586
511
167
129
101
114
31
19
5
TSC060E
636
561
183
142
111
125
31
19
6
TSC072F
762
667
218
186
131
132
44
21
7½
TSC090F
781
686
222
195
136
134
44
21
7½
TSC092F
940
797
249
235
163
149
46
21
8½
TSC102F
999
856
264
239
177
175
45
22
10
TSC120F
1058
960
320
218
233
189
40
24
3
THC036E
555
481
157
122
95
107
31
19
4
THC048E
787
692
220
178
132
163
40
23
4
THC048F
737
642
208
177
128
130
44
22
5
THC060E
841
746
241
193
139
173
39
22
5
THC060F
774
679
219
189
135
137
43
21
6
THC072E
943
845
274
172
186
213
41
24
6
THC072F
883
740
228
219
155
138
47
21
7½
THC092F
1026
928
315
209
224
180
40
24
8½
THC102F
1035
937
316
212
227
181
49
24
10
THC120E
1446
1252
355
334
268
285
48
28
(a) Weights are approximate.
(b) Corner weights are given for information only.
RT-PRC023AG-EN
223
Weights
Table 165. Maximum unit & corner weights (lbs) and center of gravity dimensions (in.) - gas/electric models
Unit
Maximum Model
Weights(a)
Corner Weights(b)
Center of Gravity (in.)
Tons
Model No.
Shipping
Net
A
B
C
D
Length
3
YSC036E
607
532
165
137
95
134
31
Width
19
4
YSC048E
638
563
175
145
101
142
31
19
5
YSC060E
688
613
190
158
110
155
31
19
6
YSC072F
805
710
222
217
121
150
41
22
7½
YSC090F
862
767
243
221
155
149
45
21
7½
YSC092F
990
847
265
249
173
160
46
21
8½
YSC102F
1047
904
279
252
187
186
44
22
10
YSC120F
1156
1058
345
242
258
213
41
23
3
YHC036E
607
532
165
137
95
134
31
19
4
YHC048E
858
763
238
200
148
176
40
23
4
YHC048F
806
711
226
199
144
143
44
22
5
YHC060E
917
822
261
218
156
187
40
22
5
YHC060F
850
755
239
214
152
151
44
21
6
YHC072E
1025
927
296
198
205
228
41
24
6
YHC072F
965
822
250
245
174
153
47
21
7½
YHC092F
1124
1026
340
233
249
204
41
23
8½
YHC102F
1133
1035
341
236
253
205
49
23
10
YHC120E
1563
1369
386
379
299
305
49
28
(a) Weights are approximate.
(b) Corner weights are given for information only.
Table 166. Factory installed options (fiops)/accessory net weights (lbs)(a),(b)
T/YSC036E-060E
T/YHC036E
T/YHC048E-060E
T/YHC048F-060F
T/YSC072F102F
T/YHC072E/F
T/YSC120F
T/YHC092F102F
T/YHC120E
Net Weight
Net Weight
Net Weight
Net Weight
Net Weight
3-5 Tons
4-5 Tons
6-10 Tons
7½, 8½, 10
10
7
10
10
10
10
Belt Drive Option (3 phase only)
31
31
—
—
—
Coil Guards
12
20
20
20
30
Accessory
Barometric Relief
Economizer
26
36
36
36
36
Electric Heaters(c)
15
30
30
44
50
Hinged Doors
10
12
12
12
12
Low Leak Economizer
68
93
93
93
93
Manual Outside Air Damper
16
26
26
26
26
Motorized Outside Air Damper
20
30
30
30
30
Novar Control
8
8
8
8
8
Oversized Motor
5
8
8
—
—
Powered Convenience Outlet
38
38
38
38
50
Powered Exhaust
40
40
80
80
80
Reheat Coil
12
14
15
20(d)
30
Roof Curb
61
78
78
78
89
5
5
5
5
5
Smoke Detector, Supply
continued on next page
224
RT-PRC023AG-EN
Weights
Table 166. Factory installed options (fiops)/accessory net weights (lbs)(a),(b)
Accessory
T/YSC036E-060E
T/YHC036E
T/YHC048E-060E
T/YHC048F-060F
T/YSC072F102F
T/YHC072E/F
T/YSC120F
T/YHC092F102F
T/YHC120E
Net Weight
Net Weight
Net Weight
Net Weight
Net Weight
10
3-5 Tons
4-5 Tons
6-10 Tons
7½, 8½, 10
Smoke Detector, Return
7
7
7
7
7
Stainless Steel Heat Exchanger(e)
4
6
6
6
6
Through-the-Base Electrical
8
13
13
13
13
Through-the-Base Gas
5
5
5
5
5
Unit Mounted Circuit Breaker
5
5
5
5
5
Unit Mounted Disconnect
5
5
5
5
5
(a) Weights for options not listed are <5 lbs.
(b) Net weight should be added to unit weight when ordering factory-installed accessories.
(c) Applicable to Cooling units only.
(d) Reheat weight for this value only applicable to 7.5 and 8.5 Ton High Efficiency “F” models.
(e) Applicable to Gas/Electric units only.
RT-PRC023AG-EN
225
Mechanical Specifications
General
The units shall be convertible airflow.The operating range shall be between 115°F and 0°F in
cooling as standard from the factory for units with microprocessor controls. Operating range for
units with electromechanical controls shall be between 115°F and 40°F. Cooling performance shall
be rated in accordance with AHRI testing procedures. All units shall be factory assembled,
internally wired, fully charged with R-410A, and 100 percent run tested to check cooling operation,
fan and blower rotation, and control sequence before leaving the factory.Wiring internal to the unit
shall be colored and numbered for simplified identification. Units shall be cULus listed and labeled,
classified in accordance for Central Cooling Air Conditioners.
Casing
Unit casing shall be constructed of zinc coated, galvanized steel. Exterior surfaces shall be cleaned,
phosphatized, and finished with a weather-resistant baked enamel finish. Unit’s surface shall be
tested 672 hours in a salt spray test in compliance with ASTM B117. Cabinet construction shall allow
for all maintenance on one side of the unit. Service panels shall have lifting handles and be
removed and reinstalled by removing two fasteners while providing a water and air tight seal. All
exposed vertical panels and top covers in the indoor air section shall be insulated with a cleanable
foil-faced, fire-retardant permanent, odorless glass fiber material.The base of the unit shall be
insulated with 1/8 inch, foil-faced, closed-cell insulation. All insulation edges shall be either
captured or sealed.The unit’s base pan shall have no penetrations within the perimeter of the curb
other than the raised 1 1/8 inch high downflow supply/return openings to provide an added water
integrity precaution, if the condensate drain backs up.The base of the unit shall have provisions
for forklift and crane lifting, with forklift capabilities on three sides of the unit.
Compressors
All units shall have direct-drive, hermetic, scroll type compressors with centrifugal type oil pumps.
Motor shall be suction gas-cooled and shall have a voltage utilization range of plus or minus 10
percent of unit nameplate voltage. Internal overloads shall be provided with the scroll
compressors.
Crankcase heaters are optional on 3-10 ton standard efficiency units and standard on 3-10 ton high
efficiency units.
Dual compressors are outstanding for humidity control, light load cooling conditions and system
back-up applications. Dual compressors are available on 7½-10 ton models and allow for efficient
cooling utilizing 3-stages of compressor operation for all high efficiency models.
Controls
Unit shall be completely factory-wired with necessary controls and contactor pressure lugs or
terminal block for power wiring. Unit shall provide an external location for mounting a fused
disconnect device.
A choice of microprocessor or electromechanical controls shall be available.
Microprocessor controls provide for all 24V control functions.The resident control algorithms shall
make all heating, cooling, and/or ventilating decisions in response to electronic signals from
sensors measuring indoor and outdoor temperatures.The control algorithm maintains accurate
temperature control, minimizes drift from set point, and provides better building comfort. A
centralized microprocessor shall provide anti-short cycle timing and time delay between
compressors to provide a higher level of machine protection.
24-volt electromechanical control circuit shall include control transformer and contactor pressure
lugs for power wiring. Units shall have single point power entry as standard.
Evaporator and Condenser Coils
Internally finned, 5/16” copper tubes mechanically bonded to a configured aluminum plate fin shall
be standard.The microchannel type condenser coil is standard for all 6-10 ton standard efficiency
226
RT-PRC023AG-EN
Mechanical Specifications
models and 4,5,6, 7½, 8½ ton high efficiency models.The microchannel type condenser coil is not
offered on the 4 and 5 ton dehumidification model. Due to flat streamlined tubes with small ports,
and metallurgical tube-to-fin bond, microchannel coil has better heat transfer performance.
Microchannel condenser coil can reduce system refrigerant charge by up to 50% because of smaller
internal volume, which leads to better compressor reliability. Compact all-aluminum microchannel
coils also help to reduce the unit weight.These all aluminum coils are recyclable. Galvanic
corrosion is also minimized due to all aluminum construction. Strong aluminum brazed structure
provides better fin protection. In addition, flat streamlined tubes also make microchannel coils
more dust resistant and easier to clean. Coils shall be leak tested at the factory to ensure the
pressure integrity.The evaporator coil and condenser coil shall be leak tested to 600 psig.The
assembled unit shall be leak tested to 465 psig.The condenser coil shall have a patent pending
1+1+1 hybrid coil designed with slight gaps for ease of cleaning. A plastic, dual-sloped, removable
and reversible condensate drain pan with through-the-base condensate drain is standard.
Filters
Throwaway filters shall be standard on all units. Optional 2-inch MERV 8 and MERV 13 filters shall
also be available.
Gas Heating Section
The heating section shall have a progressive tubular heat exchanger design using stainless steel
burners and corrosion resistant steel throughout. An induced draft combustion blower shall be
used to pull the combustion products through the firing tubes.The heater shall use a direct spark
ignition (DSI) system. On initial call for heat, the combustion blower shall purge the heat exchanger
for 20 seconds before ignition After three unsuccessful ignition attempts, the entire heating system
shall be locked out until manually reset at the thermostat/zone sensor. Units shall be suitable for
use with natural gas or propane (field-installed kit) and also comply with the California requirement
for low NOx emissions (Gas/Electric Only).
High Pressure Control
All units include High Pressure Cutout as standard.
Indoor Fan
The following units shall be equipped with a direct drive plenum fan design (T/YSC120F,
T/YHC092F,T/YHC102F, 120E). Plenum fan design shall include a backward-curved fan wheel along
with an external rotor direct drive variable speed indoor motor. All plenum fan designs will have
a variable speed adjustment potentiometer located in the control box.
3-5 ton units (standard efficiency 3-phase or high efficiency 3-phase with optional motor) are belt
driven, FC centrifugal fans with adjustable motor sheaves. 3-5 ton units (1-phase or high efficiency
3-phase) have multispeed, direct drive motors. All 6-8½ ton units (standard efficiency) shall have
belt drive motors with an adjustable idler-arm assembly for quick-adjustment to fan belts and
motor sheaves. All motors shall be thermally protected. All 10 tons and 7½-8½ (high efficiency)
have variable speed direct drive motors. All indoor fan motors meet the U.S. Energy Policy Act of
1992 (EPACT).
Outdoor Fans
The outdoor fan shall be direct-drive, statically balanced, draw-through in the vertical discharge
position.The fan motor shall be permanently lubricated and shall have built-in thermal overload
protection.
Phase Monitoring Protection
Precedent™ units with 3-phase power are equipped with phase monitoring protection as standard.
These devices protect motors and compressors against problems caused by phase loss, phase
imbalance and phase reversal indication.
RT-PRC023AG-EN
227
Mechanical Specifications
Plenum Fan
All 10 tons and 7½-8½ ton high efficiency units shall be equipped with a direct drive plenum fan
design. Plenum fan design shall include a backward-curved fan wheel along with an external rotor
direct drive variable speed indoor motor. All plenum fan designs will have a variable speed
adjustment potentiometer located in the control box.
Refrigerant Circuits
Each refrigerant circuit offer thermal expansion valve as standard. Service pressure ports, and
refrigerant line filter driers are factory-installed as standard. An area shall be provided for
replacement suction line driers.
Unit Top
The top cover shall be one piece construction or where seams exist, it shall be outside the indoor
air-conditioned section.The ribbed top adds extra strength and prevents water from pooling on
unit top.
Factory Installed Options
Black Epoxy Pre-Coated Coils1
The black epoxy coils have a thermoset vinyl coating that is bonded to the aluminum fin stock prior
to the fin-stamping process.The pre-coated coils are an economical option for protection in mildly
corrosive environments.
CO2 Sensor Wiring
The unit wiring for field installed C02 sensors. Factory-installed C02 sensor wiring saves time and
ensures proper unit connections for the field installed C02 sensor kits.
CompleteCoat™ Coils
The cathodic epoxy type electrodisposition coating is formulated for high edge build to plate fin
and tube heat exchangers.The coating is selected to provide excellent resistance and durability to
corrosive effects of alkalies, acids, alcohols, petroleum, seawater, salt air and corrosive
environments.This option is available for the plate fin-tube condenser coil and the microchannel
type condenser coil.
The option shall be equipped with crankcase heater(s), low pressure switch(es), Frostat™, and a
thermostatic expansion valve(s) (TXV) as standard.
Condensate Overflow Switch
This option shall shut the unit down in the event that a clogged condensate drain line prevents
proper condensate removal from the unit.
Heat Exchanger
The compact cabinet features a tubular heat exchanger in low, medium and high heat capacities.
The heat exchanger is fabricated using stainless steel burners and corrosion-resistant aluminized
steel tubes as standard on all models. It has an induced draft blower to pull the gas mixture through
the burner tubes.The heater has a direct spark ignition system which doubles as a safety device
to prove the flame.
Gas/Electric Precedent models exceed all California seasonal efficiency requirements.They also
perform better than required to meet the California NOx emission requirements.
1
228
Not available on microchannel condenser coils.
RT-PRC023AG-EN
Mechanical Specifications
Hinged Access Doors
Sheet metal hinges are available on the Filter/Evaporator, Supply Fan/Heat, and the Compressor/
Control Access Doors.
Human Interface
The Human Interface shall have a 5 inch color touchscreen display that conforms to FCC Part 15
Class B with an Ingress Protection Rating of IP24.The display text shall be readable by a person with
20/20 vision at a distance of 3 feet and 60° angle at lighting levels ranging from 100 lux - 25,000 lux.
Also, the display shall operate at temperatures of -40° C to 70° C. Firmware and unit configurations
shall be able to be restored via a USB storage device.
Fault Detection & Diagnostics (FDD)
This offering meets the mandatory requirement of CATitle 24 of fully configurable diagnostics
allowing fault history and reading fault codes at the unit.This option provides detection of the
following faults: Air temperature sensor failure/fault and notification of acceptable economizer
mode.The FDD system shall be certified by the Energy Commission as meeting the requirements.
Novar Return Air Zone Sensor
This option, when used in conjunction with Novar Controls, will contain a factory provided and
wired zone temperature sensor located in the return air stream.
Novar Unit Controls
Optional Novar rooftop unit controls shall be installed and tested.The Novar electronic thermostat
module will interface to the unit microprocessor and will control the unit to the desired stage of
cooling or heating.
Powered or Unpowered Convenience Outlet
This is a GFCI, 120V/15amp, 2 plug, convenience outlet, either powered or unpowered. When the
convenience outlet is powered, a service receptacle disconnect will be available.The convenience
outlet is powered from the line side of the disconnect or circuit breaker, and therefore will not be
affected by the position of the disconnect or circuit breaker.This option can only be ordered when
theThrough-the-Base Electrical with either the Disconnect Switch or Circuit Breaker option is
ordered.
Single Zone VAV1 – One Zone Variable Air Volume Mode
Single-zoneVAV shall vary the indoor fan speed as the zone cooling or heating load changes, while
cooling capacity is cycled to maintain the supply air temperature at setpoint.The indoor fan shall
operate at maximum speed whenever the heater operating.
Note: SZVAV requires the use of a zone temperature sensor. If a unit is configured for SZVAV, but
is connected to a conventional thermostat, the unit will revert to multiple-speed (two-speed)
indoor fan control.
Multi-Speed Indoor Fan System
The multiple-speed (two-speed) indoor fan control option shall automatically switch operation of
the indoor fan between high speed and low speed, based on the number of compressors operating.
The indoor fan shall operate at high speed whenever the gas or electric heater is operating.
Multiple-Zone VAV Control
Multiple-zoneVAV control shall vary the speed of the indoor fan to maintain the duct static pressure
at a setpoint. In cooling mode, the compressors shall be cycled (or economizer modulated) to
1
RT-PRC023AG-EN
Single-Zone VAV requires the use of a zone temperature sensor. If a unit is configured for SZVAV, but is connected to a conventional
thermostat, the unit will revert to multiple-speed (two-speed) indoor fan control
229
Mechanical Specifications
maintain the supply air temperature (SAT) at the desired setpoint. In heating mode, the indoor fan
shall operate at maximum speed whenever the heater operating.
Stainless Steel Drain Pan
This option provides excellent corrosion and oxidation resistance. Drain pan shall be reversible and
constructed of 304 stainless steel.
Stainless Steel Heat Exchanger
The optional stainless steel heat exchanger is constructed of 409 stainless steel. It is resistant to
corrosion and oxidation and easy to clean.
The high strength to weight ratio allows for high ventilation rates with gas units. It is an excellent
option to compliment the dehumidification option as a high outside air ventilation unit.
With this option, a 10-year stainless steel heat exchanger warranty is standard.
Supply, Return and Plenum Air Smoke Detector
With this option installed, if smoke is detected, all unit operation will be shut down. Reset will be
manual at the unit. In order for the supply air smoke detector or return air smoke detector to
properly sense smoke in the supply air stream or the return air stream, the air velocity entering the
smoke detector unit must be between 500 - 4000 feet per minute. Equipment covered in this
manual will develop an airflow velocity that falls within these limits over the entire airflow range
specified in the evaporator fan performance table. Supply and/or Return Smoke Detectors may not
be used with the Plenum Smoke Detector.
Thermal Expansion Valve
Thermal Expansion Valve is standard for all models.
Through-the-Base Electrical Access
An electrical service entrance shall be provided allowing electrical access for both control and main
power connections inside the curb and through-the-base of the unit. Option will allow for field
installation of liquid-tight conduit and an external field-installed disconnect switch.
Through-the-Base Electrical with Circuit Breaker
This option is a thermal magnetic, molded case, HACR Circuit Breaker with provisions for throughthe-base electrical connections.The circuit breaker will be installed in a water tight enclosure in the
unit with access through a swinging door. Wiring will be provided from the switch to the unit high
voltage terminal block.The circuit breaker will provide overcurrent protection, be sized per NEC and
cULus guidelines, and be agency recognized by cULus.
Through-the-Base Electrical with Disconnect Switch
This 3-pole, molded case, disconnect switch with provisions for through-the-base electrical
connections are available.The disconnect switch will be installed in the unit in a water tight
enclosure with access through a swinging door.Wiring will be provided from the switch to the unit
high voltage terminal block.The switch will be cULus agency recognized.
Note: The disconnect switch will be sized per NEC and cULus guidelines but will not be used in
place of unit overcurrent protection.
Through-the-Base Gas Piping
The unit shall include a standard through-the-base gas provision.This option shall have all piping
necessary including, black steel, manual gas shut-off valve, elbows, and union.The manual shutoff valve shall include a 1/8” NPT pressure tap.This assembly will require minor field labor to install
(Gas/Electric Only).
Two-Inch Filters
Two-inch MERV 8 and MERV 13 media filters shall be available on all models.
230
RT-PRC023AG-EN
Mechanical Specifications
Factory or Field Installed Options
Clogged Filter/Fan Failure Switch
A dedicated differential pressure switch is available to achieve active fan failure indication and/or
clogged filter indication.These indications will be registered with either a zone sensor with status
indication lights or an Integrated Comfort™ System.This option is available for microprocessor
controlled units.
Differential Pressure Switches
These sensors allow individual fan failure and dirty filter indication for microprocessor controlled
units.The fan failure switch will disable all unit functions and “flash” the Service LED on the zone
sensor.The dirty filter switch will light the Service LED on the zone sensor and will allow continued
unit operation.
Discharge Air Temperature Sensing
This option provides true discharge air temperature sensing in heating models.This sensor is a
status indicator readable throughTracer™ orTracker™.This option is available for microprocessor
controlled units.
Economizer (Standard)
This accessory shall be available with or without barometric relief.The assembly includes fully
modulating 0-100 percent motor and dampers, minimum position setting, preset linkage, wiring
harness with plug, spring return actuator and fixed dry bulb control.The barometric relief shall
provide a pressure operated damper that shall be gravity closing and shall prohibit entrance of
outside air during the equipment “off” cycle. Optional solid state or differential enthalpy control
shall be available for either factory or field installation.The economizer arrives in the shipping
position and shall be moved to the operating position by the installing contractor.
Electric Heaters
Electric heat modules shall be available for installation within basic unit. Electric heater elements
shall be constructed of heavy-duty nickel chromium elements internally delta connected for 240V,
wye connected for 480V and 600V. Staging shall be achieved through ReliaTel™. Each heater
package shall have automatically reset high limit control operating through heating element
contactors. All heaters shall be individually fused from the factory, where required, and shall meet
all NEC and CEC requirements when properly installed. Power assemblies shall provide singlepoint connection. Electric heat modules shall be cULus listed.
Frostat™
This option is to be utilized as a safety device.The Frostat™ opens when temperatures on the
evaporator coil fall below 10°F.The temperature will need to rise to 50°F before closing.This option
should be utilized in low airflow or high outside air applications (cooling only).
LonTalk® Communication Interface
This option shall be provided to allow the unit to communicate as aTracer™LCI-R device or directly
with generic LonTalk Network Building Automation System Controls.
Low Leak Economizer
This accessory meets low leak requirements for ASHRAE 90.1, IECC, and CATitle 24 standards
(3 cfm/ft^[email protected]" wg exterior air, 4 cfm/ft^[email protected]" wg return air).This option allows 100% outdoor air
supply from 0-100% modulating dampers and is standard with barometric relief. It can be paired
with powered exhaust for additional building pressure relief.This option can be paired with or
without Fault Detection & Diagnostics (FDD) to meet current mandatory CATitle 24 requirements.
Available on downflow units only.
RT-PRC023AG-EN
231
Mechanical Specifications
The economizers come with three control options, dry bulb and reference or comparative enthalpy
(optional).
BACnet® Communication Interface
This option shall be provided to allow the unit to communicate directly with a generic open protocol
BACnet MS/TP Network Building Automation System Controls.
Reference or Comparative Enthalpy
Reference Enthalpy is used to measure and communicate outdoor humidity.The unit receives and
uses this information to provide improved comfort cooling while using the economizer.
Comparative Enthalpy measures and communicates humidity for both outdoor and return air
conditions, and return air temperature.The unit receives and uses this information to maximize use
of economizer cooling, and to provide maximum occupant comfort control. Reference or
Comparative Enthalpy option shall be available when a factory or field installed Downflow
Economizer is ordered.This option is available on all downflow models.
Tool-less Hail Guards
Tool-less, hail protection guards are available for condenser coil protection.
Trane Communication Interface
This option shall be provided to interface ReliaTel™ controlled units with theTrane Integrated
Comfort™ systems.
Field Installed Options
CO2 Sensor
The CO2 sensor shall have the ability to monitor the concentration (parts per million, ppm) of CO2
(Carbon Dioxide) in the air. As the CO2 concentration changes, the outside air damper modulates
to meet the current ventilation needs of the zone.
Two field installed kits are offered; CO2 sensor and wiring or CO2 sensor only.The CO2 sensor only
kit should be ordered with factory installed CO2 sensor wiring. Factory installed CO2 sensor wiring
saves set-up time and ensures proper unit connections for the CO2 sensor.
Duct Mounted Humidity Sensor
This duct-mounted humidity sensor is used to control activation of the hot gas reheat
dehumidification option.The humidity sensor can be set for humidity levels between 40% and 60%
relative humidity by adjusting the ReliaTel Options Module.
High Static Drive
The high static drive option shall allow the standard motor to operate with improved external static
capabilities.
Low Leak Economizer
This accessory meets low leak requirements for ASHRAE 90.1, IECC, and CATitle 24 standards (3
cfm/ft^[email protected]" wg exterior air, 4 cfm/ft^[email protected]" wg return air).This option allows 100% outdoor air
supply from 0-100% modulating dampers and is standard with barometric relief. It can be paired
with powered exhaust for additional building pressure relief. Available on downflow units only.
Manual Outside Air Damper
This rain hood and screen shall provide up to 50 percent outside air.
232
RT-PRC023AG-EN
Mechanical Specifications
Motorized Outside Air Damper
Manually set outdoor air dampers shall provide up to 50 percent outside air. Once set, outdoor air
dampers shall open to set position when indoor fan starts.The damper shall close to the full closed
position when indoor fan shuts down.
Powered Exhaust
The powered exhaust, available for 3-10 ton units, shall provide exhaust of return air, when using
an economizer, to maintain better building pressurization.
Programmable Night Setback
Auto or manual changeover with seven-day programming. Keyboard selection of Heat, Cool, Fan,
Auto, or On. All programmable sensors have System On, Heat, Cool, Service LED/indicators as
standard. Night Setback Sensors have one (1) Occupied, one (1) Un-occupied, and one (1) Override
program per day.
Remote Potentiometer
The minimum position setting of the economizer shall be adjusted with this accessory.
Roof Curb
The roof curb shall be designed to mate with the unit’s downflow supply and return and provide
support and a water tight installation when installed properly.The roof curb design shall allow
field-fabricated rectangular supply/return ductwork to be connected directly to the curb. Curb shall
be shipped knocked down for field assembly and shall include wood nailer strips.
Thermostat
Two stage heating and cooling operation or one stage heating and cooling shall be available in
either manual or automatic changeover. Automatic programmable electronic with night set back
shall also be available.
Ventilation Override Accessory
With the Ventilation Override Accessory installed, the unit can be set to transition up to 3 different
pre-programmed sequences for Smoke Purge, Pressurization, and Exhaust.The transition occurs
when a binary input on the RTOM is closed (shorted).This would typically be a hard wired relay
output from a smoke detector or fire control panel.The ventilation override accessory shall be
available as field installed.
Wall Mounted Humidity Sensor
This wall-mounted humidity sensor is used to control activation of the hot gas reheat
dehumidification option.The humidity sensor can be set for humidity levels between 40% and 60%
relative humidity by adjusting the ReliaTel Options Module.
Wireless Zone Sensor
LCD display that provides heat, cool, auto or off. Includes two temperature setpoints and a lockable
setting with °F or °C indicators.
Zone Sensor
This control shall be provided to interface with the Micro equipped units and shall be available in
either manual, automatic programmable with night setback, with system malfunction lights, or
remote sensor options.
RT-PRC023AG-EN
233
Trane optimizes the performance of homes and buildings around the world. A business of Ingersoll Rand, the leader in
creating and sustaining safe, comfortable and energy efficient environments, Trane offers a broad portfolio of advanced
controls and HVAC systems, comprehensive building services, and parts. For more information, visit www.Trane.com.
Trane has a policy of continuous product and product data improvement and reserves the right to change design and specifications without notice.
© 2014Trane All rights reserved
RT-PRC023AG-EN 11 July 2014
We are committed to using environmentally
Supersedes RT-PRC023AF-EN (01 Feb 2014)
conscious print practices that reduce waste.
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
