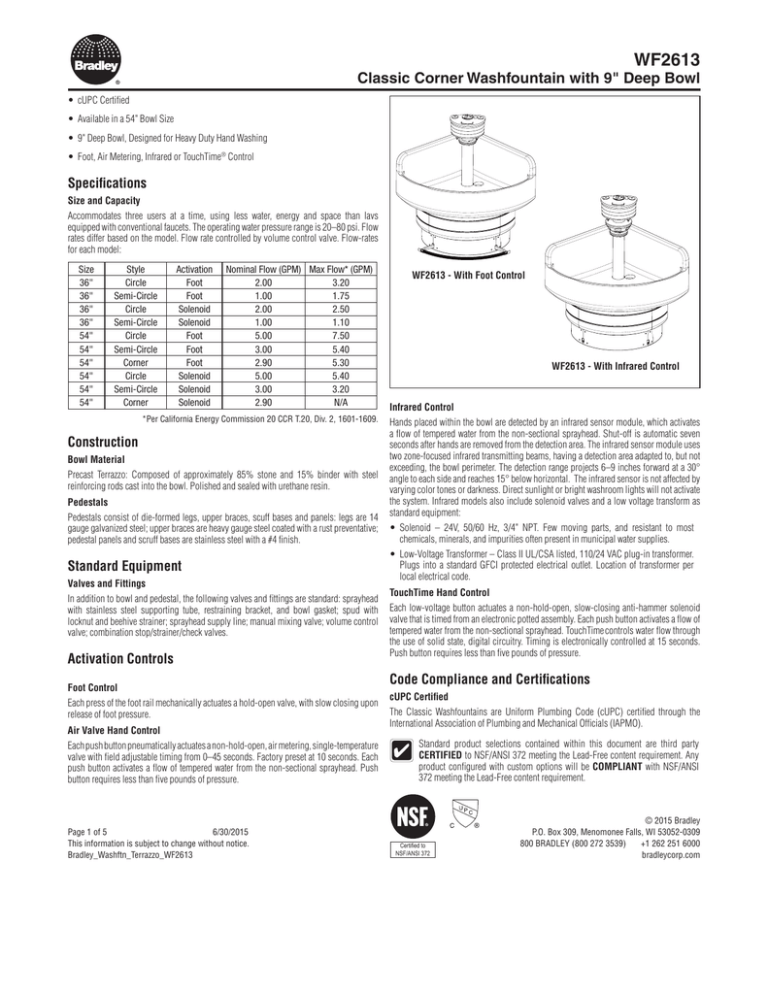

WF2613
WF2613
Classic Corner Washfountain with 9" Deep Bowl
• cUPC Certified
• Available in a 54" Bowl Size
• 9" Deep Bowl, Designed for Heavy Duty Hand Washing
• Foot, Air Metering, Infrared or TouchTime® Control
Specifications
Size and Capacity
Accommodates three users at a time, using less water, energy and space than lavs
equipped with conventional faucets. The operating water pressure range is 20–80 psi. Flow
rates differ based on the model. Flow rate controlled by volume control valve. Flow-rates
for each model:
Size
36"
36"
36"
36"
54"
54"
54"
54"
54"
54"
Style
Circle
Semi-Circle
Circle
Semi-Circle
Circle
Semi-Circle
Corner
Circle
Semi-Circle
Corner
Activation
Foot
Foot
Solenoid
Solenoid
Foot
Foot
Foot
Solenoid
Solenoid
Solenoid
Nominal Flow (GPM) Max Flow* (GPM)
2.00
3.20
1.00
1.75
2.00
2.50
1.00
1.10
5.00
7.50
3.00
5.40
2.90
5.30
5.00
5.40
3.00
3.20
2.90
N/A
*Per California Energy Commission 20 CCR T.20, Div. 2, 1601-1609.
Construction
Bowl Material
Precast Terrazzo: Composed of approximately 85% stone and 15% binder with steel
reinforcing rods cast into the bowl. Polished and sealed with urethane resin.
Pedestals
Pedestals consist of die-formed legs, upper braces, scuff bases and panels: legs are 14
gauge galvanized steel; upper braces are heavy gauge steel coated with a rust preventative;
pedestal panels and scruff bases are stainless steel with a #4 finish.
Standard Equipment
Valves and Fittings
In addition to bowl and pedestal, the following valves and fittings are standard: sprayhead
with stainless steel supporting tube, restraining bracket, and bowl gasket; spud with
locknut and beehive strainer; sprayhead supply line; manual mixing valve; volume control
valve; combination stop/strainer/check valves.
Activation Controls
Foot Control
Each press of the foot rail mechanically actuates a hold-open valve, with slow closing upon
release of foot pressure.
Air Valve Hand Control
Each push button pneumatically actuates a non-hold-open, air metering, single-temperature
valve with field adjustable timing from 0–45 seconds. Factory preset at 10 seconds. Each
push button activates a flow of tempered water from the non-sectional sprayhead. Push
button requires less than five pounds of pressure.
Page 1 of 5
6/30/2015
This information is subject to change without notice.
Bradley_Washftn_Terrazzo_WF2613
WF2613 - With Foot Control
WF2613 - With Infrared Control
Infrared Control
Hands placed within the bowl are detected by an infrared sensor module, which activates
a flow of tempered water from the non-sectional sprayhead. Shut-off is automatic seven
seconds after hands are removed from the detection area. The infrared sensor module uses
two zone-focused infrared transmitting beams, having a detection area adapted to, but not
exceeding, the bowl perimeter. The detection range projects 6–9 inches forward at a 30°
angle to each side and reaches 15° below horizontal. The infrared sensor is not affected by
varying color tones or darkness. Direct sunlight or bright washroom lights will not activate
the system. Infrared models also include solenoid valves and a low voltage transform as
standard equipment:
•Solenoid – 24V, 50/60 Hz, 3/4" NPT. Few moving parts, and resistant to most
chemicals, minerals, and impurities often present in municipal water supplies.
• Low-Voltage Transformer – Class II UL/CSA listed, 110/24 VAC plug-in transformer.
Plugs into a standard GFCI protected electrical outlet. Location of transformer per
local electrical code.
TouchTime Hand Control
Each low-voltage button actuates a non-hold-open, slow-closing anti-hammer solenoid
valve that is timed from an electronic potted assembly. Each push button activates a flow of
tempered water from the non-sectional sprayhead. TouchTime controls water flow through
the use of solid state, digital circuitry. Timing is electronically controlled at 15 seconds.
Push button requires less than five pounds of pressure.
Code Compliance and Certifications
cUPC Certified
The Classic Washfountains are Uniform Plumbing Code (cUPC) certified through the
International Association of Plumbing and Mechanical Officials (IAPMO).
Standard product selections contained within this document are third party
CERTIFIED to NSF/ANSI 372 meeting the Lead-Free content requirement. Any
product configured with custom options will be COMPLIANT with NSF/ANSI
372 meeting the Lead-Free content requirement.
Certified to
NSF/ANSI 372
© 2015 Bradley
P.O. Box 309, Menomonee Falls, WI 53052-0309
800 BRADLEY (800 272 3539) +1 262 251 6000
bradleycorp.com
WF2613
Classic Corner Washfountain with 9" Deep Bowl
Standard Selections (Must select one from each category)
Drain Type (select one)
Off-line vent with supplies
Centrally rising vent with
¨
A
¨
H
from below
supplies from below
Centrally rising vent with
Off-line vent with supplies
¨
B
supplies from above
from above
¨
O
Valve (select one)
Foot Control Valve
¨
F
¨
IR
Infrared
Pedestal Height (select one)
¨
STD Standard Height
¨
JUV Juvenile Height
Soap Dispenser (select one)
¨
LSD Liquid Soap Dispenser
¨
PSD Powdered Soap Dispenser
¨
NSD No Soap Dispenser
Bowl Color (select one)
Standard Color (*Premium color available at additional charge.)
¨
GRANITO Liquid Soap Dispenser
¨
WHT-MARM White Marmorite
¨
D-ROSE
Dusty Rose * **
¨
W-GRAY
Whisper Gray * **
Optional Selections
Thermostatic Mixing Valve
¨
TMA
Thermostatic Mixing Valve
Metal Soap Dispensers
¨
MLSD Metal-Clad Liquid Soap Dispenser
¨
MPSD Metal-Clad Powdered Soap Dispenser
Stainless Steel Shroud
¨
SH
Stainless Steel Shroud (Conceals overhead plumbing)
Paper Towel Dispensers
¨
CTD (2)C-Fold, Multi-Fold Dispenser
¨
SFTD (2)
Single-Fold Dispenser
Hose Bibb
Hose Bibb **
¨
HB
1-1/2" Tie Pipe Assembly
¨
TA
Reinforces Support Tube (Unvented washfountains)
Cube Adapter
¨
SA
For Individual Soap Dispensers (Dispenser sold separately)
** Non-cancelable, not-returnable.
Page 2 of 5
6/30/2015
This information is subject to change without notice.
Bradley_Washftn_Terrazzo_WF2613
© 2015 Bradley
P.O. Box 309, Menomonee Falls, WI 53052-0309
800 BRADLEY (800 272 3539) +1 262 251 6000
bradleycorp.com
WF2613
Classic Corner Washfountain with 9" Deep Bowl
Dimensions (mm)
*Juvenile Height for Both Models:
Subtract 4" (102)
Adjust to Towel Dispenser
Mounting Holes
Foot Controlled
10-1/4)
(260)
6
(152)
37-1/4
(1422)
56*
(1422)
47-5/8*
(1210)
39-1/8*
(994)
36-1/4*
(921)
28 (711)
19*
(483)
29-1/4*
(743)
26 (660)
Adjust to Towel Dispenser
Mounting Holes
Infrared Controlled
AZ Module to be
Rounded at Back
10-1/4)
(260)
6
(152)
59-1/2*
(1511)
37-1/4
(1422)
51-1/8*
(1299)
42-5/8*
(1083)
39-1/8*
(994)
36-1/4*
(921)
28 (711)
19*
(483)
29-1/4*
(743)
26 (660)
Page 3 of 5
6/30/2015
This information is subject to change without notice.
Bradley_Washftn_Terrazzo_WF2613
© 2015 Bradley
P.O. Box 309, Menomonee Falls, WI 53052-0309
800 BRADLEY (800 272 3539) +1 262 251 6000
bradleycorp.com
WF2613
Classic Corner Washfountain with 9" Deep Bowl
Rough-Ins
(mm)
Type A
Type O
– Off-line vent with
supplies from below
Top View
–Off-line vent with supplies
from above.
1" NPT
Supplies thru
Wall (optional)
4-1/2"
(114)
Top View
18-1/2"
(470)
12-3/4"
(324)
2" NPT Drain thru Floor
(optional) Stub Up 3" (76)
Above Floor
9-3/4"
(248)
7-1/4"
(164)
Right Wall
8-3/8" (213)
Cold
7-1/4"
(184)
Trap
16-1/2"
(470)
Center of
Washfountain
2" NPT Drain
thru Wall (stub
out to suit trap
dimension)
(optional)
Center of
Washfountain
2" NPT Drain
thru Wall (stub
out to suit trap
dimension)
(optional)
54" (1372)
Washfountain
Left Wall
4"
(102)
Left Wall
Side View
Left Wall
Trap for Wall
Outlet Only
Trap for Wall
Outlet Only
Drain thru
Wall
B
Clearance Hole
54" (1372) Washfountain Bowl
1" NPT Supplies from above must reduce to
1/2" nom. copper tube on these centers to
pass thru washfountain.
10"
(254)
Side View
Supplies
thru Wall
10"
(254)
Hot
6-3/8"
(213)
10"
(254)
Right Wall
Trap
Cold
1" NPT Supplies thru
Floor Stub Up 2-1/2" (64)
Above Floor
Hot
2" NPT Drain thru Floor
(optional) Stub Up 3" (76)
Above Floor
8-1/2"
(216)
9-3/4"
(248)
10" (254)
12-3/4"
(324)
Clearance Hole
A
Drain
thru Wall
4"
(102)
Floor
Floor
Drain thru Floor Trap
Located Below Floor
Supplies and Drain thru Floor,
Trap Located Below Floor
Coupling and Nipple Hookups: Use
the chart to the right when hookup is
made with a coupling and nipple. When
trap is installed tight to bottom of bowl,
dimension A depends on design of trap.
(2" drain through wall must not
interfere with diagonal frame member
on pedestal).
Right Wall
Left Wall
Dim.
STD.
JUV.
STD.
JUV.
A
11-1/4" to 13-1/4"
(286 - 337)
9-1/4" to 10-1/4"
(235 - 260)
6" to 8-1/2"
(152 - 216)
6" to 11"
(152 - 279)
B
12"
(305)
8-1/4"
(210)
8-1/4"
(210)
12"
(305)
Rough-In Notes
1. All pipes and fittings not furnished by Bradley are shown in broken lines.
2. Supply lines for one to two washfountains should be 1", for three washfountains 1-1/4"; for more than three washfountains, pipe sizes should be increased proportionately.
3. Overhead supplies must be reduced to 1/2" copper tube to pass through support tube.
4. Check valve inlets are 1/2" NPT.
5. UPC and IPC restrict the vertical distance from the fixture outlet to the trap weir to not more than 24" (610). Check state and local codes for variances.
Page 4 of 5
6/30/2015
This information is subject to change without notice.
Bradley_Washftn_Terrazzo_WF2613
© 2015 Bradley
P.O. Box 309, Menomonee Falls, WI 53052-0309
800 BRADLEY (800 272 3539) +1 262 251 6000
bradleycorp.com
WF2613
Classic Corner Washfountain with 9" Deep Bowl
Rough-In Dimensions for Drain and Supplies
(mm)
Type B Drain
Type H Drain
Top View
Top View
– Centrally rising vent with
supplies from above.
9-3/4"
(248)
12-3/4"
(324)
9-3/4"
(248)
7-1/4"
(184)
– Centrally rising vent with
supplies from below.
8-1/2"
(216)
Cold
18-1/2"
(470)
12-3/4"
(324)
1" NPT Supplies
thru Wall (Optional)
Hot
Right Wall
8-1/2"
(216)
4-1/2"
(114)
Left Wall
10"
(254)
8-3/8"
(213)
10"
(254)
7-1/4"
(184)
Cold
Hot
18-1/2"
(470)
2" NPT Drain thru
Floor Stub Up 3" (64)
Above Floor
1-1/2" NPT Vent
to Ceiling
1-1/2" NPT Vent
to Ceiling
2" NPT Drain
Stub Up 3" (76)
Above Floor
Left Wall
54" (1372)
Washfountain Bowl
10"
(254)
1" NPT Supplies from above must reduce
to 1/2" nom. Copper tube on these centers
to pass thru waterfountain.
Side View
1" NPT Supplies
thru Wall
1" NPT Supplies thru
Floor (Optional)
Stub Up 2-1/2" (64)
Above Floor
8-3/8"
(213)
54" (1372)
Washfountain Bowl
10"
(254)
Right Wall
Vent
Side View
Supplies
thru Wall
Vent
12" (305) (STD. Height)
8-1/4" (210) (JUV. Height)
Left Wall
Right Wall
Floor
Floor
Drain thru Wall
Supplies
thru Floor
Drain
thru
Wall
Supplies
thru Floor
Rough-In Notes
1. All pipes and fittings not furnished by Bradley are shown in broken lines.
2. Supply lines for one to two washfountains should be 1", for three washfountains 1-1/4"; for more than three washfountains, pipe sizes should be increased proportionately.
3. Overhead supplies must be reduced to 1/2" copper tube to pass through support tube.
4. Check valve inlets are 1/2" NPT.
5. For maximum rigidity of sprayhead/support tube assembly, use 1-1/2" NPT galvanized pipe for vent. Use of plastic or copper for vent is not recommended.
Page 5 of 5
6/30/2015
This information is subject to change without notice.
Bradley_Washftn_Terrazzo_WF2613
© 2015 Bradley
P.O. Box 309, Menomonee Falls, WI 53052-0309
800 BRADLEY (800 272 3539) +1 262 251 6000
bradleycorp.com
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
