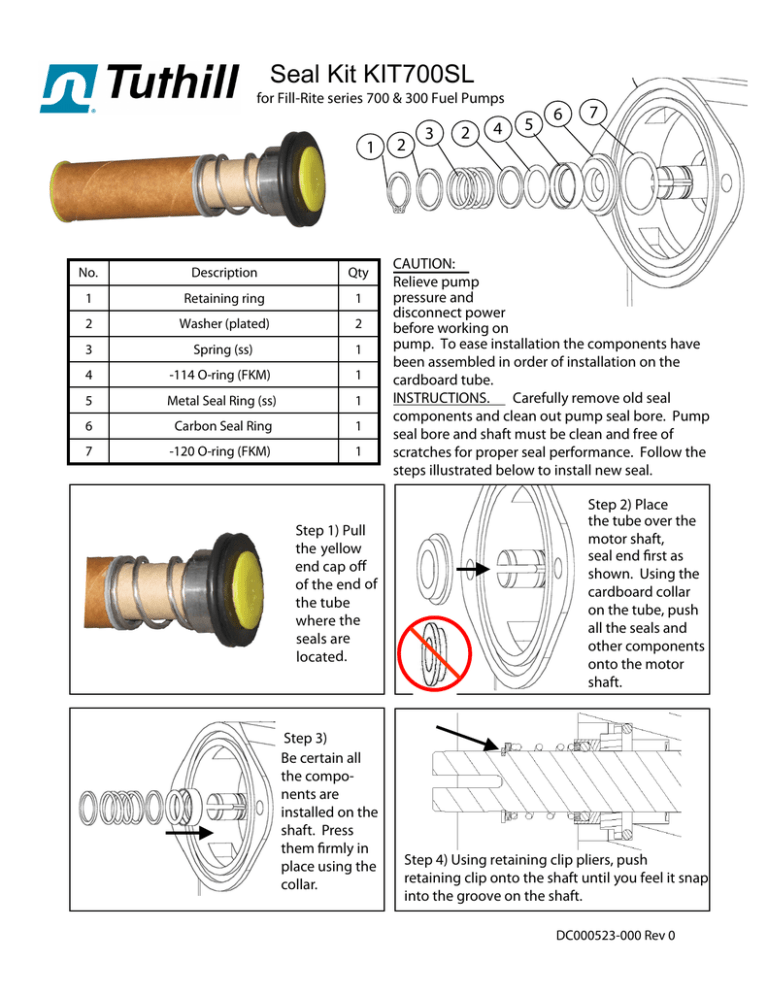

Seal Kit KIT700SL
for Fill-Rite series 700 & 300 Fuel Pumps
1
No.
Description
Qty
1
Retaining ring
1
2
Washer (plated)
2
3
Spring (ss)
1
4
-114 O-ring (FKM)
1
5
Metal Seal Ring (ss)
1
6
Carbon Seal Ring
1
7
-120 O-ring (FKM)
1
Step 1) Pull
the yellow
end cap off
of the end of
the tube
where the
seals are
located.
Step 3)
Be certain all
the components are
installed on the
shaft. Press
them firmly in
place using the
collar.
2
3
2
4
5
6
7
CAUTION:
Relieve pump
pressure and
disconnect power
before working on
pump. To ease installation the components have
been assembled in order of installation on the
cardboard tube.
INSTRUCTIONS.
Carefully remove old seal
components and clean out pump seal bore. Pump
seal bore and shaft must be clean and free of
scratches for proper seal performance. Follow the
steps illustrated below to install new seal.
Step 2) Place
the tube over the
motor shaft,
seal end first as
shown. Using the
cardboard collar
on the tube, push
all the seals and
other components
onto the motor
shaft.
Step 4) Using retaining clip pliers, push
retaining clip onto the shaft until you feel it snap
into the groove on the shaft.
DC000523-000 Rev 0
