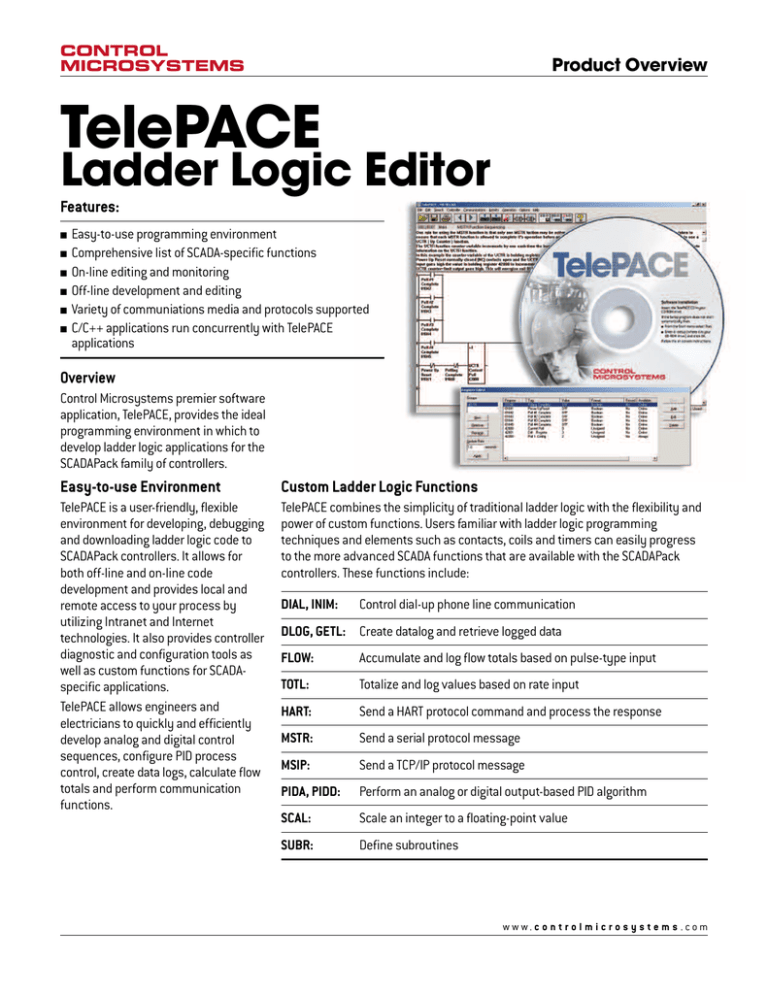

TelePACE Product Overview

TelePACE Product Overview
CONTROL
MICROSYSTEMS
Product Overview
TelePACE
Ladder Logic Editor
Features:
n
n
n
n
n
n
Easy-to-use programming environment
Comprehensive list of SCADA-specific functions
On-line editing and monitoring
Off-line development and editing
Variety of communiations media and protocols supported
C/C++ applications run concurrently with TelePACE
applications
Overview
Control Microsystems premier software
application, TelePACE, provides the ideal
programming environment in which to
develop ladder logic applications for the
SCADAPack family of controllers.
Easy-to-use Environment
Custom Ladder Logic Functions
TelePACE is a user-friendly, flexible
environment for developing, debugging
and downloading ladder logic code to
SCADAPack controllers. It allows for
both off-line and on-line code
development and provides local and
remote access to your process by
utilizing Intranet and Internet
technologies. It also provides controller
diagnostic and configuration tools as
well as custom functions for SCADAspecific applications.
TelePACE allows engineers and
electricians to quickly and efficiently
develop analog and digital control
sequences, configure PID process
control, create data logs, calculate flow
totals and perform communication
functions.
TelePACE combines the simplicity of traditional ladder logic with the flexibility and
power of custom functions. Users familiar with ladder logic programming
techniques and elements such as contacts, coils and timers can easily progress
to the more advanced SCADA functions that are available with the SCADAPack
controllers. These functions include:
DIAL, INIM:
Control dial-up phone line communication
DLOG, GETL: Create datalog and retrieve logged data
FLOW:
Accumulate and log flow totals based on pulse-type input
TOTL:
Totalize and log values based on rate input
HART:
Send a HART protocol command and process the response
MSTR:
Send a serial protocol message
MSIP:
Send a TCP/IP protocol message
PIDA, PIDD:
Perform an analog or digital output-based PID algorithm
SCAL:
Scale an integer to a floating-point value
SUBR:
Define subroutines
w w w. c o n t r o l m i c r o s y s t e m s . com
TelePACE Ladder Logic Editor
Product Overview
On-line Functionality
Important logic documentation can be
TelePACE provides a facility for remote appended to the network where the
or local on-line editing and monitoring logic resides, making the code more
understandable for future users. Tag
of ladder logic programs. Minor
changes to the ladder logic code can be names, assigned to individual I/O
made online. This ensures that only the database points, can further enhance
understandability.
new code is written to the controller,
and not the entire application.
Communications
Program execution can be monitored in TelePACE supports a variety of
real time with logic power-flow being
communication media and protocols
displayed on the logic network itself.
over the computer-to-controller link.
I/O database variable values are
Communication media include:
conveniently displayed on the register
n Direct-wired
editor dialog where custom lists of
n Dial-up
variables are easily created.
n Leased-line
Process variables, controlled by the
ladder logic code, can be forced to pre- n Licensed and spread-spectrum radio
determined values. This is handy when n Ethernet TCP/IP
debugging code in the absence of
n SCADAServer (OPC)
actual input process values or when
Supported protocols include:
temporarily removing a process input
from service for maintenance
n Serial Modbus (RTU and ASCII)
purposes.
n DF1
Off-Line Development
n DNP
Ladder logic code is easily and quickly n Modbus/TCP and Modbus/UDP
developed using the built-in editing
n Modbus (RTU and ASCII) in TCP and
features of TelePACE. These include the
UDP
cutting and pasting of code fragments
or entire networks, special
configuration dialogs for complex
function blocks and the use of
subroutines to compartmentalize
sections of code.
CONTROL
MICROSYSTEMS
Within North America: (888) 267-2232
n
Outside Nor th America: (613) 591-1943
Control Microsystems reserves the right to change product specifications without notice.
Concurrent C/C++ Code Execution
For additional programming power, a
TelePACE application can execute in the
SCADAPack controller concurrently with
C/C++ code. Process data generated in
either application can be passed to the
other through the common I/O
Database. This means, for example, that
the results of complex mathematical
algorithms, implemented using C/C++,
can be used by the TelePACE
application to control the process.
In a typical oil and gas application,
Control Microsystems RealFLO gas flow
computer C/C++ code handles the gas
flow calculation and logging functions
while a concurrently-executing
TelePACE application handles the
remainder of the well site automation
and communication duties; which
could include the control of equipment
such as pumps and motor starters.
TelePACE Demo
A free demo version of TelePACE is
available from Control Microsystems.
The demo version shares all the
functionality of the full version except
for the ability to save completed
applications to the hard drive.
To download the free TelePACE demo,
select the TelePACE Demo link from the
http://www.controlmicrosystems.com/
products/soft/soft_app.html page and
follow the installation instructions.
w w w. c o n t r o l m i c r o s y s t e m s . com
n
Ottawa
n
Calgary
n
Denver
n
Houston
n
Melbourne
n
Leiden
Printed in Canada n V002 n M01011-31
