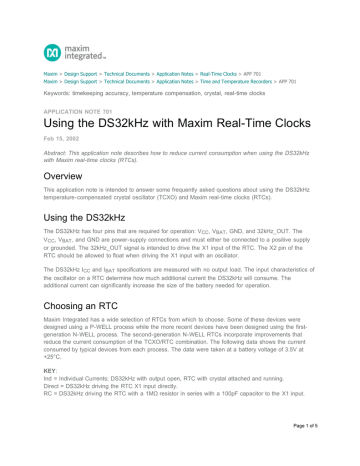

APPLICATION NOTE 701
Using the DS32kHz with Maxim Real-Time Clocks
Feb 15, 2002
Abstract: This application note describes how to reduce current consumption when using the DS32kHz
with Maxim real-time clocks (RTCs).
Overview
This application note is intended to answer some frequently asked questions about using the DS32kHz
temperature-compensated crystal oscillator (TCXO) and Maxim real-time clocks (RTCs).
Using the DS32kHz
The DS32kHz has four pins that are required for operation: VCC, VBAT , GND, and 32kHz_OUT. The
VCC, VBAT , and GND are power-supply connections and must either be connected to a positive supply
or grounded. The 32kHz_OUT signal is intended to drive the X1 input of the RTC. The X2 pin of the
RTC should be allowed to float when driving the X1 input with an oscillator.
The DS32kHz ICC and IBAT specifications are measured with no output load. The input characteristics of
the oscillator on a RTC determine how much additional current the DS32kHz will consume. The
additional current can significantly increase the size of the battery needed for operation.
Choosing an RTC
Maxim Integrated has a wide selection of RTCs from which to choose. Some of these devices were
designed using a P-WELL process while the more recent devices have been designed using the firstgeneration N-WELL process. The second-generation N-WELL RTCs incorporate improvements that
reduce the current consumption of the TCXO/RTC combination. The following data shows the current
consumed by typical devices from each process. The data were taken at a battery voltage of 3.5V at
+25°C.
KEY:
Ind = Individual Currents; DS32kHz with output open, RTC with crystal attached and running.
Direct = DS32kHz driving the RTC X1 input directly.
RC = DS32kHz driving the RTC with a 1MΩ resistor in series with a 100pF capacitor to the X1 input.
Page 1 of 5
Table 1. N-WELL (First Generation)
Mode
DS32kHz IBAT (µA)
DS1306 I BAT (nA)
Ind
1.60
518
Direct
11.9
386
RC
2.14
584
Table 2. N-WELL (Second Generation)
Mode
DS32kHz IBAT (µA)
DS1337 ICC (nA)
Ind
1.59
612
Direct
3.73
626
RC
2.11
622
Table 3. P-WELL
Mode
DS32kHz IBAT (µA)
DS1202 I BAT (nA)
Ind
1.63
625
Direct
87.1
3410
RC
2.17
685
Note the RTC in each of the aforementioned tables are different RTCs. This accounts for the difference
in the clock currents when comparing the tables.
If the RTC has an oscillator-enable bit, the oscillator must be enabled. If the bit is not enabled, additional
current is drawn and the clock may not operate.
Page 2 of 5
Table 4. RTC LIST
P-WELL
Devices
First Generation N-WELL
Devices
Second Generation N-WELL
Devices
DS1202
DS12885
DS1337
DS12885
DS1302
DS1338
DS1283
DS1305/DS1306
DS1339
DS1284
DS1307
DS1672
DS1384
DS1315
DS14285
DS1500/DS1501
DS1384
DS1315
DS1602
DS1670/DS1673/DS1677
DS1685
DS1688/DS1689
DS17285/DS17485/DS17885
Summary
When using P-WELL and first-generation N-WELL RTC devices, use an RC circuit to achieve the
minimum possible timekeeping current.
The second-generation N-WELL devices use only slightly more current with an RC circuit.
