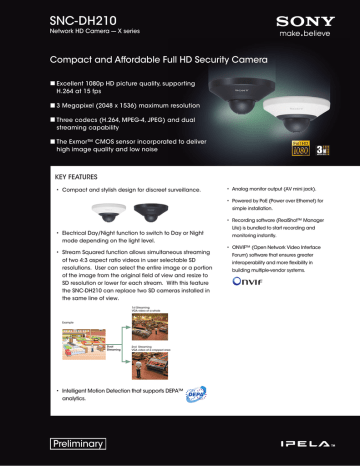

SNC-DH210
Network HD Camera --- X series
Compact and Affordable Full HD Security Camera
Excellent 1080p HD picture quality, supporting
H.264 at 15 fps
3 Megapixel (2048 x 1536) maximum resolution
Three codecs (H.264, MPEG-4, JPEG) and dual
streaming capability
The Exmor™ CMOS sensor incorporated to deliver
high image quality and low noise
KEY FEATURES
• Compact and stylish design for discreet surveillance.
• Analog monitor output (AV mini jack).
• P
owered by PoE (Power over Ethernet) for
simple installation.
• R
ecording software (RealShot™ Manager
• E
lectrical Day/Night function to switch to Day or Night
mode depending on the light level.
• S
tream Squared function allows simultaneous streaming
of two 4:3 aspect ratio videos in user selectable SD
resolutions. User can select the entire image or a portion
of the image from the original field of view and resize to
SD resolution or lower for each stream. With this feature
the SNC-DH210 can replace two SD cameras installed in
the same line of view.
1st Streaming
VGA video of a whole
Example
Dual
Streaming
2nd Streaming
VGA video of a cropped area
• Intelligent Motion Detection that supports DEPA™
analytics.
Preliminary
Lite) is bundled to start recording and
monitoring instantly.
• O
NVIF™ (Open Network Video Interface
Forum) software that ensures greater
interoperability and more flexibility in
building multiple-vendor systems.
SPECIFICATIONS
SYSTEM CONFIGURATION
SNC-DH210
ONVIF software
Number of clients
Authentication
Analog Video Output
Signal system
Interface
Ethernet
Analog monitor output
Sensor input
General
Weight
Dimensions
Power requirements
Power consumption
Starting temperature
Working temperature
Storage temperature
Safety regulation
System Requirements
Operating system
Processor
Memory
Web browser
Recording Software
RealShot Manager Lite
SNC-DH210
PC
Yes (Electrical D/N)
Yes
Unit: inches (mm)
4
(1
06
)
DIMENSIONS
1/
2048×1536(JPEG only), 1920x1080, 1600x1200, 1680x1056, 1440x912, 1280x1024, 1280x960, 1376x768,
1280x800, 1280x720, 1024x768, 1024x576, 768x576, 720x576, 704x576, 800x480, 720x480, 640x480,
640x368, 384x288, 352x288, 320x240, 320x192, 176x144
H.264, MPEG-4, JPEG
Dual streaming
JPEG:12fps(2048×1536)/15fps(1920×1080)/30fps(1280×720)
MPEG-4:15fps(1920×1080)/30fps(1280×720)
H.264:15fps(1920×1080)/30fps(1280×720)
4
Scene Analytics
Intelligent motion detection
Network
Protocols
Network
ø
Video compression format
Codec streaming capability
Maximum frame rate
Network Surveillance
Recorder
NSR-S10
SNC-DH210
Yes
IPv4, IPv6, TCP, UDP, ARP, ICMP, IGMP, HTTP, HTTPS, FTP (client), SMTP, DHCP, DNS,NTP, RTP/RTCP, RTSP,
SNMP (MIB-2)
Yes
5
IEEE802.1X
NTSC / PAL
10BASE-T / 100BASE-TX (RJ-45)
AV mini jack
x1
5.3 oz (150g)
ø 4 1/4 x 2 1/8 inches (ø 106 x 50.5 mm)
PoE
2.4W
32°F to 122°F (0°C to 50°C)
32°F to 122°F (0°C to 50°C)
-4°F to +140°F (-20°C to +60°C)
UL2044, FCC 15B Class A, IC Class A, IEC60950-1, EN55022(A)+EN55024+EN50130-4, VCCI Class A,
C-Tick Class A (Tentative)
3 /32 (2)
Number of effective pixels
(H x V)
Electronic shutter speed
Gain control
Exposure control
White balance mode
Lens type
Horizontal viewing angle
Focal length
F-number
Minimum object distance
Pan angle
Tilt angle
Camera Features
Day/Night
Noise reduction
Codec image size (H x V)
HD monitor
1/2.8 type progressive scan Exmor CMOS sensor
2.0 lx
(AGC [38 dB] / 50IRE [IP])
3 Megapixel
(2096×1561)
1s to 1/10000 s
Auto
Auto, EV Compensation, Auto Slow Shutter
Auto (ATW, ATW-PRO) , Preset, One-push WB, Manual
Fixed
88 degrees
f=3.3
F2.8
500 mm
±170°
0 degrees to 60 degrees
2 1/8 (50.5)
Camera
Image device
Minimum illumination
Windows XP™, Windows Vista (32bit), Windows 7 (32bit)
Intel Core2 Duo 2 GHz or higher
1 GB or more
Microsoft Internet Explorer® Ver. 6.0, 7.0, or 8.0
Firefox® Ver.3.5 (Plug-in free viewer only)
Safari® Ver.4.0 (Plug-in free viewer only)
Google® Chrome Ver.4.0 (Plug-in free viewer only)
Supplied Accessories
CD-ROM (User’s Guide, SNC Toolbox, RSM-Lite), Installation manual, B&P warranty booklet, Sensor input cable
* The SNC-DH210 includes software developed by the OpenSSL Project for use in the OpenSSL Toolkit (http://www.openssl.org/).
Sony Electronics Inc.
1 Sony Drive
Park Ridge, NJ 07656
sony.com/security
S-IP2091 (MK10738V1)
© 2010 Sony Electronics Inc. All rights reserved.
Reproduction in whole or in part without written permission is prohibited.
Features and specifications are subject to change without notice.
Weights and measurements are approximate.
Sony, ‘make.believe’, IPELA, DEPA, RealShot, Exmor, ONVIF and
their respective logos are trademarks of Sony.
Windows, XP, and Vista are trademarks of Microsoft Corporation.
All other trademarks are the property of their respective owners.
Printed in USA (11/10)
