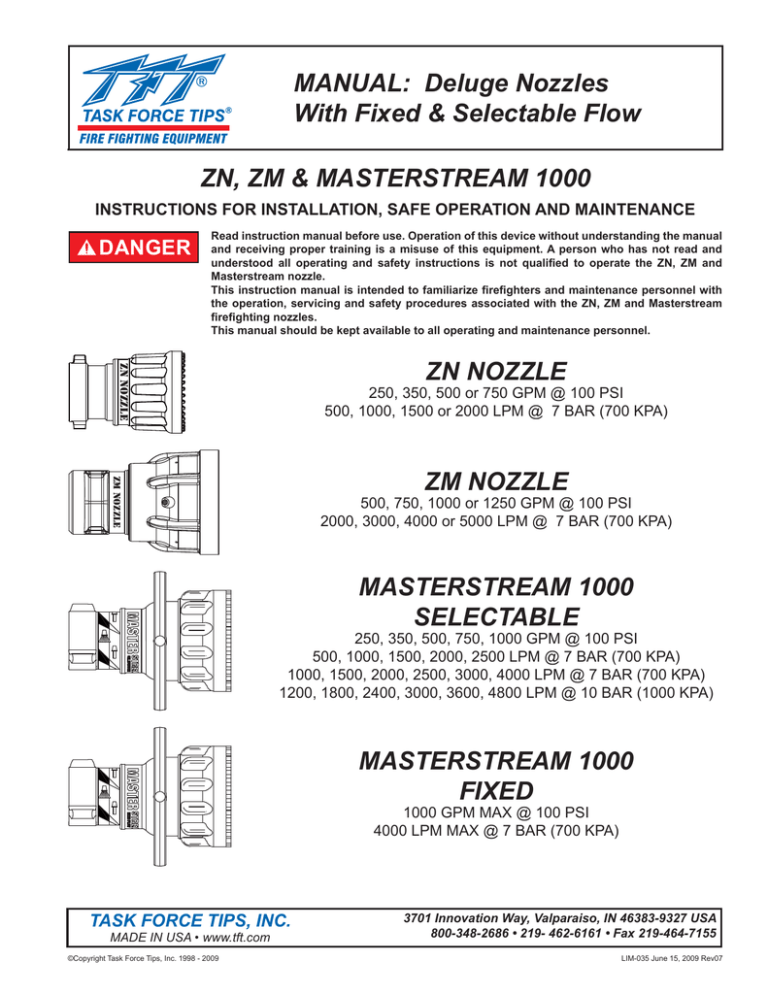

MANUAL: Deluge Nozzles
With Fixed & Selectable Flow
ZN, ZM & MASTERSTREAM 1000
INSTRUCTIONS FOR INSTALLATION, SAFE OPERATION AND MAINTENANCE
DANGER
Read instruction manual before use. Operation of this device without understanding the manual
and receiving proper training is a misuse of this equipment. A person who has not read and
understood all operating and safety instructions is not qualified to operate the ZN, ZM and
Masterstream nozzle.
This instruction manual is intended to familiarize firefighters and maintenance personnel with
the operation, servicing and safety procedures associated with the ZN, ZM and Masterstream
firefighting nozzles.
This manual should be kept available to all operating and maintenance personnel.
ZN NOZZLE
ZN NOZZLE
250, 350, 500 or 750 GPM @ 100 PSI
500, 1000, 1500 or 2000 LPM @ 7 BAR (700 KPA)
ZM NOZZLE
ZM NOZZLE
500, 750, 1000 or 1250 GPM @ 100 PSI
2000, 3000, 4000 or 5000 LPM @ 7 BAR (700 KPA)
MASTERSTREAM 1000
SELECTABLE
250, 350, 500, 750, 1000 GPM @ 100 PSI
500, 1000, 1500, 2000, 2500 LPM @ 7 BAR (700 KPA)
1000, 1500, 2000, 2500, 3000, 4000 LPM @ 7 BAR (700 KPA)
1200, 1800, 2400, 3000, 3600, 4800 LPM @ 10 BAR (1000 KPA)
MASTERSTREAM 1000
FIXED
1000 GPM MAX @ 100 PSI
4000 LPM MAX @ 7 BAR (700 KPA)
TASK FORCE TIPS, INC.
MADE IN USA • www.tft.com
©Copyright Task Force Tips, Inc. 1998 - 2009
3701 Innovation Way, Valparaiso, IN 46383-9327 USA
800-348-2686 • 219- 462-6161 • Fax 219-464-7155
LIM-035 June 15, 2009 Rev07
DANGER
PERSONAL RESPONSIBILITY CODE
The member companies of FEMSA that provide emergency response
equipment and services want responders to know and understand the
following:
1. Firefighting and Emergency Response are inherently dangerous activities
requiring proper training in their hazards and the use of extreme caution
at all times.
2. It is your responsibility to read and understand any user’s instructions,
including purpose and limitations, provided with any piece of equipment
you may be called upon to use.
3. It is your responsibility to know that you have been properly trained in
Firefighting and /or Emergency Response and in the use, precautions, and
care of any equipment you may be called upon to use.
4. It is your responsibility to be in proper physical condition and to maintain
the personal skill level required to operate any equipment you may be
called upon to use.
5. It is your responsibility to know that your equipment is in operable
condition and has been maintained in accordance with the manufacturer’s
instructions.
6. Failure to follow these guidelines may result in death, burns or other
severe injury.
FEMSA
Fire and Emergency Manufacturers and Service Association
P.O. Box 147, Lynnfield, MA 01940 • www.FEMSA.org
Table Of Contents
1.0
2.0
2.1
2.2
2.3
2.4
3.0
3.1
3.2
3.3
3.4
MEANING OF SAFETY SIGNAL WORDS
GENERAL INFORMATION
USE WITH SALT WATER
VARIOUS MODELS AND TERMS
PATTERN CONTROL
USE WITH FOAM
2.4.1 FOAMJET LX WITH MASTERSTREAM NOZZLE
FLOW CHARACTERISTICS OF INDUSTRIAL NOZZLE
FLOW CHARACTERISTICS OF MASTERSTREAM
SELECTABLE NOZZLE
FLOW CHARACTERISTICS OF MASTERSTREAM FIXED
NOZZLE
DETERMINING FLOW WITH PRE-PIPED MONITORS
STREAM TRAJECTORY DATA
4.0
5.0
6.0
7.0
FLUSHING DEBRIS
MAINTENANCE
DRAWINGS & PARTS LISTS
WARRANTY
1.0 MEANING OF SAFETY SIGNAL WORDS
A safety related message is identified by a safety alert symbol and a signal word to indicate the level of risk involved with a particular
hazard. Per ANSI standard Z535.6-2006, the definitions of the four signal words are as follows:
DANGER
DANGER indicates a hazardous situation which, if not avoided, will result in death or serious
injury.
WARNING
WARNING indicates a hazardous situation which, if not avoided, could result in death or serious
injury.
CAUTION
CAUTION indicates a potentially hazardous situation which, if not avoided, may result in minor
or moderate injury.
NOTICE
NOTICE is used to address practices not related to personal injury.
©Copyright Task Force Tips, Inc. 1998 - 2009
2
LIM-035 June 15, 2009 Rev07
2.0 GENERAL INFORMATION
The Task Force Tips ZN, ZM and Masterstream nozzles are deluge nozzles with clean far reaching straight stream. They are
adjustable from straight stream to a dense fog pattern. Their rugged construction is compatible with the use of fresh water as well as
fire fighting foam solutions. A summary of each nozzle’s characteristics is shown in the tables below.
This equipment is intended for use by trained personnel for firefighting. Their use for other
purposes may involve hazards not addressed by this manual. Seek appropriate guidance and
training to reduce risk of injury.
WARNING
FIXED FLOW NOZZLES
SERIES
FLOW (GPM
PRESSURE
(PSI)
FLOW (LPM)
PRESSURE
(BAR,KPA/100)
k FACTOR
ZN NOZZLE
250, 350, 500, 750
100
1000, 1500, 2000, 3000
7
15 - 75
ZM NOZZLE
500, 750, 1000, 1250
100
2000, 3000, 4000, 4750
7
50 - 125
MASTERSTREAM
1000 FIXED
CUSTOMER
SPECIFIED:
1000 GPM MAX
CUSTOMER
SPECIFIED:
150 PSI MAX
CUSTOMER SPECIFIED:
4000 LPM MAX
CUSTOMER
SPECIFIED:
10 BAR MAX
50 - 105
MASTERSTREAM SELECTABLE FLOW NOZZLES
SERIES
FLOW (GPM
PRESSURE
(PSI)
FLOW (LPM)
PRESSURE
(BAR,KPA/100)
k FACTOR
MASTERSTREAM 1000
SELECTABLE
250, 350, 500, 750,
1000
100
1000, 1500, 2000, 3000, 4000
7
15 - 75
MASTERSTREAM 1000
SELECTABLE
250, 350, 500, 750,
1000
150
1200, 1800, 2400, 3600, 4800
10
50 - 105
NOTES ON TABLES:
•
2 ½ inch NH female threads are standard. Other threads and coupling sizes can be specified at time of order.
•
ZM & ZN series nozzle are hardcoat anodized ANSI 356 aluminum.
•
Masterstream series nozzle is constructed of hardcoat anodized 6061-T6 aluminum.
•
Masterstream series nozzle is also available in automatic pressure control models. See catalog for details.
•
Temperature Rating: -25°F to 135°F (-32° C to 57°C) for ZN and Masterstream nozzles;
-40°F to 135°F (-40°C to 57°C) for ZM nozzles.
WARNING
WARNING
WARNING
Injury can occur from an inadequately supported nozzle. The mounting must be capable of
supporting the nozzle reaction force which can be in excess of 665 LBS (1250 GPM at 100 PSI).
Some volatile liquids can be ignited by static discharge. Static build-up can occur from:
• Electrochemical separation of charge as water drains through low conductivity, refined
products.
• Applying foam over a low conductivity liquid of sufficient depth to retain the charge created as
the foam blanket drains.
1
• Streaming currents as water or foam is introduced into the storage tank.
Water is a conductor of electricity. Application of water solutions on high voltage equipment can
cause injury or death by electrocution. The amount of current that may be carried back to the
nozzle will depend on the following factors:
Voltage of the line or equipment • Distance from the nozzle to the line or equipment
2
Size of the stream • Whether the stream is solid or broken
• Purity of the water
CAUTION
Nozzle must be properly connected. Mismatched or damaged threads may cause nozzle to leak
or uncouple under pressure and could cause injury.
CAUTION
Do not couple aluminum to brass. Dissimilar metals coupled together can cause galvanic
corrosion that can result in inability to unscrew threads or complete loss of thread engagement.
CAUTION
The nozzle may become damaged if allowed to freeze while containing water. Always drain after
use to avoid damage and possible loss of use.
1 Electrostatic Hazards of Foam Blanketing Operations by Peter Howels. Industrial Fire Safety July/August 1993
2 The Fire Fighter and Electrical Equipment, The University of Michigan Extension Service, Fourth Printing 1983. Page 47.
2.1 USE WITH SALT WATER
Use with salt water is permissible provided nozzle is thoroughly cleaned with fresh water after each use. The service life of the nozzle
may be shortened due to the effects of corrosion and is not covered under warranty.
©Copyright Task Force Tips, Inc. 1998 - 2009
3
LIM-035 June 15, 2009 Rev07
2.2 VARIOUS MODELS AND TERMS
See figures 1A, 1B and 1C for views of the ZN, ZM and Masterstream nozzles. The Masterstream Series Nozzle is available without
halo ring. See catalog for model numbers and details.
Stream Shaper / Bumper
Baffle
Threaded Inlet
ZN NOZZLE
FIG 1A - ZN Nozzle
Stream Shaper / Bumper
Halo Ring
Baffle
Jam Nut
Flow
Selector
Coupling
FIG 1B - Masterstream 1000
Selectable Gallonage Nozzle
FIG 1C - Masterstream 1000
Fixed Gallonage Nozzle
2.3 PATTERN CONTROL
TFT’s ZN, ZM and Masterstream nozzles have full pattern control from straight stream to wide fog. Turning the stream shaper
clockwise (as seen from the operating position behind the nozzle) moves the shaper to the straight stream position. Turning the
stream shaper counterclockwise will result in an increasingly wider pattern.
Since the stream trim point varies with flow, the stream trim point should be “trimmed” after changing the flow to obtain the straightest
and farthest reaching stream. To properly trim a stream, first open the pattern to narrow fog. Then close the stream to parallel to
give maximum reach. Note: Turning the shaper further forward will cause stream crossover and reduce the effective reach of the
nozzle.
Note: Masterstream models are also available with linear (push/pull), remote electric or hydraulic actuation of the stream shaper.
2.4 USE WITH FOAM
The ZN, ZM and Masterstream nozzles may be used with foam solutions. Refer to fire service training for the proper use of foam.
WARNING
WARNING
WARNING
For Class B fires, lack of foam or interruption in the foam stream can cause a break in the foam blanket
and greatly increase the risk of injury or death. Assure that: Application rate is sufficient (see NFPA 11
or foam manufacturer’s recommendations); Enough concentrate is on hand to complete task (see NFPA
for minimum duration time requirements); Foam logistics have been carefully planned. Allow for such
things as: Storage of foam in a location not exposed to the hazard it protects; Personnel, equipment
and technique to deliver foam at a rapid enough rate; Removal of empty foam containers; Keeping clear
path to deliver foam as hoses, other equipment and vehicles are deployed.
Improper use of foam can result in injury or damage to the environment. Follow foam manufacturer’s
instructions and fire service training to avoid: Using wrong type of foam on a fire, i.e. Class A foam on a
Class B fire; Plunging foam into pools of burning liquid fuels; Causing environmental damage; Directing
stream at personnel.
There is a wide variety of foam concentrates. Each user is responsible for verifying that any foam
concentrate chosen to be used with this unit has been tested to assure that the foam obtained is suitable
for the purpose intended.
©Copyright Task Force Tips, Inc. 1998 - 2009
4
LIM-035 June 15, 2009 Rev07
2.4.1 FOAMJET LX WITH MASTERSTREAM NOZZLE
To increase the expansion ratio and drain time, Task Force Tips “Foamjet LX” (model FJ-LX-M) may be used with the Masterstream
nozzle. This low expansion foam tube attaches and detaches quickly from the nozzle. Note: As expansion ratio is increased, the
reach of the stream will be decreased due to the greater amount of bubbles in the stream and their inability to penetrate the air.
Generally, the reach with foam is approximately 10 % less than with water only. Actual results will vary based on brand of foam,
hardness of water, temperature, etc.
! WARNING
FIG 2.4.1A - FJ-LX-M Shown on Masterstream Nozzle
FIG 2.4.1B - FJ-LX-MD Shown on ZN Nozzle
3.0 FLOW CHARACTERISTICS OF ZN & ZM NOZZLES
The ZN & ZM Nozzles are manufactured to a predetermined fixed orifice. The orifice size is not adjustable and is specified at time
of order. 250, 350, 500 or 750 GPM flow rates at 100 PSI are available on the ZN and 500, 750, 1000 or 1250 GPM @ 100 psi are
available on the ZM nozzle. The flow rate is marked on the nozzle’s baffle. Figure 3 gives relationship of flow and pressure for various
orifice sizes.
3.1 FLOW CHARACTERISTICS OF MASTERSTREAM 1000 SELECTABLE NOZZLE
The Masterstream 1000 Selectable Nozzle allows the user to select one of several orifice sizes by turning a knob at the front of the
nozzle. An indicator on the knob shows which flow has been selected. Figure 3 gives relationship of flow and pressure for various
orifice sizes.
0
FLOW (LPM)
2000
3000
1000
4000
200
180
SI
G
PM
PM
@
@
10
0
10
PS
I
0P
100
P
GP
50
0G
80
[email protected]
@ 10
100
350
PM
120
250
G
PRESSURE (PSI)
140
SI
0 PS
I
160
75
0
10
60
G
00
50
12
PM
@
M
GP
10
@
0
I
PS
8
I
PS
0
10
4
PRESSURE (BAR KPA/100)
12
40
20
0
0
0
100
200
300
400
500
600
700
800
900 1000 1100 1200
FLOW (GPM)
FIG 3 - Nozzle Flow Characteristics
©Copyright Task Force Tips, Inc. 1998 - 2009
5
LIM-035 June 15, 2009 Rev07
3.2 FLOW CHARACTERISTICS OF MASTERSTREAM 1000 FIXED NOZZLE
The Masterstream 1000 Fixed Flow Nozzle is set to the desired flow by adjusting the baffle and locking it in place with a jam nut. The
nozzle is adjusted and flow tested at the factory at time of order. If the baffle is moved (for example to flush the nozzle), then the baffle
must be readjusted to obtain the desired flow. Refer to figure 3.0 for baffle position to achieve a certain flow and pressure. Figure 4
gives relationship of flow and pressure for various orifice sizes.
NOZZLE FLOW (LPM)
2000
3000
1000
4000
5000
180
2 turns
NOZZLE PRESSURE (PSI)
160
3 turns
4 turns
5 turns
6 turns 7 turns
10
140
120
8
100
6
80
60
40
200
4
300
400
500
NOZZLE PRESSURE (BAR, KPA/100)
12
600 700 800 900 1000 1100 1200 1300 1400
NOZZLE FLOW (GPM)
FIG 4 - Nozzle flow vs. baffle turns from closed position for Masterstream Fixed Nozzle
WARNING
An inadequate supply of nozzle pressure and/or flow will cause an ineffective stream and can
result in injury, death or loss of property.
3.3 DETERMINING FLOW WITH PRE-PIPED MONITORS
The simplest procedure to determine flow is with a flow meter. If a flow meter is unavailable then the flow may be estimated using
pressure loss data between the nozzle and an in-line pressure gauge at the pump or considerably upstream from the nozzle. Data
is taken with a smooth bore nozzle and handheld pitot gauge. Note: equations assume no substantial change in elevation between
in-line pressure gauge and nozzle.
Step1: Determine flow of smooth bore nozzle.
Flow water with a smooth bore nozzle and record the nozzle’s size, pitot pressure and in-line pressure gauge reading. The smooth
bore nozzle’s flow is calculated from the Freeman formula:
Qnozzle = F x D
Where:
2
Ppitot
F = 29.71 for English units (GPM, INCHES, PSI)
F = .667 for metric units (LPM, MM, BAR) Note: 1 BAR=100 KPA
Qnozzle is smooth bore nozzle flow in GPM (or LPM)
D is nozzle exit diameter in INCHES (or MM)
Ppitot is pitot pressure in PSI (or BAR)
©Copyright Task Force Tips, Inc. 1998 - 2009
6
LIM-035 June 15, 2009 Rev07
Step 2: Find piping pressure loss constant.
Using the results from step 1 use the following equation to calculate the
pressure loss constant between the in-line pressure gauge and the nozzle.
Where: Cpiping is pressure loss constant in GPM2/PSI (or LPM2/BAR)
Pinline is inline pressure gauge reading in PSI (or BAR)
2
Q smooth
C piping =
Pin-line — Ppitot
Step 3: Calculate nozzle constant.
2
C nozzle =
Where: Cnozzle is the nozzle’s constant in GPM2/PSI (or LPM2/BAR)
Qnominal is the nozzle’s nominal flow in GPM (or LPM)
Pnominal is the nozzle’s nominal pressure in PSI (or BAR)
Step 4: Calculate flow.
Using the pressure loss constant from step 2, the nozzle
constant from step 3, and the in-line pressure gauge reading,
the flow with a fixed orifice nozzle can be calculated with the
following equation.
Q nominal
Pnominal
C piping x C nozzle x P inline
(C piping + C nozzle)
Q =
Where: Q is fixed orifice nozzle’s flow in GPM (or LPM)
Mount a graph or table of the results adjacent to the in-line pressure gauge. Deliver any desired flow by adjustment of pump
pressure.
3.4 STREAM TRAJECTORY DATA
Figure 5 gives the stream trajectory for the ZN, ZM and Masterstream nozzles at various pressures. The graphs represent orifice
sizes of 250, 350, 500, 750 and 1000 GPM at 100 PSI. For other orifice sizes and pressures the graphs may be interpolated.
Notes on trajectory graphs:
•
Graphs show approximate effective stream trajectory at 30 degrees elevation in no wind conditions. Distance to last water
drops approximately 10% farther.
•
Trajectories shown are for water. The addition of foam is expected to decrease the reach by approximately 10%.
•
Tail or head winds of 20 MPH (30 KPH) may increase or decrease the range approximately 30%.
GPM
LBS
FLOW
200
300
REACTION
100
140
430
650
200
300
E
870
400
CURVE
LPM
FLOW
830
REACTION
45
HORIZONTAL DISTANCE (METERS)
10
20
30
40
50
60
70
80
CURVE
90
A
80
70
ZN, ZM AND MASTERSTREAM 1000, 75 PSI (5 BAR, 500 KPA )
60
20
50
40
D
30
B
C
D
10
METERS
VERTICAL DISTANCE (FEET)
0
E
20
A
A
B
C
B
10
C
0
0
0
20
40
60
80
100
120
140
160
180
200
220
240
260
280
D
E
300
HORIZONTAL DISTANCE (FEET)
HORIZONTAL DISTANCE (METERS)
10
20
30
40
50
60
70
80
CURVE
A
90
80
70
ZN, ZM AND MASTERSTREAM 1000, 100 PSI (7 BAR, 700 KPA )
60
50
20
D
40
10
30
E
A
20
C
0
0
20
40
60
80
100
120
140
160
0
180
200
HORIZONTAL DISTANCE (FEET)
©Copyright Task Force Tips, Inc. 1998 - 2009
7
220
240
D
E
CURVE
B
10
B
C
METERS
VERTICAL DISTANCE (FEET)
0
260
280
300
A
B
C
D
E
KGF
1100
1600
2500
3300
90
140
180
GPM
FLOW
LBS
REACTION
250
350
130
190
500
750
270
400
1000
530
60
LPM
KGF
FLOW
950
1300
REACTION
60
80
1900
2800
120
180
3800
240
LIM-035 June 15, 2009 Rev07
HORIZONTAL DISTANCE (FEET)
0
10
20
30
40
50
60
70
80
90
ZN, ZM AND MASTERSTREAM 1000, 150 PSI (10 BAR, 1000 KPA )
60
20
50
40
D
30
20
10
E
A
B
10
C
0
0
0
20
40
60
80
100
120
140
160
180
200
220
240
260
280
300
HORIZONTAL DISTANCE (FEET)
METERS
VERTICAL DISTANCE (FEET)
80
70
GPM
FLOW
310
430
610
LBS
REACTION
200
280
400
920
1200
600
780
CURVE
LPM
FLOW
A
B
1200
1600
KGF
REACTION
90
120
C
2300
D
E
3500
4500
CURVE
A
B
C
D
E
180
270
350
FIG 5 - ZN, ZM and Masterstream Nozzle Stream Trajectory
4.0 FLUSHING DEBRIS
Debris in the water may get caught inside the nozzle. This trapped material will cause poor stream quality, shortened reach and
reduced flow. To remove debris trapped in the nozzle:
1) Shut off flow to the nozzle.
2) Move the stream shaper to the wide fog position.
3) For ZN Nozzle: Unscrew baffle using a 1-1/8 inch (28mm) socket.
For ZM Nozzle: Unscrew the bolt using 7/8” socket and remove baffle.
For Masterstream Selectable Gallonage Nozzle: Turn flow selector on front of nozzle to “FLUSH” position.
For Masterstream Fixed Gallonage Nozzle: Remove nozzle to gain access to debris.
4) Remove debris. Flow water to flush if necessary.
5) Reassemble the nozzle. Tighten the baffle on the Max Lite nozzle to 30 ft-lbs (40 newton-meters).
WARNING
Large amounts of debris may be unflushable and can reduce the flow of the nozzle resulting in
an ineffective flow. In the event of a blockage, it may be necessary to retreat to a safe area.
5.0 MAINTENANCE
Nozzles must be checked regularly to assure proper operation. Contact factory for parts lists and exploded views for particular
models.
©Copyright Task Force Tips, Inc. 1998 - 2009
8
LIM-035 June 15, 2009 Rev07
6.0 DRAWINGS & PARTS LIST
ZN NOZZLE
10
8
7
6
5
4
3
2
1
9
ZN PARTS LIST
ITEM
1
DESCRIPTION
QTY PART
ITEM
DESCRIPTION
QTY PART
BAFFLE 350 GPM
1
Z565
5
1/4-28 X 1/4 SOCKET SET SCREW
1
VT-25-28SS250
BAFFLE 500 GPM
1
Z566
6
SHAPER SEAL 3.255 ID - DEFLASHED
1
Z330
BAFFLE 750 GPM
1
Z567
7
IND. NOZ. BODY ALUM 2.5” NH
1
Z650ANJ
2
1/2-13 X 2 STUD - FULL THREAD
1
VT50-13SD2.0
8
CAM PIN
1
Z660
3
BUMPER
1
Z700
9
NAME LABEL - ZN NOZZLE
1
ZL150
4
SHAFT
1
Z505
10
GASKET - 2.5” HOSE COUPLING
1
V3190
ZM NOZZLE
1
2
4
3
5
6
8
9
10
11
12
13
7
ZM PARTS LIST
ITEM
DESCRIPTION
QTY PART
ITEM
DESCRIPTION
QTY PART
1
GASKET - 2.5” HOSE COUPLING
1
V3190
8
SPRING
1
ZFM580
2
NOZZLE BODY 2.5” NH
1
ZFM600NJ
9
BAFFLE K=125
1
ZFM560
3
CUP SEAL 4.25 X 4.75 X 1/4
1
XGE380
13
SUBBAFFLE K=75 & K=100
1
ZFM5656
4
10-32 X 3/8 SOCKET SET SCREW
1
VT10-32SS375
11
SUBBAFFLE K=50 - LASERED
1
ZFM570
5
PIN - .680 X 1/8” DIA.
1
D07550
12
HEAVY HEX BOLT 1/2”-13 X 1.5”
1
ZFM575
6
NOZZLE SHAPER
1
ZFM500
13
ZM NAME LABEL
1
ZFML150
7
GREASE FITTING 1/4-28
1
VT25-28ZERK
©Copyright Task Force Tips, Inc. 1998 - 2009
9
LIM-035 June 15, 2009 Rev07
6.0 DRAWINGS & PARTS LIST
MASTERSTREAM 1000 SELECTABLE
2
11
18
8
12
13
1
9
22
7
25
6
10
4
32 33
34
3
19
17
28
5
35
15
26
13
16
24
23
30
27
29
31
ITEM
DESCRIPTION
QTY PART
ITEM
DESCRIPTION
QTY PART
1
COUPLING 2.5” NH
1
M307N
18
3/6” BALL
48
V2120
2
1/4-28 X 1/2 SET SCREW
1
VT25-28SS500
19
SHAFT
1
C035
3
BARREL LABEL
1
M740
22
WEAR STRIP
1
M510
4
BARREL
1
M205
23
3/32 X 3/16 DRIVE SCREW
1
VT02-00DS187
5
NAME LABEL
1
M750
24
O-RING-345
1
VO-345
6
SHAPER
1
M216
25
CAM PINS
2
M260
7
HALO RING
1
M230
26
SELECT GAL BAFFLE
1
C027
8
HALO CAP
4
M231
27
SELECT GAL CAM US
1
C028
9
5/16-18 X 1-1/2 SOCKET HEAD SCREW
4
VT31-18SH1.5
28
SELECTABLE FLOW SPRING
1
C031
10
MASTER BUMPER
1
M700
29
I/O SCREW
1
C033
11
GASKET - 2.5” HOSE COUPLING
1
V3190
30
3/8-24 X 3/8 DOG POINT
2
H515
12
BASE RING
1
M206
31
6 X 1/4 DRIVE SCREW
1
VT06E00DS250
13
O-RING-335
2
V0-335
32
SNAP RING
1
V2010
15
SLOTTED RING
1
M245
33
CONTROL NUT PISTON
1
C105
16
BARREL CONE
1
M200
34
O-RING-015
1
VO-015
17
WASHER
1
C034
35
FINS
1
M250
©Copyright Task Force Tips, Inc. 1998 - 2009
10
LIM-035 June 15, 2009 Rev07
6.0 DRAWINGS & PARTS LIST
MASTERSTREAM 1000 FIXED
2
10
21
7
11
1
12
8
22
6
25
5
9
3
27 28
29
13
4
14
12
15
24
16
17
26
18 19
20
23
ITEM
DESCRIPTION
QTY PART
ITEM
DESCRIPTION
QTY PART
1
COUPLING 2.5” NH
1
M307N
16
FIXED GAP SHAFT
1
C036
2
1/4-28 X 1/2 SET SCREW
1
VT25-28SS500
17
FIXED GAP BAFFLE
1
C026
3
BARREL
1
M205
18
5/8-18 JAM NUT
1
VT62-18NT
4
NAME LABEL
1
M755
19
WASHER
1
VW700X203-60
5
SHAPER
1
M216
20
10-24 X 1/2 BUTTON HEAD SCREW
1
VT10-24BH500
6
HALO RING
1
M230
21
3/6” BALL
48
V2120
7
HALO CAP
4
M231
22
WEAR STRIP
1
M510
8
5/16-18 X 1-1/2 SOCKET HEAD SCREW
4
VT31-18SH1.5
23
3/32 X 3/16 DRIVE SCREW
1
VT02-00DS187
9
MASTER BUMPER
1
M700
24
O-RING-345
1
VO-345
10
GASKET - 2.5” HOSE COUPLING
1
V3190
25
CAM PINS
2
M260
11
BASE RING
1
M206
26
BARREL LABEL
1
M740
12
O-RING-335
2
V0-335
27
SNAP RING
1
V2010
13
FINS
1
M250
28
CONTROL NUT PISTON
1
C105
14
SLOTTED RING
1
M245
29
O-RING-015
1
VO-015
15
BARREL CONE
1
M200
©Copyright Task Force Tips, Inc. 1998 - 2009
11
LIM-035 June 15, 2009 Rev07
7.0 WARRANTY
Task Force Tips, Inc., 3701 Innovation Way, Valparaiso, Indiana 46383-9327 (“TFT”) warrants to the original purchaser of its ZN,
ZM and Masterstream series nozzles (“equipment”), and to anyone to whom it is transferred, that the equipment shall be free from
defects in material and workmanship during the five (5) year period from the date of purchase.
TFT’s obligation under this warranty is specifically limited to replacing or repairing the equipment (or its parts) which are shown by
TFT’s examination to be in a defective condition attributable to TFT. To qualify for this limited warranty, the claimant must return the
equipment to TFT, at 3701 Innovation Way, Valparaiso, Indiana 46383-9327, within a reasonable time after discovery of the defect.
TFT will examine the equipment. If TFT determines that there is a defect attributable to it, TFT will correct the problem within a
reasonable time. If the equipment is covered by this limited warranty, TFT will assume the expenses of repair.
If any defect attributable to TFT under this limited warranty cannot be reasonably cured by repair or replacement, TFT may elect to
refund the purchase price of the equipment, less reasonable depreciation, in complete discharge of its obligations under this limited
warranty. If TFT makes this election, claimant shall return the equipment to TFT free and clear of any liens and encumbrances.
This is a limited warranty. The original purchaser of the equipment, any person to whom it is transferred, and any person who is
an intended or unintended beneficiary of the equipment, shall not be entitled to recover from TFT any consequential or incidental
damages for injury to person and/or property resulting from any defective equipment manufactured or assembled by TFT. It is agreed
and understood that the price stated for the equipment is in part consideration for limiting TFT’s liability. Some states do not allow the
exclusion or limitation of incidental or consequential damages, so the above may not apply to you.
TFT shall have no obligation under this limited warranty if the equipment is, or has been, misused or neglected (including failure to
provide reasonable maintenance) or if there have been accidents to the equipment or if it has been repaired or altered by someone
else.
THIS IS A LIMITED EXPRESS WARRANTY ONLY. TFT EXPRESSLY DISCLAIMS WITH RESPECT TO THE EQUIPMENT ALL
IMPLIED WARRANTIES OF MERCHANTABILITY AND ALL IMPLIED WARRANTIES OF FITNESS FOR A PARTICULAR PURPOSE.
THERE IS NO WARRANTY OF ANY NATURE MADE BY TFT BEYOND THAT STATED IN THIS DOCUMENT.
This limited warranty gives you specific legal rights, and you may also have other rights which vary from state to state.
TASK FORCE TIPS, INC.
MADE IN USA • www.tft.com
©Copyright Task Force Tips, Inc. 1998 - 2009
3701 Innovation Way, Valparaiso, IN 46383-9327 USA
800-348-2686 • 219- 462-6161 • Fax 219-464-7155
LIM-035 June 15, 2009 Rev07
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
