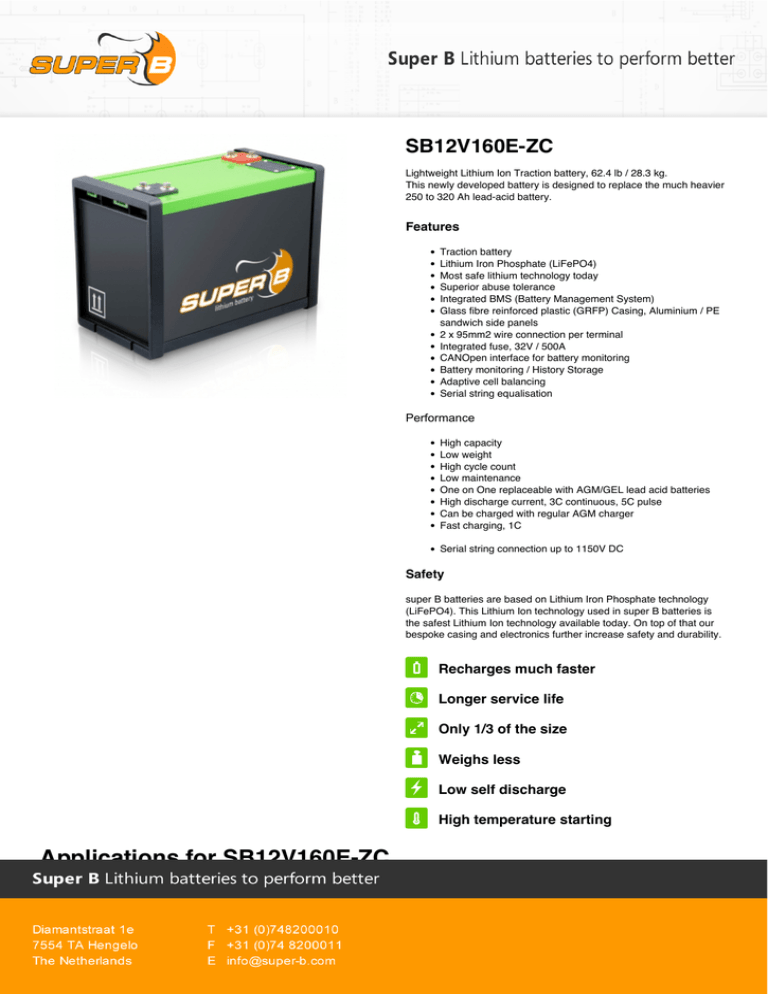

SB12V160E-ZC
SB12V160E-ZC
Lightweight Lithium Ion Traction battery, 62.4 lb / 28.3 kg.
This newly developed battery is designed to replace the much heavier
250 to 320 Ah lead-acid battery.
Features
Traction battery
Lithium Iron Phosphate (LiFePO4)
Most safe lithium technology today
Superior abuse tolerance
Integrated BMS (Battery Management System)
Glass fibre reinforced plastic (GRFP) Casing, Aluminium / PE
sandwich side panels
2 x 95mm2 wire connection per terminal
Integrated fuse, 32V / 500A
CANOpen interface for battery monitoring
Battery monitoring / History Storage
Adaptive cell balancing
Serial string equalisation
Performance
High capacity
Low weight
High cycle count
Low maintenance
One on One replaceable with AGM/GEL lead acid batteries
High discharge current, 3C continuous, 5C pulse
Can be charged with regular AGM charger
Fast charging, 1C
Serial string connection up to 1150V DC
Safety
super B batteries are based on Lithium Iron Phosphate technology
(LiFePO4). This Lithium Ion technology used in super B batteries is
the safest Lithium Ion technology available today. On top of that our
bespoke casing and electronics further increase safety and durability.
Recharges much faster
Longer service life
Only 1/3 of the size
Weighs less
Low self discharge
High temperature starting
Applications for SB12V160E-ZC
Marine
Technical specifications SB12V160E-ZC
SKU/EAN13
8718531360198
Battery Designation
4IFP227/415/315
Height (mm)
313,00 / 314,00
Diameter (mm)
NA
Width (mm)
413,50 / 414,50
Thickness (mm)
225,00 / 226,00
Nominal voltage (V)
13,2V
Charge method
CCCV
End of charge voltage (V)
15,4V
End of charge voltage (V) for endurance (cycle life)
14,6V
Charge current (A)
160A (1C)
Charge current (A) for endurance (cycle life)
52,8A (C/3)
End-of-discharge voltage (V)
8V
?End-of-discharge voltage (V) for endurance (cycle life)
10V
Discharge current (A)
480A (3C)
Discharge current (A) for endurance (cycle life)
52,8A (C/3)
Discharge pulse current (A) (10 seconds)
1280A (8C)
Discharge pulse current (A) (60 second)
800A (5C)
Discharge performance at 20 °C (rated capacity)
160Ah / 2112Wh
Discharge performance at –20 °C (capacity)
104Ah / 1372,8Wh
High rate discharge performance at 20 °C (capacity)
144Ah / 1841,4Wh
EqPb (Equals Lead acid battery)
320Ah
Weight
28.3kg
Operating temperature range (Charge)
0°C to 45°C
Operating temperature range (Discharge)
-20°C to +60°C
Storage temperature range
-20°C to +60°C
Performance of the SB12V160E-ZC
