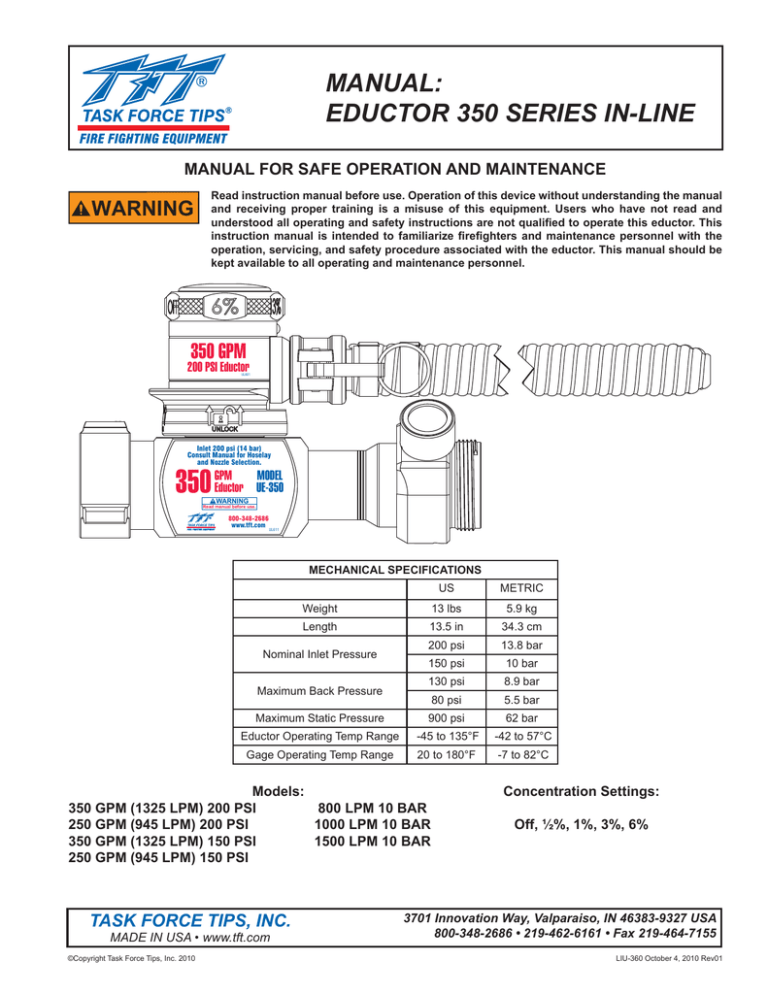

MANUAL:
EDUCTOR 350 SERIES IN-LINE
MANUAL FOR SAFE OPERATION AND MAINTENANCE
WARNING
Read instruction manual before use. Operation of this device without understanding the manual
and receiving proper training is a misuse of this equipment. Users who have not read and
understood all operating and safety instructions are not qualified to operate this eductor. This
instruction manual is intended to familiarize firefighters and maintenance personnel with the
operation, servicing, and safety procedure associated with the eductor. This manual should be
kept available to all operating and maintenance personnel.
350 GPM
200 PSI Eductor
UL601
Inlet 200 psi (14 bar)
Consult Manual for Hoselay
and Nozzle Selection.
Eductor
350 GPM
MODEL
UE-350
WARNING
Read manual before use.
®
800-348-2686
www.tft.com UL611
MECHANICAL SPECIFICATIONS
US
Weight
13 lbs
5.9 kg
Length
13.5 in
34.3 cm
200 psi
13.8 bar
Nominal Inlet Pressure
Maximum Back Pressure
150 psi
10 bar
130 psi
8.9 bar
80 psi
5.5 bar
Maximum Static Pressure
900 psi
62 bar
Eductor Operating Temp Range
-45 to 135°F
-42 to 57°C
Gage Operating Temp Range
20 to 180°F
-7 to 82°C
Models:
350 GPM (1325 LPM) 200 PSI
800 LPM 10 BAR
250 GPM (945 LPM) 200 PSI
1000 LPM 10 BAR
350 GPM (1325 LPM) 150 PSI
1500 LPM 10 BAR
250 GPM (945 LPM) 150 PSI
TASK FORCE TIPS, INC.
MADE IN USA • www.tft.com
©Copyright Task Force Tips, Inc. 2010
METRIC
Concentration Settings:
Off, ½%, 1%, 3%, 6%
3701 Innovation Way, Valparaiso, IN 46383-9327 USA
800-348-2686 • 219-462-6161 • Fax 219-464-7155
LIU-360 October 4, 2010 Rev01
Table Of Contents
1.0 MEANING OF SIGNAL WORDS
2.0 SAFETY
3.0 GENERAL INFORMATION
3.1 PART IDENTIFICATION
3.2 INSTALLATION INSTRUCTIONS
3.3 GENERAL OPERATING INSTRUCTIONS
3.4 CLEANING INSTRUCTIONS
3.5 CONCENTRATE INTAKE HOSE OPTIONS
4.0 FOAM SELECTION
4.1 CLASS A FOAM
4.2 CLASS B FOAM
4.3 FOAM COMPATIBILITY
4.4 FOAM CONSUMPTION
5.0 MAXIMUM HOSE LAY
6.0 NOZZLE SELECTION
7.0 TROUBLE SHOOTING
8.0 DRAWING AND PARTS LIST
9.0 FOAM BUCKET ARRANGEMENT
9.1 FOAM SUPPLY LOGISTICS
10.0 MAINTENANCE
11.0 WARRANTY
DANGER
PERSONAL RESPONSIBILITY CODE
The member companies of FEMSA that provide emergency response
equipment and services want responders to know and understand the
following:
1. Firefighting and Emergency Response are inherently dangerous activities
requiring proper training in their hazards and the use of extreme caution
at all times.
2. It is your responsibility to read and understand any user’s instructions,
including purpose and limitations, provided with any piece of equipment
you may be called upon to use.
3. It is your responsibility to know that you have been properly trained in
Firefighting and /or Emergency Response and in the use, precautions, and
care of any equipment you may be called upon to use.
4. It is your responsibility to be in proper physical condition and to maintain
the personal skill level required to operate any equipment you may be
called upon to use.
5. It is your responsibility to know that your equipment is in operable
condition and has been maintained in accordance with the manufacturer’s
instructions.
6. Failure to follow these guidelines may result in death, burns or other
severe injury.
FEMSA
©Copyright Task Force Tips, Inc. 2010
Fire and Emergency Manufacturers and Service Association
P.O. Box 147, Lynnfield, MA 01940 • www.FEMSA.org
2
LIU-360 October 4, 2010 Rev01
1.0 MEANING OF SAFETY SIGNAL WORDS
A safety related message is identified by a safety alert symbol and a signal word to indicate the level of risk involved with a particular
hazard. Per ANSI standard Z535.6-2006, the definitions of the four signal words are as follows:
DANGER
DANGER indicates a hazardous situation which, if not avoided, will result in death or serious
injury.
WARNING
WARNING indicates a hazardous situation which, if not avoided, could result in death or serious
injury.
CAUTION
CAUTION indicates a potentially hazardous situation which, if not avoided, may result in minor
or moderate injury.
NOTICE
NOTICE is used to address practices not related to personal injury.
2.0 SAFETY
The eductor is designed for Class A and Class B foam concentrates. If you intend to use the eductor for liquids other than Class A and
Class B concentrates and water, we urge you to contact the Task Force Tips Engineering Department. The use of other liquids may
void the warranty and subject the user to hazards not addressed in this manual. The user assumes all risks for non-intended uses.
•
Make sure there is enough foam concentrate prepared before fighting fire. TFT’s eductors are calibrated 15% more than the
nominal rate, or half percent point, which ever is less. Per FOAM EQUIPMENT AND LIQUID CONCENTRATES – UL 162,
the liquid concentrate induction rate of a proportioner, expressed as a percentage of the flow rate of the mixed water plus
concentrate solution, shall be minus zero (0) percent, plus thirty (30) percent of the manufacturer’s specified induction rate or
one percent point, whichever is less.
•
Make sure the meter head set to OFF position and the correct nozzle and hose lay are securely attached to the eductor before
the hose line is charged.
•
Make sure the nozzle gallonage matches eductor’s gallonage.
•
Make sure the hose lay does not exceed the maximum listed in the operating instruction.
•
Make sure that the meter head is set to the correct concentration for the type of foam being used. Foam concentrates can be
ineffective if not used at the correct percentage.
DANGER
WARNING
WARNING
WARNING
WARNING
©Copyright Task Force Tips, Inc. 2010
Lack of foam can place operator at risk of injury or death. Establish foam flow before advancing
into hazardous situations. Make sure you do not run out of foam concentrate before the task is
complete. Check concentrate level periodically and keep an adequate supply on hand.
Do not use Class A foam on Class B fires or Class B foam on Class A fires. Note: Some foam
concentrates are universal and can be used on Class B fires and spills and as a wetting agent
on Class A fires. (Refer to foam concentrate manufacturer’s recommendations for proper foam
choice.)
Improper use of foam can result in injury or damage to the environment. Follow the foam
concentrate manufacturer’s instructions and fire service training to avoid the following:
• Using the wrong type of foam on a fire, i.e. Class A foam on Class B flammable liquid fire
• Mishandling of concentrates
• Plunging foam into pools of liquid fuels
• Directing foam onto yourself or other personnel
There is a wide variety of foam concentrates. Each user is responsible for verifying that any foam
concentrate chosen to be used with this unit has been tested to assure that the foam obtained is
suitable for the purpose intended.
The eductor may be damaged if frozen while containing significant amounts of water or foam.
Such damage may be difficult to detect visually, and can lead to possible injury or death. Any
time the eductor is subject to possible damage due to freezing, it must be hydrostatically tested
by qualified personnel before being considered safe for use.
3
LIU-360 October 4, 2010 Rev01
3.0 GENERAL INFORMATION
UE-250-NJ
UE-350-NJ
UE-250L-NJ
UE-350L-NJ
INLINE EDUCTOR 250 GPM 2.5”NH 200 PSI
INLINE EDUCTOR 350 GPM 2.5”NH 200 PSI
INLINE EDUCTOR 250 GPM 2.5”NH 150 PSI
INLINE EDUCTOR 350 GPM 2.5”NH 150 PSI
UE-800-BJ
UE-800-BP
UE-800-BICJ
UE-800-75MM
UE-1000-BJ
UE-1000-BP
UE-1000-BICJ
UE-1000-75MM
UE-1500-BJ
UE-1500-BP
UE-1500-BICJ
UE-1500-75MM
INLINE EDUCTOR 800 LPM 2.5”BSP 10 BAR
INLINE EDUCTOR 800 LPM 4.0”BSP 10 BAR
INLINE EDUCTOR 800 LPM 2.5”BIC 10 BAR
INLINE EDUCTOR 800 LPM 75MM 10 BAR
INLINE EDUCTOR 1000 LPM 2.5”BSP 10 BAR
INLINE EDUCTOR 1000 LPM 4.0”BSP 10 BAR
INLINE EDUCTOR 1000 LPM 2.5”BIC 10 BAR
INLINE EDUCTOR 1000 LPM 75MM 10 BAR
INLINE EDUCTOR 1500 LPM 2.5”BSP 10 BAR
INLINE EDUCTOR 1500 LPM 4.0”BSP 10 BAR
INLINE EDUCTOR 1500 LPM 2.5”BIC 10 BAR
INLINE EDUCTOR 1500 LPM 75MM 10 BAR
The eductor proportioning rate ranges from 1/2% to 6%.
TFT’s 350 Series eductors can be used with 1/2% Class A foam concentrate for wildland, rural, and urban fire suppression on Class
A fuels (wood, paper, combustible materials). On Class A materials, the eductors are intended to be used for direct extinguishment,
overhaul, and wetting of fuels. Some foam concentrates are corrosive; we recommend using only Class A concentrates that have
received USDA and USFS approval.
On class B materials, the eductors are primarily intended for vapor suppression or extinguishment. They can be used with high
viscosity 1%, 3%, 6%, 3x3%, and 3x6% Alcohol Resistant Class B concentrates on flammable liquids containing polar solvents.
The eductor can also be used with plain AFFF concentrates rated at 1%, 3% or 6% with various freeze protected foams, and with
FFFP foam types. These foams generally have a lower viscosity than the calibration viscosity of the TFT eductor and will be inducted
faster than expected resulting in stronger concentrations. While this does not degrade foam quality, it does reduce the operation time
for a given foam supply. Testing should be done with the foam being used to assure accurate induction rate.
Standard inlet operating pressure is 200 psi on all TFT eductors (1400kPa/14 bar), except the low pressure versions marked for 150
psi (1000kPa/10 bar).
3.1 PART IDENTIFICATION
PUSH BUTTON TO
BACK FLUSH.
TURN KNOB TO SET
PROPORTIONING RATE.
PROPORTIONING INDICATOR
METERING HEAD
1.0" CAMLOCK CONNECTION
FOR CONCENTRATE INTAKE HOSE
1.25" CONCENTRATE
INTAKE HOSE
RETRACT THE LOCKER
RING TO UNLOCK.
RELEASE THE LOCKER
RING TO ENGAGE.
CHECK DISK
BACKPRESSURE INDICATOR
INLET
EDUCTOR BODY
EXIT
Figure 3.1
©Copyright Task Force Tips, Inc. 2010
4
LIU-360 October 4, 2010 Rev01
3.1 PART IDENTIFICATION (cont)
The eductor can be split into two parts by grasping the locking ring and retracting it fully to separate the metering head from the
eductor body. All the foam passageways can easily be inspected. The foam passageway into the eductor contains a free-floating
check disk with three fins. The check disk is pressure activated to keep water from coming out of the fire hose and back into the
foam pail.
The metering head contains a red back flush button that can be depressed to open the check disk.
The metering head also has a large proportioning knob that can be rotated to align the ball valve to different detent positions. The
2.5” eductors have five choices: Off, ½%, 1%, 3%, and 6%. Each foam setting has a precision sized metering orifice in the valve ball.
The eductor cannot be operated between settings, as the metering orifices will not line up properly. The setting of the proportioning
knob lines up with the white indicator ball.
3.2 INSTALLATION INSTRUCTIONS
The eductor body is equipped with four 3/8-16, ¾” deep threaded mounting holes. To mount the unit, attach to the desired location
using bolts with enough length to provide at lease ½” engagement with the unit. Hole spacing is shown in Figure 3.2.
2 3/4"
2 3/4"
Figure 3.2
3.3 GENERAL OPERATING INSTRUCTIONS
1) Choose the appropriate foam concentration (Section 4.0)
2) Lay the appropriate hose line (Section 5.0)
3) Connect the appropriate nozzle (Section 6.0)
4) Charge the hose and open the nozzle fully to establish the water flow.
5) Adjust the pump pressure so the eductor inlet is set at pressure specified on body label.
6) Rotate the percentage knob to the desired concentration and put the concentrate intake hose in the foam supply.
3.4 CLEANING INSTRUCTIONS
After use, take the concentrate intake hose out of the foam supply and turn down the pump pressure to below 75 psi (5.2 bar). Shut
off the nozzle. Restrain the hose and expect a rapid discharge of water, especially at the 6% setting. Push the red flush button and
run fresh water through the hose and metering head on each setting until there is no visible foam in the flush water.
Retract the lock ring to remove the metering head. Turn off water supply and remove the eductor from the hose so that any remaining
foam residue can be washed from the wand, metering head and eductor.
CAUTION
Do not back flush above 75 psi. Rapid back flush discharge from the wand could cause injury.
The back flush push button is pressure activated and must not be forced at pressures over 75
psi (5 bar).
3.5 CONCENTRATE INTAKE HOSE OPTIONS
The eductor is shipped with a 1.25” x 8’ black, industrial grade, UV resistant hose with a 1.0” camlock connection. A 1.25” x 8’ clear,
flexible hose is available as a secondary option. To order, call 800-348-2686 and ask for part # UE950.
A camlock adaptor is available for those who wish to use a hose with a 1.5” female camlock connection. To order, call 800-348-2686
and ask for part #UE960-KIT.
©Copyright Task Force Tips, Inc. 2010
5
LIU-360 October 4, 2010 Rev01
4.0 FOAM SELECTION
Actual foam concentrations vary with changes in water flow, foam concentrate temperature and viscosity. The user must verify that
the concentrate’s performance is suitable for use in their application. In all cases, the manufacturer’s recommendations must be
followed.
CAUTION
Class A foam concentrates are generally less viscous than Class B foam concentrates. Using
1% Class B foam percentage setting to educt Class A foam, may cause the actual Class A foam
percentage to be more than 1%.
4.1 CLASS A FOAM
It is recommend that the Class A foam used meets USDA Forest Service 5100-307A “Specification for Fire Suppressant Foam for
Wildland Firefighting (Class A Foam)”, NFPA 298 “Fire Fighting Foam Chemicals for Class A Fuels in Rural, Suburban, and Vegetated
Areas”, or NFPA 1150 “Foam Chemicals for Fires in Class A Fuels”.
SOLID FUEL - CLASS A
CLASS A FOAM
MOP UP & OVERHAUL
OPERATIONS
WILDLAND &
EXPOSURE PROTECTION
Apply as needed for penetration, isolation,
cooling, and smothering.
Apply with low expansion nozzle for:
- soaking and penetration of fuel
- greater stream reach
straight stream nozzle
low expansion nozzle
piercing nozzle
Apply with medium expansion nozzle for:
- greater coverage
- longer lasting
- insulating
medium expansion nozzle
©Copyright Task Force Tips, Inc. 2010
6
LIU-360 October 4, 2010 Rev01
4.2 CLASS B FOAM
LIQUID FUEL - CLASS B
HYDROCARBONS
Fuels that are mostly distilled from crude oil or
vegetable matter. Will not mix with water.
POLAR SOLVENTS
A flammable liquid that mixes with water.
Examples are alcohol’s, amines, ethers, esters,
aldehydes, and ketones. In firefighting, any
flammable liquid which destroys regular foam is
generally referred to as a polar solvent.
AFFF (Aqueous Film Forming Foam)
AR (Alcohol Resistant Foam)
AR (Alcohol Resistant Foam)
UNIGNITED
UNIGNITED
May apply at less than rates for
ignited. Be capable of increasing
to ignited rates if needed.
Application rates:
Use foam manufacturer’s
recommendations for
handheld nozzles.
Apply with
MEDIUM EXPANSION NOZZLE
for vapor suppression
Apply with
MEDIUM EXPANSION NOZZLE
for vapor suppression
4.3 FOAM COMPATIBILITY
CAUTION
Do not mix different types of foam concentrates or foams of the same type from different
manufacturers. Mixing of foam concentrates can cause the contents of the foam tank to gel and
produce unpredictable results. Clean tank and foam passages thoroughly when changing foam
types.
Medium Expansion Nozzle — produces the greatest expansion ratios. It should be used on Class B fuels for vapor suppression and
Class A fuels when a longer lasting insulating layer of drier foam is desired.
Low Expansion Nozzle — can be used with either Class A or B foam solutions. Reach is slightly less than the smooth bore. It should
be used on Class B fires for extinguishment and Class A fuels to soak the fuel with a wet foam solution.
Straight Stream Nozzle — is for Class A foam solutions. Foam expansion will be negligible. It should be used where maximum reach
or penetration is desired.
4.4 FOAM CONSUMPTION
The following tables indicate the theoretical foam concentrate flow rate and the time it will take to empty a 5 gallon container of
various concentrates with eductors of different ratings.
250 GPM Eductor
350 GPM Eductor
Setting
Foam
Class
Time To Empty
5 Gallons
Foam Flow
Rate in GPM
Setting
Foam
Class
Time To Empty
5 Gallons
Foam Flow
Rate in GPM
1/2%
A
4 min
1.25
1/2%
A
2 min 54 sec
1.75
1%
B
2 min
2.5
1%
B
1 min 26 sec
3.5
3%
B
40 sec
7.5
3%
B
29 sec
10.5
6%
B
20 sec
15
6%
B
14 sec
21
©Copyright Task Force Tips, Inc. 2010
7
LIU-360 October 4, 2010 Rev01
800 LPM Eductor
1500 LPM Eductor
Setting
Foam
Class
Time To Empty
20 Liters
Foam Flow
Rate in LPM
Setting
Foam
Class
Time To Empty
20 Liters
Foam Flow
Rate in LPM
1/2%
A
5 min
4
1/2%
A
2 min 40 sec
7.5
1%
B
2 min 30 sec
8
1%
B
1 min 20 sec
15
3%
B
50 sec
24
3%
B
27 sec
45
6%
B
25 sec
48
6%
B
13 sec
90
Setting
Foam
Class
Time To Empty
20 Liters
1/2%
A
4 min
5
1%
B
2 min
3%
B
6%
B
1000 LPM Eductor
Actual calibrated rate for each setting and the
foam concentration used for calibration
Foam Flow
Rate in LPM
Setting
Actual Rate
Foam Class
UL-162
Tolerance
10
1/2%
0.58%
A
.5 - .65%%
40 sec
30
1%
1.15%
B
1 - 1.3%
20 sec
60
3%
3.45%
B
3 - 3.9%
6%
6.50%
B
6 - 7.8%
The Class B foam used for calibration is the “Universal Gold 1%/3% Alcohol Resistant Aqueous Film Forming Foam (AR-AFFF)” from
National Foam. The calibration viscosity is 2500 centipoise tested with Brookfield #4 Spindle @ 60 rpm
The calibration hose length is 50ft.
5.0 MAXIMUM HOSE LAY
The maximum hose lay is based on the back pressure. Pushing the foam solution through the hose and nozzles causes back
pressure on the eductor exit. If the back pressure on a 200 psi (14 bar) nozzle is over 130 psi (9 bar) the eductor will not work. If
the back pressure on the 150 psi (10 bar) eductor is over 80 psi (5.5 bar), the eductor will not work.
Elevation loss adds to the back pressure when the nozzle is higher than the eductor. For each foot in vertical height, there is 0.4 psi
elevation loss.
WARNING
Do not exceed the maxmum back pressure. Excess back pressure causes loss of foam flow
resulting in risk of injury or death from an ineffective stream. Verify that adequate foam flow is
established and maintained.
The eductor can be used with or without a monitor. The maximum hose lays and elevations change due to the different friction
losses in the monitors. Please use the appropriate chart for the inlet pressure and the appropriate portable monitor if one is used.
To use in a permanent installation with another monitor, calculate friction loss in pipes and elevation changes to find correct setup.
To calculate back pressure, add the nozzle pressure, hose friction loss, and elevation pressure loss together, and make sure the
sum does not exceed 130 psi (9 bar)or 80 psi (5.5 bar) depending on the model. The Go/No-Go pressure gage on the outlet of the
unit indicates acceptable back pressure levels. Should the gage show a pressure in the No-Go (red) range, shut down the line and
change the line setup to lower the pressure.
NOTE: Low pressure 150psi (10 bar) eductors are only compatible with 55 psi (4 bar) nozzles.
NOTE: Metric version eductors are only compatible with 4bar nozzles, and do not work with the Partner and Partner-Lite monitors.
©Copyright Task Force Tips, Inc. 2010
8
LIU-360 October 4, 2010 Rev01
WITHOUT MONITOR
Eductor
Rating
Hose Size
IN
2.5
250 GPM
at
200 PSI
3
2.5
350 GPM
at
200 PSI
3
2.5
250 GPM
at
150 PSI
3
2.5
350 GPM
at
150 PSI
3
100 PSI Nozzle
Maximum
Maximum
Hose Lay
Elevation
FT
FT
200
0
100
20
500
0
250
25
100
0
50
25
250
0
100
30
-
80 PSI Nozzle
Maximum
Maximum
Hose Lay
Elevation
FT
FT
350
0
200
40
100
80
900
0
600
30
300
60
200
0
100
50
50
75
450
0
200
50
100
75
-
55 PSI Nozzle
Maximum
Maximum
Hose Lay
Elevation
FT
FT
550
0
300
75
150
125
900
50
600
90
300
125
300
0
200
50
100
100
700
10
450
60
200
125
150
0
100
15
50
30
400
0
200
25
100
40
100
0
75
5
50
15
250
0
150
10
75
25
WITH BLITZFIRE
Eductor
Rating
Hose Size
IN
250 GPM
at
200 PSI
350 GPM
at
200 PSI
250 GPM
at
150 PSI
350 GPM
at
150 PSI
©Copyright Task Force Tips, Inc. 2010
2.5
3
2.5
3
2.5
3
2.5
3
100 PSI Nozzle
Maximum
Maximum
Hose Lay
Elevation
FT
FT
100
0
50
10
225
0
0
25
50
0
25
10
125
0
75
10
-
9
80 PSI Nozzle
Maximum
Maximum
Hose Lay
Elevation
FT
FT
250
0
100
30
50
60
600
0
300
30
100
60
125
0
100
10
80
25
300
0
200
25
100
50
-
55 PSI Nozzle
Maximum
Maximum
Hose Lay
Elevation
FT
FT
450
0
300
40
150
80
600
50
400
80
100
110
200
0
100
60
50
90
500
10
300
60
100
100
50
0
25
10
0
15
100
0
50
10
25
15
25
0
15
5
10
10
75
0
50
5
25
10
LIU-360 October 4, 2010 Rev01
WITH CROSSFIRE
Eductor
Rating
Hose Size
IN
2.5
250 GPM
at
200 PSI
3
2.5
350 GPM
at
200 PSI
3
2.5
250 GPM
at
150 PSI
3
2.5
350 GPM
at
150 PSI
3
100 PSI Nozzle
Maximum
Maximum
Hose Lay
Elevation
FT
FT
150
0
75
30
300
0
100
40
80
0
50
20
225
0
100
30
-
80 PSI Nozzle
Maximum
Maximum
Hose Lay
Elevation
FT
FT
350
0
200
40
100
60
600
0
300
50
100
75
175
0
100
40
80
50
400
0
250
40
100
75
-
With Crossfire - Metric
Eductor
Rating
mm
800 l/min
at
10 bar
1000 l/min
at
10 bar
1500 l/min
at
10 bar
Without Monitor - Metric
4 BAR Nozzle
Hose Size
65
77
65
77
65
77
Maximum
Hose Lay
M
40
25
10
100
70
30
25
15
10
60
30
10
10
5
0
25
15
10
55 PSI Nozzle
Maximum
Maximum
Hose Lay
Elevation
FT
FT
500
0
350
50
100
120
900
50
450
100
100
130
250
0
175
60
100
100
600
10
300
75
100
125
350
0
250
25
100
60
800
0
400
50
100
80
175
0
100
30
50
75
400
0
250
40
100
75
Eductor
Rating
4 BAR Nozzle
Hose Size Maximum
Hose Lay
LPM
mm
M
55
65
25
800 l/min
10
at
140
10 bar
77
100
50
35
65
25
1000 l/min
10
at
75
10 bar
77
50
25
15
65
10
1500 l/min
5
at
40
10 bar
77
15
10
Maximun
Elevation
M
0
3
6
0
2
5
0
3
5
0
4
6
0
4
8
0
3
5
Maximum
Elevation
M
0
6
9
0
3
7
0
3
8
2
5
8
0
4
8
0
6
8
Friction loss varies with different brand hoses. Please determine the friction loss of your own hose. The nominal flow of the eductor is
the sum of the water plus the foam concentrate when set at 6%. The eductor should always have 200 psi (14 bar) at the inlet unless
otherwise specified on the eductor body. The water flow does not change with different percentage settings; however the inducted
concentrate will change when the percentage setting is changed. Therefore, the total flow exiting the eductor is lower at 1/2% than
at 6%. Lower flow rate reduces nozzle pressure and hose friction loss. Longer hose can be used when proportioning rate is less
because less work in needed to move less concentrate.
©Copyright Task Force Tips, Inc. 2010
10
LIU-360 October 4, 2010 Rev01
6.0 NOZZLE SELECTION
Eductors work with any nozzle whose gallonage is equal or larger than eductors’. However, if a larger gallonage nozzle is used, the
reach of nozzle and the proportioning rate of the eductor will be compromised.
Fog-type nozzles have the greatest reach in the straight stream position. The finished foam is produced as the stream projects
forward, and the greatest expansion is at the end of the stream. While straight stream gives maximum reach, it can also splash
flammable liquids if not carefully applied. The stream impact can be softened by deflecting the stream off nearby objects. The stream
can also be trimmed to a 10-15 degree pattern which gives good reach and creates a softer “snow-flaking” effect at the end of the
stream.
The expansion ratio is the amount of finished foam produced compared to the volume of foam concentrate/water solution used
to generate the foam. For example: A 10:1 expansion ratio will production 3500 gallons of finished foam from a 350 GPM nozzle.
Non-aspirated automatic nozzles can produce expansion ratios of 6-8:1 when measured at the end of the stream. By maintaining a
constant nozzle pressure, automatic nozzles keep the velocity of the stream high. Large amounts of air are pulled into the stream
and mix with the foam concentrate/water solution as the stream leaves the nozzle.
Air-aspirating devices, such as the TFT FOAMJET, allow a wider selection of foam concentrates to be used, and can produce a better
quality of finished foam. Air-aspirating attachments will, (1) improve the 1/4 drain time, (2) produce a more uniform bubble structure,
(3) improve the burn back resistance of the finished foam, and (4) the foam blanket is visibly thicker. This thicker foam blanket has
better vapor suppression and is longer lasting than foam from non-aspirated nozzles. The final expansion ratio and, therefore, the
amount of finished foam, depends on the type of foam concentrate being used.
WARNING
The nozzle must be operated fully open to prevent excessive back pressure which will prevent
foam pickup. Lack of foam can result in injury or death.
The following table lists the compatibility between eductors and nozzles. NOTE: A nozzle under 100 psi will result in lower nozzle
pressure and shorter stream reach.
350 SERIES EDUCTORS
Nozzle Name
Max-Force
Max-Matic
Max-Flow
Nozzle Model #
MD*2A
MD-ERP-*2A
MD-ER-*2A
MD*8A
MD-ERP-*8A
MD-ER-*8A
MD*7A
MD*4A
MD-ERP-*4A
MD-ER-*4A
Water Flow
Setting GPM
100-500
100-500
100-500
100-500
100-500
100-500
100-500
100-500
100-500
100-500
Nozzle
Pressure PSI
100 or 55
100 or 55
100 or 55
100 or 55
100 or 55
100 or 55
80
100 to 30
100 to 30
100 to 30
Low Expansion
Foam Attachment
Multi-Expansion
Foam Attachment
FJ-LX-MD
NONE
FJ-LX-MD
NONE
FJ-LX-MD
NONE
7.0 TROUBLE-SHOOTING
SYMPTOM
Eductor picks
up too much
foam
Weak Foam
or No Foam
POSSIBLE CAUSE
REMEDY
Percentage Knob is set at higher percentage than desired
Turn knob to desired percentage
Eductor inlet pressure is incorrect
Set eductor inlet pressure to pressure specified on
labels
Metering head paired with incorrect body
Use correct metering head for body
Out of foam or bucket is nearly empty
Refill tank
Percentage knob is set to lower percentage or is set to OFF
Turn knob to desired percentage
Percentage ball is partially or completely plugged
Take off the meter head and clean debris out of the
percentage ball
Hose lay is incorrect
Correct hose lay using Section 5.0
Eductor inlet pressure is incorrect
Set eductor inlet pressure to pressure specified on
labels
Hose is kinked
Straighten kinks out of hose
Concentrate intake hose is completely or partially clogged
Clean debris out of concentrate intake hose
Valve in nozzle is not fully open
Fully open valve in nozzle
Nozzle size is incorrect
Select correct nozzle using Section 6.0
Nozzle is clogged
Flush nozzle to clear out debris or remove nozzle to
clean debris out
Foam has thickened due to cold temperatures
Use a foam suitable for temperatures
©Copyright Task Force Tips, Inc. 2010
11
LIU-360 October 4, 2010 Rev01
8.0 DRAWING AND PARTS LIST
1
2
14 15
16 17
18
3
19
20
4
5
13
6
21
7
22
12
8
23
9
10
24
11
25
43
26
40
41 39
27
38 28
29
31
32
37
33
34
42
34
36
35
30
29
©Copyright Task Force Tips, Inc. 2010
12
LIU-360 October 4, 2010 Rev01
ITEM DESCRIPTION
QTY
PART #
ITEM DESCRIPTION
QTY
PART #
1
10-24 X 1/2 SOCKET HEAD SCREW
1
VT10-24SH500
NAME LABEL 250 GPM
UL610
2
PALM BUTTON 2.5" EDUCTOR
1
UE550
NAME LABEL 350 GPM
UL611
3
SMALLEY RING
1
VR4315
NAME LABEL 250 GPM 150 PSI
UL612
4
BUTTON SPRING 2.5" EDUCTOR
1
UE505
5
KNOB 2.5" EDUCTOR
1
UE540
NAME LABEL 800 LPM
UL616
6
3/16" TORLON BALL
5
V2120-TORLON
NAME LABEL 1000 LPM
UL614
7
SPRING HELICAL COMPRESSION
5
VM4195
NAME LABEL 1500 LPM
UL615
8
O-RING-008
1
VO-008
30
INTERSECTION 2.5" EDUCTOR
1
UE420
9
BACK FLUSH PIN
1
UE220
31
O-RING-139
1
VO-139
10
O-RING-121
1
VO-121
32
SMALLEY RING
1
PROPORTIONING BALL 250 GPM
PROPORTIONING BALL 350 GPM
11
PROPORTIONING BALL 800 LPM
1
PROPORTIONING BALL 1000 LPM
PROPORTIONING BALL 1500 LPM
12
SPIROL PIN
NAME LABEL 350 GPM 150 PSI
2
UL613
VR4320
UE530
EXIT 250 GPM 2.5"NH
UE531
EXIT 250 GPM 2.5"NPSH
UE400I
UE534
EXIT 350 GPM 2.5"NH
UE401N
UE532
EXIT 350 GPM 2.5"NPSH
UE401I
UE533
1
UE400N
EXIT 250 GPM 150 PSI 2.5"NH
33
VP109X625H
EXIT 250 GPM 150 PSI 2.5"NPSH
UE402N
1
UE402I
METER LABEL 250 GPM
UL600
EXIT 350 GPM 150 PSI 2.5"NH
UE403N
METER LABEL 350 GPM
UL601
EXIT 350 GPM 150 PSI 2.5"NPSH
UE403I
UL602
EXIT 800 LPM 2.5”BSP
UE406B
UL603
EXIT 1000 LPM 2.5"BSP
UE404B
METER LABEL 250 GPM 150 PSI
13
29
METER LABEL 350 GPM 150 PSI
1
METER LABEL 800 LPM
UL606
METER LABEL 1000 LPM
UL604
34
O-RING-235
METER LABEL 1500 LPM
EXIT 1500 LPM 2.5"BSP
UE405B
2
VO-235
UL605
35
SWIVELING PRESSURE GAGE RING
1
UE430
14
METER HEAD 2.5" EDUCTOR
1
UE535
36
GAGE PROTECTOR
1
UE450
15
BALL 3/8" - POLYETHYLENE
1
VB375PE
16
PROP. BALL SEAT 2.5" EDUCTOR
1
UE635
17
O-RING-219
1
VO-219
18
O-RING-136
1
VO-136
BLENDING TUBE 250 GPM
UE410
19
CAMLOCK CONNECTOR
1
UE613
BLENDING TUBE 350 GPM
UE411
20
8' HOSE WITH CAMLOCK
1
UE940
21
LOCKER RING SPRING 2.5" EDUCTOR
4
UE515
22
LOCATION RING 2.5" EDUCTOR
1
UE545
BLENDING TUBE 800 LPM
UE416
23
1/4" SS BALL
12
V2125
BLENDING TUBE 1000 LPM
UE414
24
HEAD LOCKER 2.5" EDUCTOR
1
UE510
25
CHECK DISK 2.5" EDUCTOR
1
UE525
40
1/4-28 X 1/2 SOCKET SET SCREW
1
VT25-28SS500
26
O-RING 226
1
VO-226
41
3/16" SS BALL
48
V2120
27
INTERSECTION CONNECTION
1
UE440
28
O-RING-143
1
VO-143
37
38
©Copyright Task Force Tips, Inc. 2010
GO/NO-GO GAGE 150 PSI
O-RING-224
1
1
BLENDING TUBE 250 GPM 150 PSI
39
BLENDING TUBE 350 GPM 150 PSI
42
COUPLING 2.5"NH
COUPLING 2.5"NPSH
GASKET
UE650
UE655
VO-224
UE412
1
BLENDING TUBE 1500 LPM
43
CAUTION
GO/NO-GO GAGE 200 PSI
UE413
UE415
1
1
M307N
M307I
V3190
Do not intermix metering heads with eductor bodies of different flow rates. Intermixing can
cause weaker or stronger foam than expected resulting in risk of injury as the ability to control
the fire is compromised.
13
LIU-360 October 4, 2010 Rev01
9.0 FOAM BUCKET ARRANGEMENTS
The foam suction hose is matched to the eductor and must not be lengthened or foam flow will be reduced resulting in weak foam.
(as shown in location D). The other three locations (A, B, & C) show the recommended foam bucket arrangement.
LOCATION A
FOAM
LOCATION B
FOAM
©Copyright Task Force Tips, Inc. 2010
14
LIU-360 October 4, 2010 Rev01
LOCATION C
LOCATION D
9.1 FOAM SUPPLY LOGISTICS
When using Class B foams for extinguishing burning pools of liquids a continuous foam supply is essential. Foam flow may be
interrupted by not changing foam buckets quickly or by switching the metering head to OFF. Foam buckets can be difficult to move
or open quickly, therefore training and planning for a continuous foam supply is recommended.
DANGER
©Copyright Task Force Tips, Inc. 2010
Lack of foam can place operator at risk of injury or death. Establish foam flow before advancing
into hazardous situations. Make sure you do not run out of foam concentrate before the task is
complete. Check concentrate level periodically and keep an adequate supply on hand.
15
LIU-360 October 4, 2010 Rev01
10.0 MAINTENANCE
The eductor does not need regular maintenance. However, make sure the eductor is completely cleaned after each use. Otherwise
the foam concentrate may dry inside and around the percentage ball resulting in plugged metering orifices. Look down inside the
metering head after flushing and check valve to ensure clean passageways.
11.0 WARRANTY
Task Force Tips, Inc., 3701 Innovation Way, Valparaiso, Indiana 46383-9327 USA (“TFT”) warrants to the original purchaser of its
nozzles and other equipment (“equipment”), and to anyone to whom it is transferred, that the equipment shall be free from defects in
material and workmanship during the five (5) year period from the date of purchase.
TFT’s obligation under this warranty is specifically limited to replacing or repairing the equipment (or its parts) which are shown by
TFT’s examination to be in a defective condition attributable to TFT. To qualify for this limited warranty, the claimant must return the
equipment to TFT, at 3701 Innovation Way, Valparaiso, IN 46383-9327 USA, within a reasonable time after discovery of the defect.
TFT will examine the equipment. If TFT determines that there is a defect attributable to it, TFT will correct the problem within a
reasonable time. If the equipment is covered by this limited warranty, TFT will assume the expenses of repair.
If any defect attributable to TFT under this limited warranty cannot be reasonably cured by repair or replacement, TFT may elect to
refund the purchase price of the equipment, less reasonable depreciation, in complete discharge of its obligations under this limited
warranty. If TFT makes this election, claimant shall return the equipment to TFT free and clear of any liens and encumbrances.
This is a limited warranty. The original purchaser of the equipment, any person to whom it is transferred, and any person who is
an intended or unintended beneficiary of the equipment, shall not be entitled to recover from TFT any consequential or incidental
damages for injury to person and/or property resulting from any defective equipment manufactured or assembled by TFT. It is agreed
and understood that the price stated for the equipment is in part consideration for limiting TFT’s liability. Some states do not allow the
exclusion or limitation of incidental or consequential damages, so the above may not apply to you.
TFT shall have no obligation under this limited warranty if the equipment is, or has been, misused or neglected (including failure to
provide reasonable maintenance) or if there have been accidents to the equipment or if it has been repaired or altered by someone
else.
THIS IS A LIMITED EXPRESS WARRANTY ONLY. TFT EXPRESSLY DISCLAIMS WITH RESPECT TO THE EQUIPMENT ALL
IMPLIED WARRANTIES OF MERCHANTABILITY AND ALL IMPLIED WARRANTIES OF FITNESS FOR A PARTICULAR PURPOSE.
THERE IS NO WARRANTY OF ANY NATURE MADE BY TFT BEYOND THAT STATED IN THIS DOCUMENT.
This limited warranty gives you specific legal rights, and you may also have other rights which vary from state to state.
TASK FORCE TIPS, INC.
MADE IN USA • www.tft.com
©Copyright Task Force Tips, Inc. 2010
3701 Innovation Way, Valparaiso, IN 46383-9327 USA
800-348-2686 • 219-462-6161 • Fax 219-464-7155
LIU-360 October 4, 2010 Rev01
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
