NINGBO JADA HEALTH TECH.CO.,LTD.
Add:NO.187 JINCHENG ROAD,ZHEHAI ECONOMIC DEVELOPMENT ZONE,NINGBO,ZHEJIANG,CHINA
Website: www.jadafitness.com
TEL.: +86-574-55838970

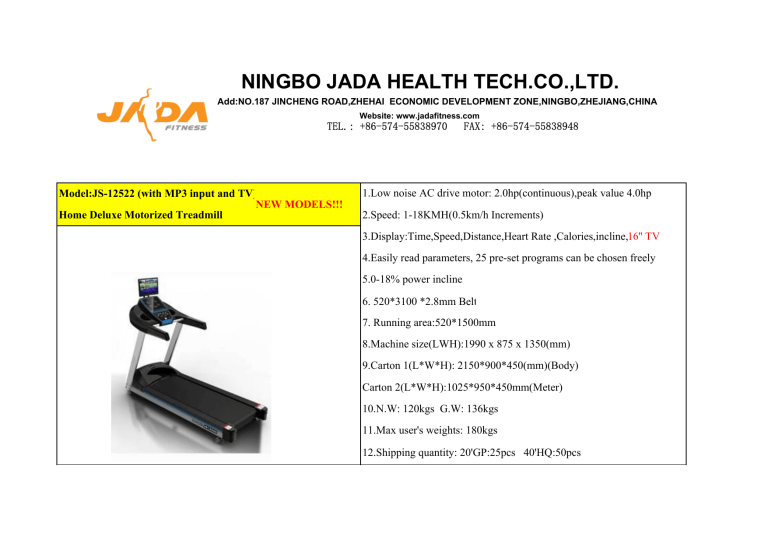

Model:JS-12522 (with MP3 input and TV)
NEW MODELS!!!
Home Deluxe Motorized Treadmill
FAX: +86-574-55838948
1.Low noise AC drive motor: 2.0hp(continuous),peak value 4.0hp
2.Speed: 1-18KMH(0.5km/h Increments)
3.Display:Time,Speed,Distance,Heart Rate ,Calories,incline,16'' TV
4.Easily read parameters, 25 pre-set programs can be chosen freely
5.0-18% power incline
6. 520*3100 *2.8mm Belt
7. Running area:520*1500mm
8.Machine size(LWH):1990 x 875 x 1350(mm)
9.Carton 1(L*W*H): 2150*900*450(mm)(Body)
Carton 2(L*W*H):1025*950*450mm(Meter)
10.N.W: 120kgs G.W: 136kgs
11.Max user's weights: 180kgs
12.Shipping quantity: 20'GP:25pcs 40'HQ:50pcs
1.Low noise AC drive motor: 2.0hp(continuous),peak value 4.0hp
Model:JS-12520 (with MP3 input)
NEW MODELS!!!
Home Deluxe Motorized Treadmill
2.Speed: 1-18KMH(0.5km/h Increments)
3.Display:Time,Speed,Distance,Heart Rate ,Calories,incline
4.Easily read parameters, 25 pre-set programs can be chosen freely
5.0-18% power incline
6. 520*3100 *2.8mm Belt
7. Running area:520*1500mm
8.Machine size(LWH):1990 x 875 x 1350(mm)
9.Carton 1(L*W*H): 2150*900*450(mm)(Body)
Carton 2(L*W*H):1025*950*450mm(Meter)
10.N.W: 120kgs G.W: 136kgs
11.Max user's weights: 180kgs
12.Shipping quantity: 20'GP:25pcs 40'HQ:50pcs
1.Low noise DC drive motor: 2.0HP(continuous)
Model:JS-21450 (with MP3 input)
Home Deluxe Motorized Treadmill
NEW ARRIVAL!!!
2.PWM, Speed range: 1-16km/h
3.Auto incline range:0-16%
4.LED display and LCD screen display and option :speed ,distance ,time ,
calorie,incline,heart rate,program
5.Easily read parameters, 25 pre-set programs can be chosen freely
6.Speed ,incline shortcut key are both panel,contact heart rate patch,speed
incline quick key on handrail
7.Running belt size: 450 x 1340x1.8(mm)
8.Machine size(LWH):1800 x 790 x 1480(mm)
9.Deck:18mm pre-waxed phenolic
10.Shock Absorption: 4-point deck suspension,with two big rubber cushio
11.Net weight: 82kg gross weight: 88kg
12. For home use, user max weight: 130kg
13.Shipping quantity: 20'GP:85pcs 40'GP:190pcs 40'HQ:210pcs
14.MP3 speakers option
15.Frame: Heavy-Gauge welded steel with textured powder coat finish.
Model:JS-20325
Home Deluxe Motorized Treadmill
NEW MODELS!!!
Model:JS-9400
Home Deluxe Motorized Treadmill
NEW MODELS!!!
1.Low noise DC drive motor: 0.75HP DC Motor
2.PWM, Speed range: 1-8KMH(0.1km/h Increments)
3.LCD screen:Time,Speed,Distance ,Calories,incline
4.Easily read parameters, 3 pre-set programs
5.The model is foldable
6.Machine size(LWH):1285*1225*585(mm)
7.Running belt size: 325*1000mm
8.Carton size(LWH): 1300*275*605(mm)
9.Net weight: 45kg gross weight: 50kg
10.Shipping quantity: 20'GP:126pcs 40'HQ:330pcs
11.Only for home use, user max weight: 80kg
1.Low noise DC drive motor: 1.5hp(continuous)
2.PWM, Speed range: 1-12km/h
3.LCD screen:speed, distance, time, calorie, heart rate
4.Easily read parameters, 15 pre-set programs can be chosen freely
5.The model only could fold from up to down
6.Machine size(LWH):1640 x 715 x 1285(mm)
7.Running belt size: 400 x 1200(mm)
8.Carton size(LWH): 1705 x 755 x 255(mm)
10.Deck:18mm pre-waxed phenolic
11.Shock Absorption: 2-point deck suspension
12.Net weight: 45kg gross weight: 50kg
13.Shipping quantity: 20'GP:85pcs 40'GP:190pcs 40'HQ:210pcs
14.Only for home use, user max weight: 90kg
15.Frame: Heavy-Gauge welded steel with textured powder coat finish.
Model:JS-10430
Home Deluxe Motorized Treadmill
NEW MODELS!!!
Model:JS-10431
Home Deluxe Motorized Treadmill
NEW MODELS!!!
1.Low noise DC drive motor: 2.0hp(continuous)
2.PWM, Speed range: 1-16km/h
3.LCD screen:speed, distance, time, calorie, heart rate
4.Easily read parameters, 25 pre-set programs can be chosen freely
5.0-16% power incline
6.Machine size(LWH):1740 x 760 x 1320(mm)
7.Running belt size: 430 x 1300(mm)
8.Carton size(LWH): 1780 x 750 x 320(mm)
10.Deck:18mm pre-waxed phenolic
11.Shock Absorption: 4-point deck suspension
12.Net weight: 68kg gross weight: 77kg
13.Shipping quantity: 20'GP:80pcs 40'GP:170pcs 40'HQ:190pcs
14.Only for home use, user max weight: 110kg
15.Frame: Heavy-Gauge welded steel with textured powder coat finish.
1.Low noise DC drive motor: 2.0hp(continuous)
2.PWM, Speed range: 1-16km/h
3.LCD screen:speed, distance, time, calorie, heart rate
4.Easily read parameters, 15 pre-set programs can be chosen freely
5.Three degrees manual incline
6.Machine size(LWH):1740 x 760 x 1320(mm)
7.Running belt size: 430 x 1300(mm)
8.Carton size(LWH): 1780 x 750 x 320(mm)
10.Deck:18mm pre-waxed phenolic
11.Shock Absorption: 4-point deck suspension
12.Net weight: 68kg gross weight: 77kg
13.Shipping quantity: 20'GP:80pcs 40'GP:170pcs 40'HQ:190pcs
14.Only for home use, user max weight: 110kg
15.Frame: Heavy-Gauge welded steel with textured powder coat finish.
Model:JS-10434
Home Deluxe Motorized Treadmill
NEW MODELS!!!
Model:JS-10435
Home Deluxe Motorized Treadmill
NEW MODELS!!!
1.Low noise DC drive motor: 2.0hp(continuous)
2.PWM, Speed range: 1-16km/h
3.Five LED display windows
4.Easily read parameters, 25 pre-set programs can be chosen freely
5.Incline: 1-16km/h
6.Machine size(LWH):1740 x 760 x 1320(mm)
7.Running belt size: 430 x 1300(mm)
8.Carton size(LWH): 1780 x 750 x 320(mm)
10.Deck:18mm pre-waxed phenolic
11.Shock Absorption: 4-point deck suspension
12.Net weight: 68kg gross weight: 77kg
13.Shipping quantity: 20'GP:80pcs 40'GP:170pcs 40'HQ:190pcs
14.Only for home use, user max weight: 110kg
15.Frame: Heavy-Gauge welded steel with textured powder coat finish.
1.Low noise DC drive motor: 2.0hp(continuous)
2.PWM, Speed range: 1-16km/h
3.Four LED display windows
4.Easily read parameters, 15 pre-set programs can be chosen freely
5.Three degrees manaul incline
6.Machine size(LWH):1740 x 760 x 1320(mm)
7.Running belt size: 430 x 1300(mm)
8.Carton size(LWH): 1780 x 750 x 320(mm)
10.Deck:18mm pre-waxed phenolic
11.Shock Absorption: 4-point deck suspension
12.Net weight: 68kg gross weight: 77kg
13.Shipping quantity: 20'GP:80pcs 40'GP:170pcs 40'HQ:190pcs
14.Only for home use, user max weight: 110kg
15.Frame: Heavy-Gauge welded steel with textured powder coat finish.
Model:JS-16400
Home Deluxe Motorized Treadmill
NEW MODELS!!!
You also could
choose LED
displa
Model:JS-16401
Home Deluxe Motorized Treadmill
NEW MODELS!!!
You also could
choose LED display
1.Low noise DC drive motor: 1.75hp(continuous)
2.PWM, Speed range: 1-16km/h
3.LCD screen:speed, distance, time, calorie, heart rate
4.Easily read parameters, 25 pre-set programs can be chosen freely
5.0-10% power incline
6.Machine size(LWH):1640 x 730x 1300(mm)
7.Running belt size: 400 x 1200(mm)
8.Carton size(LWH): 1735 x 755 x 255(mm)
10.Deck:18mm pre-waxed phenolic
11.Shock Absorption: 2-point deck suspension
12.Net weight: 55kg gross weight: 66kg
13.Shipping quantity: 20'GP:85pcs 40'GP:190pcs 40'HQ:210pcs
14.Only for home use, user max weight: 110kg
15.Frame: Heavy-Gauge welded steel with textured powder coat finish.
1.Low noise DC drive motor: 1.75hp(continuous)
2.PWM, Speed range: 1-16km/h
3.LCD screen:speed, distance, time, calorie, heart rate
4.Easily read parameters, 15 pre-set programs can be chosen freely
5.Three degrees manual incline
6.Machine size(LWH):1640 x 715 x 1285(mm)
7.Running belt size: 400 x 1200(mm)
8.Carton size(LWH): 1705 x 755 x 255(mm)
10.Deck:18mm pre-waxed phenolic
11.Shock Absorption: 2-point deck suspension
12.Net weight: 50kg gross weight: 61kg
13.Shipping quantity: 20'GP:85pcs 40'GP:190pcs 40'HQ:210pcs
14.Only for home use, user max weight: 110kg
15.Frame: Heavy-Gauge welded steel with textured powder coat finish.
Model:JS-5000B-1
Home Deluxe Motorized Treadmill
1. Low noise DC drive motor: 3.0hp(continuous),6.0hp(peak)
2.PWM speed adjusting system, speed range:1.0-22km/h
3.Auto incline range: 0-20%
4.LCD screen display: speed, distance, time, calorie, incline, heart rate
5.Easily read parameters, 25 pre-set programs can be chosen freely
6.Speed, incline shortcut key are both on panel, speed,incline on handrail
7.Can be folded from up to down directly,easy for packing, no assembly
8.Machine size(LWH): 1935×850×1300(mm)
9.Running belt size: 500×1430(mm)
10.Carton size(LWH): 2000 x 860 x 340(mm)
11.Deck: 18mm pre-waxed phenolic
12. Running belt: 1.8mm
13.Shock Absorption: 4-point deck suspension
14.Shipping quantity: 20'GP: 47pcs 40'GP:99pcs 40'HQ:115pcs
15.Net weight: 103kg, gross weight: 111kg
16.For home use, max user weight: 150kg
17.Frame: Heavy-Gauge welded steel with textured powder coat finish.
18. with MP3 input, two music speakers
Model:JS-5000A
1. Low noise DC drive motor: 3.0hp(continuous), 6.0hp(peak)
Home Deluxe Motorized Treadmill
2.PWM speed adjusting system, speed range:1.0-22km/h
3.Auto incline range: 0-20%
4.7" LCD screen display: speed, distance, time, calorie, incline, heart rate
5.Easily read parameters, 25 pre-set programs can be chosen freely
6.Speed, incline shortcut key are both on panel, contact heart rate testing,s
7.400m racetrack in the panel.
8.Can be folded from up to down directly,easy for packing, no assembly
9.Machine size(LWH): 1830×845×1300(mm)
10.Running belt size: 500×2825(mm), High Density 2-ply urethane
11.Carton size(LWH):2000 x 860x 350(mm)
12.Deck: 18 mm pre-waxed phenolic
13. Running belt: 1.8mm
14.Shock Absorption:4-point deck suspension
15.Shipping quantity: 20'GP: 47pcs 40'GP:99pcs
40'HQ:116pcs
16.Net weight: 104kg, gross weight: 112kg
17.For home use, max user weight: 150kg
18.with MP3 input, two speakers
19.Frame: Heavy-Gauge welded steel with textured powder coat finish.
Model:JS-4500
1. Low noise DC drive motor: 2.5hp(continuous),4.5hp(peak)
Home Deluxe Motorized Treadmill
2.PWM speed adjusting system, speed range:1.0-22km/h
3.Auto incline range: 0-20%
4.7" white LCD screen display: speed, distance, time, calorie, incline, heart rate
5.Easily read parameters,25 pre-set programs can be chosen freely
6.Speed, incline shortcut key are both on panel, contact heart rate
testing,speed,incline on handrail
7.400m racetrack in the panel.
8.Can be folded from up to down directly,easy for packing, no assembly
9.Machine size(LWH): 1680×795×1300(mm)
10.Running belt size: 450*1330(mm)
11.Carton size(LWH):1900x 810x 340(mm)
12.Deck: 18mm pre-waxed phenolic
13.Running belt: 1.8mm
14.Shock Absorption: 4-point deck suspension
15.Net weight: 89kg, gross weight: 96kg
16.Shipping quantity: 20'GP: 53pcs 40'GP:99pcs
40'HQ:120pcs
17.For home use, max user weight: 130kg
18.with MP3 input, two speakers
19.Frame: Heavy-Gauge welded steel with textured powder coat finish.
Model:JS-4300
1.Low noise DC drive motor: 2.0hp(continuous), 4.0hp(peak)
Home Deluxe Motorized Treadmill
2.PWM,speed range: 1-16km/h
3.Auto incline range: 0-16%
4.6 red LED display: speed, distance, time, calorie, heart rate and incline
5.Easily read parameters, 25 pre-set programs can be chosen freely
6.Contact heart rate testing on handrail
7.Machine size(LWH):1630 x 700 x 1300(mm)
8.Running belt size: 430 x 1300(mm)
9.Carton size(LWH): 1660 x 770 x 335(mm)
10.Deck: 18mm pre-waxed phenolic,can be foldable by two gasonline springs
11.Running belt: 1.6mm
12.Shock Absorption: 4-point deck suspension
13.Net weight: 76kg gross weight: 83kg
14.Shipping quantity: 20'GP: 65pcs 40'GP:147pcs 40'HQ:150pcs
15.Only for home use, user max weight: 120kg
16.with MP3 input, two music speakers
17.Frame: Heavy-Gauge welded steel with textured powder coat finish.
Model:JS-4200
1.Low noise DC drive motor: 2hp(continuous)
Home Deluxe Motorized Treadmill
2.PWM,speed range: 1-16km/h
3.Auto incline range: 0-16%
4.6 red LED display: speed, distance, time, calorie, heart rate and incline
5.Easily read parameters,25 pre-set programs can be chosen freely
6.Contact heart rate testing on handrail
7.Machine size(LWH):1630 x 700 x 1300(mm)
8.Running belt size: 420 x 2620(mm), High Density 2-ply urethane
9.Carton size(LWH): 1670 x 750 x 335(mm)
10.Deck: 18.5 pre-waxed phenolic,can be foldable by two gasonline spring
11. Running belt: 1.6mm
12.Shock Absorption: 6-point deck suspension
13.Net weight: 76kg gross weight: 83kg
14.Shipping quantity: 20'GP: 70pcs 40'GP:147pcs 40'HQ:158pcs
15.Only for home use, user max weight: 120kg
16.Frame: Heavy-Gauge welded steel with textured powder coat finish.
Model:JS-4000M-1(without incline)
1.Low noise DC drive motor: 1.75hp(continuous)
Home Deluxe Motorized Treadmill
2.PWM, Speed range: 1-16km/h
3.5 red LED screen:speed, distance, time, calorie, heart rate
4.Easily read parameters, 15 pre-set programs can be chosen freely
5.Contact heart rate testing on handrail
6.Machine size(LWH):1630 x 700 x 1300(mm)
7.Running belt size: 420 x 1300(mm)
8.Carton size(LWH): 1680 x 750 x 310(mm)
9.Deck: 18 mm pre-waxed phenolic
10.Shock Absorption: 4-point deck suspension
11.Net weight: 72kg gross weight: 79kg
12.Shipping quantity: 20'GP: 69pcs 40'GP:147pcs 40'HQ:158pcs
13.Only for home use, user max weight: 110kg
14.Frame: Heavy-Gauge welded steel with textured powder coat finish.
Model:JS-4000(without incline)
1.Low noise DC drive motor: 1.75hp(continuous)
Home Deluxe Motorized Treadmill
2.PWM, Speed range: 1-16km/h
3.5 red LED screen:speed, distance, time, calorie, heart rate
4.Easily read parameters, 15 pre-set programs can be chosen freely
5.Contact heart rate testing on handrail
6.Machine size(LWH):1630 x 700 x 1300(mm)
7.Running belt size: 420 x 1300(mm)
8.Carton size(LWH): 1660 x 750 x 300(mm)
9.Deck: 18 mm pre-waxed phenolic
10.Shock Absorption: 4-point deck suspension
11.Net weight: 67.5kg gross weight: 74kg
12.Shipping quantity: 20'GP: 69pcs 40'GP:147pcs 40'HQ:158pcs
13.Only for home use, user max weight: 110kg
14.Frame: Heavy-Gauge welded steel with textured powder coat finish.
Model:JS-4201
1.Low noise DC drive motor: 1.75hp(continuous)
Home Deluxe Motorized Treadmill
2.PWM,speed range: 1-16km/h
3.Manual incline: 2 degrees manual incline
4.5 red LED display: speed, distance, time, calorie, heart rate and incline
5.15 pre- programs could be chosen
6.Contact heart rate testing on handrail
7.Machine size(LWH):1630 x 700 x 1300(mm)
8.Running belt size: 420 x 1300(mm)
9.Carton size(LWH): 1670 x 770 x 335(mm)
10.Deck: 18mm pre-waxed phenolic,can be foldable by two gasonline springs
11.Shock Absorption: 4-point deck suspension
12.Net weight: 73kg gross weight: 80kg
13.Shipping quantity: 20'GP: 70pcs 40'HQ:158pcs
14.Only for home use, user max weight: 110kg
15.Frame: Heavy-Gauge welded steel with textured powder coat finish.
Model:JS-13852
Home Deluxe Motorized Treadmill
Model:JS-13850(AUTO INCLINE)
Home Deluxe Motorized Treadmill
1.Low noise DC drive motor: 1.5hp(continuous), 3.0hp(peak)
2.PWM, Speed range: 1-12km/h , manual incline: two degrees
3.LCD screen:speed, distance, time, calorie, heart rate
4.Easily read parameters, 15 pre-set programs can be chosen freely
5.Contact heart rate testing on handrail
6.Machine size(LWH):1540 x 660 x 1142(mm)
7.Running belt size: 385 x 2380(mm), High Density 2-ply urethane
8.Carton size(LWH): 1560 x 700 x 300(mm)
10.Deck:18mm pre-waxed phenolic
11.Shock Absorption: 2-point deck suspension
12.Net weight: 50kg gross weight: 55kg
13.Shipping quantity: 20'GP:85pcs 40'GP:164pcs 40'HQ:185pcs
14.Only for home use, user max weight: 90kg
15.Frame: Heavy-Gauge welded steel with textured powder coat finish.
1.Low noise DC drive motor: 1.5hp(continuous), 3.0hp(peak)
2.PWM, Speed range: 1-12km/h
3. 0-10% power incline
4.LCD screen:speed, distance, time, calorie, heart rate
5.Easily read parameters, 25 pre-set programs can be chosen freely
6.Contact heart rate testing on handrail
7.Machine size(LWH):1540 x 660 x 1142(mm)
8.Running belt size: 385 x 2380(mm), High Density 2-ply urethane
9.Carton size(LWH): 1560 x 700 x 300(mm)
10.Deck: 18mm pre-waxed phenolic,can be foldable by two gasonline spri
11.Shock Absorption: 2-point deck suspension
12.Net weight:59kg gross weight: 63.5kg
13.Shipping quantity: 20'GP: 85pcs 40'GP:164pcs 40'HQ:185pcs
14.Only for home use, user max weight: 90kg
15.Frame: Heavy-Gauge welded steel with textured powder coat finish.
Model:JS-13851
1.Low noise DC drive motor: 1.5hp(continuous), 3.0hp(peak)
Home Deluxe Motorized Treadmill
2.PWM, Speed range: 1-12km/h
3.LCD screen:speed, distance, time, calorie, heart rate
4.Easily read parameters, 15 pre-set programs can be chosen freely
5.Speed shortcut key,on/off key ,contact heart rate testing on handrail
6.Machine size(LWH):1577 x 660 x 1142(mm)
7.Running belt size: 385 x 2380(mm), High Density 2-ply urethane
8.Carton size(LWH): 1610 x 700 x 300(mm)
11.Deck: 18mm pre-waxed phenolic
12.Shock Absorption: 2-point deck suspension
13.Net weight: 56kg gross weight:60kg
14.Shipping quantity: 20'GP: 85pcs 40'GP:164pcs 40'HQ:185pcs
15.Only for home use, user max weight: 90kg
16.Accessories: massager, twister,push-up
17.Frame: Heavy-Gauge welded steel with textured powder coat finish.
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
