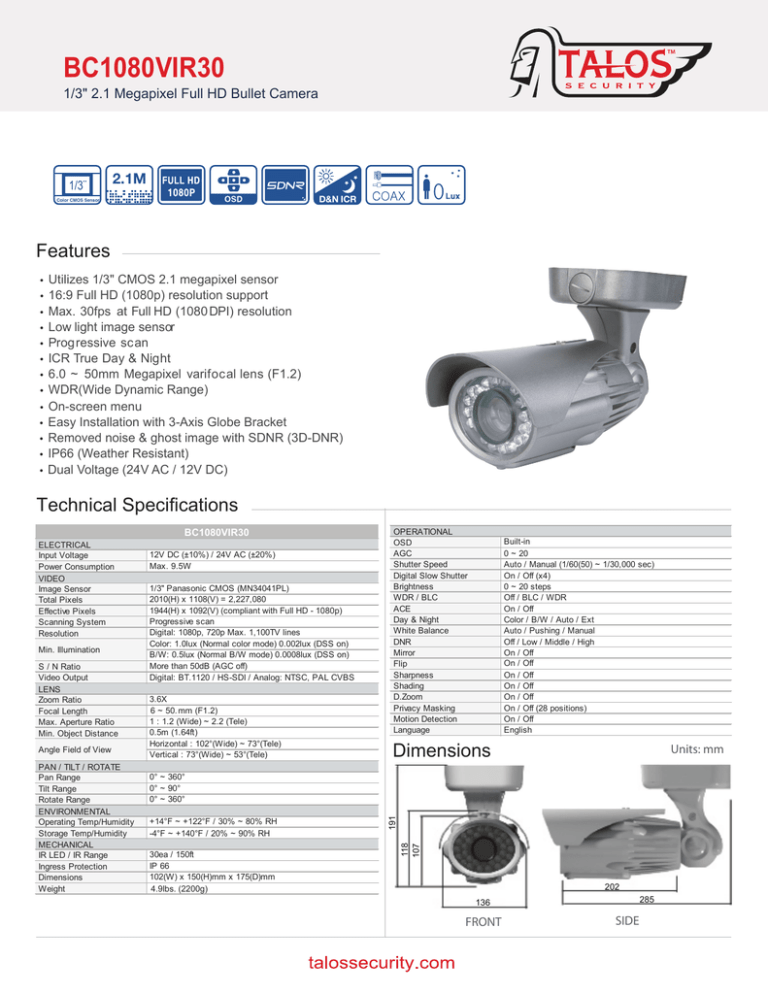

BC1080VIR30
1/3" 2.1 Megapixel Full HD Bullet Camera
1/3¨
2.1M
D&N ICR
Color CMOS Sensor
Features
•
•
•
•
•
•
•
•
•
•
•
•
•
Utilizes 1/3" CMOS 2.1 megapixel sensor
16:9 Full HD (1080p) resolution support
Max. 30fps at Full HD (1080 DPI) resolution
Low light image sensor
Progressive scan
ICR True Day & Night
6.0 ~ 50mm Megapixel varifocal lens (F1.2)
WDR(Wide Dynamic Range)
On-screen menu
Easy Installation with 3-Axis Globe Bracket
Removed noise & ghost image with SDNR (3D-DNR)
IP66 (Weather Resistant)
Dual Voltage (24V AC / 12V DC)
Technical Specifications
S / N Ratio
Video Output
LENS
Zoom Ratio
Focal Length
Max. Aperture Ratio
Min. Object Distance
Angle Field of View
PAN / TILT / ROTATE
Pan Range
Tilt Range
Rotate Range
ENVIRONMENTAL
Operating Temp/Humidity
Storage Temp/Humidity
MECHANICAL
IR LED / IR Range
Ingress Protection
Dimensions
Weight
12V DC (±10%) / 24V AC (±20%)
Max. 9.5W
1/3" Panasonic CMOS (MN34041PL)
2010(H) x 1108(V) = 2,227,080
1944(H) x 1092(V) (compliant with Full HD - 1080p)
Progressive scan
Digital: 1080p, 720p Max. 1,100TV lines
Color: 1.0lux (Normal color mode) 0.002lux (DSS on)
B/W: 0.5lux (Normal B/W mode) 0.0008lux (DSS on)
More than 50dB (AGC off)
Digital: BT.1120 / HS-SDI / Analog: NTSC, PAL CVBS
3.6X
6 ~ 50. mm (F1.2)
.
1 : 1.2 (Wide) ~ 2.2 (Tele)
0.5m (1.64ft)
Horizontal : 102°(Wide) ~ 73°(Tele)
Vertical : 73°(Wide) ~ 53°(Tele)
OPERATIONAL
OSD
AGC
Shutter Speed
Digital Slow Shutter
Brightness
WDR / BLC
ACE
Day & Night
White Balance
DNR
Mirror
Flip
Sharpness
Shading
D.Zoom
Privacy Masking
Motion Detection
Language
Built-in
0 ~ 20
Auto / Manual (1/60(50) ~ 1/30,000 sec)
On / Off (x4)
0 ~ 20 steps
Off / BLC / WDR
On / Off
Color / B/W / Auto / Ext
Auto / Pushing / Manual
Off / Low / Middle / High
On / Off
On / Off
On / Off
On / Off
On / Off
On / Off (28 positions)
On / Off
English
Dimensions
Units: mm
0° ~ 360°
0° ~ 90°
0° ~ 360°
+14°F ~ +122°F / 30% ~ 80% RH
-4°F ~ +140°F / 20% ~ 90% RH
30ea / 150ft
IP 66
102(W) x 150(H)mm x 175(D)mm
4.9lbs. (2200g)
191
Min. Illumination
BC1080VIR30
118
107
ELECTRICAL
Input Voltage
Power Consumption
VIDEO
Image Sensor
Total Pixels
Effective Pixels
Scanning System
Resolution
202
285
136
FRONT
SIDE
