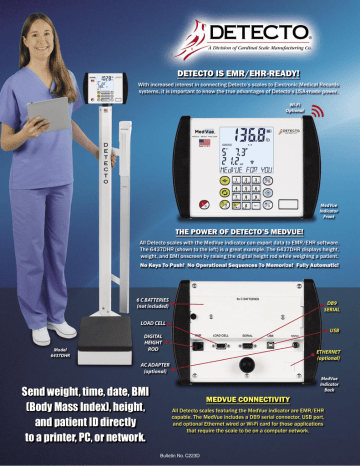

DETECTO IS EMR/EHR-READY!
With increased interest in connecting Detecto’s scales to Electronic Medical Records
systems, it is important to know the true advantages of Detecto’s USA-made power.
Wi-Fi
Optional
MedVue
Indicator
Front
THE POWER OF DETECTO’S MEDVUE!
All Detecto scales with the MedVue indicator can export data to EMR/EHR software.
The 6437DHR (shown to the left) is a great example. The 6437DHR displays height,
weight, and BMI onscreen by raising the digital height rod while weighing a patient.
No Keys To Push! No Operational Sequences To Memorize! Fully Automatic!
6 C BATTERIES
(not included)
DB9
SERIAL
LOAD CELL
USB
Model
6437DHR
DIGITAL
HEIGHT
ROD
ETHERNET
(optional)
AC ADAPTER
(optional)
Send weight, time, date, BMI
(Body Mass Index), height,
and patient ID directly
to a printer, PC, or network.
MedVue
Indicator
Back
MEDVUE CONNECTIVITY
All Detecto scales featuring the MedVue indicator are EMR/EHR
capable. The MedVue includes a DB9 serial connector, USB port,
and optional Ethernet wired or Wi-Fi card for those applications
that require the scale to be on a computer network.
Bulletin No. C223D
TRANSMITTING DATA WITH THE MEDVUE
Detecto’s MedVue supports several formats and techniques for transmitting data.
Data transmission may be initiated via computer command or operator input
and transmitted via RS-232, USB or optional wired or Wi-Fi Ethernet.
The simplest protocol is the P185 Journal format. When
the patient is standing on the scale, adjust the digital
height rod, and either press the PRINT key or invoke the
Journal Print command from the connected computer.
This will transmit data only when a the patient’s weight/
height needs to be recorded and requires very little
processor time for the EMR, ensuring that the patient
is on the scale with the height rod properly placed.
Model
6857DHR
The 6857DHR scale is
designed for bariatrics
and nursing homes.
It includes a low-profile,
high-capacity scale
base and handrails
for patients who
require support
while weighing.
The following data/information will be sent via the
selected port:
Time, Date, ID, BMI, Height, Weight <CR><LF>
•
•
•
•
•
•
Time= hh:mm
Date= mm/dd/yy
ID= xxxxxxxxxxx (patient ID)
BMI= xx.x (percentage)
Height= x' xx.x" or xx.x cm (inches or centimeters)
Weight= xxx.xuu G (gross weight)
ASCII Output String:
hh:mm,mm/dd/yy,xxxxxxxxxxx,xx.x,x’ xx.x”,xxx.xuu G<CR><LF>
USA-MANUFACTURED DESIGN QUALITY
If a particular EMR software package requires a custom data format, Detecto Scale can provide a
special quotation to output the weight record in a special format. This is all made possible since
Detecto is a complete 100% software/hardware manufacturer located in Webb City, Missouri.
No other medical scale company can do it like we do it… because WE MAKE IT!
Detecto Scale reserves the right to improve, enhance, or modify features and specifications without prior notice.
DETECTO
SOLD BY:
®
A Division of Cardinal Scale Manufacturing Co.
203 E. Daugherty, Webb City, MO 64870 USA
Ph: 417-673-4631 or 1-800-641-2008 Fax: 417-673-5001
www.Detecto.com
© Copyright 2014 Cardinal Scale Mfg. Co.
• Printed in USA • 0314/C223D
