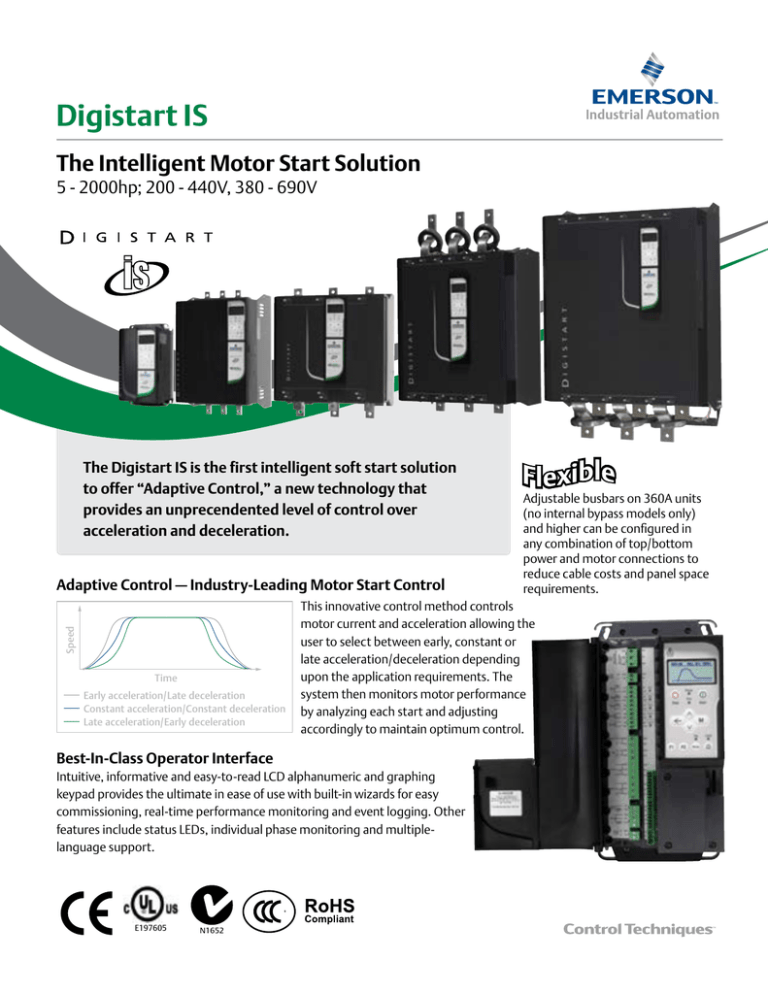

Digistart IS
The Intelligent Motor Start Solution
5 - 2000hp; 200 - 440V, 380 - 690V
The Digistart IS is the first intelligent soft start solution
to offer “Adaptive Control,” a new technology that
provides an unprecendented level of control over
acceleration and deceleration.
Speed
Adaptive Control — Industry-Leading Motor Start Control
Time
Early acceleration/Late deceleration
Constant acceleration/Constant deceleration
Late acceleration/Early deceleration
This innovative control method controls
motor current and acceleration allowing the
user to select between early, constant or
late acceleration/deceleration depending
upon the application requirements. The
system then monitors motor performance
by analyzing each start and adjusting
accordingly to maintain optimum control.
Best-In-Class Operator Interface
Intuitive, informative and easy-to-read LCD alphanumeric and graphing
keypad provides the ultimate in ease of use with built-in wizards for easy
commissioning, real-time performance monitoring and event logging. Other
features include status LEDs, individual phase monitoring and multiplelanguage support.
S
E197605
N1652
Adjustable busbars on 360A units
(no internal bypass models only)
and higher can be configured in
any combination of top/bottom
power and motor connections to
reduce cable costs and panel space
requirements.
Ratings, Specifications and Options
Ratings
Size
1A
1B
2
3
4
Specifications
Duty
Normal
% FLA
300%
Start Time
10 seconds
Model
(hp @ 460V)
(A)
IS1x0023B
IS1x0043B
IS1x0053B
IS1x0076B
IS1x0097B
IS1x0105B
IS2x0145B
IS2x0170B
IS2x0220B
IS3x0255B
IS3x0350B
IS3x0425B
IS4x0500B
IS4x0700B
IS4x0820B
IS4x0920B
IS4x1000B
15
30
40
60
75
75
100
125
150
200
300
350
400
600
700
800
900
Medium
350%
15 seconds
(A)
Heavy
400%
20 seconds
(A)
Severe
450%
30 seconds
(A)
20
37
53
64
82
105
123
145
210
231
306
371
445
592
705
804
936
17
31
46
55
69
95
106
121
178
201
266
321
383
512
606
684
796
15
26
37
47
58
78
90
97
148
176
230
276
326
438
516
571
664
23
43
53
76
97
105
145
170
220
255
350
425
500
700
820
920
1000
Start Modes
Starts
per
Hour
10
6
4
5
IS3x0255N
IS460360N
IS460430N
IS460650N
IS460790N
IS460930N
IS561200N
IS561410N
IS561600N
200
300
350
500
700
800
1000
1250
1400
255
360
430
650
790
930
1200
1410
1600
231
360
430
650
790
930
1200
1410
1600
201
310
368
561
714
829
1200
1319
1600
176
263
309
455
579
661
1071
1114
1353
Stop Modes
Coast To Stop, TVR Soft Stop, Adaptive, DC brake
General
Current Range
23 to 1600A (nominal)
Motor Connection
In-line or inside delta
Bypass
Integrated internal or external
Voltage - ISx4xxxxx
200 to 440Vac (±10%)
Voltage - ISx6xxxxx
380 to 690Vac (±10%)
Control Voltage
110 to 210Vac (+10% / -15%) or
220 to 440Vac (+10% / -15%)
Supply Frequency
45 to 66Hz
Inputs
Active 24Vdc, 8mA approx
Start
Normally open
Stop
Normally closed
Reset
Normally open or closed
Supply
6
6
Inputs
6
No Internal Bypass*
3
Constant Current/Current Limit, Current Ramp,
Adaptive and Kickstart
6
6
Notes: x=4 for 200 to 440Vac, 6 for 380 to 690Vac
B=internal bypass, N=no internal bypass
*Ratings for No Internal Bypass only valid for installations with external bypass contactor
Programmable Inputs
Input A
Normally open or closed
Input B
Normally open or closed
Motor Thermistor
RTD/PT100
Outputs
Relay outputs
10A at 250Vac resistive 5A at
250Vac, AC15 pf 0.3
Run Relay
Normally Open
Programmable Outputs
Options
Relay A
Normally open
Relay B
Changeover
Relay C
Changeover
Order Code
Description
Analog Output
IS-KEYPAD-MOUNT
Allows keypad to be remote-mounted up to 3m from soft starter; when panelmounted, keypad is IP65 rated
24 Vdc Output
IS-FINGER-GUARD
Provides IP20 protection for models IS2x0145B to IS2x0220B
RoHS Compliant
IS-I/O
Provides additional 2 x digital inputs, 3 x relay outputs, 1 x analog input and
1 x analog output
Protection
IS-RTD-&-GND-FAULT
The RTD (resistive temperature device) and GND (ground fault protection) card
provides additional 6 x PT100 RTD inputs and 1 x ground fault input
Fieldbus Order Code
Description
DIGISTART-MODBUS
Modbus RTU Interface for Digistart IS and Digistart CS
DIGISTART-PROFIBUS
PROFIBUS Interface for Digistart IS and Digistart CS
IS1x0023B to
IS1x0105B
IS2x0145B to
IS5x1600N
Operating
Temperature
Storage Temperature
DIGISTART-DEVICENET
DeviceNet Interface for Digistart IS and Digistart CS
Humidity
5 to 95% relative
DIGISTART-USB
USB Interface for Digistart IS and Digistart CS
Conformal Coating
Standard
0-20 or 4-20mA
Environmental
Dimensions
Standard
IP20
IP00
14 to 104 °F (-10 to 40°C), max
140 °F (60 °C) with derating
-13 to 140°F (-25 to 60°C)
W
Size
Height (H)
Width (W)
Depth (D)
Weight
1A
1B
2
3
4
5
11.6in (294.6mm)
11.6in (294.6mm)
17.2in (438mm)
18.1in (460mm)
27.3in* (694mm*)
34.8in* (884mm*)
6.2in (156.4mm)
6.2in (156.4mm)
11.1in (282mm)
15.5in (394mm)
16.9in (430mm)
22.6in (574mm)
7.7in (196mm)
8.9in (226mm)
10.0in (254mm)
11.2in (284mm)
11.9in (302mm)
14.3in (364mm)
7.1lbs (3.2kg)
10.6lbs (4.8kg) max
35.3lbs (16kg)
55.1lbs (25kg)
118lbs (53.5kg) max
309lbs (140kg)
W
2 min
H
H
Read
y
Stop
Run
Start
STATU
S
MODUL
E
M
NETWO
RK
DATA
500Kb
F1
Trip
F2
RATE
250Kb
Loca
PGM
125Kb
l
NODE
Rese
t
( 00 ADDR
ESS
- 63,
PGM
2
)
LCL
RMT
0
4
PGM
MSD
2
0
P/N FLI-DGIS-1107
Fieldbus Option Dimensions
6.2in (157.5mm)
LSD
1.4in (35.6mm)
3.5in (88.9mm)
0.6lbs (0.3kg)
*Maximum height inclusive of busbar
D
Digistart IS
3/15
www.controltechniques.com
©Copyright 2015 All rights reserved. Contents subject to change without notice. Printed in the USA.
6
4
8
6
D
Option Module
