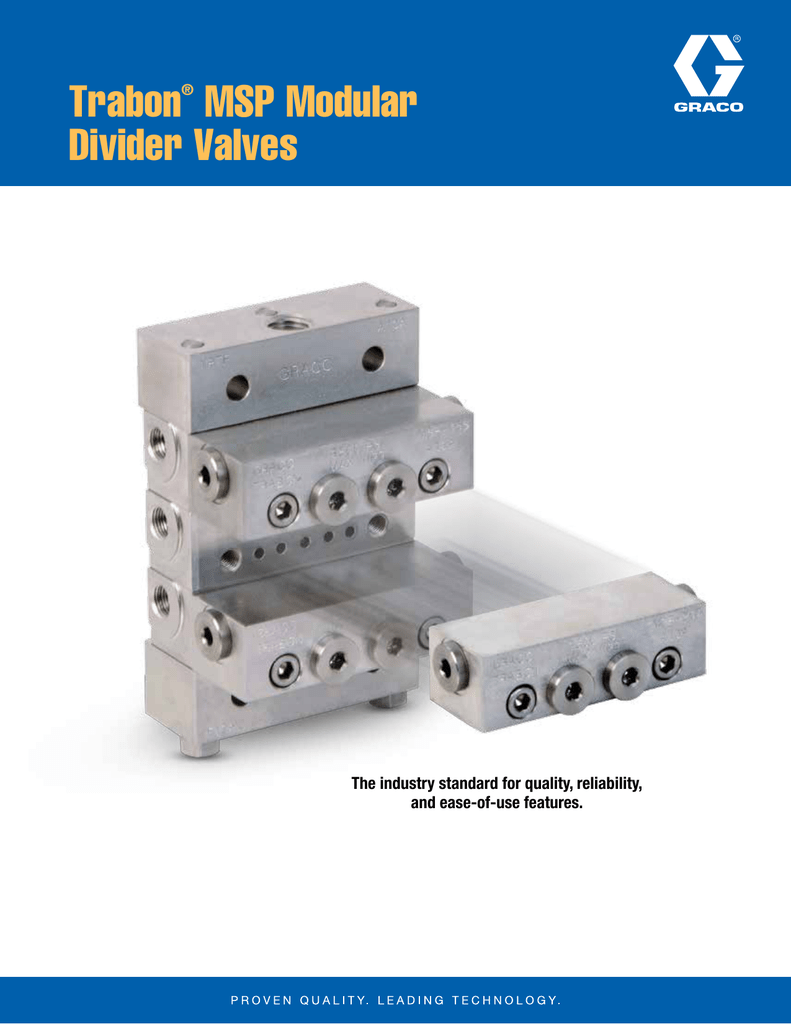

Trabon MSP Modular Divider Valves Flyer

Trabon MSP Modular
Divider Valves
®
The industry standard for quality, reliability,
and ease-of-use features.
MSP Modular Divider Valves
Match lubricant flow to the exact needs of
each point.
• Precise monitoring, positive feedback
• Simple to install and operate
• Modular design for total flexibility
The flexible, modular MSP Divider Valve
• For lubrication oil or grease up to NLGI #2
• For pressures up to 3,500 psi (241 bar)
• Lubricate up to 22 points per valve assembly
• Choice of SAE, NPSF, or BSPP inlet/outlet connections
• Fluoroelastomer o-ring sealing prevents leaks and reduces
maintenance
L10102
•
Each assembly requires: (A) valve sections with working pistons (3
minimum), (B) subplates with outlet ports, (C) inlet section, and (D)
end sections.
Twin piston sections are ported to create separate outputs for two
lube points. Single sections combine the output from both ends of
the piston and send it to a single lube point.
Field-installable crossport or singling plates (E) may be used to
increase the flow to a single point or accommodate an odd number of
lube points.
A bypass section is available to eliminate a piston section or provide
for added lube points in the future.
NOTE: When bypass sections are used, the Divider Valve assembly
must have a minimum of 3 working sections in addition to one or
more bypass sections.
• Individual valve outputs vary by a maximum ratio of 16:1
• Built-in check valves prevent lube re-entry and help keep
lines full
• Modular, stackable design simplifies installation and
adds flexibility
C
A
• Available in carbon steel with corrosion-resistant plating.
• Refer to the Graco ILE Buyer's Guide for stainless
steel options.
E
B
D
Page 2
MSP Modular Divider Valves
L10102
Designed with over 100 years of experience in
centralized lubrication.
• Engineering certified to ISO 9001 Standards
• Modular design for maximum flexibility
MSP DIVIDER SPECIFICATIONS
Standard Material
Corrosion Protected Steel
Optional Material
Stainless Steel
O-Ring Seals
90 Durometer Fluoroelastomer (FKM)
Max Cycle Rate:
• Install and maintain without disturbing lube lines
Quality Design
w/Cycle Pin
60 CPM
w/out Cycle Pin, or w/Prox
Cycle Sw
200 CPM
Pressure (max)
3500 psi (241 bar)
Temperature (max)
FKM Seals - 350ºF (177ºC)
Lubricant
Oil or Grease, up to NLGI #2
Zero Leak Inlet:
TOP VIEW
Pressure (max)
1500 psi (104 bar)
Ambient Temperature (max)
140ºF (60ºC)
Lubricant (oil only)
Up to 5000 SUS
Requires 25 micron (min) filtration
Electrical Characteristics
See page 7
Shunt/Shut-Off Inlet:
SIDE VIEW
Pressure (max)
3000 psi (207 bar)
Intermittent supply pressure only
Ambient Temperature (max)
140ºF (60ºC)
Lubricant
Oil and Fluid Grease
Filter oil through 25 micron filter and
grease through a 100 mesh strainer
Electrical Characteristics
See page 7
DIVIDER VALVE ASSEMBLY
FRONT VIEW
Description
Net Weight lbs (kg)
3 section
5.9 (2.7)
4 section
7.3 (3.3)
5 section
8.7 (4.0)
6 section
10.2 (4.6)
7 section
11.6 (5.6)
8 section
13.0 (5.9)
TORQUE SPECIFICATIONS
Style
5-8 ft lbs
Valve Block Mtg. Screw
8-9 ft lbs*
Indicator Port Plug
8-9 ft lbs*
"A"
Right
Qty of
Sections
Left
3
3.578 (90.881)
Inlet Bleed Screw
1-2 ft lbs
CB-Both
Right & Left
4
4.500 (114.30)
Piston Enclosure Plug
12-15 ft lbs*
Singling
None
5
5.422 (137.718)
*O-Ring sealed components
6
6.344 (161.138)
7
7.266 (184.556)
8
8.188 (207.975)
CR Right
CL Left
Page 3
Tab(s)
TIe Rod Nut
MSP Modular Divider Valves
L10102
A wide variety of safeguards monitor and verify
lube cycles
• Track valve-piston action
• Easily interfaced to system controller
Cycle Indicators
These mechanical and electrical units sense the divider valve piston’s
action for accurate control and monitoring of lube cycles.
• Cycle Indicator Pin: Valve sections are available with a
factory-installed indicator pin which moves in and out as
lubricant passes through the valve.
• Magnetic Visual Indicator: Six steel balls in a clear sleeve
follow a magnet which moves with the cycling piston, providing
a clear visual indication of lube cycles. Part number: with
O-Ring, 563251 (509-932-522).
• Cycle Indicator Switch (SPDT): Used in conjunction with
the cycle indicator pin at cycle rates not exceeding 60 cpm,
it provides an electrical signal to the system controller which
counts cycles to monitor and verify completion of the lube cycle.
Part number: 563272 (510-599-000). A moisture-resistant
switch, 563273 (510-599-200), is also available.
• Universal Cycle Counter: Six-digit counter displays each
complete cycle of the divider valve. Requires divider valve
section with indicator pin (described above). Part number:
563444 (527-002-410).
• Field-sensitive Proximity Switch: A ceramic-magnet switch
for grease or oil systems up to 200 cpm at pressure up to
3,500 psi (241 bar), accurately signals piston cycles, and is
ideal for high-cycle applications. Part numbers: 3-pin with
O-Ring, 557741 (527-003-251); 5-pin with O-Ring, 557746
(527-004-111).
• LED Field-sensitive Proximity Switch: This 24 VDC device
magnetically senses the movement of the piston, triggering
the switch and illuminating the LED. Part numbers: 3-pin with
O-Ring, 563478 (527-005-690); 5-pin with O-Ring, 563477
(527-005-670); Explosion proof with O-Ring; 563485 (527006-060).
• Connecting Cables: Brad Harrison mating cables with either
3- or 5-pin connectors are available in 12-ft. (3.65 m) lengths
for the F/S proximity switches and other devices. Refer to
bulletin L15600 for complete listing of proximity cycle switches.
Page 4
MSP Modular Divider Valves
L10102
Choice of indicators offer automatic system
protection and fault location.
• Immediate response to blockages
• Manual or automatic reset
• Continues to serve unaffected points
Performance Indicators
These vital safeguards react to excess lube pressure when points
or lines become blocked. Installed in indicator ports on the working
piston sections, they quickly identify the affected lines. Refer to
bulletin L15401 for complete listing of available performance
indicators.
• Automatic Relief-to-Atmosphere Indicator (O-Ring Seal): Springloaded piston unseats when blockage occurs, venting lubricant
to atmosphere each time piston cycles. This allows system to
lubricate unaffected points. When the blockage is cleared, the
indicator resets automatically.
ORDERING INFORMATION
• Manual Reset Indicator with Memory (O-Ring Seal): System
blockage triggers a spring-loaded piston to display an indicator.
Since there is no relief, pressure backs up in the system and the
system stops, allowing a controller to alarm. After correcting the
problem, the indicator pin is reset manually.
ORDERING INFORMATION
Relief Pressure
Part No.
Old Part No.
Relief Pressure
Part No.
Old Part No.
750 psi (51 bar)
563170
508-310-415
250 psi (17 bar)
563252
509-932-590
1000 psi (69 bar)
563171
508-310-425
500 psi (34 bar)
563253
509-932-600
1250 psi (86 bar)
563172
508-310-435
750 psi (51 bar)
563254
509-932-610
1500 psi (103 bar)
563173
508-310-445
1000 psi (69 bar)
563255
509-932-620
2000 psi (138 bar)
563174
508-310-455
1500 psi (103 bar)
563256
509-932-630
2500 psi (172 bar)
563175
508-310-465
2000 psi (138 bar)
563257
509-932-640
3000 psi (207 bar)
563176
508-310-475
2500 psi (172 bar)
563258
509-932-650
Automatic Relief-to-Atmosphere Indicator
Page 5
Manual Reset Indicator with Memory
MSP Modular Divider Valves
L10102
Improve matchup of lube delivery and
machine usage.
Special Inlet Sections
• Allow zoning of large systems served by single pump and
reservoir
• Choice of inlet port activation: electric or pneumatic
• Simpler to install, add or remove points
• Choice of SAE, NPSF, or BSPP (ISO 1179) connection
These versatile inlets provide positive, series-progressive lubrication
for extended lines and systems. You easily match lube delivery to
machine usage, bypass machinery that's not currently in use, and get
reliable start-up testing, monitoring, and fault detection.
Zero-Leak Inlet Shut-Off
A two-way valve that can be used with either continuous or
intermittent pressurized harder systems. Replaces a standard inlet
section or mounts in-line with a remote manifold kit. Refer to bulletin
L10104 for additional details. Refer to bulletin L10105 for modular
zero-leak.
Shunt Inlet Section
A three-function valve, either electric or pneumatic: allows lubricant
to enter divider valve, bypasses it to another divider valve, or diverts
it back to tank. Replace standard inlet or mount in-line with remote
manifold kit. See page 8 for part numbers.
Page 6
MSP Modular Divider Valves
Zero-Leak Inlet Shut-Off Valve
L10102
Shunt Inlet Option
“A”
(See Page 6)
Zero-Leak Electrical Specifications:
Shunt/Shut-Off Electrical Specifications:
115 VAC, 0.22 A In-Rush, 0.14 A Holding 24 VDC, 28 W
115 VAC, 1.6 A In-Rush, 0.54 A Holding 24 VDC, 28 W
Solenoid mounted on right side: n.o. to divider, closed to bypass
Solenoid mounted on left side: n.c. to divider, open to bypass
Page 7
MSP Modular Divider Valves
L10102
You can easily configure the system to the need.
Item
Part No.
Old Part No.
3 Section
557731
527-001-930
4 Section
557732
527-001-940
5 Section
557733
527-001-950
Specifying Guide - MSP Divider Valve
6 Section
557734
527-001-960
7 Section
557735
527-001-970
Component Identification and Ordering Information
Zinc plated carbon steel
8 Section
557736
527-001-980
Tie Rod Nut Only (3 required)
556371
410-440-010
Tie Rod (3 required)
• Custom performance from stock modules
• Choice of Single or Twin outlets
Item
Description
T = Twin
S = Single
Displacement
in3 (cm3)
8
Fluoroelastomer Seal
9
w/Cycle Pin (RH)
Fluoroelastomer Seal
Part no.
Old Part No.
Part No.
Old Part No.
562720
106-100-175
–
–
Valve Sections
5T - .005
1
0.005 (0.082)
5S - .005
0.010 (0.164)
562711
106-100-015
–
–
10T - .010
0.010 (0.164)
562721
106-100-185
–
–
10S - .010
0.020 (0.328)
562712
106-100-025
–
–
15T - .015
0.015 (0.246)
562722
106-100-195
–
–
15S - .015
0.030 (0.492)
562713
106-100-035
–
–
20T - .020
0.020 (0.328)
562723
106-100-205
562739
106-100-935
20S - .020
0.040 (0.656)
562714
106-100-045
562729
106-100-735
25T - .025
0.025 (0.410)
562724
106-100-215
562740
106-100-945
25S - .025
0.050 (0.820)
562715
106-100-055
562730
106-100-745
30T - .030
0.030 (0.492)
562725
106-100-225
562741
106-100-955
30S - .030
0.060 (0.983)
562716
106-100-065
562731
106-100-755
35T - .035
0.035 (0.574)
562726
106-100-235
562742
106-100-965
35S - .035
0.070 (1.148)
562717
106-100-075
562732
106-100-765
40T - .040
0.040 (0.656)
562727
106-100-245
562743
106-100-975
40S - .040
0.080 (1.311)
562718
106-100-085
562733
106-100-775
Cycle Indicator Pin Repair Kit
Item
2
3
Description
Description
Part No.
Old Part No.
563929
560-002-055
Part No.
Old Part No.
Subplate
10
Valve Block Mounting Screws
122712
–
11
Piston Enclosure Plug
557716
527-000-232
11+12 Piston Enclosure Plug and O-Ring, Fluoroelastomer
12
Piston Enclosure O-Ring, Fluoroelastomer
13
Indicator Port Plug
13+14 Indicator Port Plug and O-Ring, Fluoroelastomer
14
Indicator Port Plug O-Ring, Fluoroelastomer
122276
–
419-140-080
17
Outlet Check Ball
556327
401-030-020
18
Outlet Check Spring
557508
510-682-003
19
Outlet Port Plugs for Single and Crossported Sections
1/8" Pipe Plug, NPT
557349
503-485-000
Plug and O-Ring, SAE
567251
412-700-541
Plug and O-Ring, BSPP
558799
412-700-404
Part No.
Old Part No.
Special Inlets
Valve
State
Description
Zero-Leak, 115 VAC, 3-Pin Brad Harrison Connector
N.C.
1/4-18 NPSF
563460
527-004-320
N.C.
9/16-18 SAE
563468
527-005-200
Replacement Coil
557226
492-120-206
Zero-Leak, 24 VDC, 3-Pin Brad Harrison Connector
N.C.
1/4-18 NPSF
563464
527-004-870
N.C.
9/16-18 SAE
563467
527-005-180
N.C.
1/4 BSPP (ISO 1179)
563082
463-920-720
Replacement Coil
557225
492-120-205
563462
527-004-770
563451
527-003-550
Shunt/Shut-Off, 115 VAC, 3-Pin Brad Harrison Connector
1/8-28 BSPP (ISO 1179)
563447
527-003-140
1/4-19 BSPP (ISO 1179)
560943
560936
527-003-540
N.O.
1/4-18 NPSF
563452
527-003-660
N.O.
9/16-18 SAE
560953
527-004-790
N.C.
1/4-18 NPSF
563453
527-003-670
N.C.
9/16-18 SAE
563463
527-004-800
Replacement Coil
557214
492-120-128
527-003-130
Shunt/Shut-Off, 24 VDC, 3-Pin Brad Harrison Connector
Inlet w/Bleed
1/4-18 NPSF
422-240-030
556514
7/16-20 SAE
7/16-20 SAE
–
556569
MSP (90 Duro) Fluoroelastomer O-Ring
Zero-Leak, No Coil (order separately)
527-001-800
527-300-840
Valve Block Mounting Screw for Crossport/Singling Plate
527-000-311
560919
557776
16U217
15
563425
1/4-18 NPSF
412-700-541
422-240-040
16
1/8-27 NPSF
Inlet
567251
556570
563421
527-000-322
N.O.
1/4-18 NPSF
563454
527-003-680
563482
527-005-780
7/16-20 SAE
563422
527-000-325
N.O.
9/16-18 SAE
Standard End Section
563424
527-001-900
N.O.
1/4 BSPP (ISO 1179)
563493
527-007-090
510-770-332
N.C.
1/4-18 NPSF
563455
527-003-690
Crossport Plate
N.C.
9/16-18 SAE
563483
527-005-785
Right
563469
527-005-320
N.C.
1/4 BSPP (ISO 1179)
563494
527-007-100
Left
563470
527-005-330
Replacement Solenoid
557215
492-120-130
Both
563471
527-005-340
Shunt/Shut-Off Pneumatic Operator
563456
527-003-730
Pneumatic Shunt Repair Kit
24E702
–
6
Singling Plate
563472
527-005-350
Remote Manifold kit - Zero-Leak and Shunt/Shut-Off
7
Bypass Block
562660
106-000-010
1/4-18 NPSF
563461
527-004-360
9/16-18 SAE
–
527-005-400
4
End (SPP)*
5
*Use Leakproof Grease Nipple, part 555888, sold separately.
563279
Page 8
MSP Modular Divider Valves
L10102
Modular design for full flexibility
MSP Divider Valve
• One valve assembly serves up to 16 points (or more)
Part List Schematic
• O-Ring sealing throughout prevents leakage
• Built-in check valves prevent lube re-entry and help keep
lines full
Pre-Configured MSP Base Plate Assemblies
Includes inlets, intermediate base plate sections, end section, tie rods, and nuts.
Item
2/3/4/8/9
Page 9
Model Number
Maximum Number
of Outlets
Number of
Valve Sections
NPSF
BSPP
6
3
24G485
24N915
8
4
24G486
24N916
10
5
24G487
24N917
12
6
24G488
24N918
14
7
24G489
24N919
16
8
24G490
24N920
MSP Modular Divider Valves
L10102
Legacy Ordering Menu – Provided for reference only
XXX - XXX - XX - X
Notes
-
X - XX - X - XX
SERIES OF FEEDER
MSP - STANDARD INDUSTRIAL TO 3500 PSI
MSV - SUPERSEDED BY MSP
INLET/OUTLET PORT TYPES
SAE - STRAIGHT THREAD O-Ring SEAL
NPT - NPSF PIPE THREAD
BSP - BRITISH PARALLEL PIPE O-Ring SEAL (ISO 1179)
INLET SECTION OPTIONS
MS - STANDARD INLET
MH - INLET W/BLEED SCREWS
SH - INLET W/SHUNT/SHUT-OFF (115 VAC)
SD - INLET W/SHUNT/SHUT-OFF (24 VDC)
ZL - ZERO LEAK SHUT-OFF INLET (115 VAC)
ZF - ZERO LEAK SHUT-OFF INLET (24 VDC)
DIVIDER VALVE ACCESSORY OPTIONS*
P - ASSEMBLY OF PERFORMANCE INDICATORS IN ALL WORKING OUTLETS
B - ASSEMBLY OF PERFORMANCE INDICATORS AND CHECK VALVES IN ALL
WORKING OUTLETS
C - EXTERNAL CHECK VALVES IN ALL WORKING OUTLETS
E - SPP END SECTION W/PLUG IN 1/8-27 NPSF PORT FOR MANUAL LUBE FITTING 563279 - (510-770-332)
*Options P, B, and C indicated additional accessories; those accessories were to be specified
as a separate line item.
NUMBER OF SECTIONS
3 - THREE
4 - FOUR
5 - FIVE
6 - SIX
7 - SEVEN
8 - EIGHT
VALVE CAPACITY MS VALVE BLOCK
BP - BYPASS
05 - .005 cu.in. (.082 cm3)
10 - .010 cu.in. (.164 cm3)
15 - .015 cu.in. (.246 cm3)
20 - .020 cu.in. (.328 cm3)
25 - .025 cu.in. (.410 cm3)
30 - .030 cu.in. (492 cm3)
35 - .035 cu.in. (.574 cm3)
40 - .040 cu.in. (.656 cm3)
TYPE OF VALVE BLOCK
1. Right/Left Hand determined when
viewing front of divider valve assembly.
(Divider valve assembly placed on flat
surface with inlet at top.)
2. Valves are specified starting from
inlet section.
3. When valve is crossported, its outlet is
plugged and output is diverted to next
valve away from inlet.
4. Last valve in divider assembly, farthest
from inlet, cannot be crossported.
5. Single valve can be crossported on one
side only.
6. When valve is a single, only one outlet
in its subplate can be used, other outlet
must be plugged.
7. Cycle pins are available on MSP (20, 25,
30, 35, and 40) valves only.
8. All divider valve assemblies must have a
minimum of 3 working valves.
9. Bypass block cannot be supplied on
divider valve with 3 subplates. Bypass
block is not a working valve.
10.Divider systems should be limited to
first and second stages only. Third
staging is not recommended. Refer to
Trabon Bulletins L20101, L20105,
and L20115 for further information on
system design.
T - TWIN VALVE
S - SINGLE VALVE - RH OUTLET
L - SINGLE VALVE - LH OUTLET
B - TWIN VALE W/CYCLE PIN RIGHT
C - SINGLE VALVE W/CYCLE PIN RIGHT - RH OUTLET
D - SINGLE VALVE W/CYCLE PIN RIGHT - LH OUTLET
H - TWIN VALVE W/CYCLE PIN LEFT
J - SINGLE VALVE W/CYCLE PIN LEFT - RH OUTLET
K - SINGLE VALVE W/CYCLE PIN LEFT - LH OUTLET
CROSSPORTING OPTION
CR - RIGHT HAND SIDE
CL - LEFT HAND SIDE
CB - BOTH SIDES
Caution
Legacy Ordering Example
5-section MSP Divider Valve Assembly, standard seals, SAE ports and
performance indicators in each working outlet. Consisting of:
1 - .030 Twin Valve with Cycle Pin Right Side
1 - .040 Single Valve - Crossport Right Side
1 - .040 Single Valve - Right Hand Outlet
1 - .020 Twin Valve
1 - Bypass Block
Ordering Code - MSP-SAE-MS-P-5-30B-40SCR-40S-20T-BP
BY P
Page 10
MSP Modular Divider Valves
L10102
Graco® has applied automatic lubrication
technology to a world of needs –
including yours!
Automated systems improve safety. Maintenance personnel do
not have to lubricate dangerous machinery. Operators have less
exposure to oil and lubricants on equipment and floor.
Graco systems require minimum attention. Filling the reservoir and
periodic inspections are the only routine maintenance required.
Graco's precise lubricant delivery eliminate lubricant waste, product
contamination and heat buildup from excessive viscous shear.
Lube delivery to machines in motion is often superior to static
lubrication. Oil and grease are forced into the load area to coat
wear points.
Surges, vibrations, and other erratic operations are reduced with
automatic lube systems. This minimizes risk of damage to equipment,
products and personnel.
Graco's automated systems deliver lubricant to vital mechanisms,
prolonging equipment life and reducing downtime.
Page 11
Your solution is at hand.
Our years of engineering innovative lubrication technology,
plus our worldwide network of distributors means that the
components you need are probably in stock right now. This
inventory of proven components allows distributors and
factory engineers to design a truly customized system using
economical on-the-shelf parts.
New or upgrade, Graco has the applied
technology.
Whether you are considering new equipment or upgrading
an existing system, count on Graco for the applied lubrication
technology to meet your need with a minimum of hassle and
investment. Call on our unparalleled customer support for fast,
efficient design, installation, maintenance and troubleshooting
assistance, or to get the name of your nearest full-line, factorytrained distributor.
Contact us today!
To receive product information or talk with a Graco representative,
call 800-533-9655 or visit us online at www.graco.com.
©2016 Graco Inc. L10102 Rev. C 03/16 All other brand names or marks are used for identification purposes and are trademarks of their respective owners. All written and visual
data contained in this document are based on the latest product information available at the time of publication. Graco reserves the right to make changes at any time without notice.

* Your assessment is very important for improving the workof artificial intelligence, which forms the content of this project
