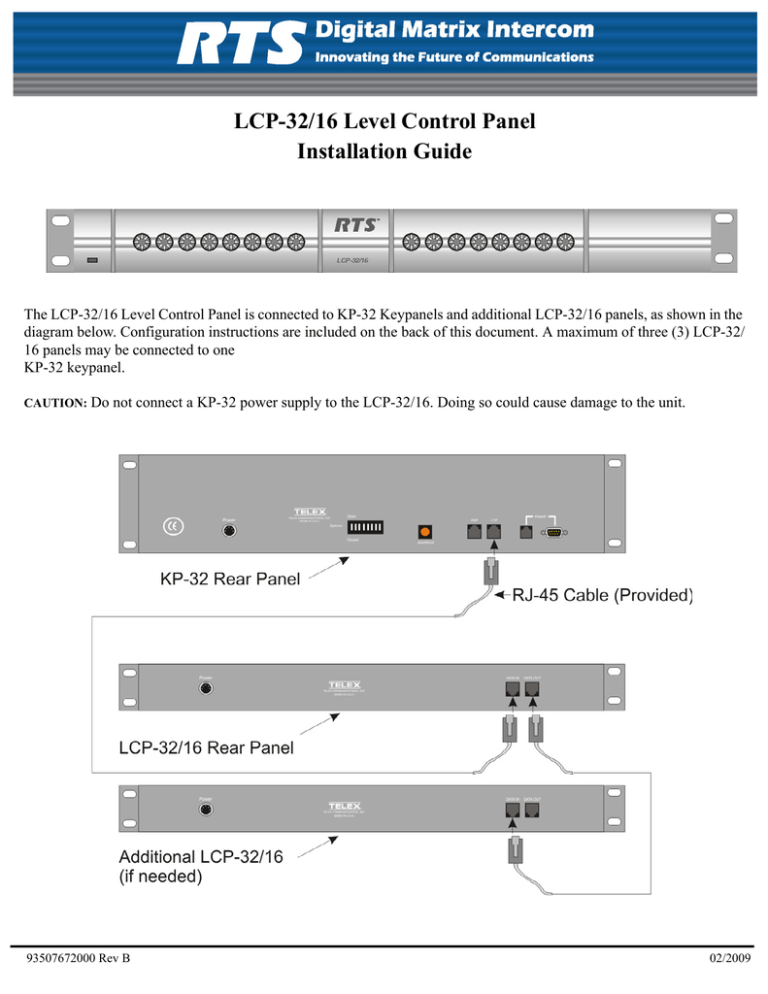

LCP-32/16 Level Control Panel
Installation Guide
The LCP-32/16 Level Control Panel is connected to KP-32 Keypanels and additional LCP-32/16 panels, as shown in the
diagram below. Configuration instructions are included on the back of this document. A maximum of three (3) LCP-32/
16 panels may be connected to one
KP-32 keypanel.
CAUTION: Do
not connect a KP-32 power supply to the LCP-32/16. Doing so could cause damage to the unit.
93507672000 Rev B
02/2009
The LCP-32/16 can be connected to a KP-32 and used without any additional intervention. Up to three (3) LCP-32/16
panels can be connected. They are assigned in order of their connection. The first LCP-32/16 connected to a KP-32 is
assigned (by default) to keys 1-16. The second LCP-32/16 is connected to the first LCP-32/16 and is assigned (by
default) to keys 17-32. The third LCP-32/16 is connected to the second LCP-32/16 and is assigned (by default) to keys
33-48. The only time the KP-32 needs to be configured for use with an LCP-32/16 is when the KP-32’s LCP-32/16
settings have changed from their defaults, or when you need to change the settings from their defaults, such as when an
LCP-32/16 is only needed on keys 17-32.
To change the LCP-32/16 configuration on the KP-32, do the following:
1.
2.
3.
4.
5.
6.
7.
8.
9.
10.
11.
Press the MENU key.
Display appears in the CWW (Call Waiting Window).
Press the ↓↓ to scroll to Service.
Press the PGM key.
Aux Inputs appears in the CWW.
Press the ↓↓ to scroll to LCP-32.
Press the PGM key.
1-16: Yes or 1-16: Skip appears in the CWW.
Enable or disable the LCP-32/16 key assignments by using the FWD key.
Press the ↓↓ agian and 17-32: Yes or 17-32: Skip appears in the CWW.
Enable or disable the LCP-32/16 key assignments by using the FWD key.
Press the ↓↓ again and 33-48: Yes or 33-48: Skip appears in the CWW.
Enable or disable the LCP-32/16 key assignments by using the FWD key.
Press the CLR key to exit the menu.
93507672000 Rev B
02/2009
