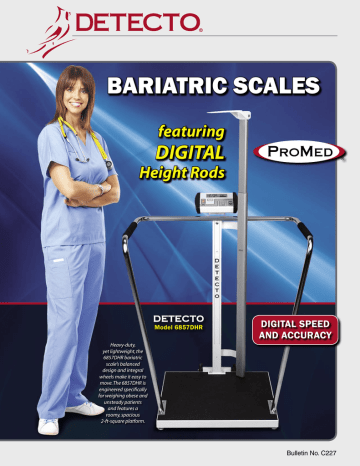

BARIATRIC SCALES DIGITAL featuring Height Rods

BARIATRIC SCALES DIGITAL featuring Height Rods
BARIATRIC SCALES
featuring
DIGITAL
Height Rods
DETECTO
Model 6857DHR
DIGITAL SPEED
AND ACCURACY
Heavy-duty,
yet lightweight, the
6857DHR bariatric
scale’s balanced
design and integral
wheels make it easy to
move. The 6857DHR is
engineered specifically
for weighing obese and
unsteady patients
and features a
roomy, spacious
2-ft-square platform.
Bulletin No. C227
DETECTO DIGITAL BARIATRIC SCALES
-- WITH DIGITAL HEIGHT RODS --
DIGITAL WEIGHT • HEIGHT • BMI
The 6857DHR and 6854DHR ProMed®
bariatric scales are designed for optimum
performance and display weight, height,
and BMI simultaneously (shown below) by
simply raising the digital height rod while
a patient is being weighed on the scale.
There are no keys to push, no operational
sequences to memorize, it’s fully automatic. These bariatric scales are EMRready with their USB and serial ports. The
ability to print or save weight data with
these scales is a real time-saving device
for clinics, doctor’s offices, long-term care
facilities, and other medical institutions.
VERSATILE CONNECTIVITY
Detecto's state-of-the-art 758C
digital weight indicator includes
DB9 serial, USB, or optional
Ethernet output for data transfer
to a printer or a PC-based EMR
(electronic medical record)
software program. With the time/
date feature, the scale can send the
weight, time, date, BMI (Body Mass
Index), and height directly to a
printer or a PC for record keeping.
► Digital measurement speed and accuracy
► Stainless steel handrails for assurance
► Integral wheels for quick and easy transport
► Height rod measures up to 6'7" / 200 cm
DETECTO DIGITAL BARIATRIC SCALE SPECIFICATIONS
ProMed® 6857DHR
ProMed® 6854DHR
800 lb x 0.2 lb /
360 kg x 0.1 kg
600 lb x 0.2 lb /
270 kg x 0.1 kg
24" x 24" / 61 cm x 61 cm
18" x 14" / 46 cm x 36 cm
85 lb / 39 kg
74 lb / 34 kg
43" / 110 cm 79" / 200 cm
same
POWER:
6 “C” size alkaline
batteries (not included) or
optional AC adapter
same
DISPLAY:
Liquid Crystal, 0.5"/13
mm high weight readouts
same
Serial, USB,
and optional Ethernet
same
CAPACITIES:
PLATFORM SIZE:
SHIPPING
WEIGHT:
DIGITAL
HEIGHT ROD
MEASUREMENTS:
DETECTO
Model 6857DHR
CONNECTIVITY
PORTS:
DETECTO
Model 6854DHR
Detecto Scale reserves the right to improve, enhance, or modify features and specifications without prior notice.
DETECTO
Sold By:
®
A Division of Cardinal Scale Manufacturing Co.
203 E. Daugherty, Webb City, MO 64870 USA
Ph: 417-673-4631 or 1-800-641-2008 Fax: 417-673-5001
www.Detecto.com
© Copyright 2009 Cardinal Scale Mfg. Co.
• Printed in USA • CAR/00/0609/C227
